US Navy HF & MF Receivers - 1950's & 1960's

Be patient and check back often - this project is just getting started!



1950's & 1960's individual HF & MF receivers

HF/MF Receivers

AN/FRR-22
(R-502/FRR-22)

MF shore version of SRR-12
w/ rack mount + EXT OSC input

FRR-22 with AGC off-norm

0.25-8 mc - 29 tubes

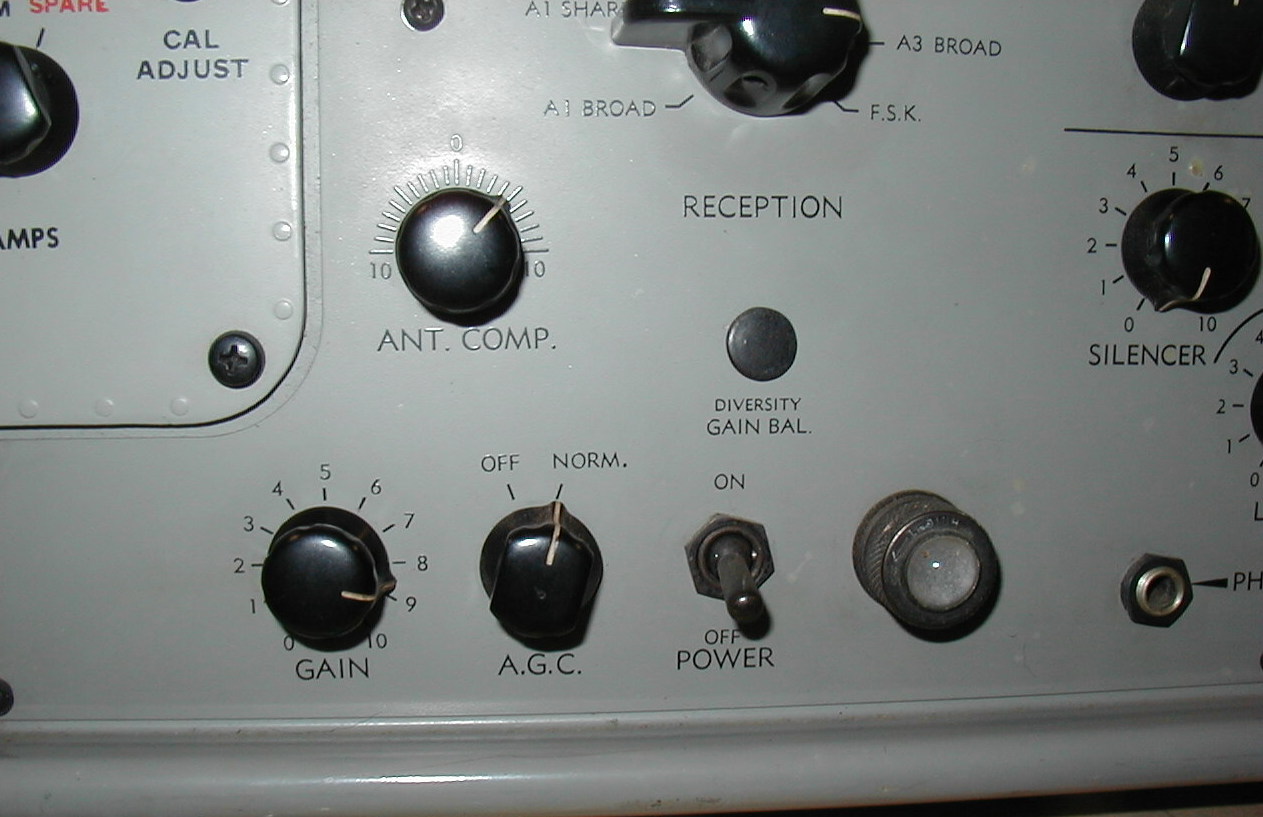

FRR-22 showing AGC off-norm instead of standby switch

RCA

NAVSHIPS 92211

info/photos

manual

frr22-1309-01.jpg (359500 bytes) frr22-1309-02.jpg (304665 bytes) frr22-1309-03.jpg (334265 bytes) frr22-1309-04.jpg (276461 bytes)

AN/FRR-23

HF shore version of SRR-13
w/ rack mount + EXT OSC input



2-32 mc

29 tubes

RCA

NAVSHIPS 92211

info/photos

manual

AN/FRR-48(XW-1)

HF DSB/SSB Receiver 2-32 mc
Prototype Only

General Electric model XSDR-1

Synthesized, synchronous detection, direct conversion

See this paper for much more info

And this article for a history of the developmentLeft to Right- Bill Jones, Dr. John Costas, Roger Swanson, Jack Cunnif
Bill Jones, Dr. John Costas, Roger Swanson, Jack Cunnif

Bottom of RF chassis by Bill Jones
Bottom of RF chassis by Bill Jones
Top of RF chassis by Bill Jones
Top of RF chassis by Bill Jones
Top of Synthesizer by Roger Swanson
Top of Synthesizer by Roger Swanson
Bottom of Audio, Alpha-Beta and Audio by Jack Cunnif
Bottom of Audio, Alpha-Beta and Audio by Jack Cunnif

AN/FRR-59
AN/FRR-59A
AN/FRR-59B

AM-2477/URR amplifier - detector

CV-920/URR converter - RF tuner


HF shore version of  WRR-2()

more FRR-59 photos


2-32 mc
1.0 kc tuning (59)
0.5 kc tuning (59A,B)
Wadley loop - 65 tubes


National (59, 59A)
Arvin (59B)

info/photos

diagram

restoration

downloadable manual






AN/MRR-2

MF mobile or transportable use
AN/SRR-12 with waterproof case
115vac or 24vdc
0.25-8 mc RCA

AN/MRR-3
need photo - looks like MRR-2

HF mobile or transportable use
AN/SRR-13 with waterproof case
2-32 mc RCA

AN/SRR-12

MF shipboard version of FRR-22 0.25-8 mc

29 tubes

RCA

info/photos

manual

Navships 91875

AN/SRR-13
AN/SRR-13A
(R-441/SRR-13)

SRR-13

SRR-13

HF shipboard version of FRR-23
2-32 mc, 29 tubes

SRR-13A with AGC off-norm switch

SRR-13A with standby switch


SRR-13A showing AGC off-norm instead of standby switch

RCA, Magnavox

info/photos

Navships 91875 - manual pdf

article in Electric Radio magazine
- July 1991 p 4


SRR-13A

AN/TRR-5

    R-366/TRR-5
    LS-171/U
    CY-851/TRR-5



Morale MF/HF receiver  - Transportable for use ashore







Manual downloadable from here


trr5-1101.jpg (1760393 bytes) trr5-1102.jpg (1698733 bytes) trr5-1103.jpg (1744672 bytes) trr5-1100.jpg (1670818 bytes)

AN/URR-22
(R-302/URR-22)

need better photo

ship/shore entertainment rcvr
replaces RBO

similar to AN/URR-44


0.54-18.6 mc AM/CW

National

NAVSHIPS 92161 - download

AN/URR-23

R-381/URR-23 (Collins 51J-1) or
R-381A/URR-23 (Collins 51J-2)
CY-1235/URR cabinet
LS-175/U speaker
0.5 - 30.5 mc Collins 51J-1 or Collins 51J-2

Contract NObsr-49134
(15 May 1950)

AN/URR-23A

R-388/URR (Collins 51J-3 variant)
CY-1235/URR cabinet
LS-199/U speaker

photo courtesy of K4NCG

Collins 51J-3 with MFP and modified antenna input ckt ?

0.5 - 30.5 mc

Were all Navy R-388 receivers procured as AN/URR-23A systems?

Click here for R-388 contract info page

R-388 tag showing AN/URR-23A Navy contract number - thanks to W7HDL

Contract NObsr-52527
(22 June 1951)

NAVSHIPS 91678

AN/URR-36

need photo

National HRO-50-1
 with 4 coils (A-D), & speaker
50-430 kc & .05-35 mc   -

AN/URR-36A

need photo

National HRO-50-1
(R-5234/URR-36A)
with 10 coils, xtal calib, speaker & coil storage unit, and rack
50-430 kc & .05-35 mc National

Contract
NObsr-71193

NAVSHIPS 91648

AN/URR-39

AN/URR-39 receiver National NC-183MR
(R-651/URR-39
 with speaker (LS-228/U)
 & rack mount (MT-1529/U)

50-150kc & 0.54-31mc

standard 47-55mc band replaced with VLF band and bandspread replaced with 0-200 logging scale

National - modified NC-183D

standard NC-183D info

manual
r651-urr39-1306-01.jpg (144549 bytes) r651-urr39-1306-02.jpg (215433 bytes) r651-urr39-1306-03.jpg (193123 bytes) r651-urr39-1306-04.jpg (160171 bytes)
r651-urr39-1306-05.jpg (159728 bytes) r651-urr39-1306-06.jpg (184396 bytes) r651-urr39-1306-07.jpg (131642 bytes) --

AN/URR-44
(R-892/URR-44)

ship/shore entertainment rcvr
replaces RBO


0.54-18.6 mc AM/CW


General Instruments

NAVSHIPS 93316 - download

 info & photo

similar to URR-22

AN/URR-51 ?

need photo

R-388A - NAVSHIPS 92324

AN/URR-74(V)




see photos & info here

5kc-30mc

AM (16 or 6 khz), SSB (3.2 khz), RTTY (1 khz) or CW (.3 khz).  There is a mechanical BFO built in that can be adjusted in 10 hz increments using decadic thumbwheels The digital readout is clear and bright and goes to a resolution of 10 hz for precise tuning.



AM FM CW LSB USB ISB
0.3, 1, 3.2, 6, 16 kc bandwidths

Watkins-Johnson

see photos & info here


receivers aboard USS Iowa BB-61
receivers aboard USS Iowa BB-61
Coverage of 5 khz to 30000 khz
Selectivity of 16 / 6 / 3.2 / 1 / .3 khz
BFO of + or - 8 khz and shown in it's own display to the left of the frequency readout
4 Tuning steps
AGC fast / slow / off
Modes of AM / FM / CW / LSB / USB / ISB
AF/S-Meter
115/220 VAC
Digital readout down to 10 hz
Sensitivity of .4uV 16 dB (S+N)/N CW
IF output
RF gain
Headphone and line out jacks
Rack handles

AN/WRR-2
AN/WRR-2A
AN/WRR-2B

upper - AM-2477/URR amplifier - detector
lower - CV-920/URR converter - RF tuner

HF shipboard version of FRR-59()

See FRR-59 block diagrams above

2-32 mc

1.0 kc tuning (2)
0.5 kc tuning (2A,B)
Wadley loop
65 tubes

National (2, 2A)
Arvin (2B)

info/photos

diagram

restoration

downloadable manual



R-274B/FRR

(Hammarlund SP-600-JX-6 or SP-600-J-11 or SP-600-JX-35)


540kc-54mc


Hammarlund

R-274B spec sheet

NAVSHIPS 91661

SP-600 series info

SP-600 manuals

r274b-110619-01.jpg (131262 bytes) r274b-110619-02.jpg (168977 bytes) r274b-110619-03.jpg (195194 bytes) r274b-110619-04.jpg (101892 bytes)

R-274B/FRR "special"

(Hammarlund SP-600-JL-24)
need photo

Hammarlund
 SP-600-JL-24
100-400kc and 1.35-29.7mc Hammarlund

NAVSHIPS 91661

SP-600 series info

SP-600 manuals

R-369/FRC-10
(part of AN/FRC-10A or -10B)
4-28 mc dual channel SSB
- for VF AFSK links



Manual TM 11-780
download pdf version

R-388/URR

photo thanks to Don Smith

Collins 51J-3

Were all Navy R-388 receivers procured as AN/URR-23A systems?

Click here for R-388 contract info page

What's this goofy contract number mean? MIPR 881-47159

Please send e-mail if you can help clarify this - thanks!

Collins

Contract
MIPR-881-47159

TM11-854 / TO16-35R-388-5



R-388A/URR

need photo

NAVSEA manual
Collins 51J-4

Were any 51J-4's actually labeled as R-388A?

Click here for R-388 and R-388A contract info page

Collins

Contract NObsr-69046
(16 Nov. 1956)

NAVSHIPS 92324

R-390/URR



R-390A/URR


Many Navy R-390A units were modified with a green diode load jack on the front panel (FC 4)


Rear panel cover with AN connectors


  R-390A FAQ page

  NAVSHIPS Manual & Field Changes

  info from CT manual



R-391/URR

need to add photo



Auto-tune version of R-390/URR

Used by NAVSECGRU only?
(AN/FRA-44 and AN/FLR-7)

- -

R-450/FRR-28

Hammarlund SP-600 modified by  Northern Radio for AN/FRR-28 diversity system More R-450/FRR-28 photos Hammarlund

SP-600 series info

SP-600 manuals

article in Electric Radio magazine
- Sept 2004, p2

R-618/FRR-32
Need better photo

AN/FRR-23 modified for use in AN/FRR-32 dual diversity system  - RCA

R-825/URR

540 kc - 31 mc


spec sheet

manual

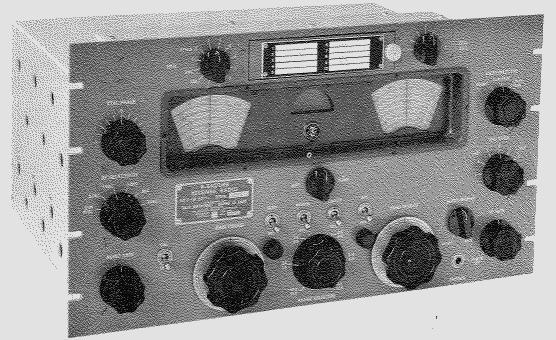

R-840/URR

need better photo

(same as R-825 plus xtal control)
Contract NObsr-71790
540kc-31mc

More photos

spec sheets

manual - NAVSHIPS 93165

R-1051/URR
R-1051A/URR
R-1051B/URR
R-1051C/URR
R-1051D/URR
R-1051E/URR
R-1051F/URR
R-1051G/URR
R-1051H/URR


R-1051 Web Page covering variants and other info

solid state (plus 2 tubes in RF)
late 60's replacement for most receivers


R-1051 Web Page covering variants and other info


R-1051 Web Page covering variants and other info

article in Electric Radio magazine November 1993 p4

R-1414/URR

photo thanks to K1VVC

 HF - solid state  Please send e-mail if you have any more photos or info Sylvania

Manual available from www.manualman.com

R-2174/URR

LF/MF/HF solid state


RACAL RA6790/GM


RACAL

R-2307/U
(Cubic R-3030A)




  • Twin receivers
  • 50 kc to 30 mc range
  • IF outputs of 40.455 mc and 455 kc
  • Highly stable with + or - 1 PPM
  • BFO of + or - 10 kc
  • 100 memory channels per receiver
  • Bandwidths of .5 / 2 / 4 / 8 / 16 kc
  • Operating modes of AM / USB / LSB / CW / FM
  • Tuning resolution to 10 cps
  • IF passband shift from .1 to +/ - 9.99 kc
Cubic R-3030A


R-2368/URR


Variant of Harris RF-590
LF/MF/HF solid state



Harris

R-2557/URC

Variant of Harris RF-590 used in AN/URC-131 HFRG



75A-4
75A-4 (Mod)

75A-4(mod) manual changes -


   75A-4
   Bands (mc)
        1.5 to 2.5
        3.2 to 4.2
        6.8 to 7.8
        14 to 15
        20.8 to 21.8
        26.5 to 27.5
        28 to 29
        29 to 30

  75A-4 (Mod)
  Bands (mc)
        1.5 to 2.5
        3.2 to 4.2
        4.2 to 5.2
        5.2 to 6.2
        6.8 to 7.8
        13 to 14
        14 to 15
        29 to 30
Collins 75A-4 with 0.8, 3.1, 6.0 kc filters
- used by USN in early SSB tests
- other uses??

contracts:
75A-4 NObsr-71287, 27 April 1956
75A-4 (Mod) NObsr-71289, 27 April 1956

Manual NAVSHIPS 92788
