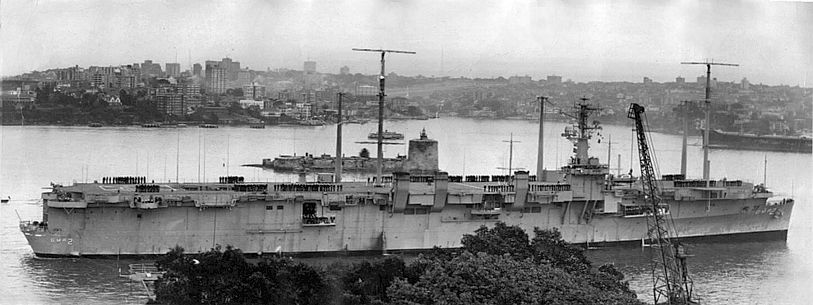

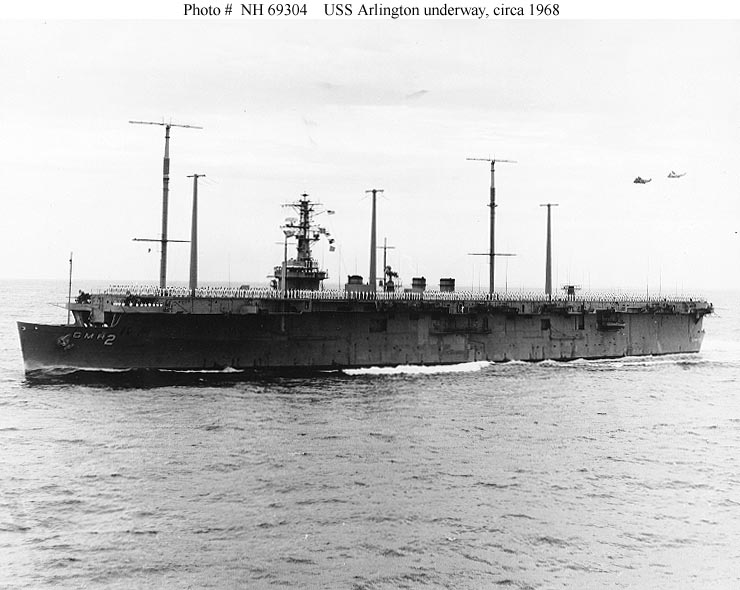

USS Arlington AGMR-2 Communications Major Relay Ship


Annapolis and Arlington were essentially floating Comm Stations with massive antenna arrays and extensive equipment installations to relay messages from local ships or shore stations to distant COMMSTAs. Arlington could simultaneously connect with 3 COMMSTAs with 6 channels for each.

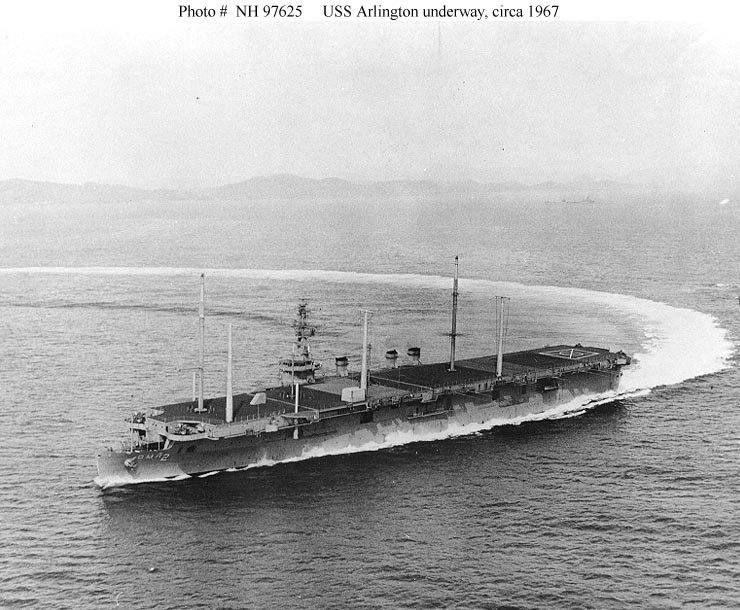

USS Saipan (CVL-48, built 1946) was originally being converted to a command ship CC-3 in 1963. This was changed to a major relay ship AGMR-2 while still in the conversion yard in September 1964. In April 1965 her name was changed to USS Arlington (AGMR-2) and she was commissioned August 1966. Conversion articles - Part 1 - Part 2

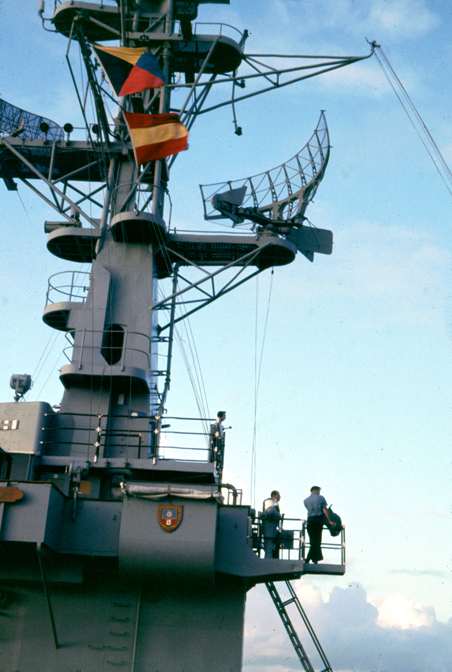

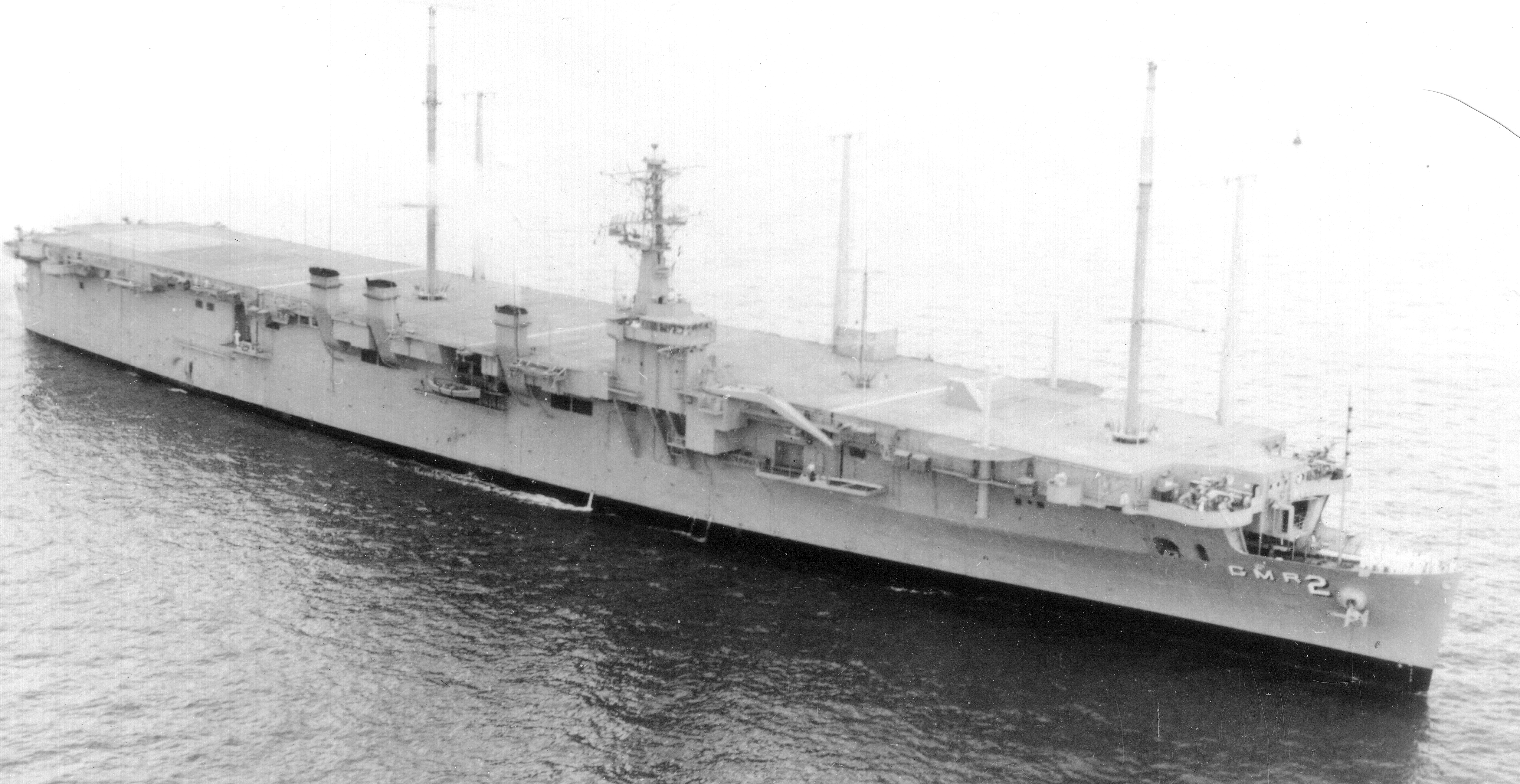

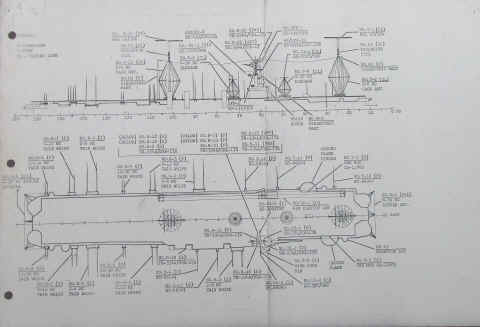

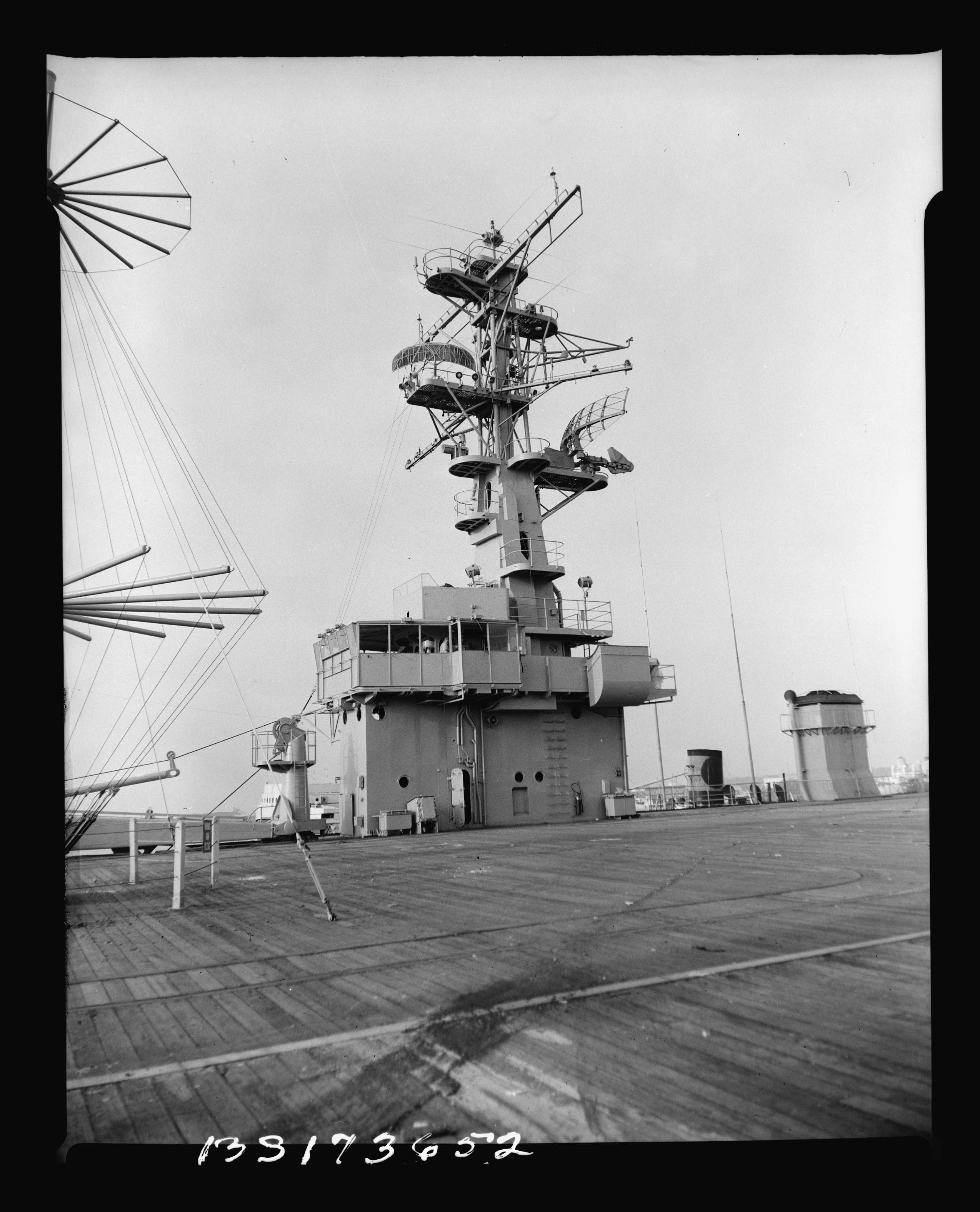

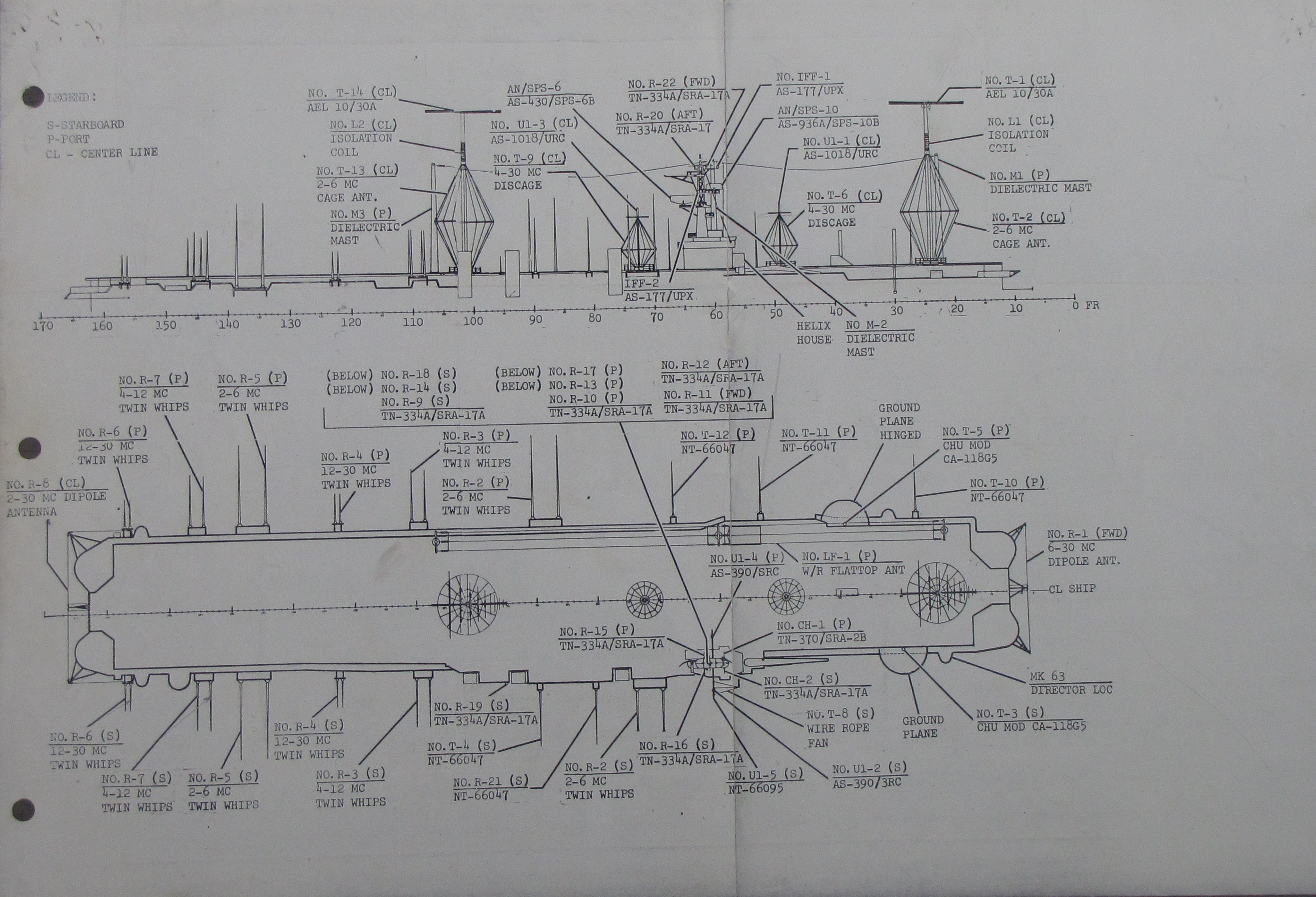

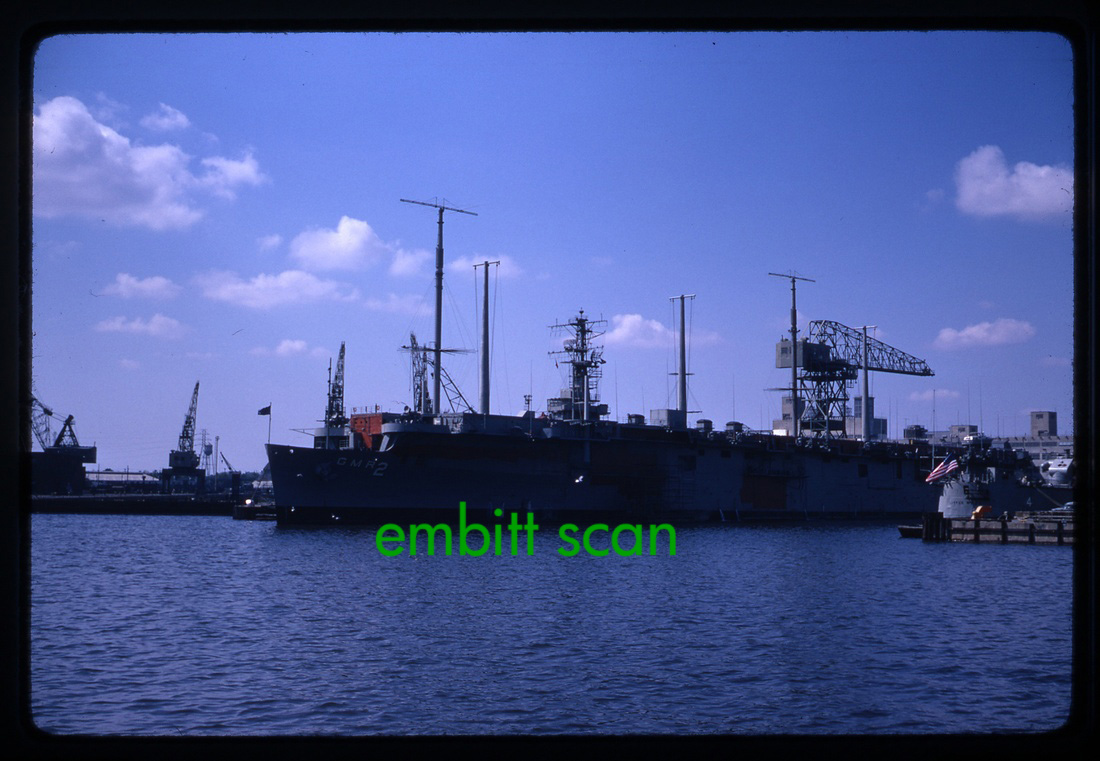

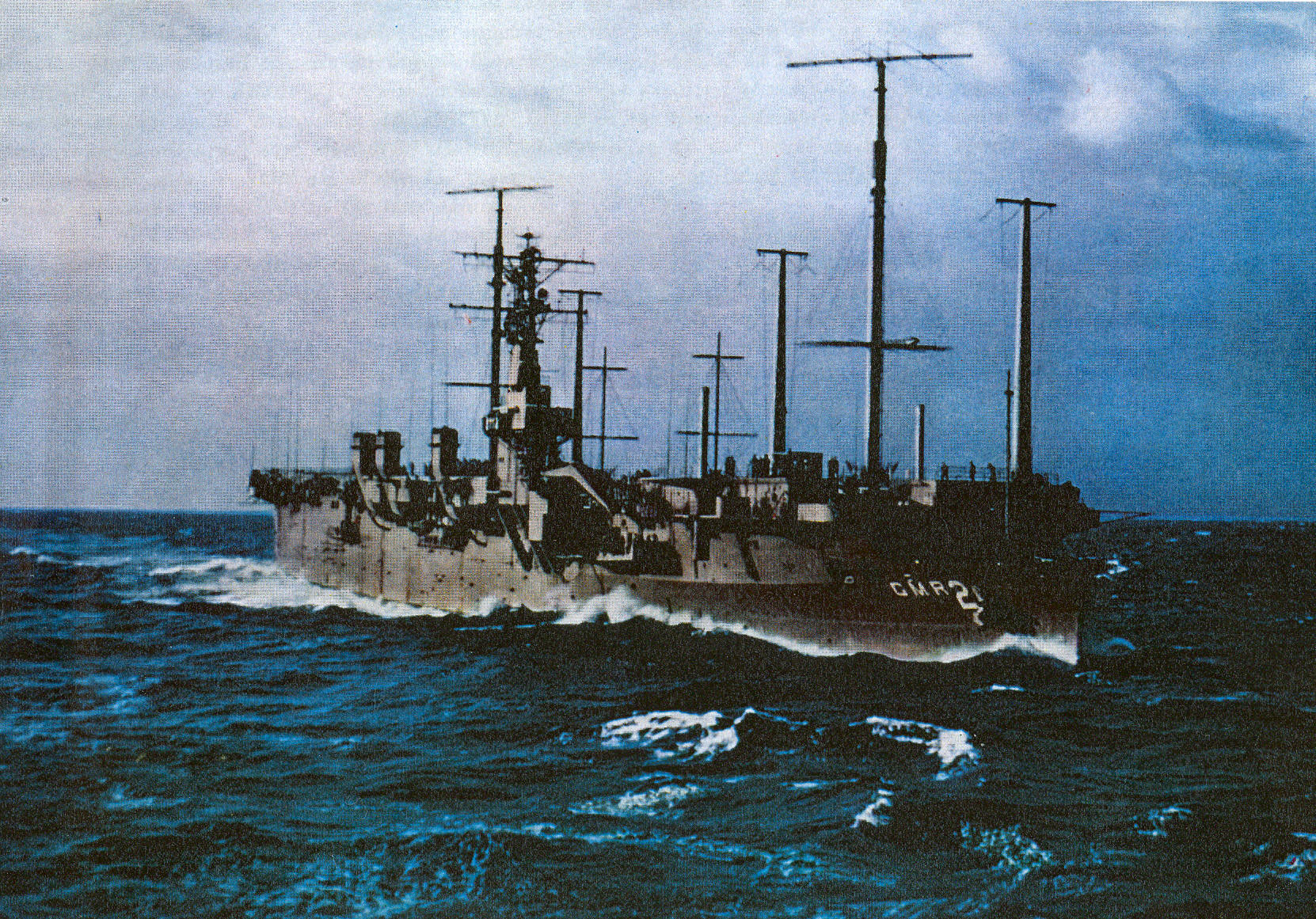

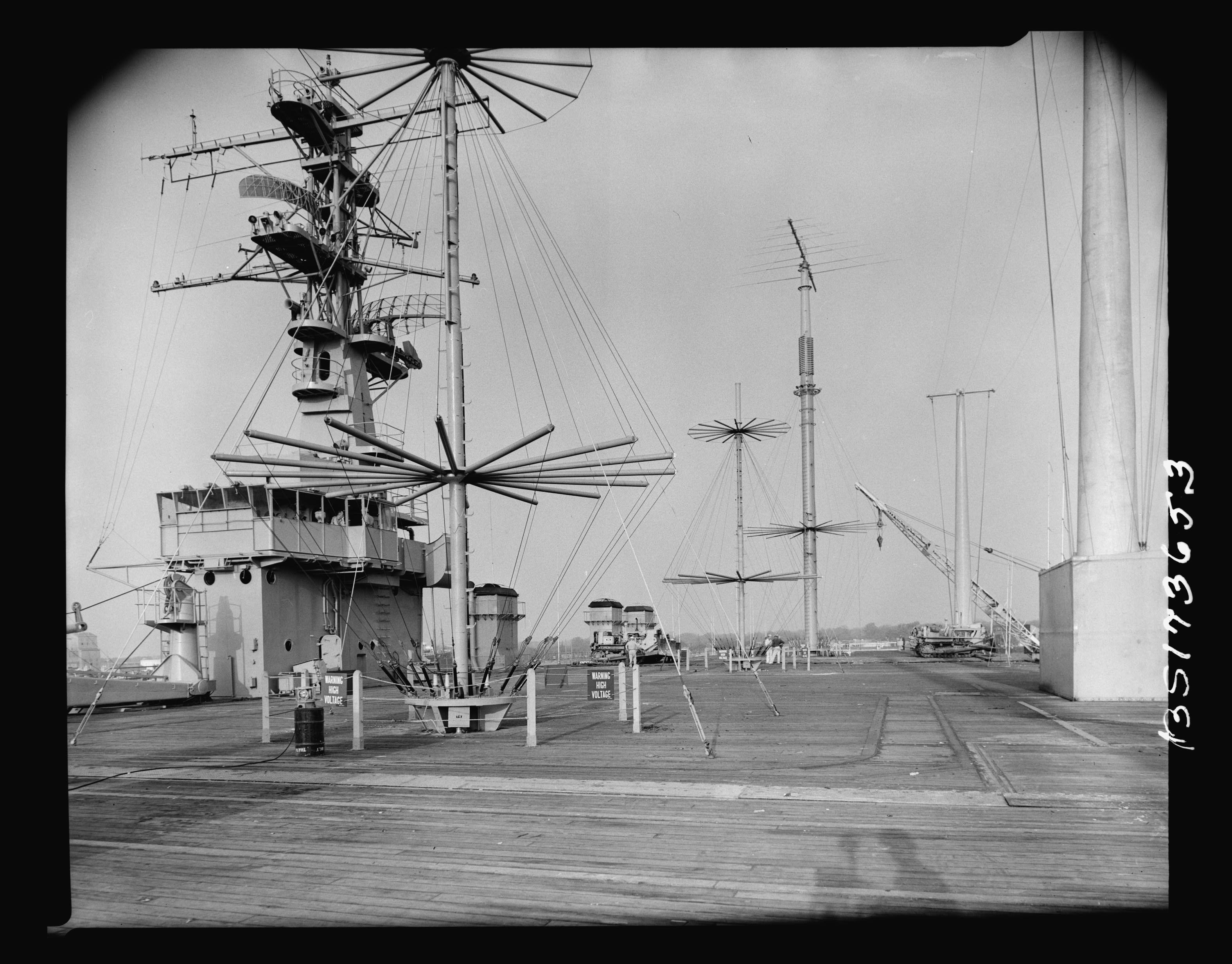

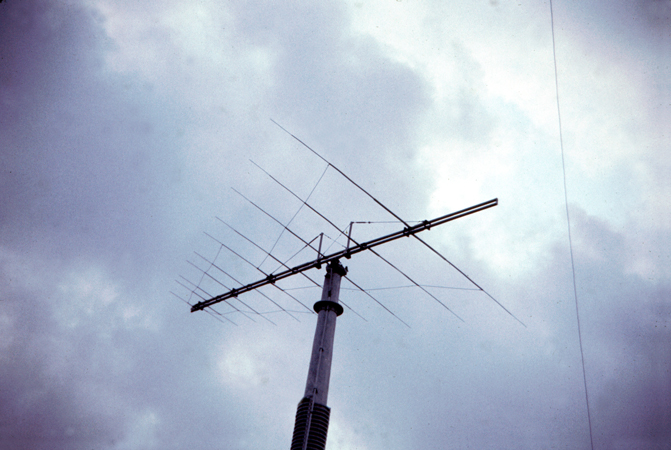

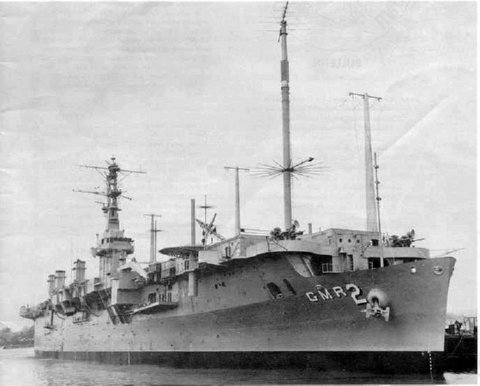

Antennas aboard USS Arlington AGMR-2 (thanks to John KX4P)





Hi-res photo scan

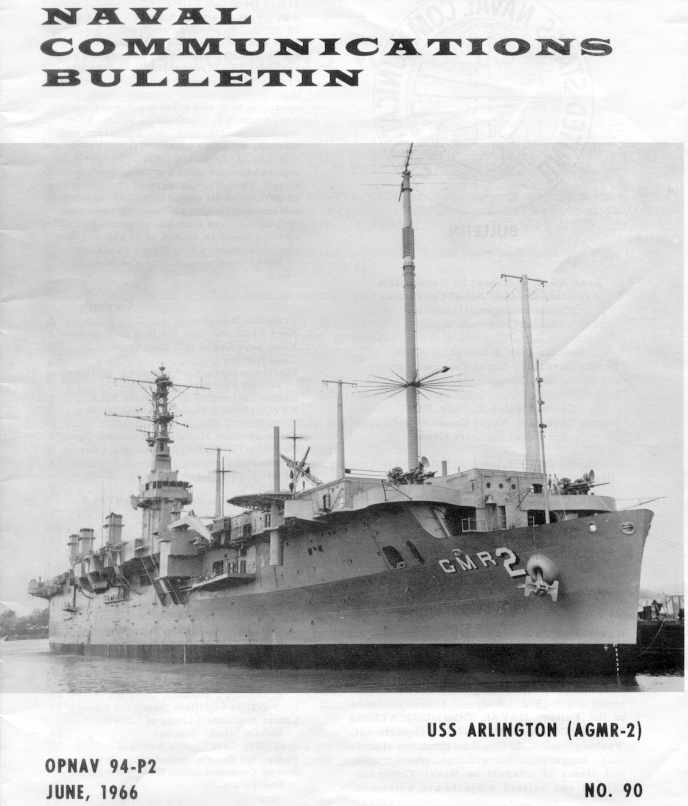

agmr2-1103-03.jpg (32673 bytes) arlington-13.jpg (35481 bytes) arlington-10.jpg (11906 bytes) arlington-02.jpg (15064 bytes)

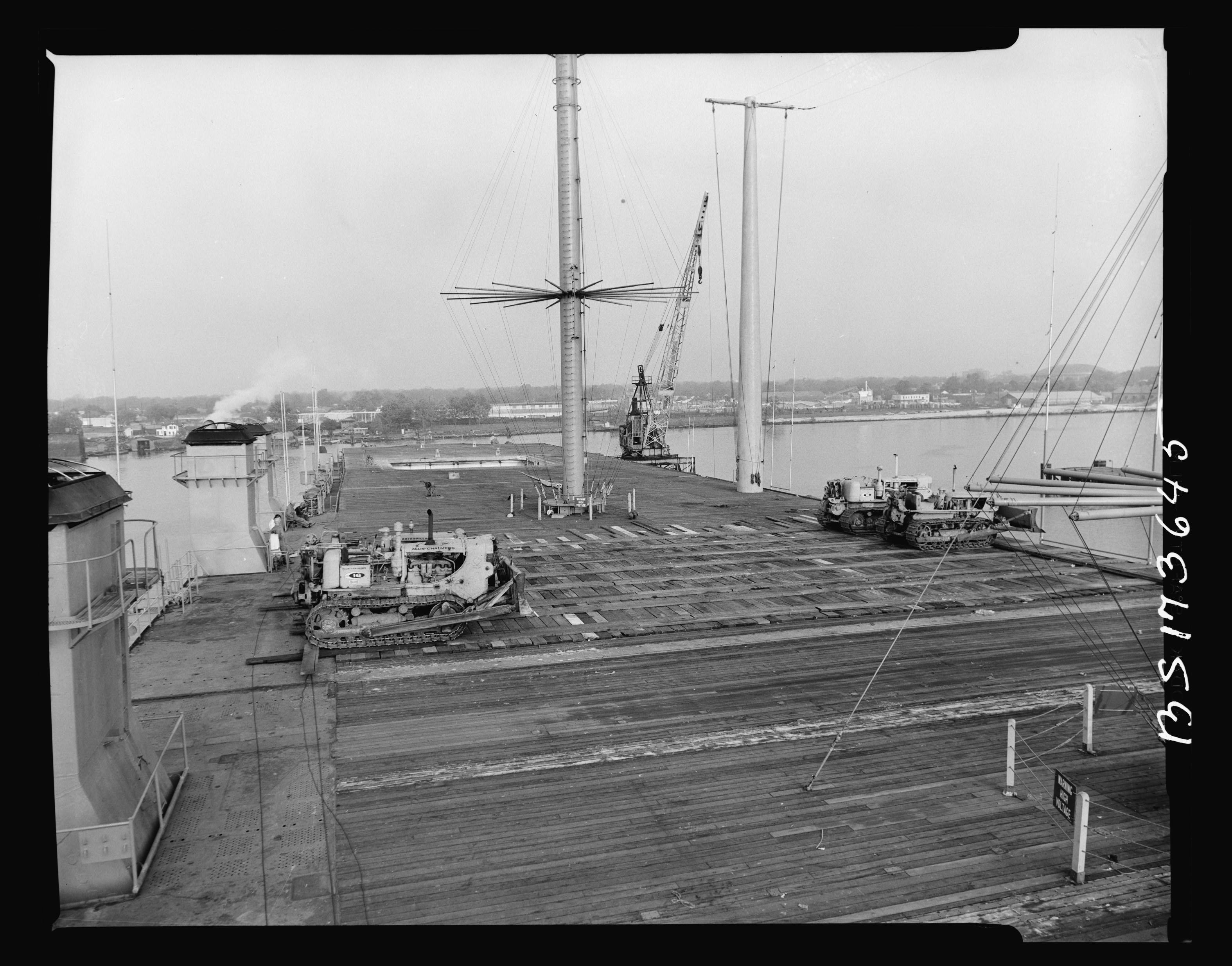

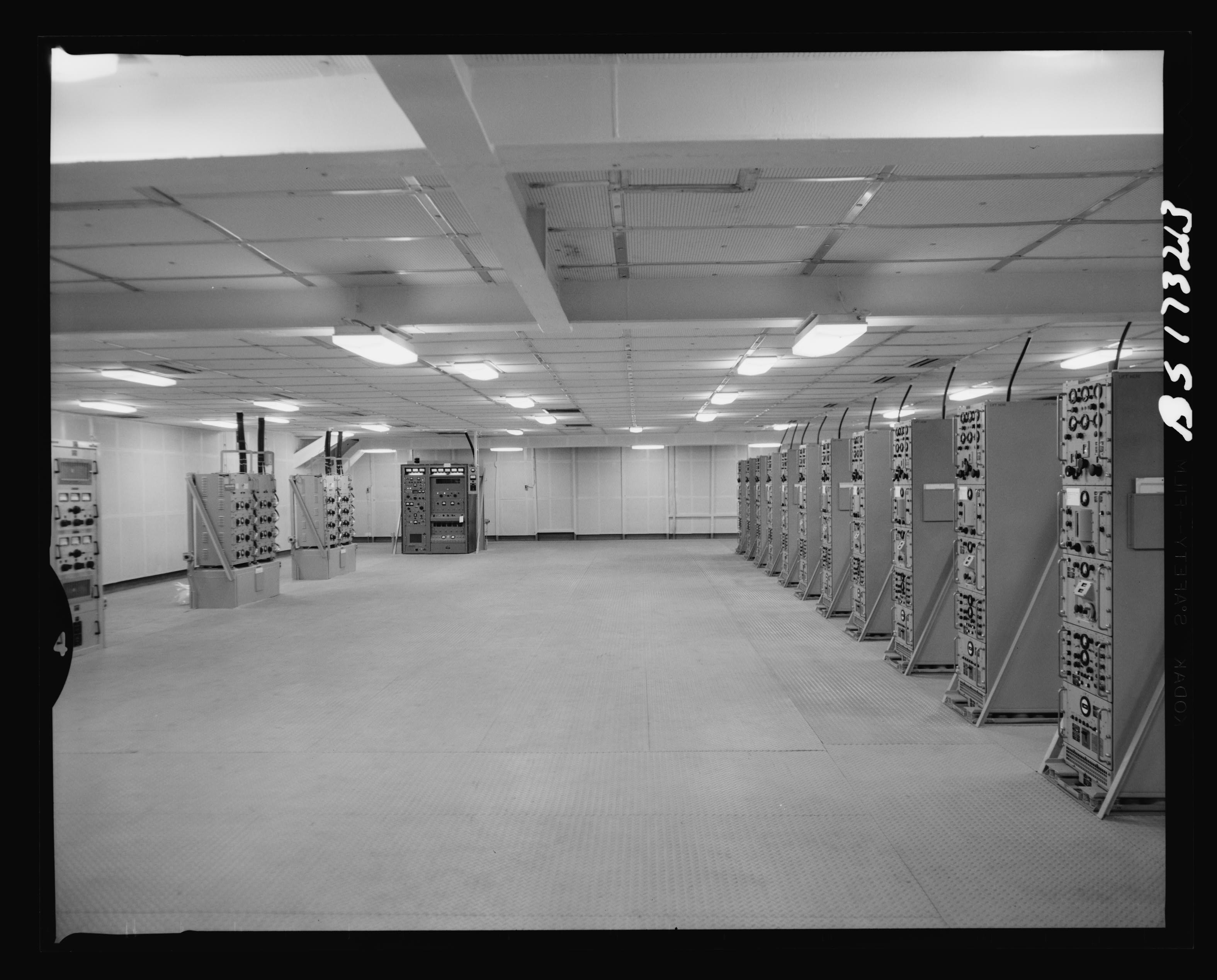

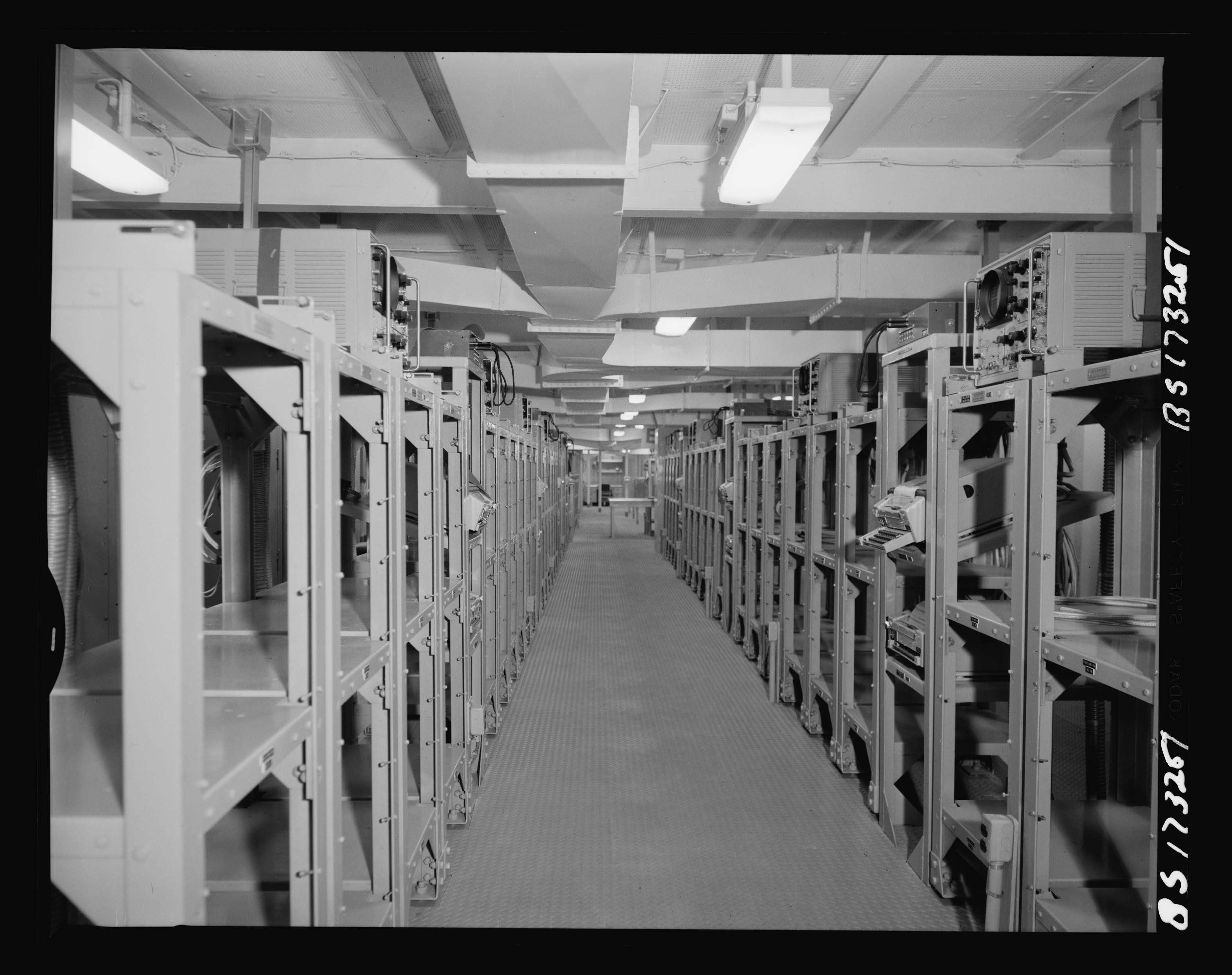

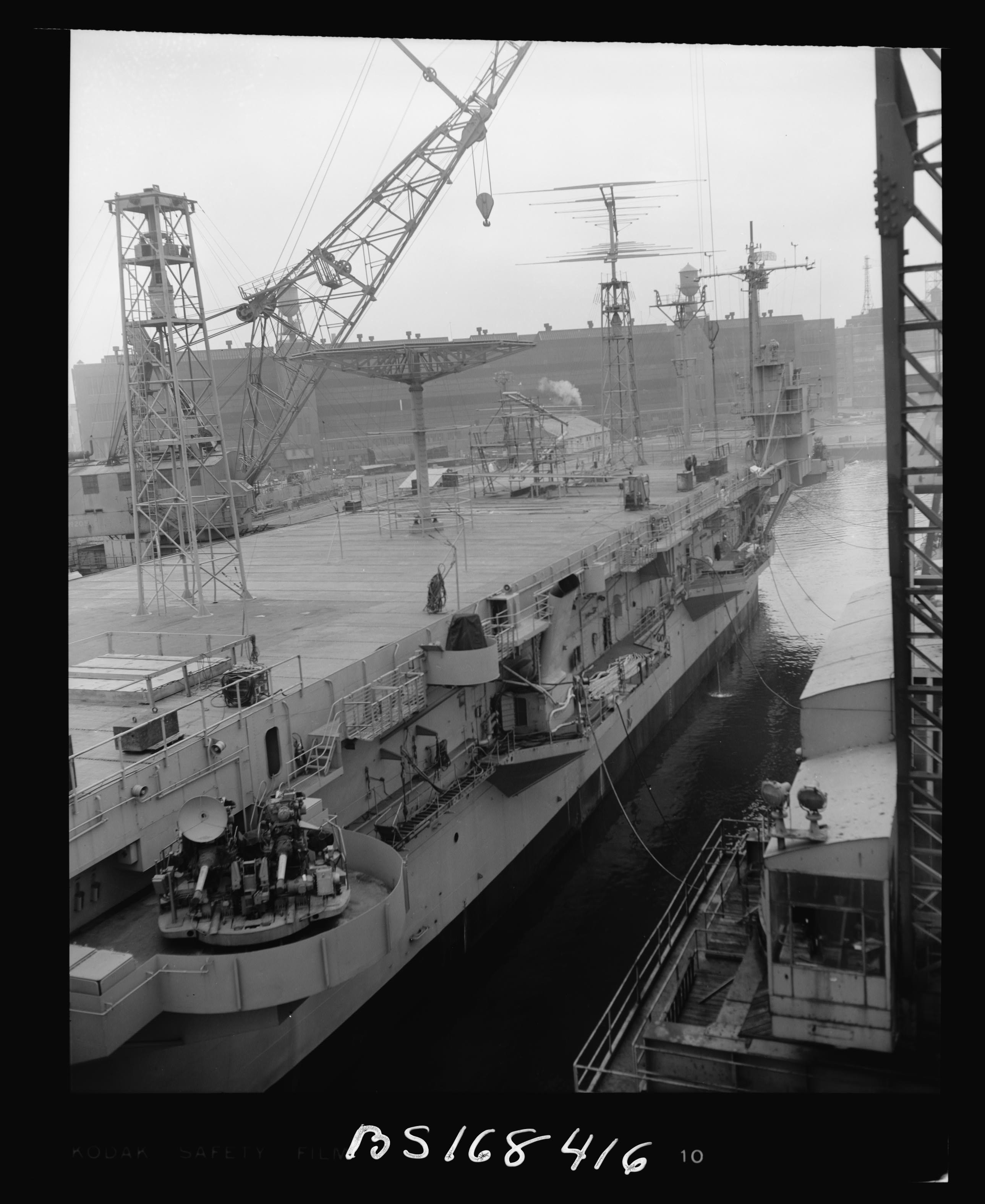

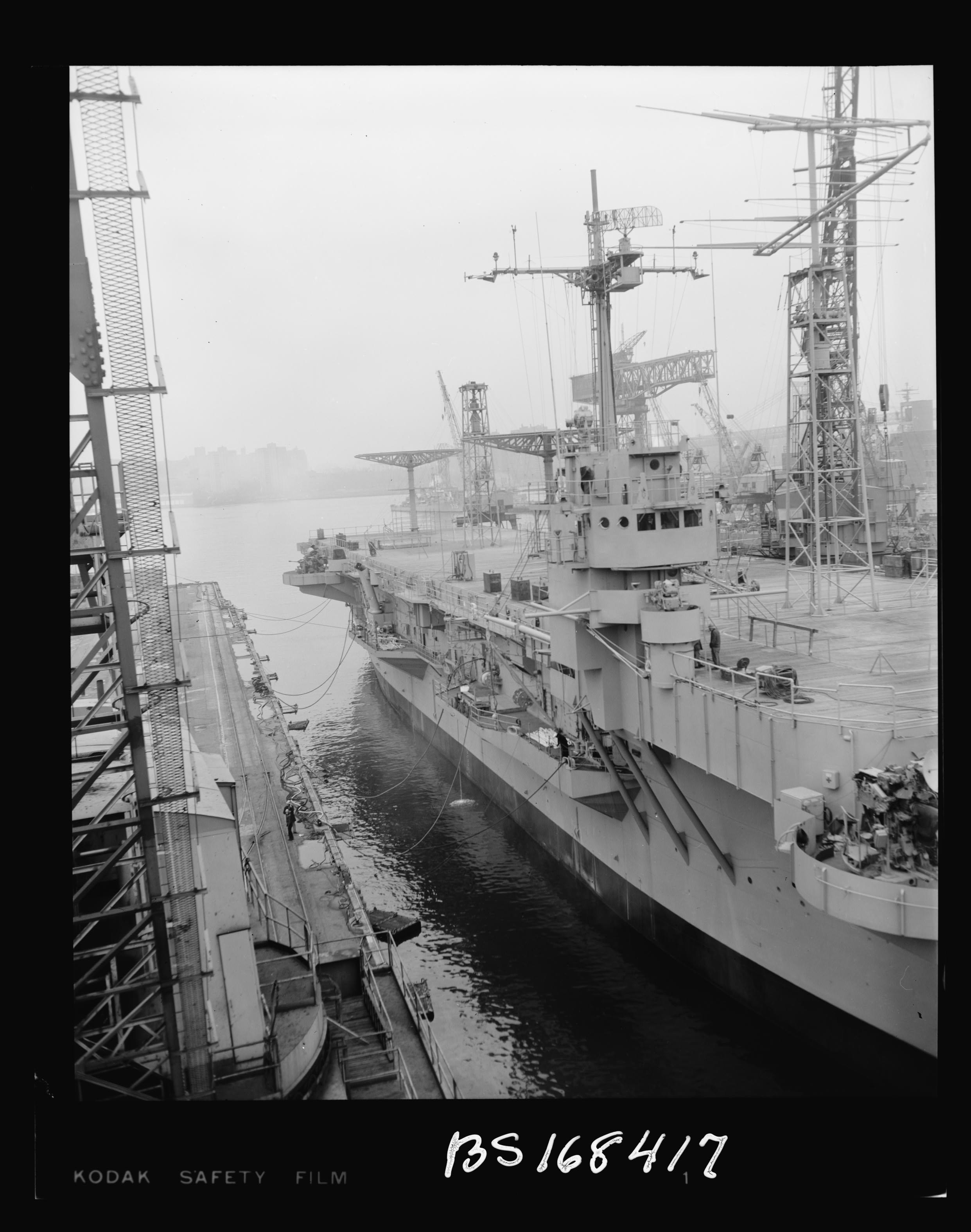

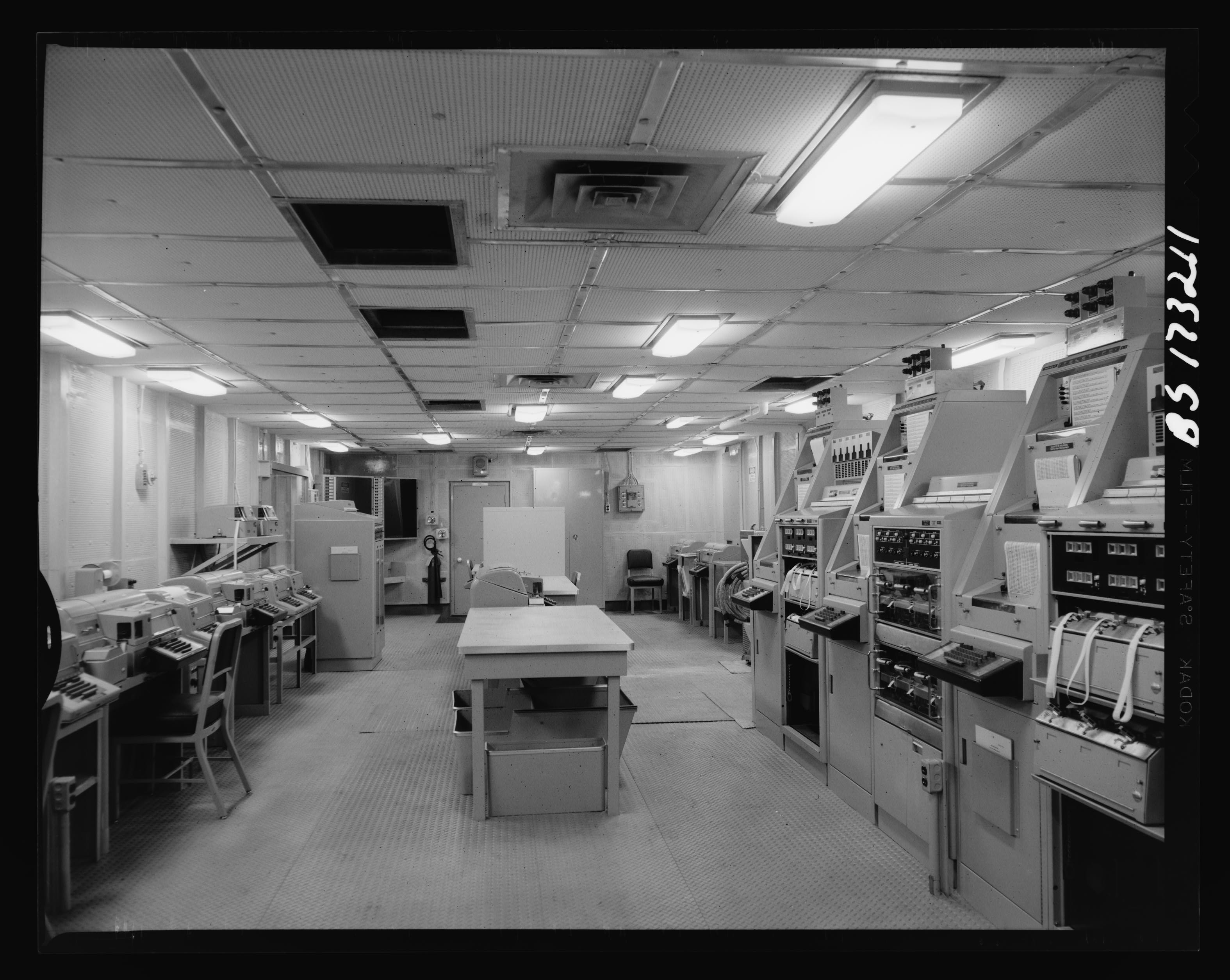

AGMR-2 Photos from National Archives - during construction

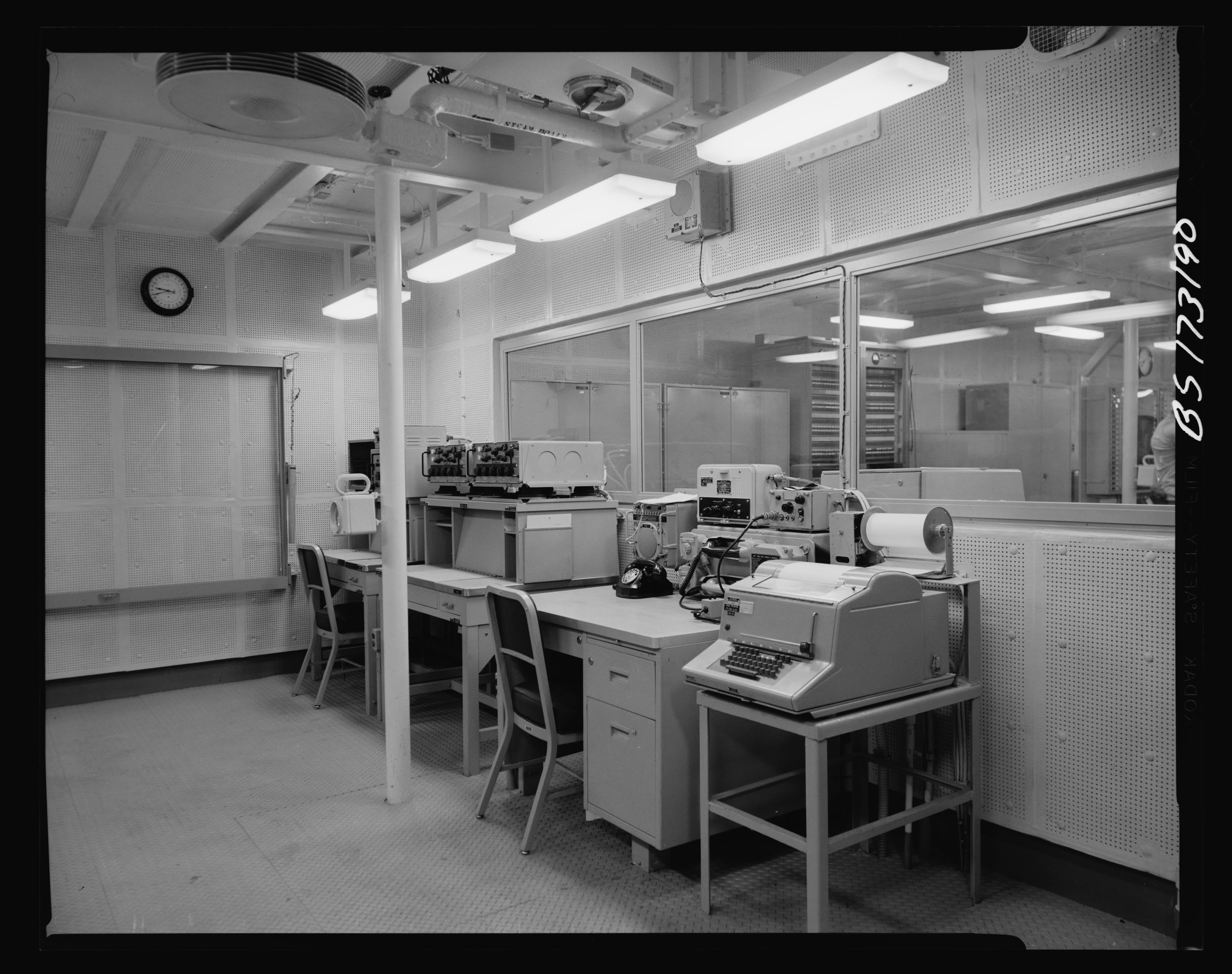

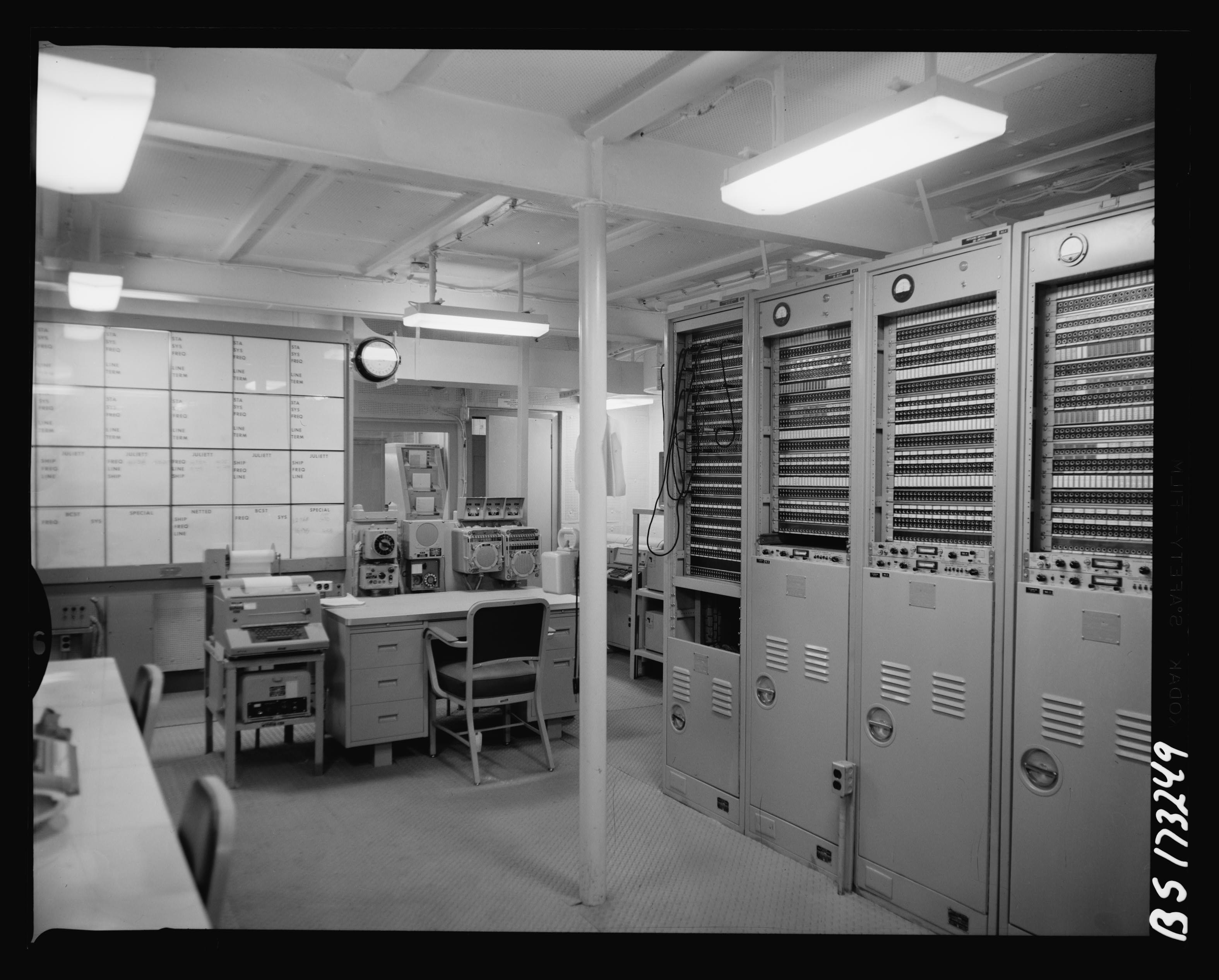

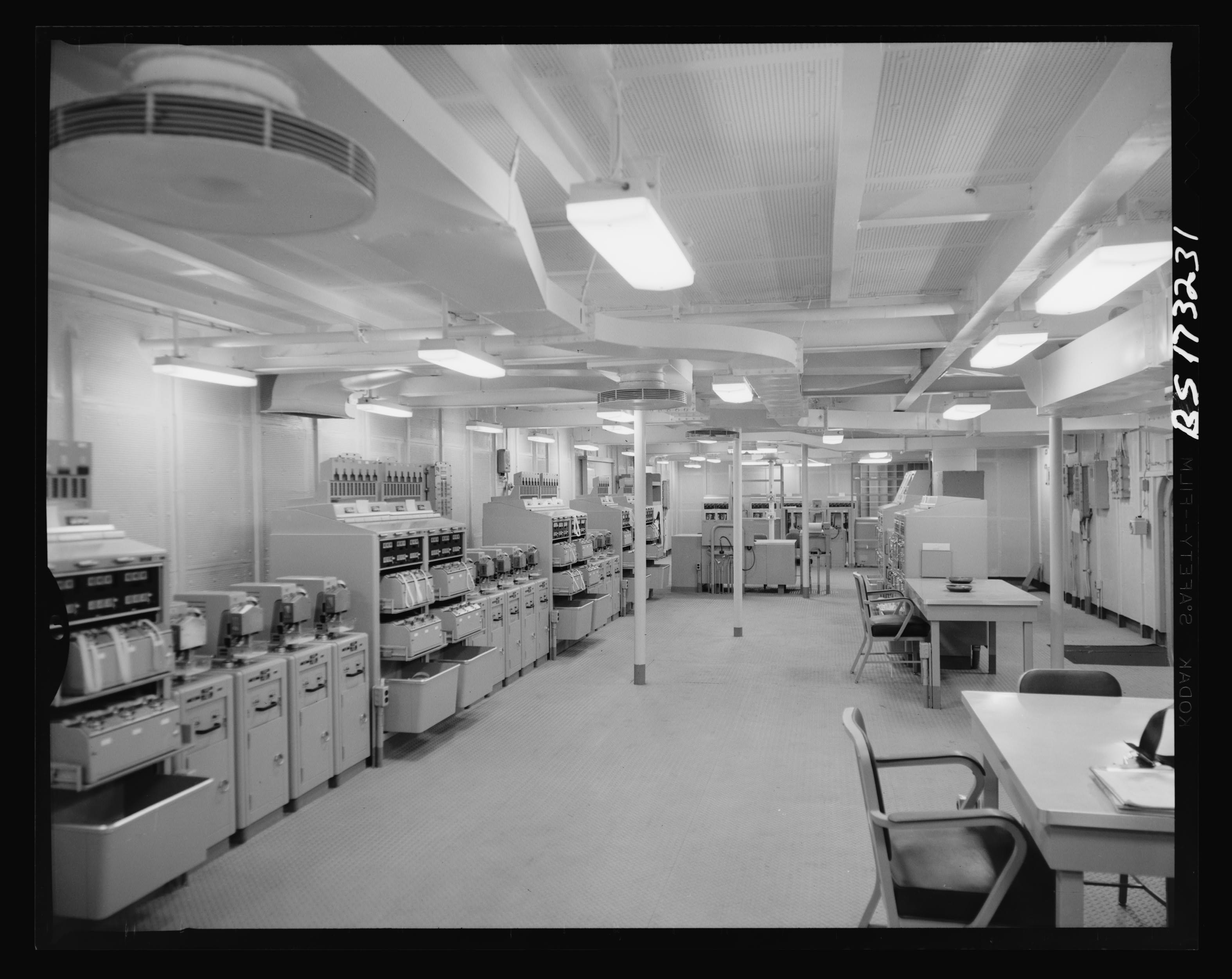

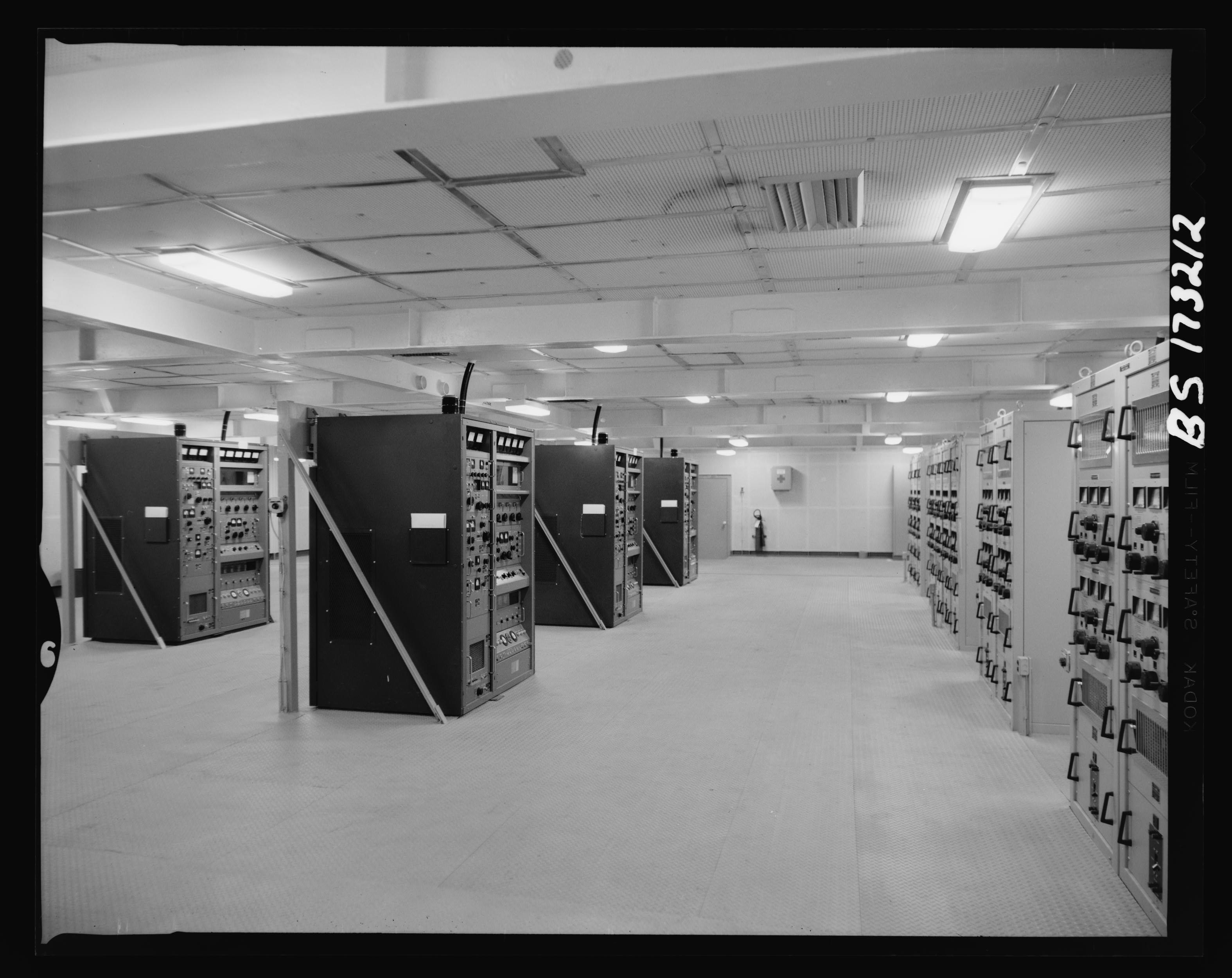

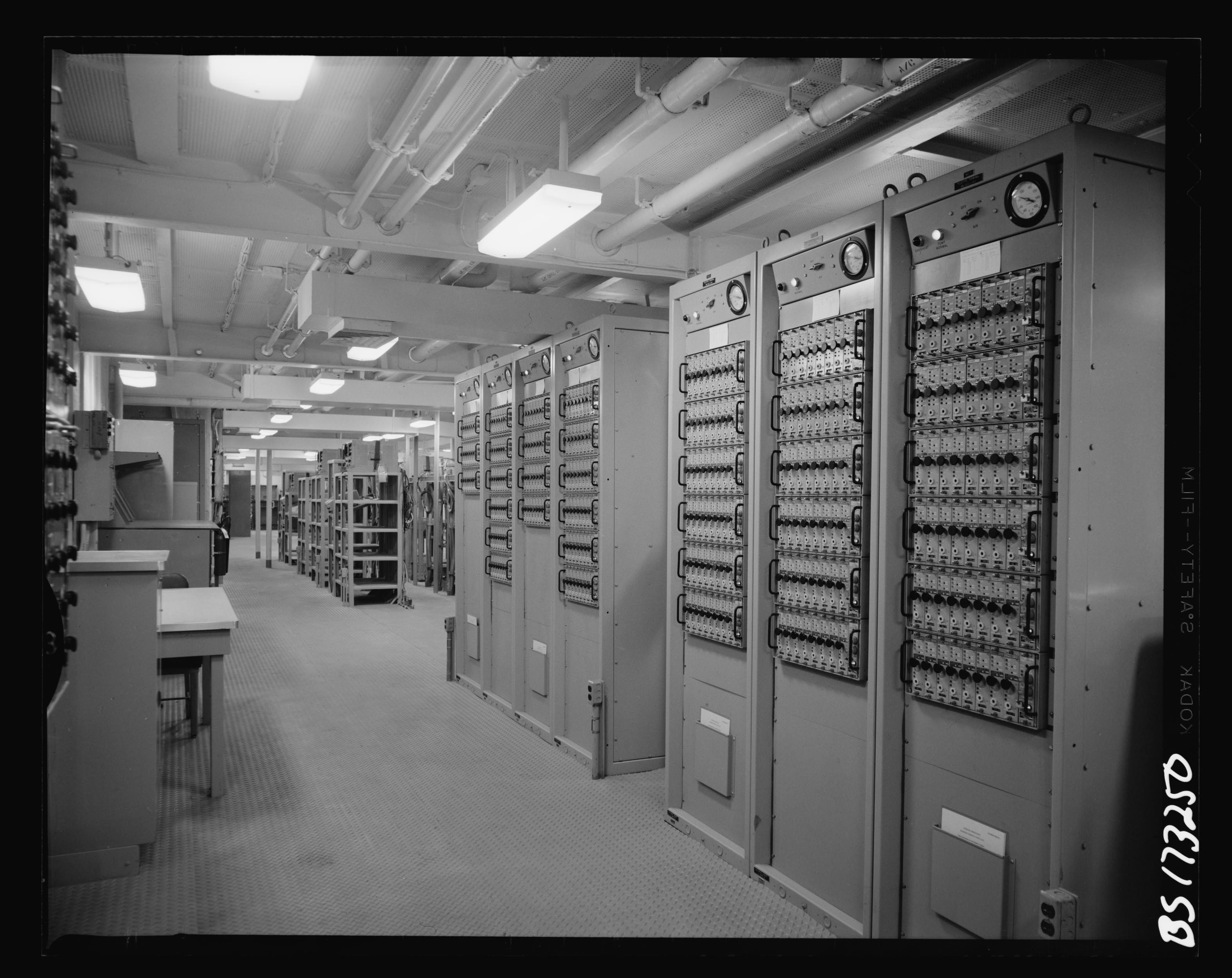

Racks for crypto equipment?

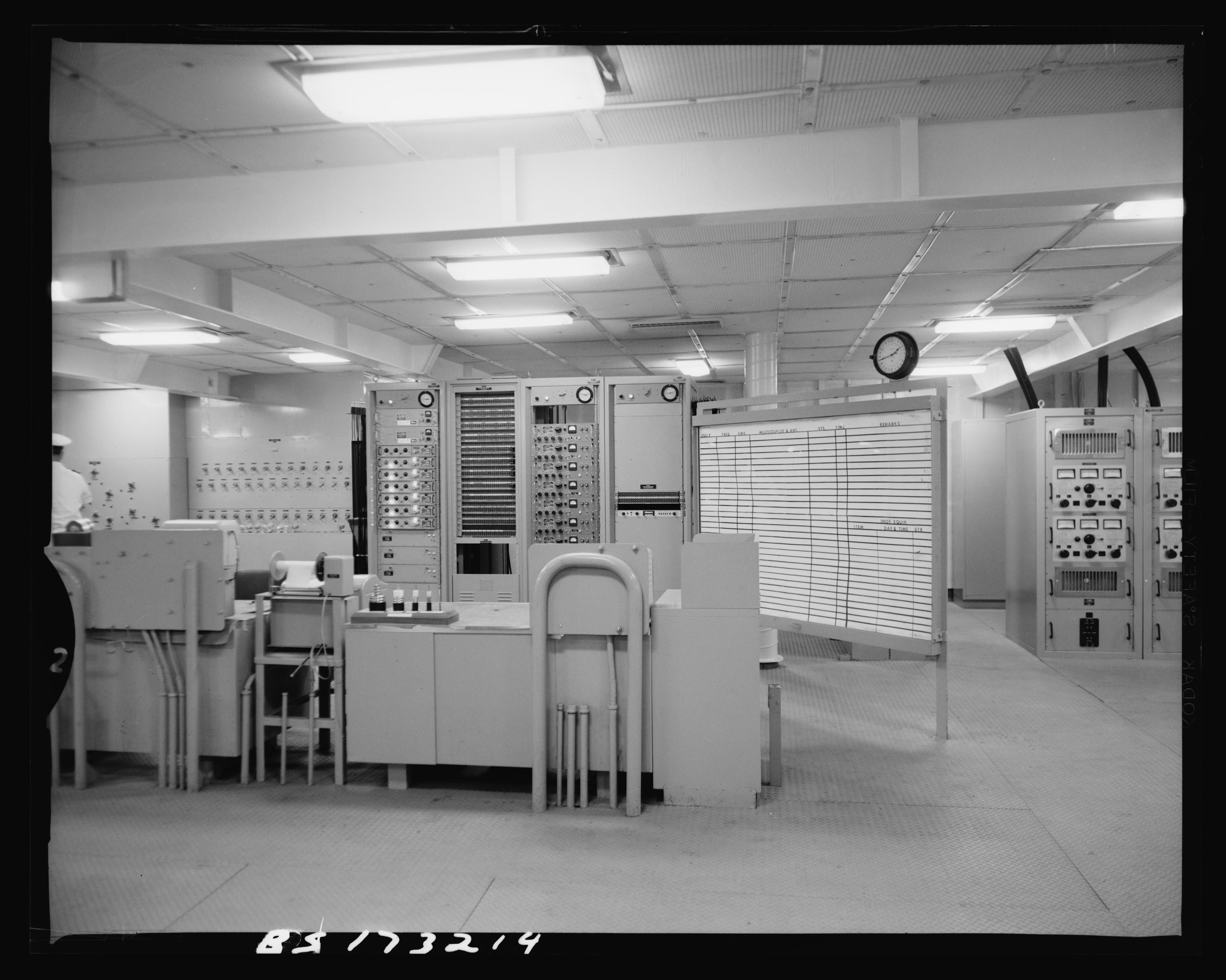

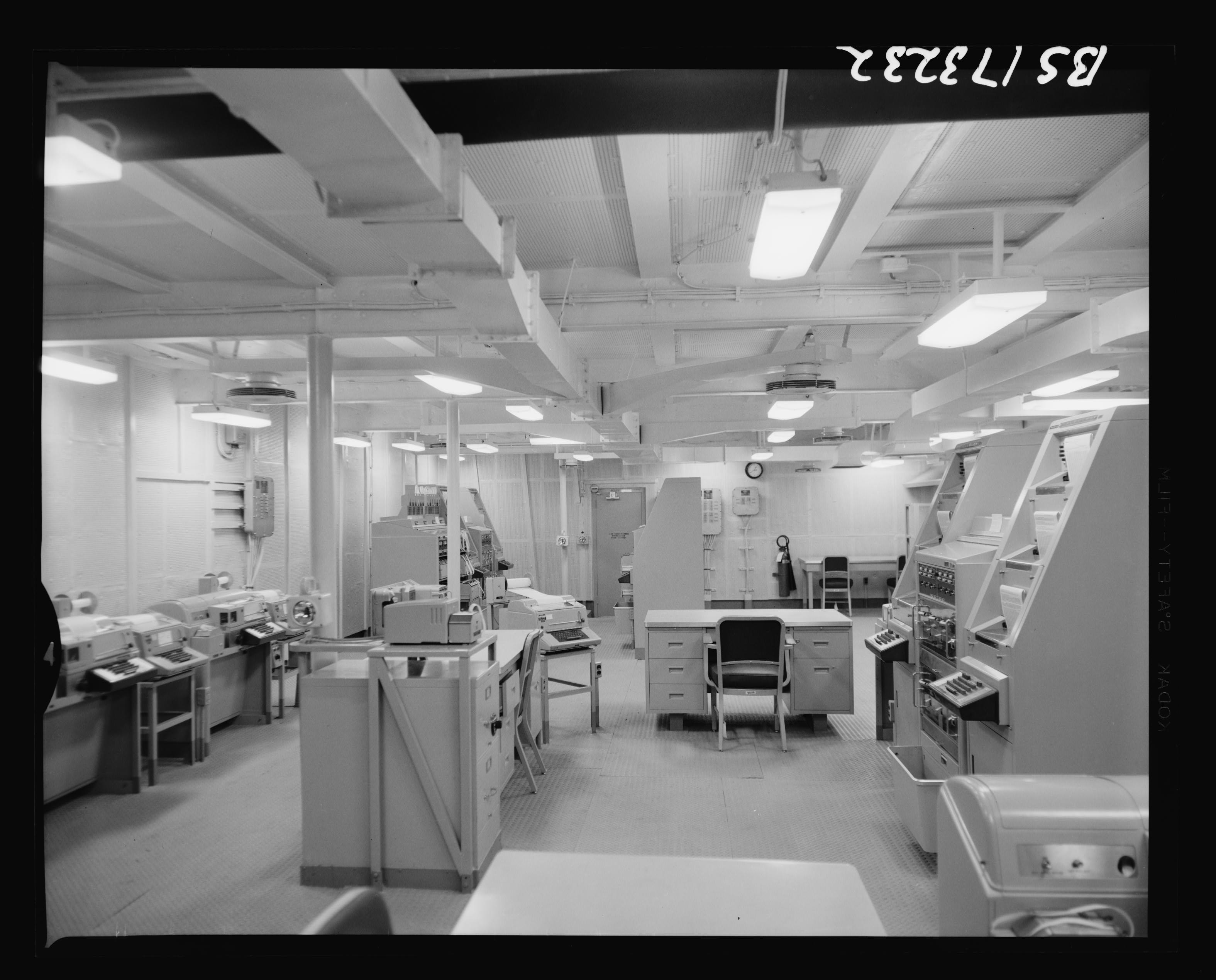

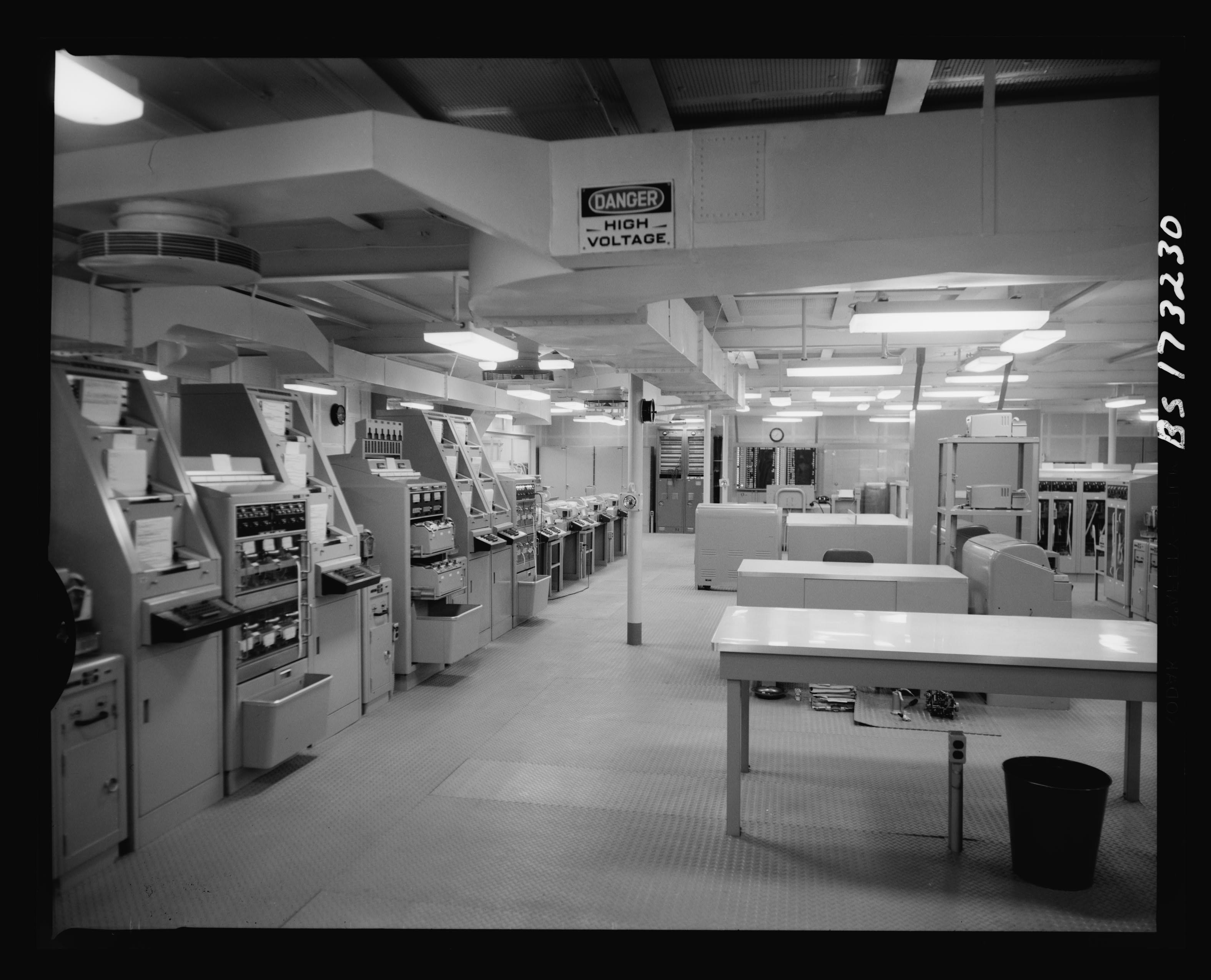

agmr2-archive-12.jpg (501949 bytes) agmr2-archive-15.jpg (493293 bytes) agmr2-archive-11.jpg (563310 bytes) AN/FGC-60 Multiplex
agmr2-archive-10.jpg (555996 bytes) agmr2-archive-09.jpg (545257 bytes) agmr2-archive-01.jpg (628860 bytes) agmr2-archive-16.jpg (543014 bytes)
agmr2-archive-03.jpg (478680 bytes) agmr2-archive-02.jpg (486931 bytes) agmr2-archive-05.jpg (695534 bytes) agmr2-archive-04.jpg (768817 bytes)

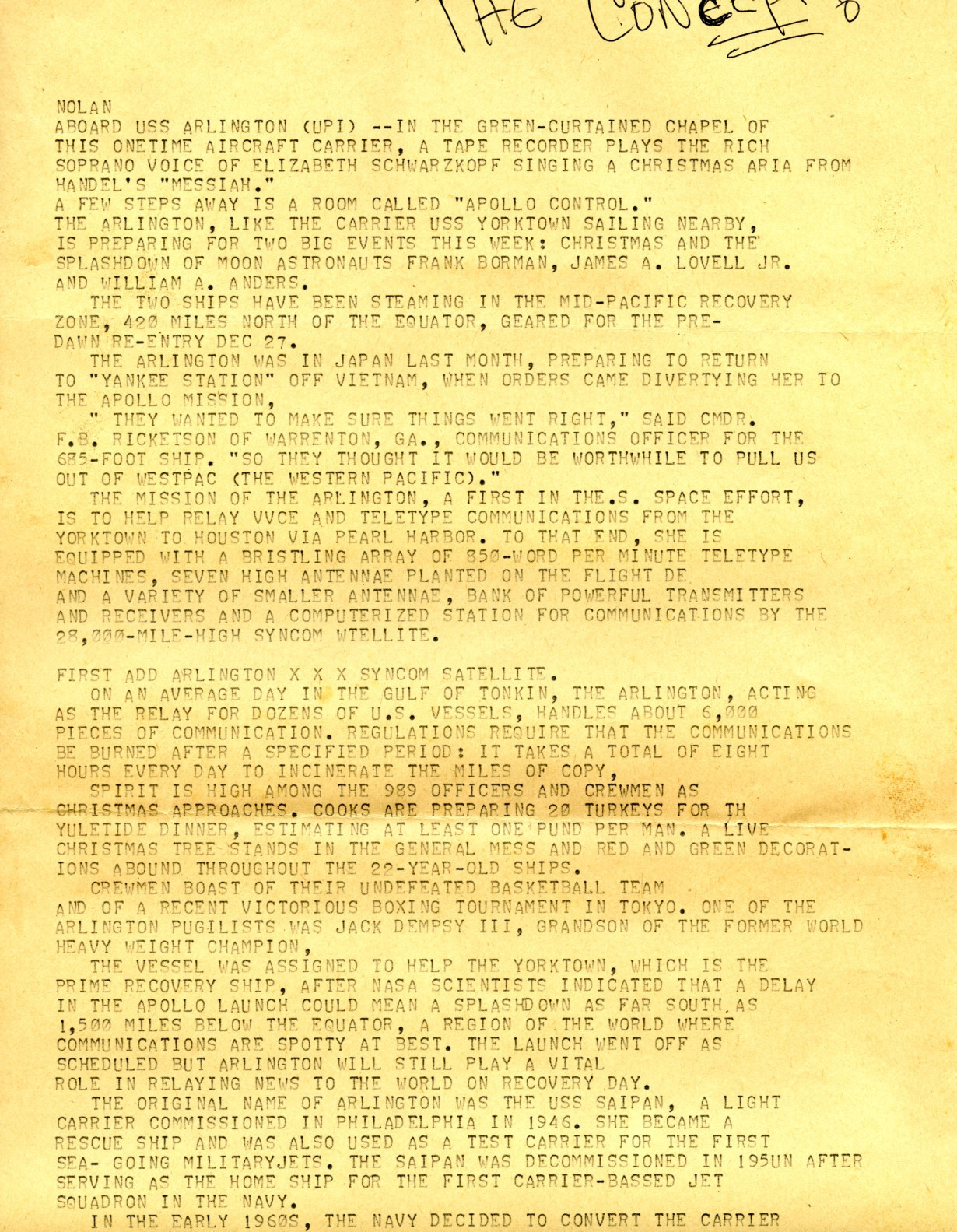

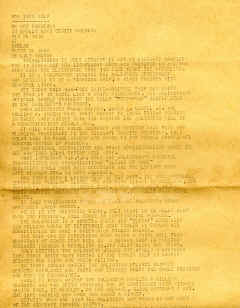

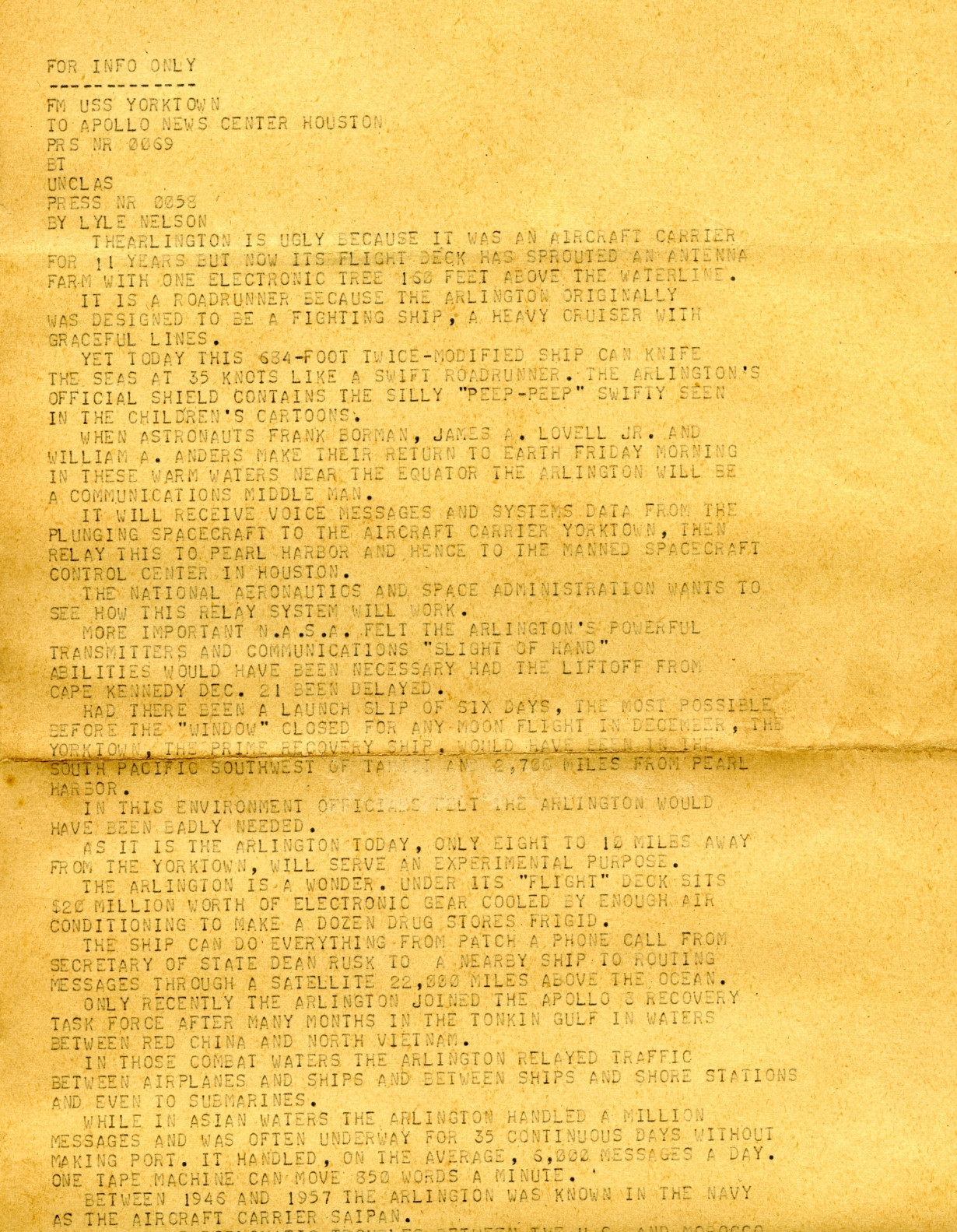

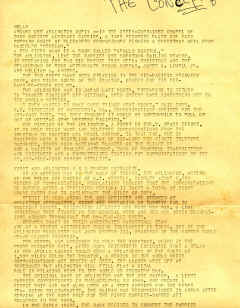

Arlington's Report on Apollo 8 Recovery - download pdf Press articles - Arlington and Apollo agmr2-news-1.JPG (788416 bytes) agmr2-news-2.JPG (748364 bytes)

July 1969 Apollo 11 Recovery - Photos from Walt Casey

USN report on recovery operations

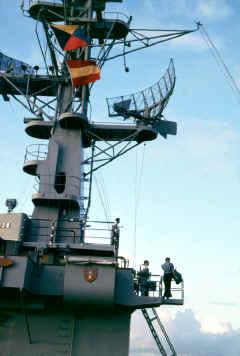

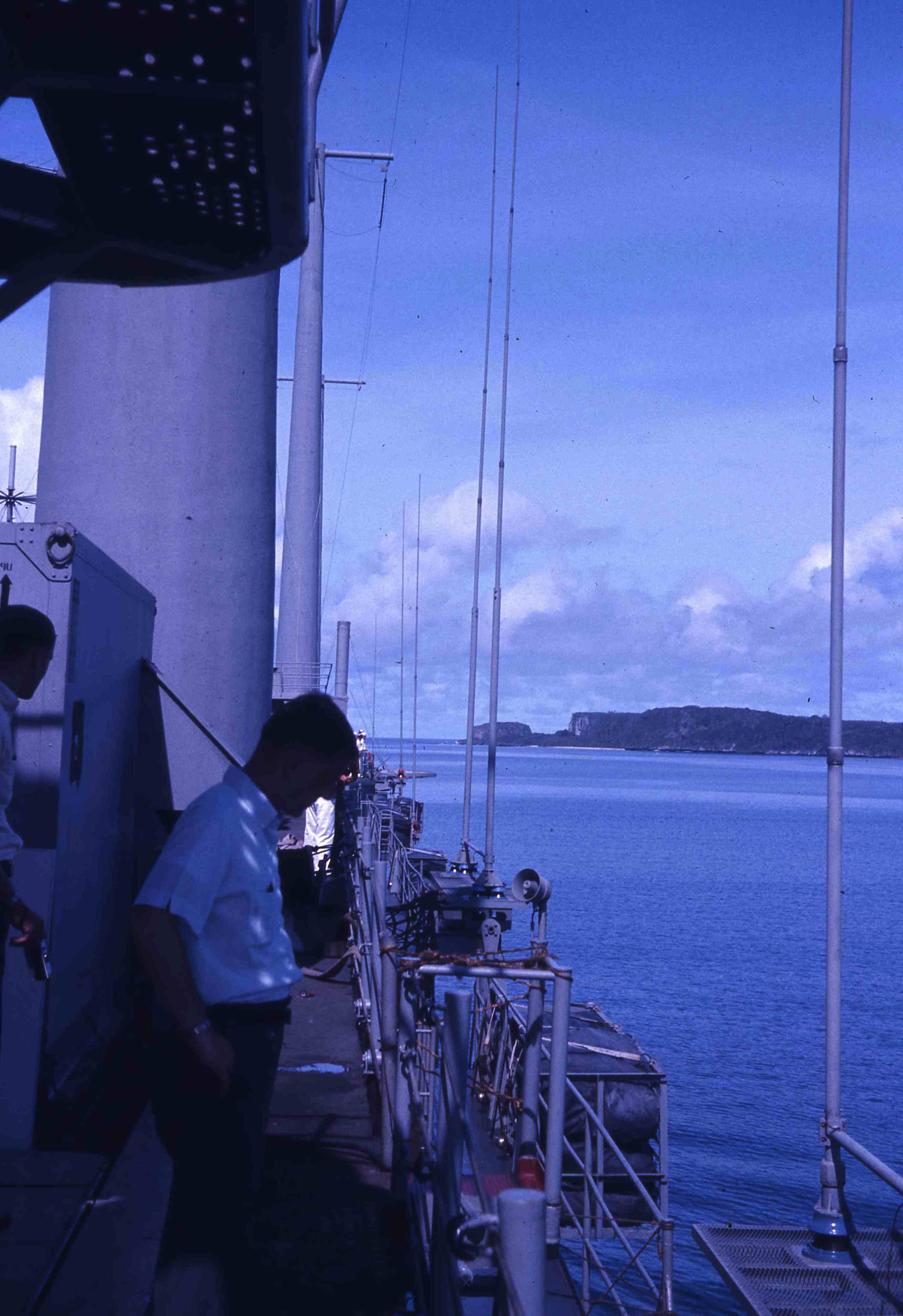

03-arlington-stern.jpg (387166 bytes) 07-side-antennas-up-position.jpg (398369 bytes) 10-fllight_quarters.jpg (321424 bytes) 04-arlington-wake.jpg (494066 bytes)

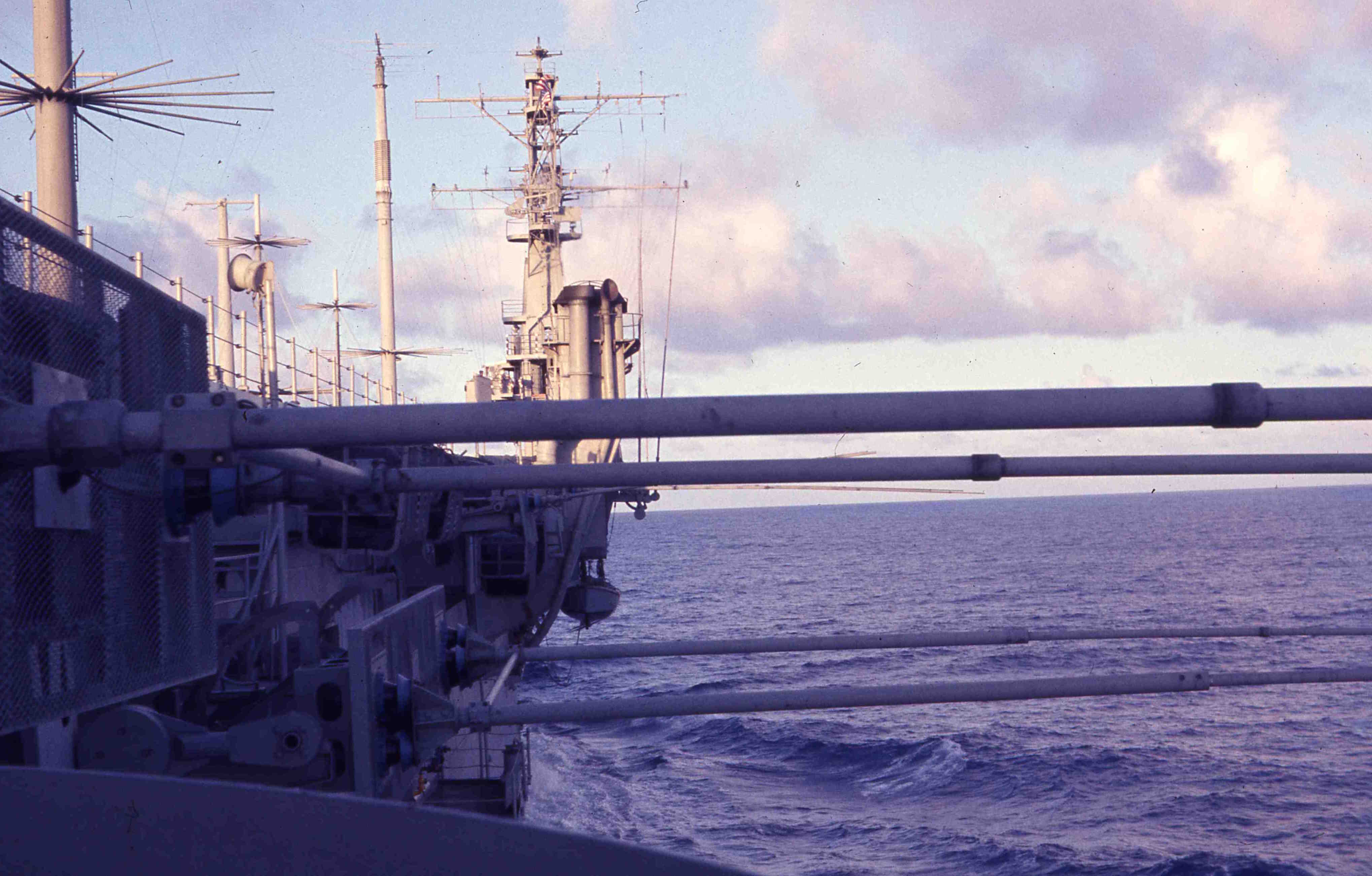

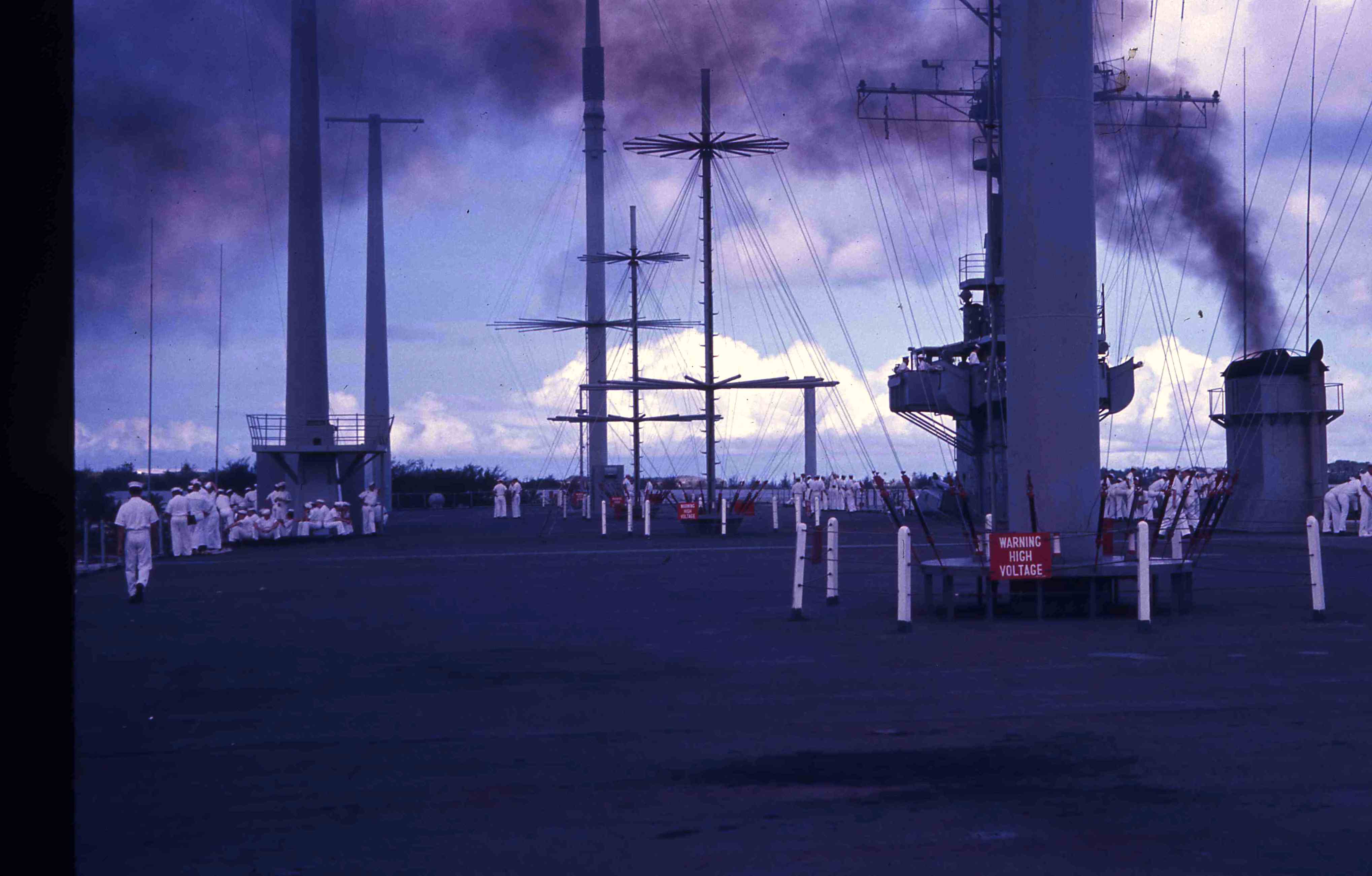

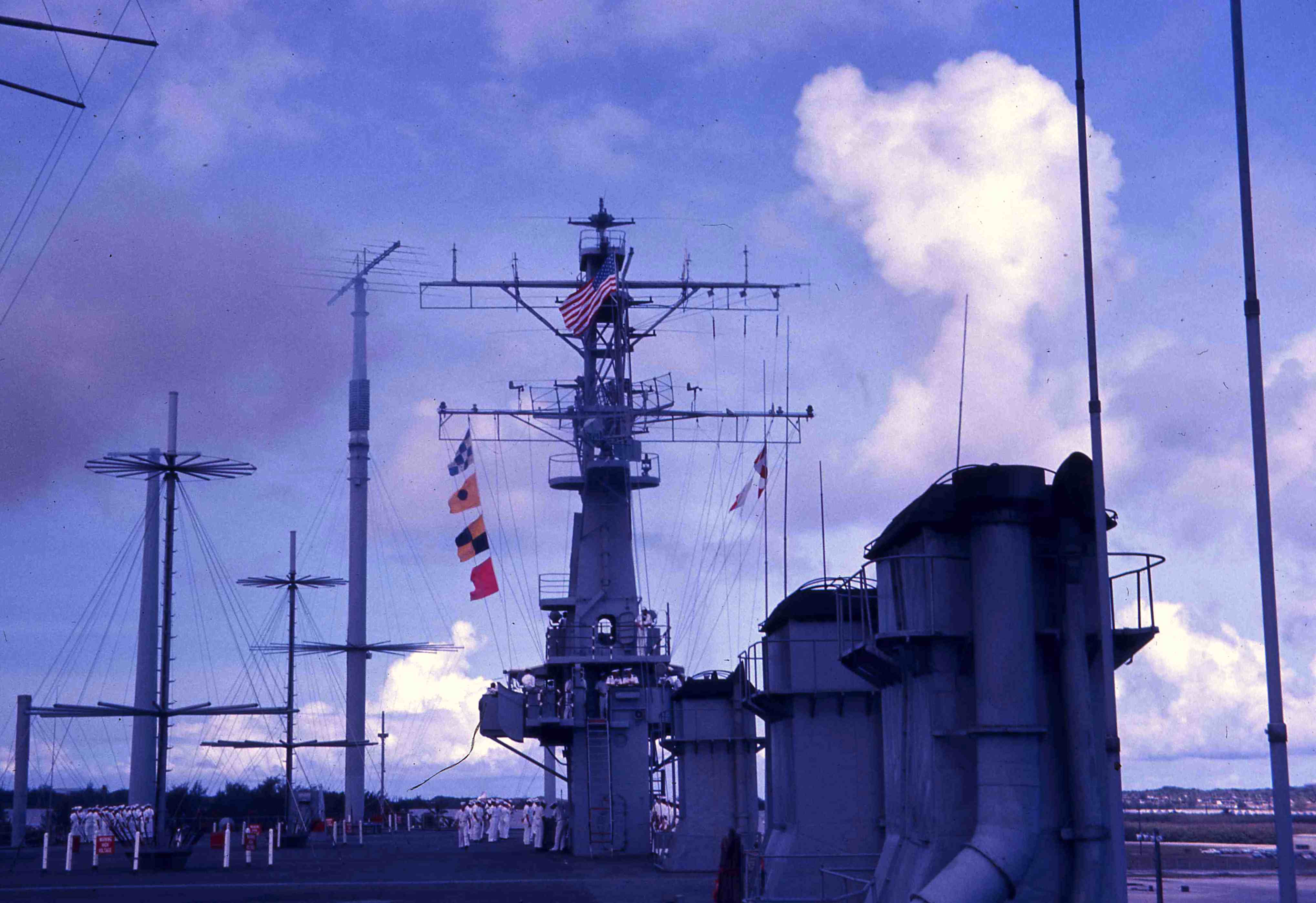

09-sunset_through_antenna.jpg (181565 bytes) 02-superstructure.jpg (401779 bytes) 01-antenna-farm.jpg (343321 bytes) 08-side-hf-antennas-horizontal.jpg (442733 bytes)

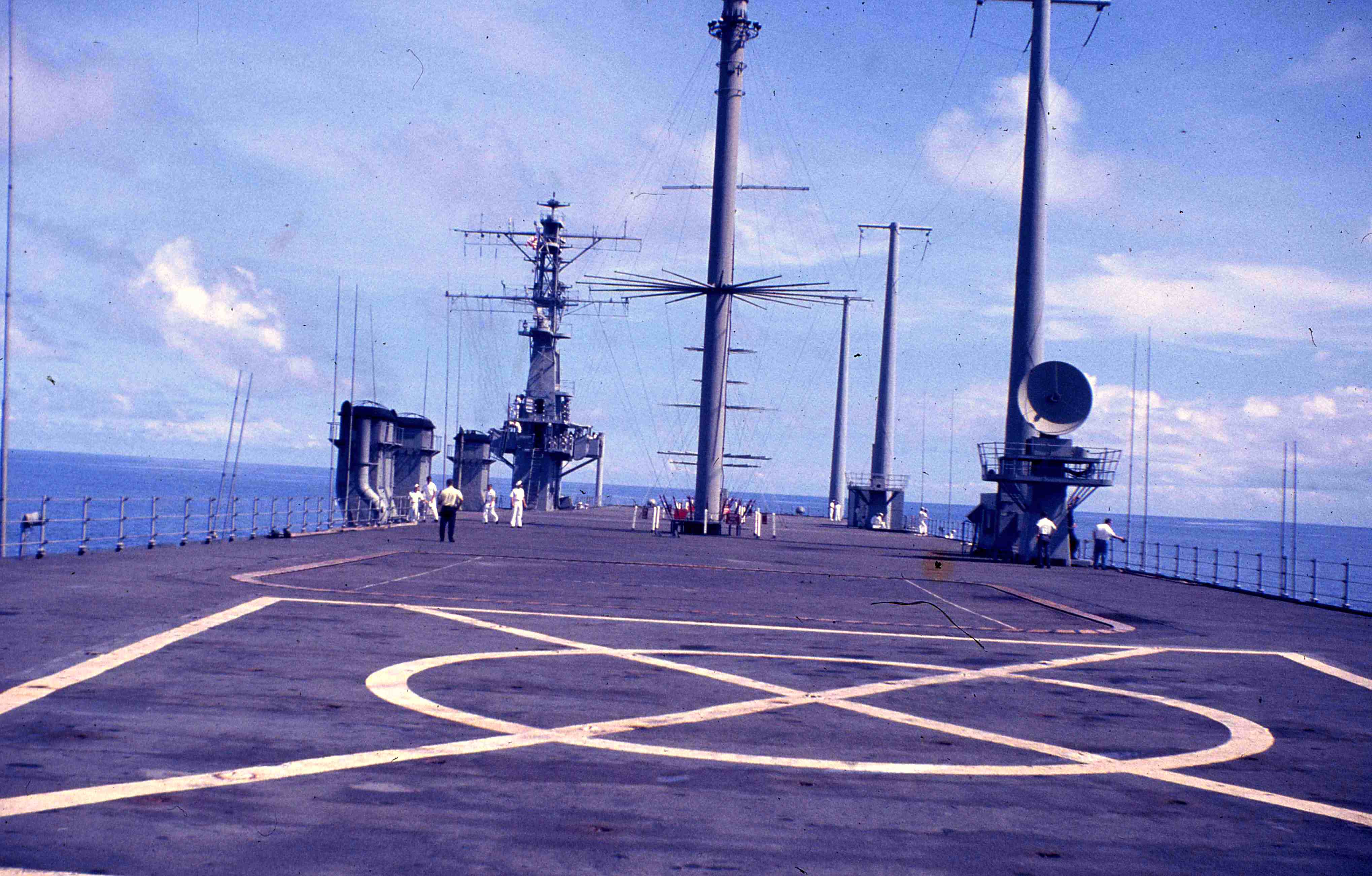

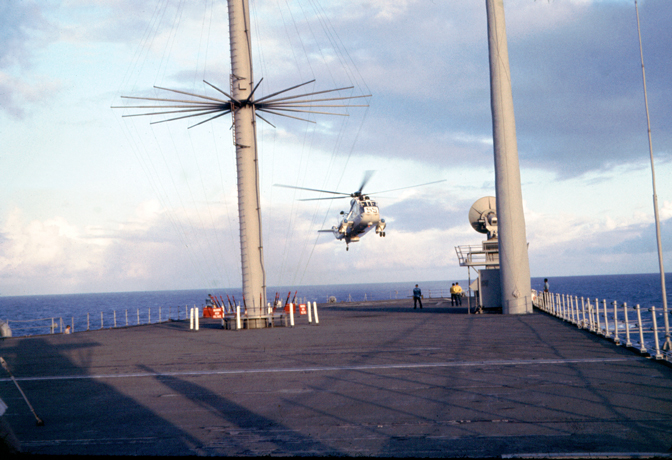

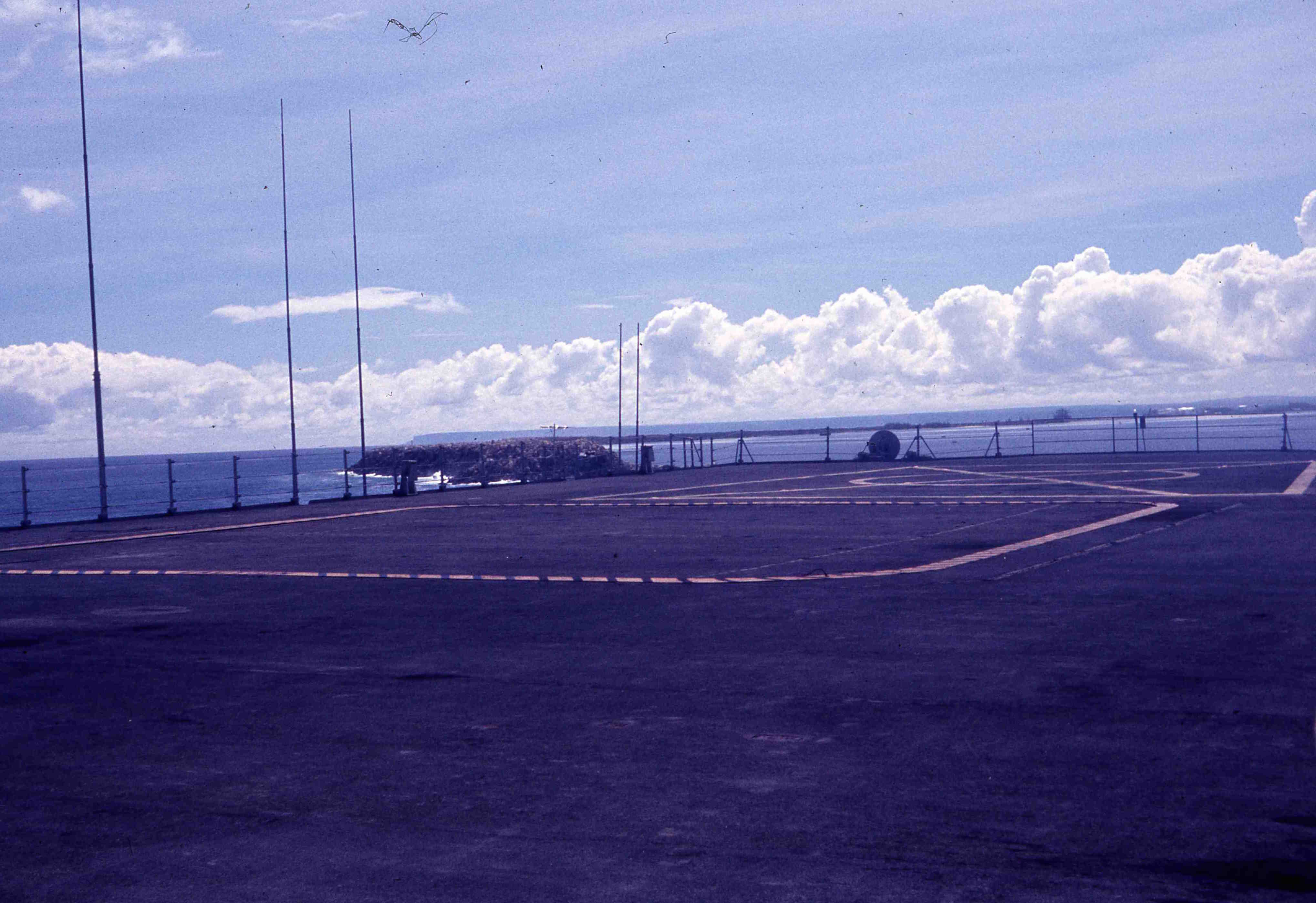

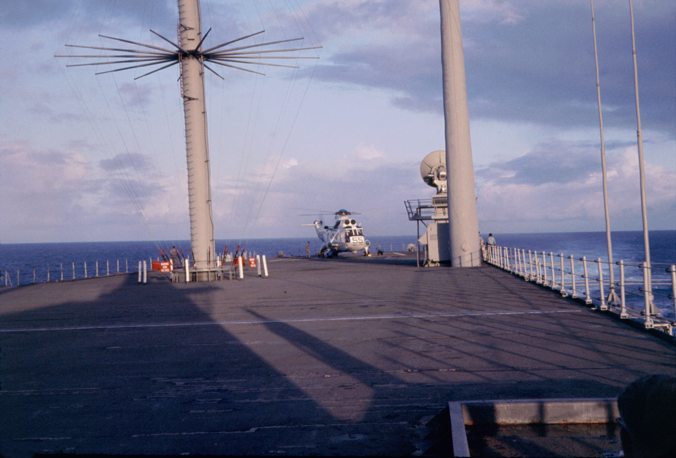

05-deck-looking-forward.jpg (564865 bytes) 06-helopad-elevator-aft.jpg (462525 bytes) 11-helo_landing1.jpg (283771 bytes) 12-helo_landing2.jpg (265884 bytes)
25-marine_one-practice.jpg (201340 bytes) 26-marine_one_night_landing-practice1.jpg (218760 bytes) 27-marine_one_night_landing-practice2.jpg (137767 bytes) 28-marine_one_night_landing-practice3.jpg (142397 bytes)
29-marine_one_night_takeoff-practice.jpg (185263 bytes) 30-marine_one_on_visit.jpg (262894 bytes) 31-president's_flag.jpg (229233 bytes) 32-potus_switchboard-arlington.jpg (339145 bytes)
33-apollo_11_light.jpg (301392 bytes) 34-apollo_11_helos.jpg (362548 bytes) 35-uss_hornet1.jpg (242216 bytes) 36-uss_hornet2.jpg (188916 bytes)
37-recovery_helo.jpg (276967 bytes) 38-whca_crew.jpg (238722 bytes) 39-ship's_captain.jpg (234346 bytes) 40-arlington-lpa-antenna.jpg (234443 bytes)

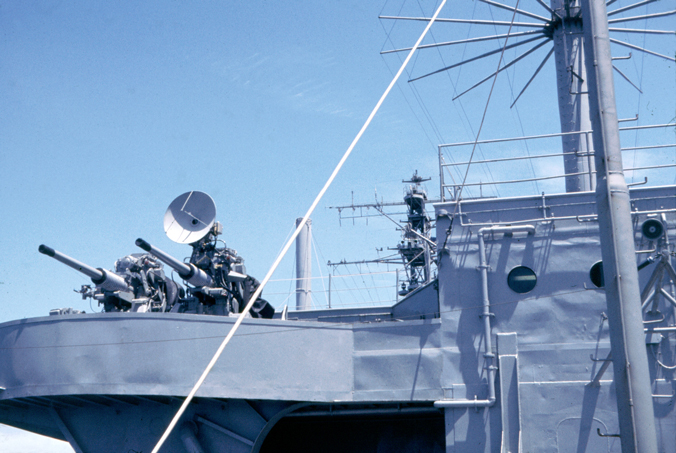

41-arlington-guns.jpg (277653 bytes) 42-arlington-anchor-chains.jpg (291303 bytes) 43-hawaii-apollo_quarantine_van1.jpg (329416 bytes) 44-hornet_with_apollo11-2.jpg (284790 bytes)
UNREP - USS Hassayampa AO-145

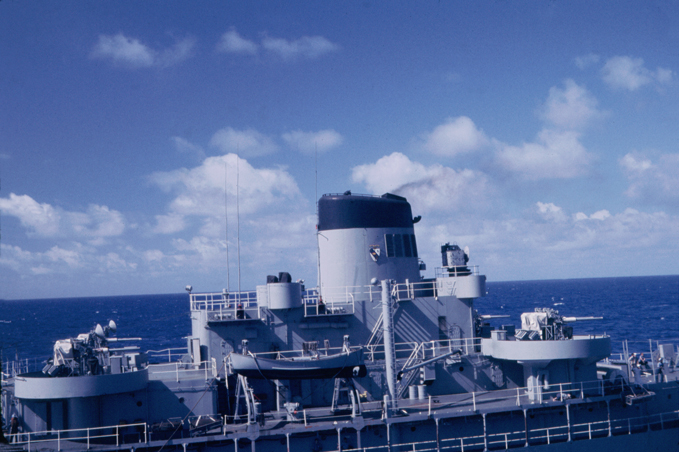

13-usshassayampa1.jpg (256419 bytes) 14-usshassayampa2.jpg (239310 bytes) 15-usshassayampa3.jpg (328997 bytes) 16-usshassayampa4.jpg (279276 bytes)

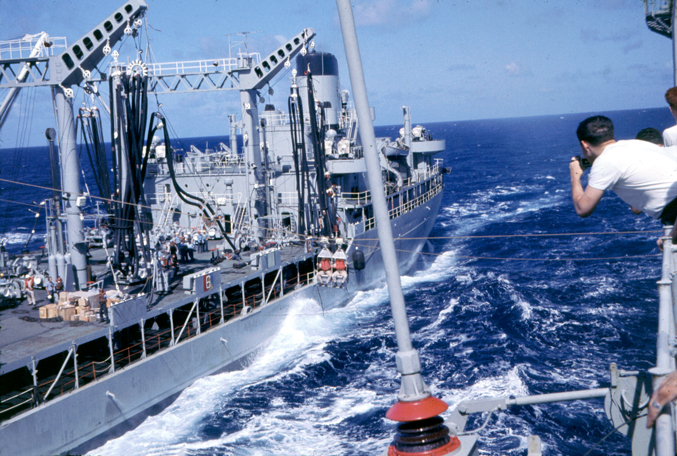

17-usshassayampa5.jpg (263044 bytes) 18-helo_to_lifeguard_station.jpg (232728 bytes) 19-helo_on_station.jpg (267792 bytes) 20-transfer_at_sea1.jpg (394289 bytes)

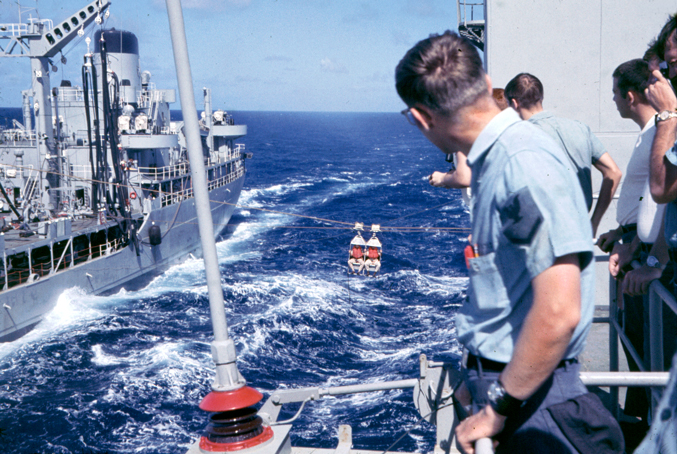

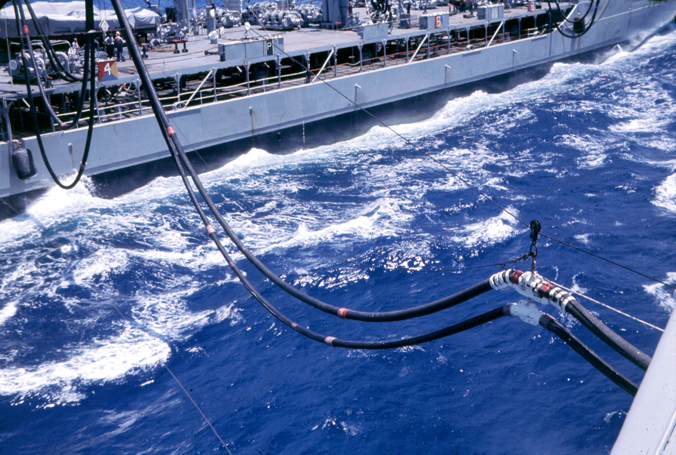

21-transfer_at_sea2.jpg (386651 bytes) 22-transfer_at_sea3.jpg (389462 bytes) 23-underway_replenishment.jpg (412891 bytes) 24-o145_usshassayampa.jpg (309809 bytes)

1966-67 USS Arlington Cruise Book

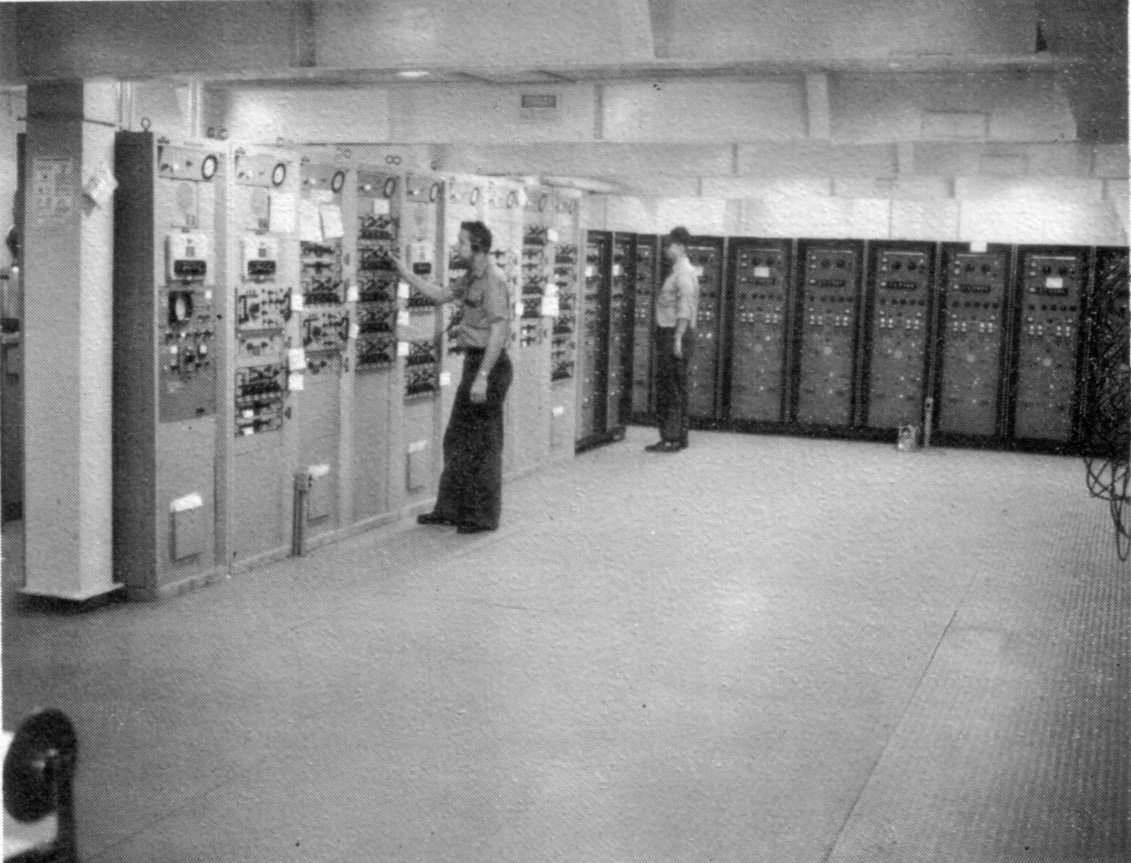

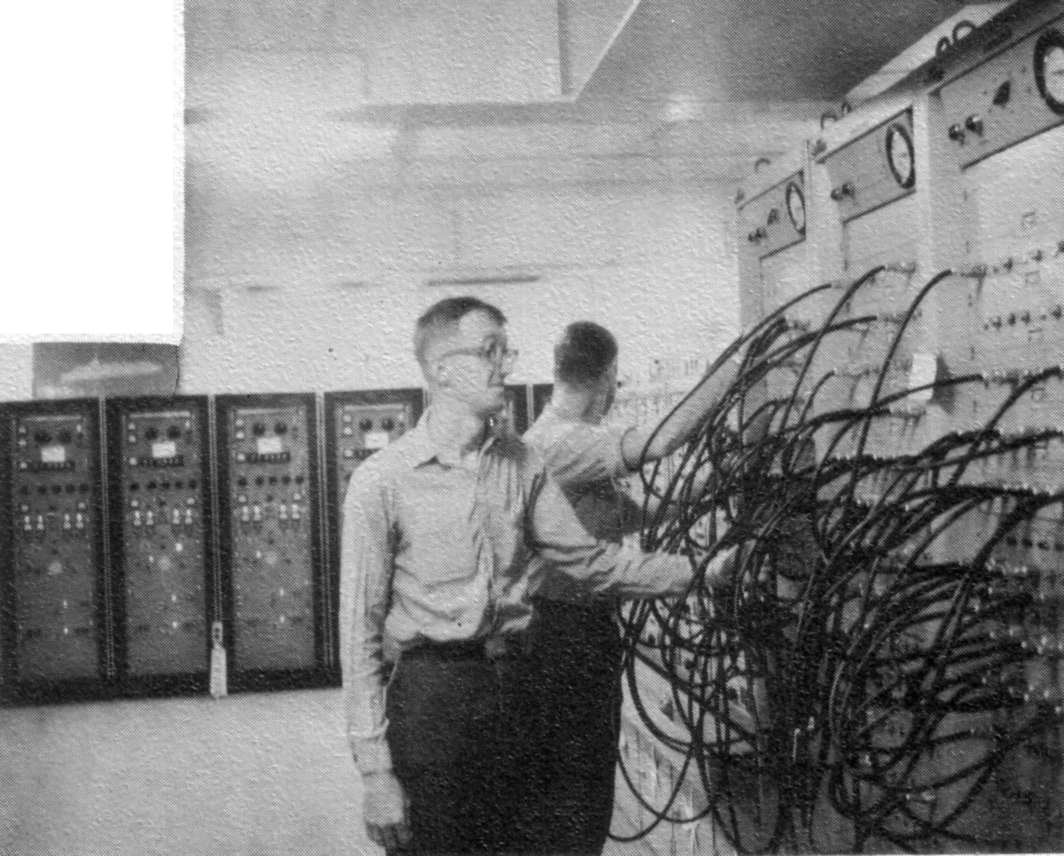

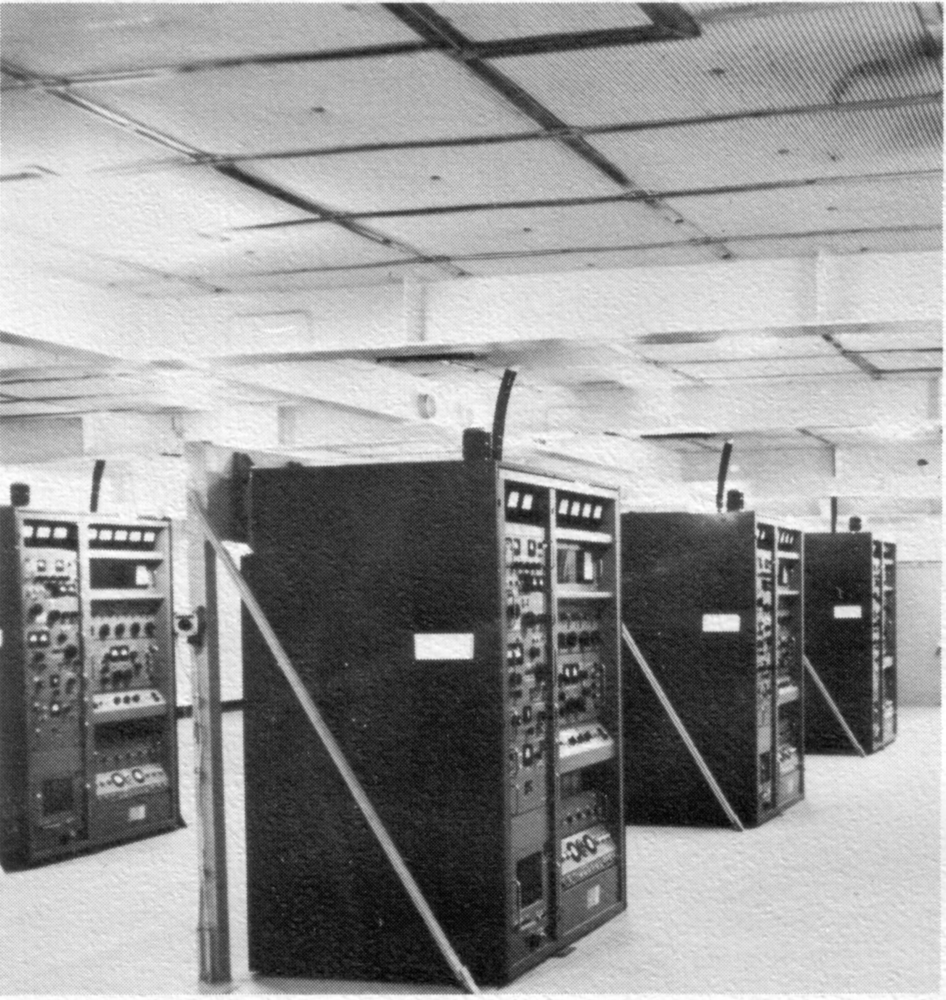

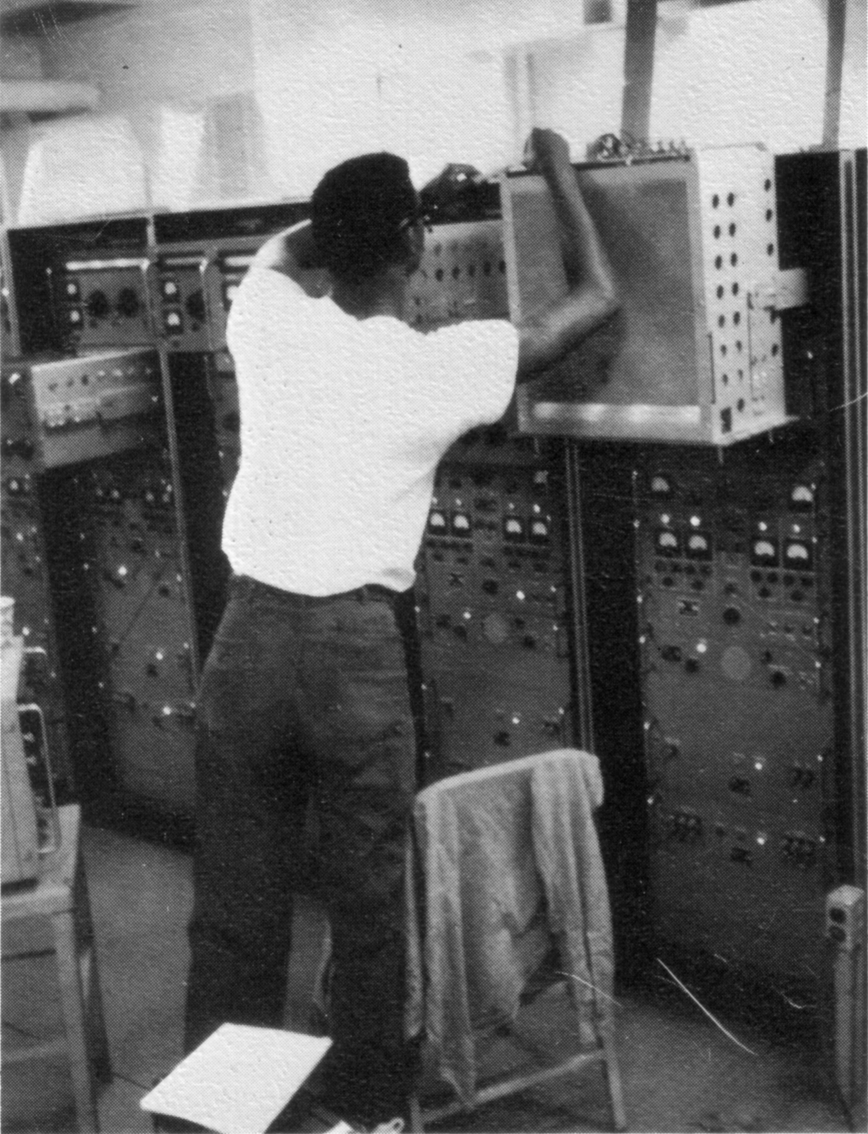

L - R-1051 rcvrs with AN/URA-17 converters

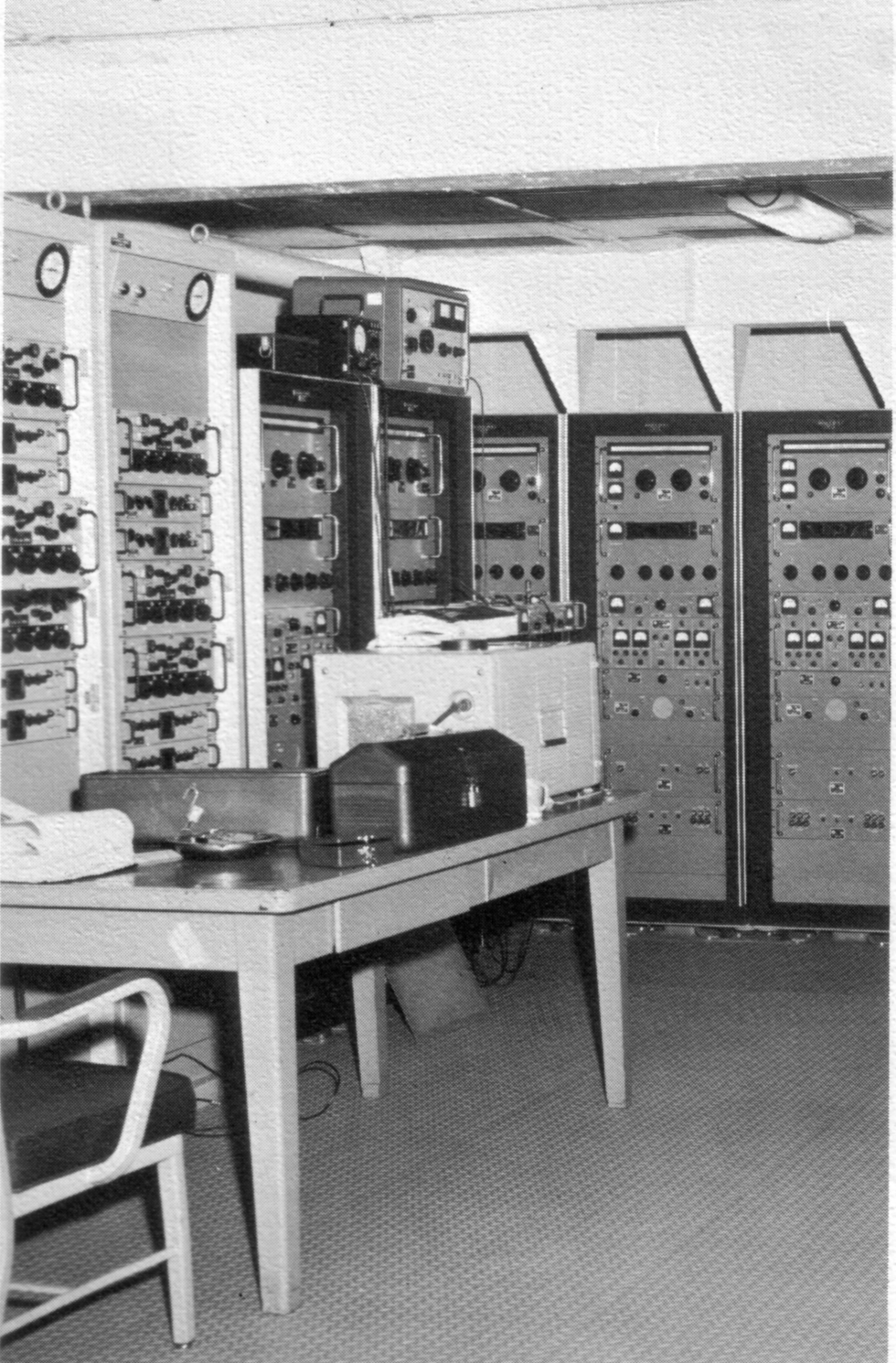

R - AN/FRR-60 (TMC DDR-5) rcvrs

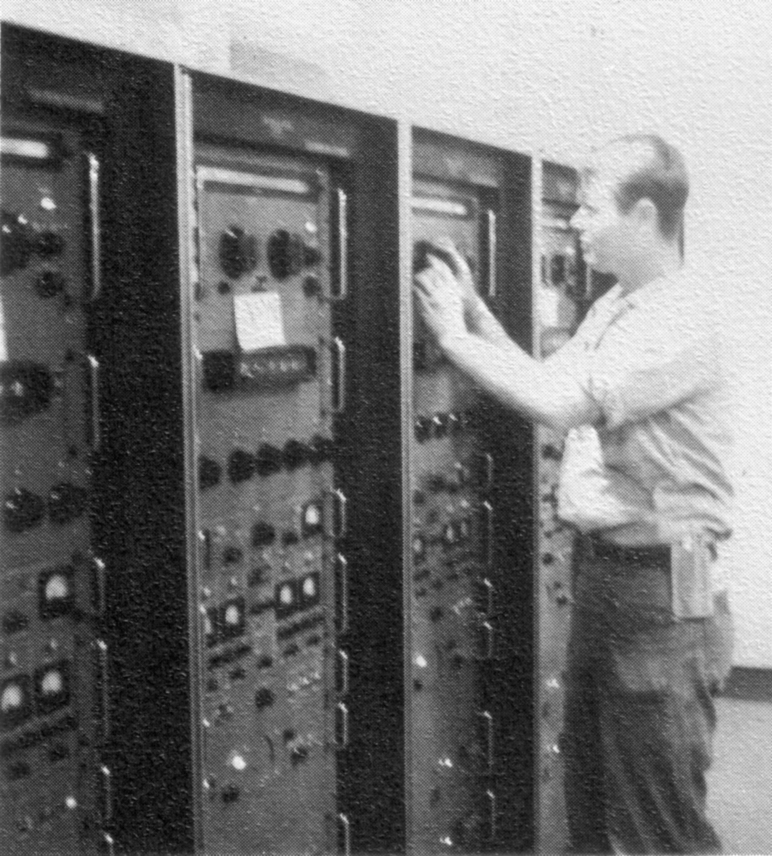

AN/FRR-60 (TMC DDR-5) rcvrs

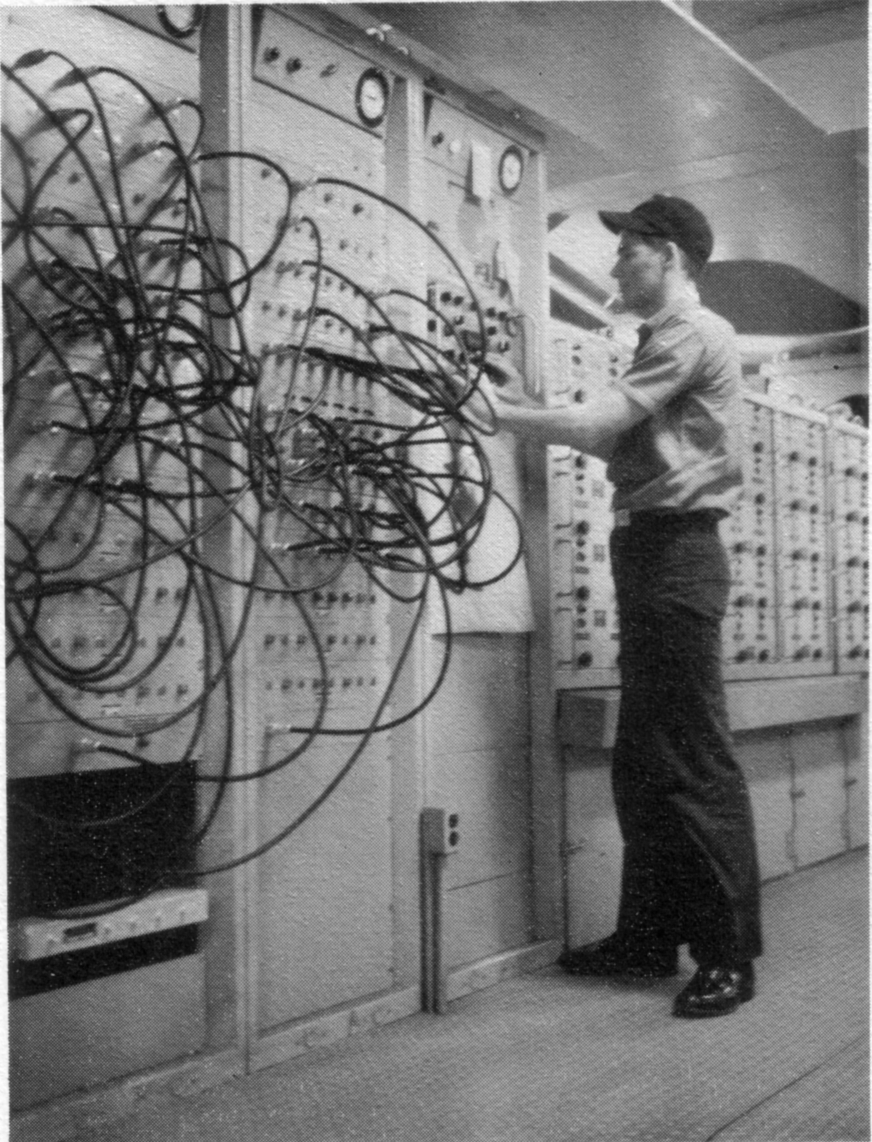

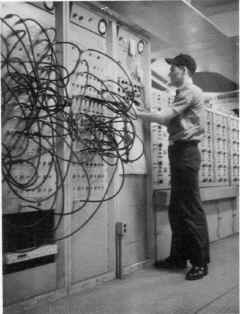

Antenna patch panels

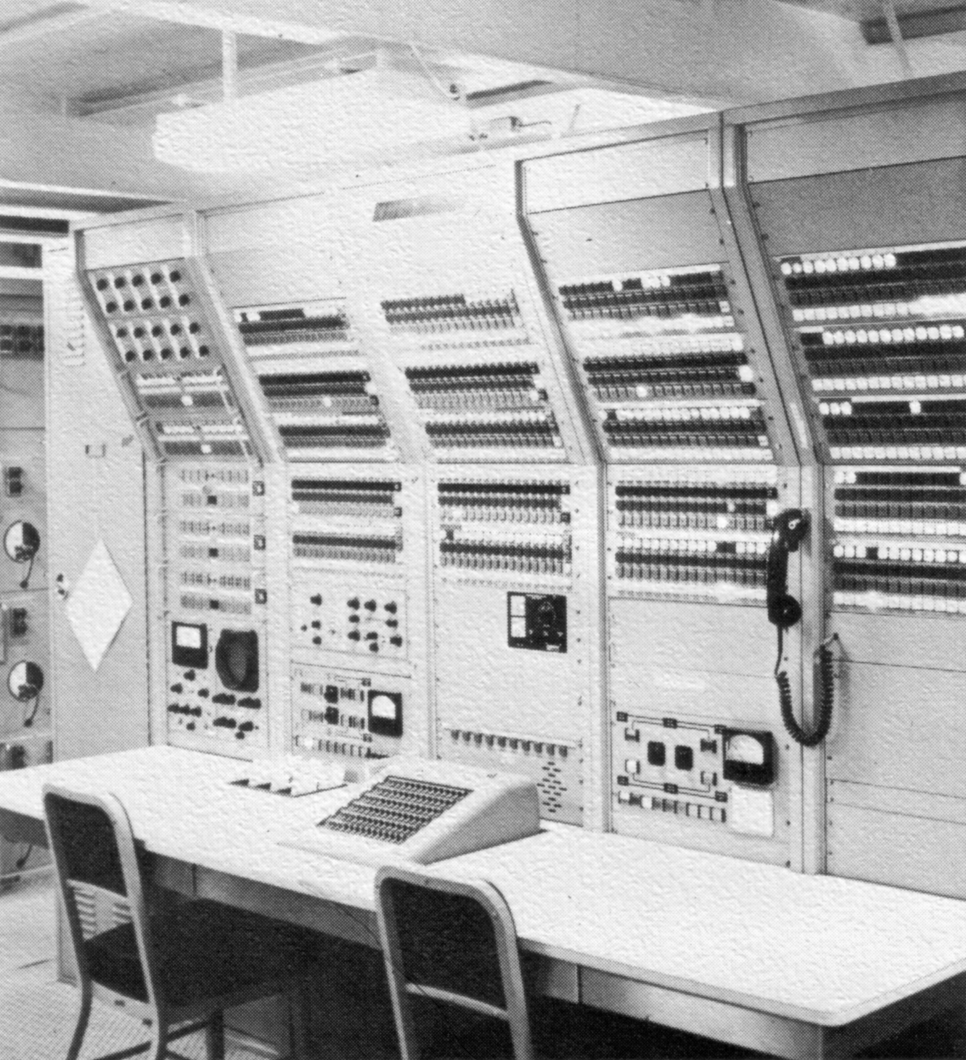

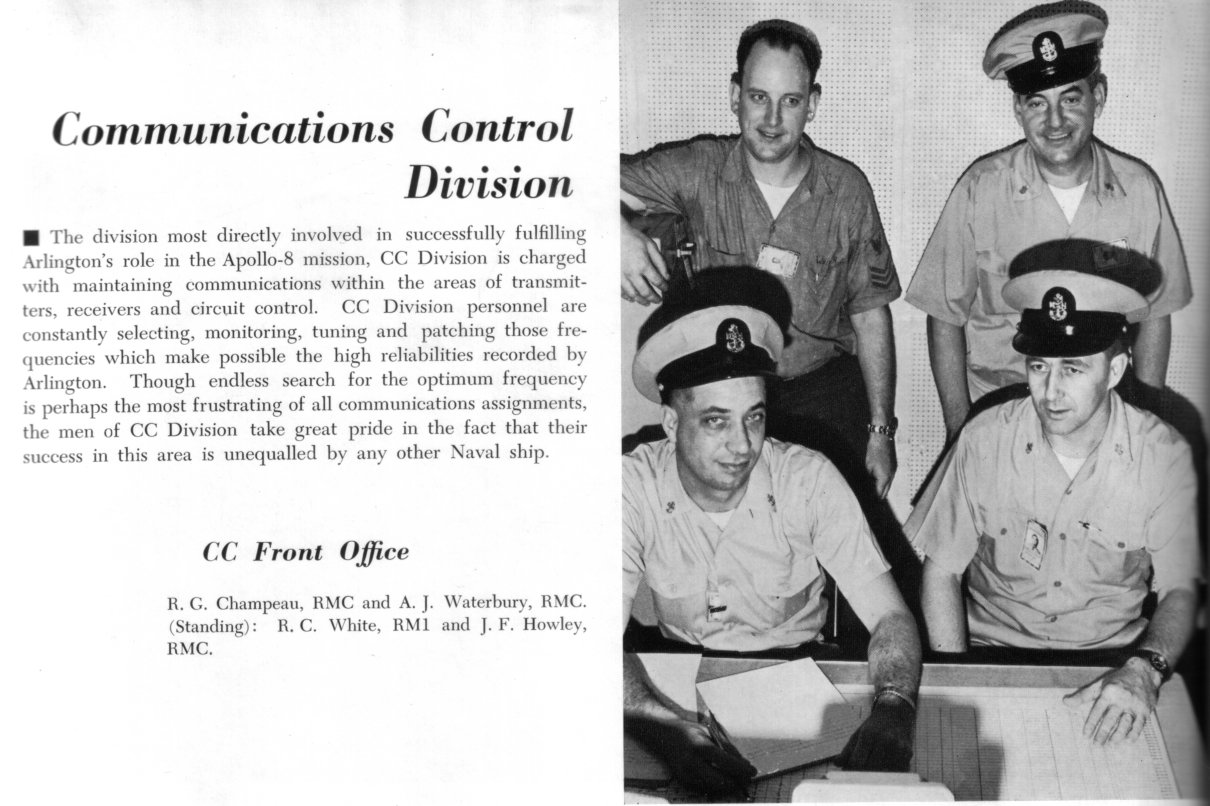

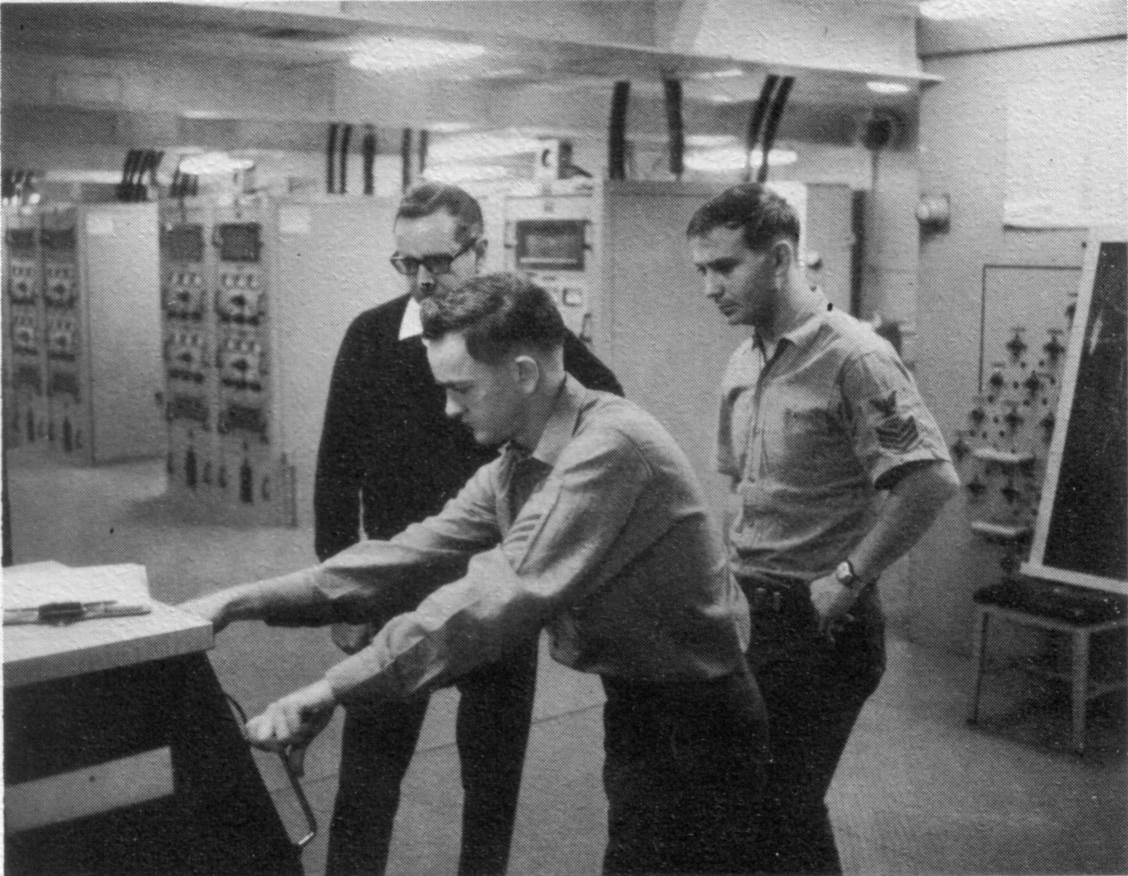

Comm Control Center
TMC tech rep & spectrum analyzer?
Background - transmitting antenna couplers and high power patch panel
L - R-1051 rcvrs with AN/URA-17 converters
R - AN/FRR-60 (TMC DDR-5) rcvrs

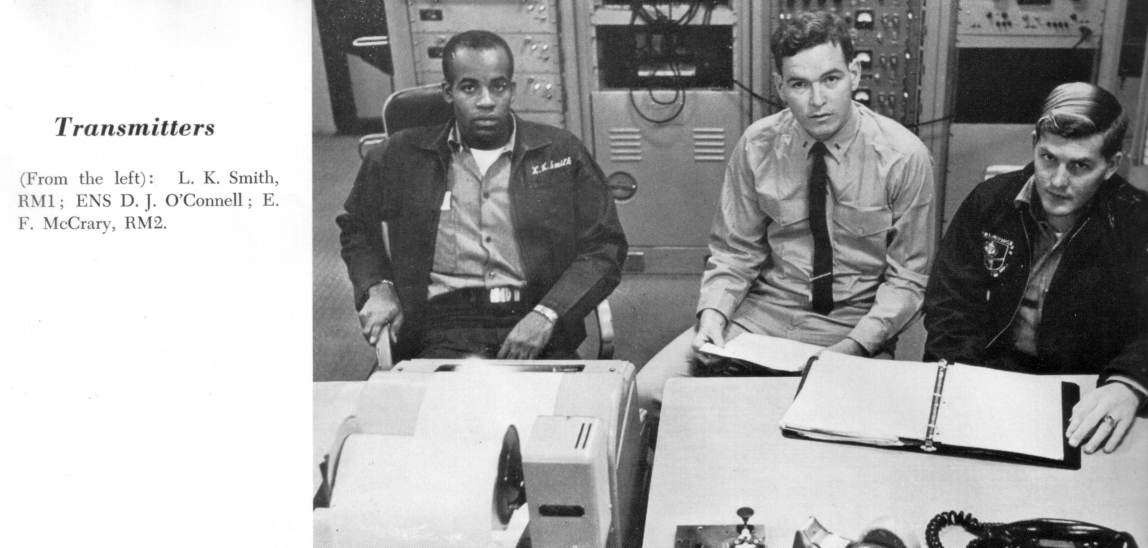

AN/FRT-39 (TMC GPT-10K) transmitter
transmitting antenna couplers ??
AN/FRR-60 (TMC DDR-5) rcvrs
AN/FRR-60 (TMC DDR-5) rcvrs & antenna patch panels

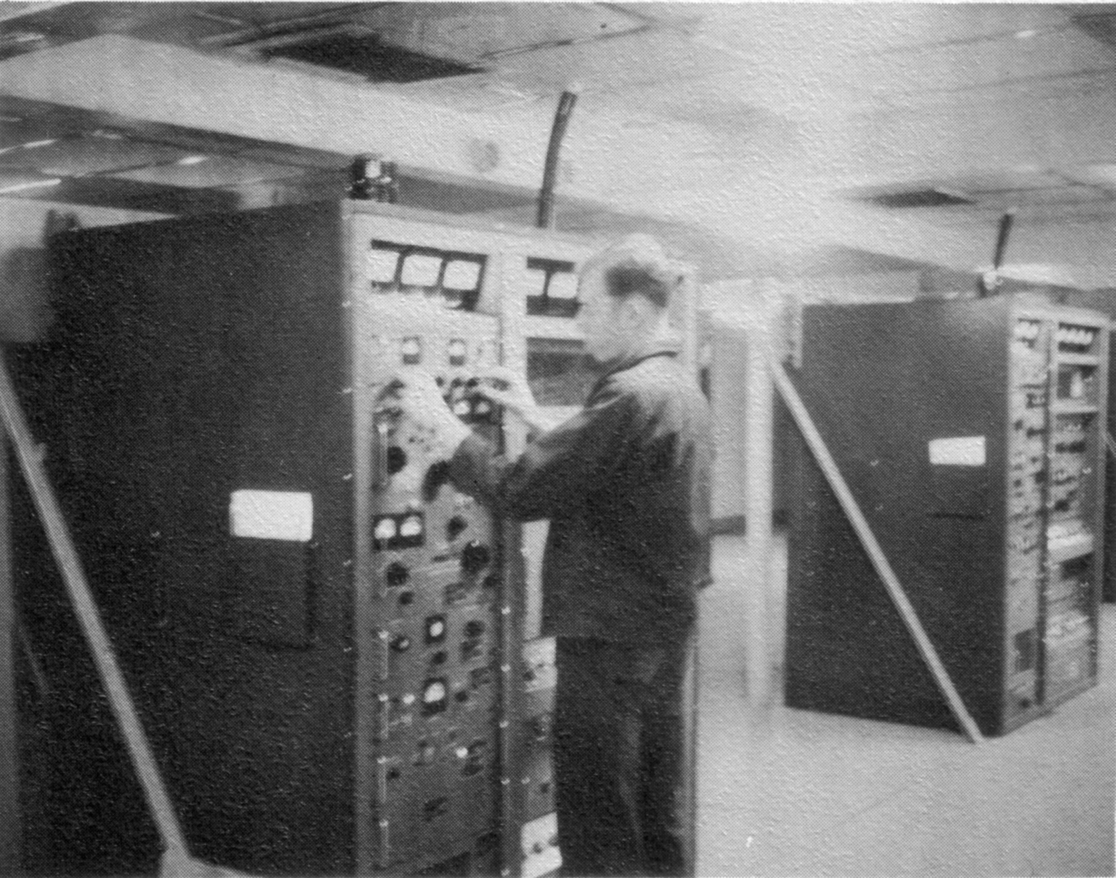

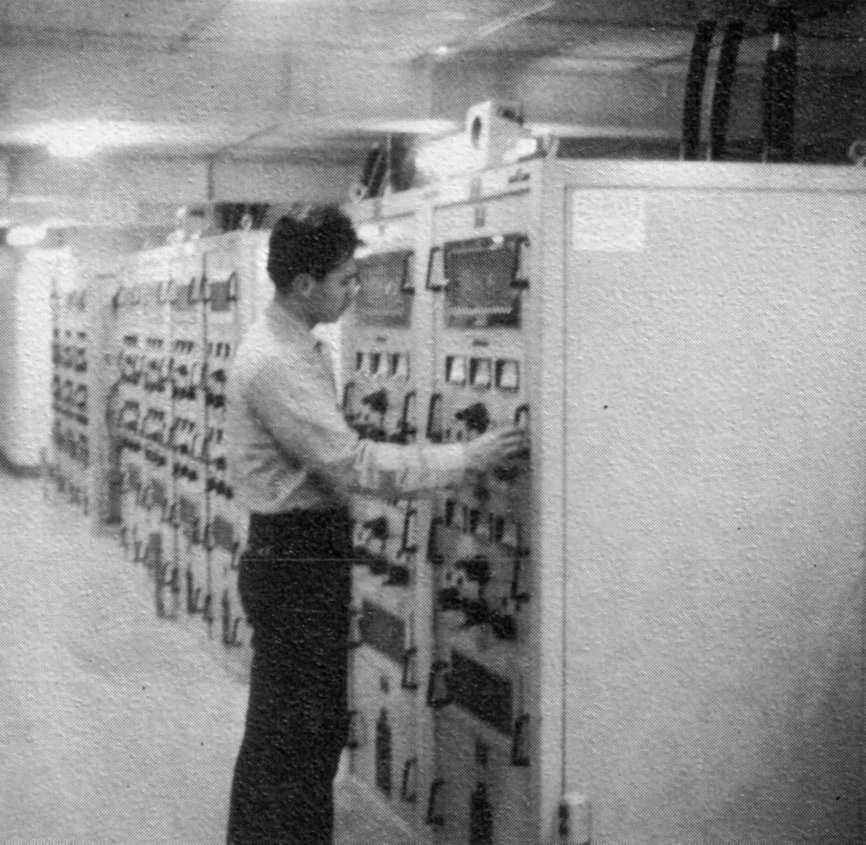

AN/FRT-39 (TMC GPT-10K) transmitters
Tech control?

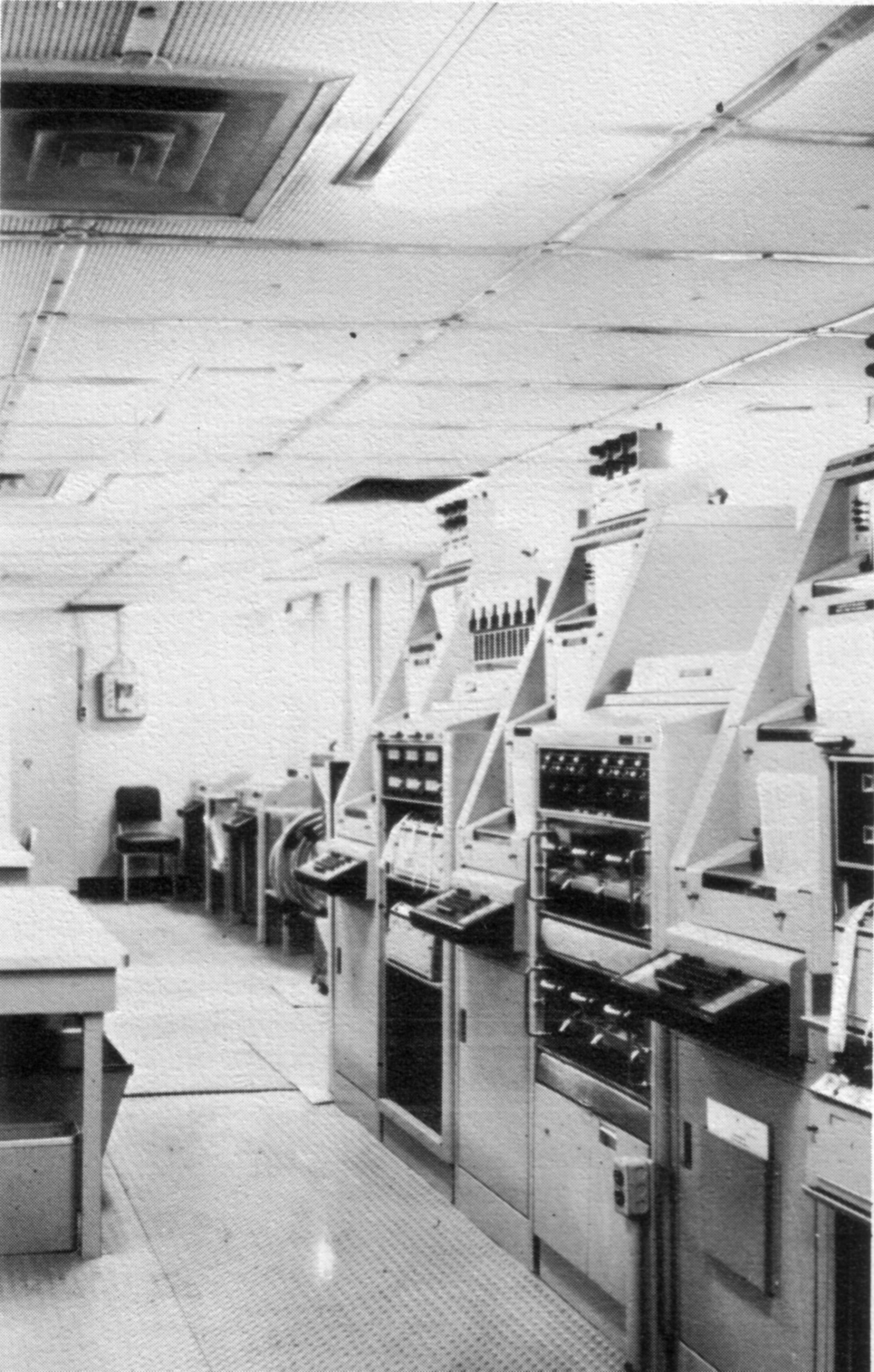

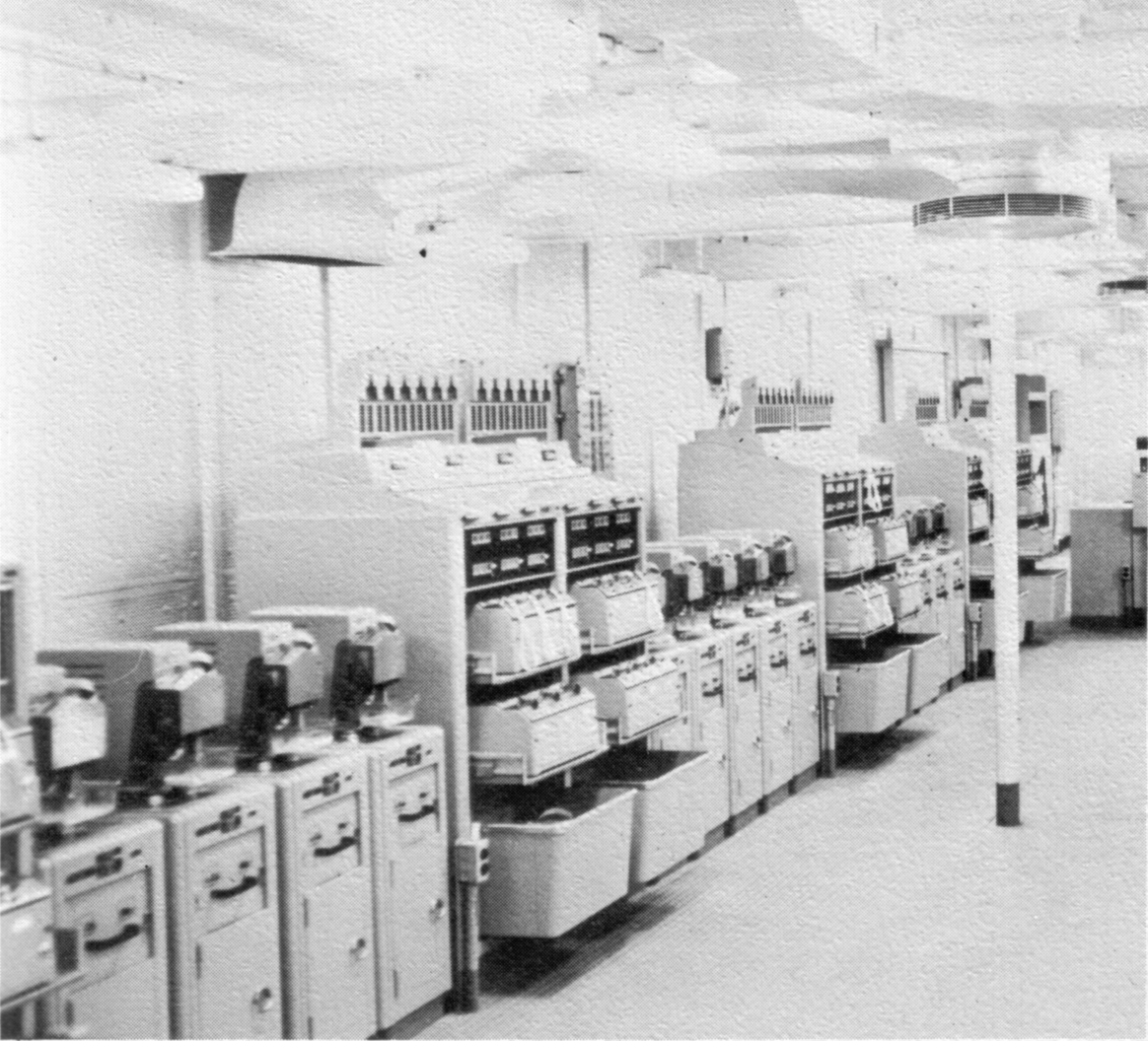

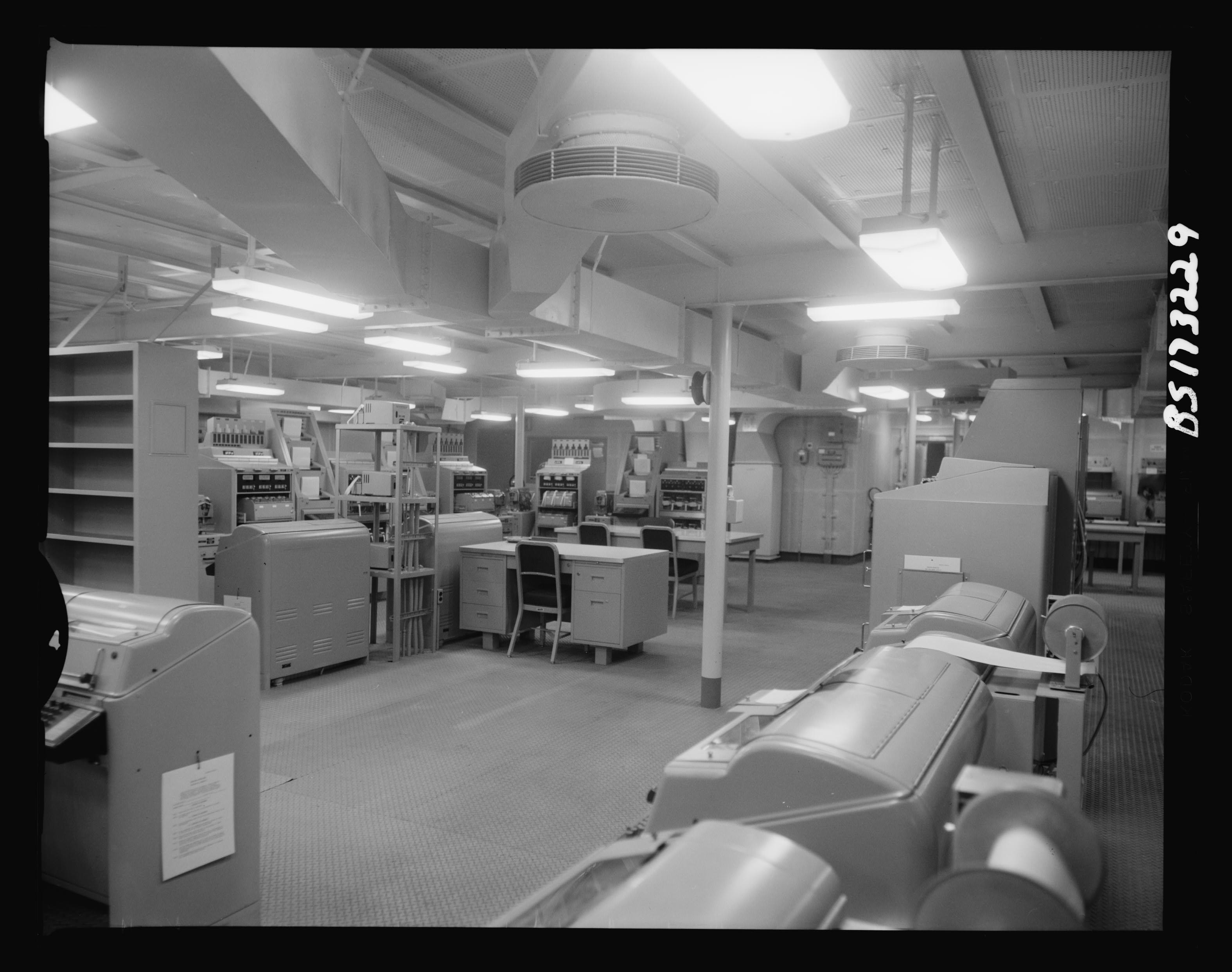

Tape relay equipment including MAPS multiple address processing system that dupes tape at 850wpm
Tape relay equipment

1968 USS Arlington Pacific Cruise Book

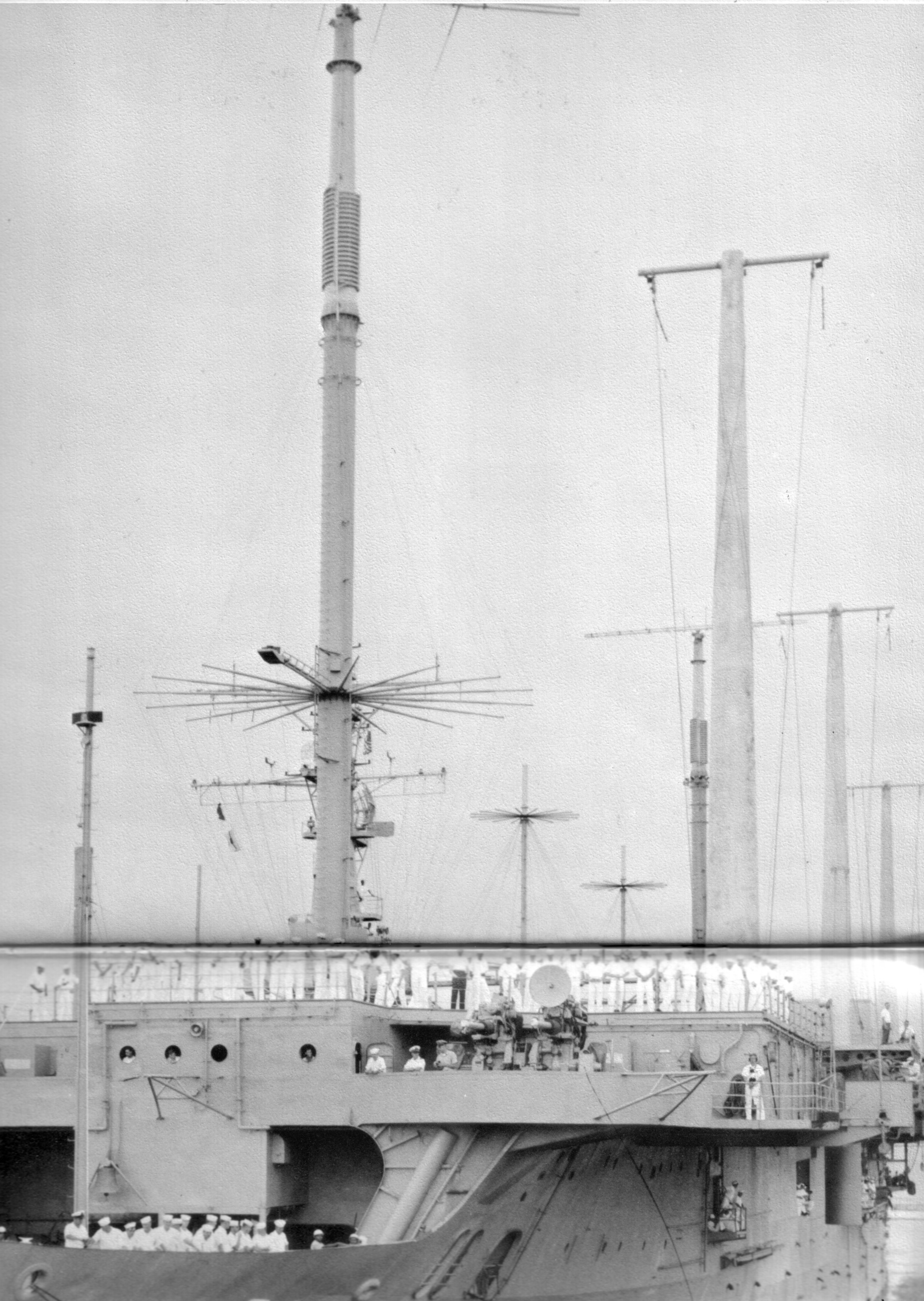

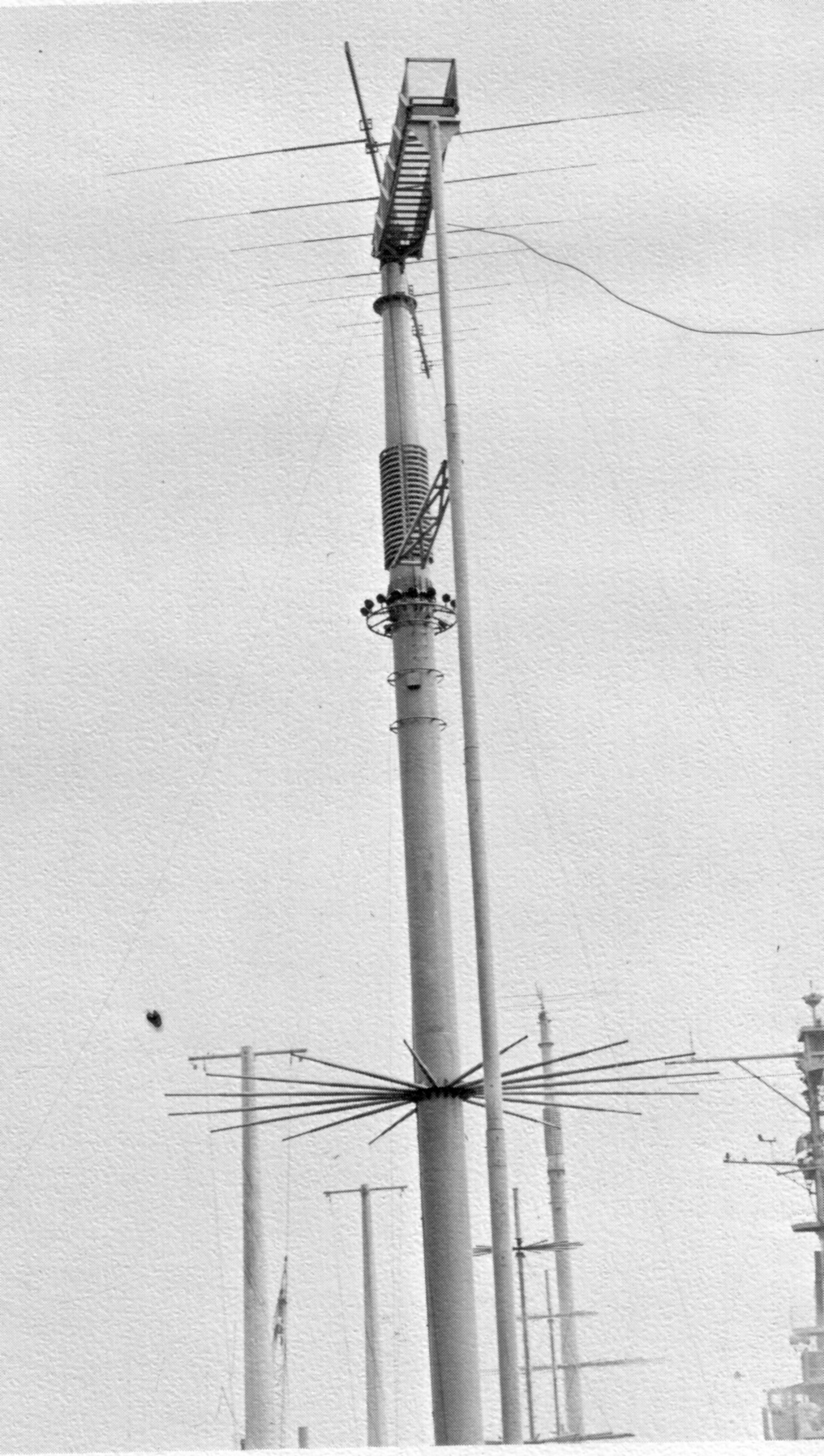

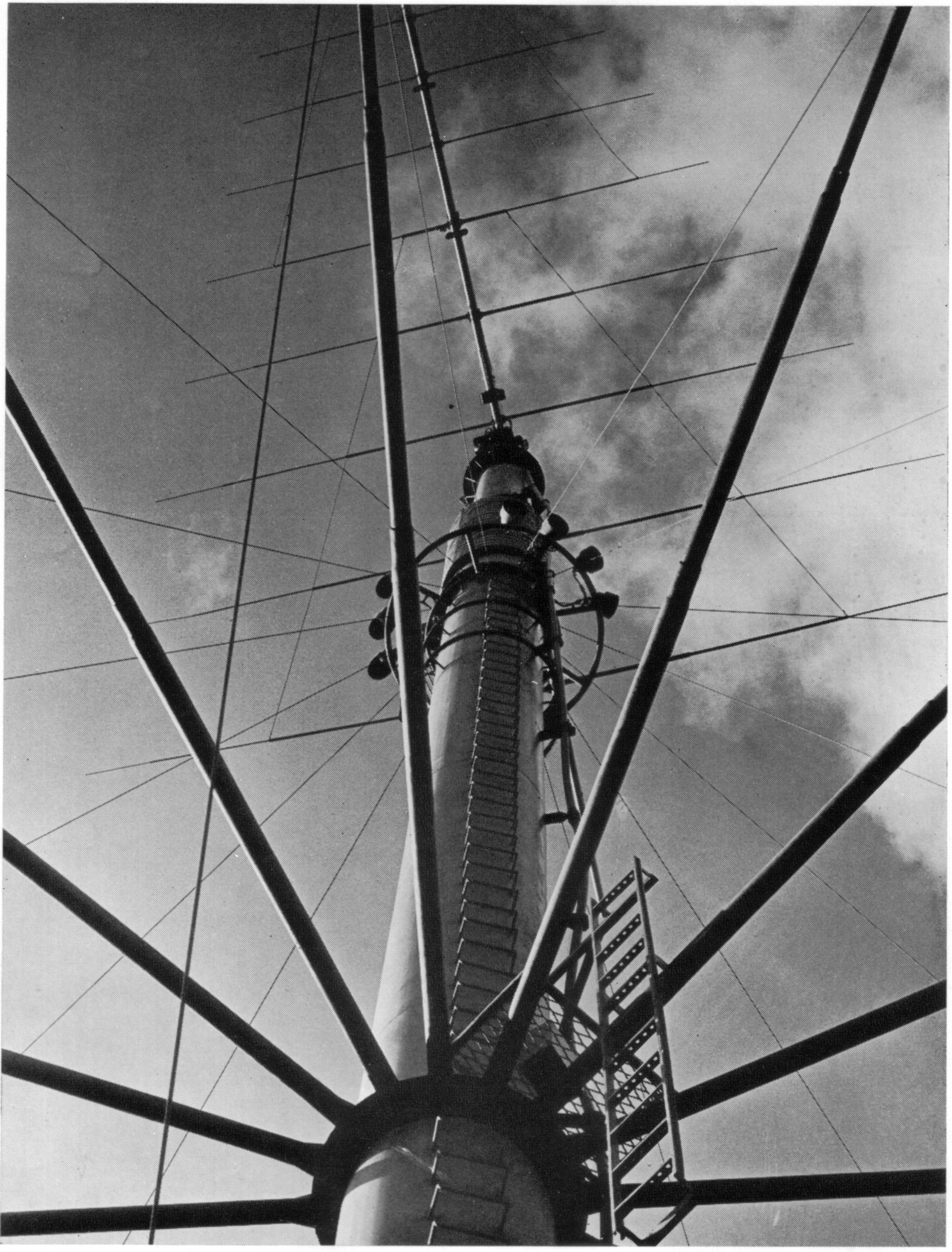

109' mast - Conical monopole & rotatable log periodic
