Model 28 Transmitter-Distributor (TD) Component Guide

The TD consists of a Transmitter (tape reader) and Distributor (parallel-to-serial signal converter)

Note: There are M28 (5-level) and M35 (8-level) equivalents for most of these.
These can also be modified for 6-level or 7-level use - the parts manuals usually have the modification info.

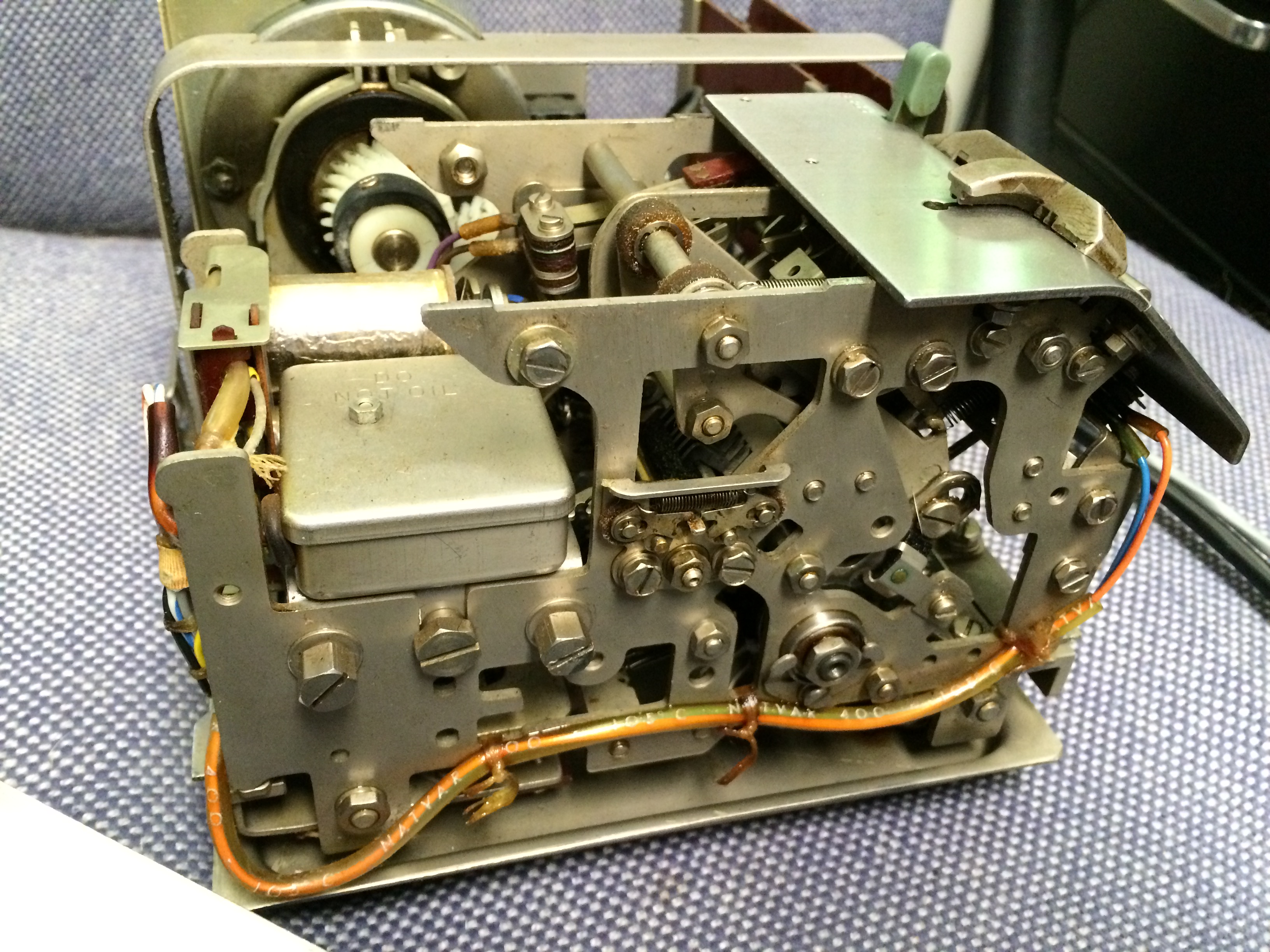

One Shaft, Single Contact - The tape reader sensing pins set transfer levers. These are used by the camshaft to open/close the contact assembly of a mark/space signal generator (like the one in a 28 keyboard).  td_8404.JPG (1542802 bytes)

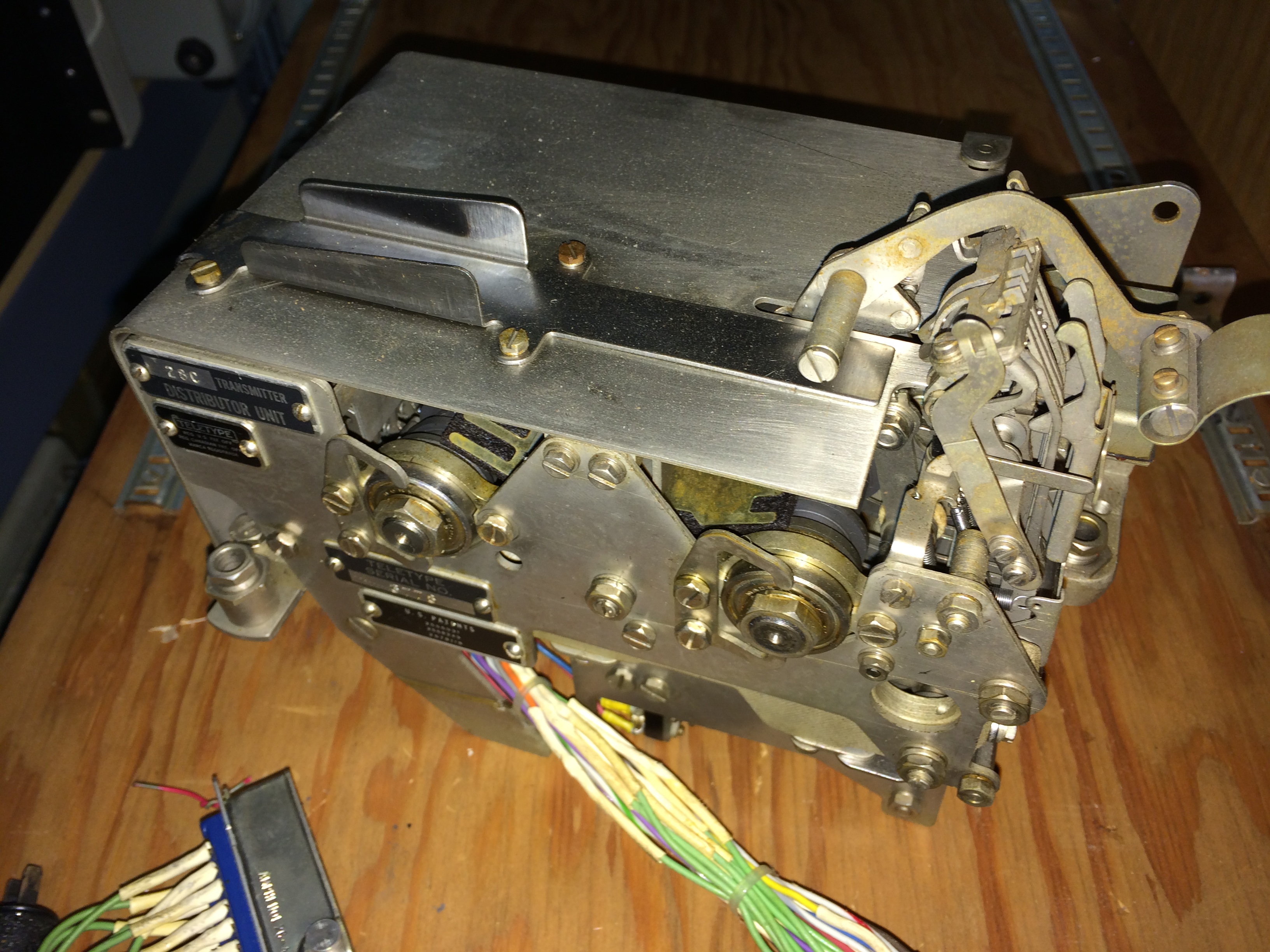

Two Shaft, Multiple Contact - The tape reader sensing pins are operated by one shaft and set a bank of storage switches.
Then a second shaft turns the distributor cam which sequentially samples the storage switches and sends out a serial character.
The two shafts have separate clutch trip magnets so that timing can be controlled as desired.




Unit

Base

Cover

Contacts

Head

Mechanism

LD

LRSB ? Multiple Contact n/a One-shaft
Distributor only with no tape reader - 5-wire parallel input, serial output
Manuals 234B, 1159B

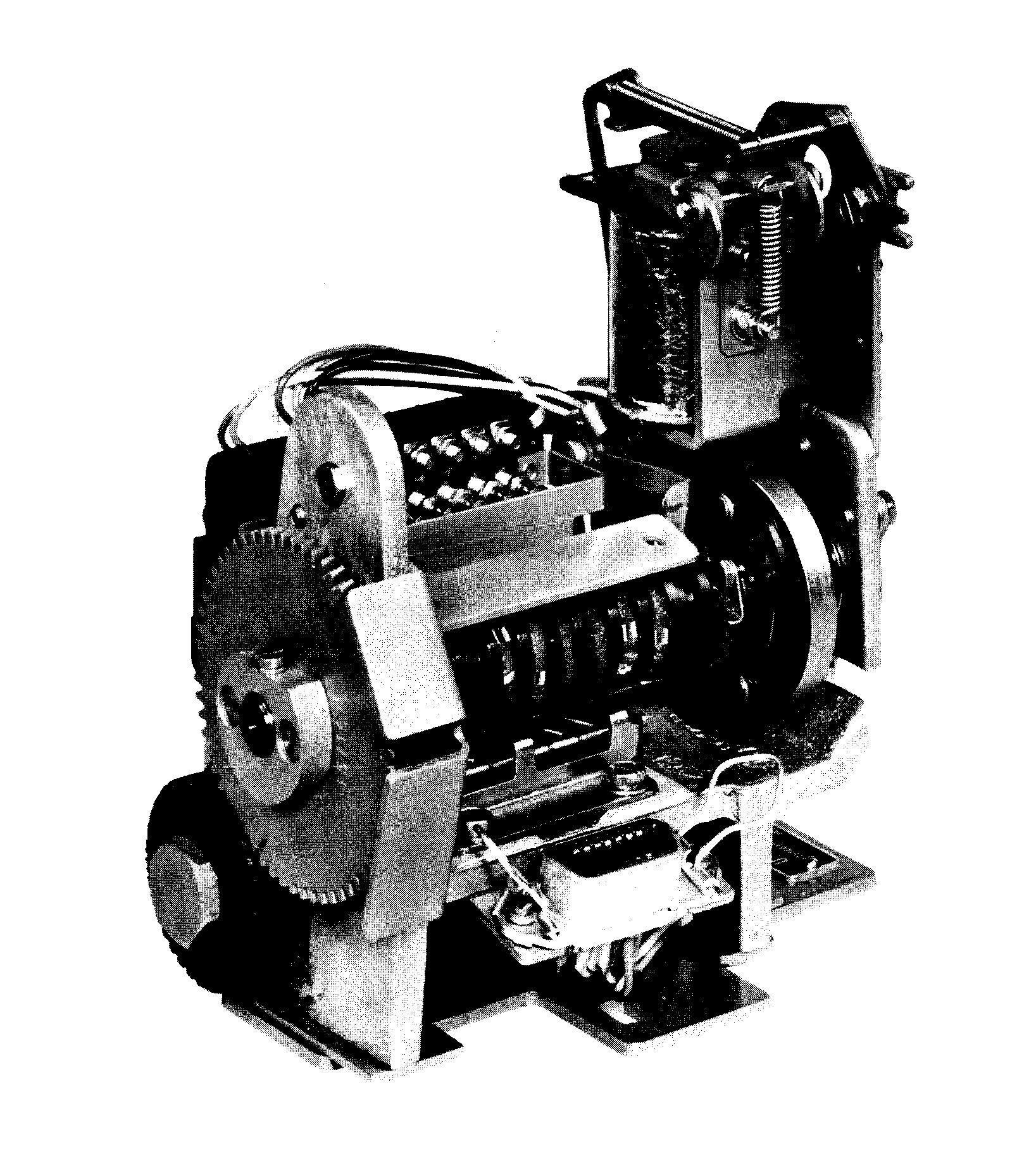

Distributor cam and contact assembly

LX

LXDB LXDC Multiple Contact Fixed Head One-shaft
need photo Tape Reader only with no distributor - 5-wire parallel output only. Manuals 235B, 1161B

LXD

LXDB LXDC Single Contact Fixed Head One-shaft
For stand-alone LXDB, multiple unit LMXB, or ASR mounting. Usually provides serial output only (but with an option that adds 5-wire parallel output)
Manuals 235B, 258B, 321B, 1161B

LAXD

- - Multiple Contact Pivoted Head Two-Shaft
Used in 28ASR and in 28RT. The Pivoted Head (climbing head) sensing pins move along a taut tape to read the last character from a reperforator. Provides 5-wire parallel output from tape reader. Or provides serial output from distributor. Also can take in 5-wire parallel input to distributor and provide serial output.
Manuals 251B, 252B, 1170B, 573-127-800TC

LBXD

LBXB LBXC Multiple Contact Fixed Head Two-Shaft
Used in LBXB stand-alone base, in ASR, or in LMXB multiple-mount base. Provides 5-wire parallel output from tape reader. Or provides serial output from distributor. Also can take in 5-wire parallel input to distributor and provide serial output.
Manuals 242B, 243B, 1165B, 573-127-802TC,

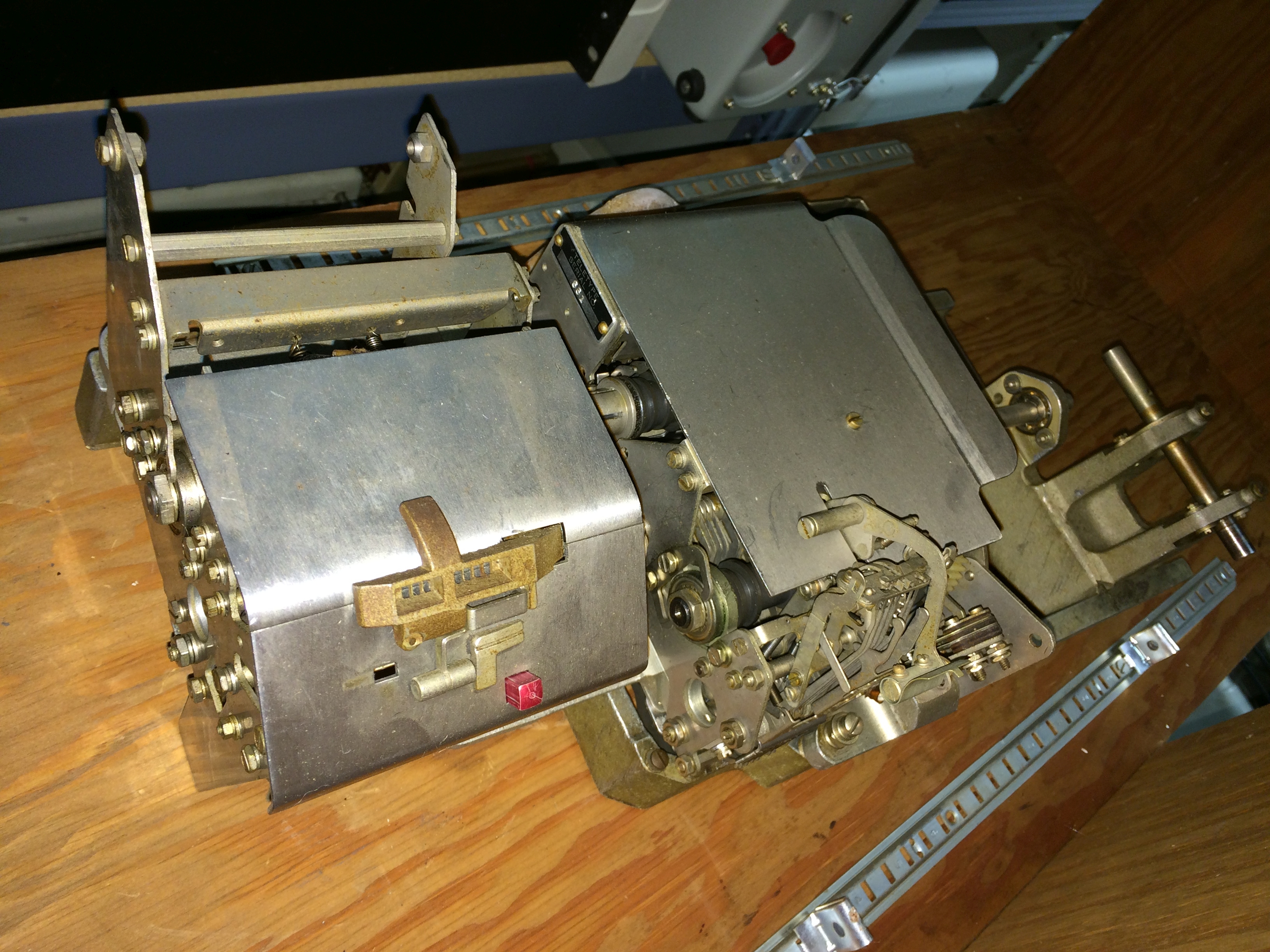

LCXD

- - Multiple Contact Pivoted Head + Fixed Head Two-Shaft
Used in 28ASR. The Pivoted Head (climbing head) Reader moves along a taut tape to read the last character from a reperforator. The Fixed Head Reader is used to insert additional message tapes. Both heads feed a single distributor. Provides 5-wire parallel output from tape reader. Or provides serial output from distributor. Also can take in 5-wire parallel input to distributor and provide serial output.
Manuals 253B, 254B, 1171B, 573-127-803TC

LDXD - What is it ??

--

LEXD

- - Multiple Contact  Fixed Head Two-Shaft
CARDATA - Card or Tape Reader (M35)
Manual 574-242-100TC

LFXD

- - Multiple Contact  Fixed Head Two-Shaft
Tape Pull-Back Unit. For use in ASR
Manual 1182B

TD Bases

Mystery Base? - allows M28 TD to be used in M14 base?


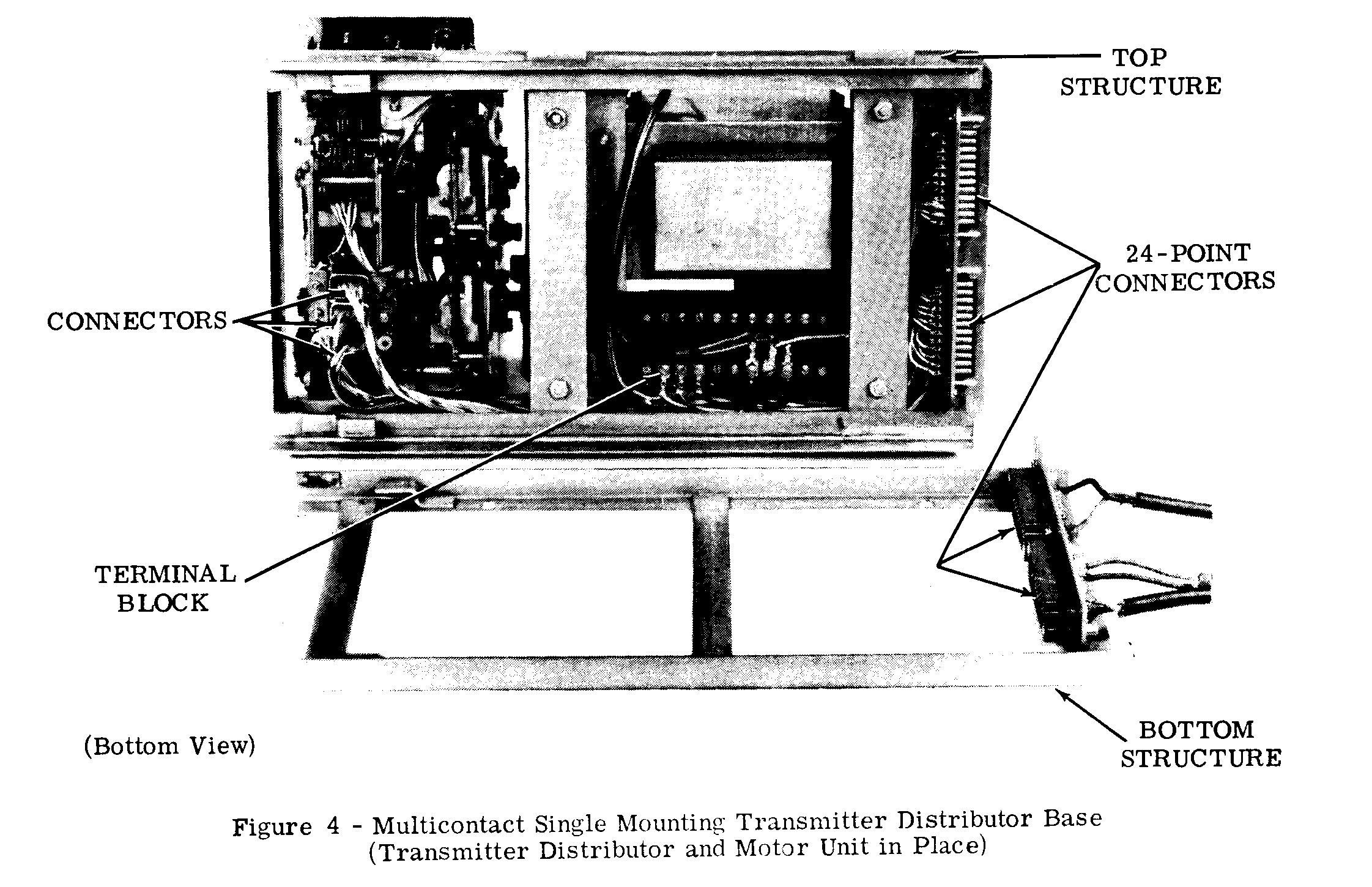

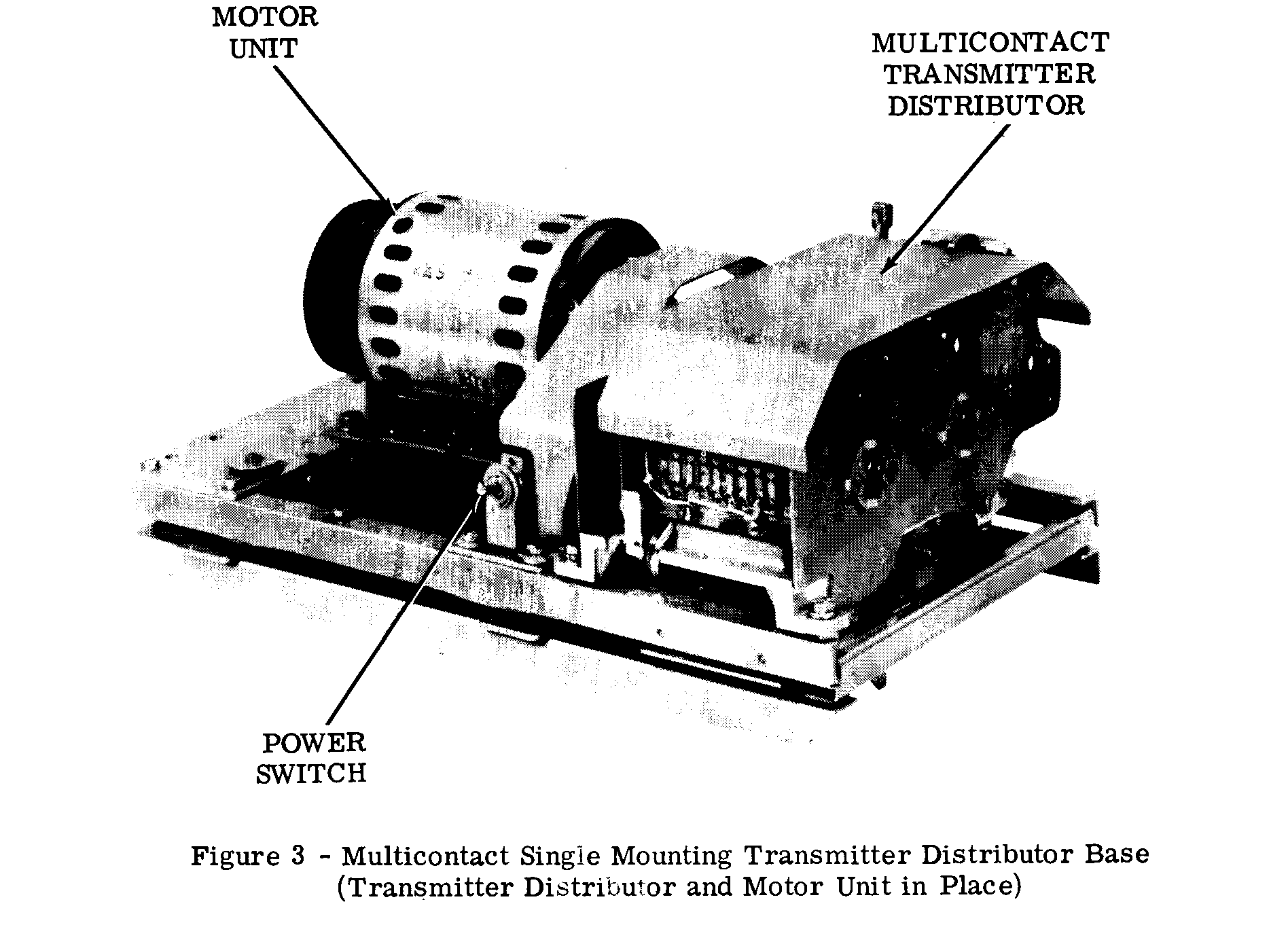

LBXB

Stand-alone base for multiple-contact TD (LBXD)
Manuals 249B, 250B, 1169B, 573-128-800TC

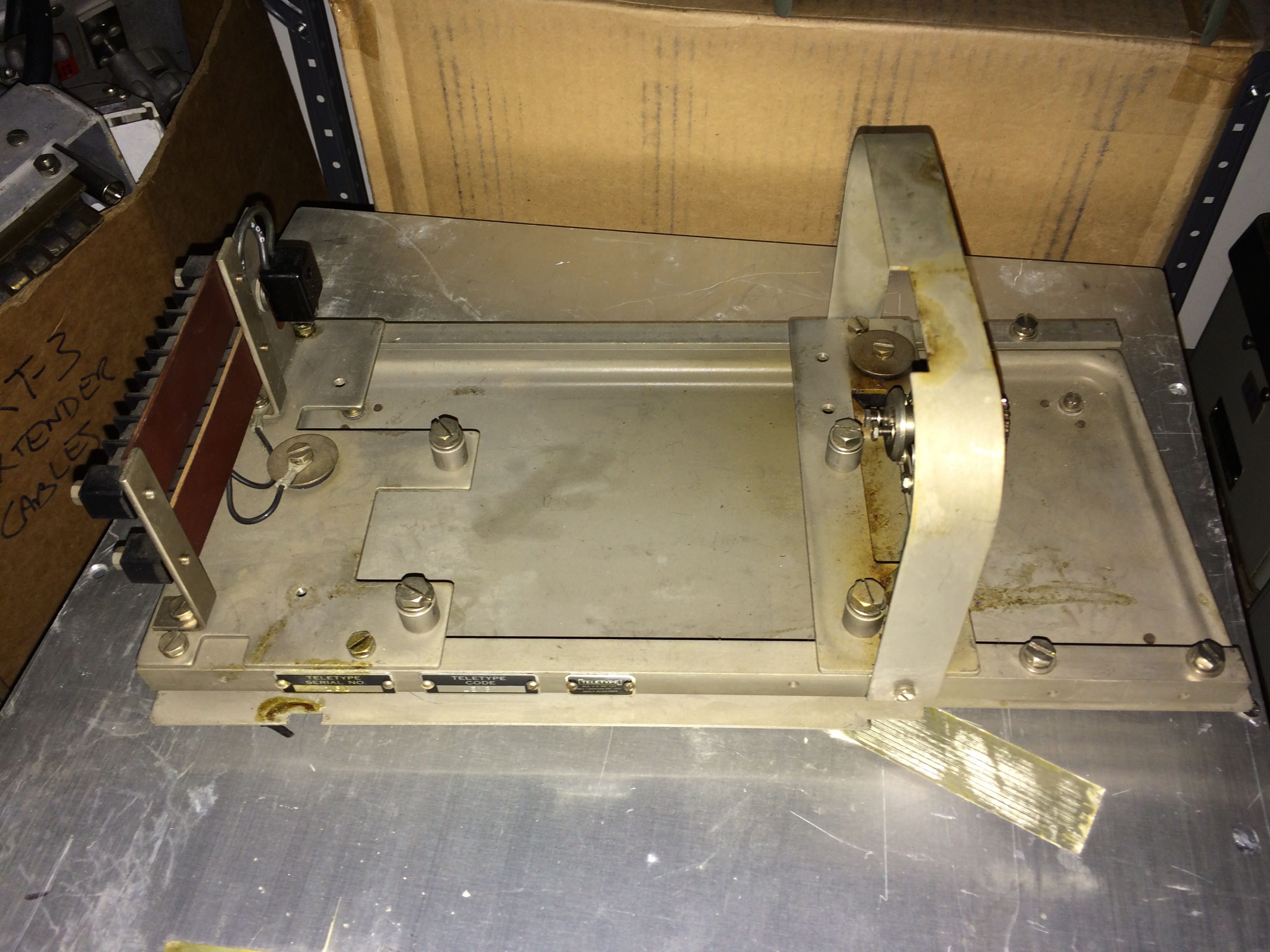

LCXB

Base for mounting TD to ASR
Versions for LXD, LAXD, LBXD, and LCXD

LEXB

what is it used for? (not an LEXD)

LFXB

ASR base for pull-back TD
need photo Manuals 1182B

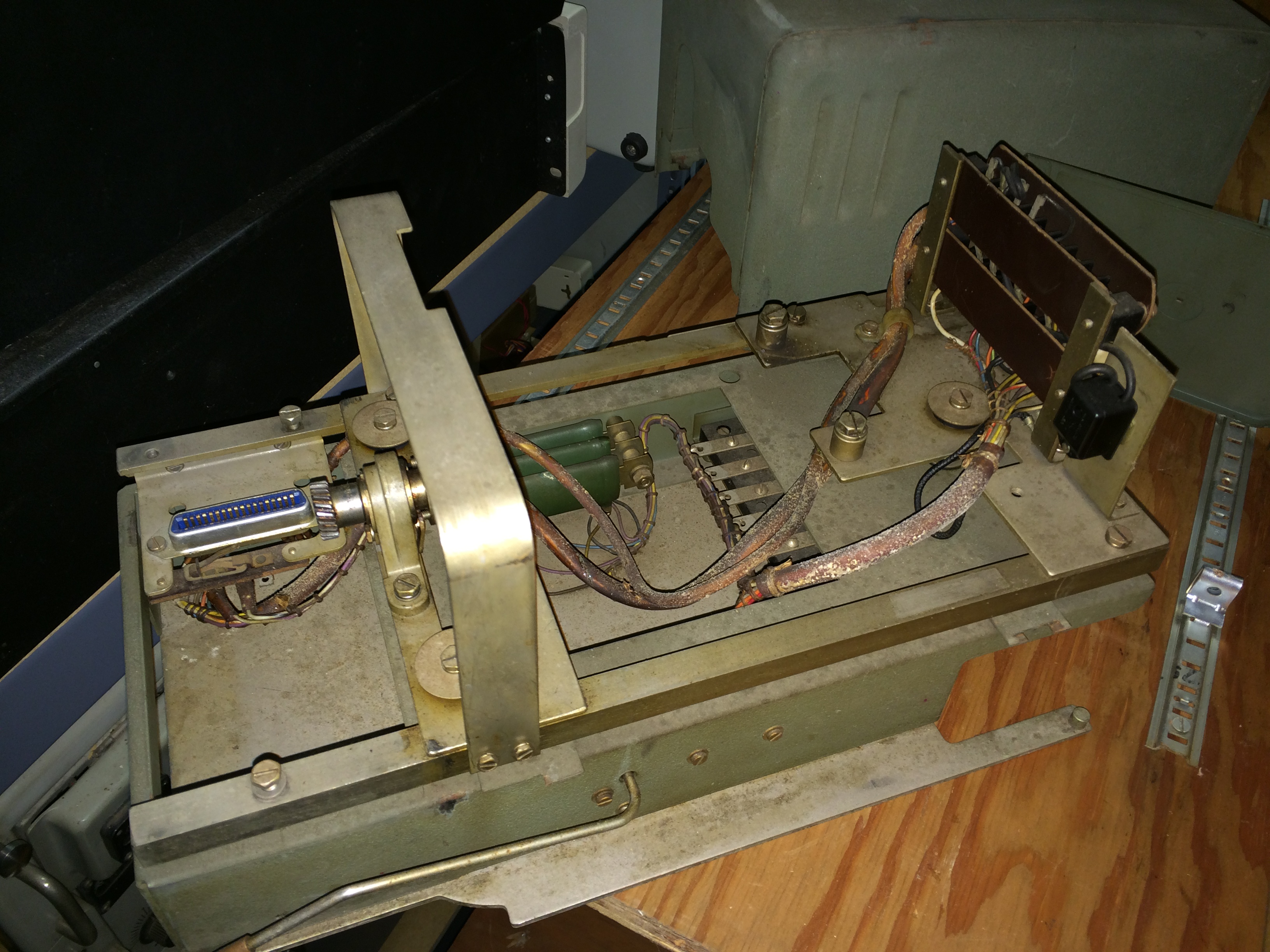

LMXB

Triple-TD base for single-contact or multiple-contact TD units


LRSB

Stand-alone base for LD distributor

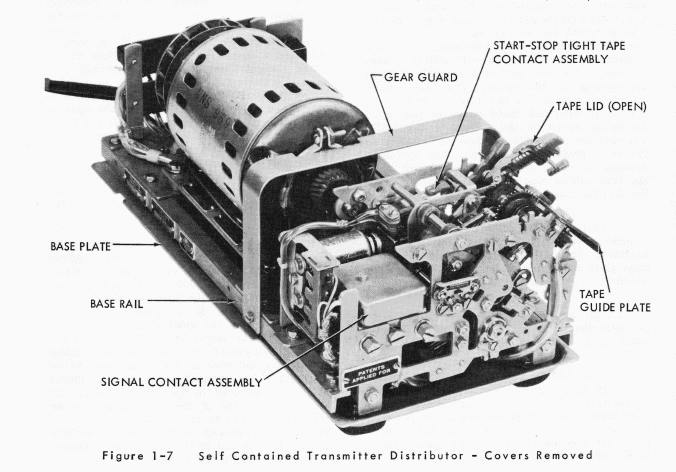

LXDB

Stand-alone base for single-contact LXD TD

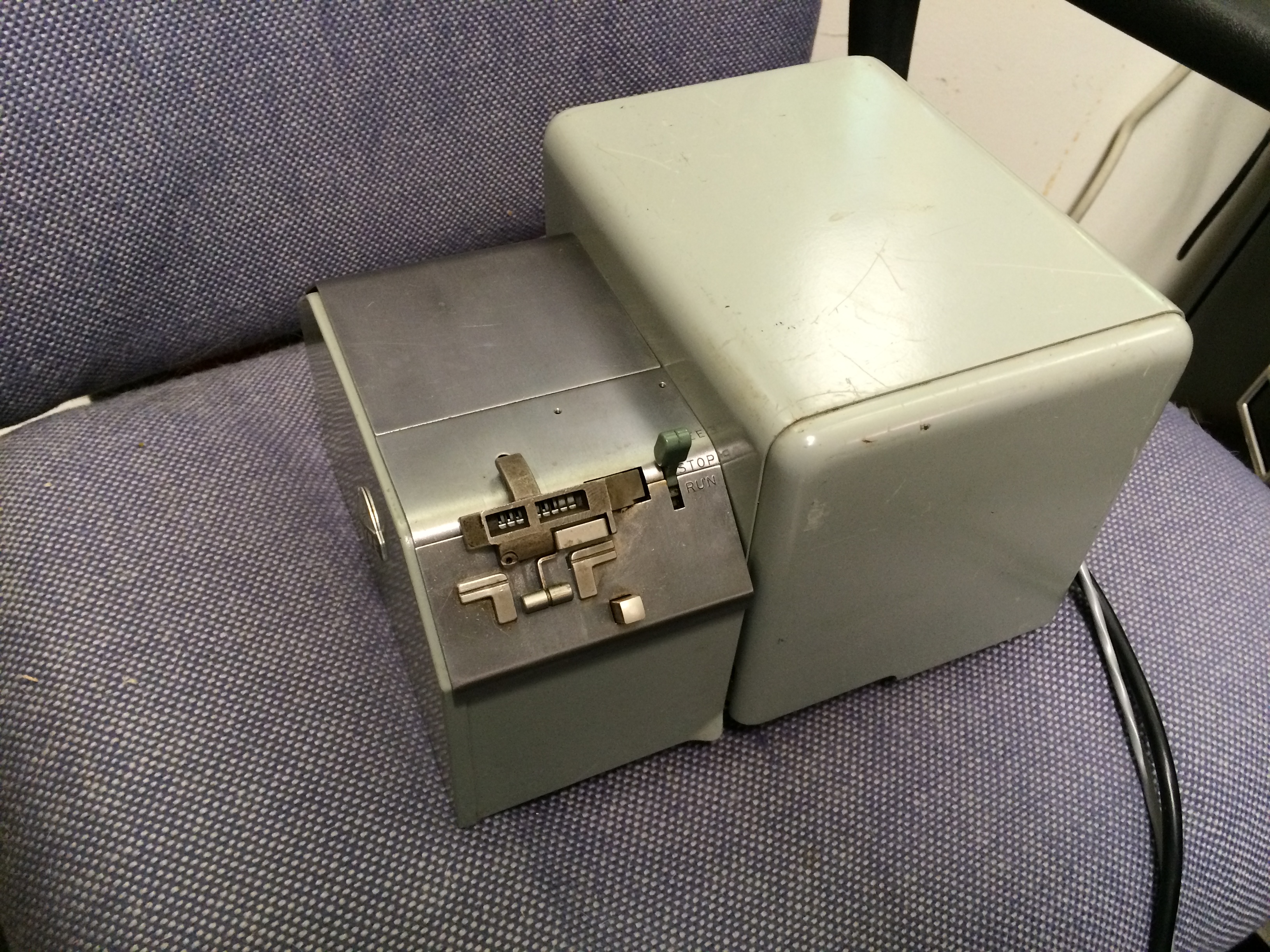

LXDB base +
LXDC cover


LXDB (miniature)

Stand-alone base for single-contact LXD TD - uses smaller motor and base
