Teletype Model 42 ASR - 4220 AAB + 4250 AAA

I am trying to figure out how to set Options on my machine. At Power-On after the back-up battery has discharged, I get an "Auto 2=*" prompt and can can edit and store an Auto 2 text string, but that's the only option I can print or edit.

After storing Auto 2, I cannot re-enter options edit mode and Options "Prep" and "Load" keys don't do anything. I can't figure out how to list and edit options from there. HELP!

Power-On prompt
(410231 is the controller board model)
Options listing taped onto a friend's M42 by a previous owner

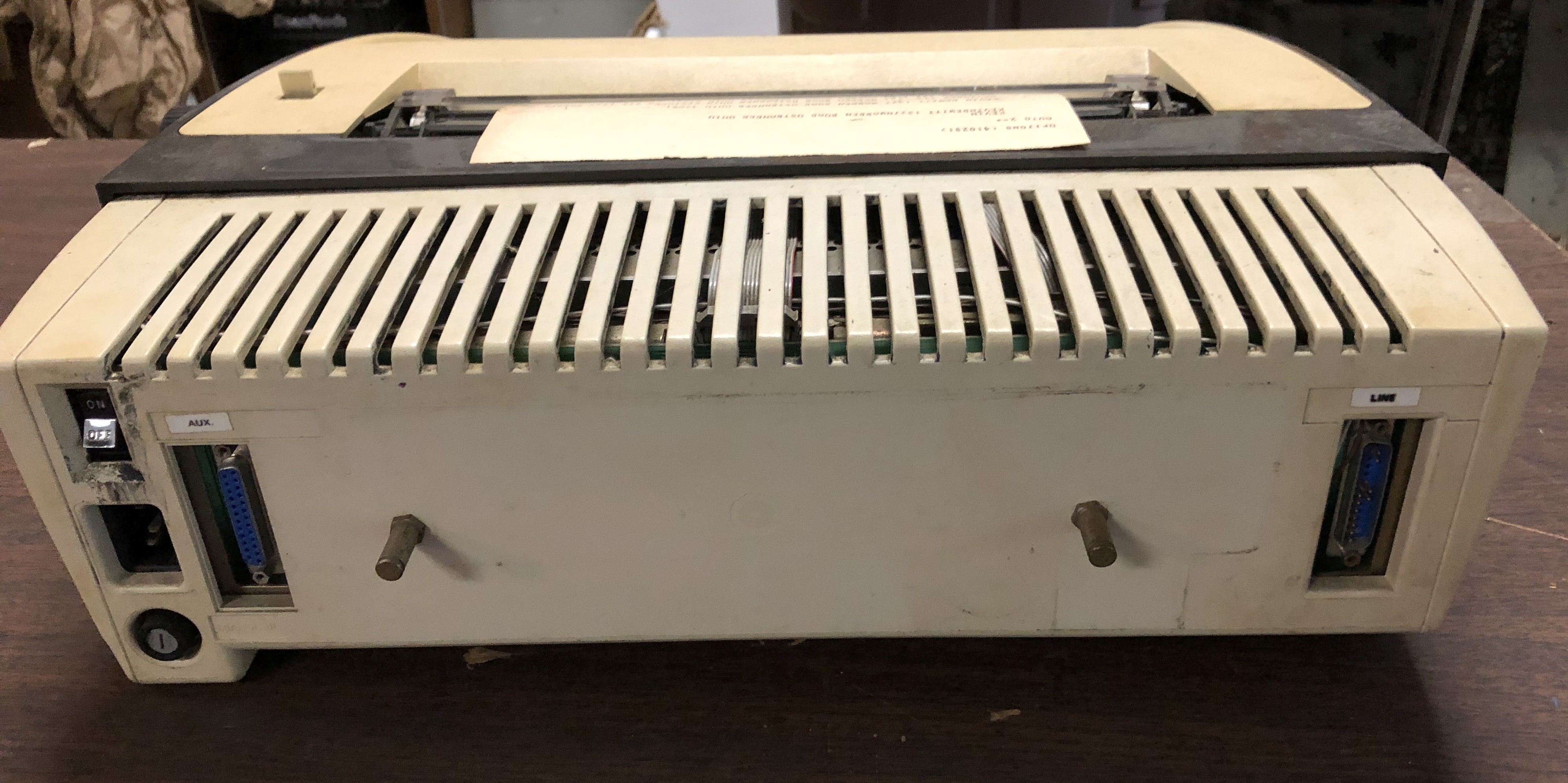

IMG_2934.JPG (3686331 bytes) IMG_2933.JPG (3732755 bytes) IMG_2938.JPG (2448547 bytes) Model 4220 AAB Teleprinter

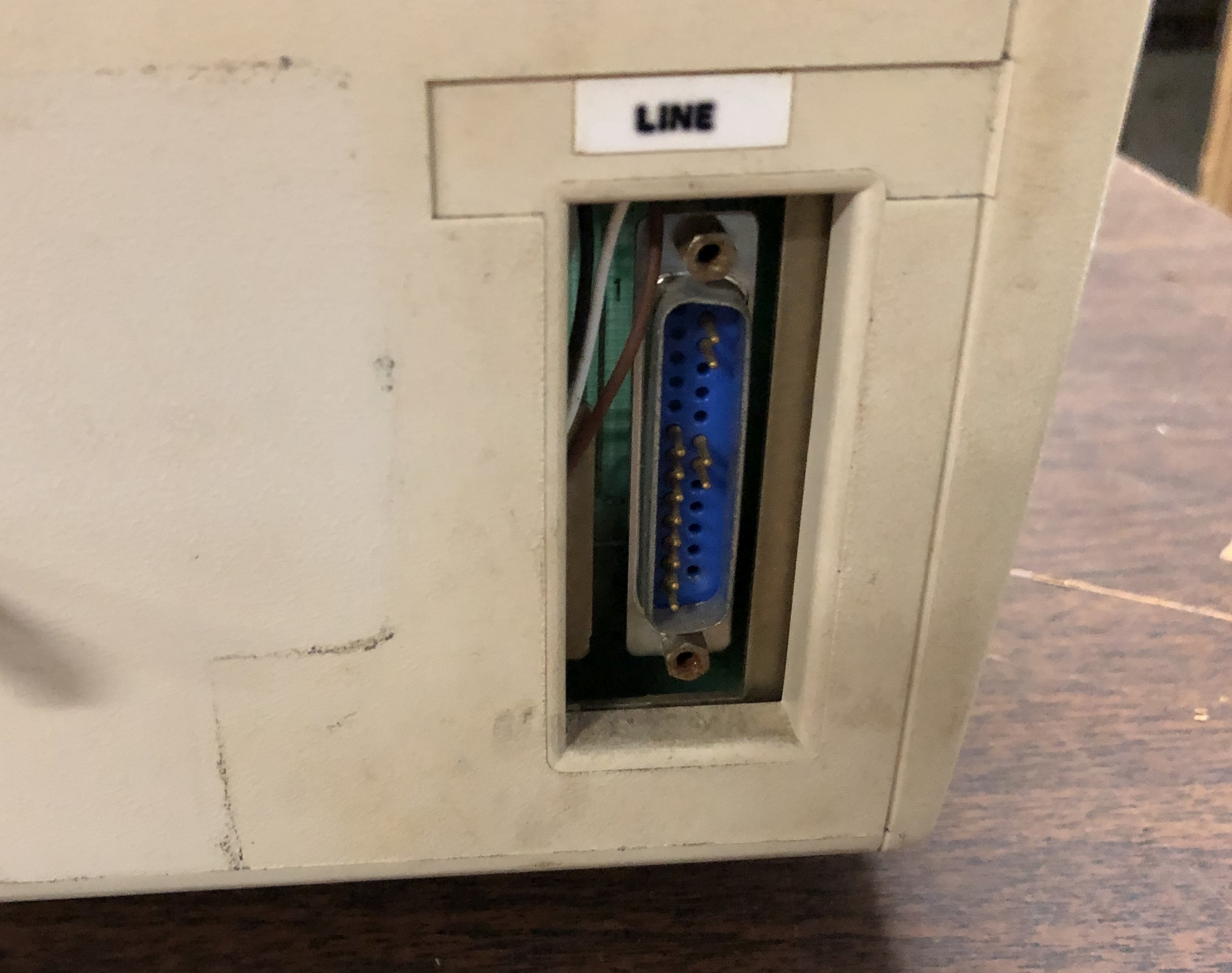

IMG_2923.JPG (1066252 bytes) IMG_2924.JPG (965585 bytes) IMG_2927.JPG (1728368 bytes) IMG_2928.JPG (1668066 bytes)

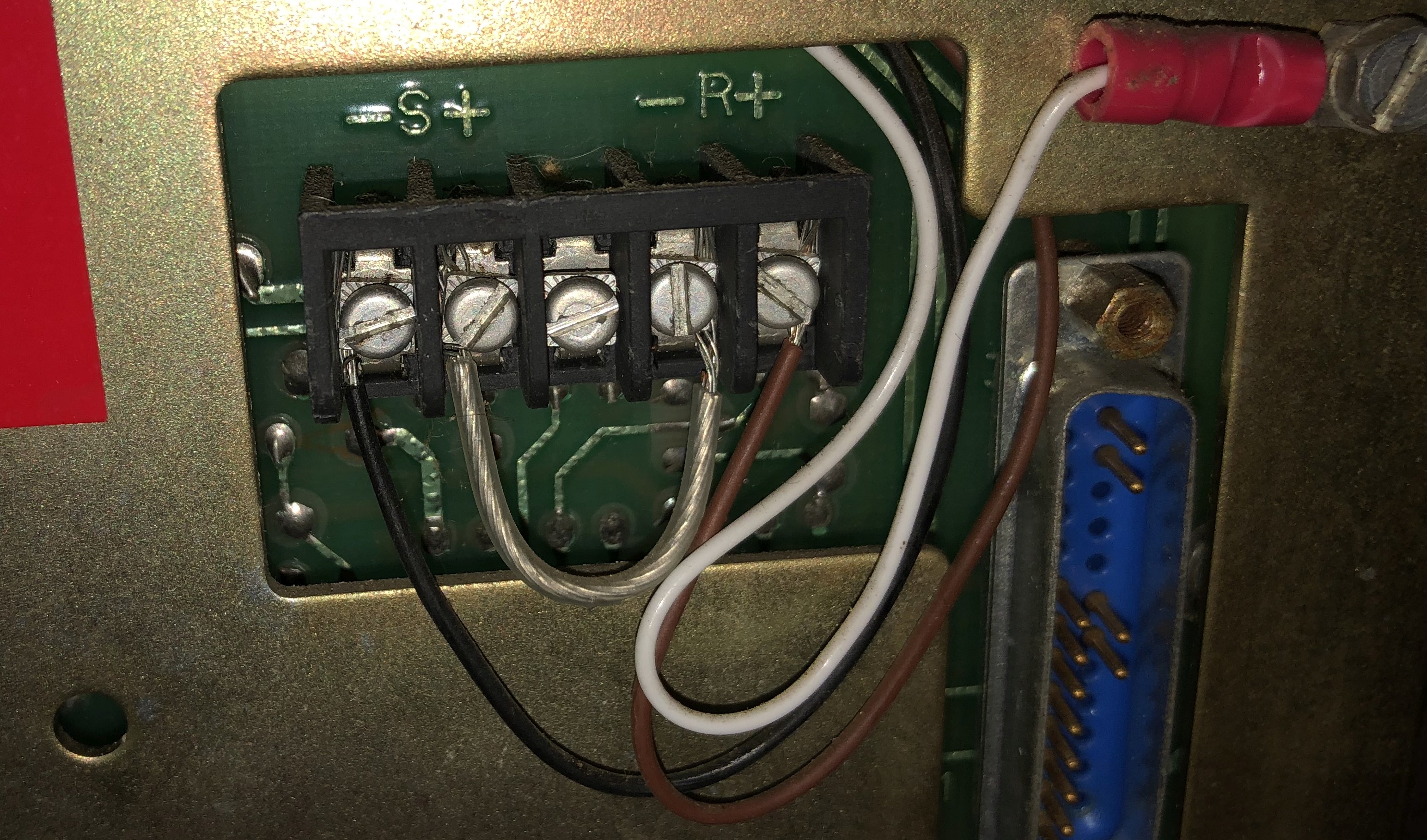

Send-Receive 20/60 ma Loop
==
US Navy Modifications?

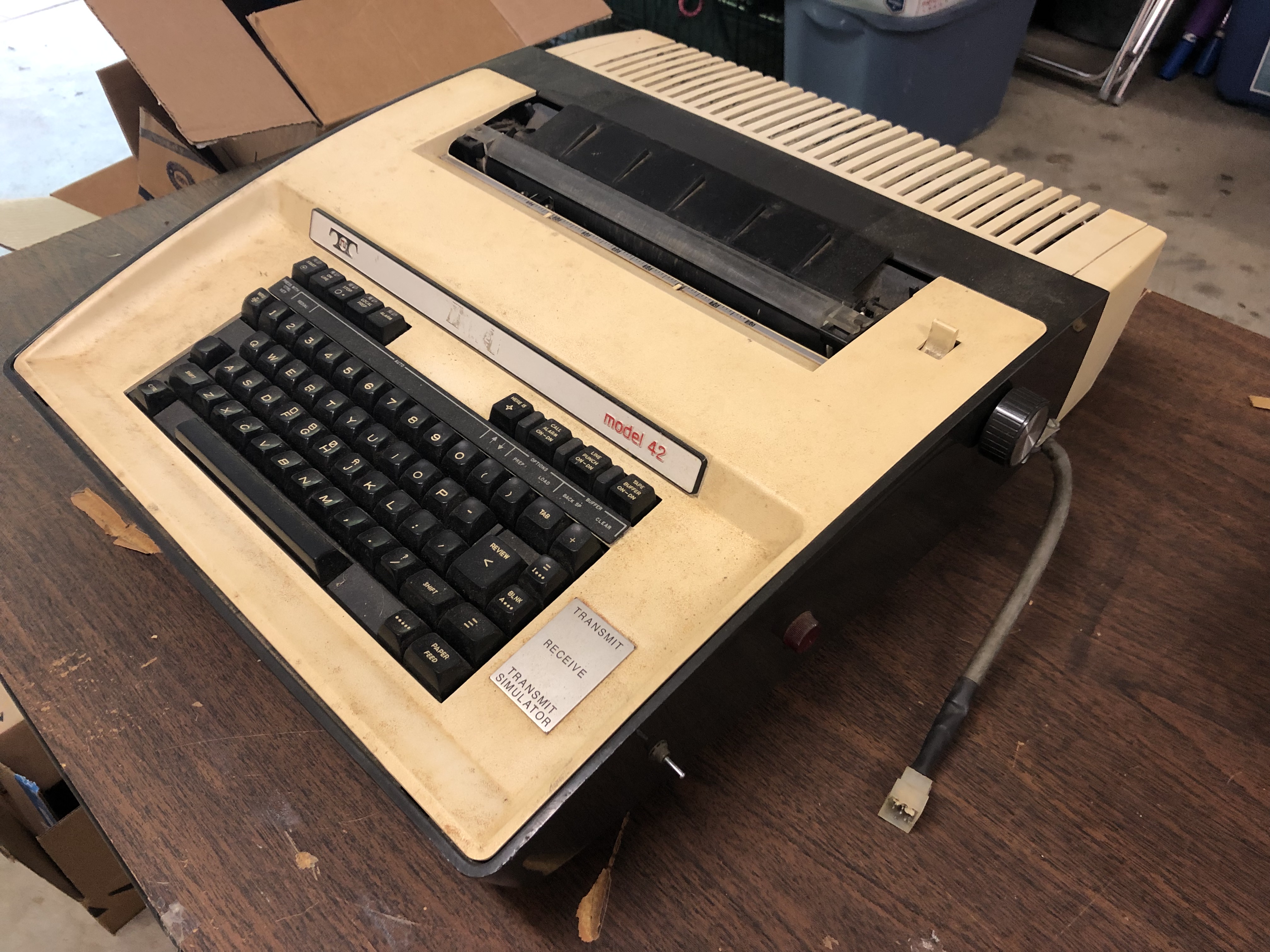

Switch labeled "Transmit"-"Receive"-"Transmit Simulator"

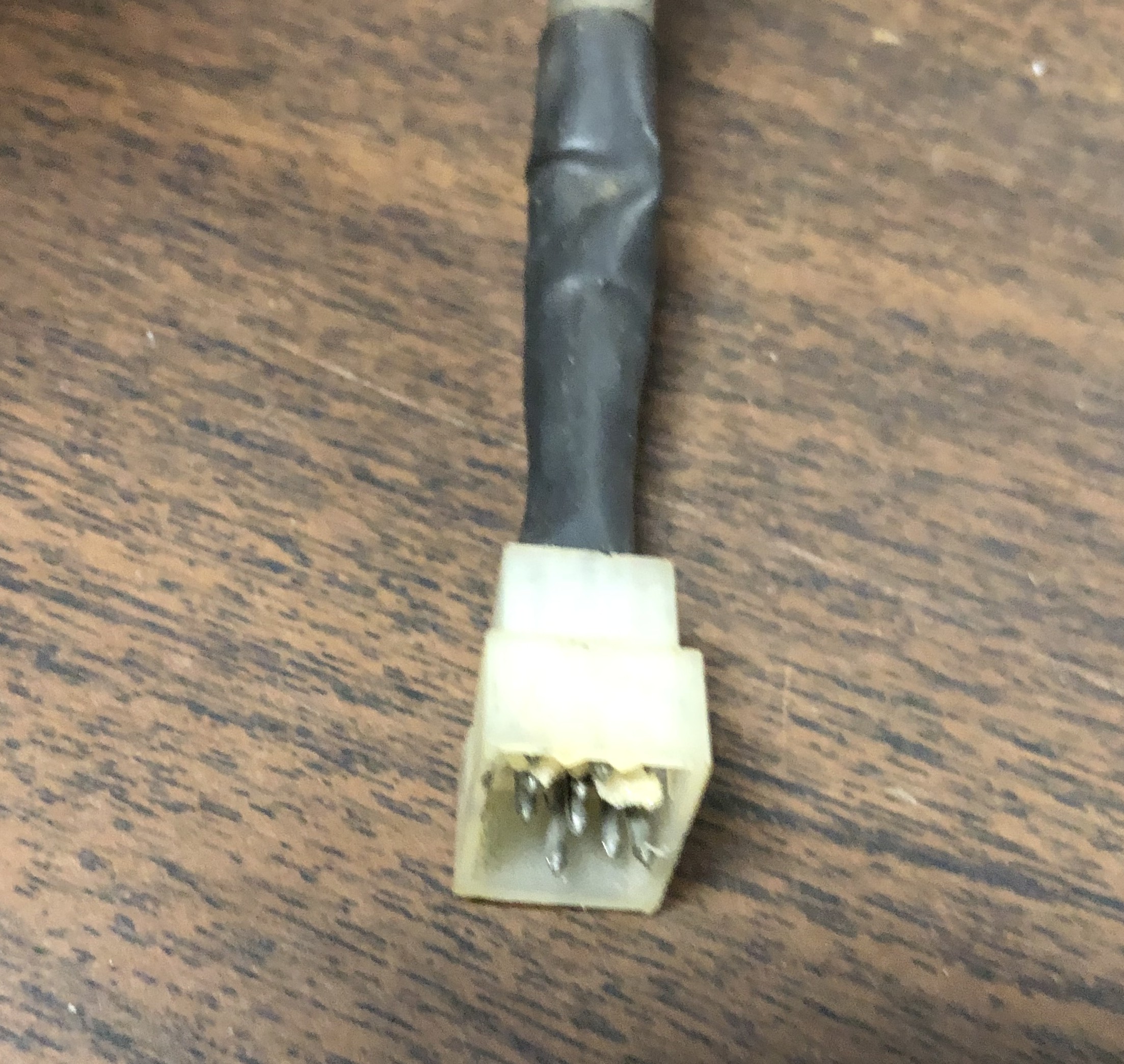

External Cable w/ Molex Connector - 60ma loop plus switch/lamp connections



Switch and Indicator Lamp

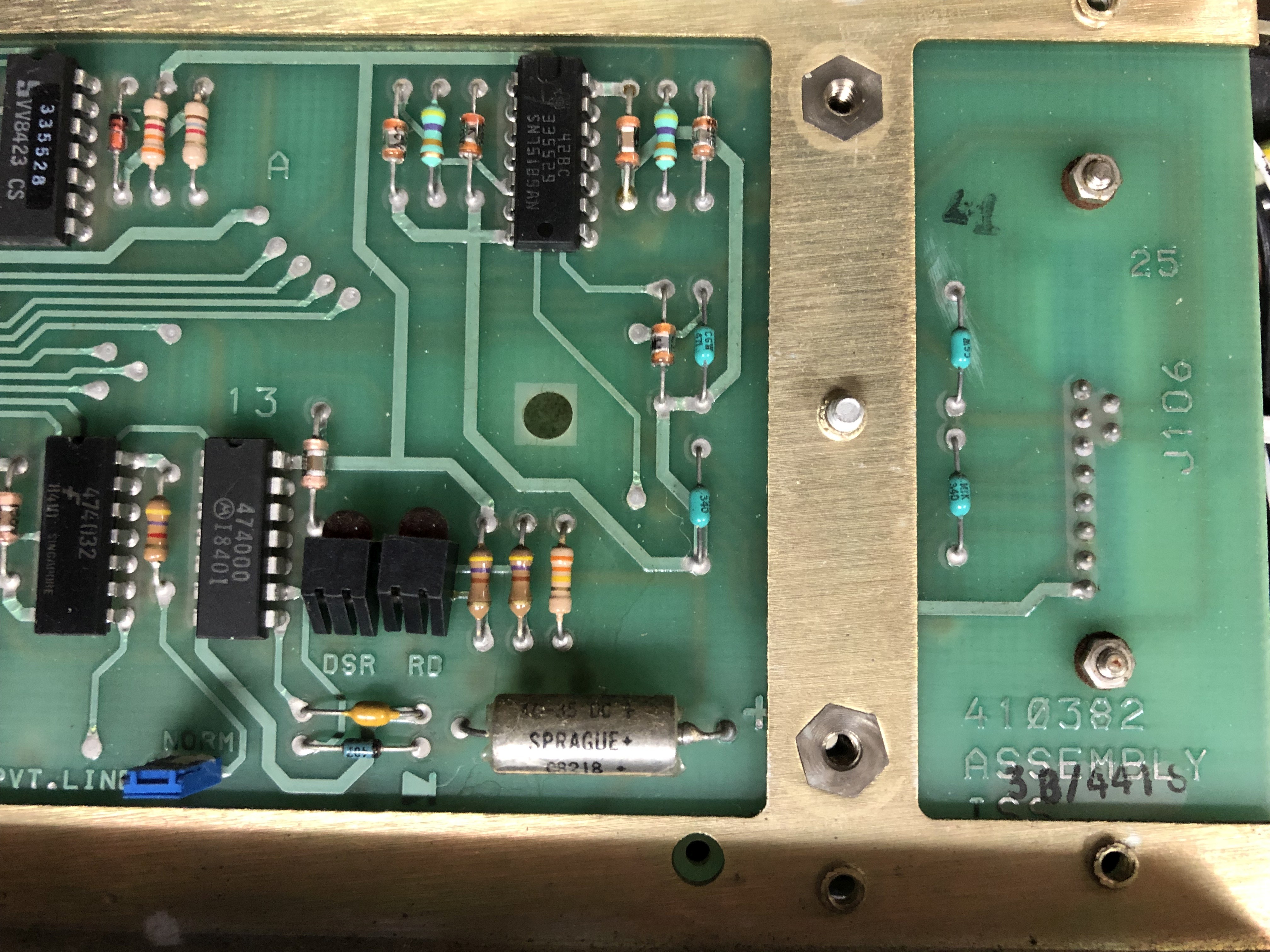

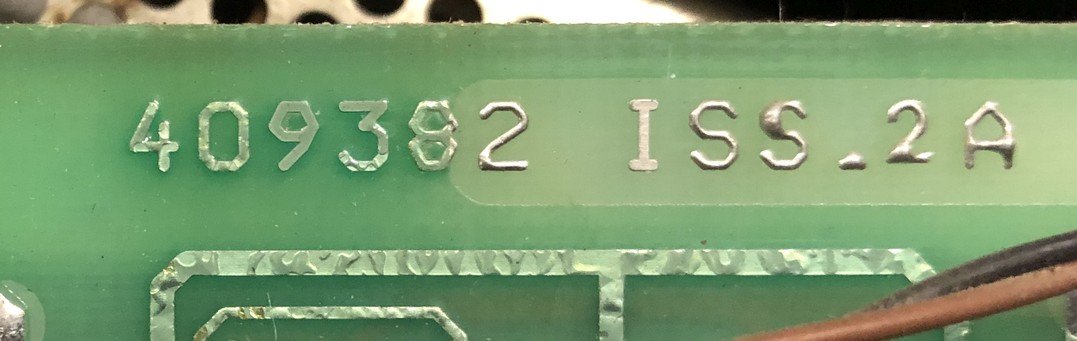

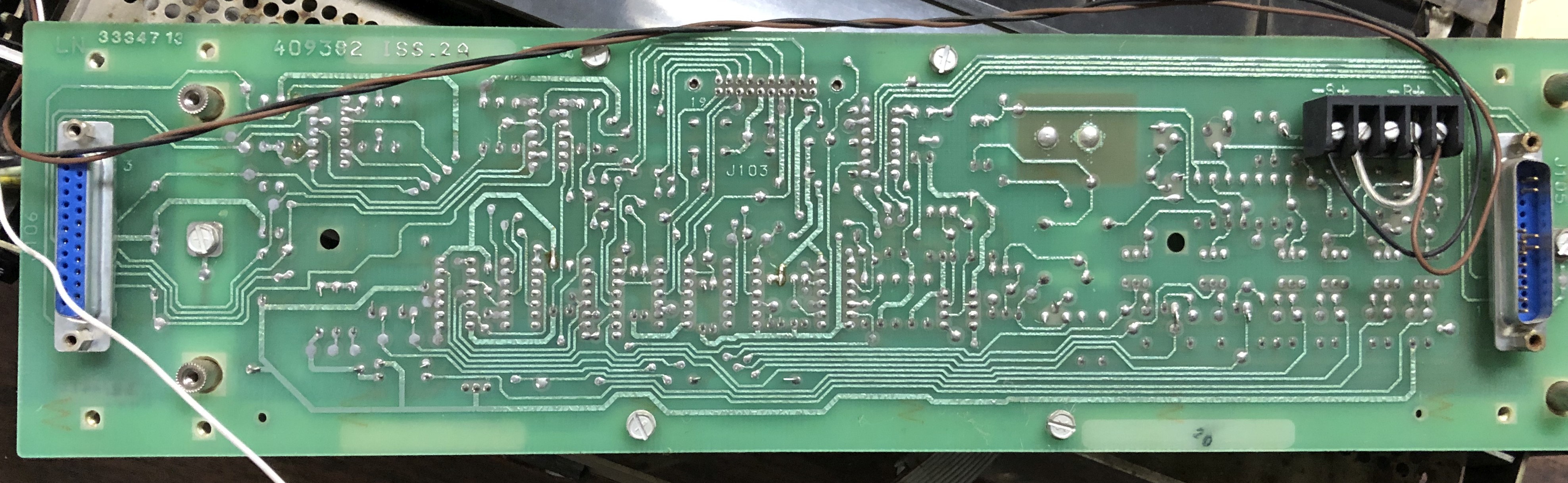

Interface Circuit Card TAU3 - 410382 Dual EIA plus 20/60ma Neutral Loop
- Description & Schematic thanks to Paul Cembura

IMG_2959.JPG (1157669 bytes) IMG_2960.JPG (84048 bytes) IMG_2961.JPG (1021528 bytes) IMG_2965.JPG (59824 bytes)

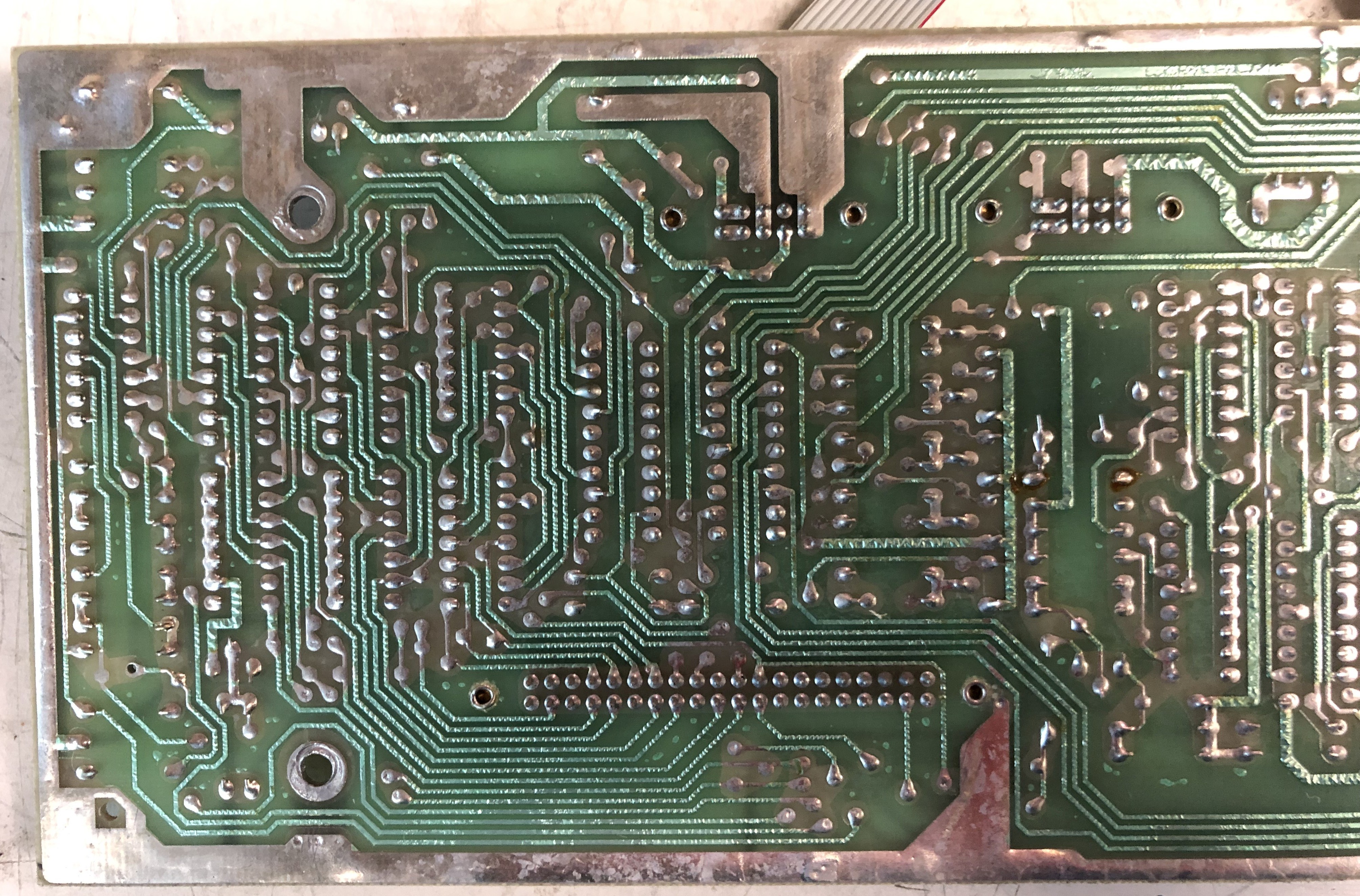

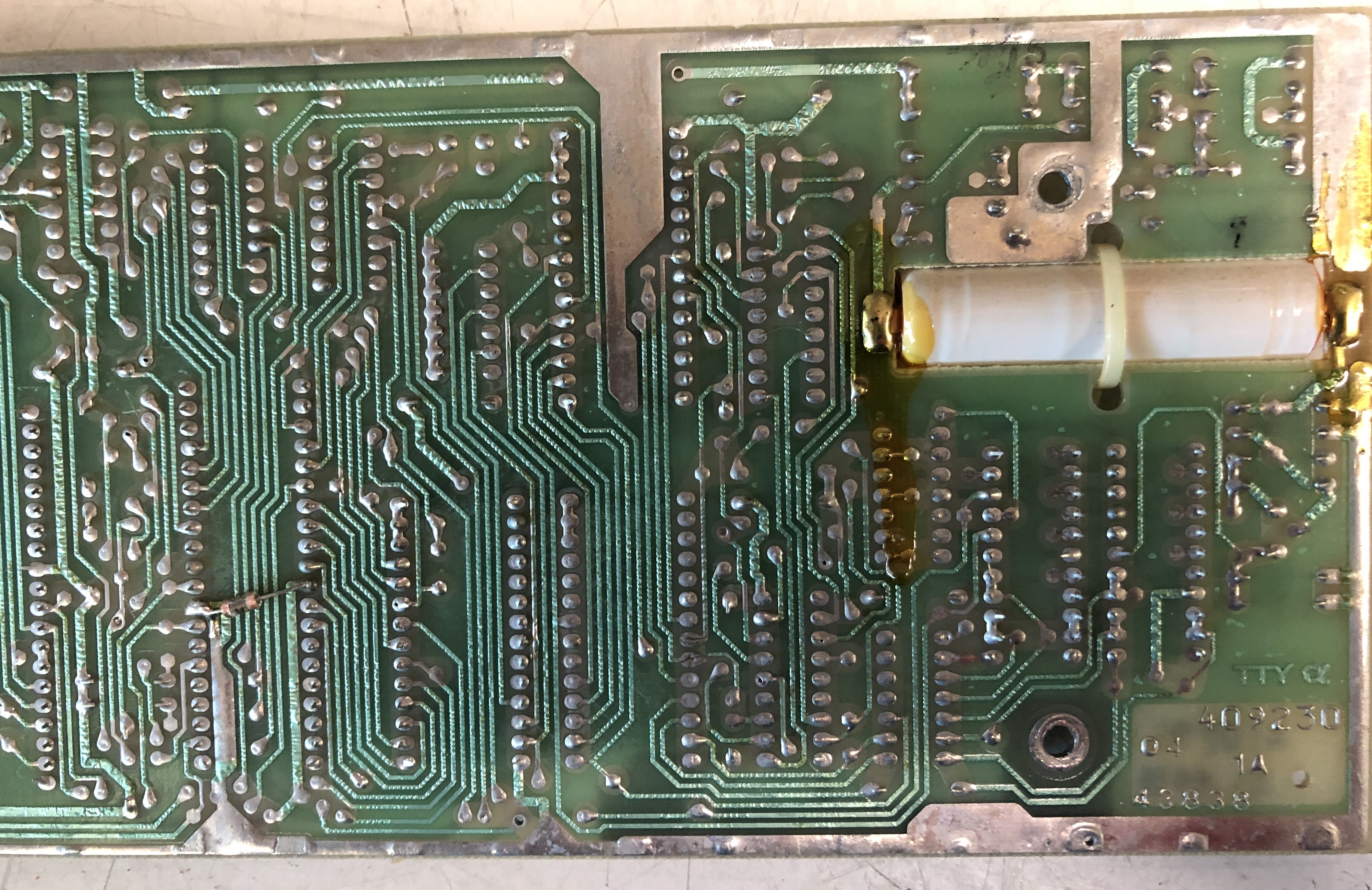

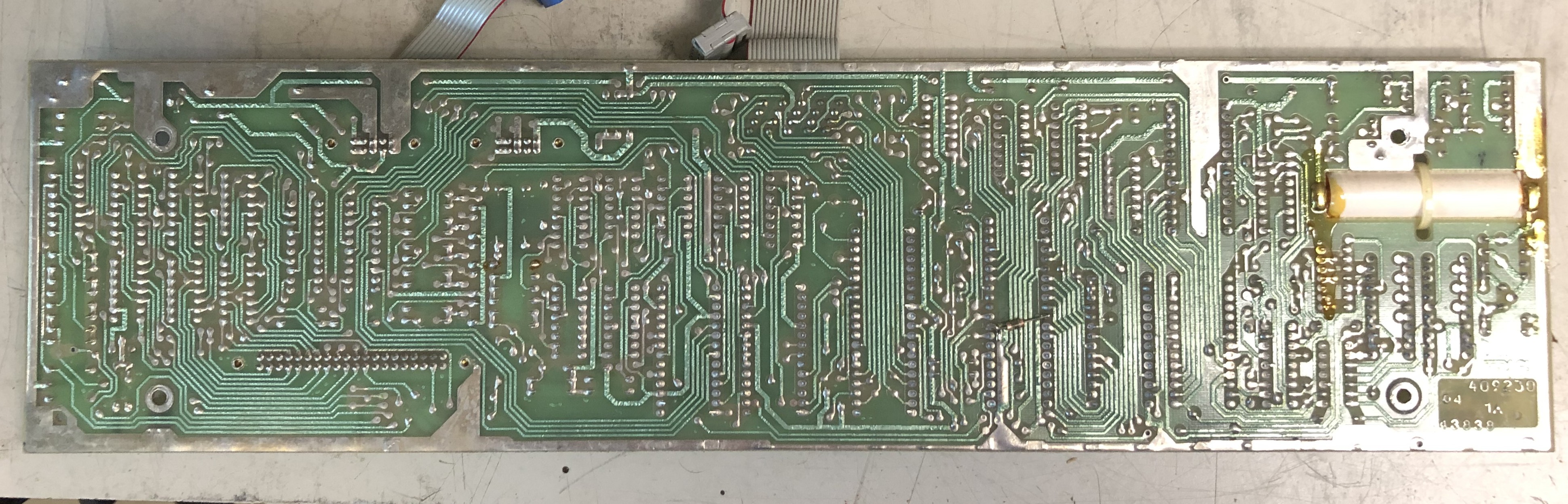

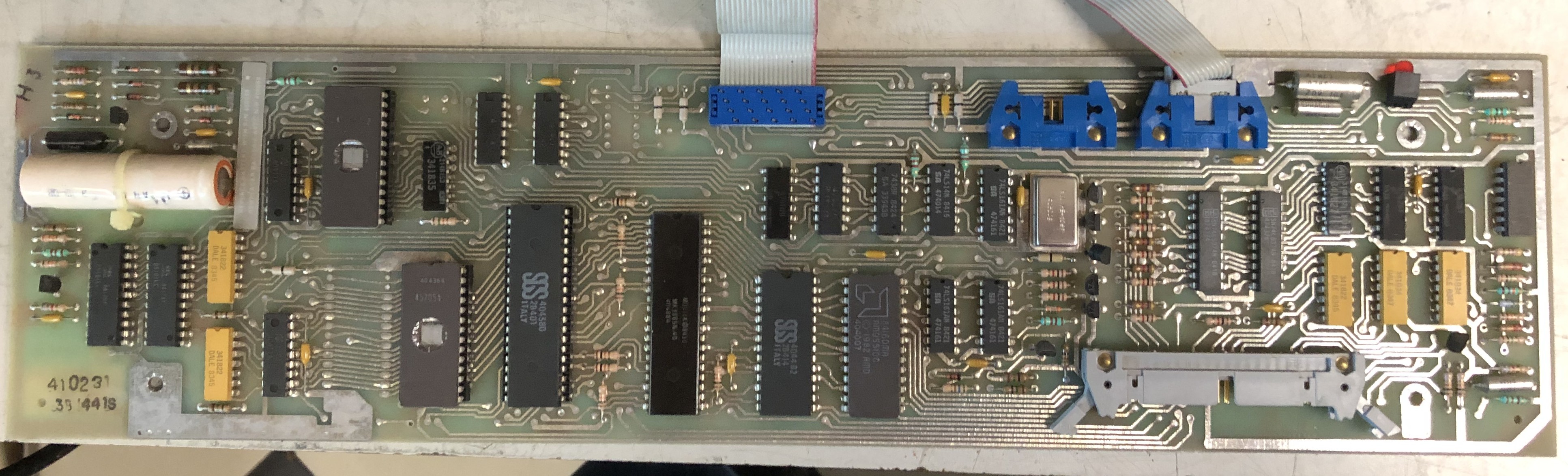

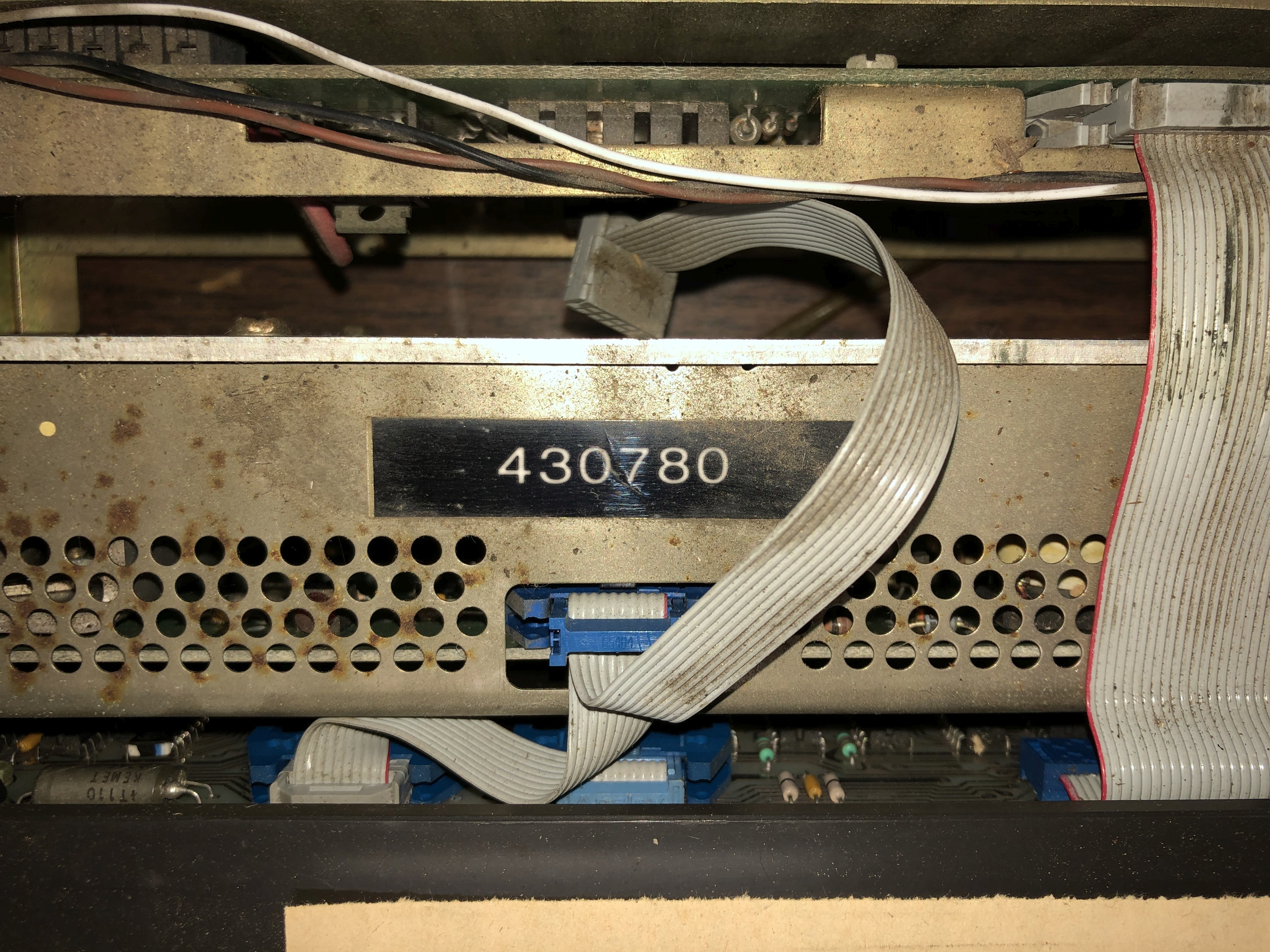

Controller Circuit Card - 410231 5 Level SCCAT ("Single Card Controller") - component layout
Z-80 CPU + two 64K EPROMs + 256x8 SRAM (w/battery back-up) + 1Kx8 SRAM + three USARTs

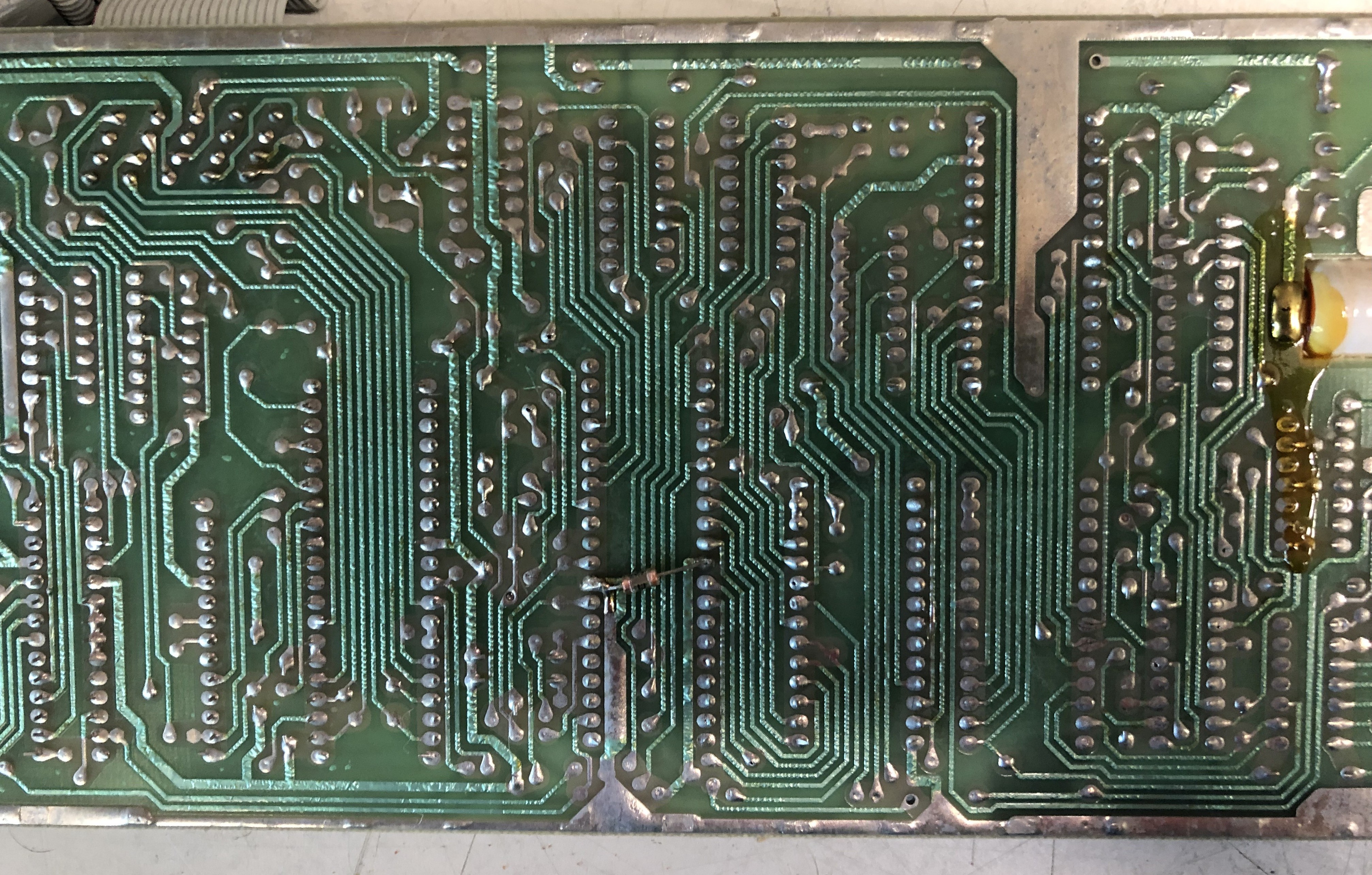

IMG_2994.JPG (2828005 bytes) IMG_2995.JPG (3118174 bytes) IMG_2996.JPG (2808651 bytes) IMG_2997.JPG (2567331 bytes)

Logic Card 410791 Keyboard Interface & Printer Controller

IMG_3004.JPG (534417 bytes) IMG_2951.JPG (1908362 bytes) IMG_2950.JPG (954194 bytes) IMG_2949.JPG (1370829 bytes)

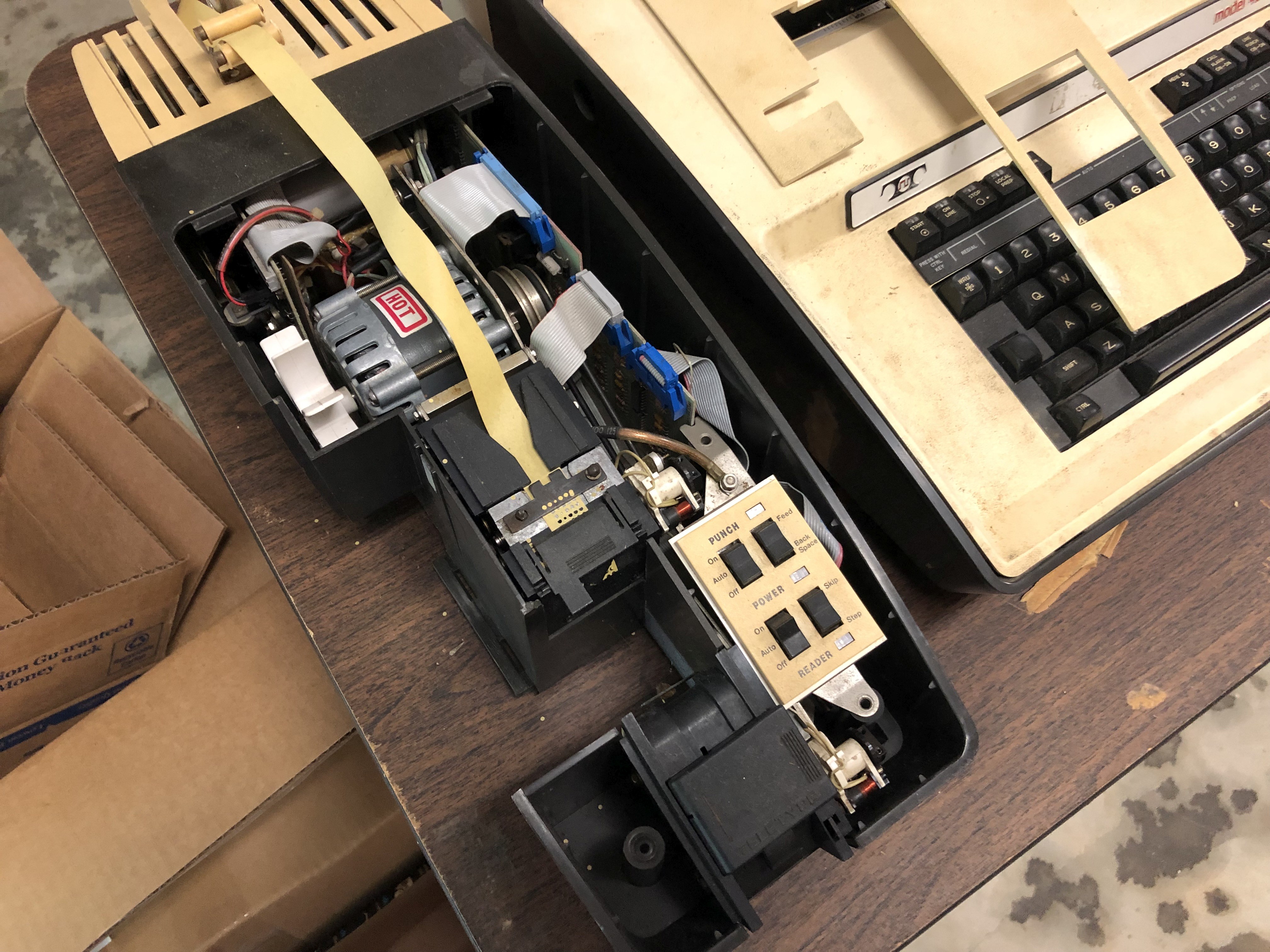

Paper Tape Unit - 4250 AAA - video

Model 4250 AAA paper tape unit

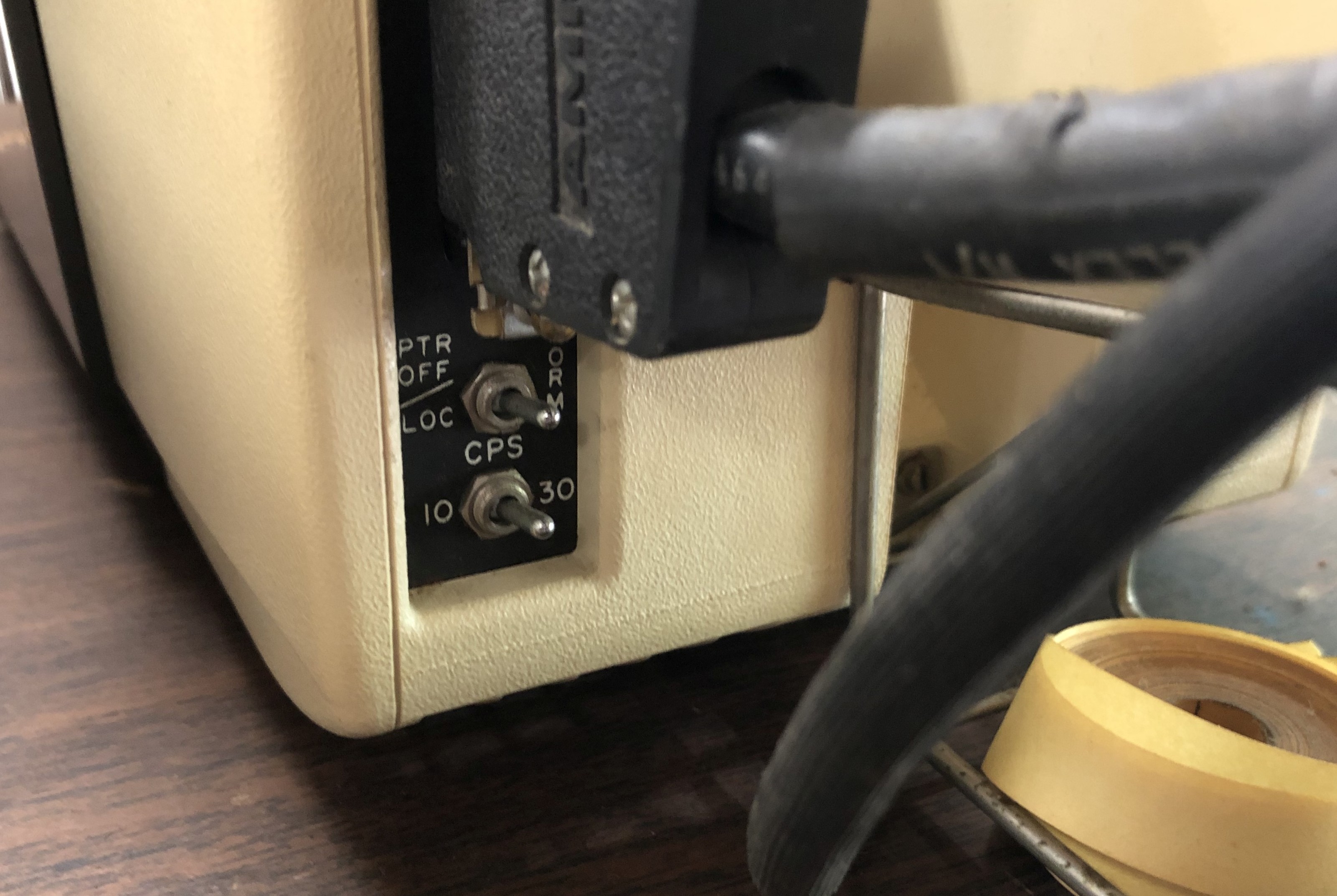

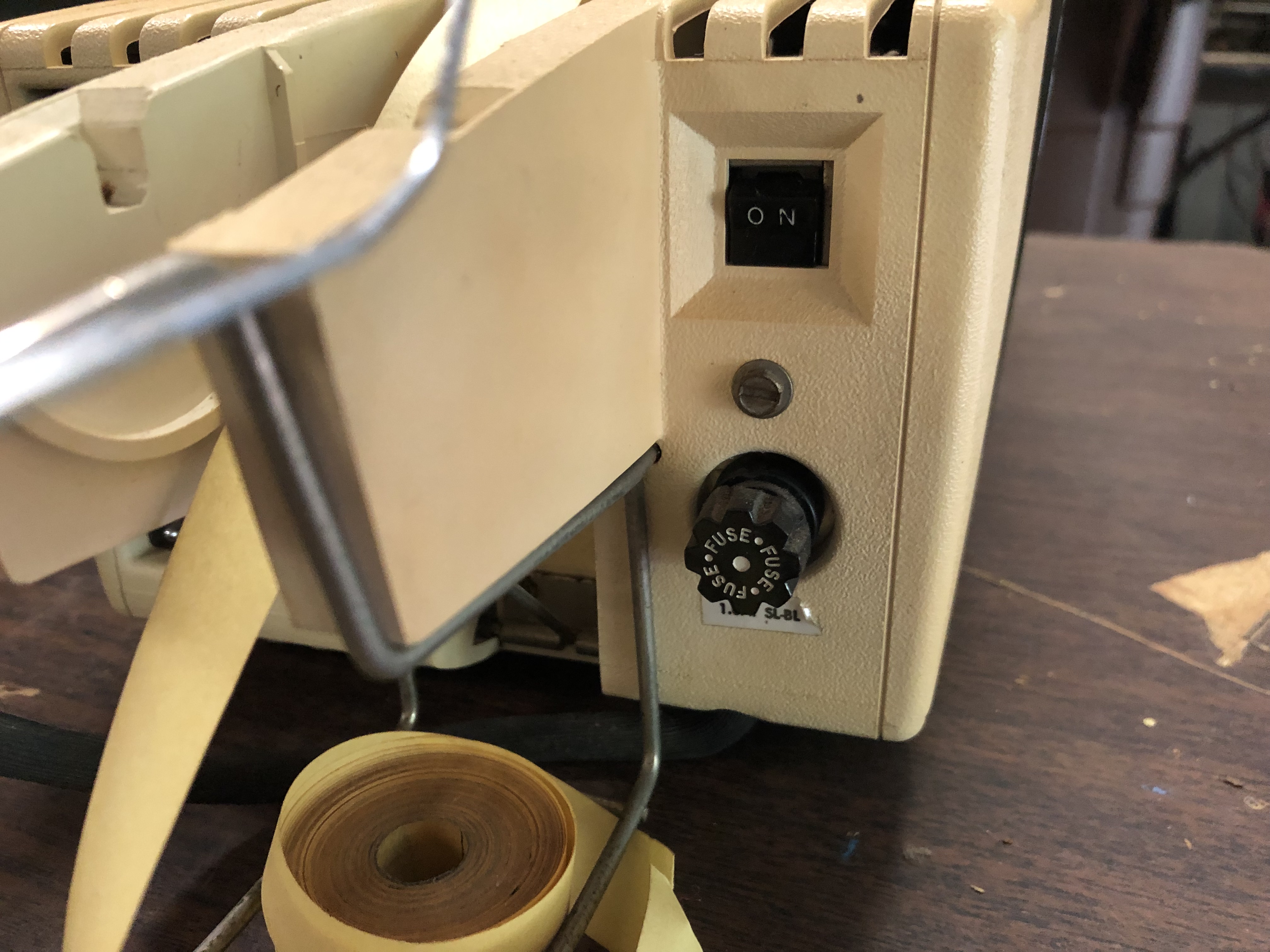

IMG_2941.JPG (928508 bytes) IMG_2942.JPG (3009083 bytes) Mike Hatch's paper tape unit showing the chad box in place
Mike's chad box, chad chute, and "wing cover"

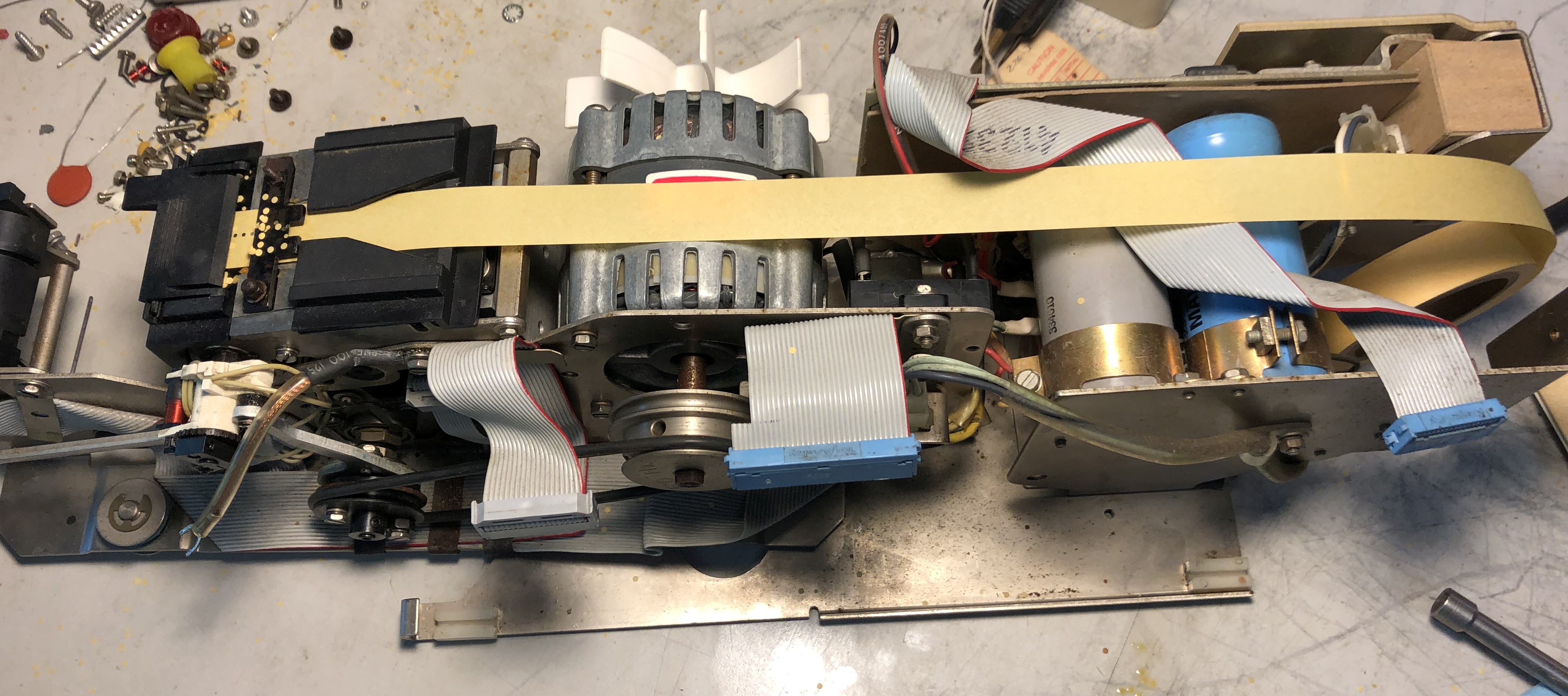

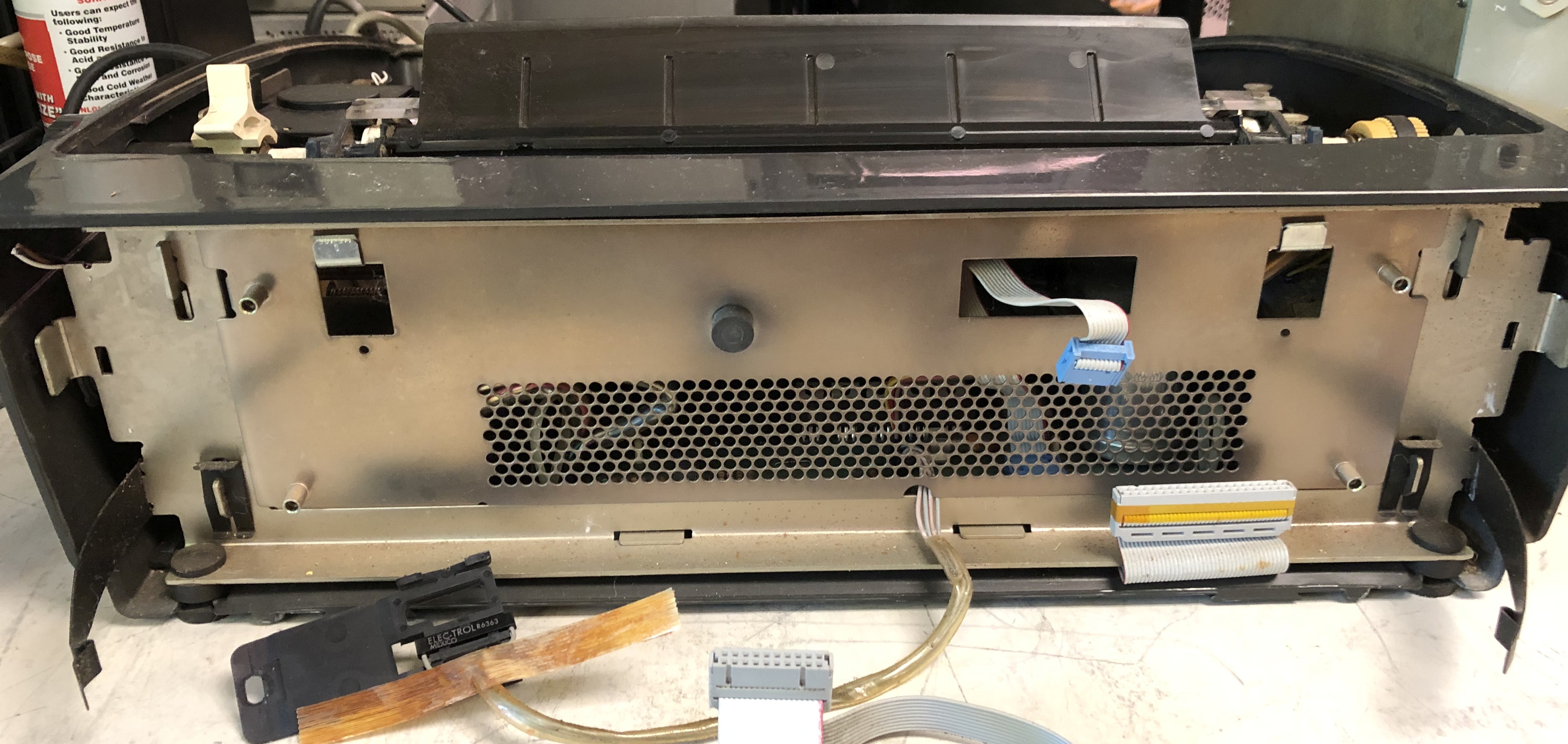

removed from cover
controller circuit board removed
controller circuit board removed
power supply
punch & reader controller
punch
reader
self-test mode - ltrs-blank-r-y

1987 Naval Sea Systems Command Safety Tag

COMNAVSURFRESFORINST 3502.lA
31 OCT 1990

STS 101-0001 - COMMUNICATIONS REFRESHER TRAINING
Description:-  This course provides refresher training in various areas such
as Crypto Material System (CMS), ACP 126 and modified ACP
126 message formats, Task Group Orestes (TGO) circuits, and
shipboard simulator teleprinter (MOD 42) usage.

LESSON TOPIC TITLE
1.1 Communications Organizations
1.2 Introduction to Security
1.3 Accountability and Control of Classified Material
1.4 Accountability and Control of Communications Security Material System (CMS)
2.1 Outgoing Message Processing
2.2 Broadcast Circuit Operating Procedures
2.3 Incoming Message Processing
2.4 Message Reproduction/Distribution (R/D) and Filing
2.5 Genadmin Message Text Format
3.1 Model 42 Teleprinter
3.2 Operating Signals (OPSIGS)
3.3 Basic Radioteletype Circuit Operating Procedures
3.4 Basic Radiotelephone (R/T) Circuit Operating Procedures
4.1 DD-173 OCR Message Format
4.2 ACP 126 Message Format
4.3 Modified ACP 126 Message Format
4.4 JANAP 128 Message Format


Miscellaneous other Model 42 and Model 43 info:
