AN/FRT-15 Transmitter

3 kw HF 2-30 mc AM/CW/FSK w/ telephone dial channel select -
10 crystal or 11 master oscillator preset channels, +1  manual tuned

pair of 4-1000A modulated by pair of 4-1000A

Manual - NAVSHIPS 91690(A)

Transmitter & Remote Control Panels

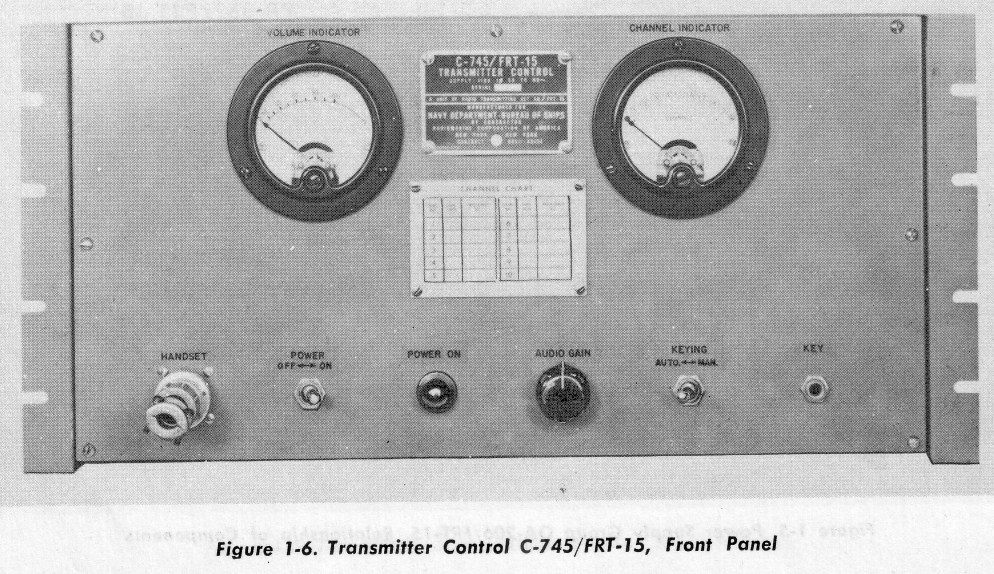

C-745/FRT-15 Remote Control Panel

Modulator cabinet components		 frt15-04.jpg (492115 bytes)
RF cabinet components		 frt15-05.jpg (448905 bytes)
Power Supply cabinet components
List of components		 frt15-07.jpg (264306 bytes)
AF & RF Block Diagram		 - -
