US Naval Radio Station Guardamar del Segura, Spain

Established in 1962 with the transmitter and tower constructed 1963-1965. Operated by US Navy 1962-1984 and controlled from NAVCOMMSTA Rota.
Jointly operated by Spanish Navy and US Navy 1984-1990. Transferred to Spanish Navy in 1990.
History (in Spanish)

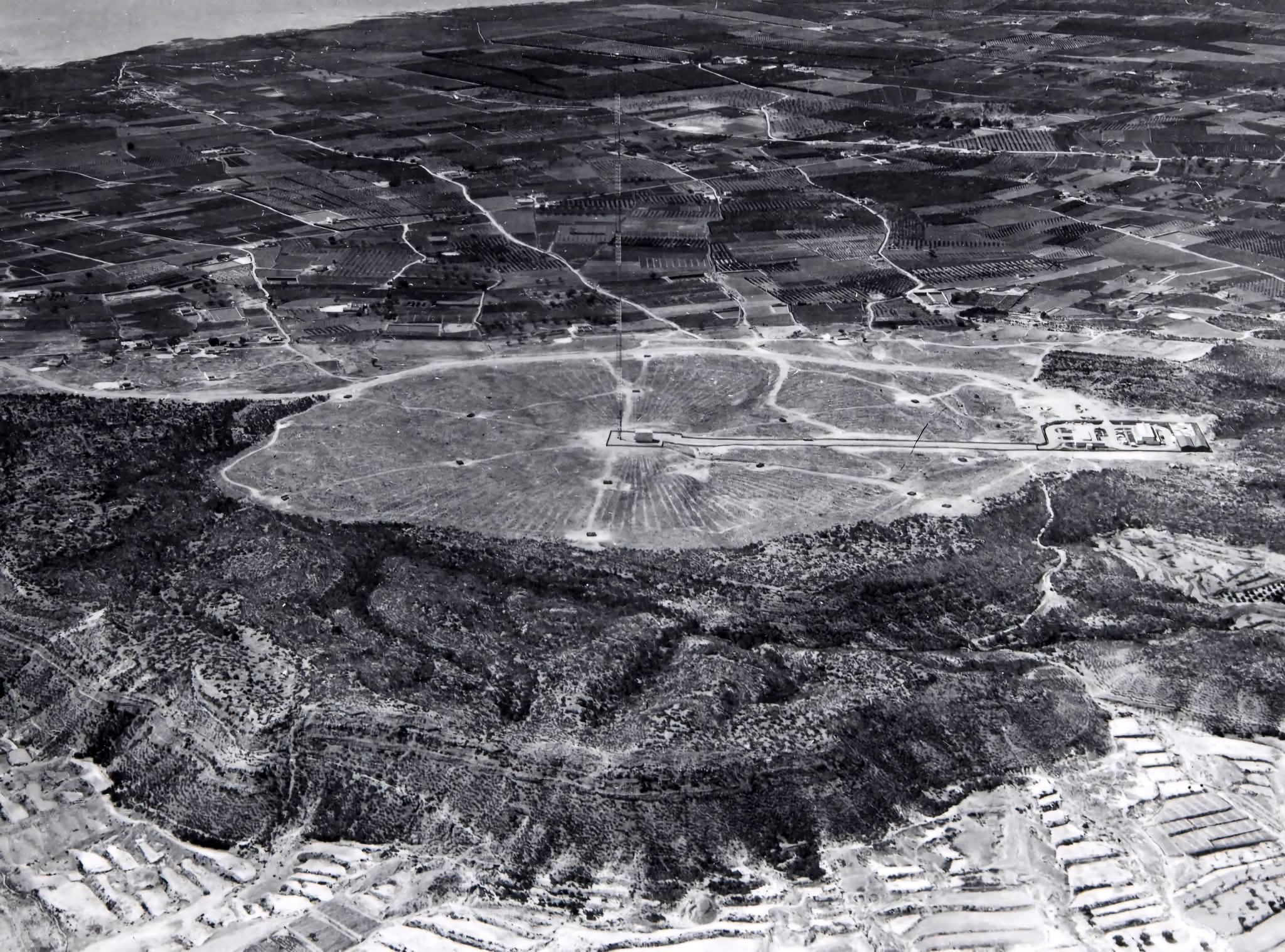

photo thanks to Pedro Vidal Terrasa

Video showing base, control, transmitters, generators, tower, etc. 1997 images.

500 kw LF 100-200 kc CW/FSK -  spec sheet
dual 250 kw transmitters
diesel engines for p/s

AN/FRT-10 transmitter photos thanks to NF7M

Photo thanks to Manuel Espinosa


Photo thanks to Manuel Espinosa
Info from John Cobb:
"The AN/FRT-10 was unique, a 500 kW LF giant tuning 100 - 200 kHz. It was in two amplifier bays, which we drove alternately with an external TMC synthesized exciter stack, running the single-channel KSUB broadcast at about 50 kW. It fed a 1200-foot tower, through 8-inch rigid coax and a big variometer/capacitor network in the helix house. The amplifier bays each  consisted of IPA and driver stages for the finals: four air-cooled 6697 triodes in grounded-grid push-pull configuration!"
FRT-10 right bank
Main building & power plant (6 diesels)
Tower base & helix house
Left side rear view of the PA and front of the circuit breakers panel
Left - front of one half of the main control
Two exciters driving the AN/FRT-10
Power supplies for the right side PA
From "Missiles and Rockets" July 1074:

Retired  Transmitter  Called  to  Active  Duty
   An  old  AN/FRT-10  transmitter,  in  storage  for  12  years, will  be  modified  and  installed  by  Westinghouse  in  the  Navy's Guardamar,  Spain,  radio  station.  The  500-kw  transmitter will  be  converted  from  a  Class  C  amplifier  to  linear  operation.
   The  resulting  low-frequency  system,  operated  as  a  single sideband  transmitter,  will  be  the  most  powerful  of  its  type  in existence,  Westinghouse  disclosed.  The  station  will  be  ready for  operation  early  in  1965  for  fleet  communication
