LPR Pushbars

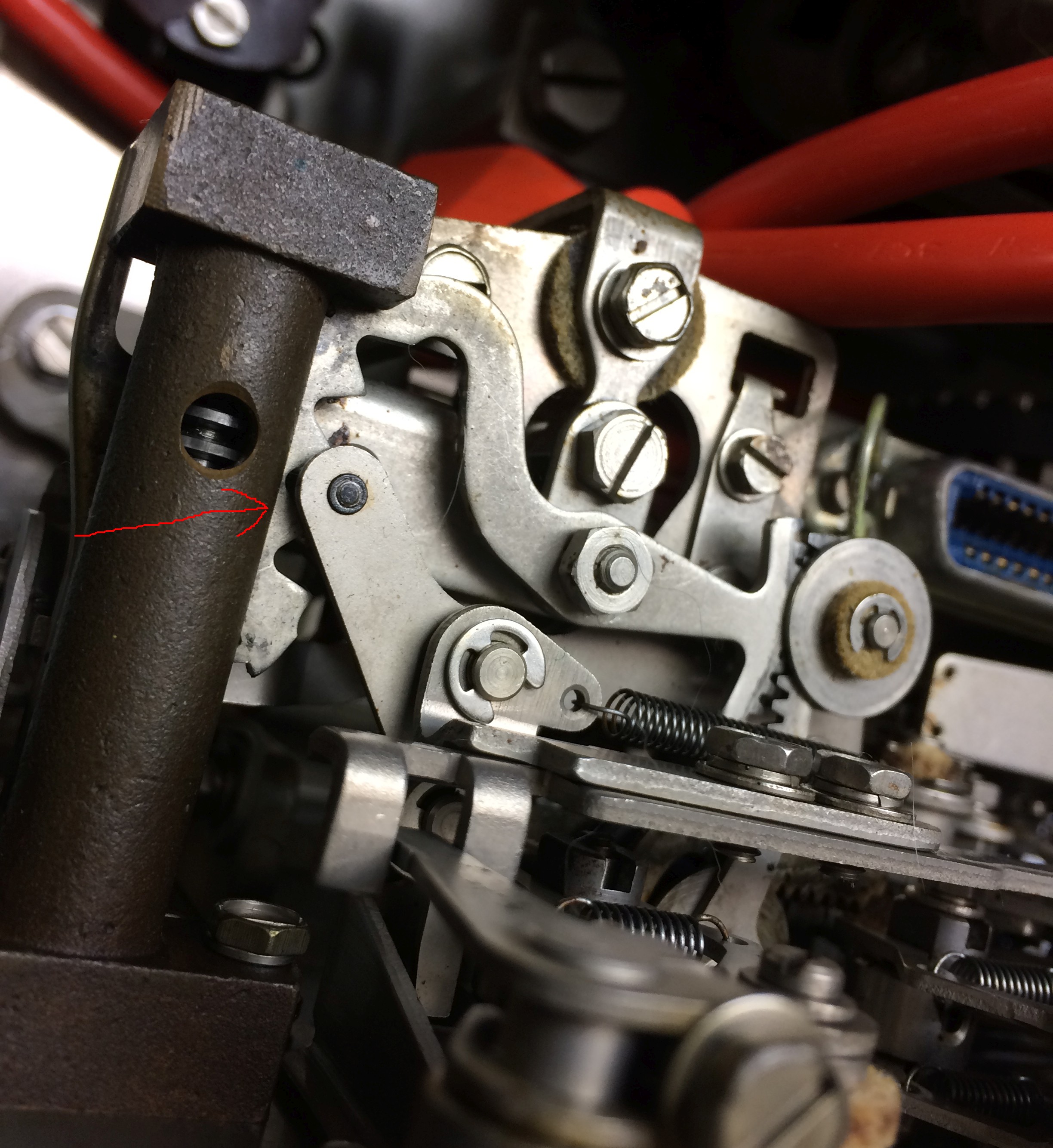

All pushbars are in the OUT position - retracted by the operating blade

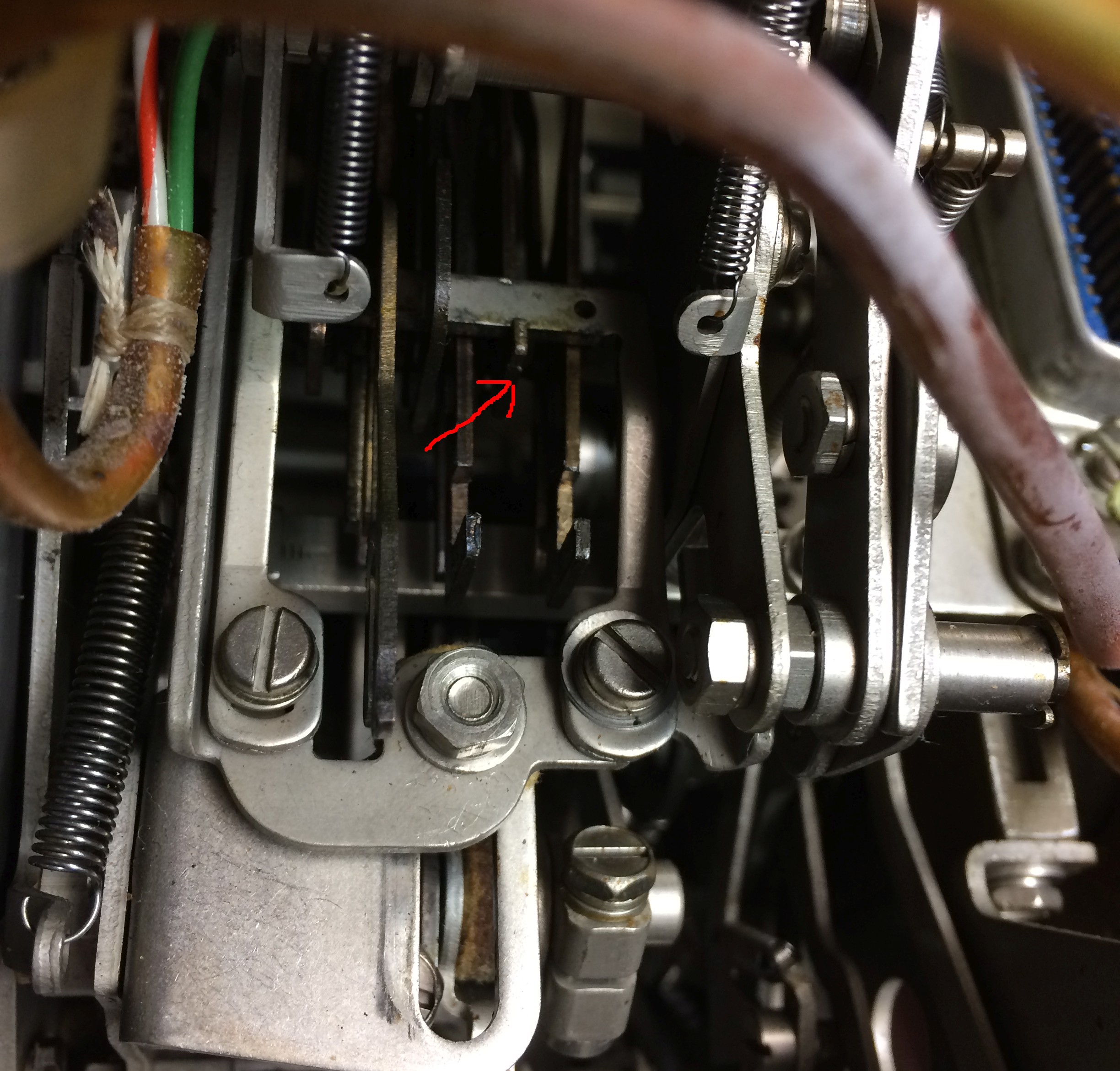

Arrow points to No.1 Pushbar
-- --

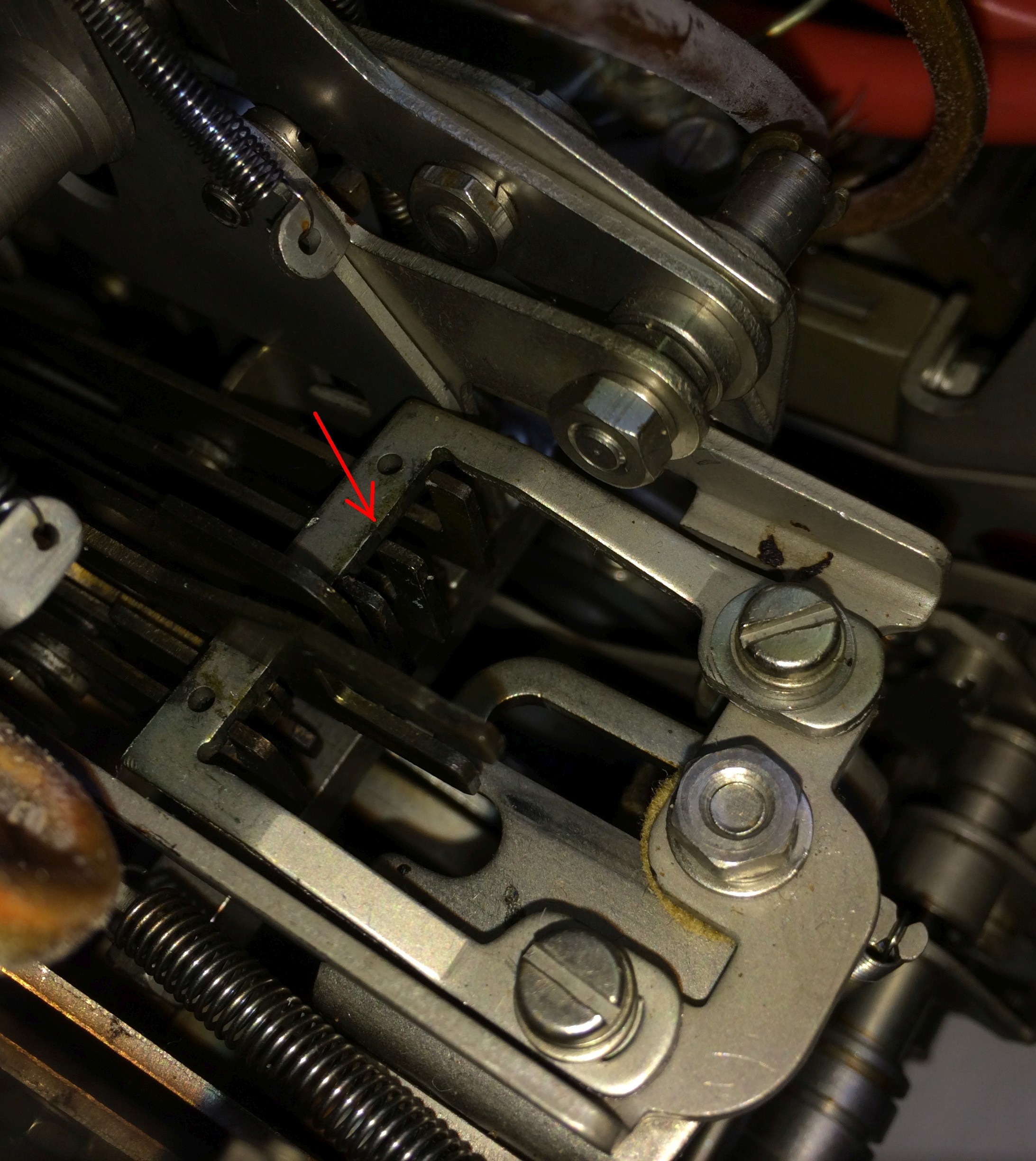

No. 1 Pushbar in IN position

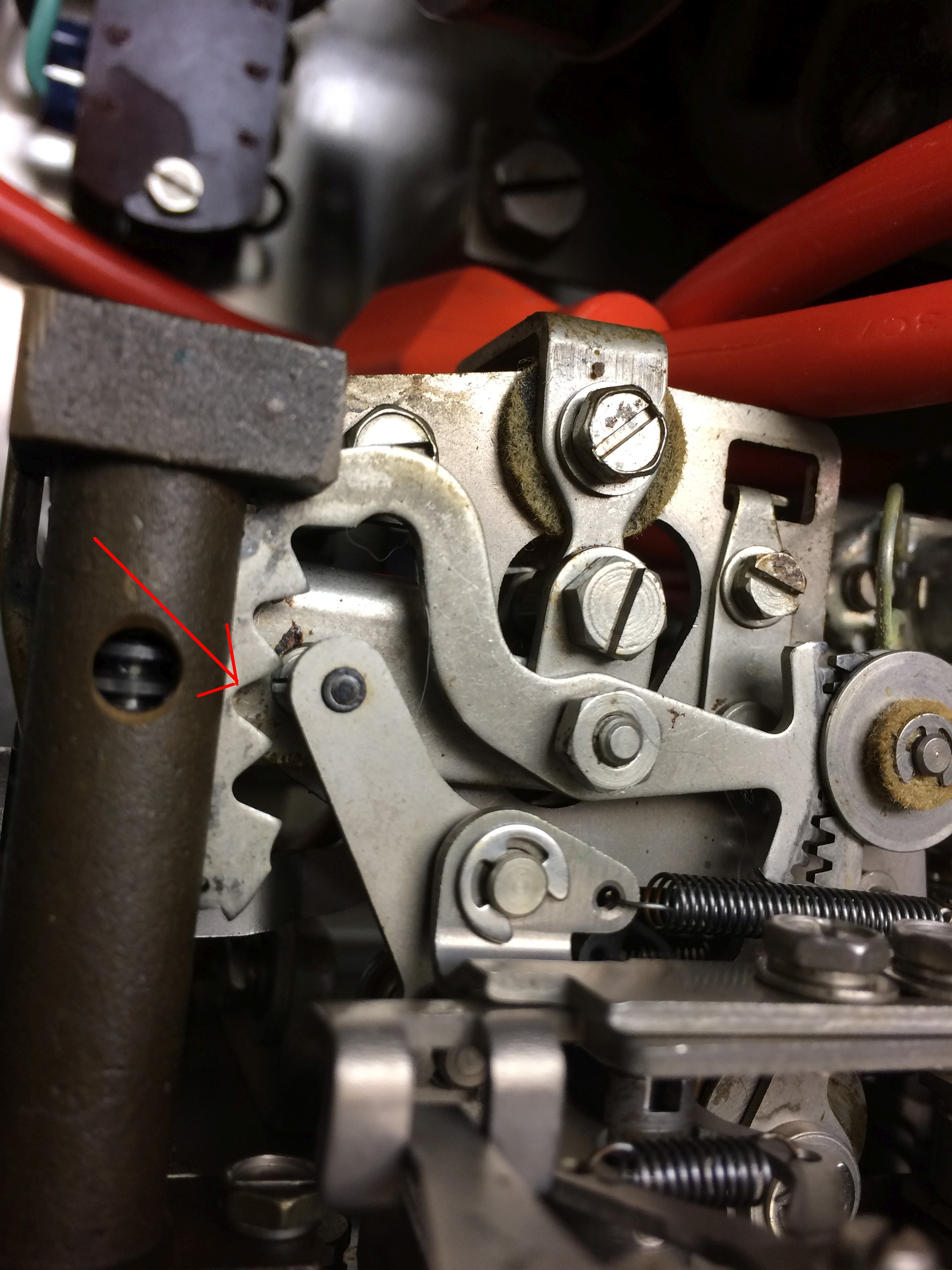

That causes the 2nd tooth to be engaged (arrow)

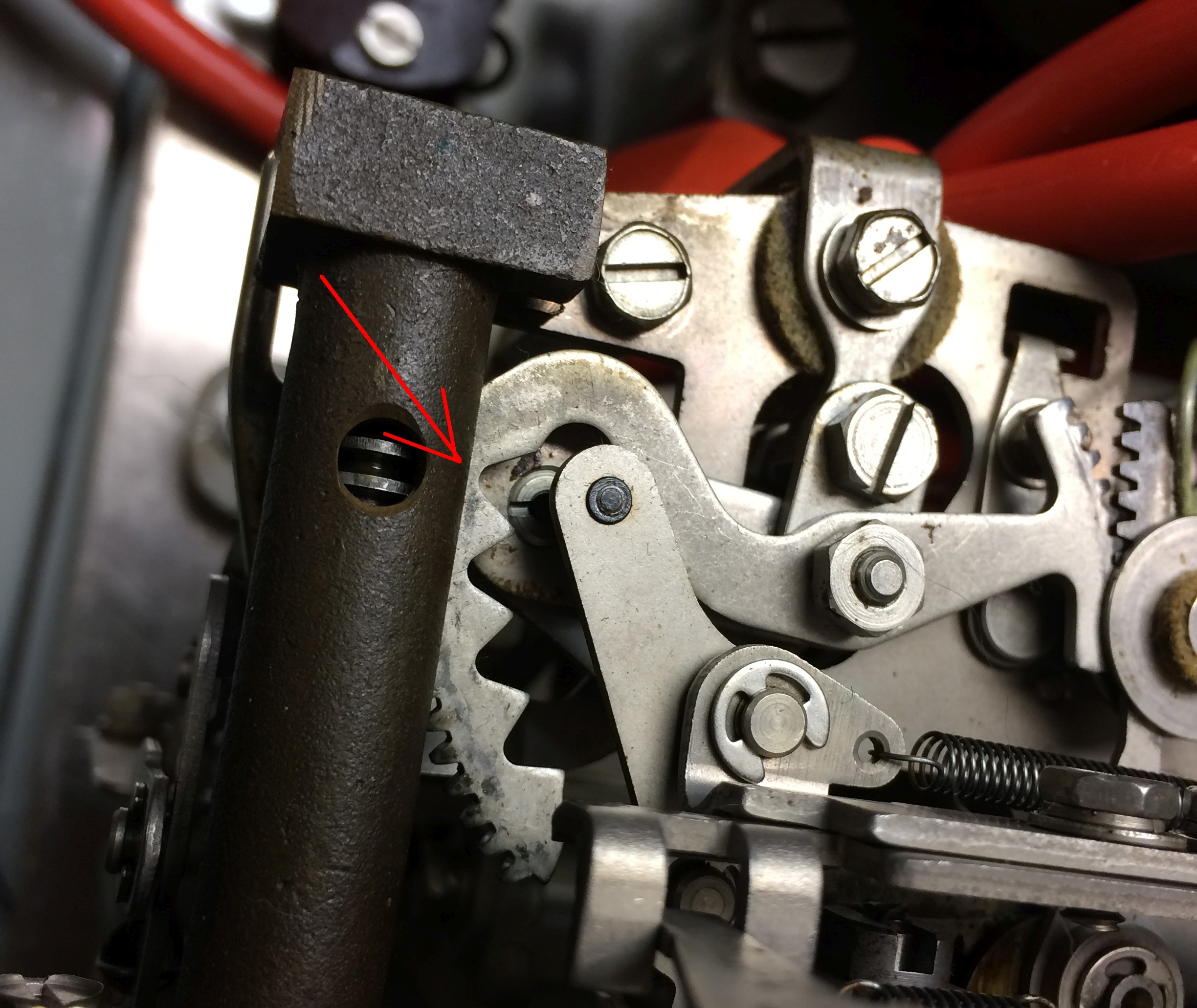

2nd tooth fully engaged - typewheel is positioned at the 2nd row
Pushbar and No.2 Pushbar are IN - that causes the 4th tooth to be engaged
-- --
