CU-2007/SRR Receiver Combiner-Multicoupler

The CU-2007/SRR permits existing 2-30 mc antenna systems to be used with receivers operating below 2 mc. The combiner separates incoming signals into a low band (10kc-1.85 mc) and a high band (1.85-30 mc). The high band signals are coupled back into the 2-30 mc distribution system. The low band signals feed an 8-ouput multicoupler for distribution to MF/LF/VLF receivers.

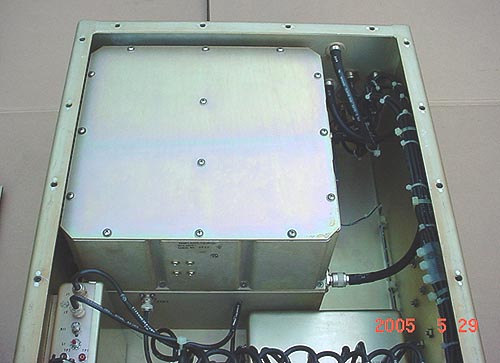

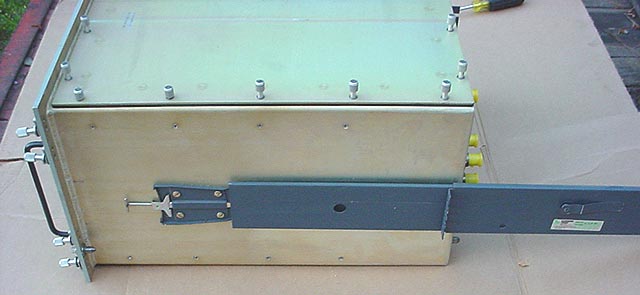

cu2007srr-11.jpg (29062 bytes) cu2007srr-10.jpg (44461 bytes) cu2007srr-12.jpg (29112 bytes) cu2007srr-3.jpg (32828 bytes)

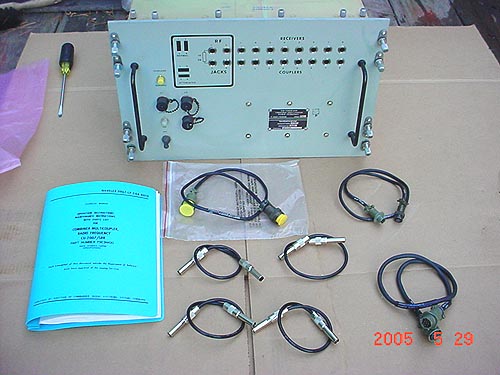

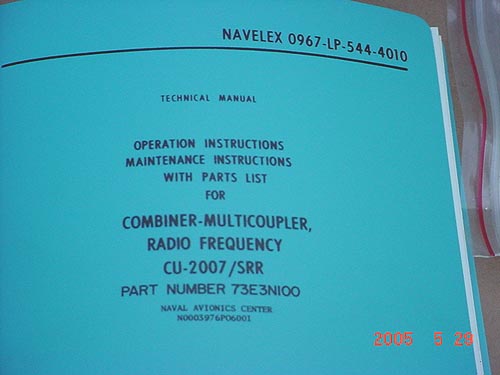

cu2007srr-13.jpg (13538 bytes) cu2007srr-8.jpg (43858 bytes) cu2007srr-2.jpg (49372 bytes) cu2007srr-9.jpg (24940 bytes)
