Navy WW2 Direction Finding Receivers

SHIPBOARD & PORTABLE DIRECTION FINDING EQUIPMENT

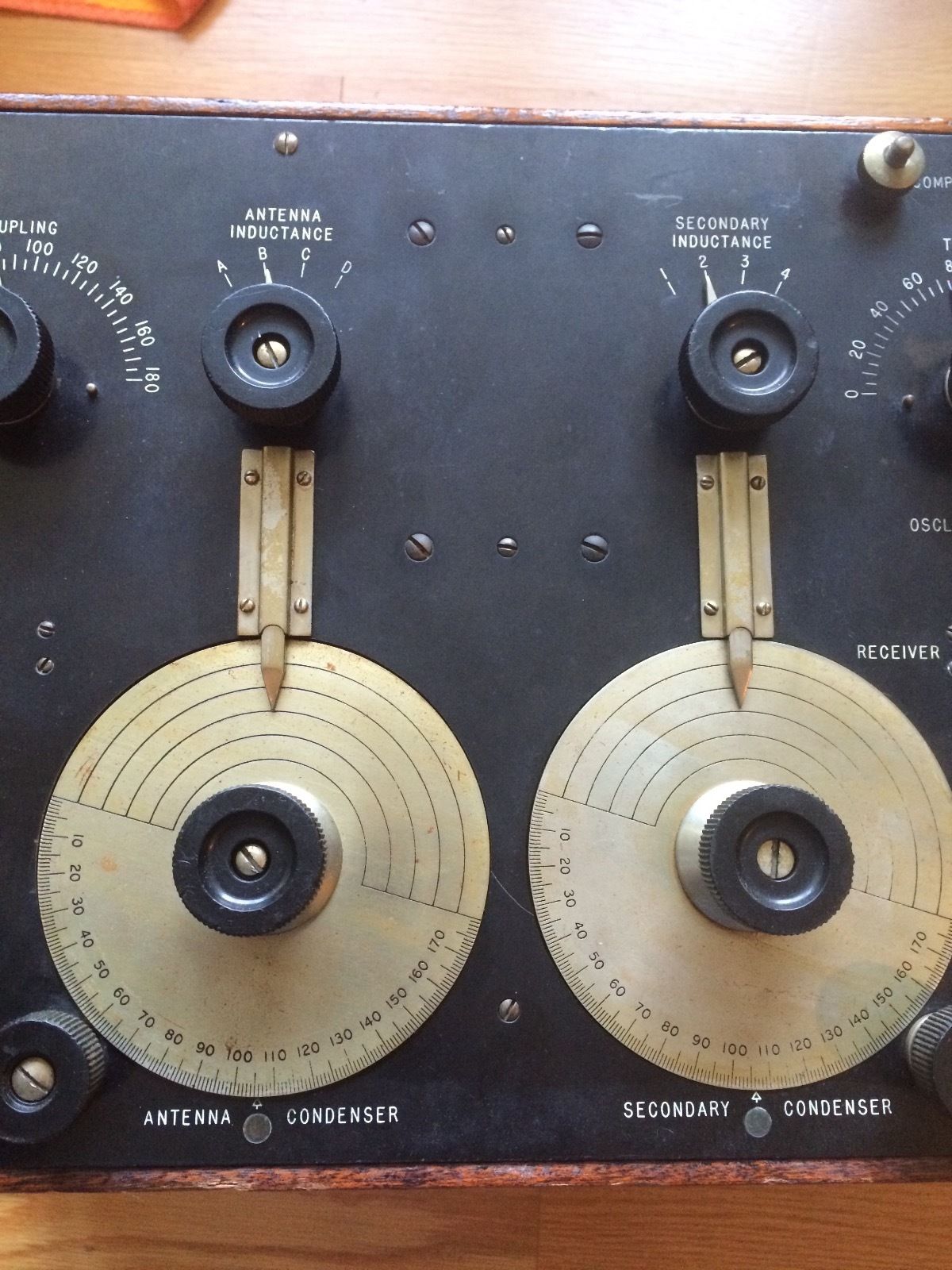

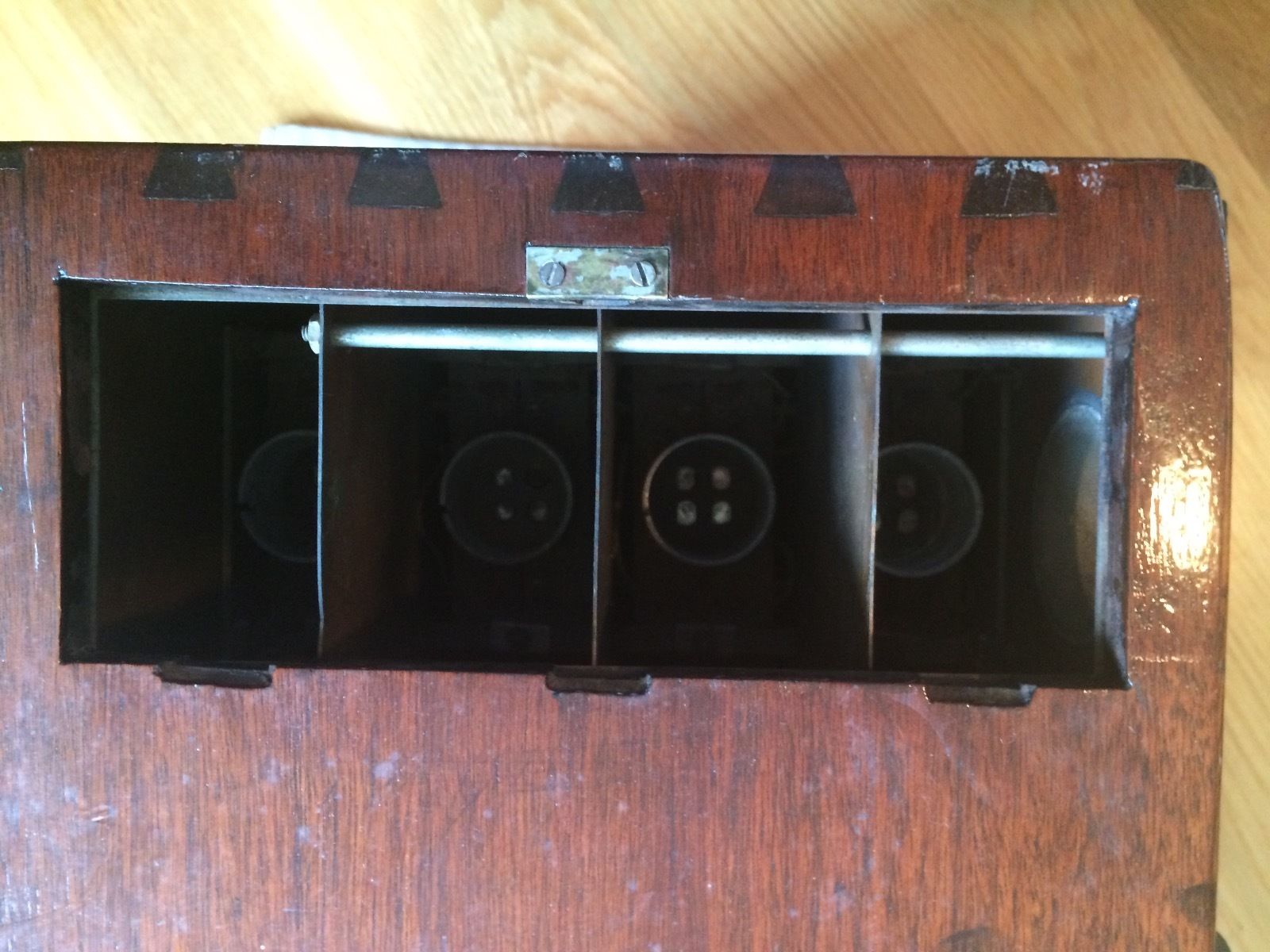

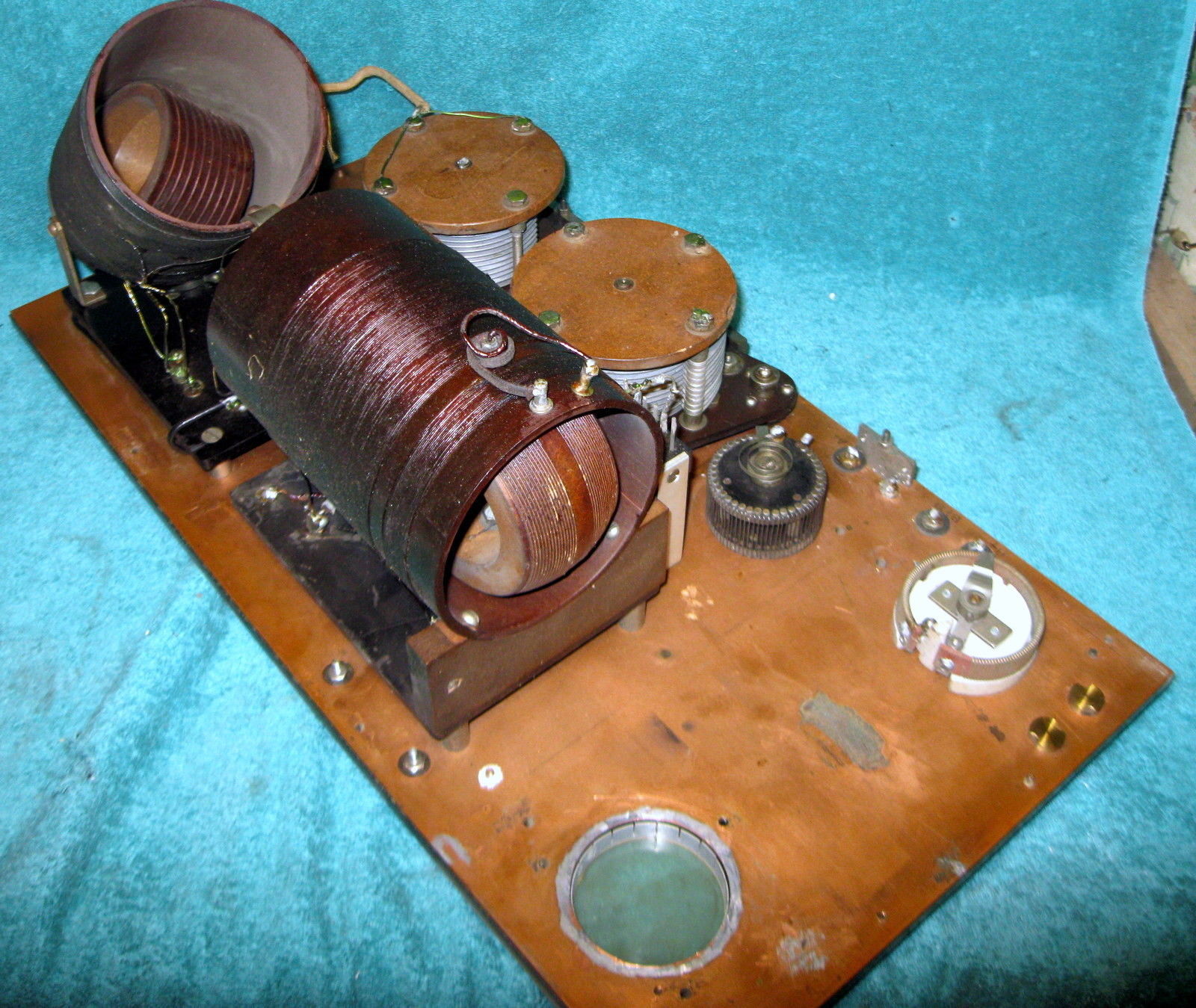

DA - SE-1440 receiver

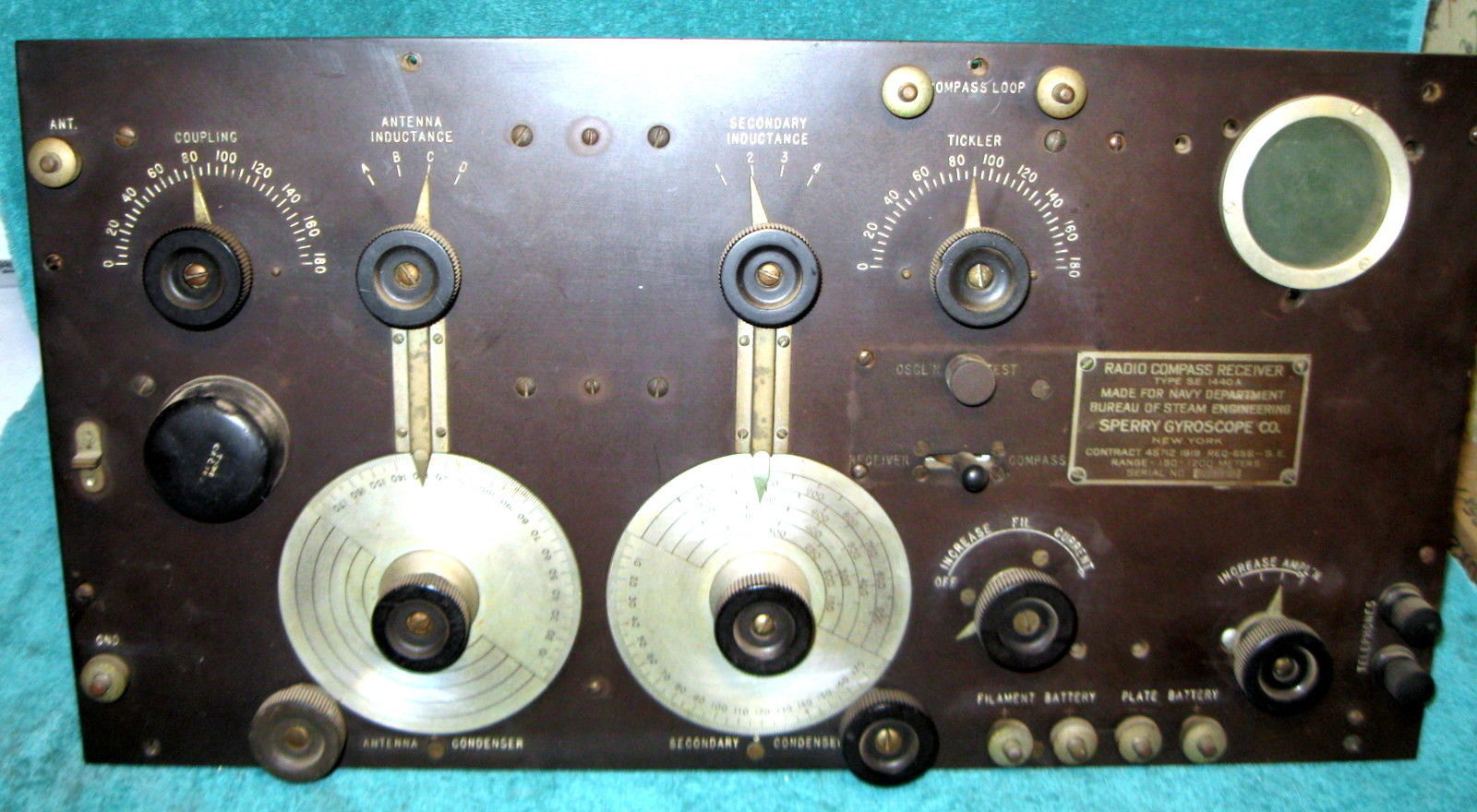

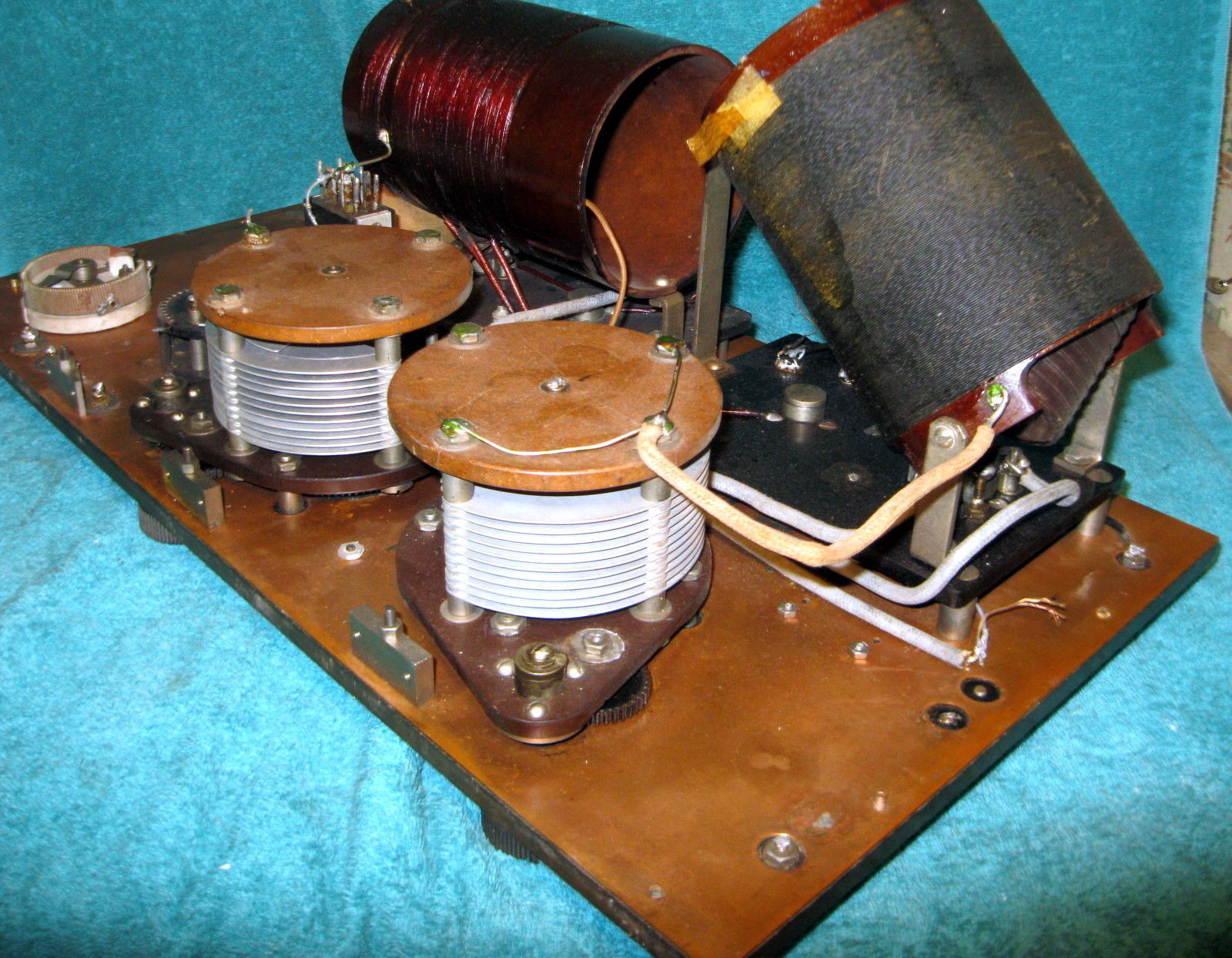

SE-1440A



"Late in 1918, the SE 1440A receiver became available. It was especially designed by the Washington Navy Yard for use with direction finders and integrally contained three stages of audio frequency amplification. It was fitted with a "compass receiver" switch that permitted instant connection to the compass coil or to an ordinary antenna. Together with a 515A coil system and an SE 1762 compensating condenser, it became the model DA shore direction finder. The shipboard installations SE 74 and SE 995 were basically improved by refitting them with the SE 1440A receiver and a newly designed coil, SE 1512. These equipments were much simpler in operation and maintenance and were more accurate." (Howeth)

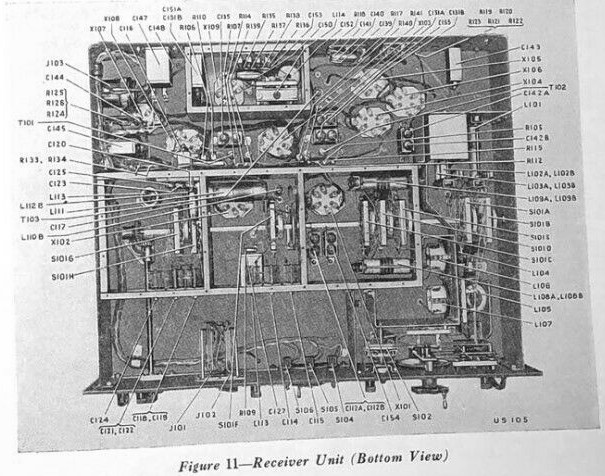

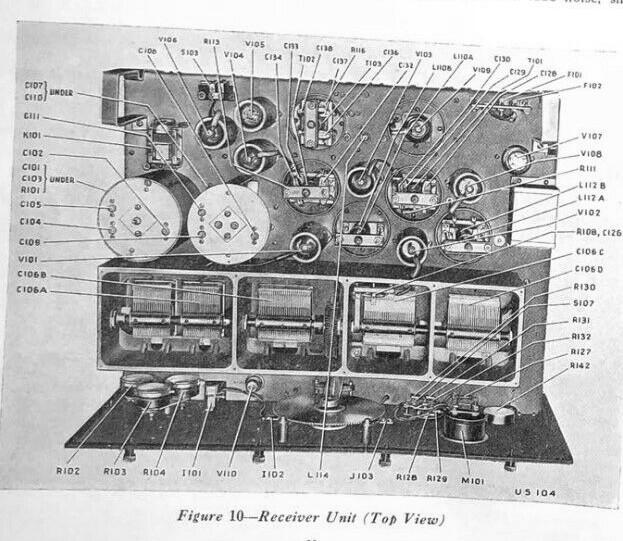

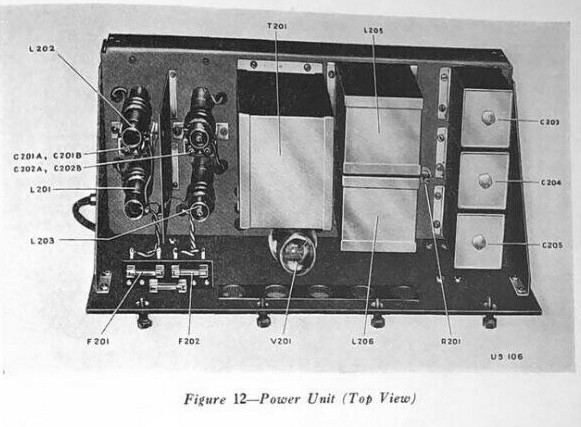

DP-10

100-1500 kc

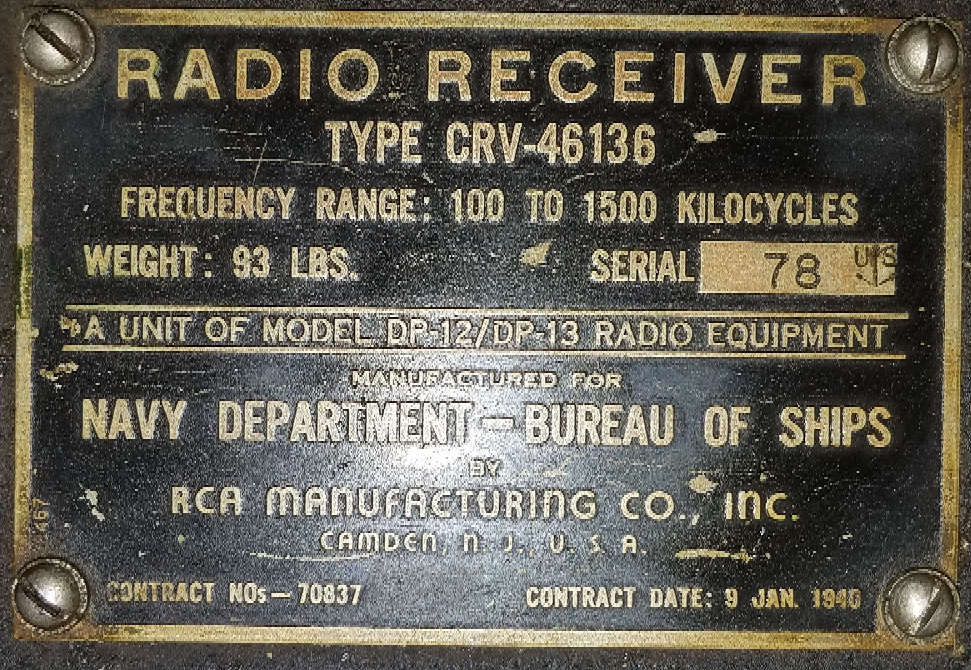

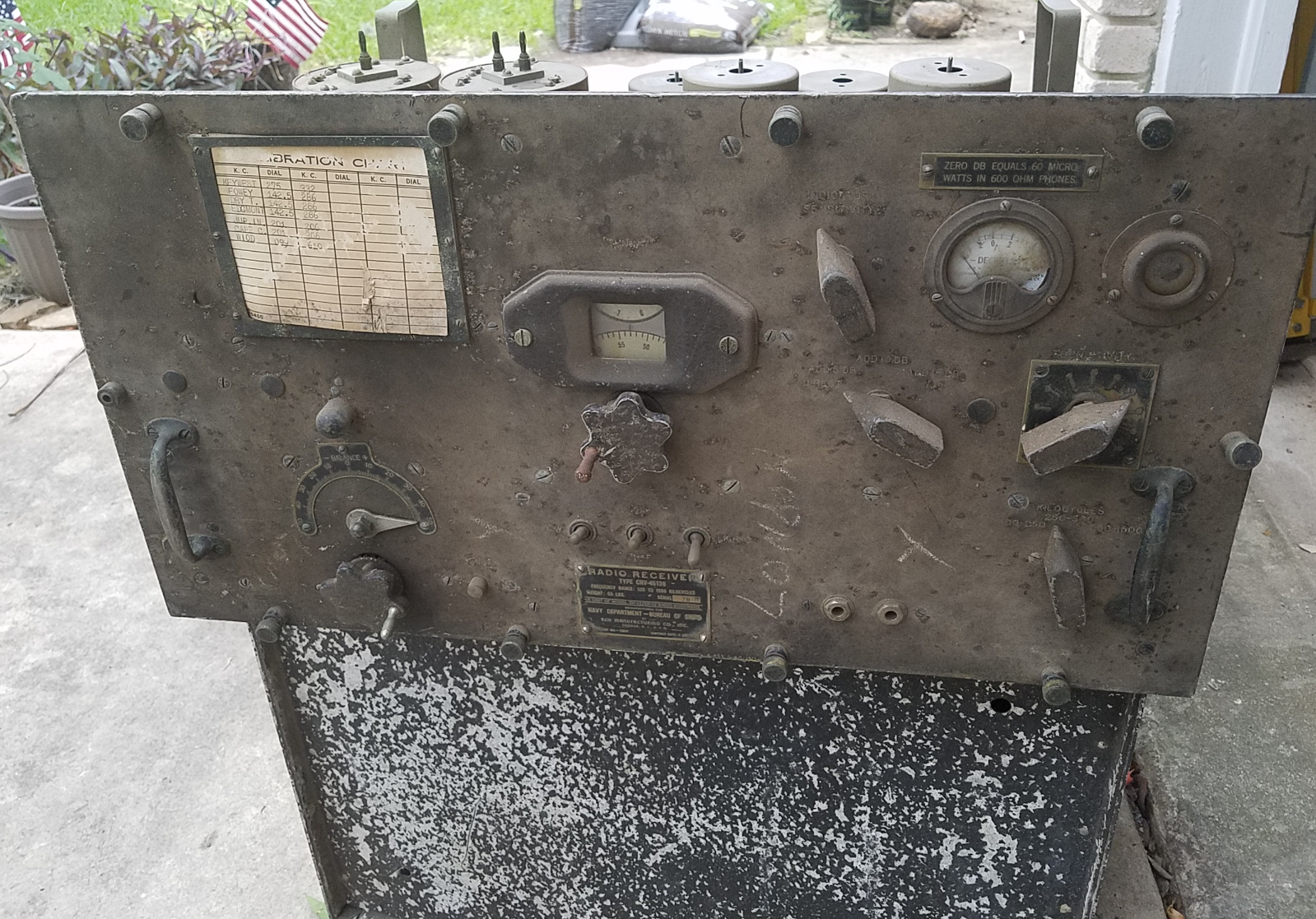

DP-12, DP-13 Manual

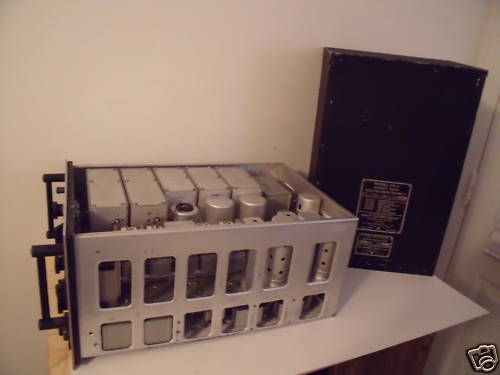

DZ-2

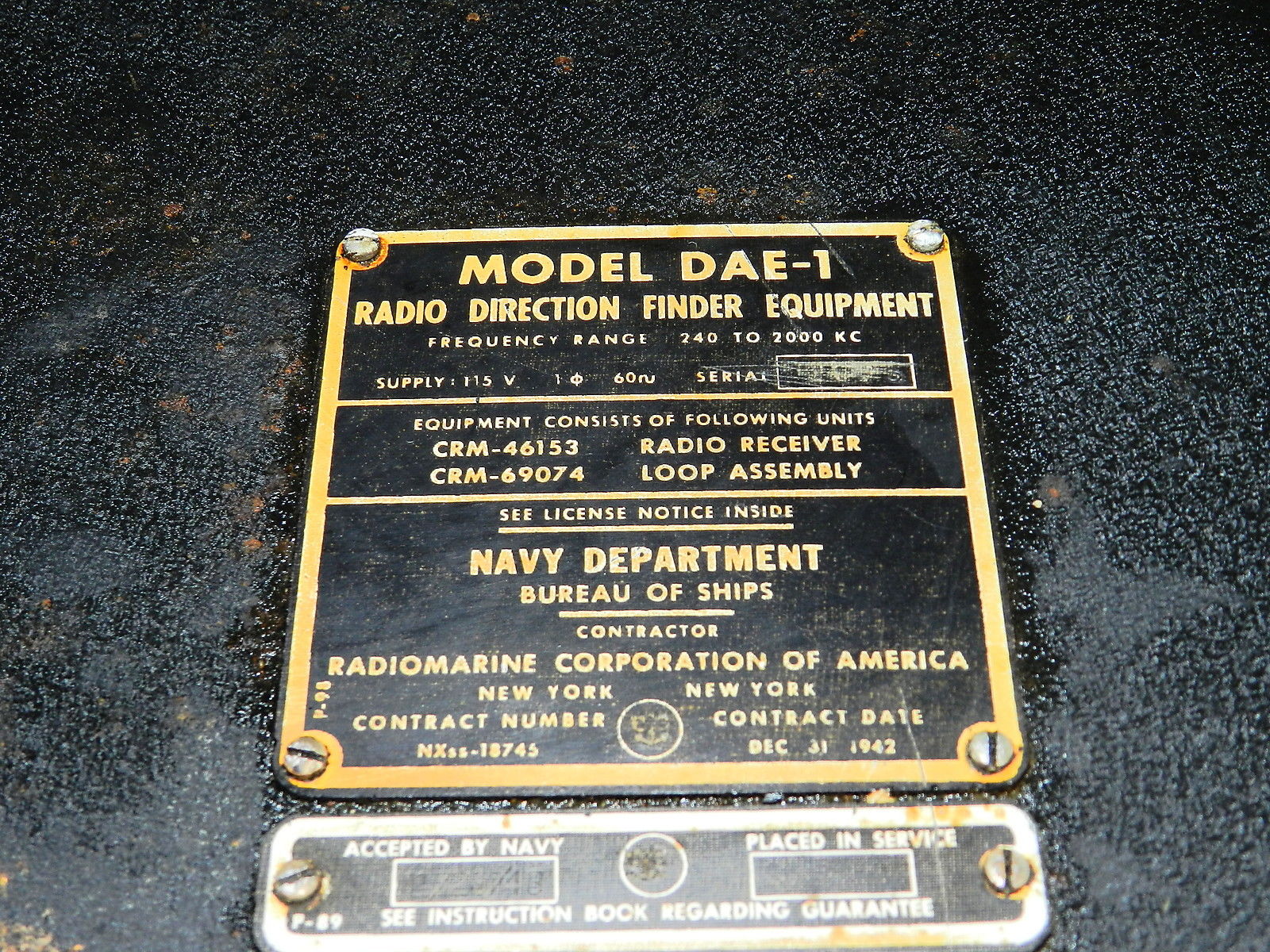

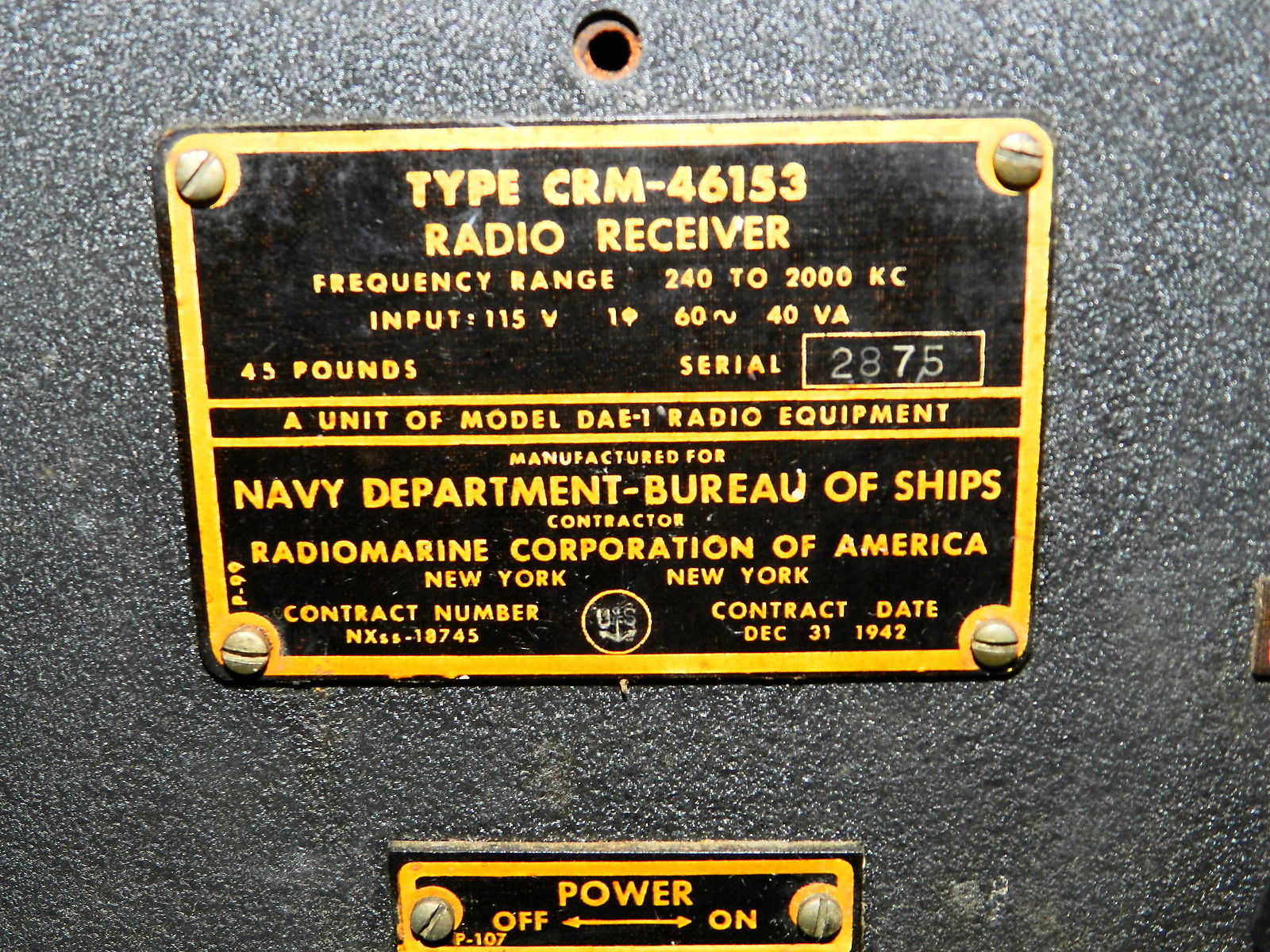

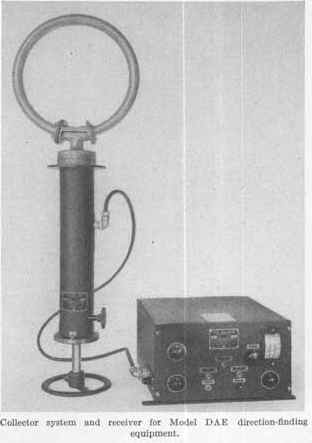

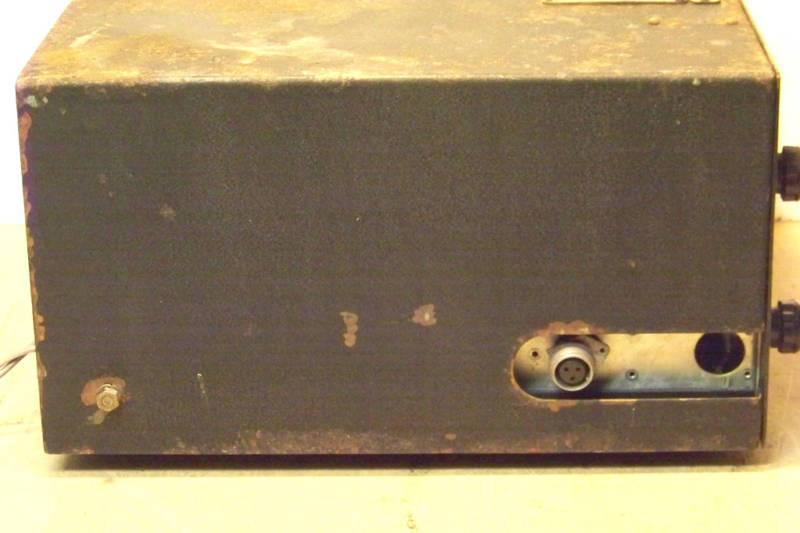

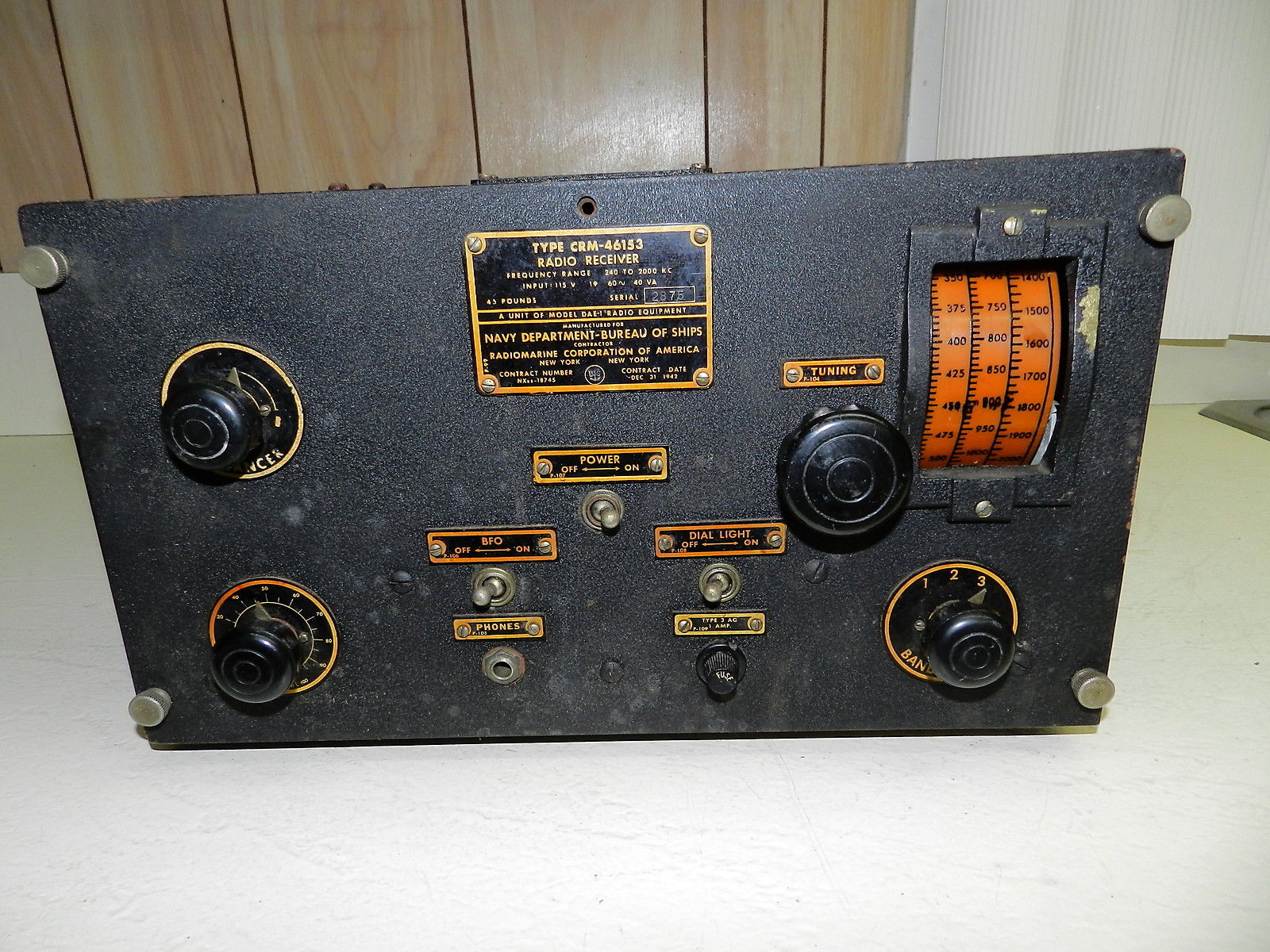

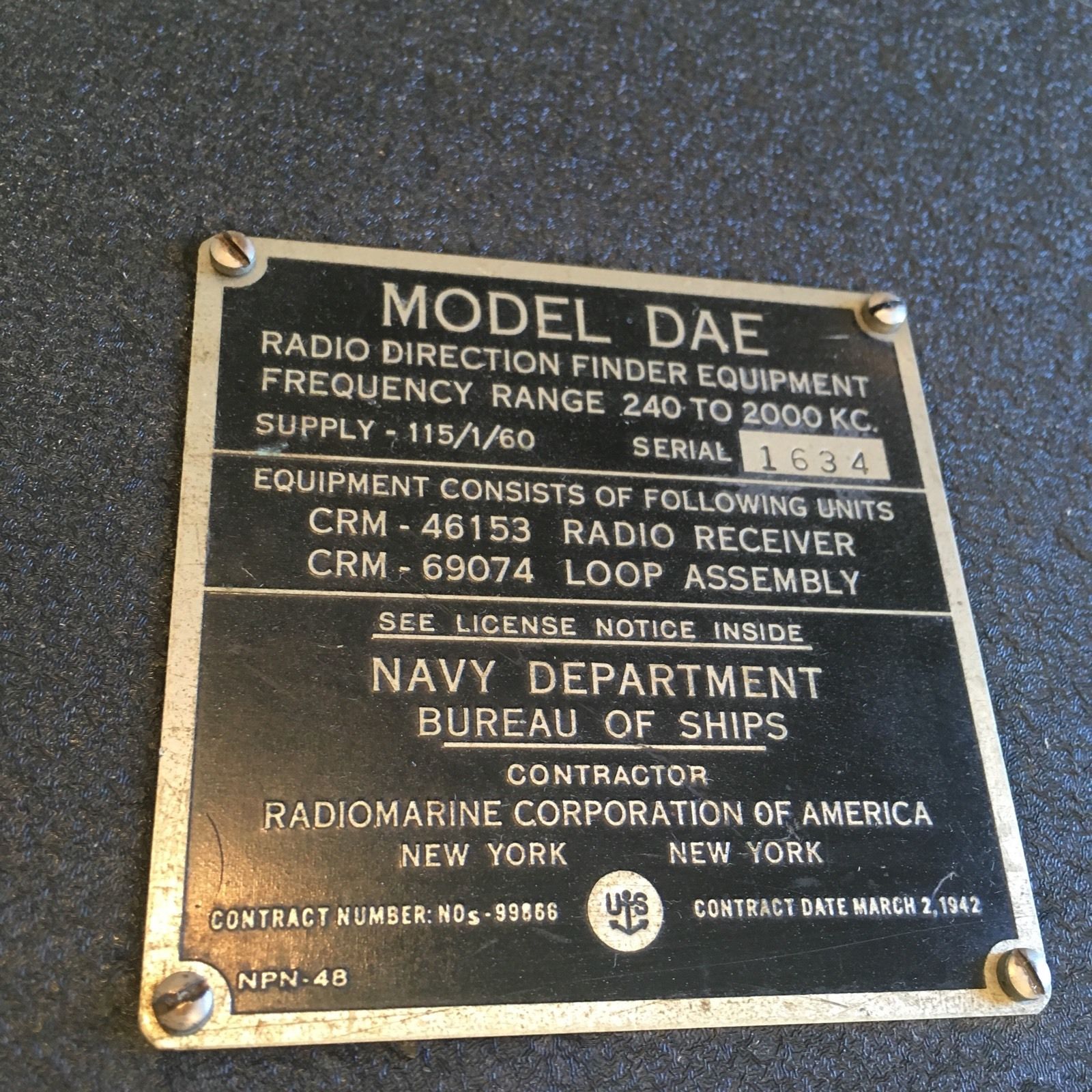

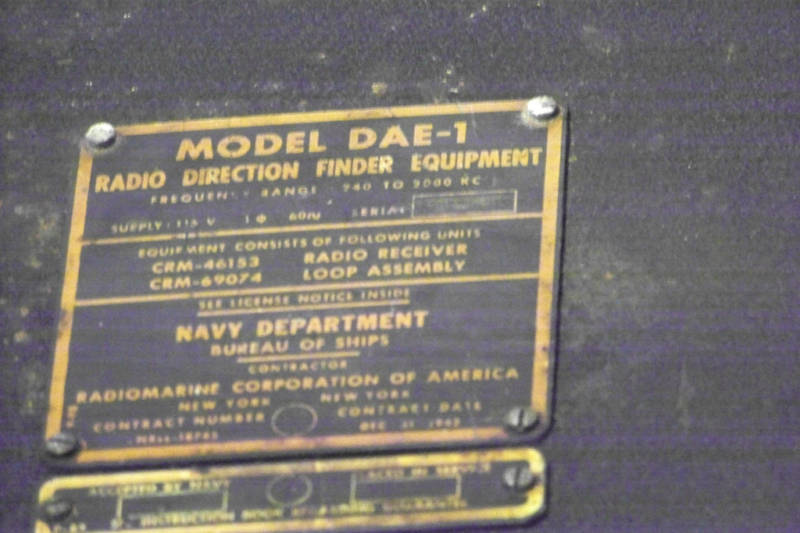

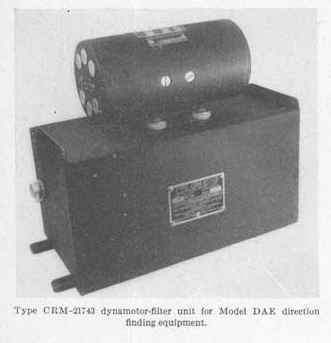

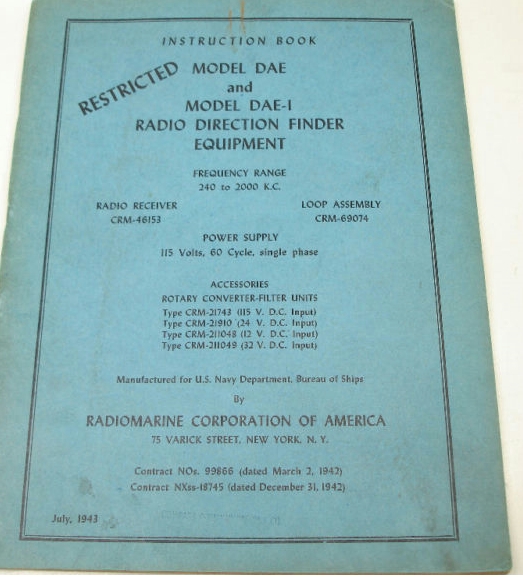

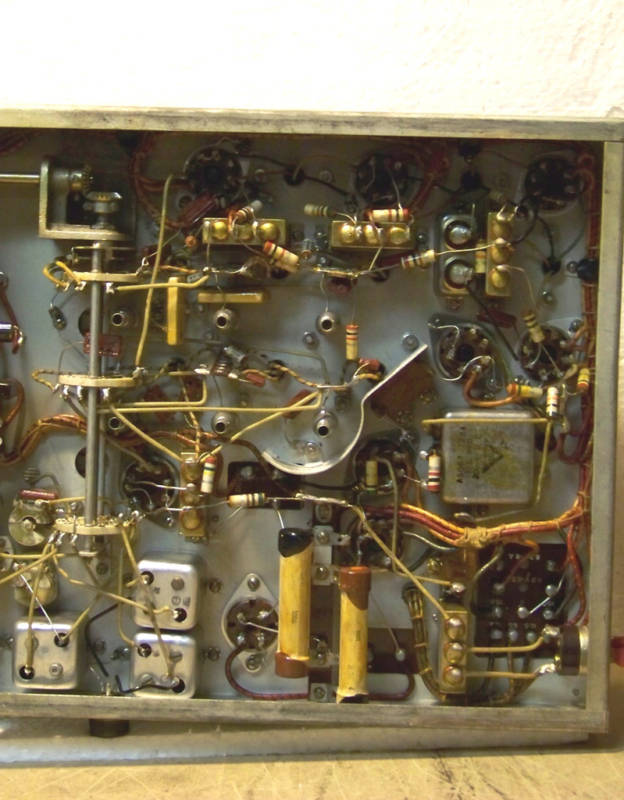

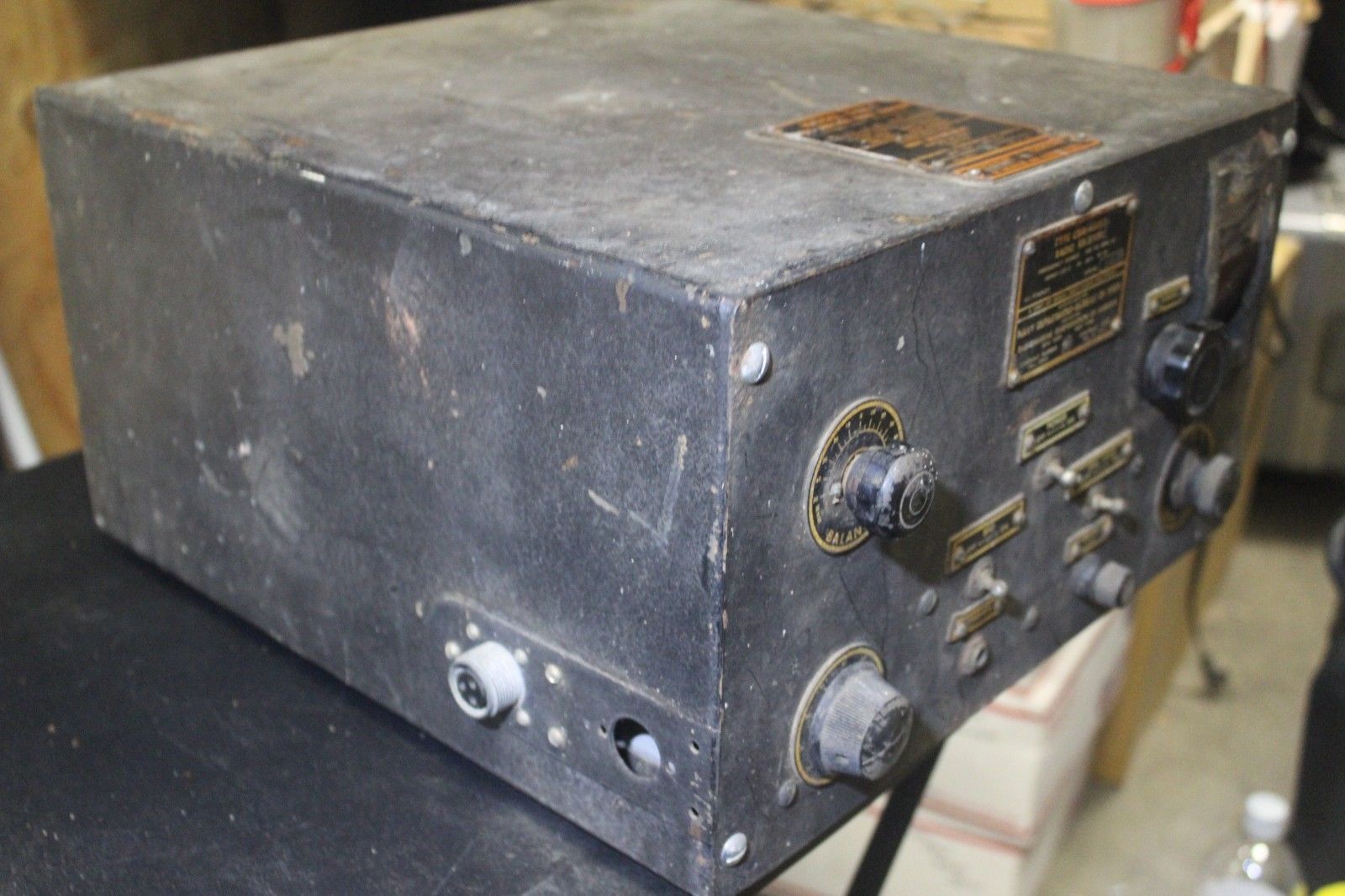

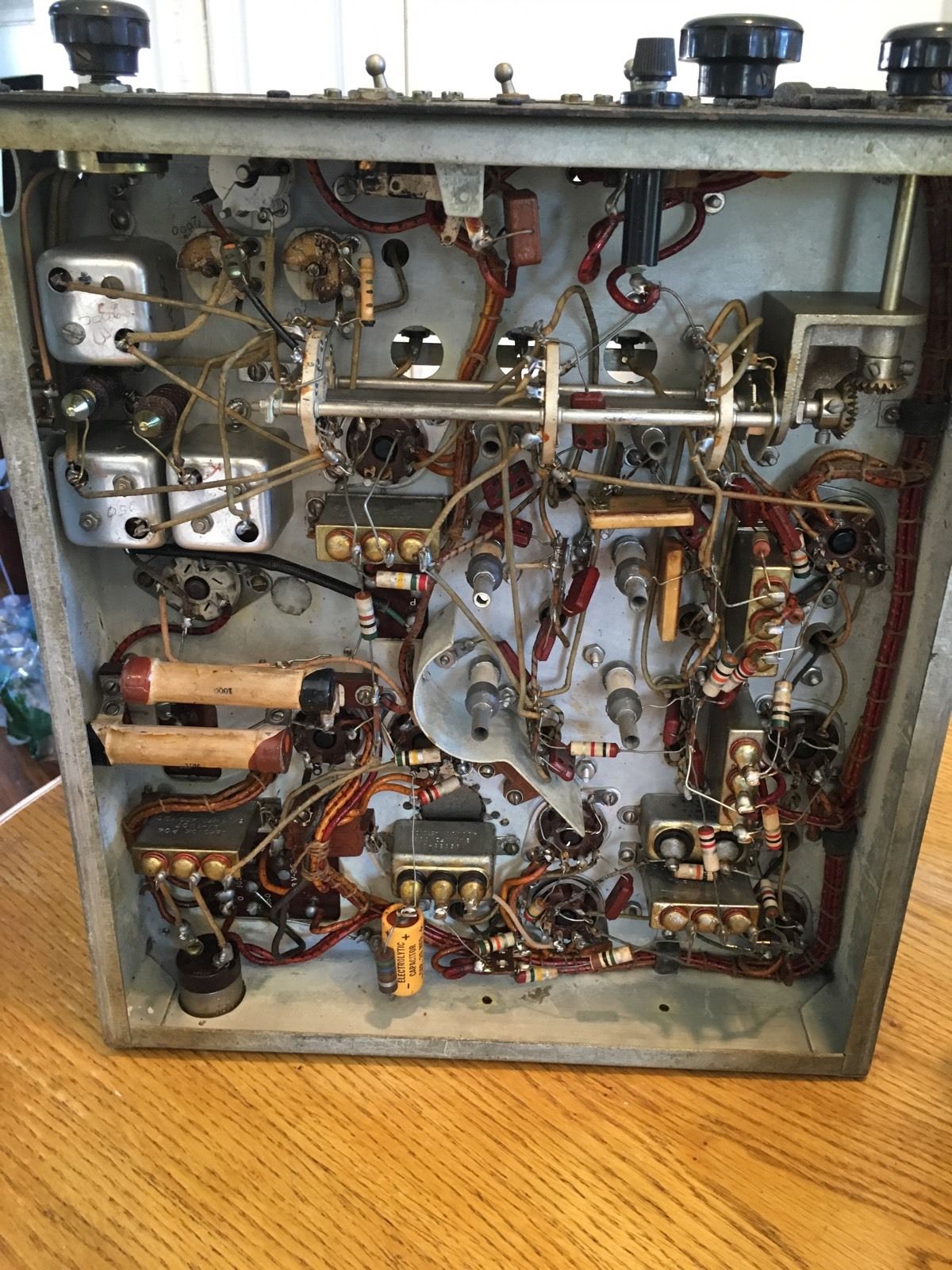

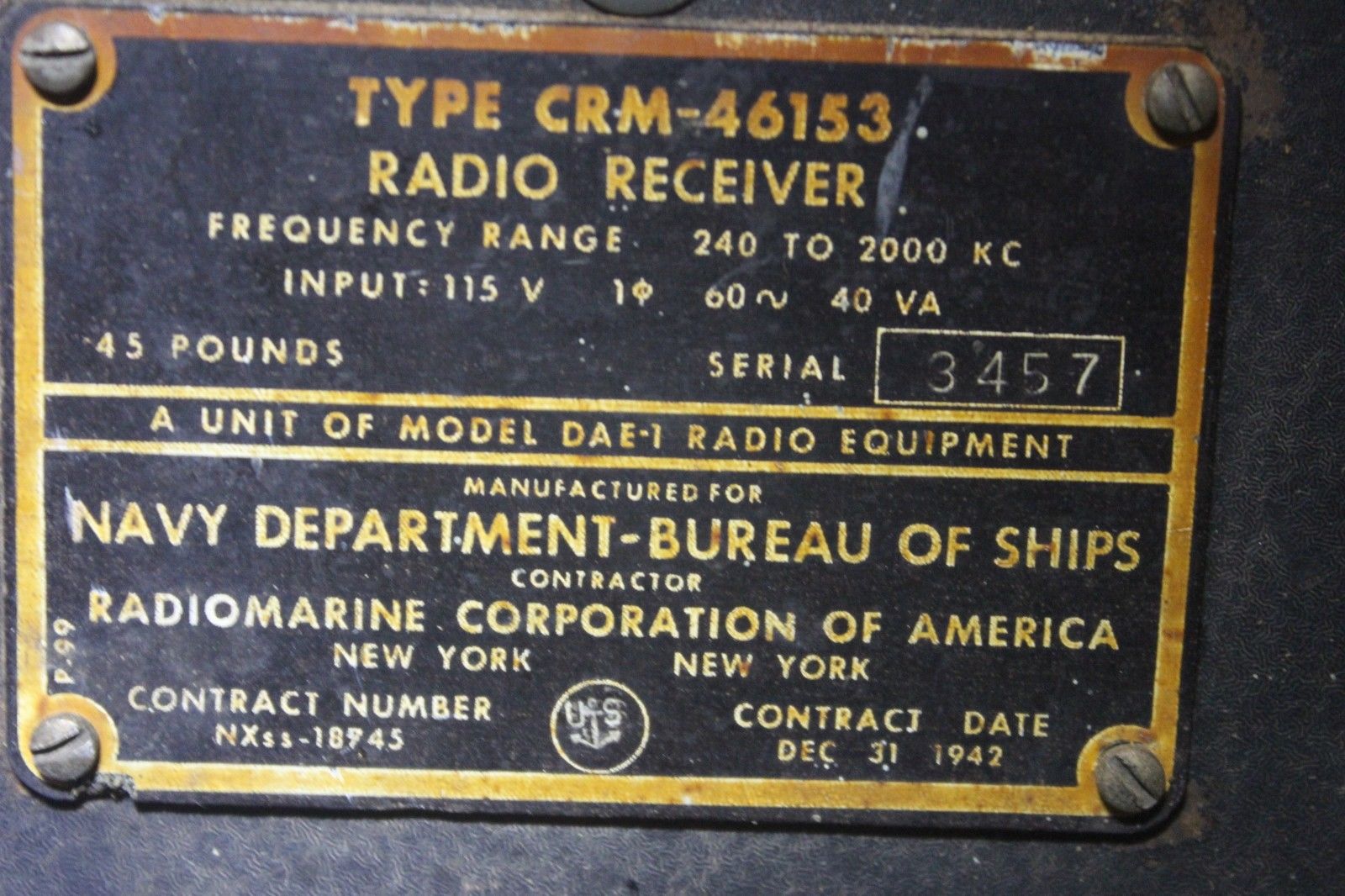

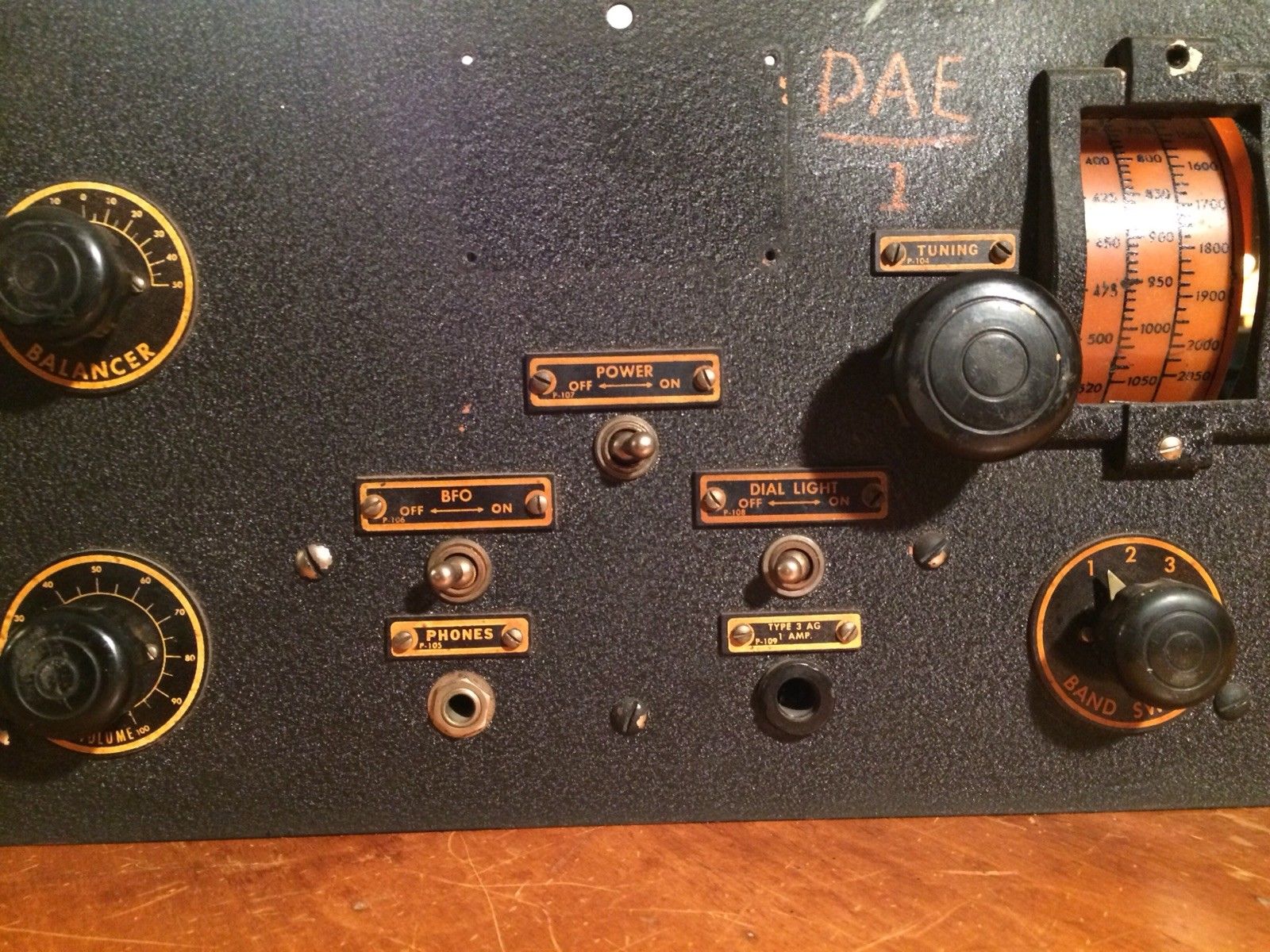

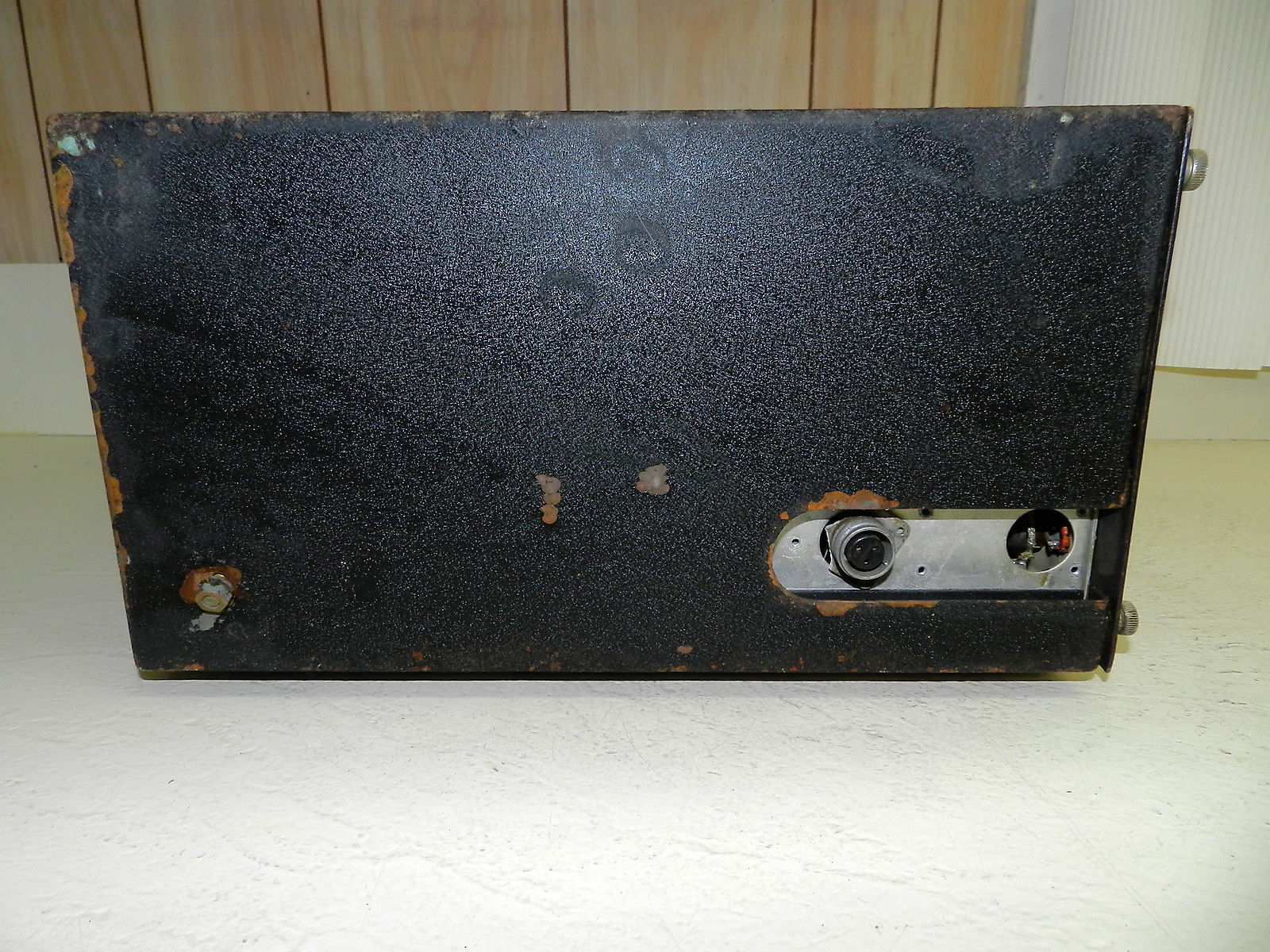

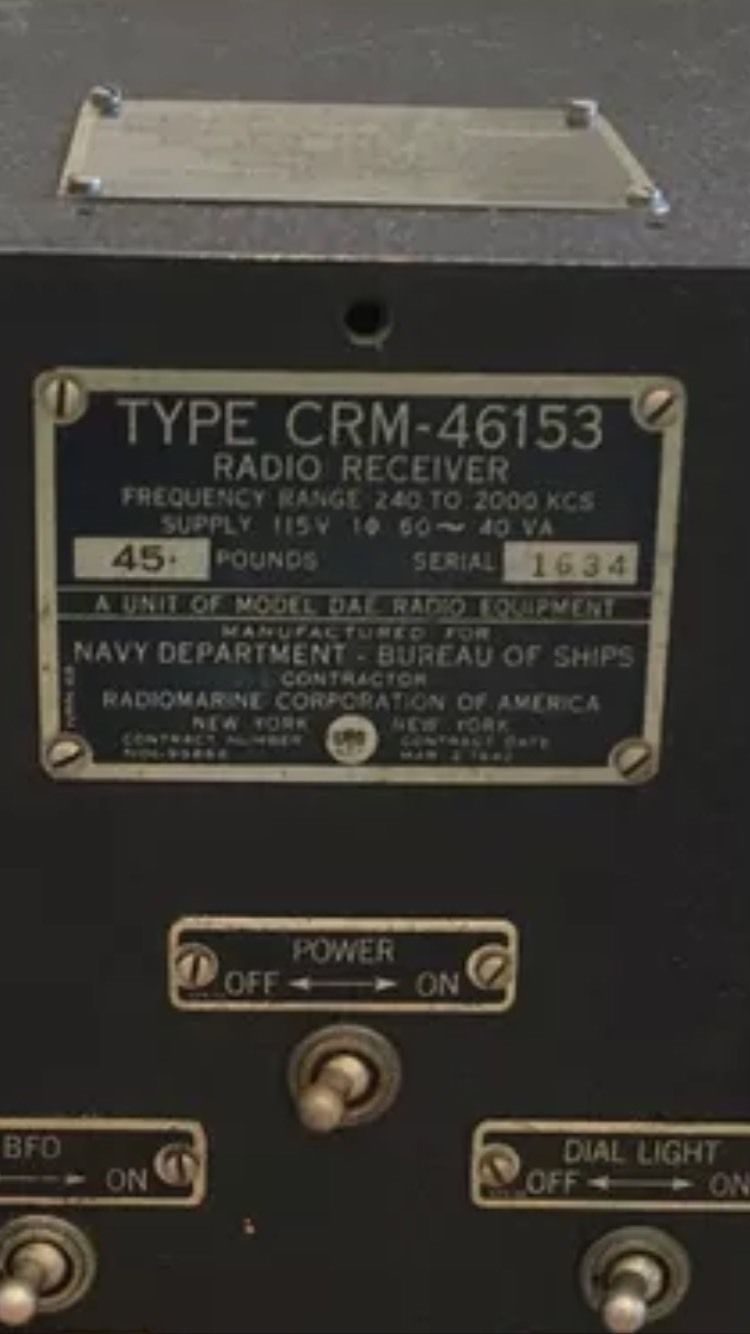

DAE (CRM-46153)

240-2000 kc shipboard DF

Spec Sheets























dae1-1711-01.jpg (183703 bytes) dae1-1711-02.jpg (360056 bytes) dae1-1711-03.jpg (424577 bytes) dae1-1711-04.jpg (219346 bytes)
dae1-1711-05.jpg (211378 bytes) dae1-1711-06.jpg (221463 bytes) dae1-1802-01.jpg (236366 bytes) dae1-1802-02.jpg (279649 bytes)
dae1-1802-03.jpg (237040 bytes) dae1-1802-04.jpg (214998 bytes) dae1-1802-05.jpg (205806 bytes) dae1-1802-06.jpg (201633 bytes)

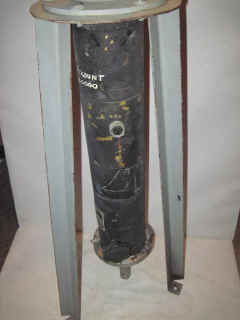

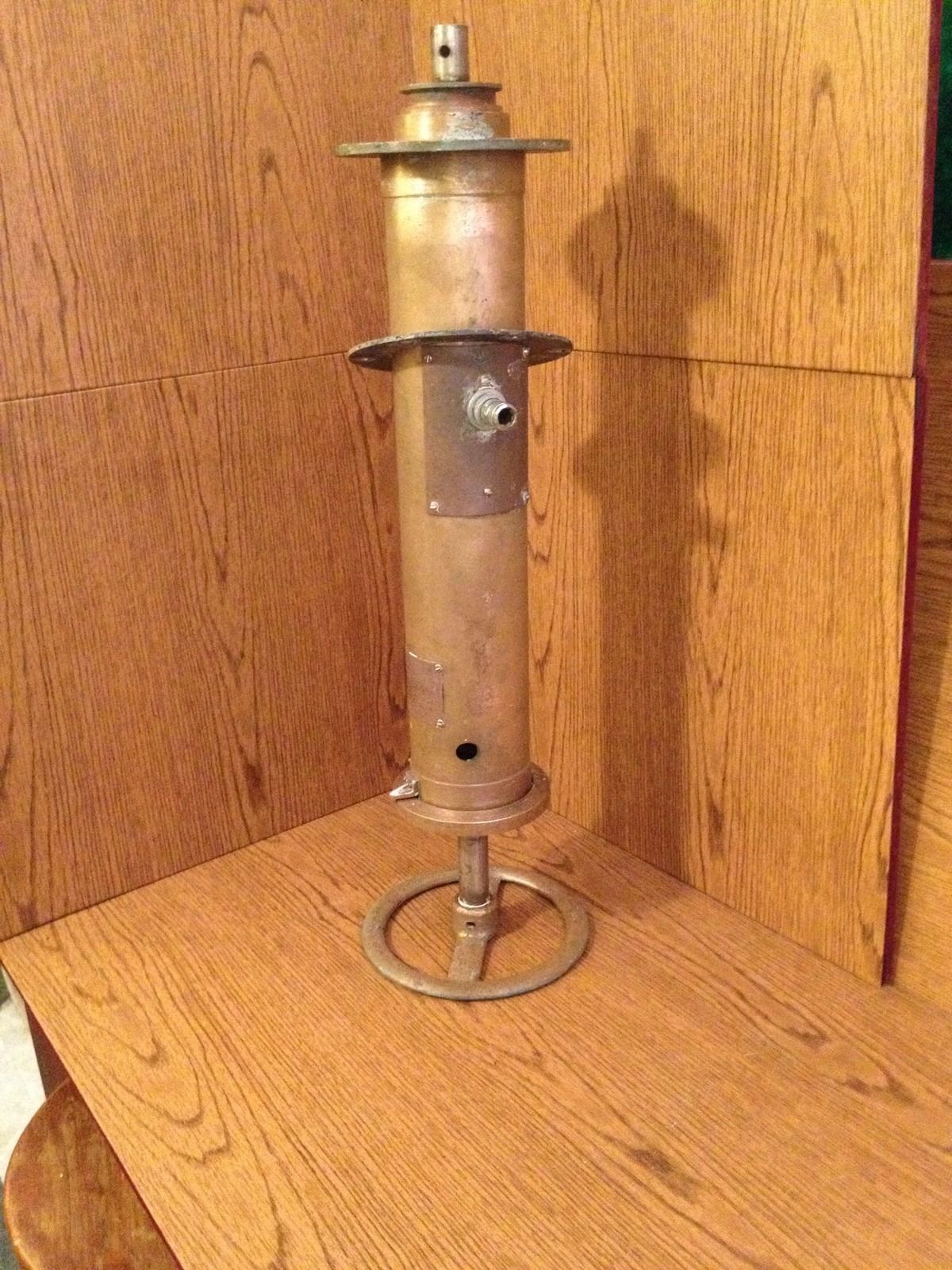

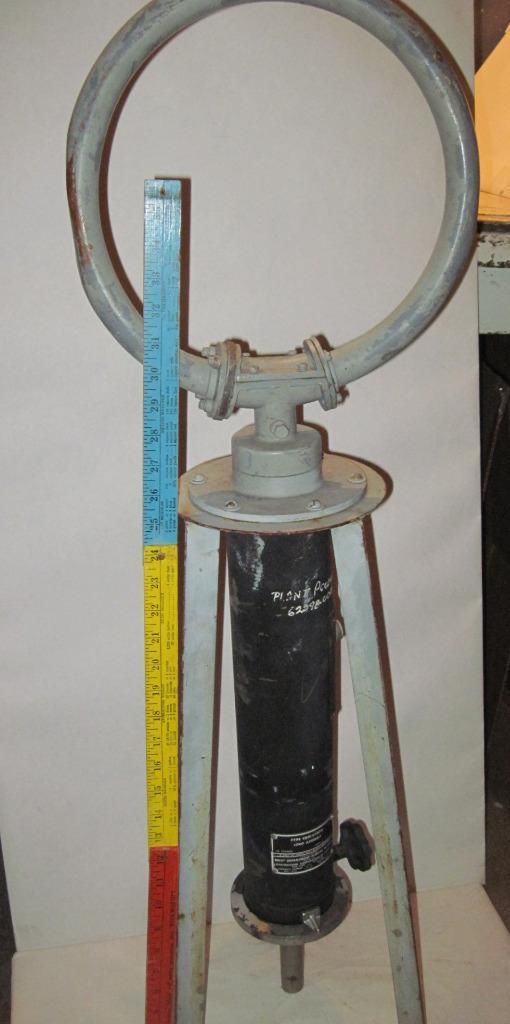

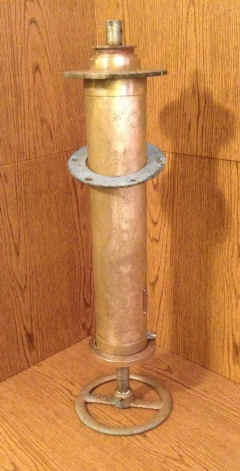

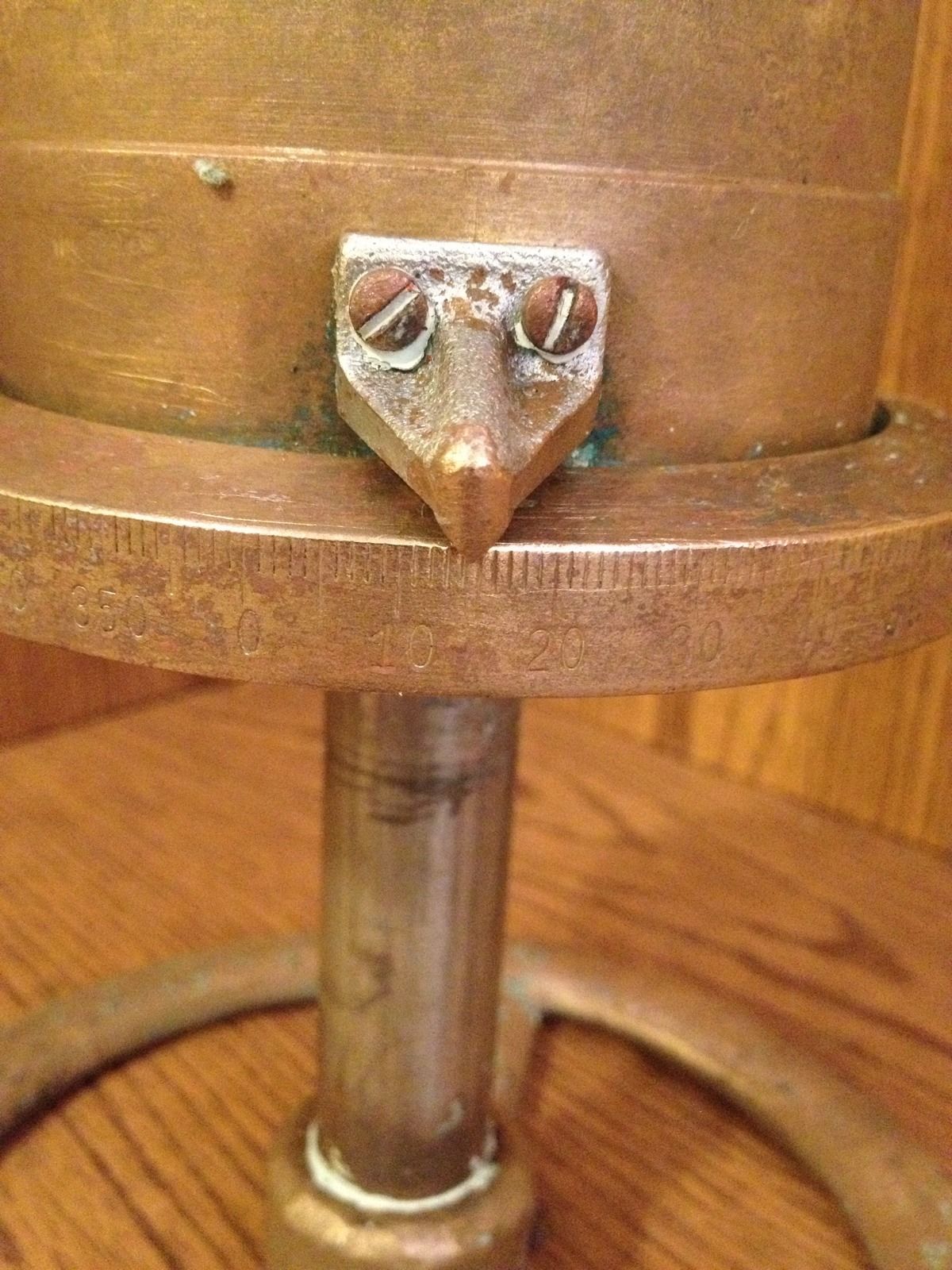

CRM-69074 Loop Antenna for DAE

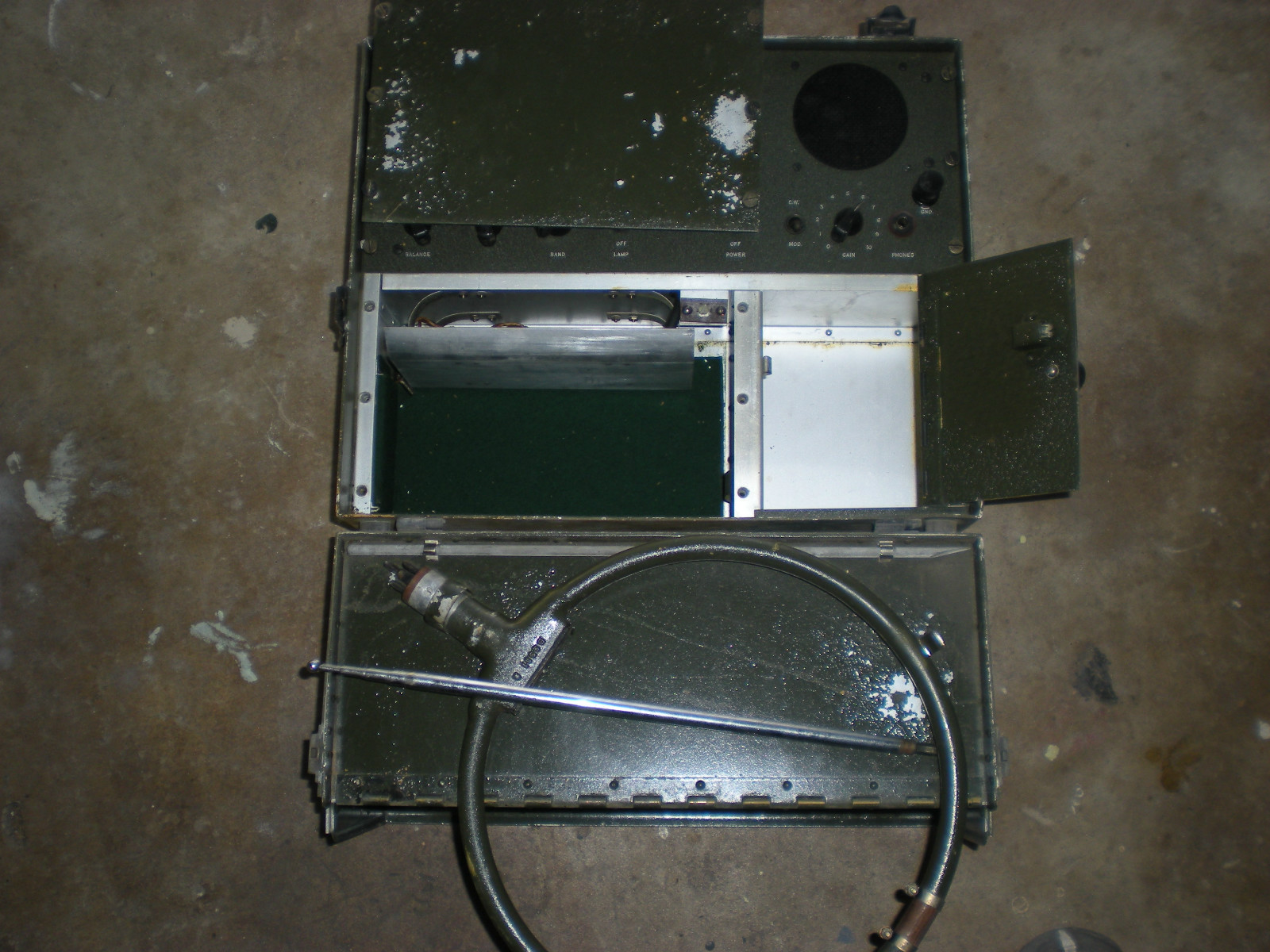

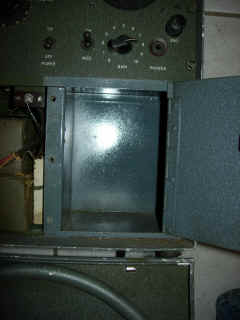

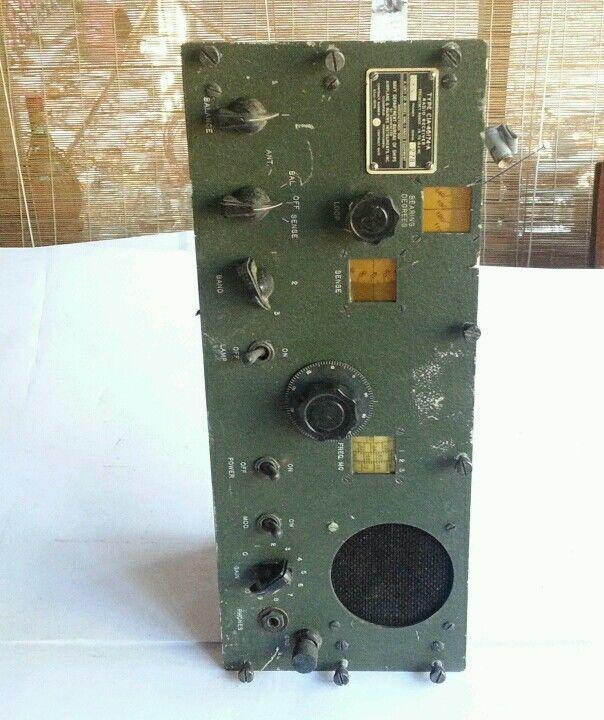

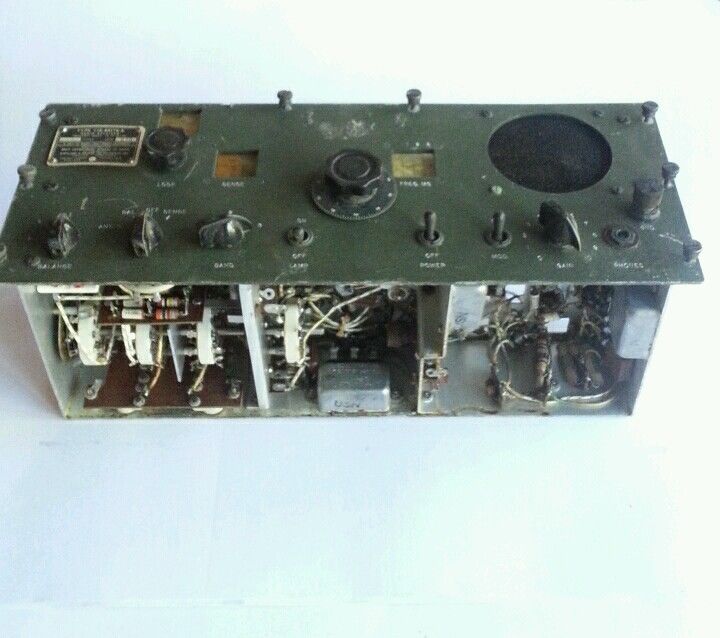

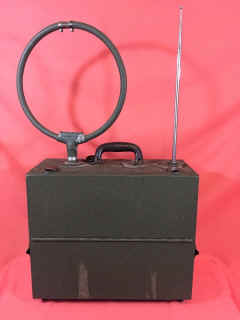

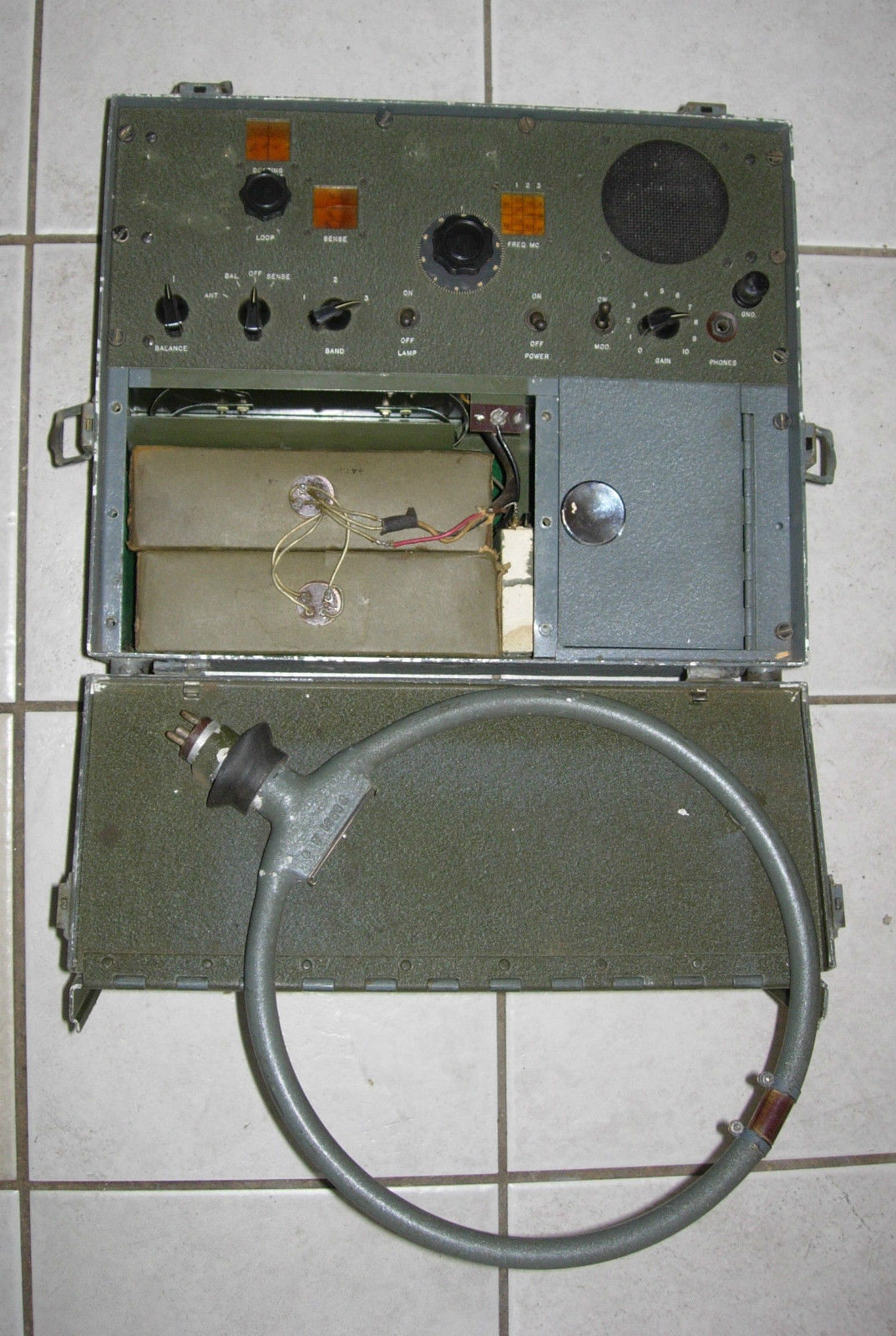

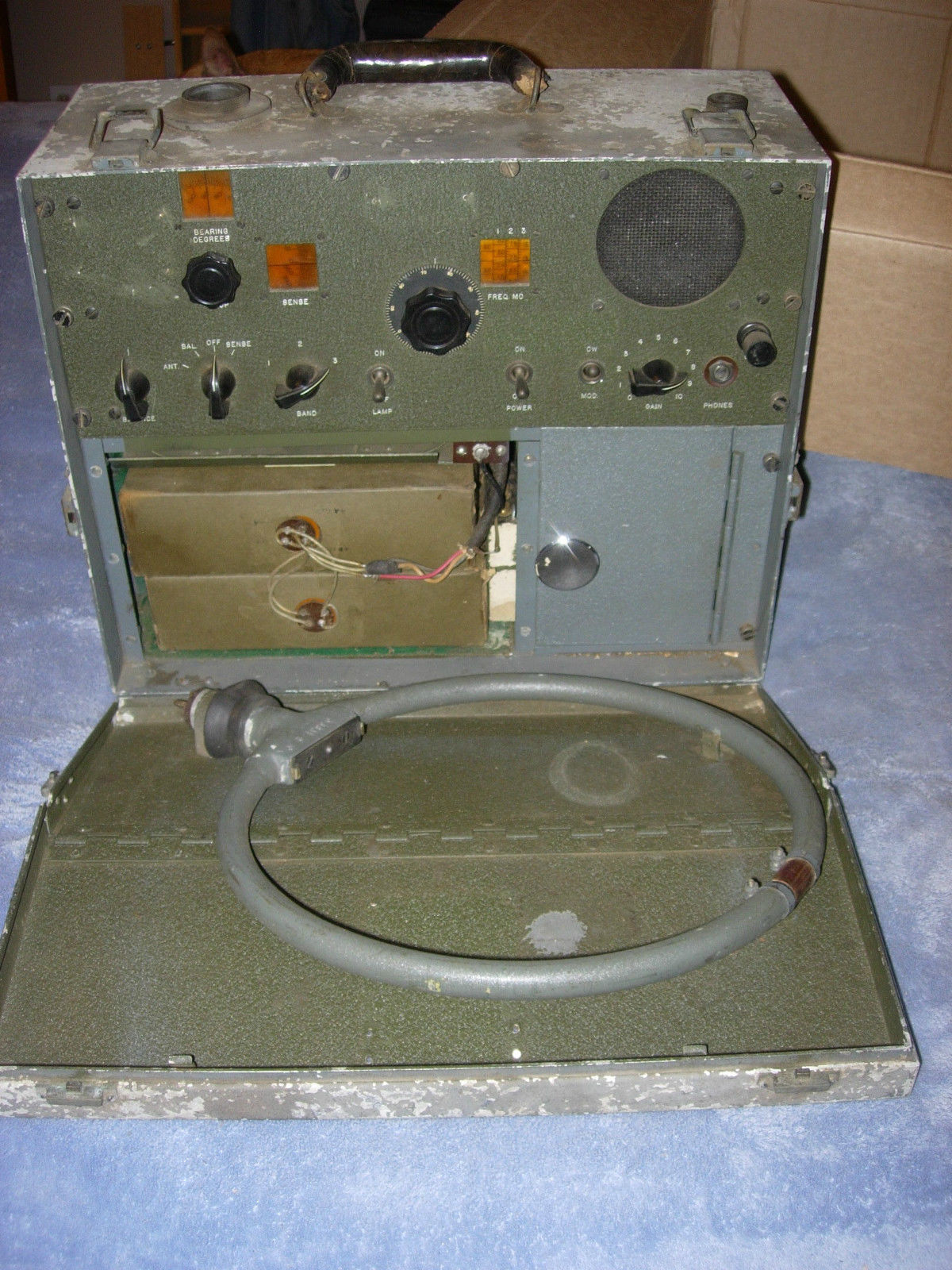

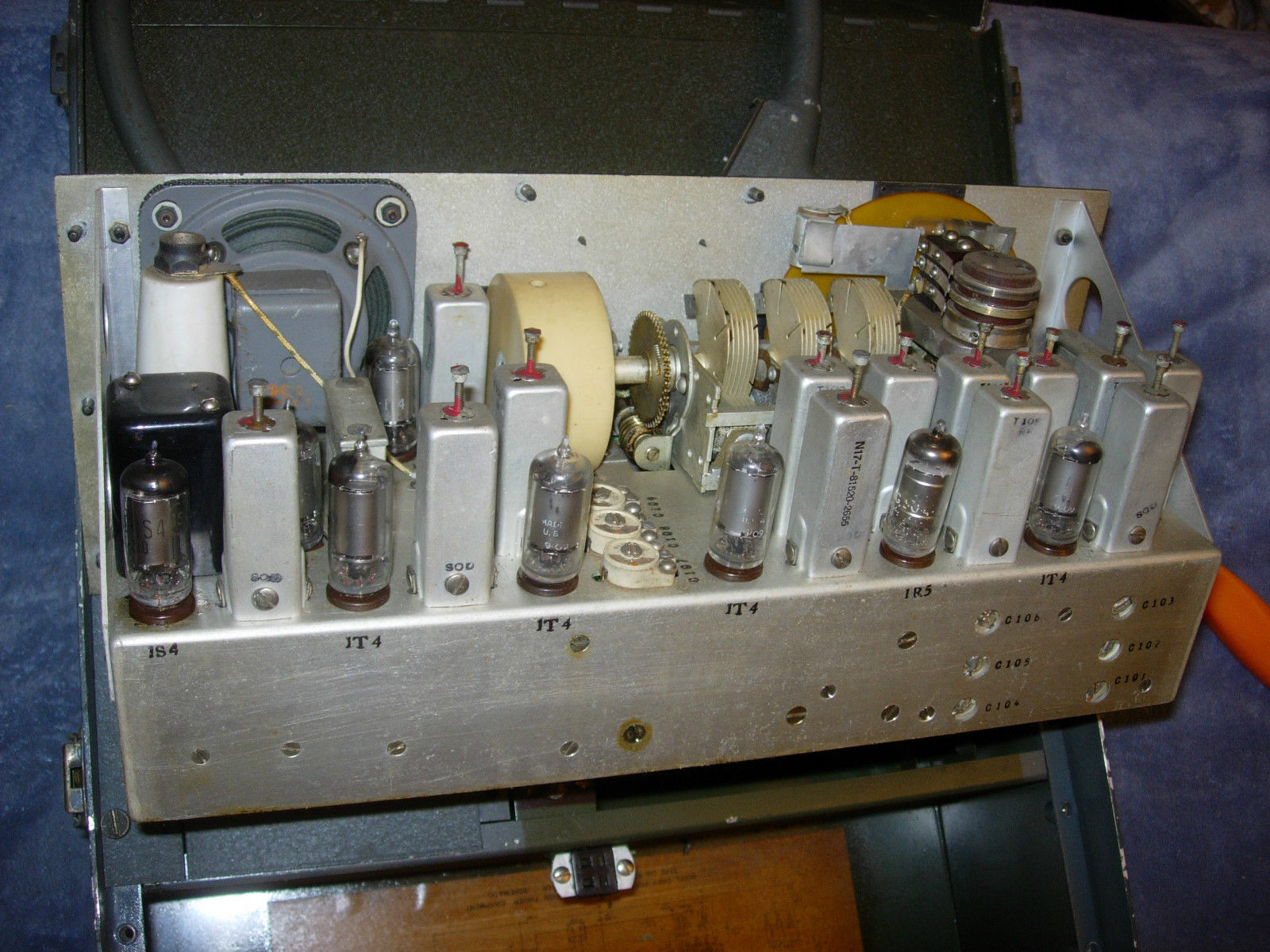

DAG-1, DAG-2


Portable Direction Finder

1.6-18.2 mc

Spec Sheets

manual download here thanks to W6GER













dag1-1706-01.jpg (187512 bytes) dag1-1706-04.jpg (190467 bytes) dag1-1706-02.jpg (307534 bytes) dag1-1706-05.jpg (244698 bytes)

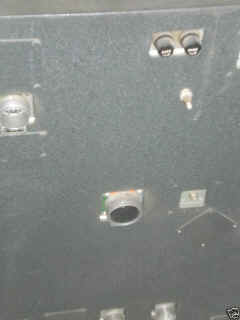

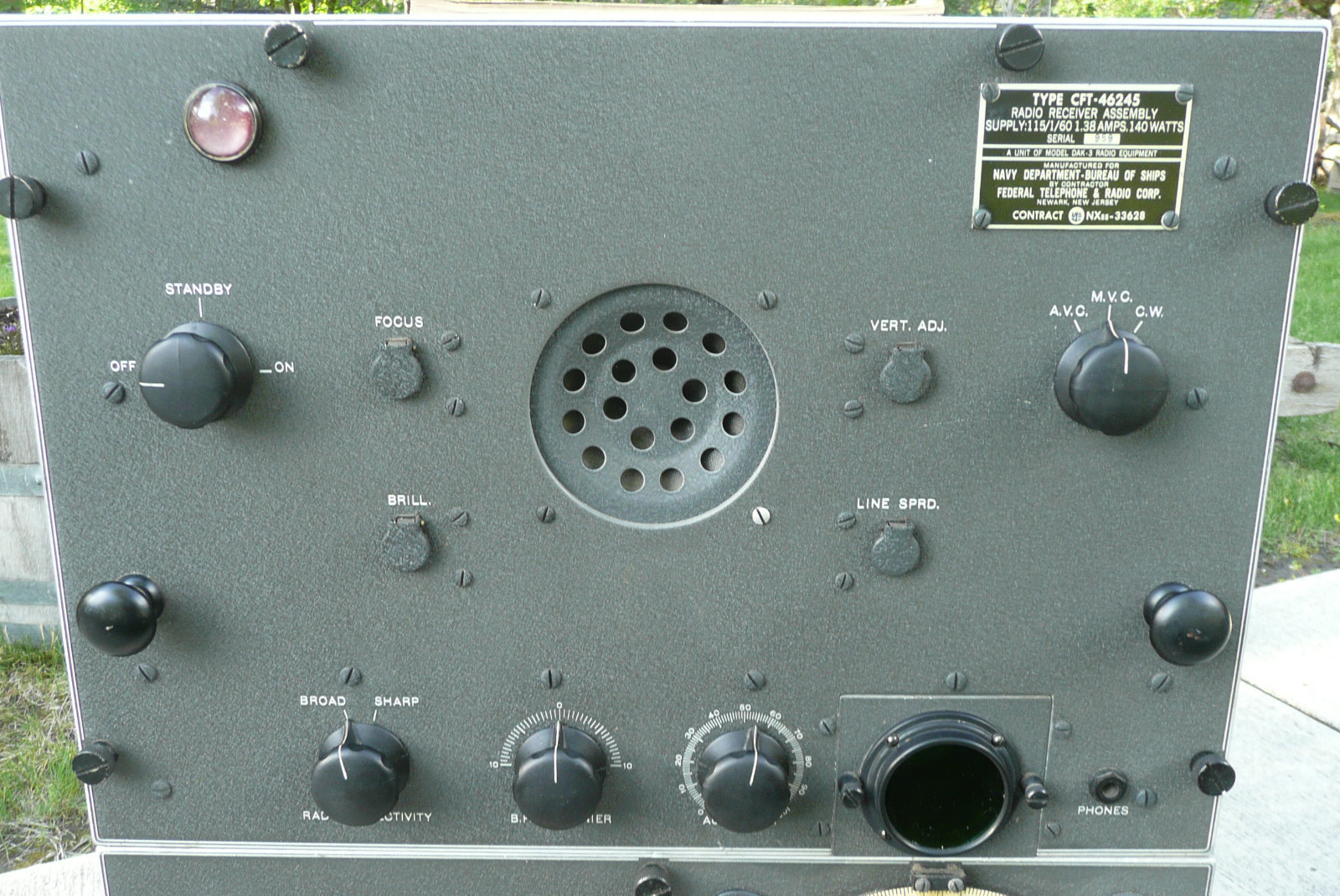

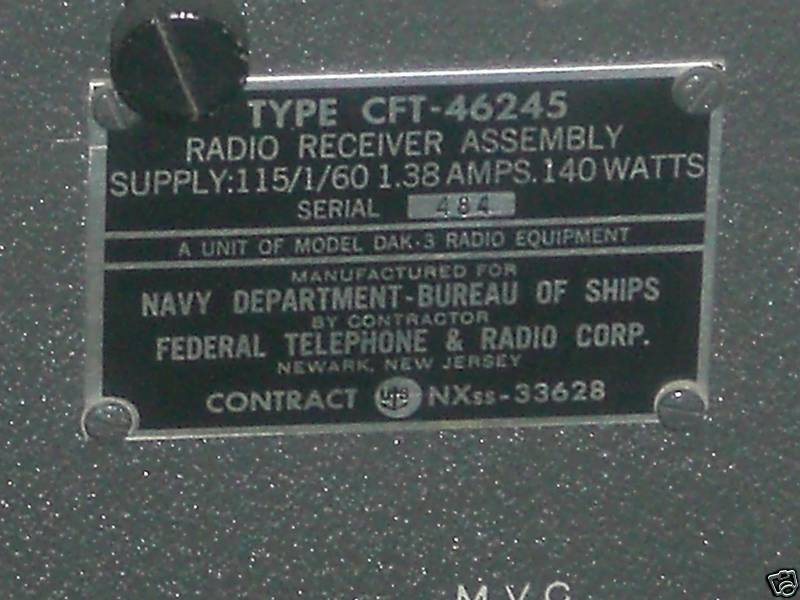

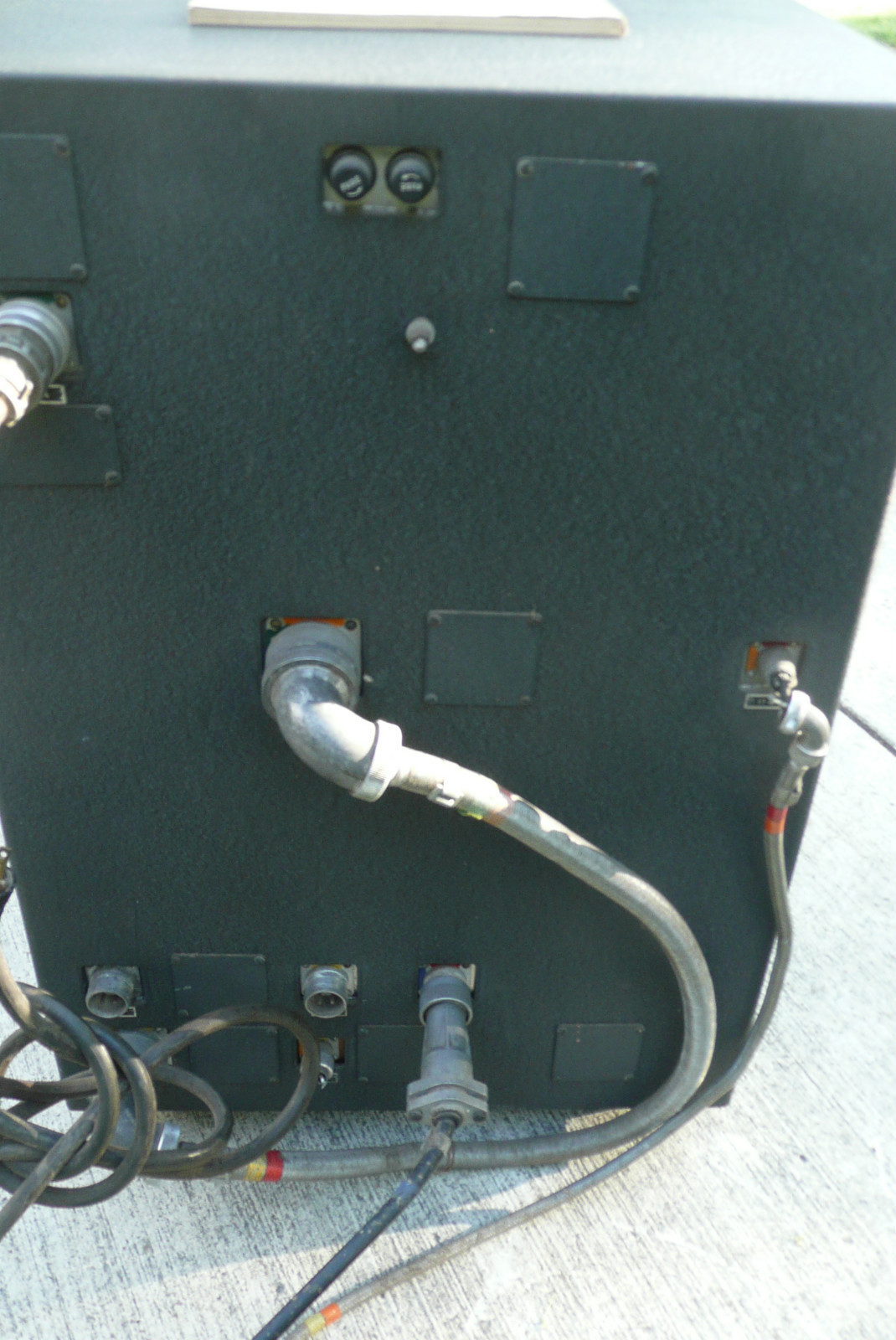

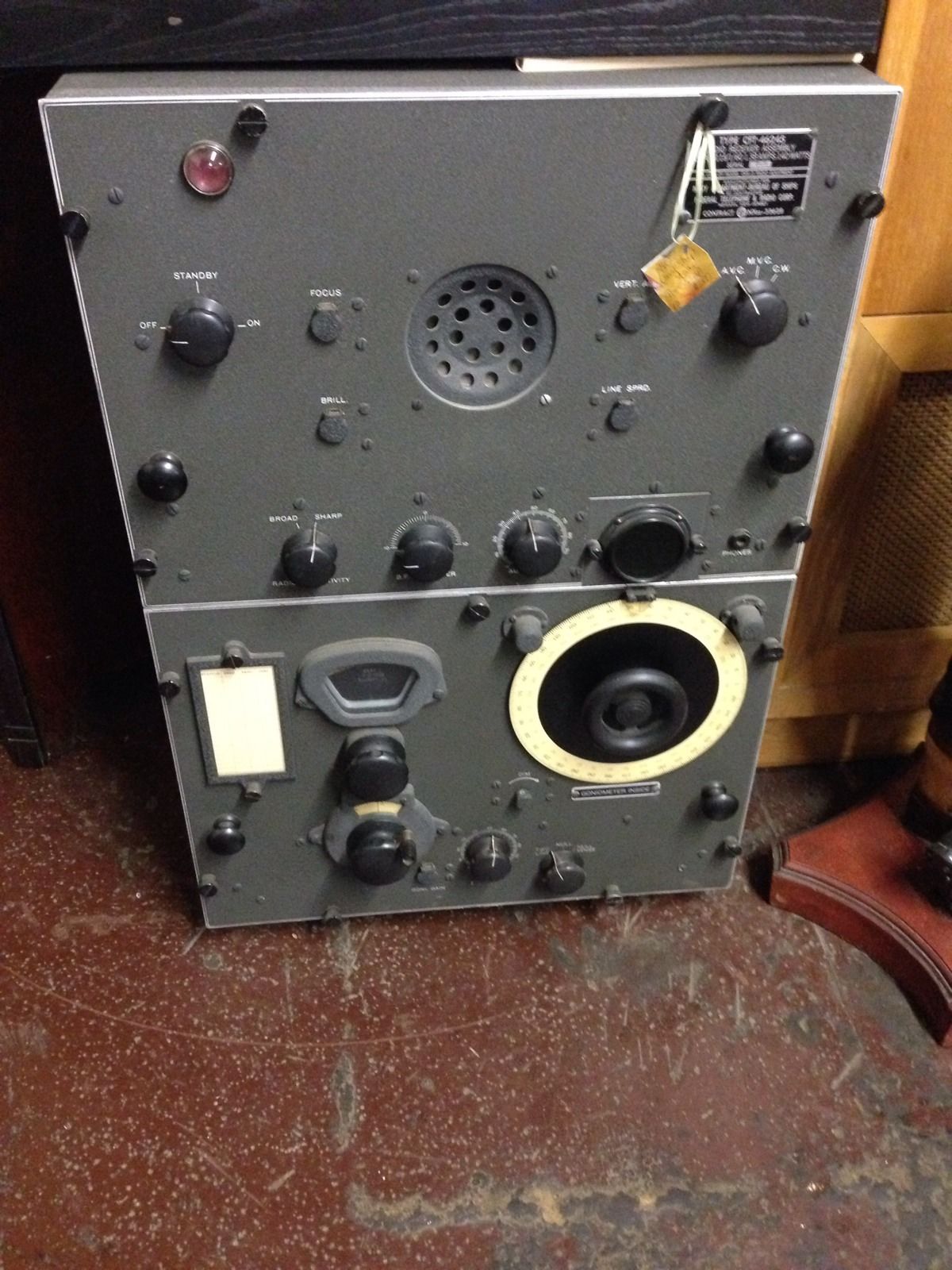

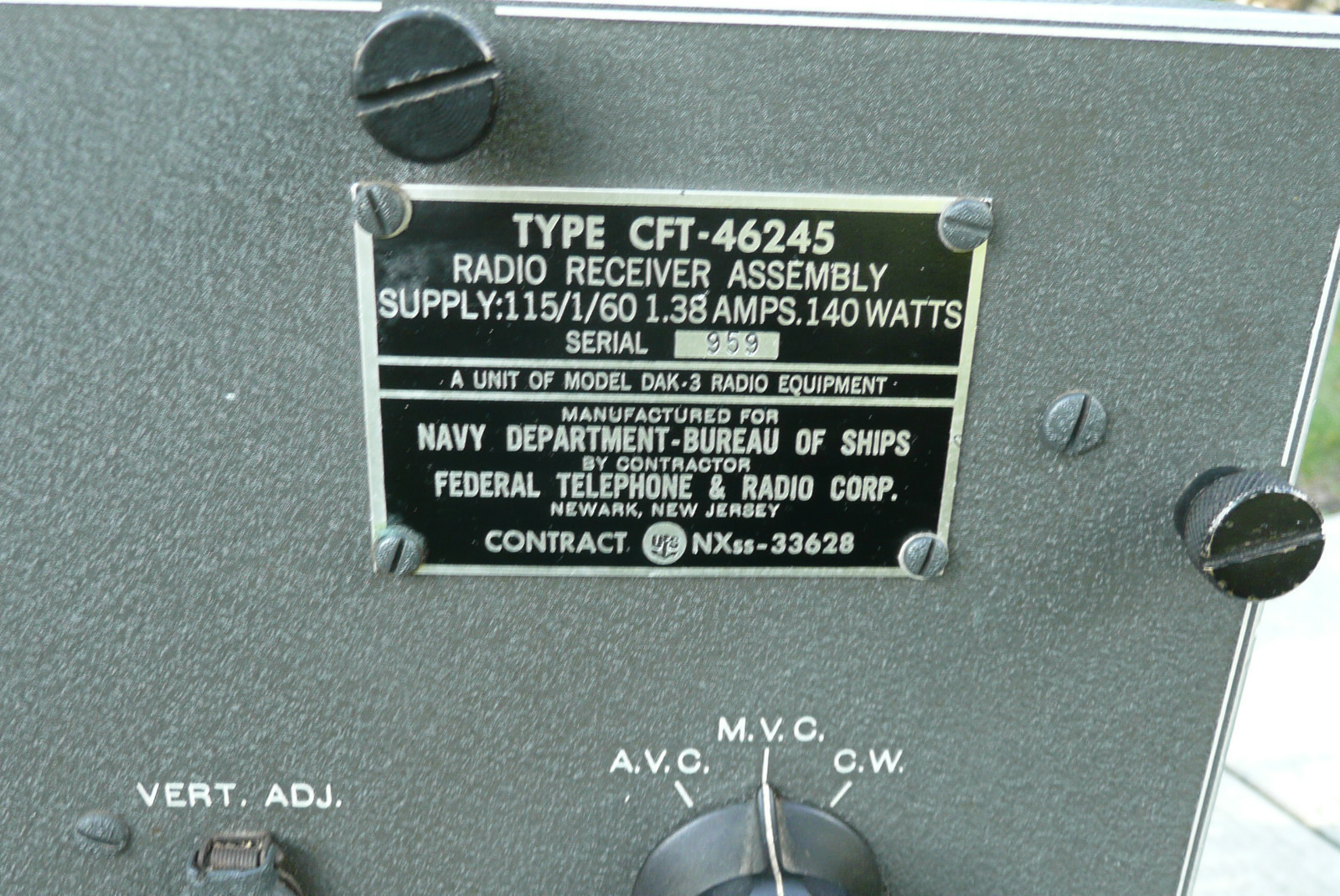

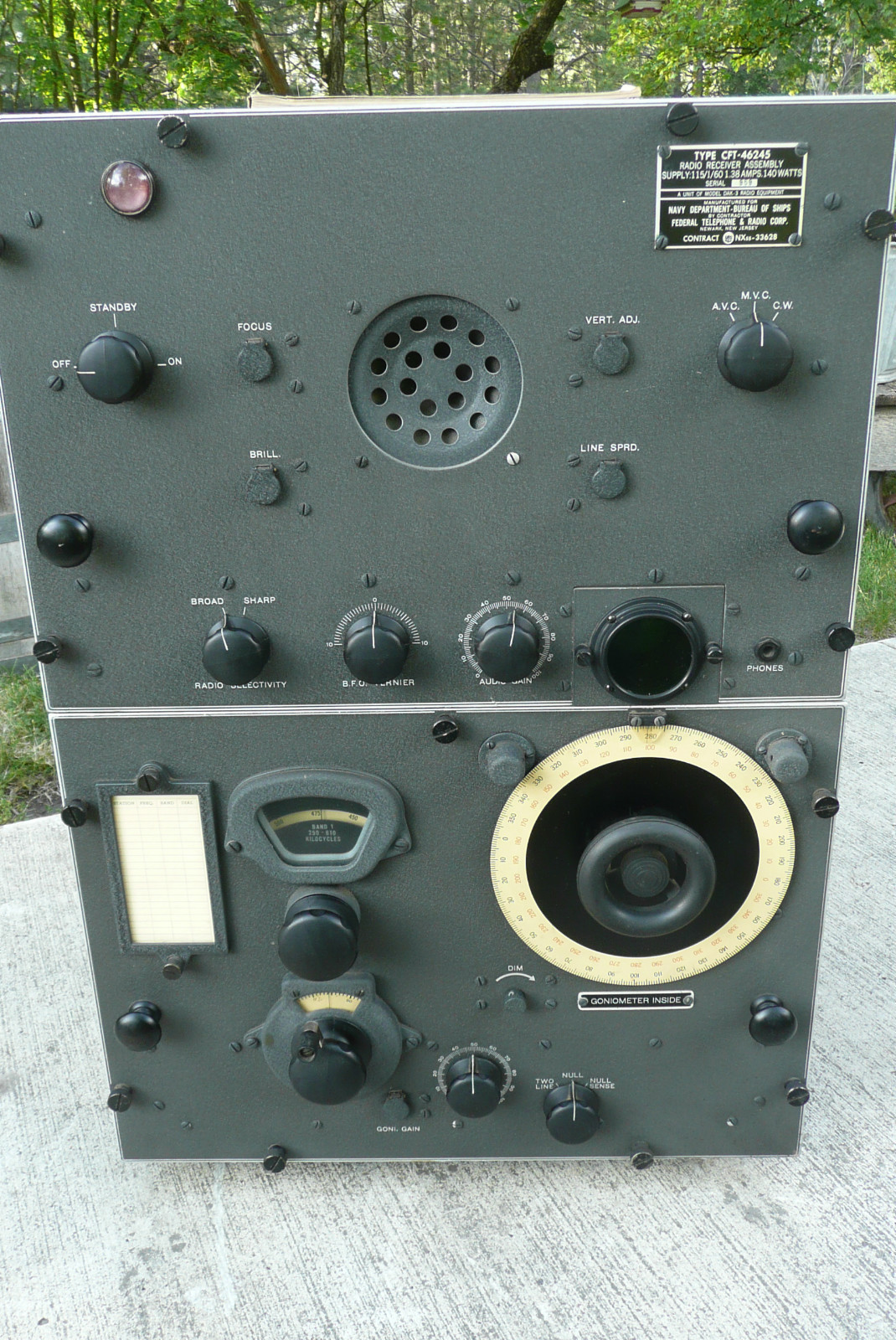

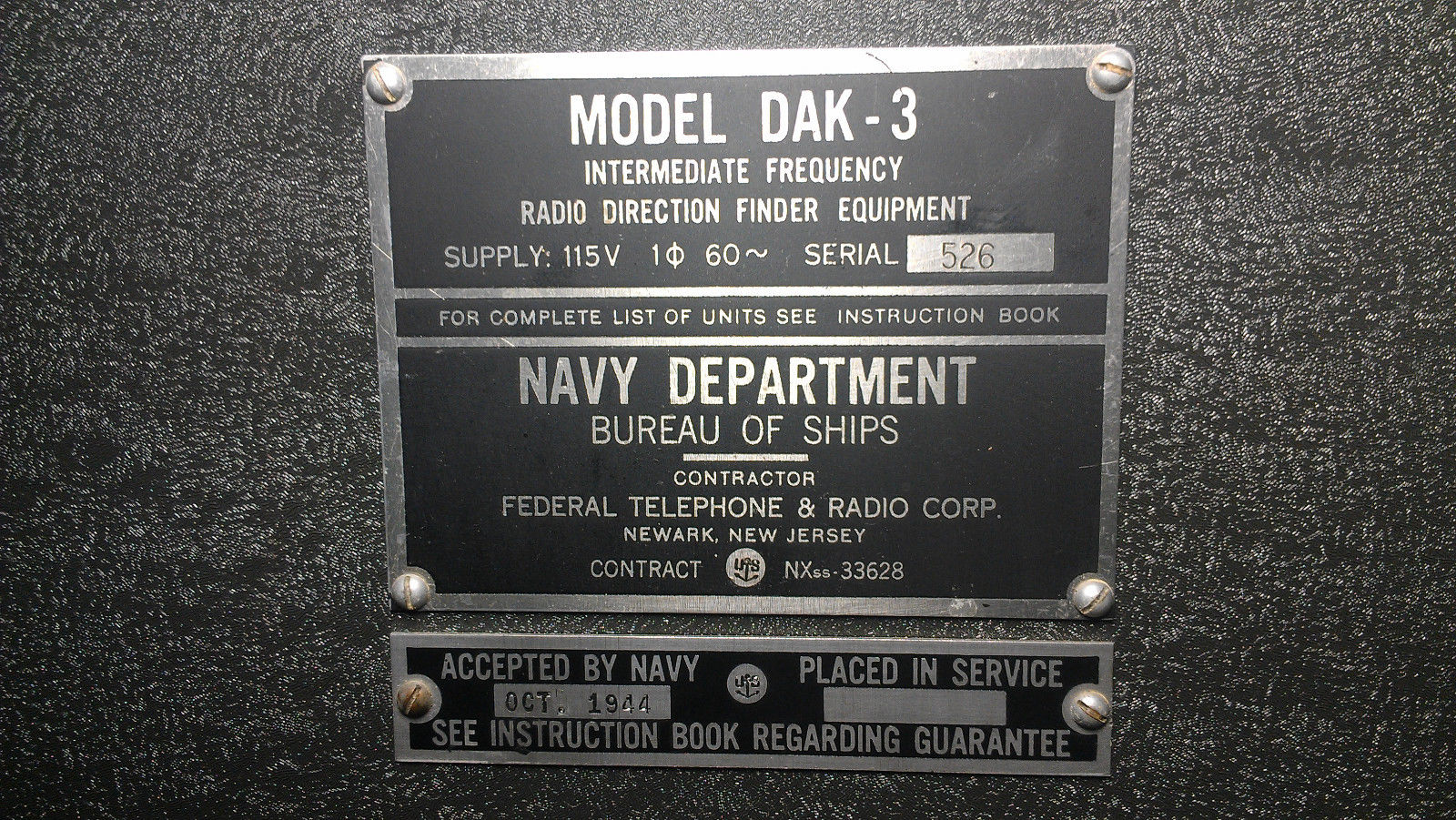

DAK-3 (CFT-46245)
LF-MF













   250-1500 kc shipboard DF

   Spec Sheets - more info

   manual download


































DAK Loop Antenna CFT-69089













Loop Assembly Type -69089 is a shielded balanced type consisting of two crossed loops at right angles to each other.

Each loop consists of 5 turns of insulated, stranded, tinned copper wire. A bakelite assembly holds each winding in place inside an electrostatic shielding of 3 -inch aluminum tubing. The two loops are insulated from each other and are electrically matched. The loops are mounted on top of a cast aluminum base.

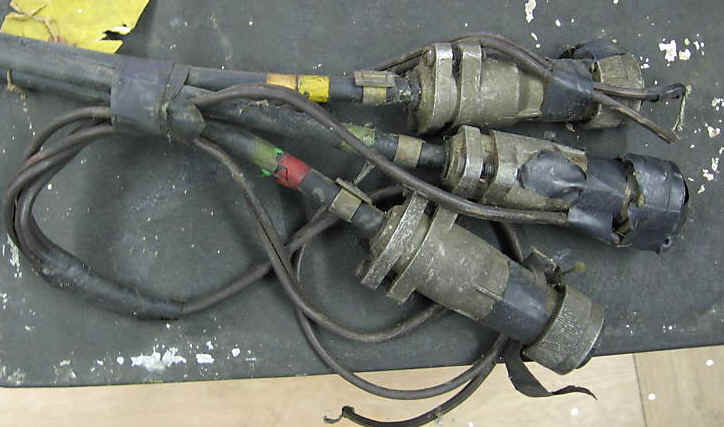

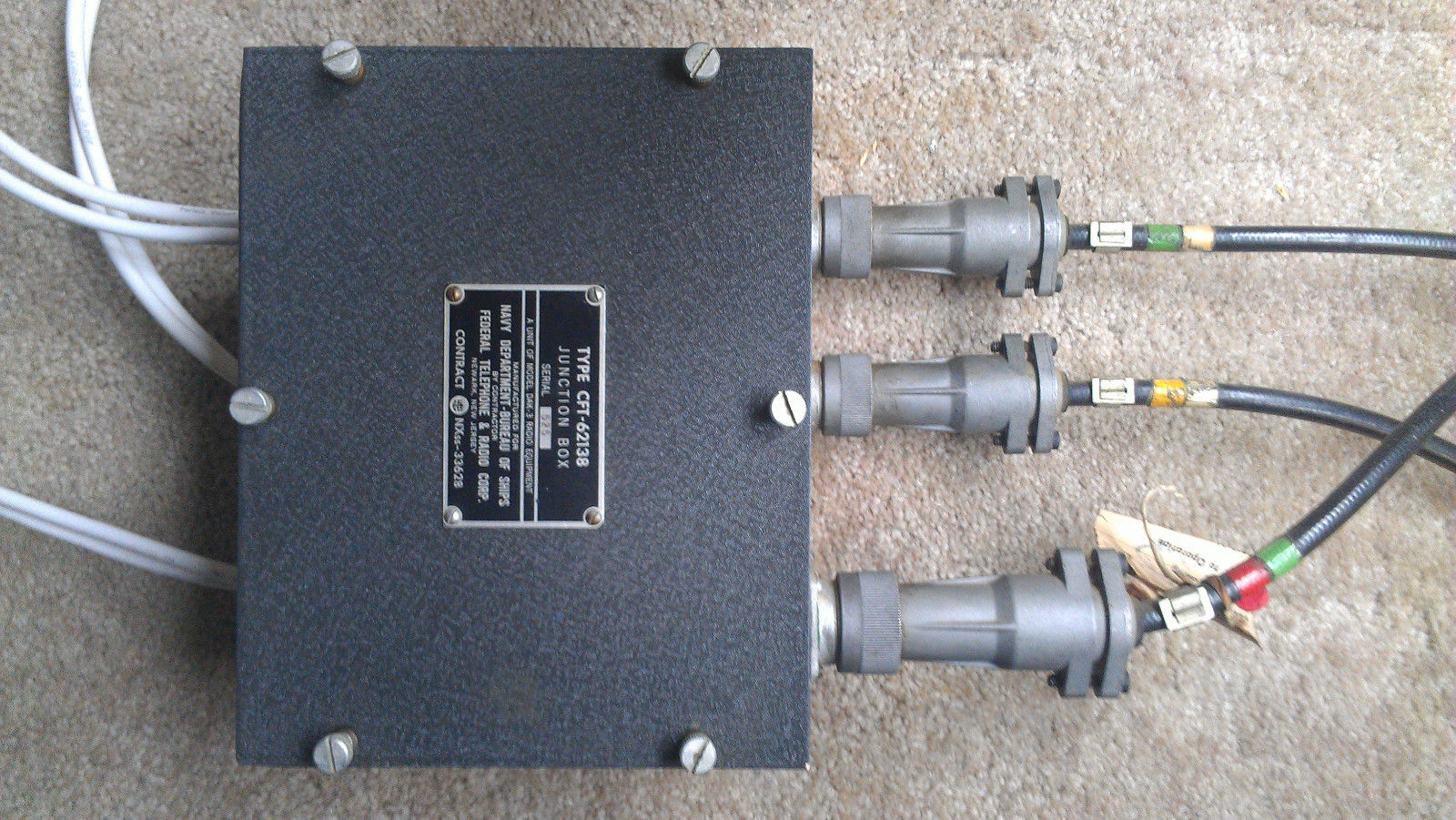

DAK Connector Box CFT-62138






DAK Sense Antenna CFT-66093


Antenna Assembly Type-66093 is a 25-foot vertical whip antenna. The whip consists of three stainless steel sections mounted on a cast aluminum base. An insulator supports the whip 3-foot from the base.

In the base of the sense antenna a "dummy loop", consisting of an electrostatically shielded RF transformer and condenser, reflects the electrical constants of the loop antenna to the transmission line,

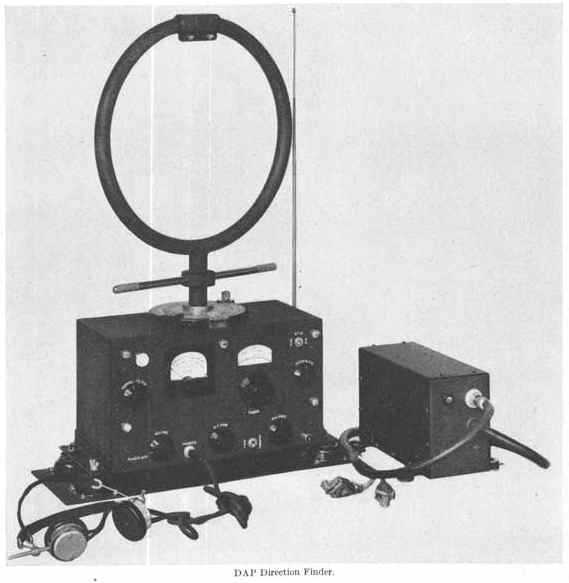

DAP

290-550 kc -  Spec Sheets

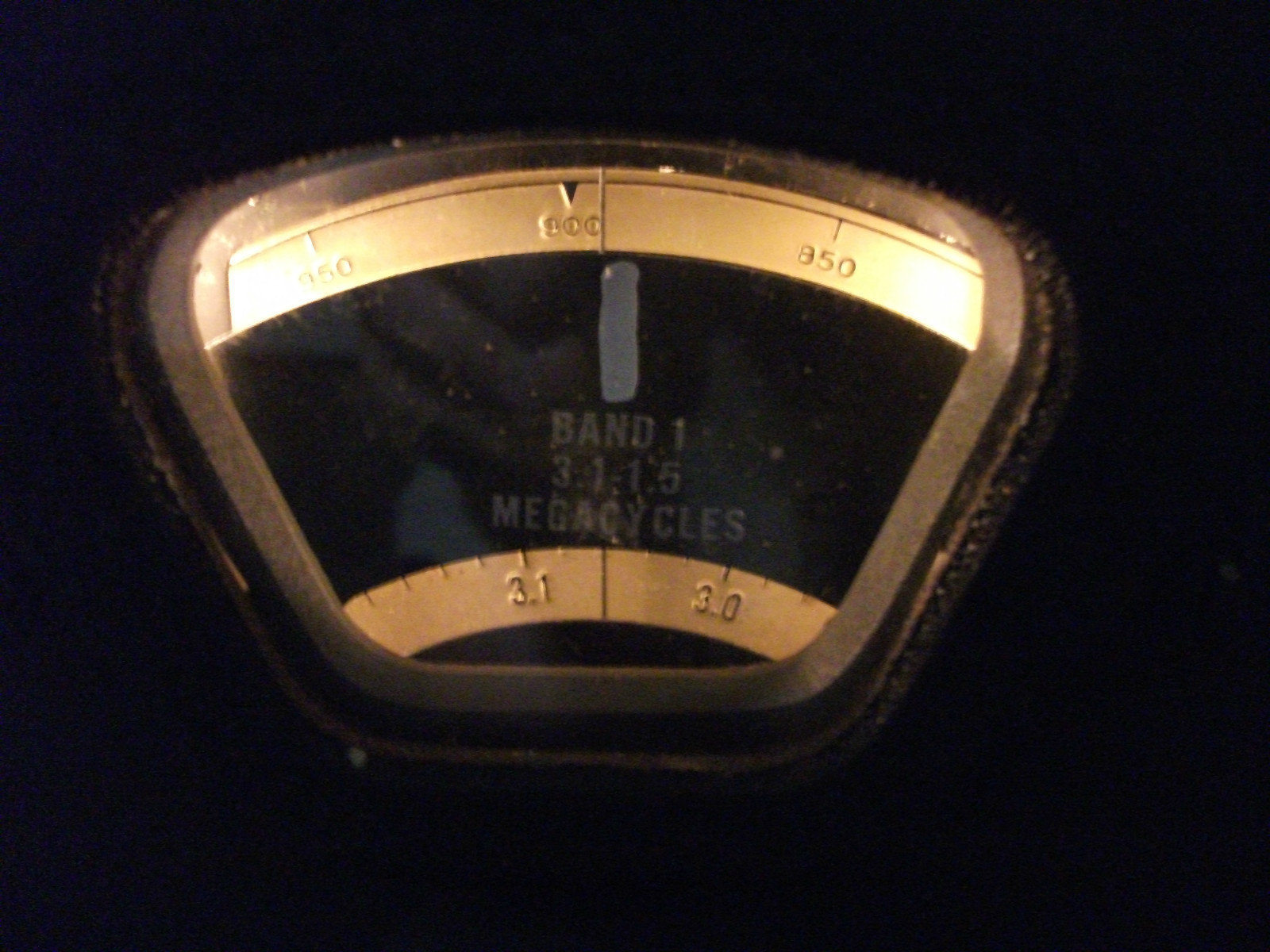

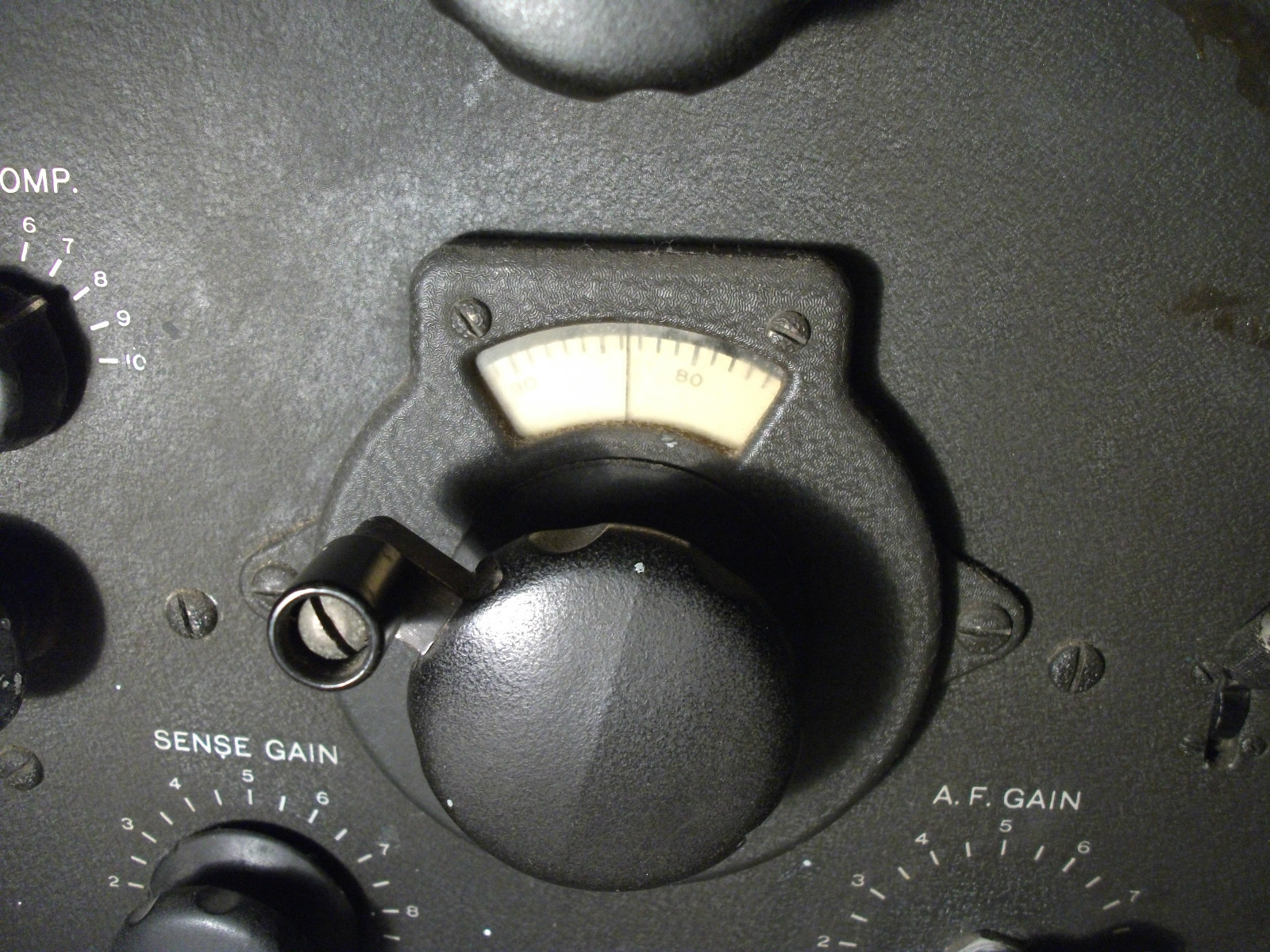

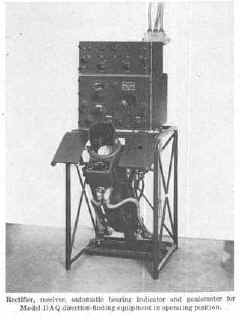

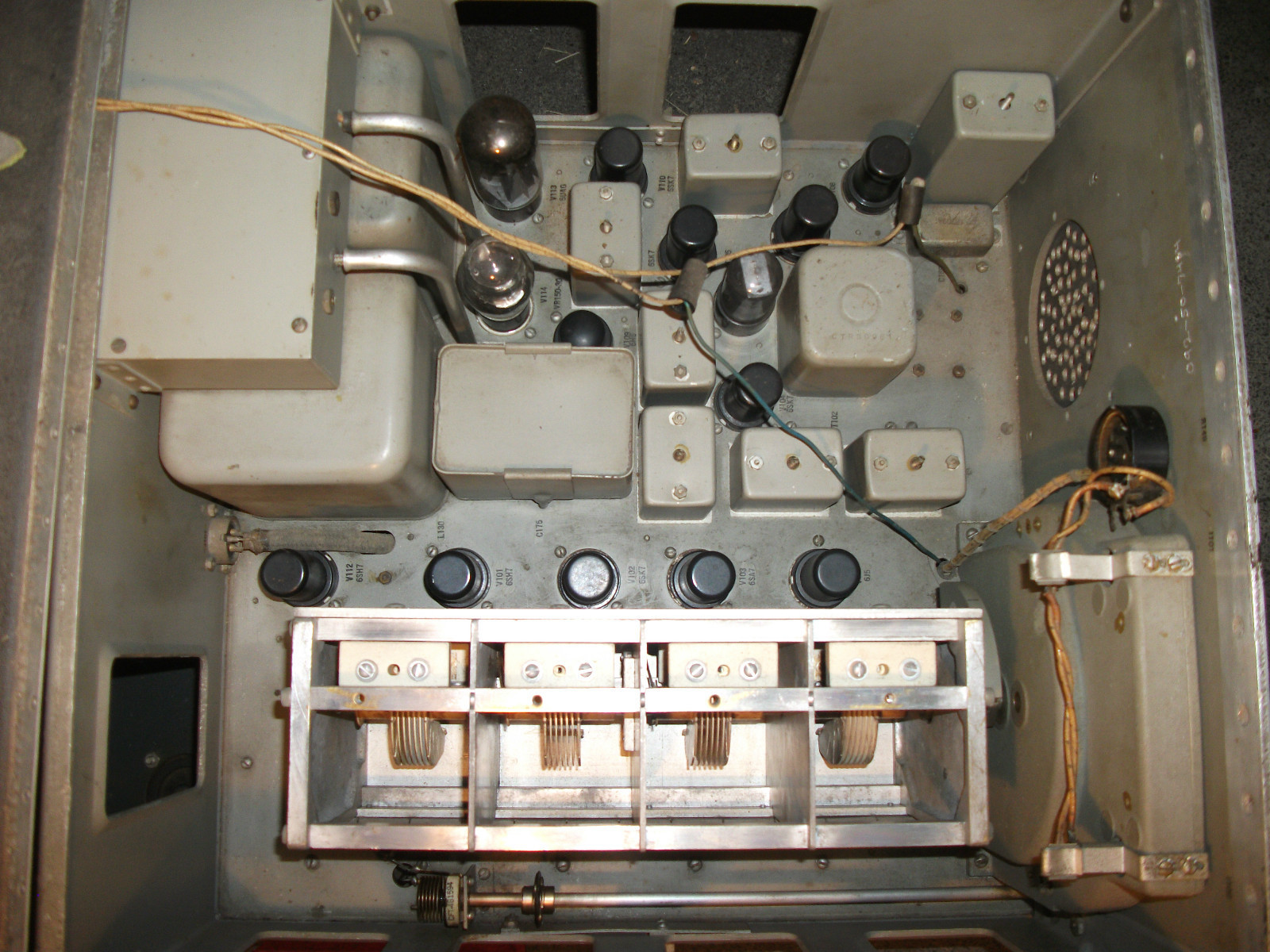

DAQ

1.5-22 mc -    Spec Sheets

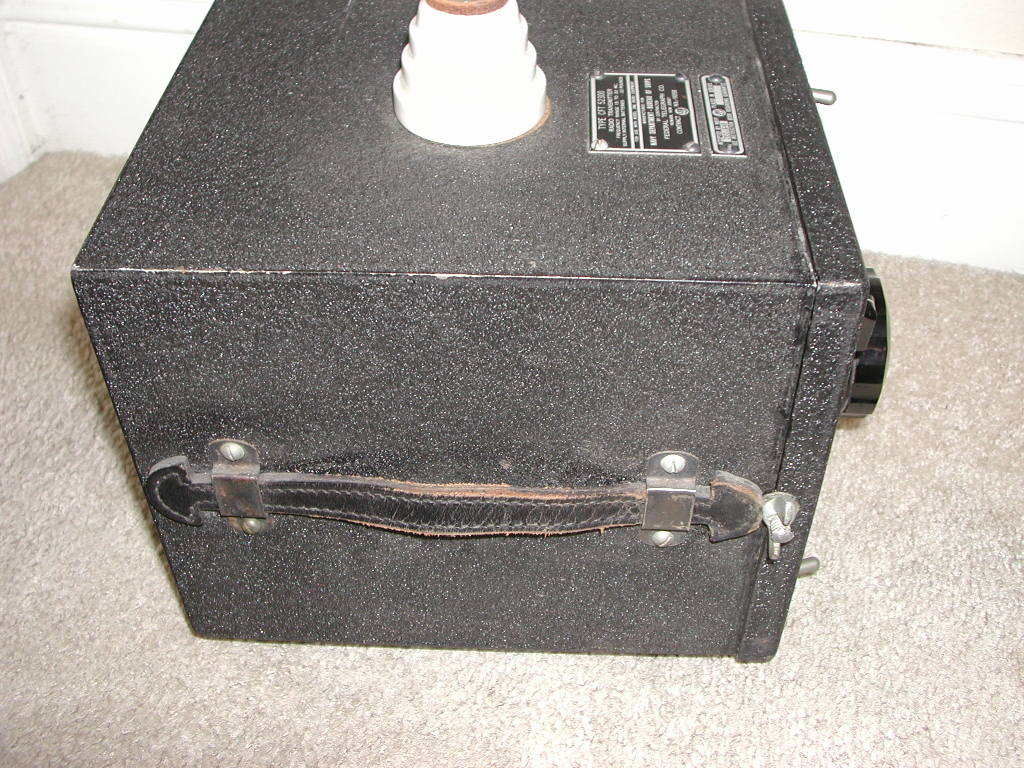

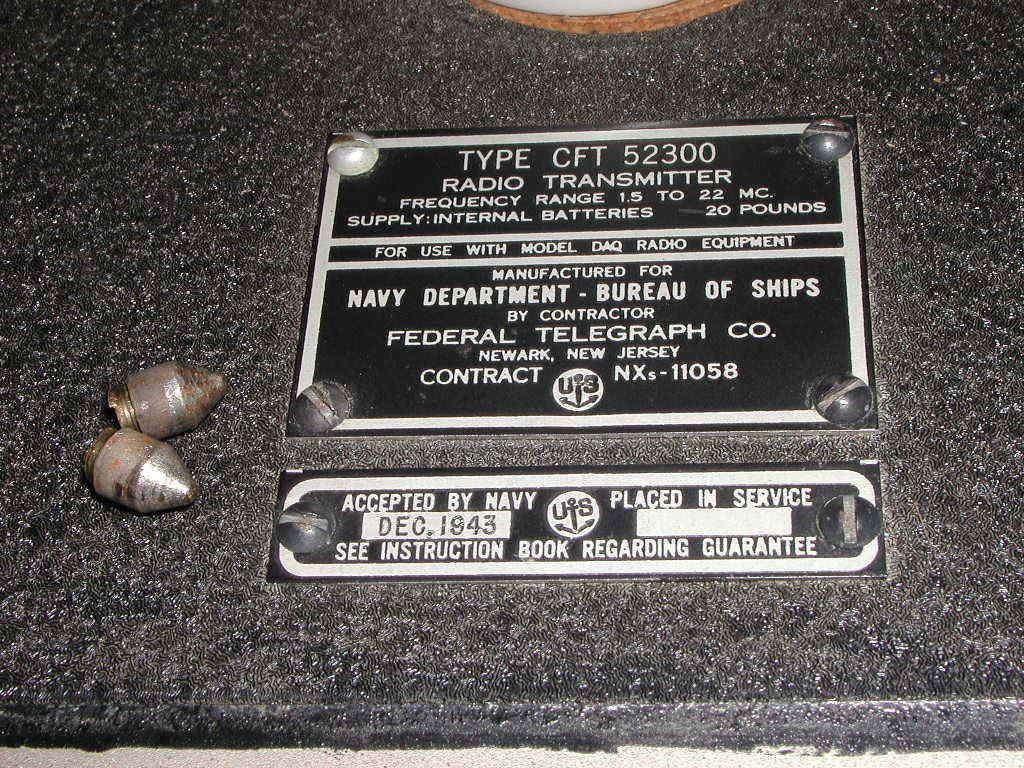

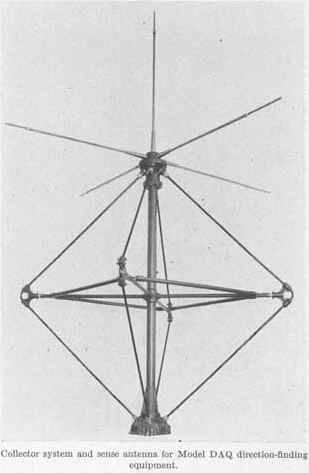

daq-ant-1101.jpg (10238 bytes) CFT-52300 Transmitter used for DAQ calibration








DAS


DAU

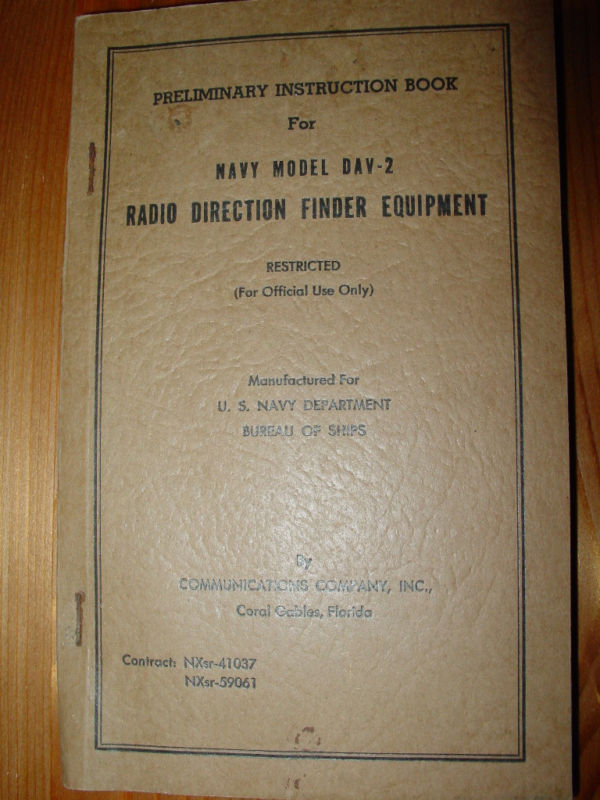

DAV-2

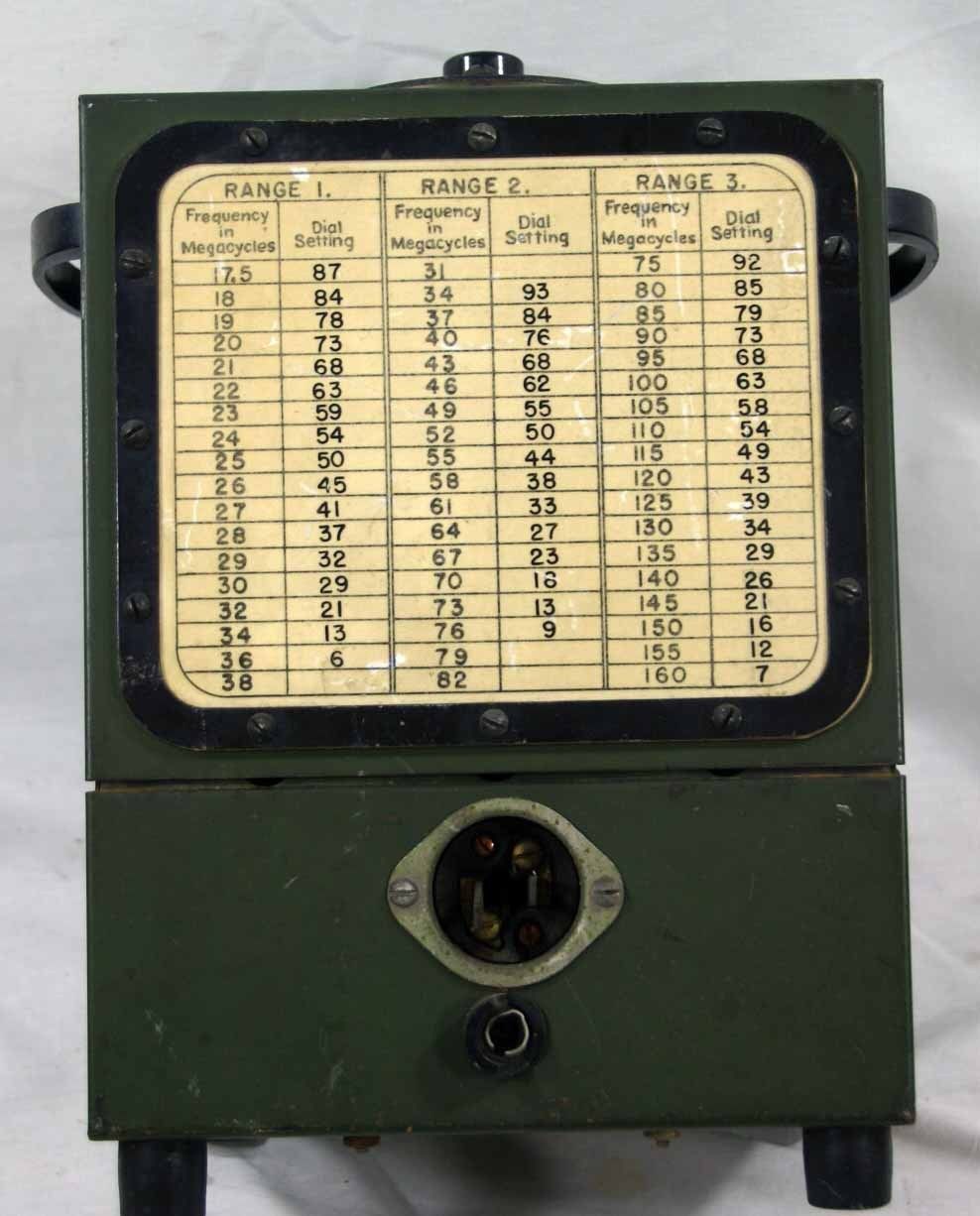

DAZ Transmitter



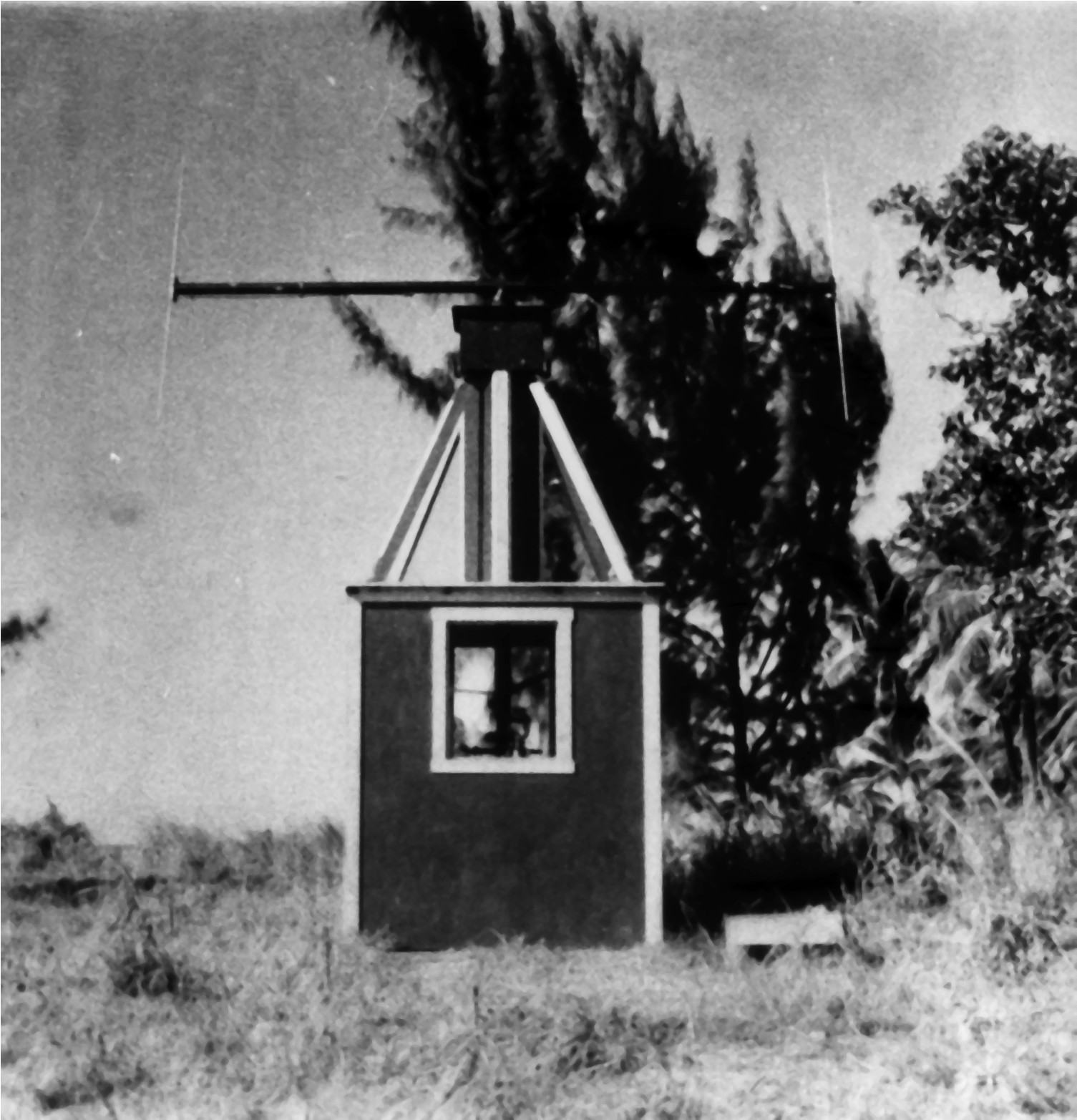

SHORE STATION DIRECTION FINDING EQUIPMENT



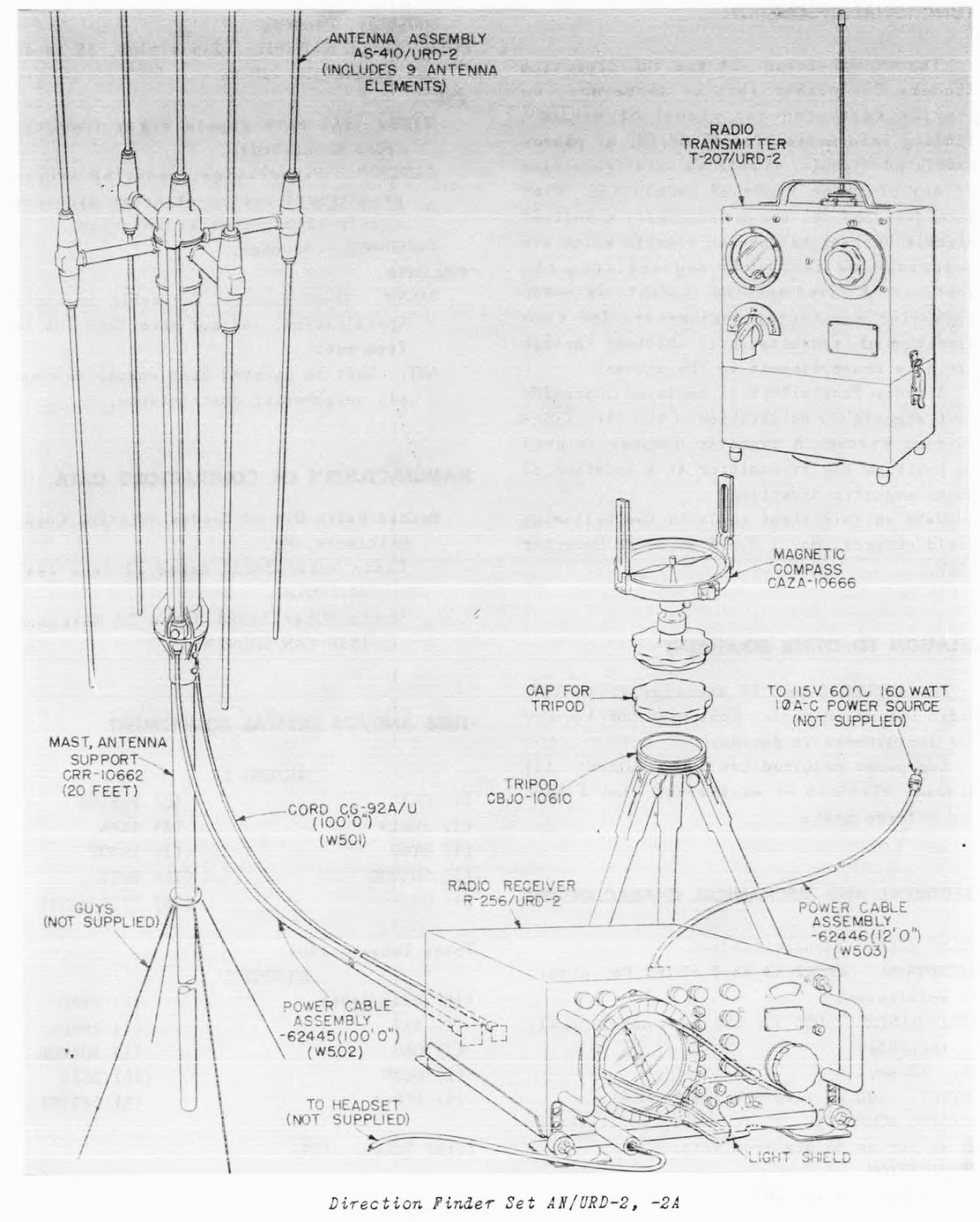

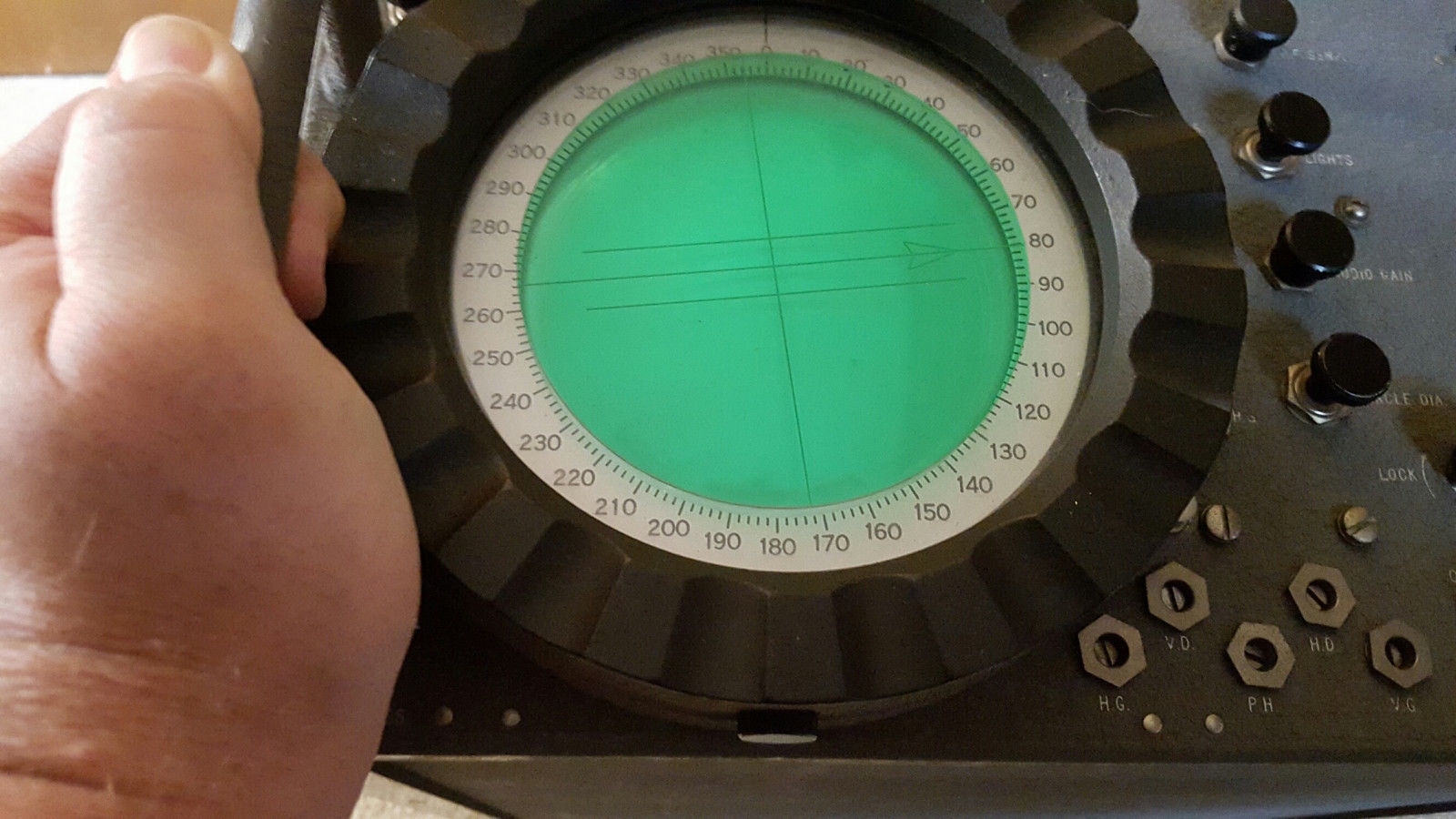

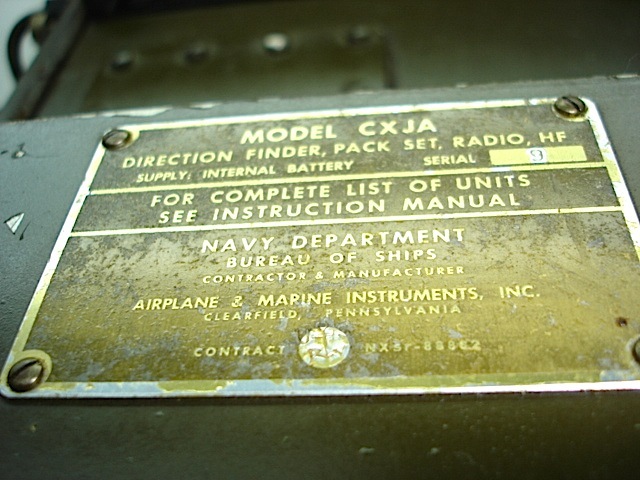

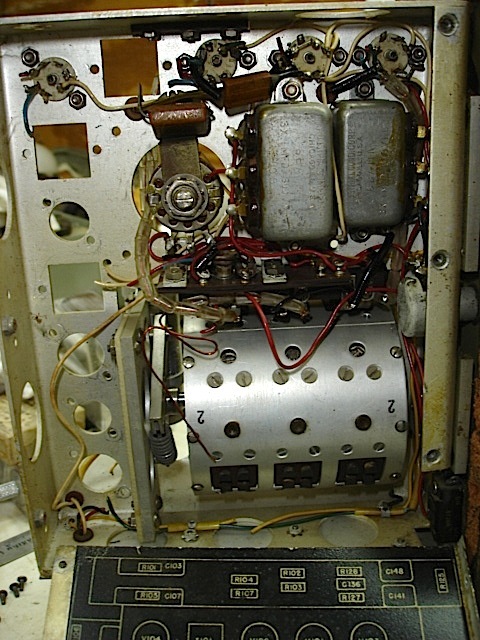

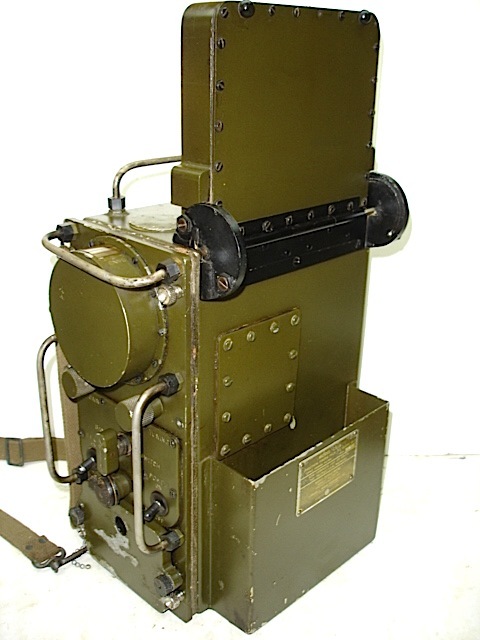

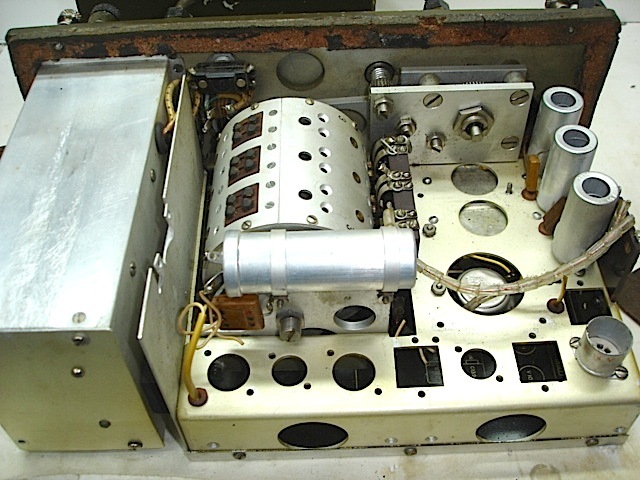

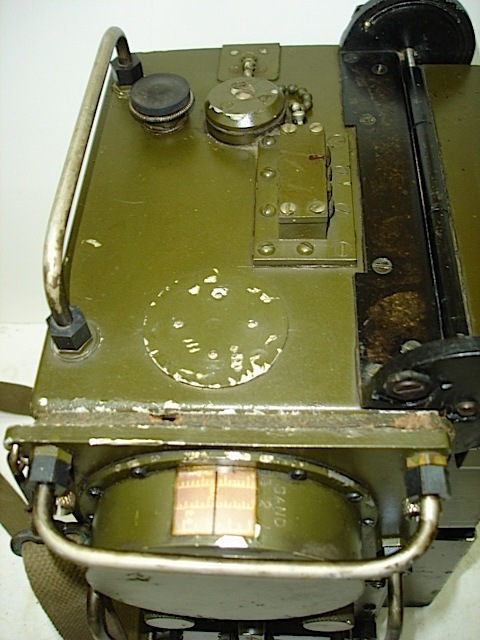

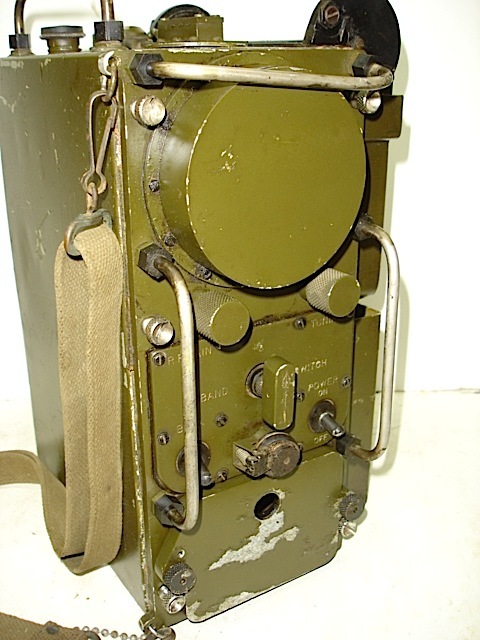

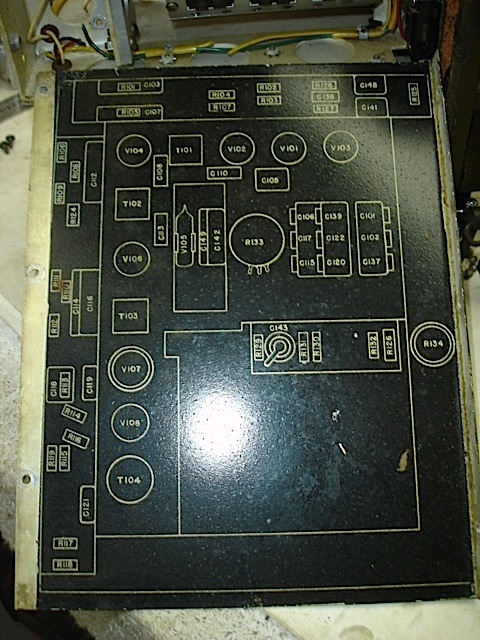

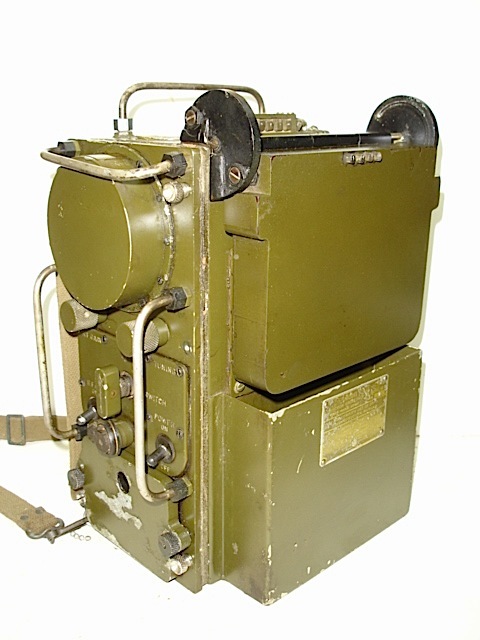

Model DT HFDF portable
(from estate of Calvin Ladd)

XAB/HRO HFDF installation
 NAS Seattle WA
(National Archives)
-
DAB HFDF.jpg (579886 bytes)
DAB HF direction finder
(Grady Lewis)
DAB HF direction finder
(C. E. Spencer)
 Spec Sheets

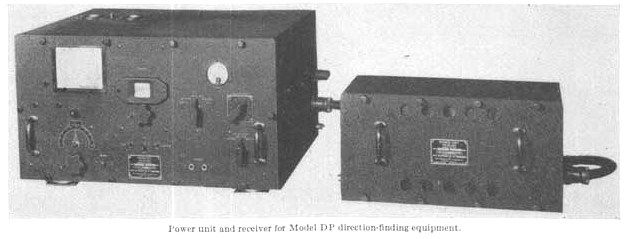

DP MFDF receiver
 &  power supply
DP MFDF loop antenna
 Spec Sheets
