Teletype Torn Tape Transmitter Group Restorations

TT-310/UG Transmitter Group

 I acquired components for this transmitter unit but no cabinet.
  • Video of initial Message ID Unit test with an LBXD
  • Video of the first test with all 6 TDs running

Message ID Unit

The Message ID Unit inserts a Beginning-of-Message header with Channel ID  and Sequential Message Number. It also controls ping-pong operation between its associated LBXD and LXD TDs for message transmission,




Triple TD with multi-contact LBXD

The LBXD includes a parallel-in to serial-out distributor which is also used to transmit characters from the Message ID unit as well as the message tape.



Triple TD with single-contact LXD

The LXD just reads a message tape with serial output


Testing after restoration, wiring, and assembly

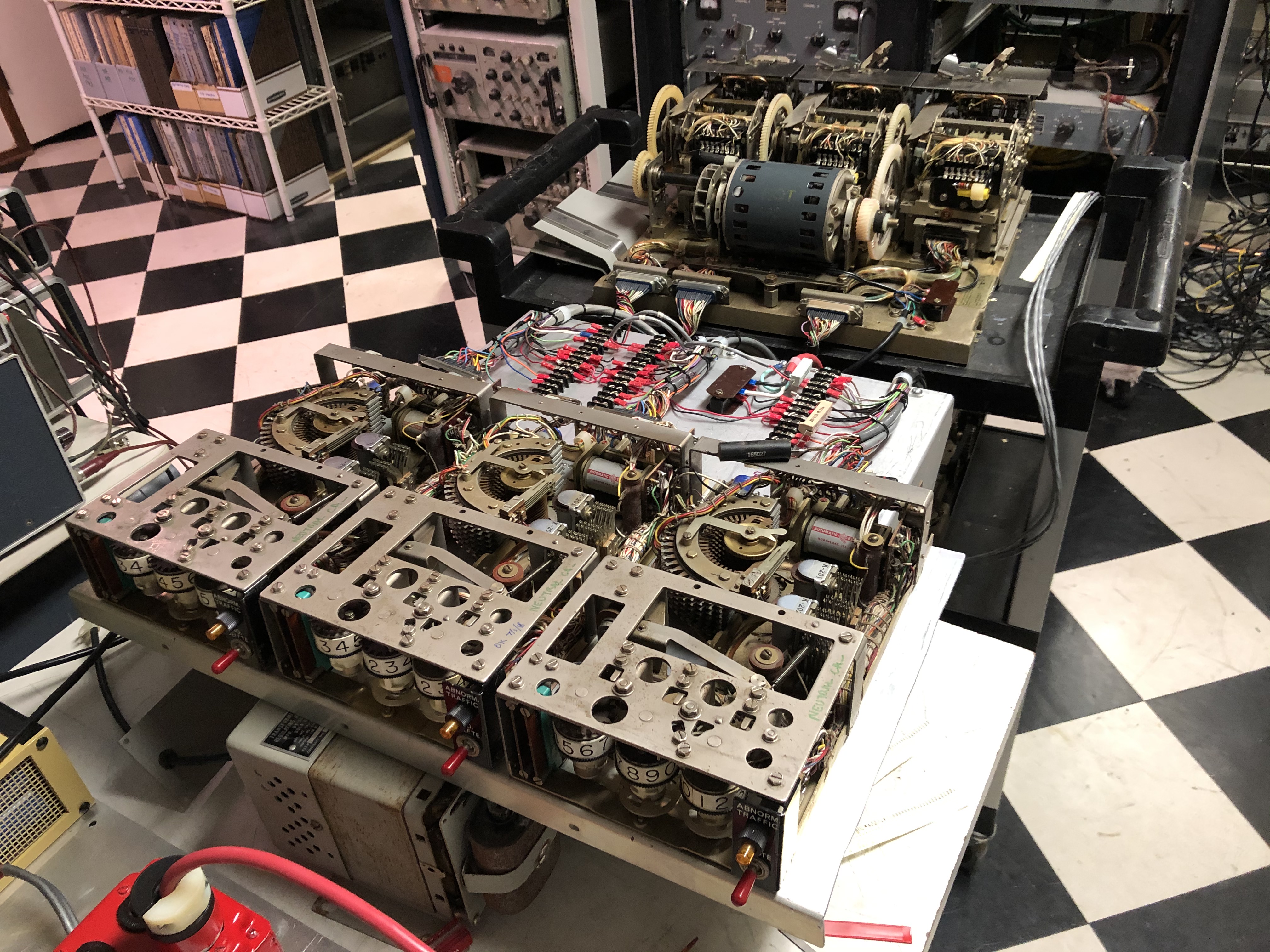

Test with three Message ID units, three LBXD TDs, three LXD TDs

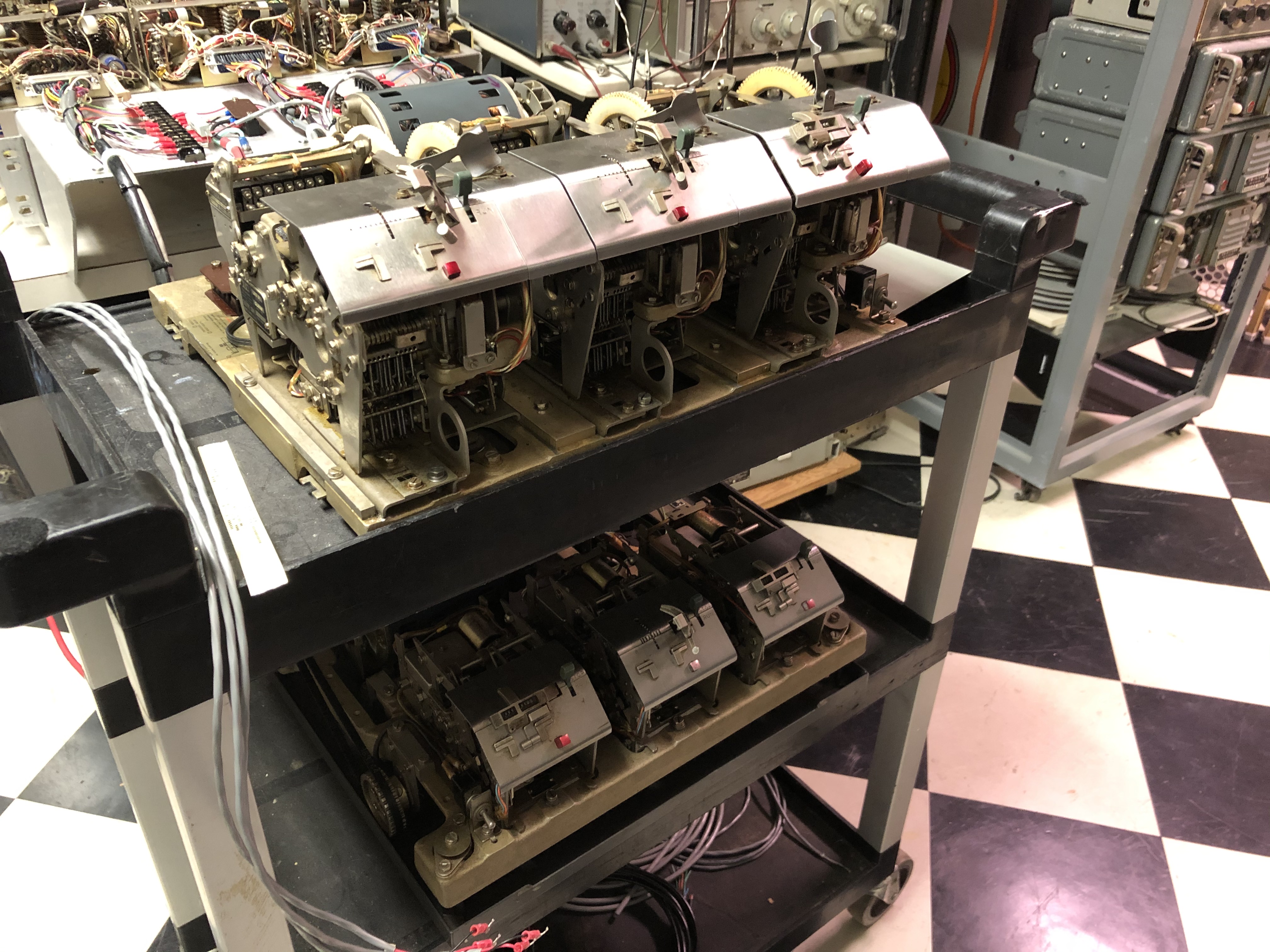

Test with three Message ID units, three LBXD TDs, three LXD TDs

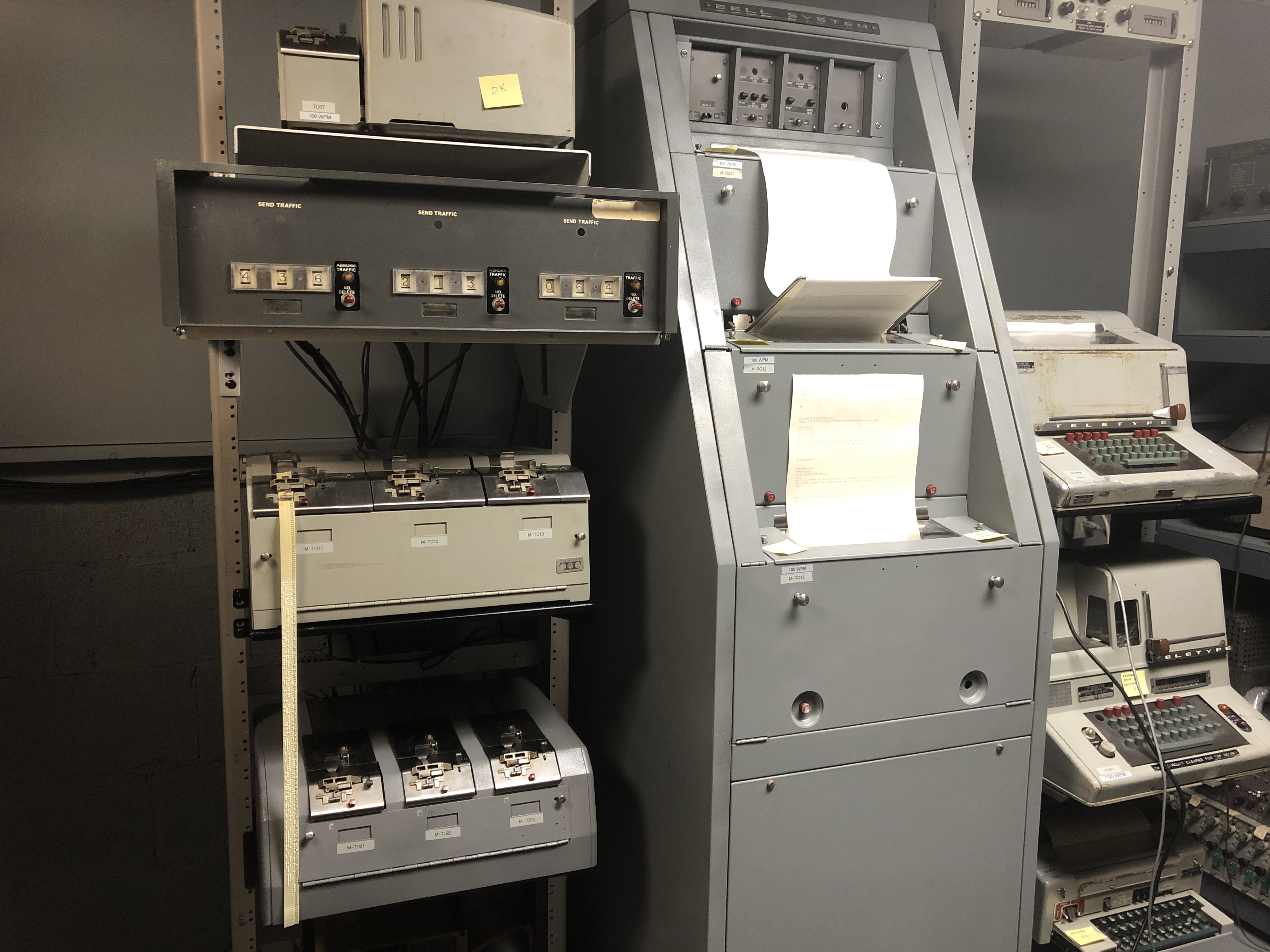

Completed unit installed in a rack with the Message ID unit front panel and TD covers - Unfortunately I don't have the original cabinet

TT-333/UG Transmitter Group

In 2025 I acquired a complete TT-333/UG Model 28 Transmitter Group (needing some restoration)

Cabinet CY-3249/UG (LBAC229)
Six TD TT-334/UG (LBXD9)
Two TD Base MT-2600/UG (LMXB200)
Two Motor PD-67/U (LMU12)

March 2025

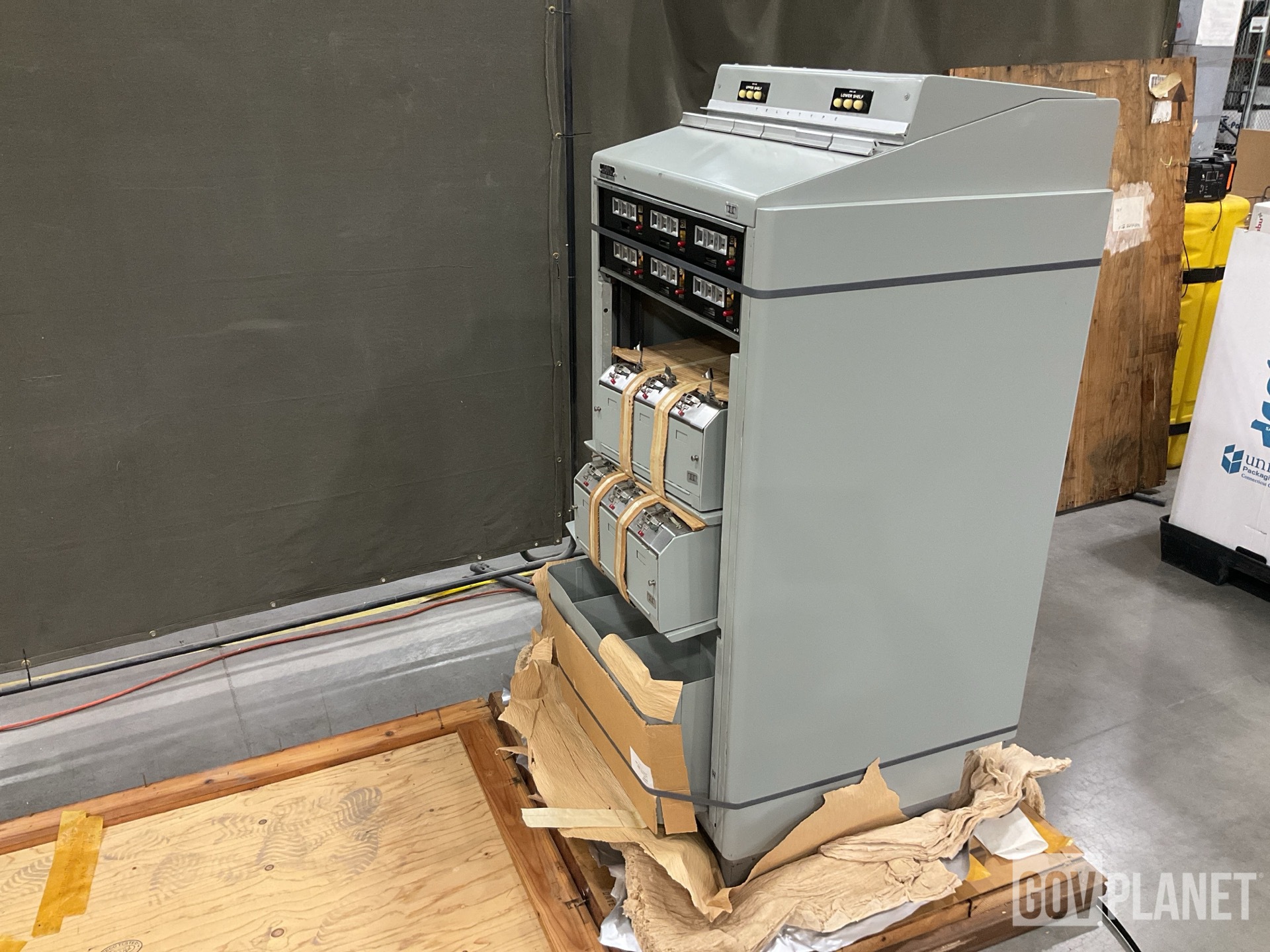

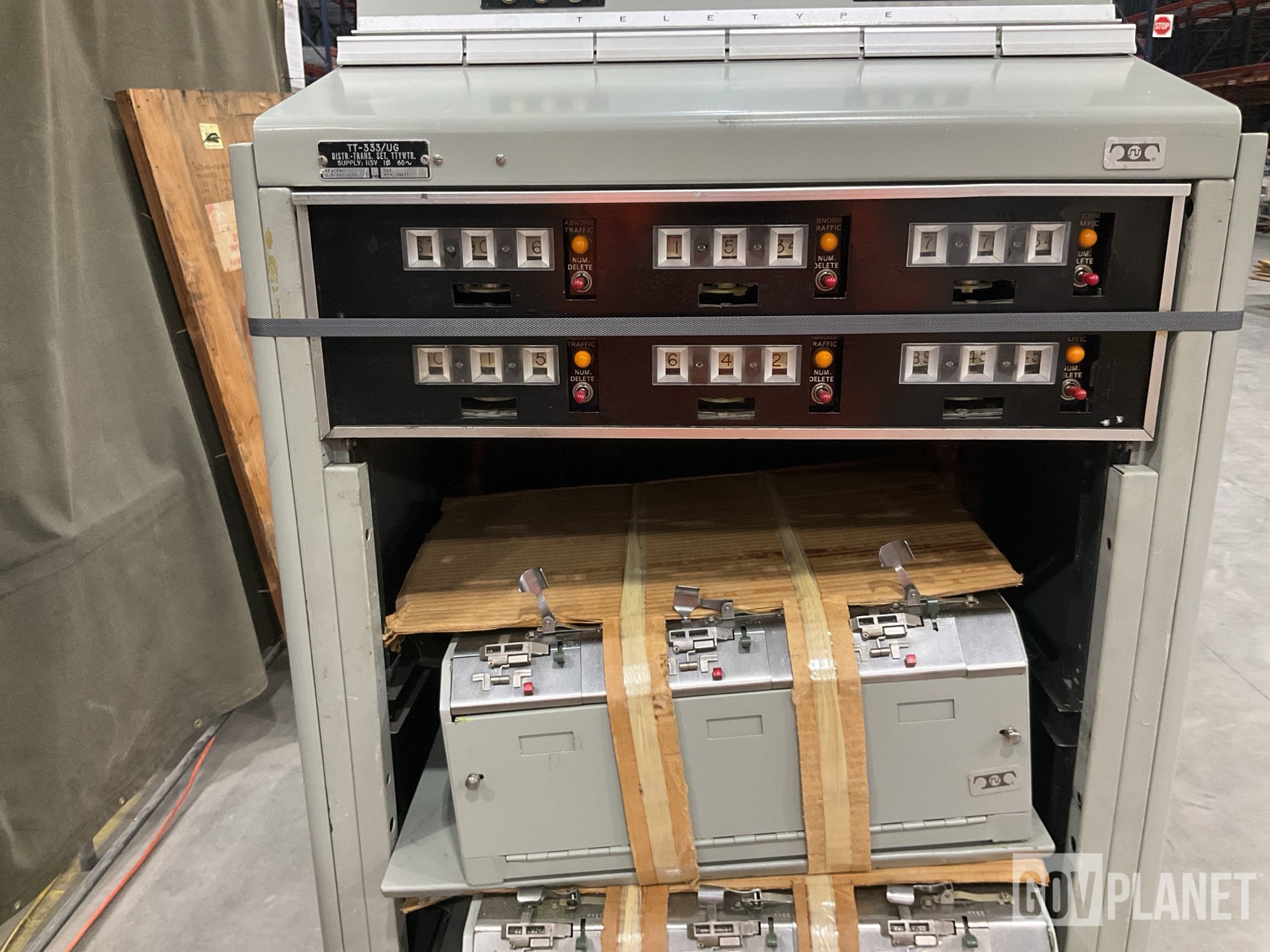

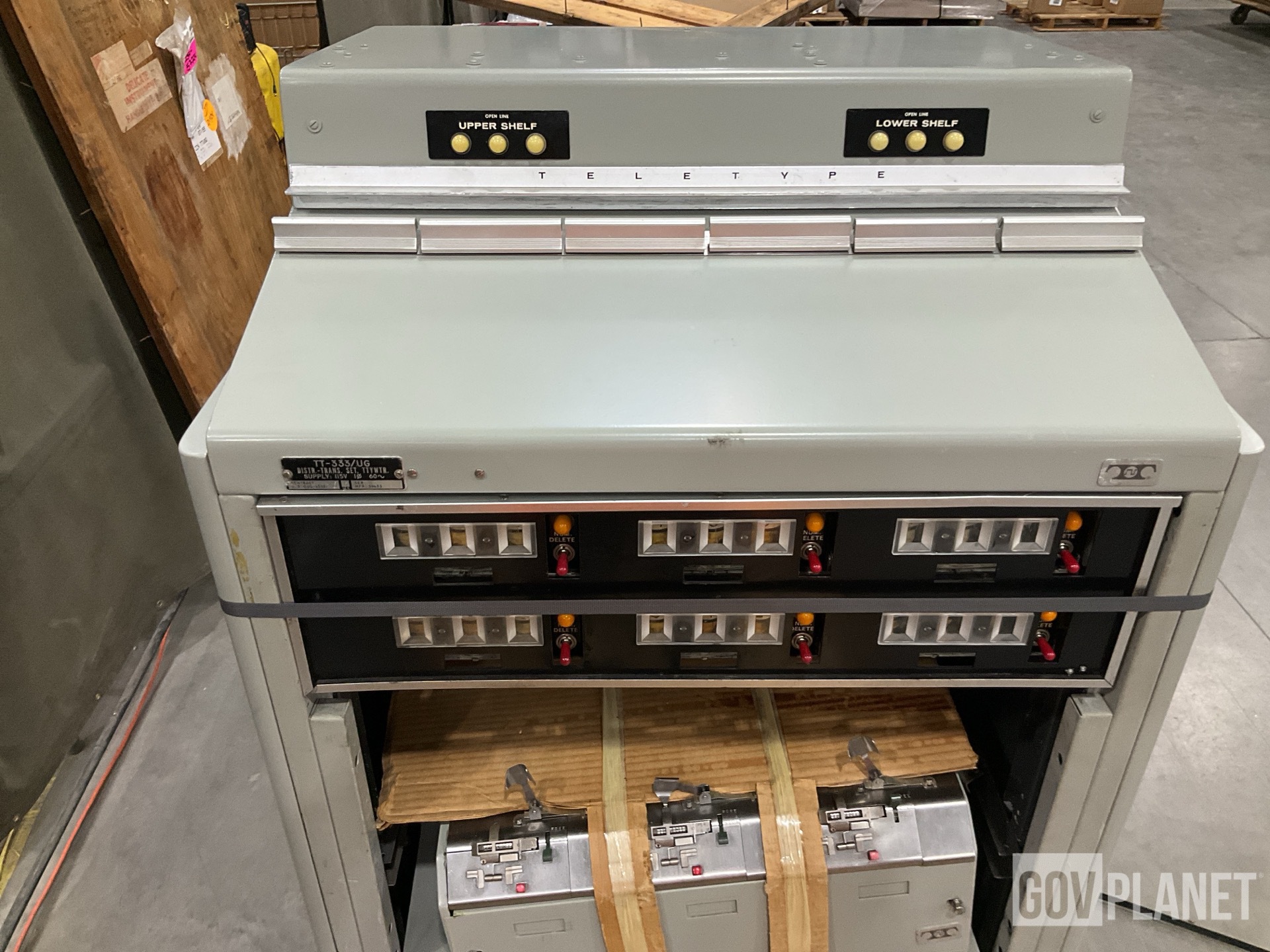

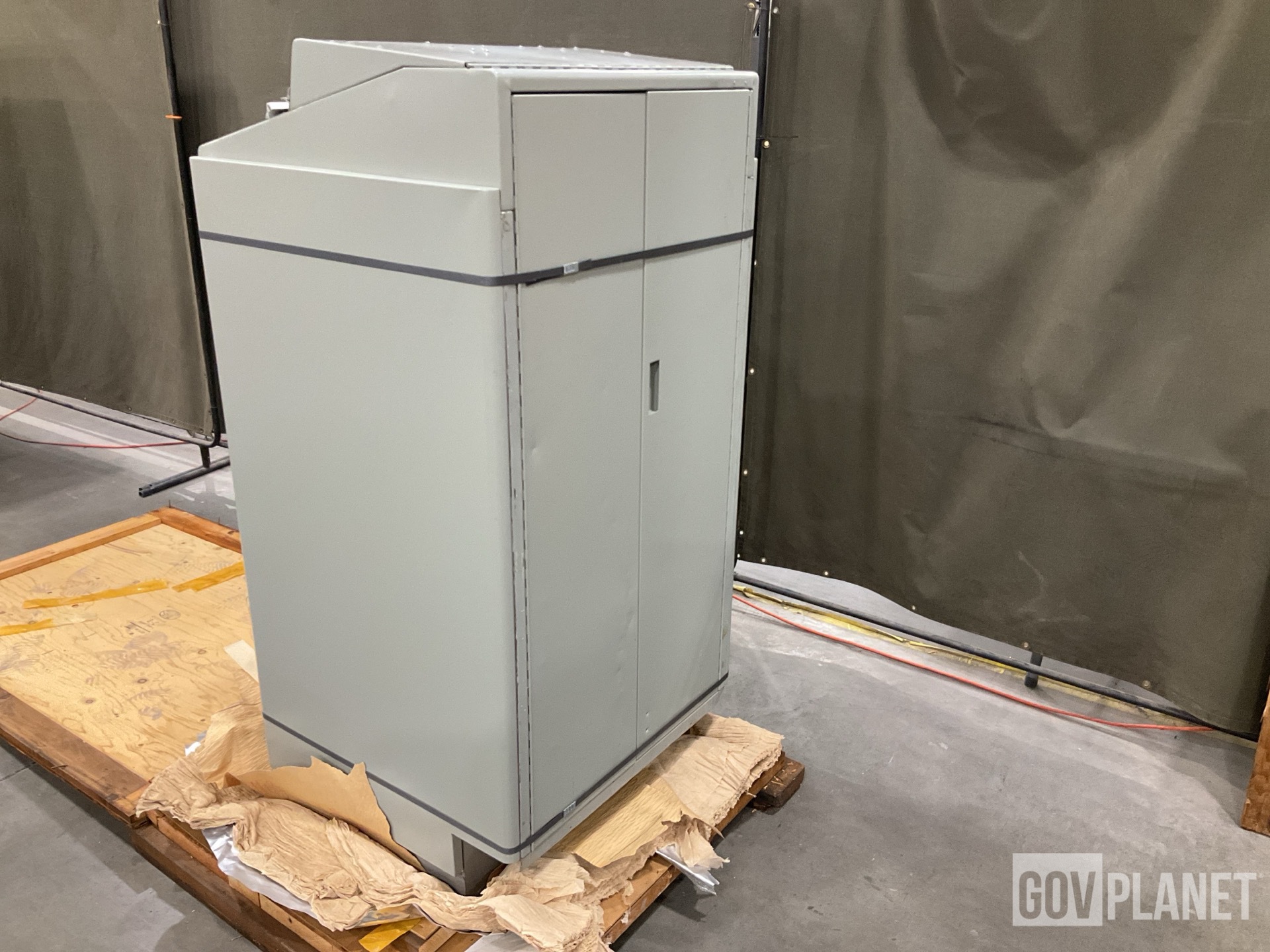

At the surplus auction in Las Vegas - some bent shelves but it looks complete

Original cost $70,161 ??
My cost $150

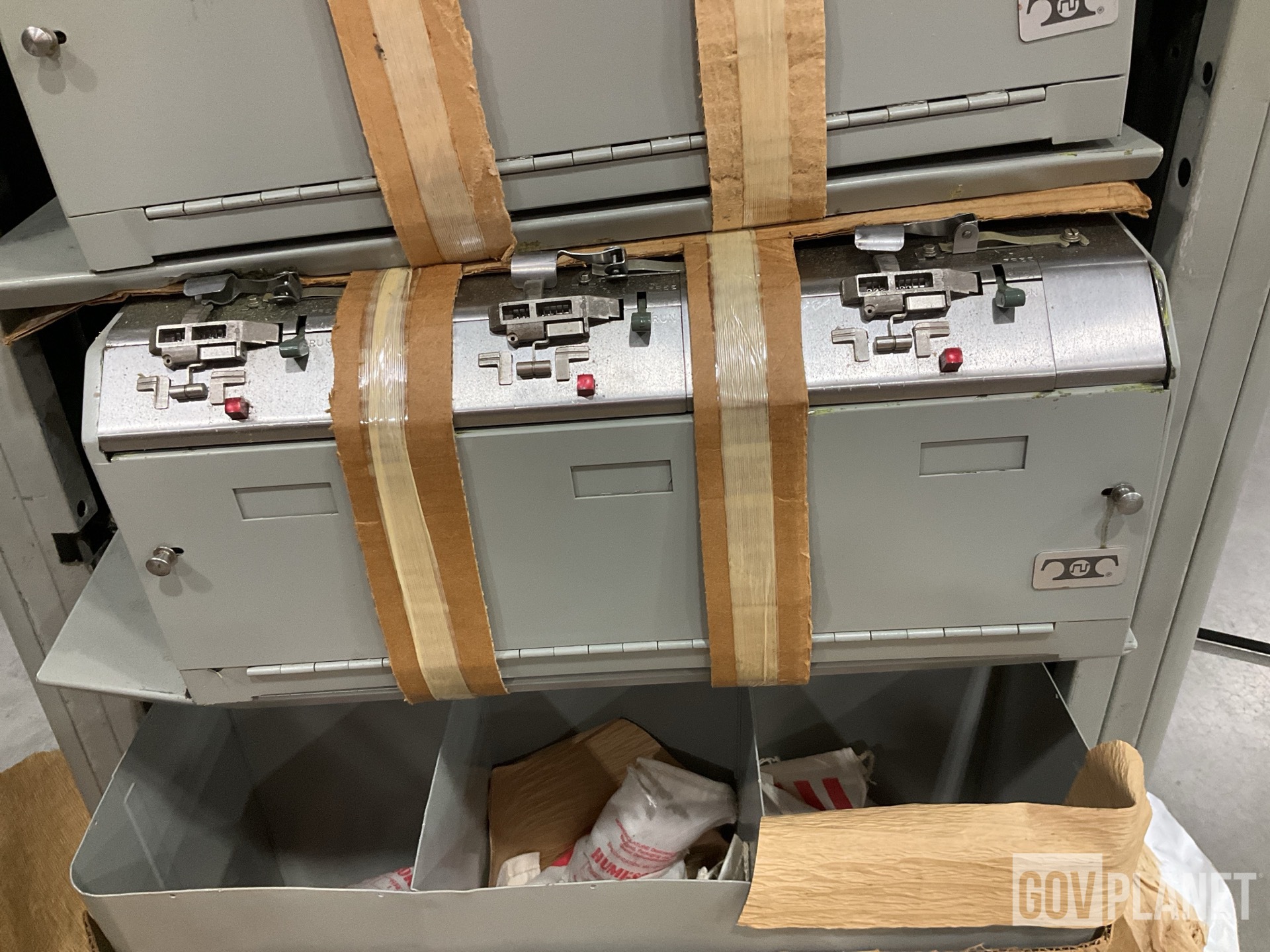

The TD shelf brackets and power supply brackets had been broken from a drop at some point.

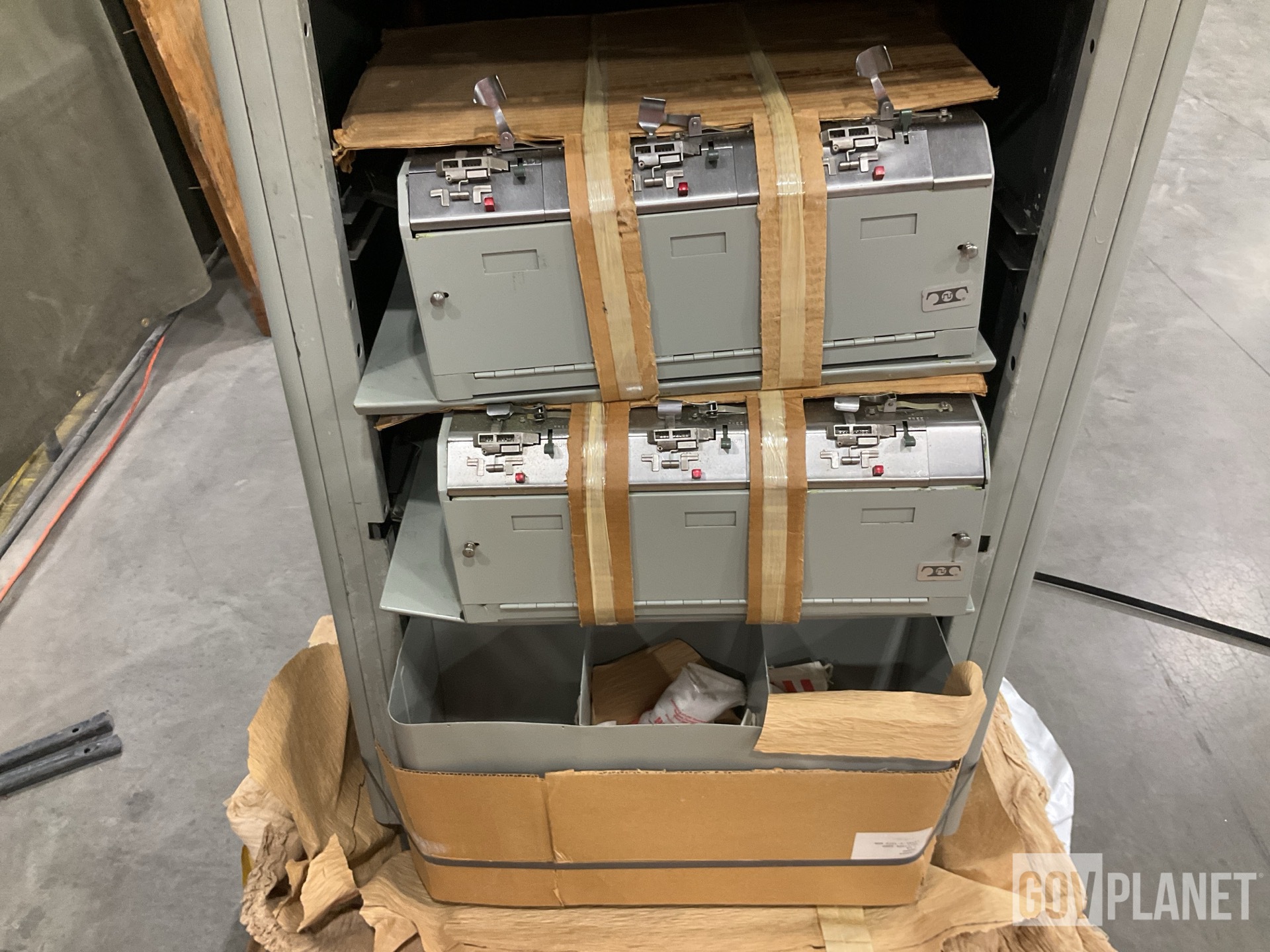

tt333-auction-04.jpg (682375 bytes) tt333-auction-05.jpg (706630 bytes) tt333-auction-06.jpg (666311 bytes) tt333-auction-07.jpg (711417 bytes)
Greenkeys friend Gerry Block moved it from Las Vegas to Nashville - and then in June 2025 John Poulton and I drove there from Chapel Hill to pick it up

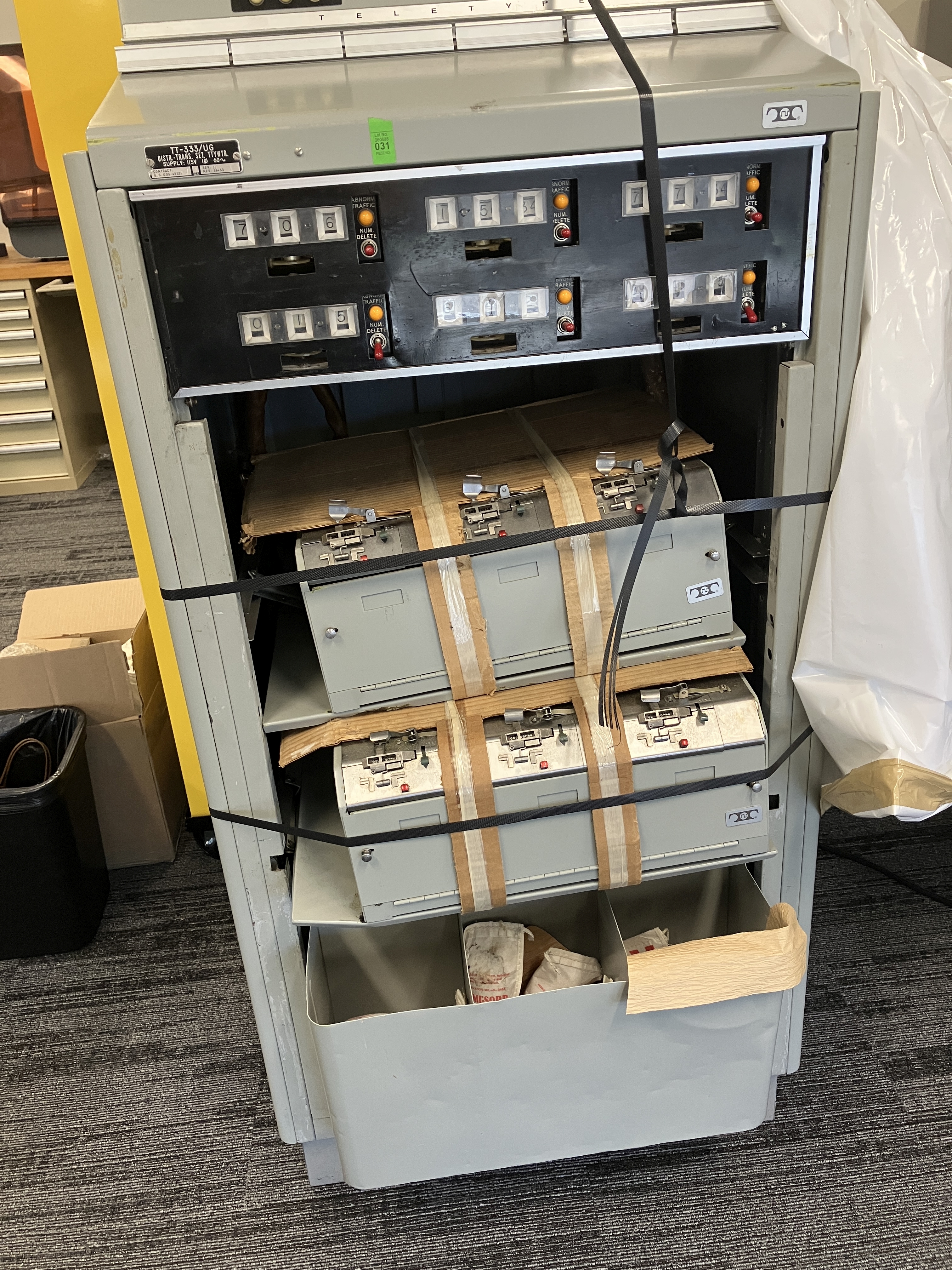

Gerry and the TT-333 in Nashville

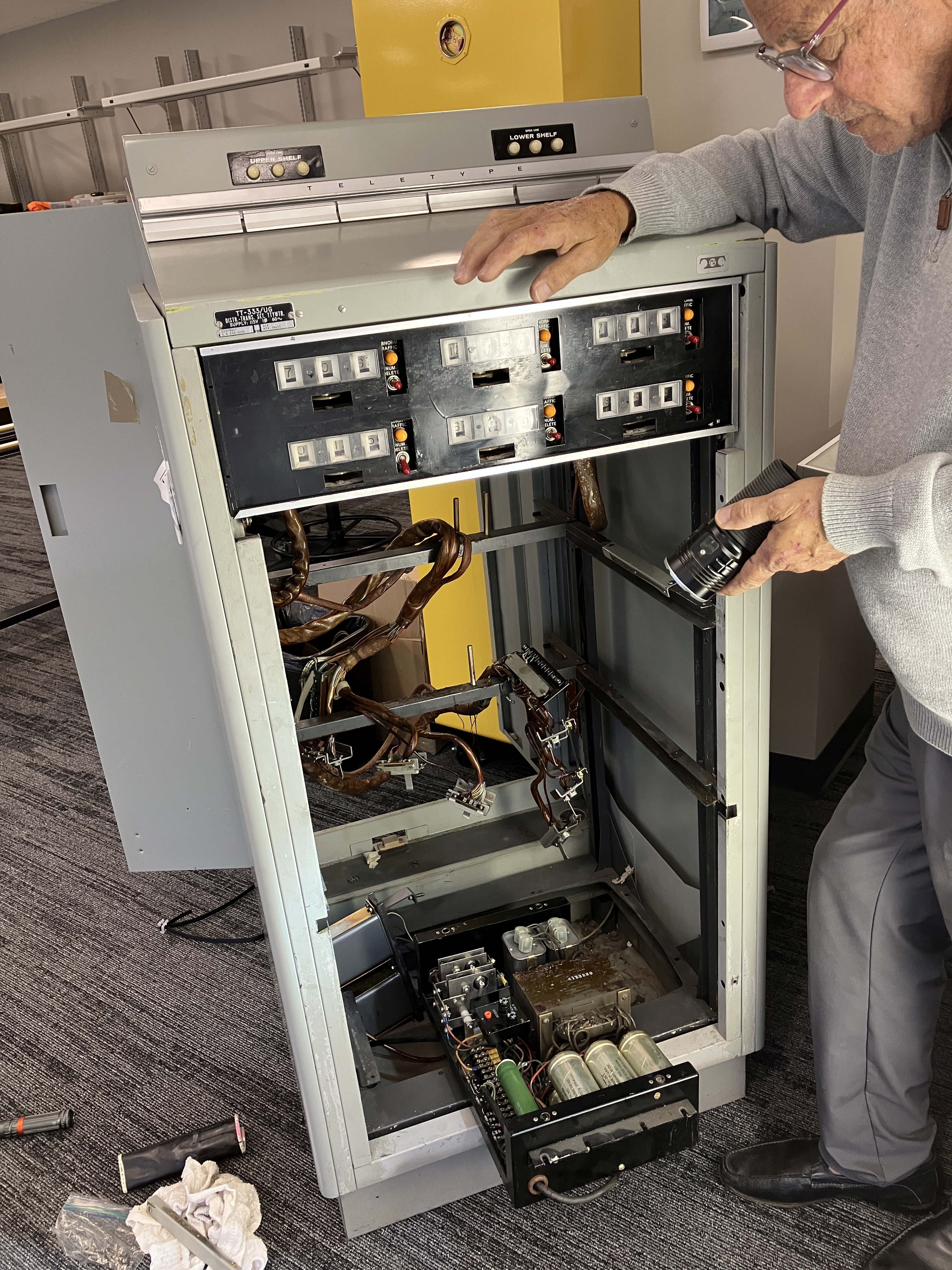

IMG_2173.JPG (6802804 bytes) After removing heavy shelves and power supply.

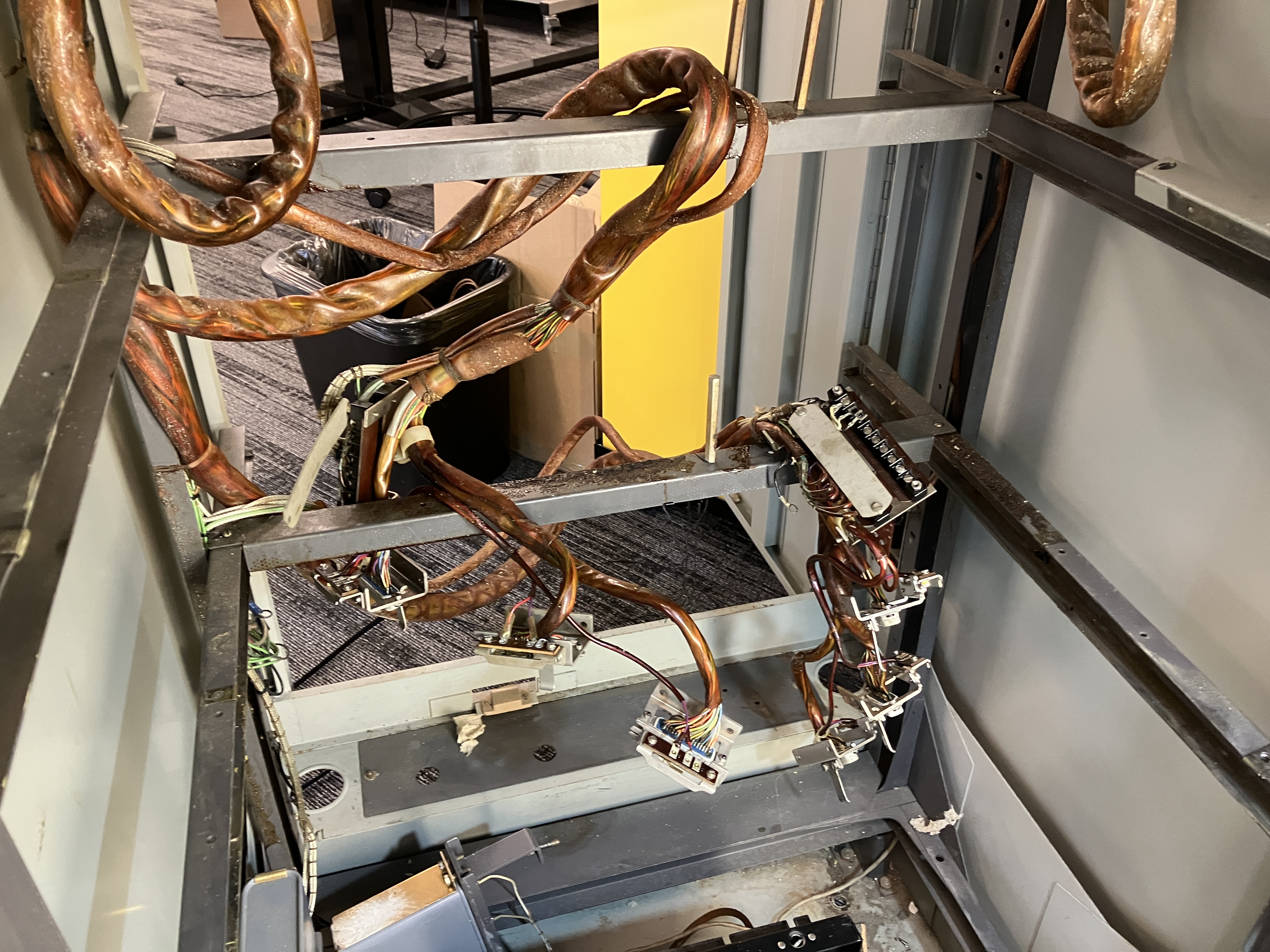

Unlike my other triple TD unit, these two did not have easy plug-in cable connectors
Loaded up for the trip back to NC

Stay tuned as restoration proceeds!

Unloaded and in my garage awaiting restoration and re-assembly

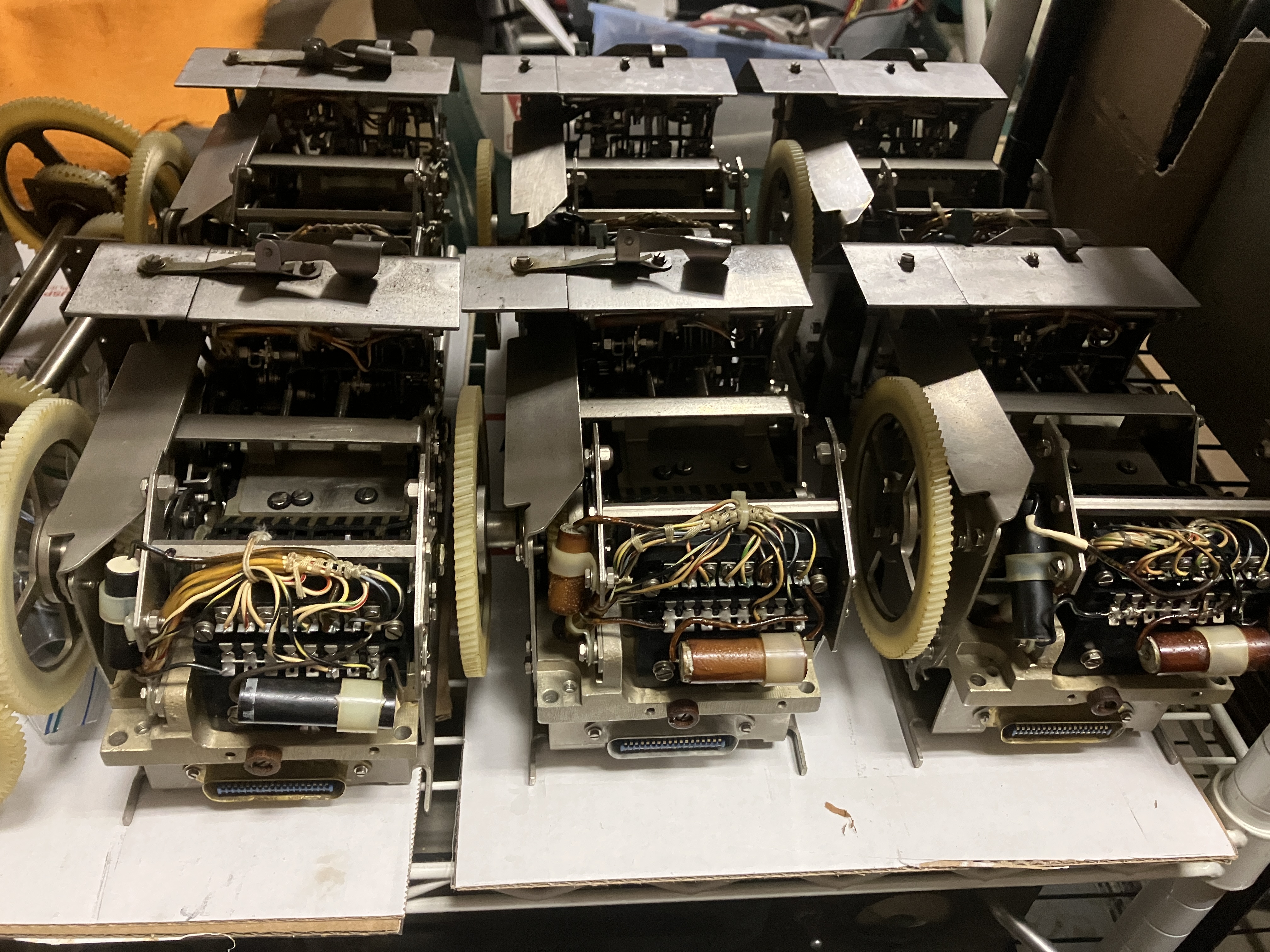

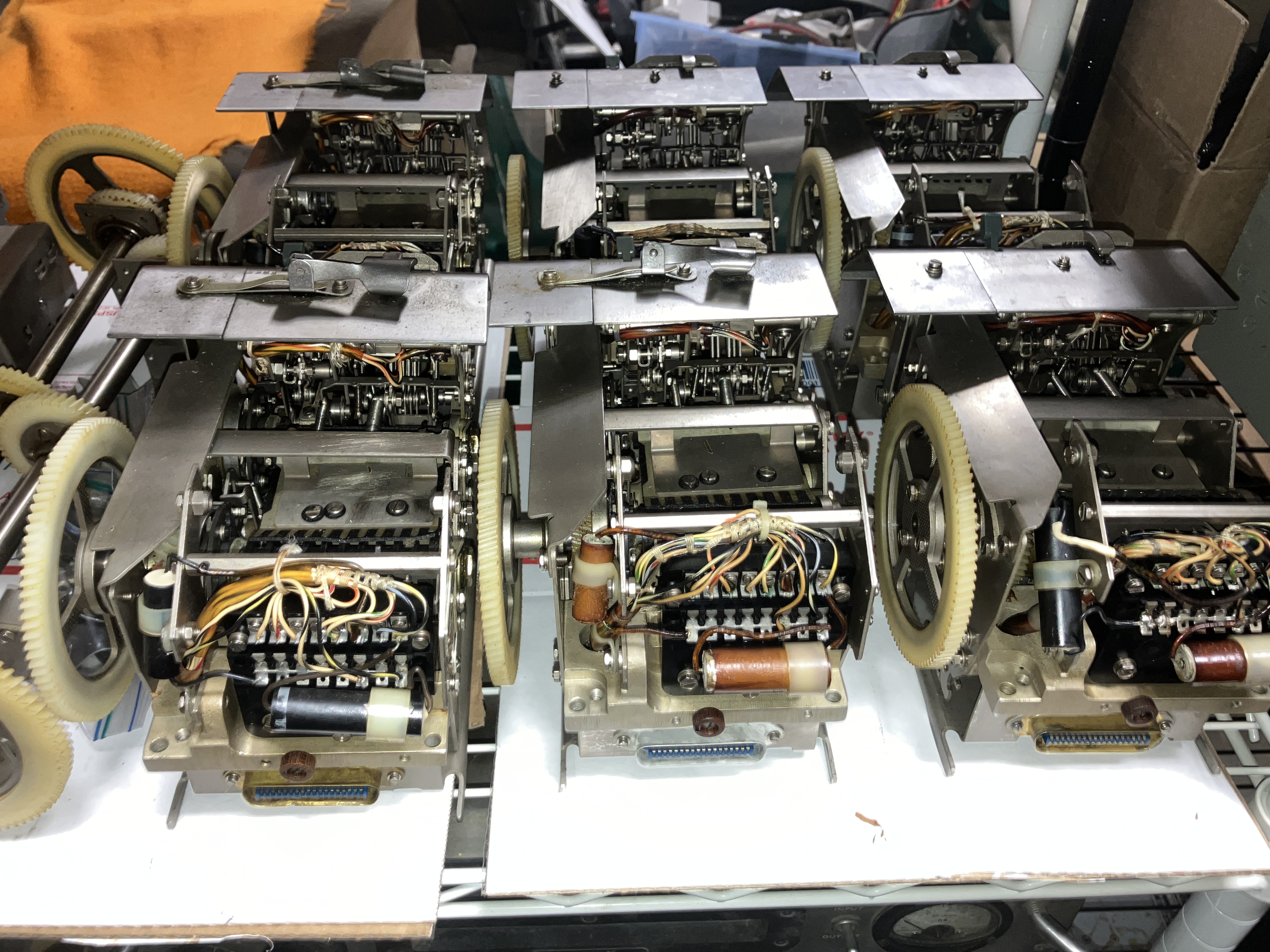

Six LBXD9 TDs

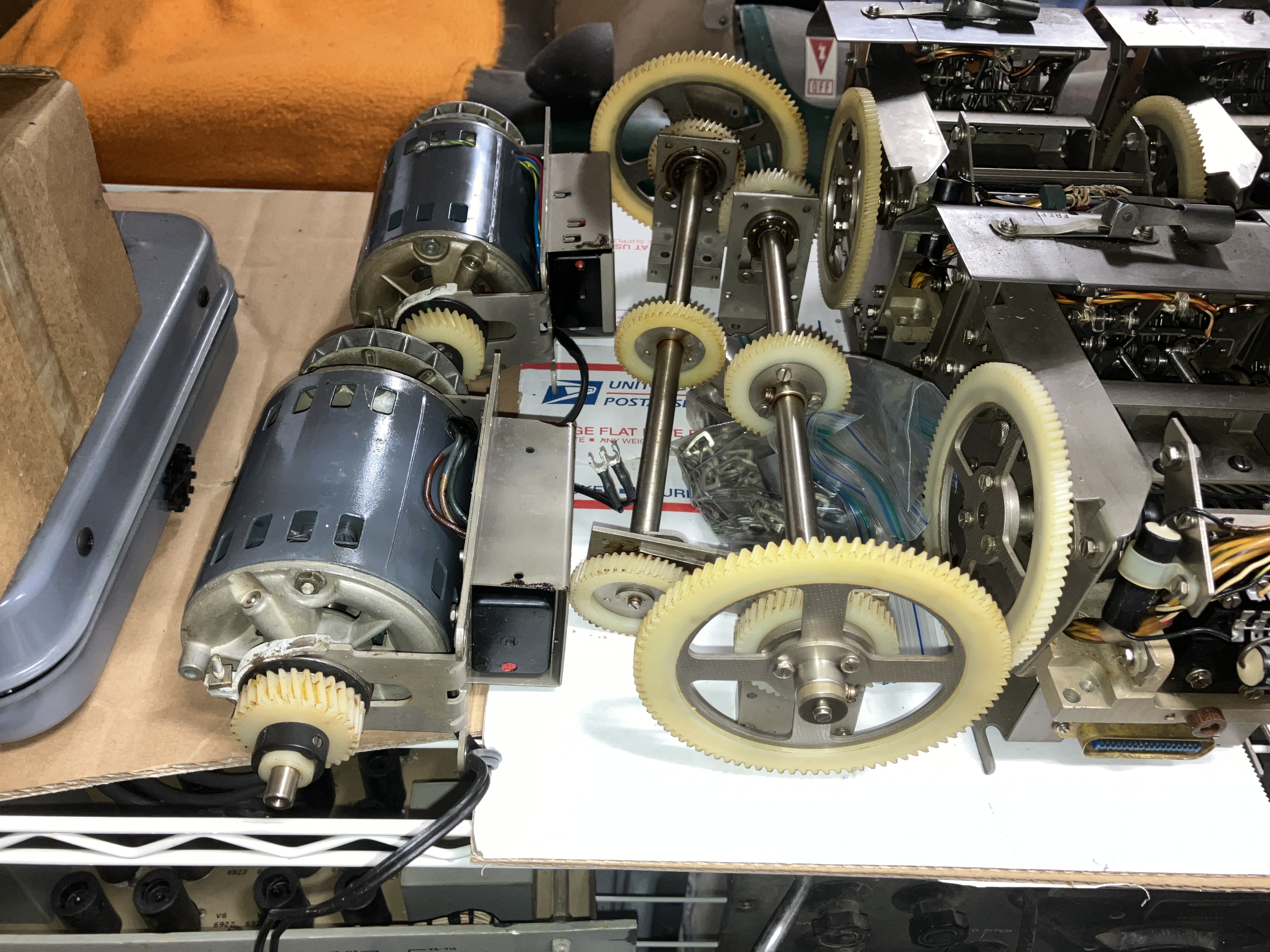

LMU12 motors and gearshafts

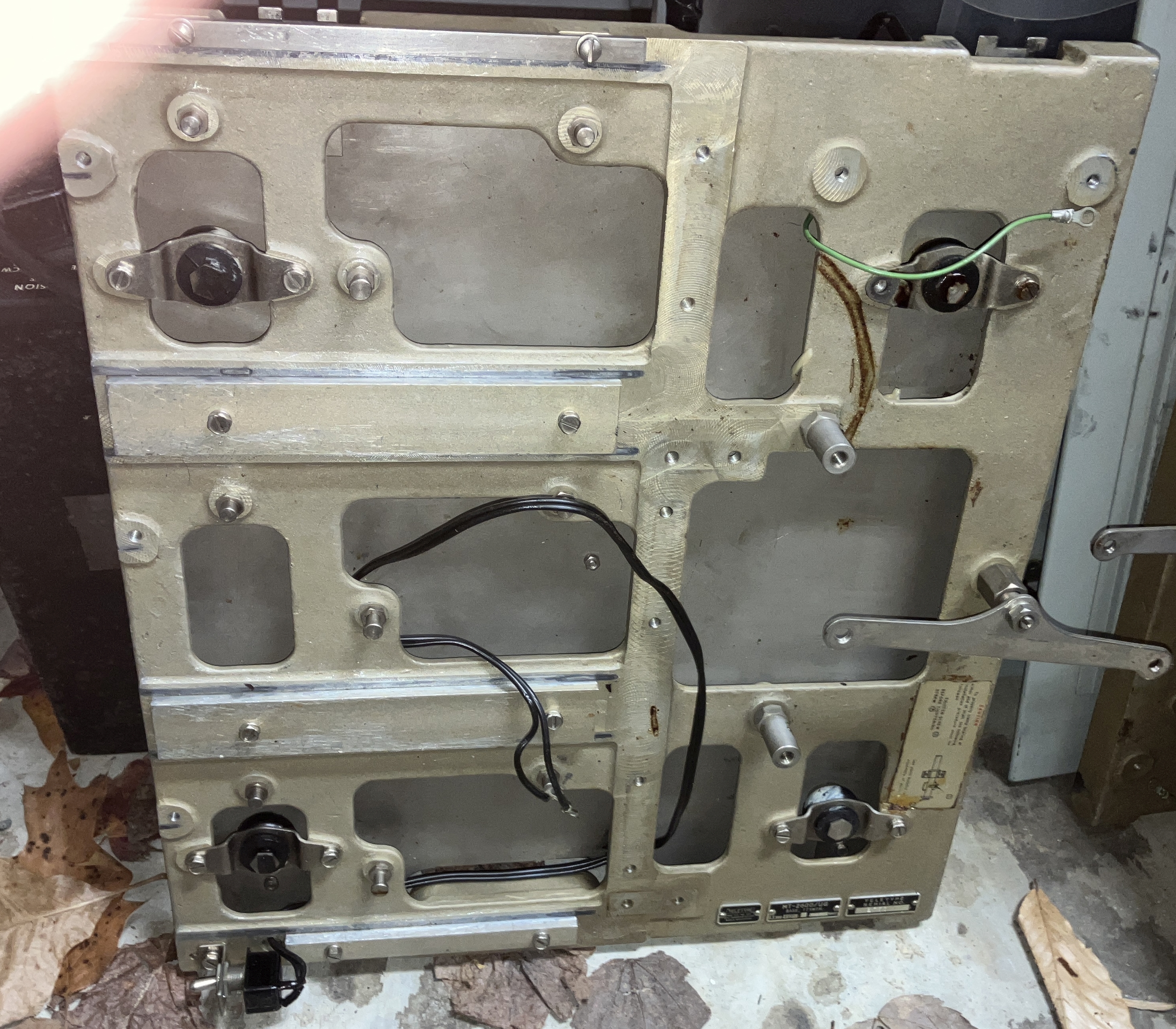

Multiple TD Base LMXB200

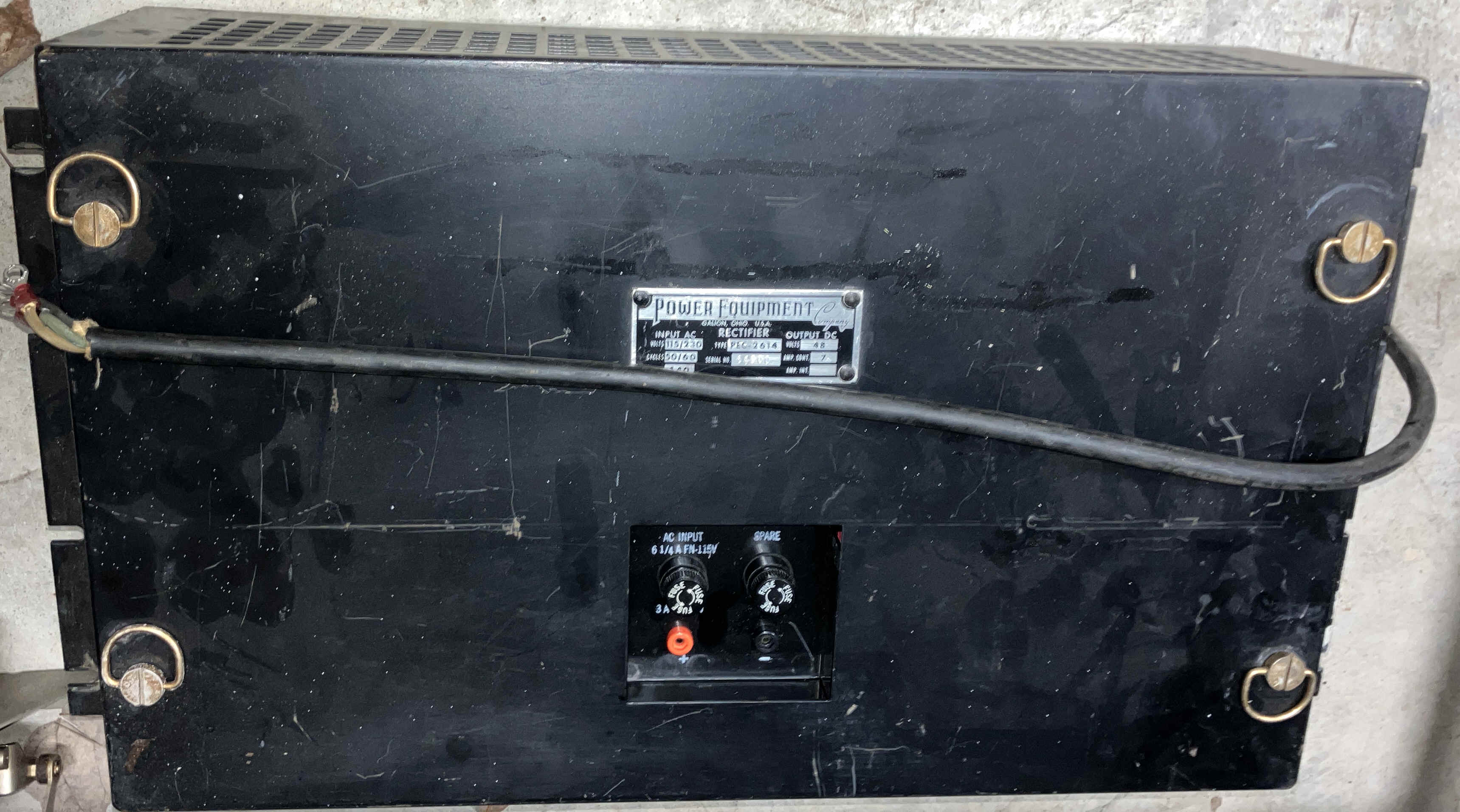

48vdc Power Supply
Loop control panel (rear view)

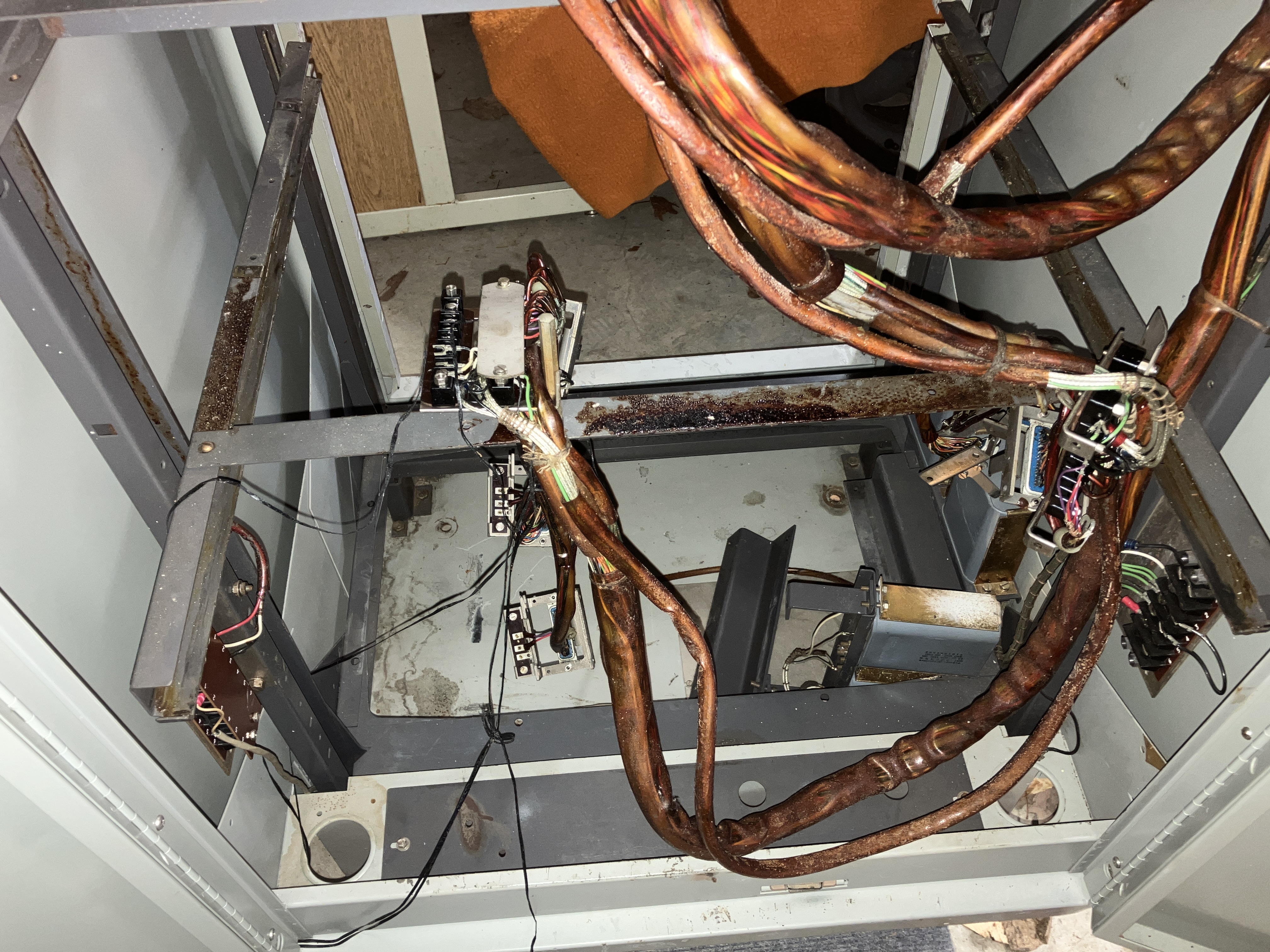

Cable harnesses disconnected from multiple TD units (rear view)

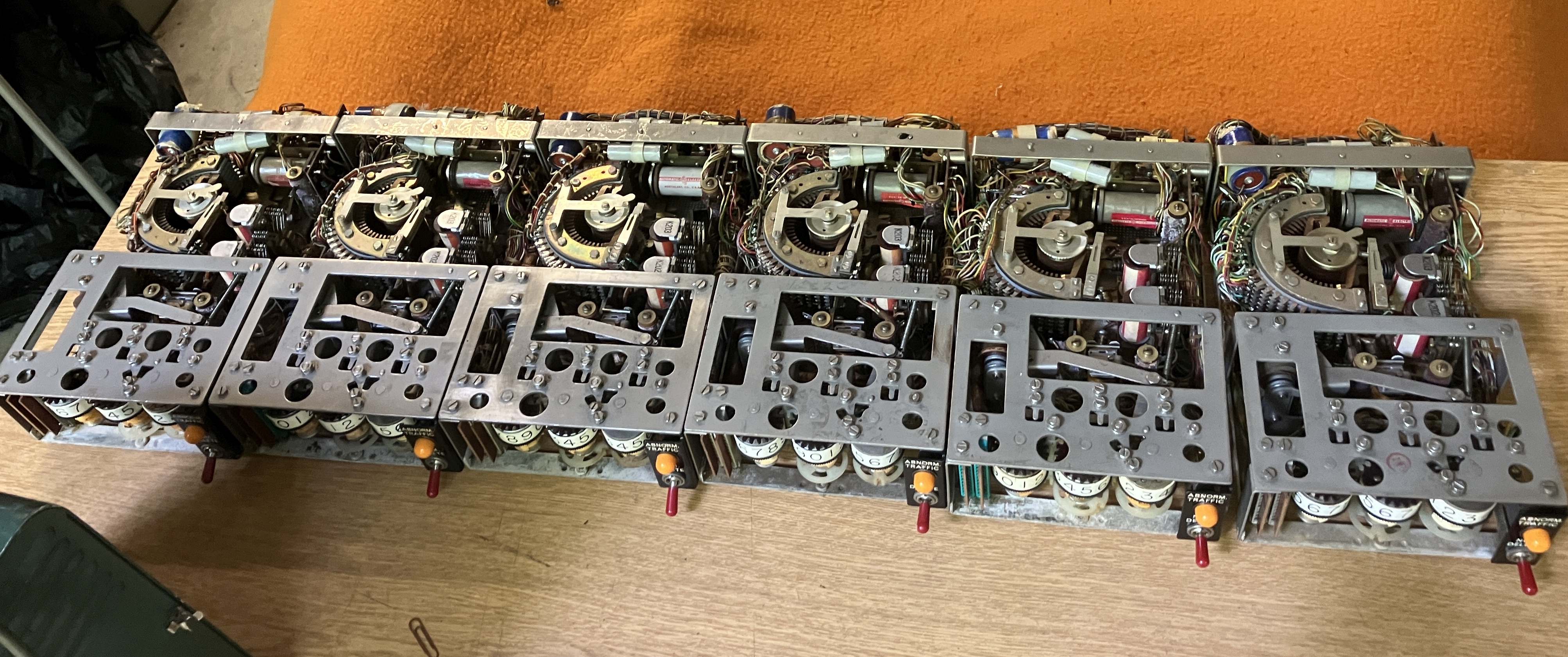

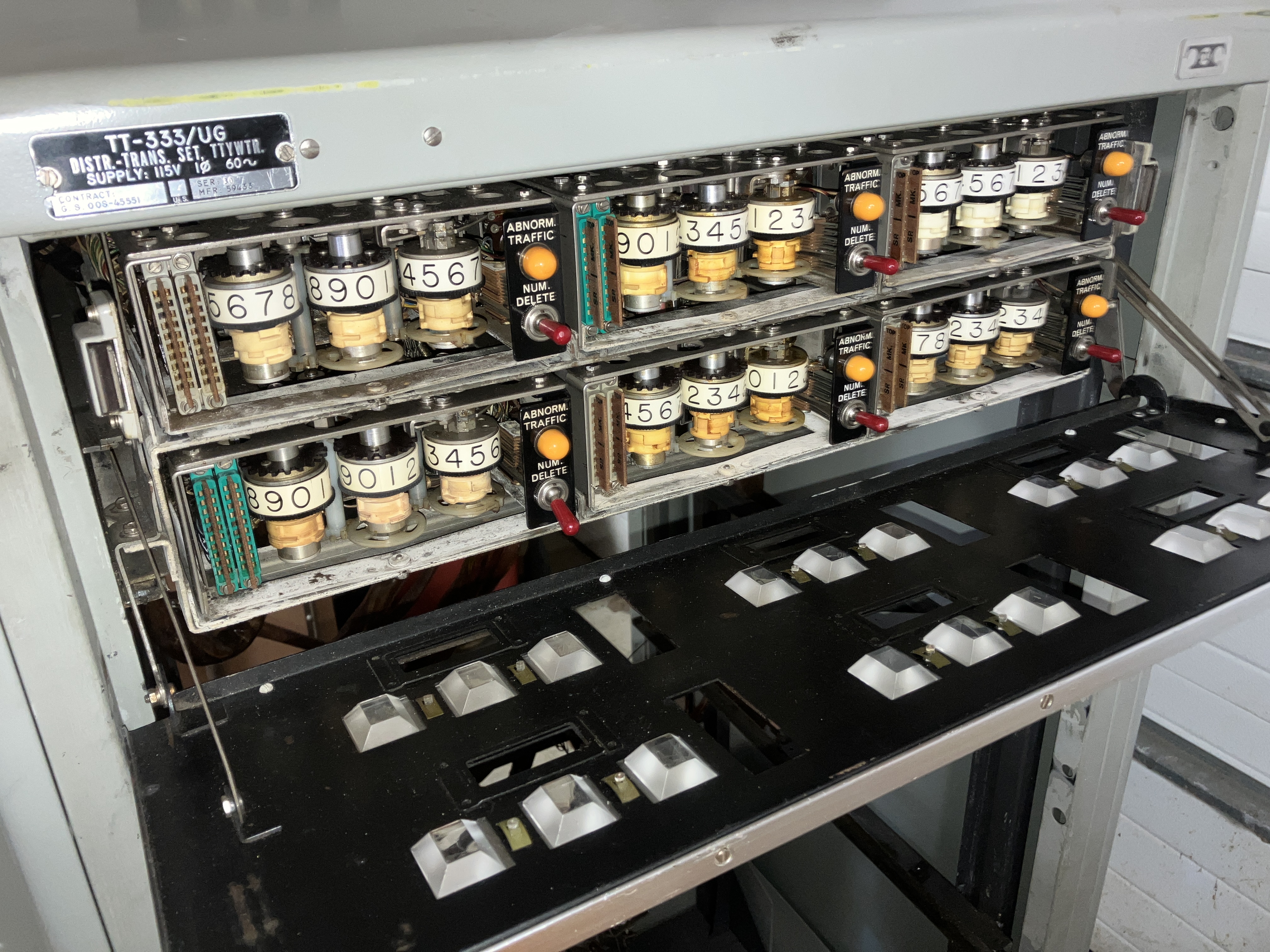

Message Numbering units

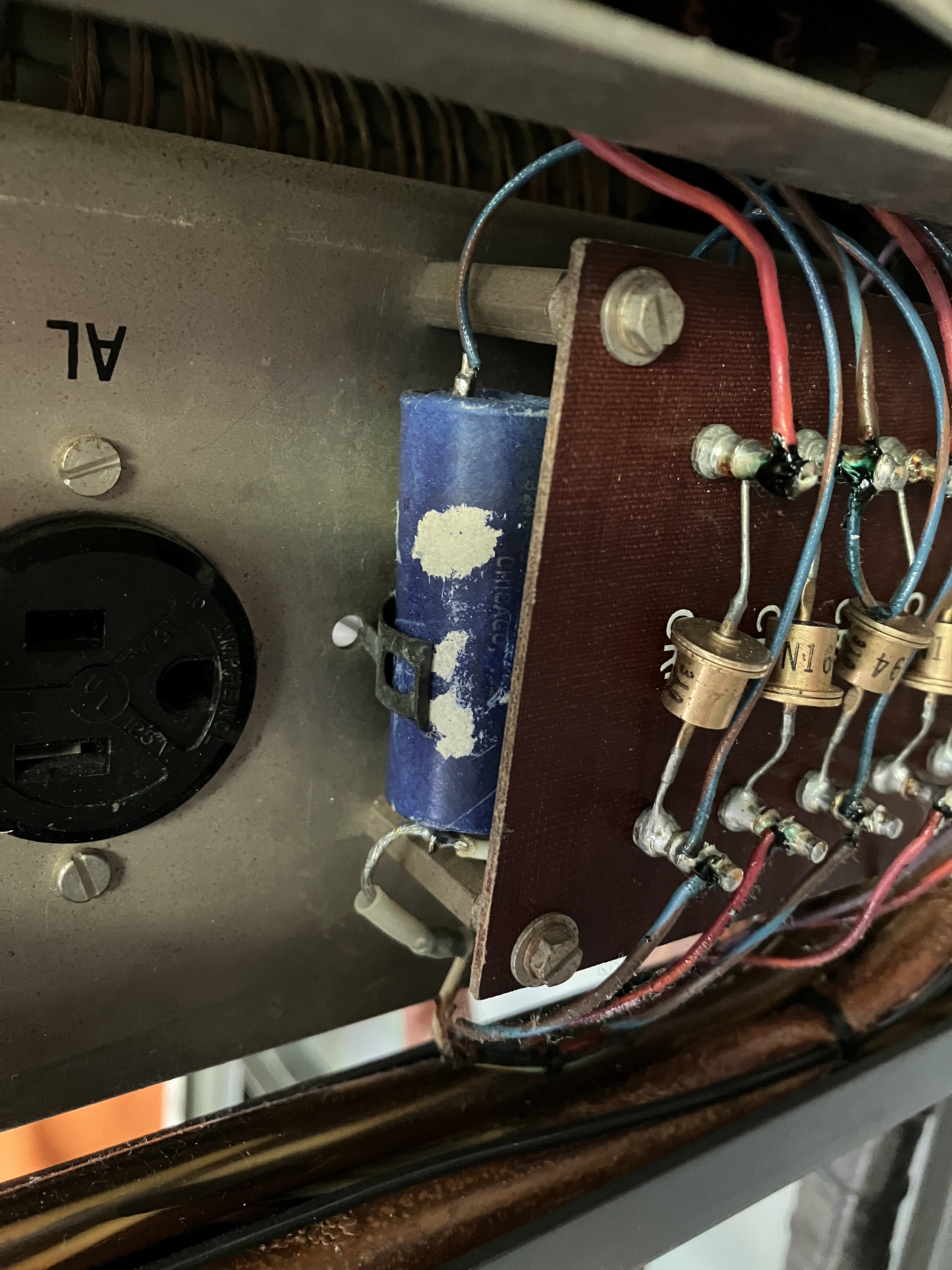

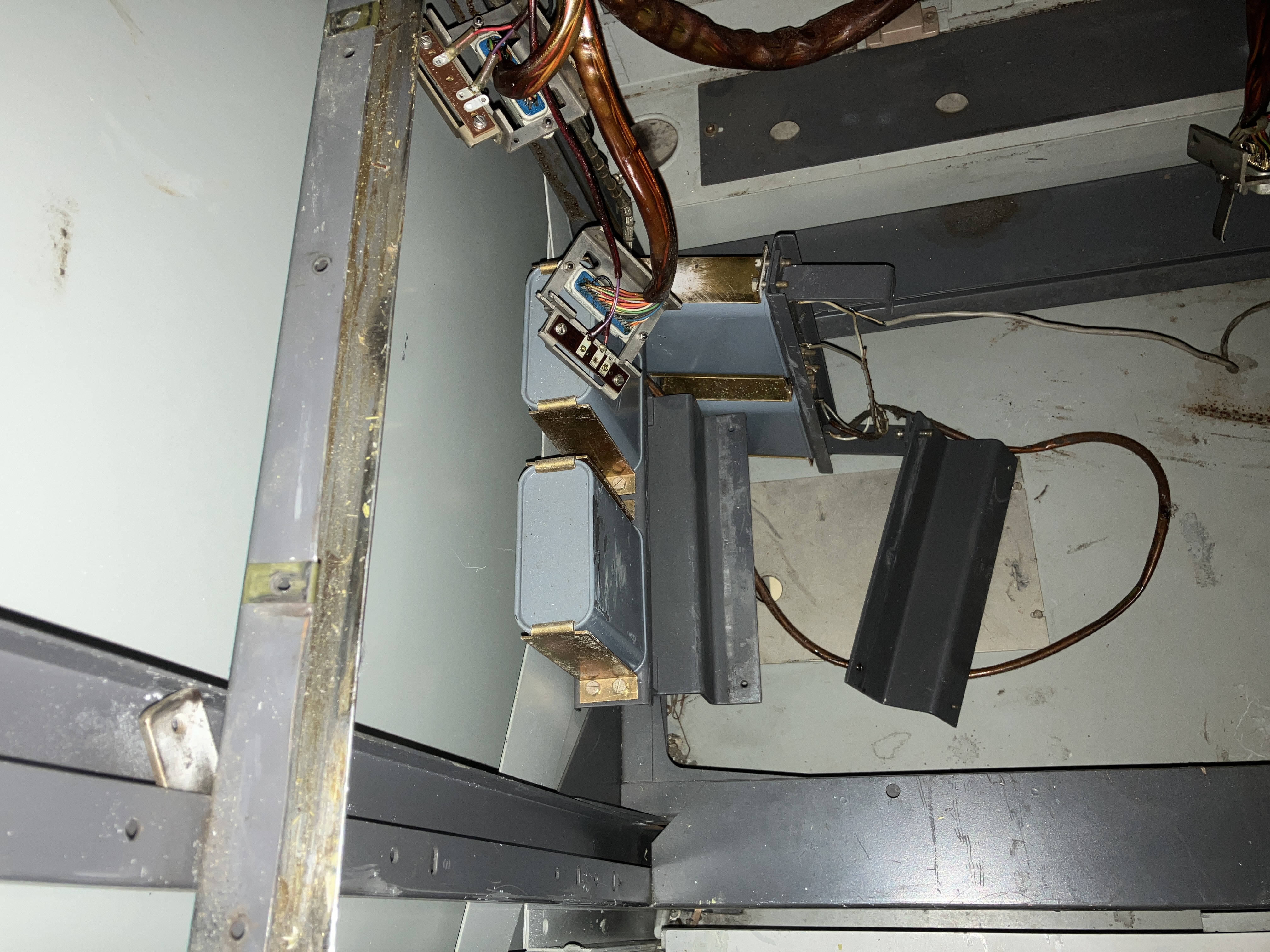

Failed power supply and power factor capacitor brackets
A little more investigation
pulled out the Message Numbering Units
which gave access to the screw holding the dome lid closed

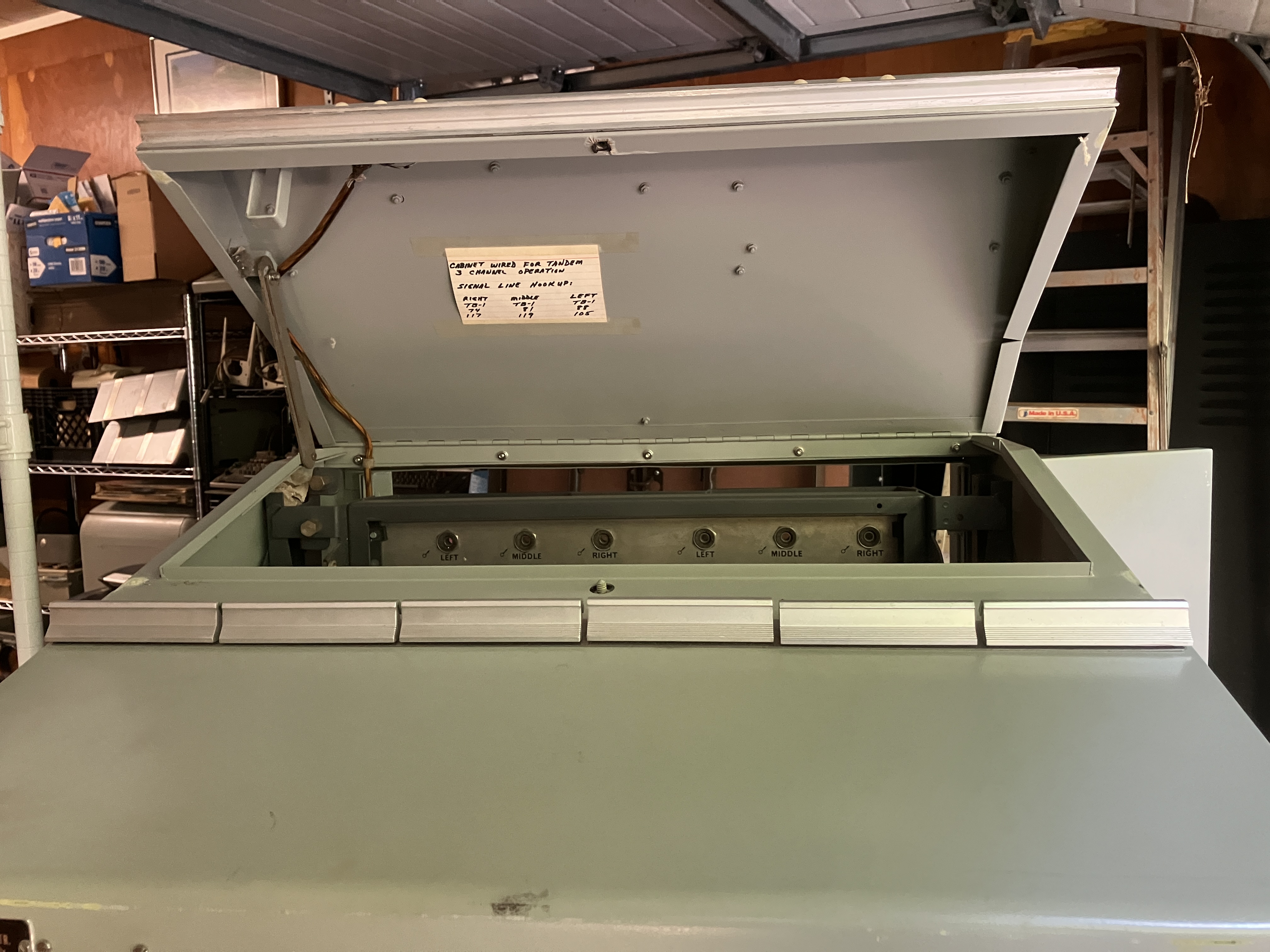

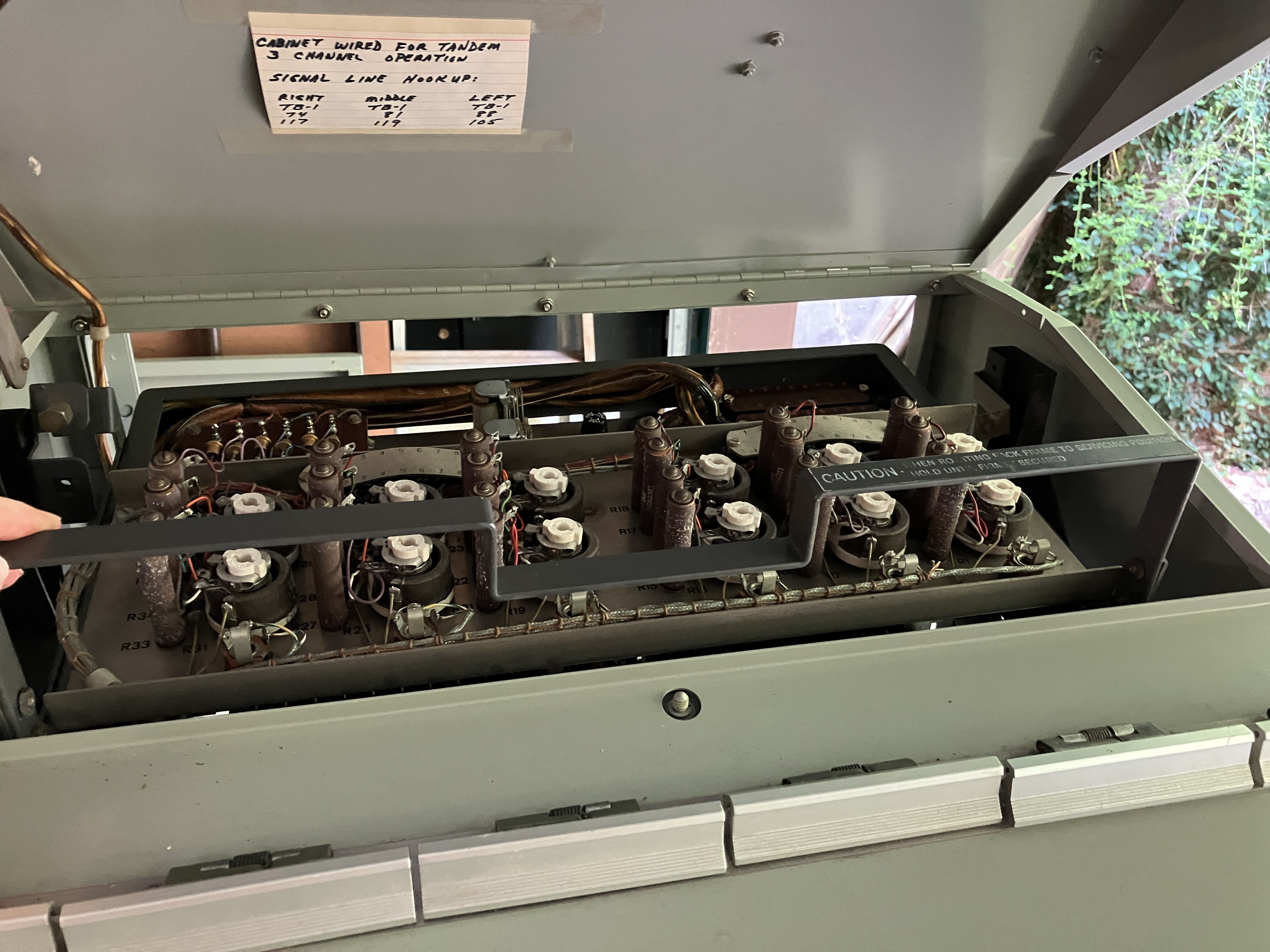

helpful note inside

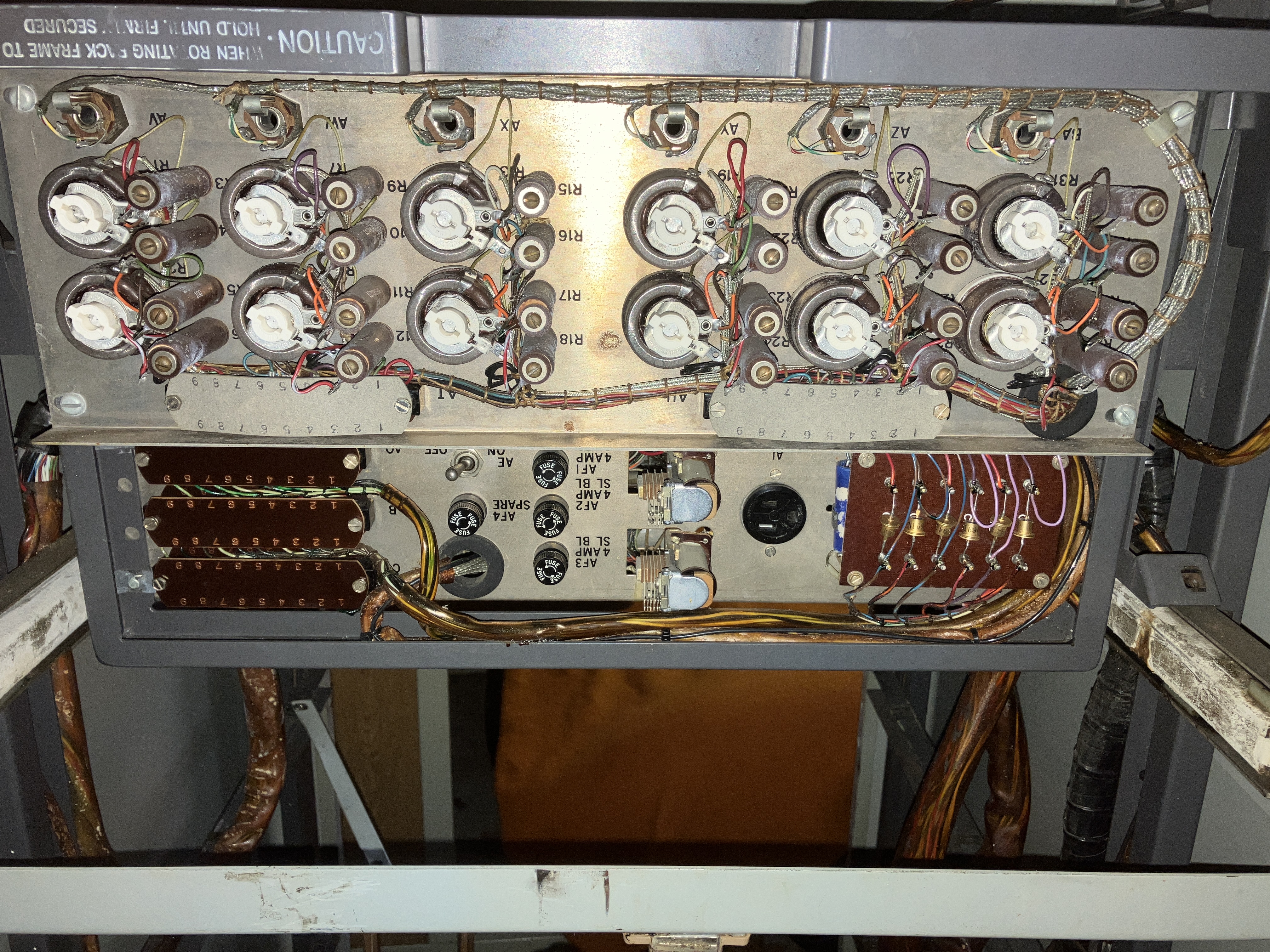

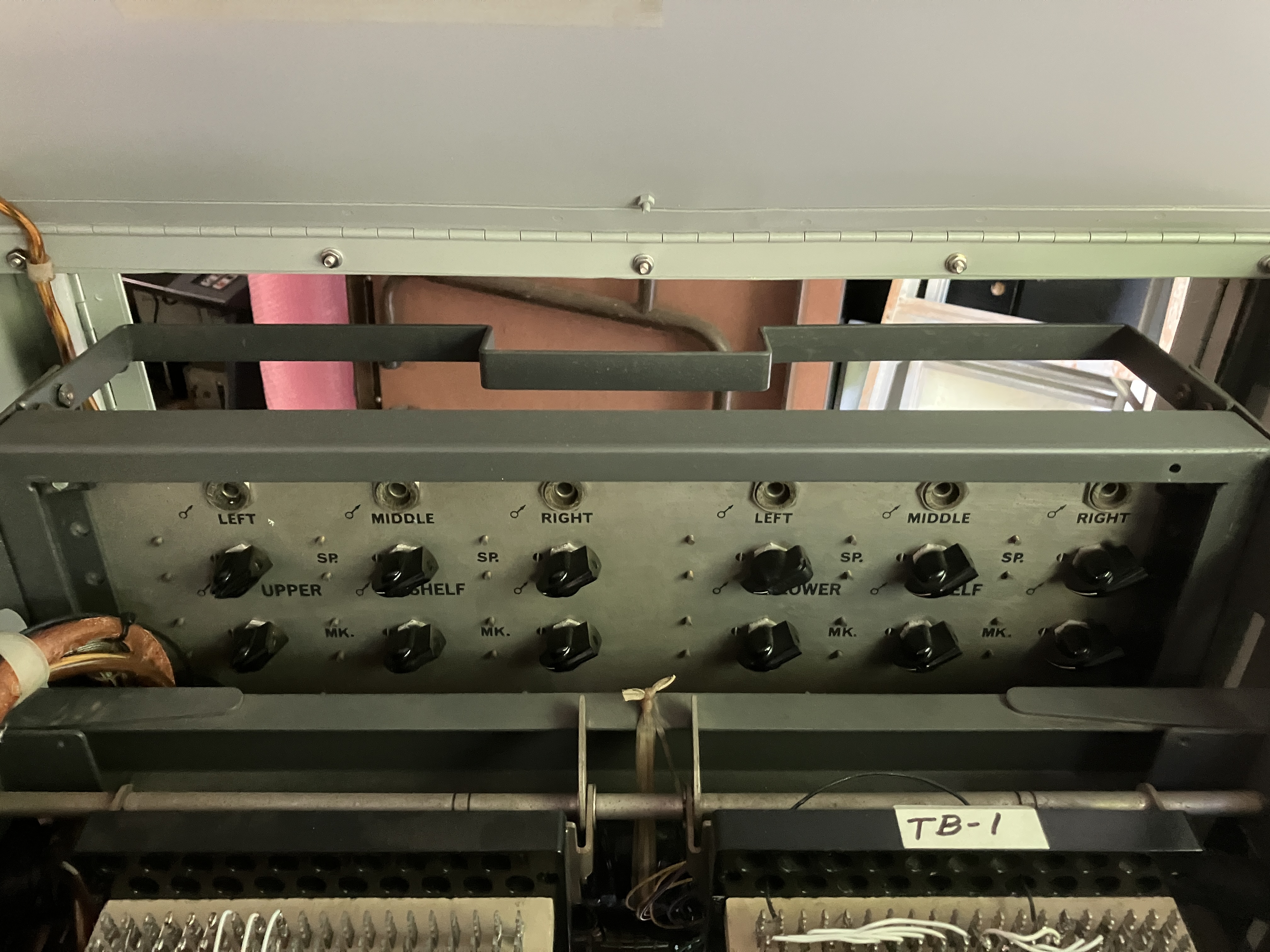

Loop current adjustments inside dome

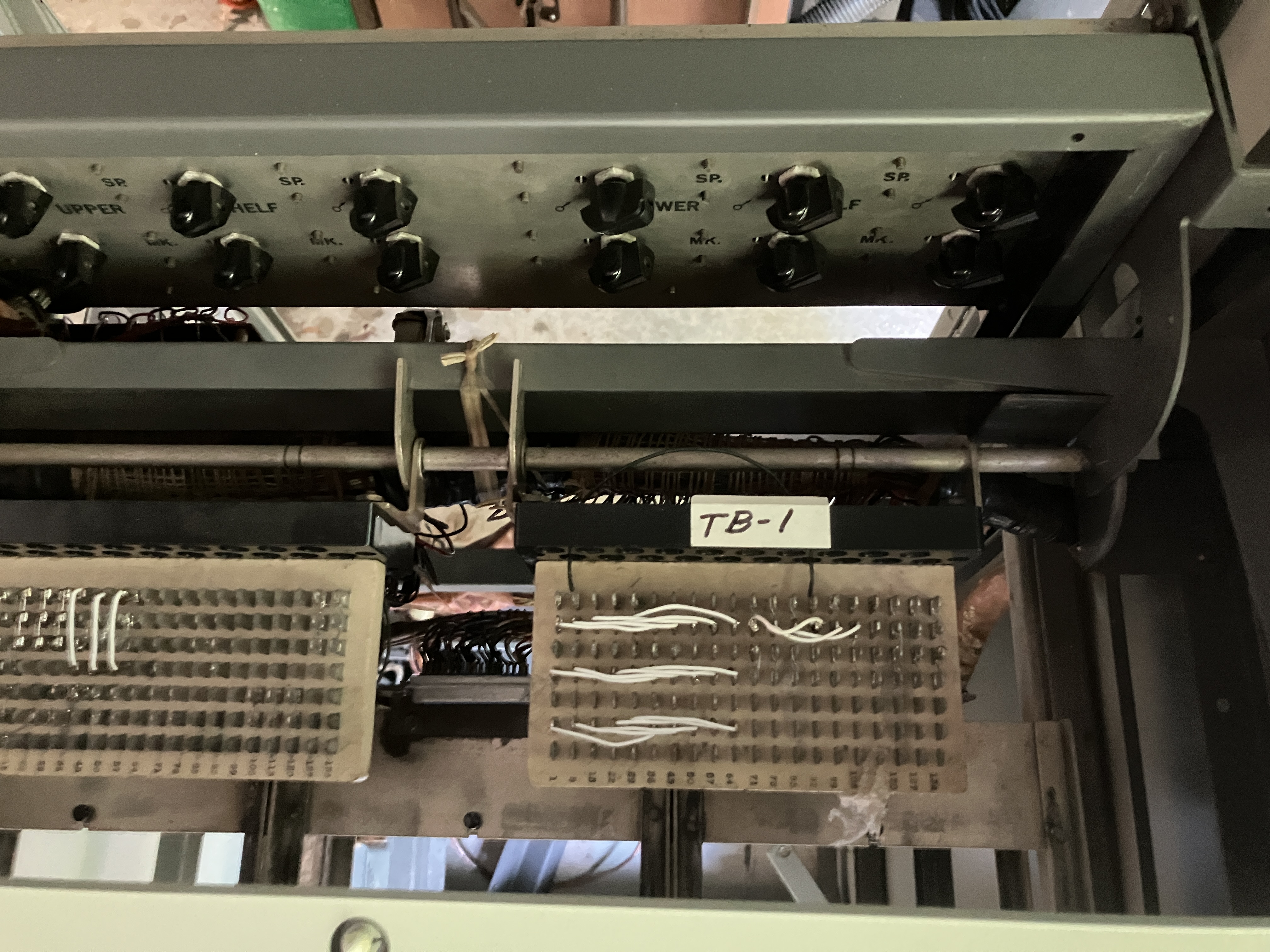

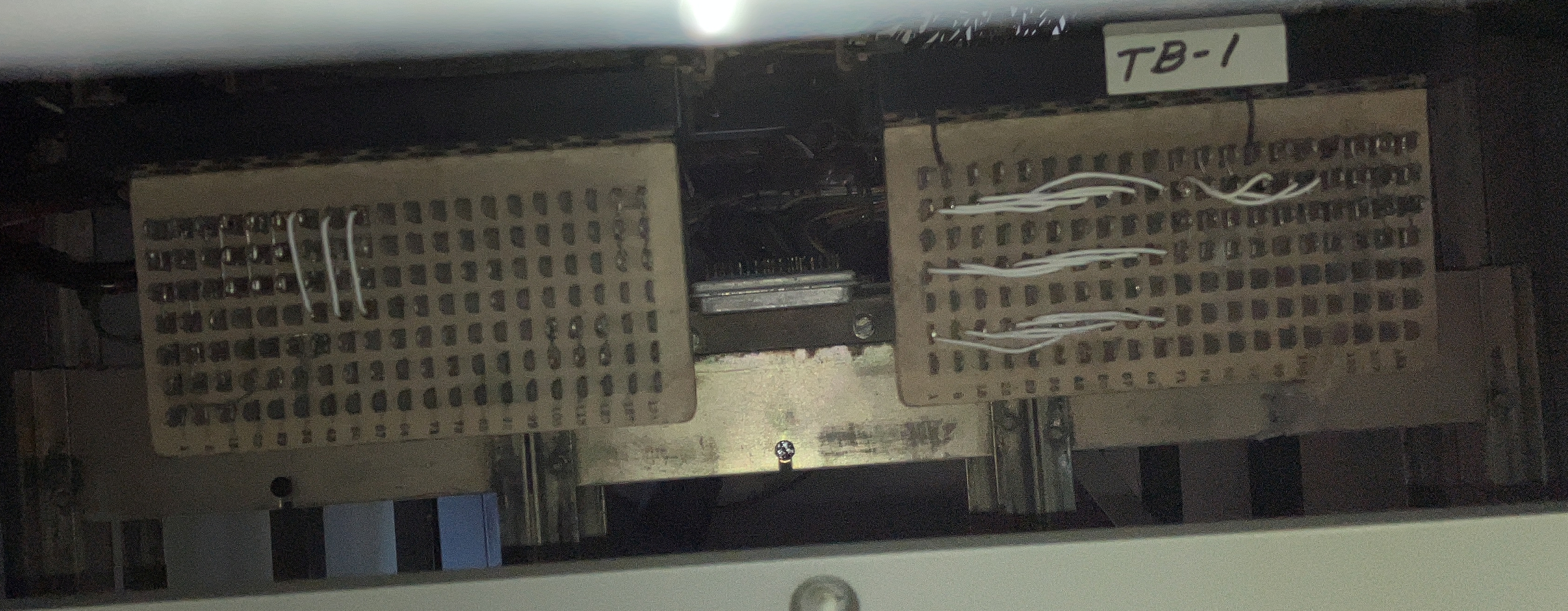

Terminal blocks TB1 TB2 inside dome

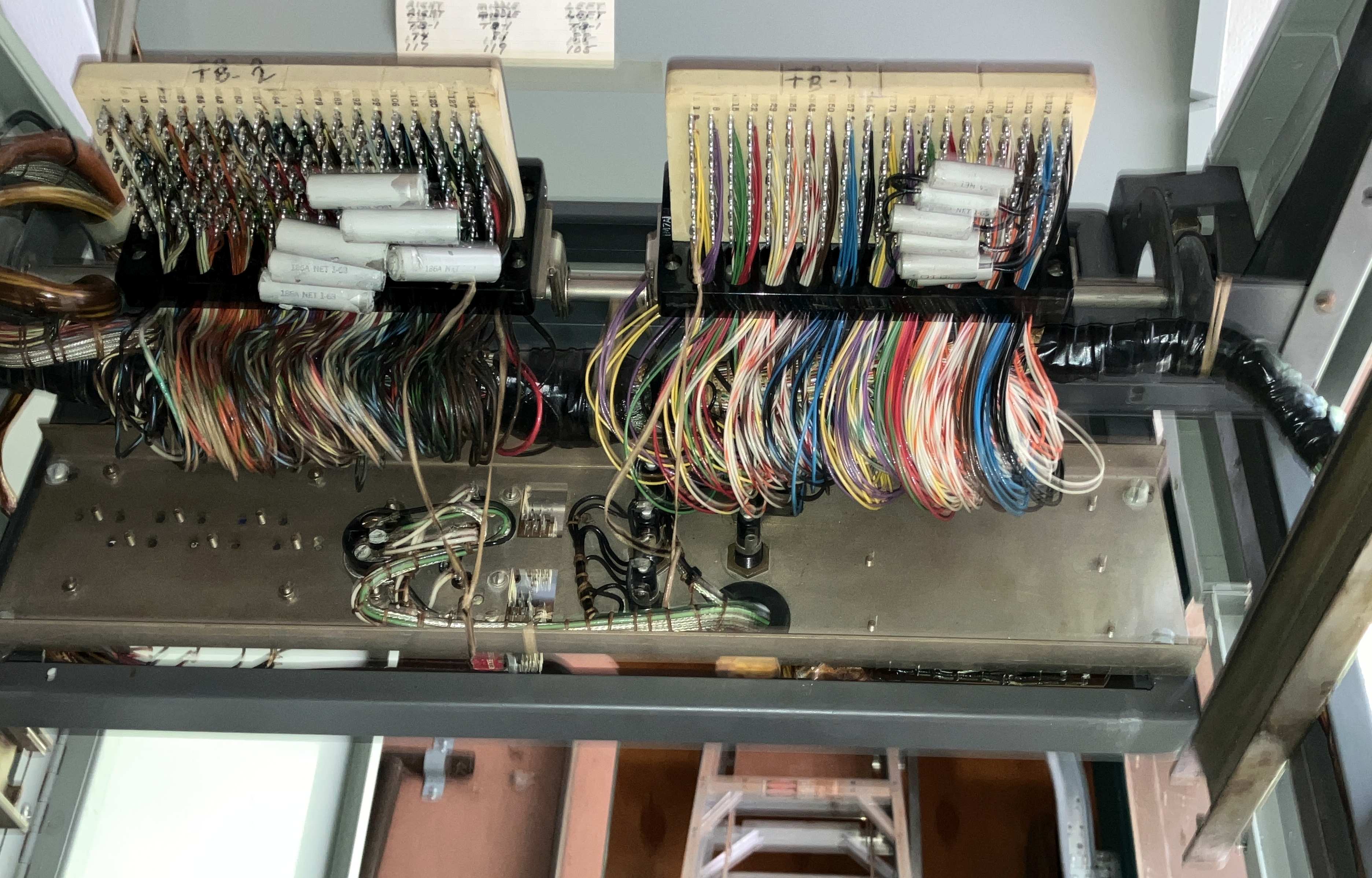

Back side of terminal blocks

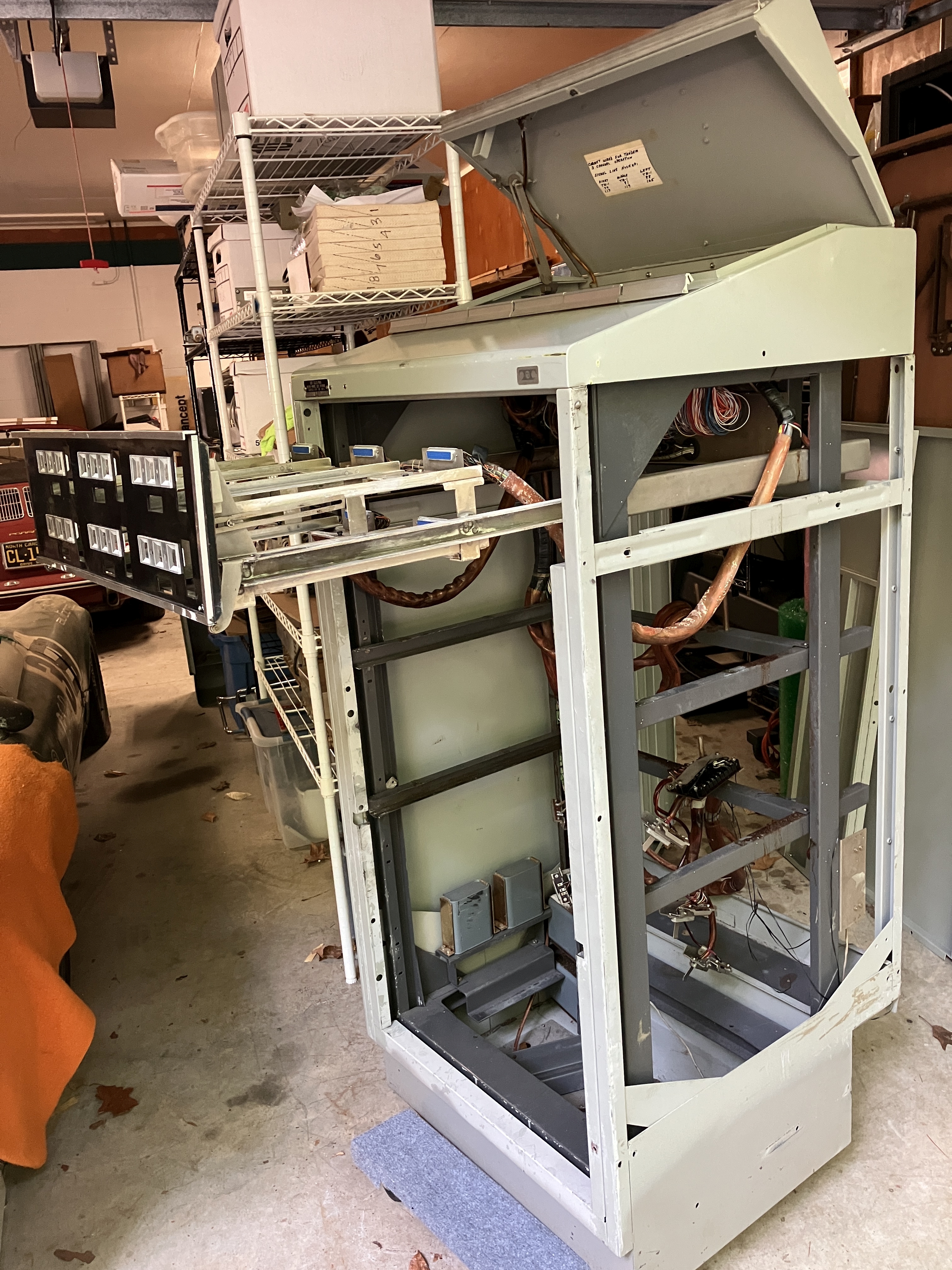

side panel removed and tray slid out
Control panel rotates for access from top

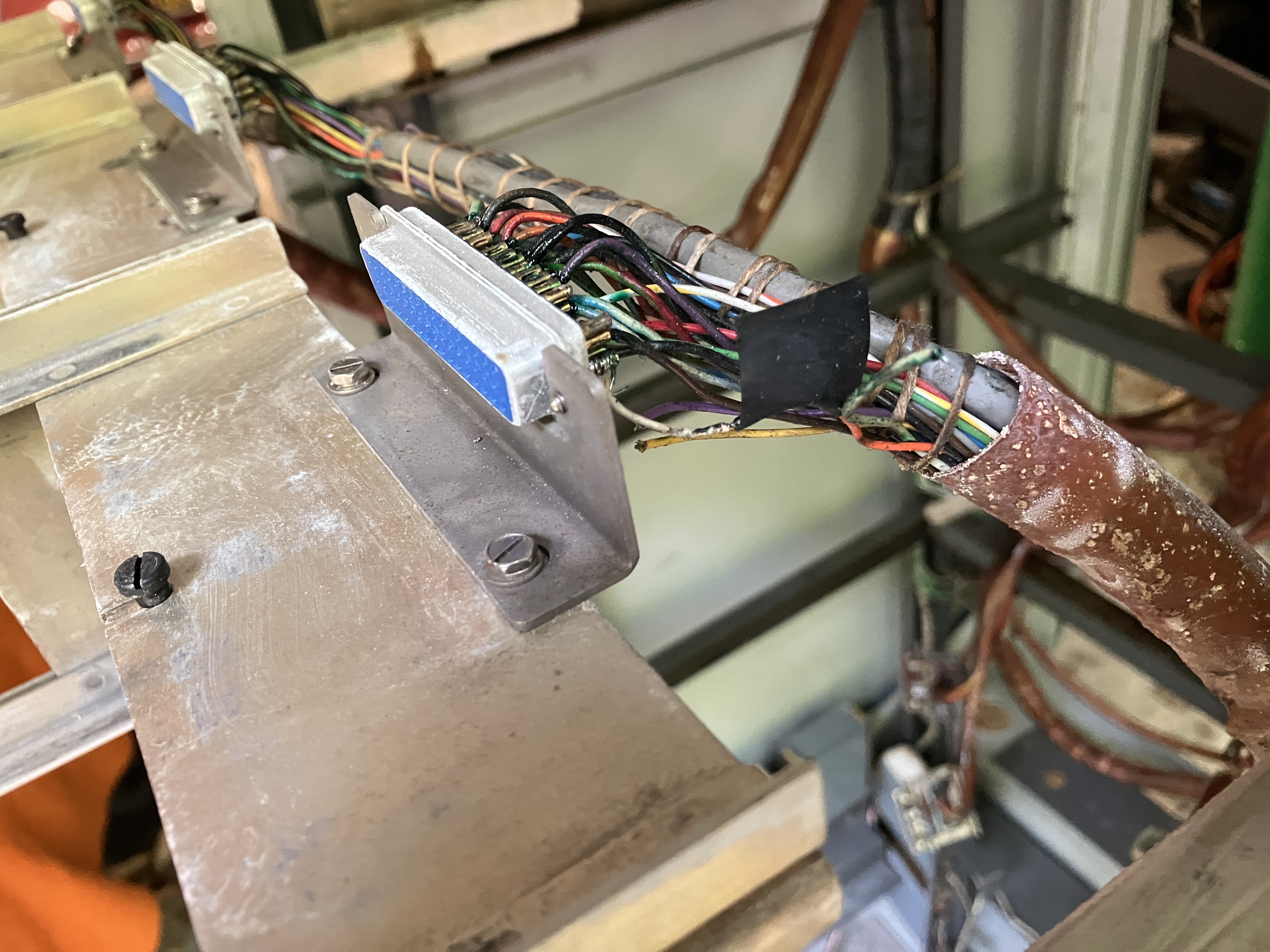

damaged wires on slide connector for message numbering unit

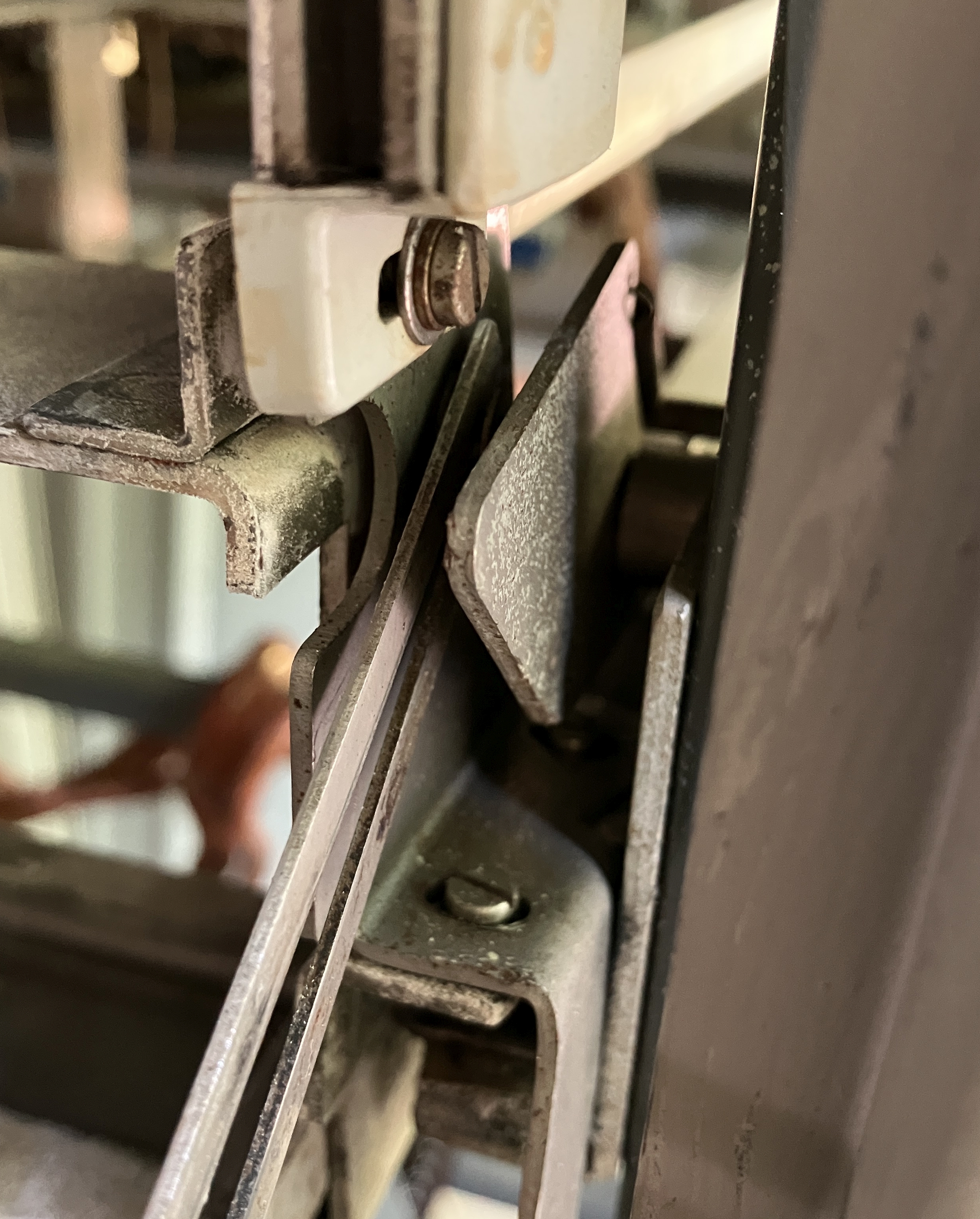

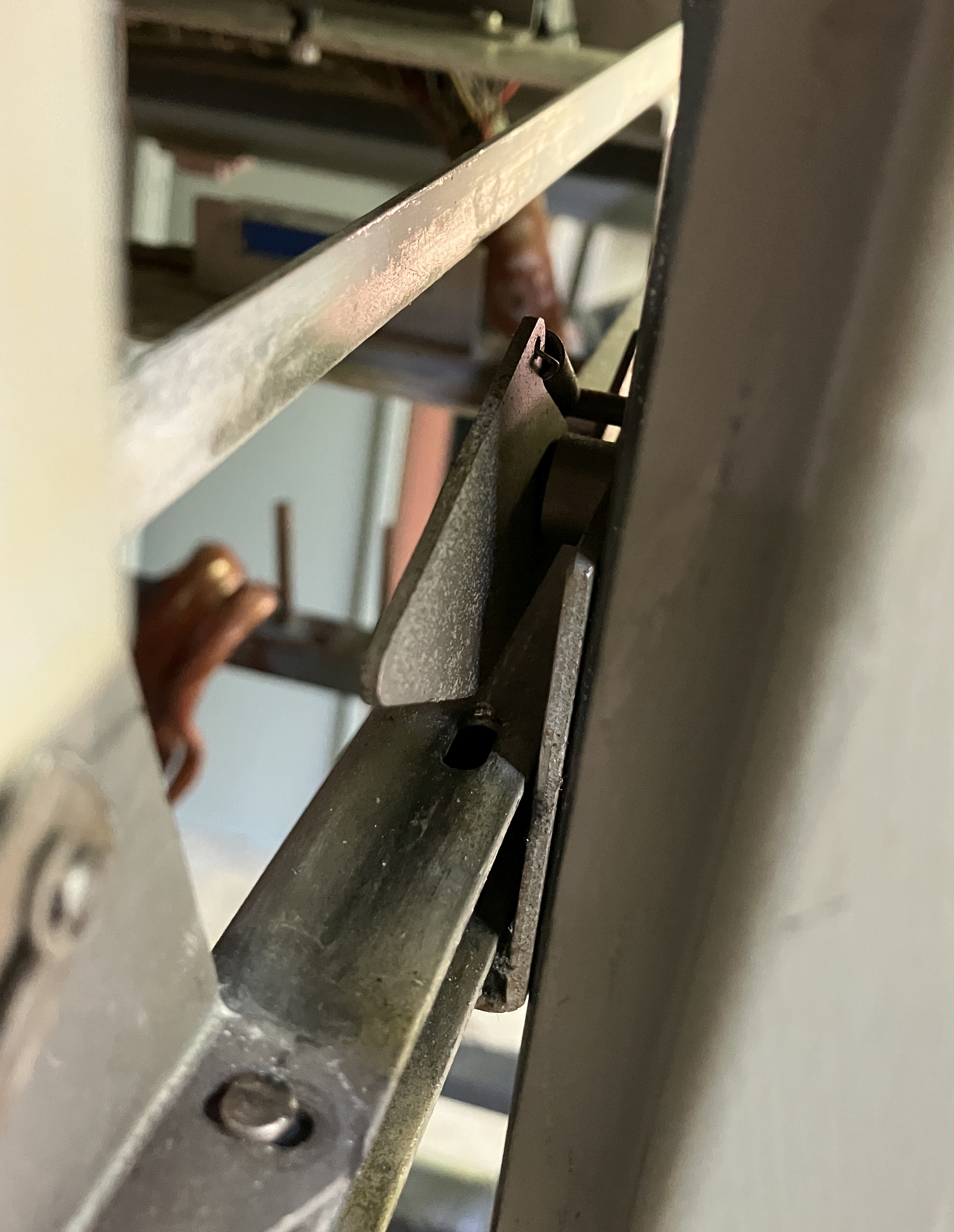

latch on RHS slide to permit tray to slide in/ out
