Teletype Model 35 Keyboard Arrangement

The purpose of this page is to document the relationship between a particular key and the Codelever or Function Lever to which it connects.

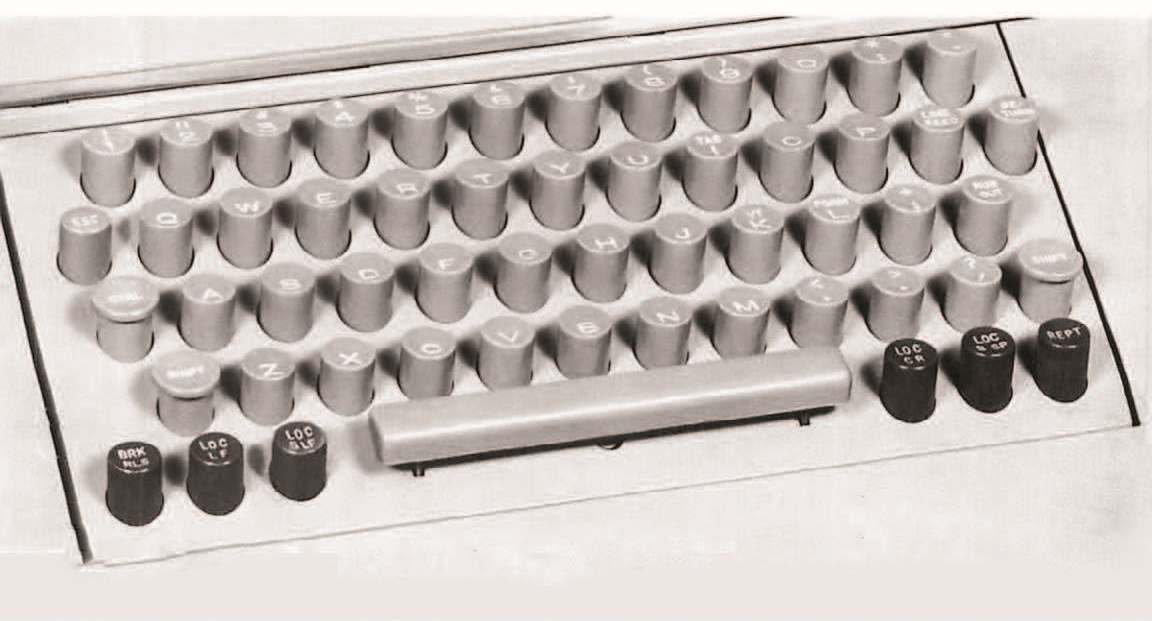

Each Keytop fits onto a Keylever. There are different shapes of Keylever for the different rows of keys
See Keytop and Keylever Parts

The end of each key's Keylever snaps onto a Codelever which actuates the code bars according to that key's character.
There are also keys that perform functions such as "Local Carriage Return".
These keys' Keylevers snap onto Function Levers that activate the desired function.

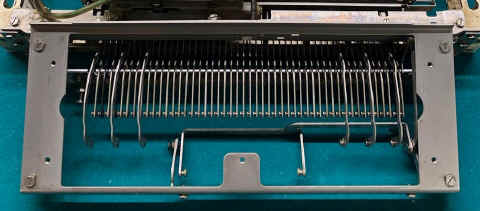

All the Codelevers and Function Levers are inserted into slots in the Lever Guide. This guide is numbered 1-58

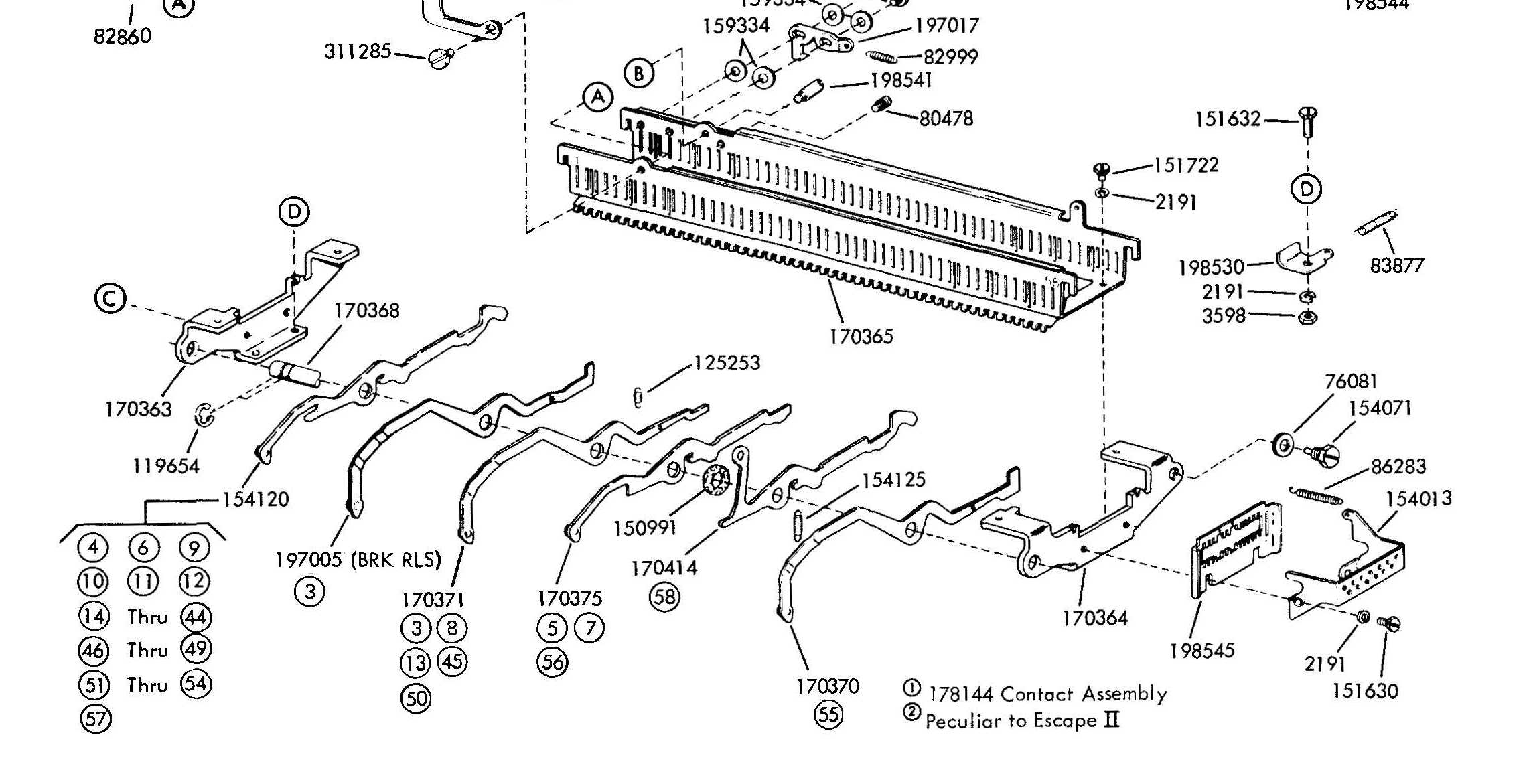

35 Keyboard Codelever Guide Diagram.
Each Keylever connects to one of the types of Codelevers and Function Levers shown at the bottom of the diagram.
The circled numbers indicate the slot into which each Codelever and Function Lever fits.


The TP number is the Codelever or Function Lever part number.

SLOT > key (lever)
3 > red BRK-RLS (TP170371)
4 > ESC (TP154120)
5 > control (TP170375)
6 > 1 (TP154120)
7 > shift (TP170375)
8 > red LOC-LF (TP170371)
9-12 > Q A 2 Z (TP154120)
13 > red LOC-REV-LF (TP170371)
14-44 > W S 3 X E D 4 C R F 5 V T G 6 B Y H 7 N U J 8 M I K 9 , O L 0 (TP154120)
45 > red LOC-CR (TP170371)
46-49 > . P ; : (TP154120)
50 > red LOC-BS (TP170371)
51-54 > / LF RUB - (TP154120)
55 > red REPT (TP170370)
56 > shift (TP170375)
57 > RETURN (TP154120)
58 > SPACEBAR (TP170414)
