TN-342/WRT Navy Transmitting Antenna Tuner

The TN-342 is used for impedance matching the AN/WRT-2 HF transmitter to an antenna. It has a motor-driven inductor (RF autotransformer) plus a switch that will bypass the tuner or add some capacitors in series or parallel with the inductor.

TN-342 pages from the AN/WRT-2 manual - Download 13 MB pdf

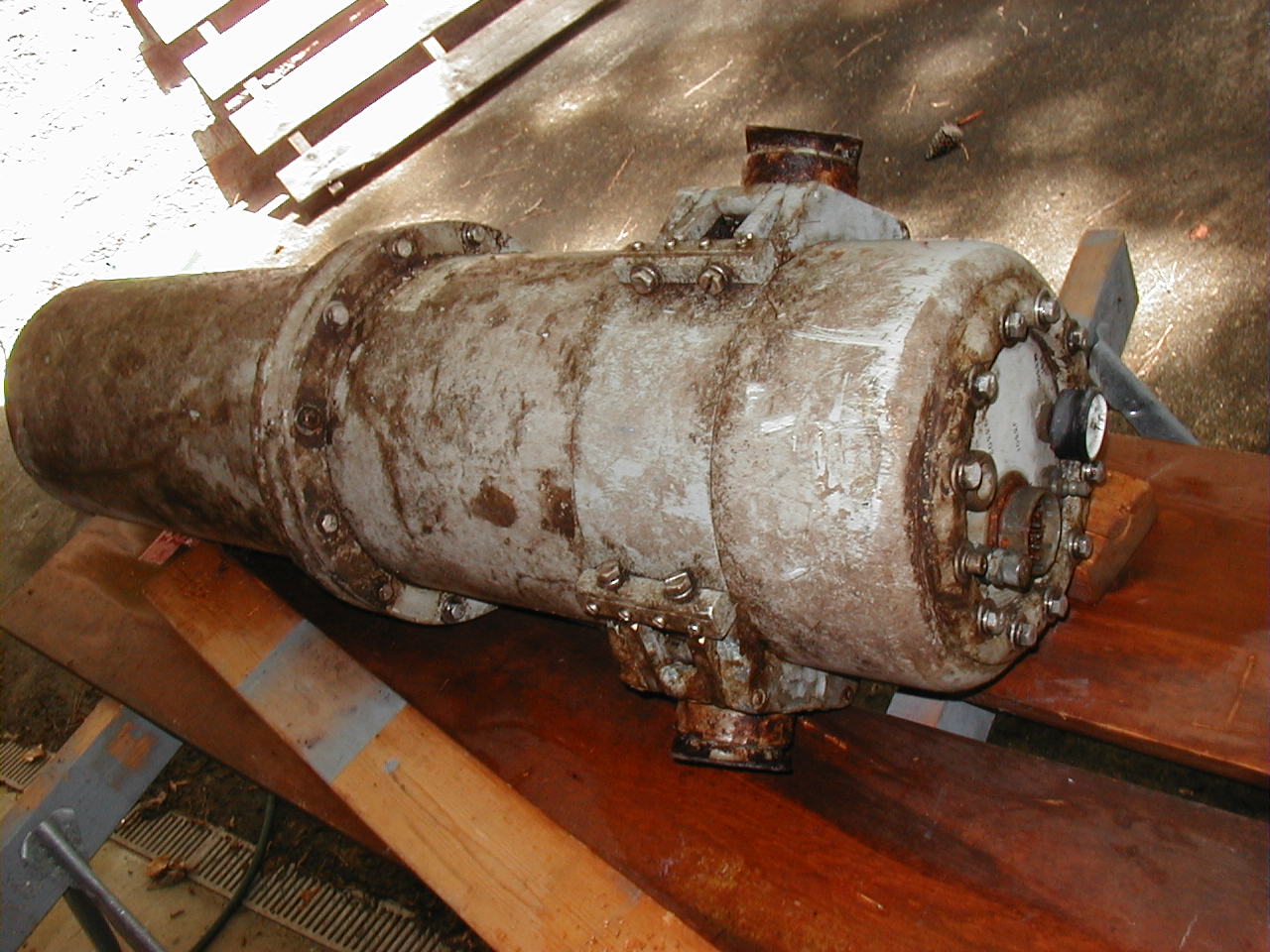

After initial hosing off

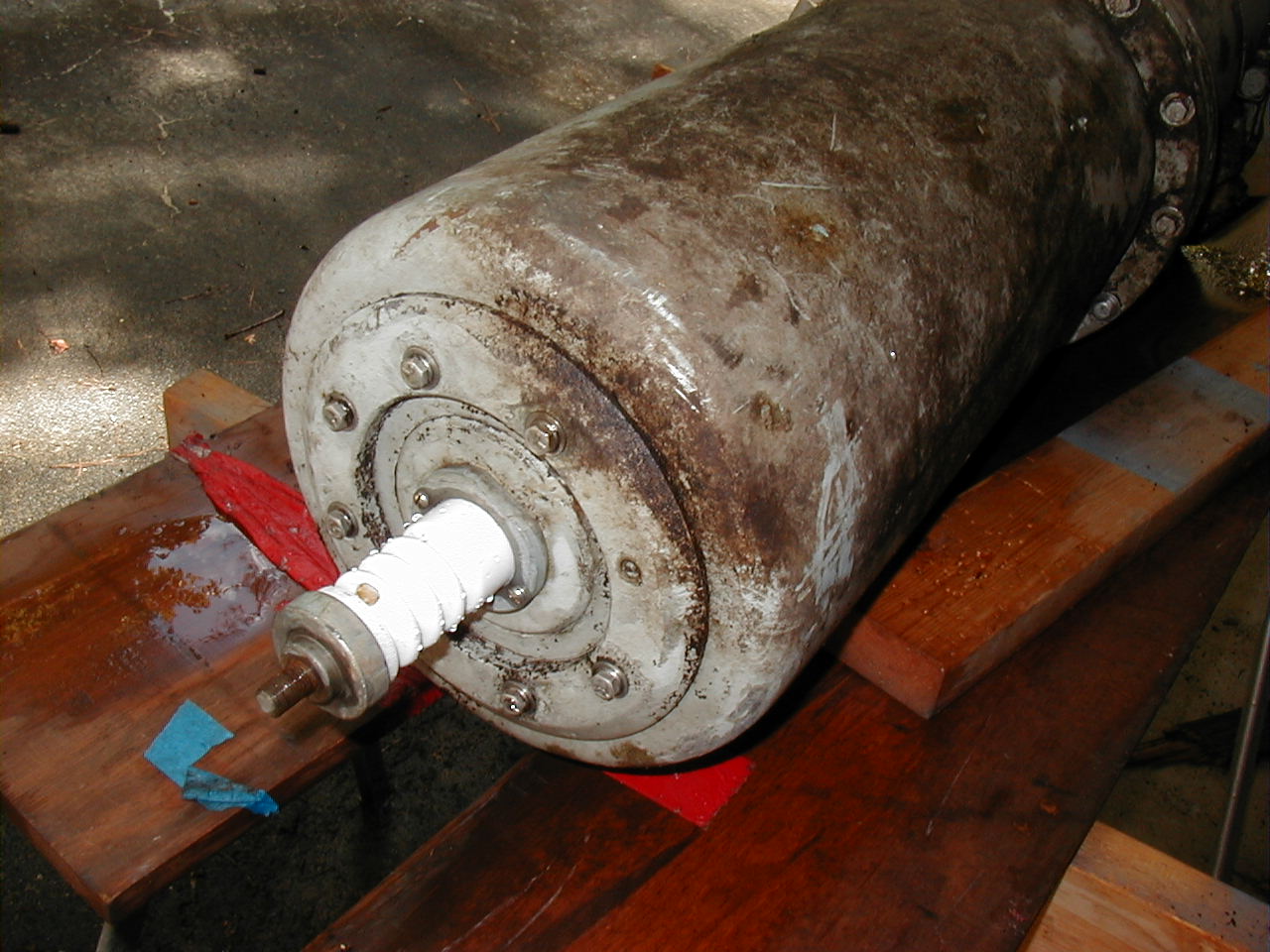

This is cleaner than when we hauled it out of the weeds and dirt!
Simple Green & Elbow Grease
OK - clean enough to pull the case apart now

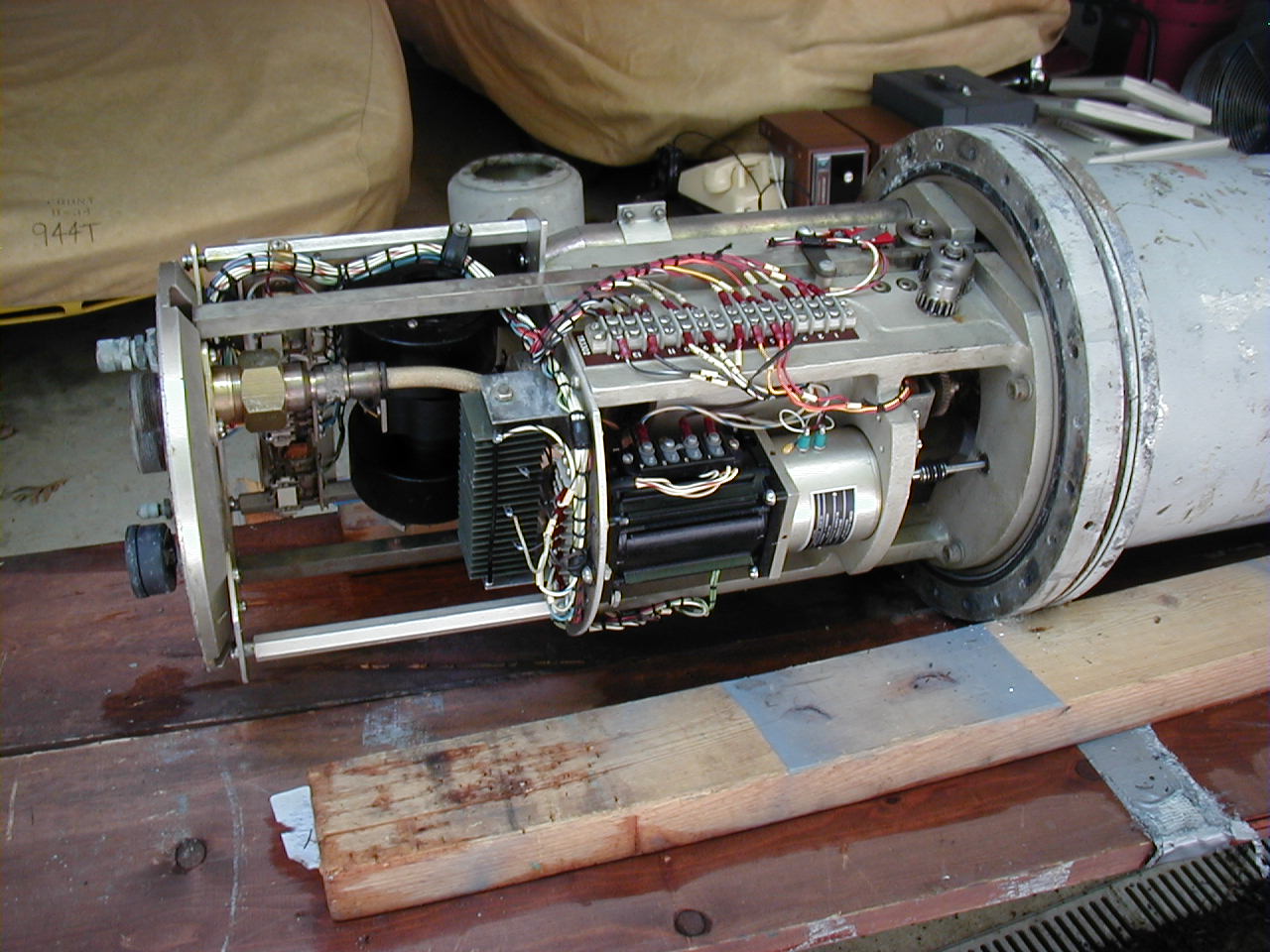

Not bad inside

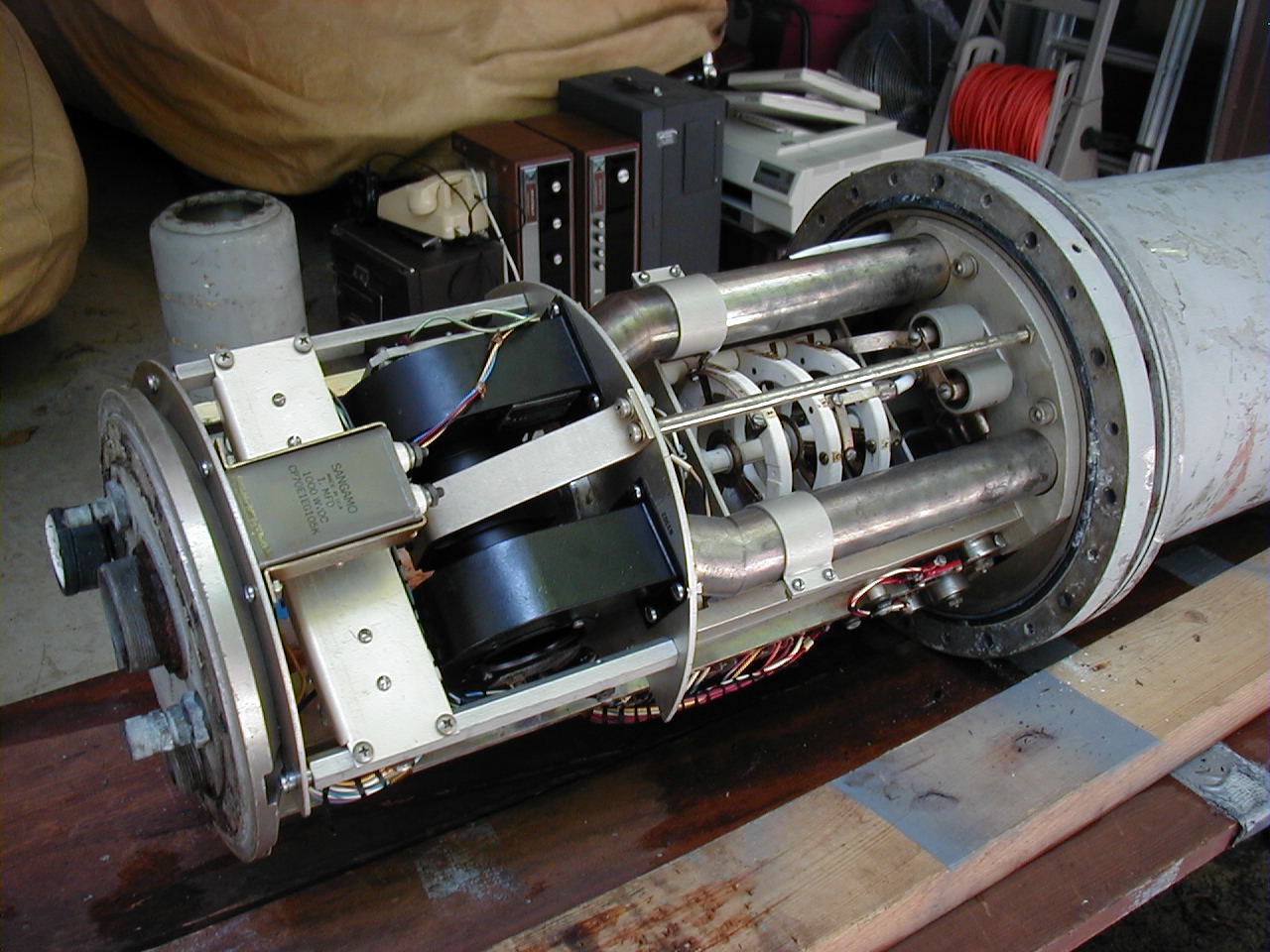

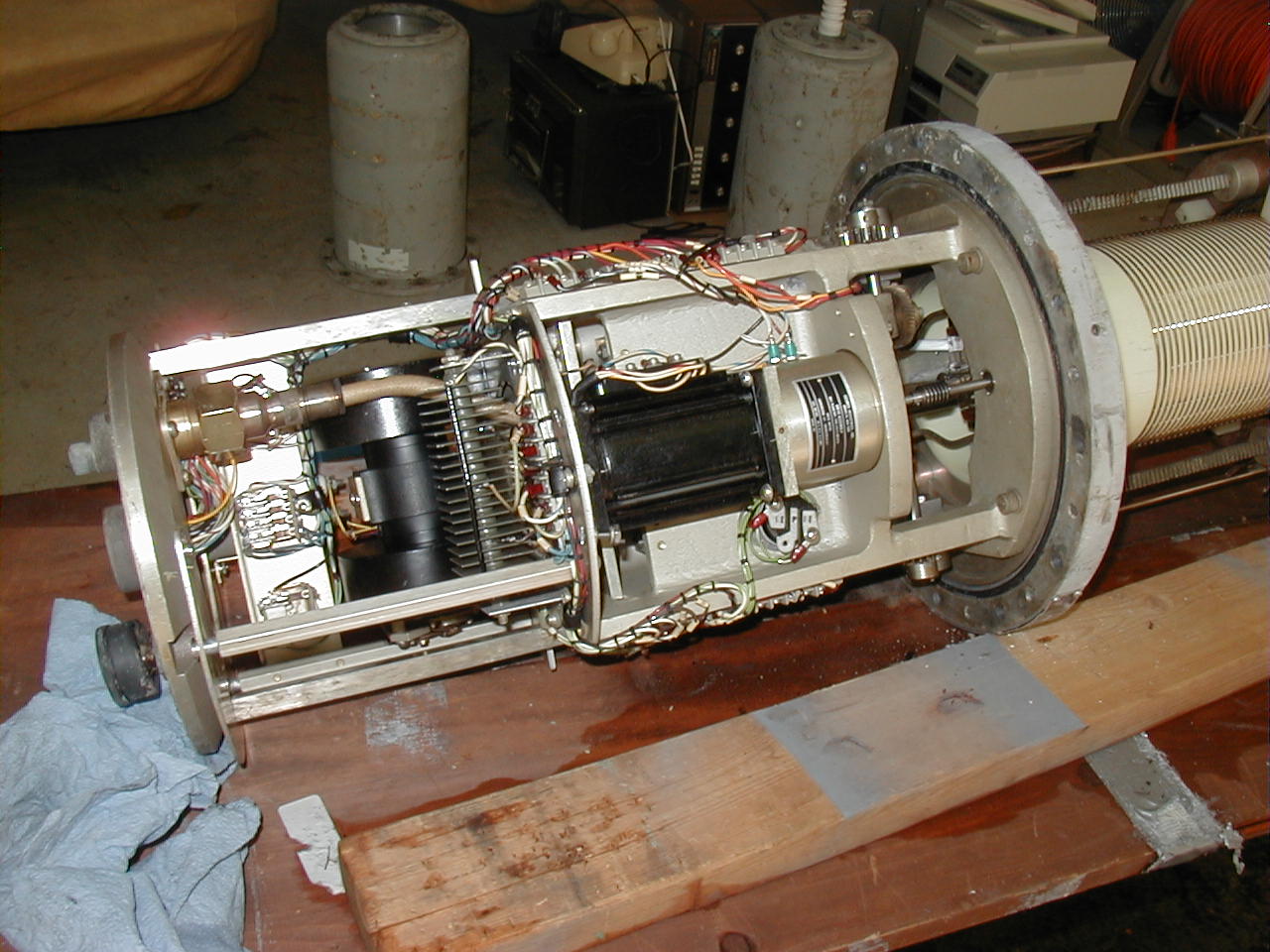

Blower, Auto-transformer motor drive, Configuration switch motor drive
Blower directs air to coil

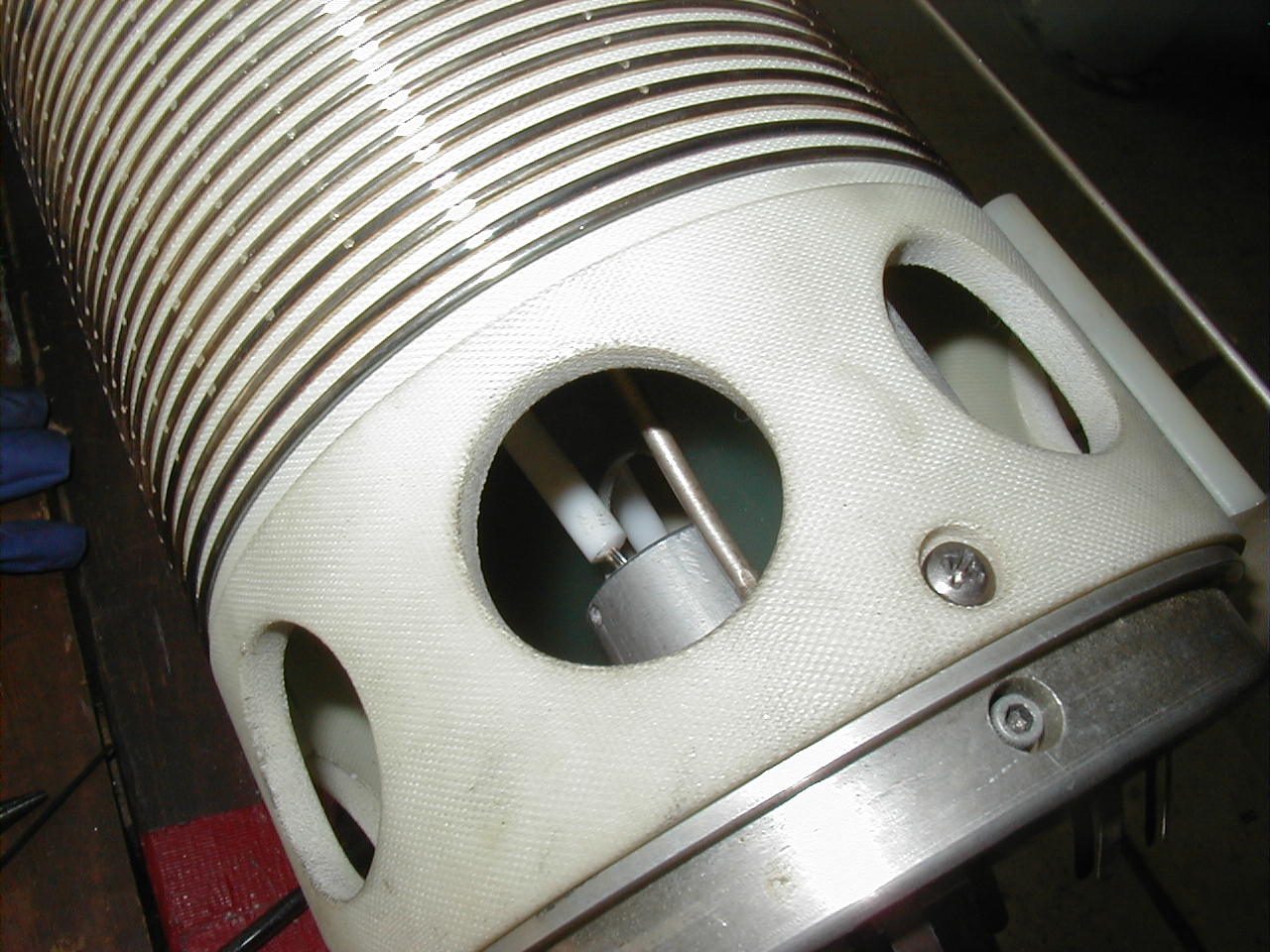

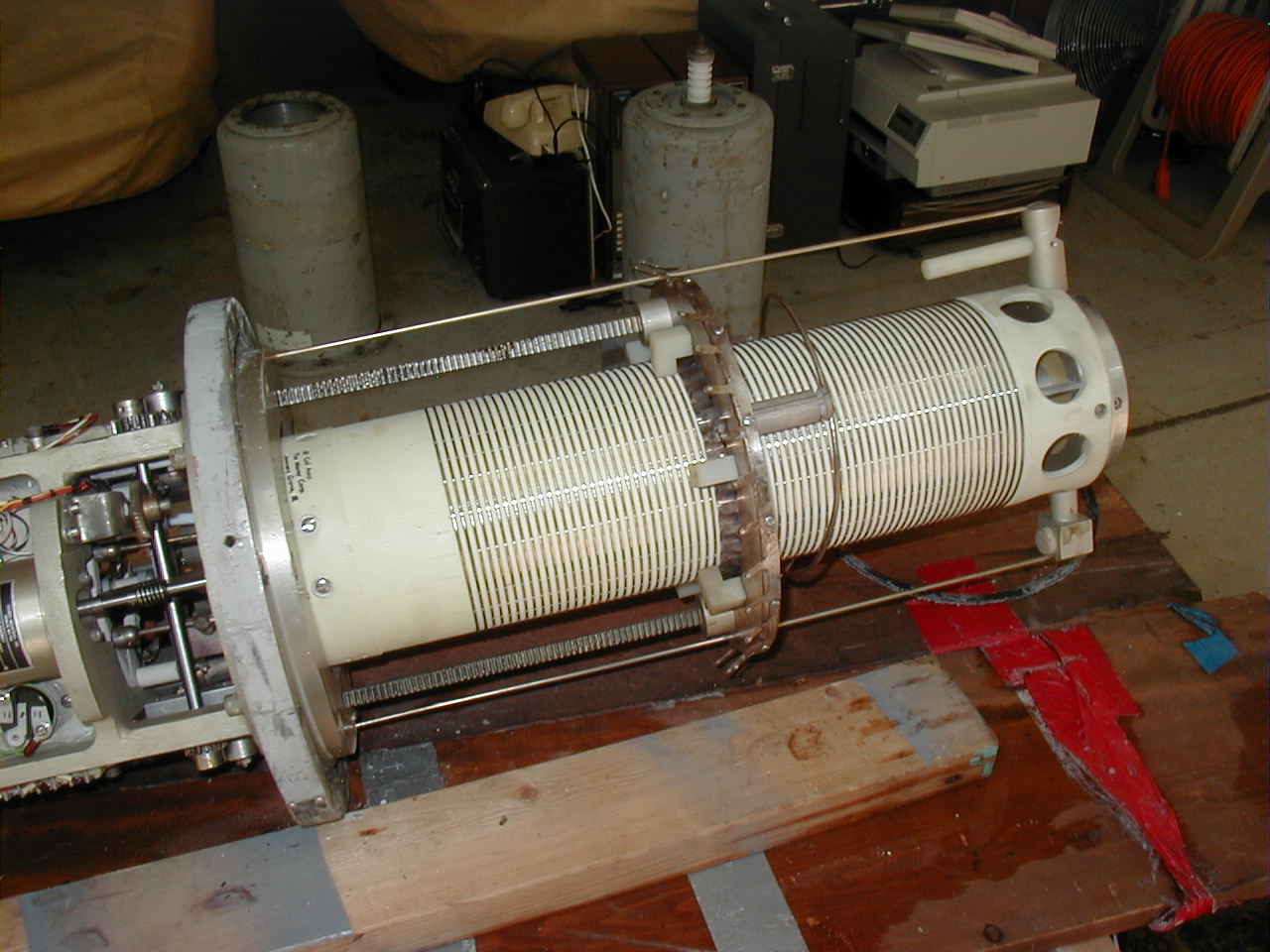

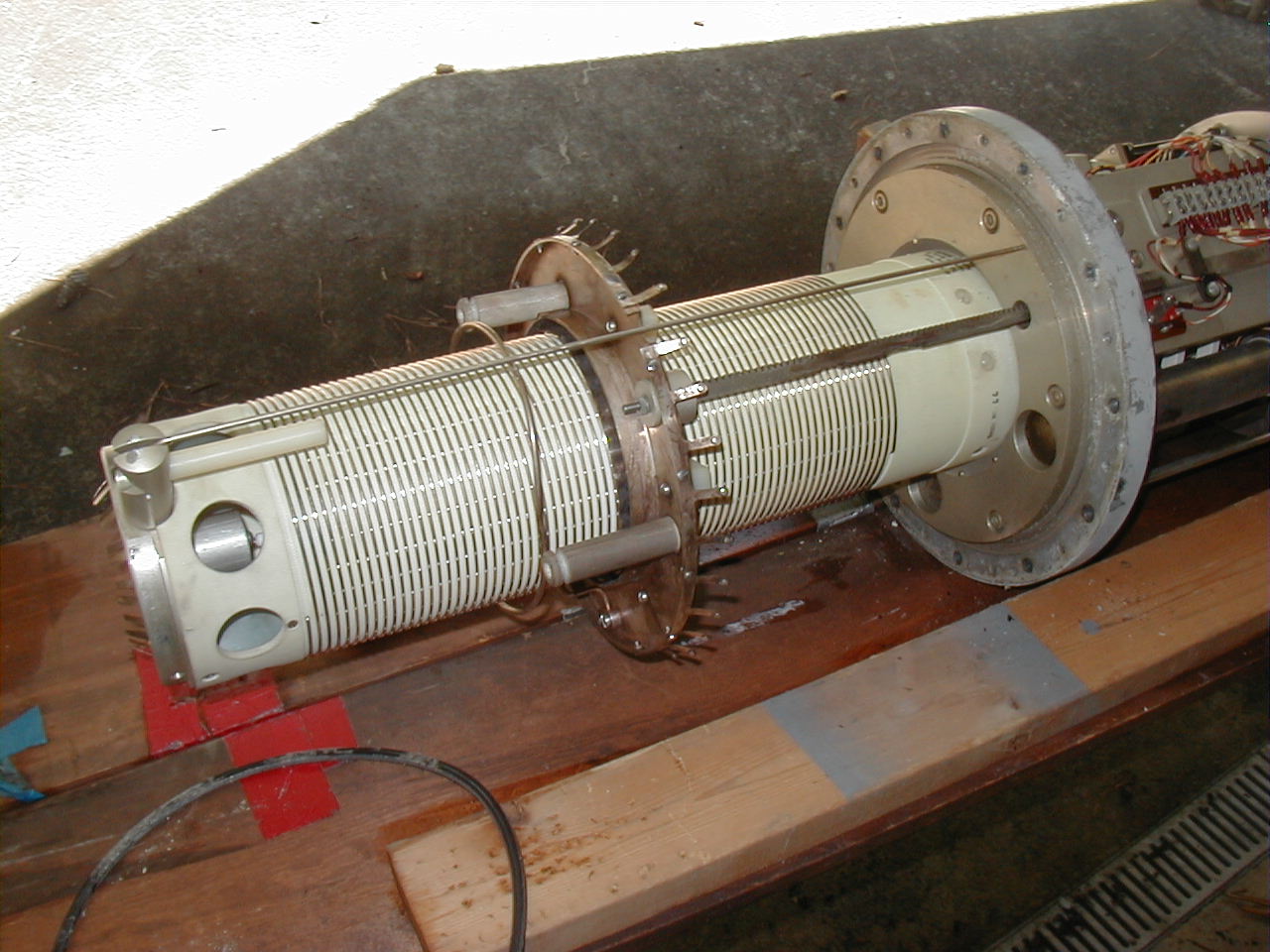

Main coil - an autotransformer with a shorting ring that moves under motor control

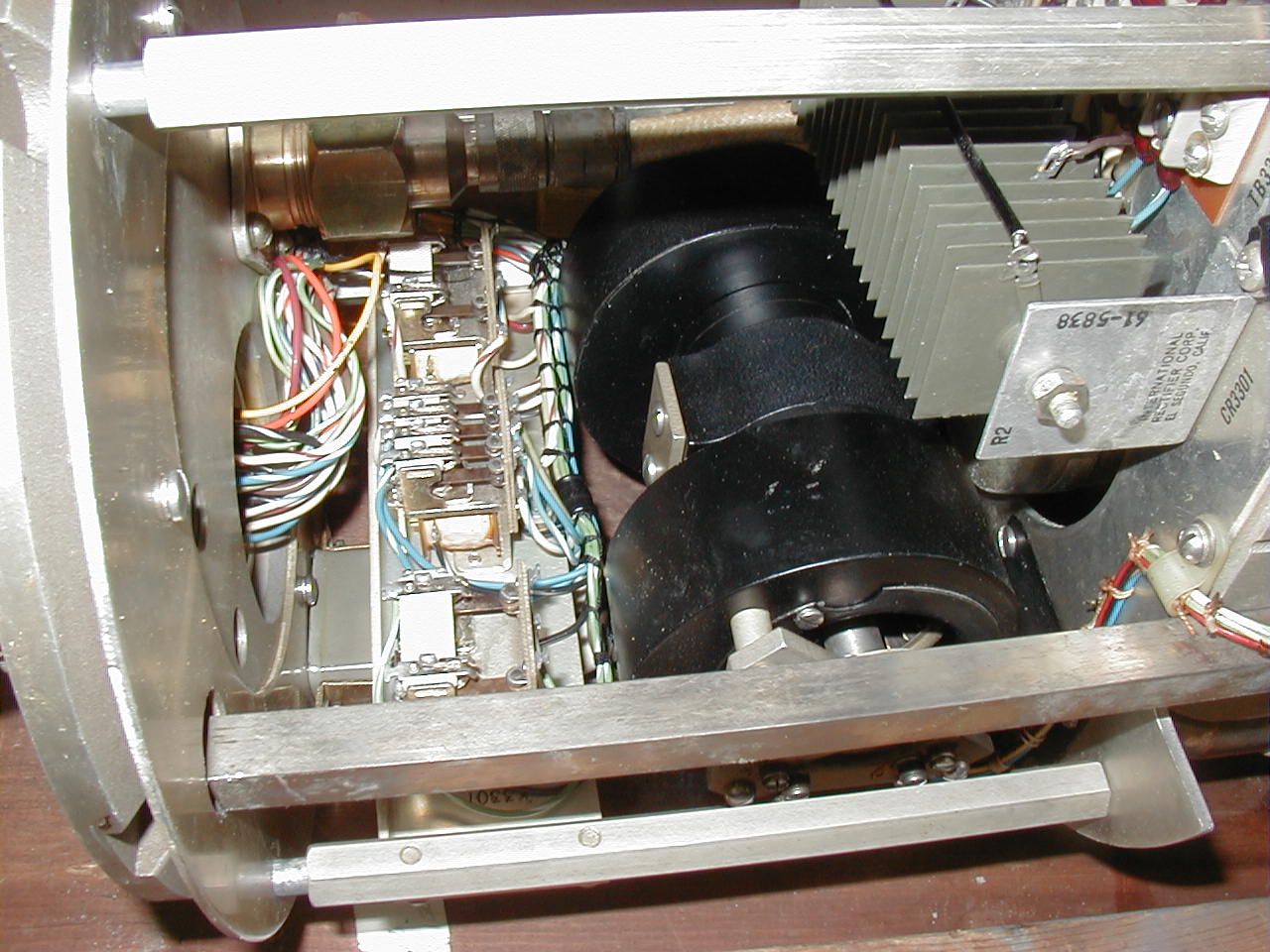

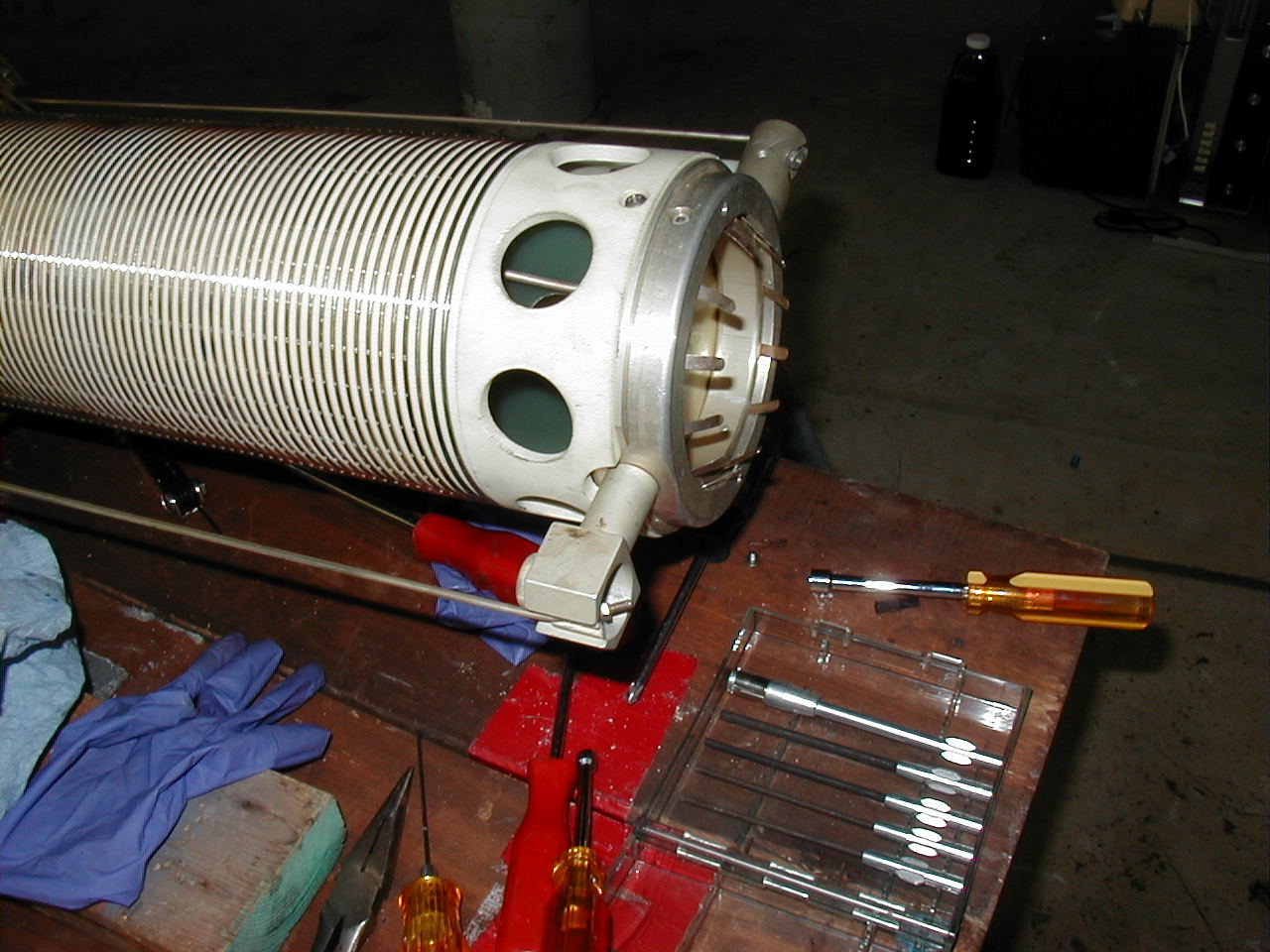

Had to go inside here to get to several coax leads that were loose - and some

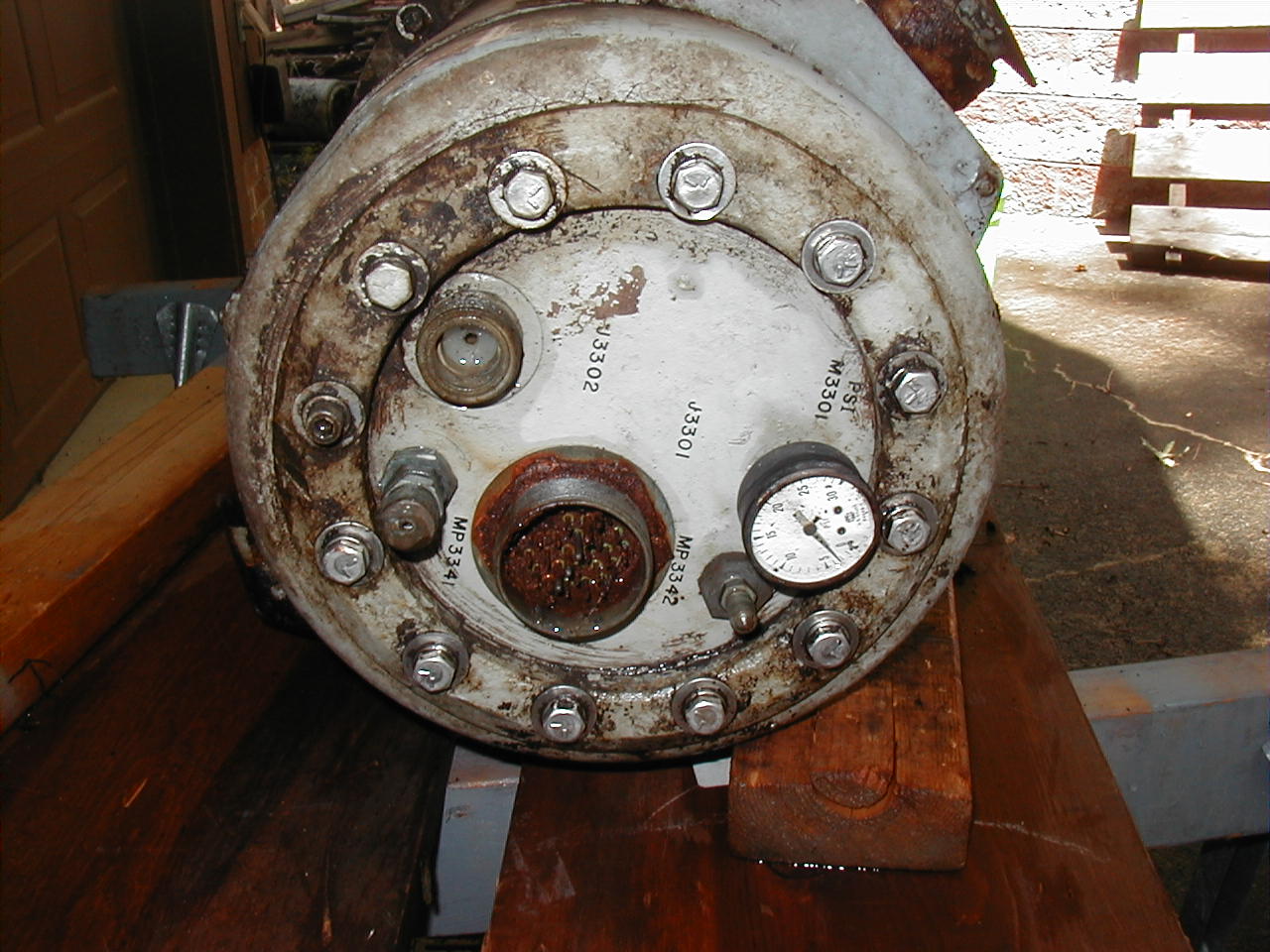

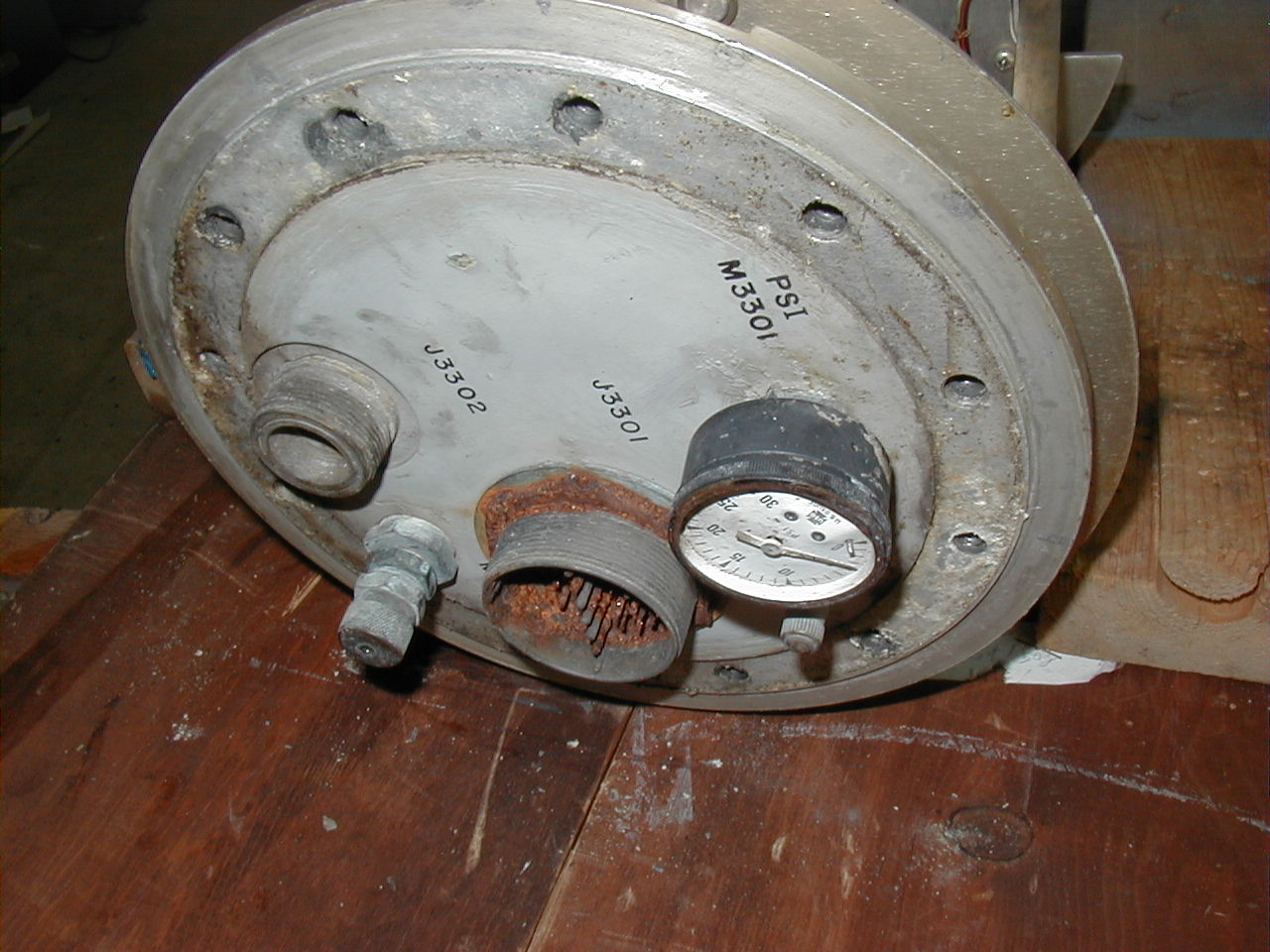

Cleaned up, but I still need to repair the pressure gauge (charged with 20 psi of dry nitrogen). The control connector is too corroded - will have to be replaced.

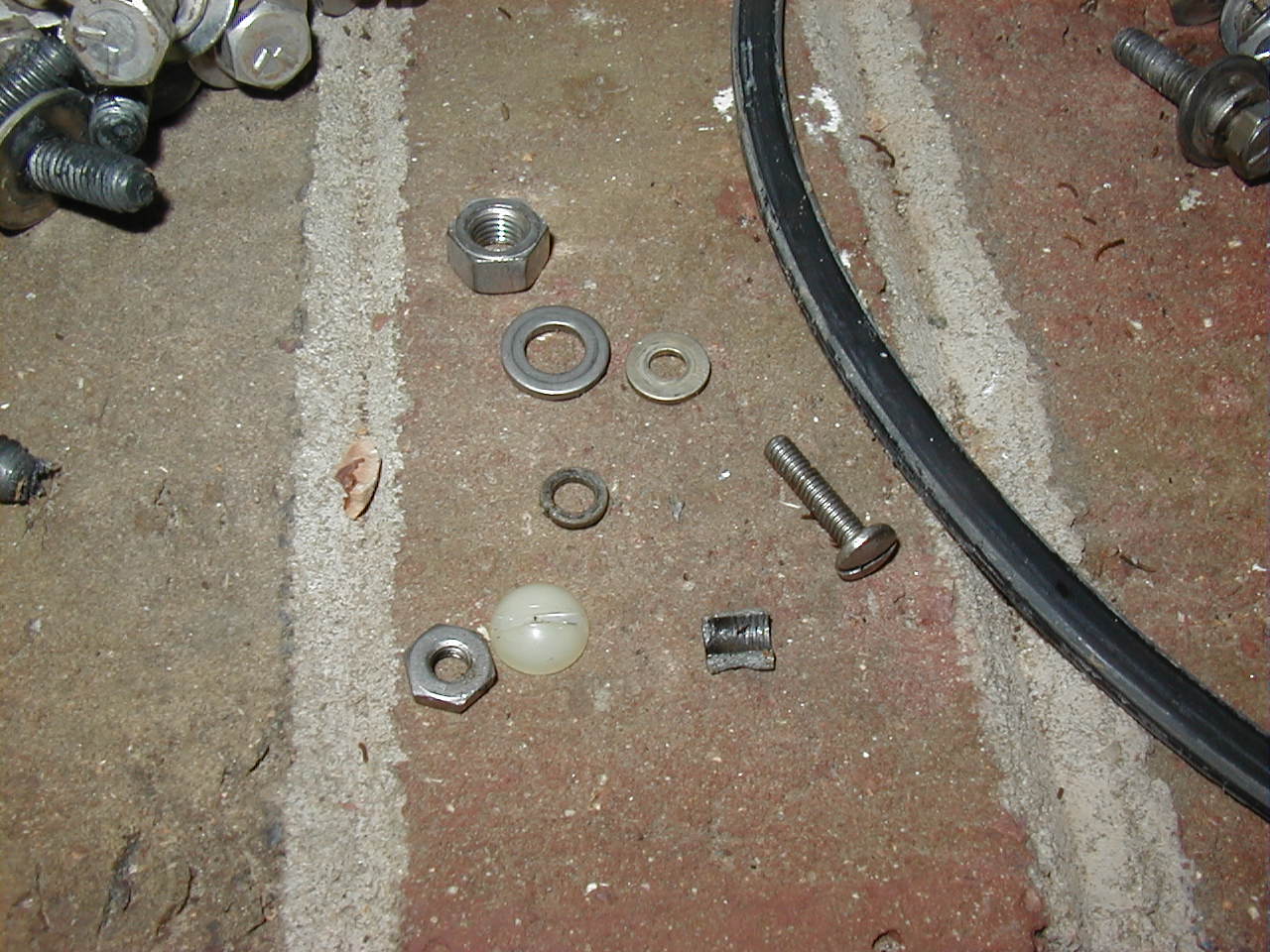

Parts that were rattling around loose inside. The long machine screw is to hold down a couple of cable clamps - but I can't figure out how to get to them inside the main coil. I don't know what the 3/8-16 nut/washer goes to - can't find anything like that inside!
