This USAF contract version has the blower
removed from the RT-581 section. Air is blown through a duct from the
PP-2702 section and into the final amp portion of the RT-581. Air exhausts
from the RT-581 through the right side of the cabinet. |

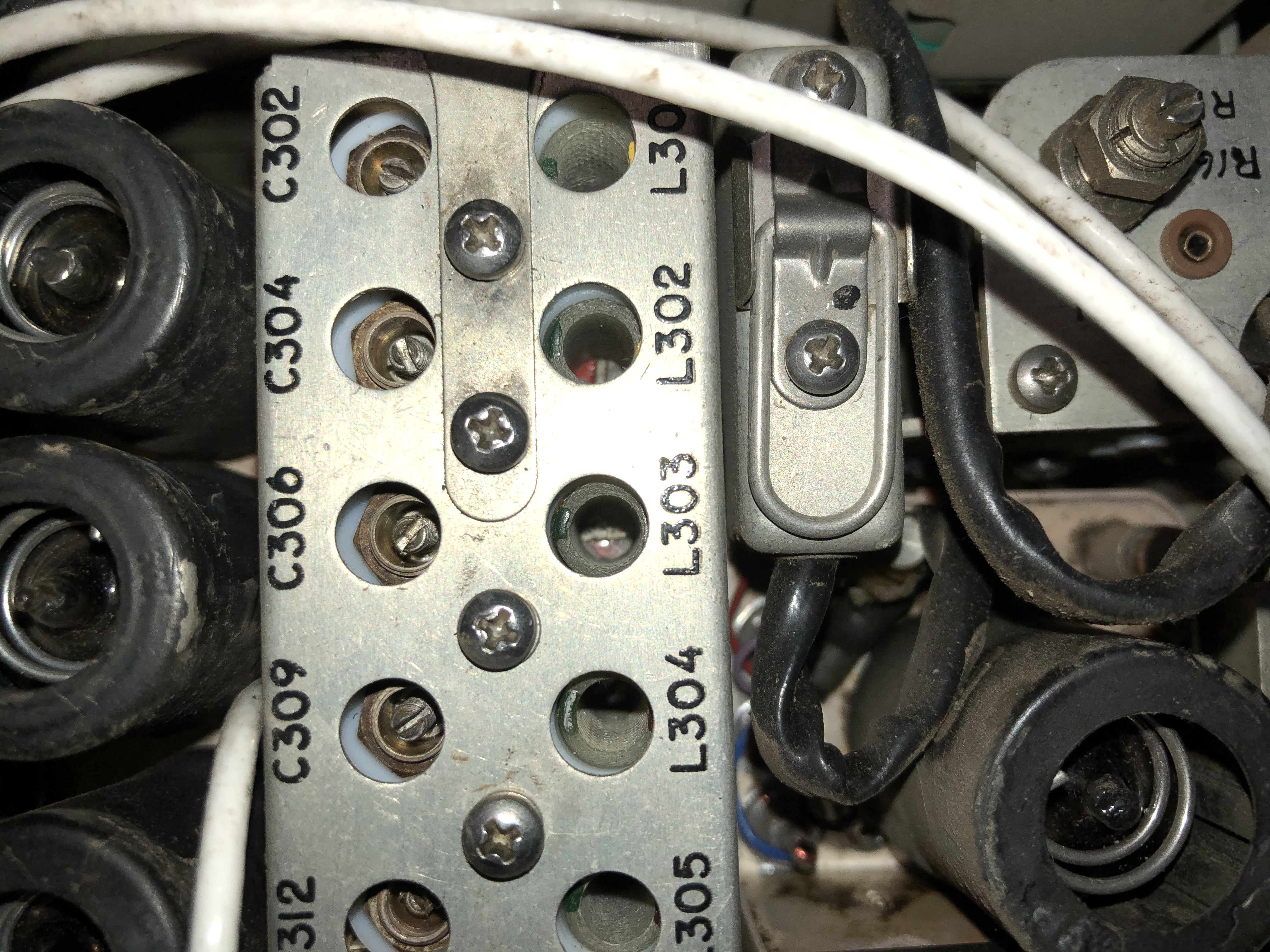

L300 series coils do have slugs but they are pretty deep
down |
== |

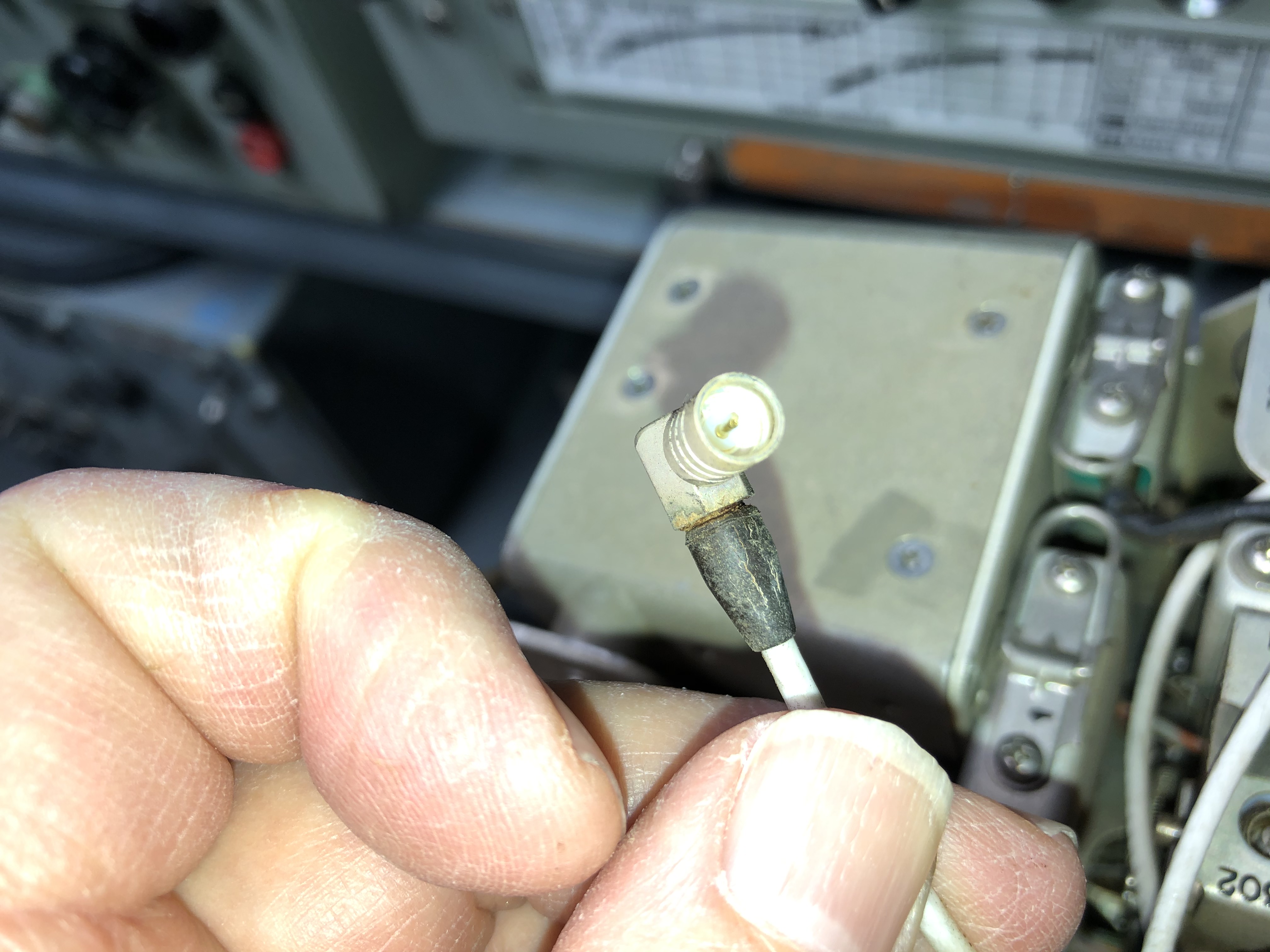

Filter FL-901 IN connector
Cable plugs into 400 series module
|
== |
Filter FL-901 OUT cable goes to 500 series module - hardwired |
