US Navy AN/URR-64(V) HF Receiver - TMC DDR-10

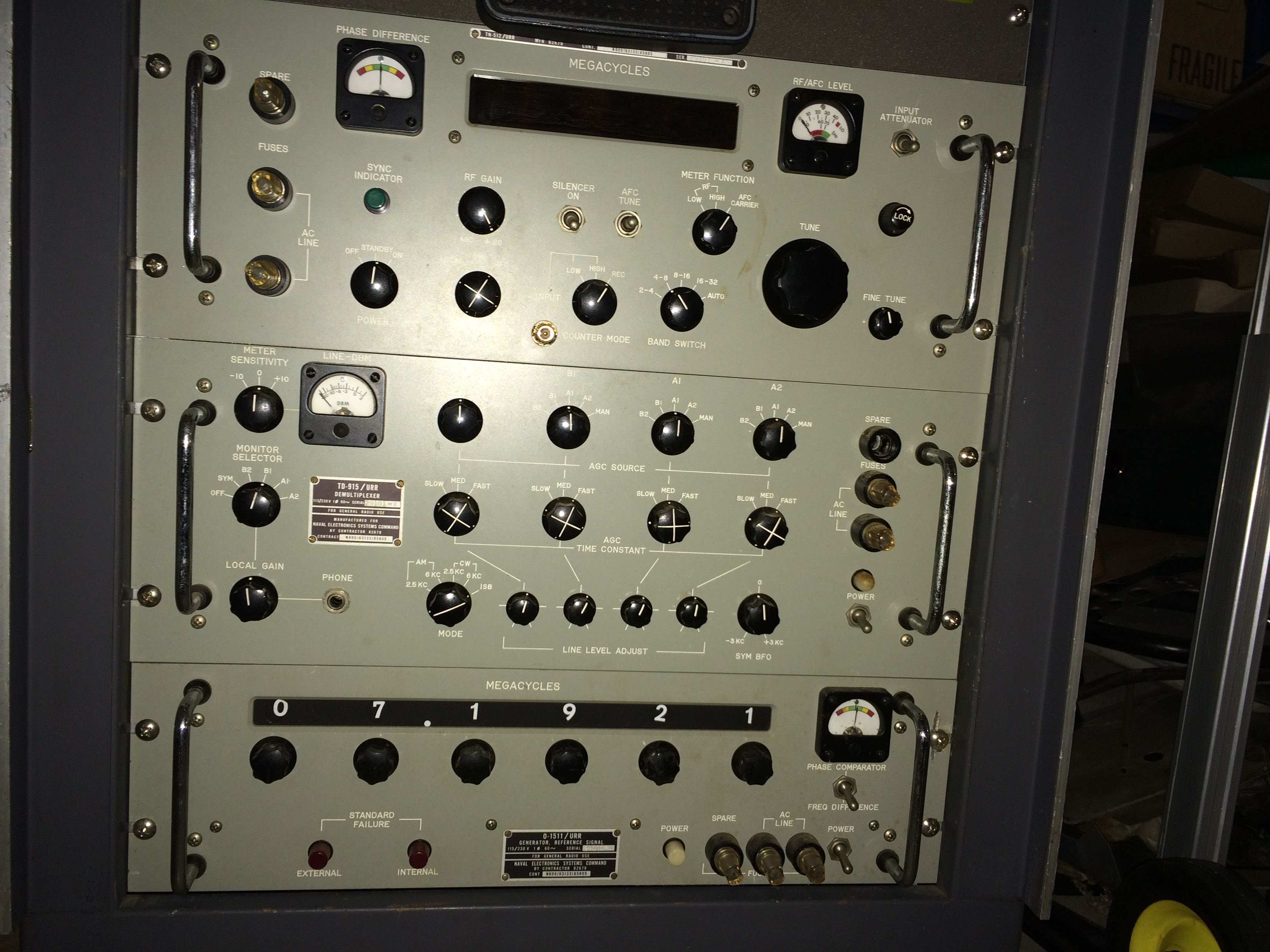

AN/URR-64(V)2
Components (top to bottom)
TN-512/URR tuner
TD-915/URR demultiplexer
O-1511/URR freq synthesizer
 manual download --

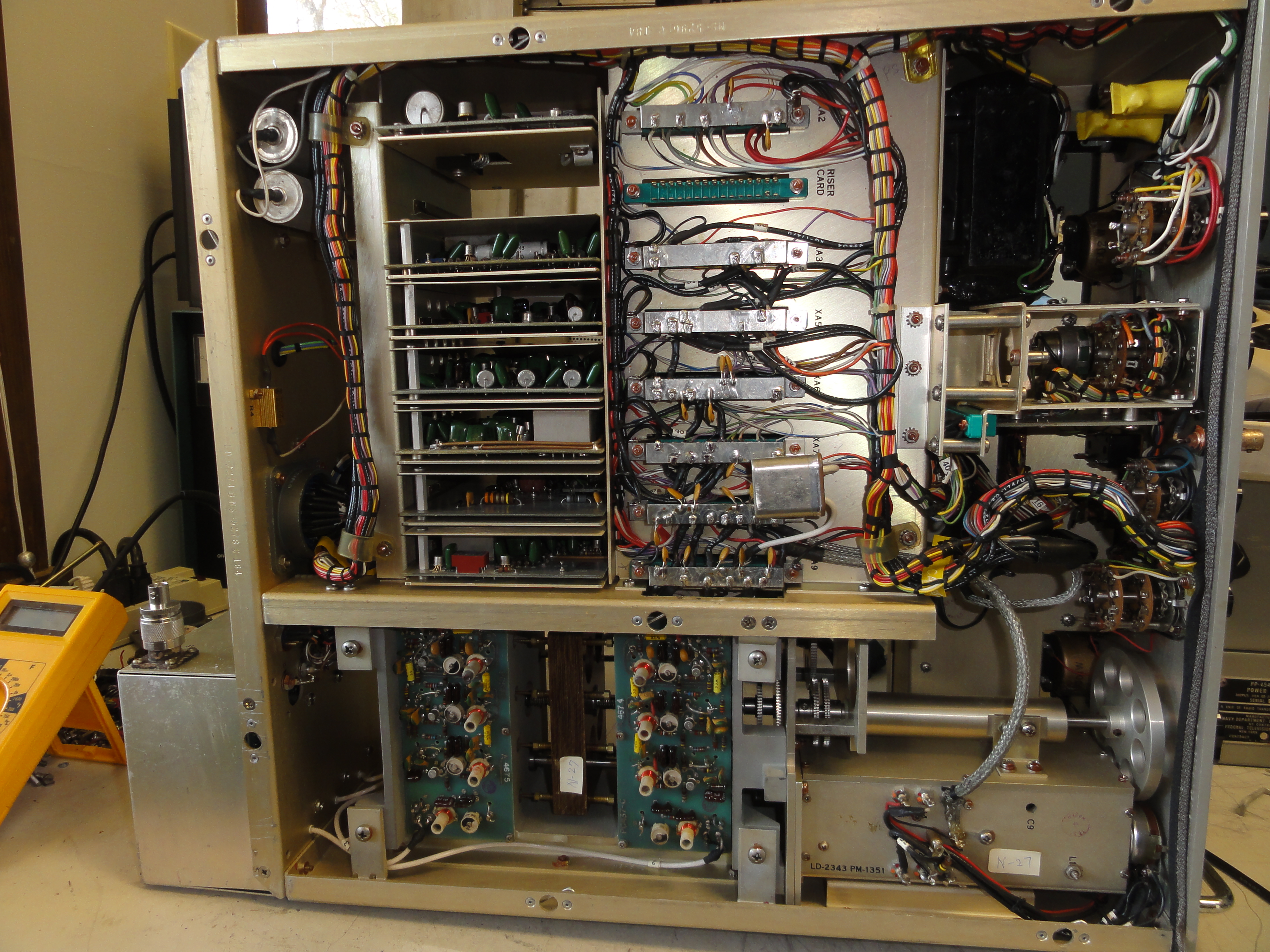

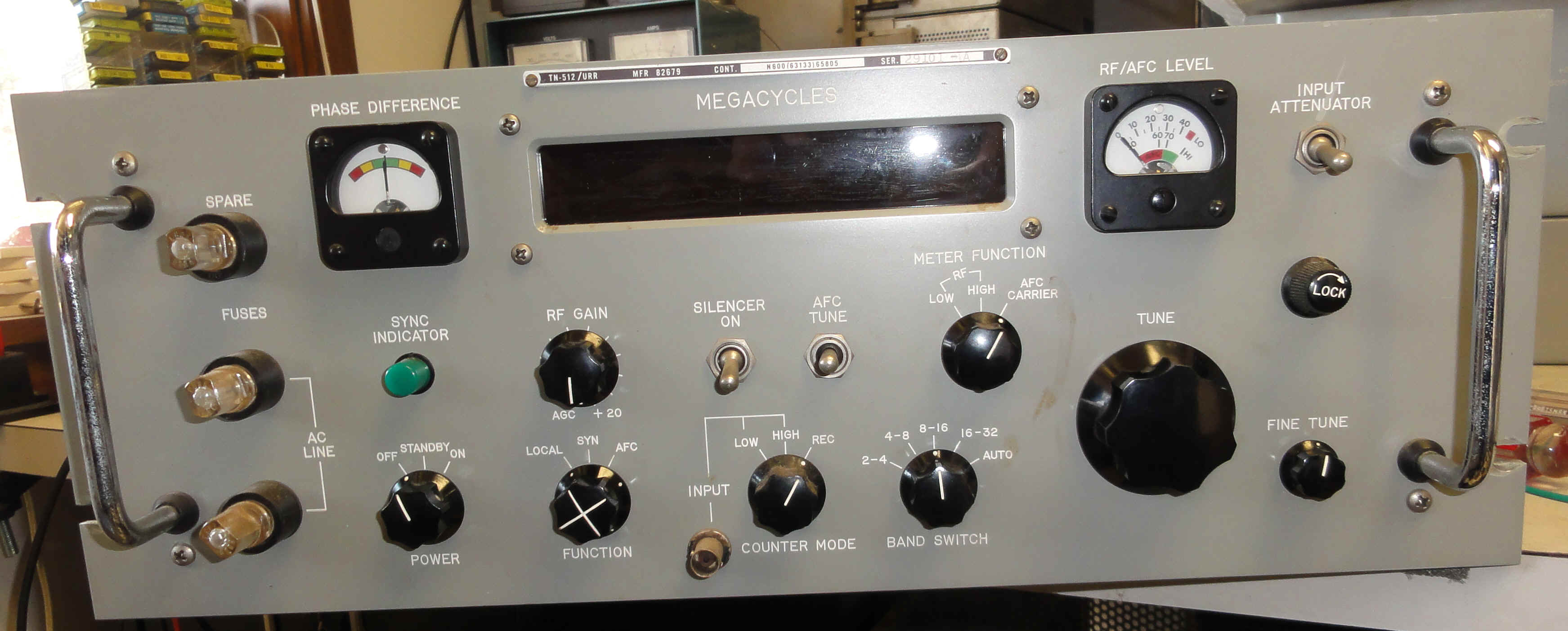

TN-512/URR Tuner (TMC HFR-4)

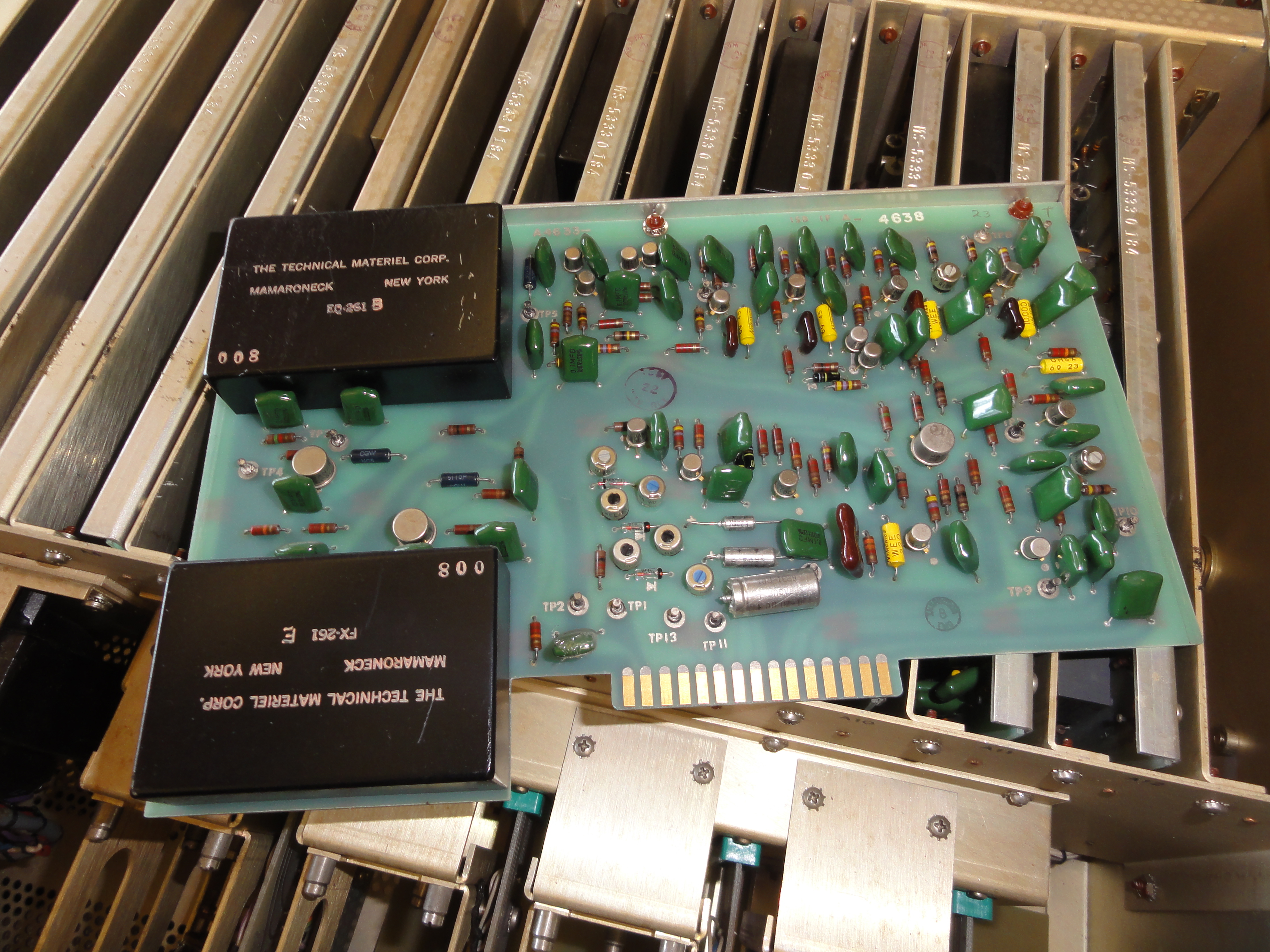

typical module

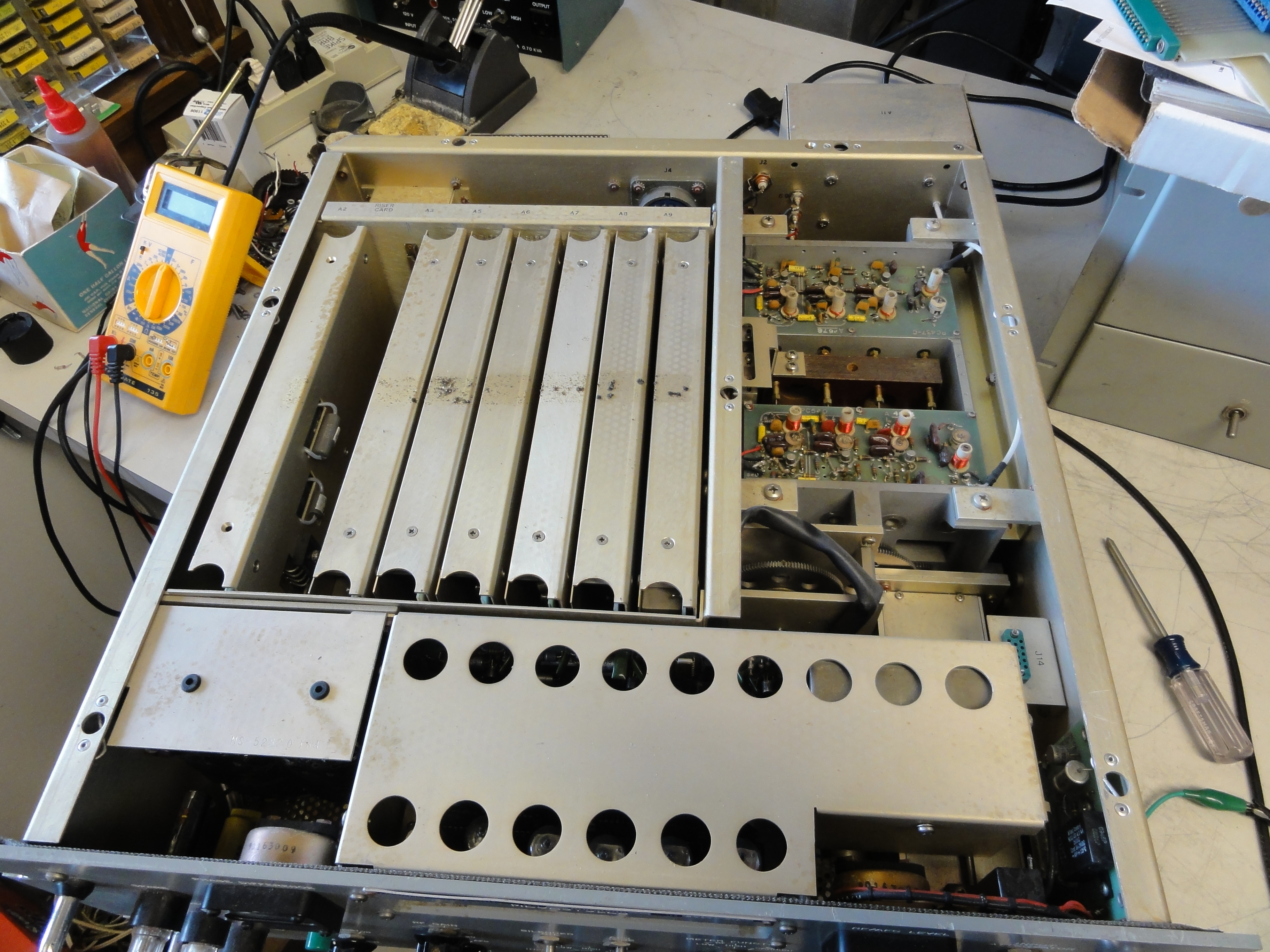

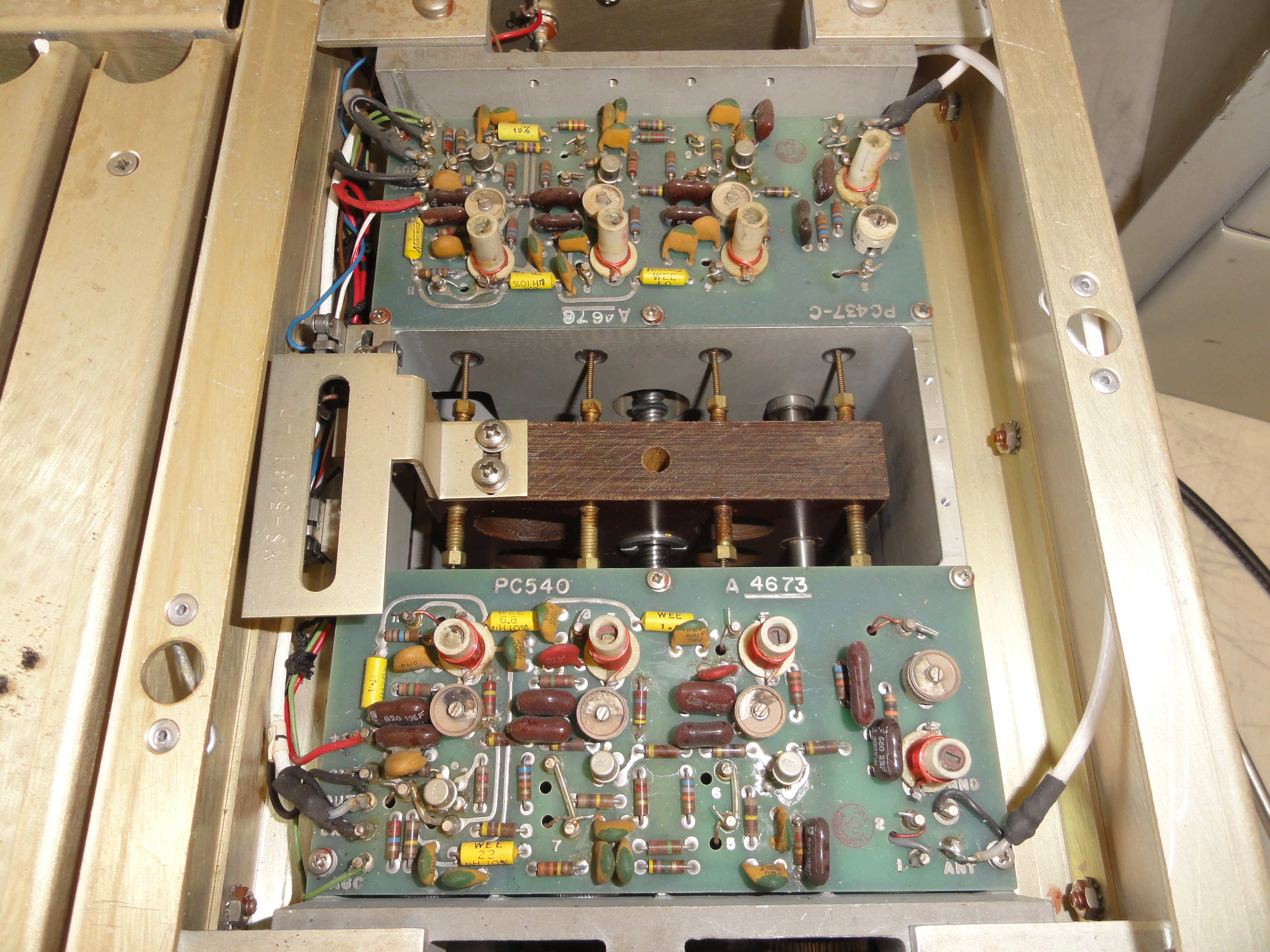

tuning with variable inductors (top)

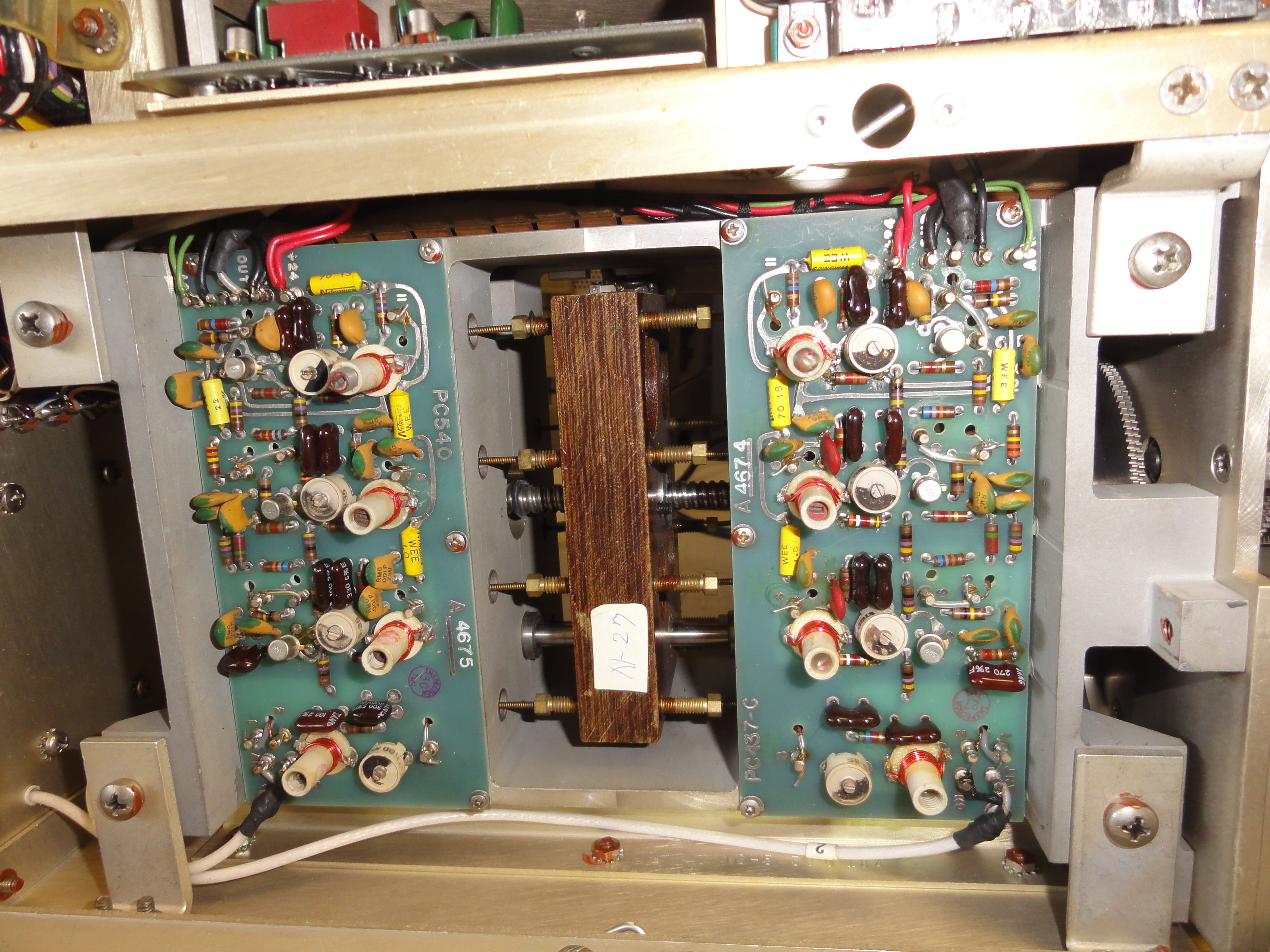

tuning with variable inductors (bottom)

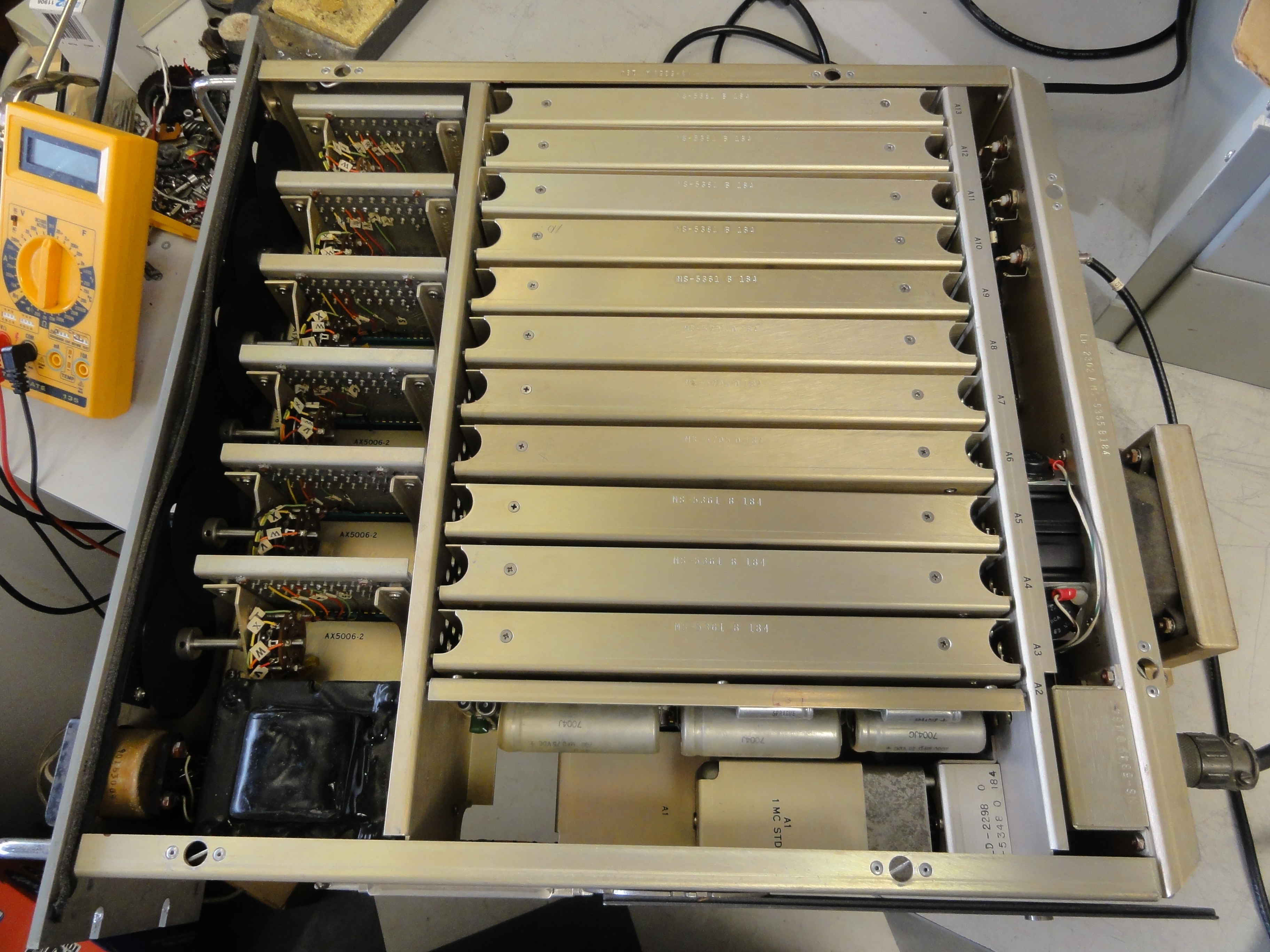

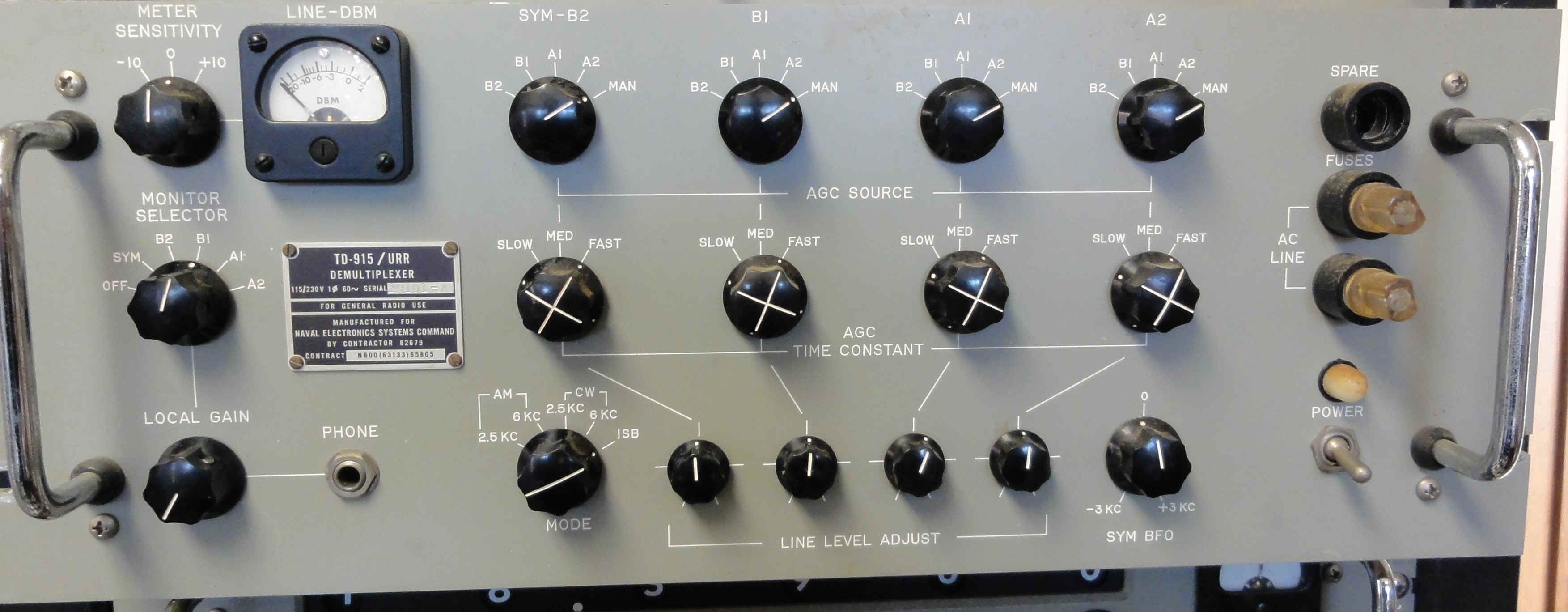

TD-915/URR 4ISB demultiplexer (TMC MSA-4)

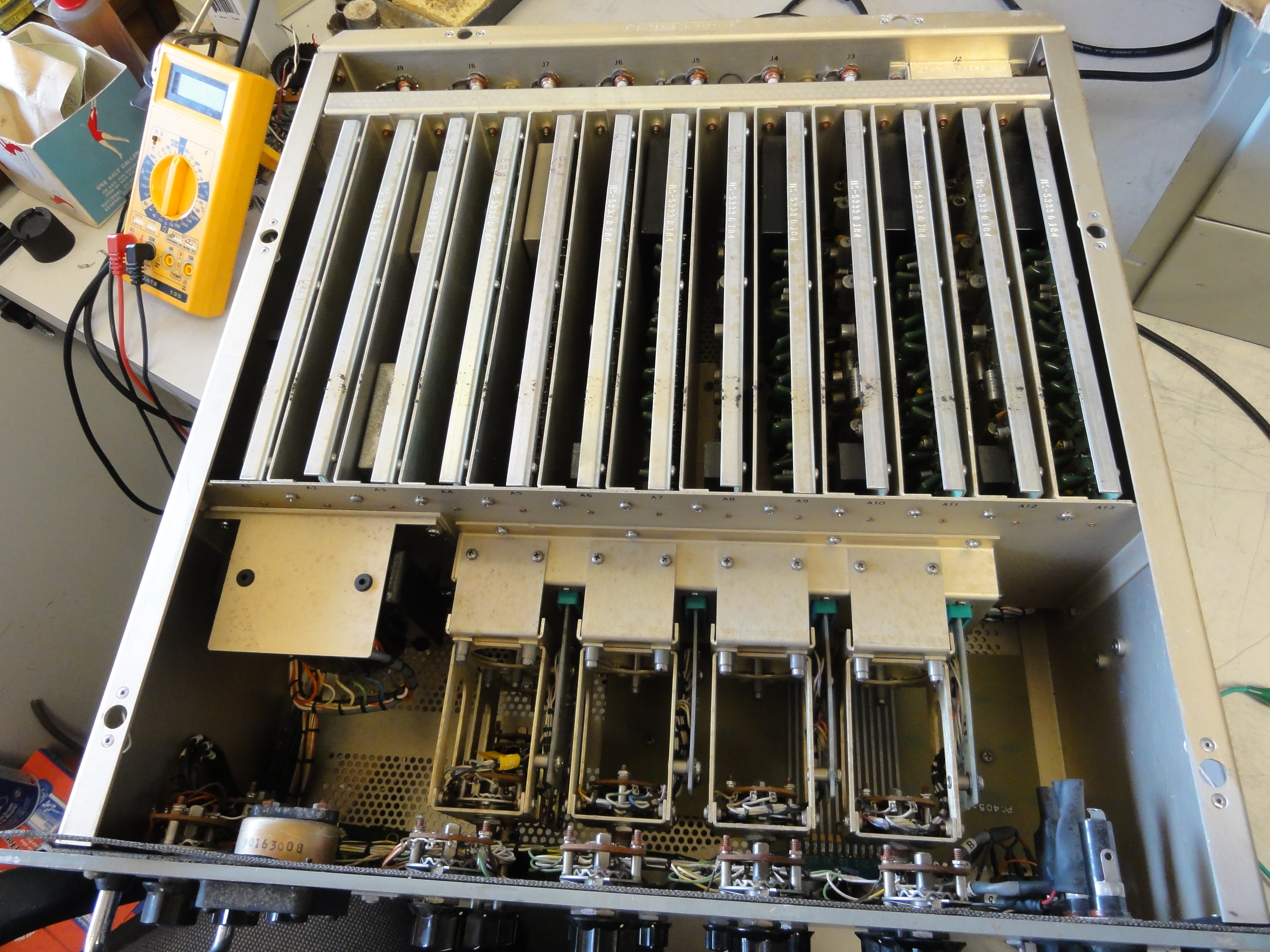

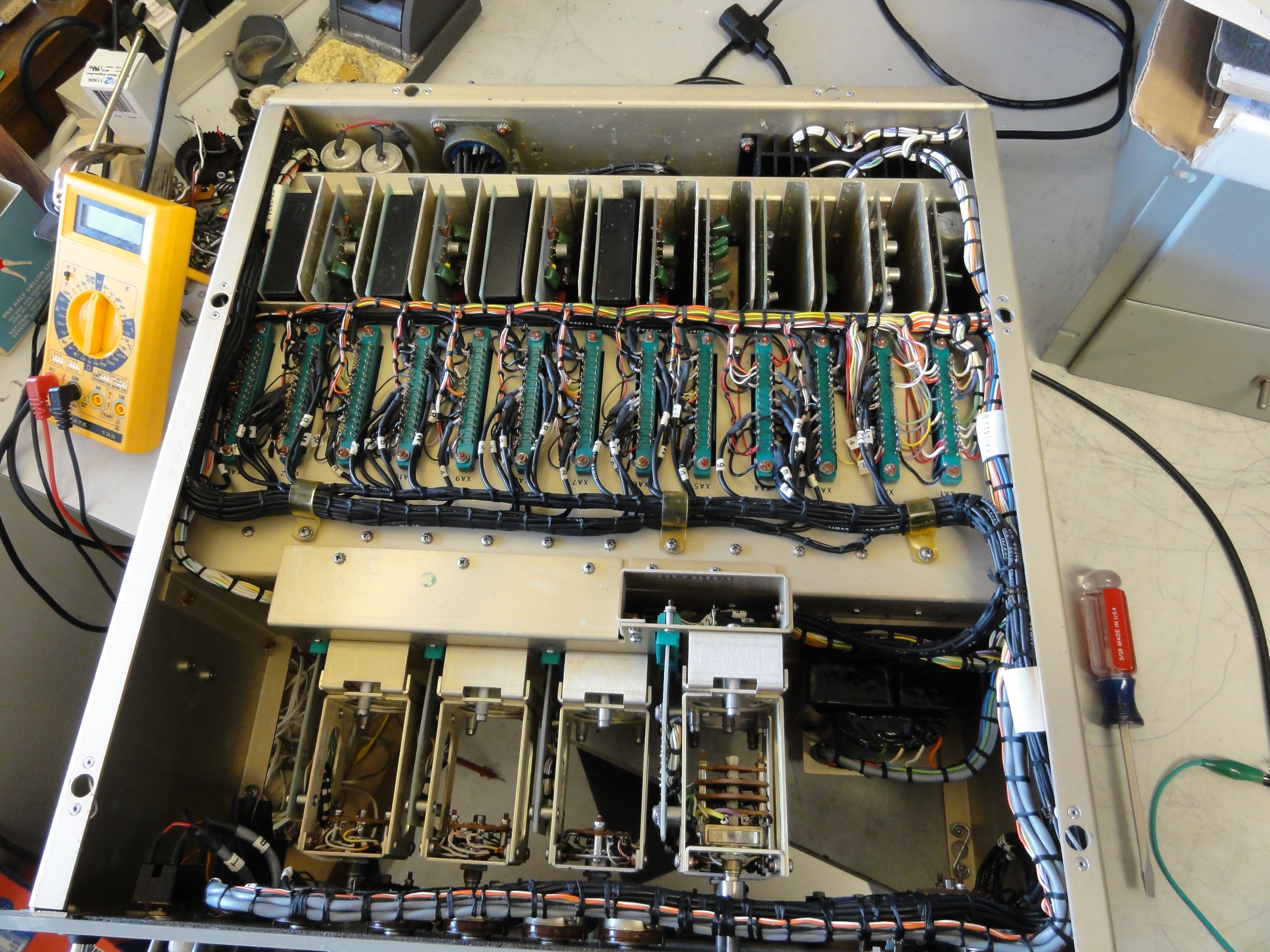

DSC03035.JPG (4185051 bytes) DSC03039.JPG (4202239 bytes) switches with mounts for Ledex rotary solenoids in remote control version

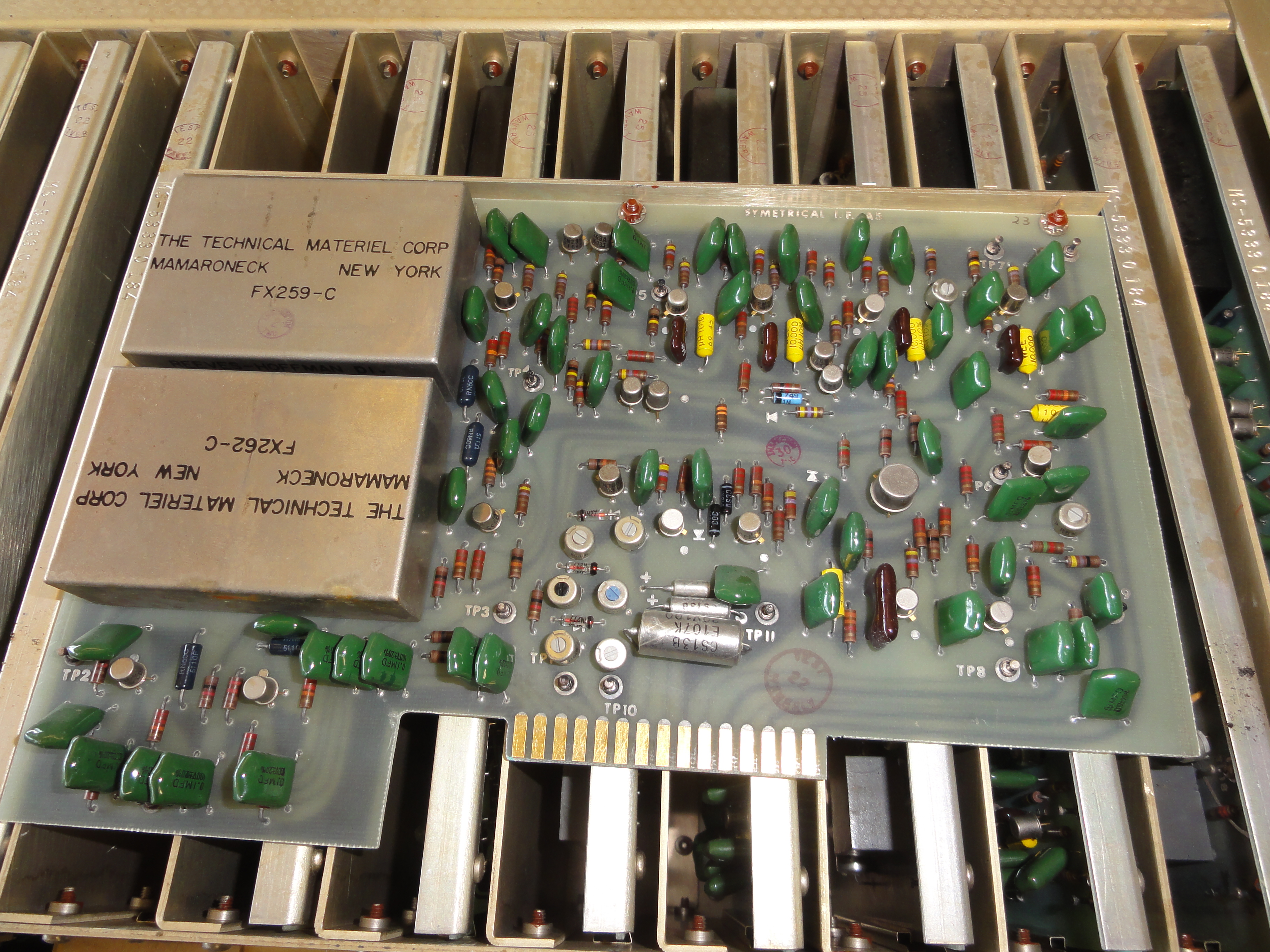

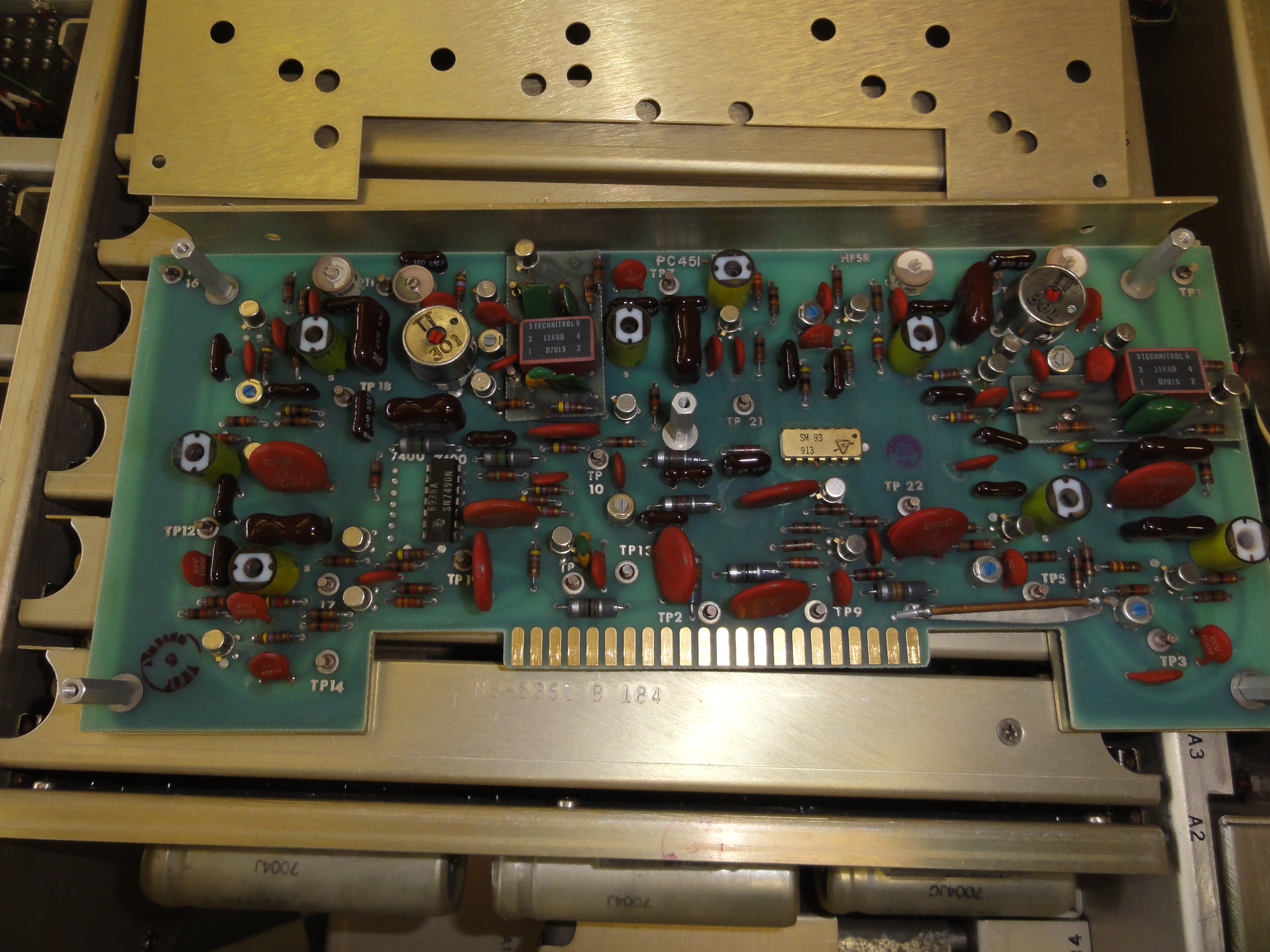

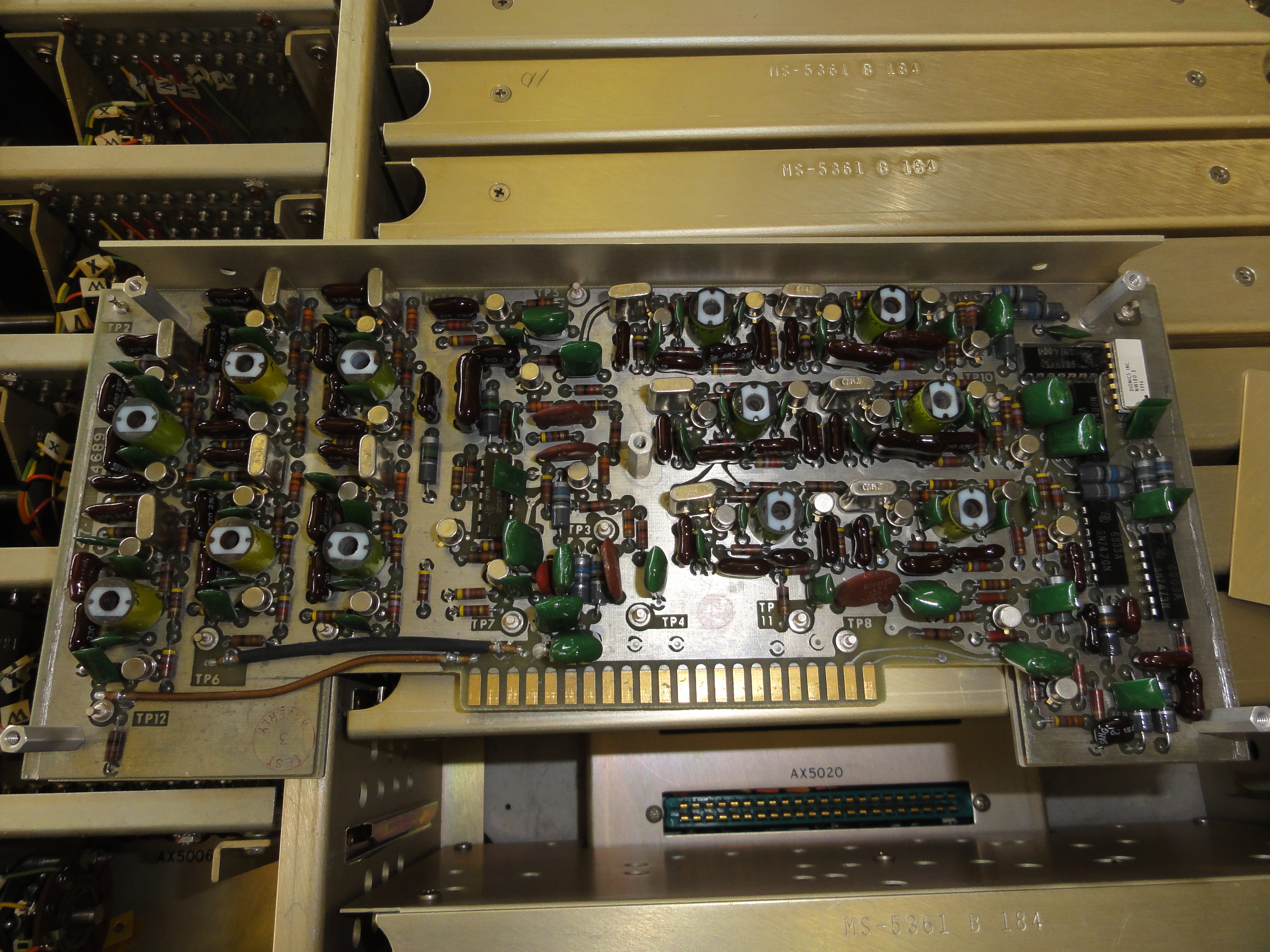

typical module

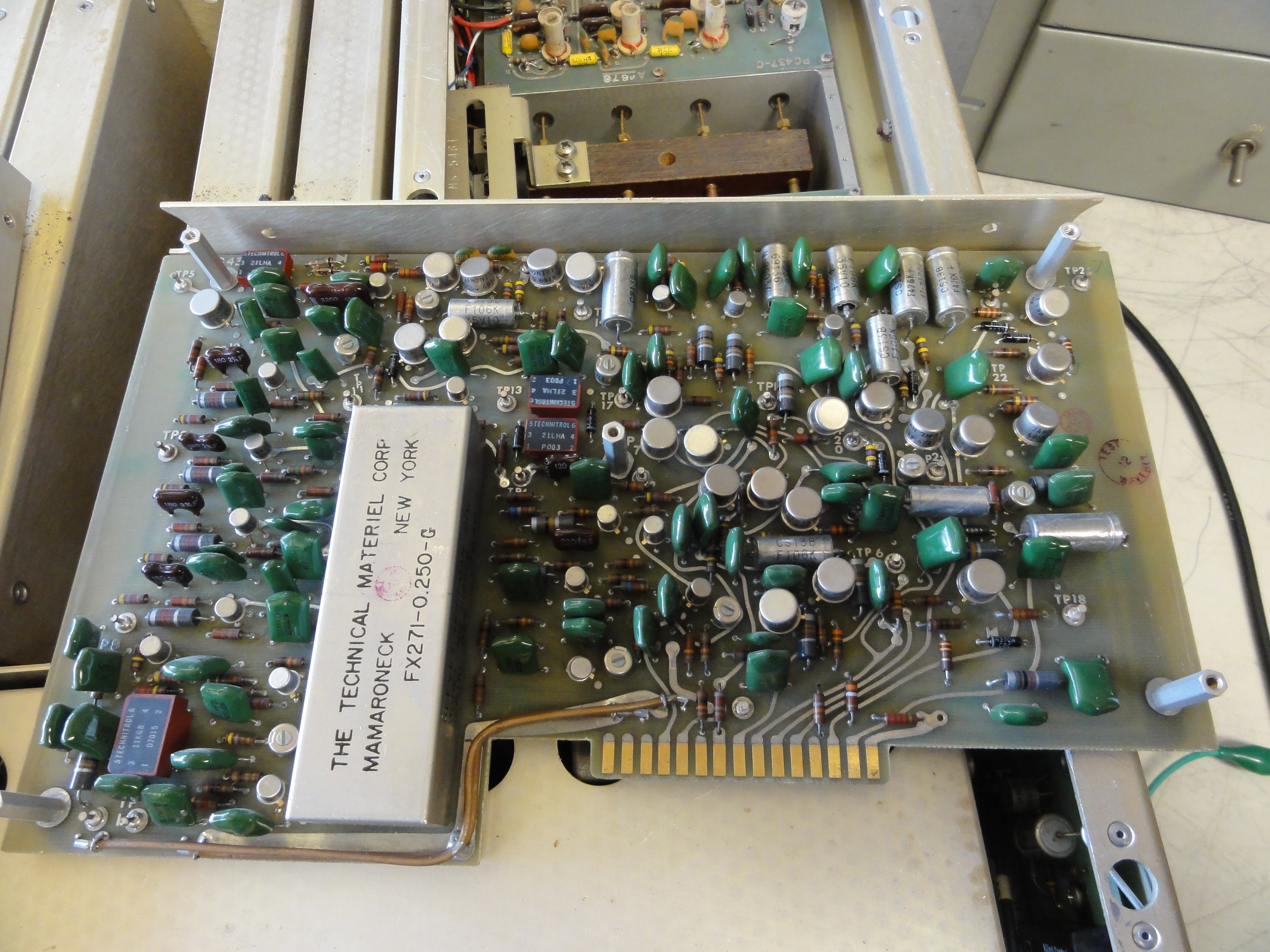

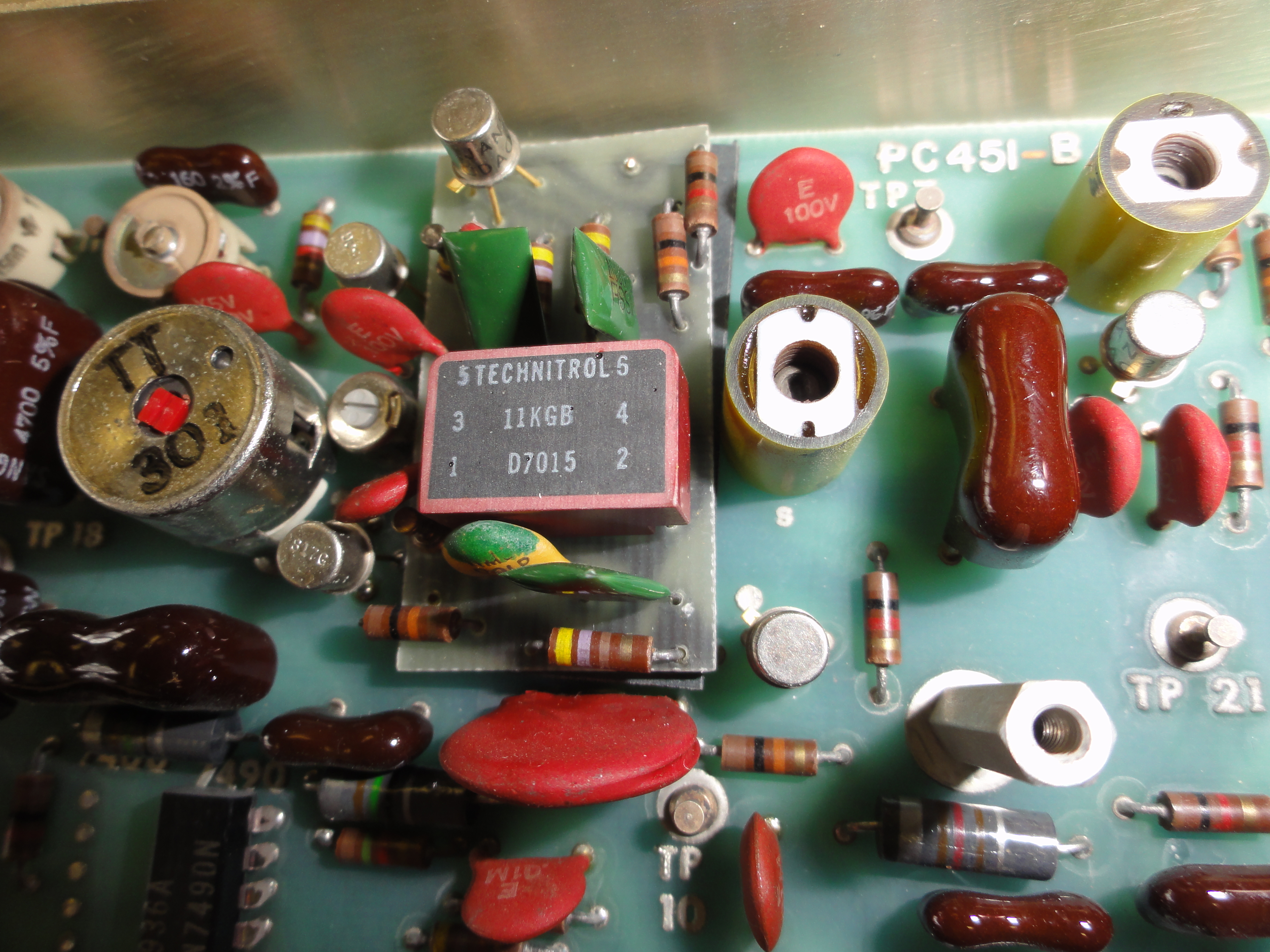

typical module

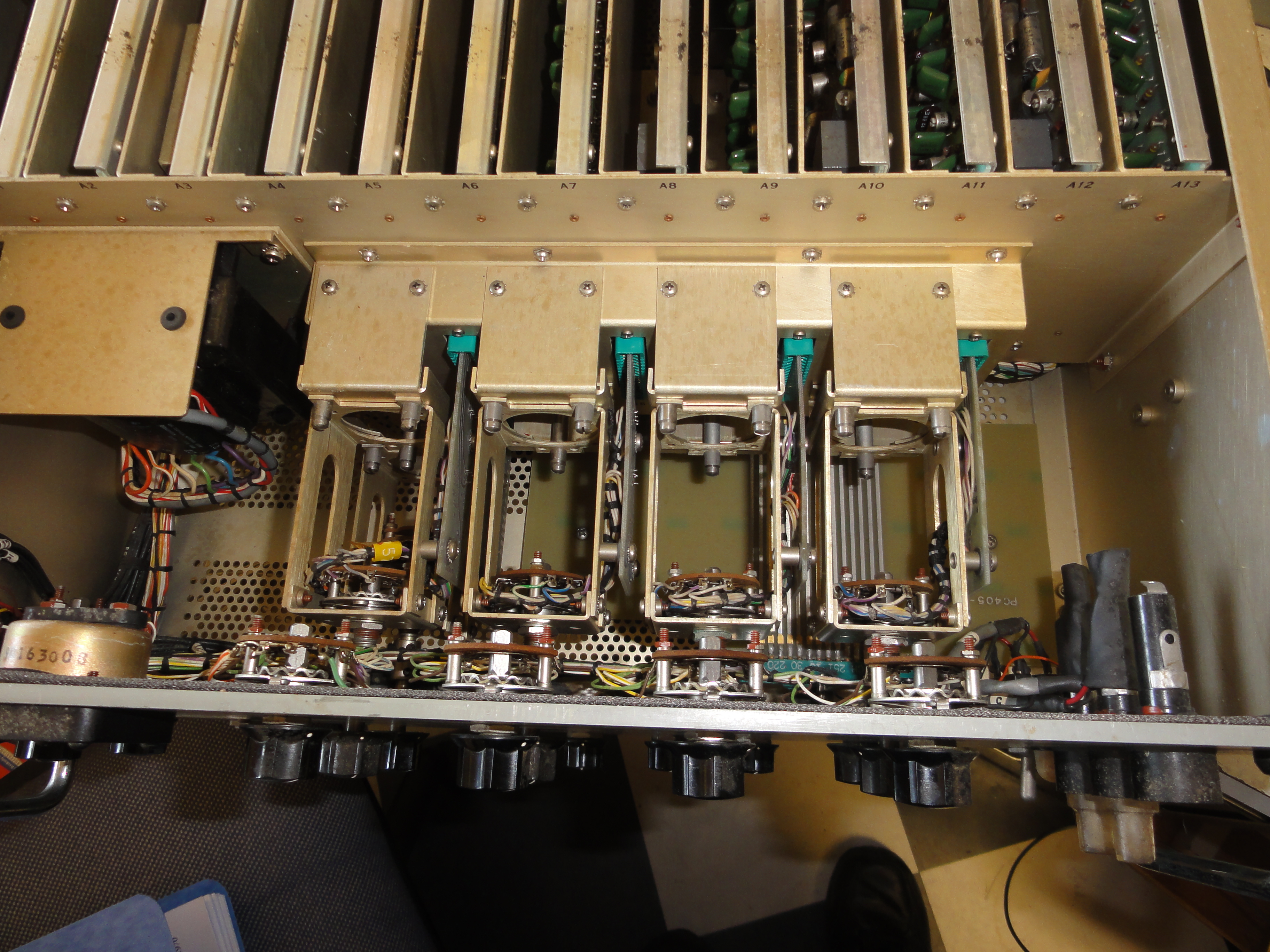

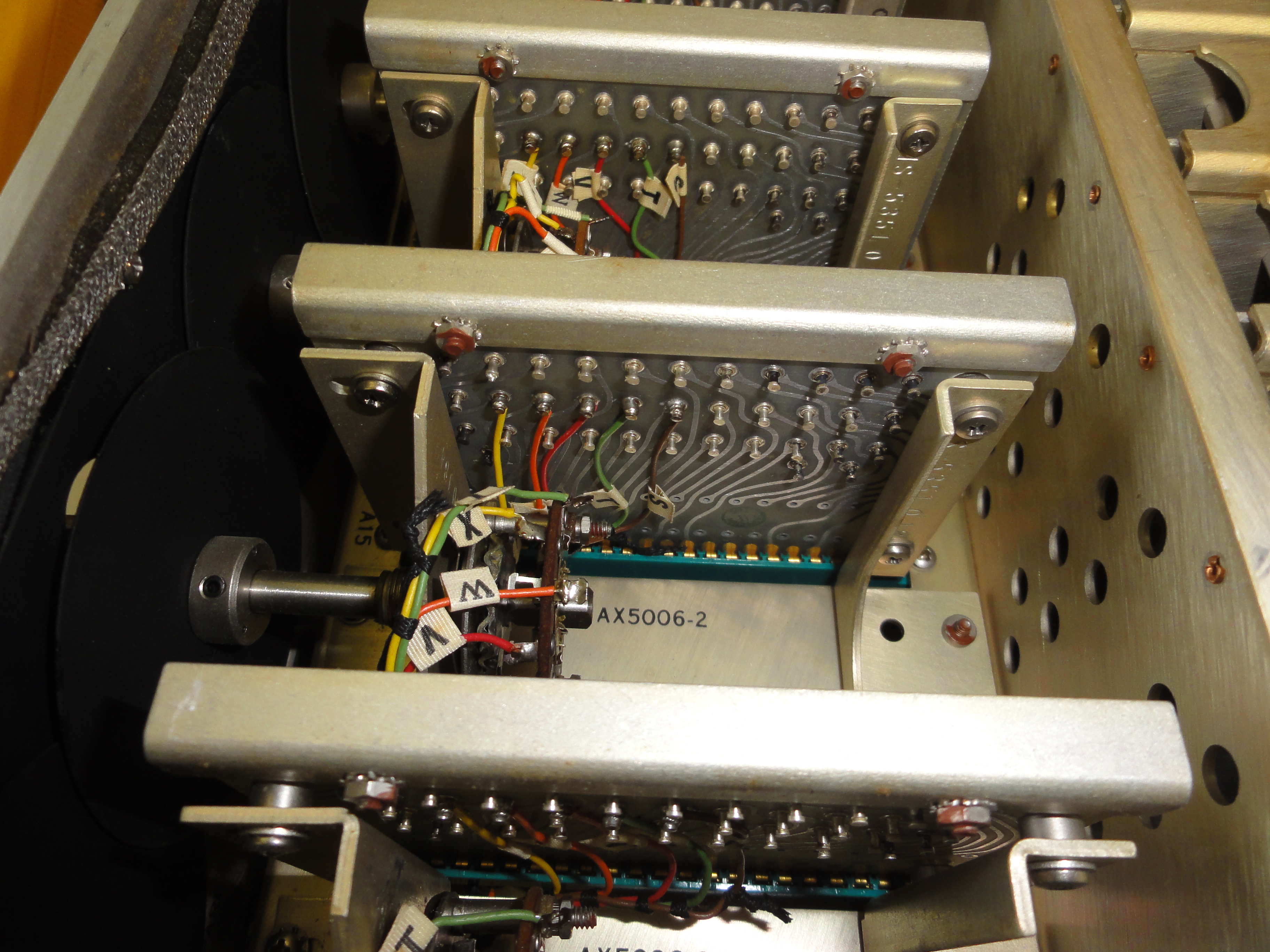

switch showing mount for Ledex rotary solenoid in remote control version
--

O-1511/URR frequency synthesizer (TMC HFS-4)



top - plug-in modules

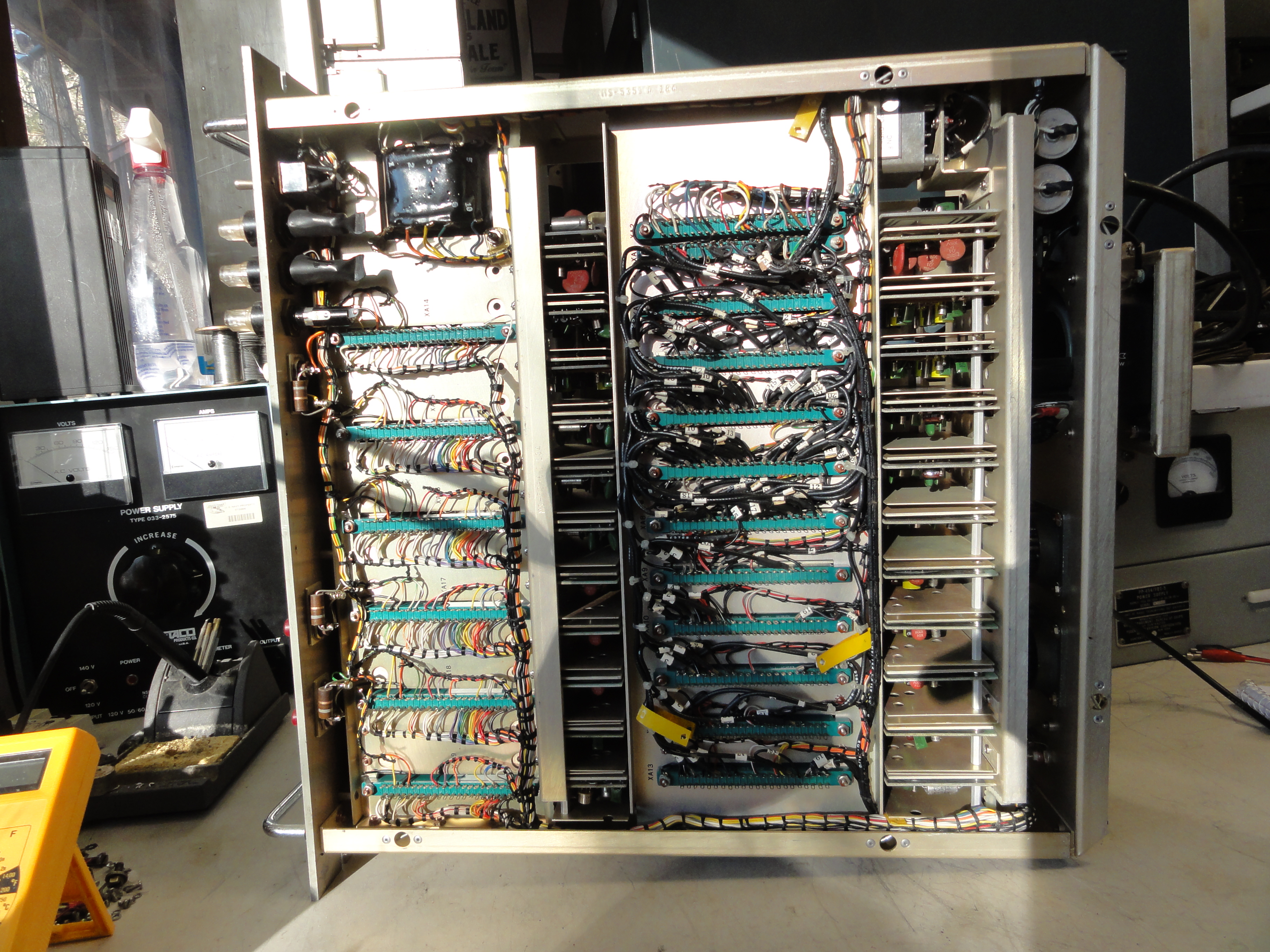

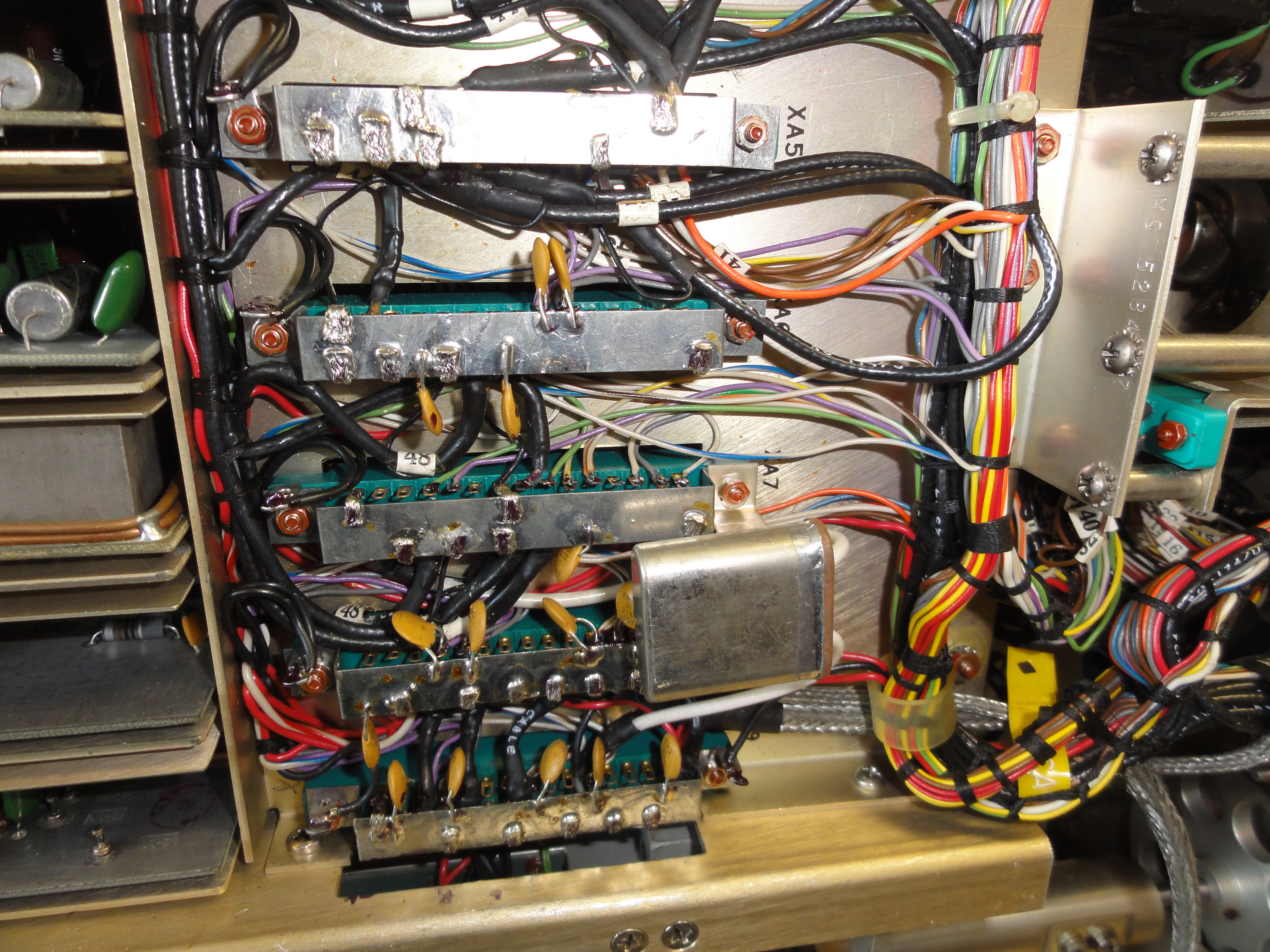

bottom - wiring
co-ax wiring

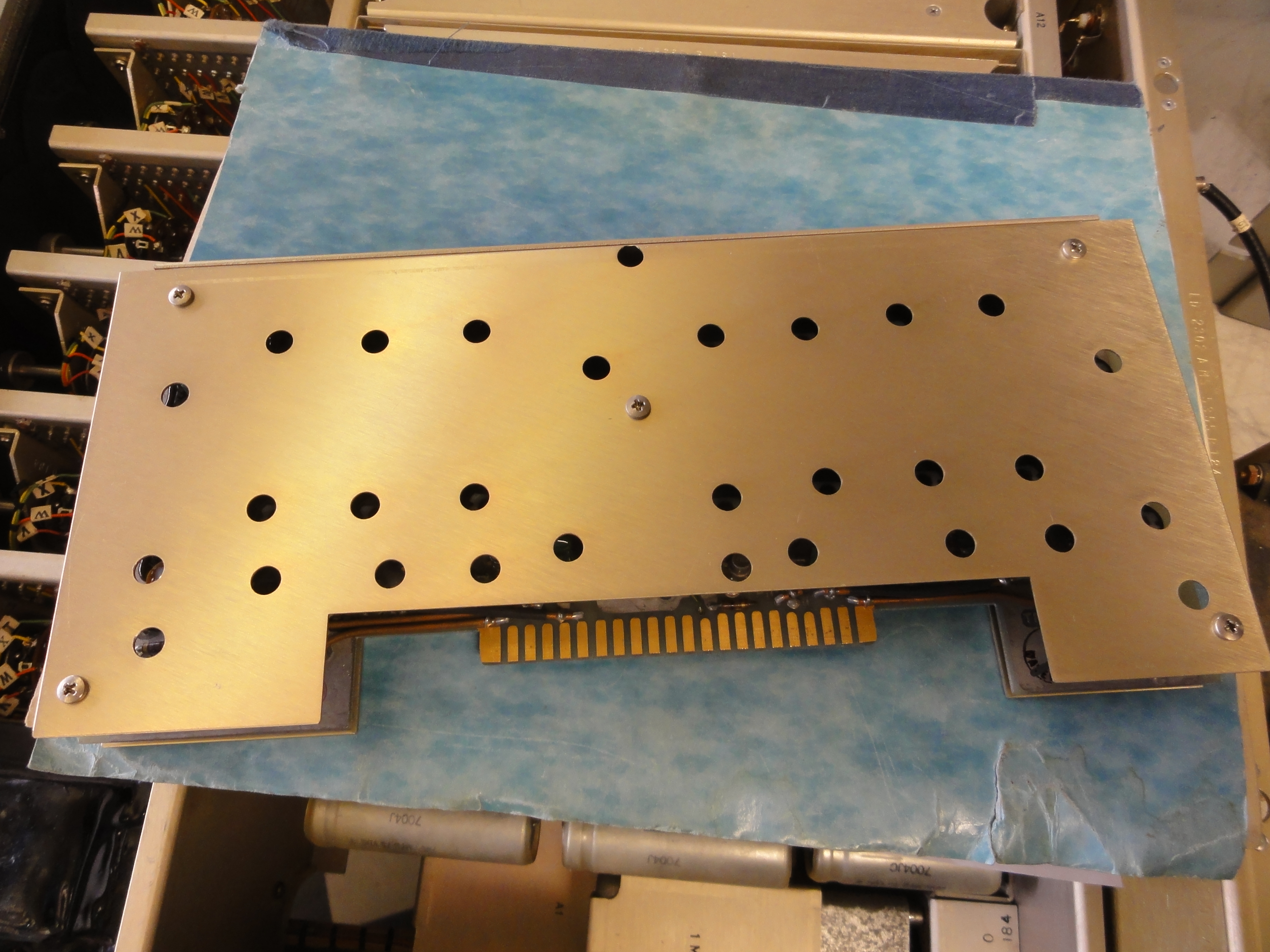

100kc selector - showing holes in shield for test points and adjustments

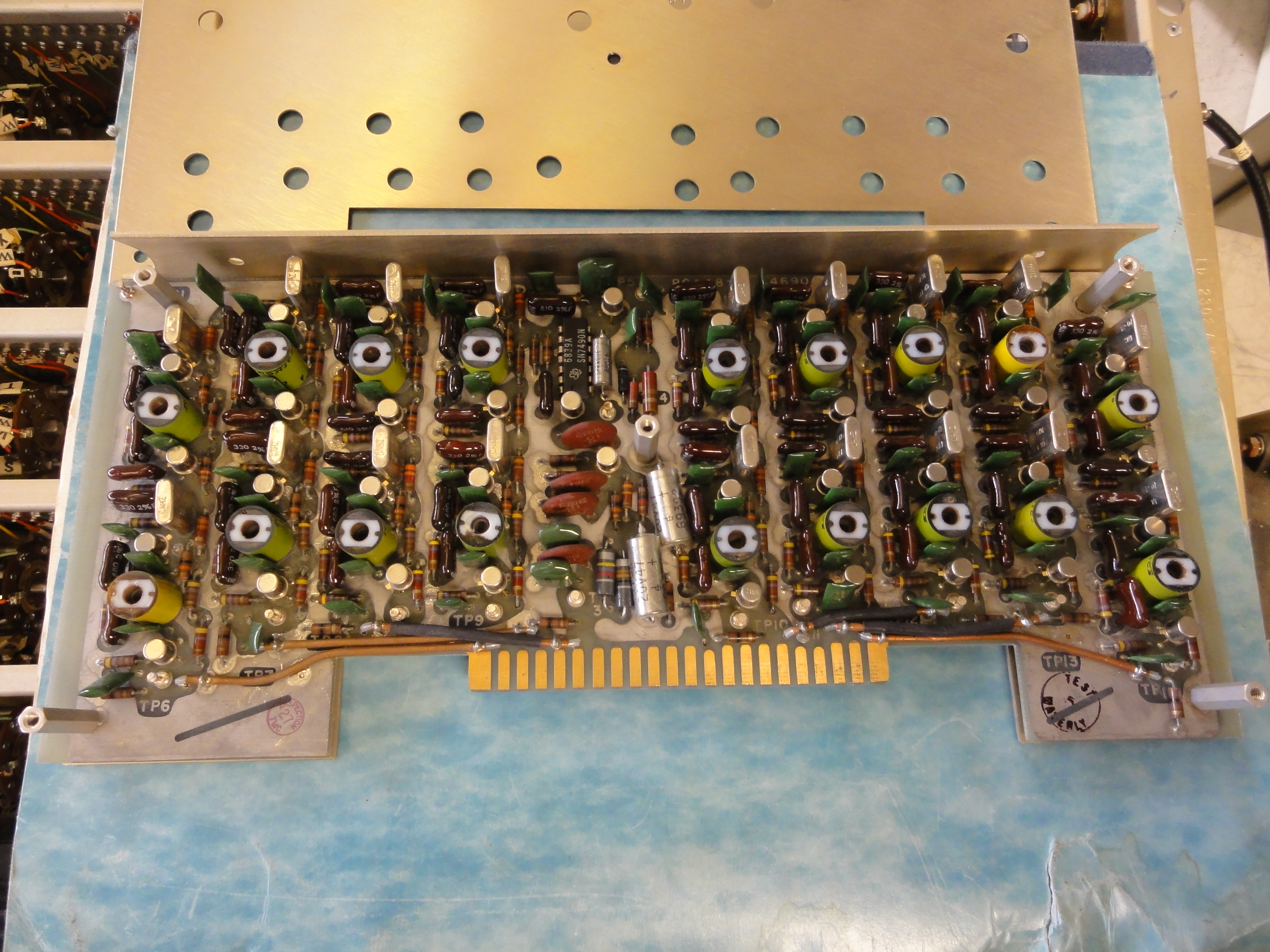

100kc selector

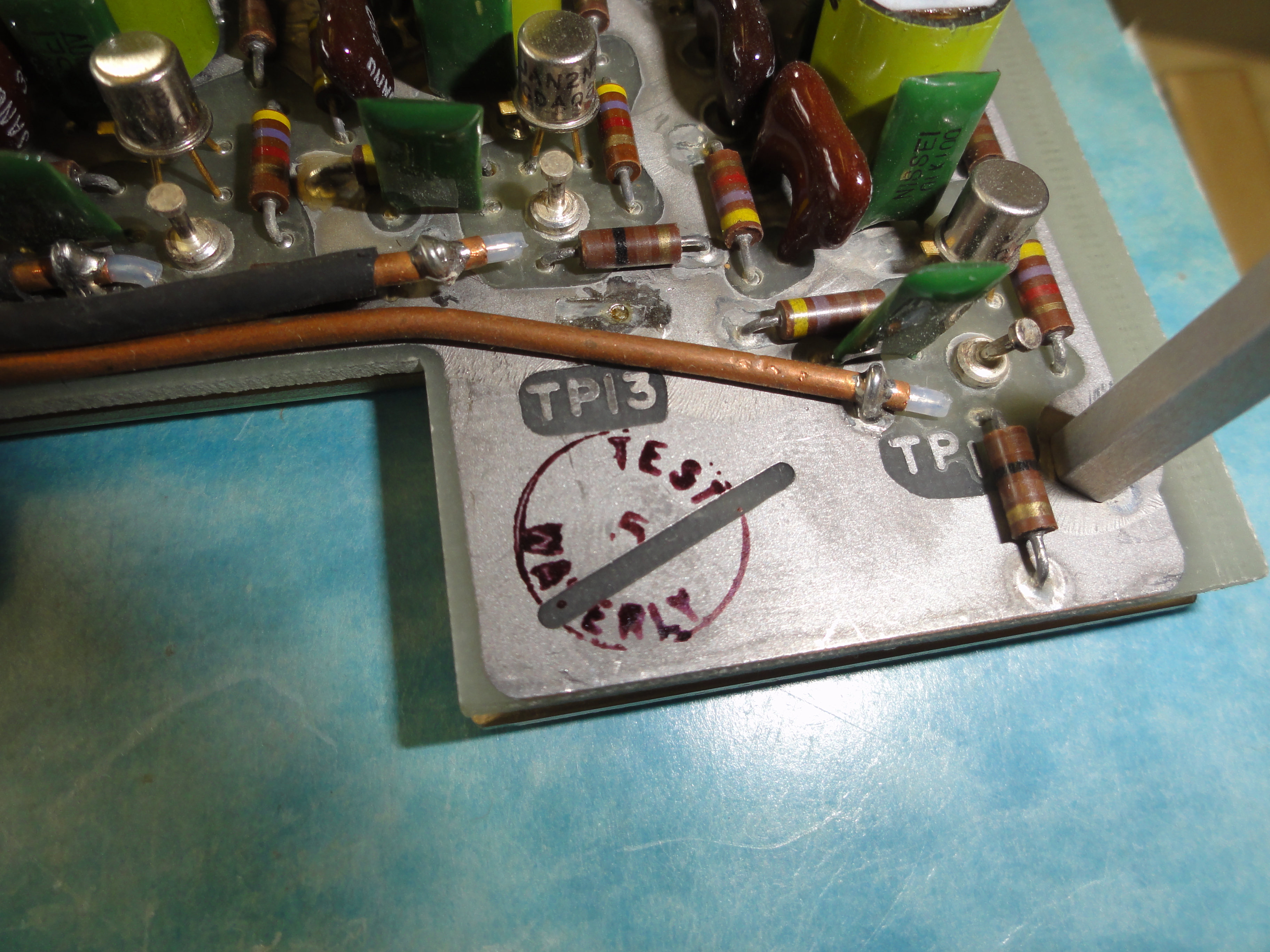

TMC Waverly plant test stamp
--

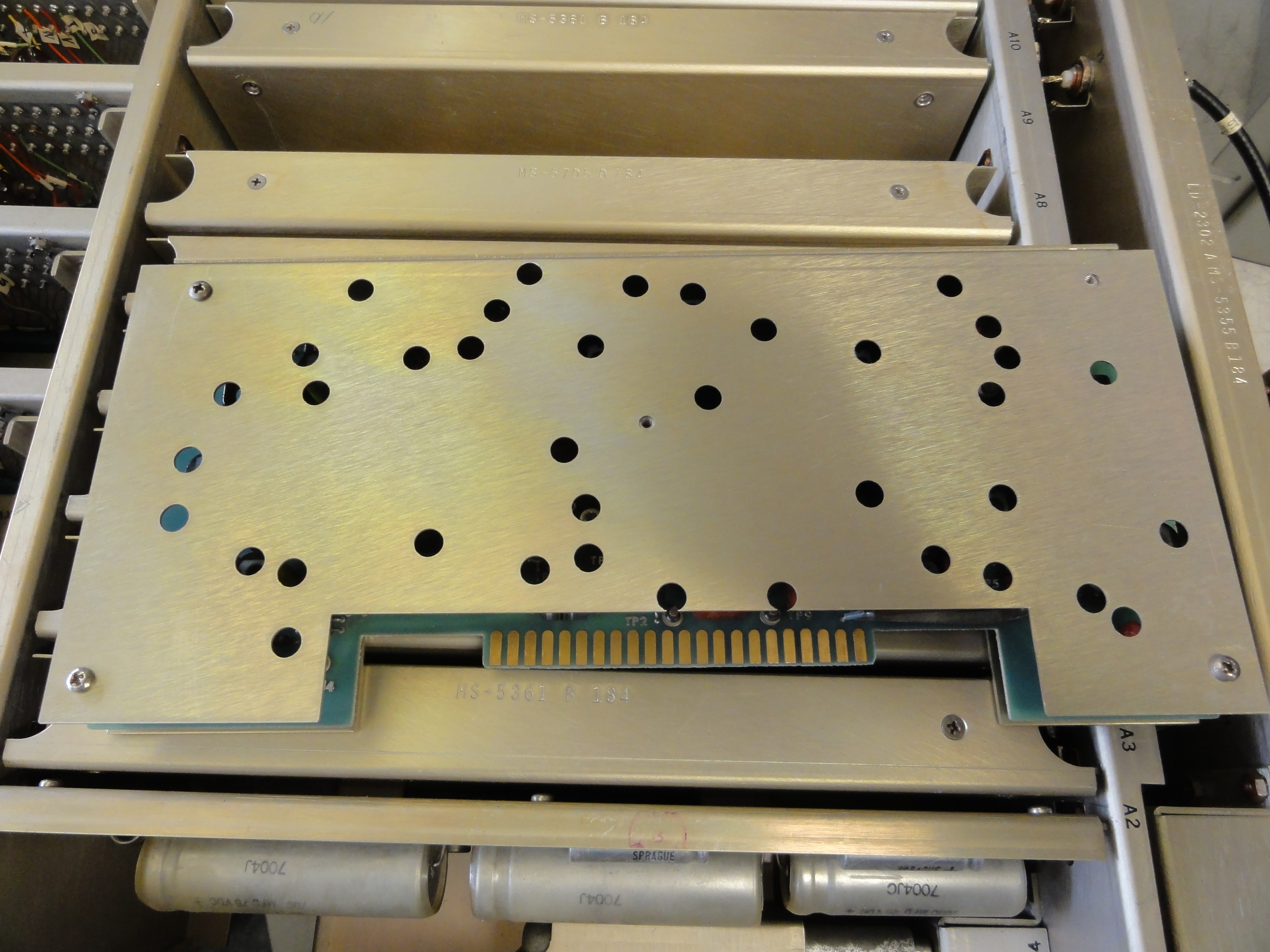

mixer - showing holes in shield for test points and adjustments
mixer
modification add-on
--

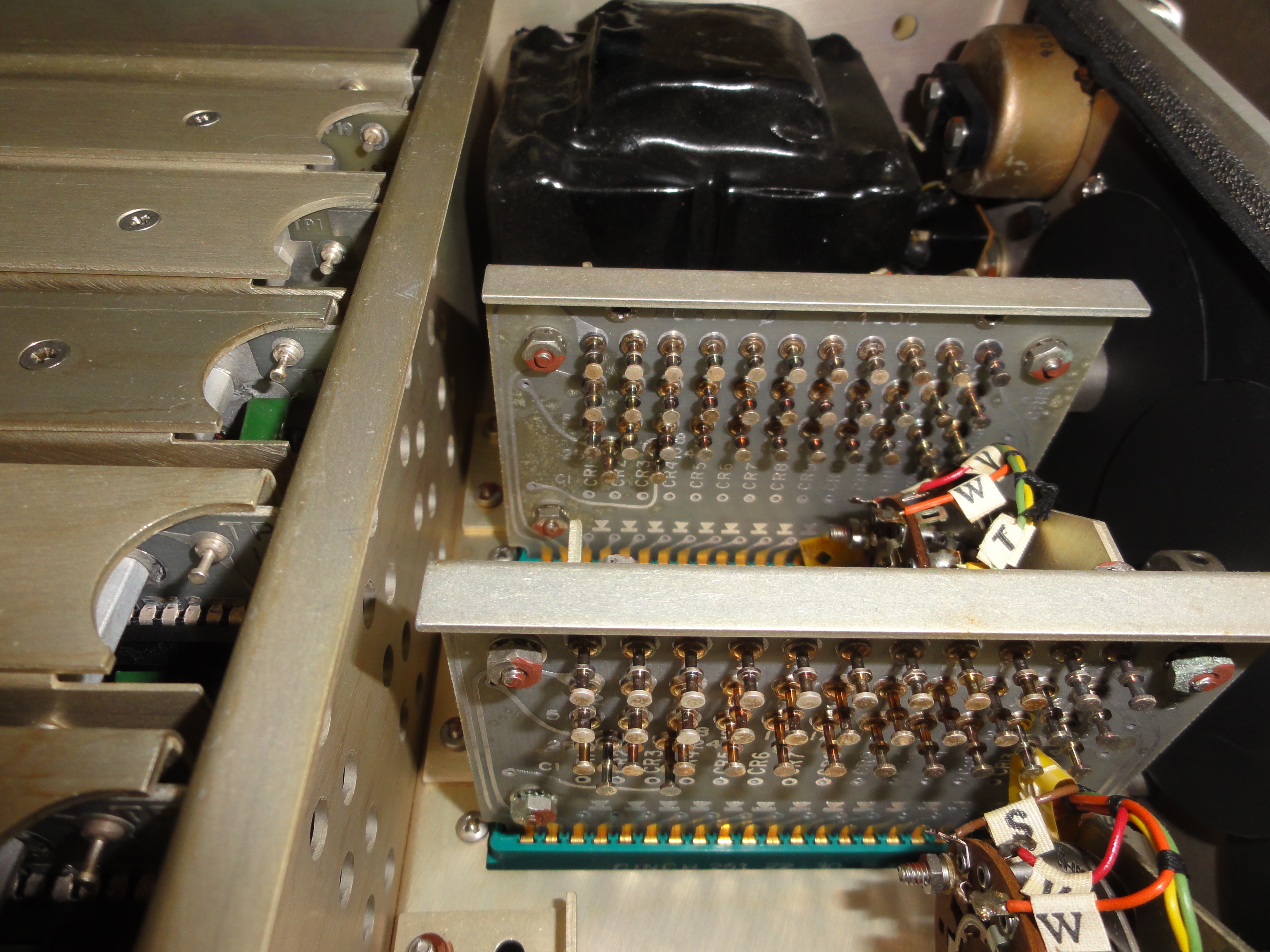

decade switches - RHS of PC board
decade switches - LHS of PC Board
1 mc selector
--
