US Navy HF & MF Receivers - 1950's & 1960's

Be patient and check back often - this project is just getting started!


Mystery Receiver
Schematic from a Navy training course showing "Typical SSB Receiver" which includes a motor-drive AFC for the HF oscillator.
Was there ever a Navy receiver like this???
Note: it is evidently not an RCA SSB-R3 which used motor drive AFC for the IF oscillator

1950's & 1960's individual HF & MF receivers

HF/MF Receivers

AN/FRR-22
(R-502/FRR-22)

 - RCA
 - info/photos
- repairing RF transformers


MF shore version of SRR-12
w/ rack mount + EXT OSC input

0.25-8 mc - 29 tubes

FRR-22 with AGC off-norm


NAVSHIPS 92211 - manual


frr22-1309-01.jpg (359500 bytes) frr22-1309-02.jpg (304665 bytes) frr22-1309-03.jpg (334265 bytes) frr22-1309-04.jpg (276461 bytes)

AN/FRR-23

HF shore version of SRR-13
w/ rack mount + EXT OSC input





2-32 mc

29 tubes

repairing RF transformers

RCA

NAVSHIPS 92211

info/photos

manual

AN/FRR-48(XW-1)

HF DSB/SSB Receiver 2-32 mc
Prototype Only

General Electric model XSDR-1

Synthesized, synchronous detection, direct conversion

See this paper for much more info

And this article by Bill Jones for a history of the developmentLeft to Right- Bill Jones, Dr. John Costas, Roger Swanson, Jack Cunnif
Bill Jones, Dr. John Costas, Roger Swanson, Jack Cunnif

Bottom of RF chassis by Bill Jones
Bottom of RF chassis by Bill Jones
Top of RF chassis by Bill Jones
Top of RF chassis by Bill Jones
Top of Synthesizer by Roger Swanson
Top of Synthesizer by Roger Swanson
Bottom of Audio, Alpha-Beta and Audio by Jack Cunnif
Bottom of Audio, Alpha-Beta and Audio by Jack Cunnif

AN/FRR-59
AN/FRR-59A
AN/FRR-59B

photo thanks to WQ9E

HF - shore version of  WRR-2()

More FRR-59 photos


2-32 mc
1.0 kc tuning (59)
0.5 kc tuning (59A,B)
Wadley loop - 65 tubes


National (FRR-59, FRR-59A)
Arvin (FRR-59B)

info/photos

diagram

restoration

downloadable manual




More FRR-59 photos

CV-920/URR converter - RF tuner
AM-2477/URR amplifier - detector

AN/GRR-17
(R-1490/GRR-17)



Radio Receiver R-1490/GRR-17 is a high dynamic range, dual-conversion superheterodyne receiver for the frequency range from 2.0 to 30.0 me, employing a digital synthesizer for virtually instantaneous frequency selection. Tuning, in increments of 100 cycles, is performed by setting five tuning dials to the signal     frequency in megacycles. Vernier tuning of each 100 cycles step is also provided.
The operating modes are for reception of upper or lower single sideband (A3j), amplitude modulated (A3), continuous wave (Al ), and frequency shift teletype (Fl ) broadcasts. A panel mounted speaker permits signal monitoring. Output terminations are provided for the connection of external teletype equipment, and a headset or other terminal equipment. The receiver frequency stability is one part in 10^7  per day allowing extended operating periods without operator attention.

AN/MRR-2

MF mobile or transportable use
AN/SRR-12 with waterproof case
115vac or 24vdc
0.25-8 mc RCA

AN/MRR-3
need photo - looks like MRR-2

HF mobile or transportable use
AN/SRR-13 with waterproof case
2-32 mc RCA

AN/SRR-12

MF shipboard version of FRR-22

SRR-11, -12, 13 aboard CC-1 USS Northampton

0.25-8 mc

29 tubes

repairing RF transformers

RCA

info/photos

manual

Navships 91875

AN/SRR-13
AN/SRR-13A
(R-441/SRR-13)

SRR-13

SRR-13

HF shipboard version of FRR-23
2-32 mc, 29 tubes

SRR-13A with AGC off-norm switch

SRR-13A with standby switch

SRR-13A showing AGC off-norm instead of standby switch

RCA, Magnavox



Navships 91875 - manual pdf

article in Electric Radio magazine
- July 1991 p 4


SRR-13A

AN/TRR-5

    R-366/TRR-5
    LS-171/U
    CY-851/TRR-5



Morale MF/HF receiver  - Transportable for use ashore







Manual downloadable from here

Schematic & Wiring Diagram


trr5-1101.jpg (1760393 bytes) trr5-1102.jpg (1698733 bytes) trr5-1103.jpg (1744672 bytes) trr5-1100.jpg (1670818 bytes)

AN/URR-10

Spec Sheet

R-231/URR-10
        (Hallicrafters SX-42)
LS-140/U Loudspeaker
MT-598/U Mounting

AN/URR-22
(R-302/URR-22)

need better photo

ship/shore entertainment rcvr
replaces RBO

similar to AN/URR-44


0.54-18.6 mc AM/CW

National

NAVSHIPS 92161 - download

AN/URR-23

R-381/URR-23 (Collins 51J-1) or
R-381A/URR-23 (Collins 51J-2)
CY-1235/URR cabinet
LS-175/U speaker
0.5 - 30.5 mc Collins 51J-1 or Collins 51J-2

Contract NObsr-49134
(15 May 1950)

AN/URR-23A

R-388/URR (Collins 51J-3 variant)
CY-1235/URR cabinet
LS-199/U speaker

photo courtesy of K4NCG

Collins 51J-3 with MFP and modified antenna input ckt ?

0.5 - 30.5 mc

Were all Navy R-388 receivers procured as AN/URR-23A systems?

Click here for R-388 contract info page

R-388 tag showing AN/URR-23A Navy contract number - thanks to W7HDL

Contract NObsr-52527
(22 June 1951)

NAVSHIPS 91678

AN/URR-36

National HRO-50-1
 with 4 coils (A-D), & speaker
50-430 kc & .05-35 mc   NAVSHIPS 91648

AN/URR-36A


National HRO-60
(R-523A/URR-36)


50-430 kc & .05-35 mc


with 10 coils, xtal calib, speaker & coil storage unit, and rack

Navy Contract NObsr-71193

USCG Contract TCG-39506

urr36-2008-13.JPG (626866 bytes) urr36-2008-14.JPG (636317 bytes) urr36-2008-15.JPG (772023 bytes) urr36-2008-16.JPG (524688 bytes)

AN/URR-39

AN/URR-39 receiver National NC-183MR
(R-651/URR-39
 with speaker (LS-228/U)
 & rack mount (MT-1529/U)

50-150kc & 0.54-31mc

standard 47-55mc band replaced with VLF band and bandspread replaced with 0-200 logging scale

National - modified NC-183D

standard NC-183D info

manual
r651-urr39-1306-01.jpg (144549 bytes) r651-urr39-1306-02.jpg (215433 bytes) r651-urr39-1306-03.jpg (193123 bytes) r651-urr39-1306-04.jpg (160171 bytes)
r651-urr39-1306-05.jpg (159728 bytes) r651-urr39-1306-06.jpg (184396 bytes) r651-urr39-1306-07.jpg (131642 bytes) --
urr39-1404-01.jpg (124432 bytes) urr39-1404-02.jpg (126365 bytes) urr39-1404-03.jpg (87579 bytes) urr39-1404-04.jpg (78845 bytes)
urr39-1404-05.jpg (153984 bytes) urr39-1404-06.jpg (144788 bytes) urr39-1404-07.jpg (223882 bytes) urr39-1404-08.jpg (151171 bytes)
urr39-1404-09.jpg (147604 bytes) urr39-1404-10.jpg (77746 bytes) urr39-1404-11.jpg (142268 bytes) urr39-1404-12.jpg (125437 bytes)

AN/URR-41

AN/URR-41 (XN-1) is designed to intercept signals comprised of five modulations and separate them and prepare them for either aural or visual monitoring. The gain control is designed to provide equal amplitude output signals from the five channels with unequal input signal levels.

2-32 mc, 4 bands, 5 preset channels
receives A2, A3, A9

Manuf by Hoffman

please send email if you have any more info


AN/URR-44
(R-892/URR-44)

ship/shore entertainment rcvr
replaces RBO


0.54-18.6 mc AM/CW


General Instruments

NAVSHIPS 93316 - download

 info & photo

similar to URR-22

urr44-1405-01.jpg (27011 bytes) urr44-1405-02.jpg (20866 bytes) urr44-1405-03.jpg (35479 bytes) urr44-1405-04.jpg (20823 bytes)
urr44-1405-05.jpg (20163 bytes) urr44-1405-06.jpg (25553 bytes) urr44-1405-07.jpg (27908 bytes) urr44-1405-08.jpg (30425 bytes)
urr44-1405-09.jpg (31233 bytes) urr44-1405-10.jpg (31870 bytes) urr44-1405-11.jpg (41098 bytes) URR-44 installed aboard USS Becuna SS-319

AN/URR-51 ?

need photo

R-388A - NAVSHIPS 92324

AN/URR-74(V)2



Download AN/URR-74(V)2  manual
   (thanks to Perry W8AU)


Watkins Johnson WJ-8718 variant

see photos & info here

5kc-30mc

AM (16 or 6 khz), SSB (3.2 khz), RTTY (1 khz) or CW (.3 khz).  There is a mechanical BFO built in that can be adjusted in 10 hz increments using decadic thumbwheels The digital readout is clear and bright and goes to a resolution of 10 hz for precise tuning.



AM FM CW LSB USB ISB
0.3, 1, 3.2, 6, 16 kc bandwidths

Watkins-Johnson

see photos & info here


receivers aboard USS Iowa BB-61
receivers aboard USS Iowa BB-61
Coverage of 5 khz to 30000 khz
Selectivity of 16 / 6 / 3.2 / 1 / .3 khz
BFO of + or - 8 khz and shown in its own display to the left of the frequency readout
4 Tuning steps
AGC fast / slow / off
Modes of AM / FM / CW / LSB / USB / ISB
AF/S-Meter
115/220 VAC
Digital readout down to 10 hz
Sensitivity of .4uV 16 dB (S+N)/N CW
IF output
RF gain
Headphone and line out jacks
Rack handles

AN/WRR-2
AN/WRR-2A
AN/WRR-2B

upper - AM-2477/URR amplifier - detector
lower - CV-920/URR converter - RF tuner

HF shipboard version of FRR-59() - different mounting

Aboard USS Ticonderoga

2-32 mc

1.0 kc tuning (2)
0.5 kc tuning (2A,B)
Wadley loop
65 tubes

See FRR-59 block diagrams

More FRR-59 photos

National (2, 2A)
Arvin (2B)

info/photos

diagram

restoration

downloadable manual



R-274B/FRR

Hammarlund
SP-600-JX-6 - NObsr-52039
SP-600-J-11
- NObsr-52039
SP-600-JX-35 - NObsr-71369
SP-600-JL-24 Special - ?


540kc-54mc


Hammarlund
r274b-110619-01.jpg (131262 bytes) r274b-110619-02.jpg (168977 bytes) r274b-110619-03.jpg (195194 bytes) r274b-110619-04.jpg (101892 bytes)

R-274B/FRR "special"

(Hammarlund SP-600-JL-24)
need photo

Hammarlund
 SP-600-JL-24
100-400kc and 1.35-29.7mc Hammarlund

NAVSHIPS 91661

SP-600 series info

SP-600 manuals

R-369/FRC-10
(part of AN/FRC-10A or -10B)
4-28 mc dual channel SSB
- for VF AFSK links



Manual TM 11-780
download pdf version

R-388/URR

photo thanks to Don Smith

Collins 51J-3



Click here for R-388 contract info page

Hollow State News w/ R-388 articles


NAVSHIPS 91678
TM11-854 / TO16-35R-388-5

Some Navy R-388 receivers were procured as AN/URR-23A systems.

Others were procured under MIPR-881-47159
Does this mean Military Interdepartmental Purchase Request? Please send e-mail if you can help clarify this - thanks!

R-388A/URR

need photo

NAVSEA manual
Collins 51J-4

Were any 51J-4's actually labeled as R-388A? What is an R-388B?

Click here for R-388 and R-388A contract info page

Collins

Contract NObsr-69046
(16 Nov. 1956)

NAVSHIPS 92324
NAVSHIPS 0967-994-9010
NAVSEA 0967-LP-994-9010
(these are reprints of the Collins 51J-4 manual)

R-390/URR


Did the USN use the R-390 or just the R-390A? So far I have not seen a photo of an R-390 in USN service.



Hollow State News w/ R-390 articles

R-390/URR info

R-390A/URR


r390a-103.jpg (35985 bytes) R-390A was a Signal Corps (Army) acquisition but used extensively by the US Navy.




Collins, other manufacturers



Many Navy R-390A units were modified with a green diode load jack on the front panel (FC 4)
r390a-navy-63.jpg (78469 bytes) r390a-navy-65.jpg (51557 bytes) Navy Field Change 3 - rear panel cover with AN connectors for power, line audio, and local audio


COMMSTA - R-390A with URA-8

R-391/URR

Auto-tune version of R-390/URR



Used by NAVSECGRU only?
(AN/FRA-44 and AN/FLR-7)



R-450/FRR-28

Hammarlund SP-600 modified by  Northern Radio for AN/FRR-28 diversity system More R-450/FRR-28 photos Hammarlund

SP-600 series info

SP-600 manuals

article in Electric Radio magazine
- Sept 2004, p2

R-618/FRR-32
Need better photo

AN/FRR-23 modified for use in AN/FRR-32 dual diversity system  - RCA

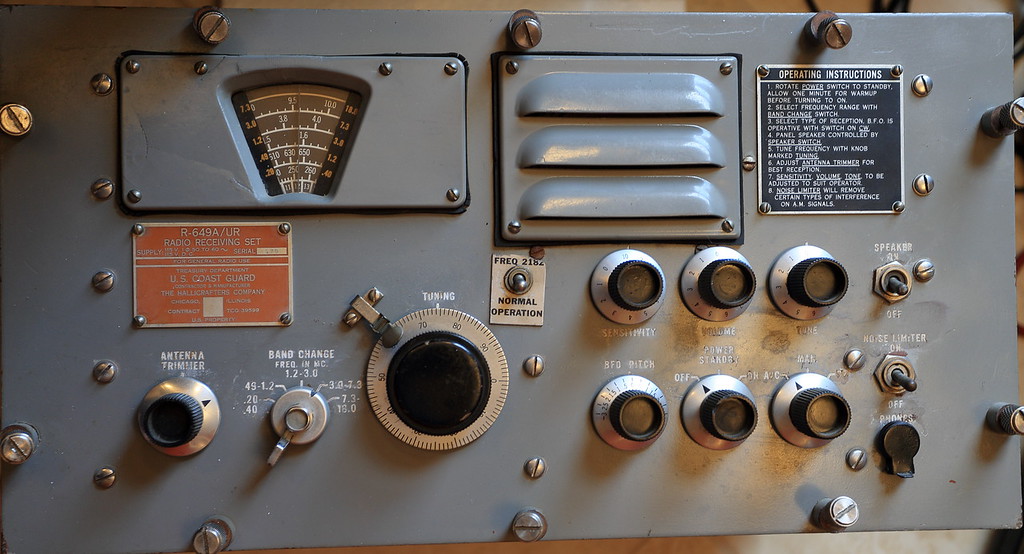

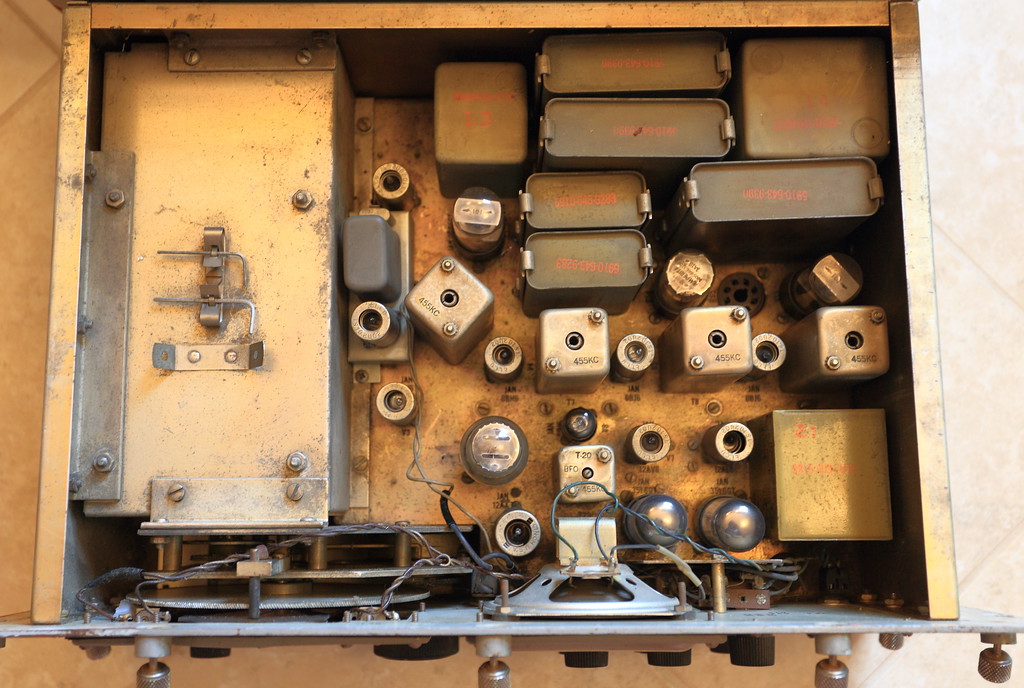

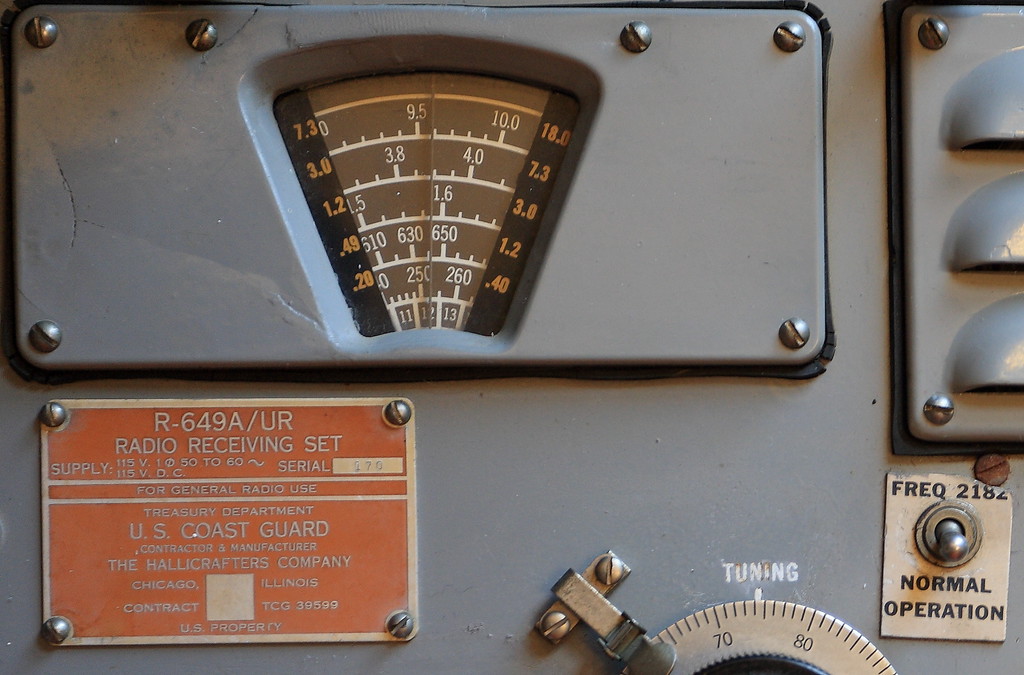

R-825/URR

540 kc - 31 mc


spec sheet

manual


R-840/URR


(same as R-825 plus xtal control)
Contract NObsr-71790
540kc-31mc

More photos

spec sheets

manual - NAVSHIPS 93165

R-1051/URR
R-1051A/URR
R-1051B/URR
R-1051C/URR
R-1051D/URR
R-1051E/URR
R-1051F/URR
R-1051G/URR
R-1051H/URR


R-1051 Web Page covering variants and other info

solid state (plus 2 tubes in RF)
late 60's replacement for most receivers


R-1051 Web Page covering variants and other info


R-1414/URR

photo thanks to K1VVC

photo thanks to Chuck



Please send e-mail if you have any more photos or info

A7 HF oscillator board - please send e-mail if you have a parts unit...

 HF - solid state -




r1414-1318.jpg (5619123 bytes) r1414-1320.jpg (5125003 bytes) probably only used for intercept rather than HF comms - used by ASA - was it also used by NAVSECGRU?

Some info in this thread

manuf by Sylvania

Manual available from www.manualman.com

From 1975 Communications Technician O 3&2 manual - The R-1414/URR radio-receiver is a solid-state, general purpose HF receiver intended primarily for operation in fixed stations or in transportable vans when at a fixed station. It is capable of detecting AM, CW, SSB ,ISB, FM, and FSK signals within the 1.5 to 32 MHZ frequency range. Although the future status of the R-1414/URR receiver is in doubt at present, a description is included in this text for your information. Initial distribution of a limited number of these receivers has been made for field evaluation. It is anticipated that the R-1414/URR will ultimately replace the R-390A/URR at all NAVSECGRU sites.
In comparison with the R-390A/URR, the modernization can be readily seen. The R-1414/URR is solid-state, mechanically tuned, covers 1.5. to 32 MHz frequency range, uses double conversion, and has a digital electronic frequency counter display. Being solid-state, the R-14141/URR is smaller in size than the R-390A/URR, and operates cooler. It also has independent sideband monitoring capabilities that are not available in the R-390A/URR.
Another feature of the R-1414/URR is its frequency stability achieved by an internal digital AFC network. Both frequency stability and readout accuracy are within ±50 Hz throughout the frequency range of the receiver.

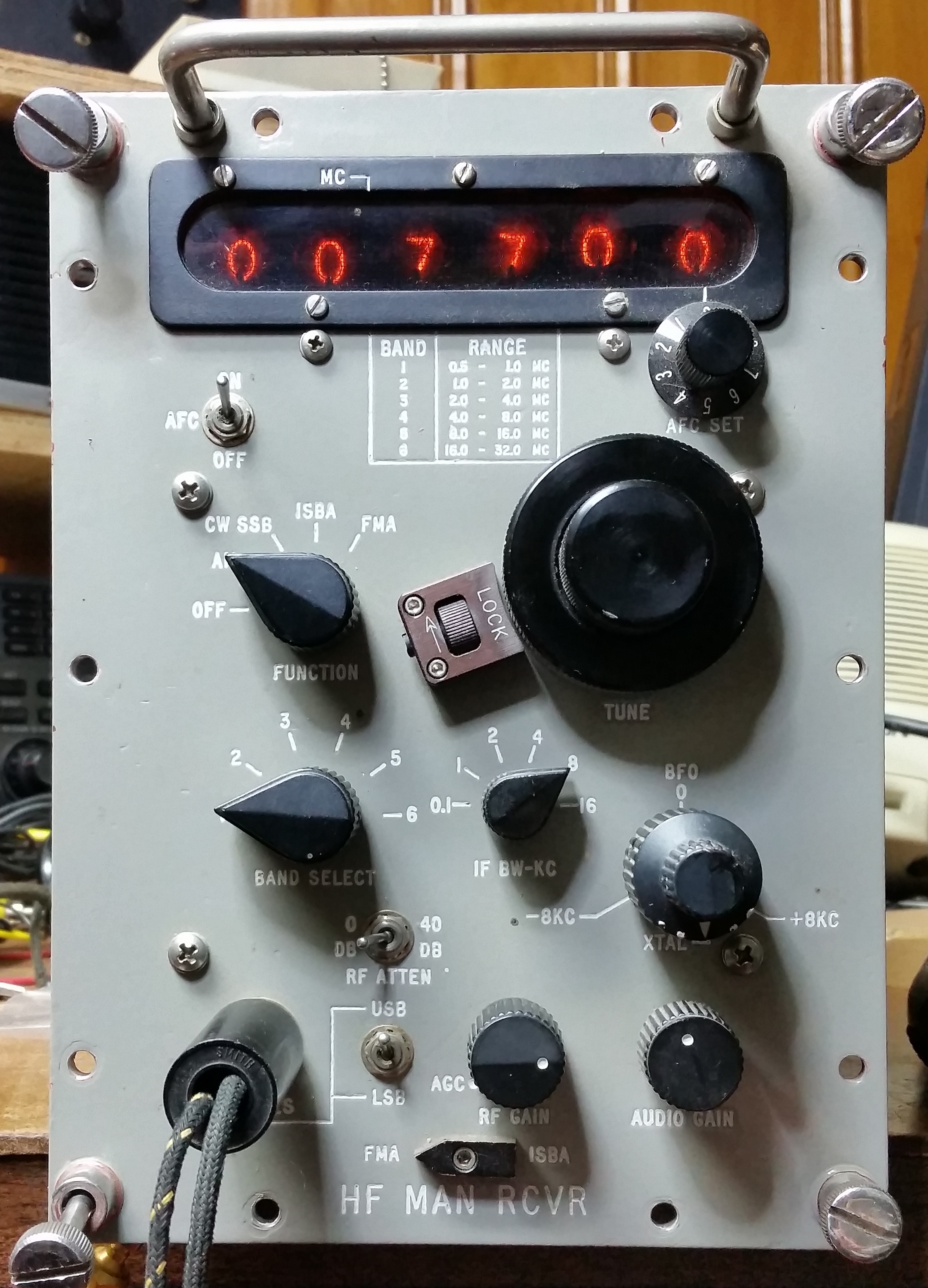

R-1490/GRR-17
 - See AN/GRR-17 above -

-- -- --

R-2174/URR

LF/MF/HF solid state


RACAL RA6790/GM


RACAL

R-2307/U
(Cubic R-3030A)




  • Twin receivers
  • 50 kc to 30 mc range
  • IF outputs of 40.455 mc and 455 kc
  • Highly stable with + or - 1 PPM
  • BFO of + or - 10 kc
  • 100 memory channels per receiver
  • Bandwidths of .5 / 2 / 4 / 8 / 16 kc
  • Operating modes of AM / USB / LSB / CW / FM
  • Tuning resolution to 10 cps
  • IF passband shift from .1 to +/ - 9.99 kc
Cubic R-3030A

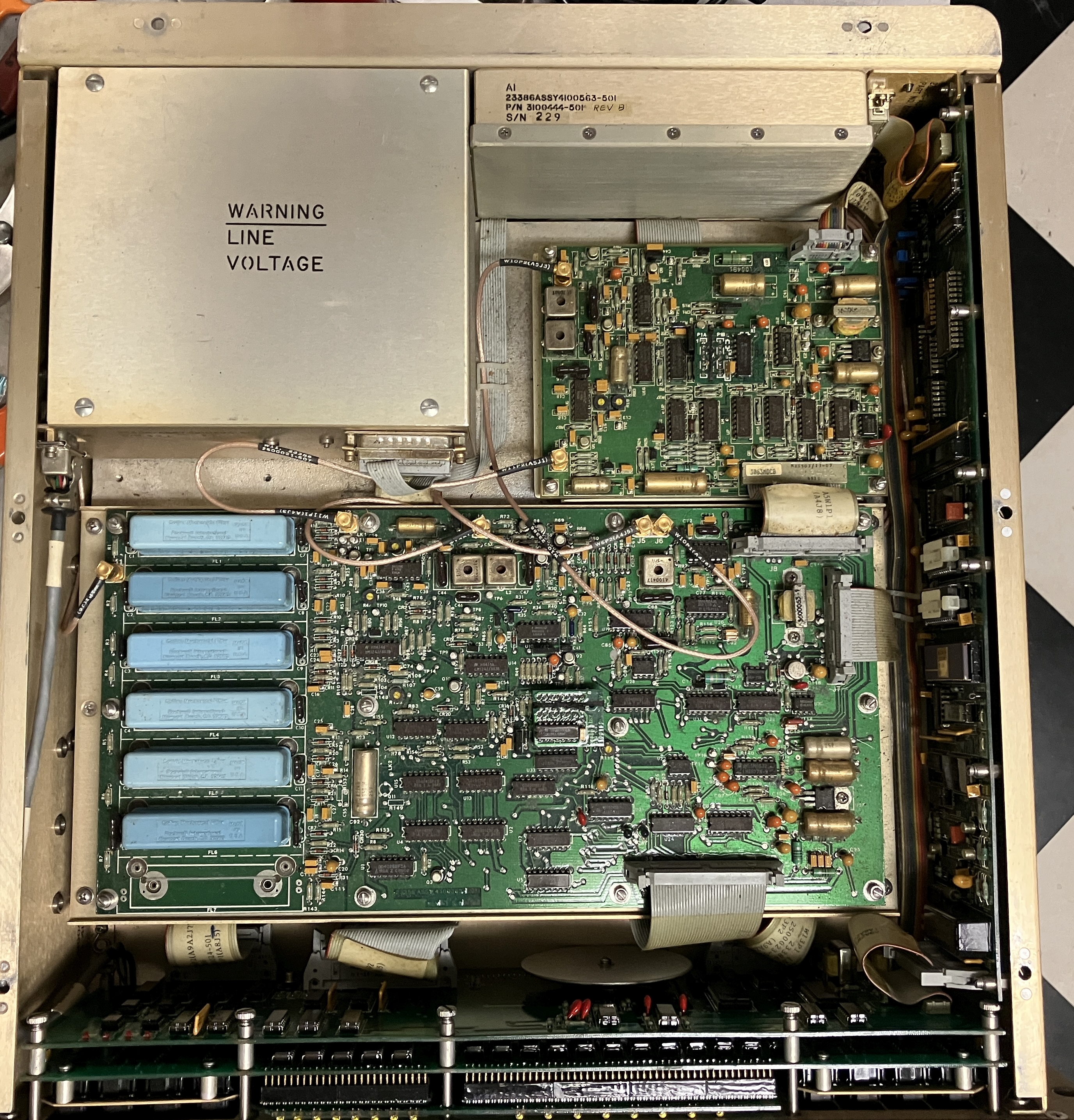

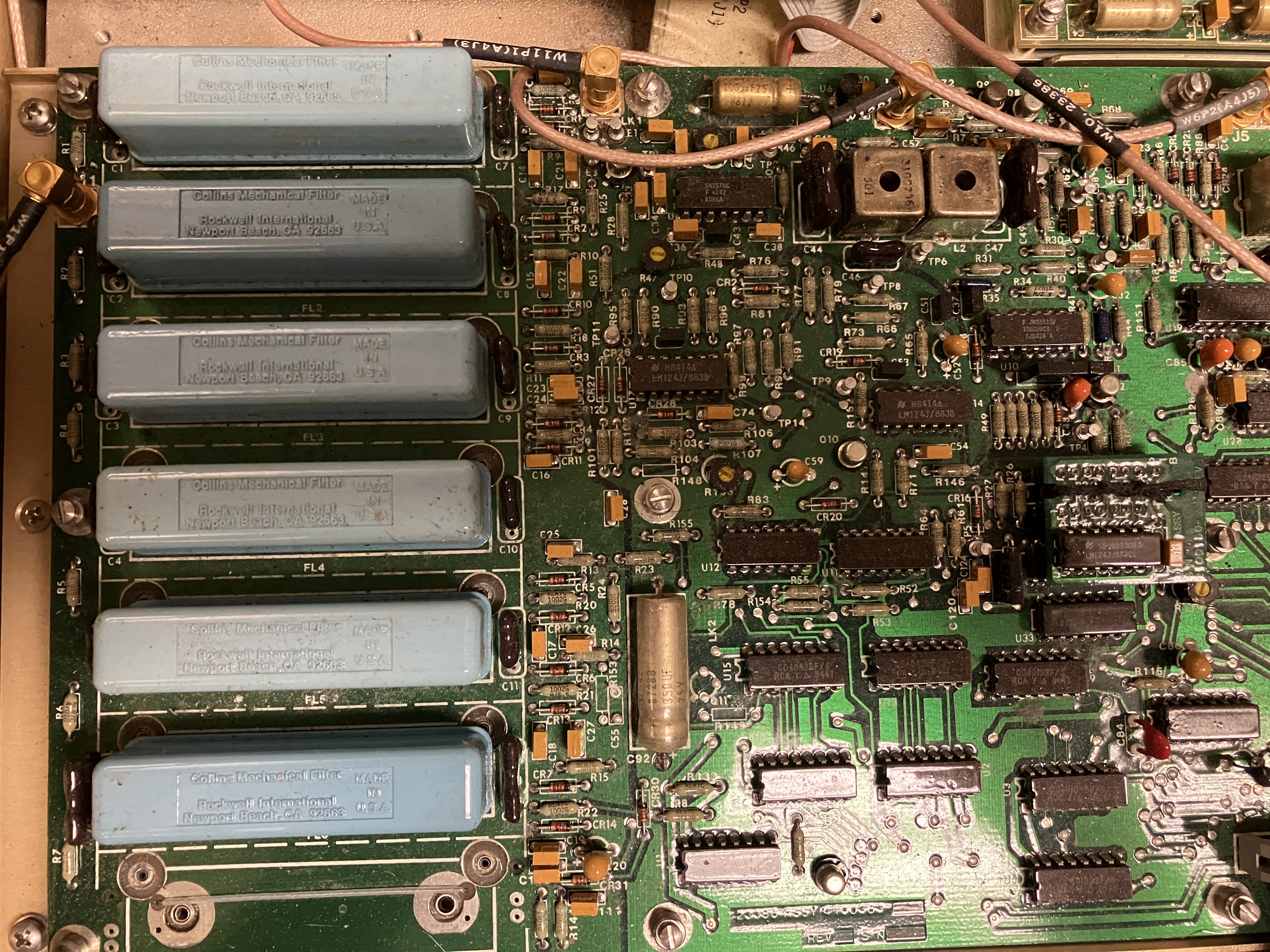

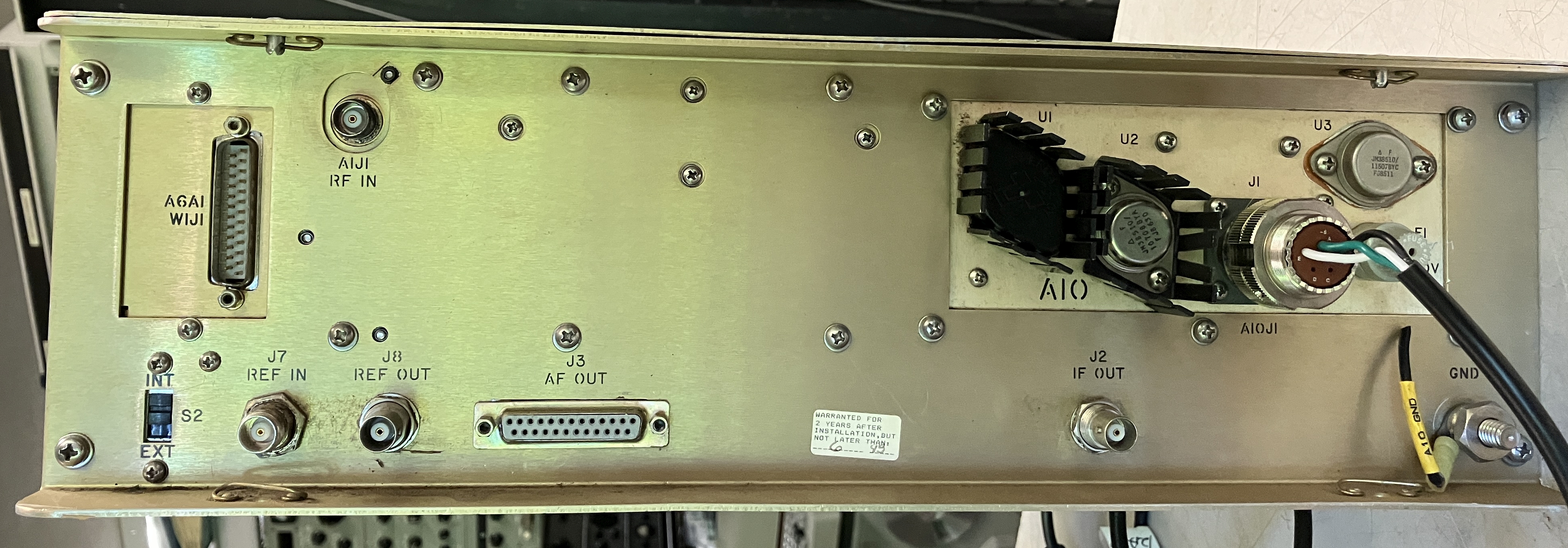

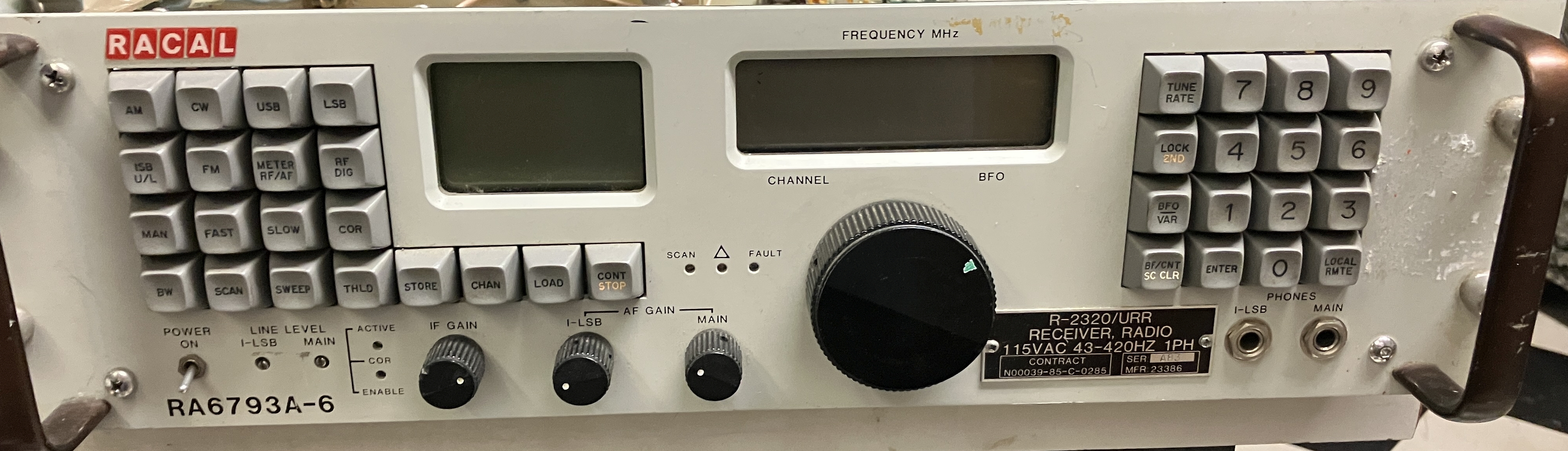

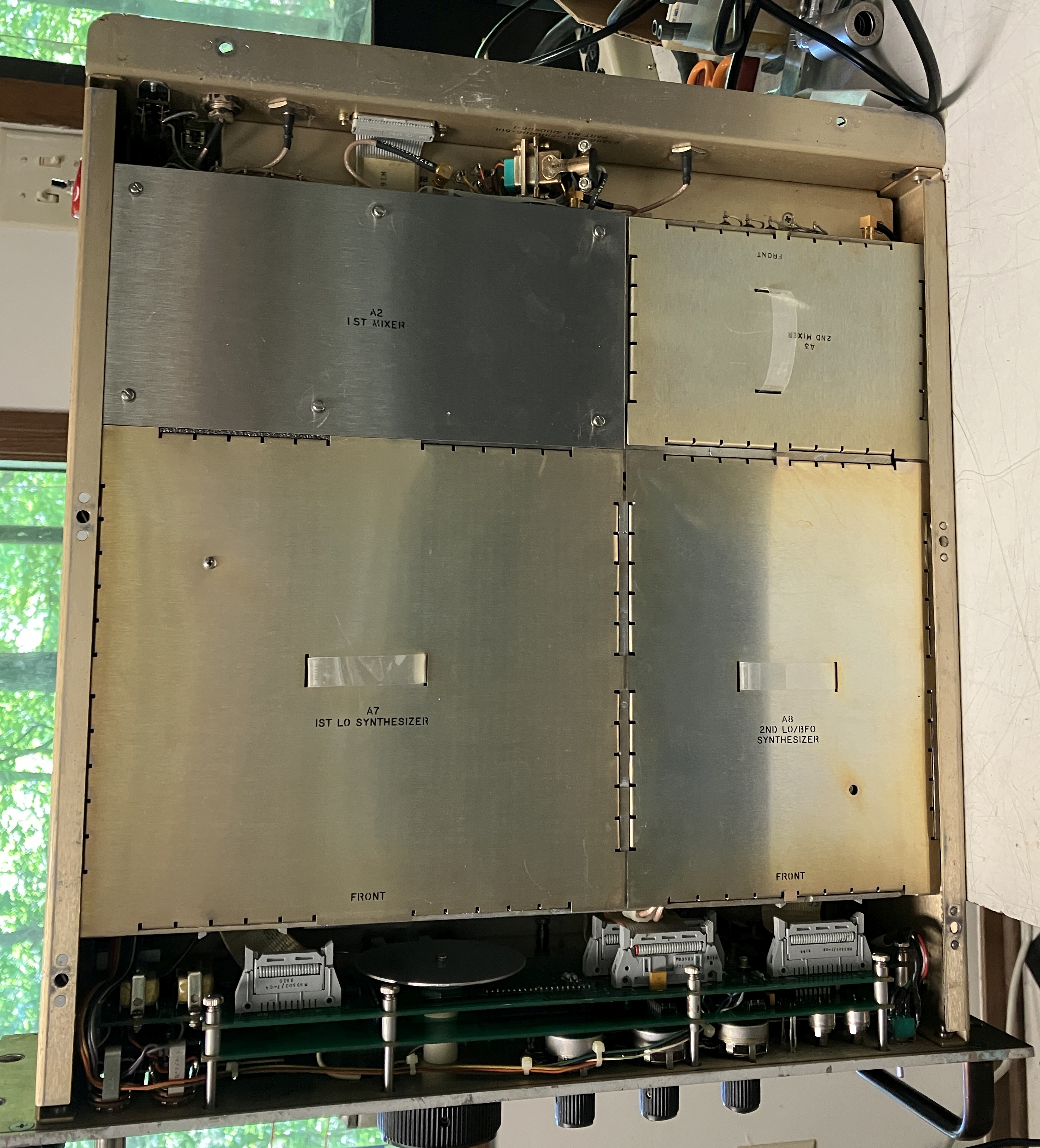

R-2320/URR
(RACAL RA6793A-6)

photos photos --

R-2368/URR


Variant of Harris RF-590A
LF/MF/HF solid state



Harris

R-2411/U (Cubic R-3035)

50Hz - 30 MHz similar to R-2307/U manual

Cubic R-3036 MF/HF Dual Receiver



R-2557/URC

Variant of Harris RF-590 used in AN/URC-131 HFRG



75A-4
75A-4 (Mod)

75A-4(Mod) changes -


   75A-4
   Bands (mc)
        1.5 to 2.5
        3.2 to 4.2
        6.8 to 7.8
        14 to 15
        20.8 to 21.8
        26.5 to 27.5
        28 to 29
        29 to 30

  75A-4 (Mod)
  Bands (mc)
        1.5 to 2.5
        3.2 to 4.2
        4.2 to 5.2
        5.2 to 6.2
        6.8 to 7.8
        13 to 14
        14 to 15
        29 to 30
Collins 75A-4 with 0.8, 3.1, 6.0 kc filters
- used by USN in early SSB tests
- other uses??

contracts:
75A-4 NObsr-71287, 27 April 1956
75A-4 (Mod) NObsr-71289, 27 April 1956

Manual NAVSHIPS 92788
retaining clips added to this unit for airborne use.



Be patient and check back often - this project is just getting started!
Last updated 01/25/2024
