Early US Navy RATT Equipment
1940's & early 1950's

RATT Receiving Equipment

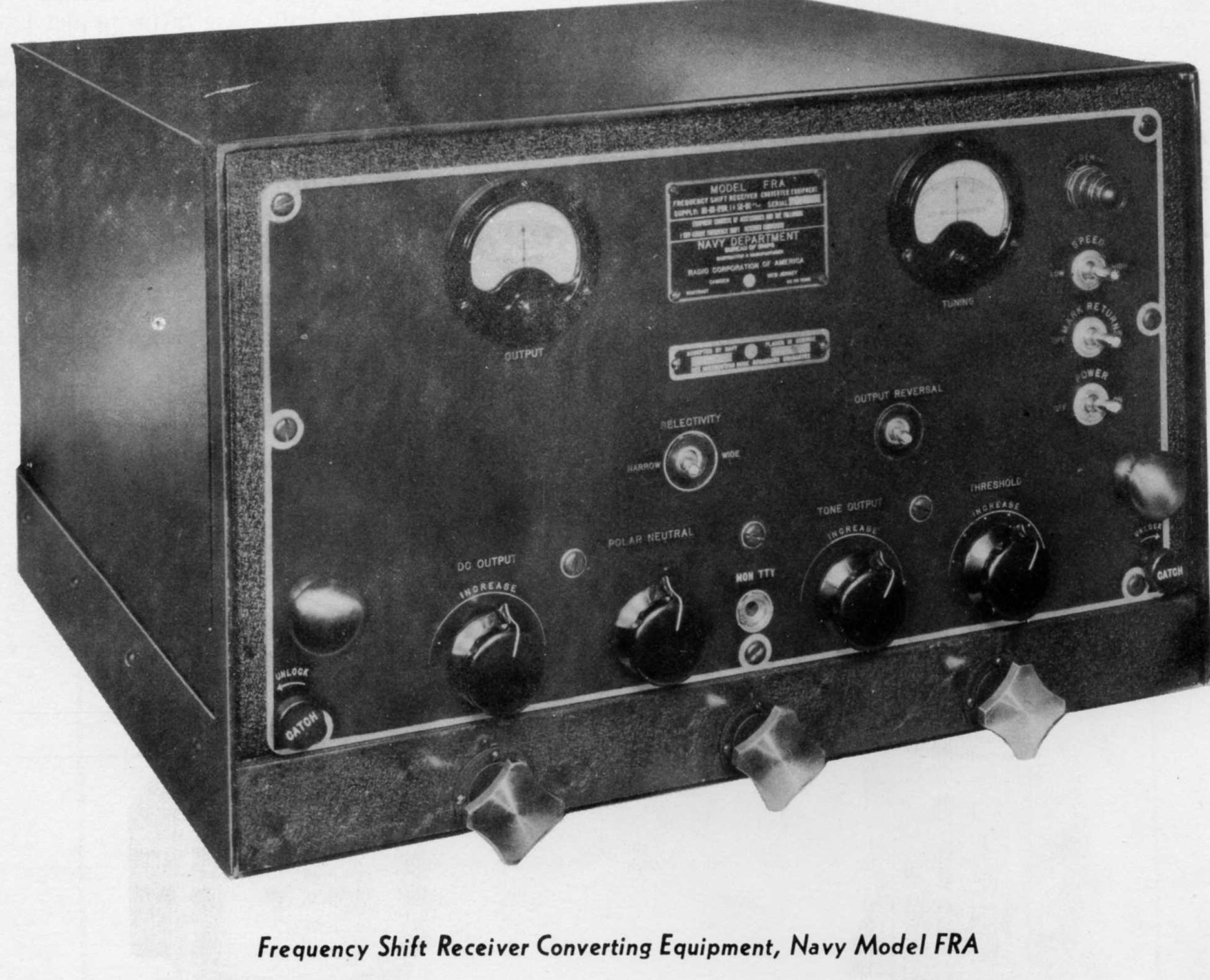

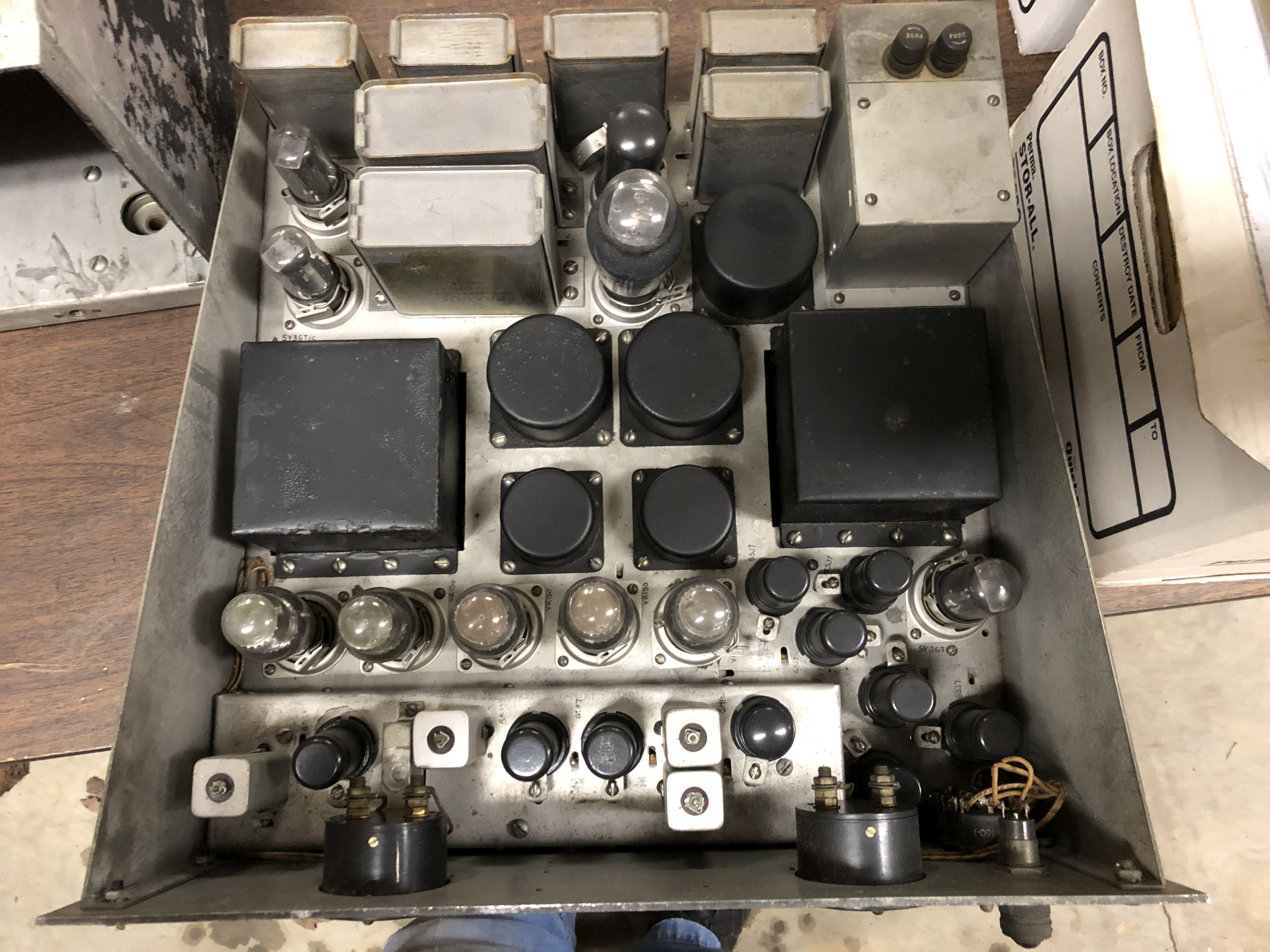

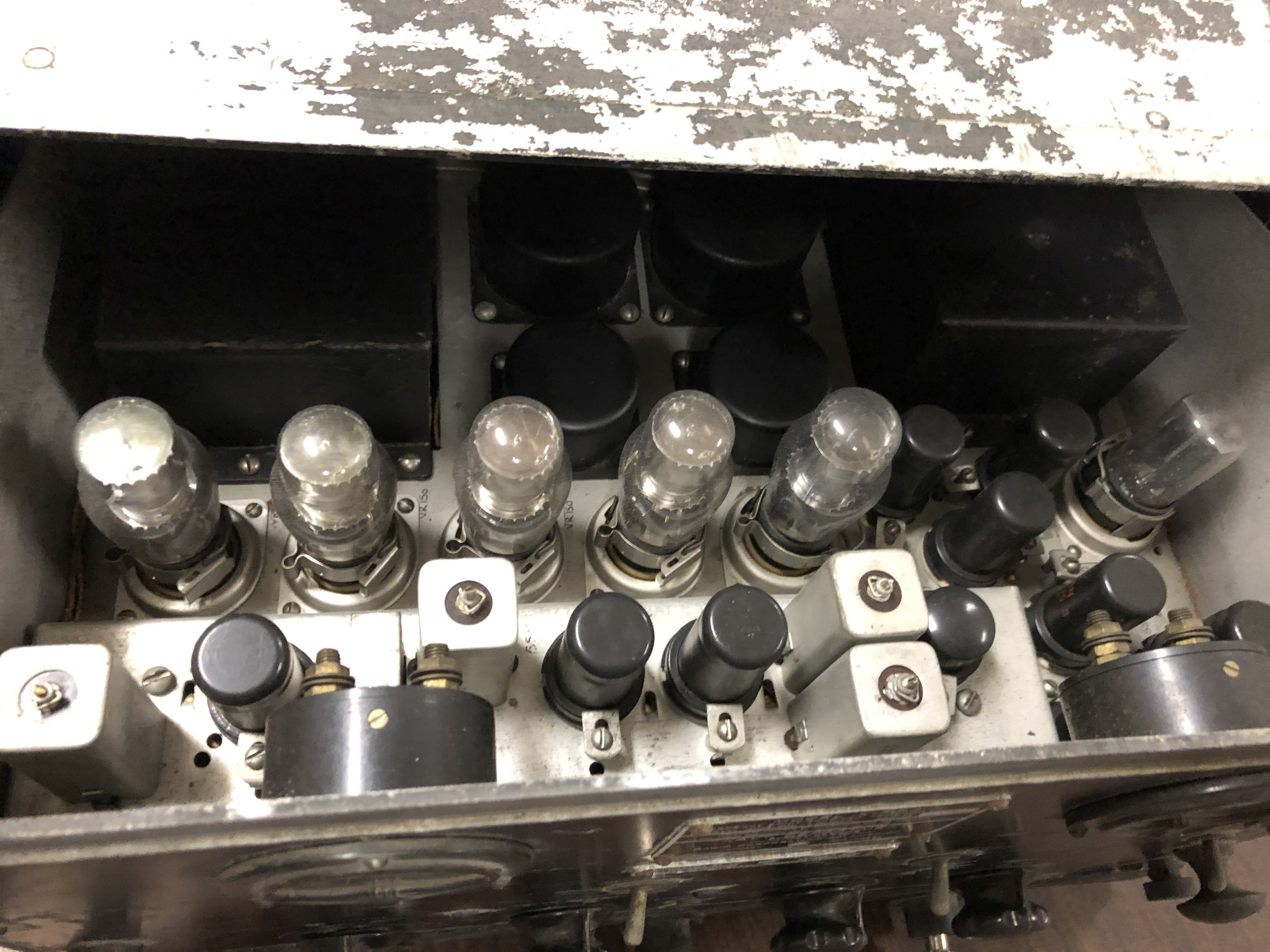

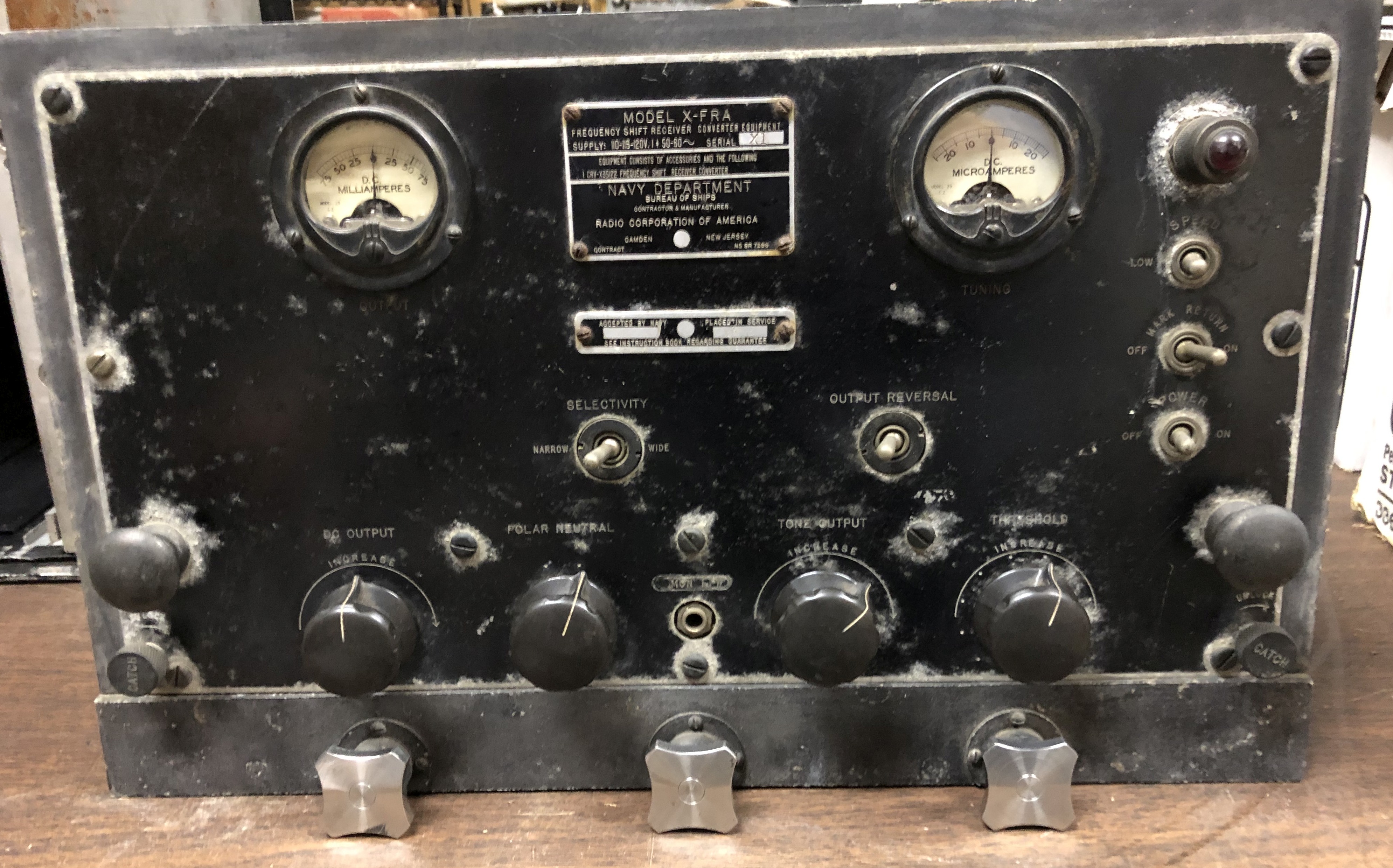

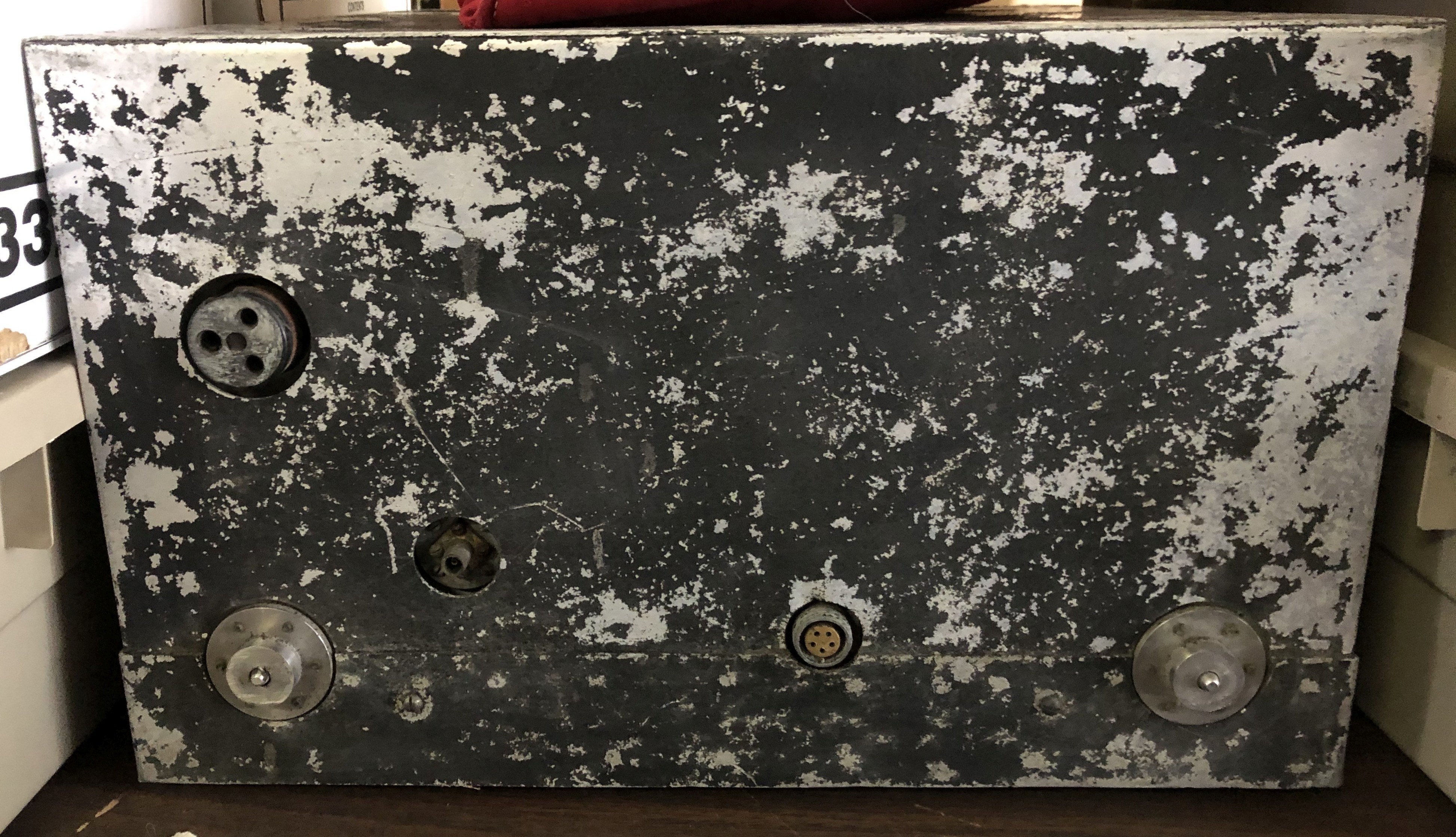

FRA  - 400 kc IF input frequency shift converter - for use with RBB and RBC rcvrs

FRA Spec sheets

 FRA (CRV-35122) manual is NAVSHIPS 900,613
 info in NAVPERS 10190-A (ET2 training manual vol. 1)

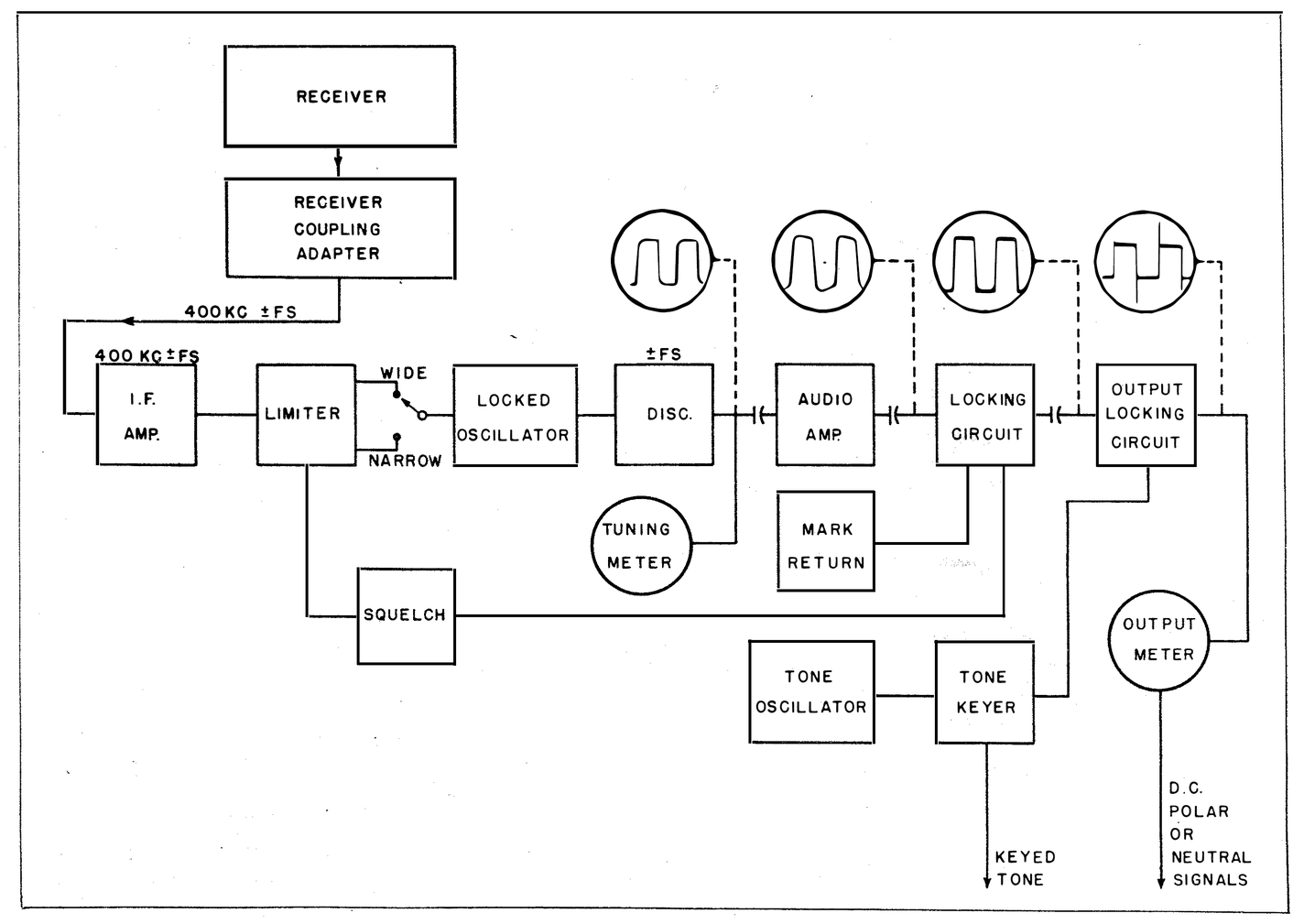

General description from manual

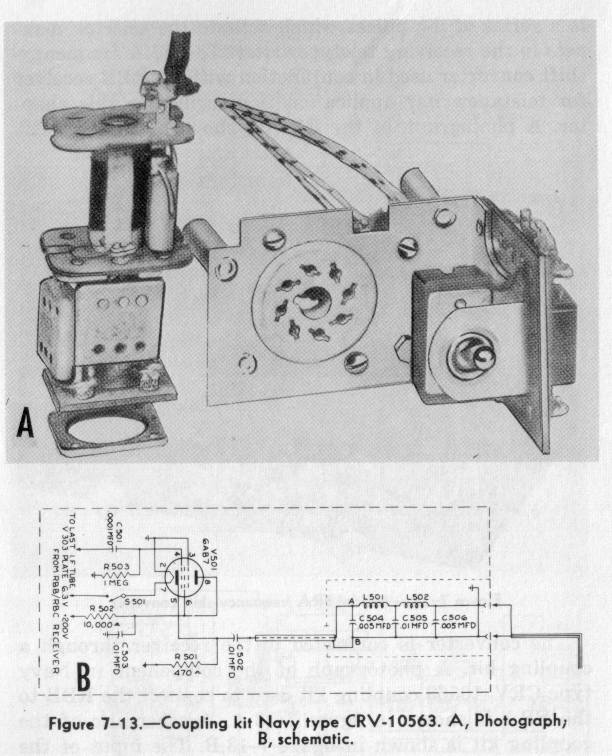

CRV-10563 couples FRA
 demod to RBB or RBC rcvr IF
fra_4074.JPG (2024515 bytes) fra_4019.JPG (2194021 bytes) fra_4060.JPG (2191790 bytes) fra_4062.JPG (2304827 bytes)

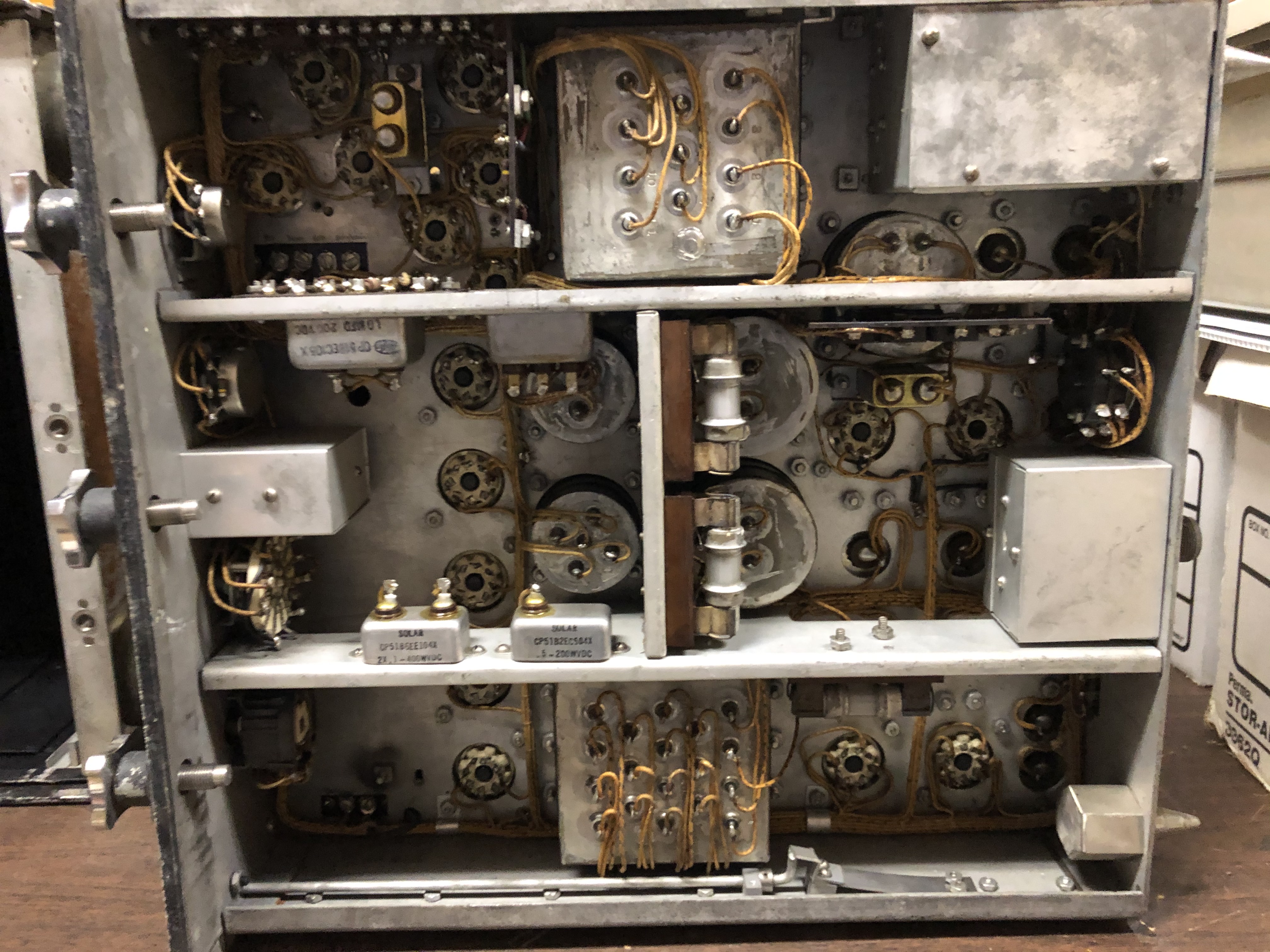

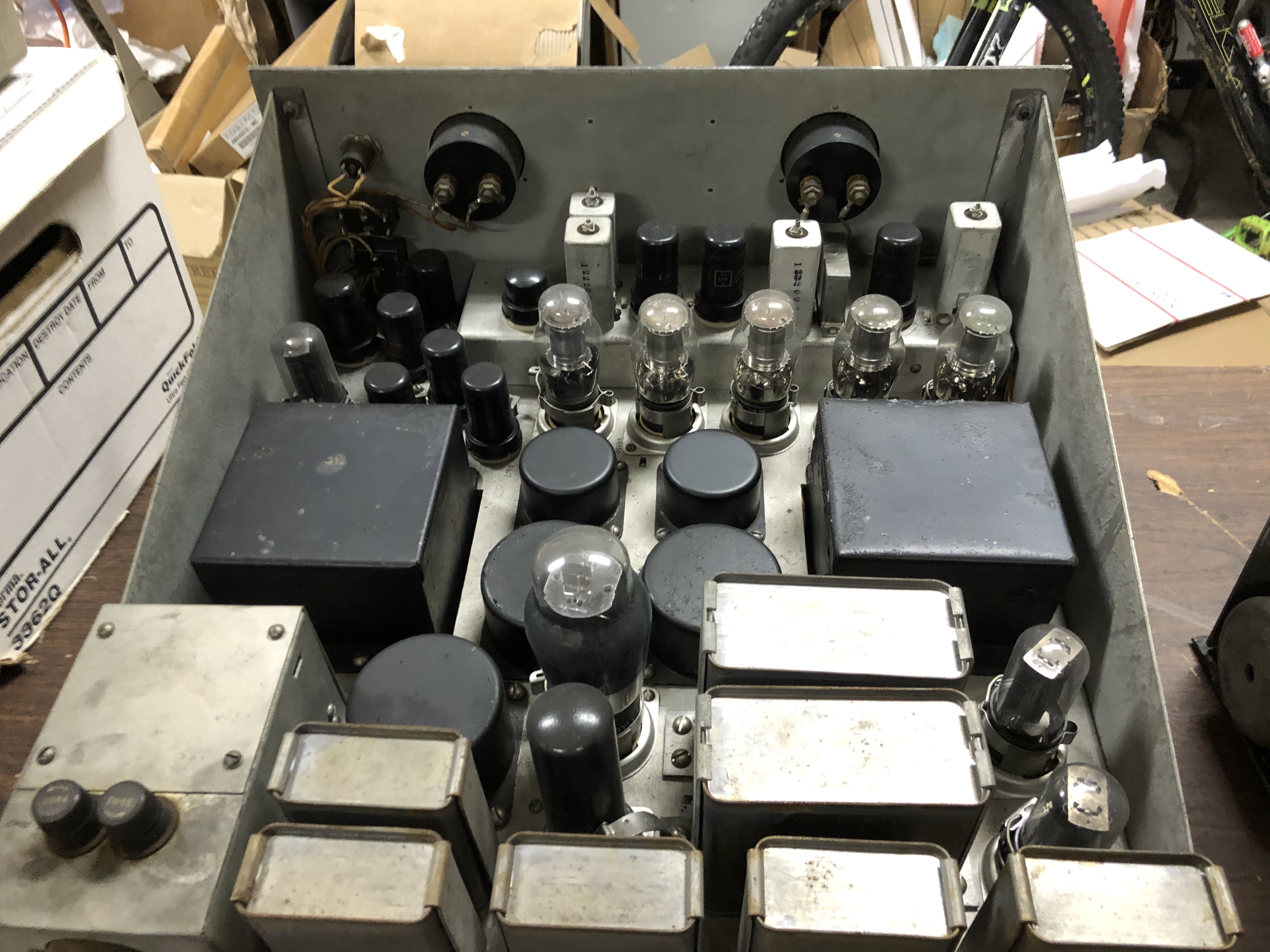

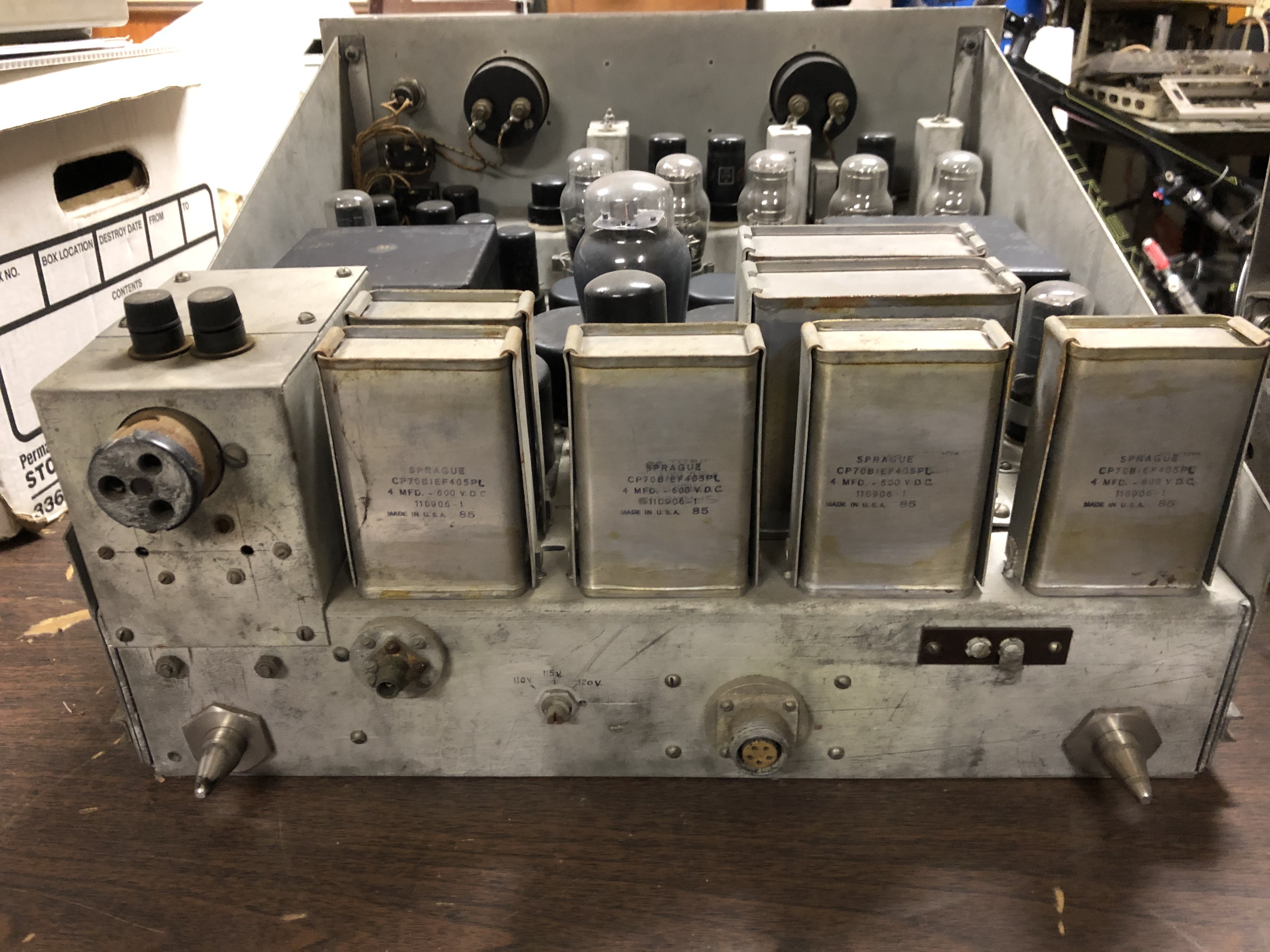

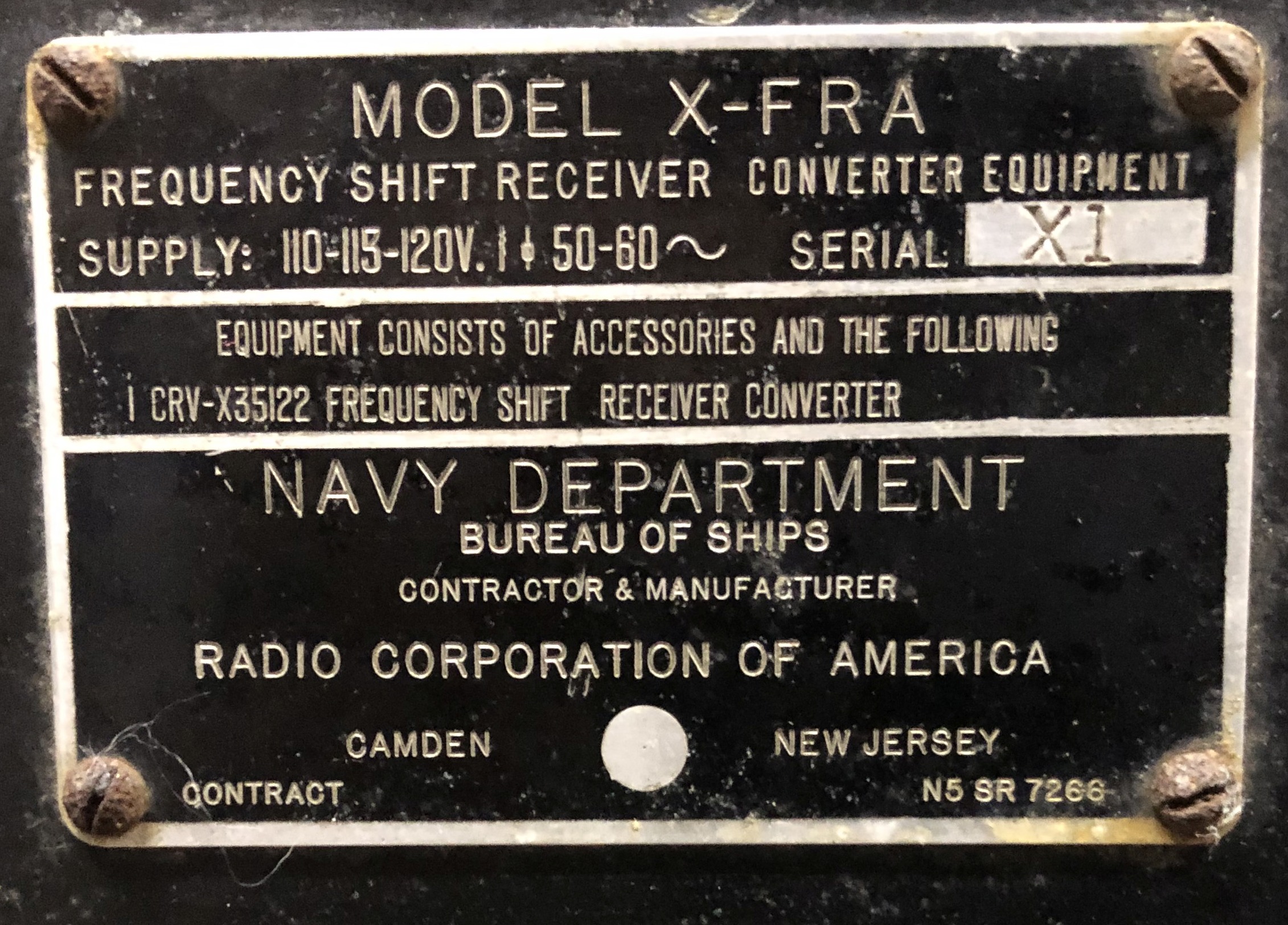

fra_4065.JPG (3230280 bytes) fra_4068.JPG (3602855 bytes) fra_4063.JPG (4041180 bytes) fra_4069.JPG (957941 bytes)

FRB - AFSK Facsimile Converter - Spec Sheets

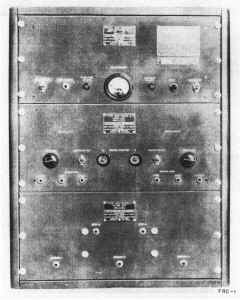

FRC  - audio input dual diversity frequency shift converter - for use with RBP rcvr

FRC spec sheets

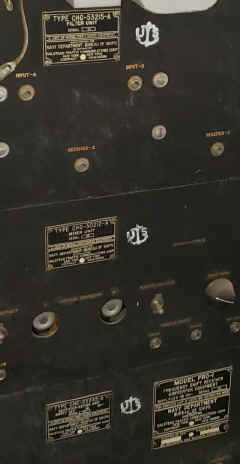

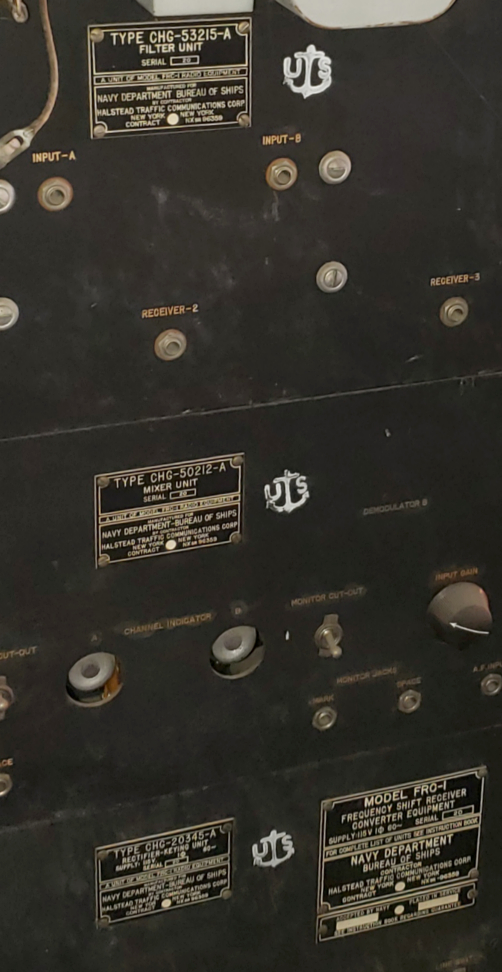

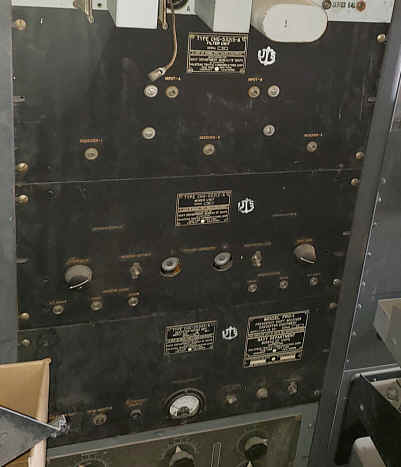

FRC-1 includes CHG-50212A mixer, CHG-20345A keyer, CHG-53215A filter
Manual is NAVSHIPS 900,718

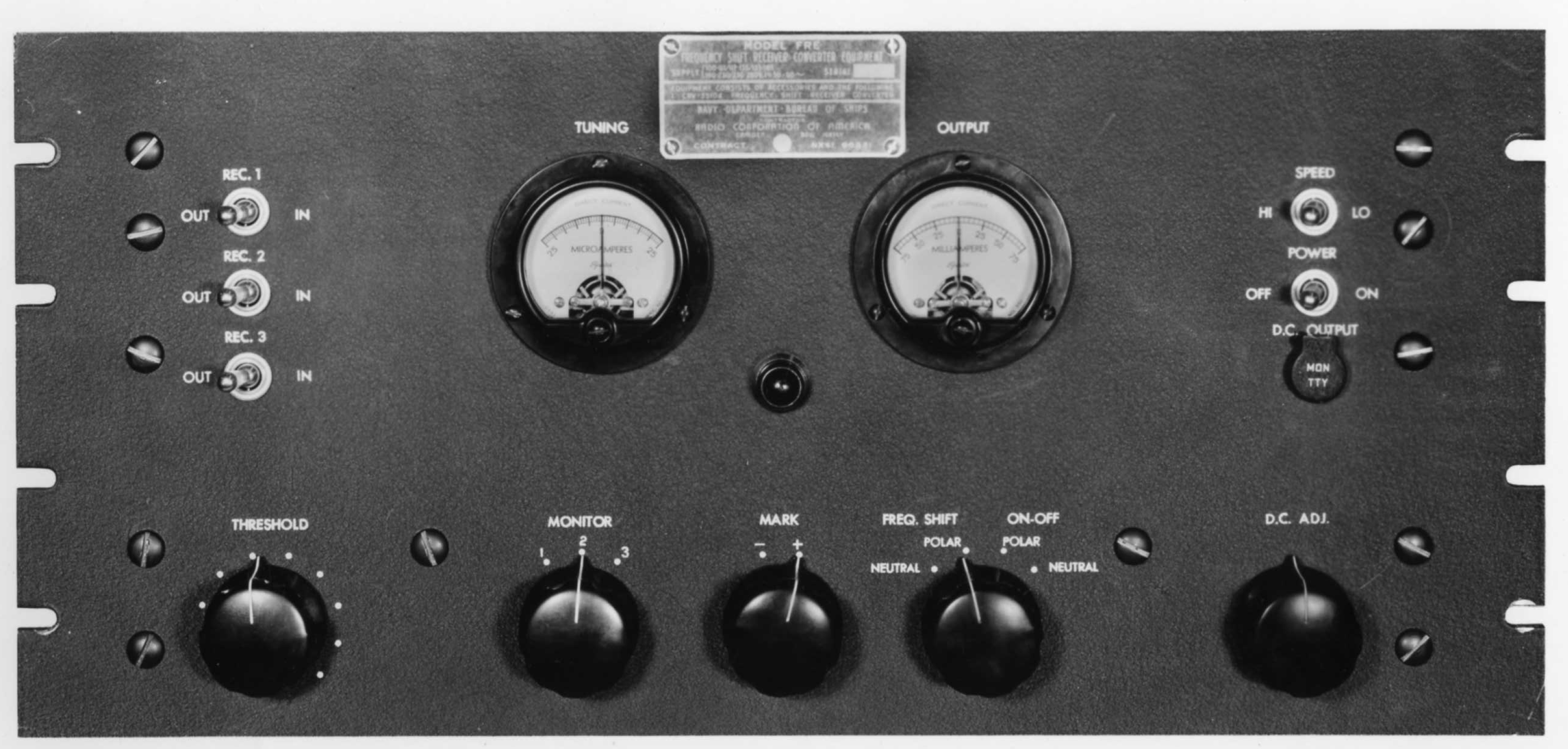

FRE  - 455 kc IF input triple diversity frequency shift converter  - for use with RDM rcvr

FRE spec sheets

FRE (CRV-35104) manual is NAVSHIPS 95100

General description from manual

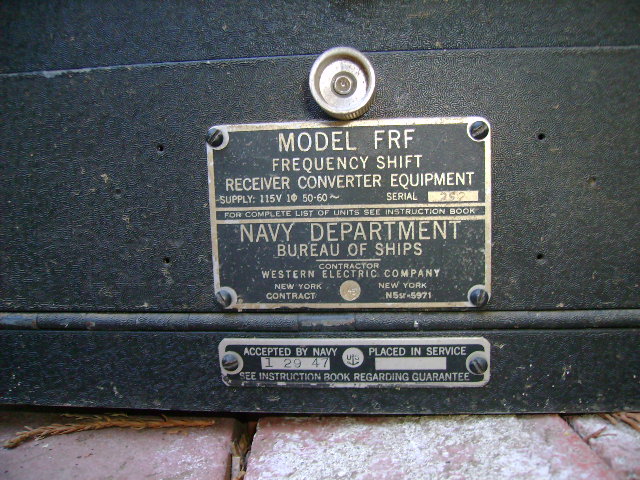

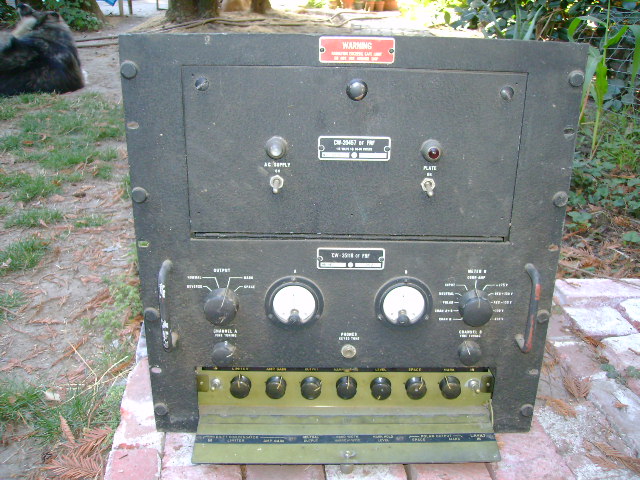

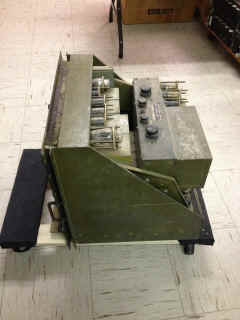

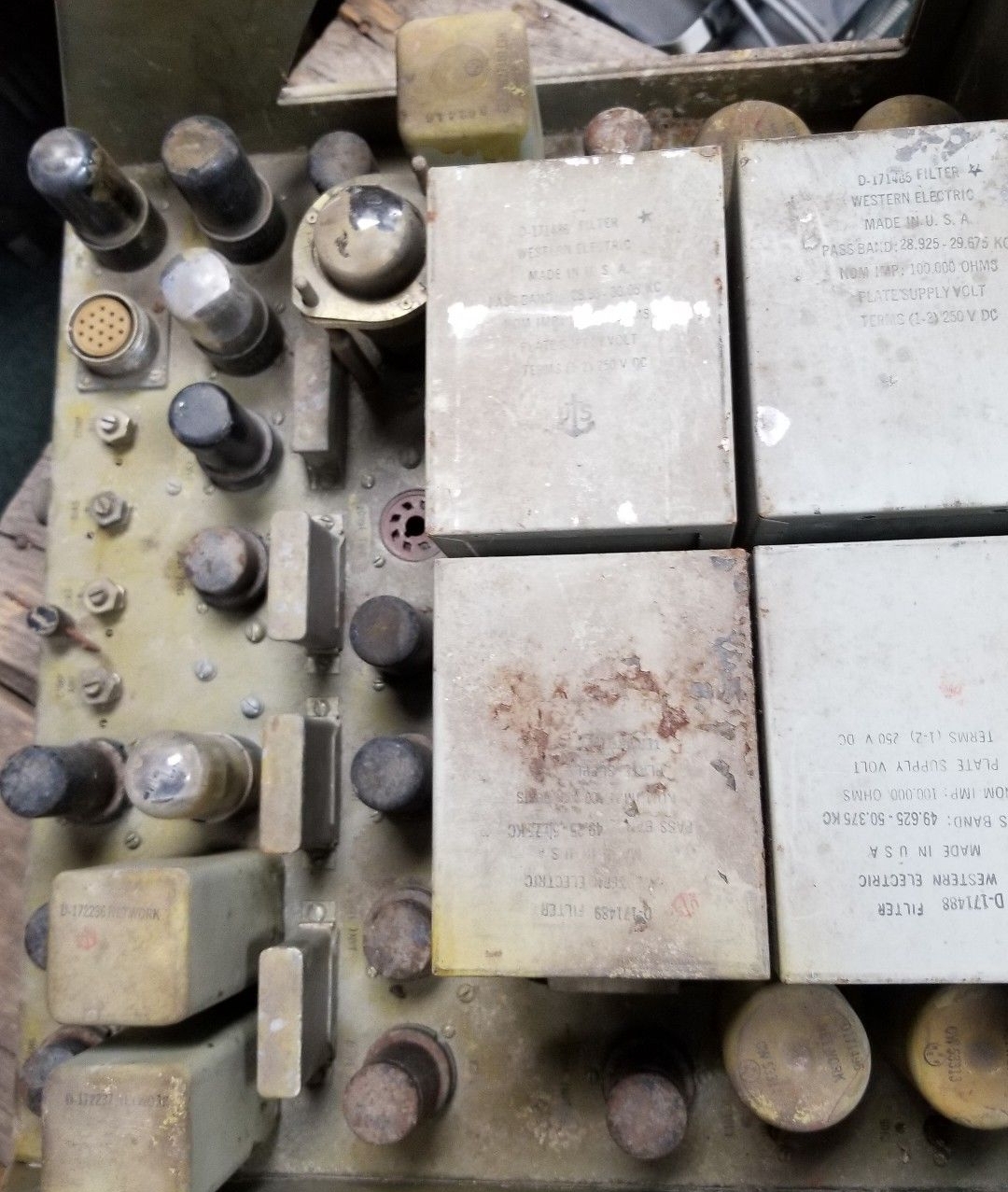

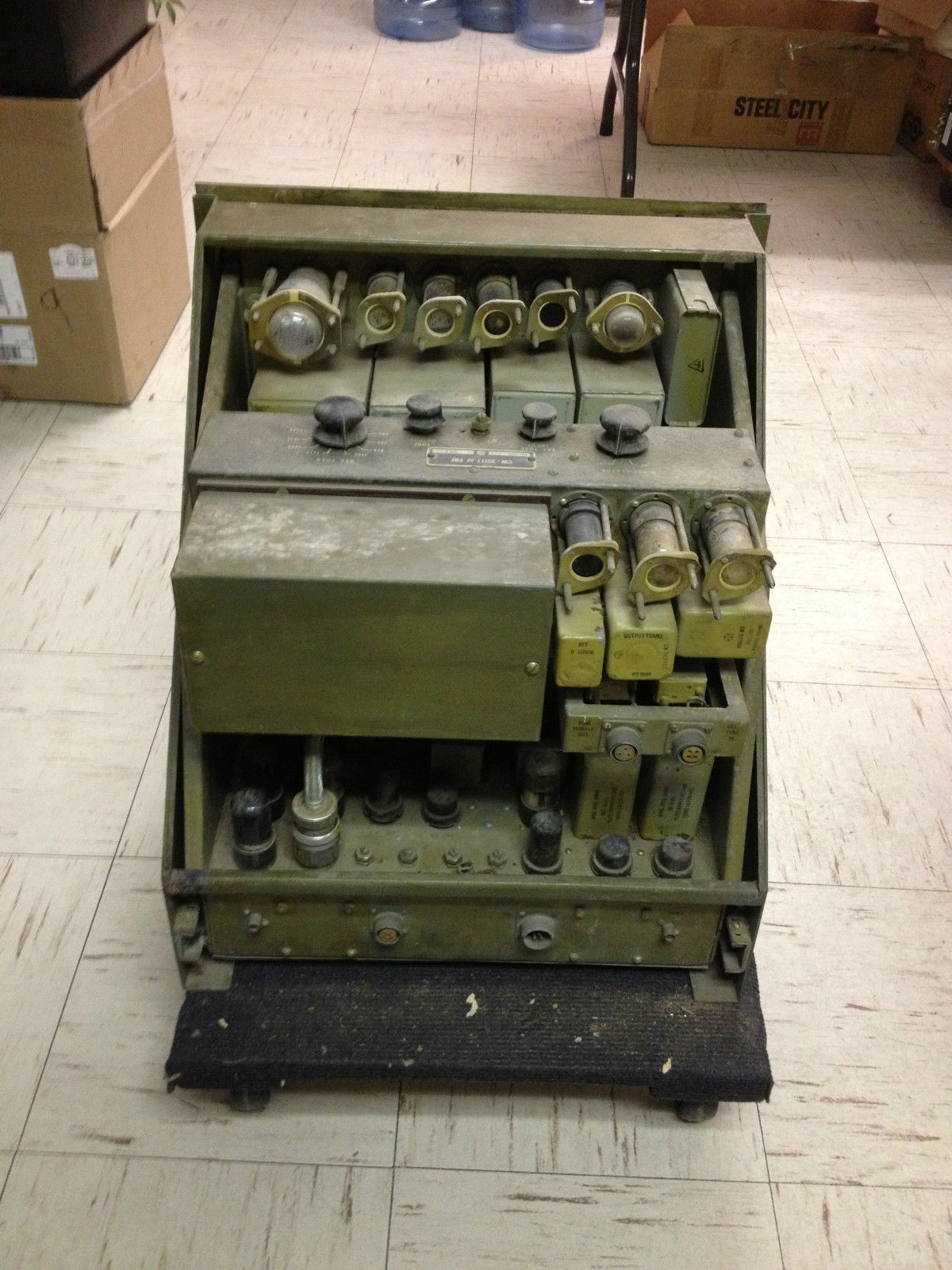

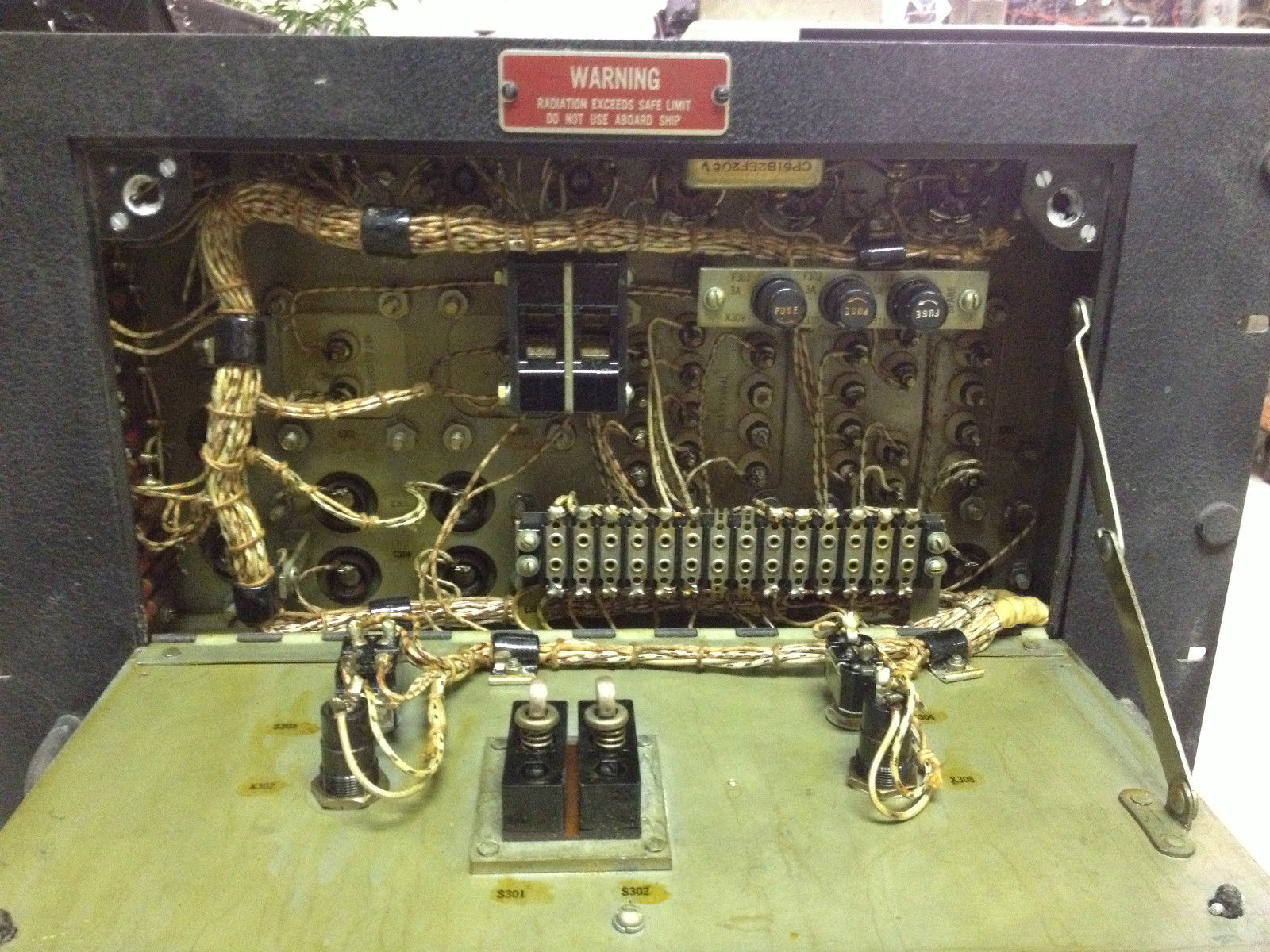

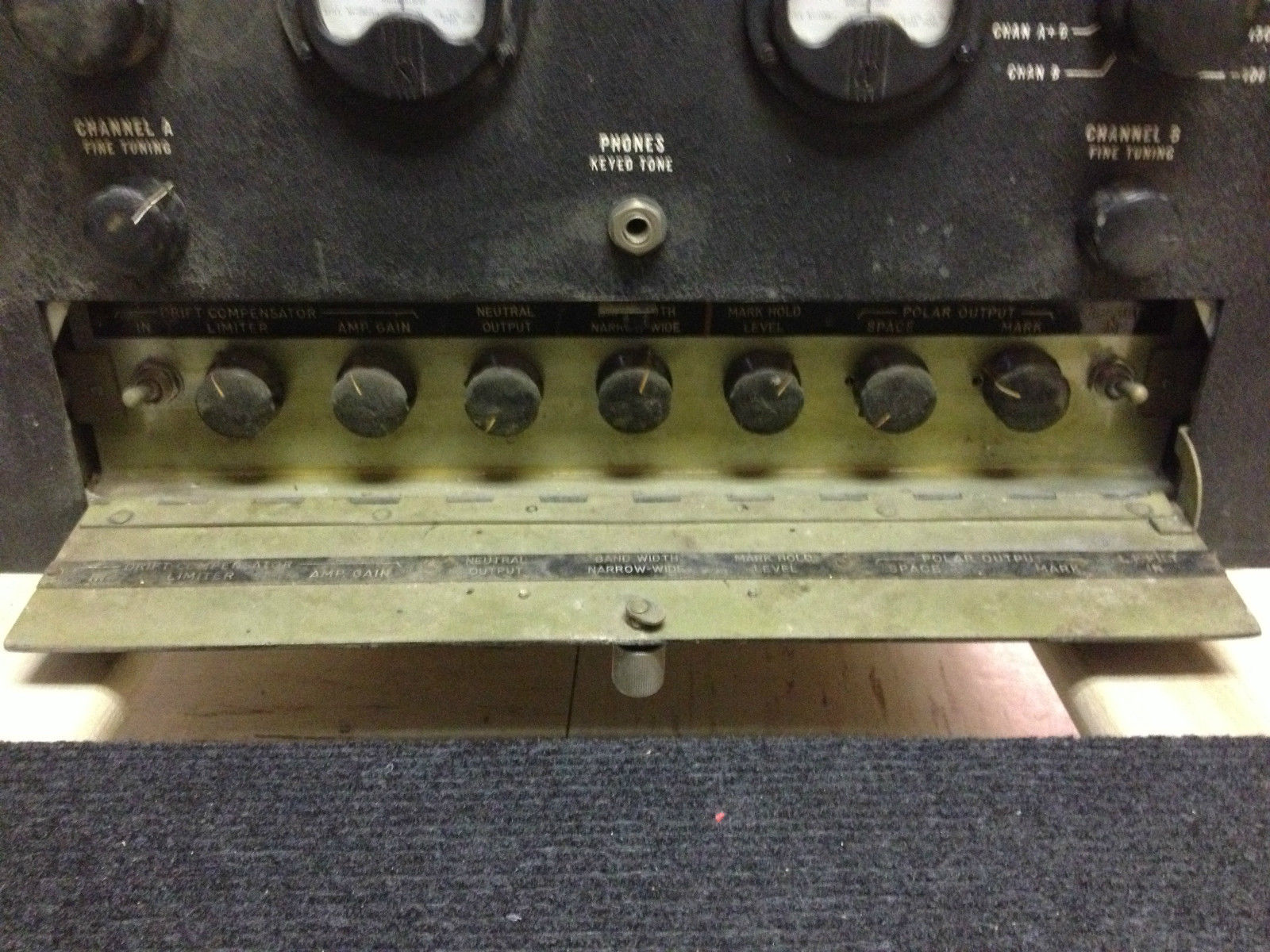

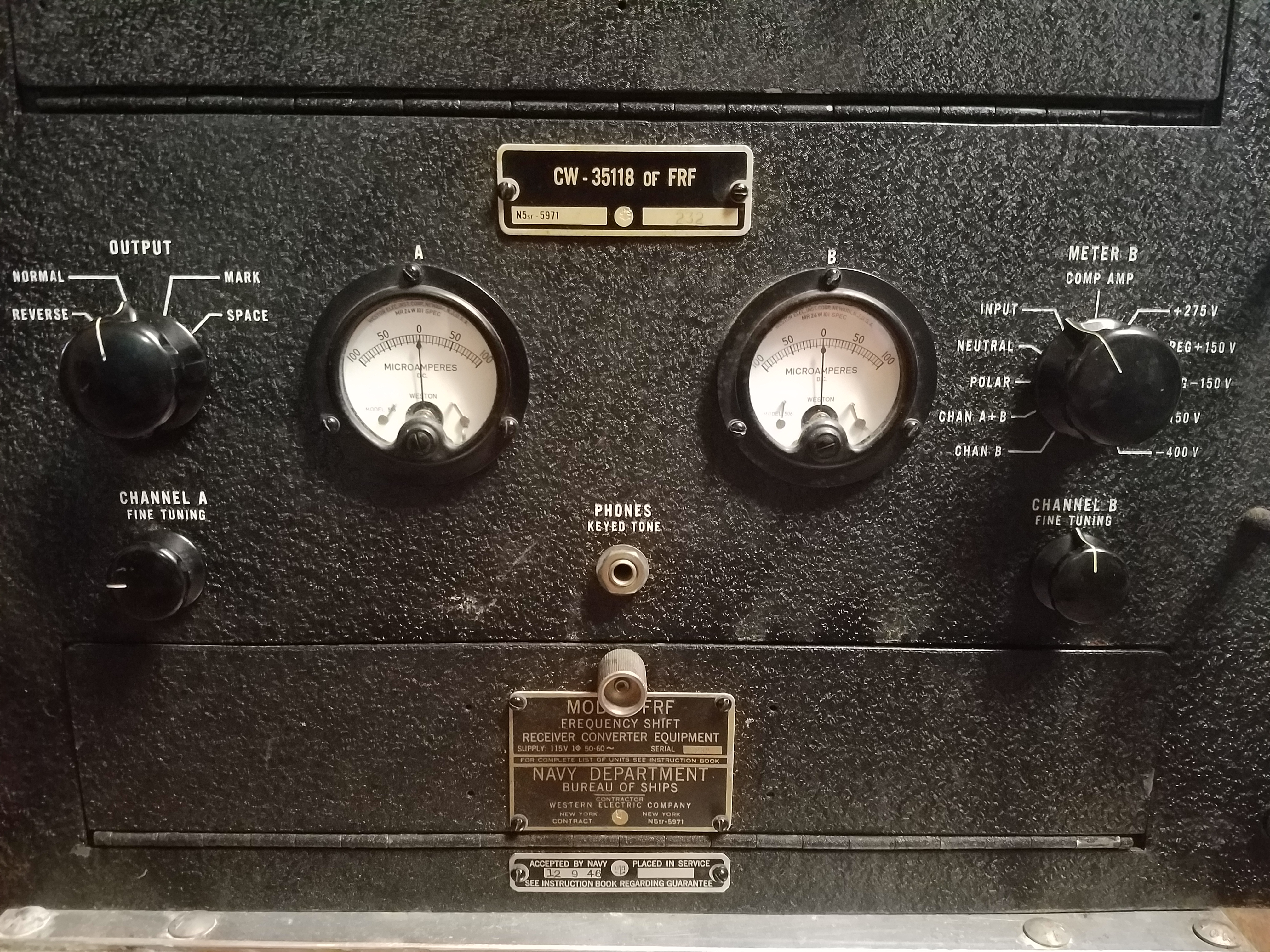

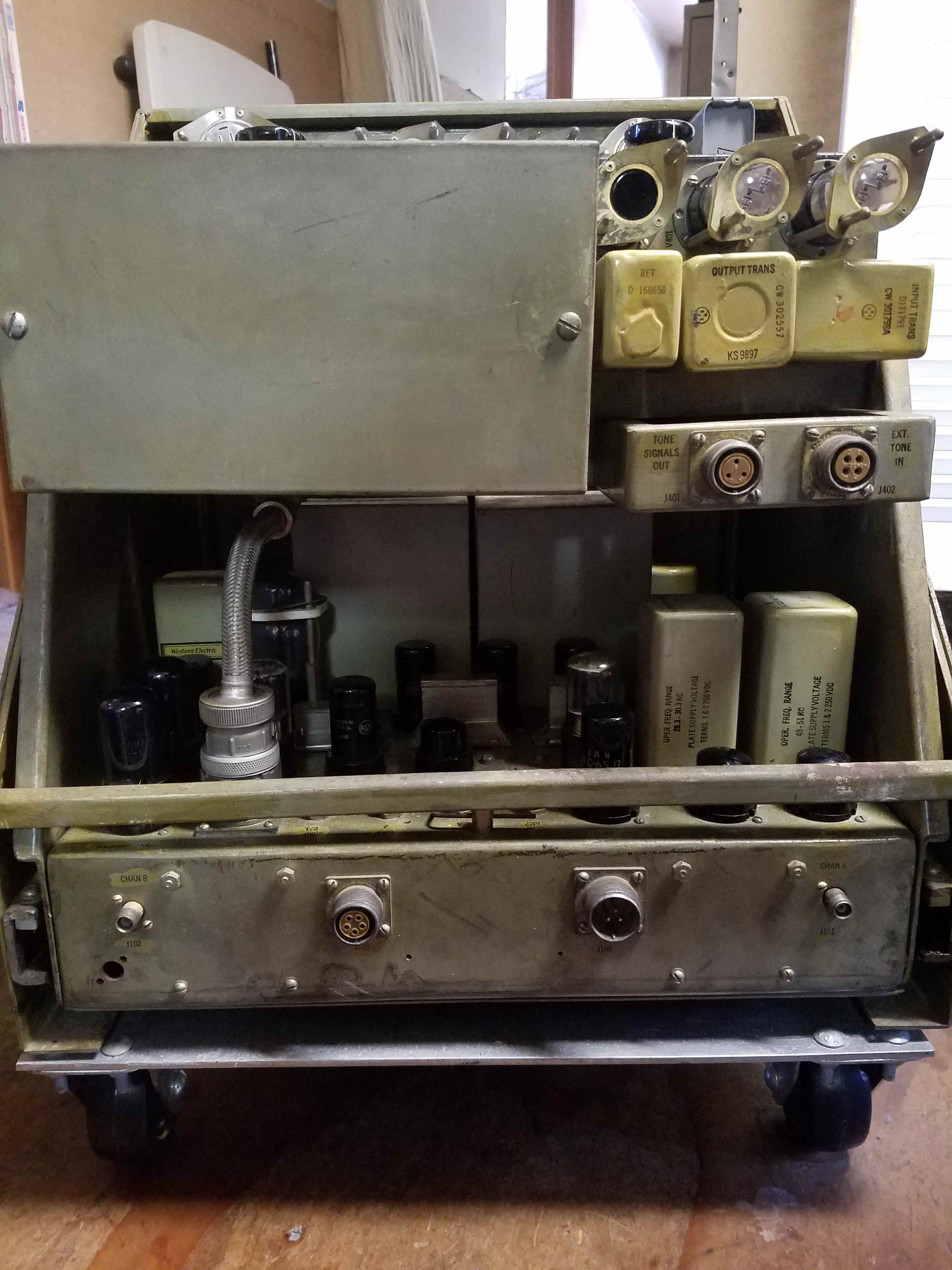

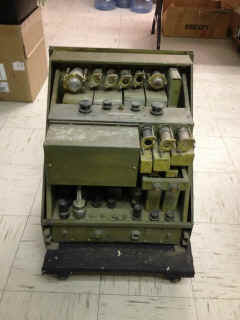

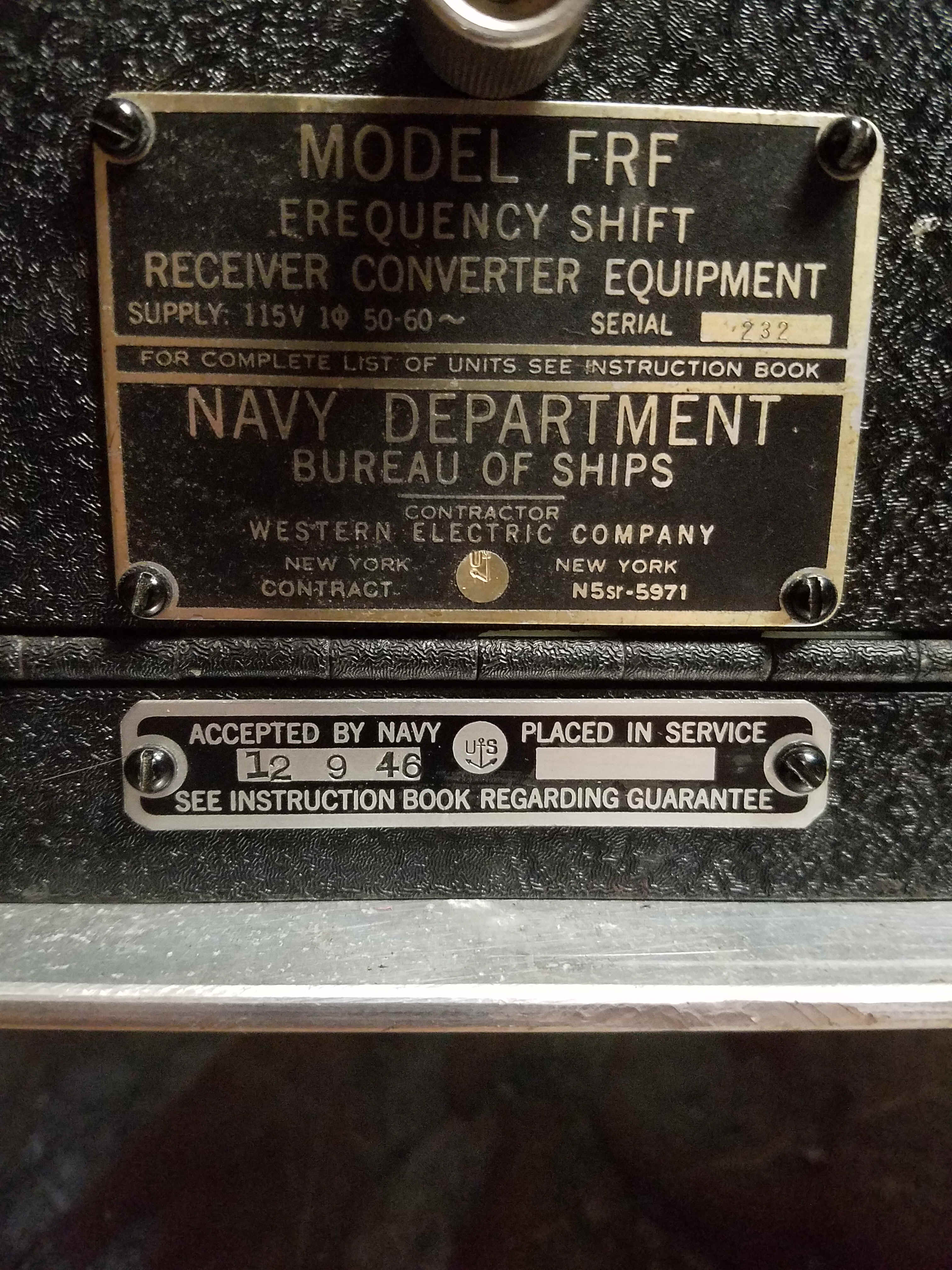

FRF  - 400kc-470kc IF input dual channel frequency shift converter - for use with RBB, RBC, or RDM rcvrs

FRF spec sheets

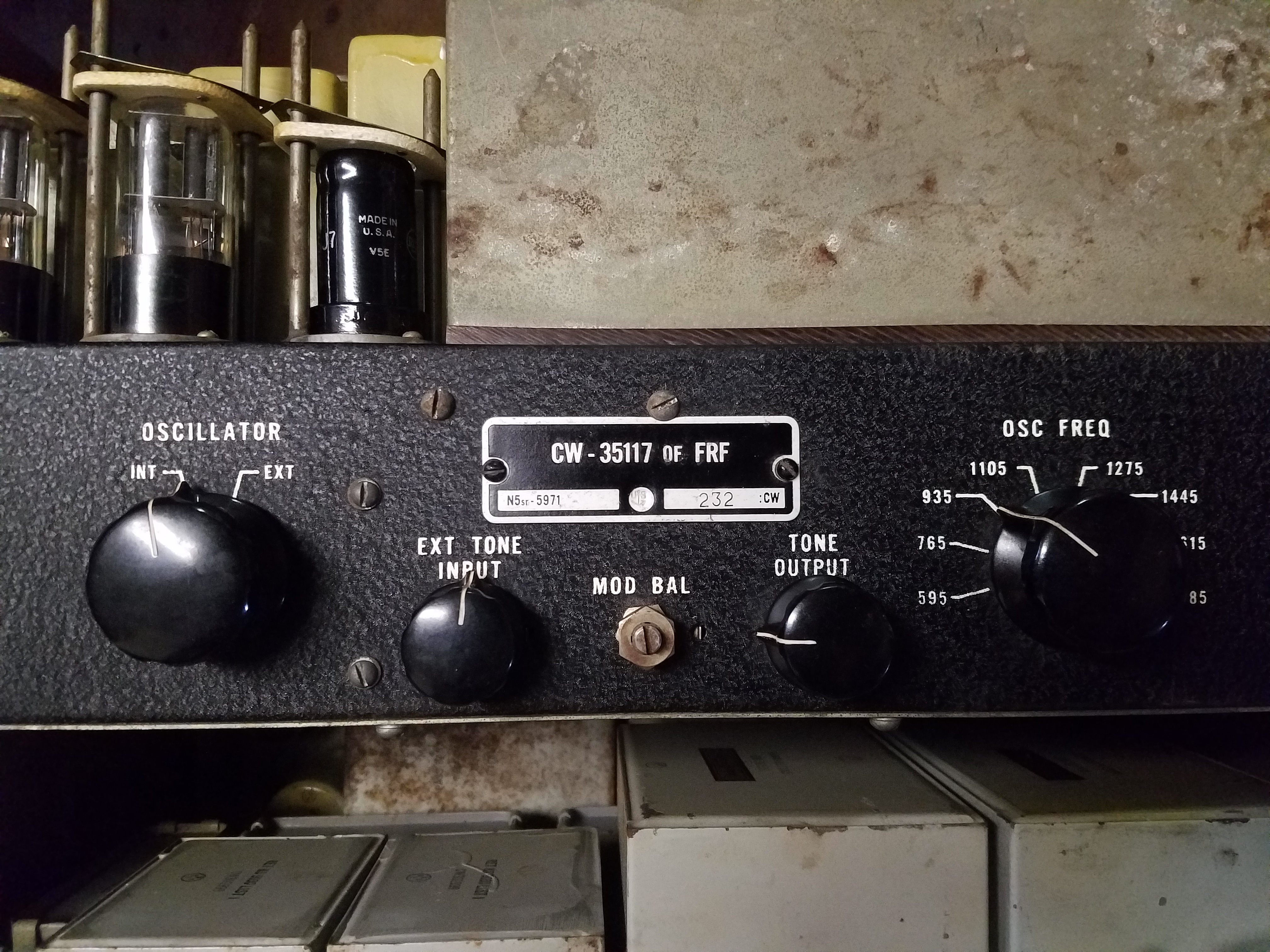

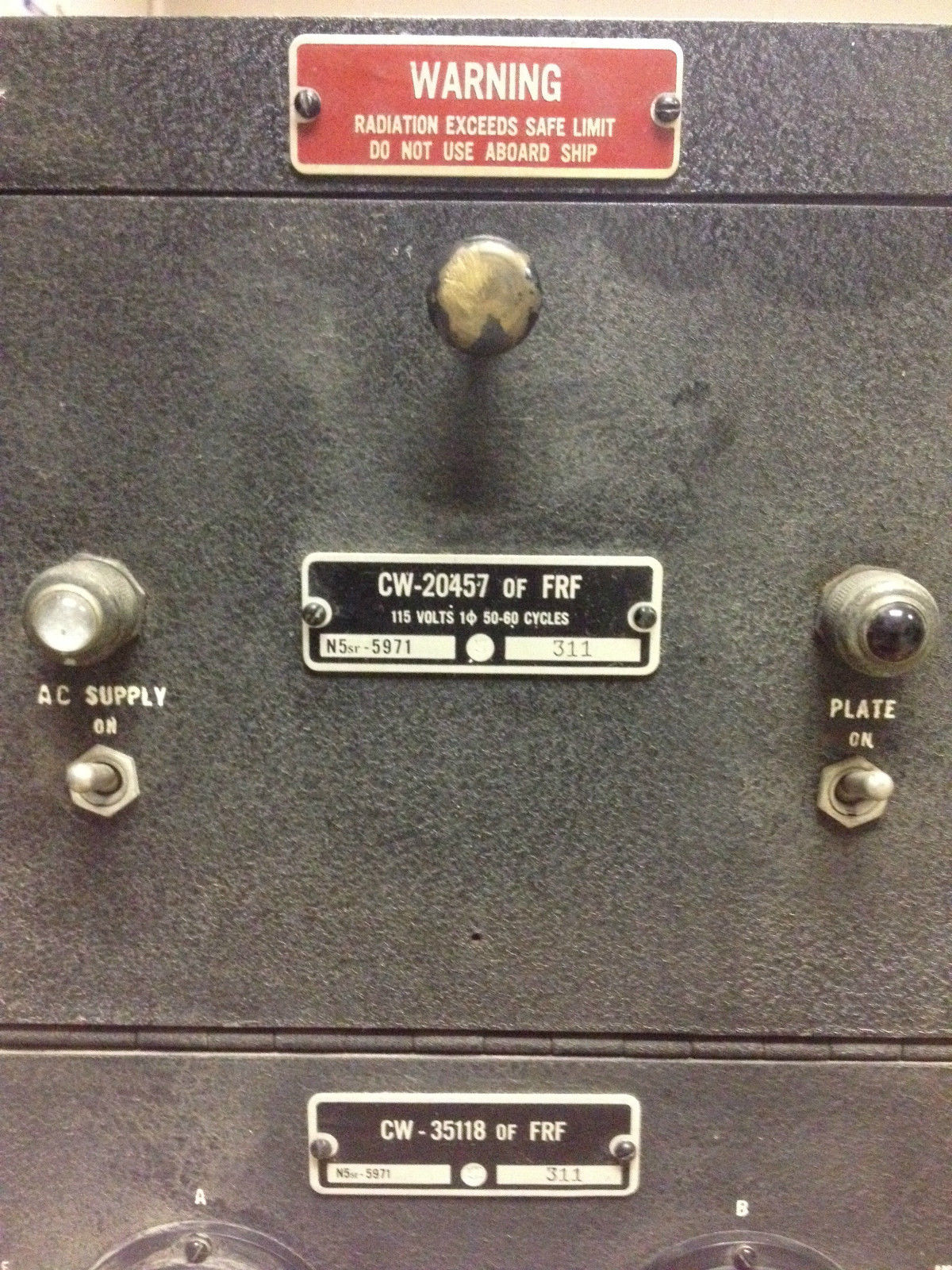

FRF consists of CW-35118 converter, CW-35117 osc, CW-20457 p/s
Manual is NAVSHIPS 900,208

frf-1402-03.jpg (494734 bytes) frf-1402-08.jpg (320349 bytes) frf-1402-09.jpg (322457 bytes) frf-1402-06.jpg (337471 bytes)

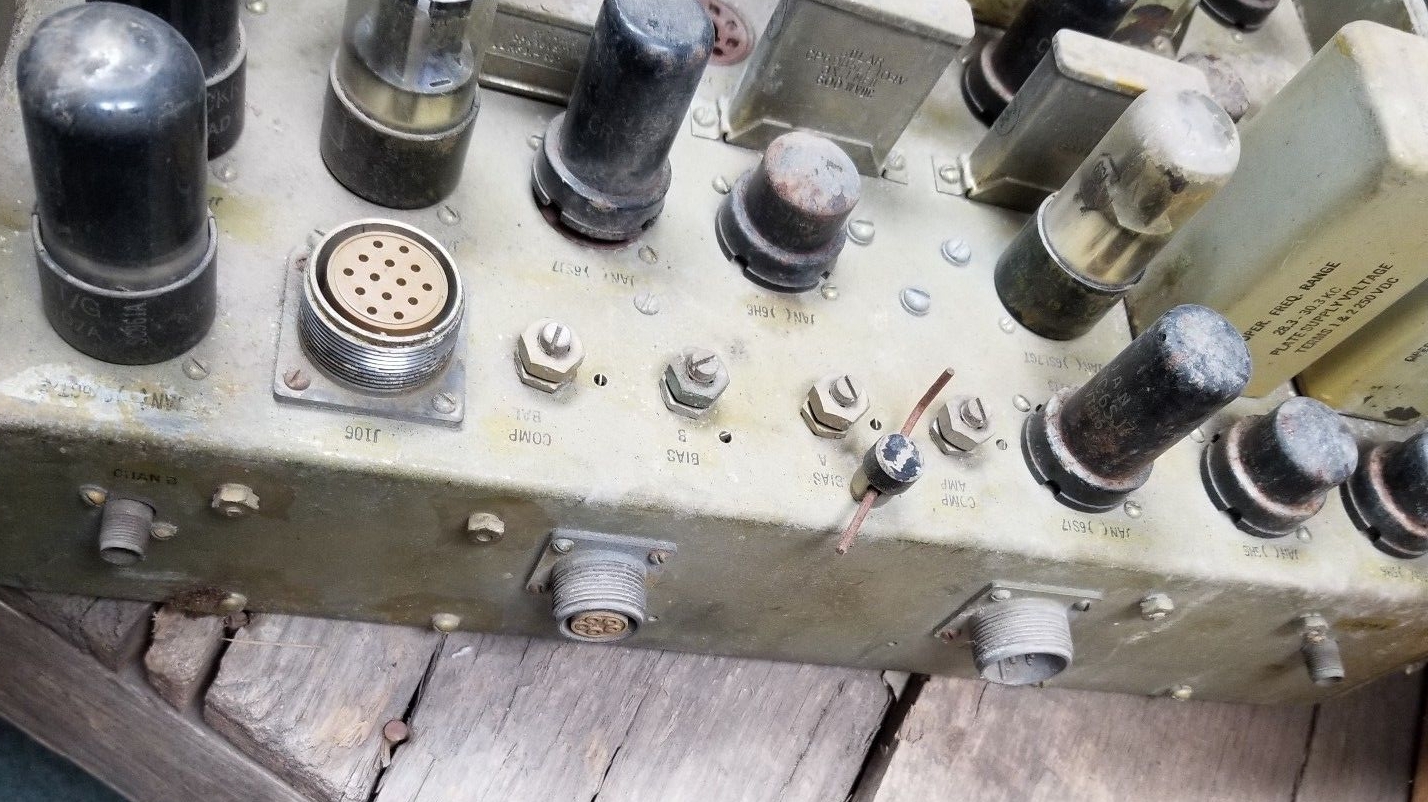

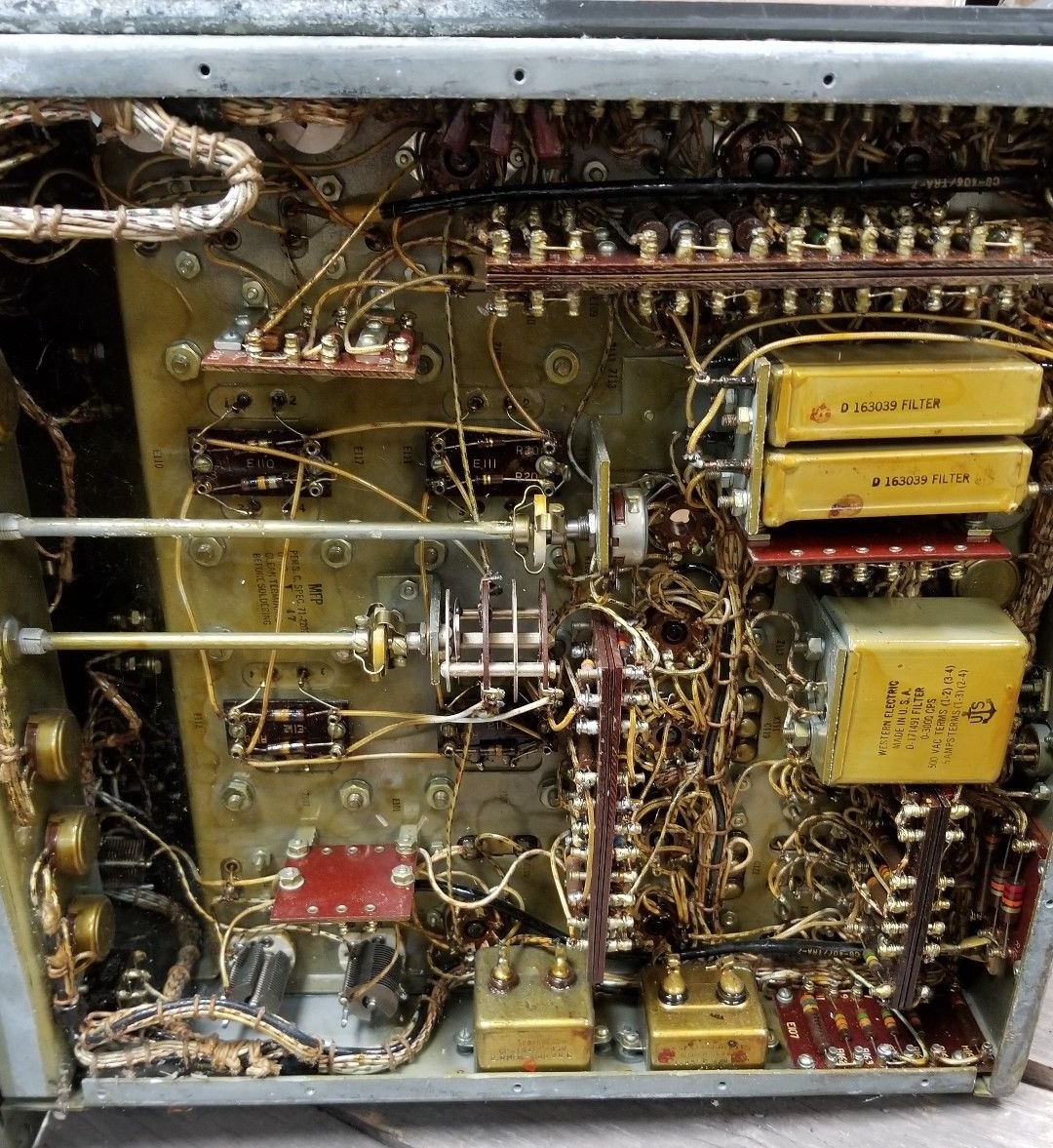

frf-1402-05.jpg (371100 bytes) frf-1805-04.jpg (711818 bytes) frf-1805-06.jpg (828559 bytes) frf-1805-07.jpg (750046 bytes)

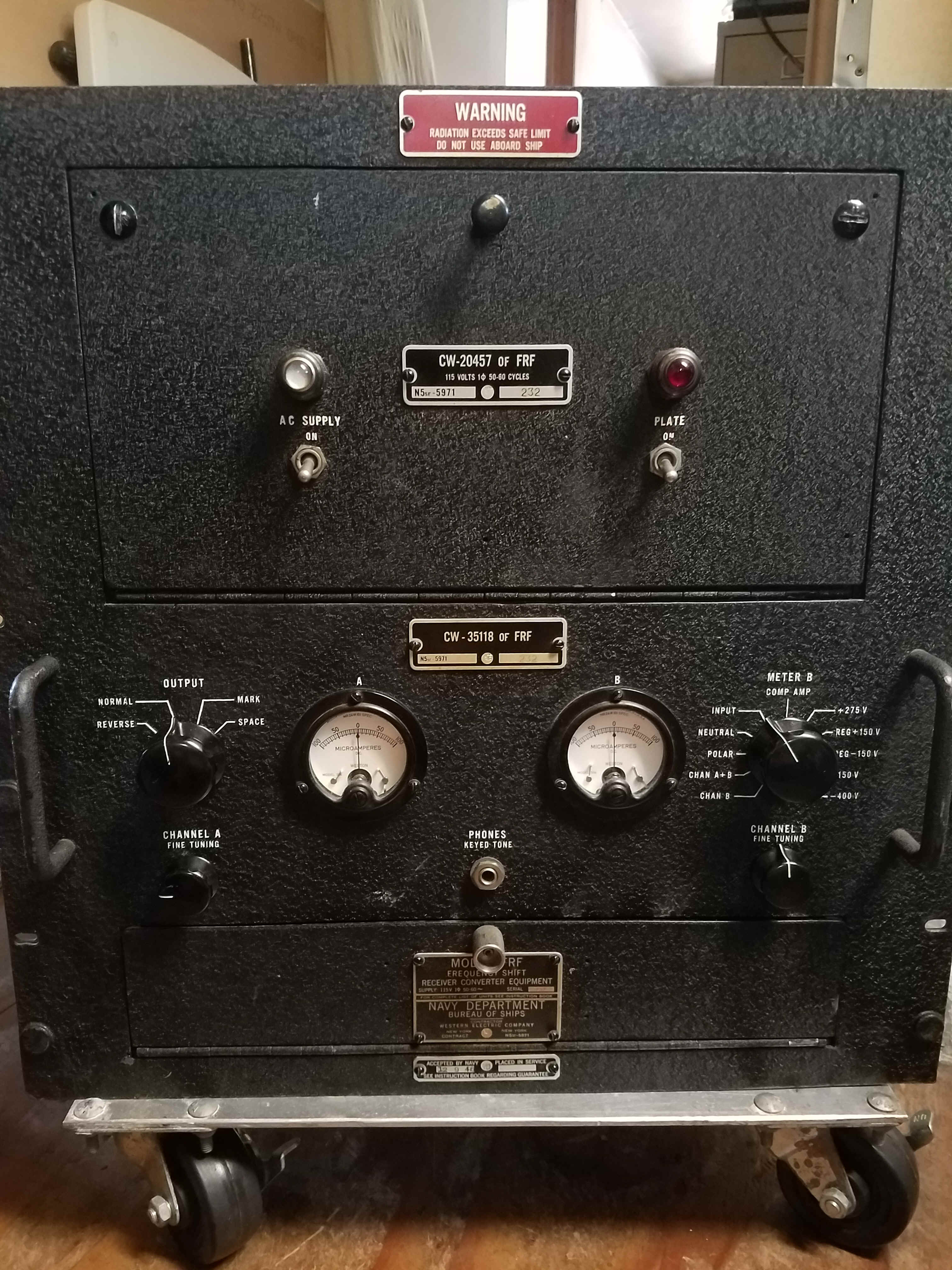

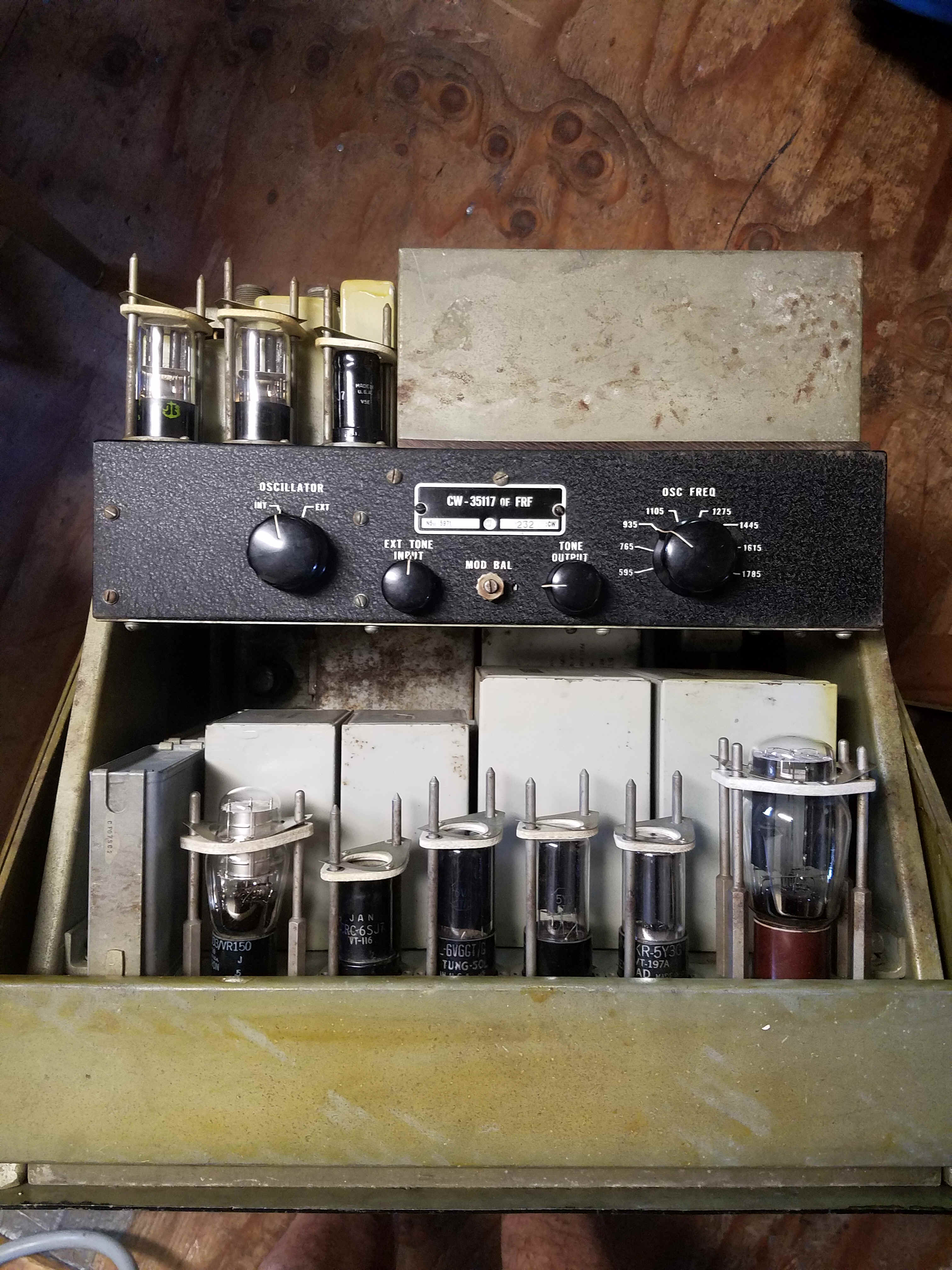

frf-20200408_152310.jpg (960896 bytes) frf-20200408_152221.jpg (691147 bytes) frf-20200408_152200.jpg (911963 bytes) frf-20200408_152338.jpg (4661587 bytes)

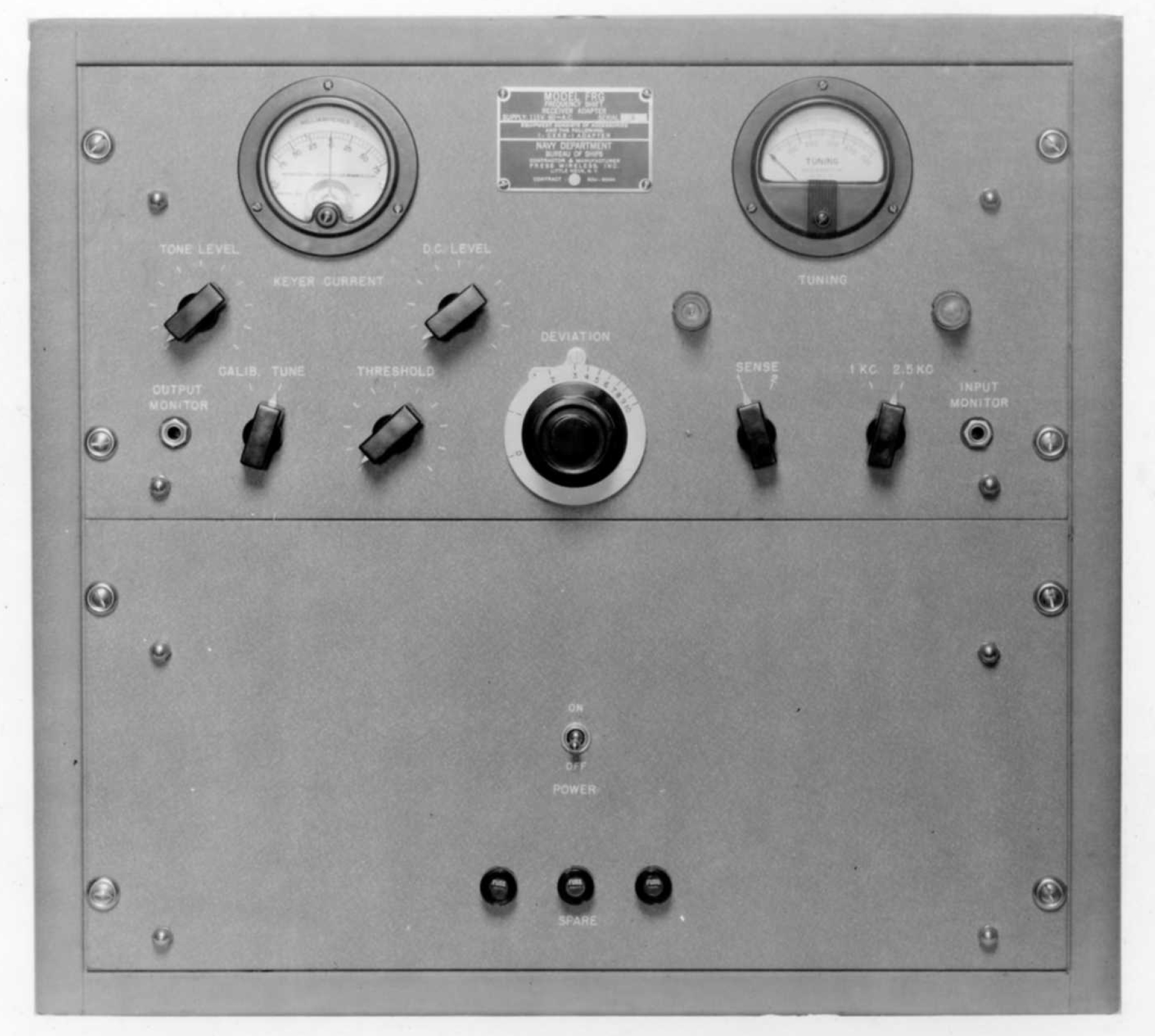

FRG - audio input frequency shift converter - for use with RBB, RBC receivers

Manufactured by Press Wireless

Spec Sheets

General description from manual


FRH  50kc IF input dual channel frequency shift converter  - for use with RBP or RCP rcvrs

Sames as FRF with different IF input

FRH spec sheets

FRH consist of CW-35119 converter, CW-35117 osc, CW-20457 p/s
Manual is NAVSHIPS 900,358


FSC - audio input dual frequency shift converter
 - for use with RBP

Built by Washington Navy Yard

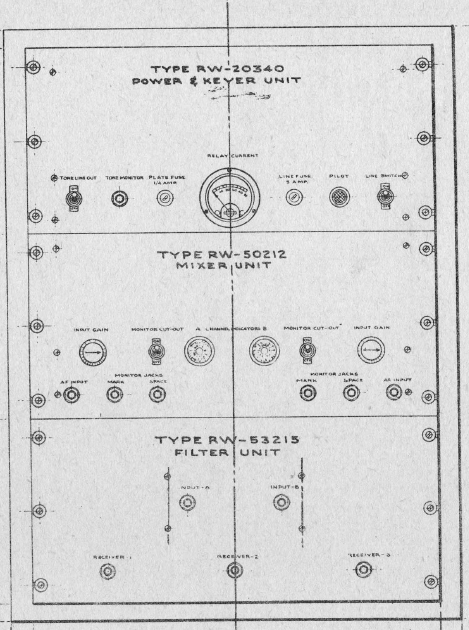

includes RW-20340 power/keyer, RW-50212 mixer, & RW-53215 filter
Manual is NAVSHIPS 900,078

general description from manual


RTTY Transmitting Equipment

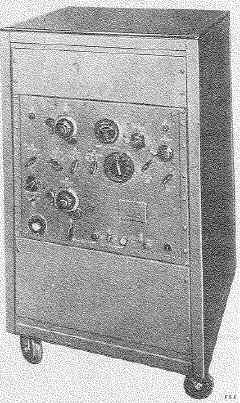

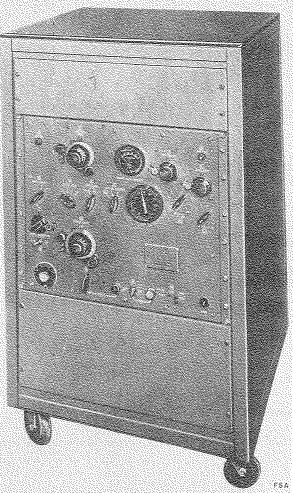

FSA - frequency shift keyer

FSA spec sheets

 mixes 200 kc FSK signal with xmtr oscillator input
 1.0 to 6.7 mc, 2w output to xmtr
 FSA (CW-35060) manual is NAVSHIPS 900,754

general description from manual

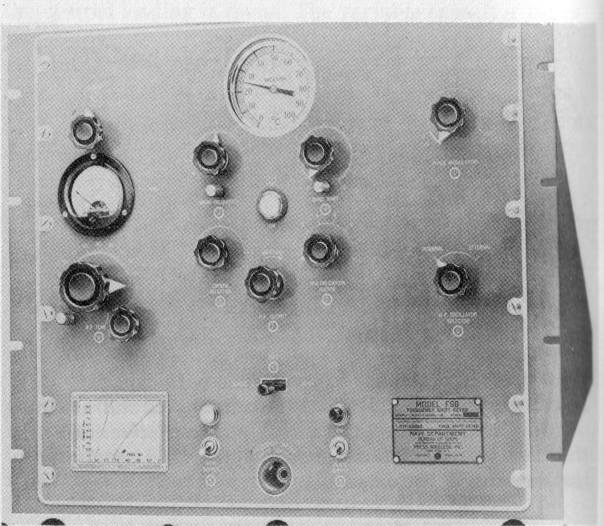

FSB - frequency shift keyer

FSB spec sheets

 mixes 200 kc FSK signal with xmtr oscillator input
 1.0 to 6.7 mc, 2w output to xmtr
 FSB (CYV-35062) manual is NAVSHIPS 900,928
 info in NAVPERS 10190-A (ET2 training manual vol. 1)




FSD FSK facsimile transmitting keyer - Spec Sheets


MX-1262/URT
(CBOT-23510)
FSK Coupling Adapter for TBL transmitter connects TBL to FSA, FSB, KY-30/GRT, KY-58/GRT, KY-75/SRT or similar keyer

section 1 couples xmtr master oscillator to FSK keyer.

section 2 couples FSK keyer output to xmtr's first IPA tubes

NAVSHIPS 91885

manuf by American Electronic Laboratories Inc.

CYV-23510 FSK Coupling Adapter for TBK & TBM transmitters This is a small unit installed into a TBK (or TBM) transmitter to allow easy hookup of an external frequency shift keyer. Has two tuned RF transformers, one to couple the TBK osc to the 75 ohm FSK input, and the other to couple the 75 ohm FSK output to the TBK IPA. Controls are a common tuning knob for both transformers plus a switch to bypass the FSK. NAVSHIPS 900,206

manuf by Press Wireless
