Navy SB-1203/UG & SB-1210/UGQ Teletype patch panels

Navy ET manual info  -  thanks to Randy Guttery

SB-1203/UG is for black (unclassified) circuits, SB-1210/UGQ is for red (classified) circuits.

Scans from NAVSHIPS 95718 - pdf version

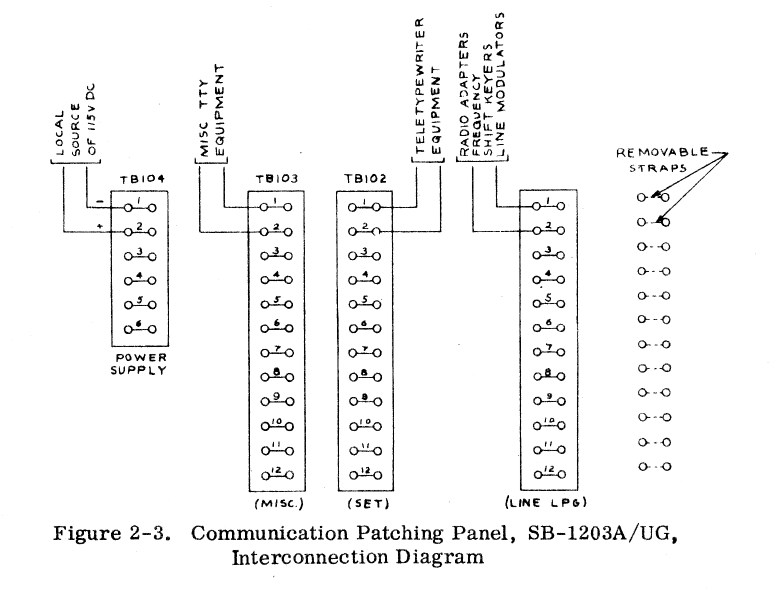

SB-1203A interconnection

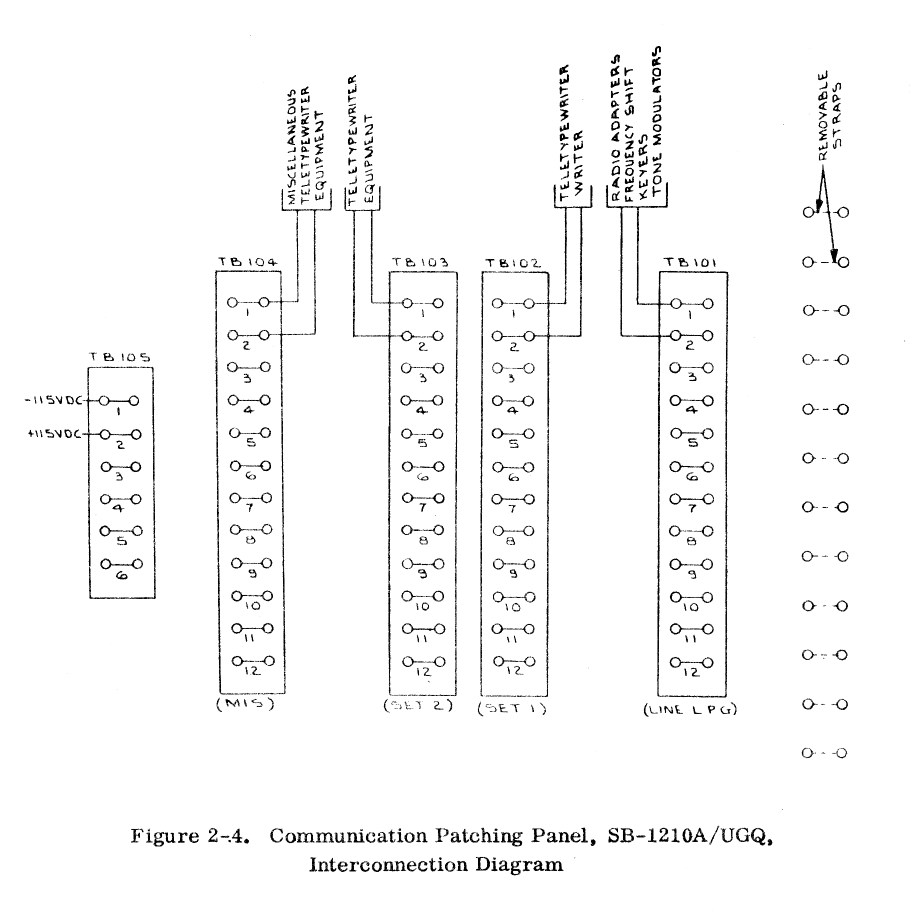

SB-1210A interconnection

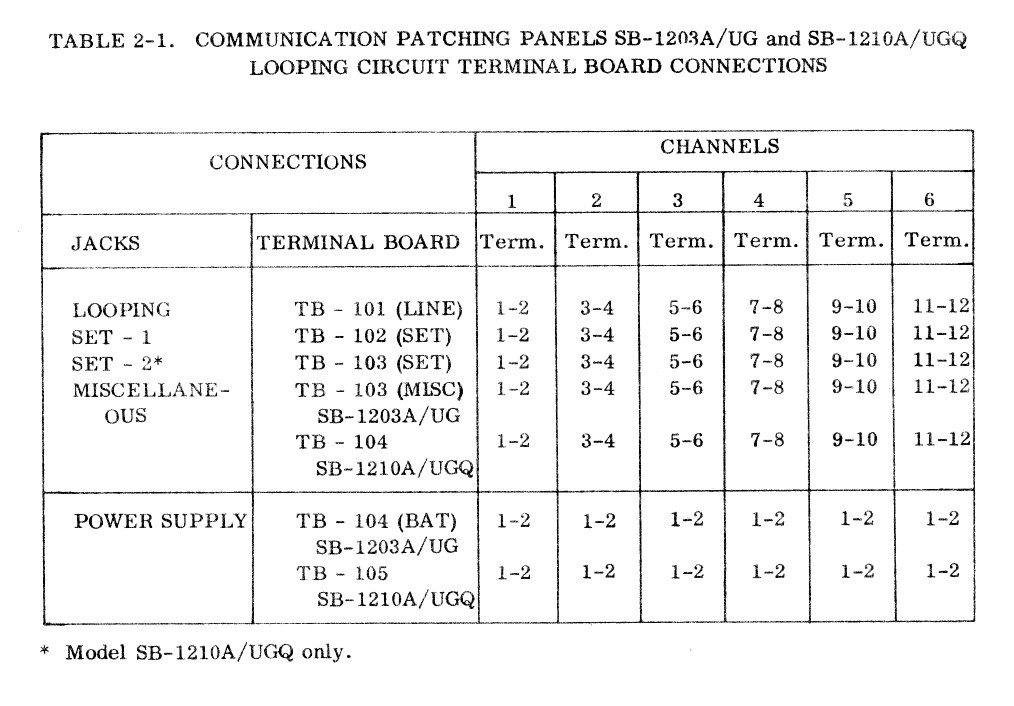

terminal board connections

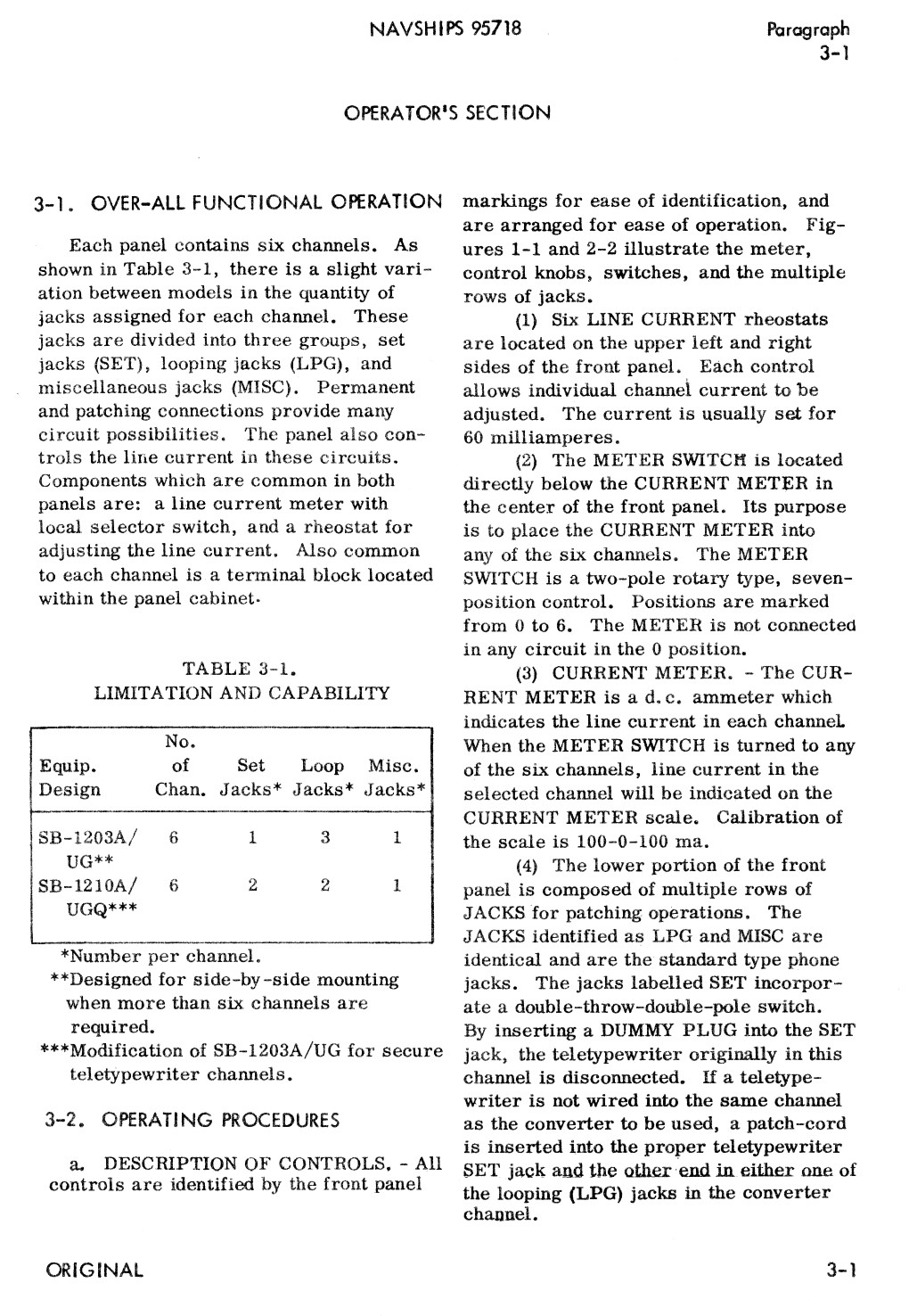

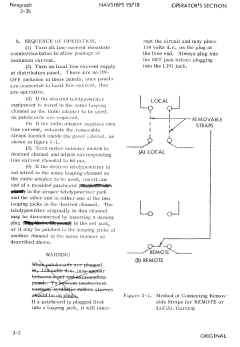

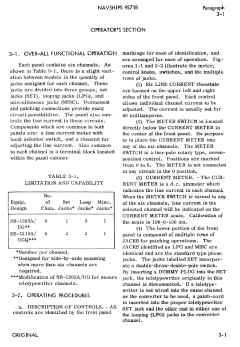

operation - page 1
operation - page 2

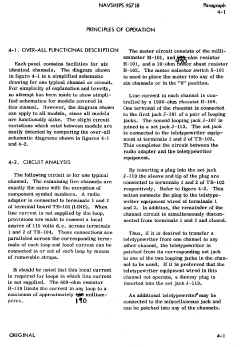

circuit description - page 1

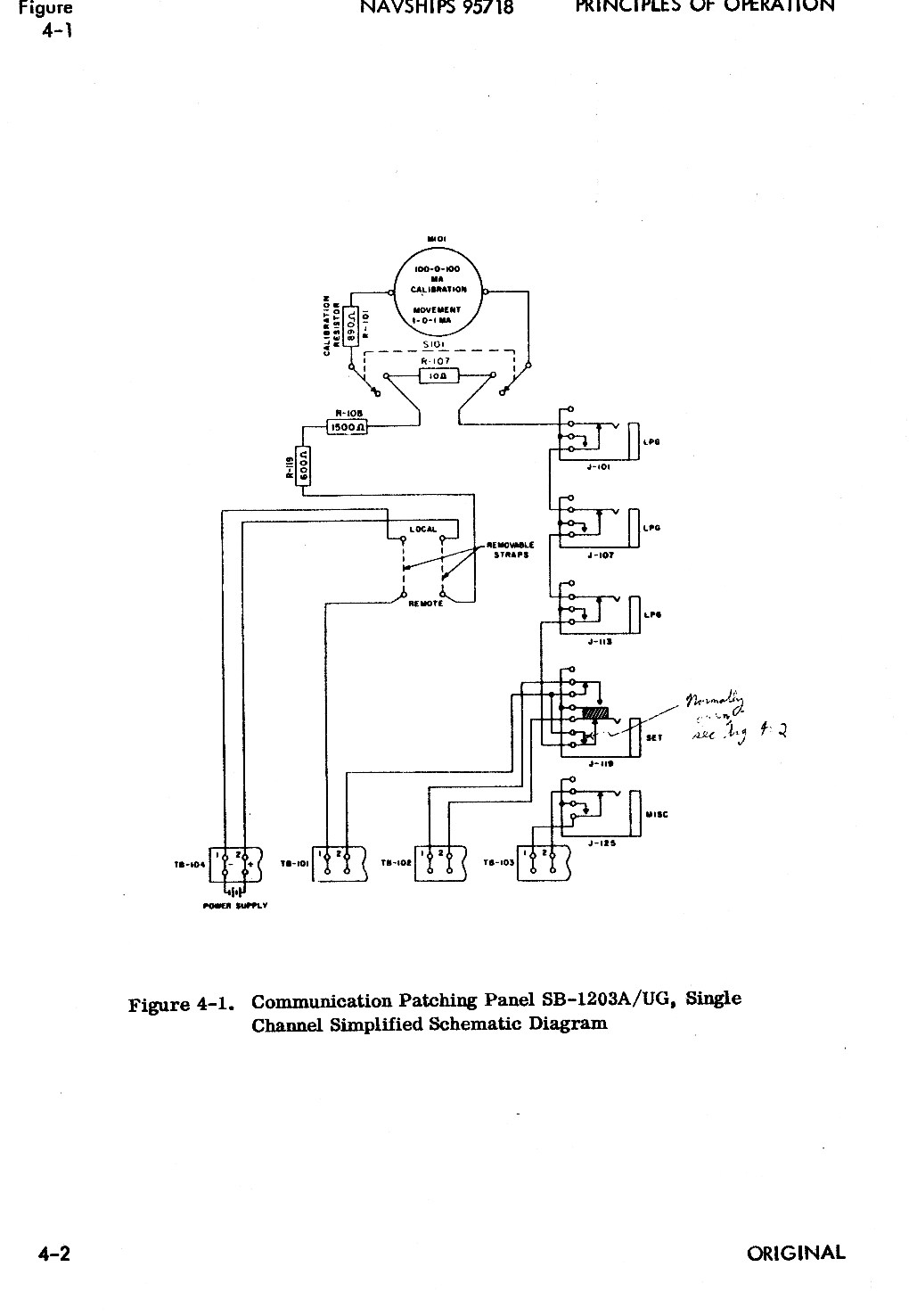

single channel diagram

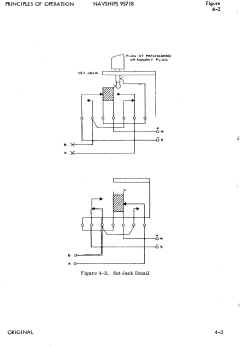

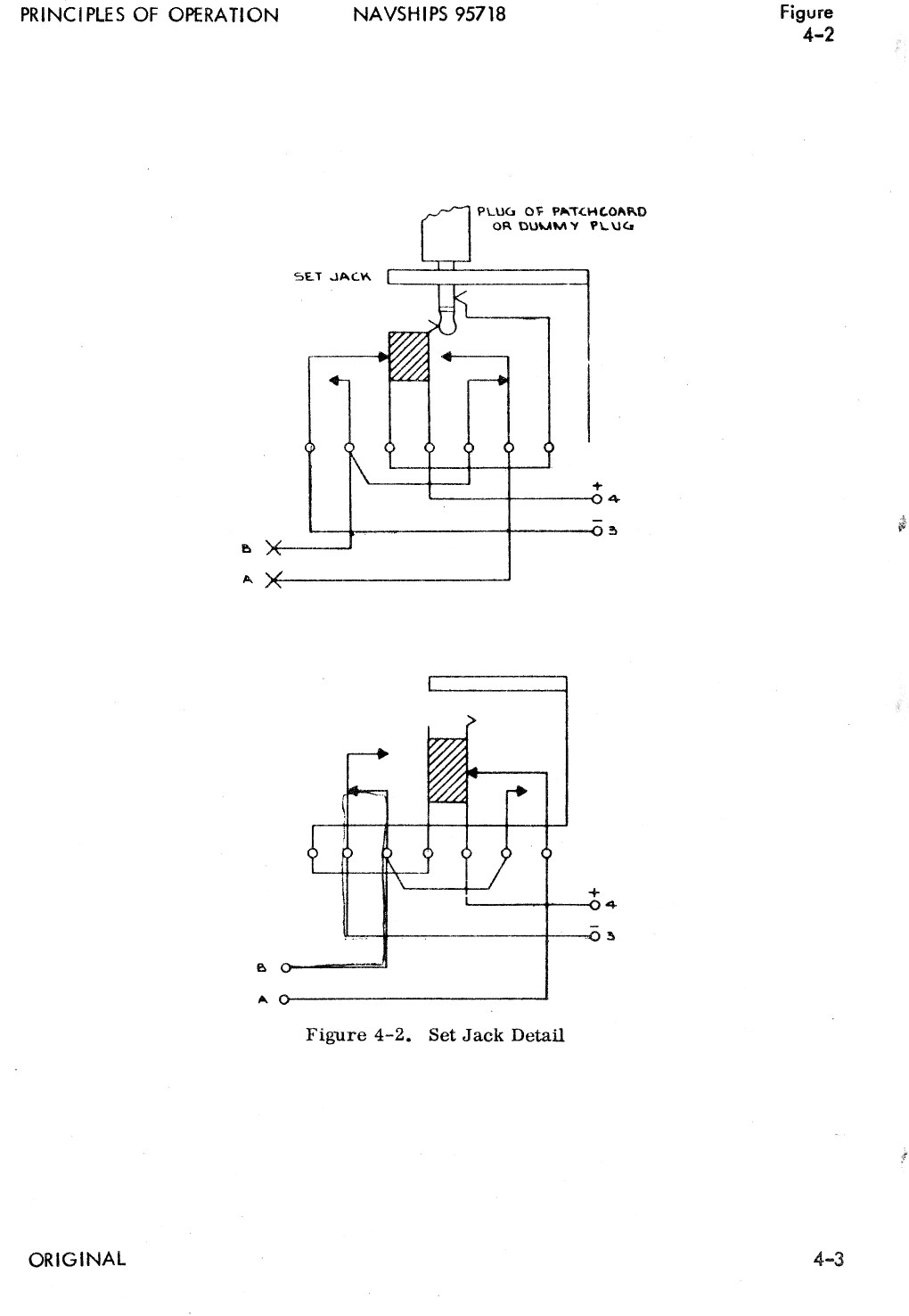

SET jack detail

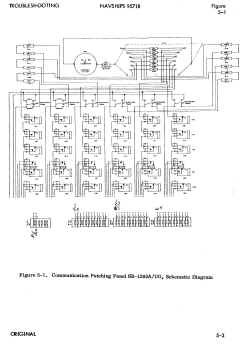

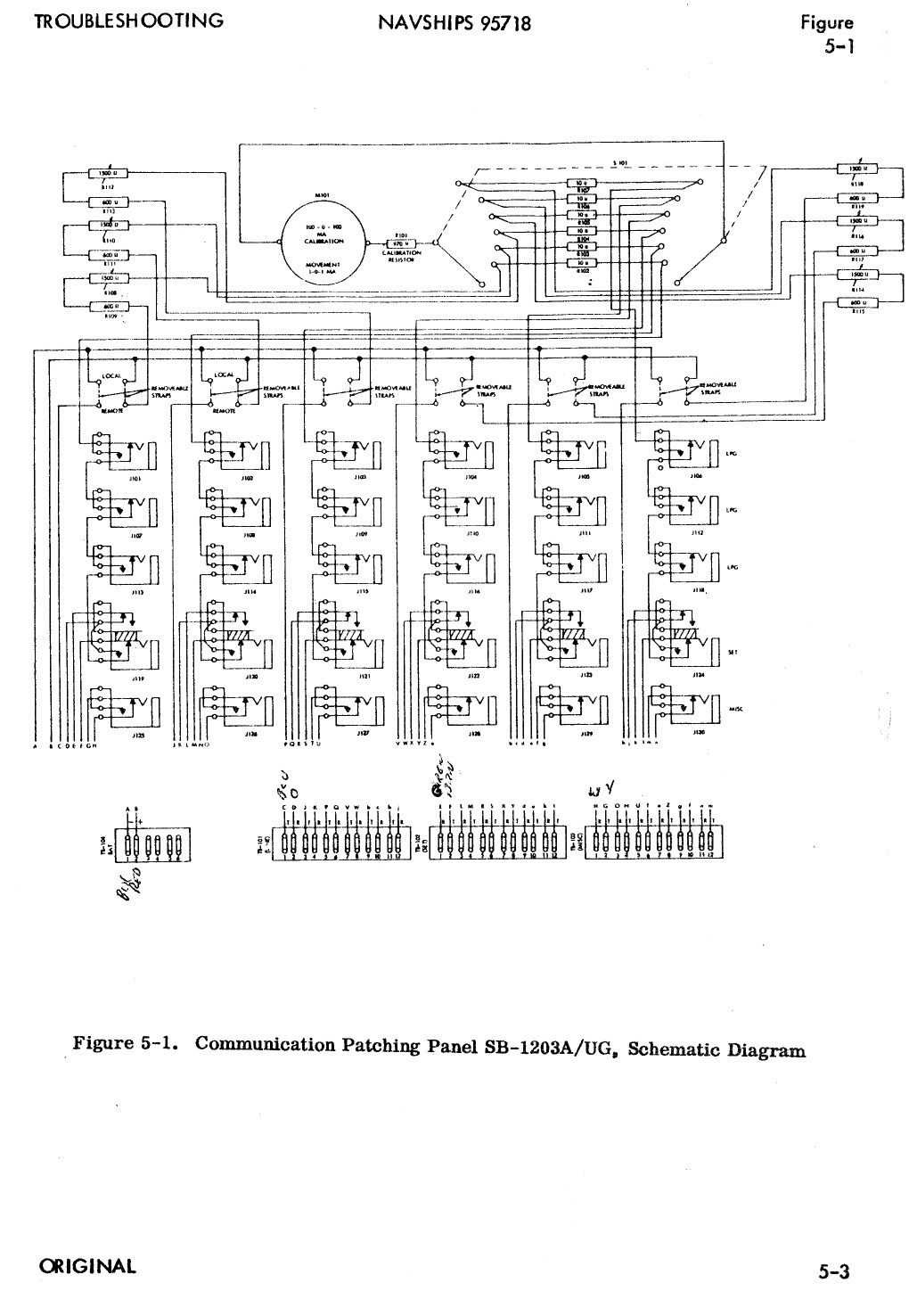

SB-1203A schematic

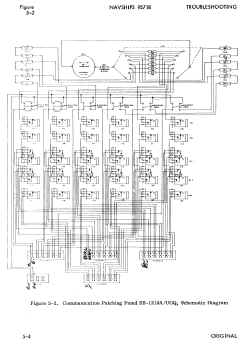

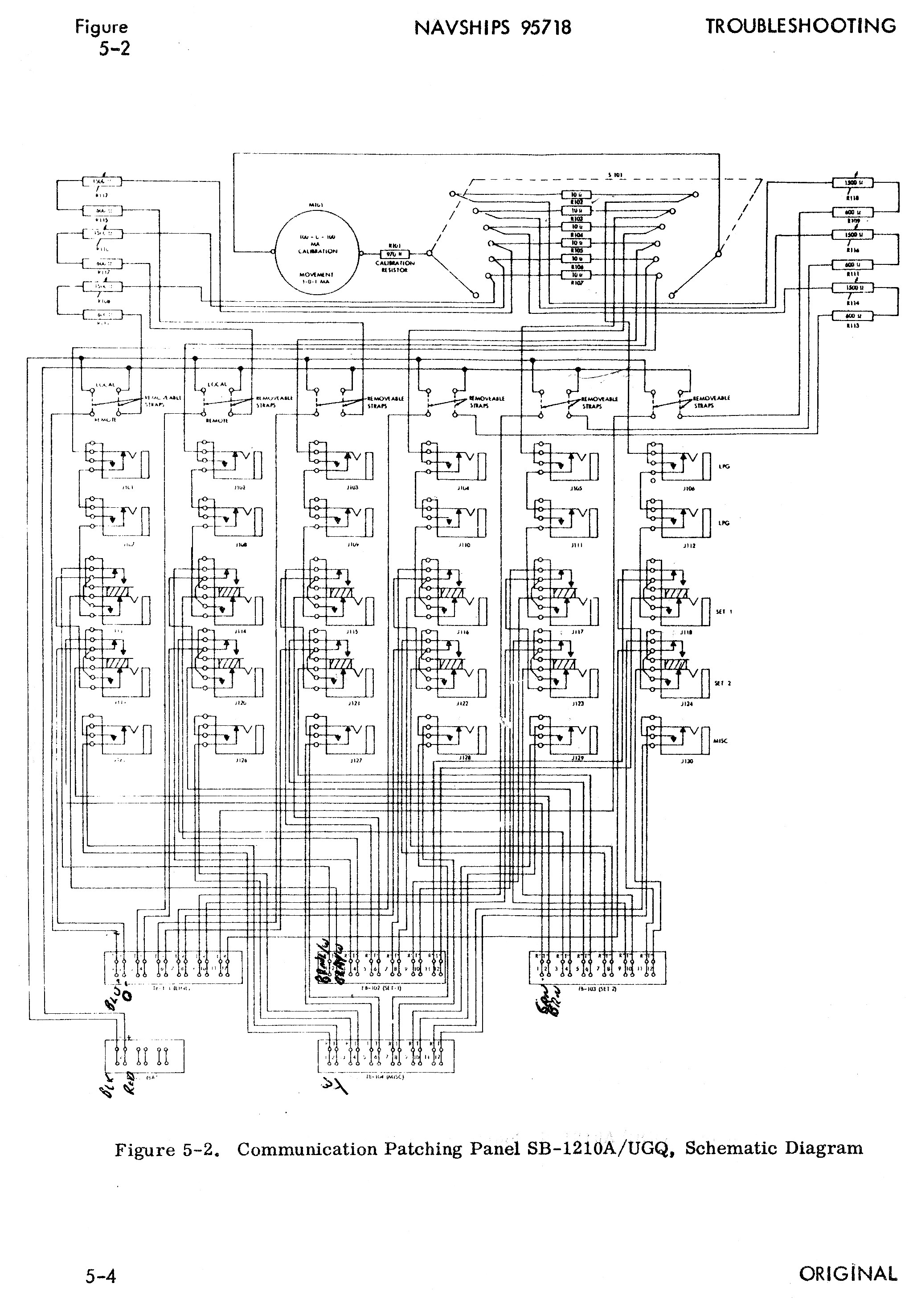

SB-1210A schematic
