1970s Typical CVA Radio Equipment

Info taken from a 1969 report on projected reliability of communications equipment.
 - there is more info in the report about TRED and TRED/SATCOM configurations

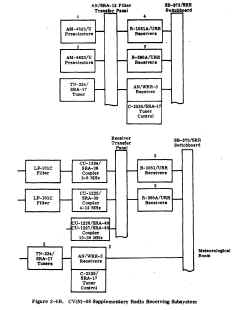

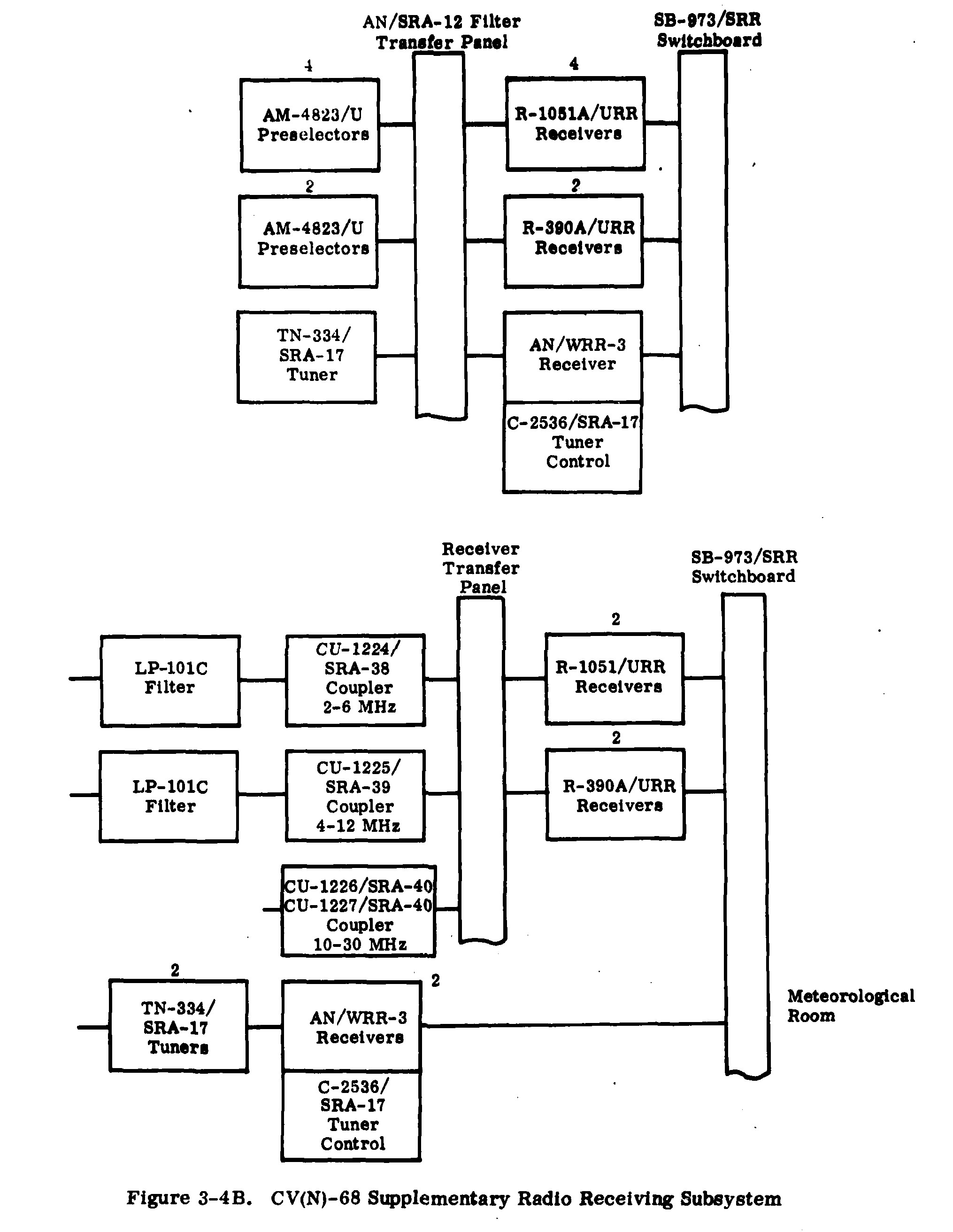

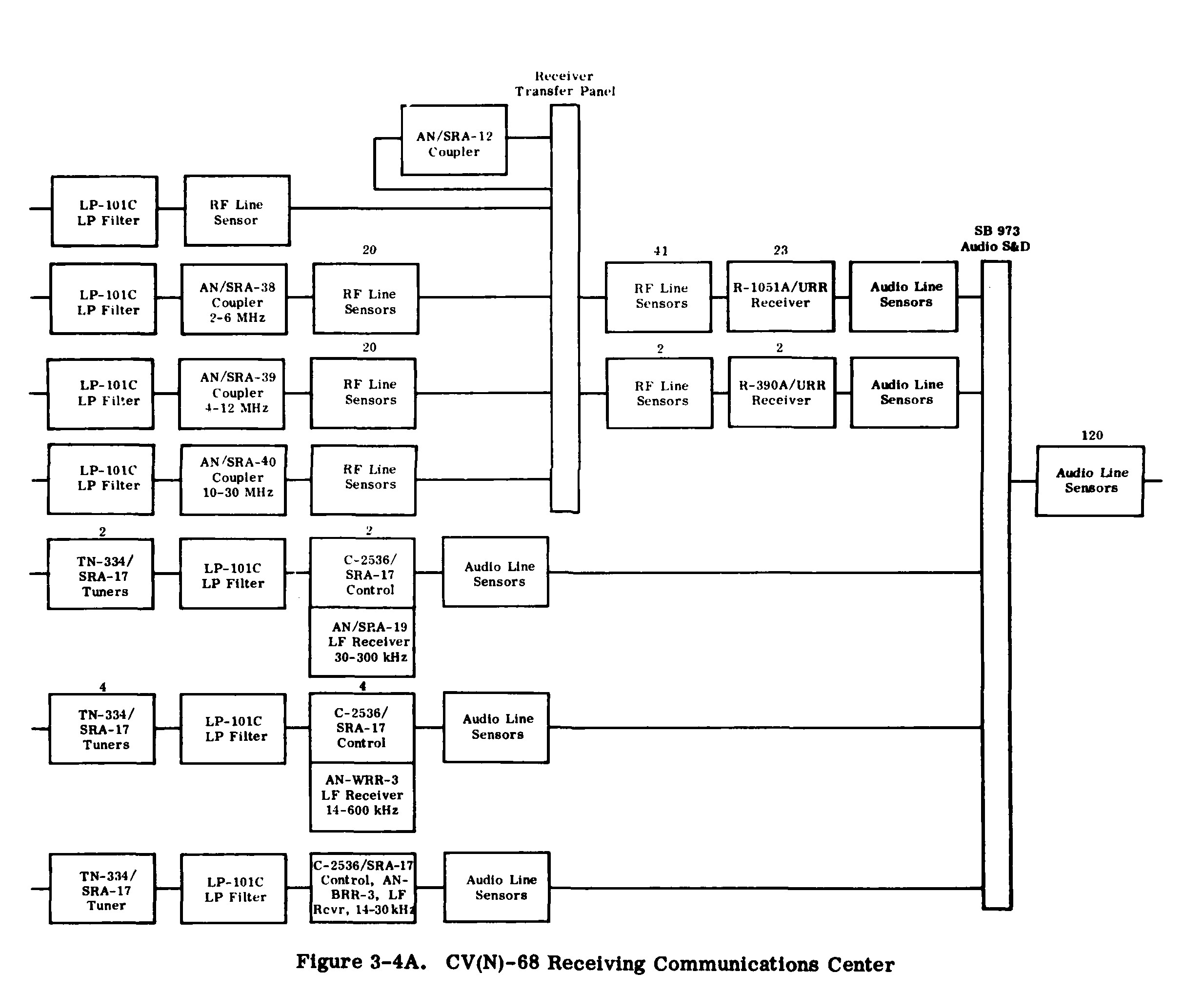

This is the projected conventional communications suite for a 1970's CVA

Receiving Equipment Use Quantity
R-1051/URR HF synthesized receiver 29
R-390A/URR HF tuned oscillator receiver 6
AN/WRR-3 MF/LF receiver 7
AN/SRR-19 LF receiver 2
AN/BRR-3 VLF receiver 1
AM-4823/U preselectors 6
AN/SRA-12 HF filter/multicoupler 1
AN/SRA-17 LF antenna + tuner 10
AN/SRA-38 (20 receivers) 2-6 mc antenna multicoupler 1
AN/SRA-39 (20 receivers) 4-12 mc antenna multicoupler 1
AN/SRA-40 (20 receivers) 10-30 mc antenna multicoupler 1
AN/SRA-49 (20 receivers) 2-30 mc antenna multicoupler 1
Transmitting Equipment Use Quantity
AN/URT-23 HF manually tuned transmitter 12
AN/SRC-23 HF auto-tuned transmitter 2
AN/WRT-1 LF transmitter 2
AN/WRC-1 HF transceiver 2
AN/SRA-57, 58 manually tuned HF multicoupler 3
MX-4845/SRA-34 auto-tuned HF multicoupler coupler adapter 17
MX-4847/SRA-34 auto-tuned HF multicoupler xmtr adapter 12
OA-4794/SRA-34 auto-tuned HF multicoupler 2-6mc antenna coupler group 2
SA-1070/SRA-34 auto-tuned HF multicoupler RF switch 4
C-4787/SRA-34 auto-tuned HF multicoupler remote control 4
AN/URA-38 manually tuned HF multicoupler 5
SB-863 switchboard 12
