BRPE Punch Block Info

Back to Main Tape Relay Equipment Page
Please send me email with additional info, corrections, etc.

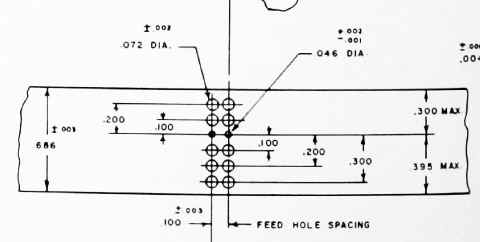

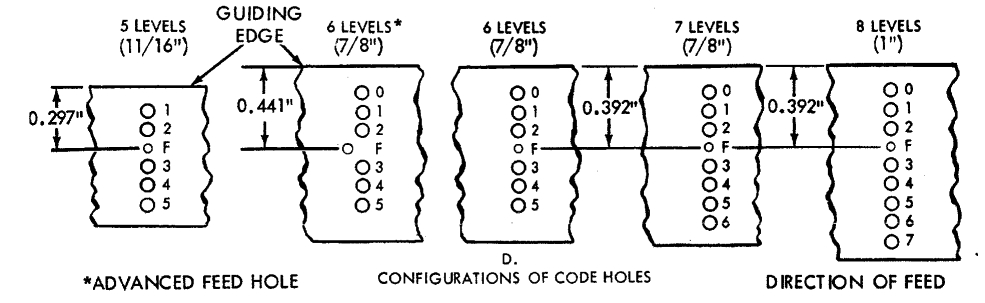

11/16" 5-level perforated paper tape standard	Punch block assembly with punch pins, guides, retainer, and die		5, 6, 7, 8 level tape formats
Video of BRPE in action - includes slow-motion punching

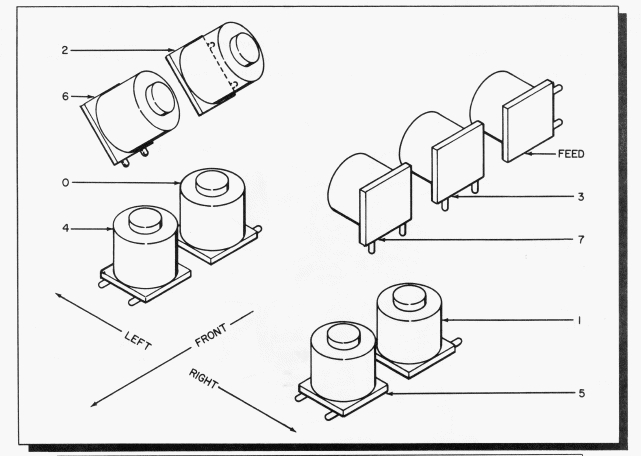

Some BRPE model info - switch pickup BRPE1 (BRPEB4 base) - 5 level, 11/16" width, 115v 150ma magnets BRPE2 (BRPEB2 base) - 7 level, 7/8" width, 115v 150ma magnets BRPE3 (BRPEB3 base) - 5 level, 11/16" width, 115v 150ma magnets BRPE5 (BRPEB2 base) - 6 level, advanced feed hole, 7/8" width, 115v 150ma magnets magnetic pickup BRPE6 (BRPEB6 base) - 8 level, 7/8" or 1" width, 28vdc 1a magnets BRPE7 (LRXB base) - 5 level, 11/16" width, 28vdc 1a magnets BRPE8 (BRPEB7 base) - 8 level, 7/8" or 1" width, 115v 150ma magnets BRPE9 (BRPEB8 base) - 5 level, 11/16" width, 28vdc 1a magnets BRPE11 (BRPEB6 base) - 6, 7, or 8 level, 7/8" or 1" width, 28vdc 1a magnets BRPE15 (BRPEB6 base) - 5 level, 5/8" or 11/16" width, tape notching on 0 and 6th level pins, 28vdc 1a magnets BRPE18 (BRPEB6 base) - 6 level, 7/8" width, advanced feed hole, 28vdc 1a magnets BRPE21 (BRPEB11 base) - 5 or 8-level, 11/16" or 1" width, 28vdc 1a magnets
I have a later model BRPE18 with a 146677 6-level punch block (with advanced feed hole). I am looking for a 170751 5-level punch block to replace it. I also have an early model BRPE3 with a 124336 5-level block Q: is this compatible with the later BRPE18? A: No. I removed and examined the two.
BRPE3 5-level punch block assembly		BRPE6 and up punch block parts - showing 5-level and 8-level dies	=
BRPE3 Punch Block parts diagram BRPE6 and up Punch Block parts diagram Complete BRPE Parts Manual Complete BRPE Tech Manual

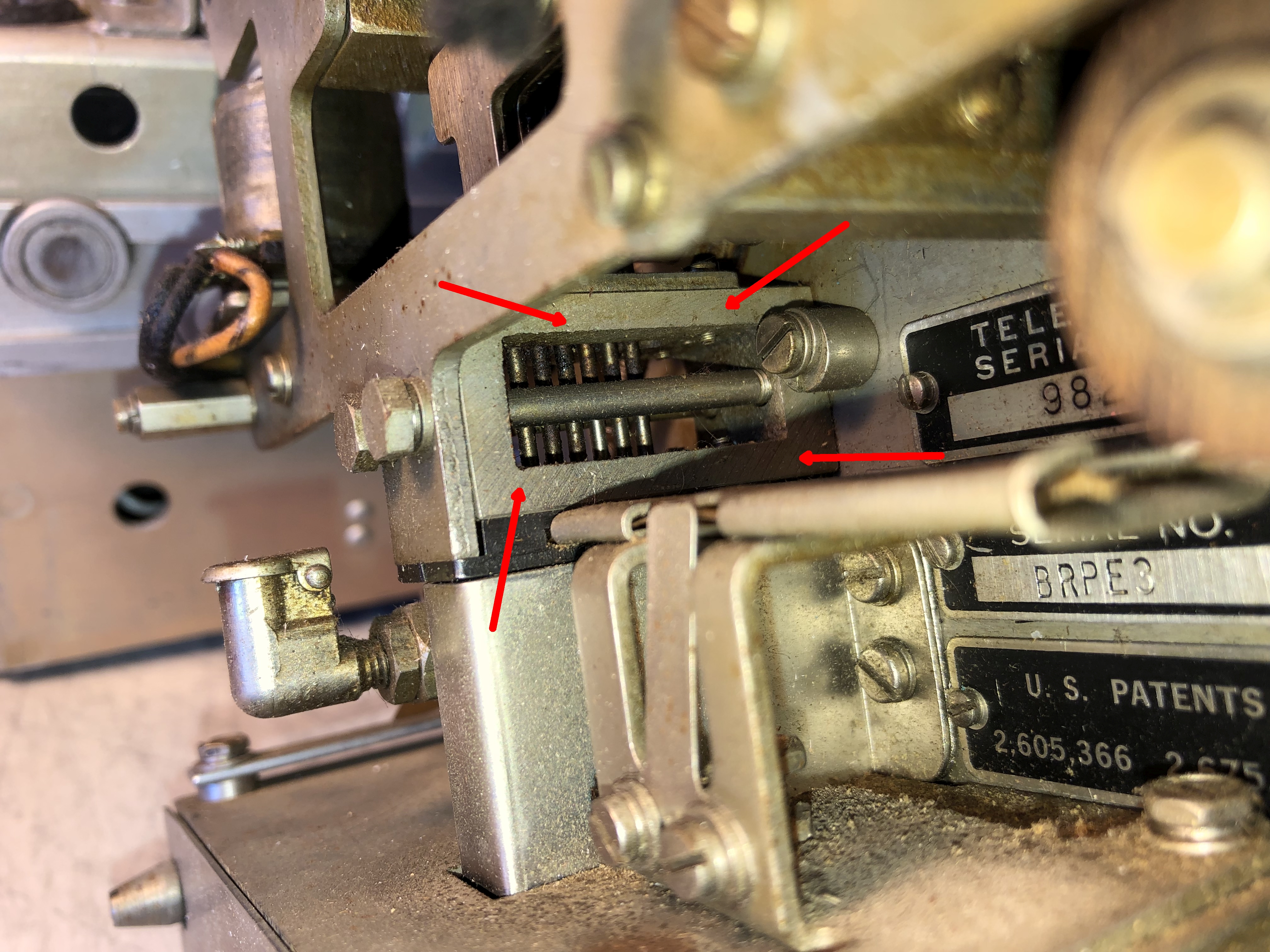

Some photos of a BRPE3 (old style) 5-level punch block
	Right-side view from low	Left-side view from low	Left-side view
top-front view
I will know more about this when I disassemble a 6-level BRPE punch and see what is useful for a 5-level refit. The punch pins and associated solenoids and actuating levers should all be fine - The early style BRPE3 punch block dimensions are definitely different from the new style.

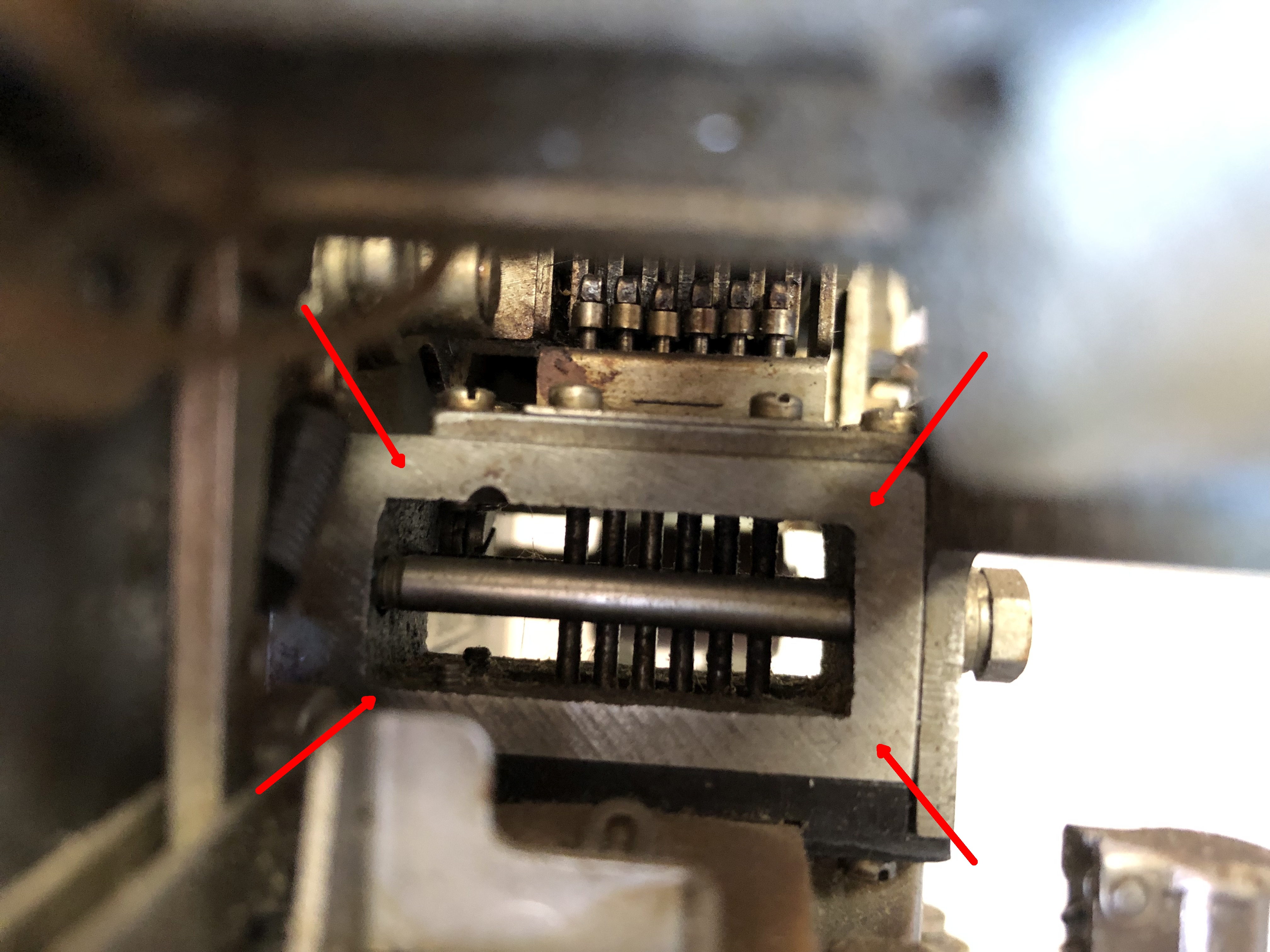

BRPE18 (new style) 6-level punch block (with advanced feed hole) - I need a 5-level with in-line feed hole. Feed hole should be at the same distance front-back as this one. FRONT is to left in photos

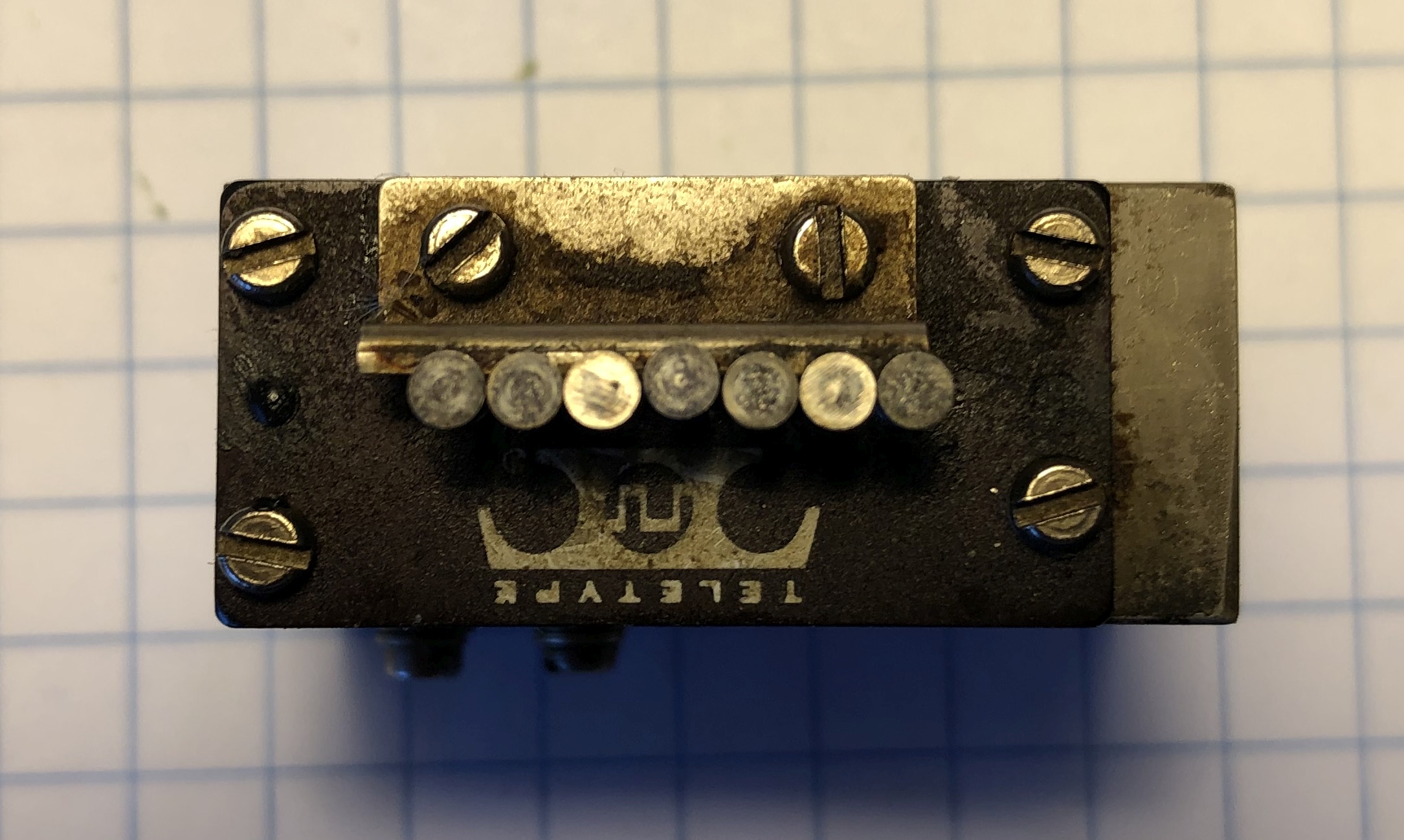

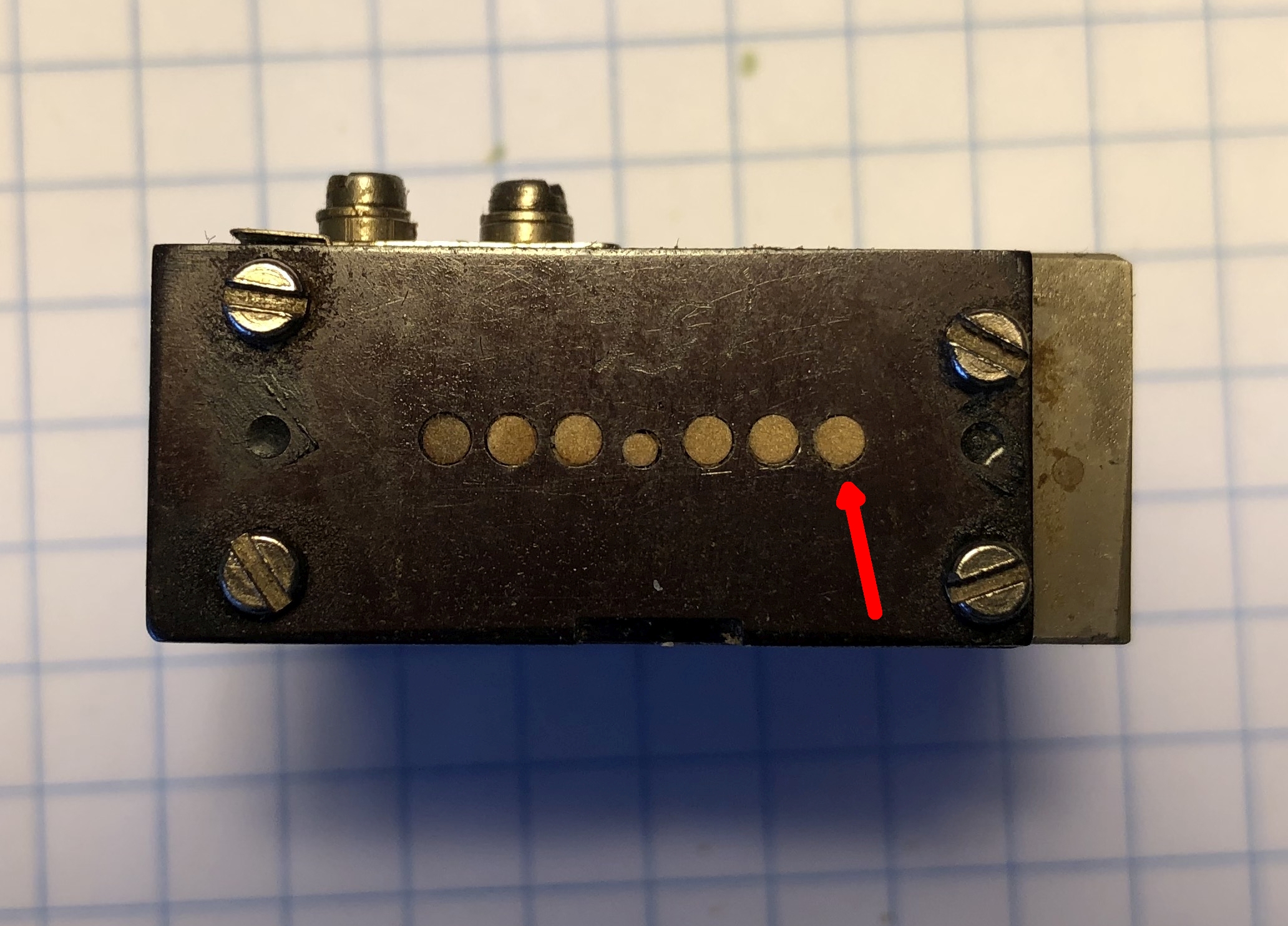

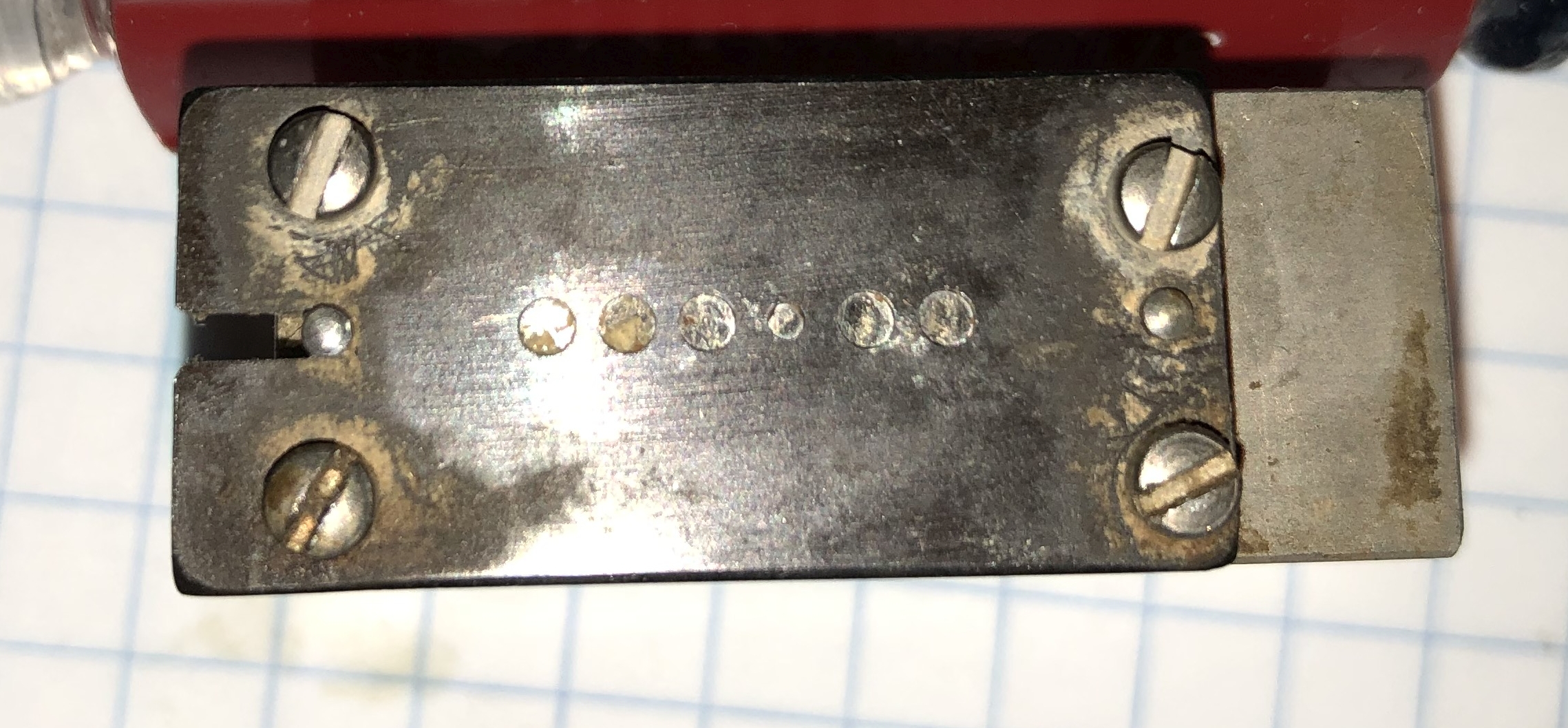

Right side view - Front is to left Tape enters from this side	viewed from bottom - Front is to left	Delete marked hole for 5-level punch - Front is to left	viewed from top - Front is to left

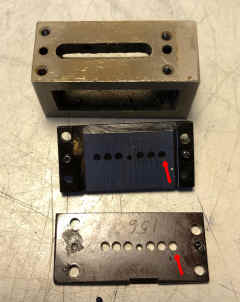

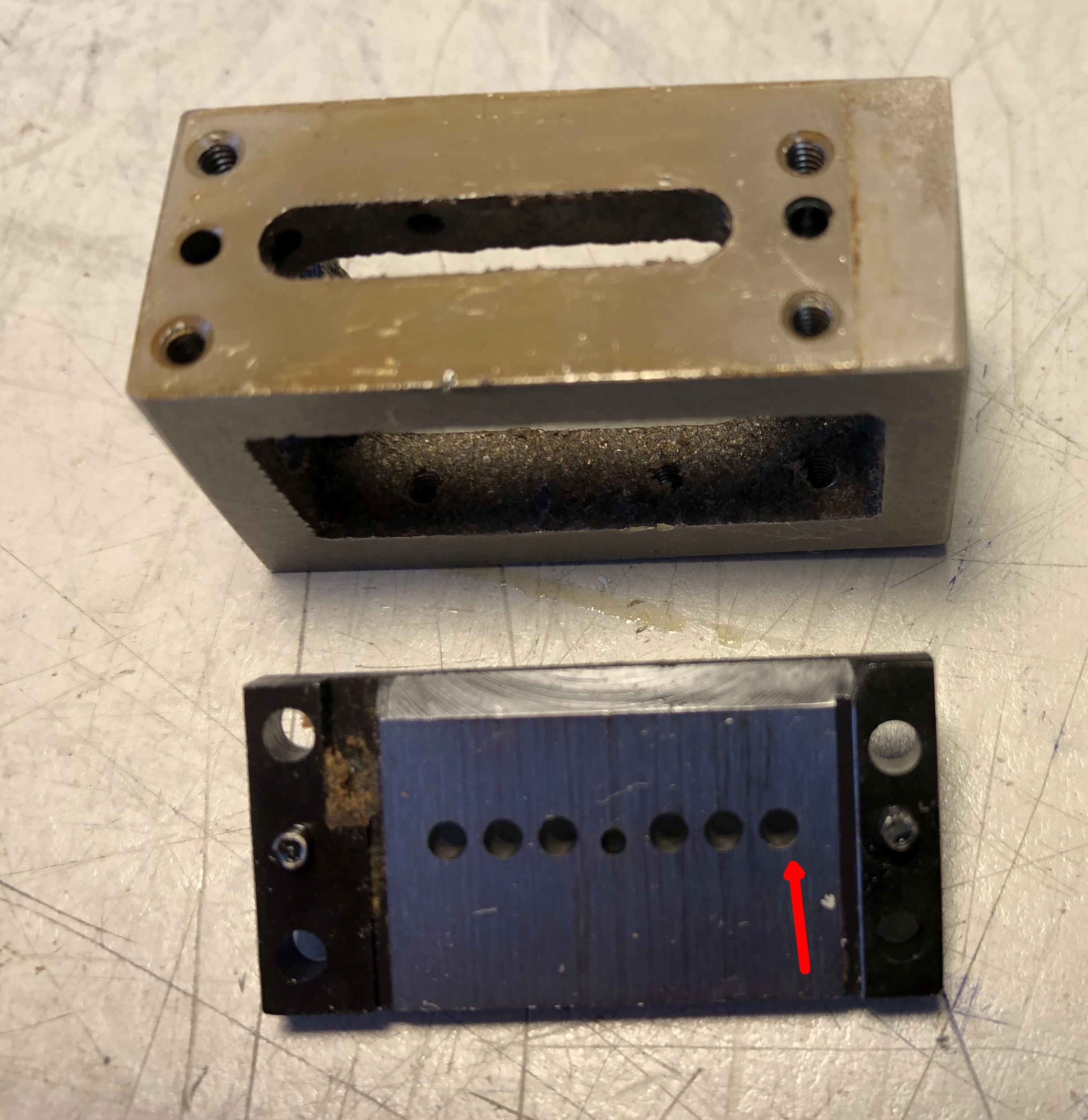

Delete the marked hole for 5-level block punch. Also move feed hole to be in-line with data holes. FRONT is to left in photos
Die plate	Bottom guide plate	Bottom guide plate and die plate	Top plate
==	==	==	==
