front plate removed
left side codebar guide bracket

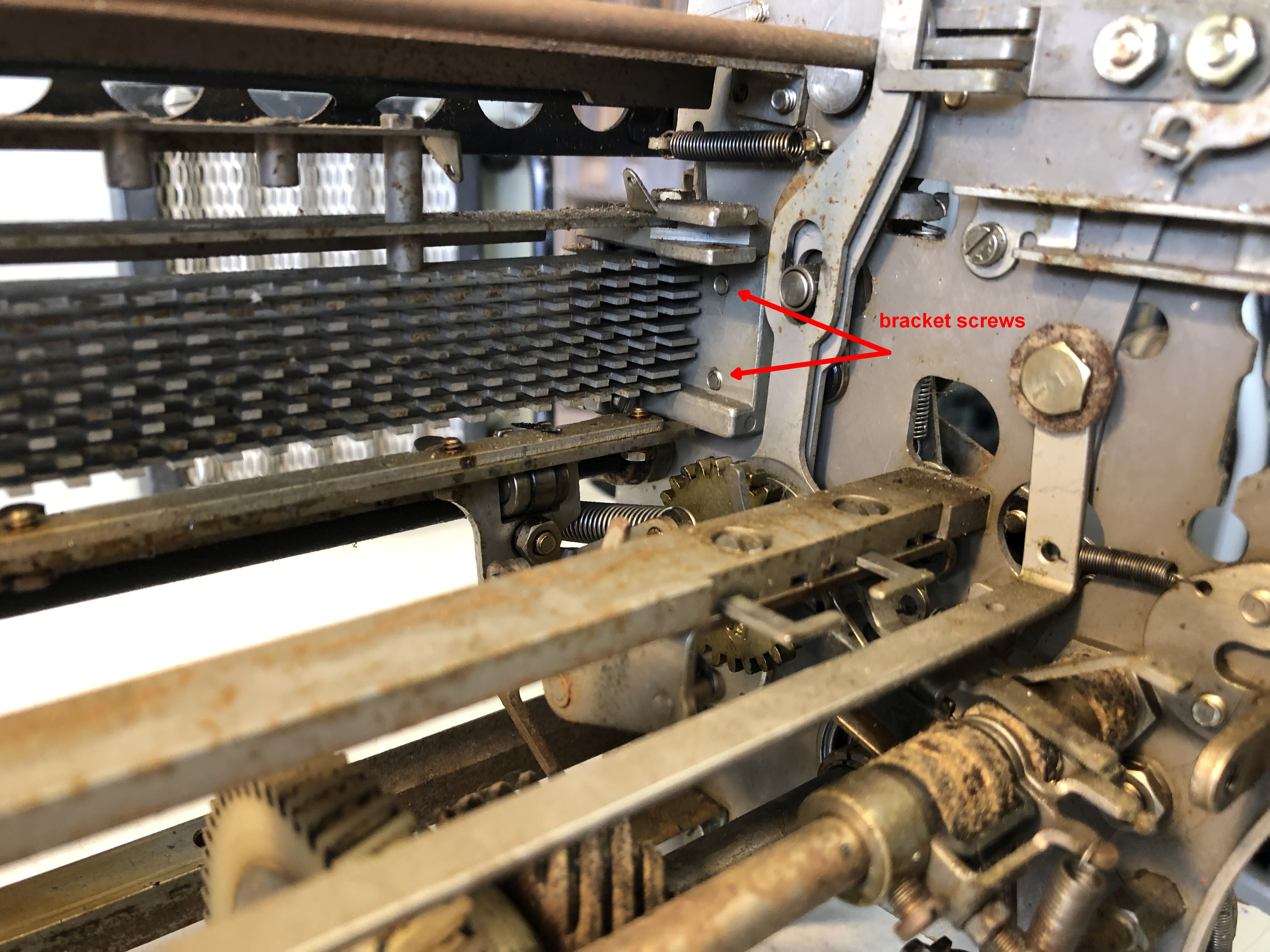

left side bracket mounting screws
left side bracket mounting screws
inside view
==== |
right side codebar guide bracket
right side bracket mounting screws
right side bracket mounting screws
inside view

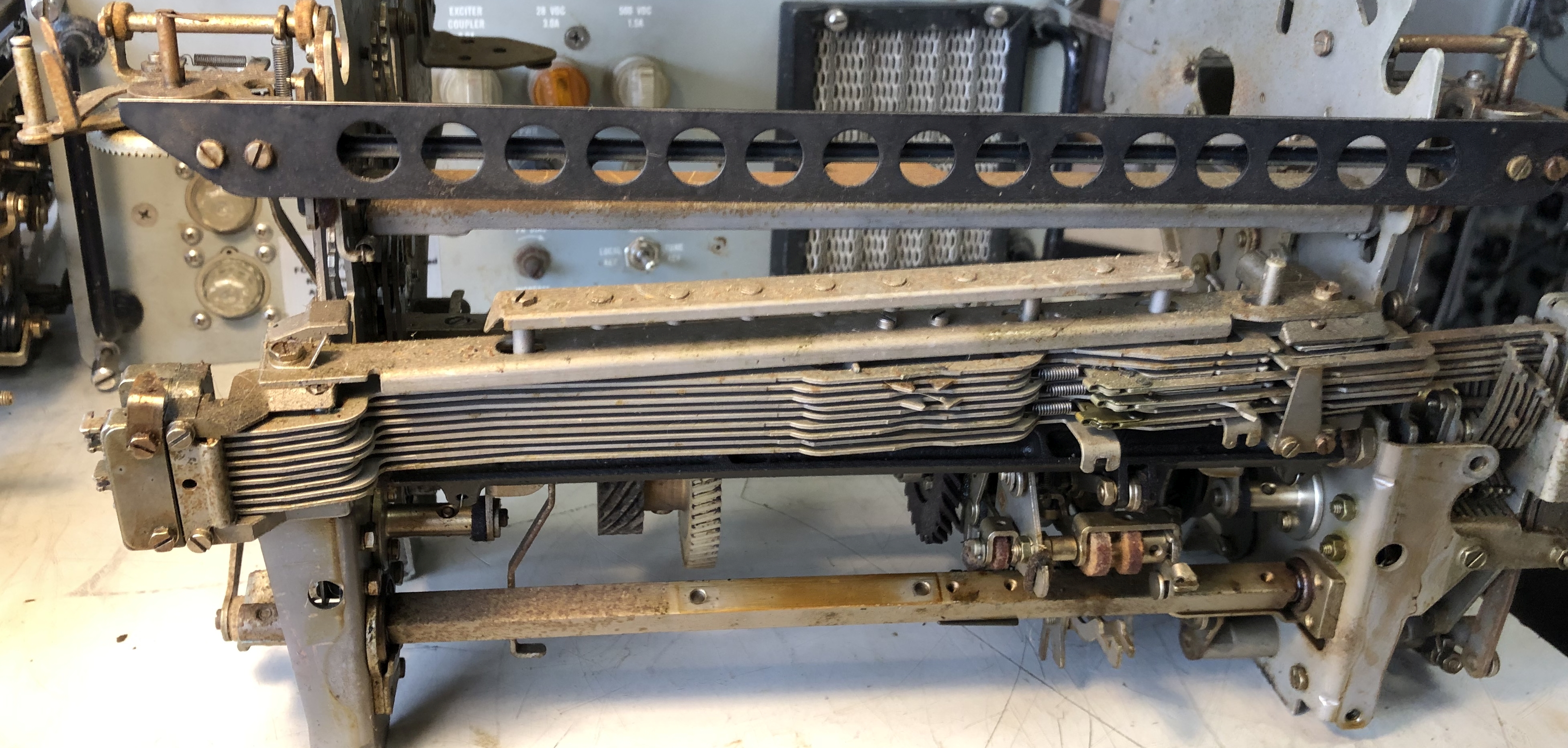

left side loose
pull toward left to remove codebar assembly

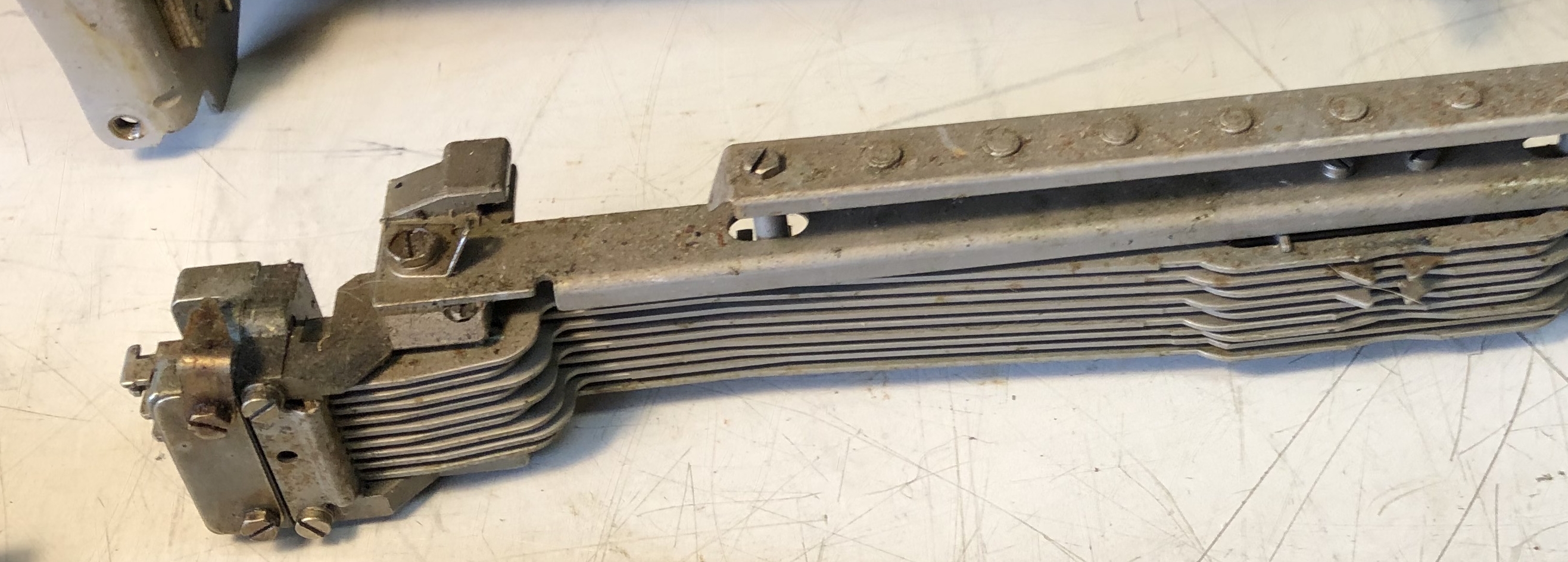

codebar assembly left end
== |
pin through codebars
|
remove setscrew for pin
remove pin
remove detent bracket and other plates
slide bracket loose....
== |
== |
== |
