K4NYW Navy Radio Shack
"Basement NAVCOMMSTA"

Last edited 03/31/2024

I NEED SOME FREDERICK ELECTRONICS RTTY GEAR MANUALS

Come join the 850 shift military RATT (radioteletype) net - 7087kHz USB with 2000+/-425Hz mark low military tones
Saturdays around 0900 eastern US time

December 2023 - added an AFSK board to the RT-1446/URC-119 (Harris RF-350K) - I had been operating the AN/URC-119 set as a transmitter only (a.k.a. AN/URT-42) for RATT, so I could use the sharper bandwidth of a separate receiver (AN/URR-74).

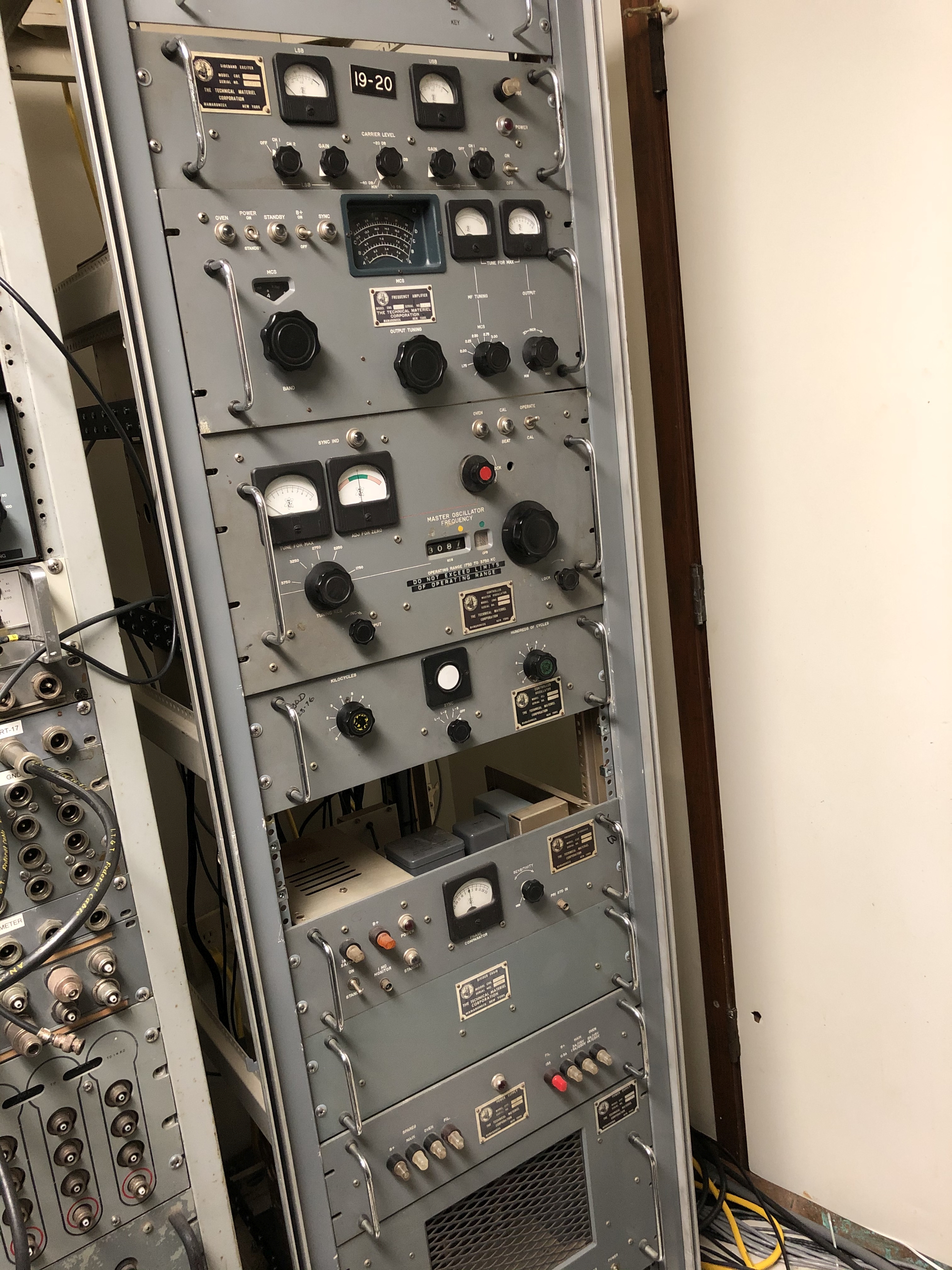

February 2024 - wired up the AN/FRT-17 for RATT operation - only 43 tubes in the VFO/FSK circuits!

December 2023 - wired up the AN/URC-32 for RATT operation

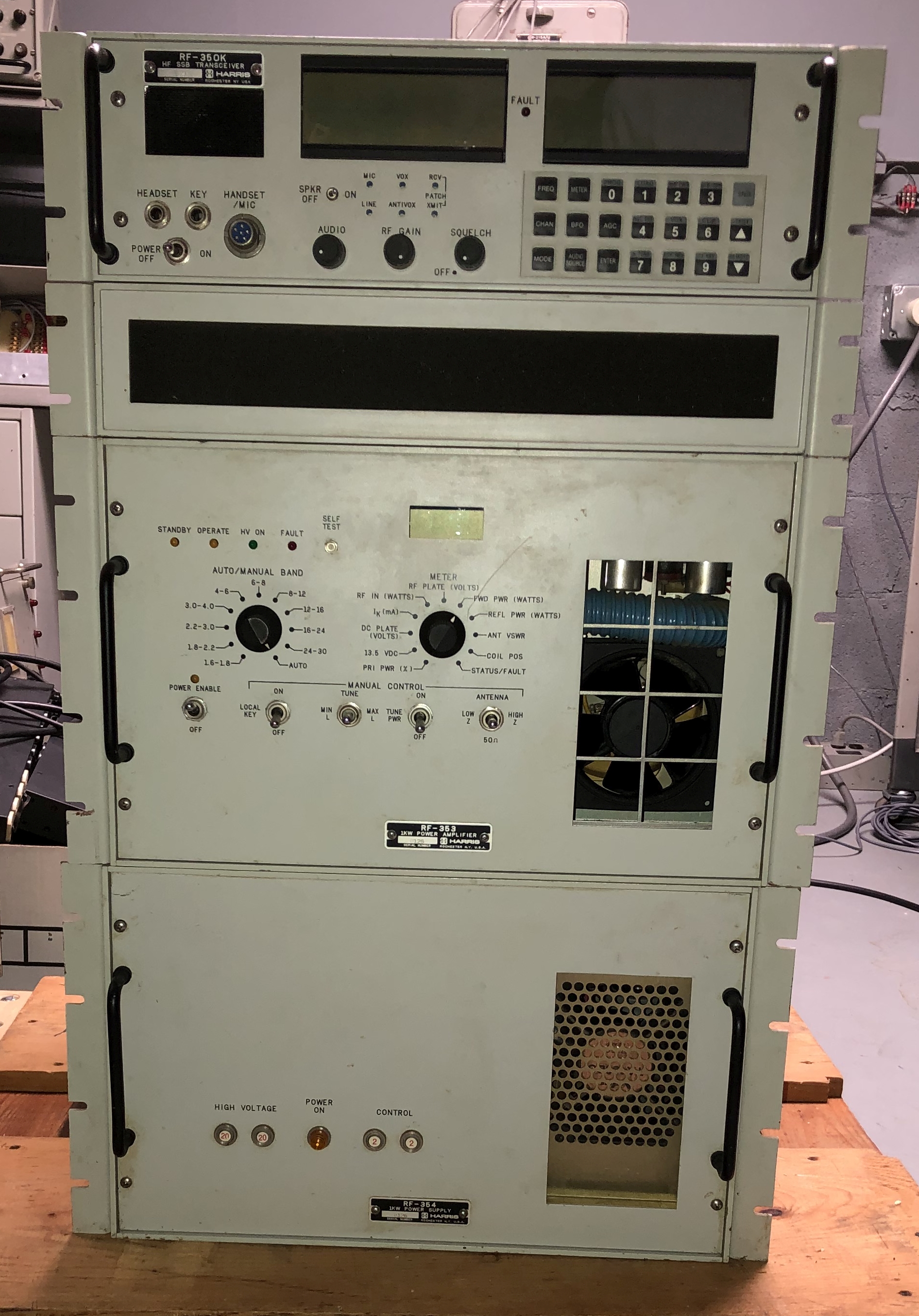

January 2022 - revived a "hamfest special" AN/URC-119 set (Harris RF-350K xcvr + 1kw amp)
- replaced over 70 tantalum caps before it quit smoking...

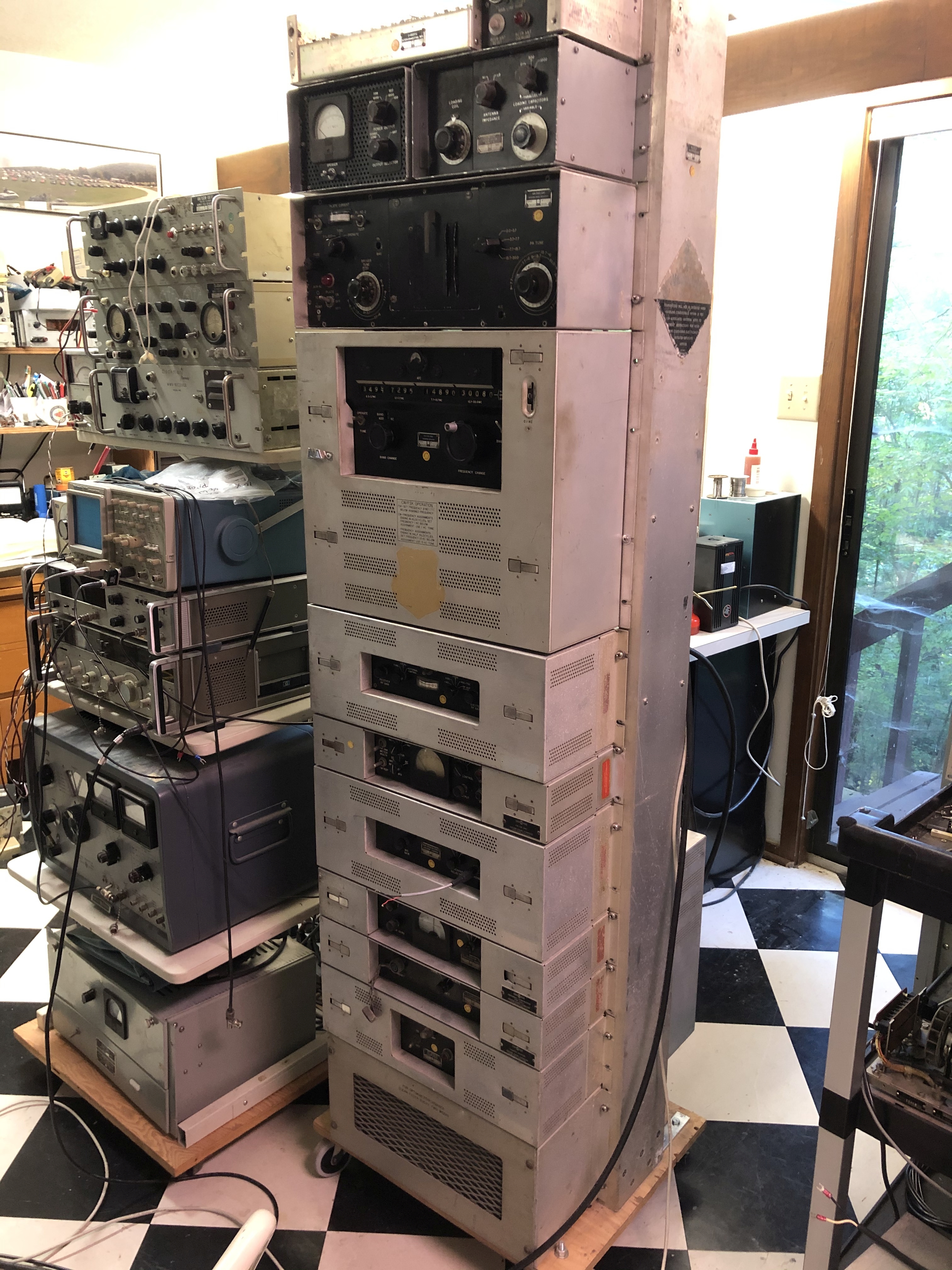

Sept 2020 - revived an AN/URC-32 SSB Transceiver

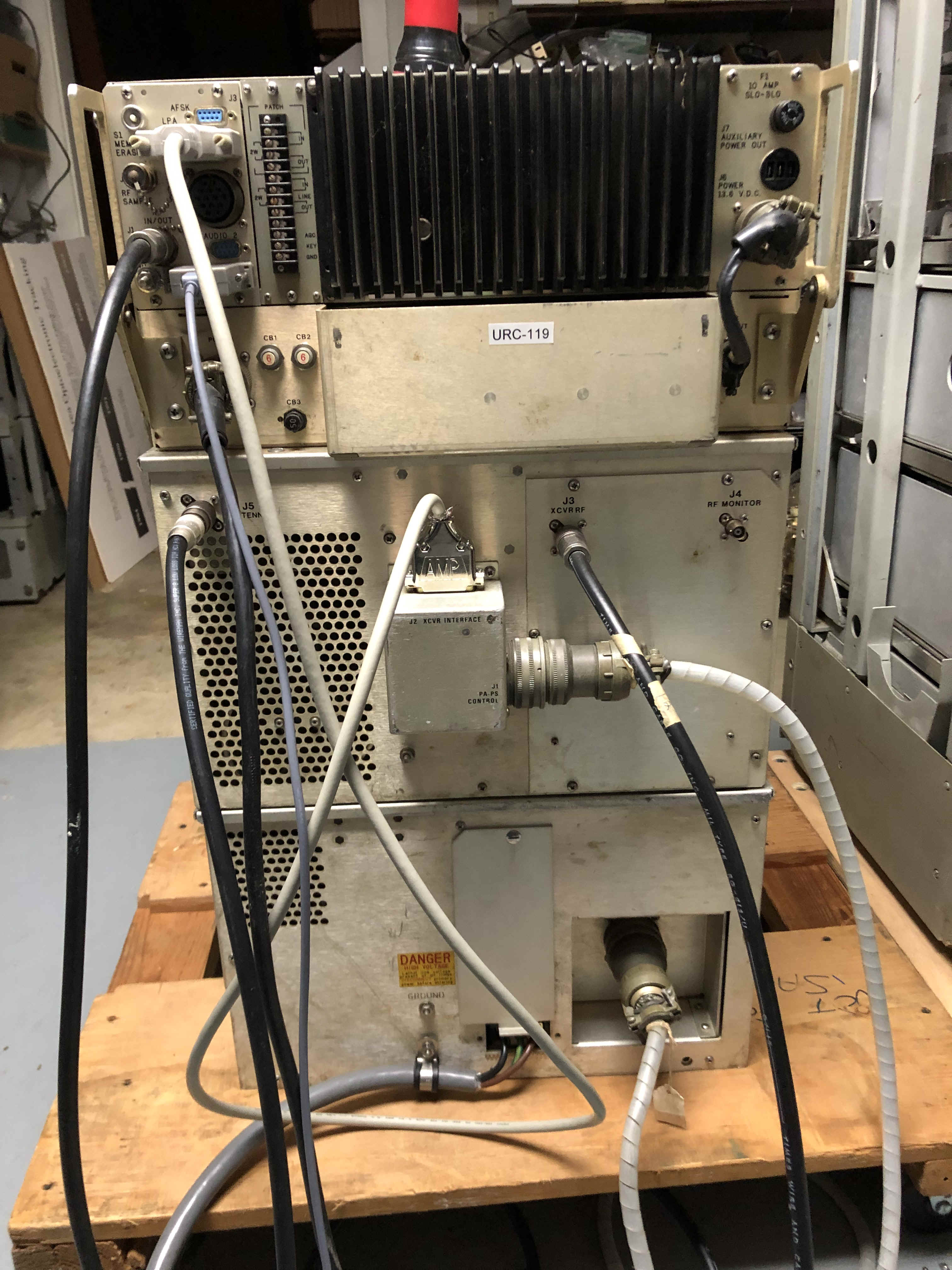

urc119-front-2301.jpg (2543022 bytes) urc119-rear-1098.jpg (794605 bytes) urc32_4841.JPG (5070614 bytes) urc32_4842.JPG (3276699 bytes)

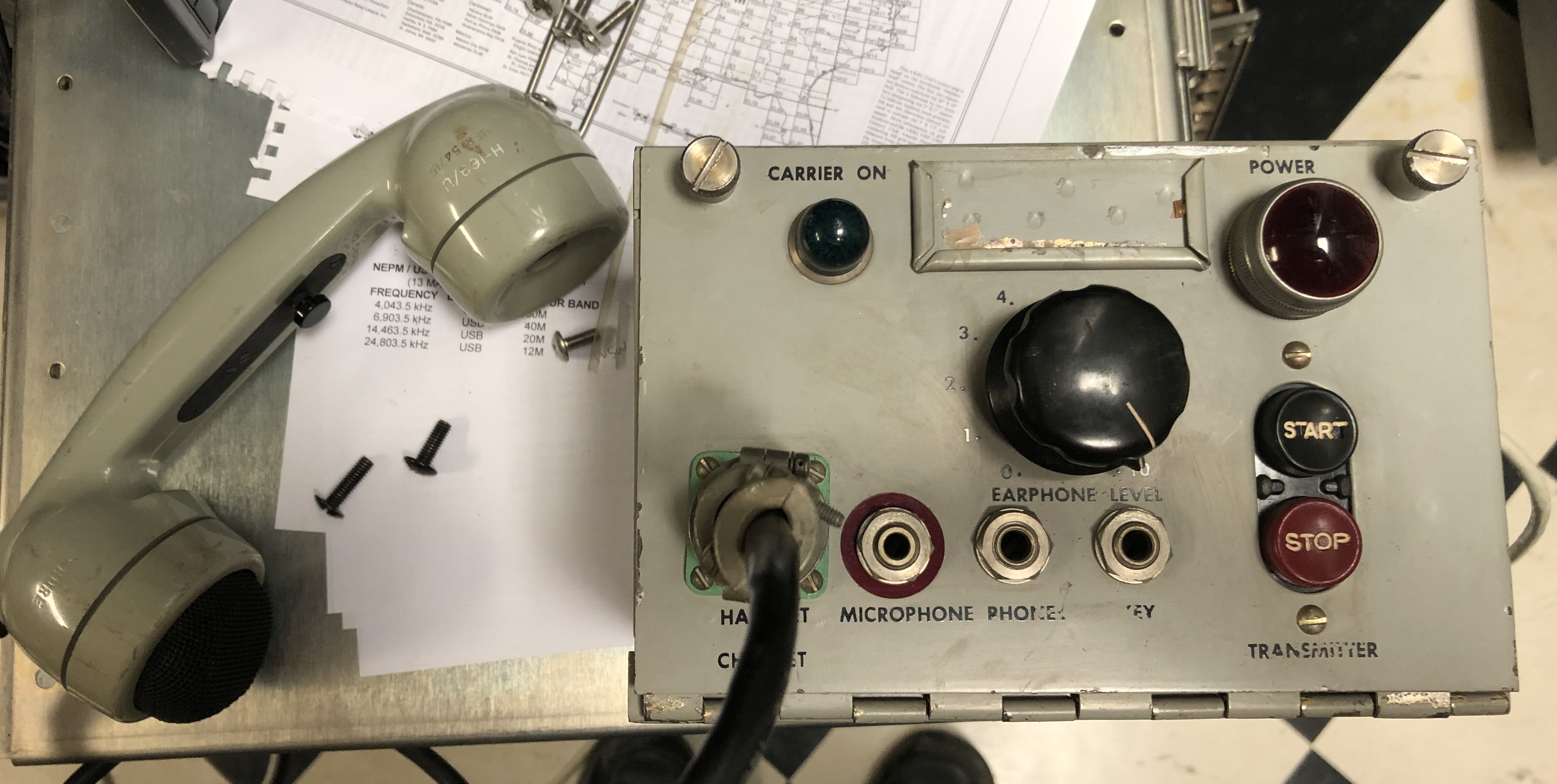

C-1138/UR Radiotelephone Remote Control Box

2019-2020 - restored AN/UGC-6 (28ASR) Teletype, AN/FRT-70 Exciter, and got on the air with RATT (and USB voice)

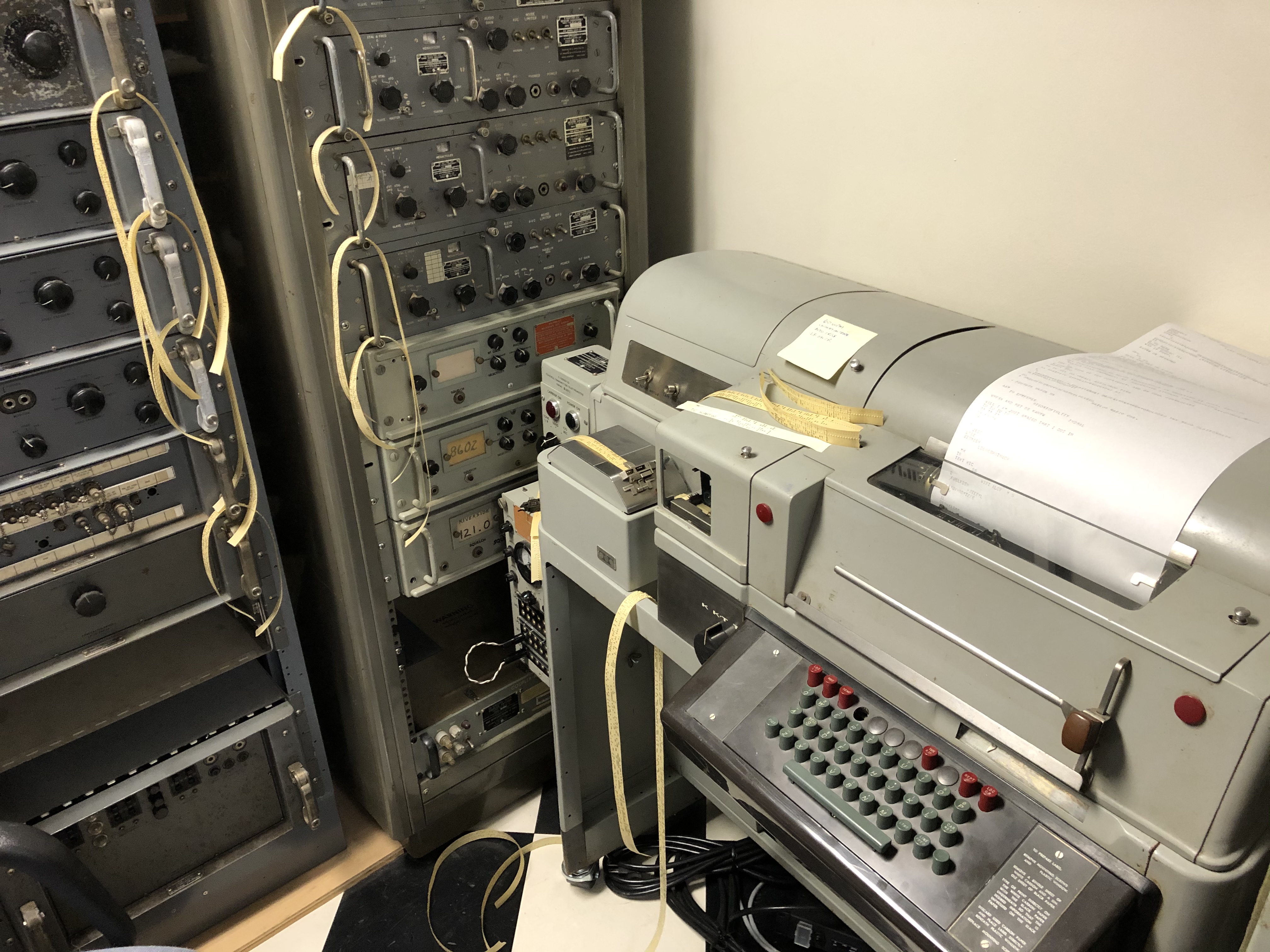

AN/UGC-6 (28ASR)

CV-3510B/UG Terminal Unit

AN/URR-74 receiver

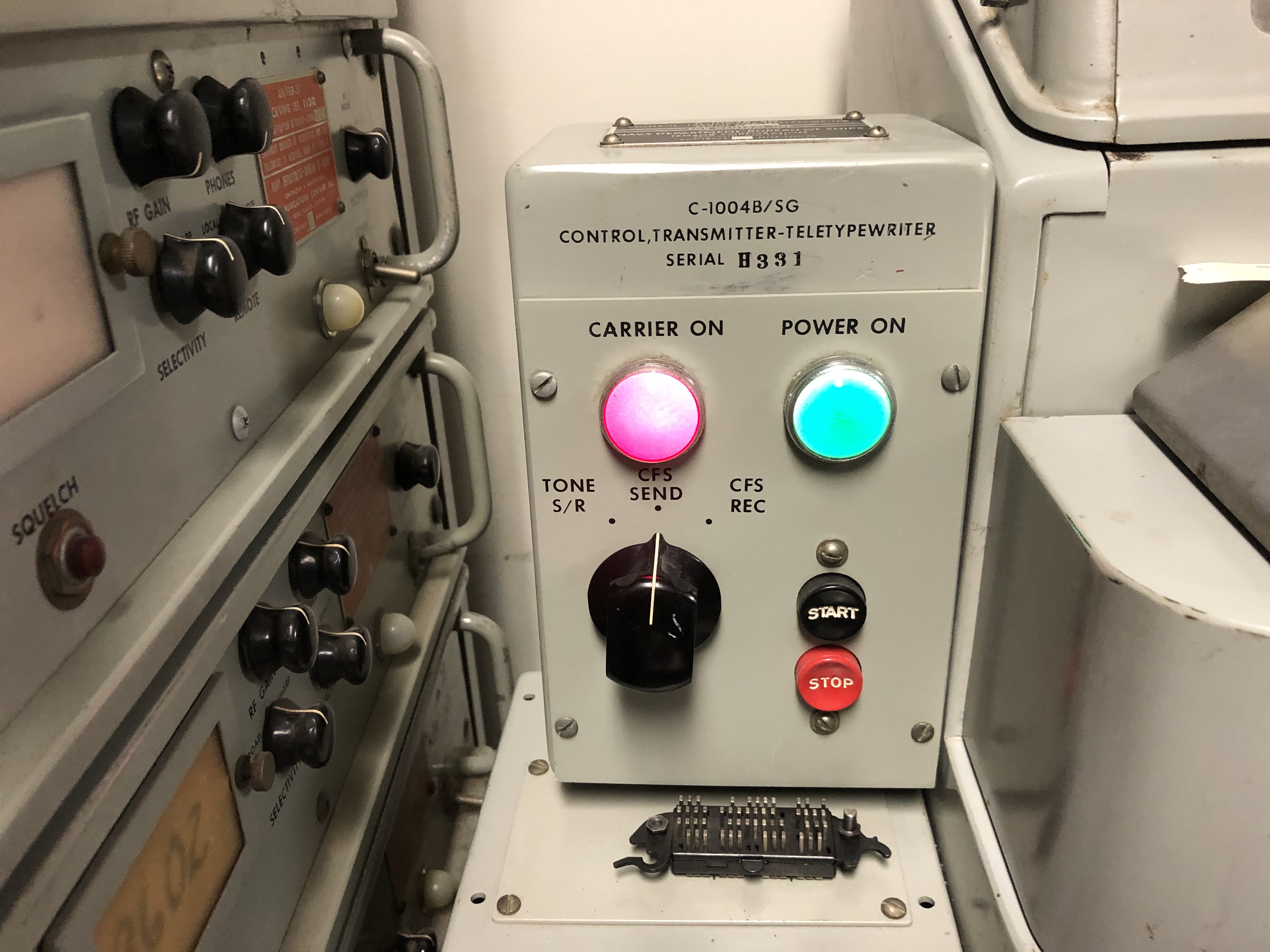

C-1004B/SG send-receive control box

AN/FRT-70 exciter section
AN/FRT-70 amp section

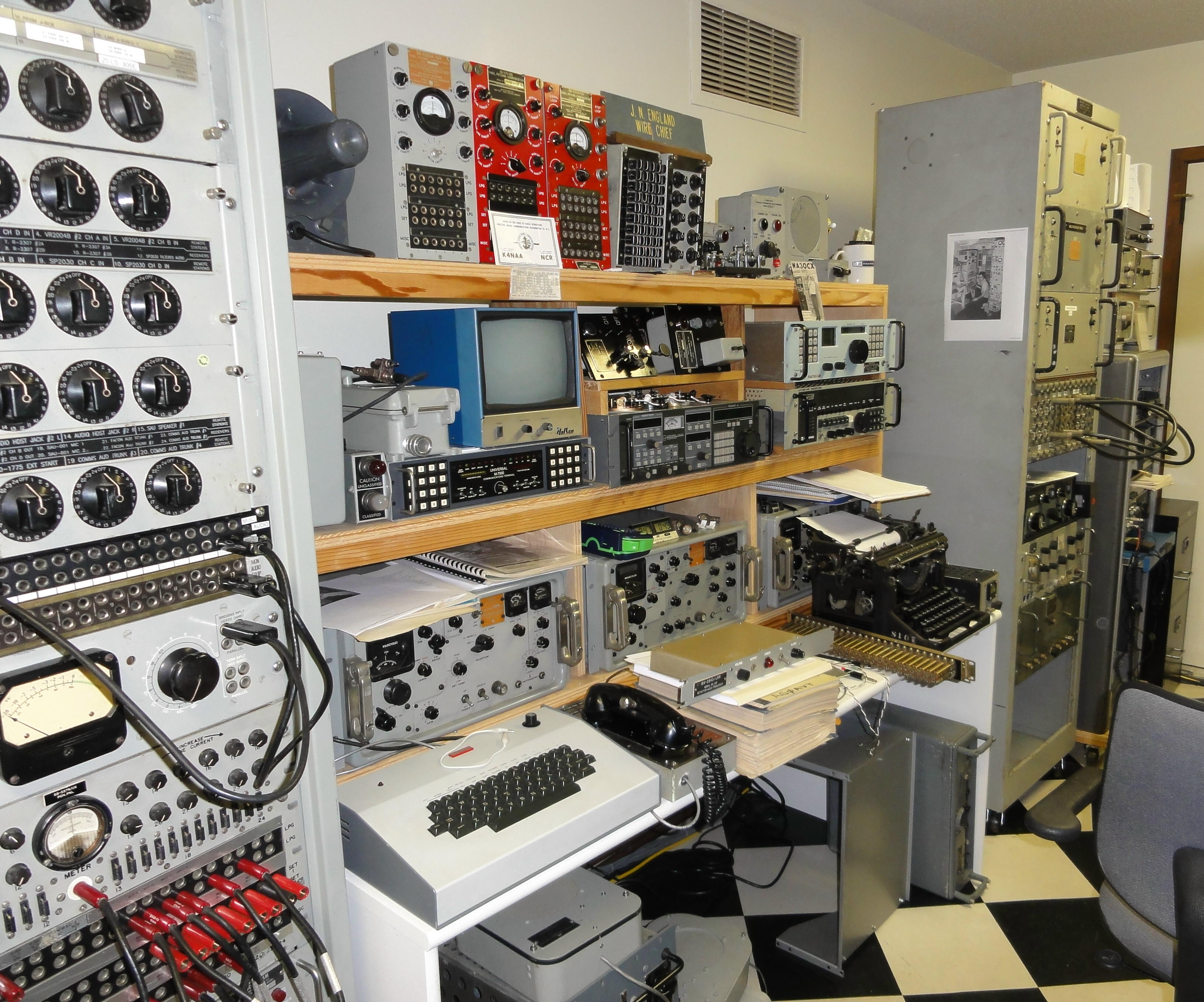

2017 - moved the teletype gear to a new "message center" area

Left side
Rear

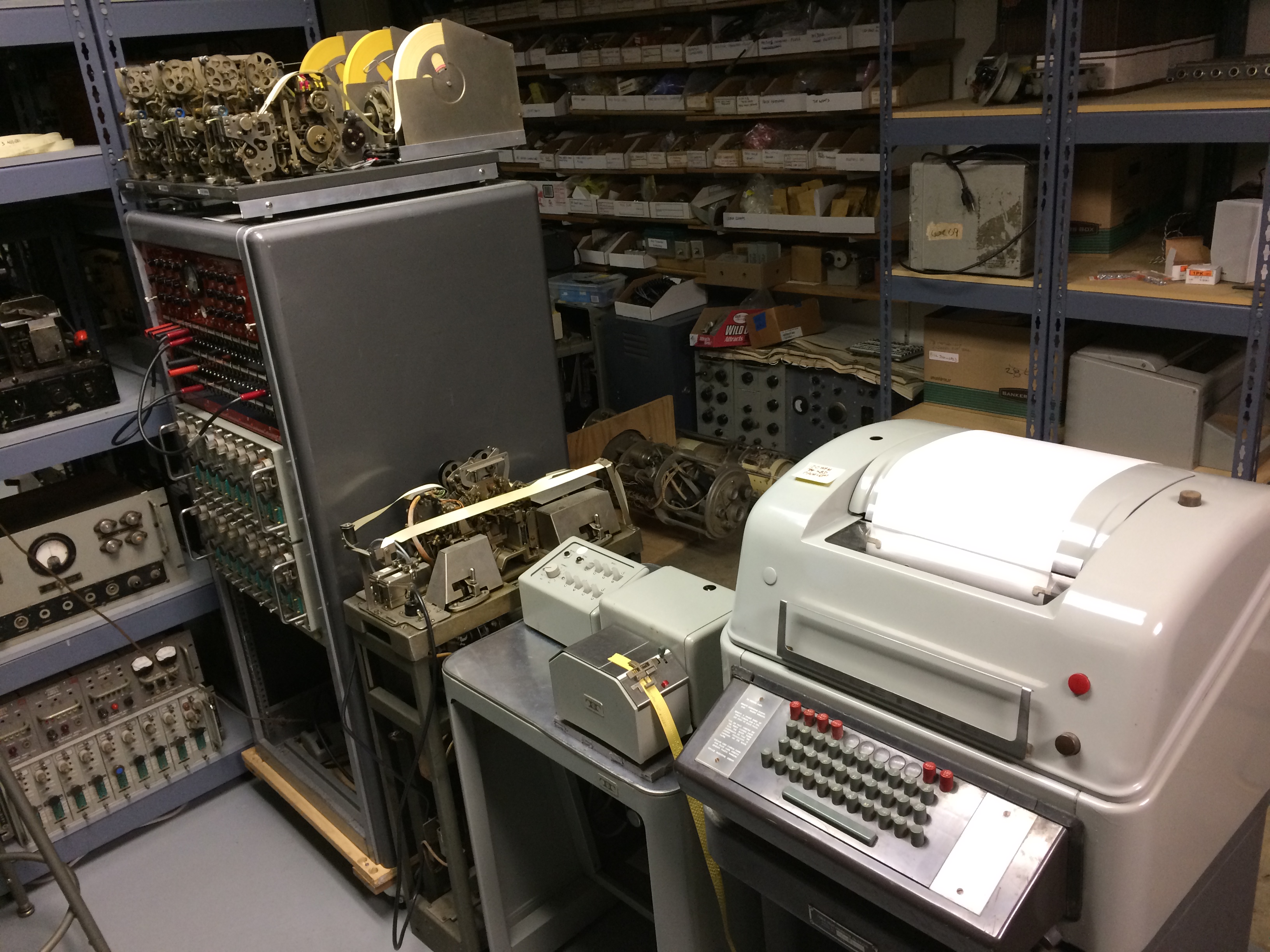

Front (reperfs, patch panel, UCC-1, message segregator)
Message Segregator, 28RT

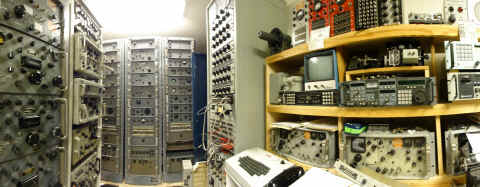

Some 2013-2015 additions - I really need to re-shoot a full set of photos and update this page

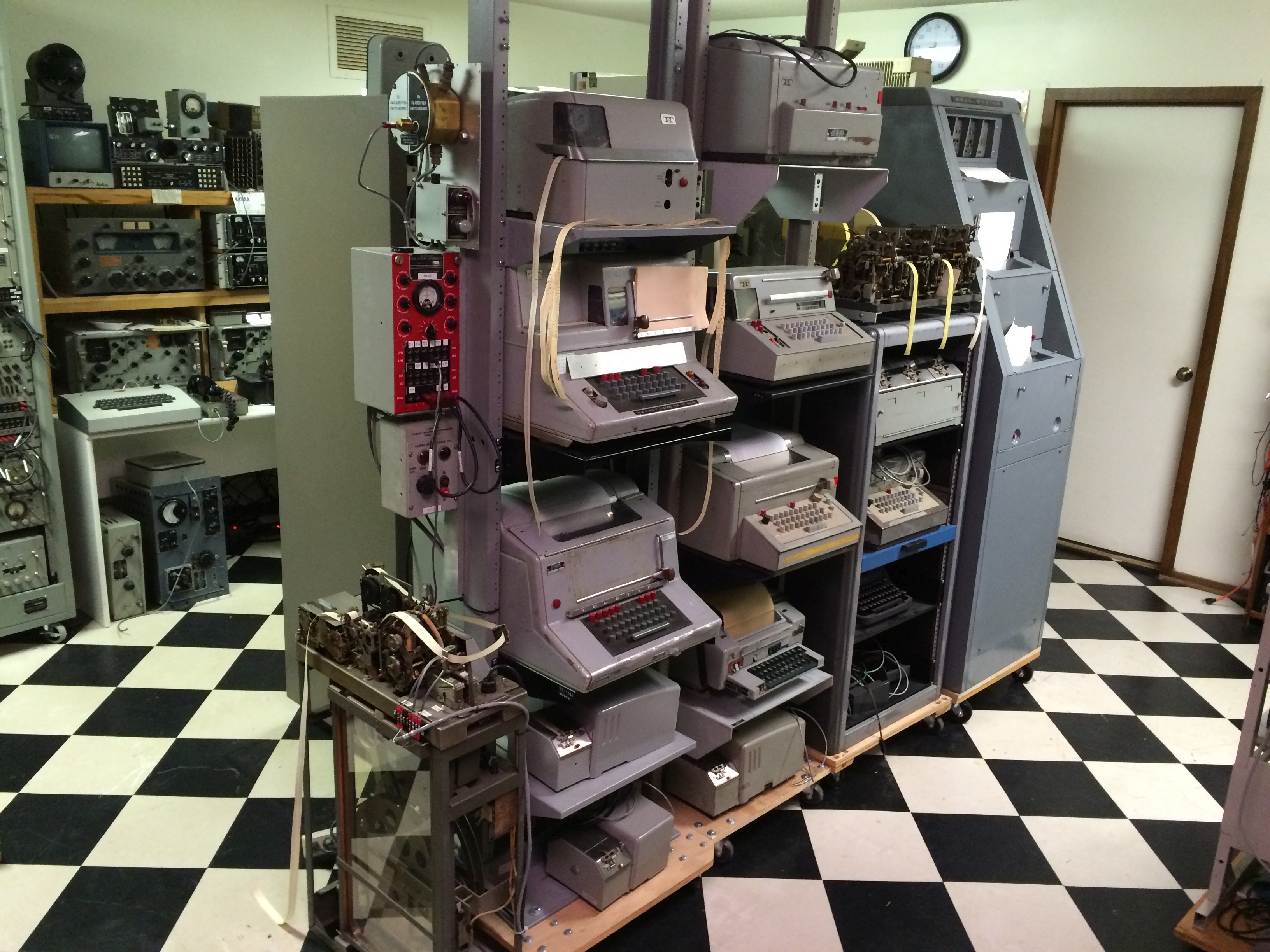

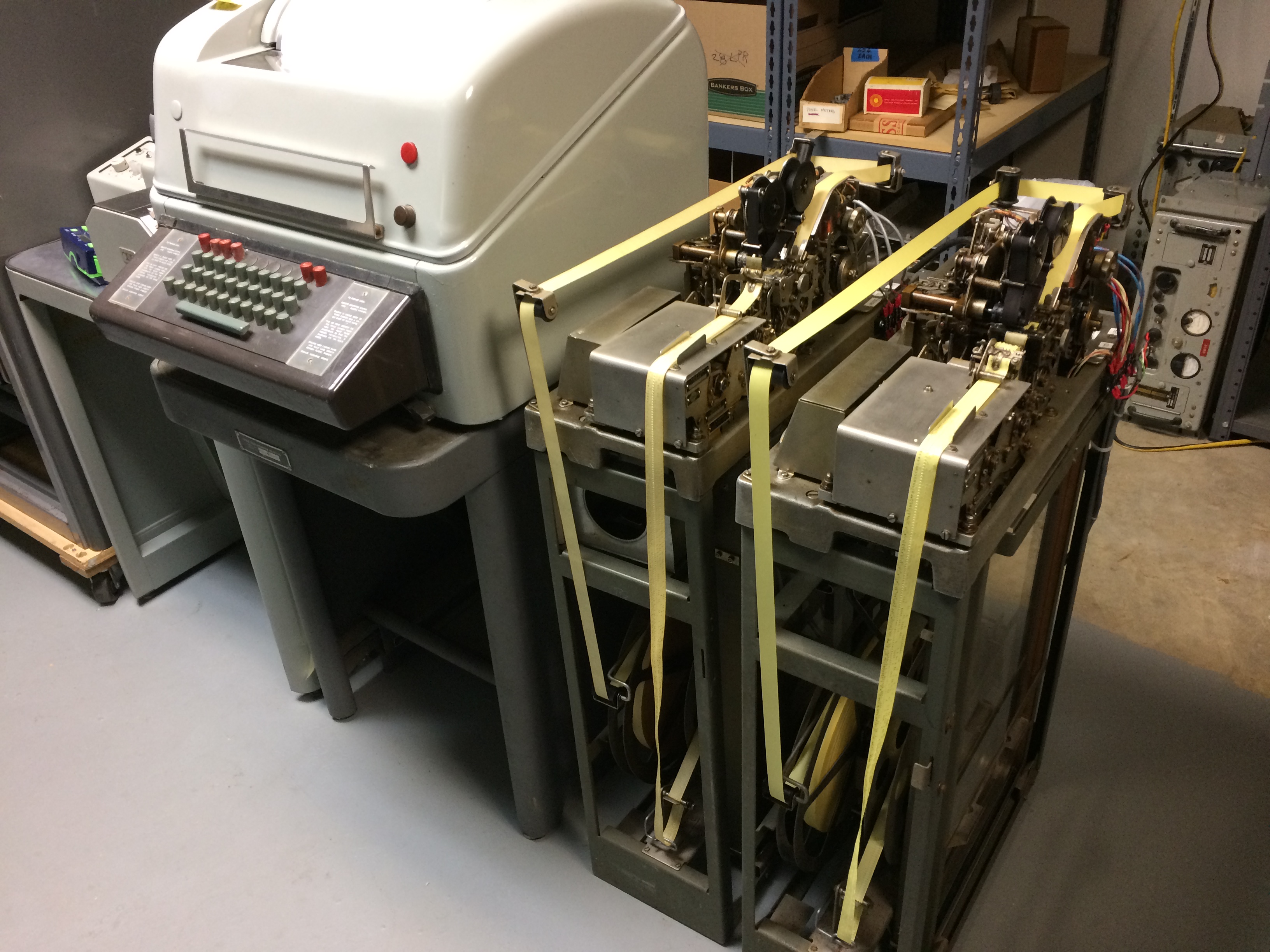

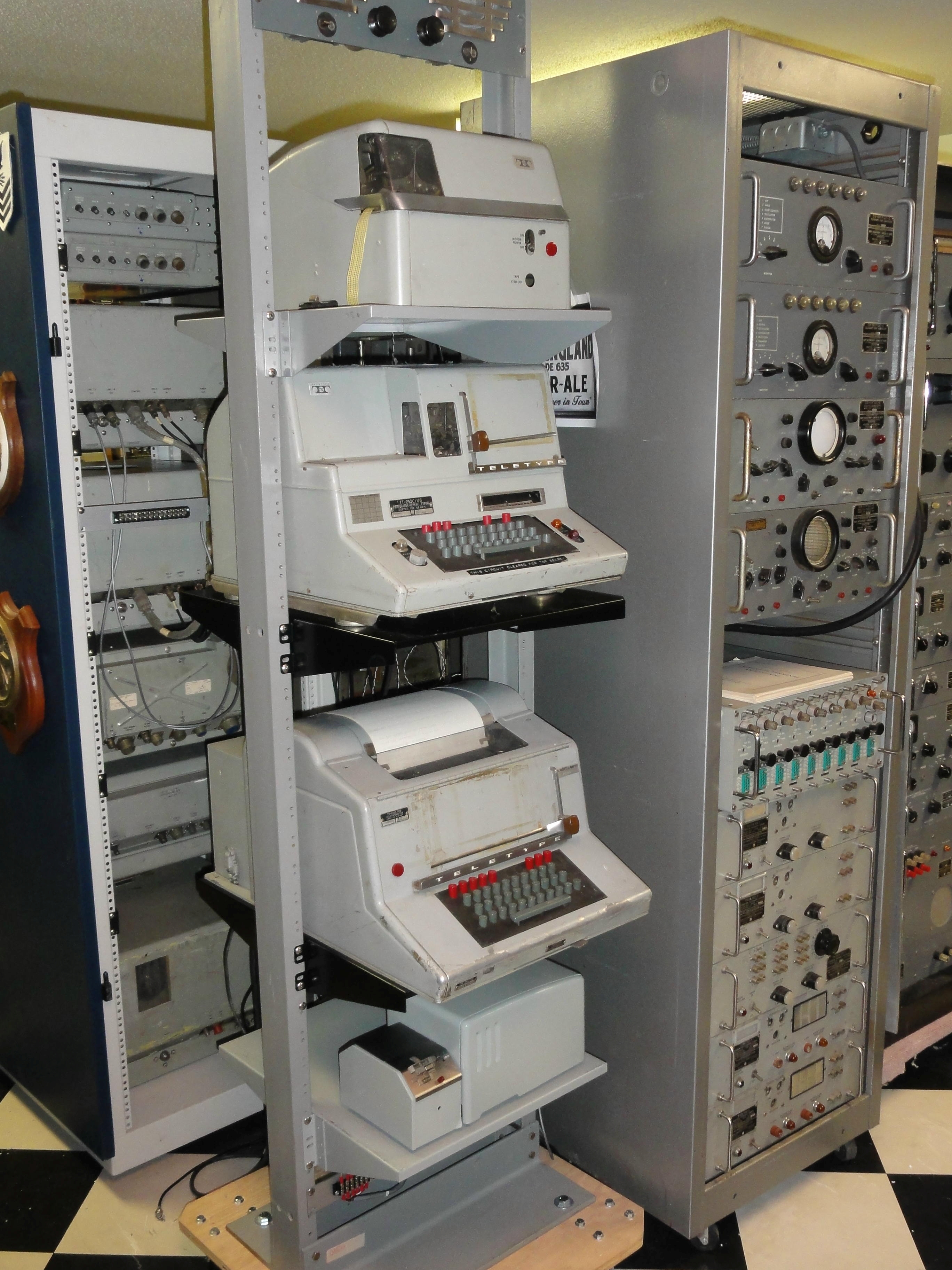

Navy teletype on parade - all in working condition

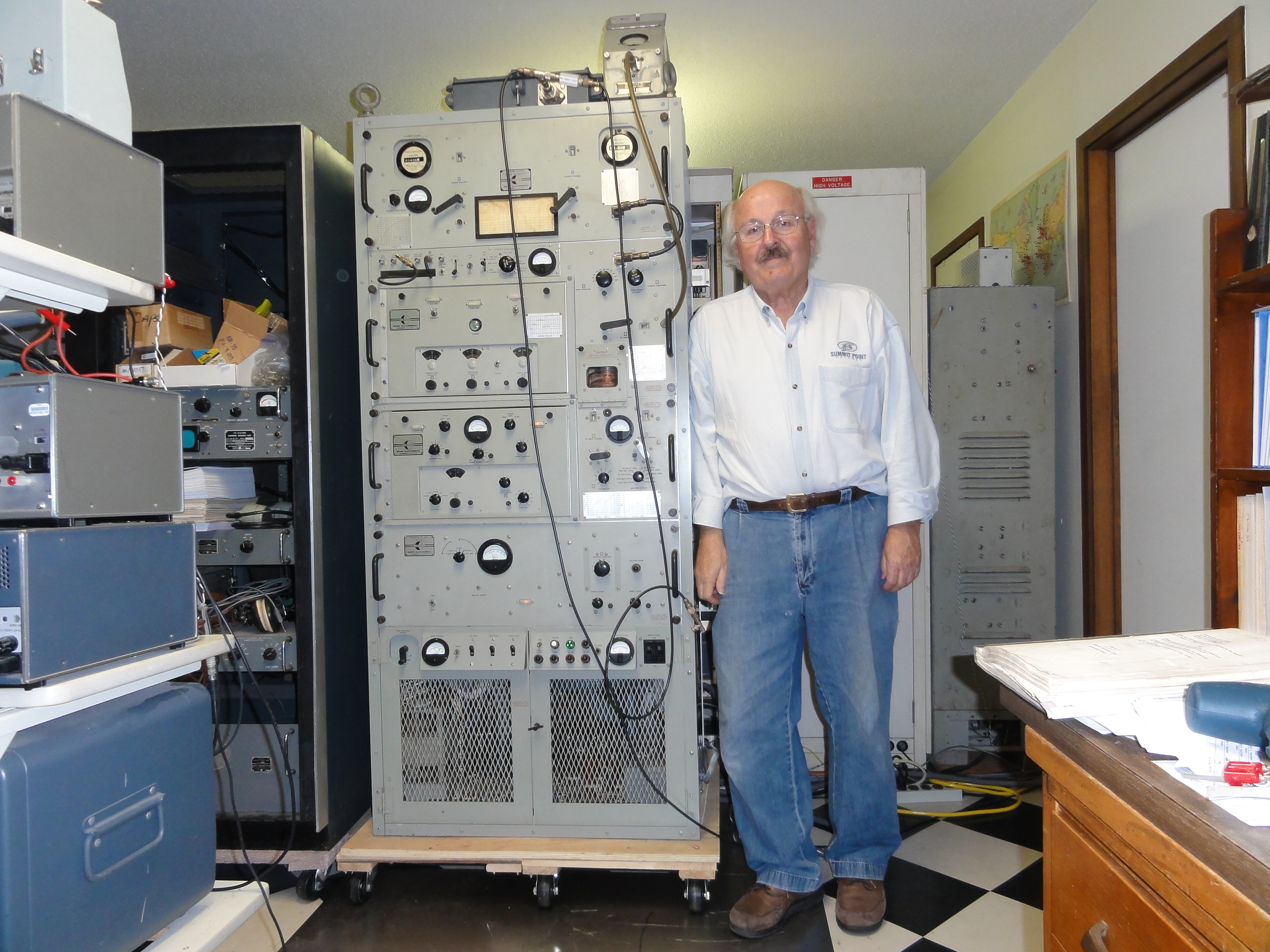

1500 lb AN/FRT-17 transmitter and tired disassembler/restorer/reassembler

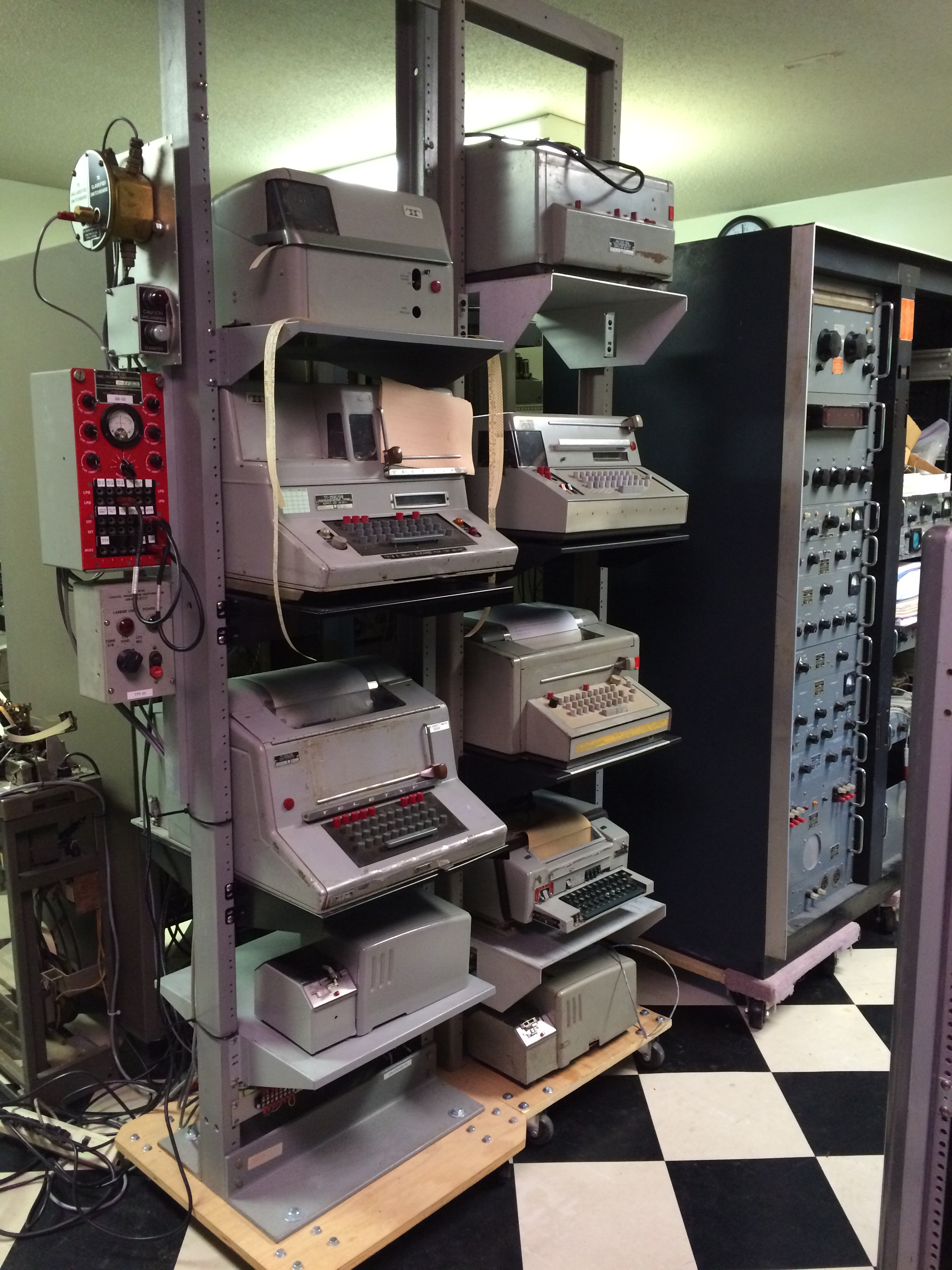

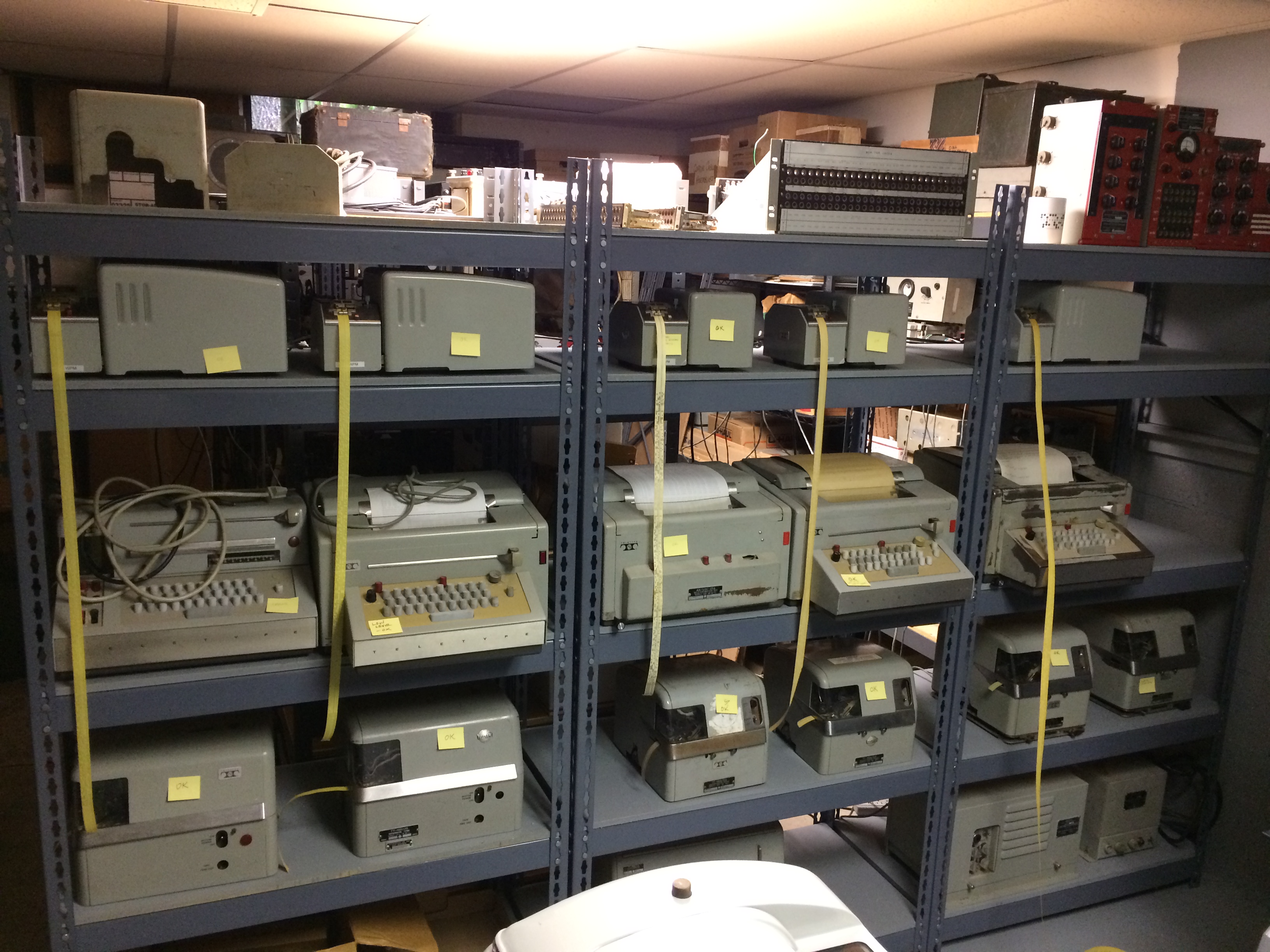

Added another rack of restored TTY gear including Model 28 Compacts (KSR, RO, KTR) and MITE KSR

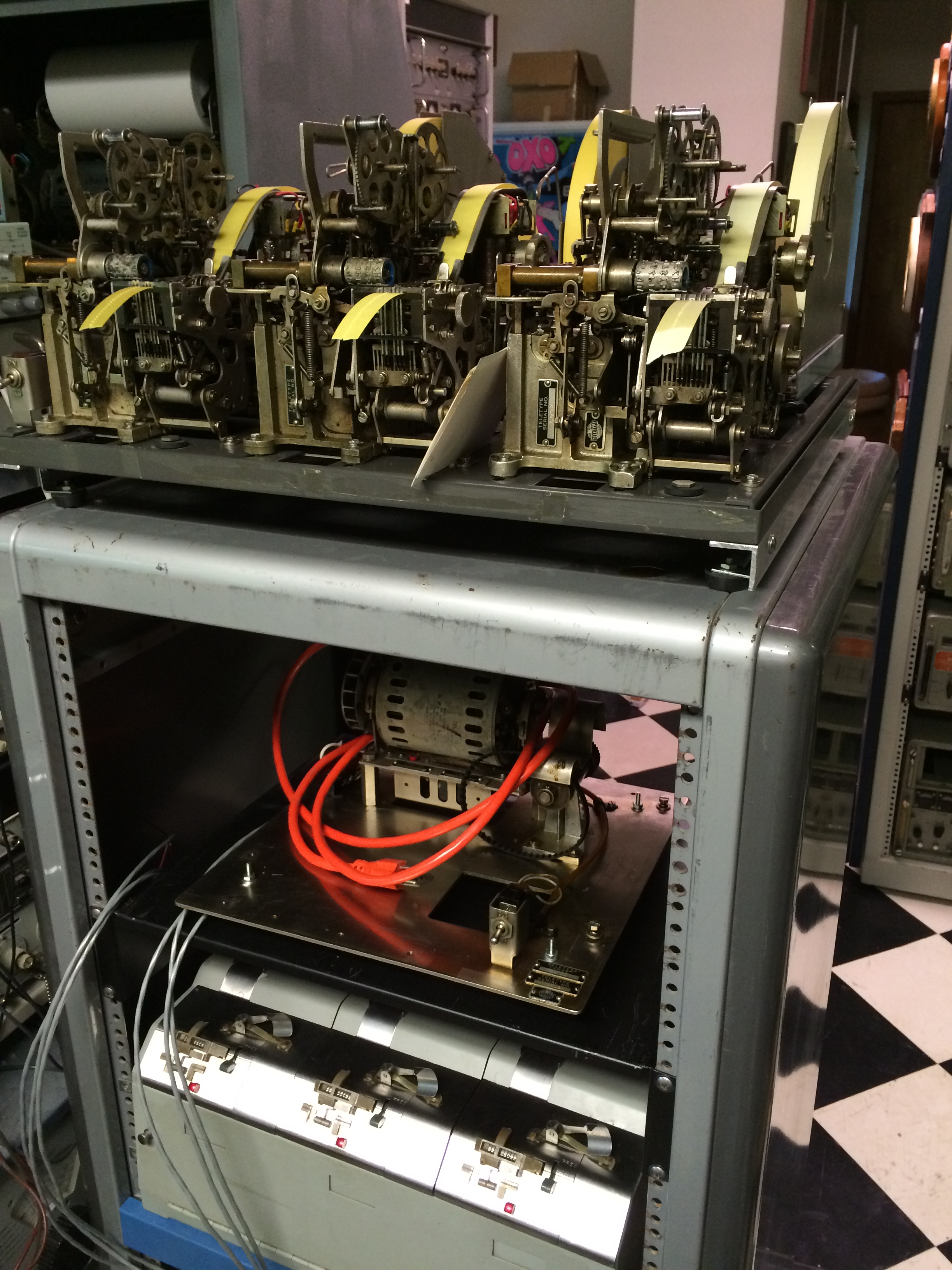

Multiple Reperf above
Multiple TD below

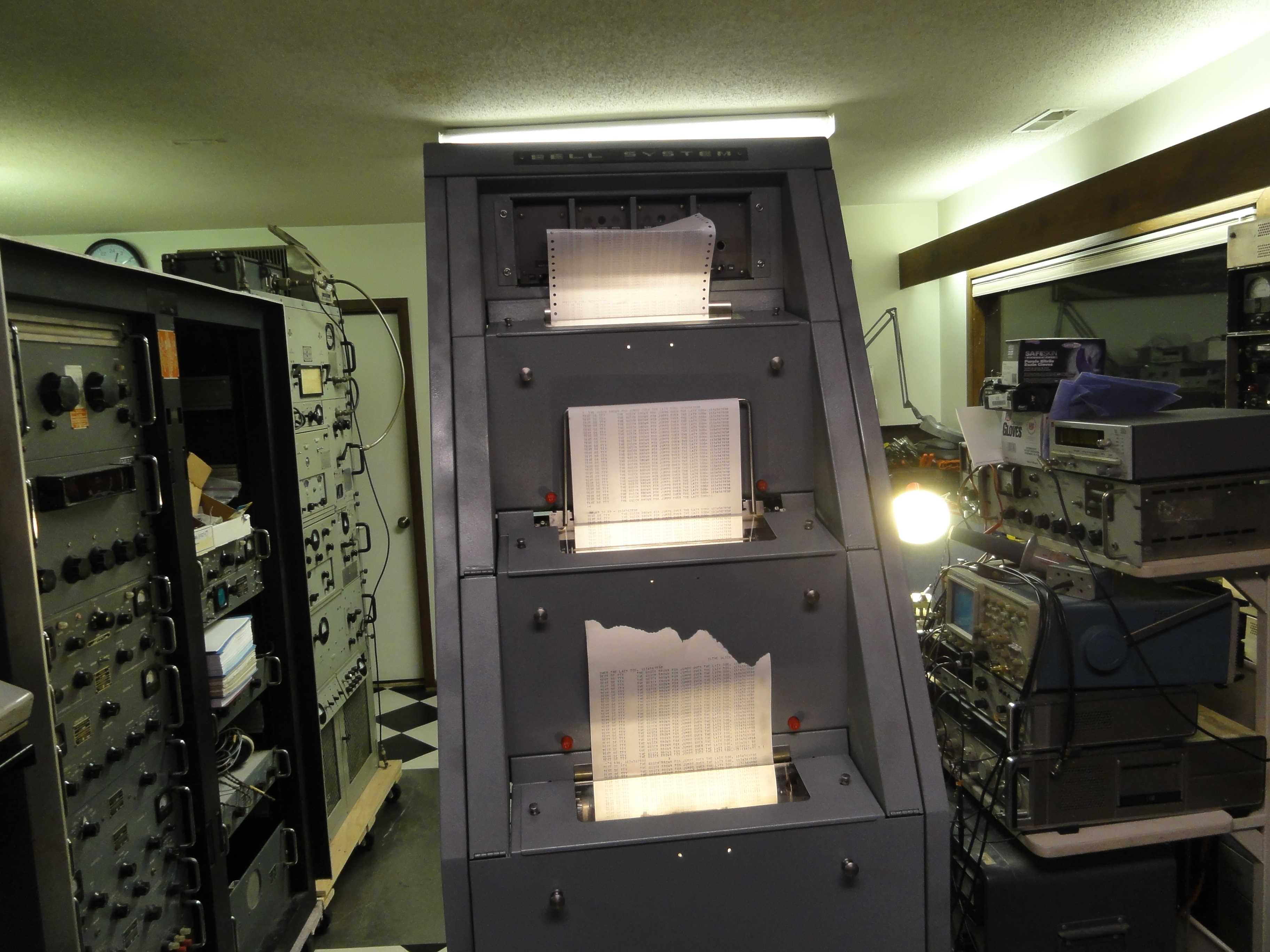

Triple M28 TTY unit ("waterfall")

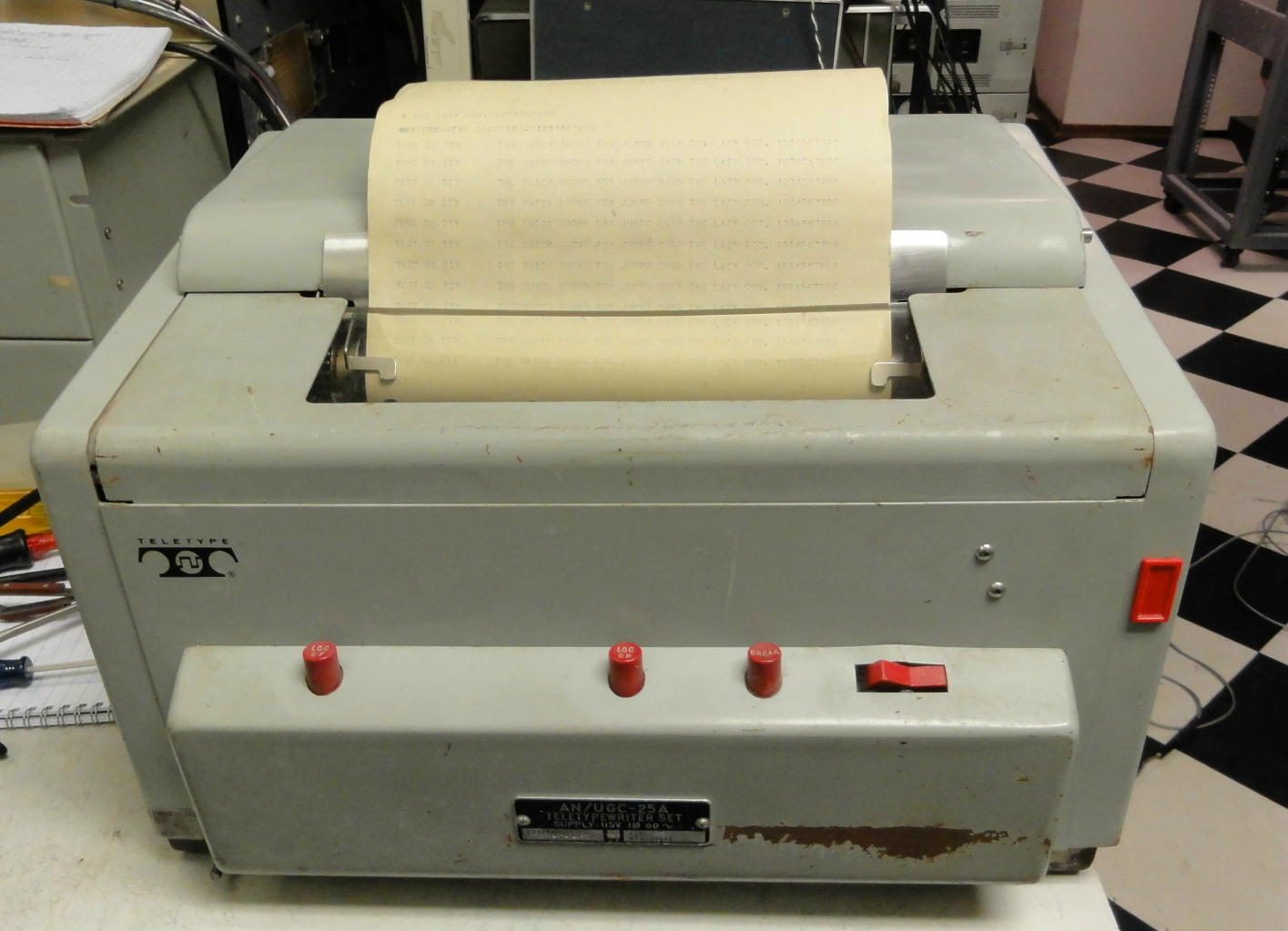

AN/UGC-25A Compact 28RO


September 2010


TT-192/UG (Teletype 28 ROTR)
TT-253C/UG (Teletype 28 KTR)
TT-176C/UG (Teletype 28 KSR)
TT-187/UG (Teletype 28 TD)
KY-58/GRT FSK Keyer
KY-30/GRT FSK Keyer
O-91/FRT-5 VFO
KY-45/FRT-5 FSK Keyer
PP-454/FRT-5 Power Supply

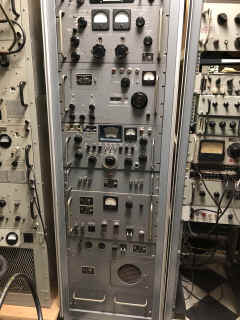

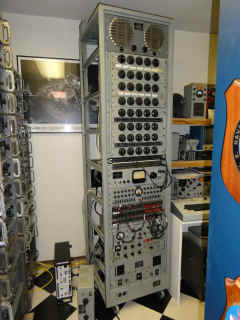

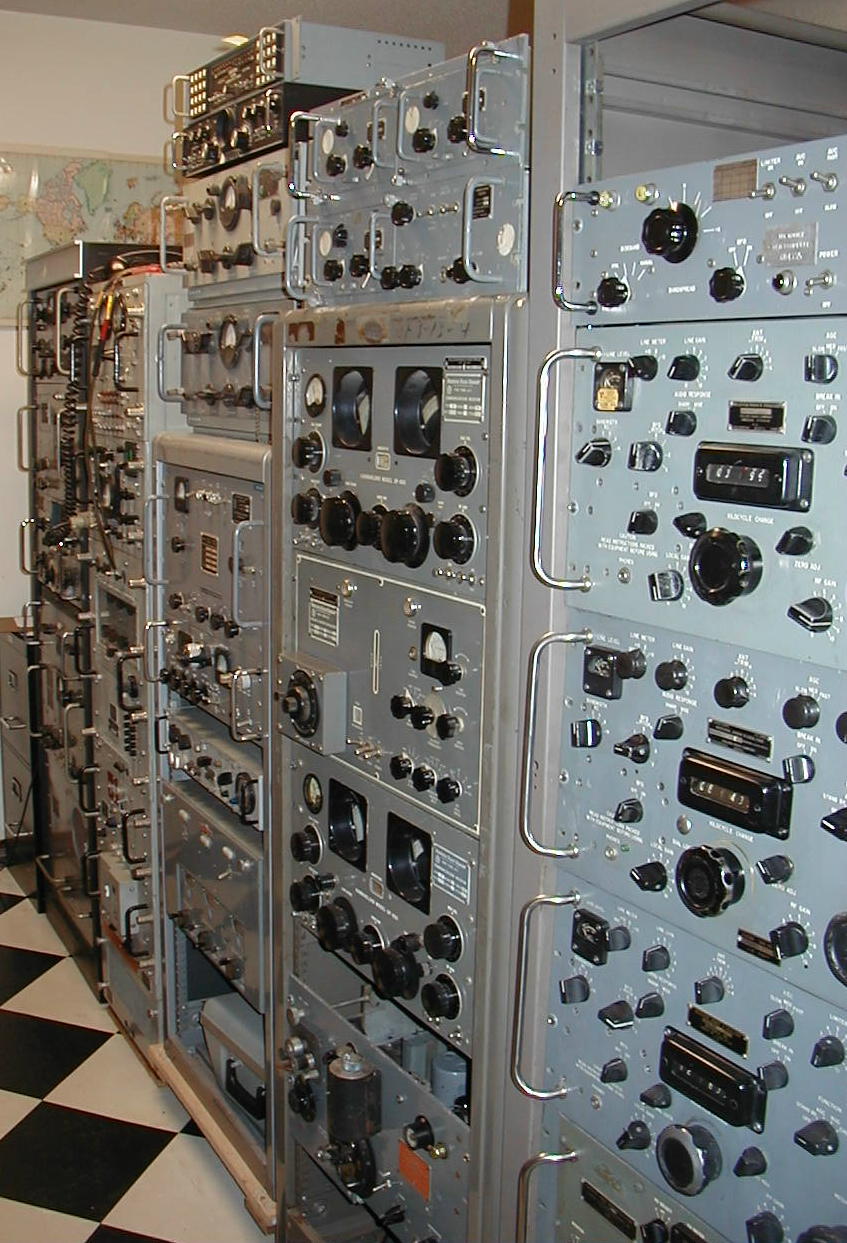

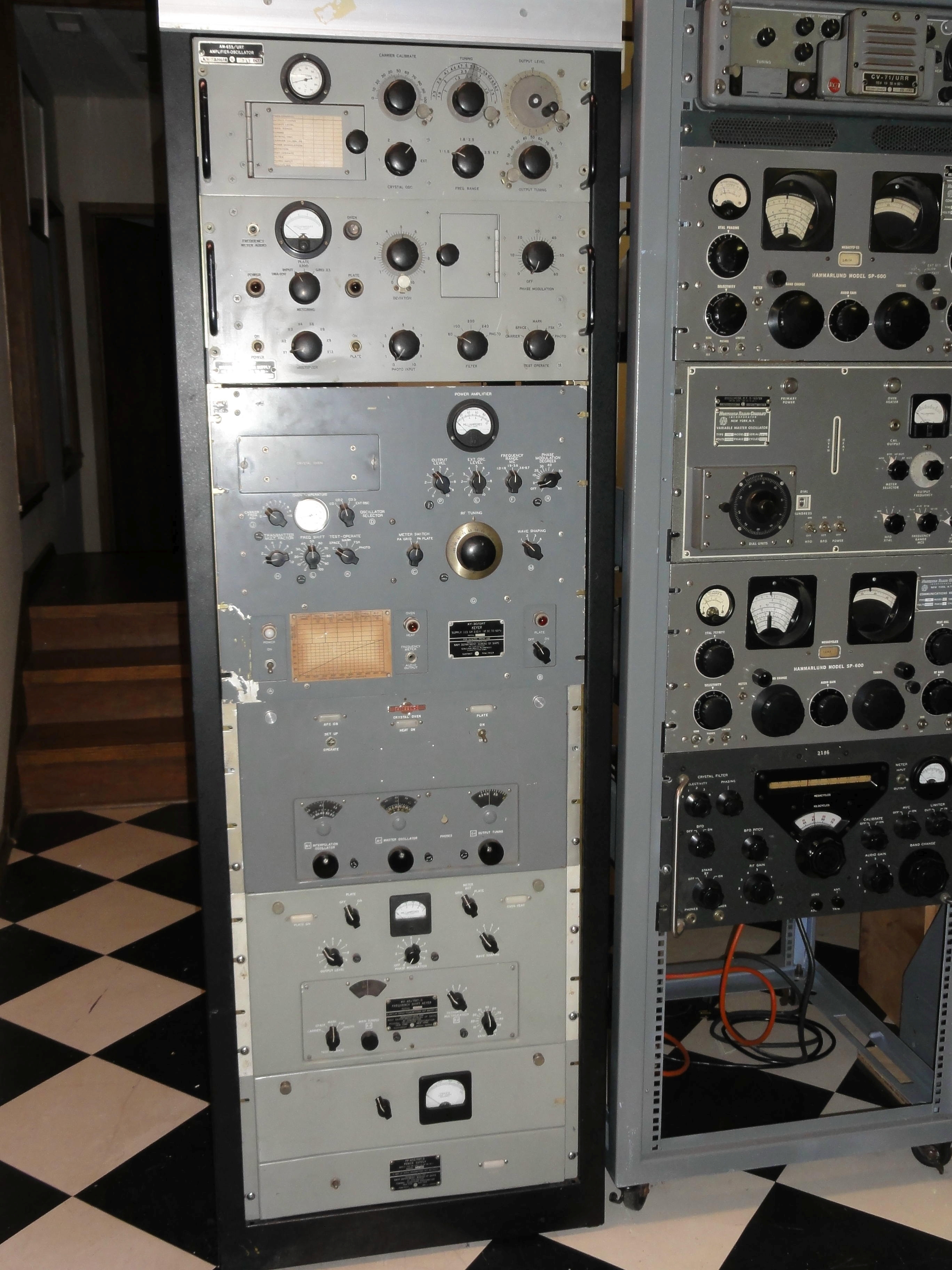

AN/FRR-28 Dual Diversity HF Receiver System (1 rack)

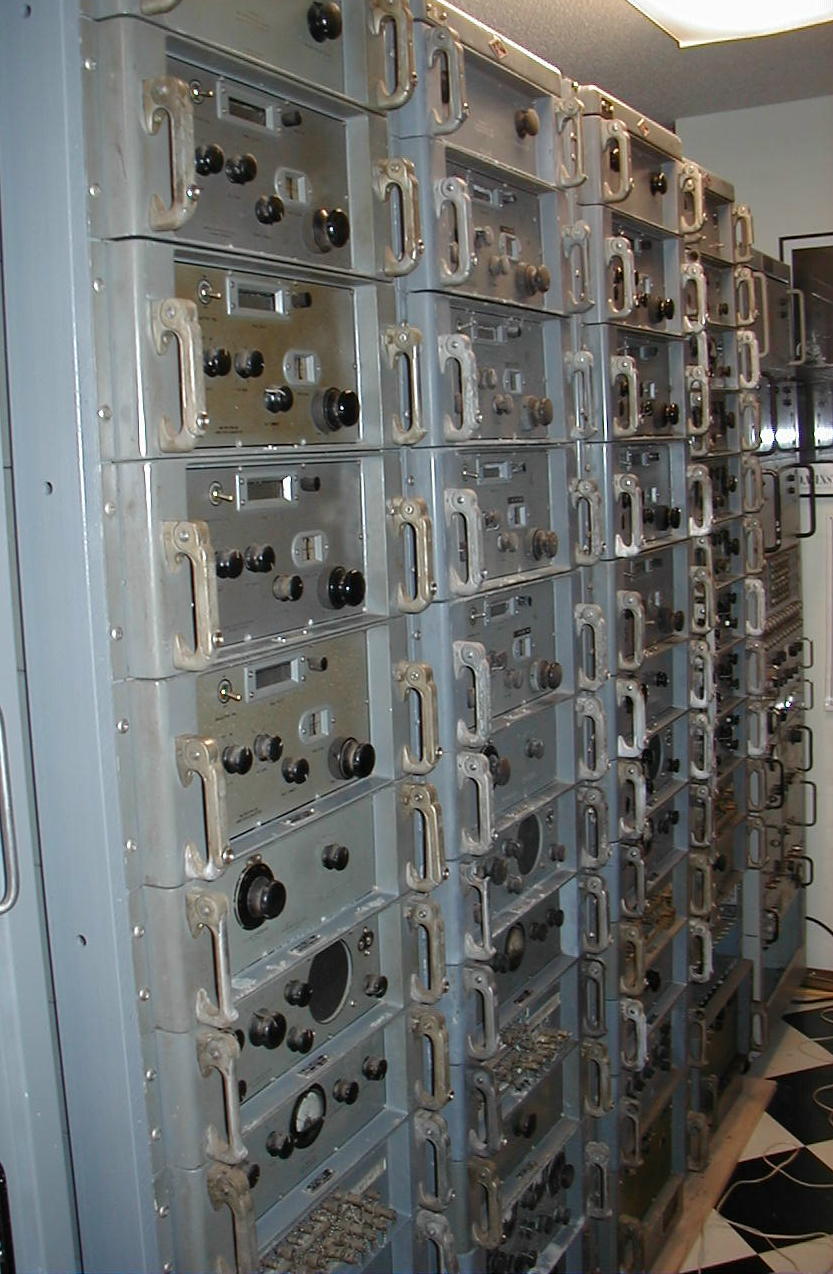

AN/FRR-24 Triple-Diversity HF Receiver System (4 racks)

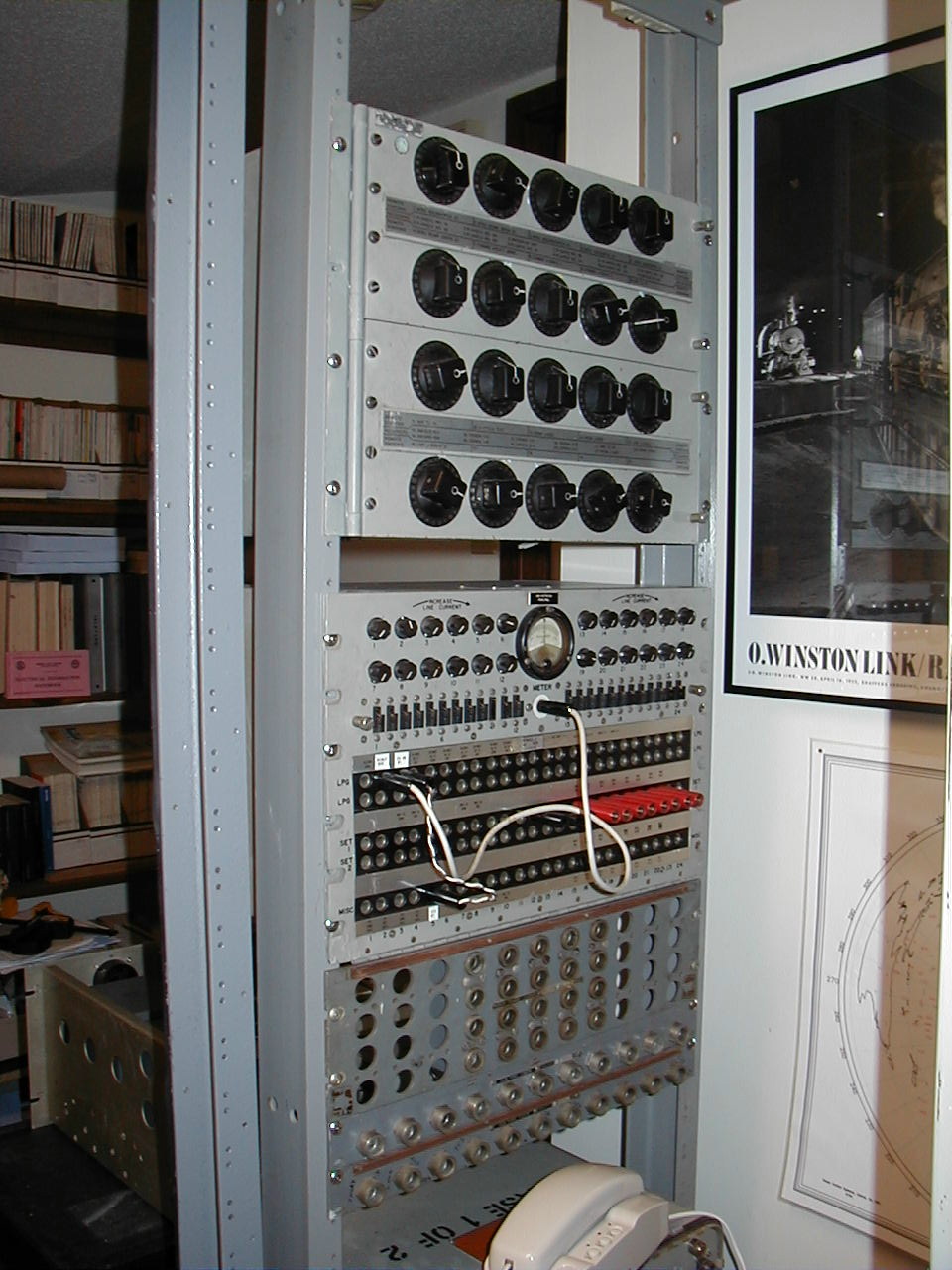

Audio and TTY Patch Panels

Patch panel info

AN/FRR-21 LF Receiver
AN/FRR-22 MF Receiver
AN/FRR-23 HF Receiver
R-2368/URR Receiver
R-2174/URR Receiver
Misc Audio switchboards
Misc. TTY patch panels

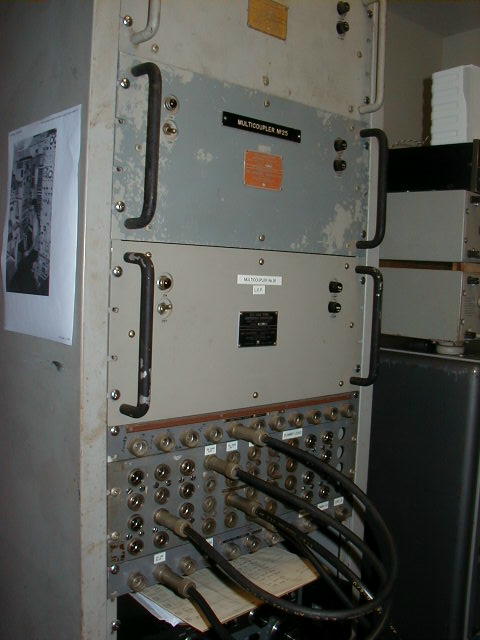

CU-168/URR Multicouplers

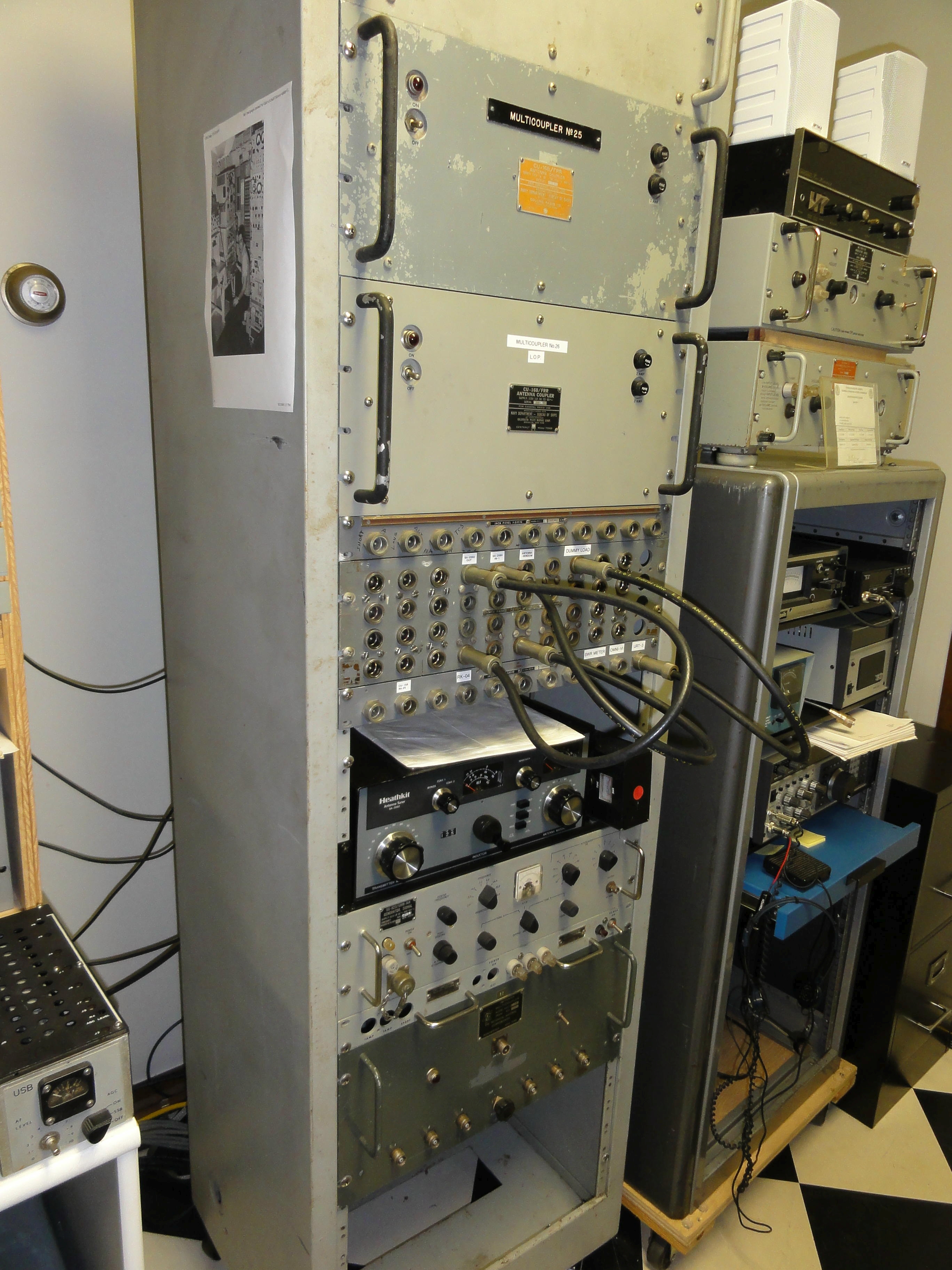

Antenna Patch Panel
FAX demod & keyer

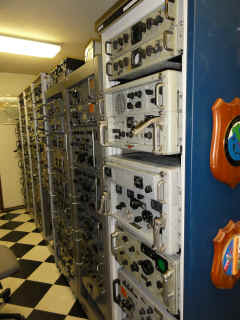

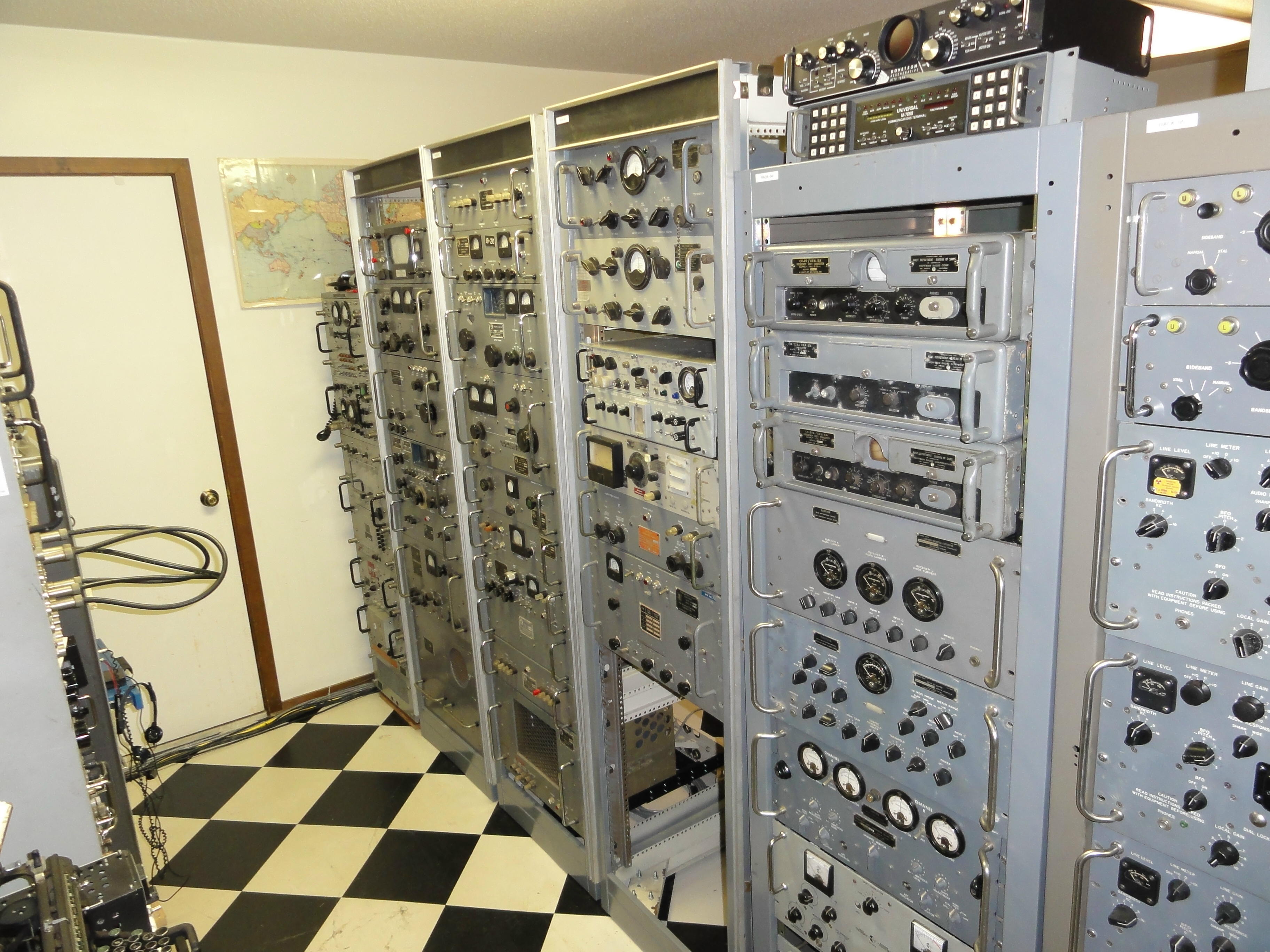

Rack 00 (leftmost)
  AN/URT-3 Transmitter
Rack 01 + Rack 02
  AN/FRT-70 SSB Transmitter
Rack 03
  AN/SGC-1 RTTY Converter
  CV-2460/URR RTTY Converter
  CV-3510/URR RTTY Converter
Rack 04
  AN/URA-8 RTTY Converter
  AN/FRR-34 Control Units
  CV-116/URR RTTY Converter
Rack 05 (rightmost)
CV-591A/URR SSB converter
CV-1768/URR SSB converter
R-390A Receivers
CV-157/URR SSB Converter
Rack 06 (rightmost)
AN/URA-17 RTTY Converter
AN/FRR-59 Receiver
AN/BRR-3 Receiver
AN/WRR-3 Receiver
AN/SRR-19 Receiver (not visible)
- - -

January 2010

FRR-34 triple diversity controllers
FRR-38 dual-diversity RTTY converter (CV-116/URR)
R-1051 receiver, misc

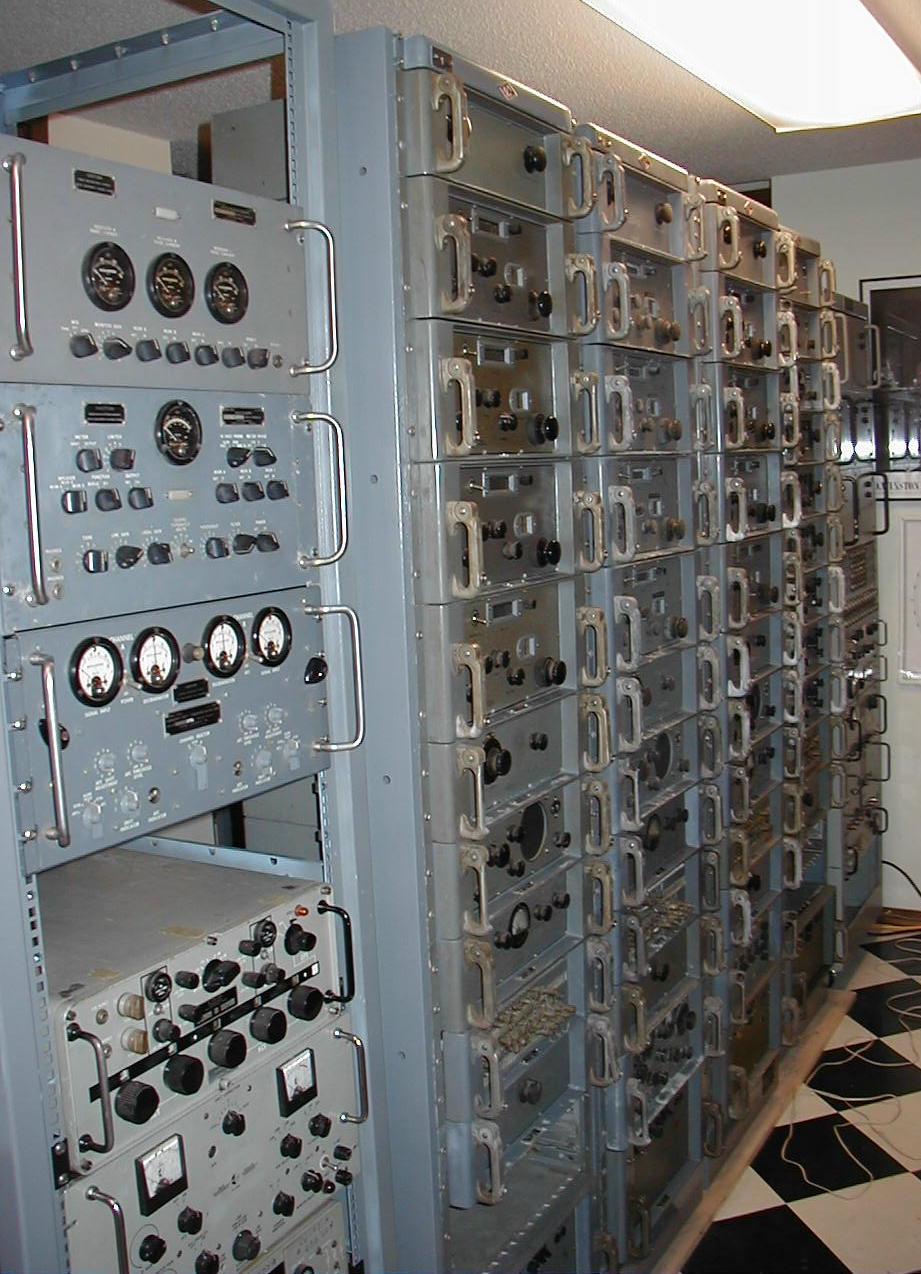

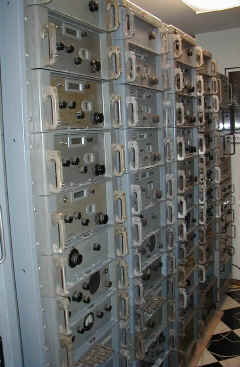

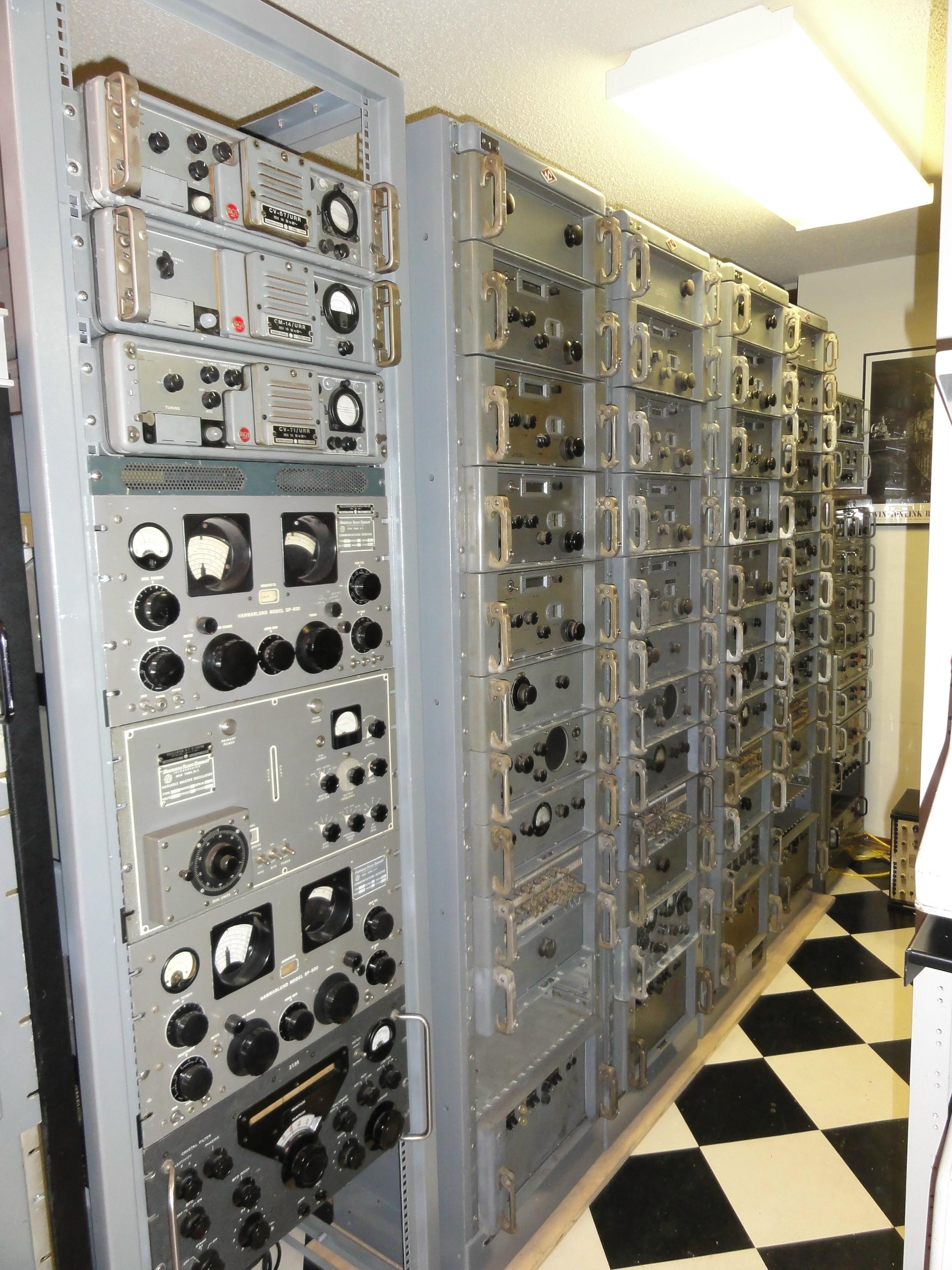

4-rack FRR-24 triple diversity receiver
4-rack FRR-24 triple diversity receiver

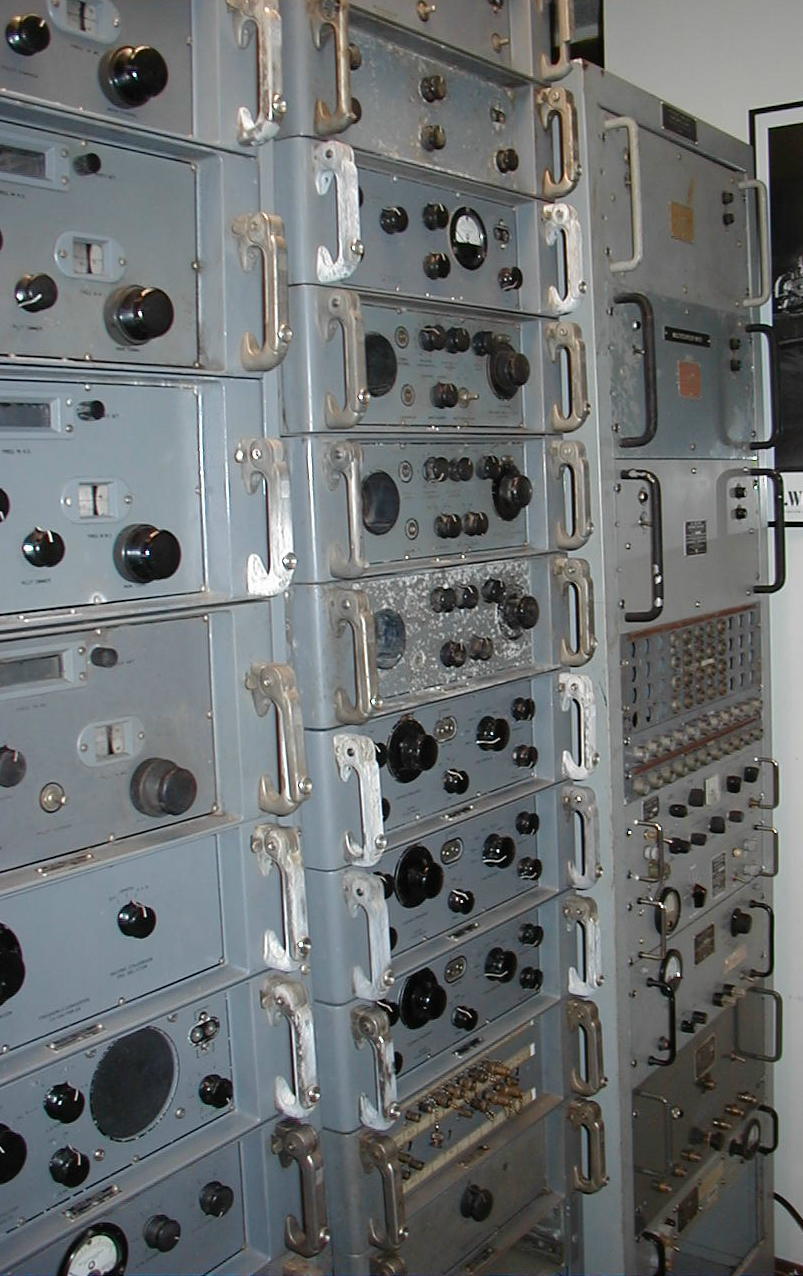

FRR-24 triple diversity receiver

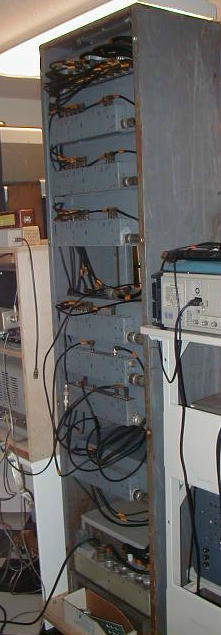

receiver antenna multicoupler rack

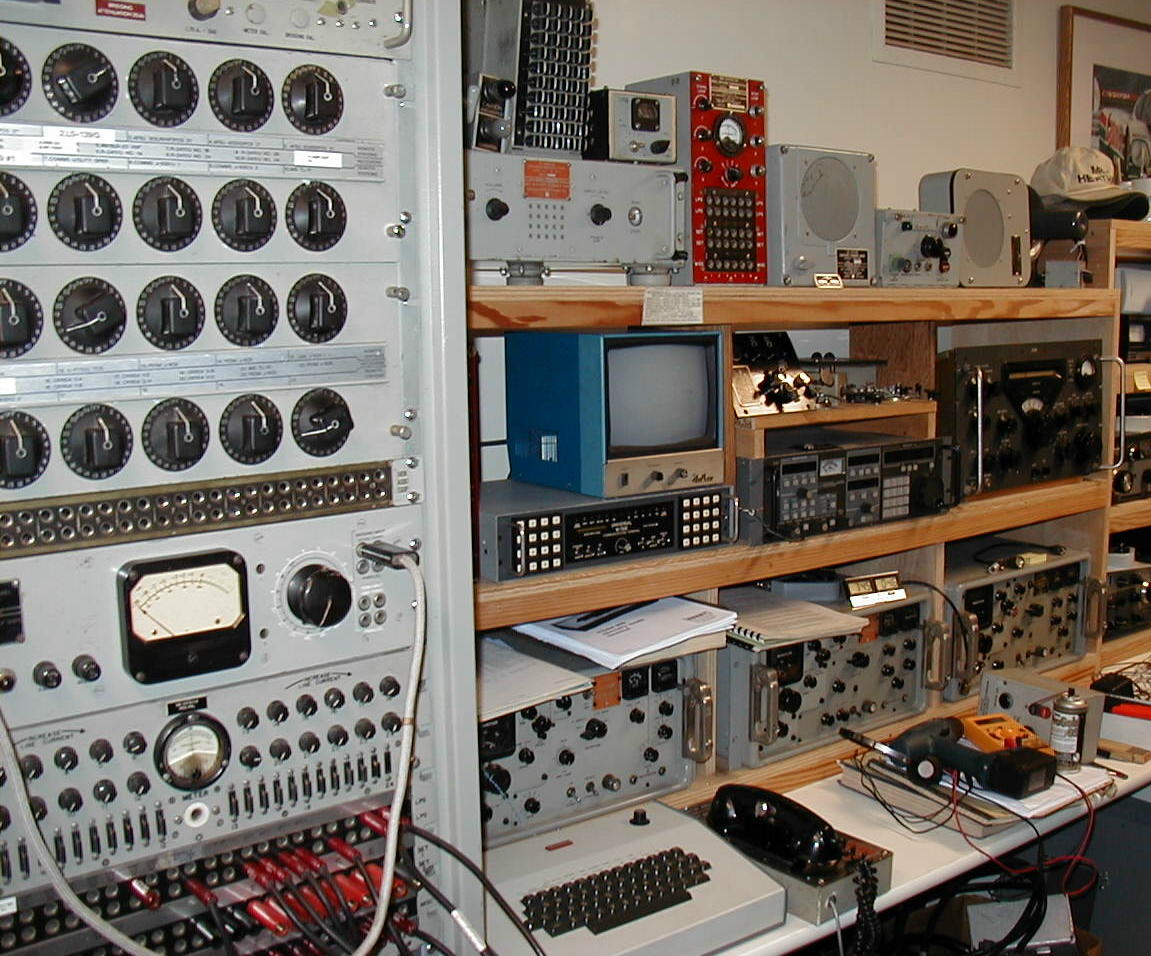

TTY and audio patch panels and test gear
FRR-21, FRR-22, FRR-23 receivers
misc receivers & TTY converters

RF patch panels and CU-168 multicouplers

FRR-59, WRR-3, SRR-19
(2) CV-591, (3) R-390A, CV-157
(FRR-34 triple-diversity and  FRR-38 and FRR-41 dual-diversity systems)
FRR-28 dual diversity receiver
misc RTTY gear
URT-3 transmitter
FRT-70 (TMC SBT-1K) transmitter
(2) CV-591, (3) R-390A, CV-157
FRR-28 dual diversity receiver
misc RTTY gear

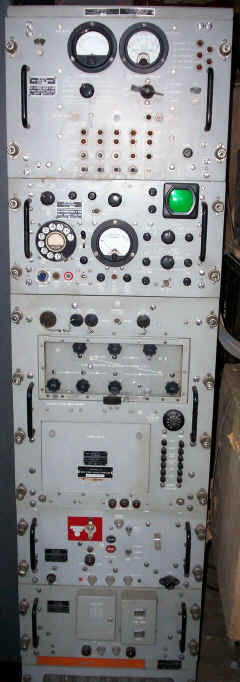

URT-3 transmitter
FRT-70 (TMC SBT-1K) transmitter
URT-3 transmitter

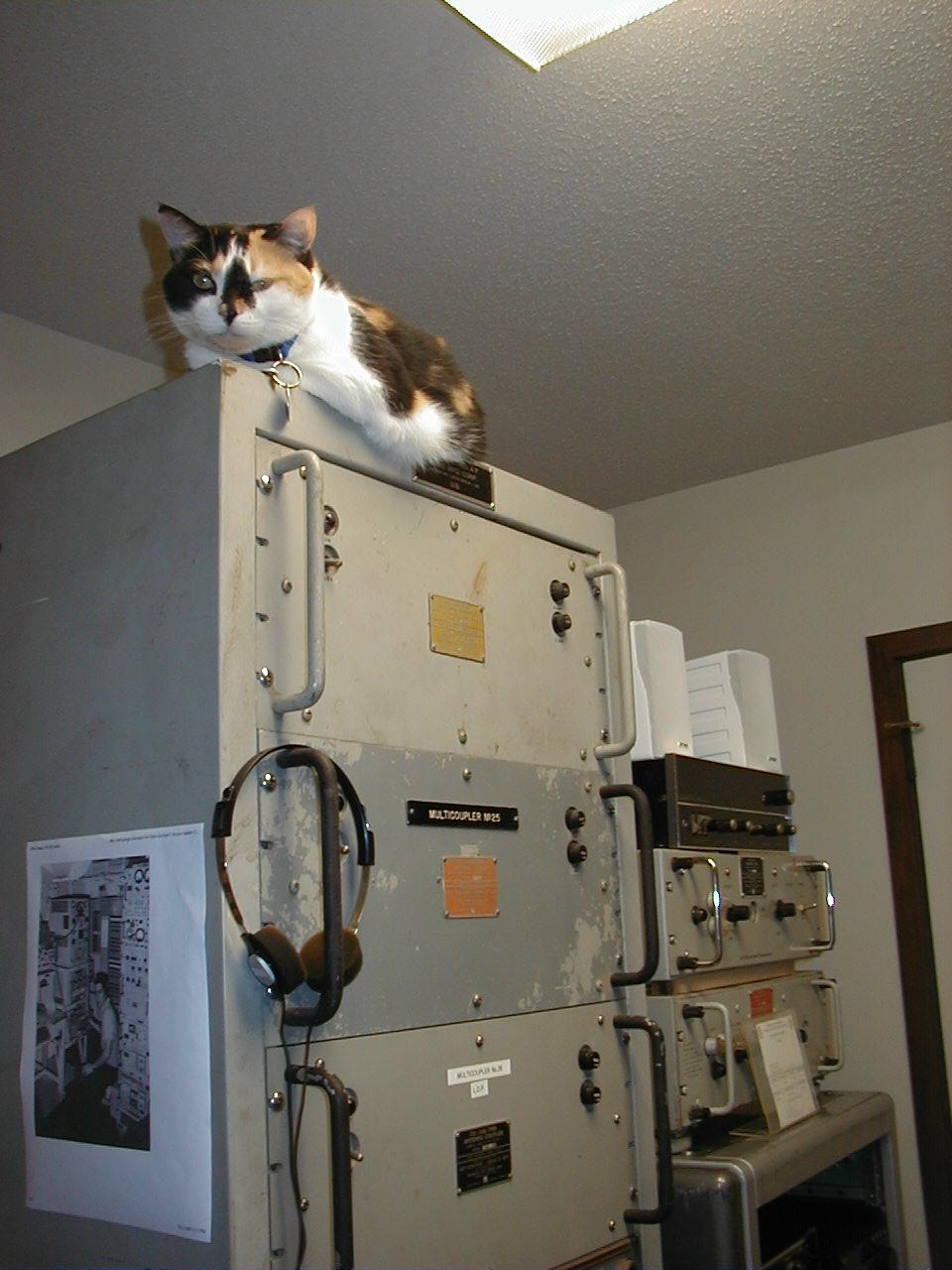

Murphy standing watch

TTY equipment
FGC-5 and FCC-3 RTTY multiplexers
FRR-60 dual diversity receiver
FGC-5 and FCC-3 RTTY multiplexers
FRR-60 dual diversity receiver
FRR-60 receiver (1 rack done)

November 2008

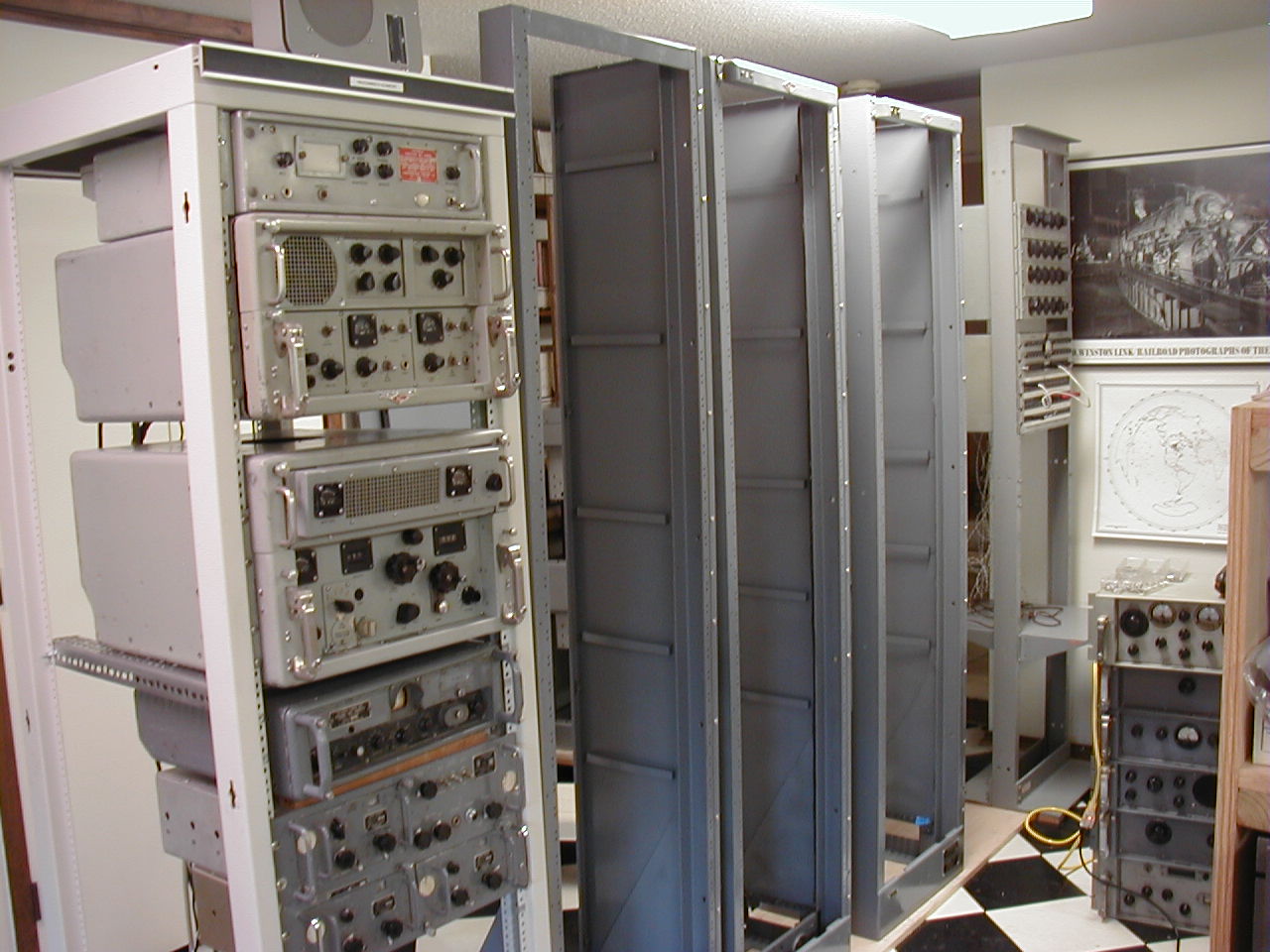

FRR-59 and racks for FRR-24

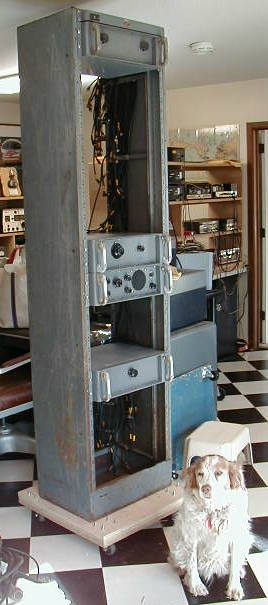

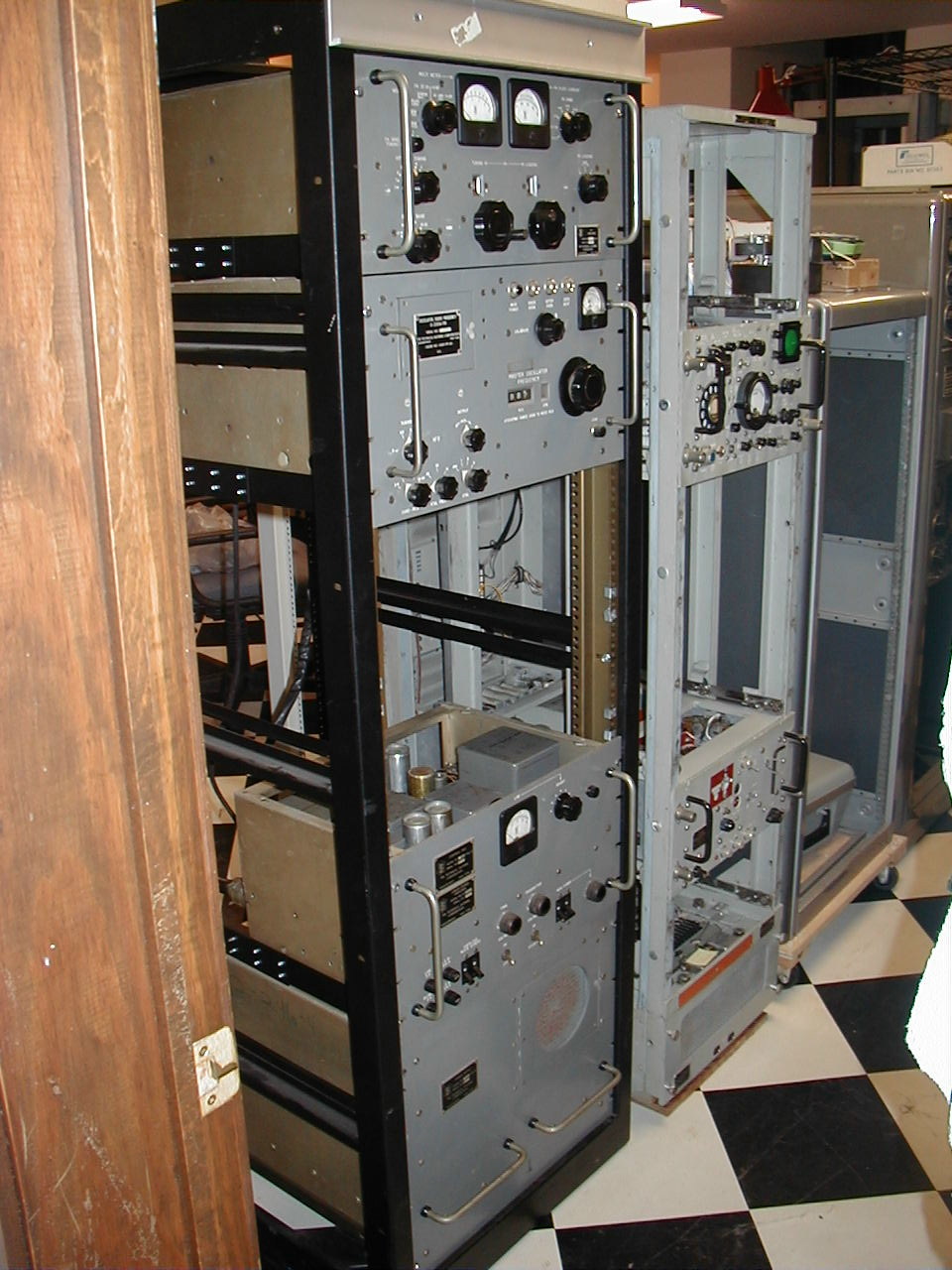

racks for FRR-24
xmtrs - TMC SBT-1K, AN/URT-3

rcvr - AN/FRR-28 (dual SP-600)
misc RTTY converters




Audio, TTY, and RF patch panels


AN/FGC-5, AN/FCC-3,  OCT-3, TMC SFO, misc TTY test gear



Top - Misc RTTY gear
Mid - R-1051, HF-1000, R-390
Bottom - SRR-11, SRR-12, SRR-13

AN/FGC-5, AN/FCC-3,  OCT-3, TMC SFO, misc TTY test gear

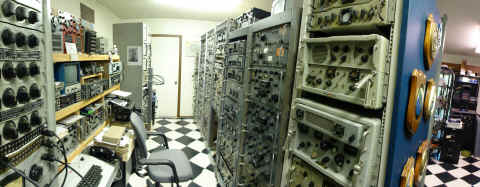

2007

9/07 -Restoration begins
- with helper

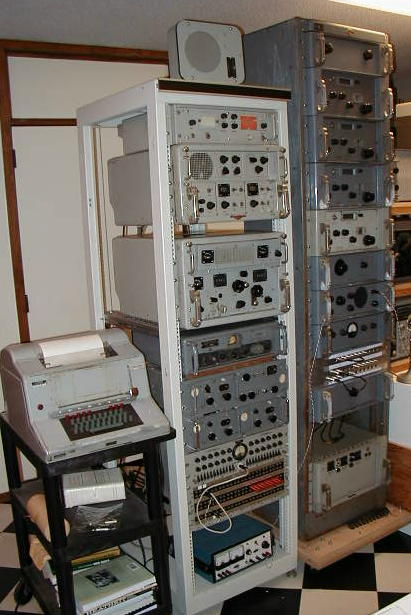

11/07 - The FRR-24 works for the first time!1207-racks-01.JPG (61269 bytes)

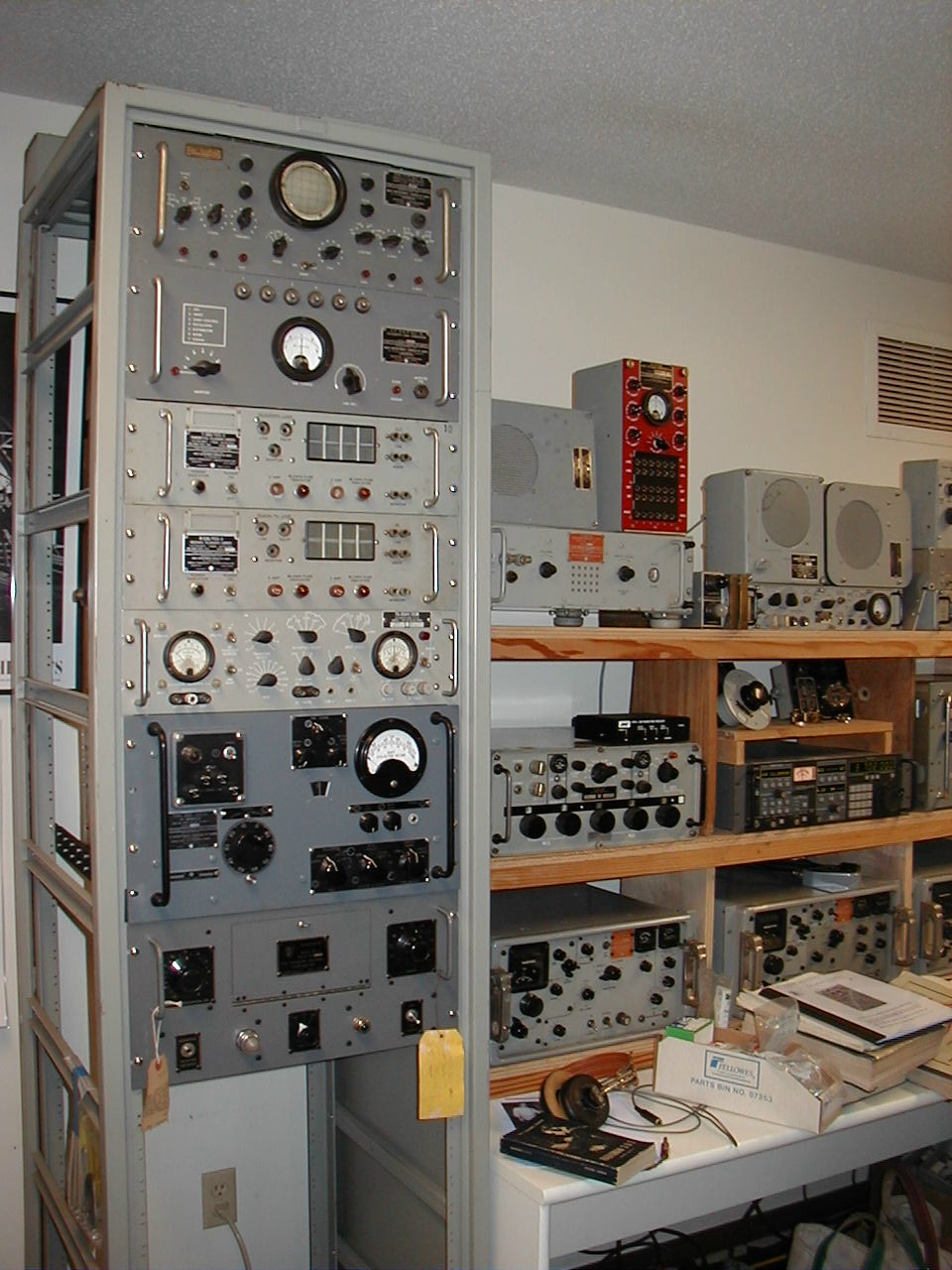

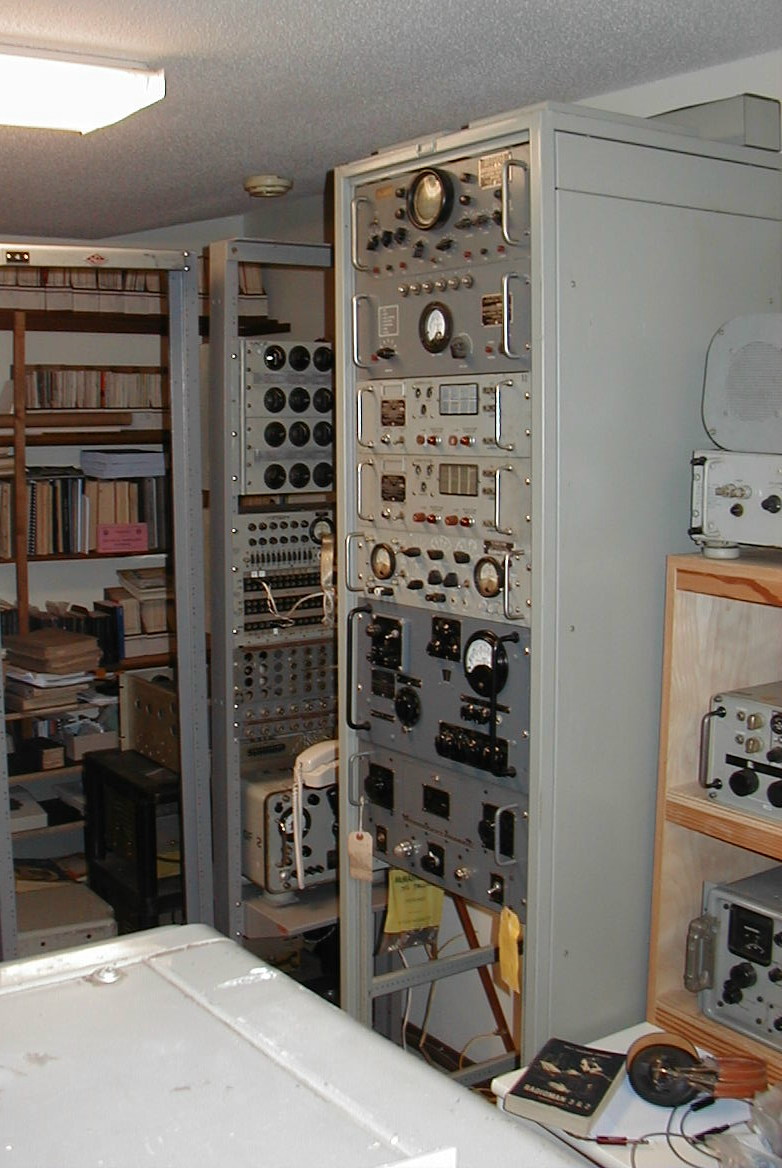

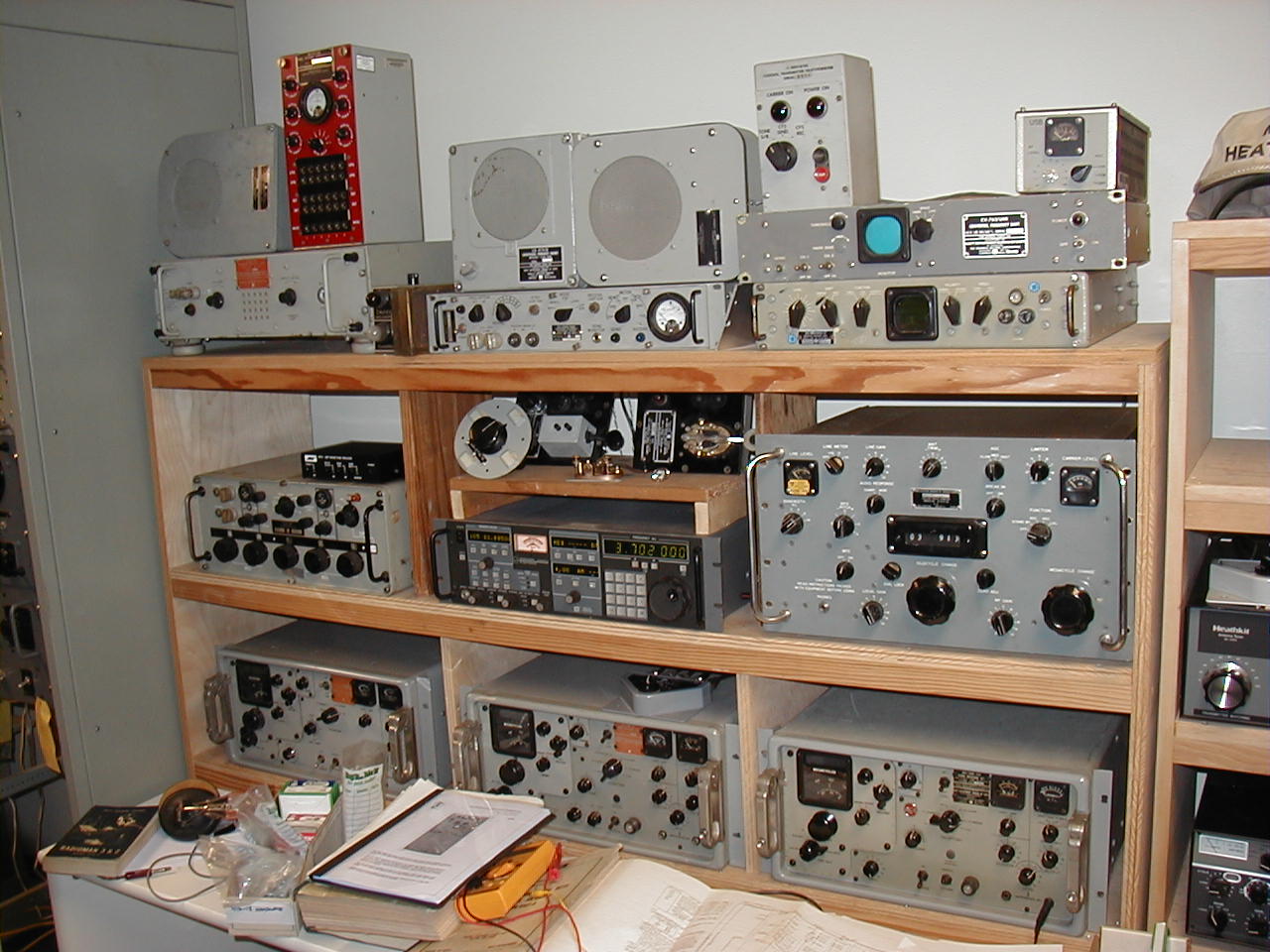

12/07 - Operating position

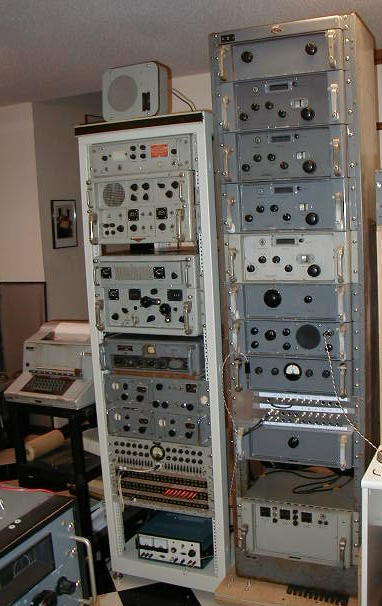

12/07 Operating position

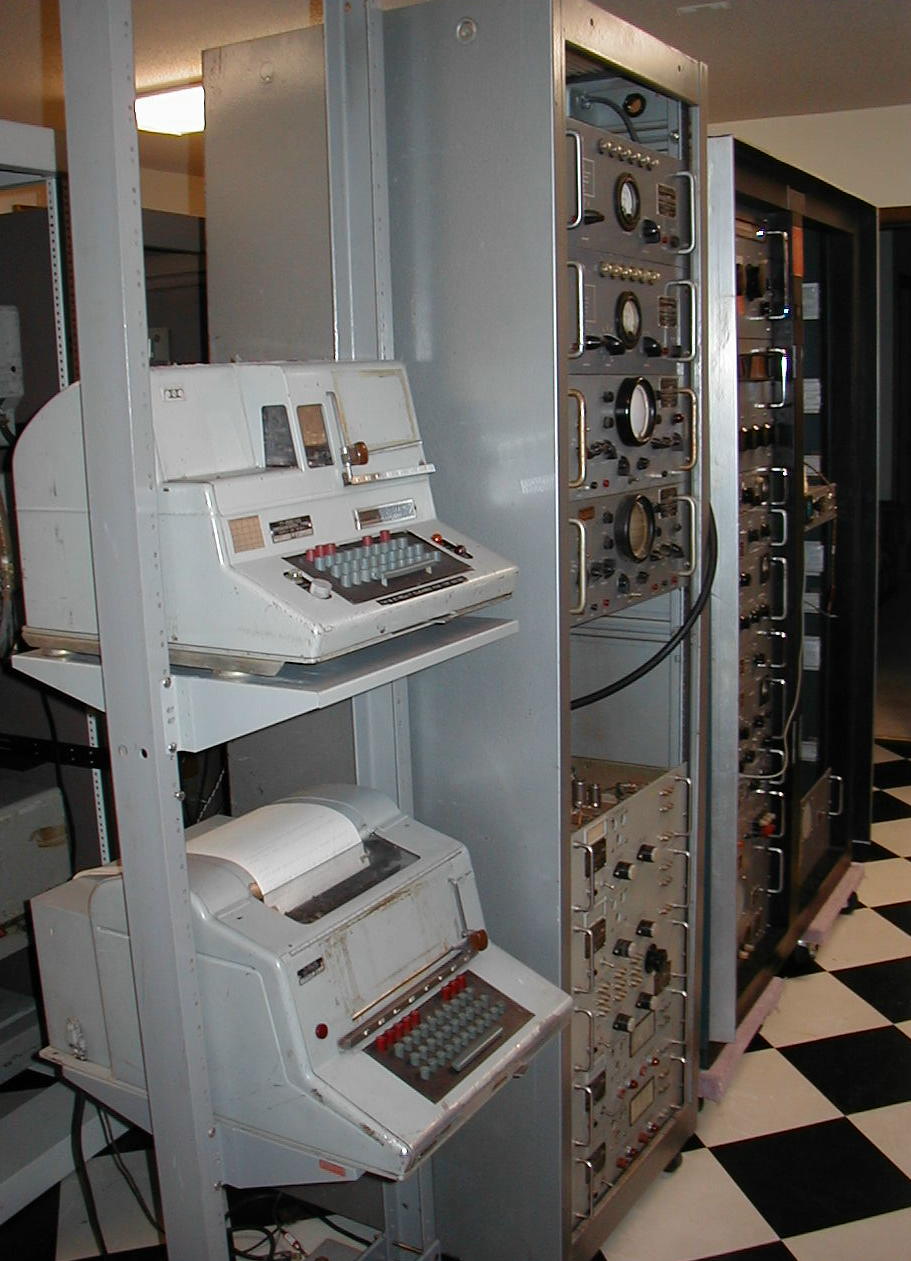

TT-176/UG TTY

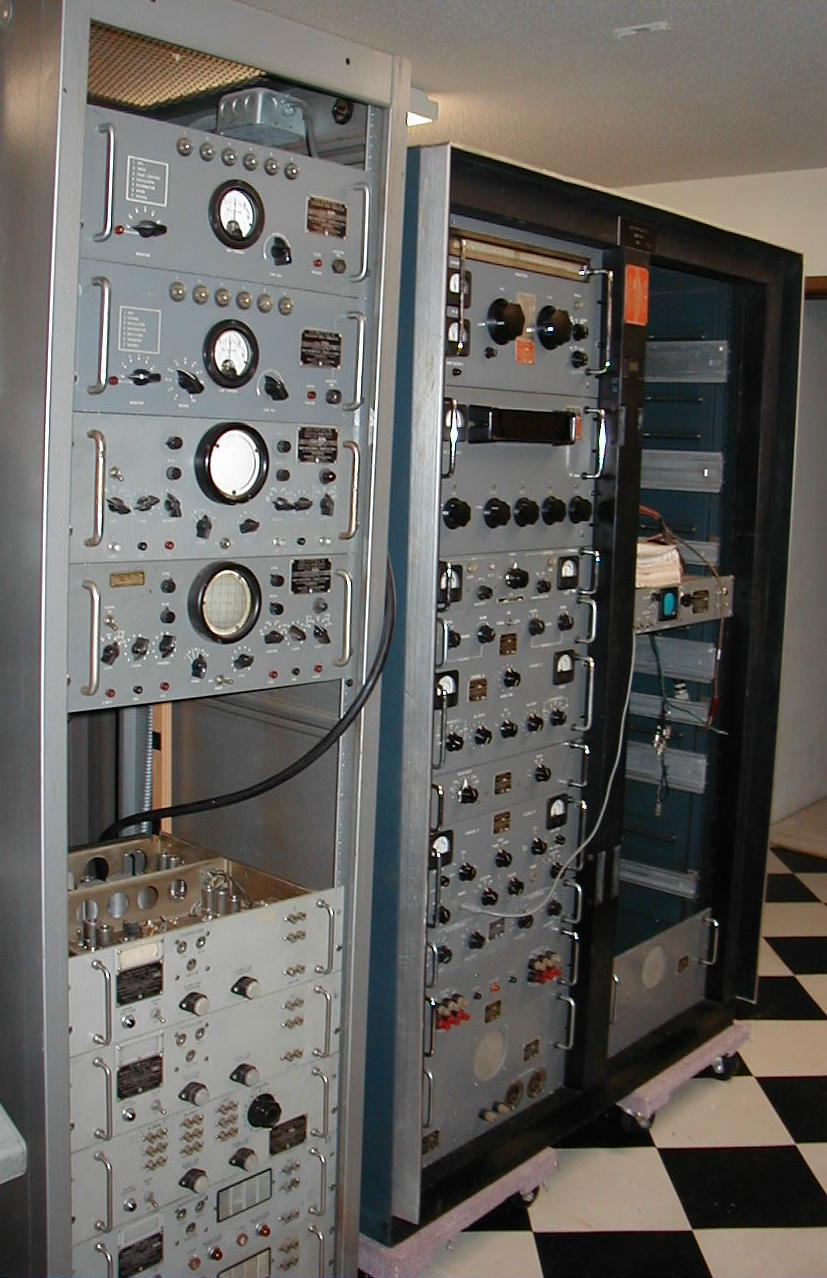

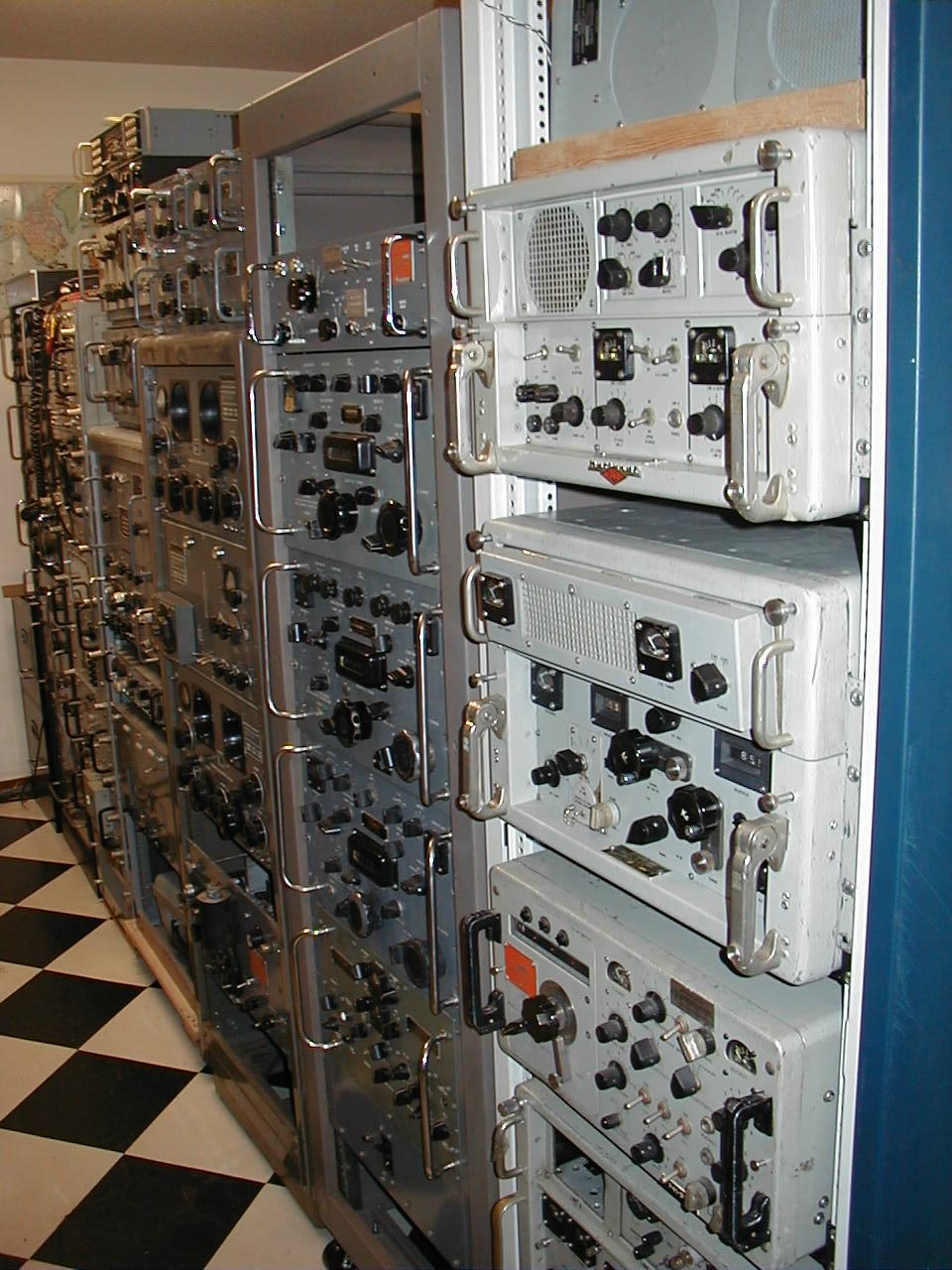

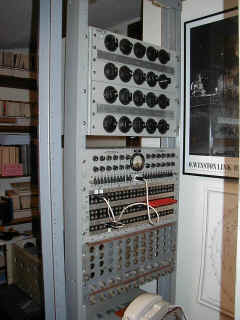

Left Rack

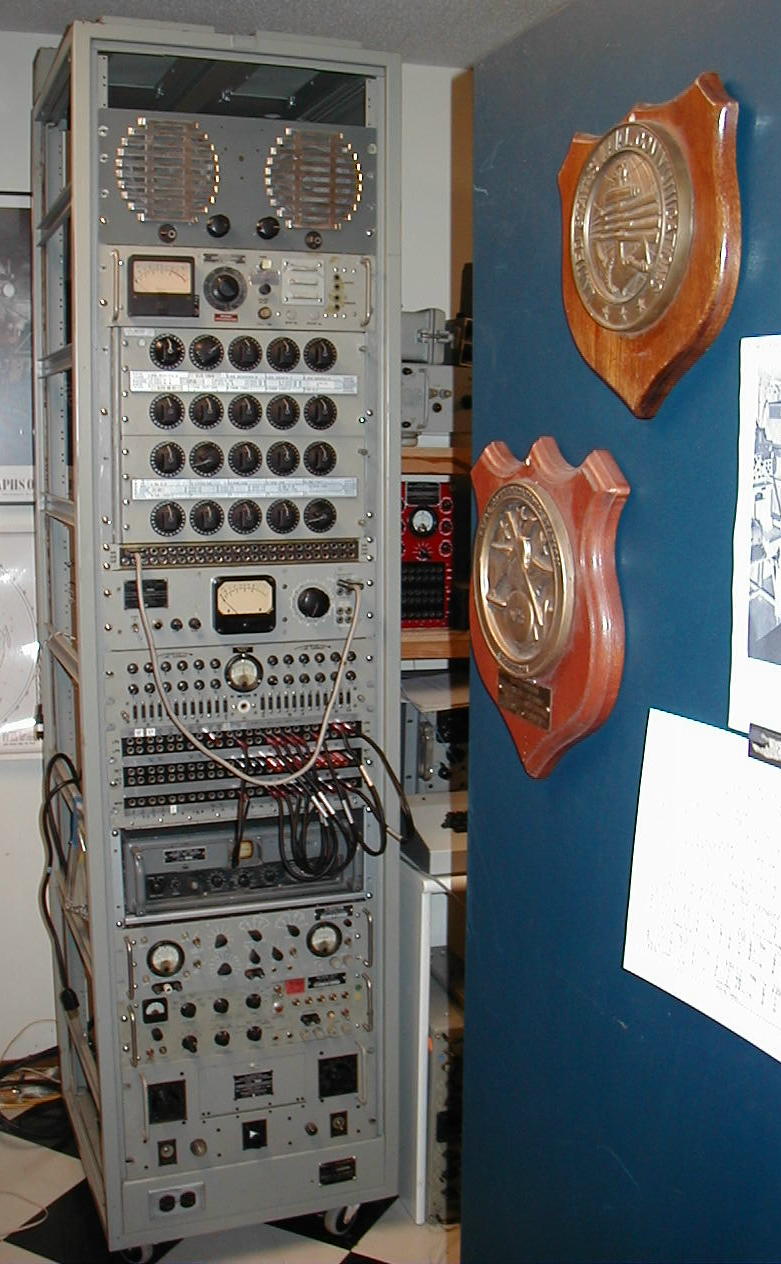

LS-530 speaker
FRR-31 rcvr
FRR-59 rcvr
CV-89A RTTY conv.
FRR-49 rcvr
SB-3576/UG  patch panel
Right Rack

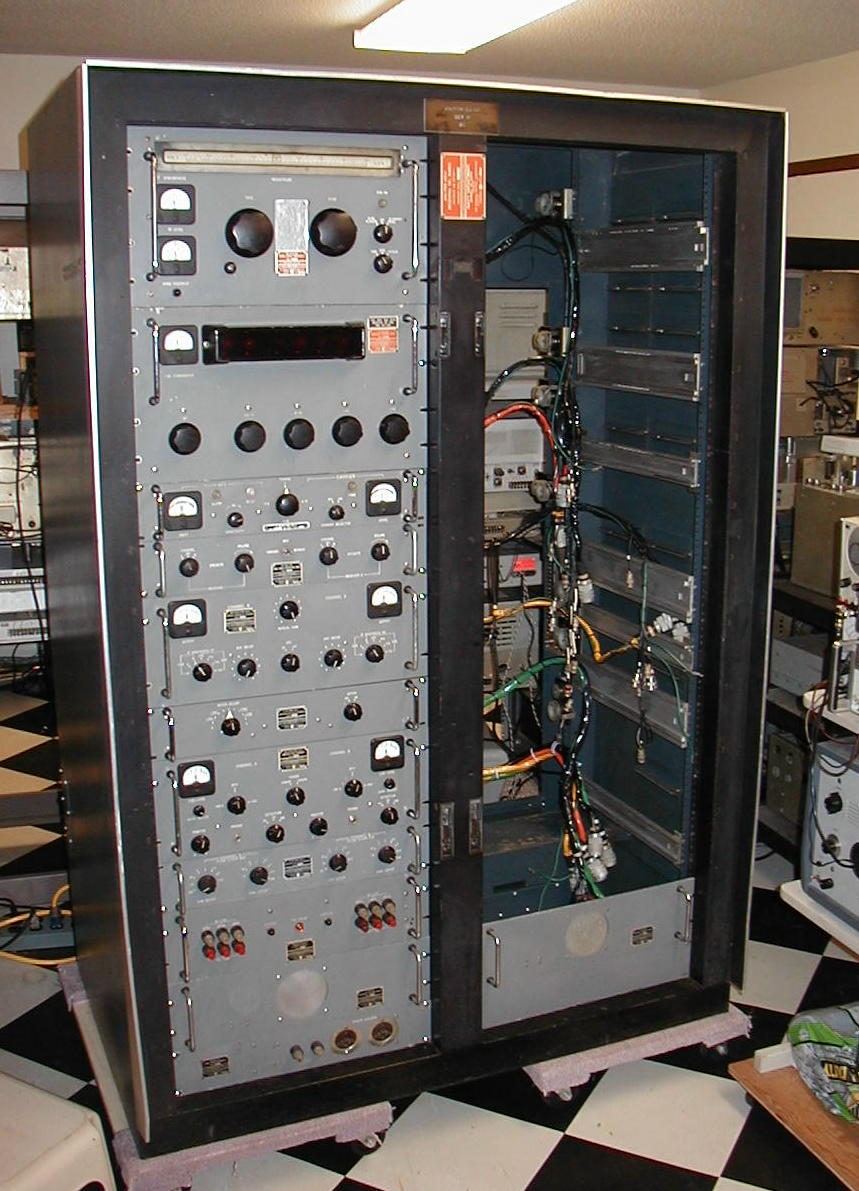

FRR-24 rcvr
(rack 1 only so far)

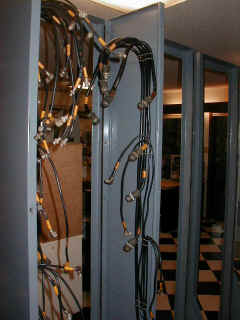

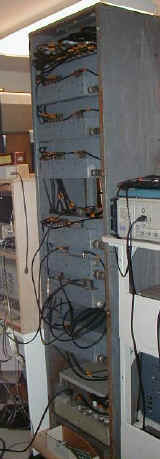

FRR-24 power and signal connections on rear
