Successful 3D printed version test 8/9/25 - all thanks to modeler/printer John Toebes
A short movie!
(17.3MB)
SLS production prototype - test 8/15/25

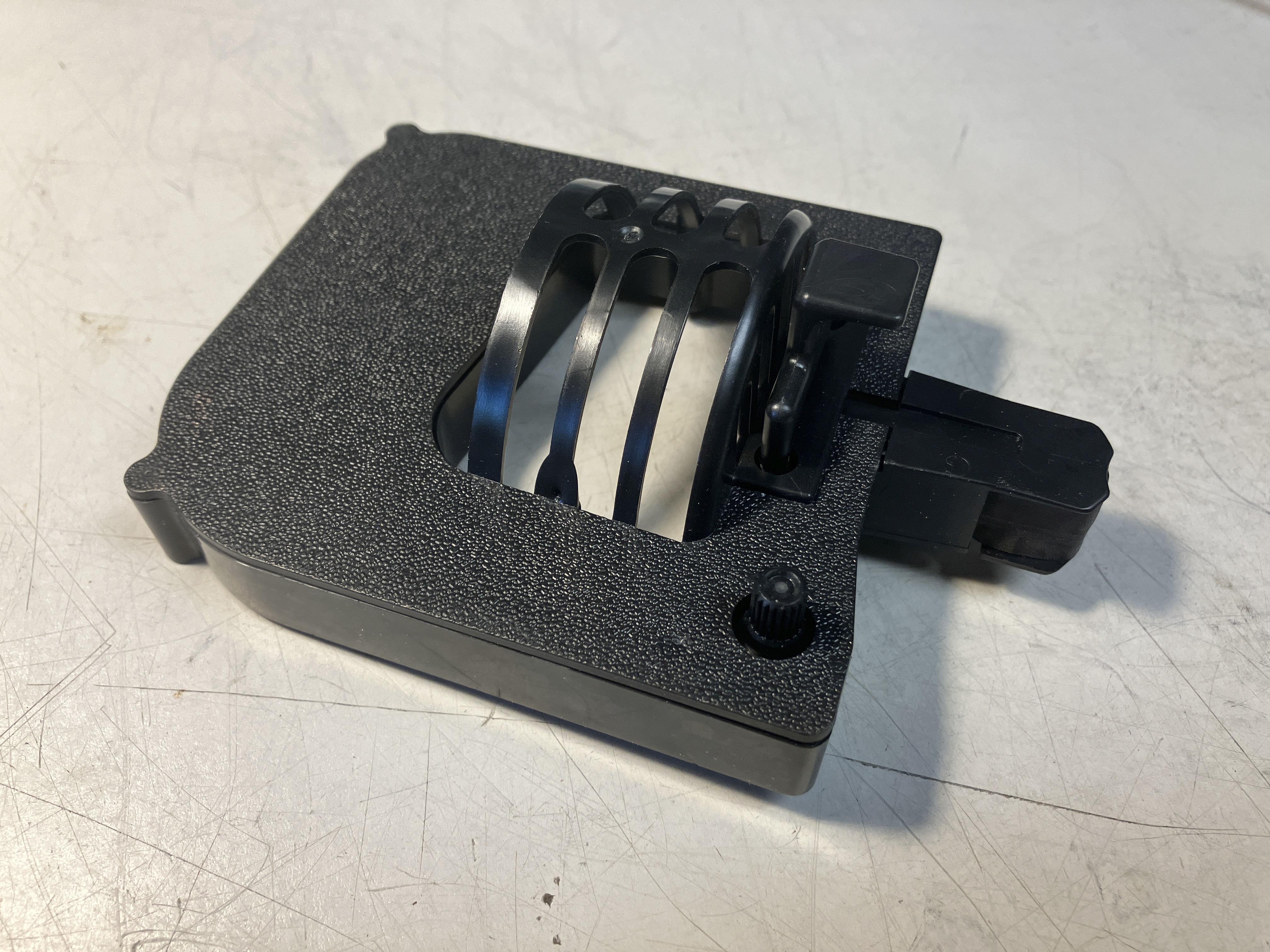

RIBBON: Cassette - black nylon tape, 16 yards long, 0.0045 thk, 0.52 in. wide, 75 rpm speed
Mfr NCR part no. 197939, E-systems dwg 69-00402-001
NSN 7510-01-297-6428
|
|
|
|
|
|
|
|

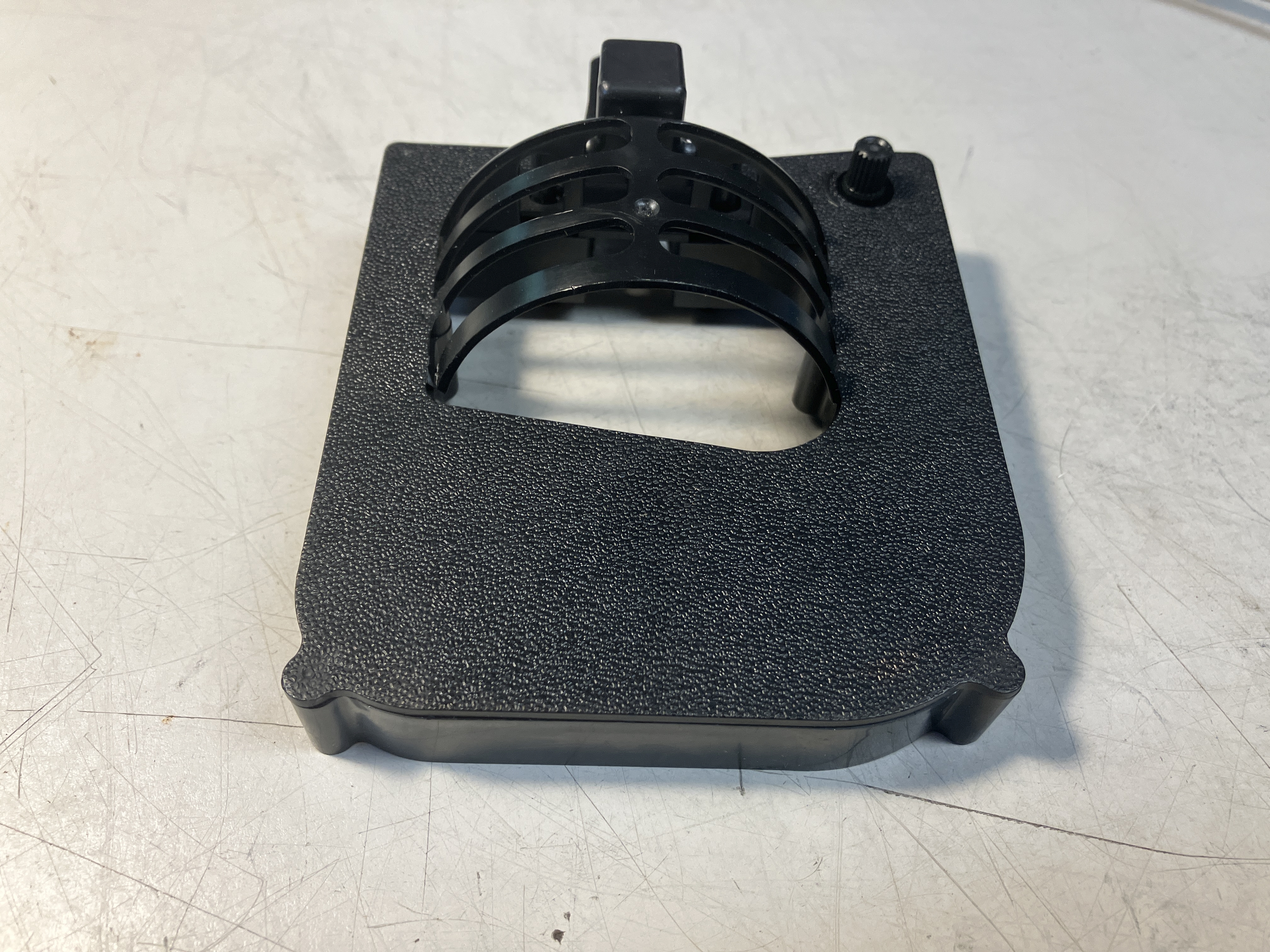

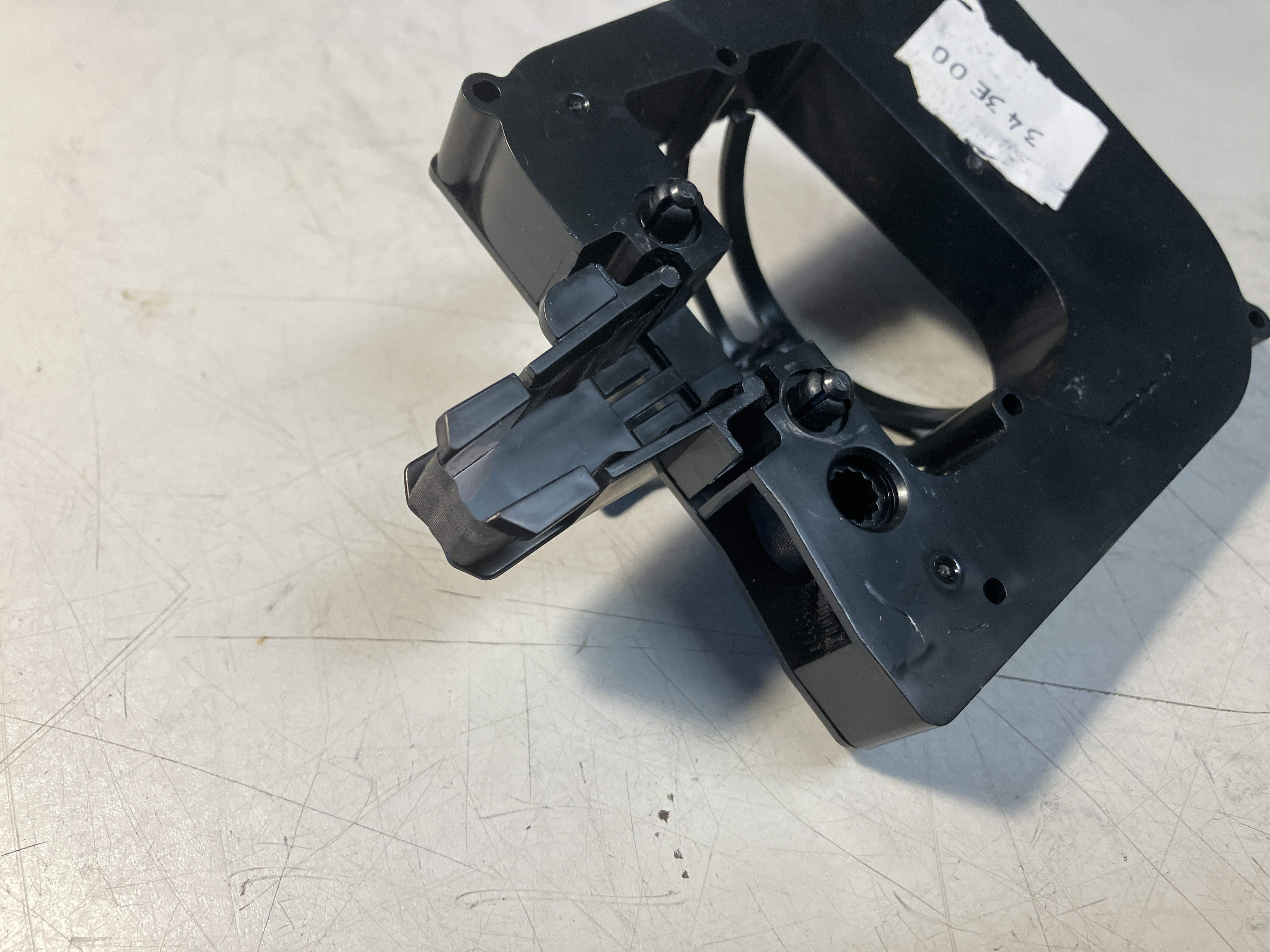

| bottom - ends of lift handle are heated to mushroom |

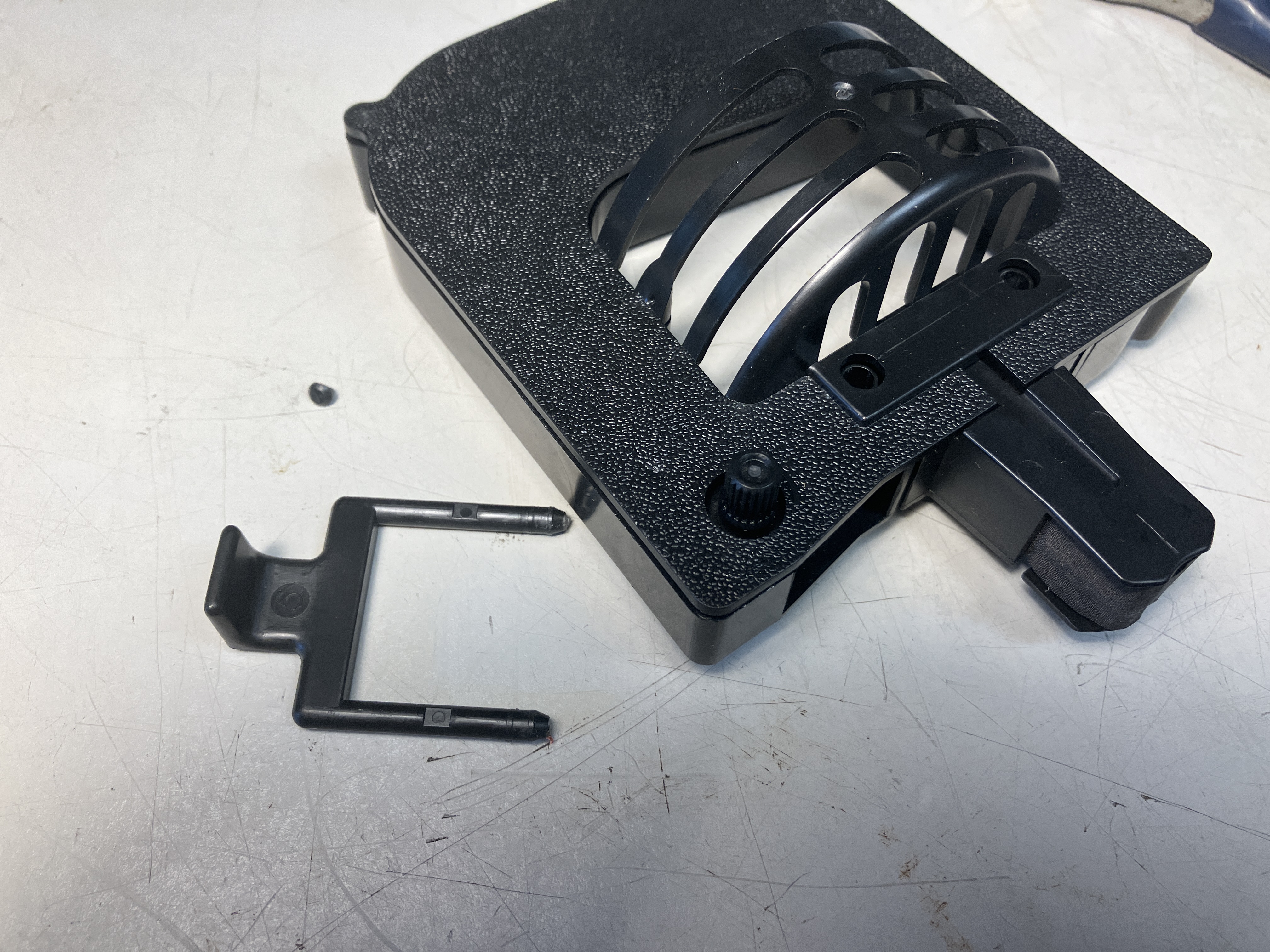

clipped the ends and removed lift hadle |

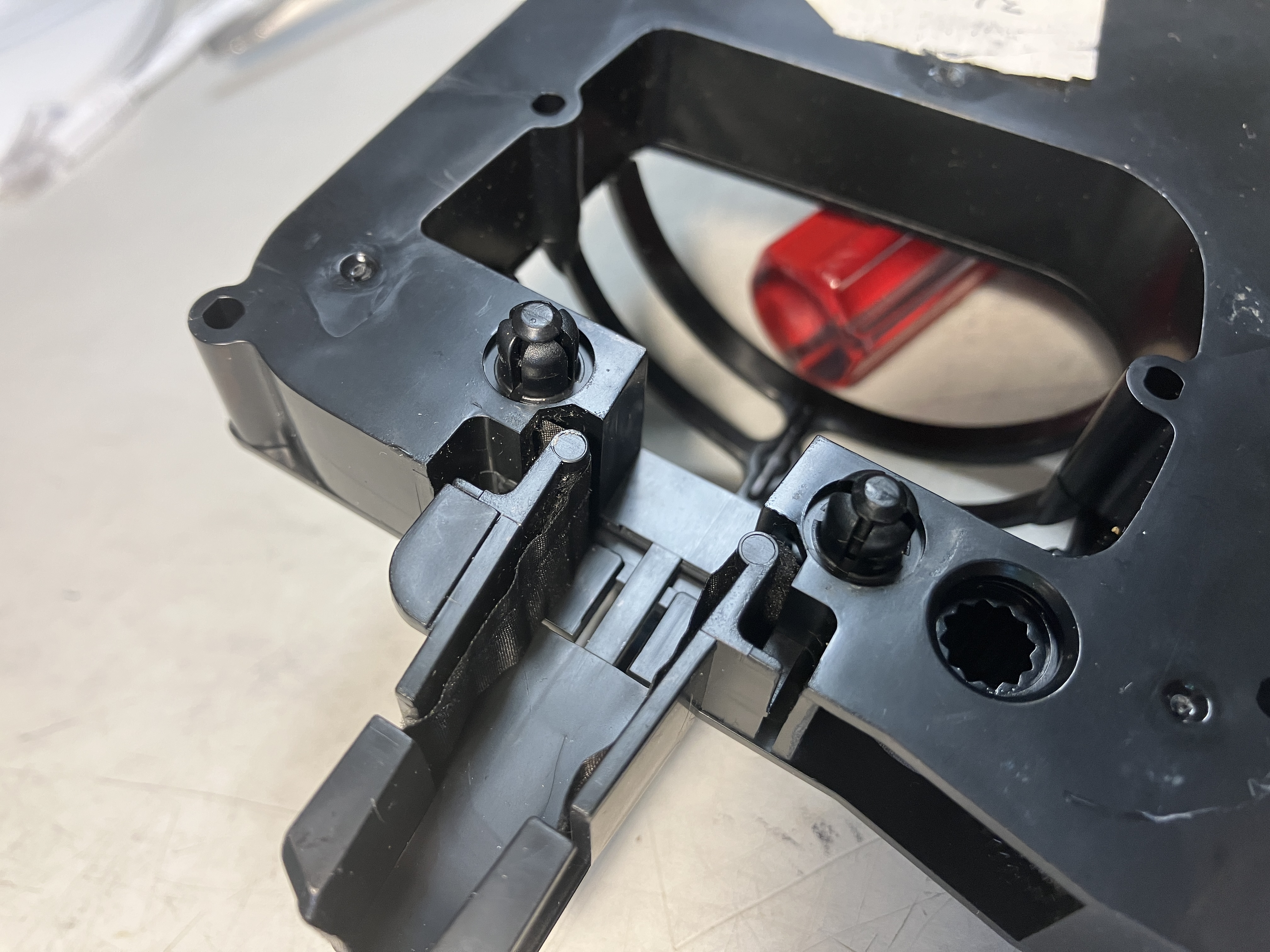

lift handle holes on top |

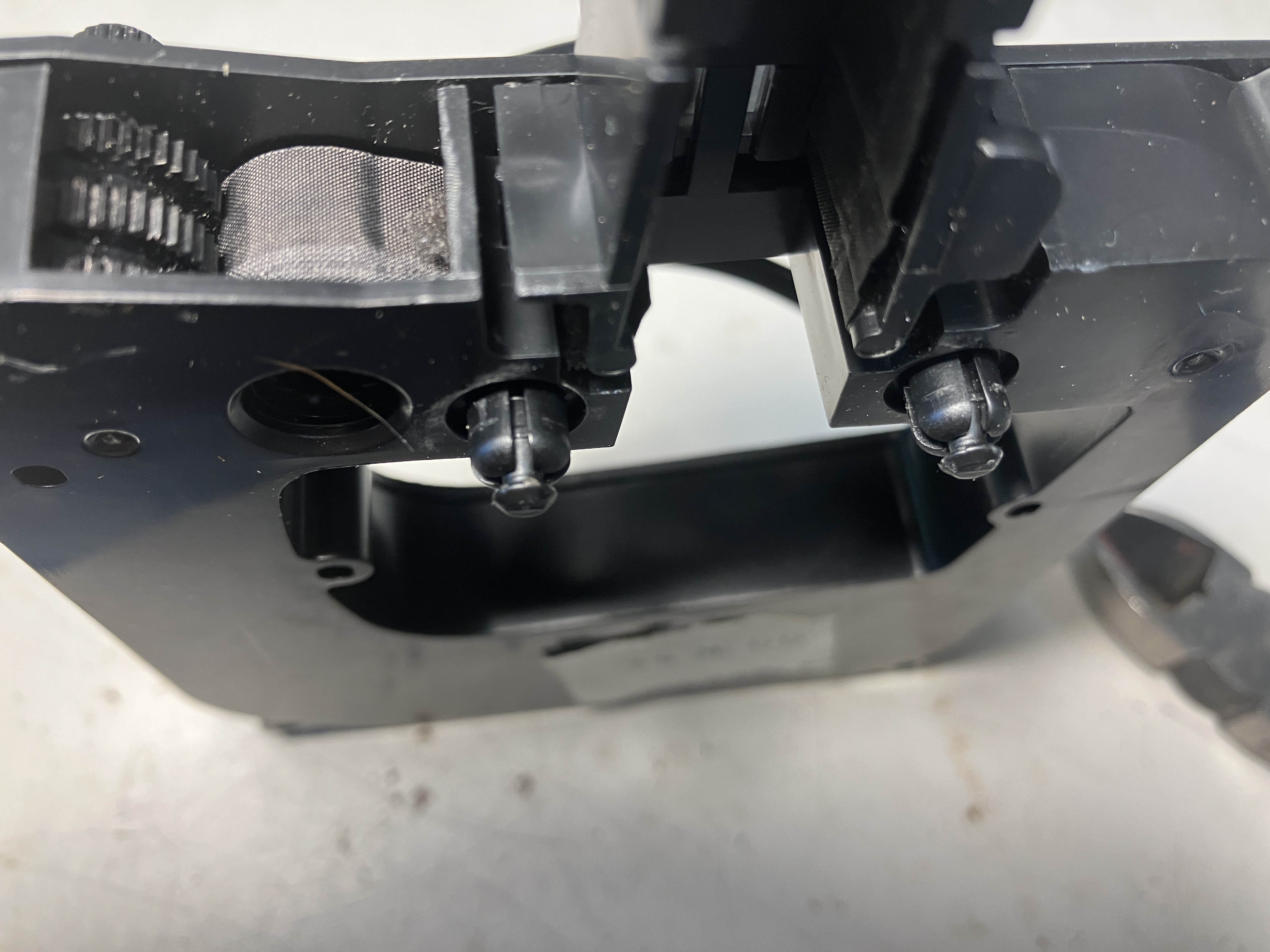

top is held on via 4 pins inserted into bottom |

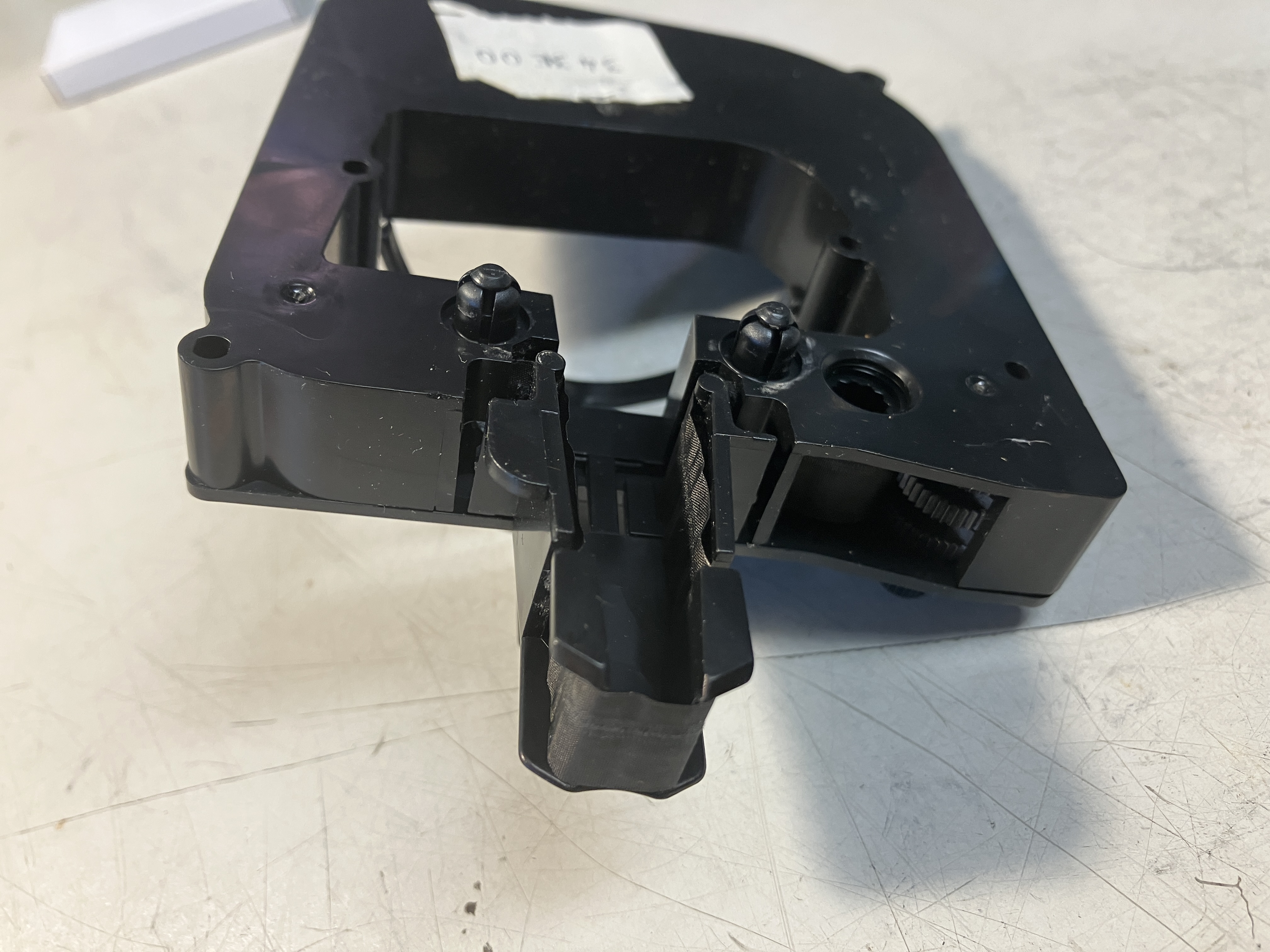

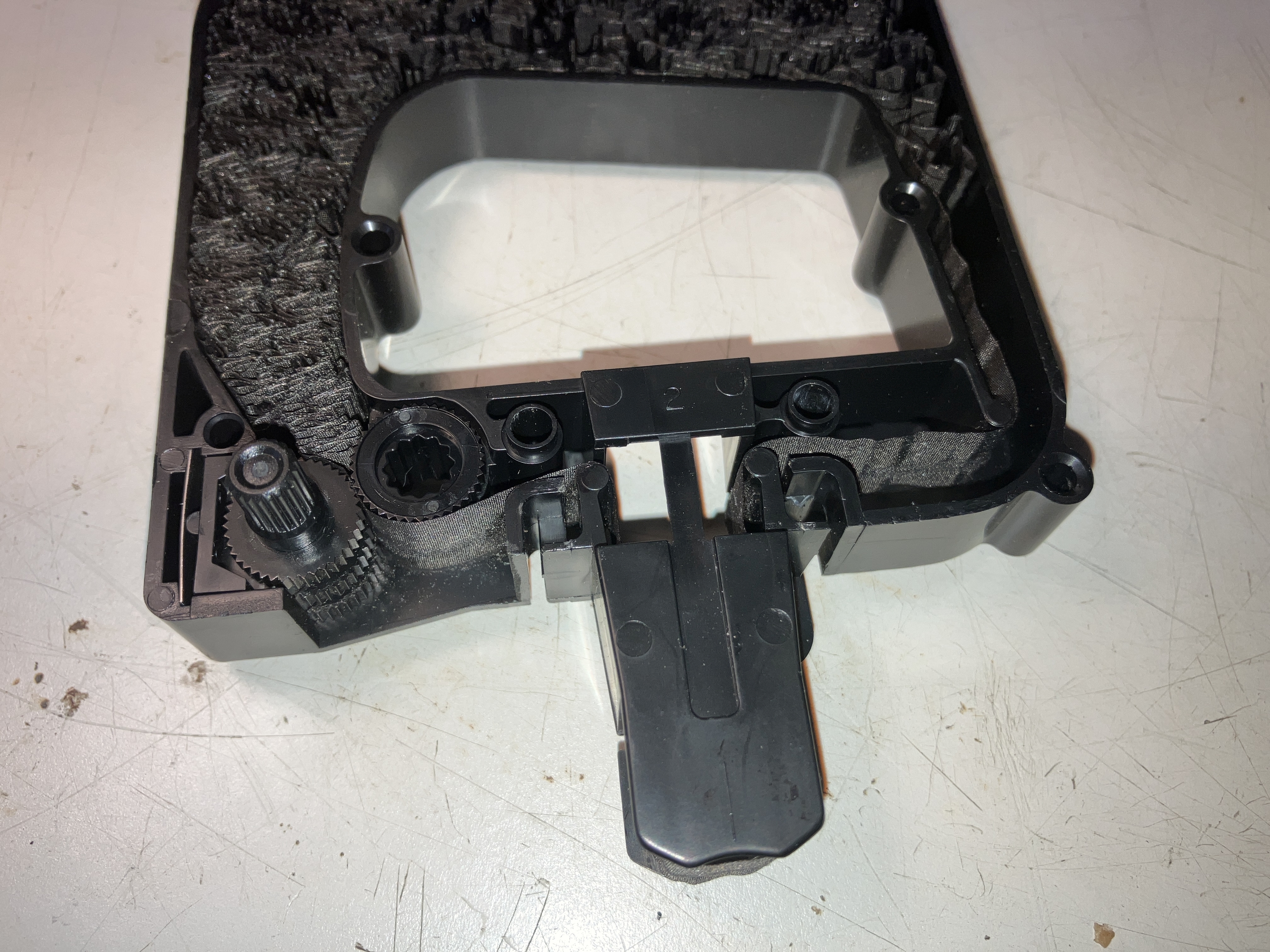

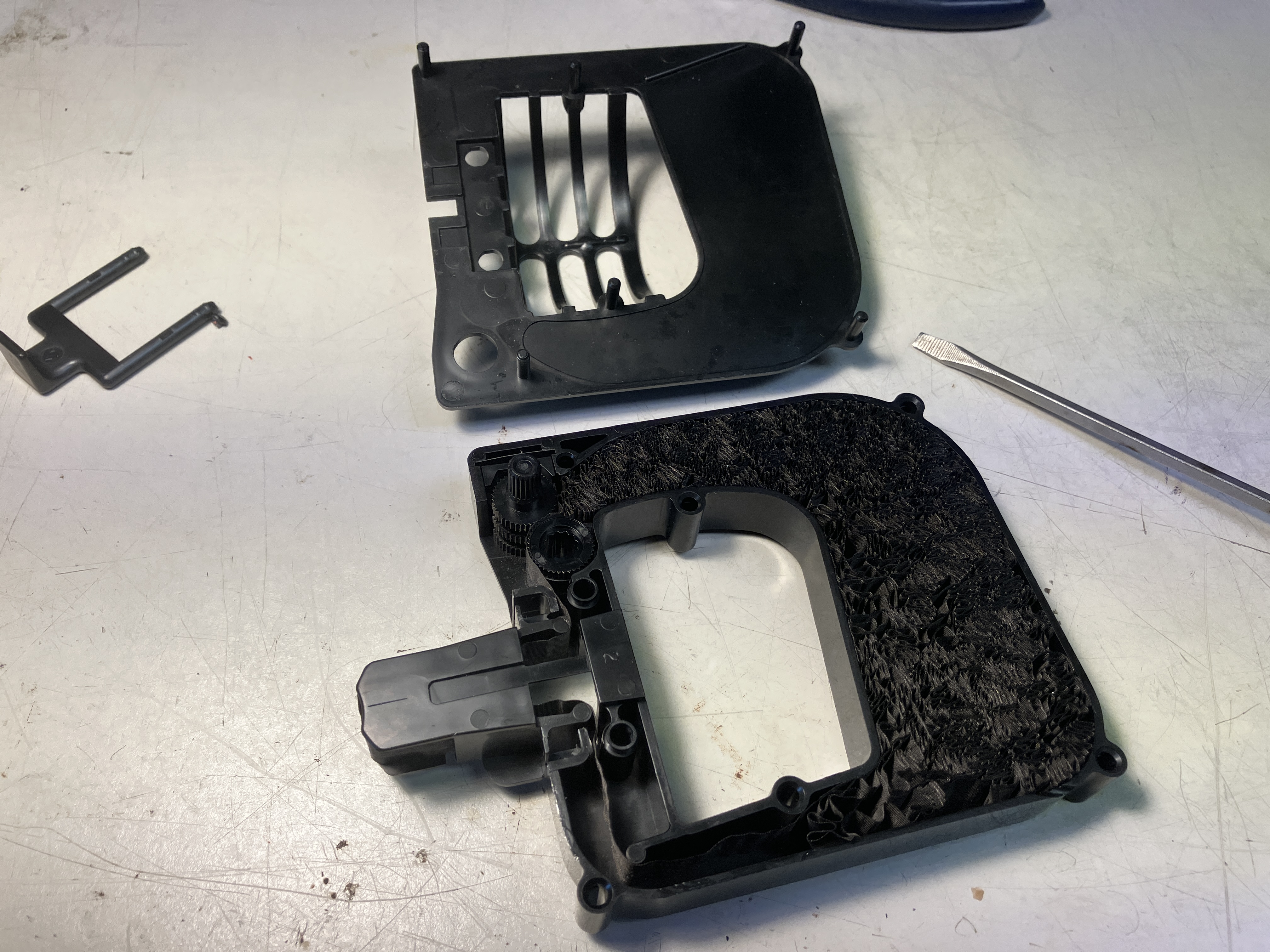

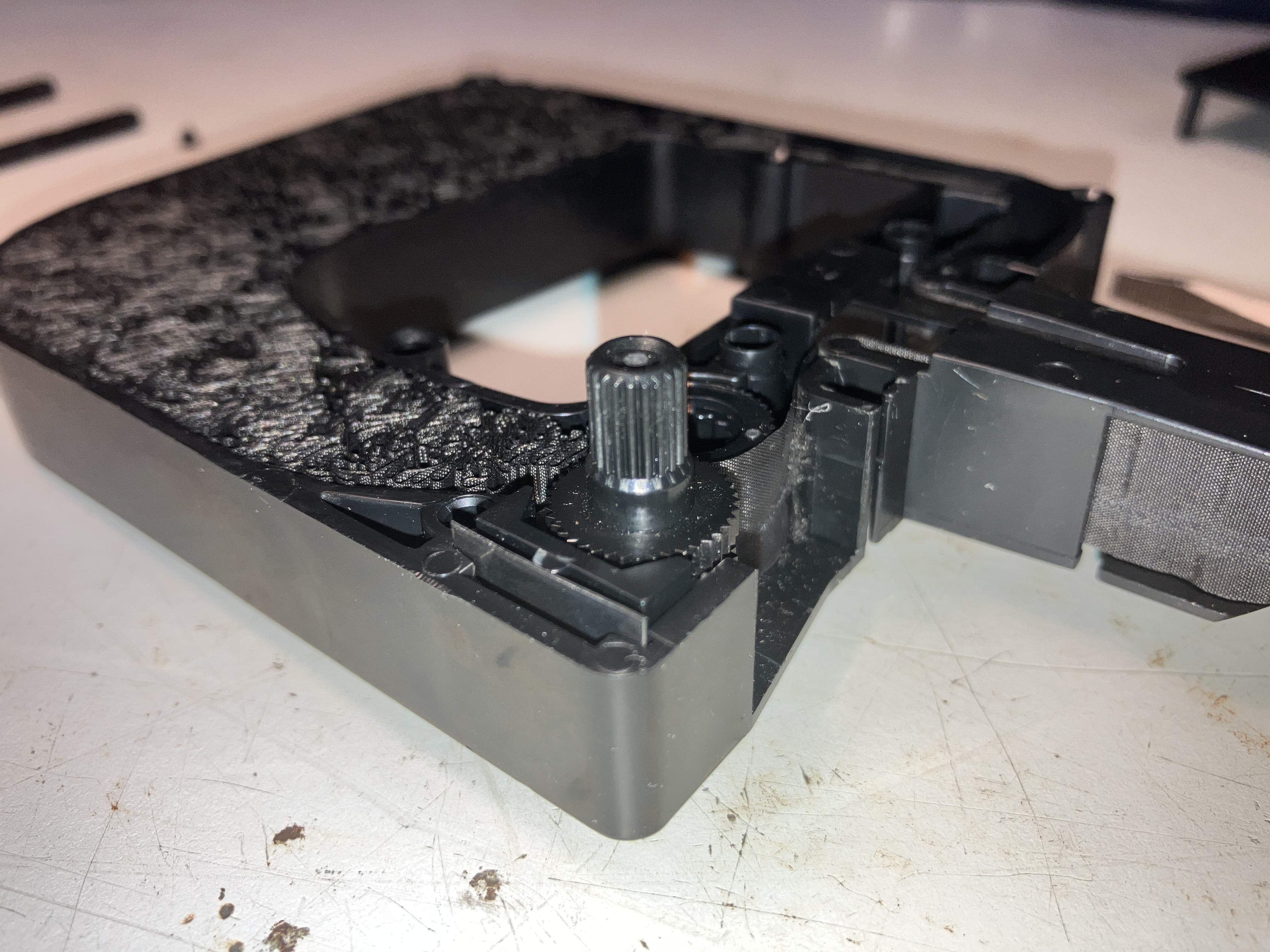

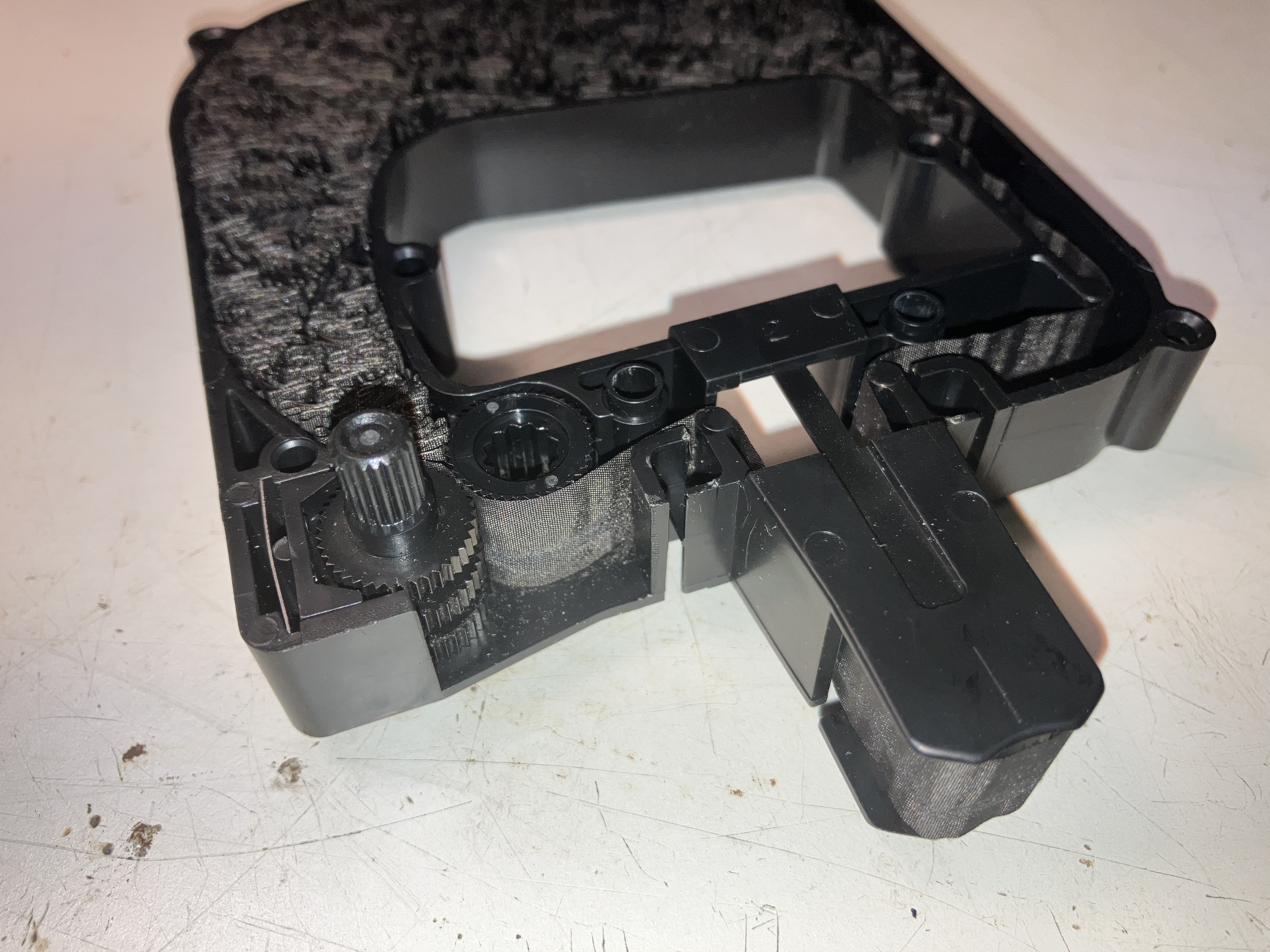

| top removed |
|
|
|

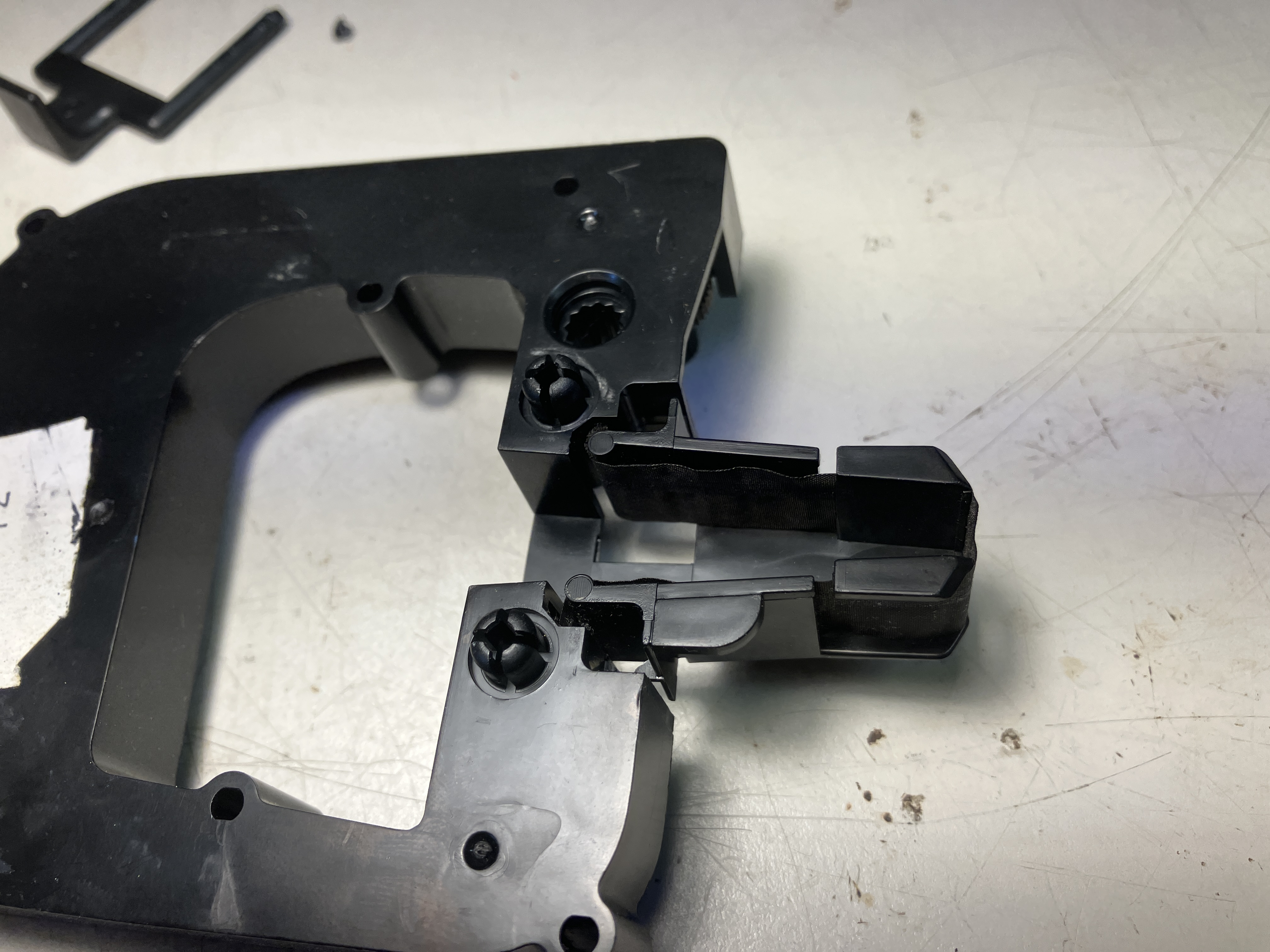

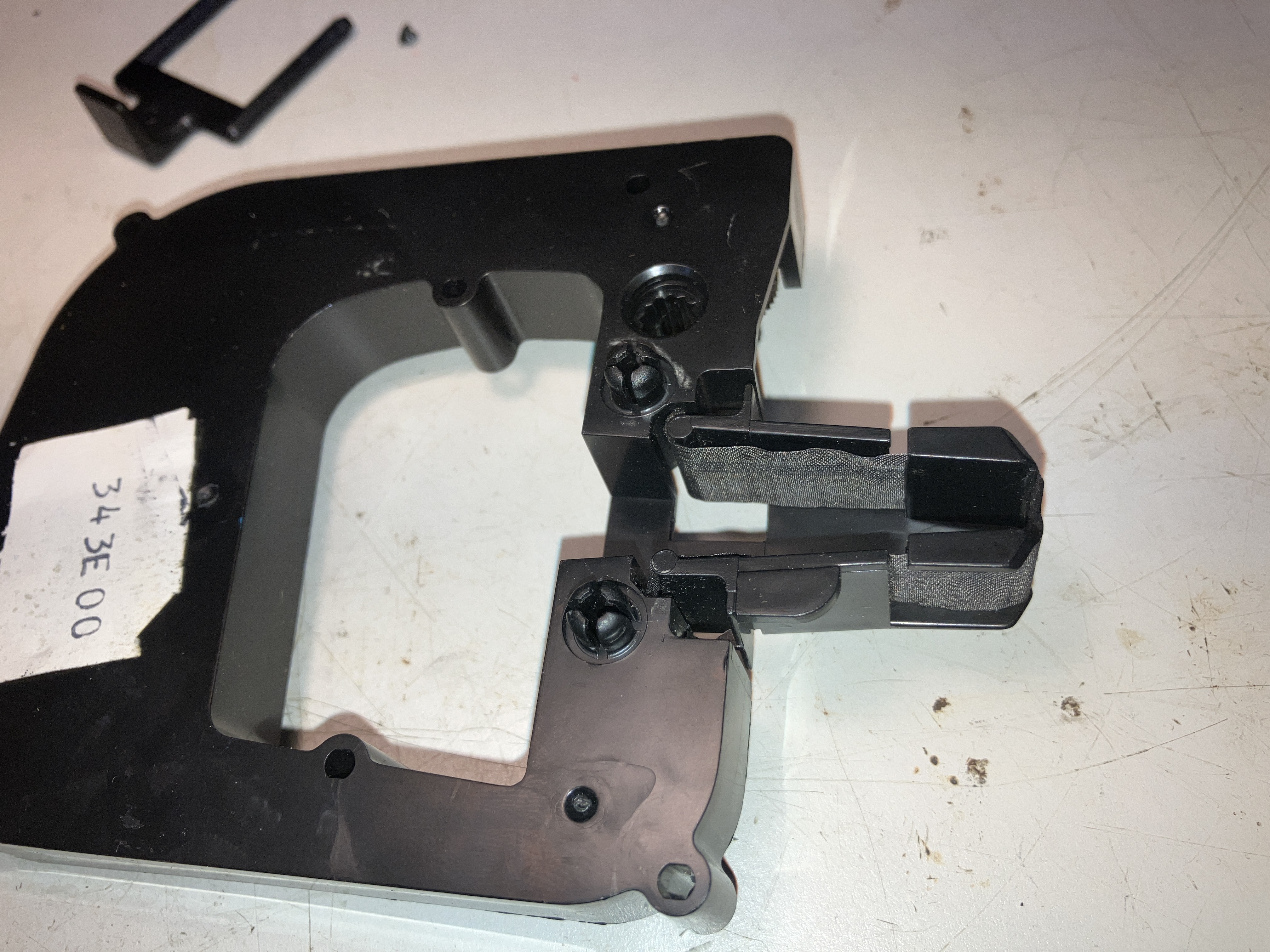

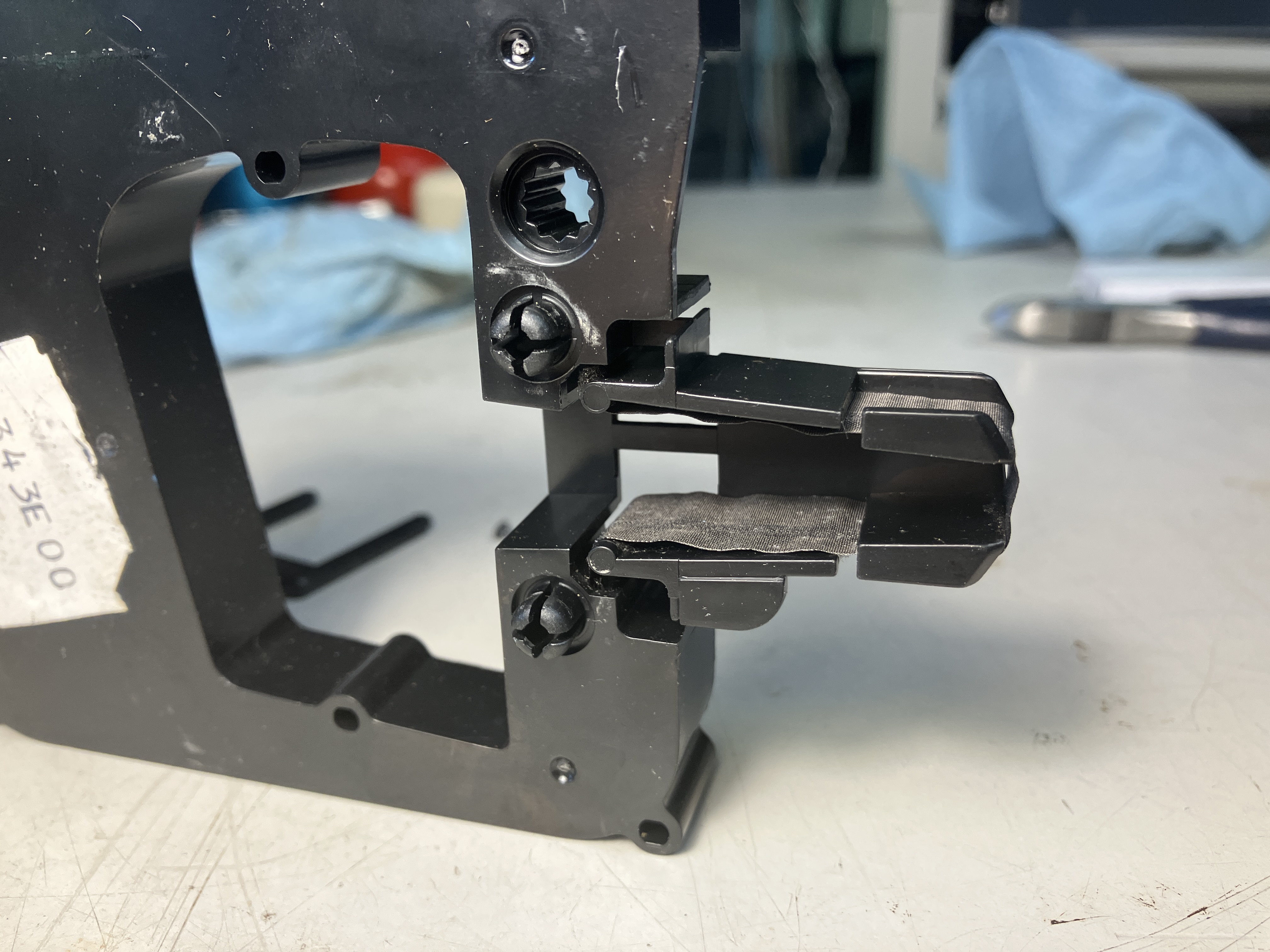

| details of head - it is attached to the body via three small
flexible strips to let it "float" |
|
|
|
|

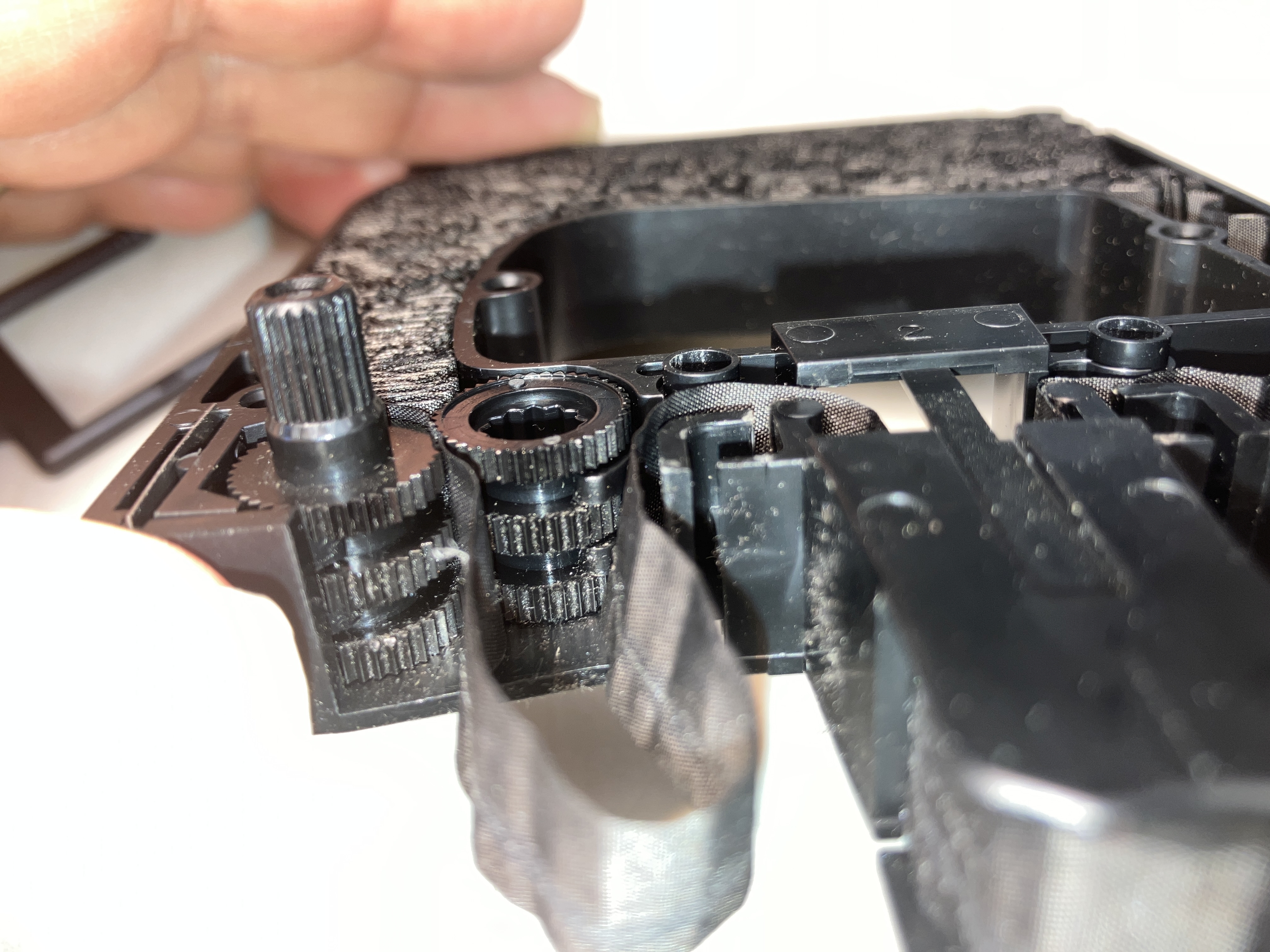

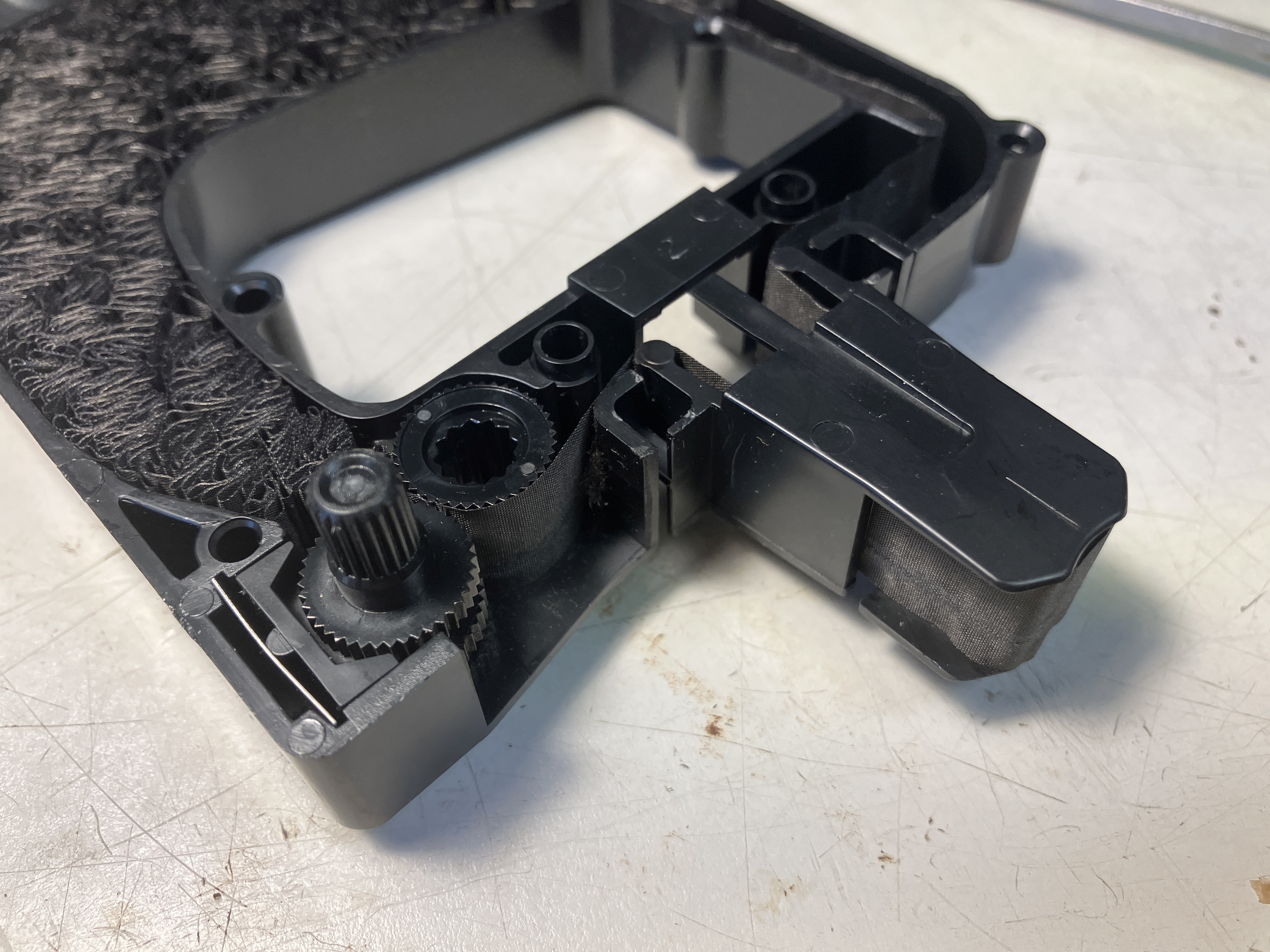

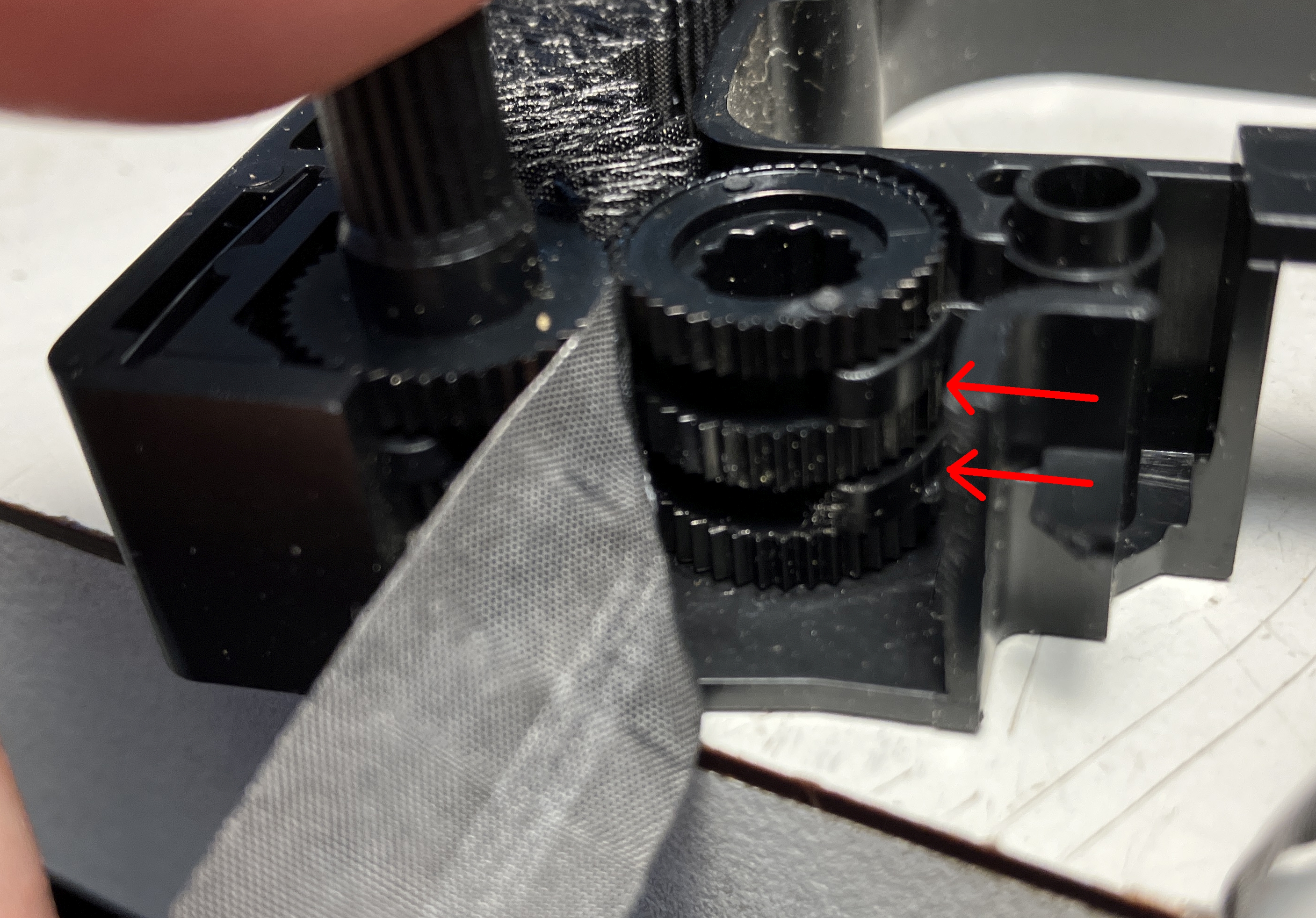

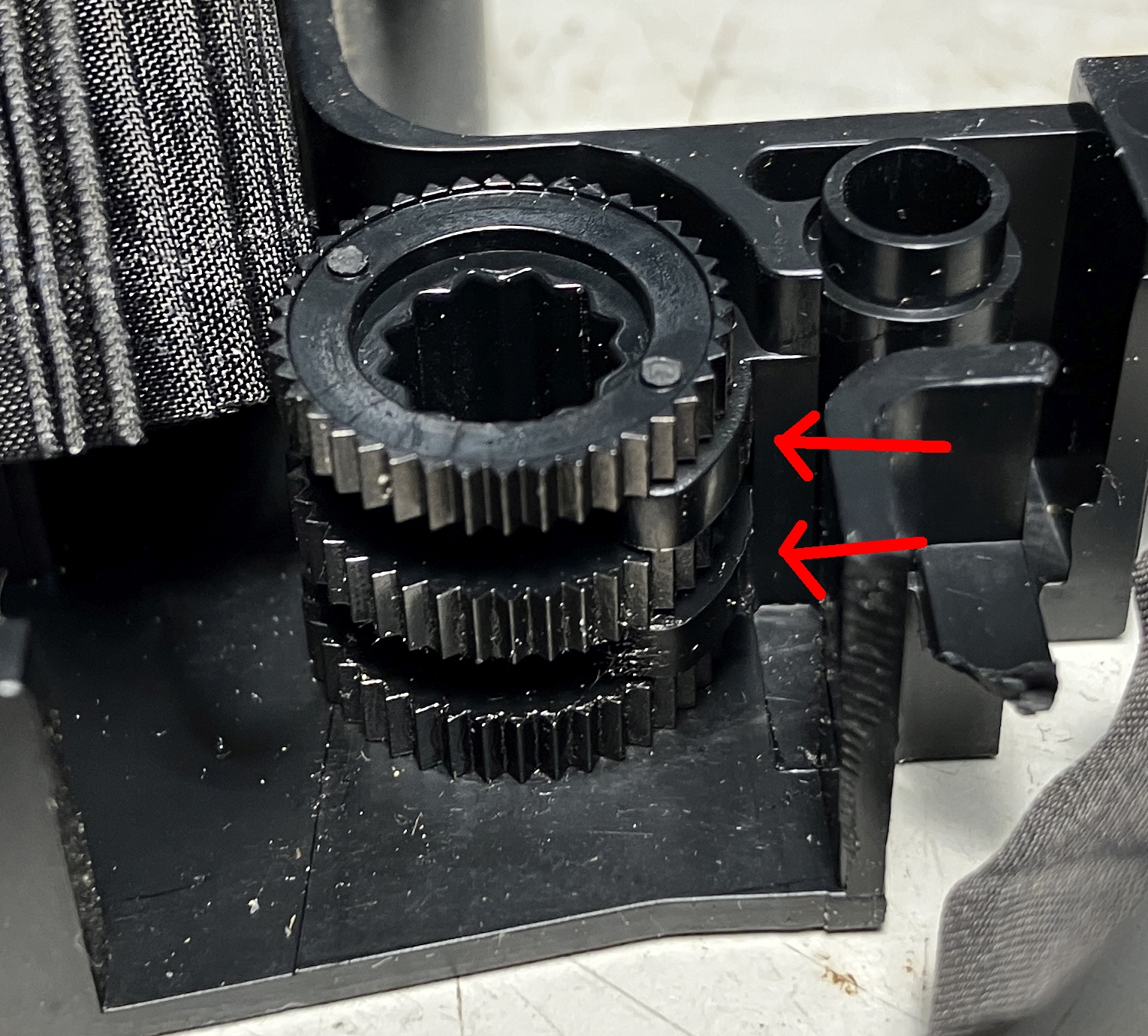

ribbon advance gear is held against idler by small metal
spring piece |

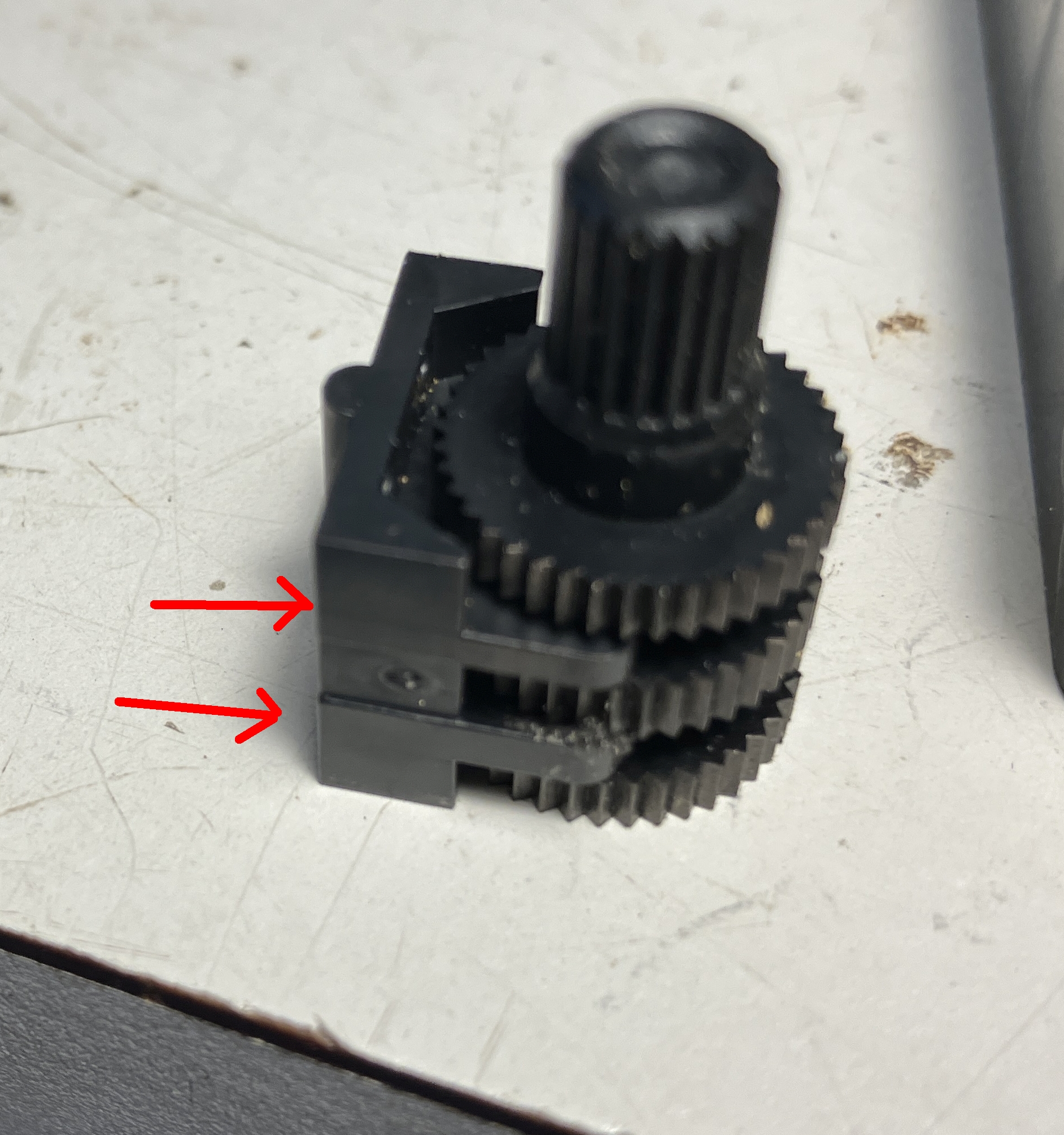

advance gear assembly slides out |

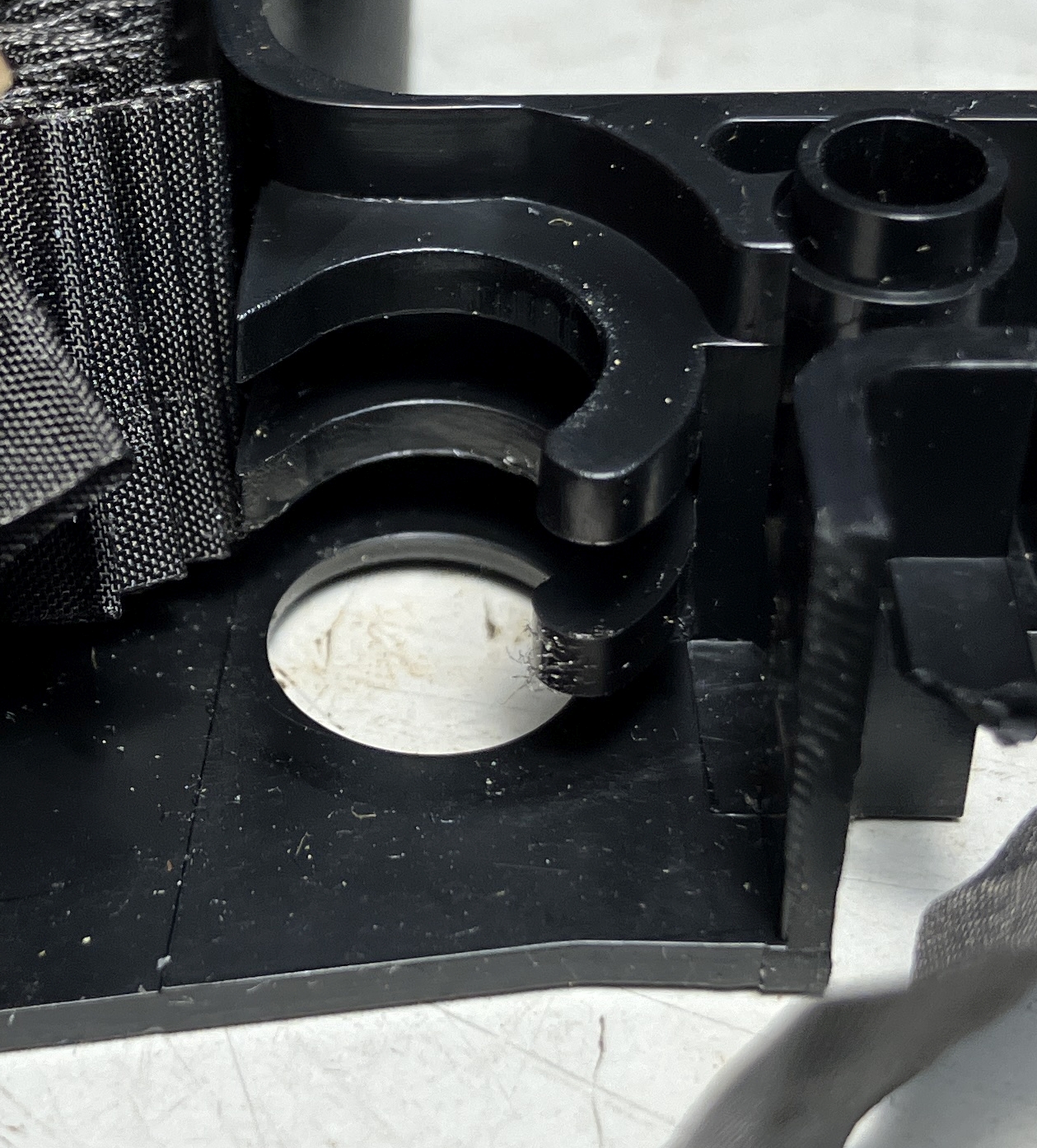

idler is held in place by tension from advance gear |
| Gear photos 7/28/25 | |||
|
|
|
== |
|
|
|
== |
| top |
bottom |
side |
== |

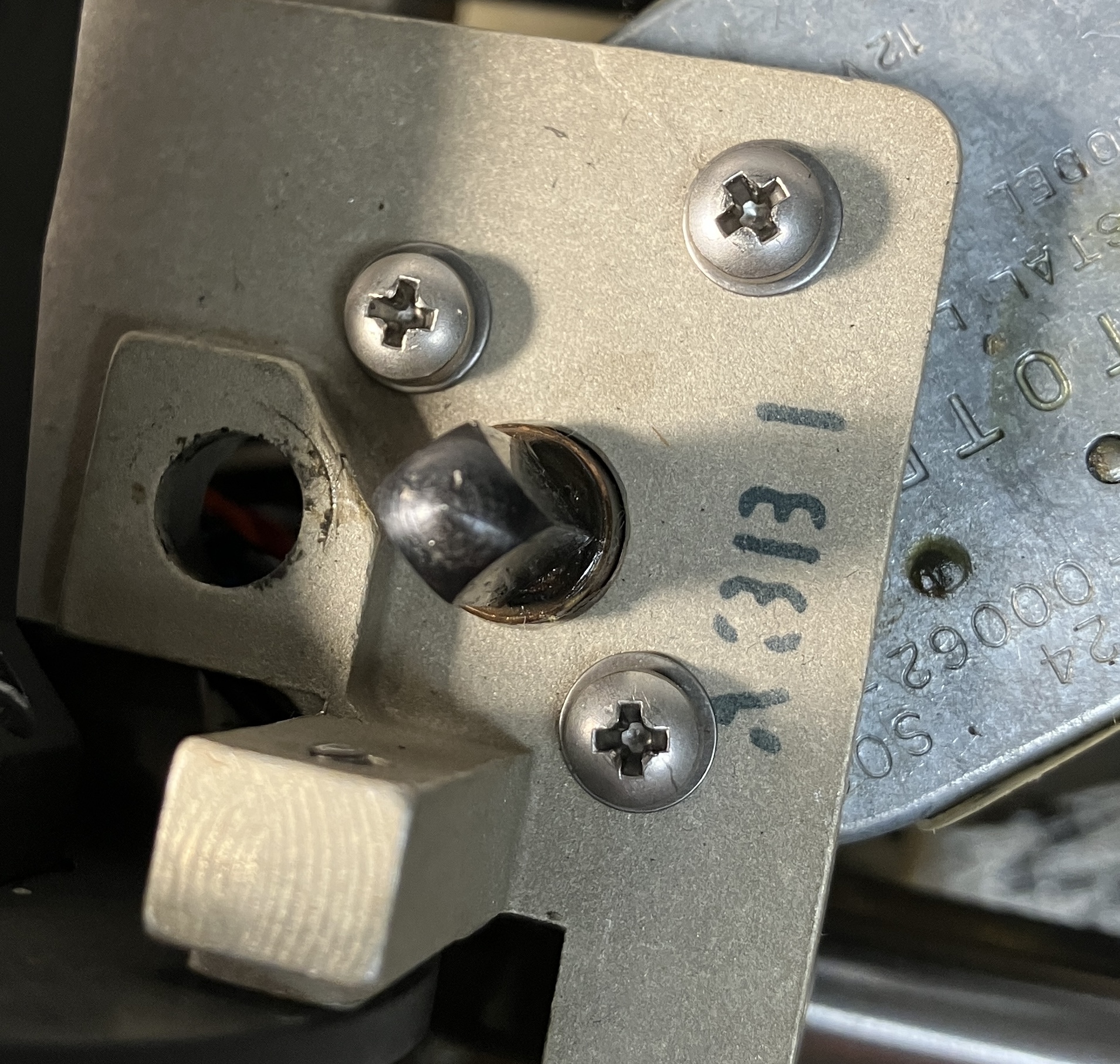

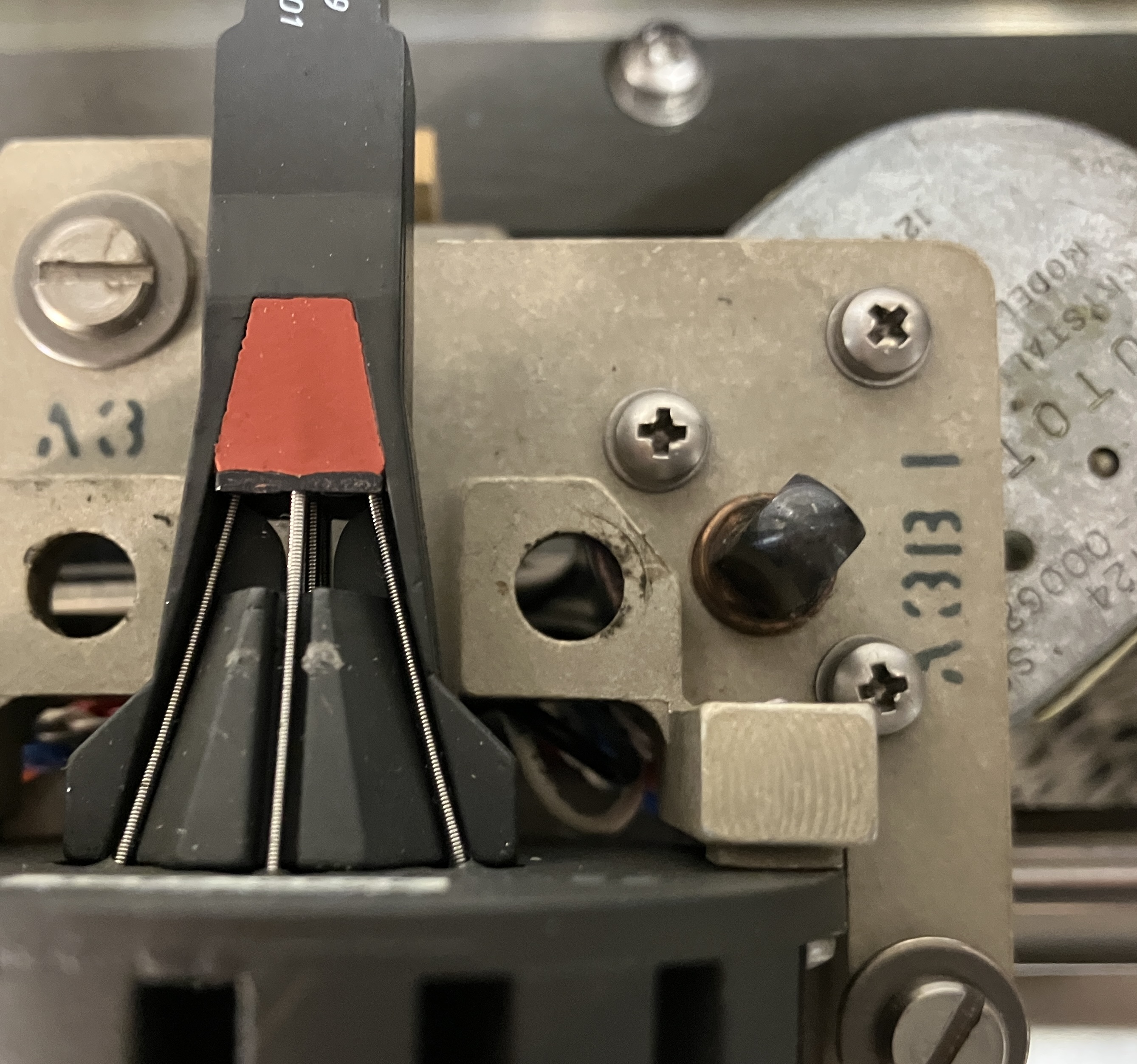

| Drive shaft |
|
== | == |

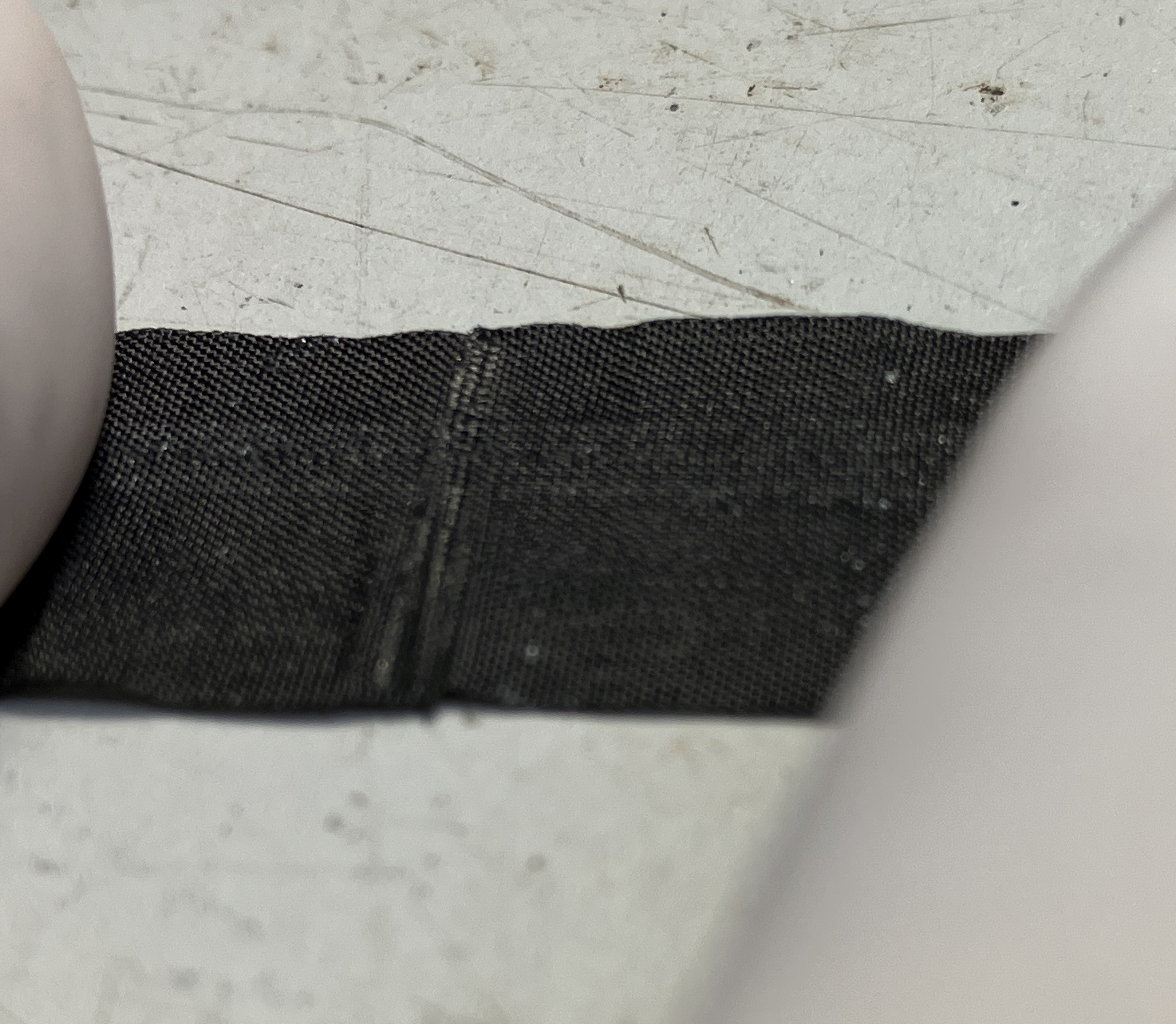

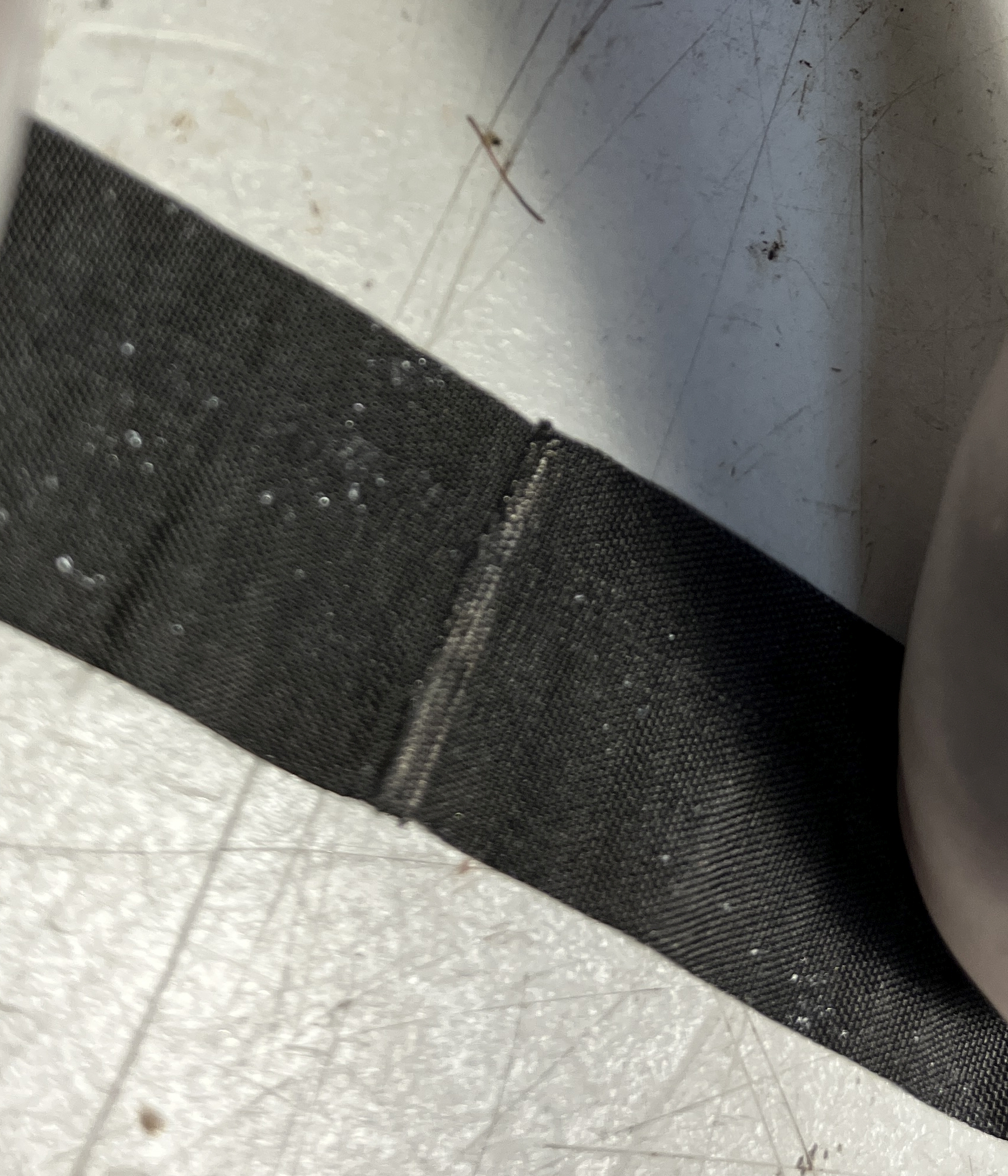

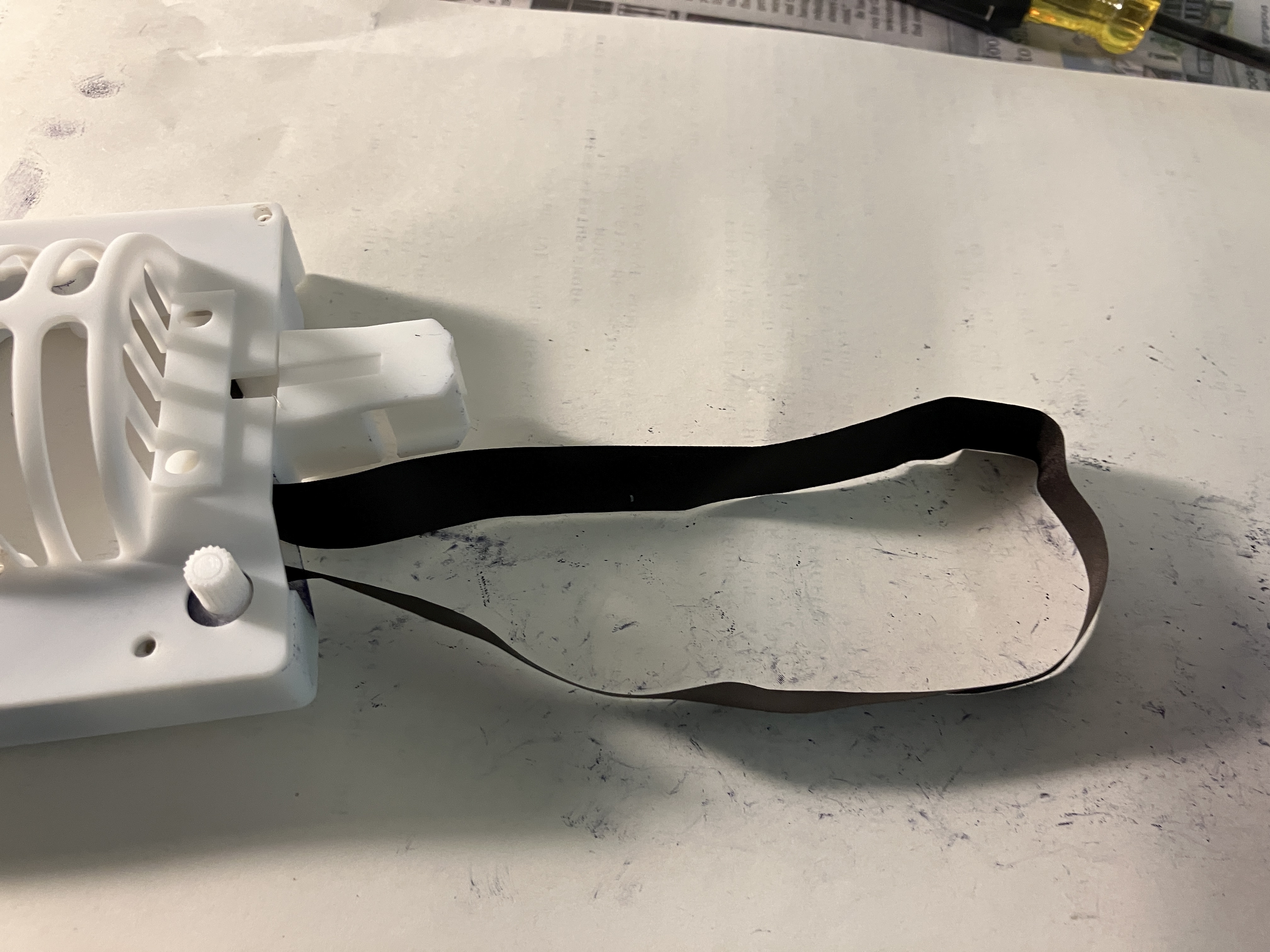

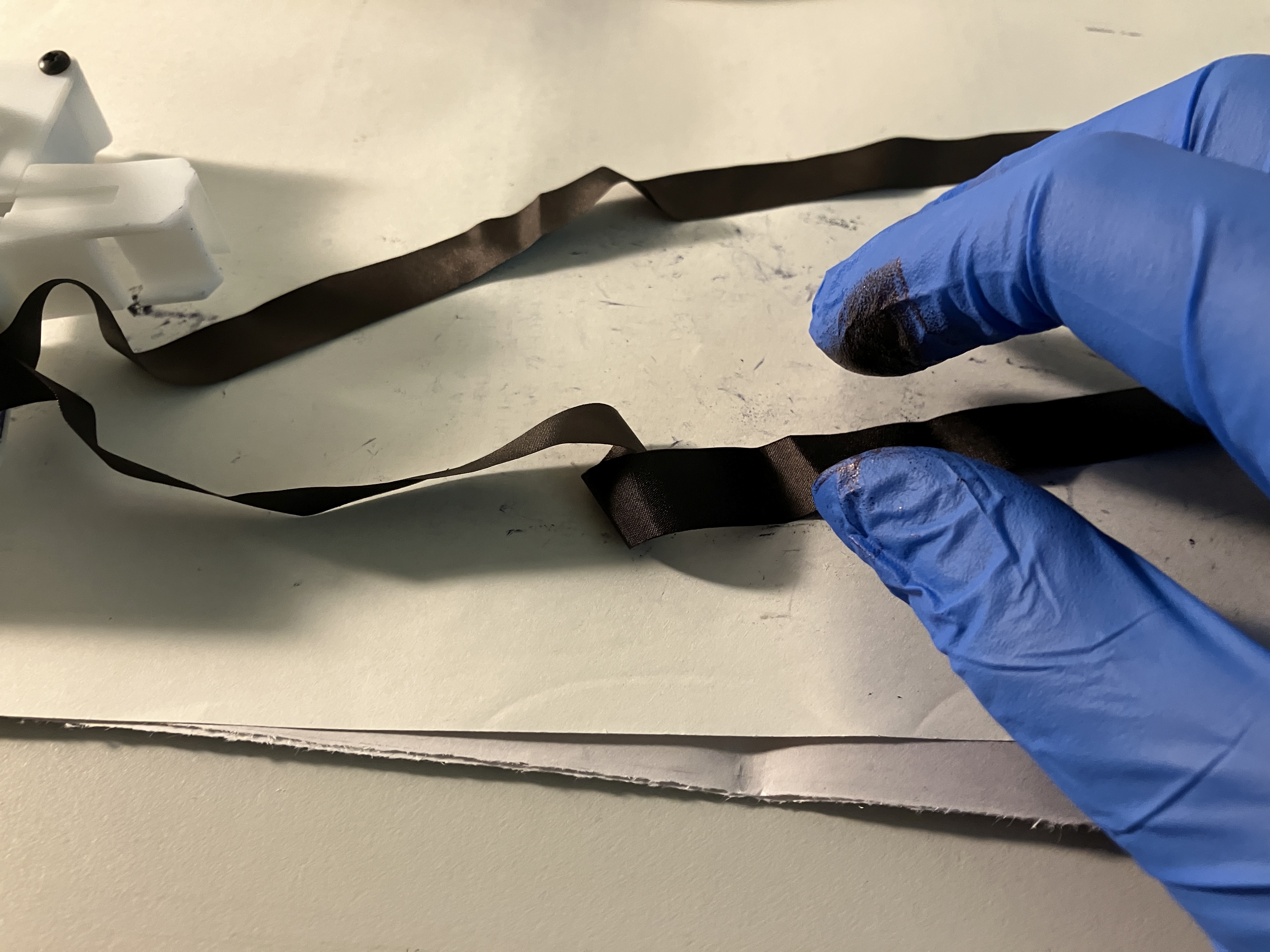

| Ribbon must be spliced to make a loop | |||
|
|
|
== |

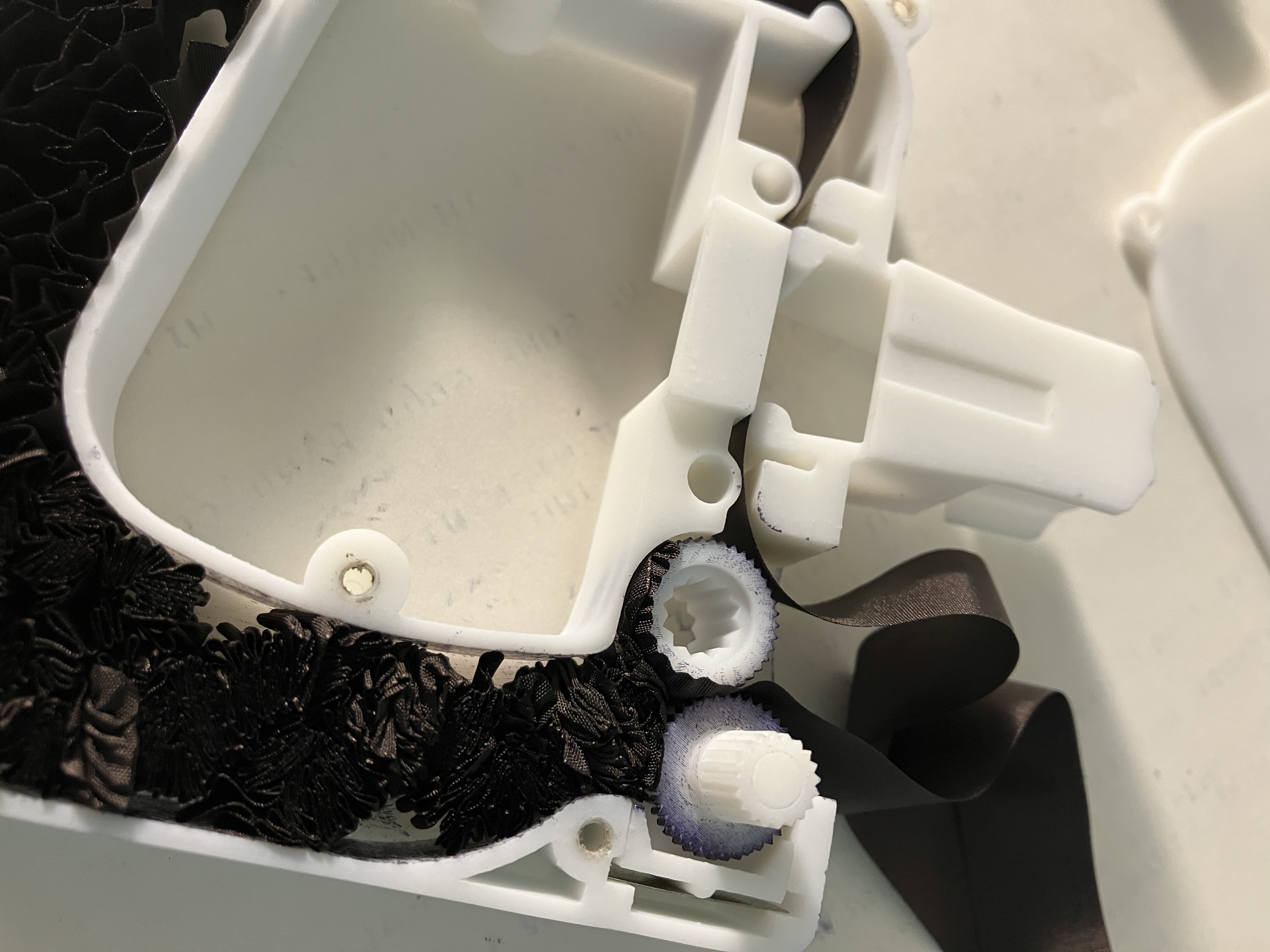

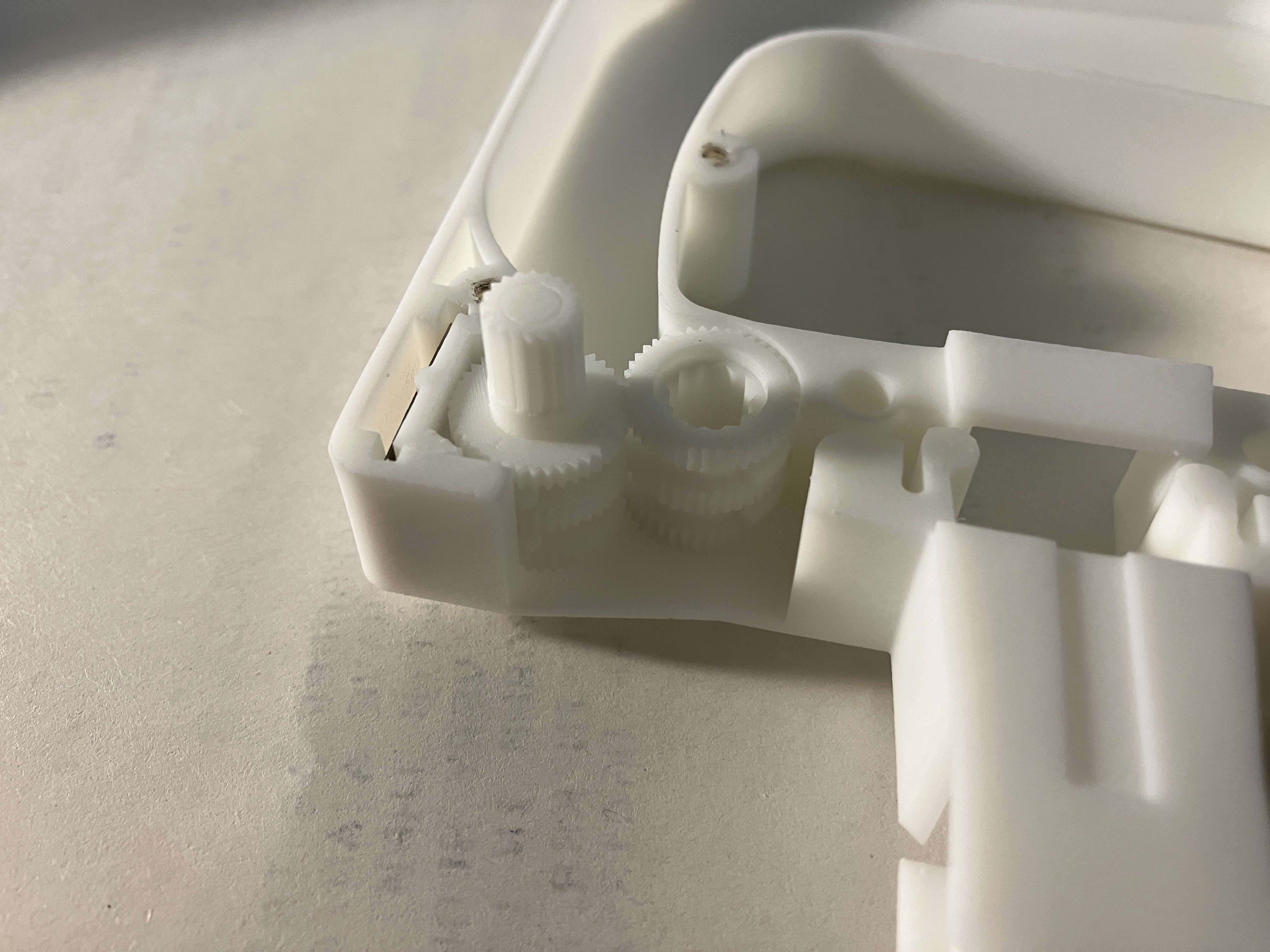

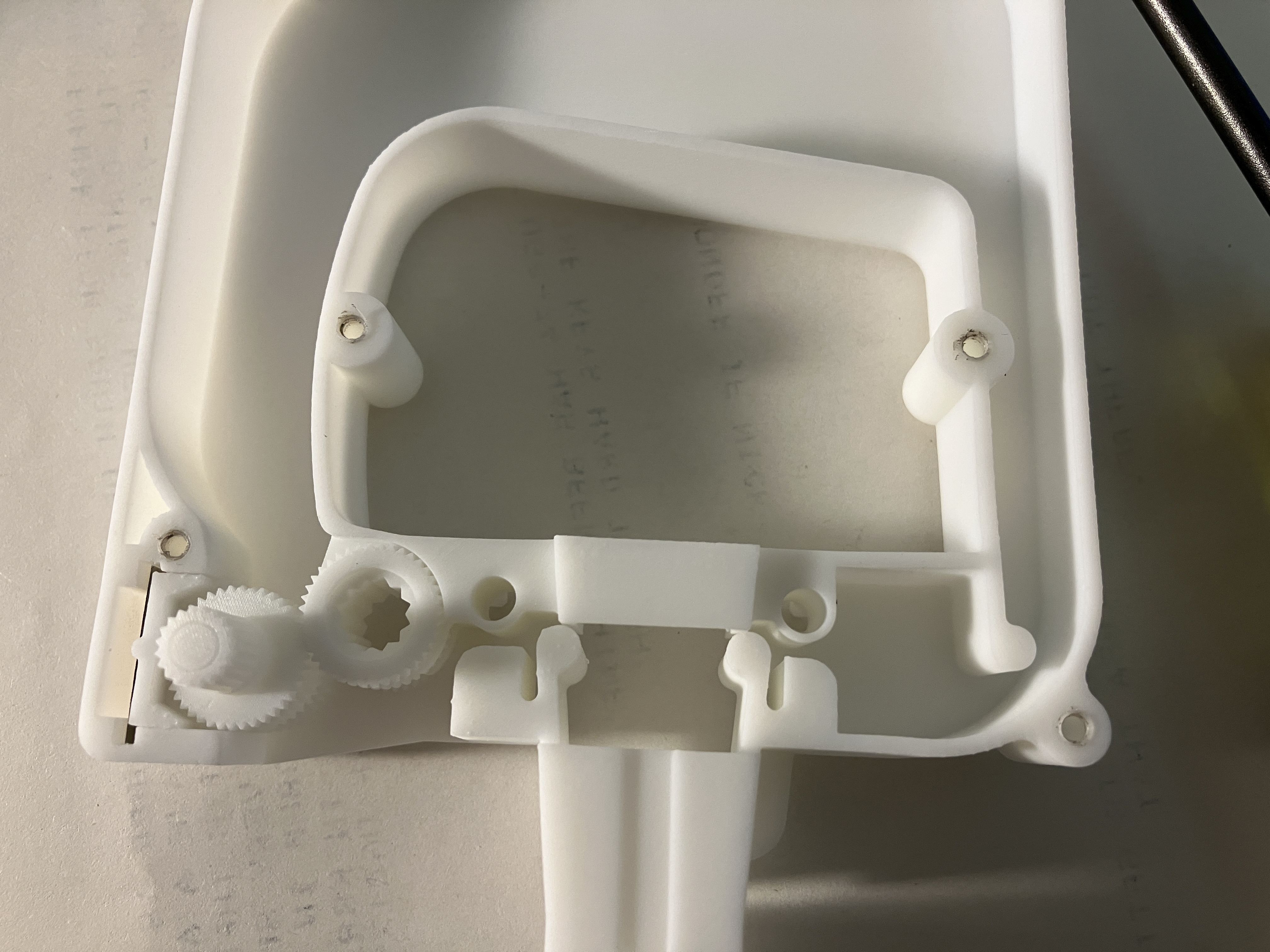

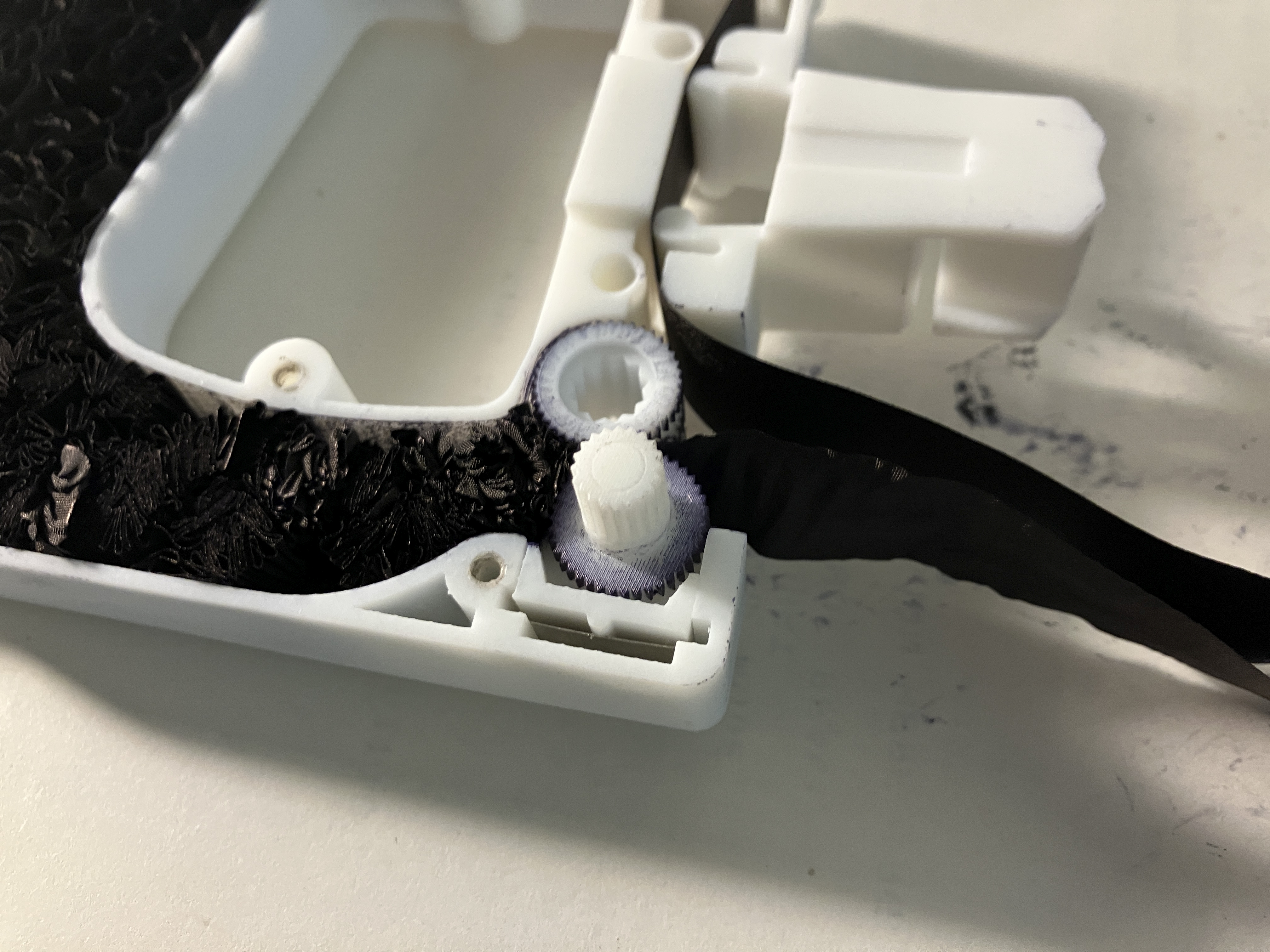

Successful 3D printed version test 8/9/25 - all thanks to modeler/printer John Toebes |
|||

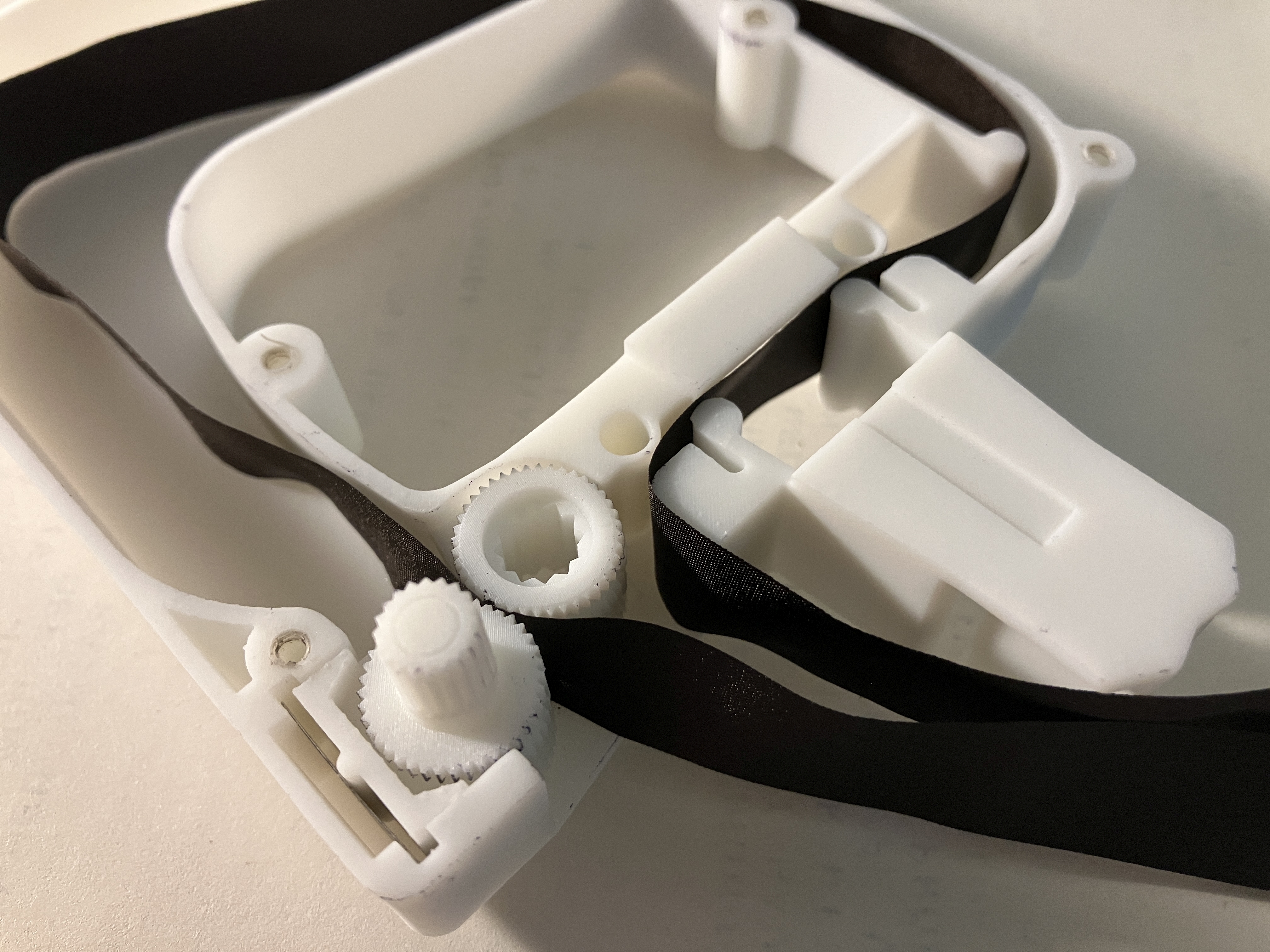

| First test |

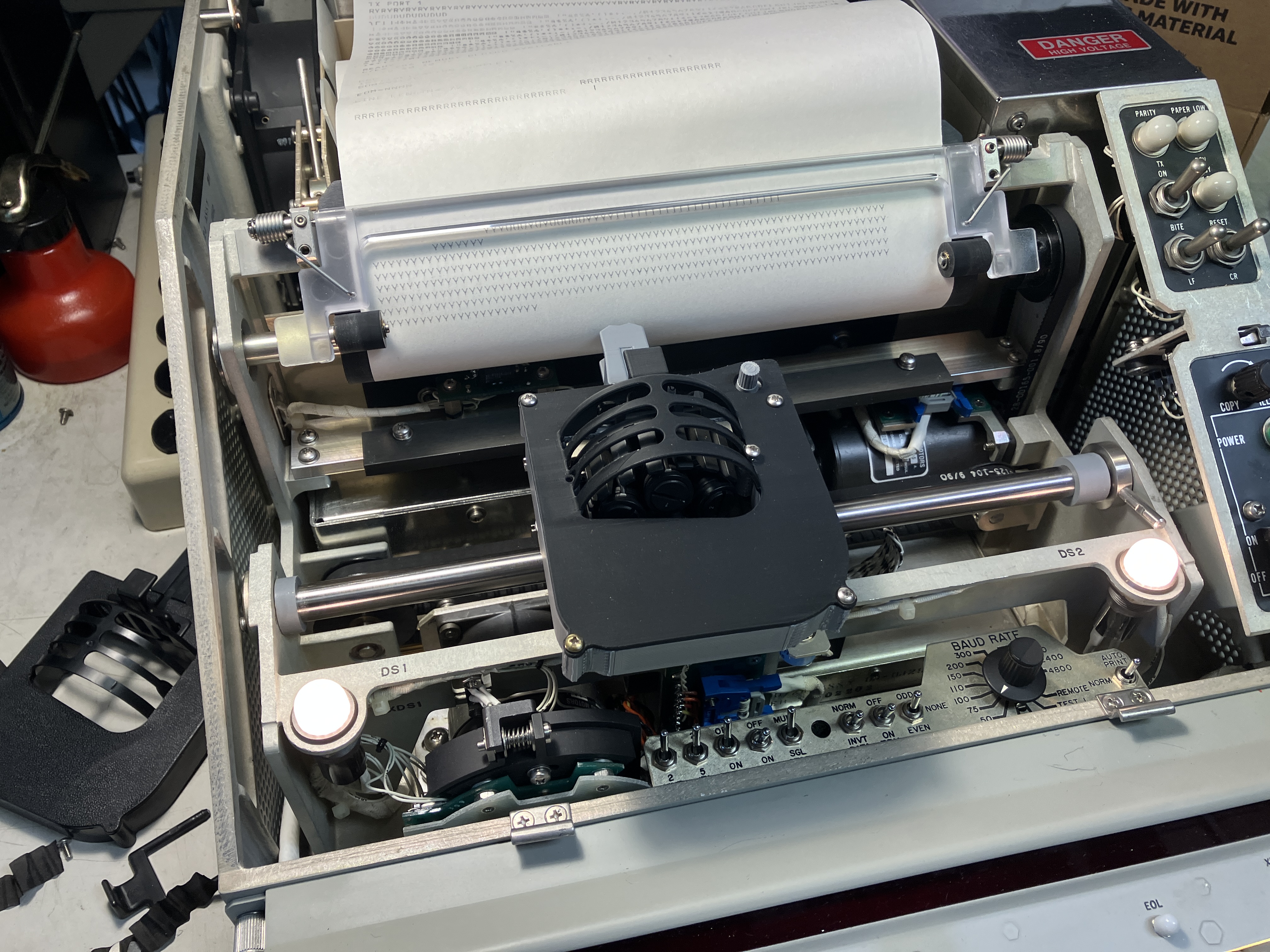

Top on |

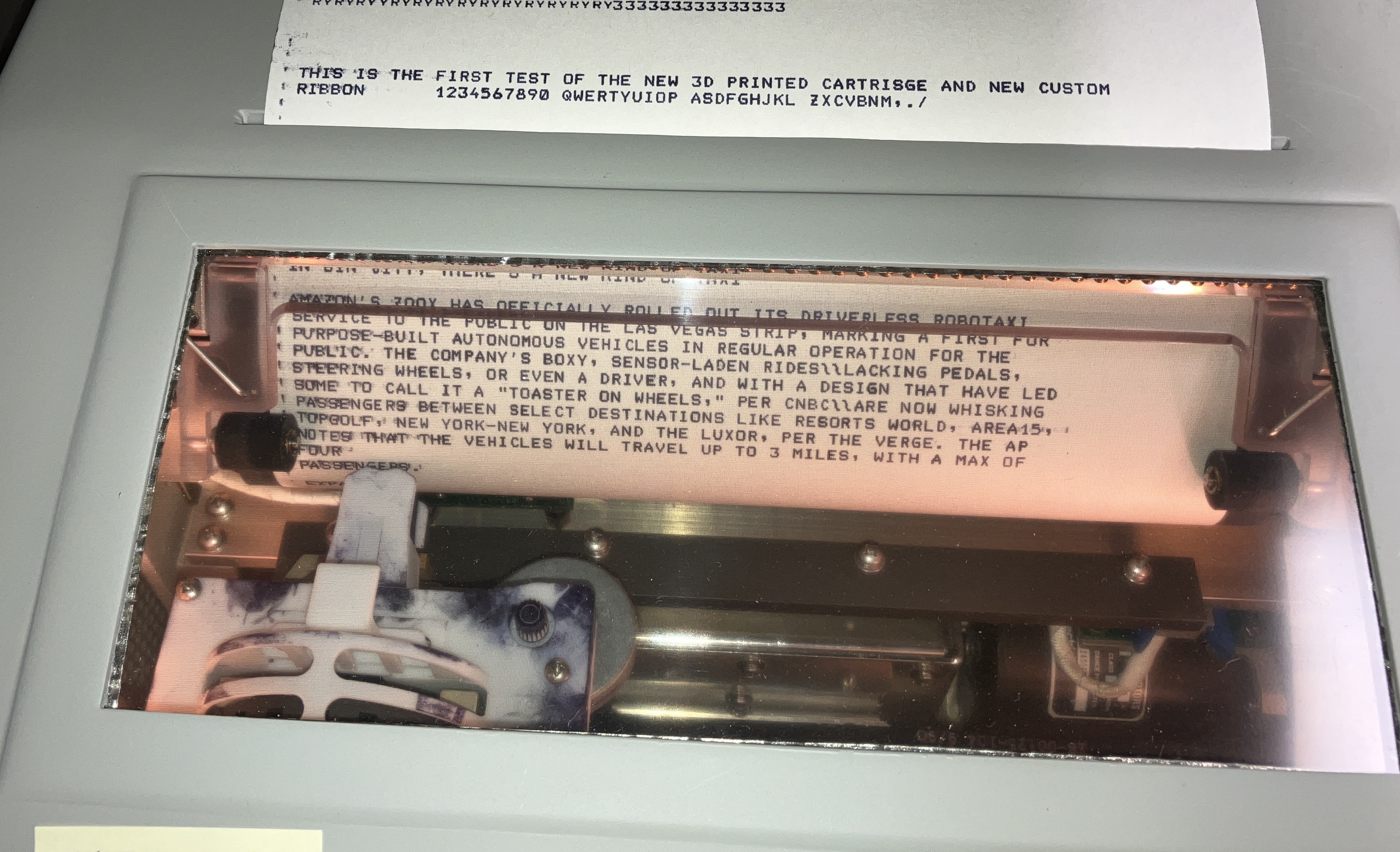

Success! |
== |

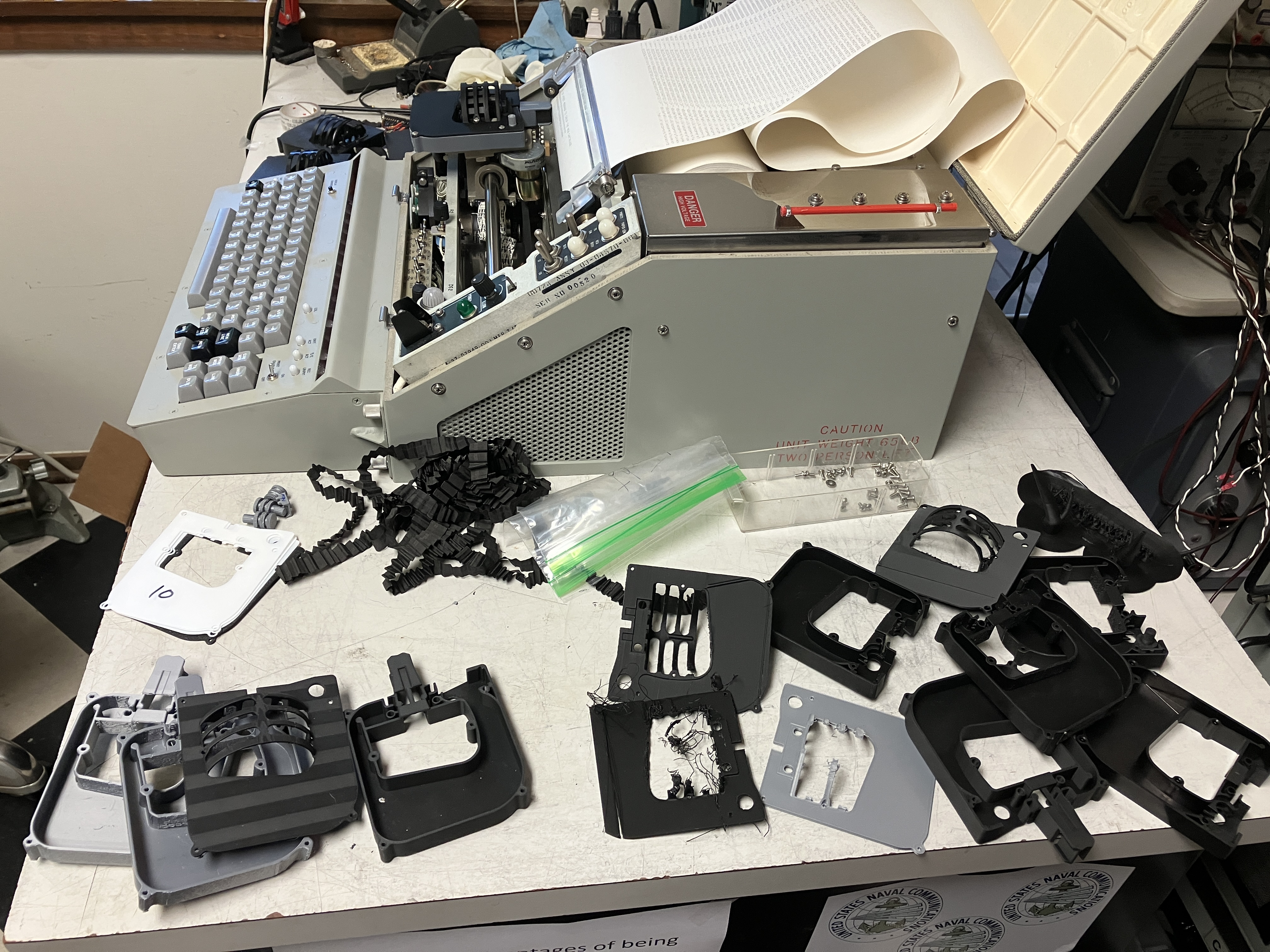

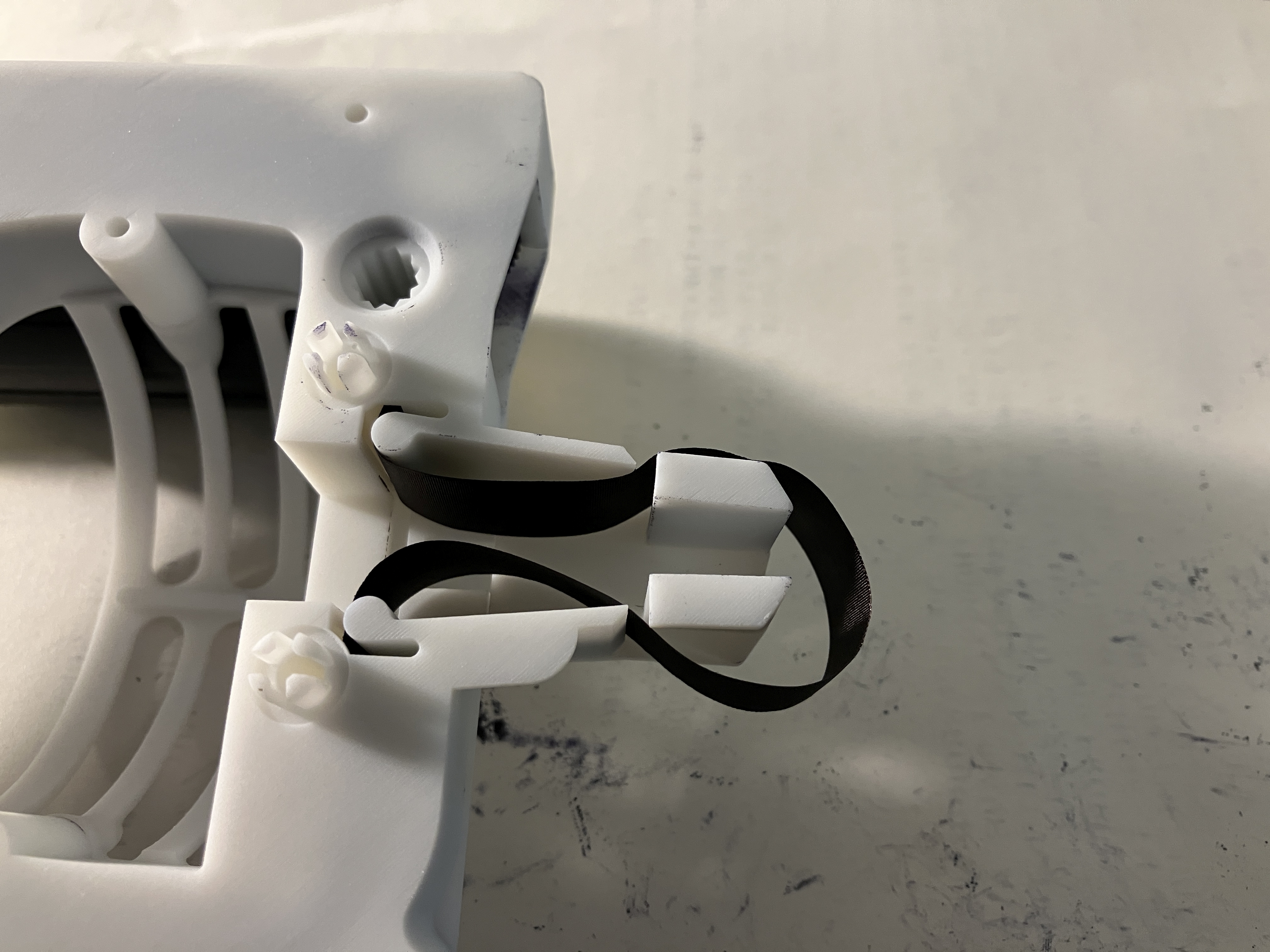

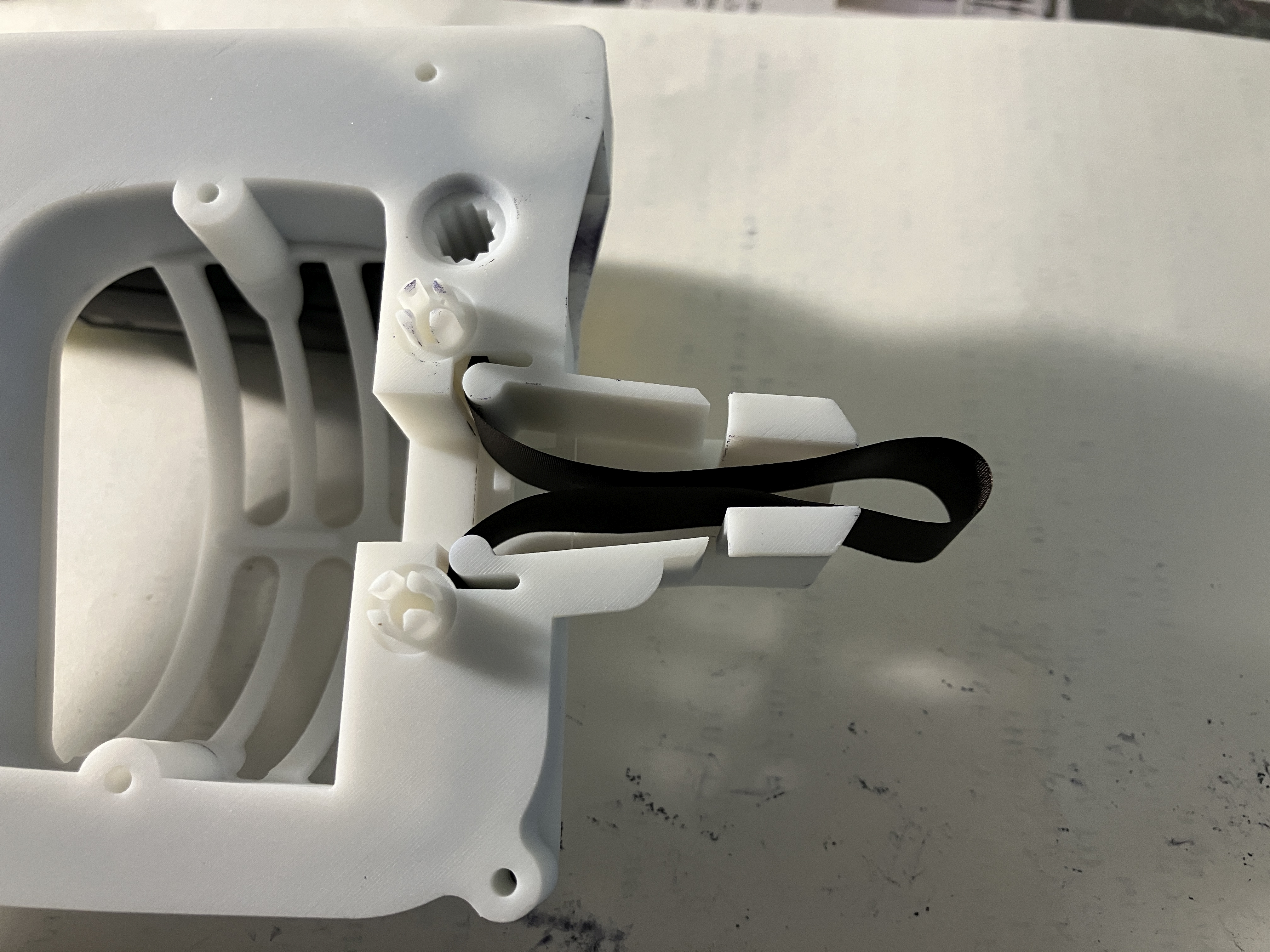

| It took several iterations |
Happy John |
A short movie!
|
== |

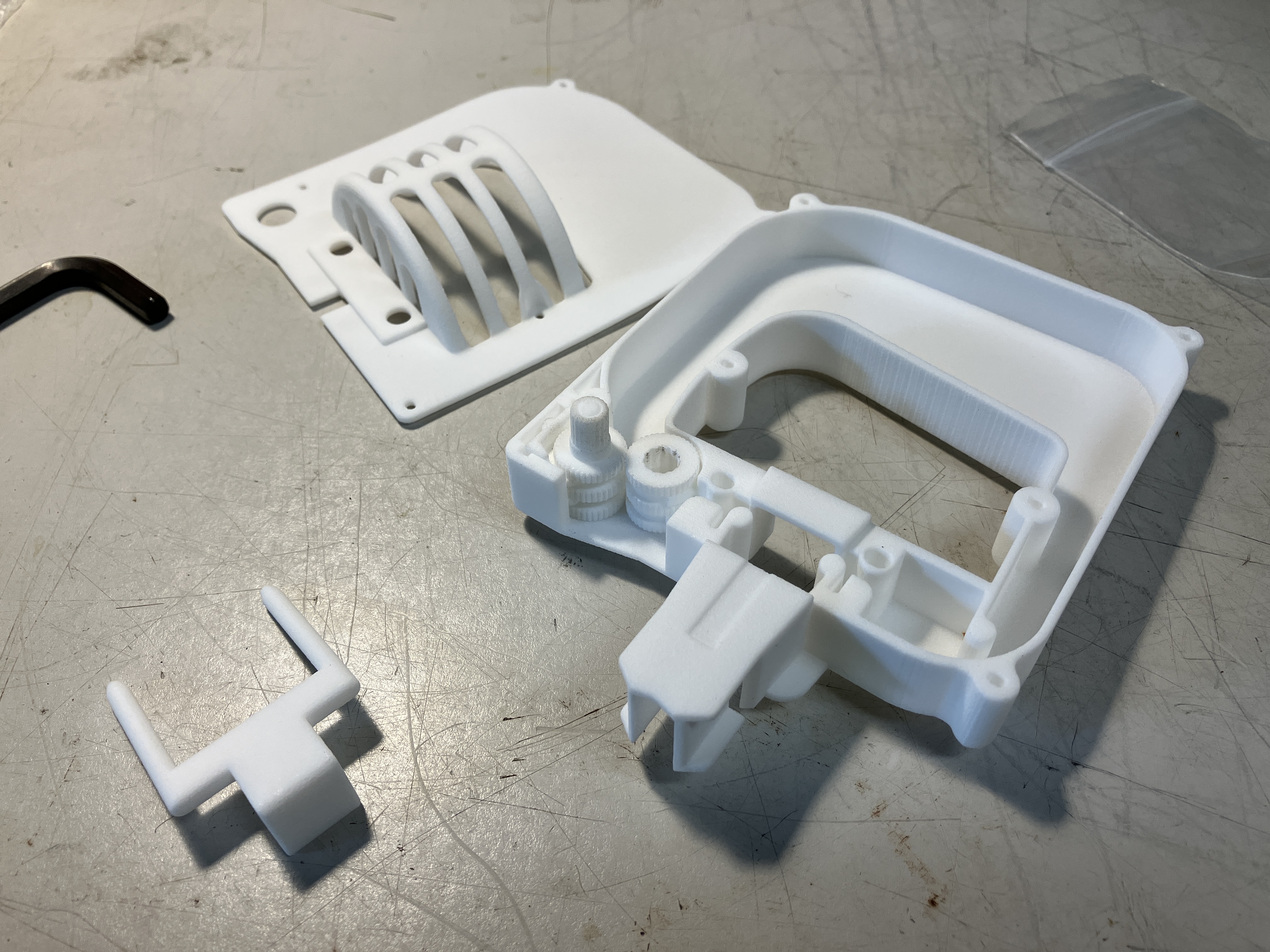

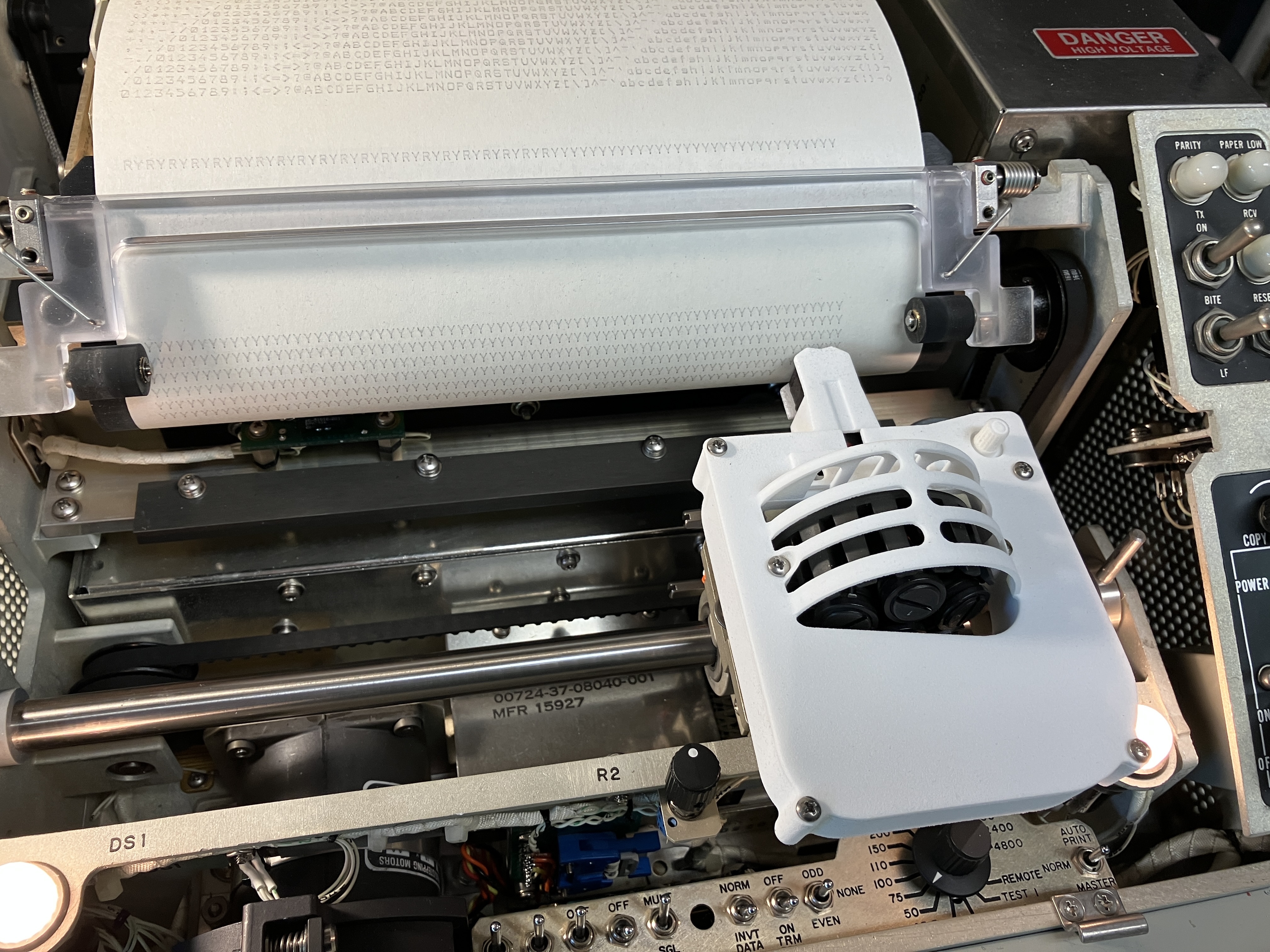

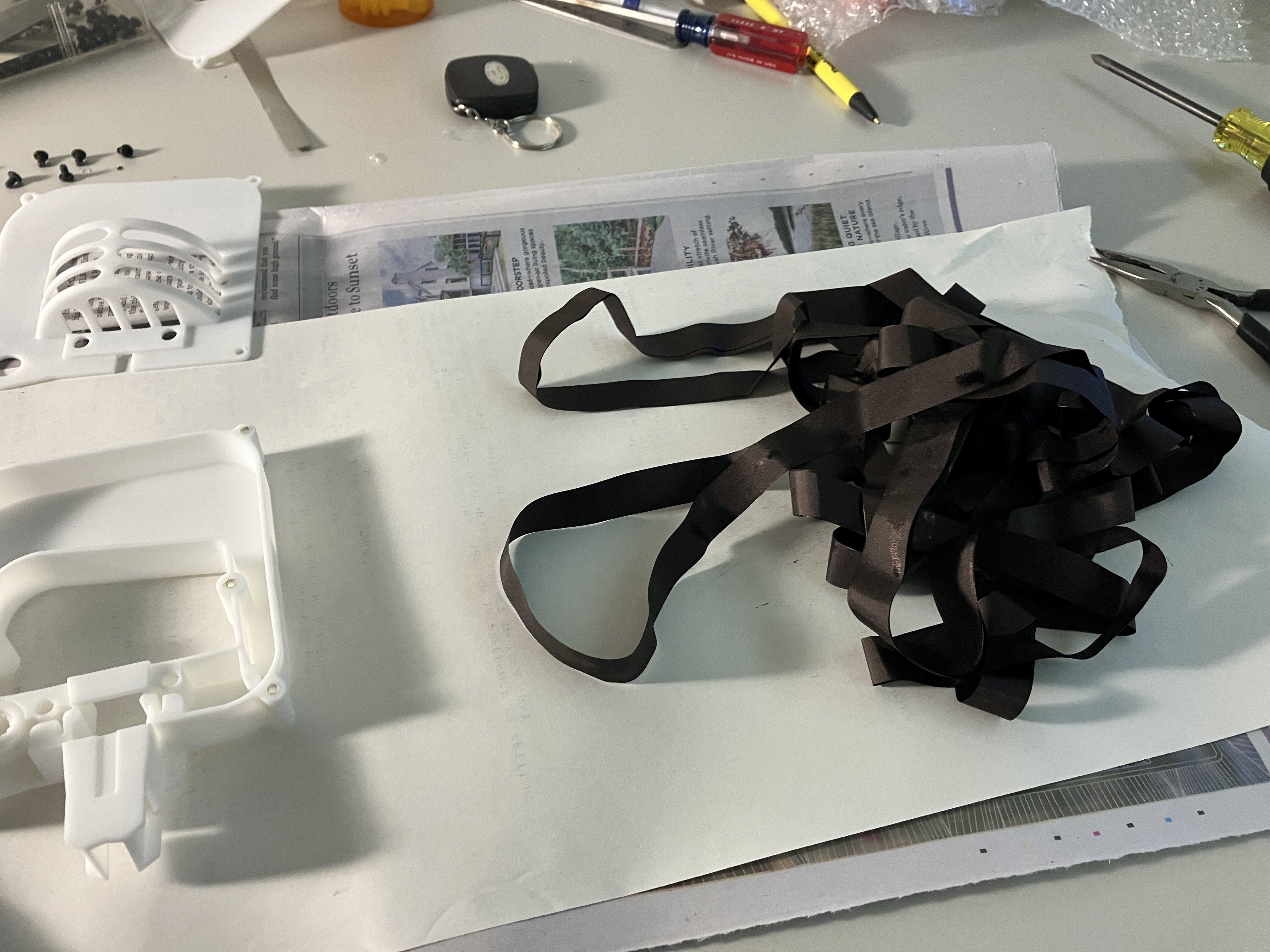

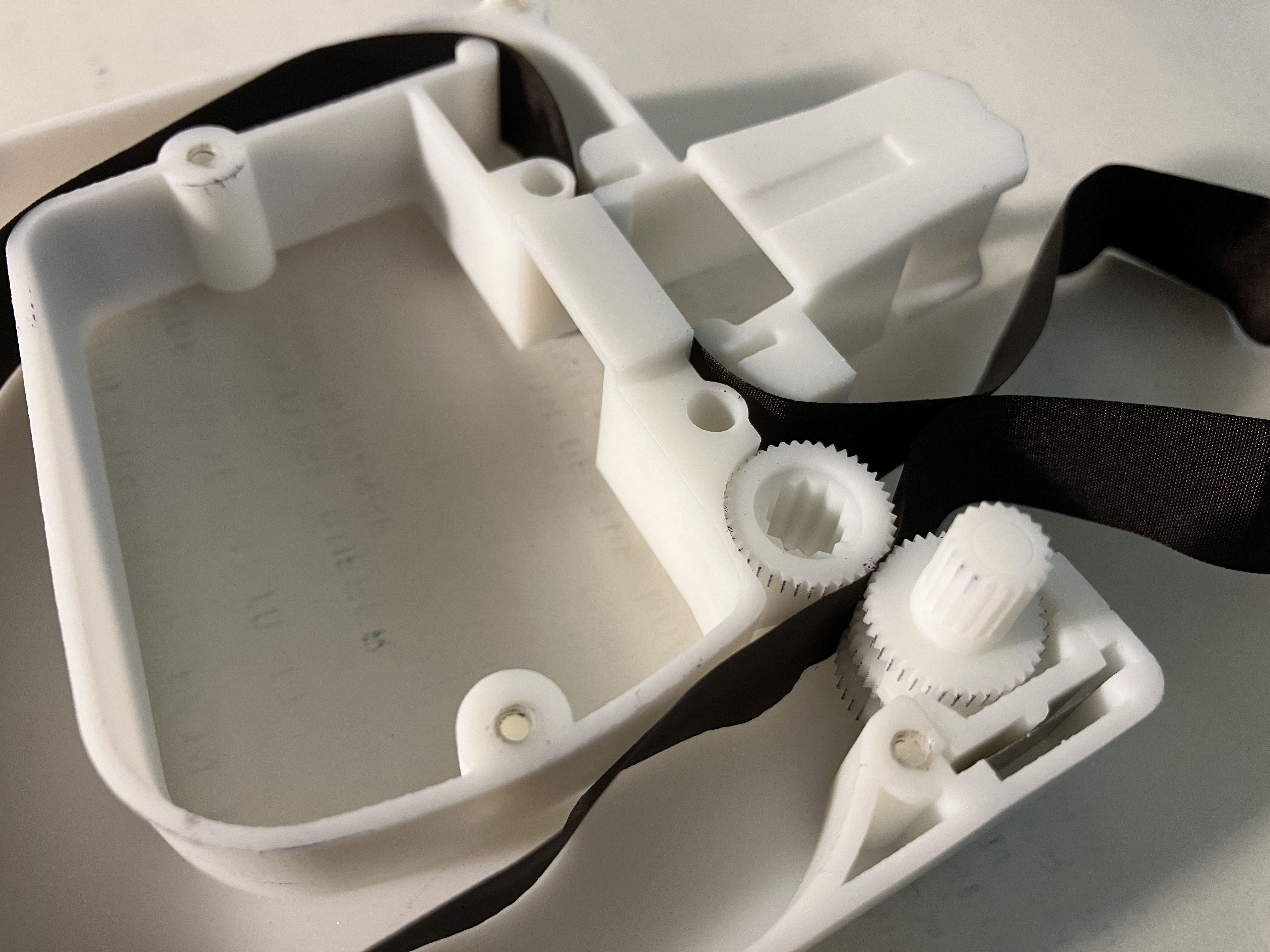

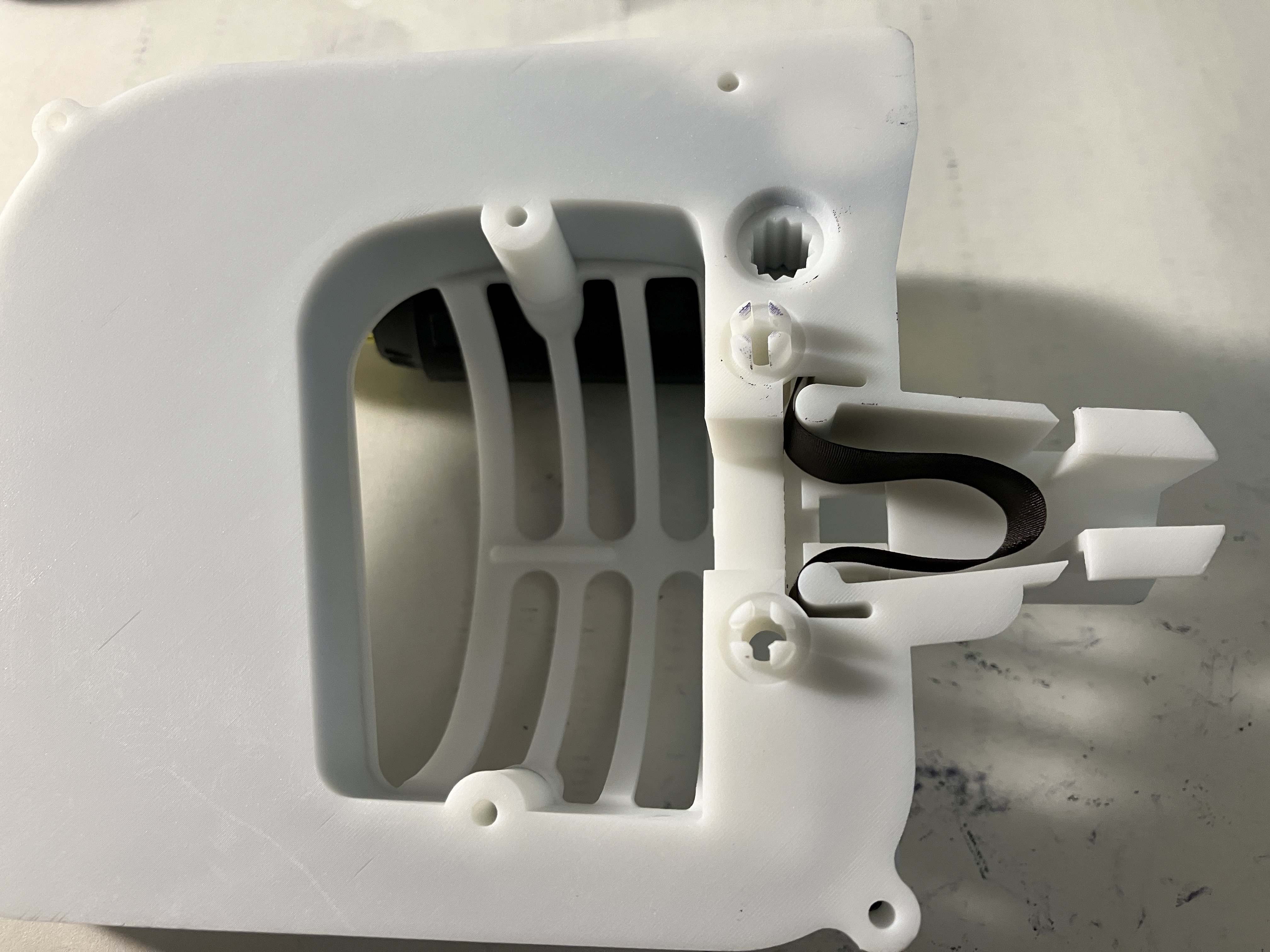

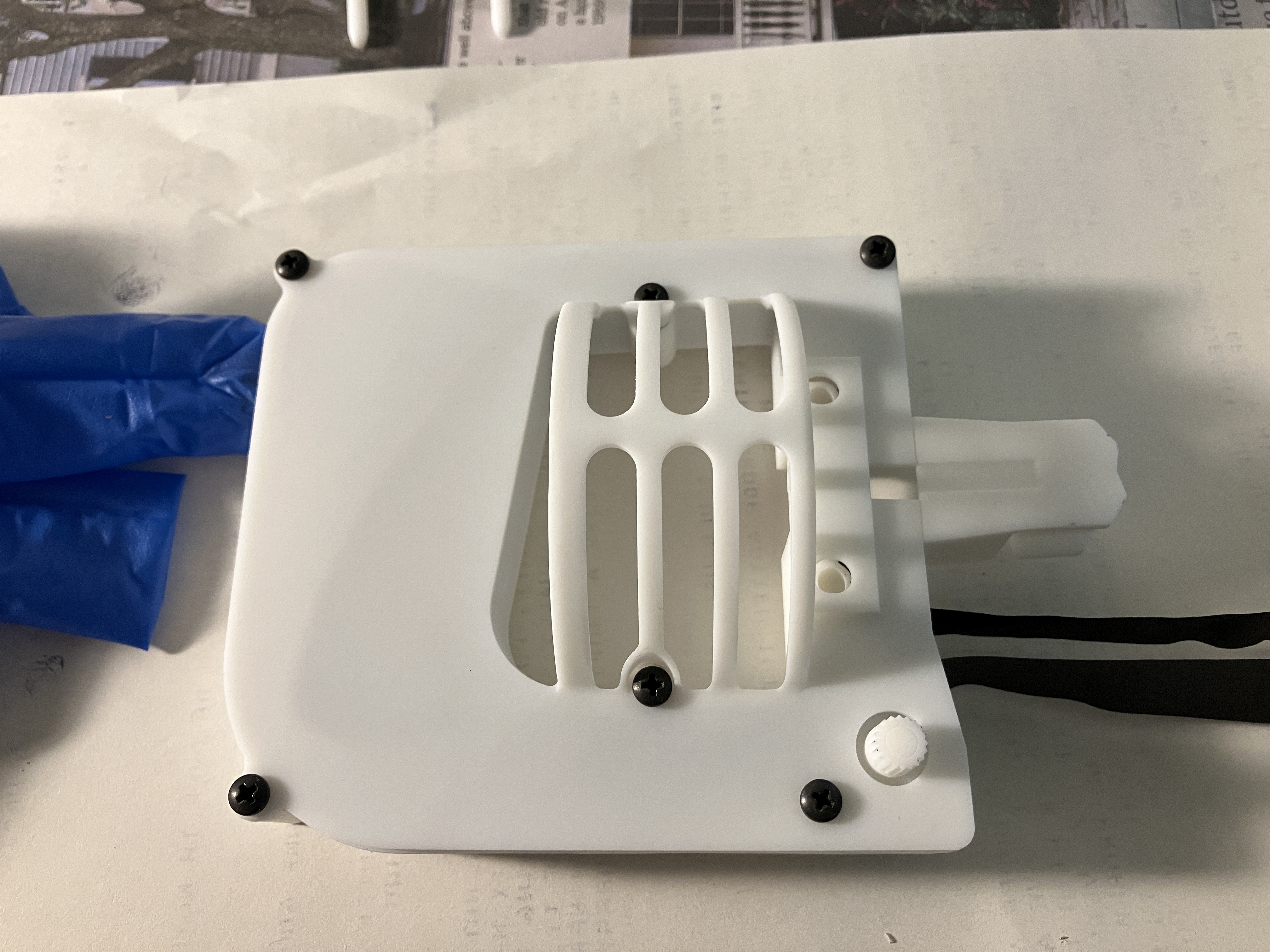

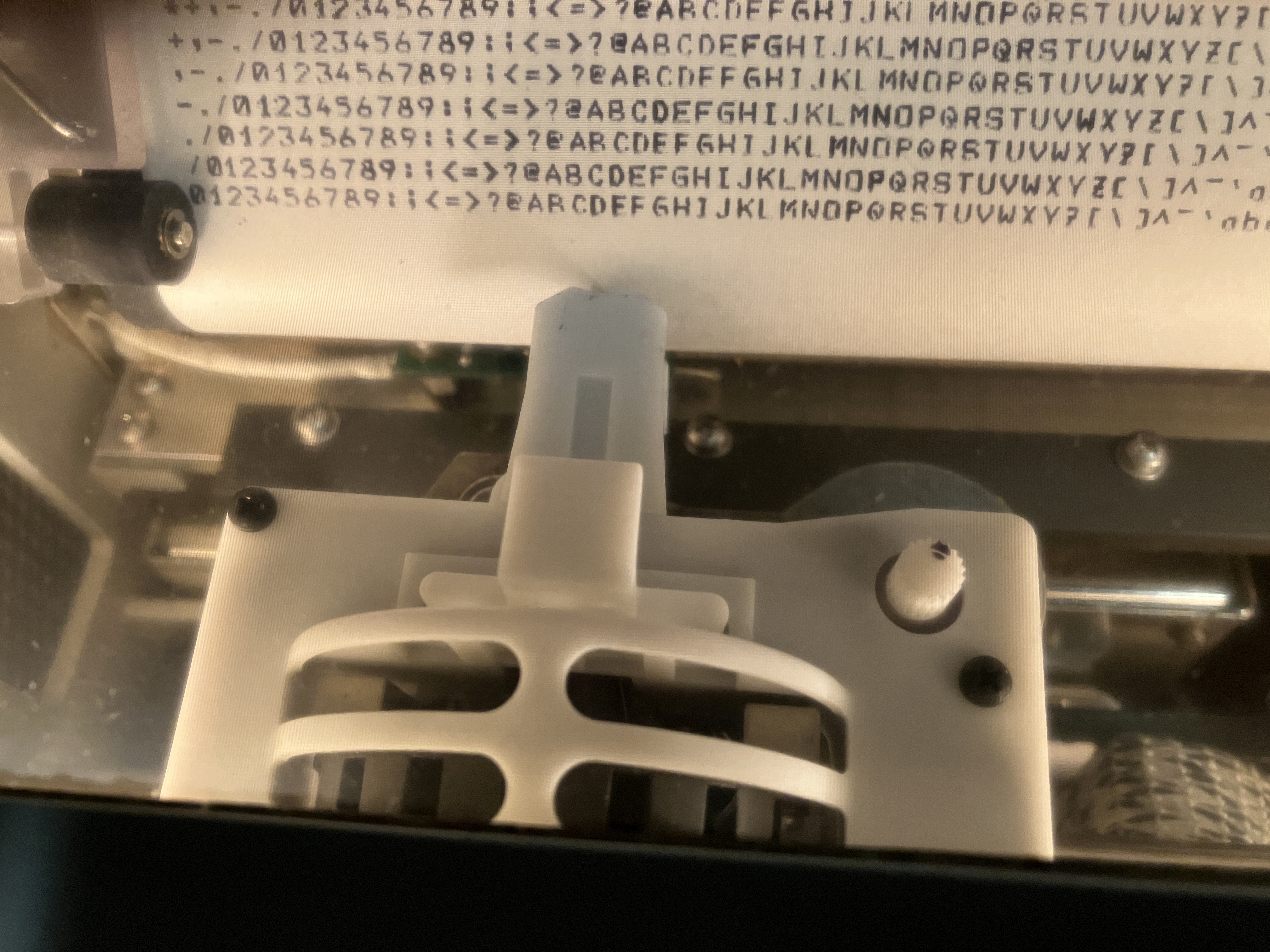

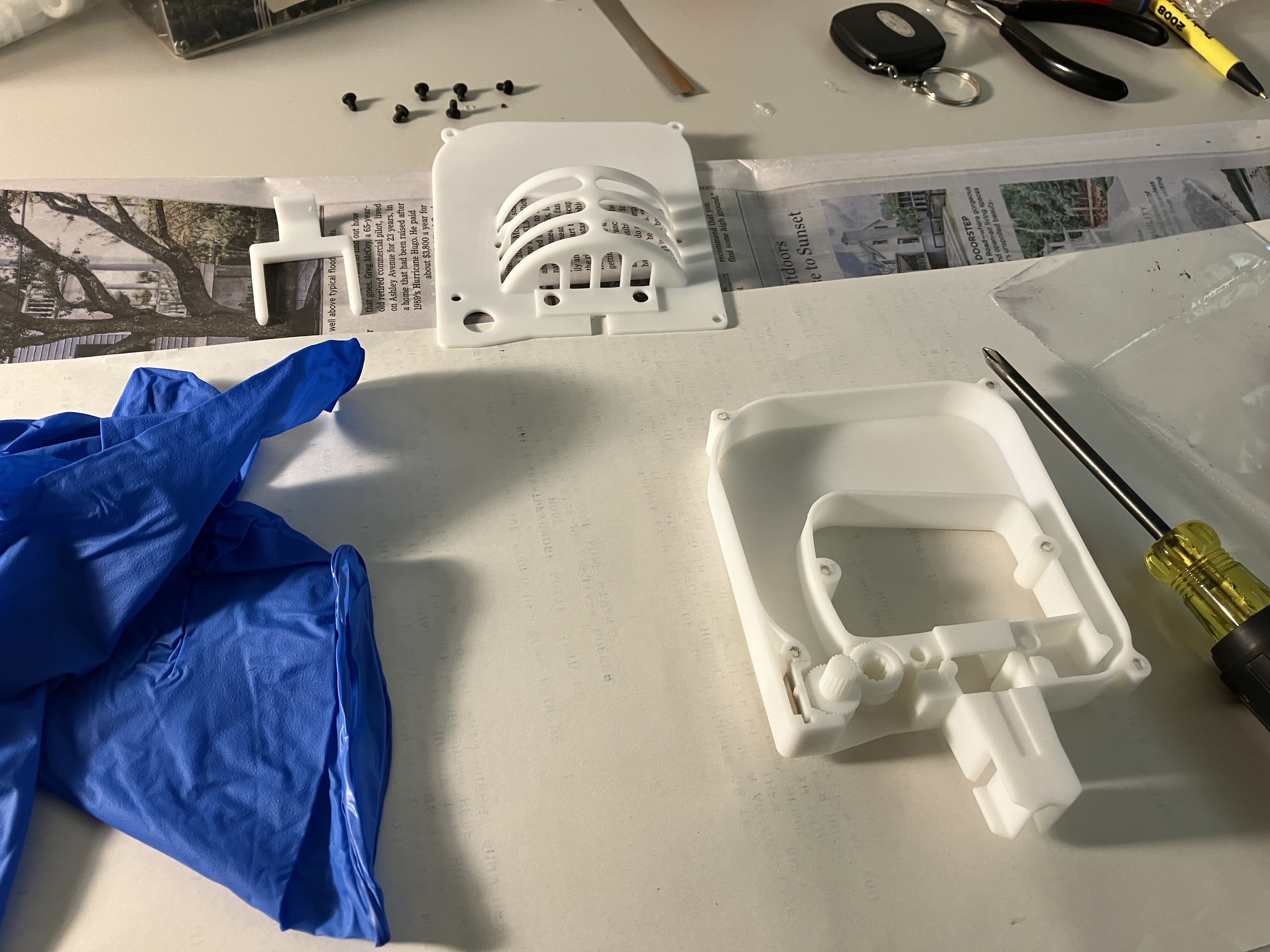

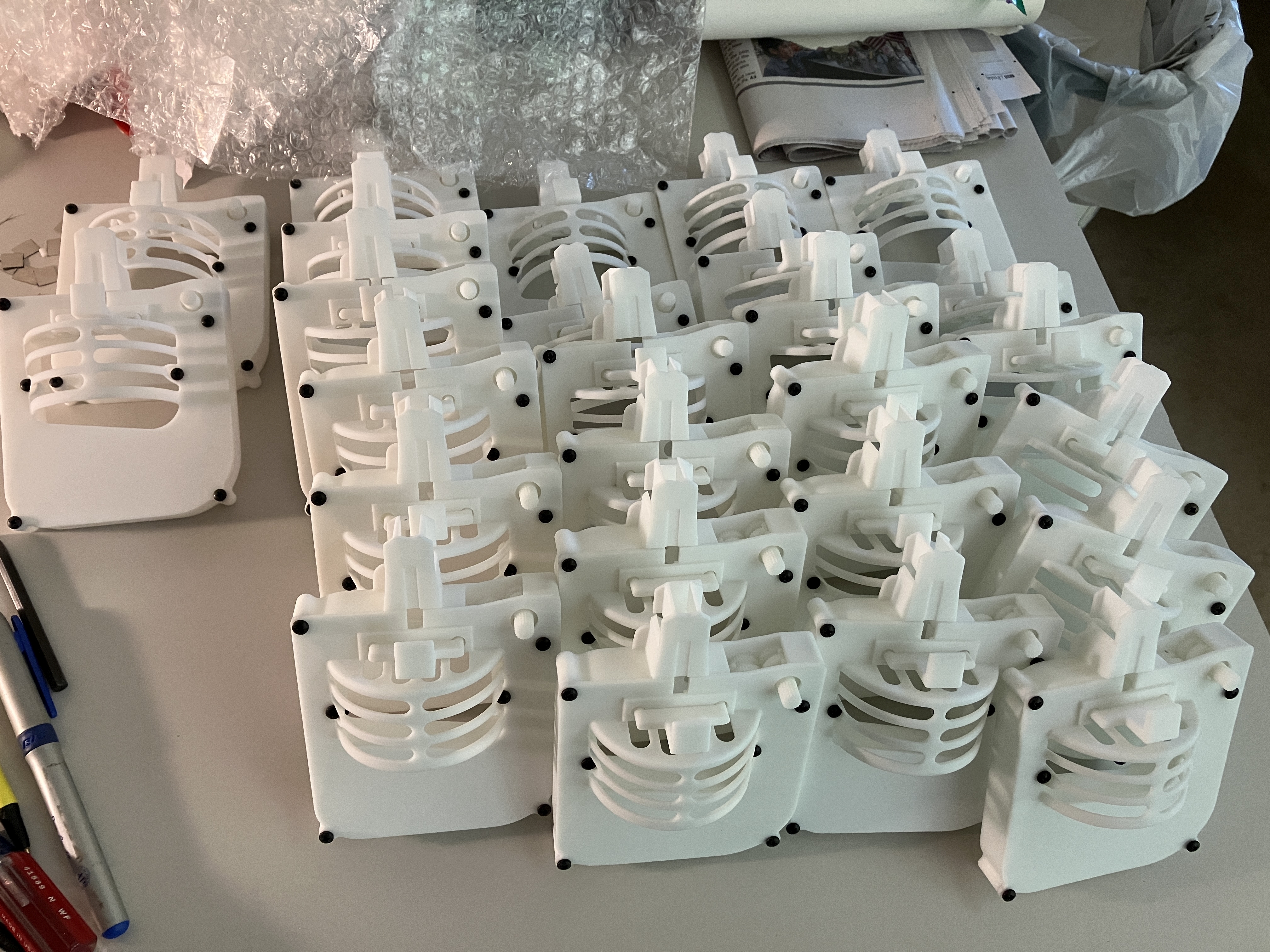

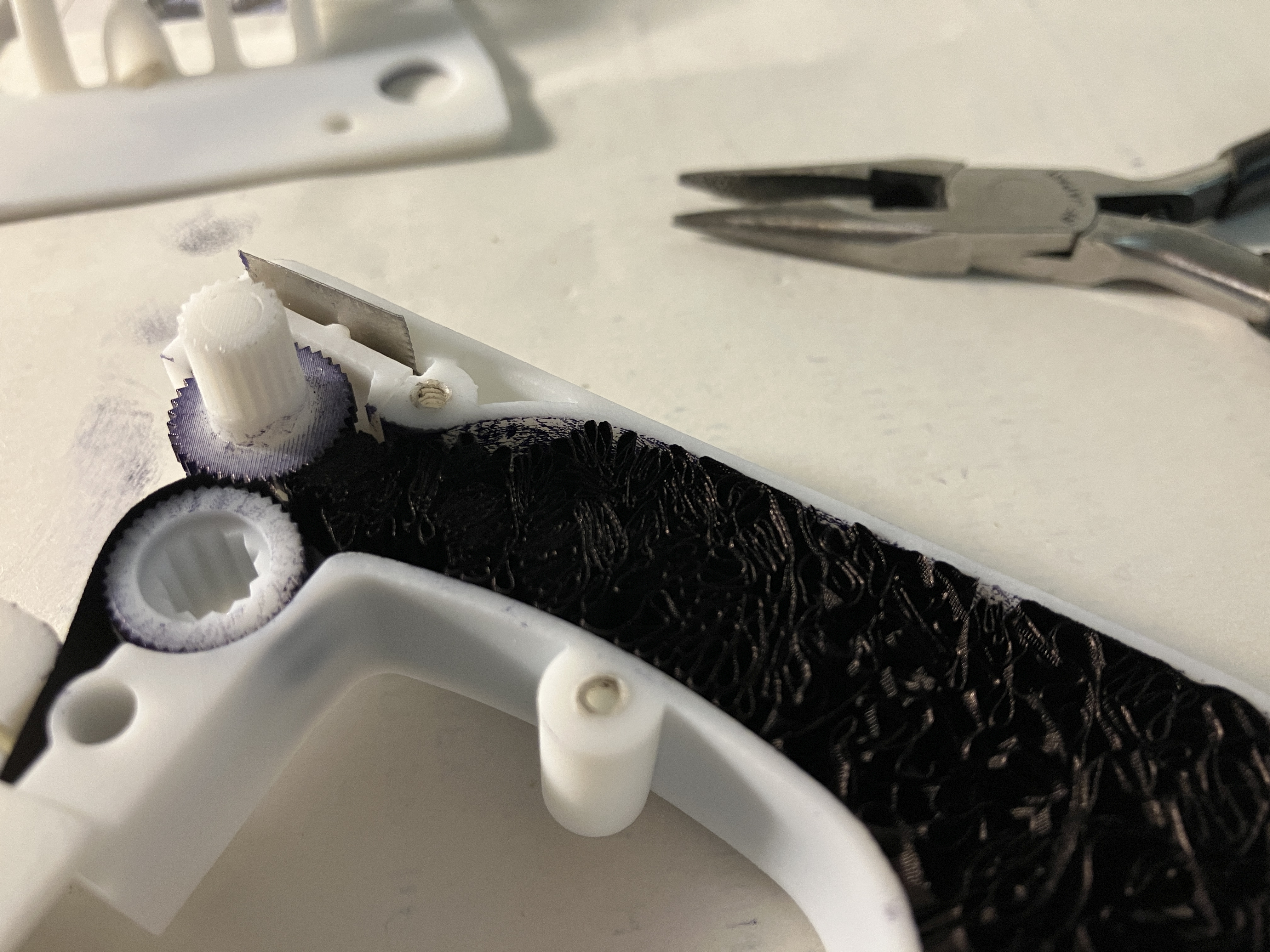

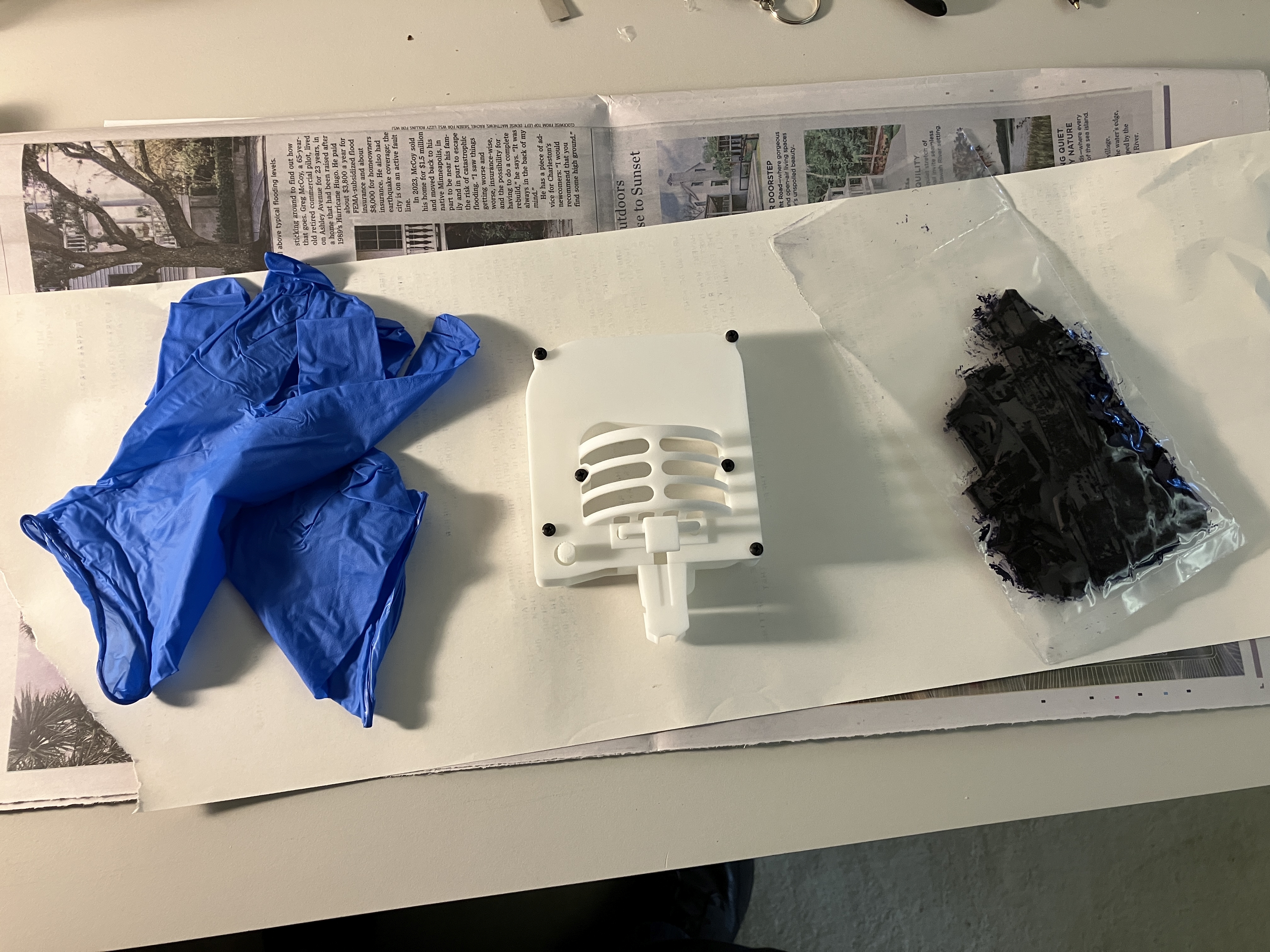

SLS production prototype - test 8/15/25 |
|||
|

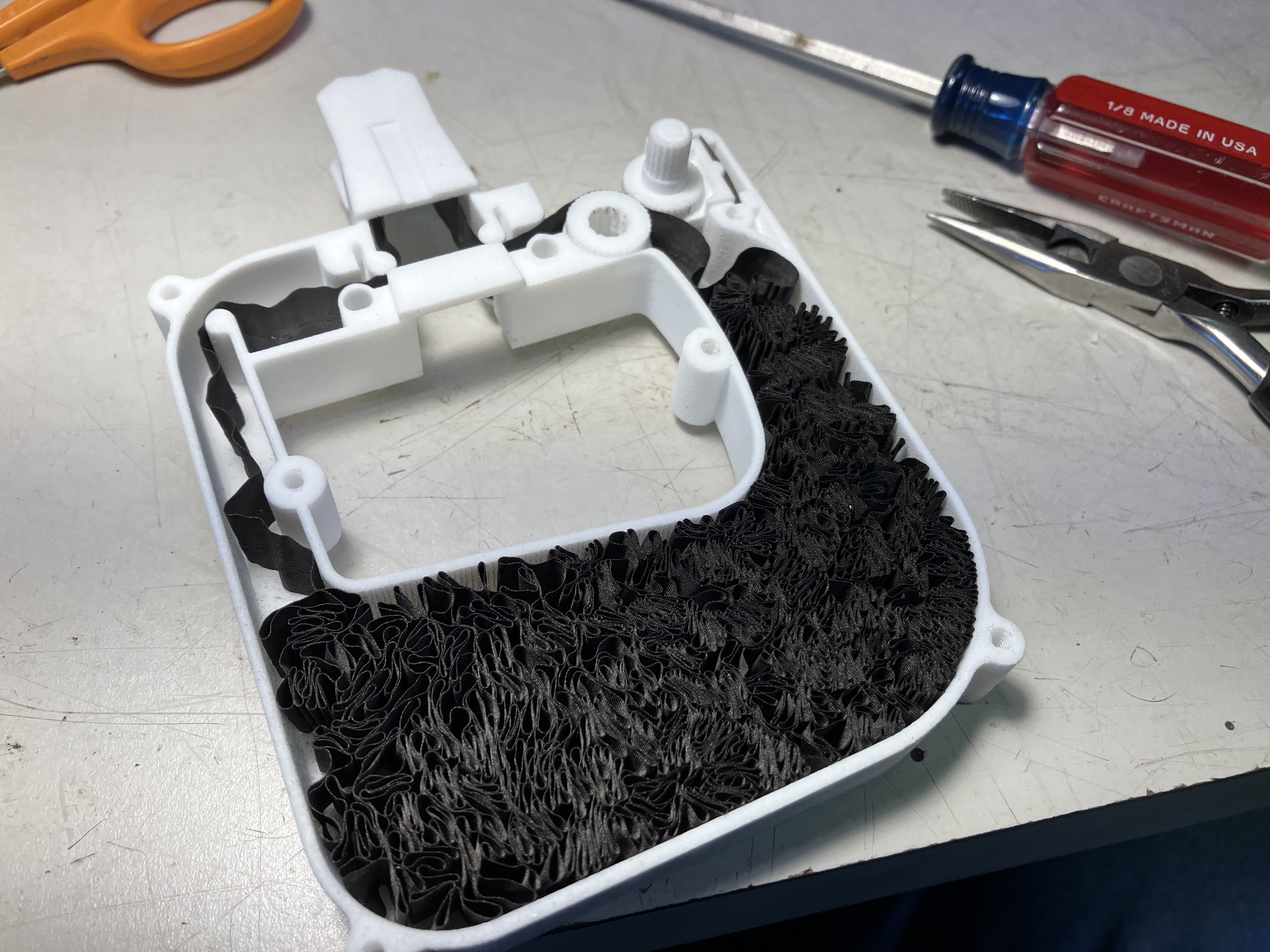

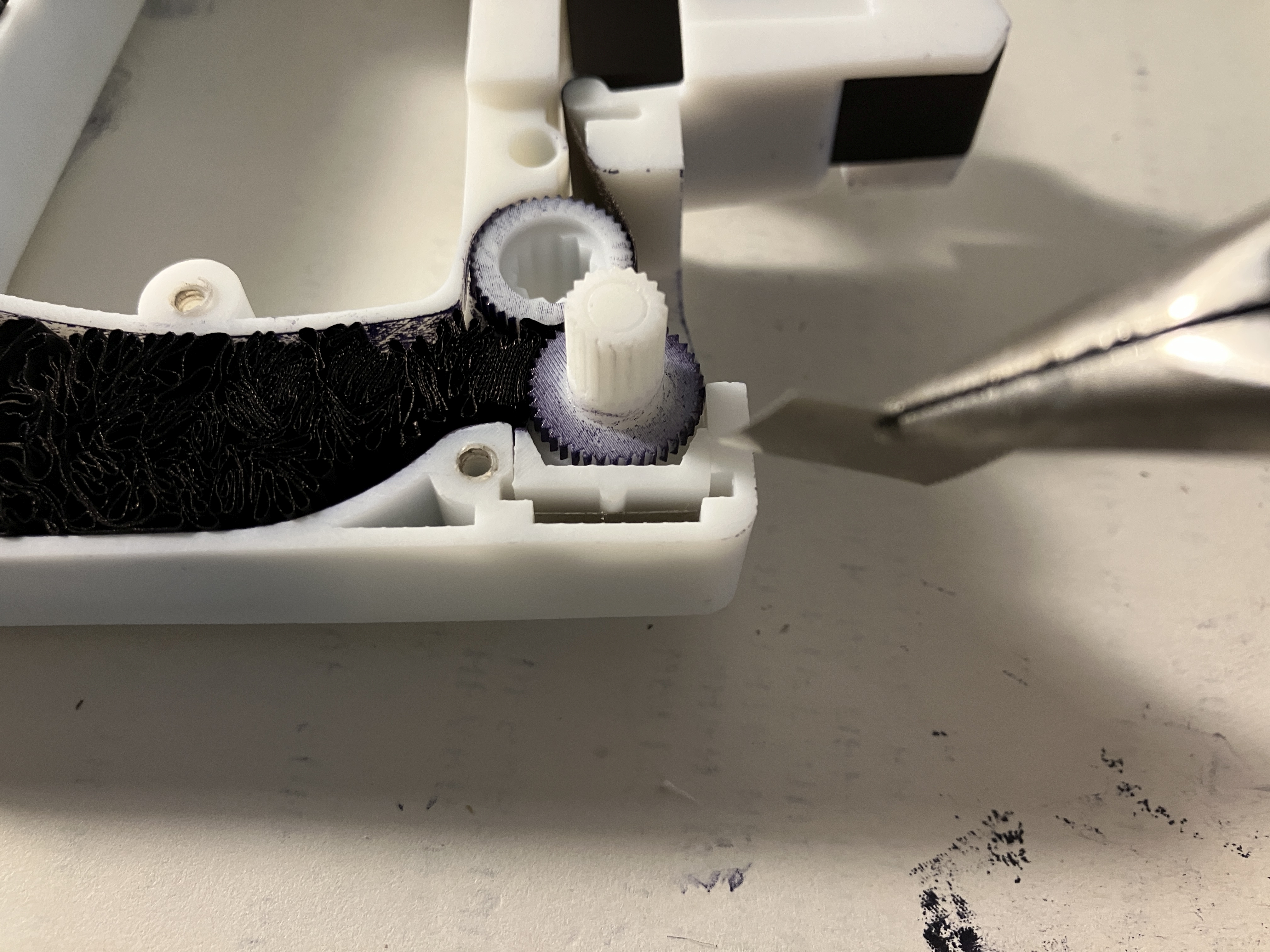

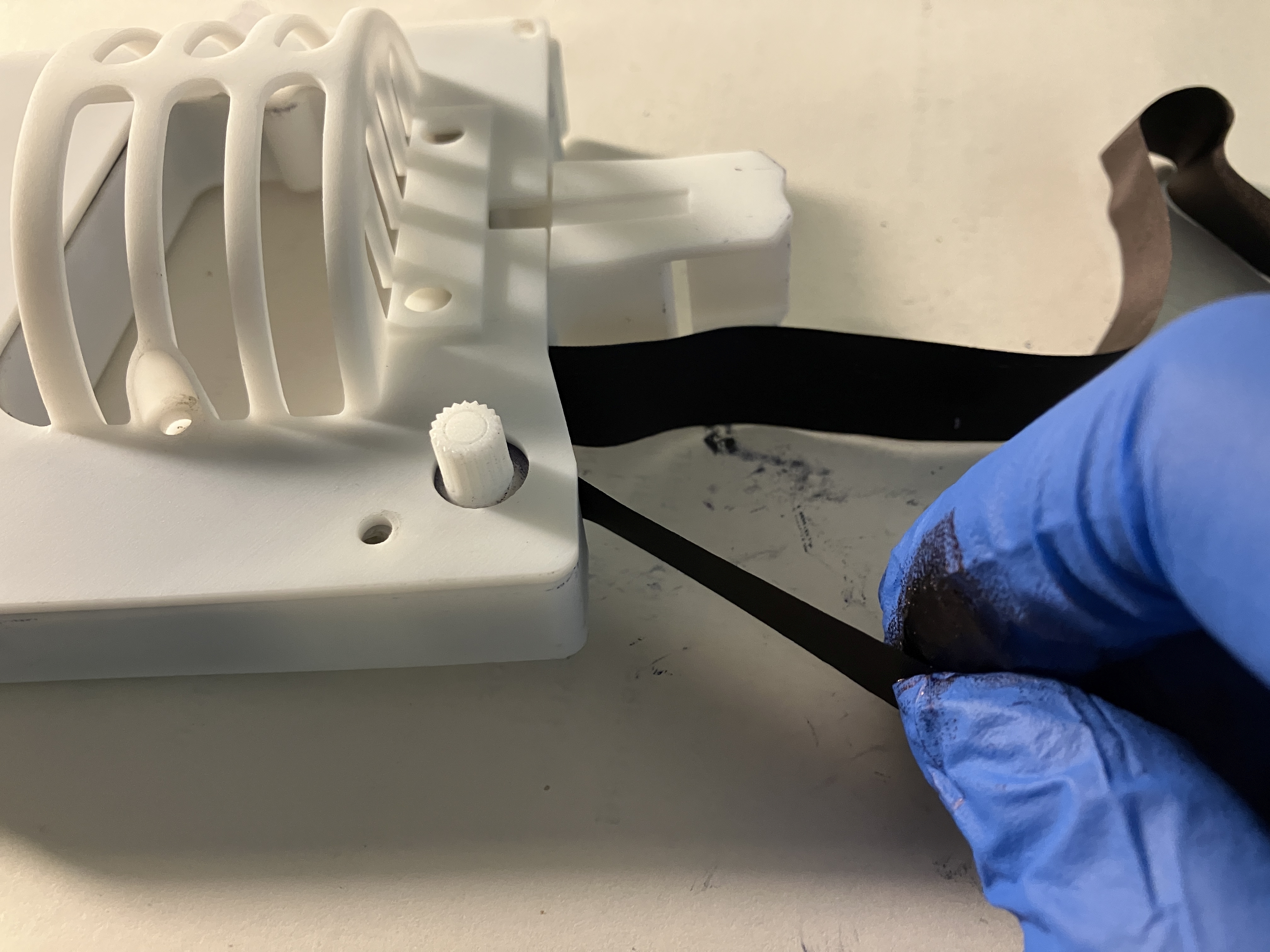

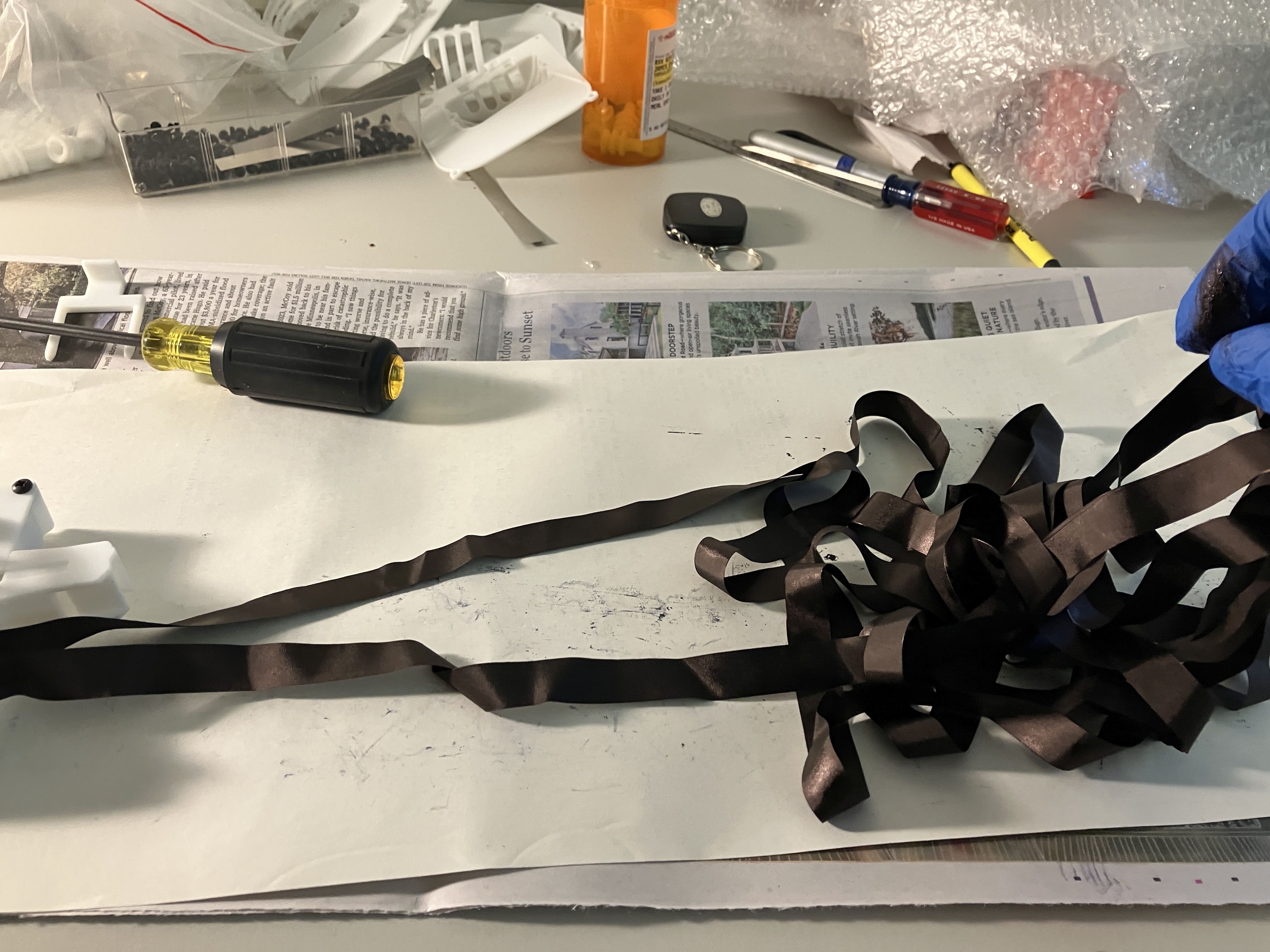

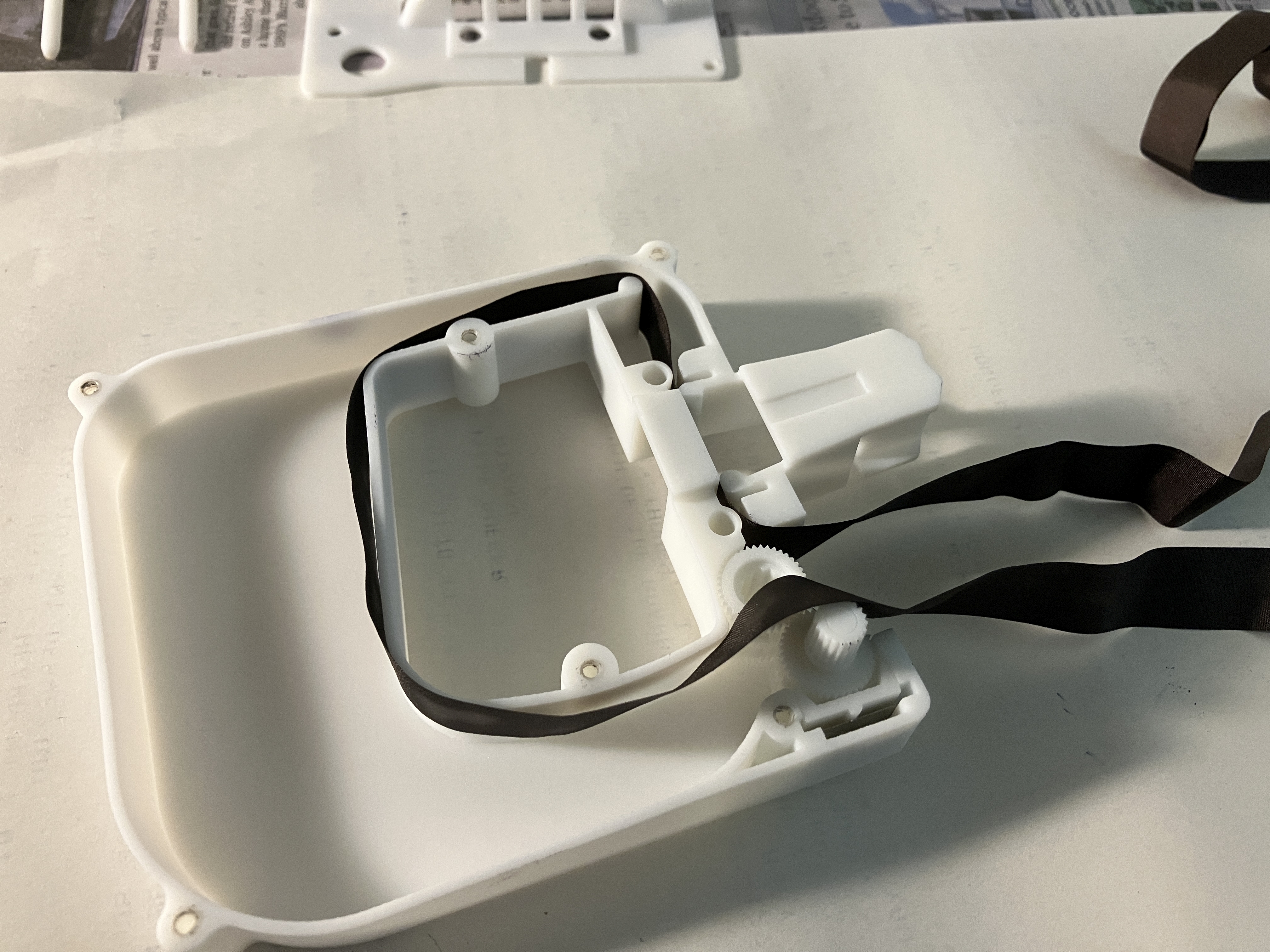

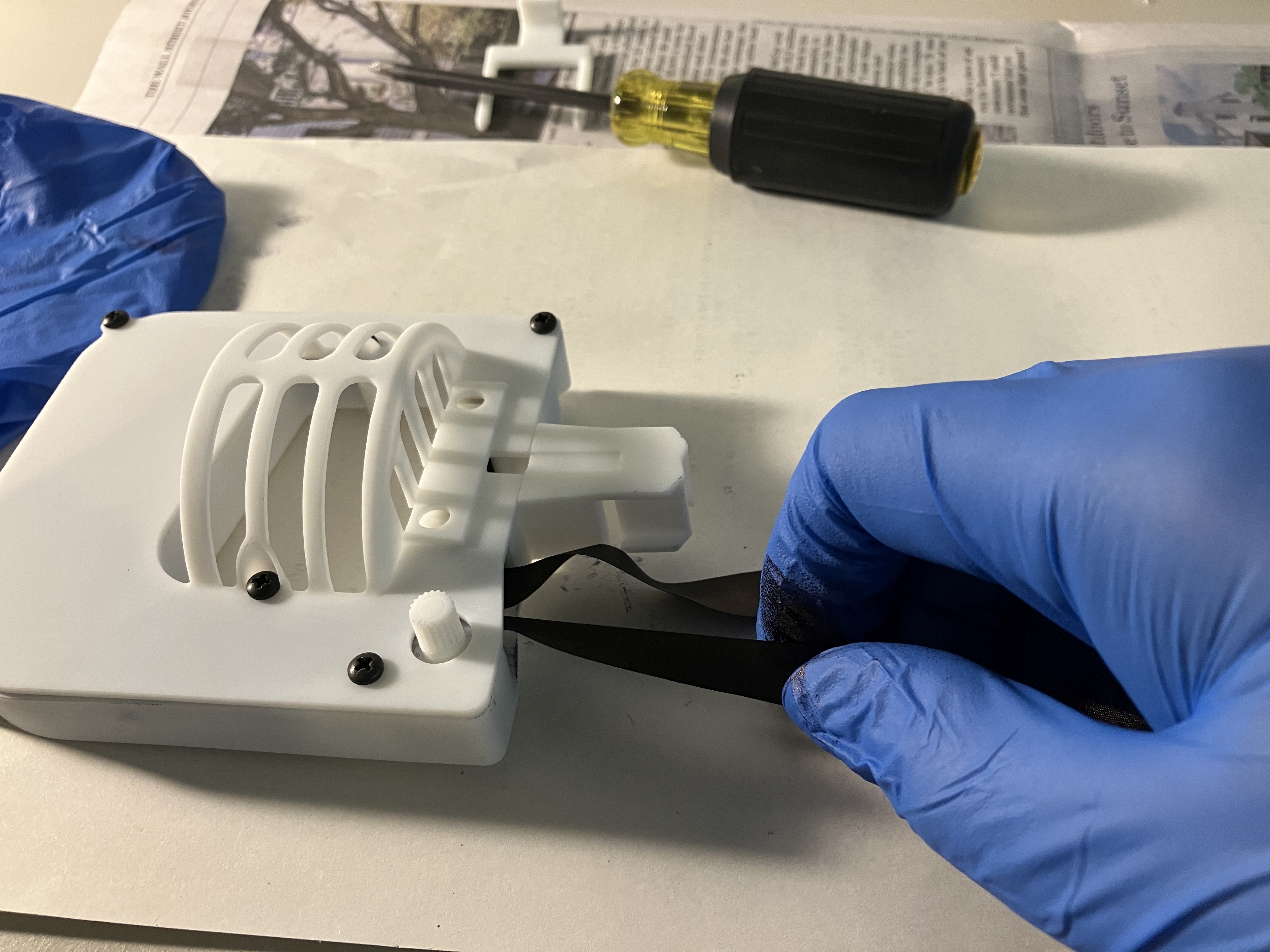

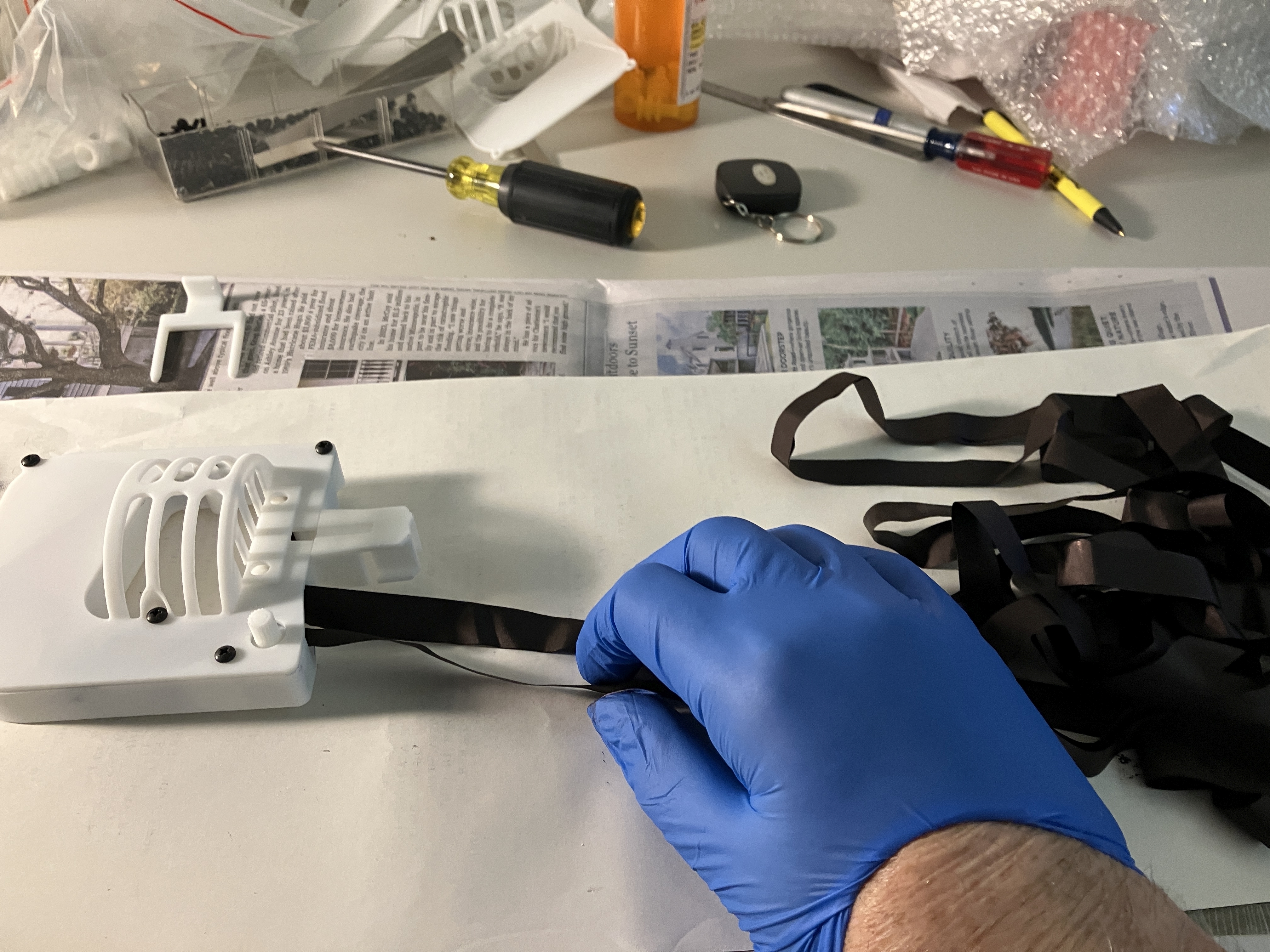

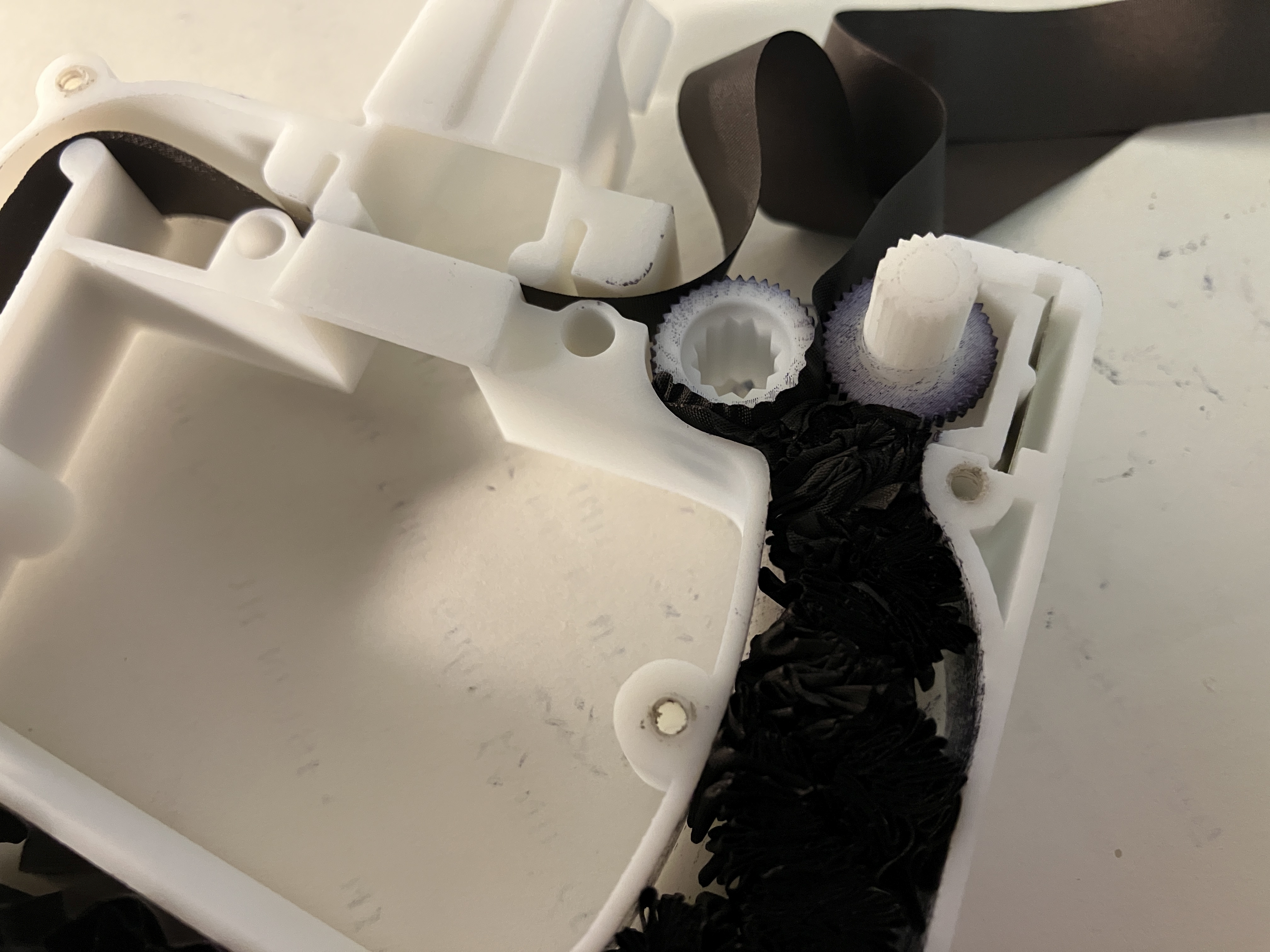

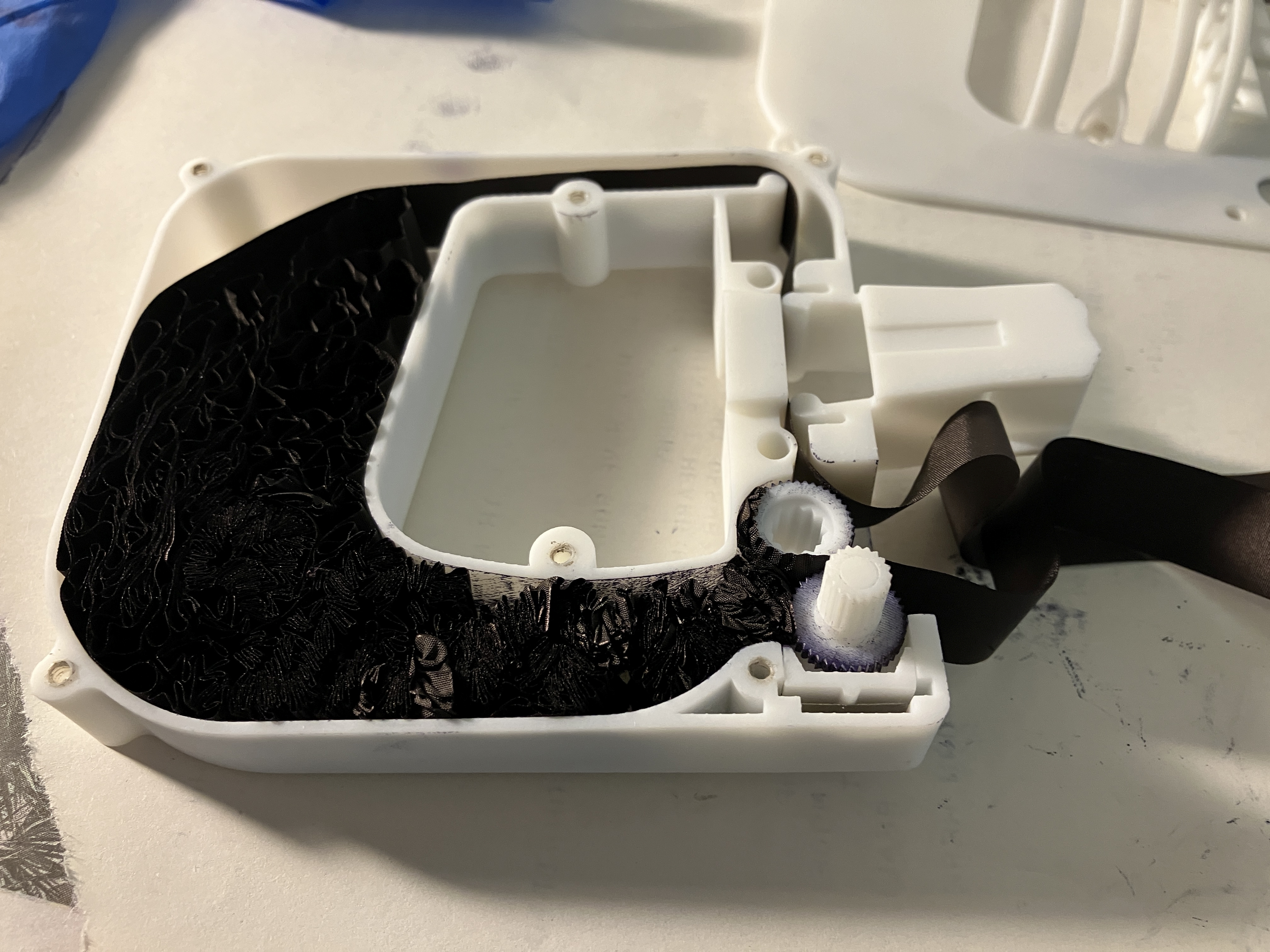

Ribbon loop from an old busted cartridge |

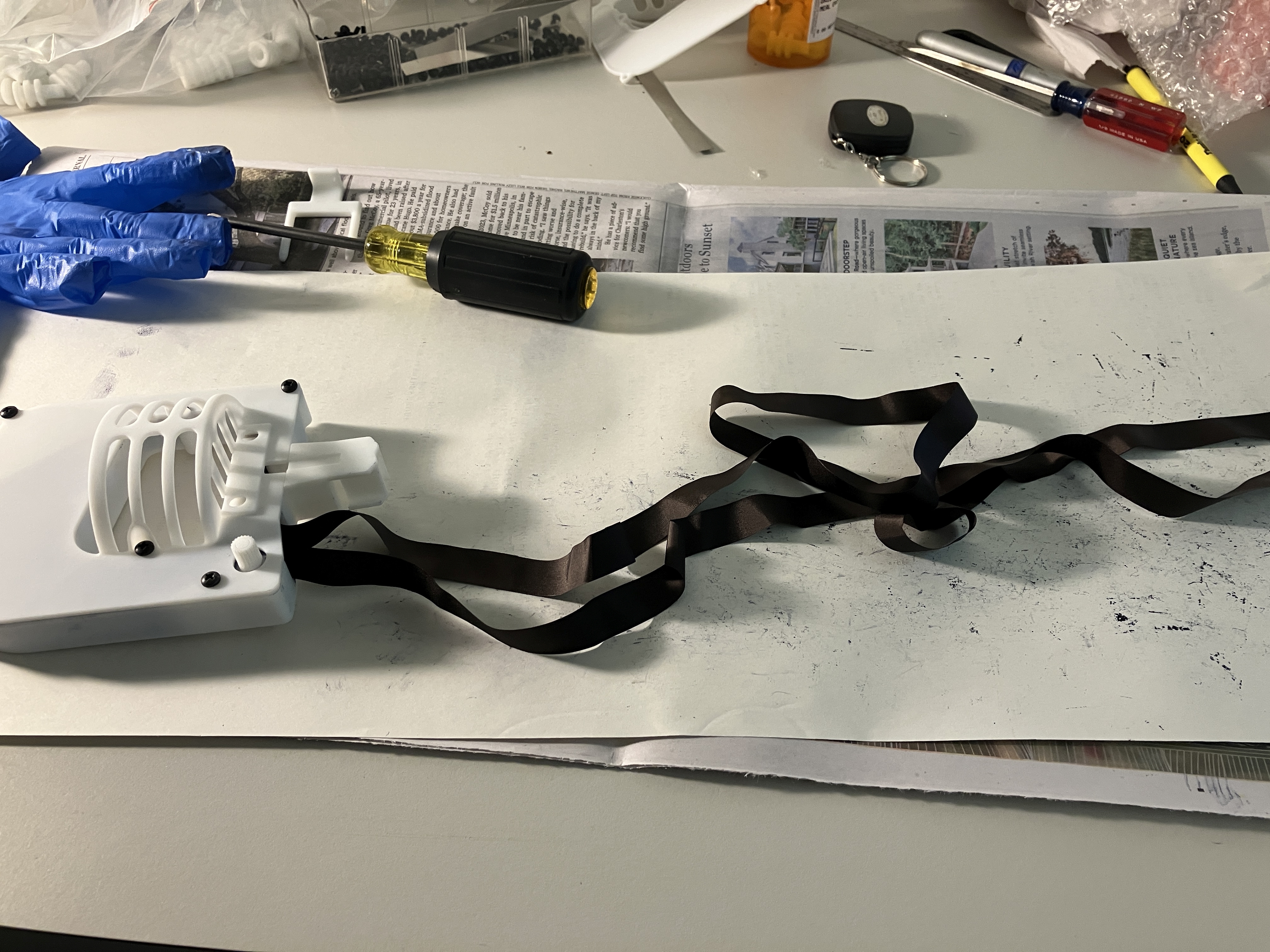

Old ribbon but good enough for testing
|
==== |
