AN/URT-3 Transmitter Restoration Project

1/4/2009 UPDATE - It's alive! (without the booster until I figure out how to get 3-phase power to it). I still need to align the freq. synthesizer and work on the auto-tune, but I have 100 w out and modulation. Major thanks to John Dilks for providing extender cables! You should hear this beast when all 23 rotary solenoids start clacking madly and the auto-tune motors are whining away.

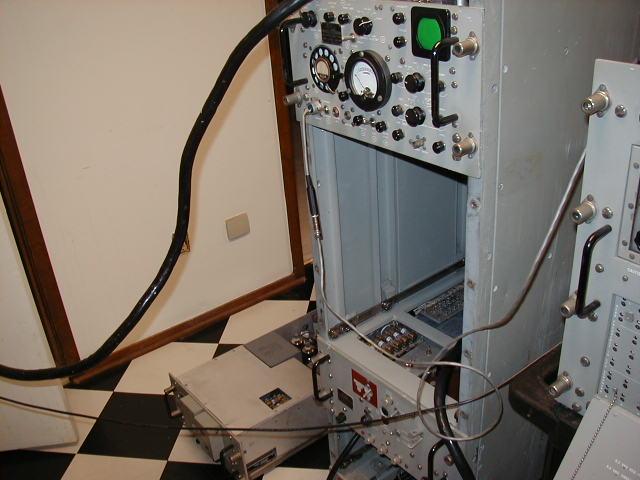

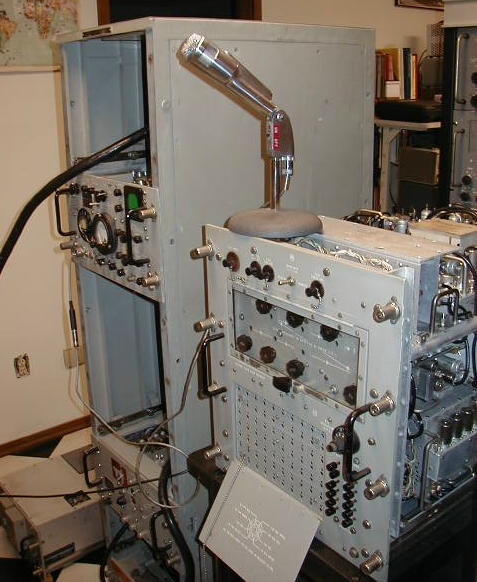

Kludge test set-up - Left to Right:   RF amp on desk, HV supply on floor, modulator in rack, oscillator on cart!

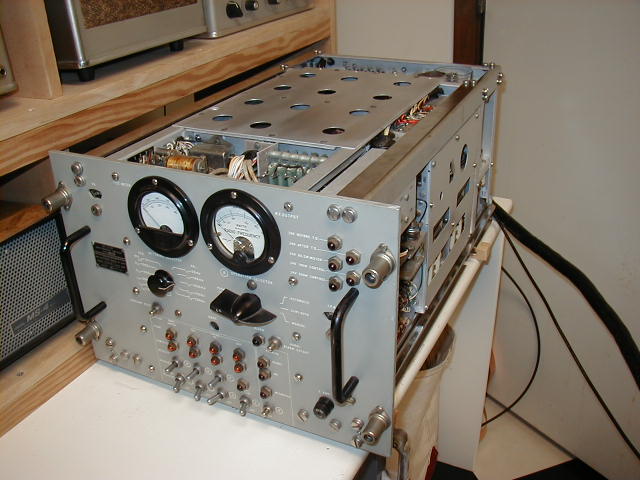

RF amplifier on the desk

HV supply (MVPS), 1300v & 500v, on the floor
LV supply and modulator in the rack
RF oscillator on the cart, with mike wires stuck into modulator connector.

3/19/2008 Acquired  - Early 1950's autotune HF transmitter - 100/500 watt, 136 tubes, dozens of relays
                                   300kc - 26 mc AM/CW/FSK
                                   More Info Here

Restoration Progress pages

RFA - RF amp

LLRM - 100w Modulator

RFO - Oscillator

Accessory Items Page

            LVPS - Low Voltage power supply

MVPS - 100w HV power supply

Transmitter Cabinet

            HLRM - 500w modulator

HVPS - 500w HV power supply

Booster Cabinet

Before delivery
100w transmitter rack
booster rack for 500w operation
4-125 modulators & 3kv HV p/s
blowers in base
ACG - antenna tuner control unit
WANTED - I am looking for Antenna Tuning Unit, Extender Cables, Remote Control, & Test Units

See Accessory Items Page

xmtr rack upper
note drain tubes from condensation drip tray at top

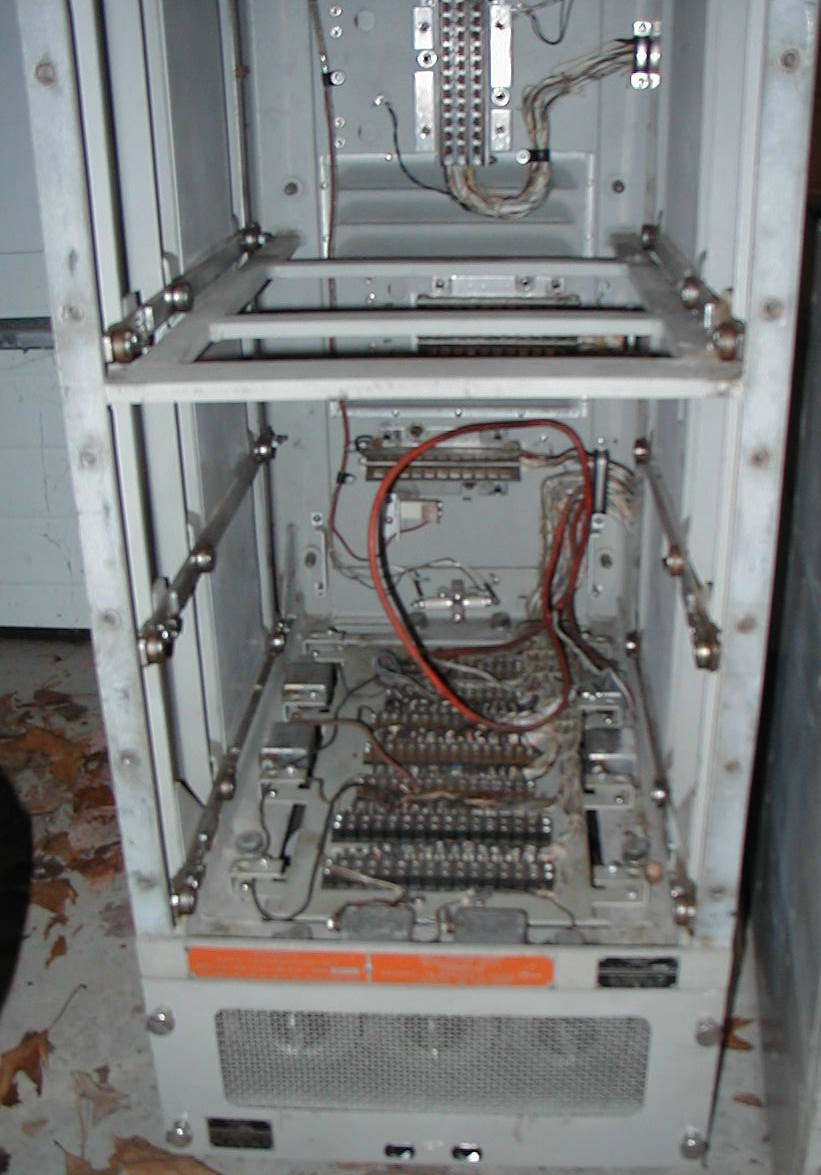

xmtr rack lower
blowers in base

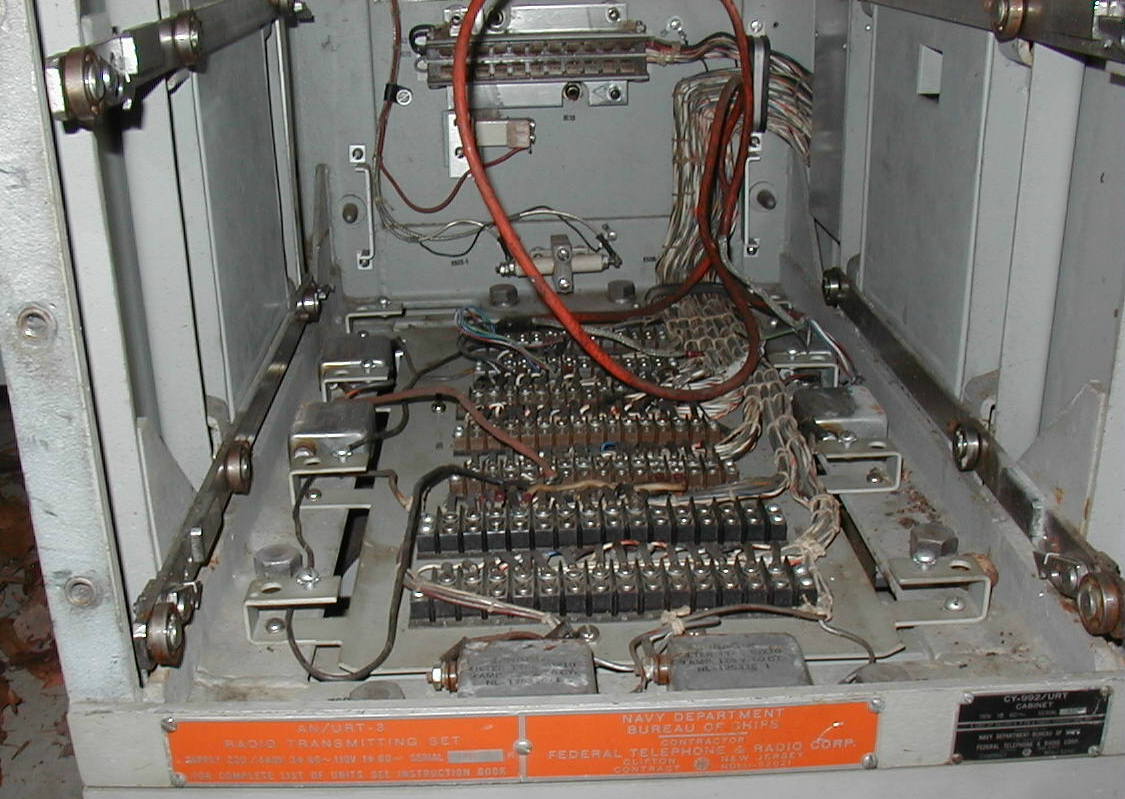

xmtr rack external connections in base

Nifty plug-in scheme for modules, but you really need the extender cables to work on anything.

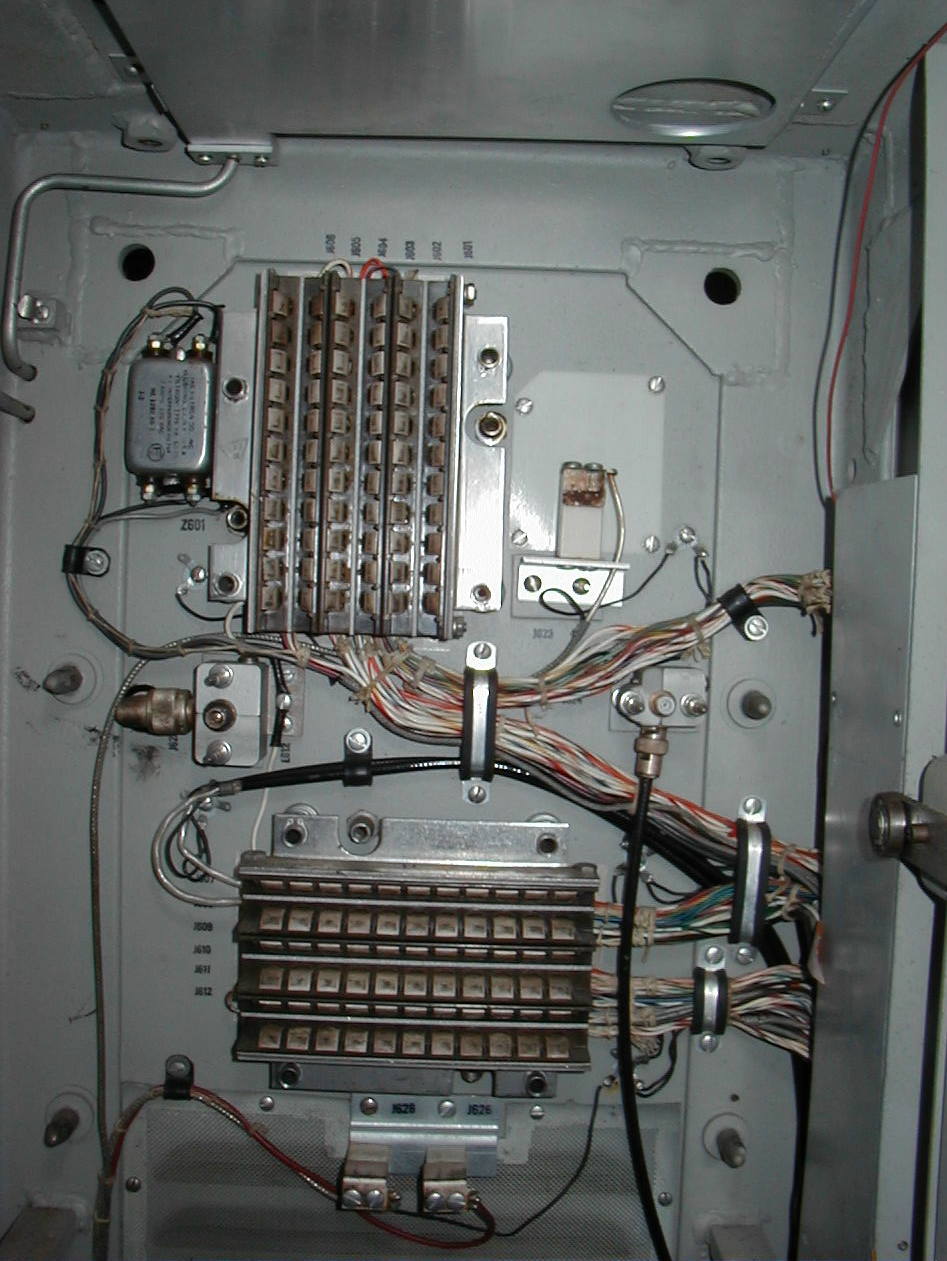

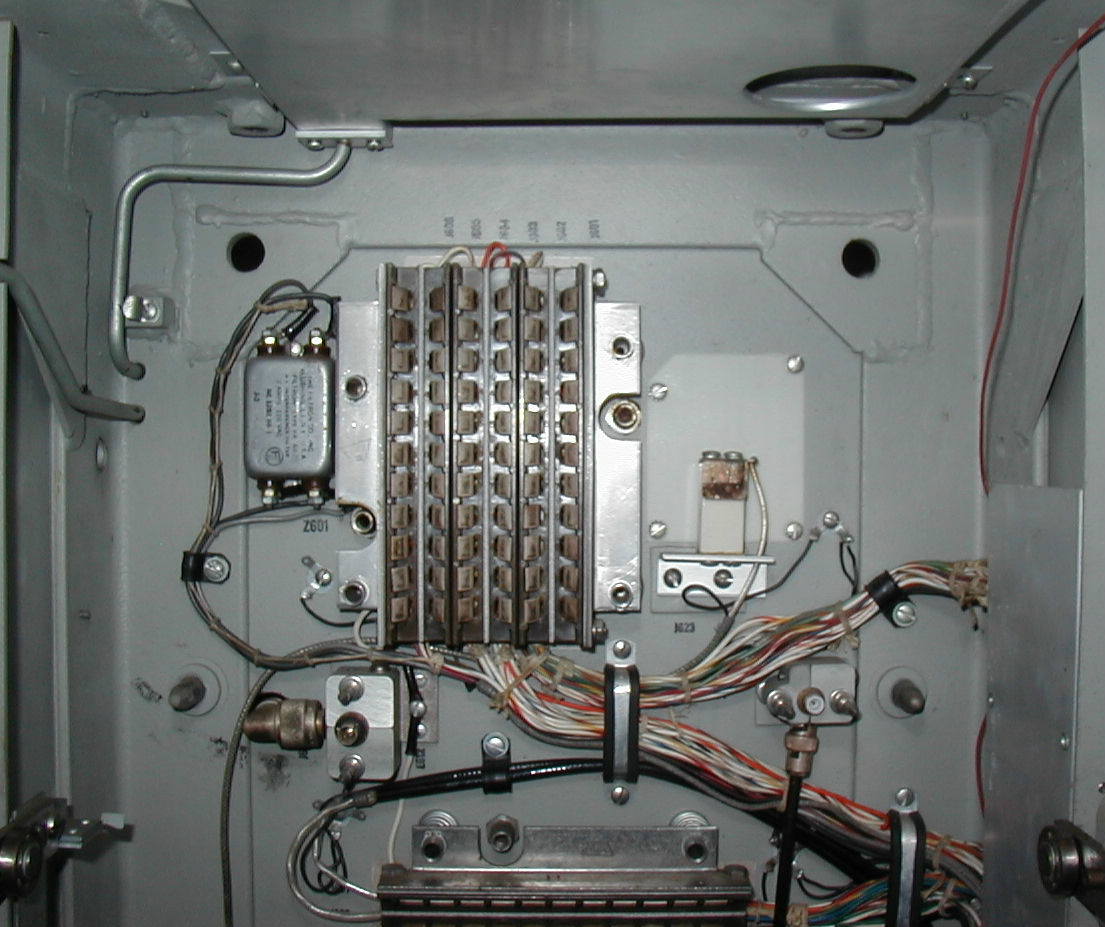

upper xmtr rack module connections
PA to xmtr rack connections
power, control, HV, & RF
PA module plug-in
power, control, HV, & RF

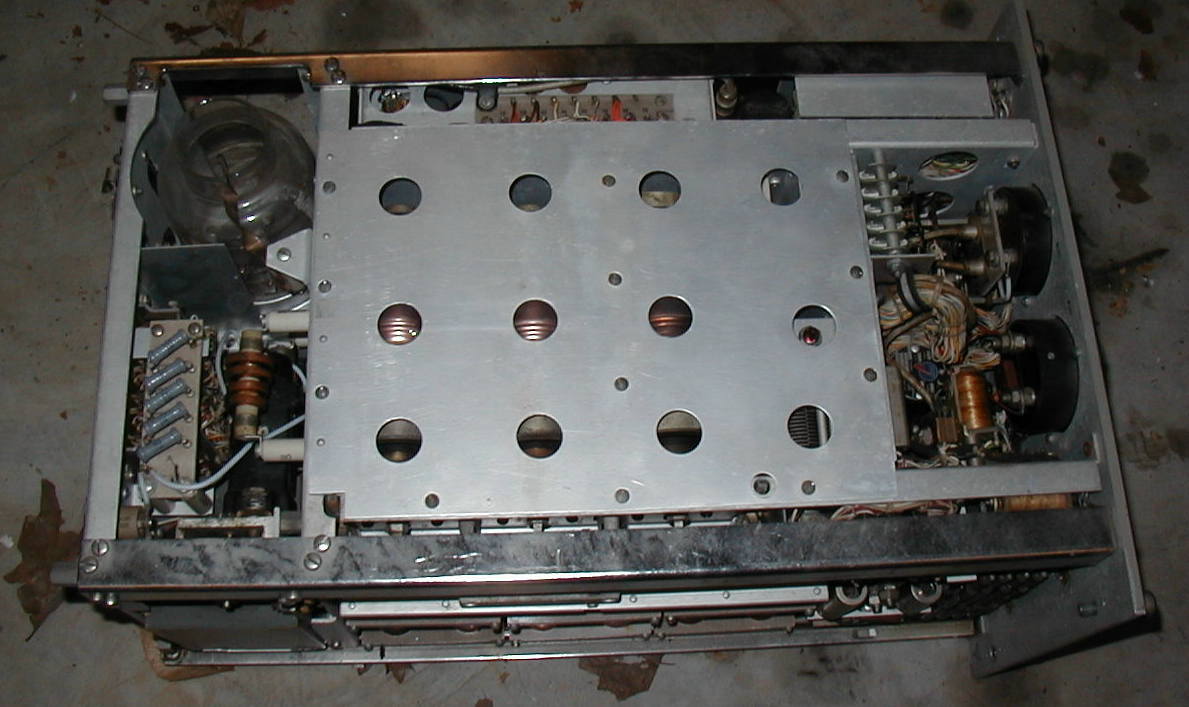

RFA - PA - 4-400 socket at upper left
RFA - PA MF tank slug tuning
LLRM - 100w modulator

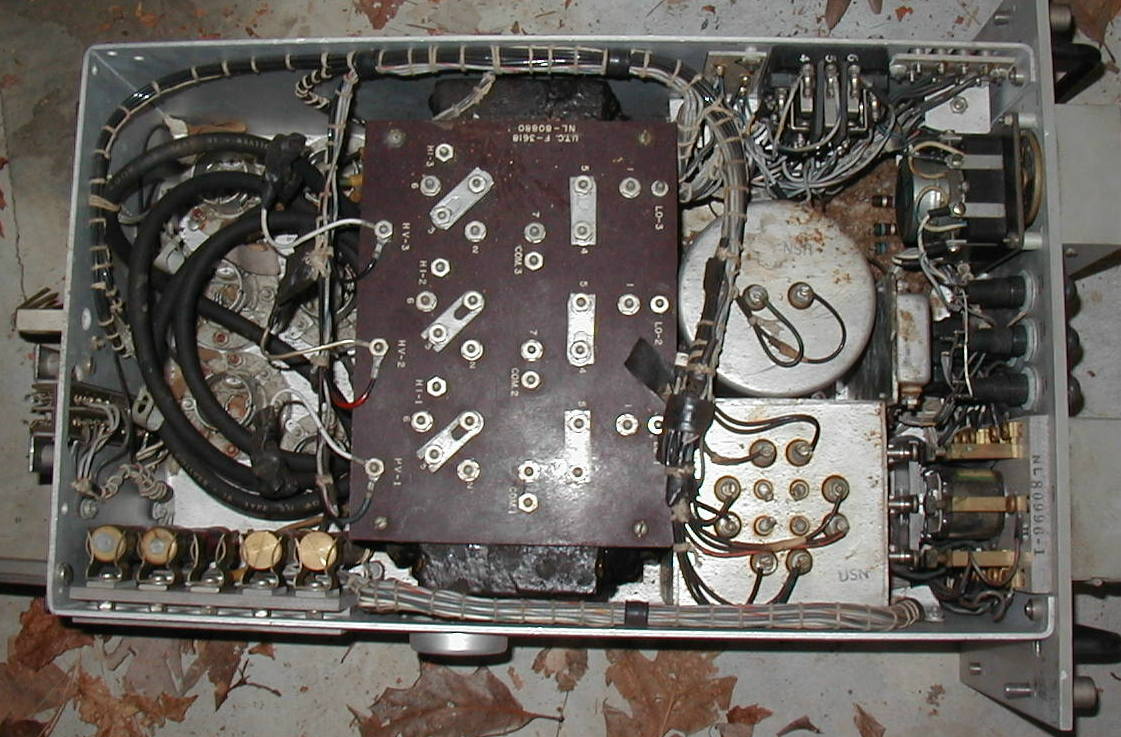

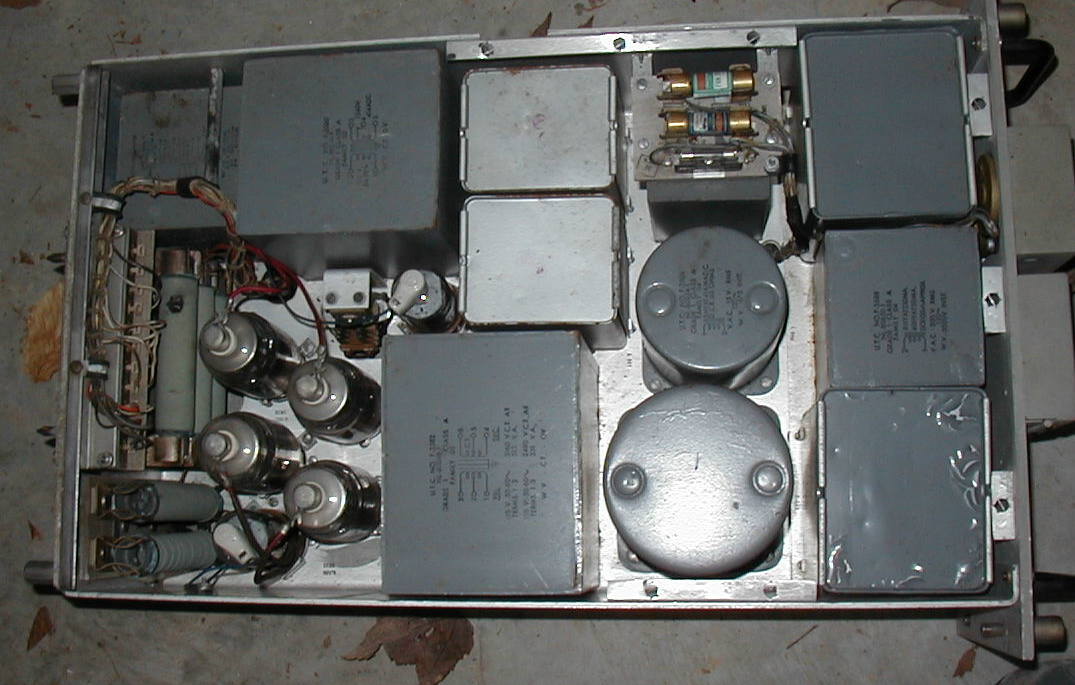

MVPS - 100w HV p/s with 3B28's

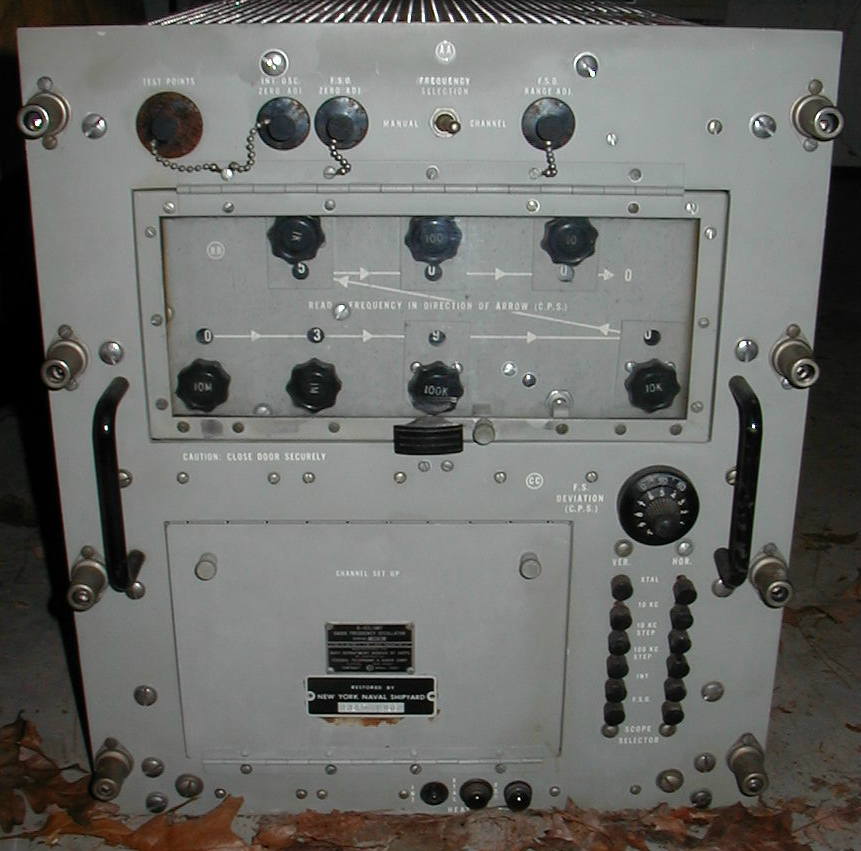

RFO - freq synthesizer

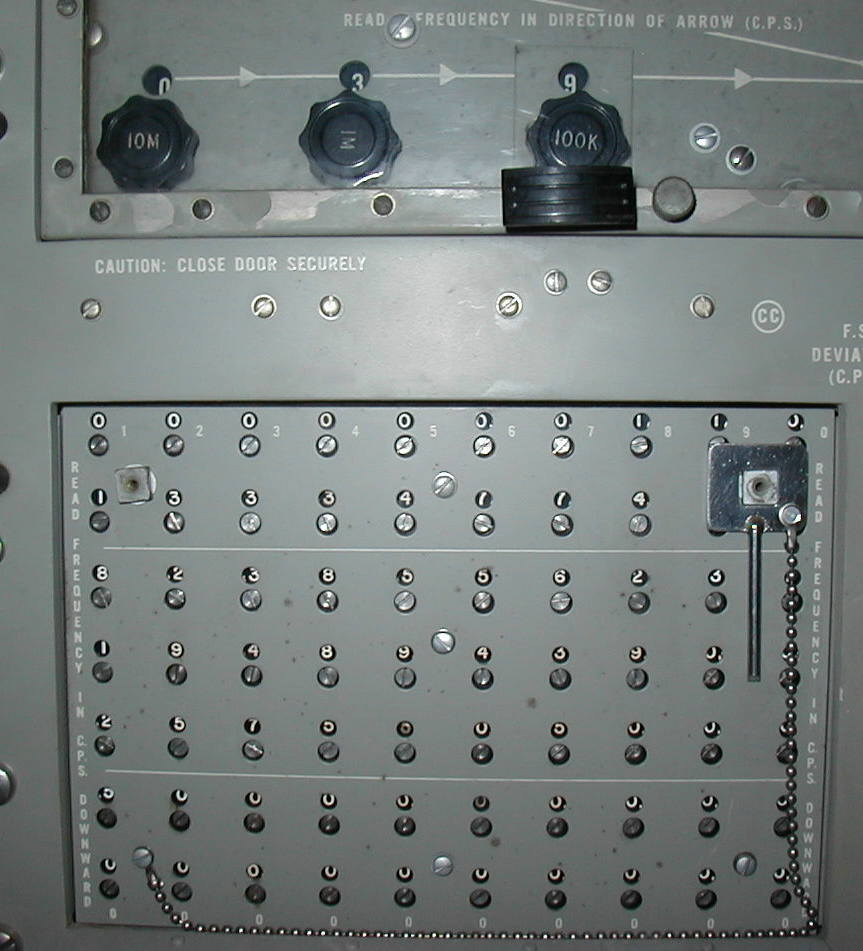

above - manual freq control
below - 10 preset freq

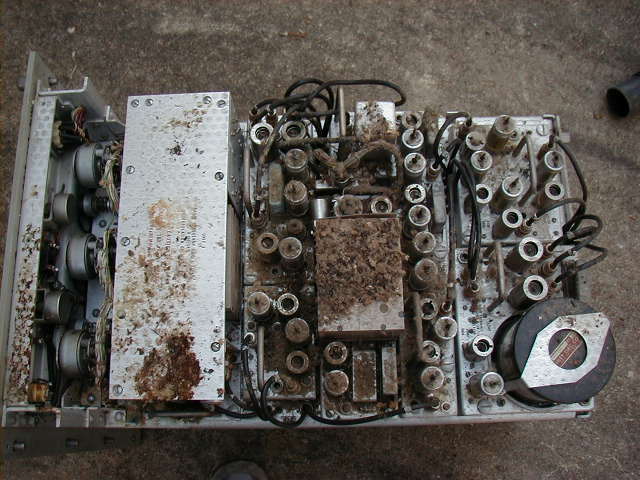

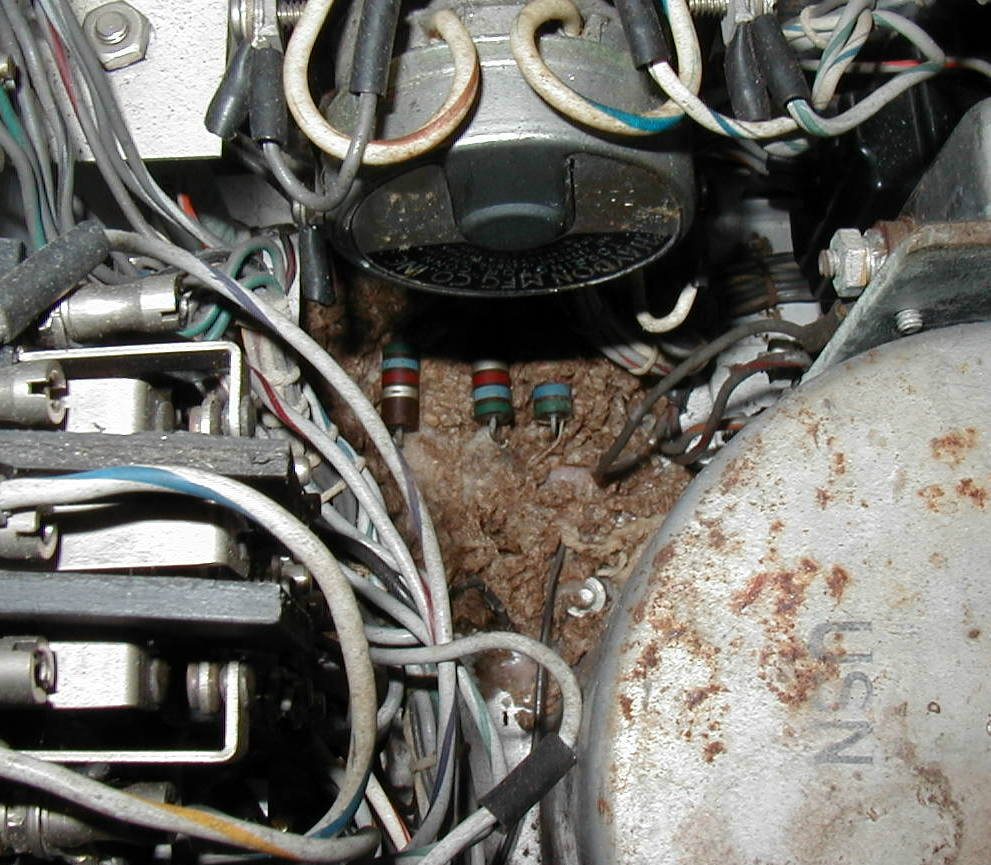

Uh-oh - serious mouse poop in the oscillator. This photo is after I'd cleaned it up some!
LVPS - control and LV p/s

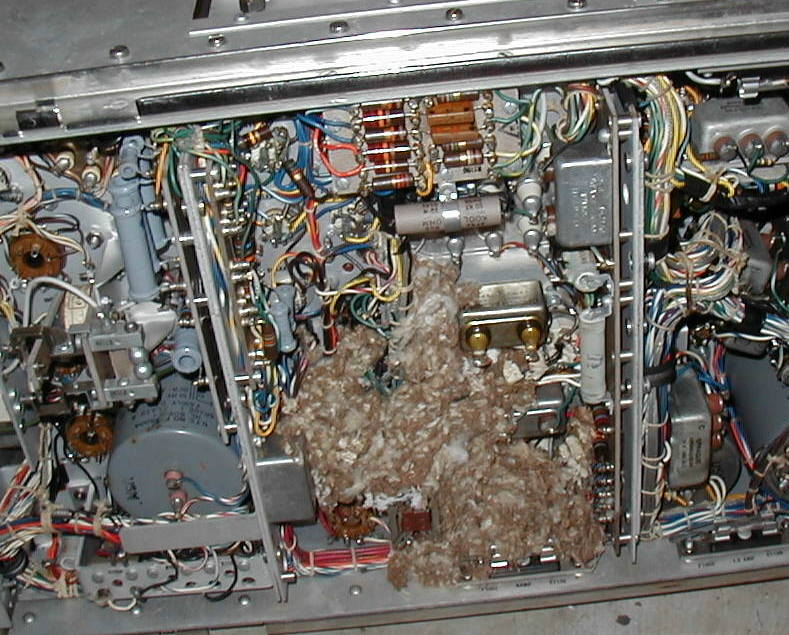

LLRM - mouse nest

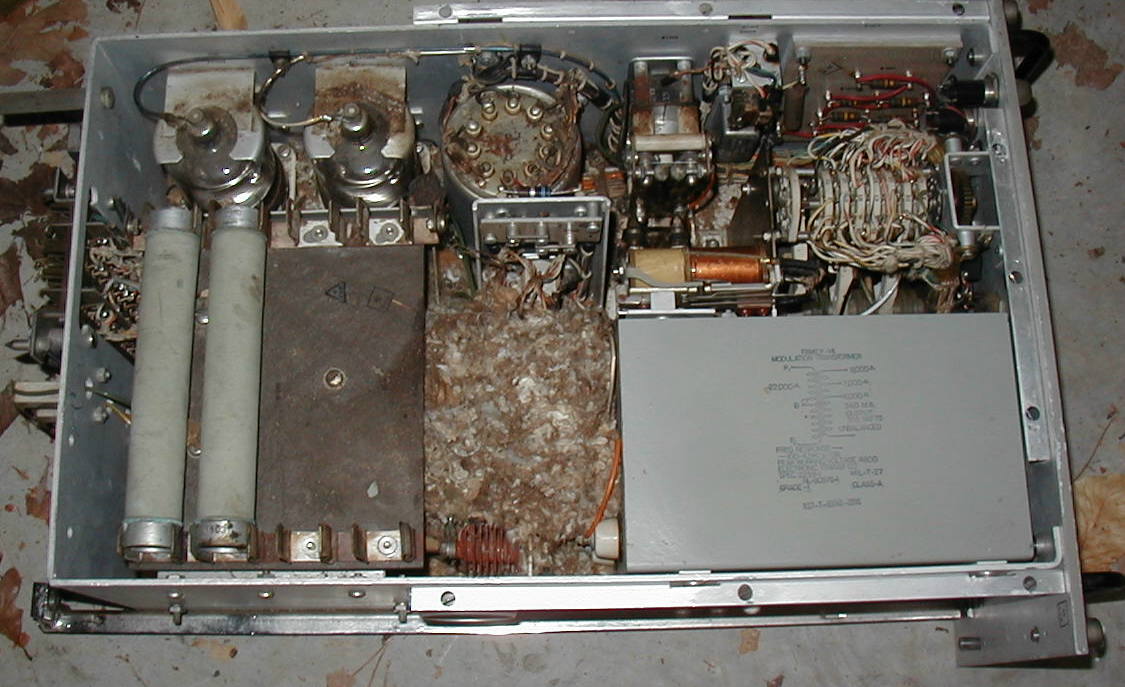

HLRM - 500w modulator with 4-125's and mouse nest
HVPS - 500w HV p/s missing 3B28's
HVPS - another mouse home
