AN/URC-32 SSB Transceiver
(Collins KWT-6 Type 8)

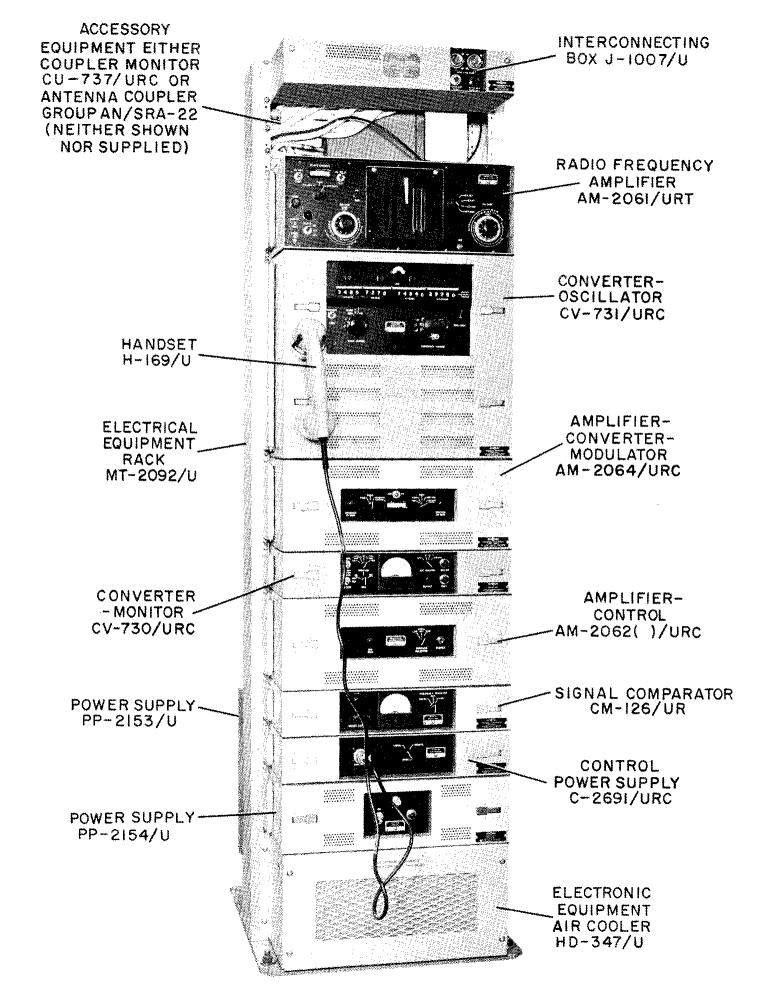

Transceiver AN/URC-32
    Radio transceiver AN/URC-32 (fig. 3-3) is a manually operated radio communication equipment for operation in the 2- to 30-mc (high frequency) range. With a power output of 500 watts, this transceiver is capable of transmitting signals over long distances. It is designed for single-sideband transmission and reception on upper sideband, lower sideband, or the two independent sidebands simultaneously, with separate a-f and i-f channels for each sideband. In addition to SSB operation, provisions are included for compatible a-m (carrier plus upper sideband), CW, or frequency shift keying (fsk). The fsk mode of operation is used for sending radioteletype (RATT) and facsimile (FAX) signals.

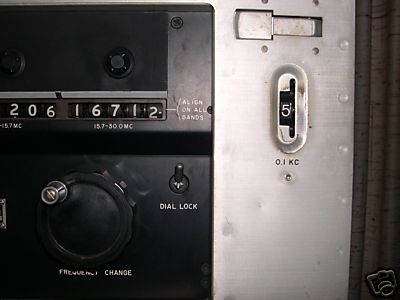

    The frequency range of 2 to 30 mc is covered in four bands. The desired operating frequency is selected in 1-kc  increments (0.1kc on B model) on a direct-reading frequency counter. Frequency accuracy and stability are controlled by a self-contained frequency standard. Provisions also are made for using an external frequency standard. Because of its versatility and power, the AN/URC-32 is installed on most Navy ships having a requirement for communicating at long distances.


AN/URC-32B Modules

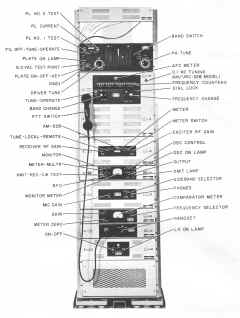

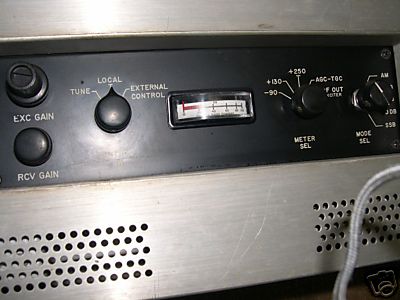

AN/URC-32B Controls



AN/URC-32 Modules

KWT-6 Type 8 equiv.

- -

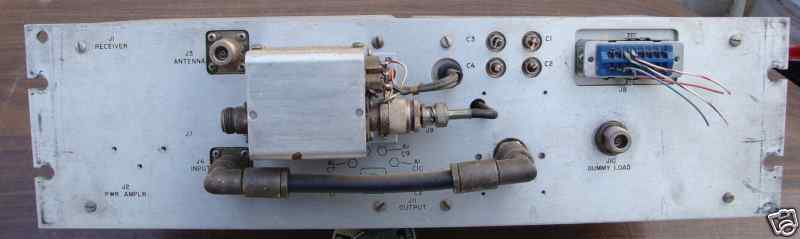

Interconnecting Box

Collins 153H-3
Junction Box

- -

 (alternate - AN/SRA-22)
manual - 6.5MB pdf

Collins 180U-2

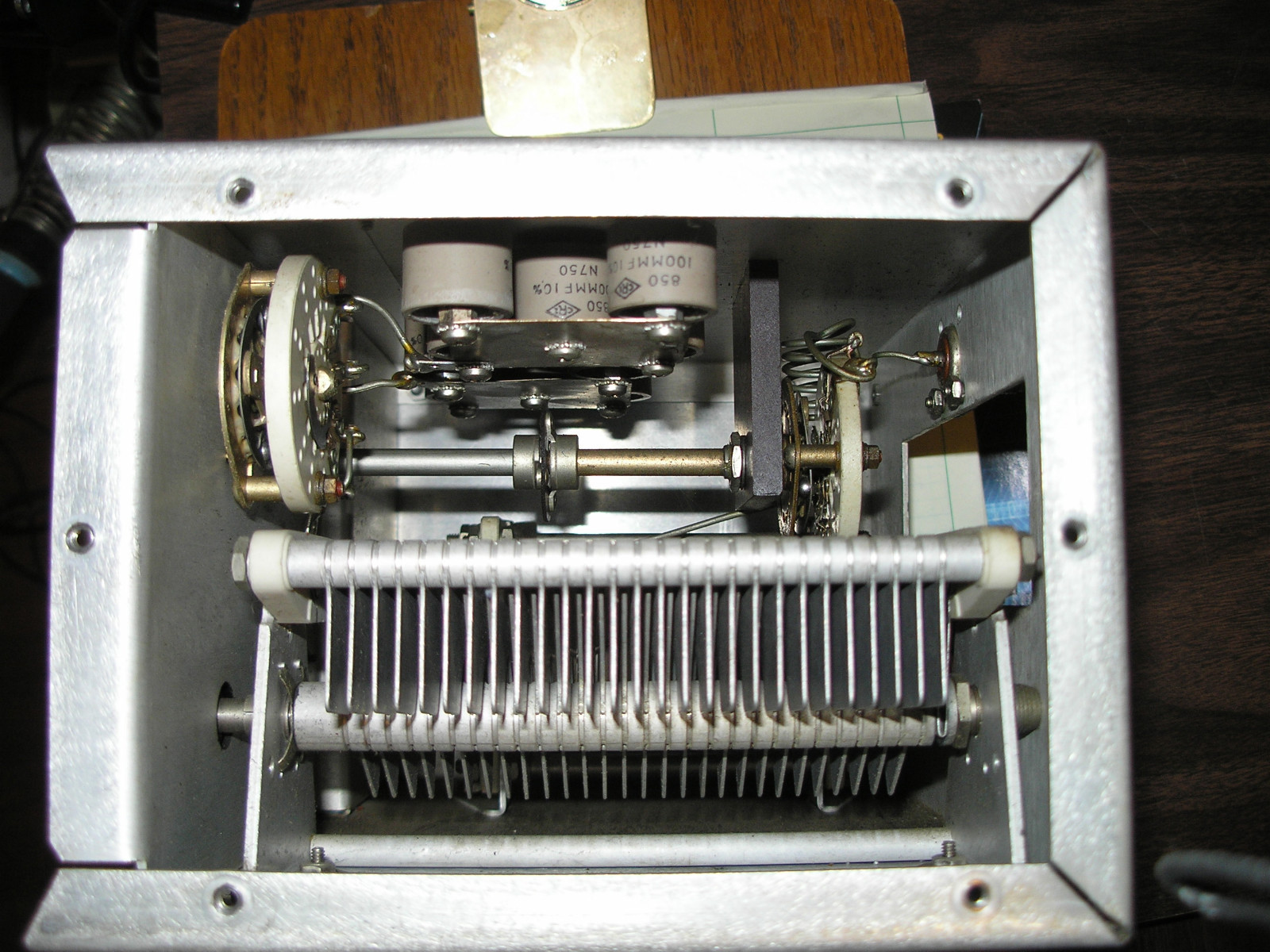

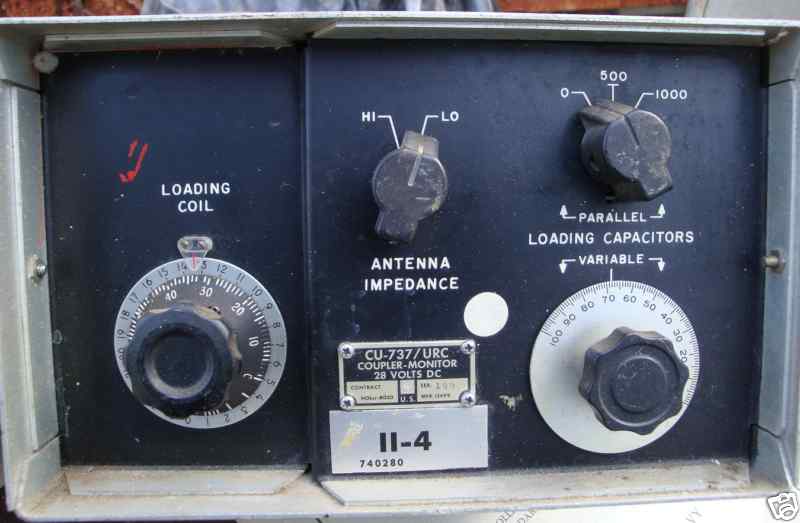

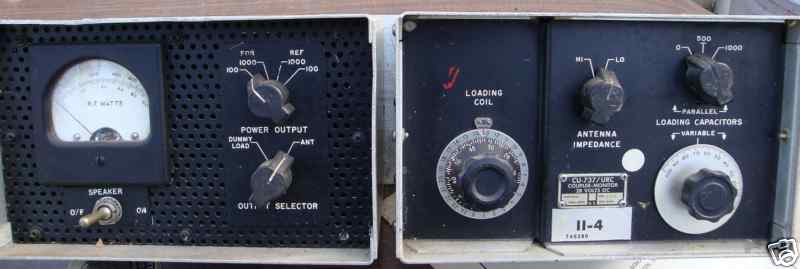

Antenna Network
 (missing T/R relay)
(alternate - 180T-2)

manual NAVSHIPS 93628(A)
cu737-urc-1209-01.jpg (583441 bytes) cu737-urc-1209-02.jpg (455281 bytes) cu737-urc-1209-03.jpg (486368 bytes) cu737-urc-1209-04.jpg (570336 bytes)

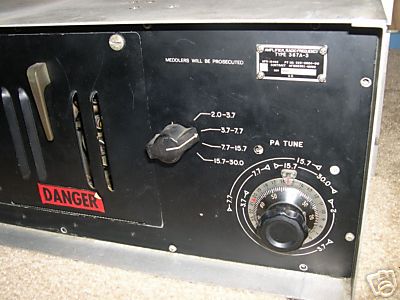

RF Amplifier

Collins 367A-3

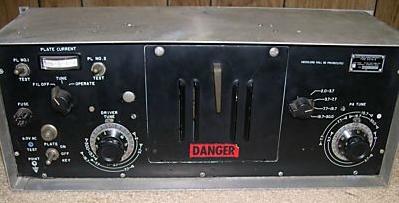

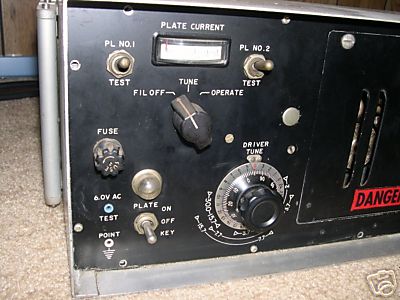

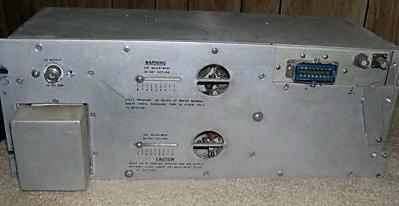

Power Amplifier



Collins 786E-1

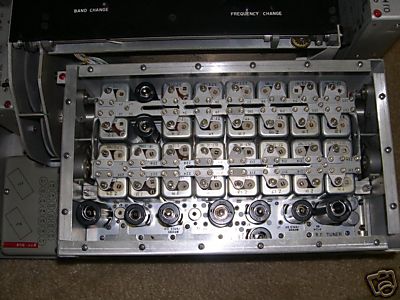

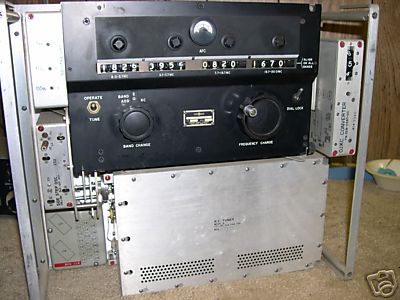

Frequency Generator



Collins 786F-1

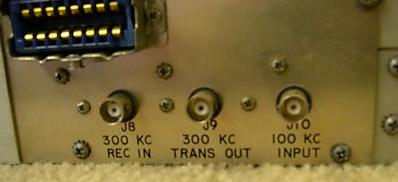

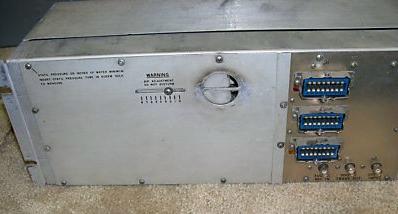

Sideband Generator



Collins 543-8129-00
CW and FSK Unit



Collins 159B-1

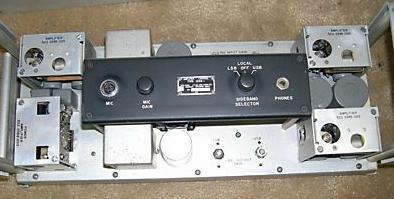

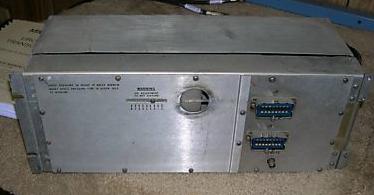

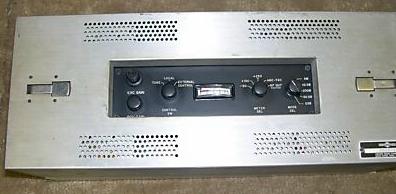

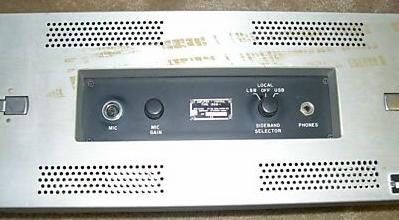

Audio and Control Unit


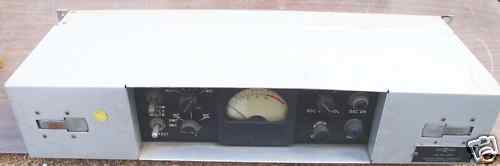

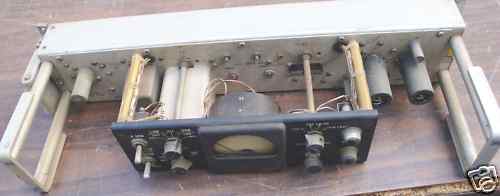

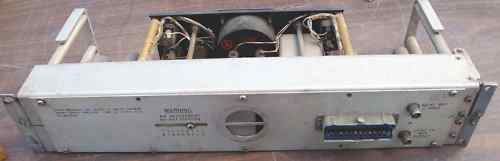

Signal Comparator

Collins 54Q-1
Frequency Comparator

- provides comparison to external 100kc frequency standard -

Control-Power Supply

Collins 543-6094-00
Handset Adapter

-provides PTT relay and switch for handset -

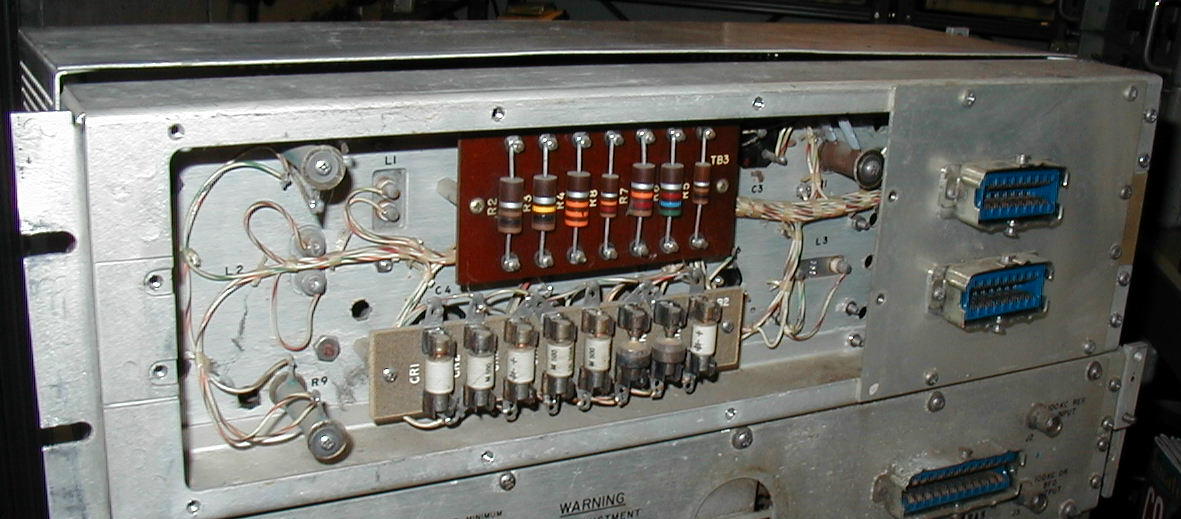

LV Power Supply

Collins 429B-1
Low-Voltage Power Supply

- -

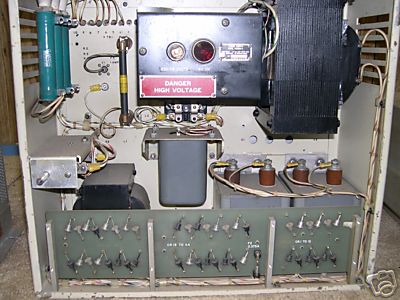

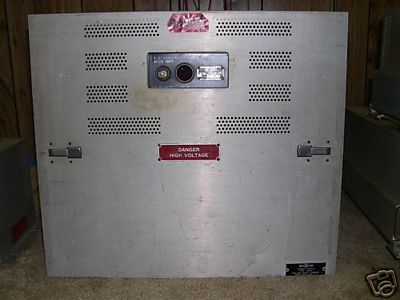

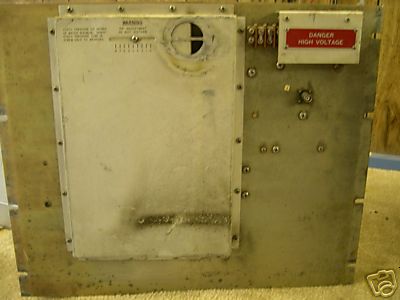

HV Power Supply

Collins 428B-1
High-Voltage Power Supply


Air Cooler

Collins 199G-3

- -

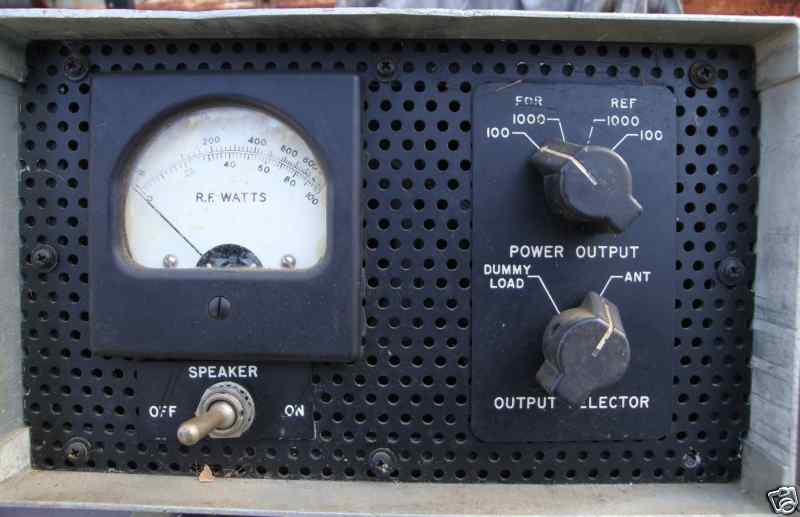

Dummy Load

Collins 172J-1
Dummy Antenna

mounted on rear of rack -


Collins 977-0021-00
Dynamic Handset

- -

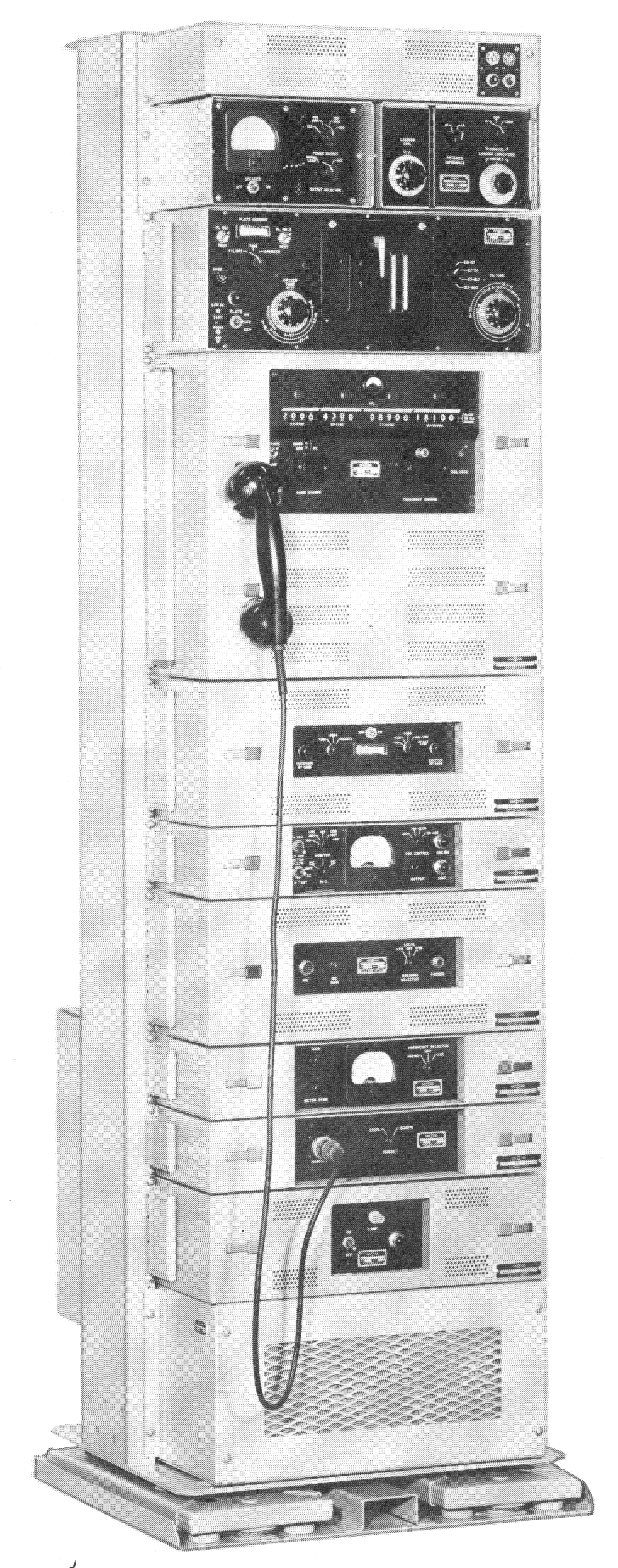

Equipment Rack

Collins 544-9010-00
Rack Assembly

70.5" tall -

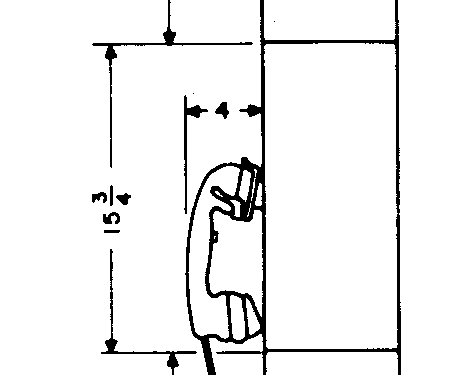

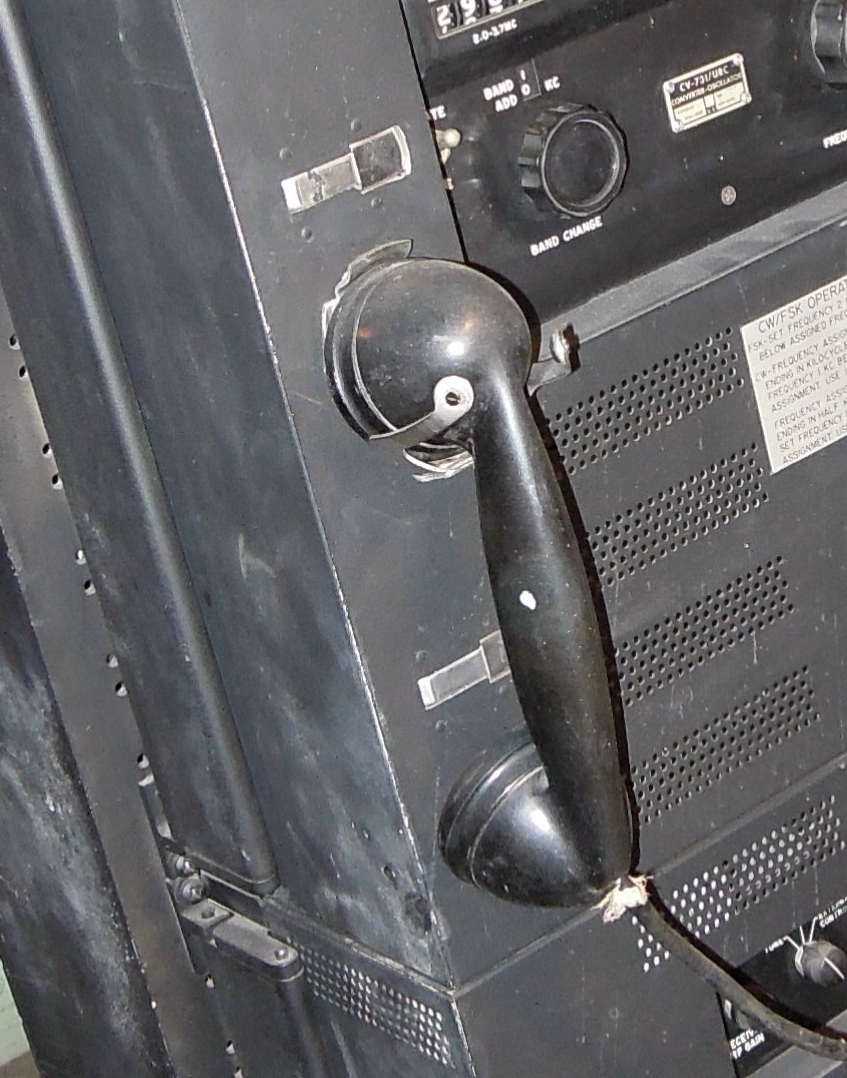

Hanger for H-169/U Handset- Do you know of a source or a part number? Please let me know
 - Do you have an original and can make some photos and measurements?

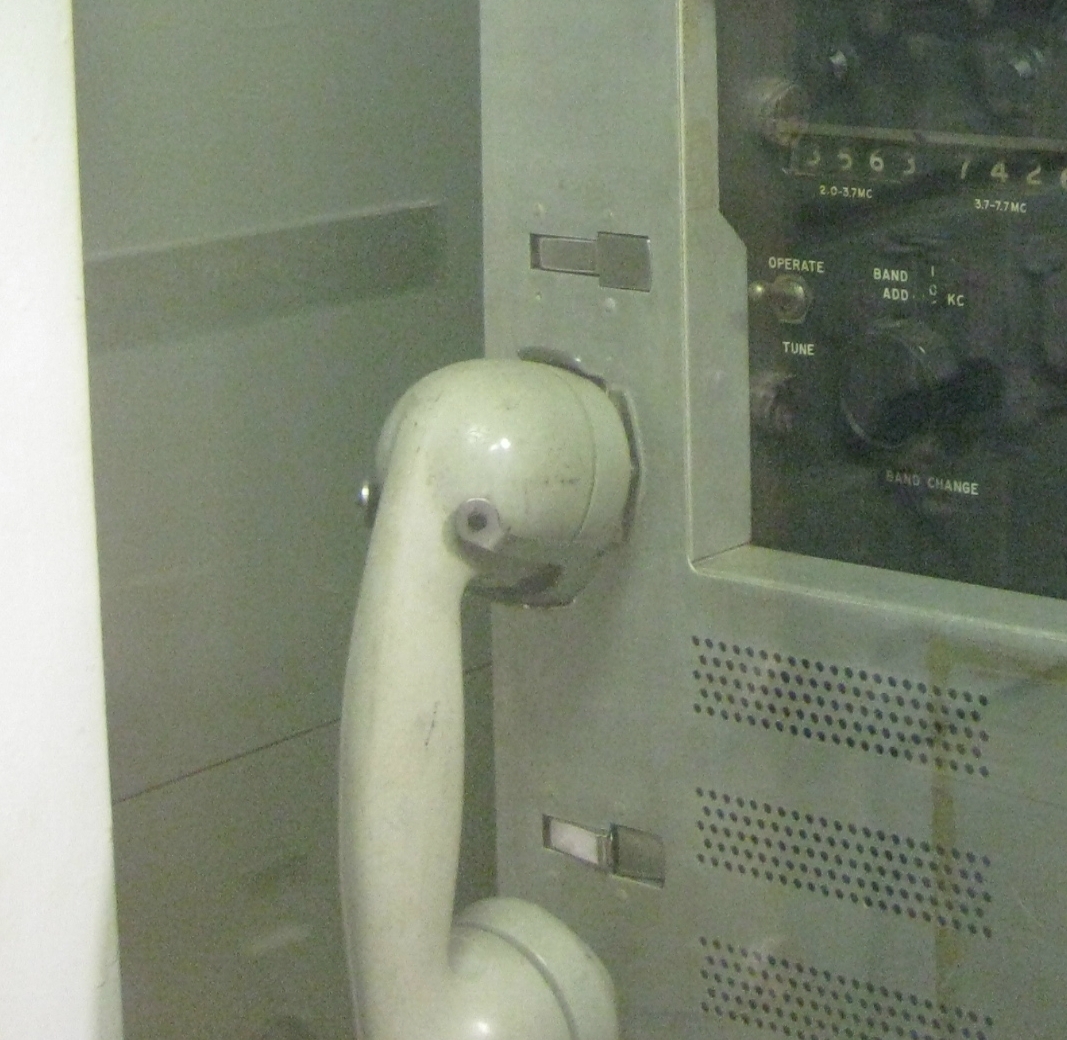

urc32-handset-hanger-01.jpg (24792 bytes) urc32-handset-hanger-02.jpg (71945 bytes) urc32-handset-hanger-03.jpg (664281 bytes) Proper hanger, but not the proper handset

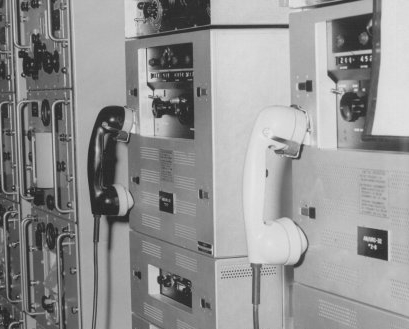

Note: the usual telephone handset hangers are for a type G handset - the H-169/U earphone housing is deeper and will not fit those.

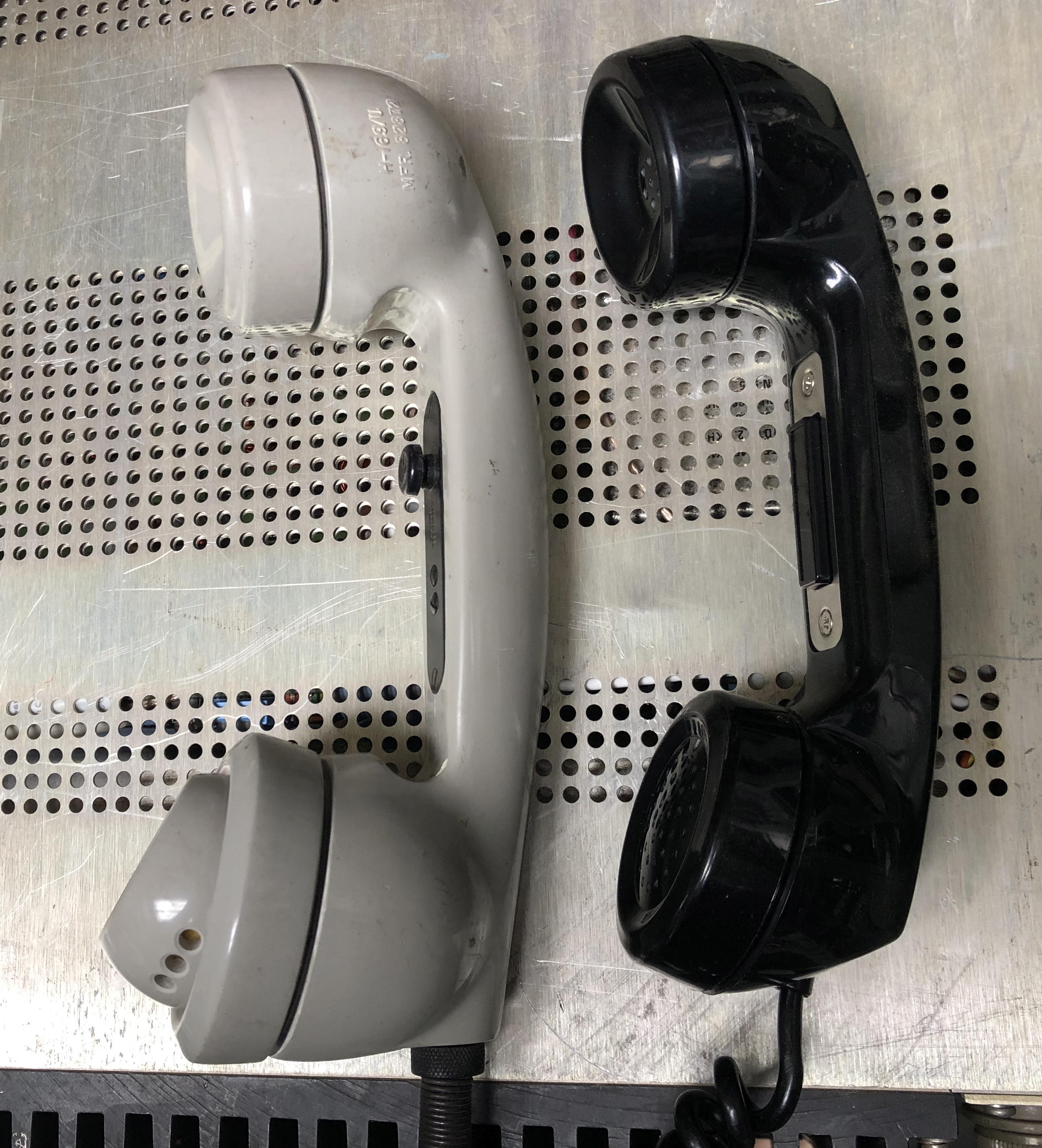

H-169 handset vs. type G handset
