US Navy Teletype Loop Supplies

PP-424/U Loop Supply

Need More Info


By maintaining proper switch positions in the TT-23( )/SG teletype panel, overloading of the power supply may be avoided.

The following condition is presented as an example: A ship is equipped with a carrier frequency shift receiver and tone modulated send-and-receive teletype system, which consists of two teletypewriters and the associated terminal set and the converter-comparator group. In installing this system, the converter-comparator group is connected to three loops and the tone terminal equipment is connected to one loop. The remaining two loops of the TT-23( )/SG may or may not be strapped.

When both systems are in operation, two loops will normally be operating, thereby requiring a total of 120 milliamperes. Each loop requires 60 milliamperes for efficient operation. In this arrangement, there is one PP-424/U power supply unit which has a rated output of 200 milliamperes. (In some installations an additional PP-424/U unit is provided as an emergency power supply.)
In setting up the TT-23( )/SG for the above condition of operation, the toggle switches of the two loops being used should be in the local current (LOC. CUR.) position and the other loops not being used should be in the external current (EXT. CUR.) position.

Overloading of the PP-424/U power supply unit will occur if four or more loops draw current, and each loop will draw current if the toggle switch is in the LOC. CUR. position.

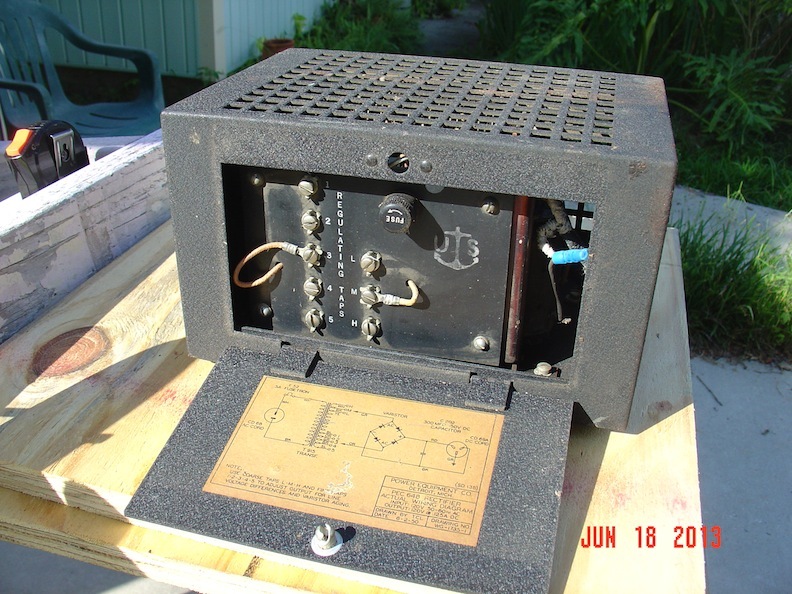

PP-610/U Loop Supply

120vdc, 125 mA

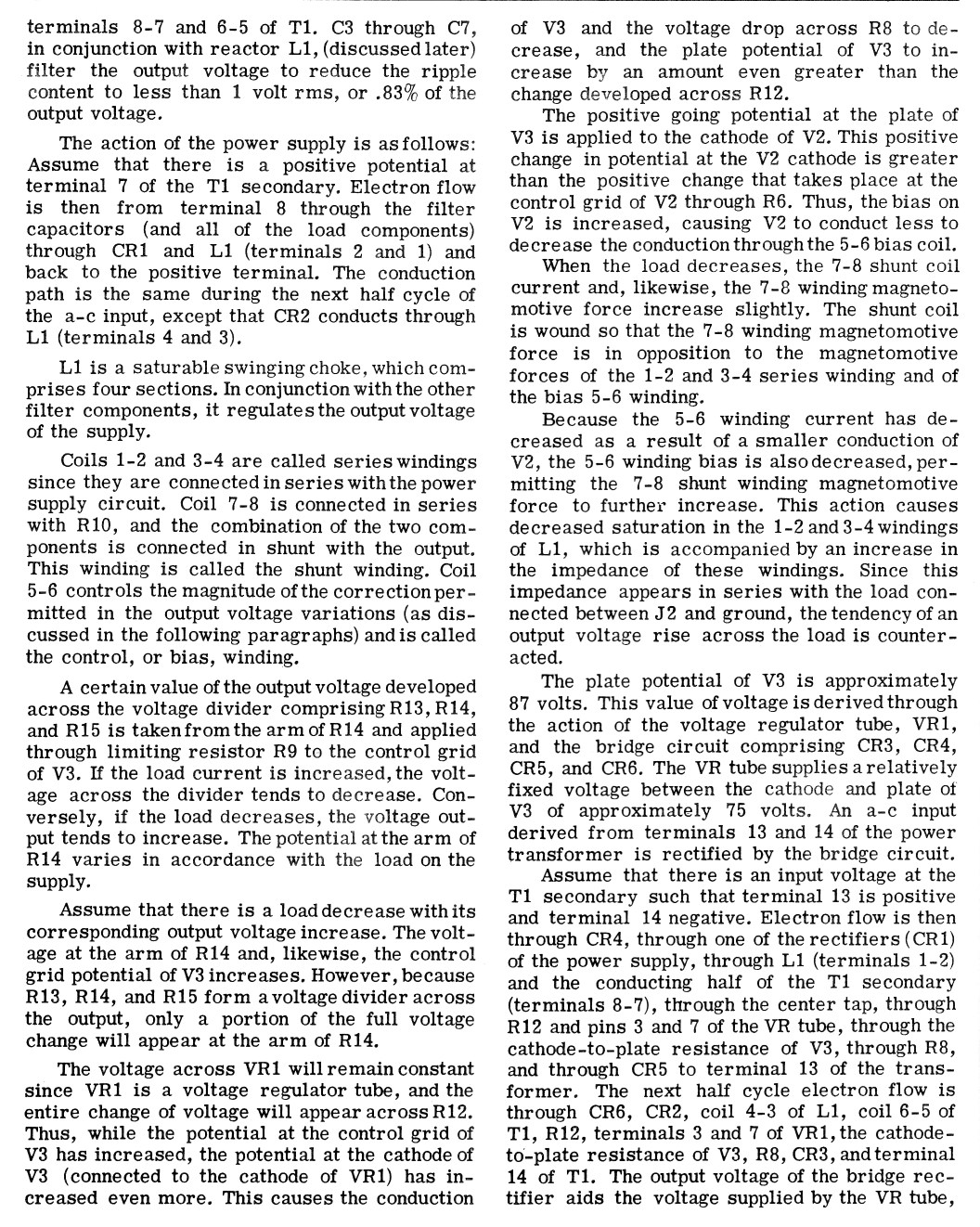

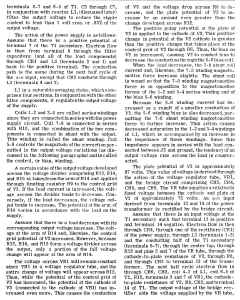

PP-765/U Loop Supply
PP-765A/U




375 lbs!

Manuf - Power Equipment Co.


NAVSHIPS 91557

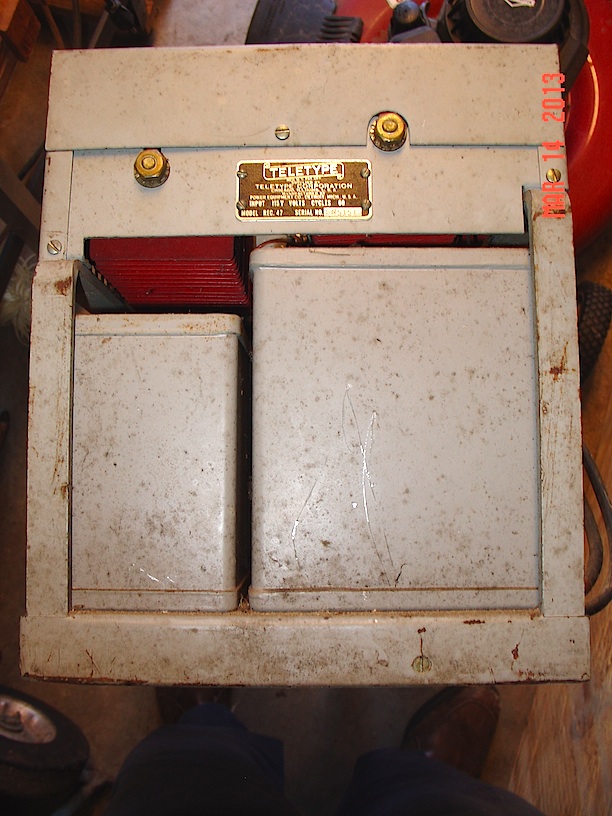

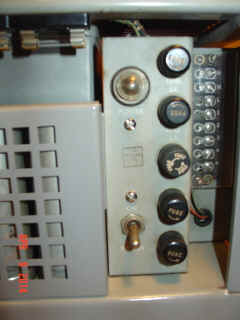

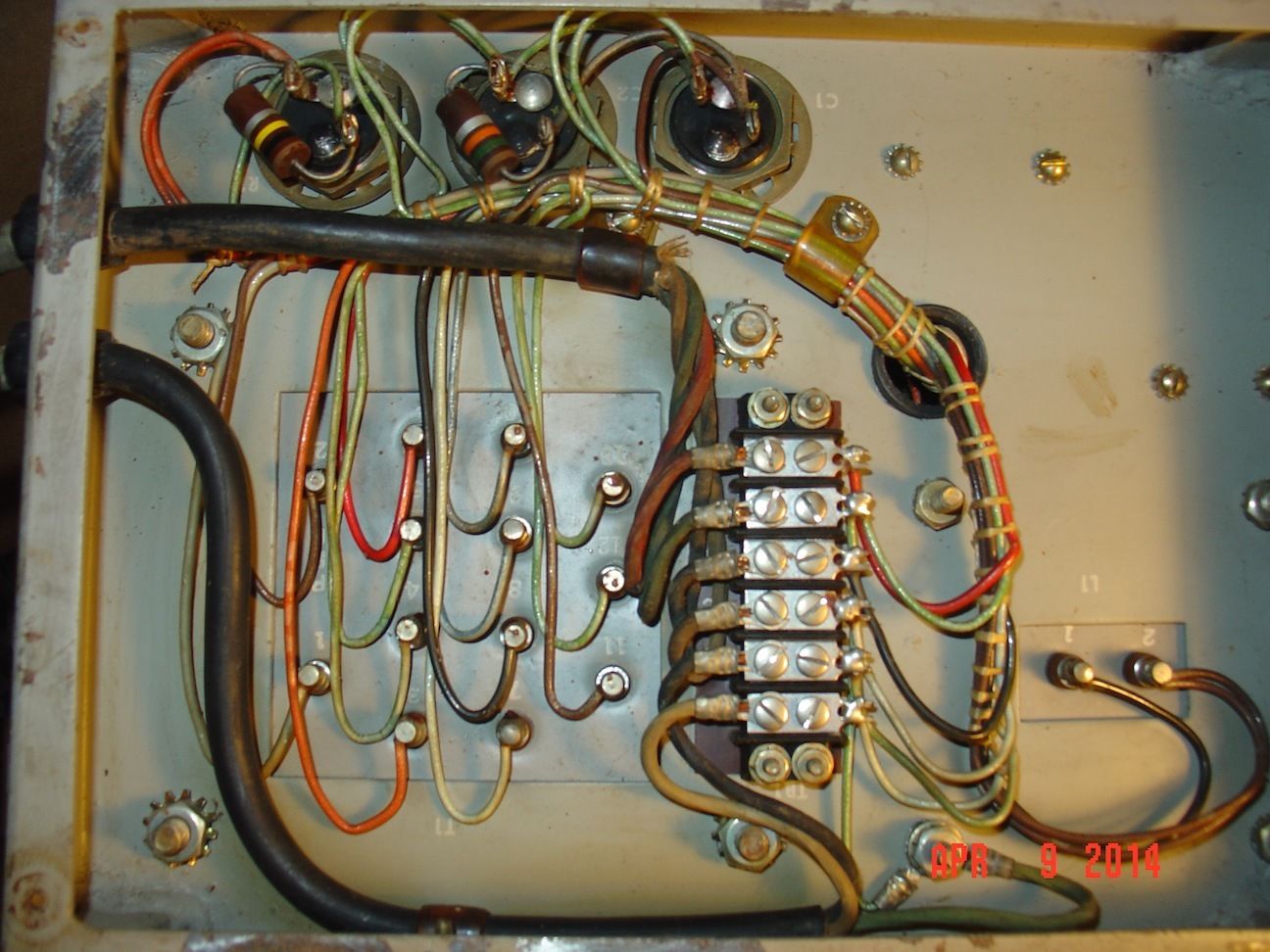

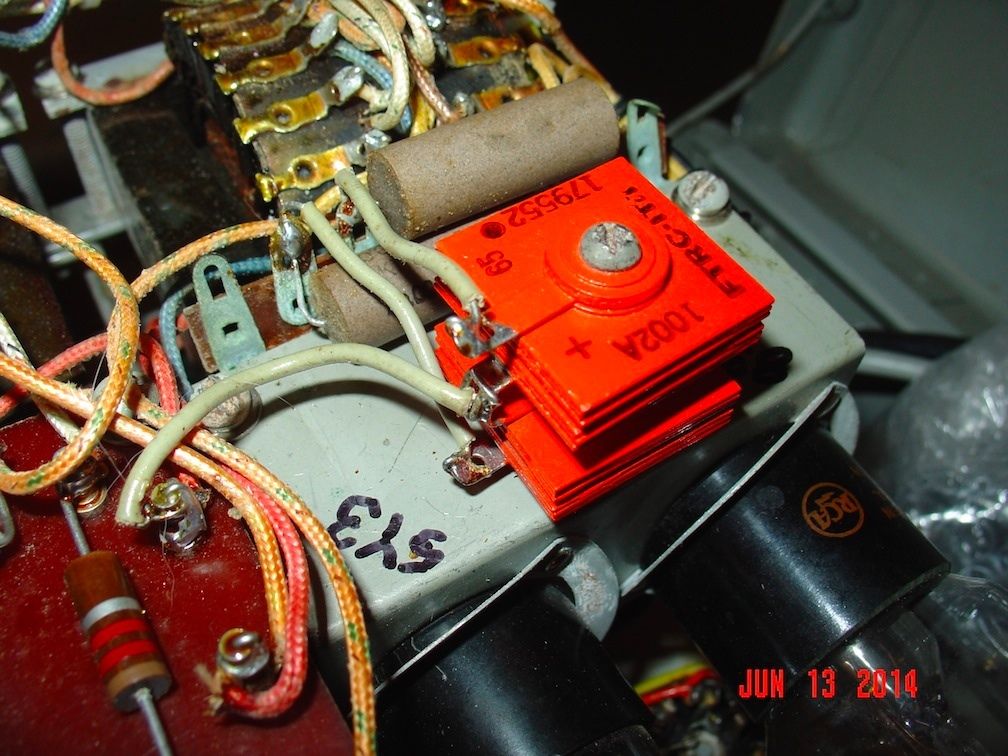

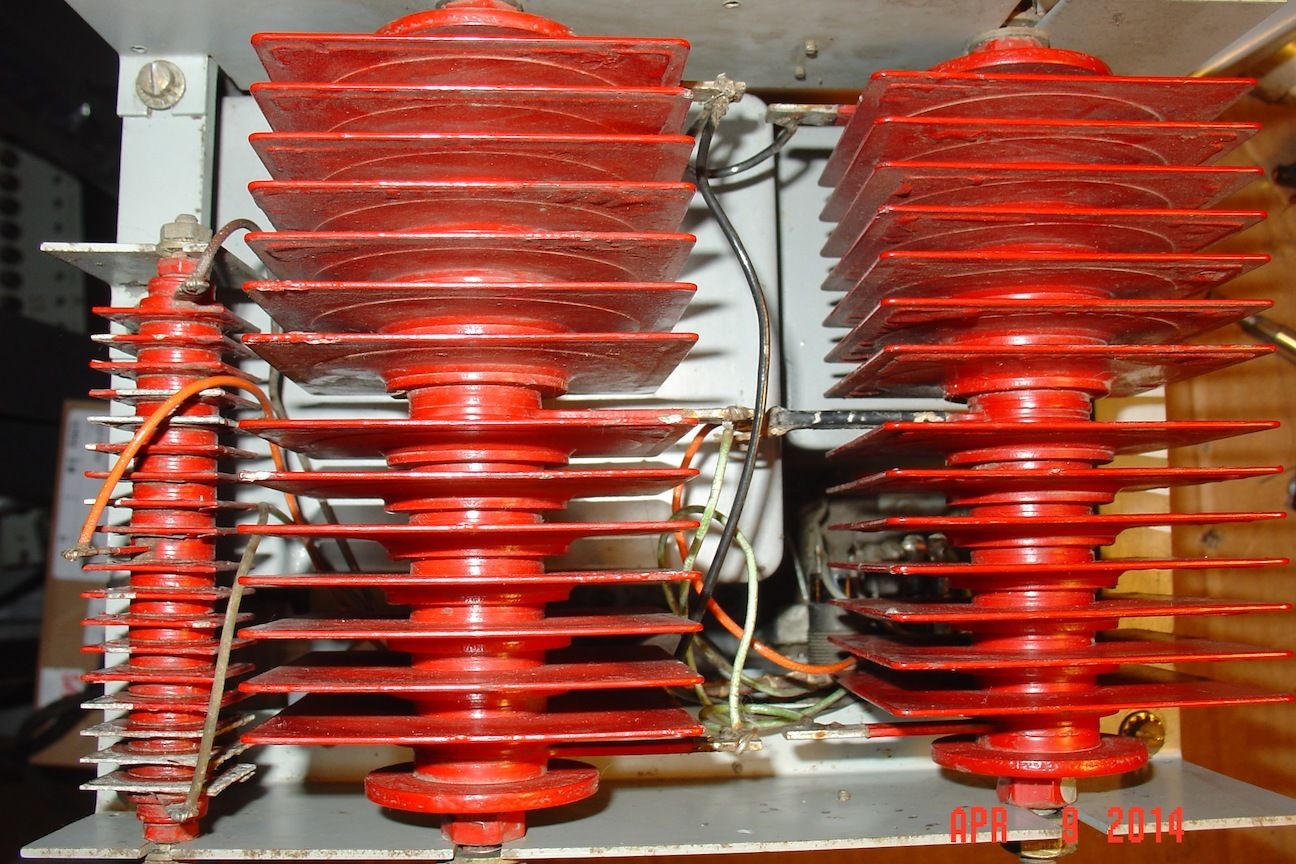

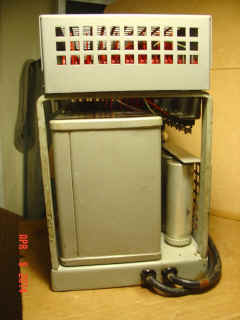

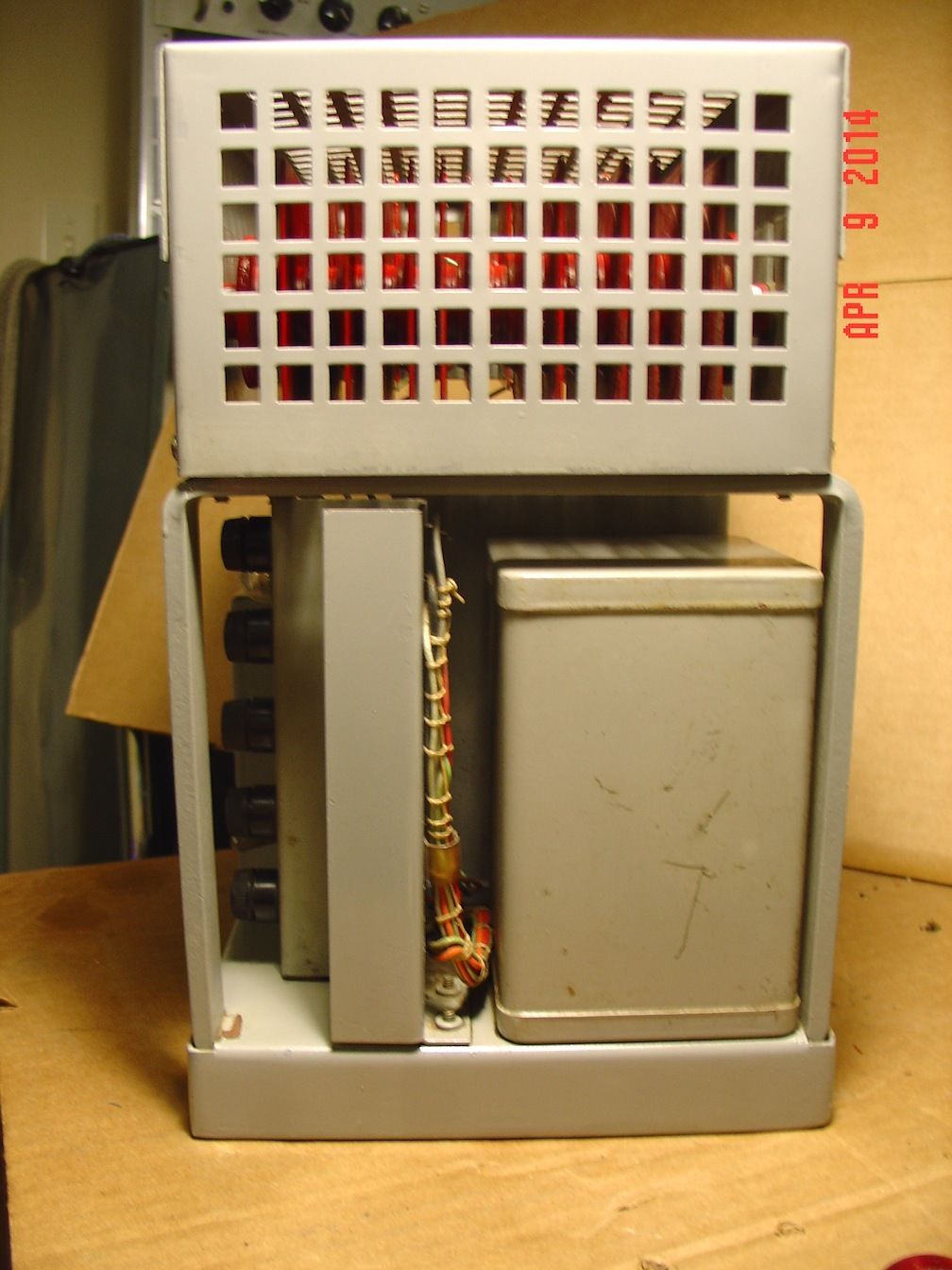

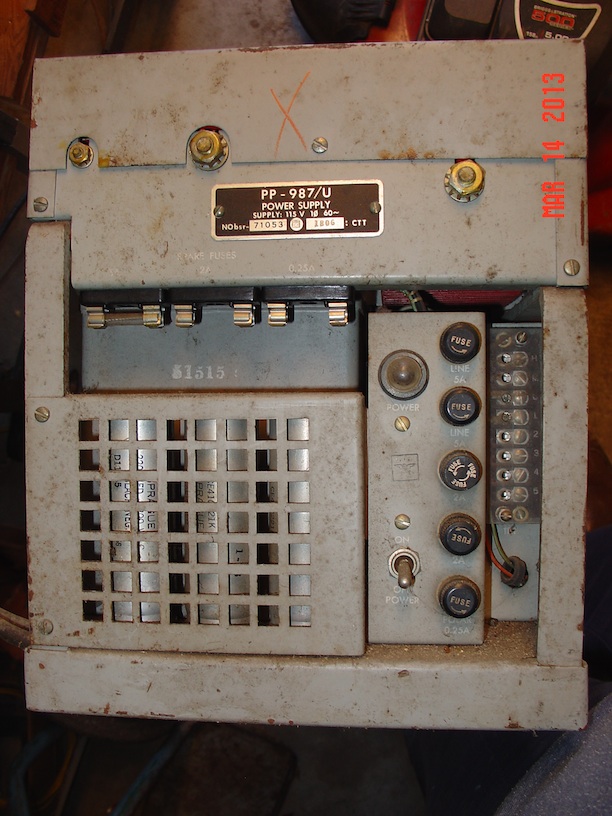

PP-987/U Tape Relay Equipment Supply

For AN/FGC-38, AN/UGC-10 etc.
Teletype Corp REC-47

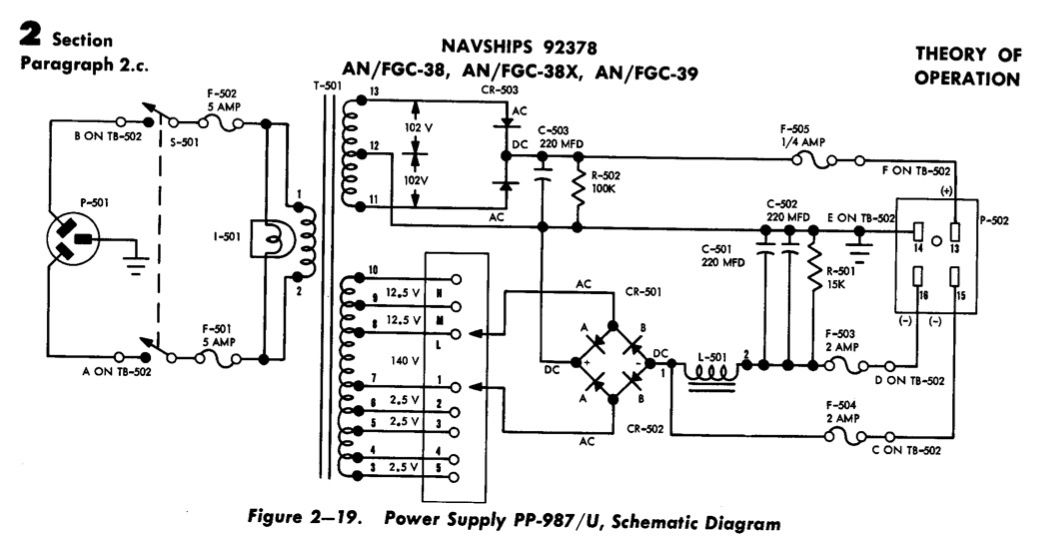

PP-987 pages from AN/FGC-38 manual

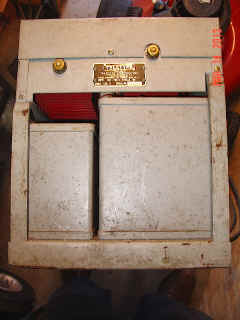

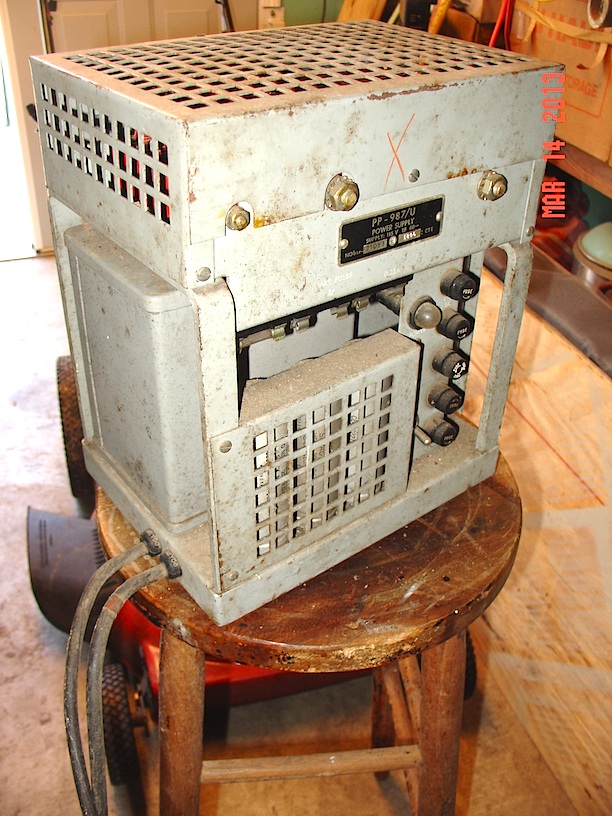

PP-987_1.jpg (179871 bytes) PP-987_4.jpg (184810 bytes) PP-987_5.jpg (225989 bytes) pp987-1409-02.JPG (137647 bytes)



PP-1010/UG Loop Supply


PP-1011/UG Loop Supply


Please let me know if you have one of these for sale or trade

--

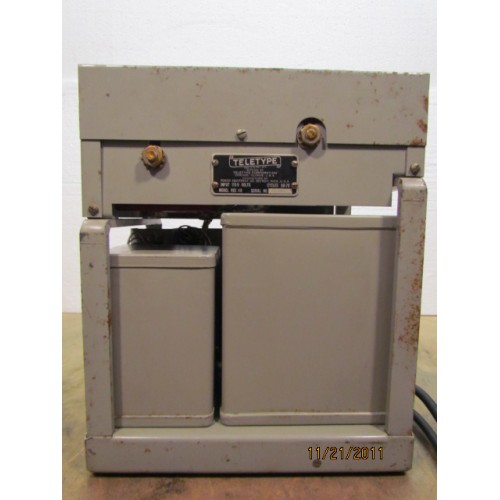

PP-1479/FGC Supply

Need more info!

PP-1646/UG Loop Supply
PP-1646A/UG
PP-1646B/UG


Please let me know if you have one of these for sale or trade

--

PP-1767/UG Loop Supply

1 ea. 120vdc (1 amp) output
2 ea. 60 ma loop outputs
1 ea. 6vac output


Used in AN/SGA-3 crypto system
Teletype model REC-49



Looking for a manual - please send email if you can help

PP-1767A/UG

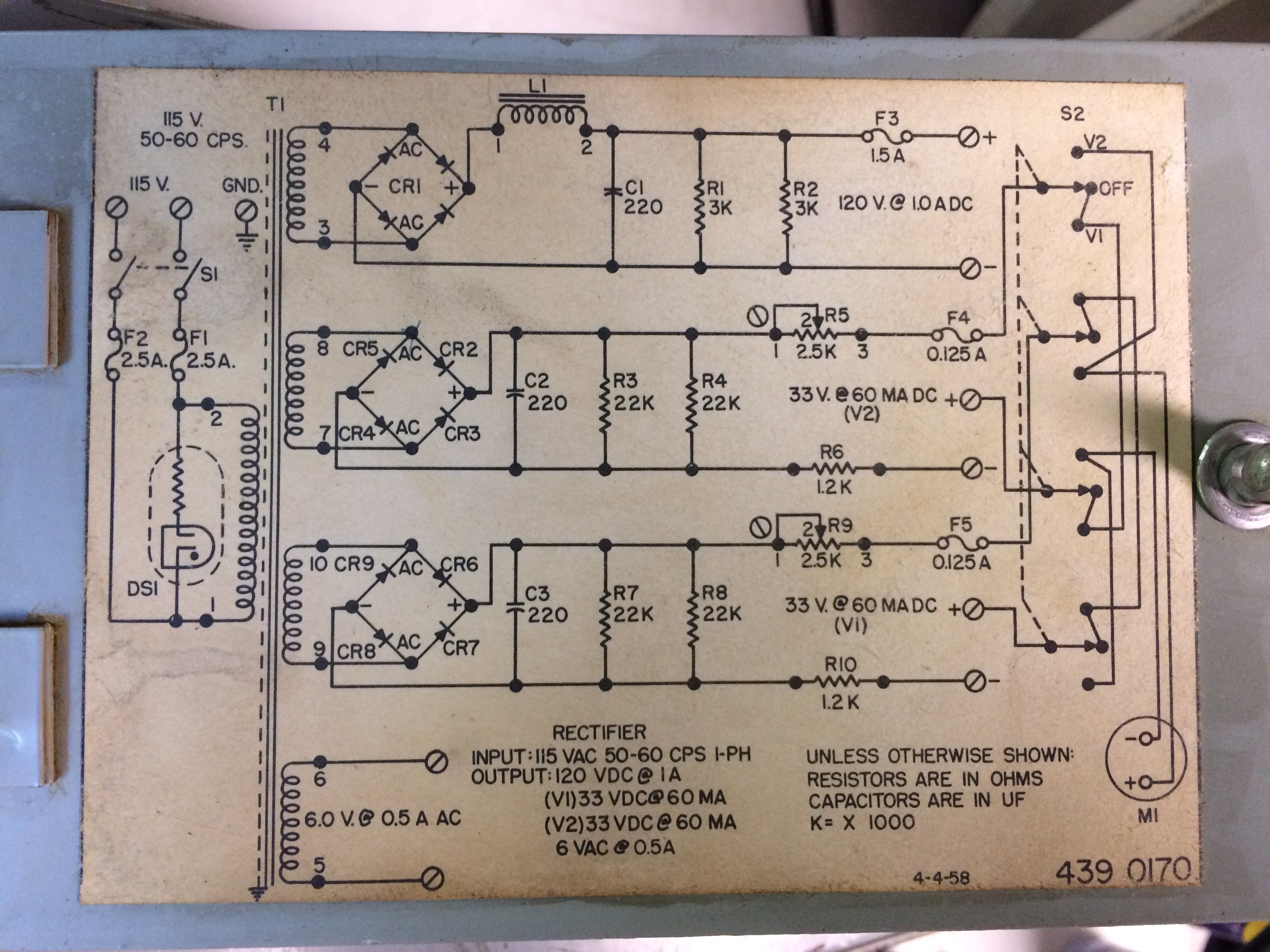

PP-1767B/UG Loop Supply

1 ea. 120vdc (1 amp) output
2 ea. 60 ma loop outputs
1 ea. 6vac output

Magnetic amp regulation.



Provides loop power for patch panel

40 lbs (!)

PP-1767A Manuf by Digital Electronics Inc

1767A - NAVSHIPS 0967-068-6010
download 1.4MB pdf

1767B - NAVSHIPS 0967-299-3010
download 1MB pdf

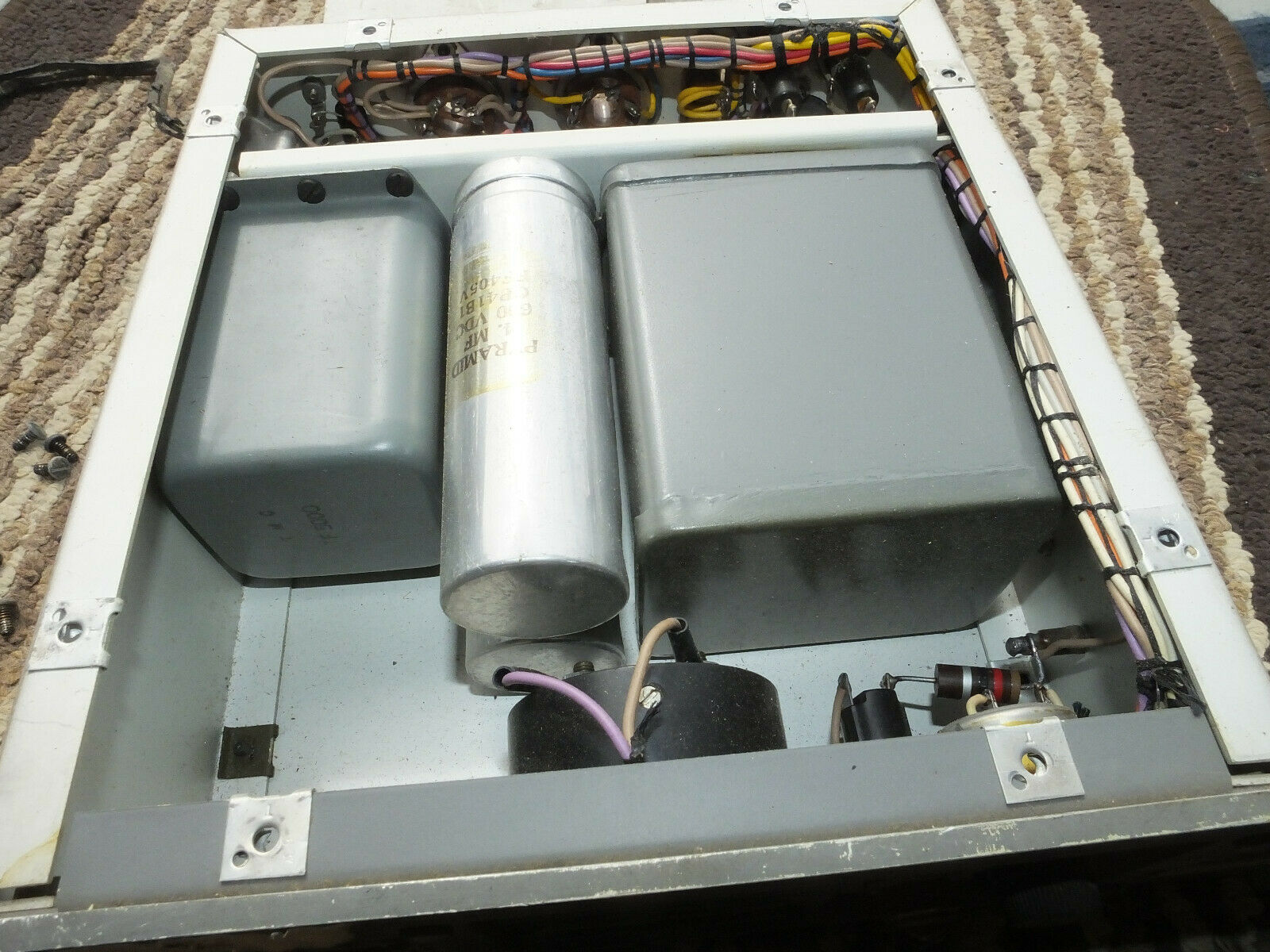

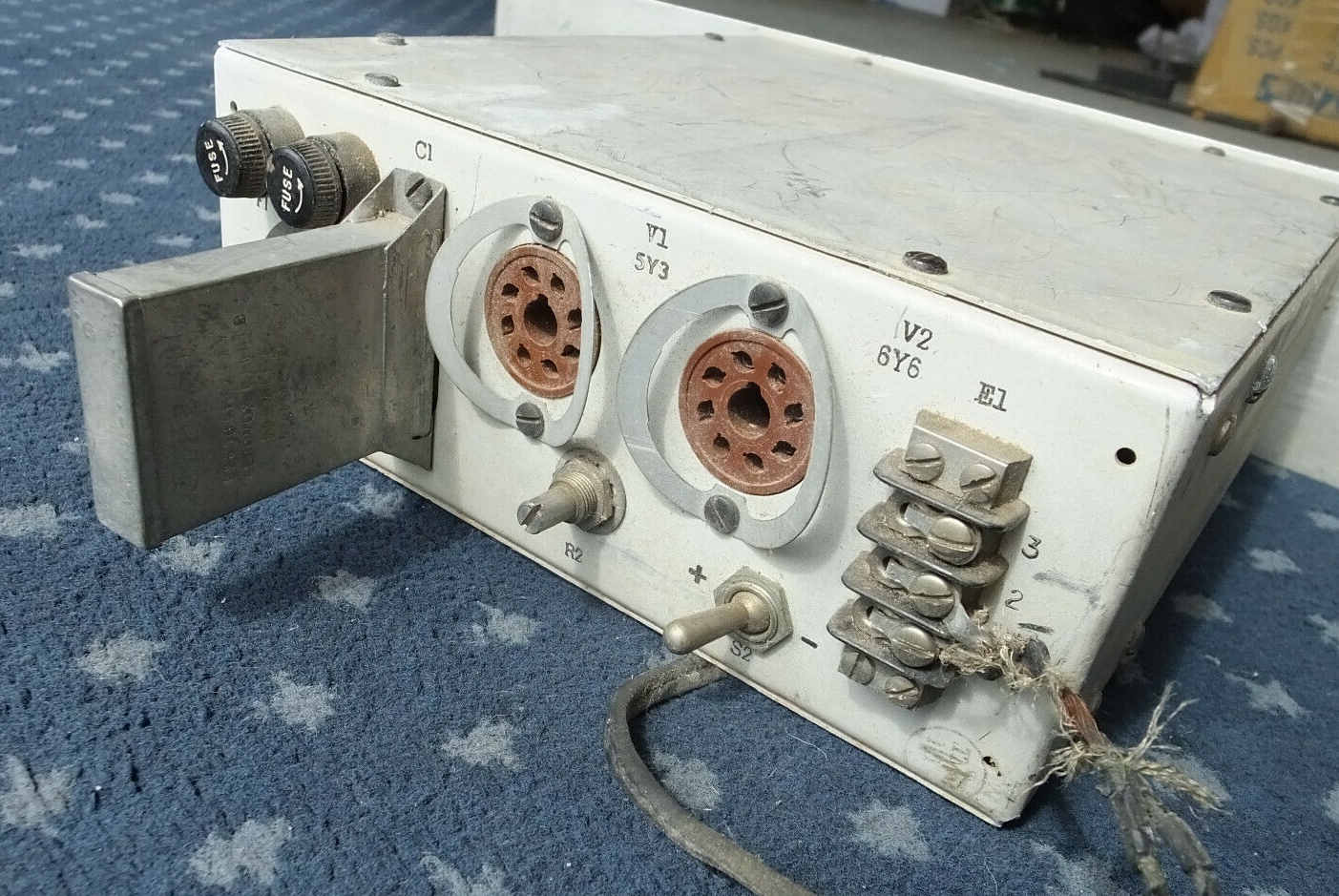

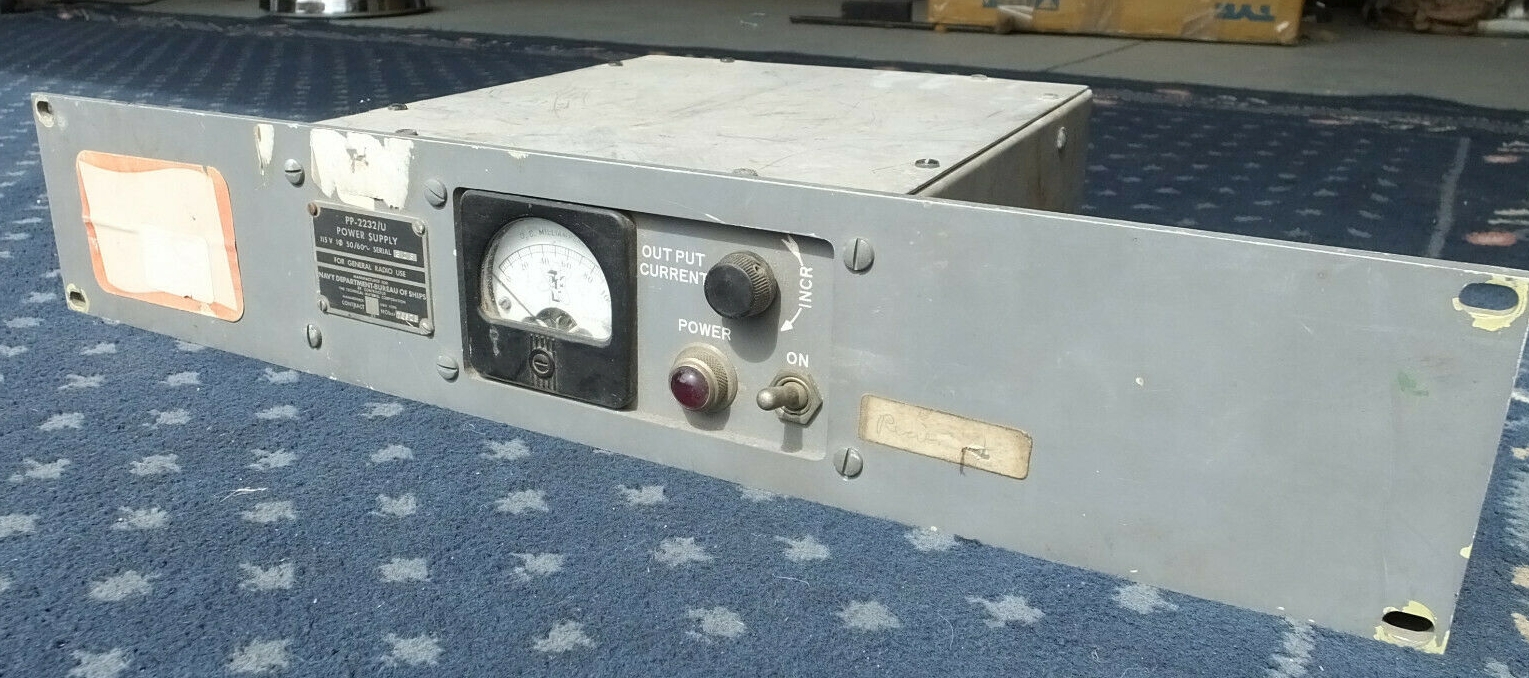

PP-2232/U Loop Supply
PP-3096/U Loop Supply


 Manual for TMC PSP-1/2 used in Comm Stations

Please let me know if you have one of these for sale or trade

Technical Materiel Corp. (TMC) -

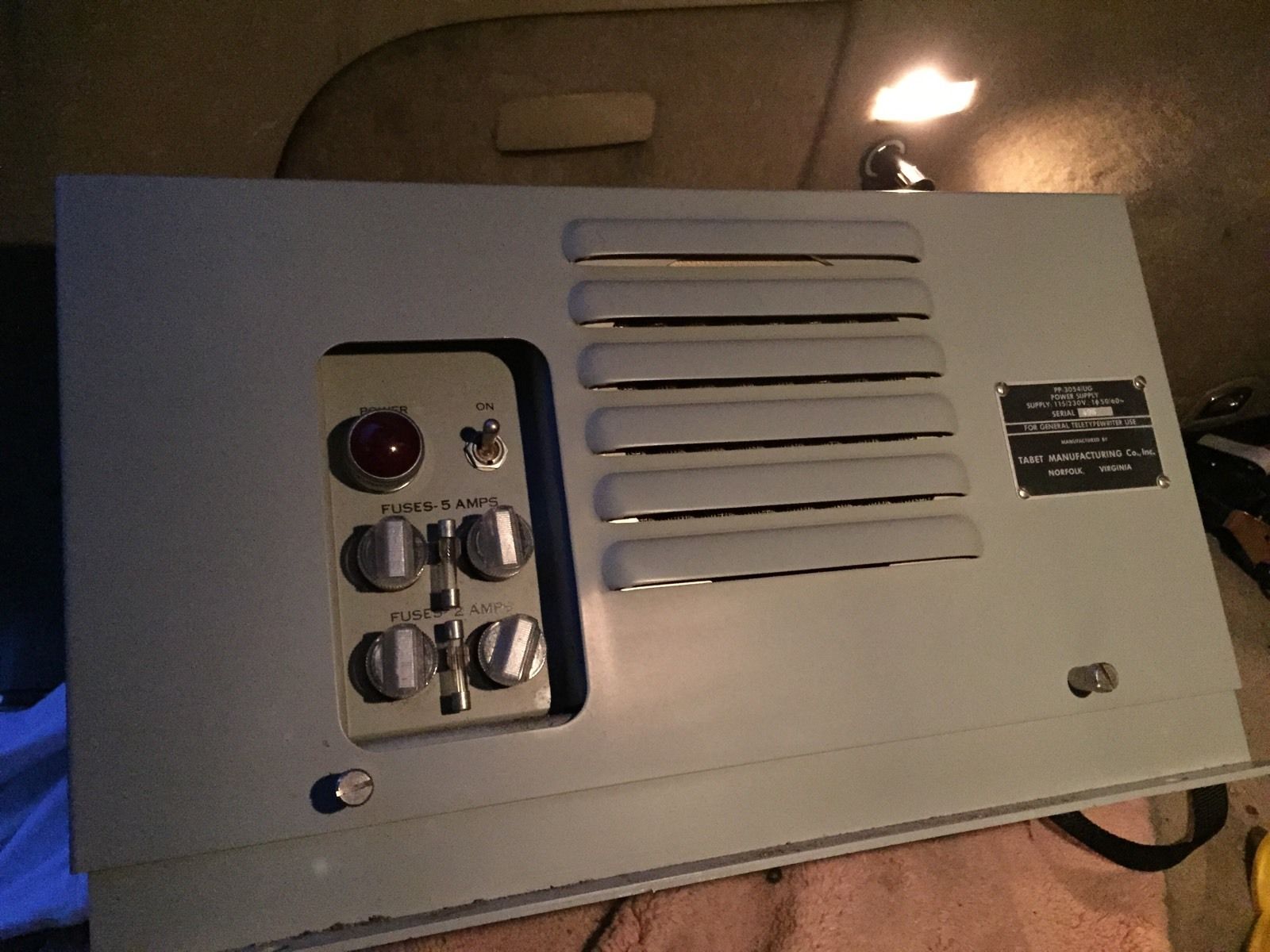

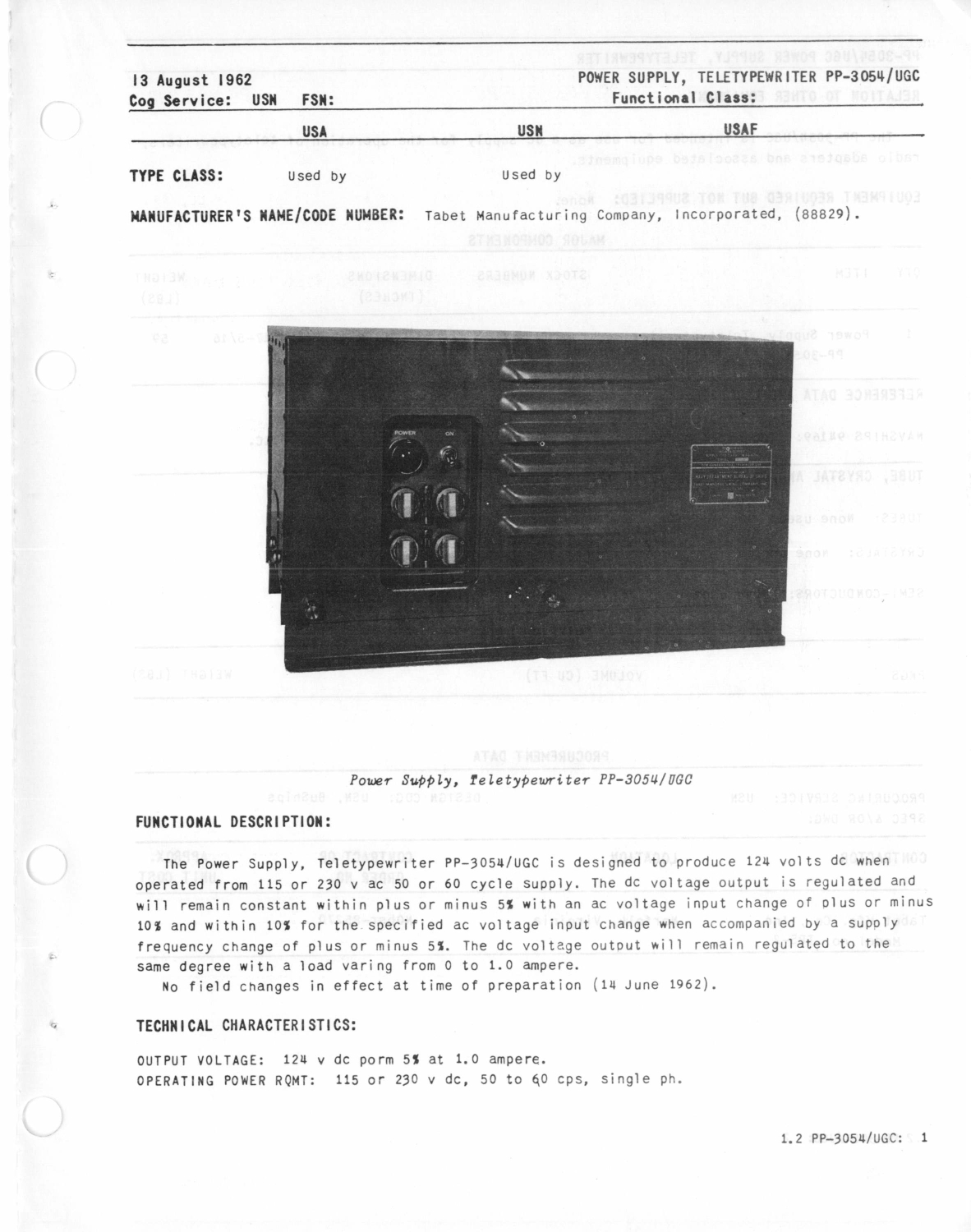

PP-3054/UGC Loop Supply


Tabet Mfg. Co. Inc..

NAVSHIPS 94169
download 1.3MB pdf

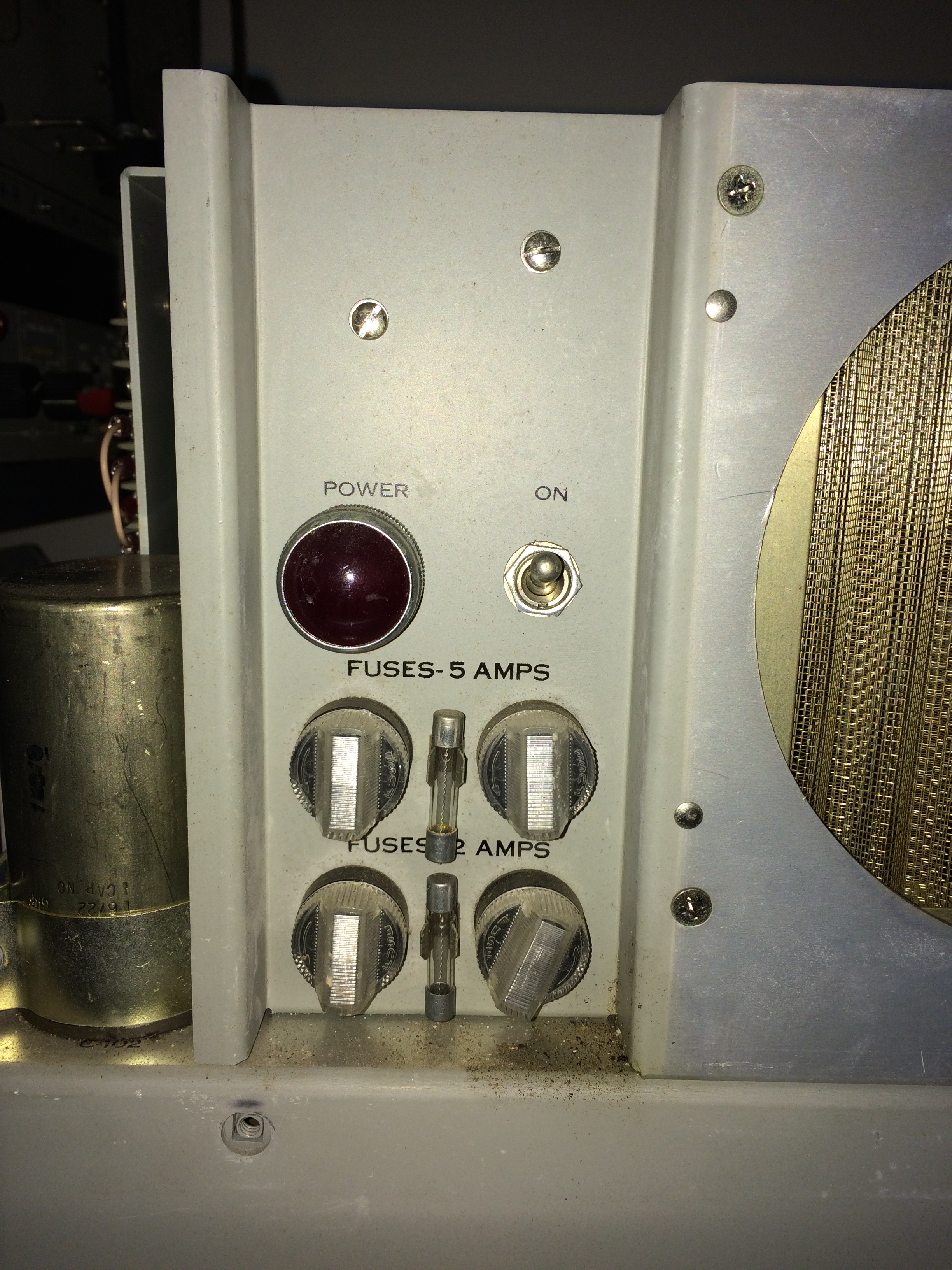

IMG_8336.JPG (2045728 bytes) IMG_8337.JPG (2059344 bytes) IMG_8338.JPG (1286268 bytes) IMG_8340.JPG (2598515 bytes)

PP-3494/UG Loop Supply
PP-3494A/UG

regulated 0.4A, 48vdc or 120vdc supply

PP-3494A/UG manual
    - NAVSHIPS 94971

Uses "magnetic amplifier" for regulation --

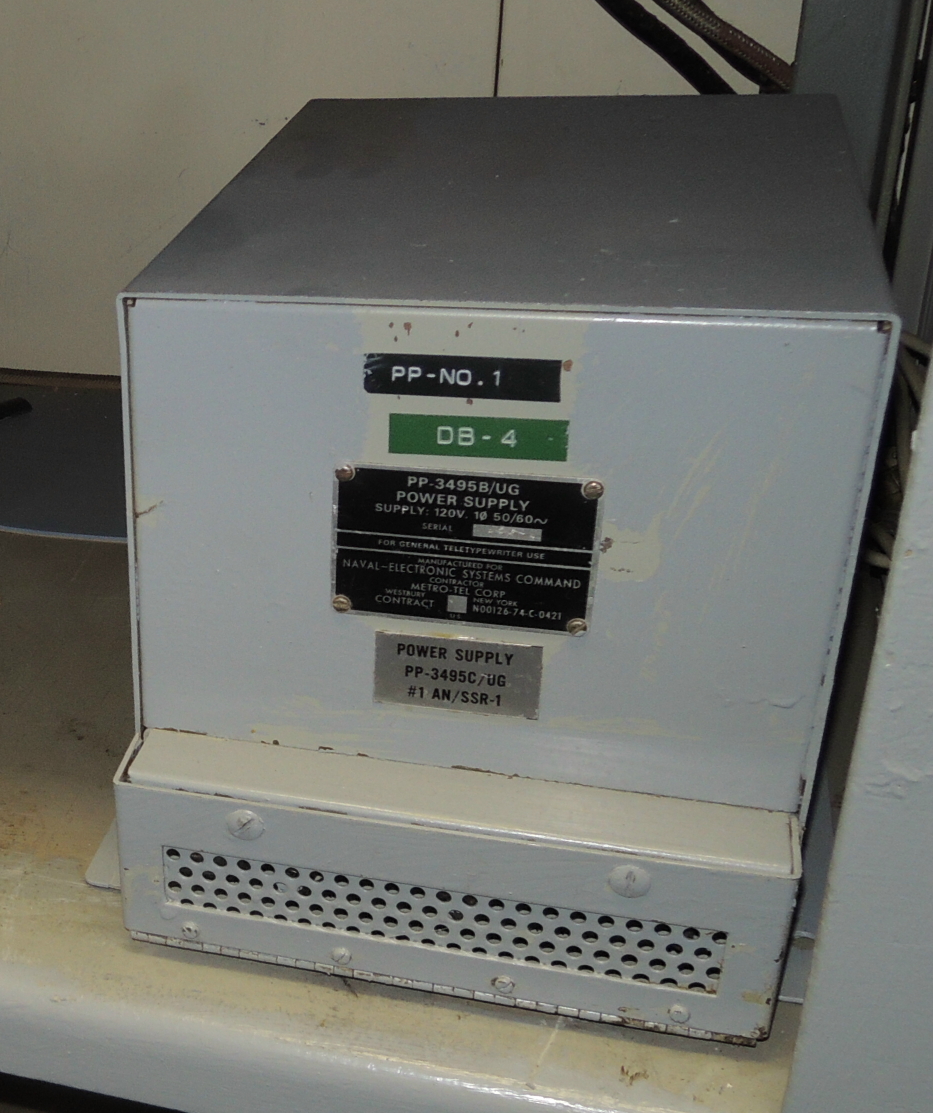

PP-3495/UG  Loop Supply
Seen aboard USS Midway

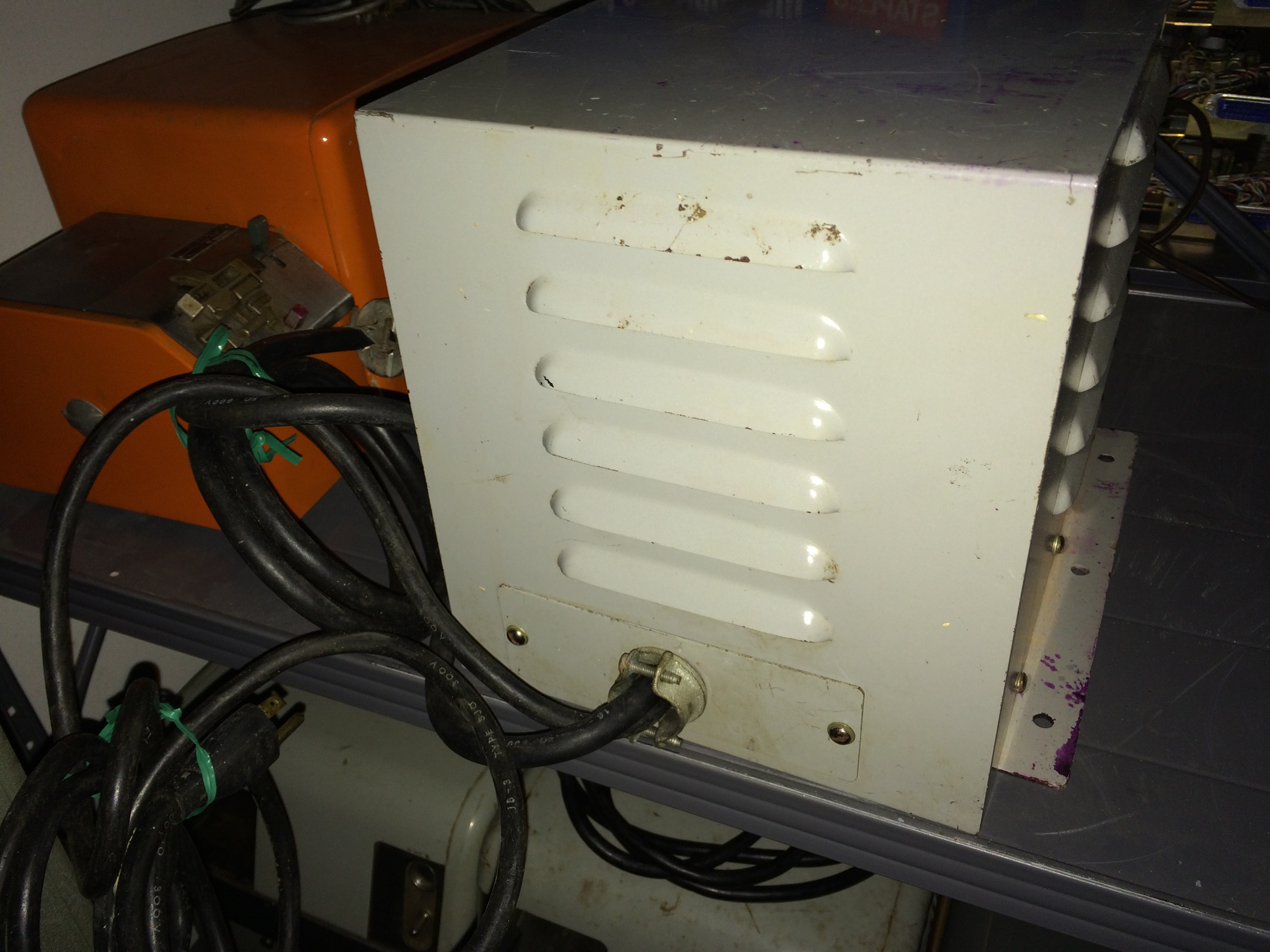

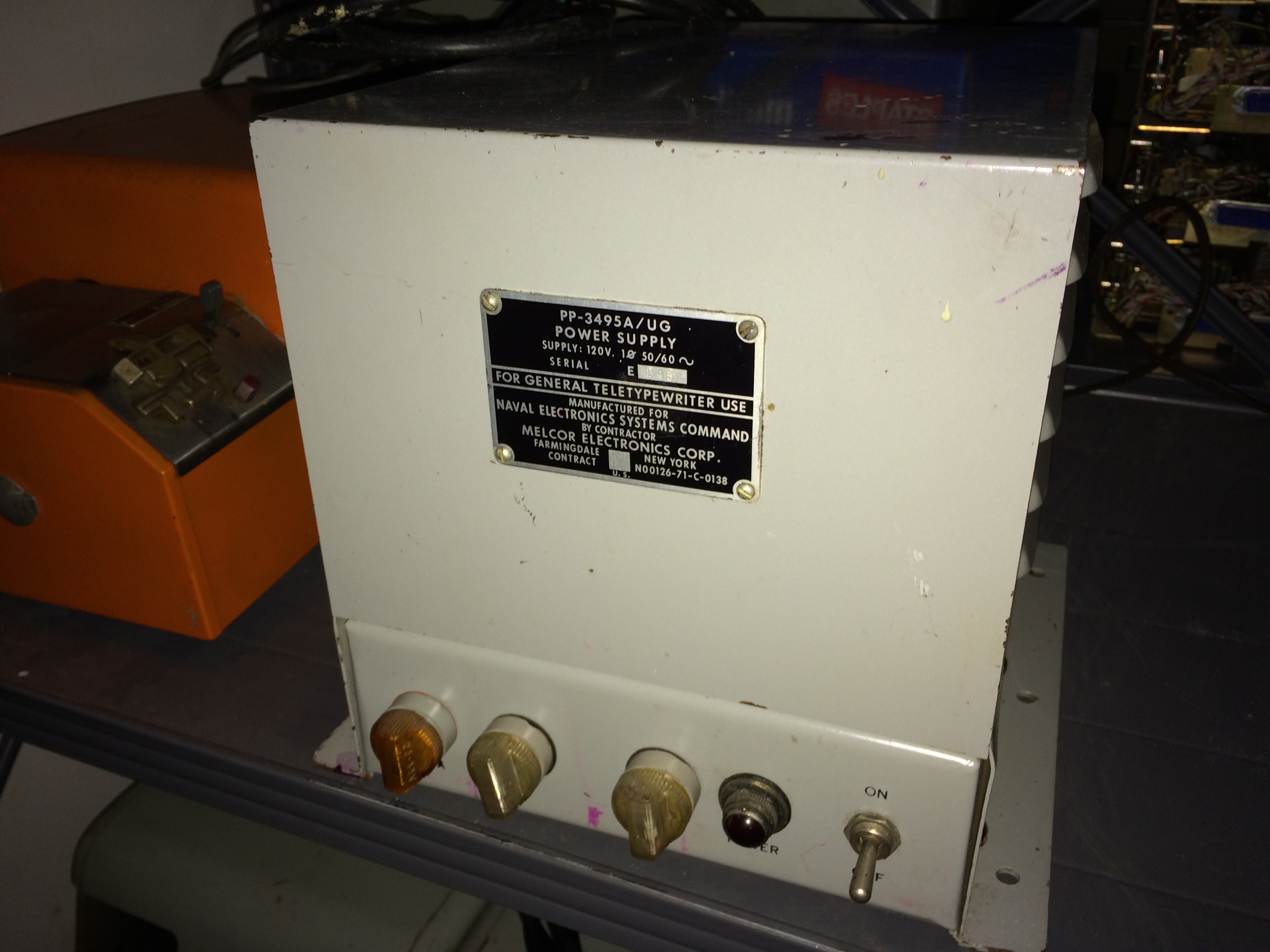

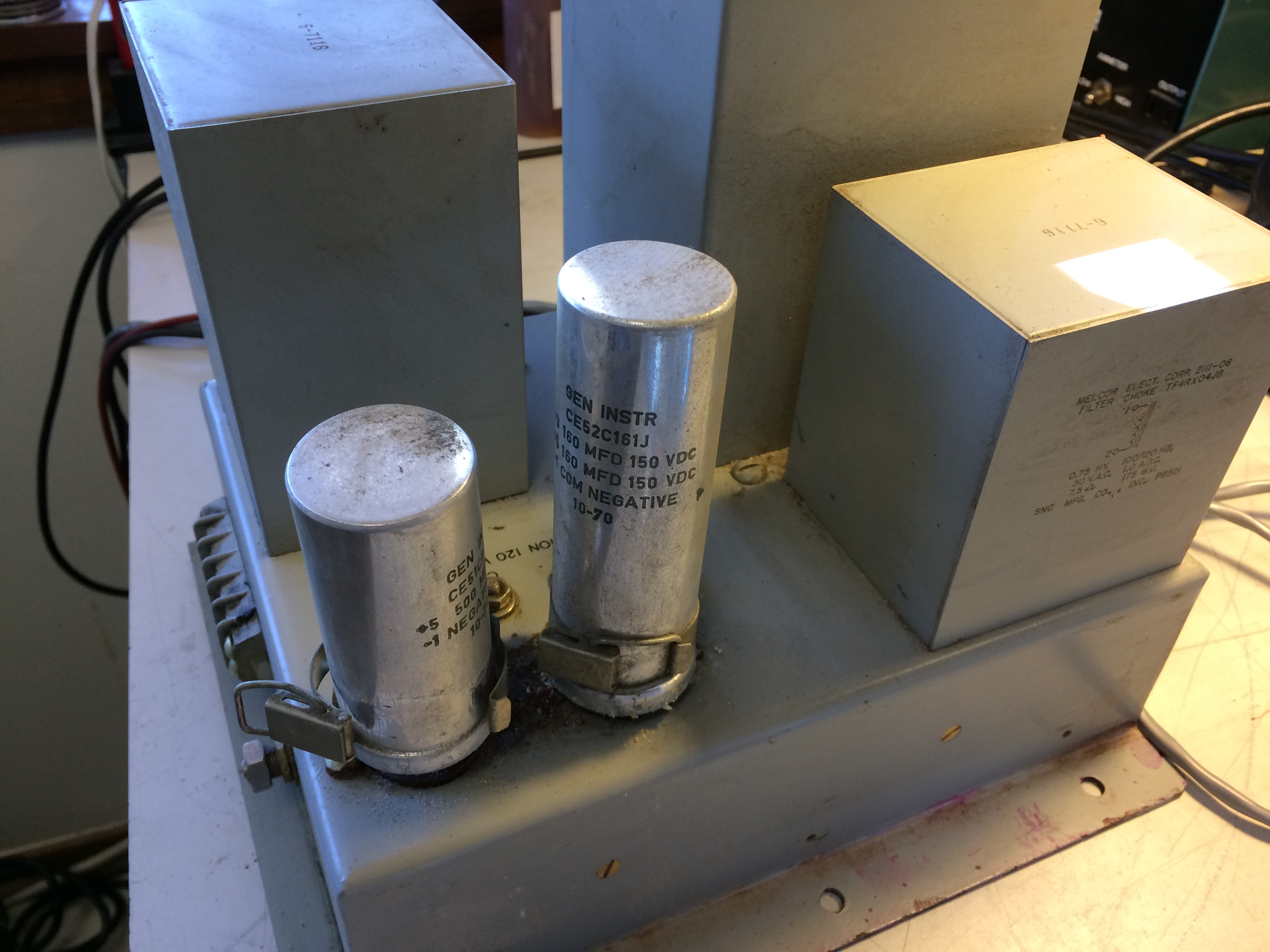

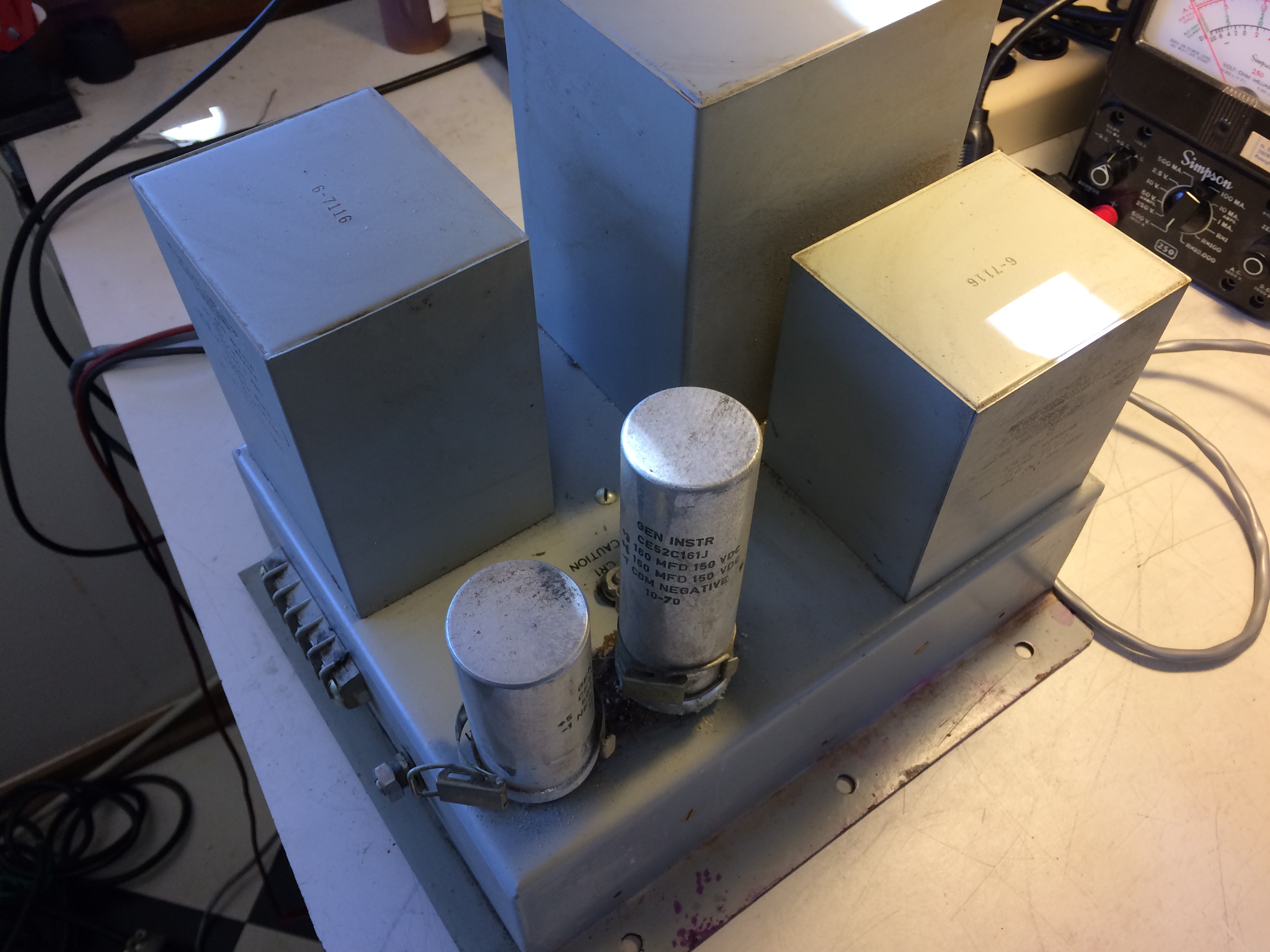

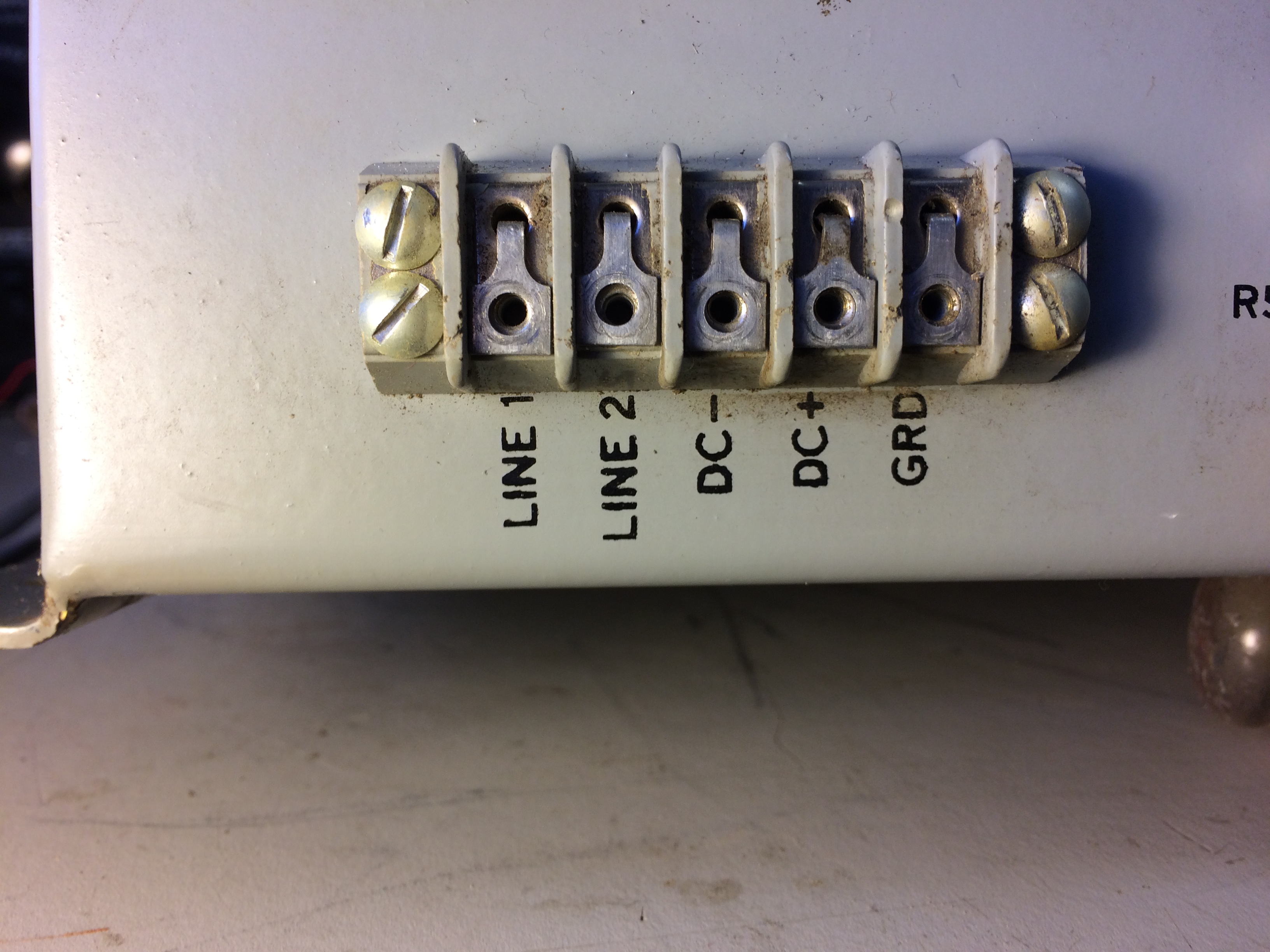

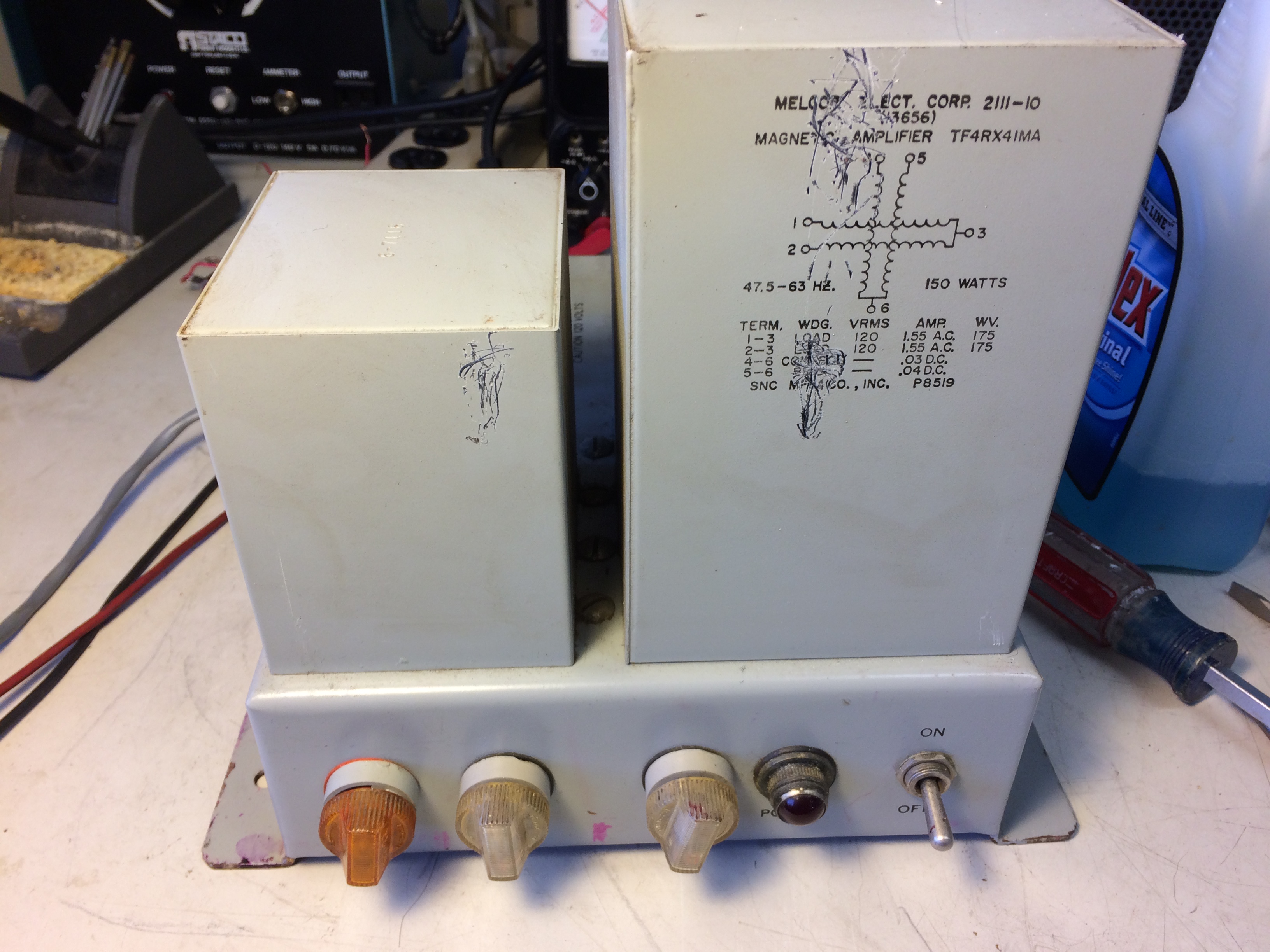

PP-3495A/UG Loop Supply

I need more info - appears almost the same as PP-3494A except 1A.


Please let me know if you have a copy of the manual, NAVSHIPS 94972 (0967-425-1010)

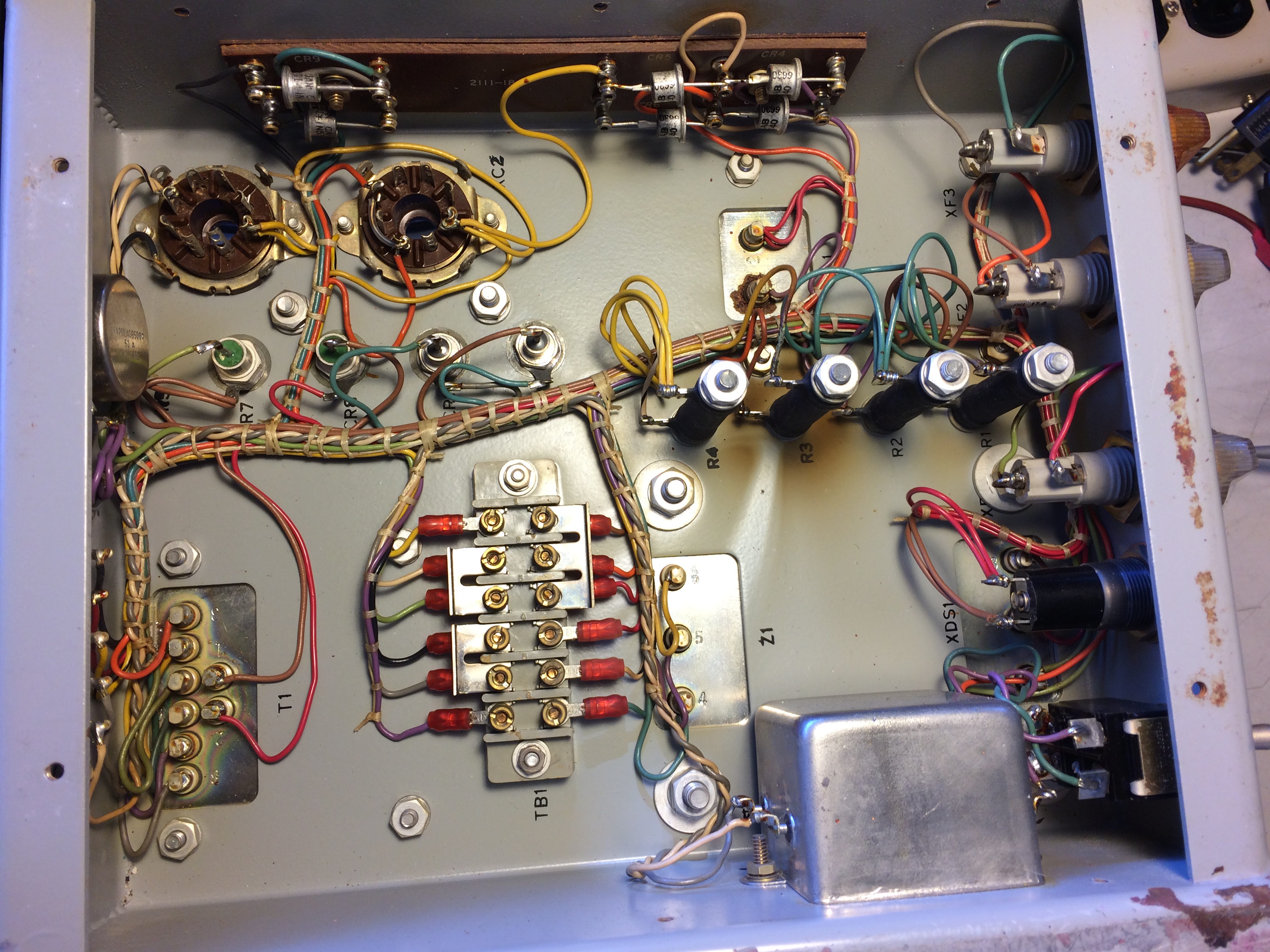

pp3495-1834.JPG (1597408 bytes) pp3495-1835.JPG (1696563 bytes) pp3495-1831.JPG (2365569 bytes) pp3495-1832.JPG (1963306 bytes)

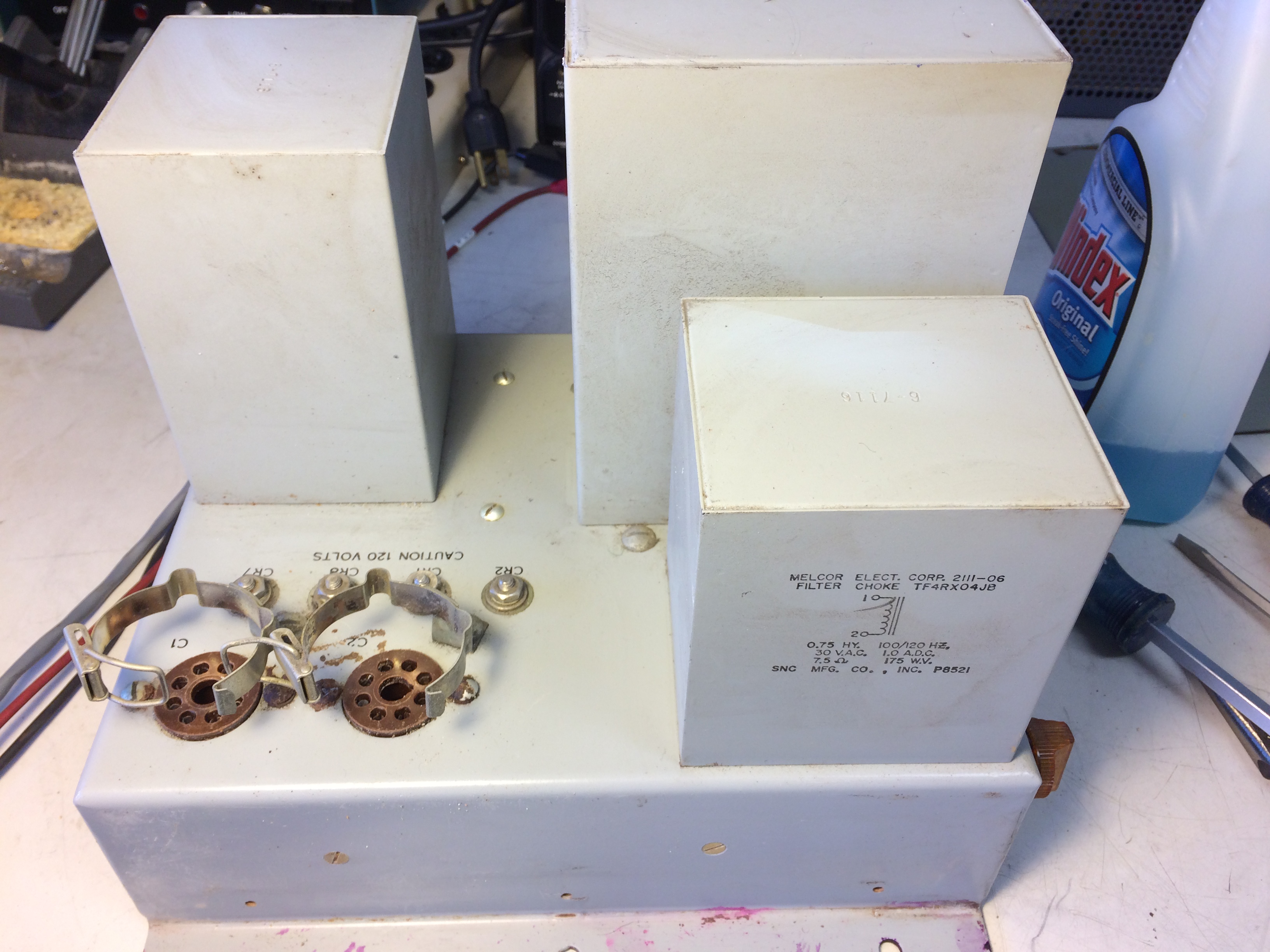

pp3495-1830.JPG (1346508 bytes) pp3495-1829.JPG (1334055 bytes) pp3495-1833.JPG (1524374 bytes) pp3495-1836.JPG (1585799 bytes)

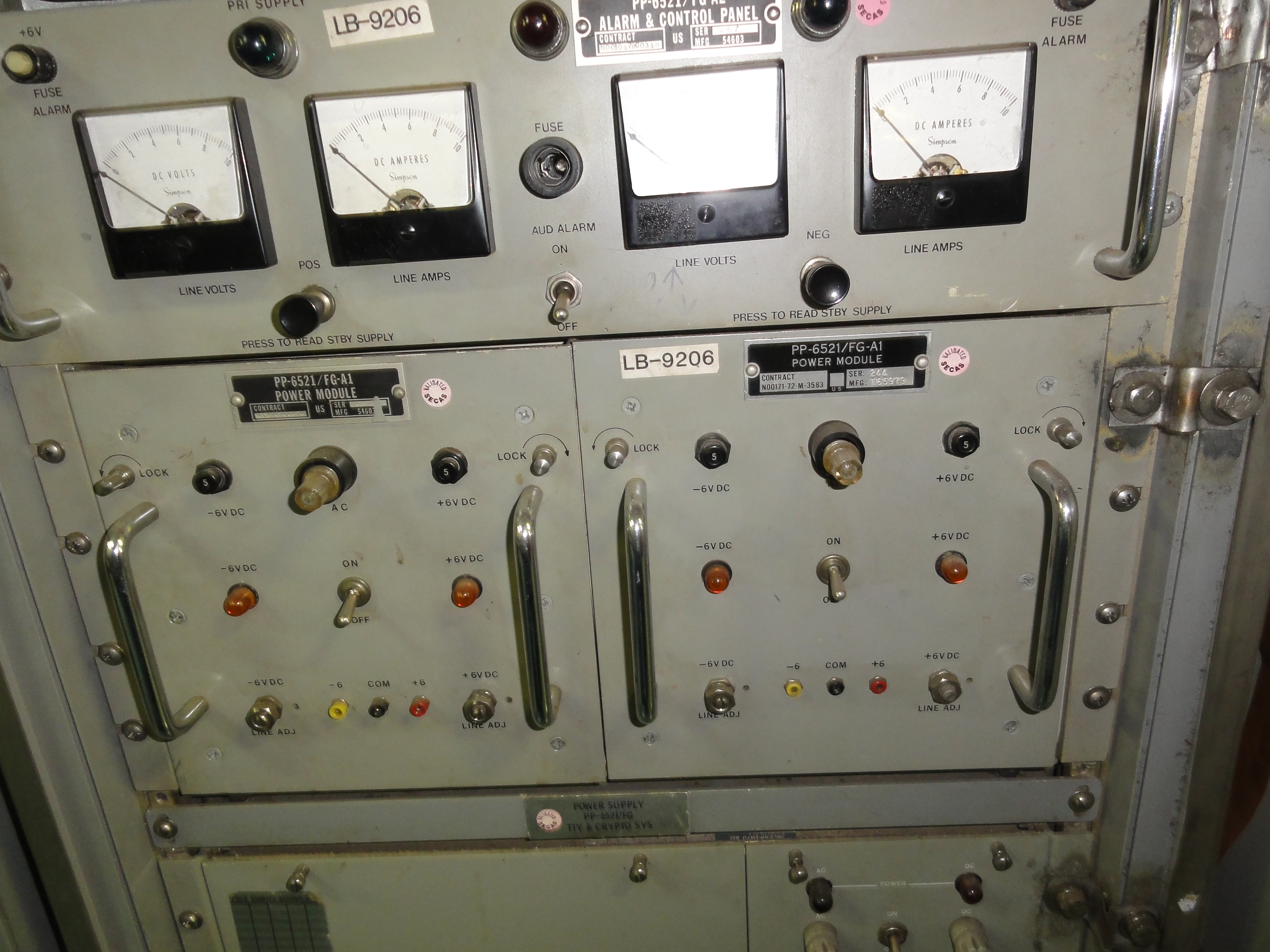

PP-6521/FGC low-level TTY power supplies

PP-6521 aboard USS Iowa
PP-6521/FGC alarm & control panel
for +/- 6v signals

More info in NAVSHIPS 0967-391-6010

download 38 MB pdf
