National AN/FRR-24 and AN/FRR-37 Receiver - Restoration

This project got started when I acquired a couple of modules at the Shelby hamfest in 2006 and was intrigued by their design. As usual, one thing led to another, and in February 2007 I obtained most of the modules for one FRR-24 receiver rack. In August 2007 I obtained two more complete FRR-37 receiver racks. And in 2008 I acquired several more FRR-24 receiver racks. Along the way, I also accumulated a couple of AN/FRR-59 receivers, some RTTY gear, etc. This is obviously a project in progress (and out of control!) - see here

I am still looking for some missing FRR-24 modules, particularly two Rack 4 power supplies (PP-648 and PP-649), and two CV-127 FSK converters.

9/07 -Restoration begins
- with helper
11/07 - The FRR-24 works for the first time!1207-racks-01.JPG (61269 bytes)
12/07 - Operating position
12/07 Operating position
Left Rack

LS-530 speaker
FRR-31 rcvr
FRR-59 rcvr
CV-89A RTTY conv.
FRR-49 rcvr
SB-3576/UG  patch panel
Right Rack
FRR-24 rcvr
(rack 1 only so far)
FRR-24 power and signal connections on rear

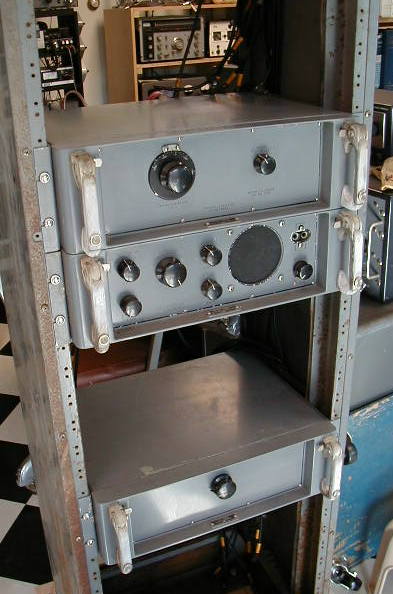

first modules mounted

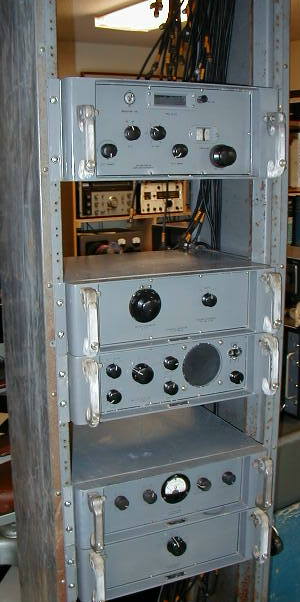

additional modules mounted

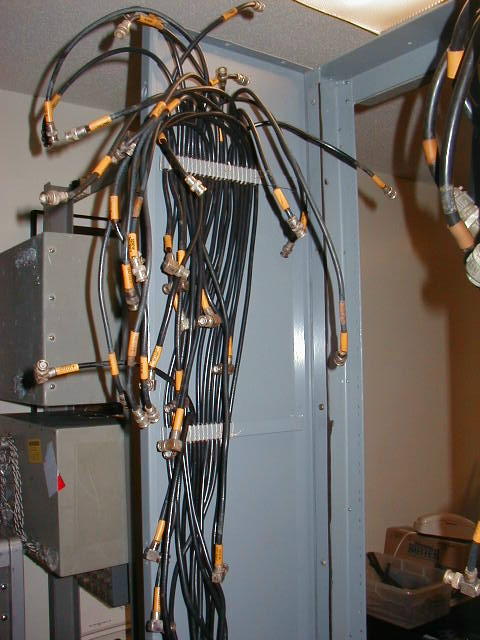

BNC cables in rear - before attachment

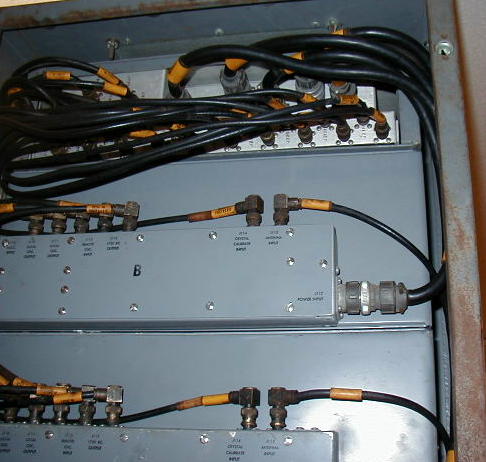

BNC cables in rear - attached

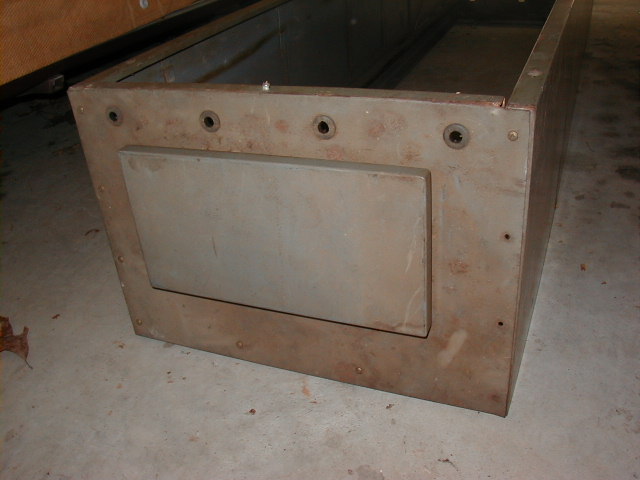

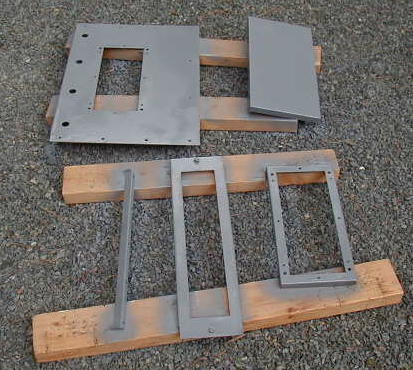

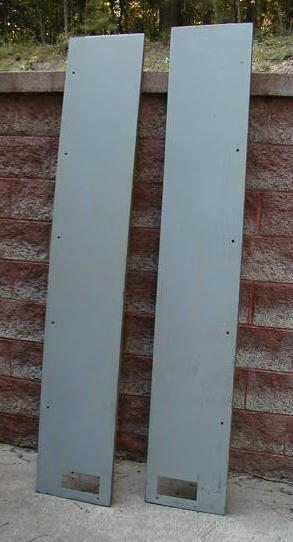

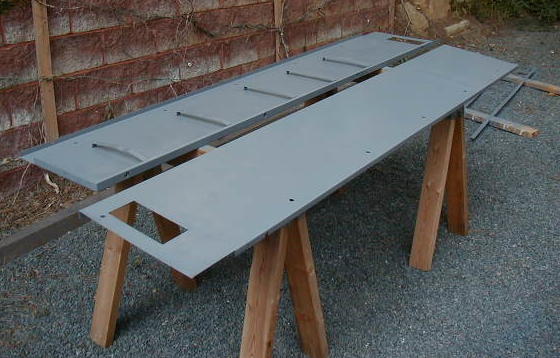

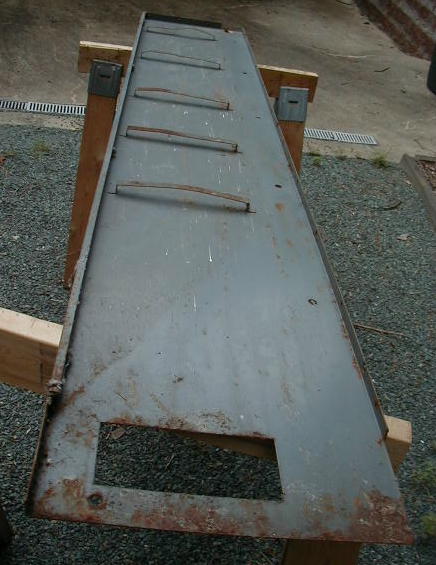

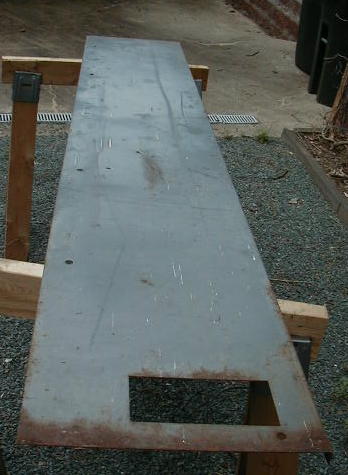

8/08 REFURBISHING - Preparing 4 racks -  cleaning/painting

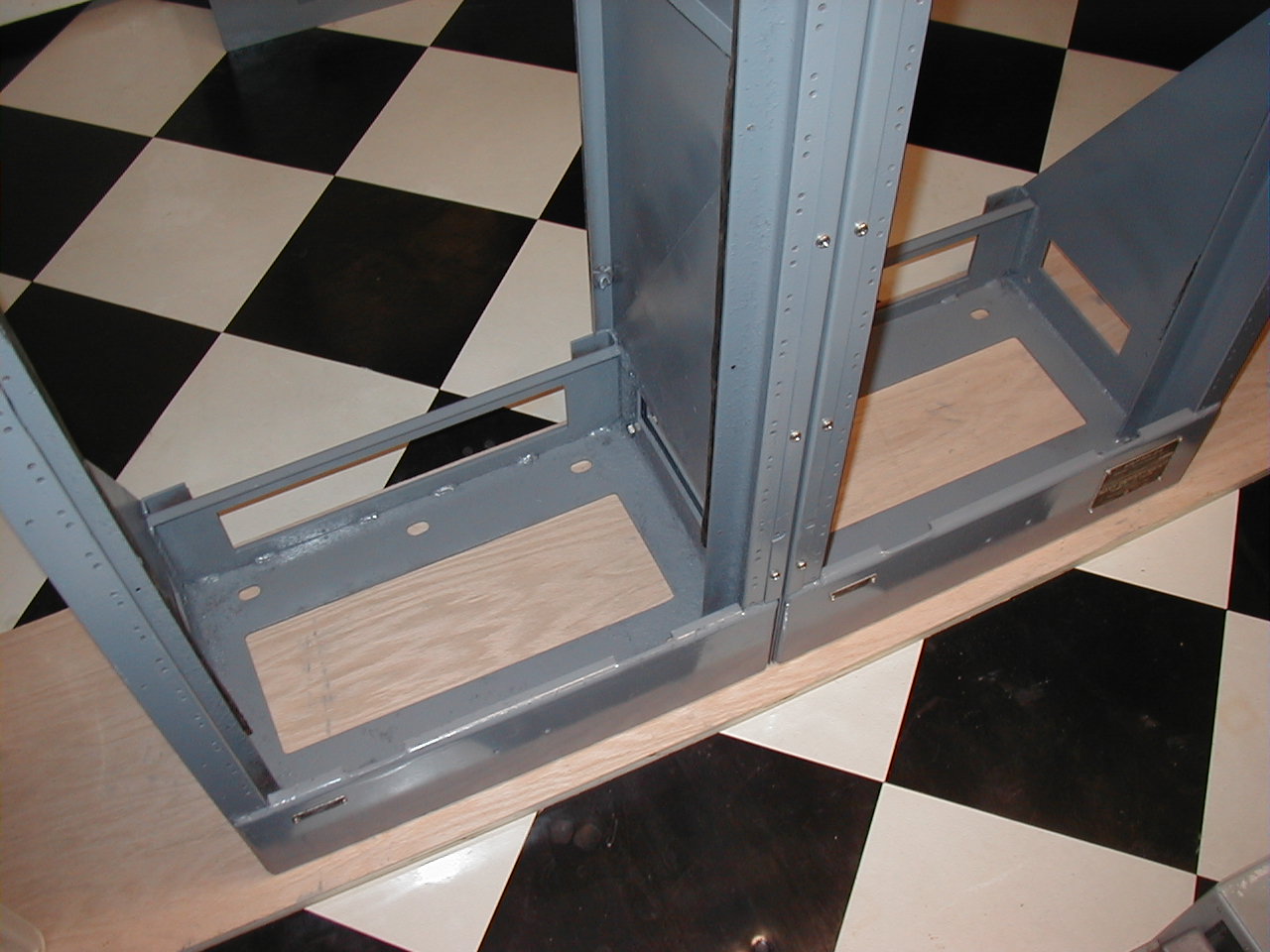

racks 1, 2, & 3 ready for reassembly - rack 4 acquired later

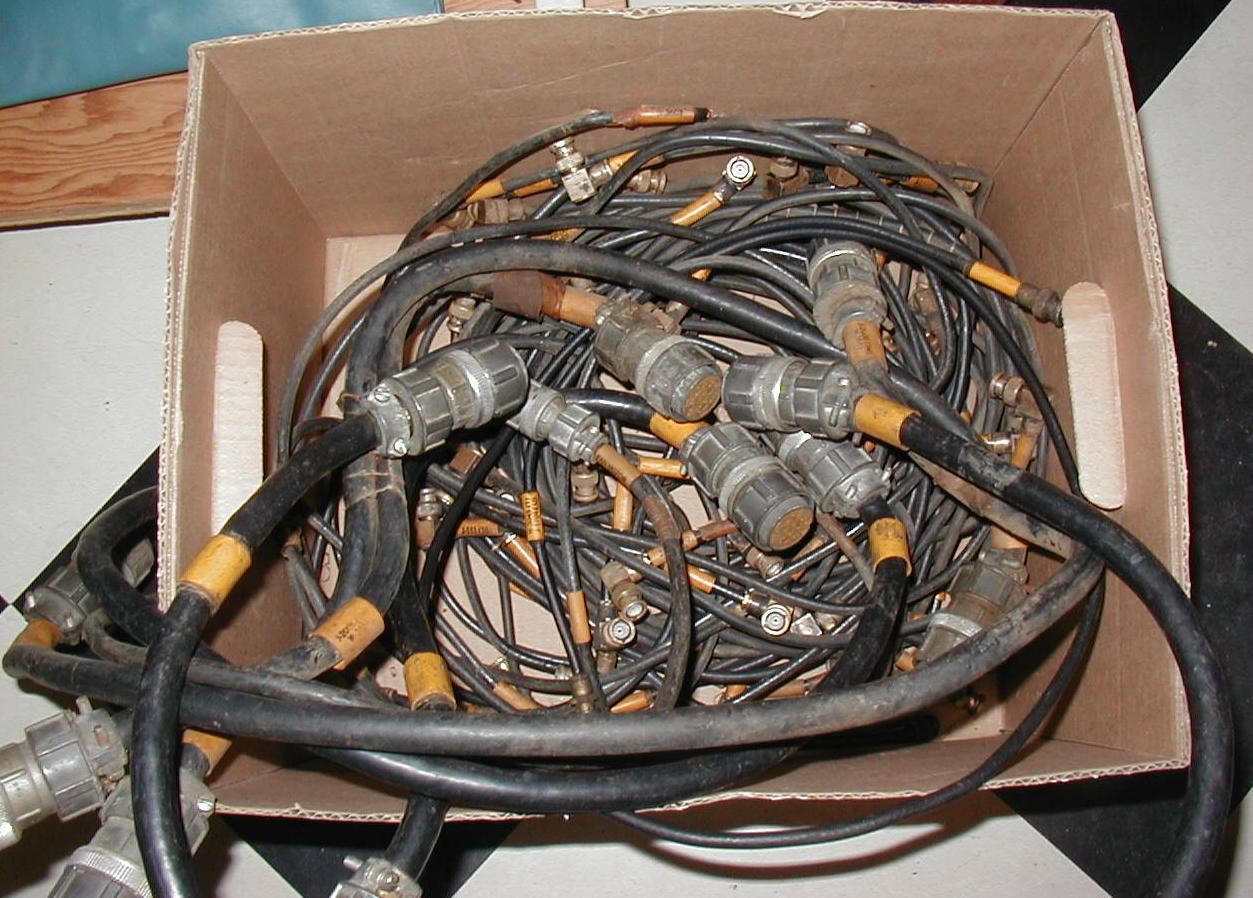

cables for one rack

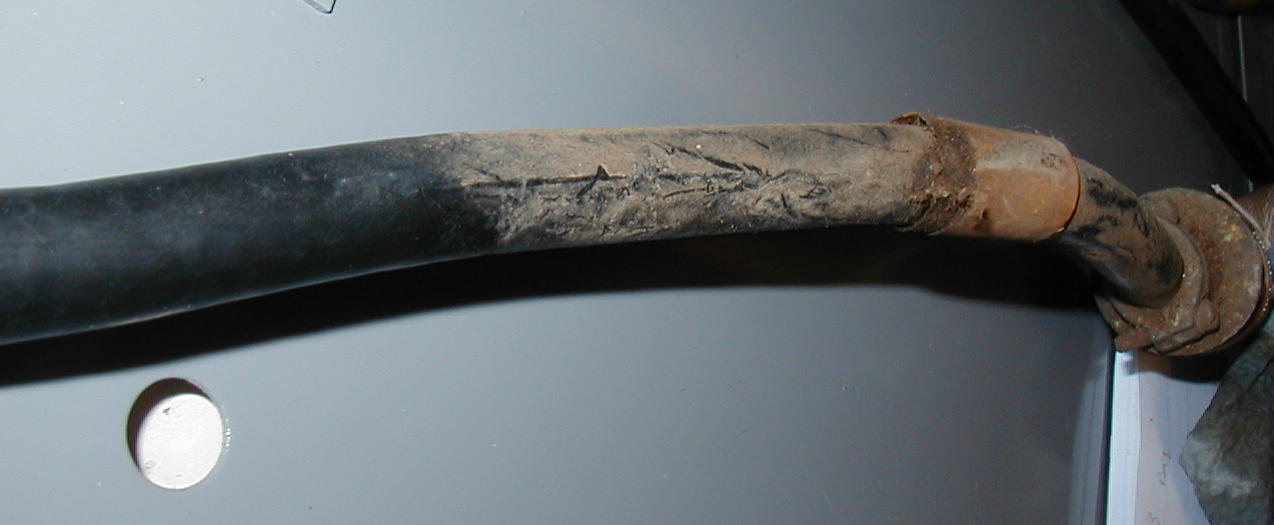

cables need a little cleaning too

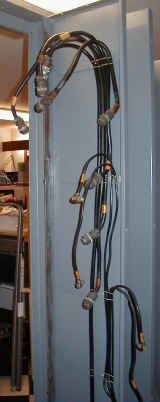

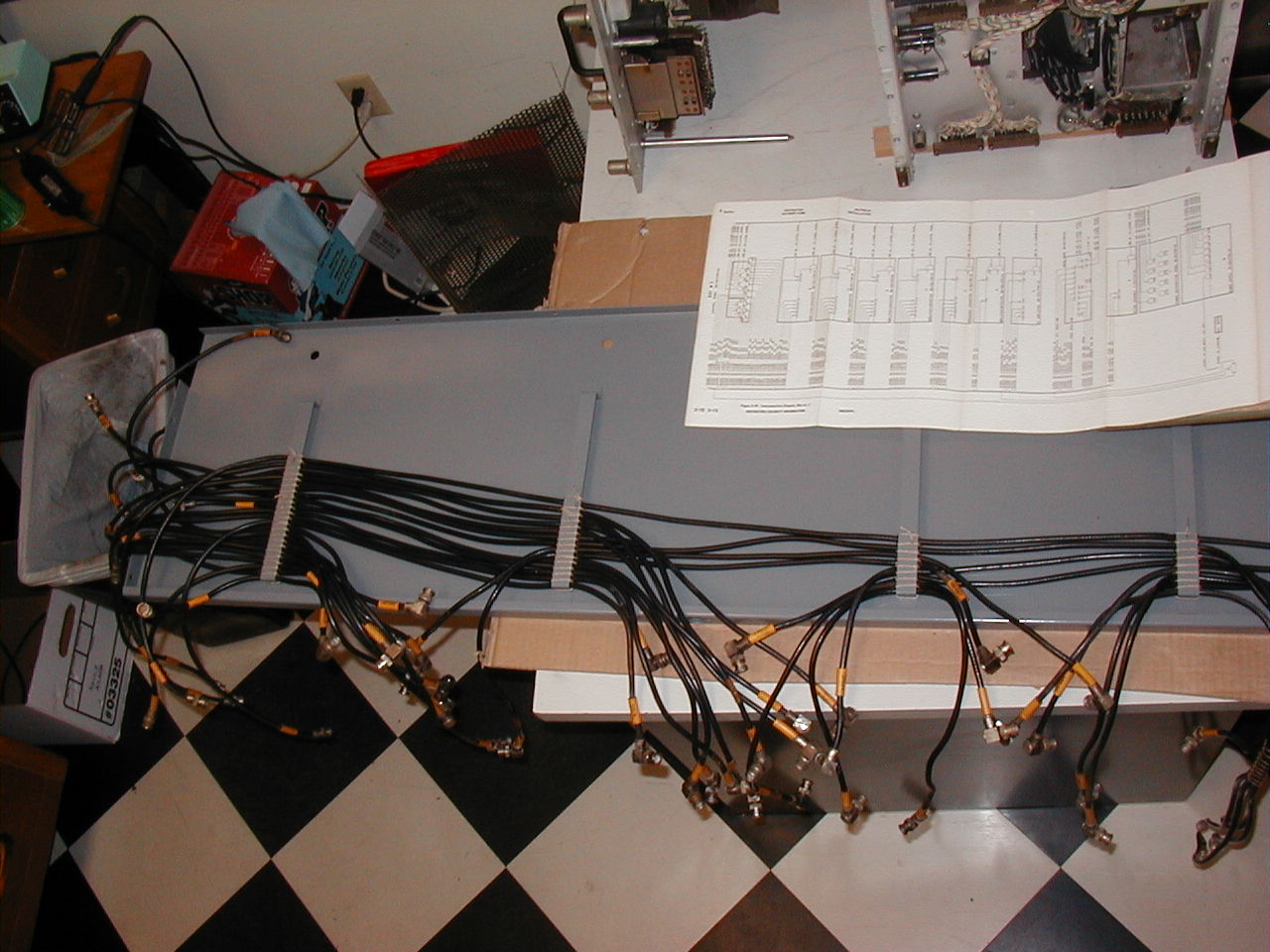

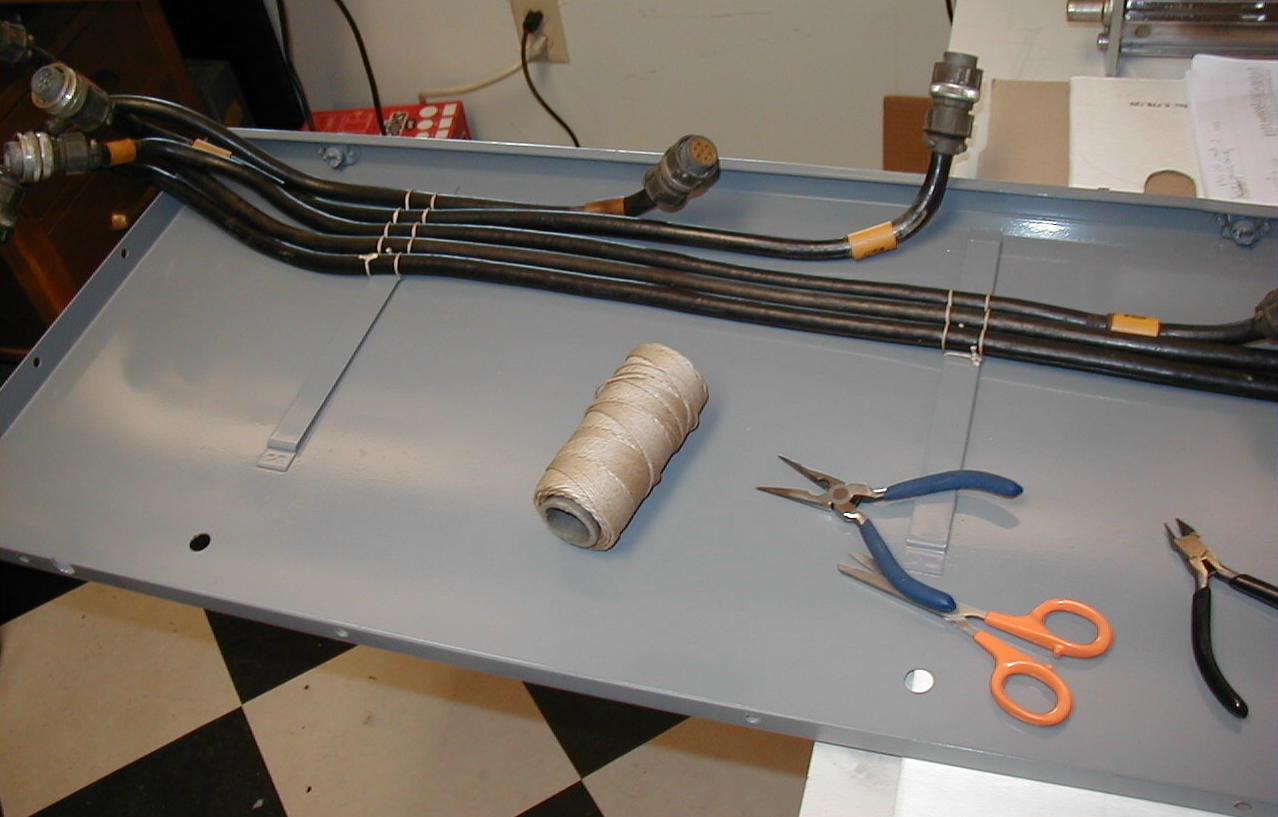

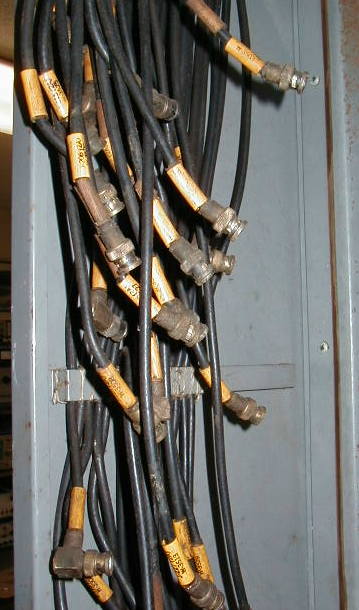

lacing cables to side panel

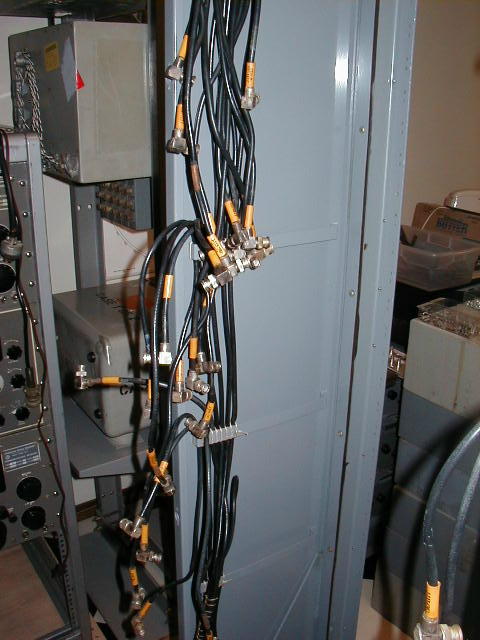

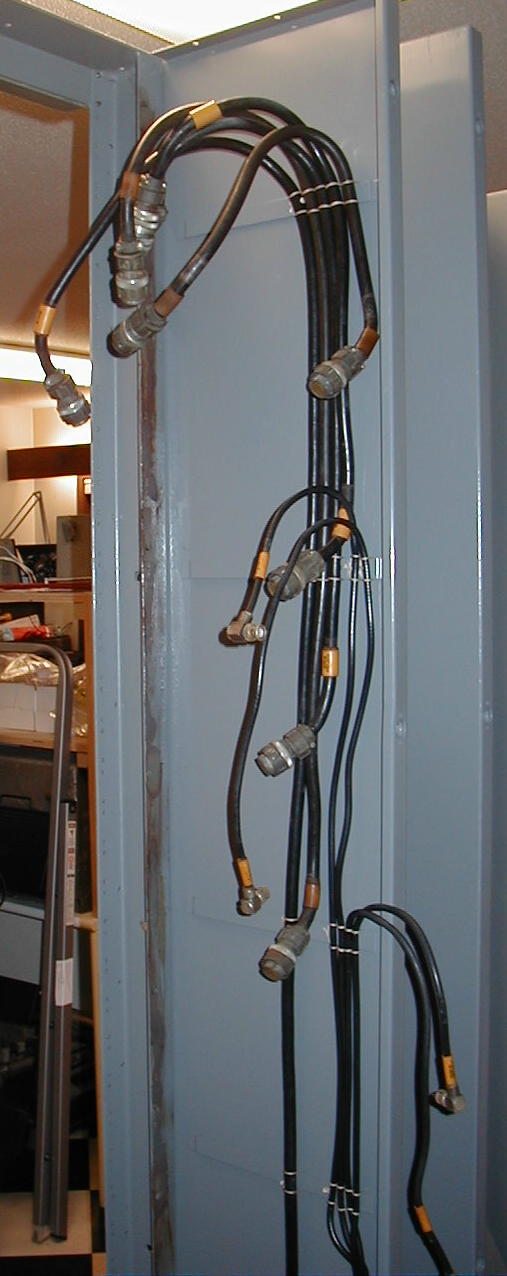

one side panel done, only seven more to go!
OK. two down and six to go

more cabling photos for restoration

10/08 - acquired Rack #4 with almost all cables - still missing two CV-127's and two power supplies
