Acquired 3/19/2008 - a 500 watt, 136 tube, autotune HF AM/CW/FSK transmitter
Page 1 - initial cleanup - see below
Page 2 - deeper into the guts of the RFA

RFA - RF amplifier - 4-400 PA output driven by 5933 IPA (ruggedized 807)
50 ohm output - antenna matching is handled by external tuner

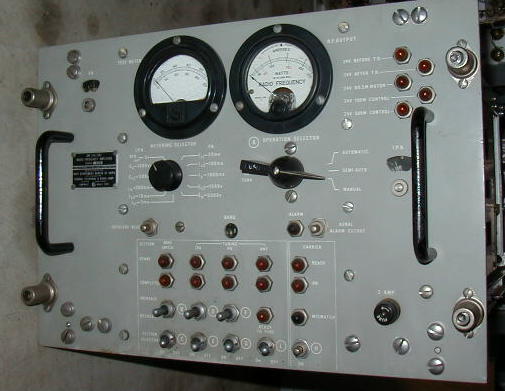

RFA front panel

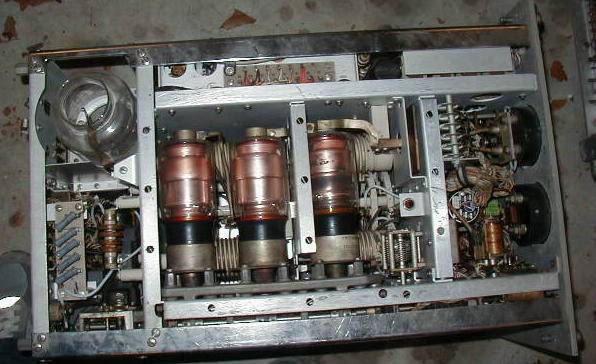

top view
4-400 chimney upper left

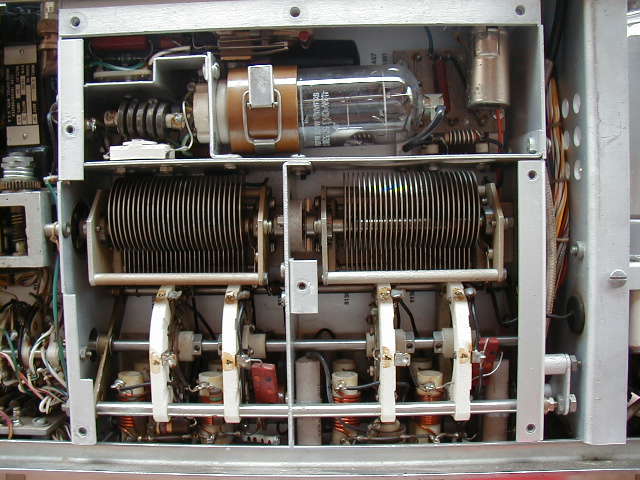

vacuum variables
HF tank coils below
PA autotune drive motor for vacuum variables and MF coil slugs

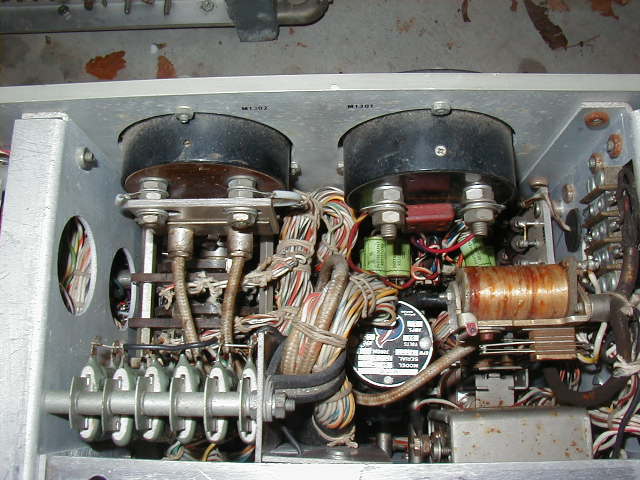

meters and bandswitch drive motor

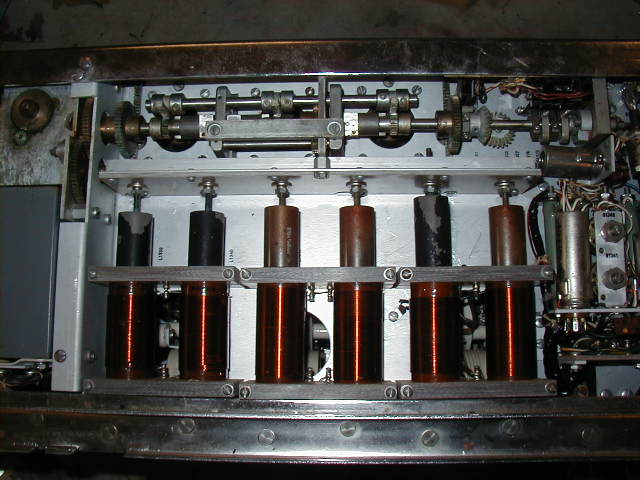

left side - big slug-tuned MF coils

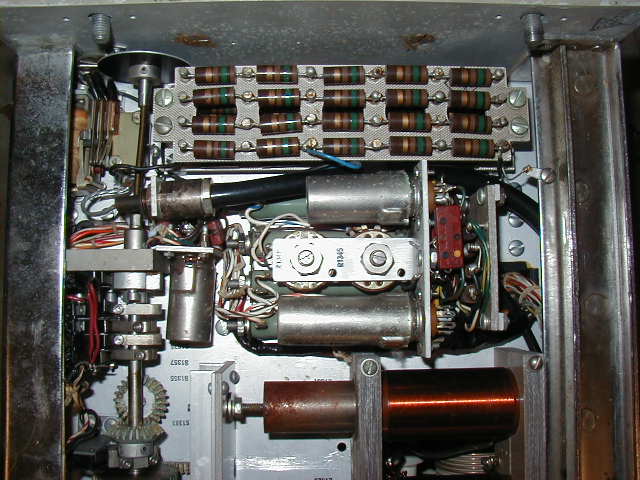

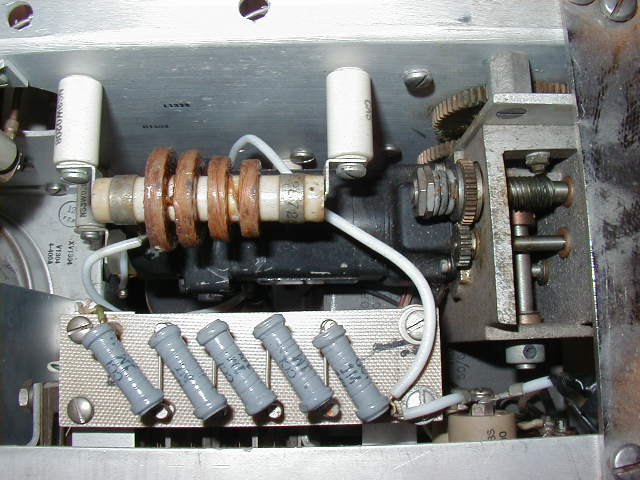

output RF sensor and internal dummy load

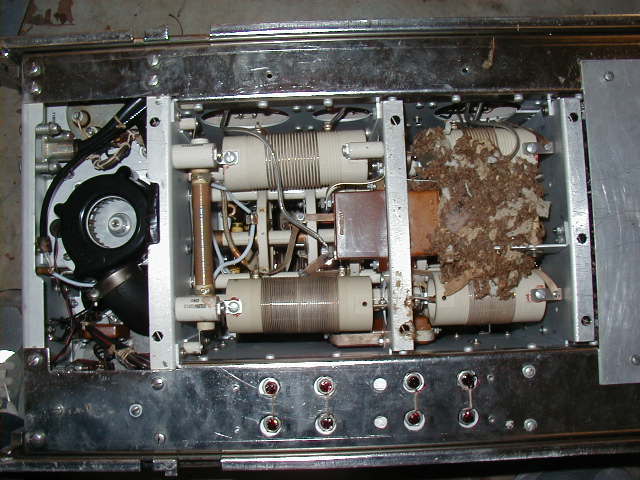

uh-oh - removed the bottom cover

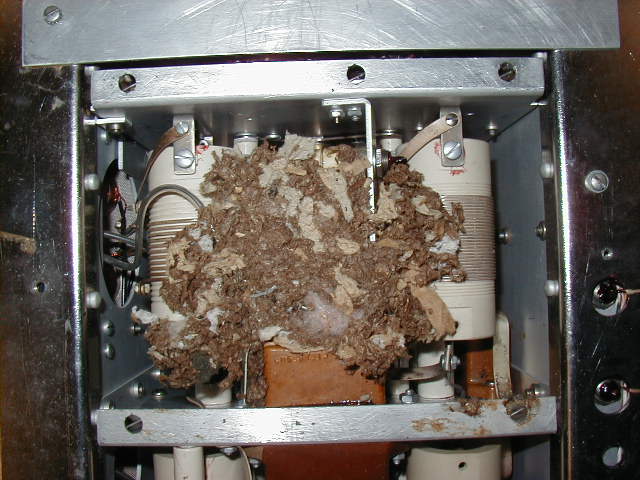

HF tank coil nest
HF tank coils after cleaning

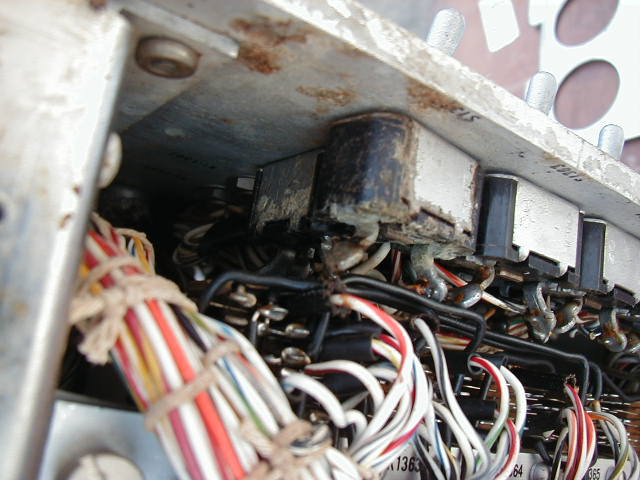

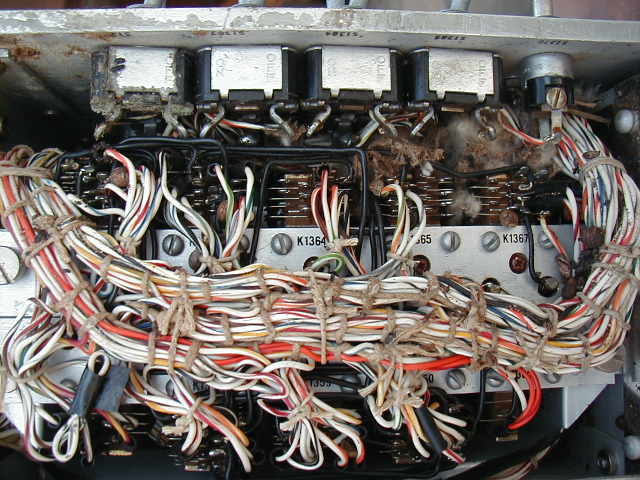

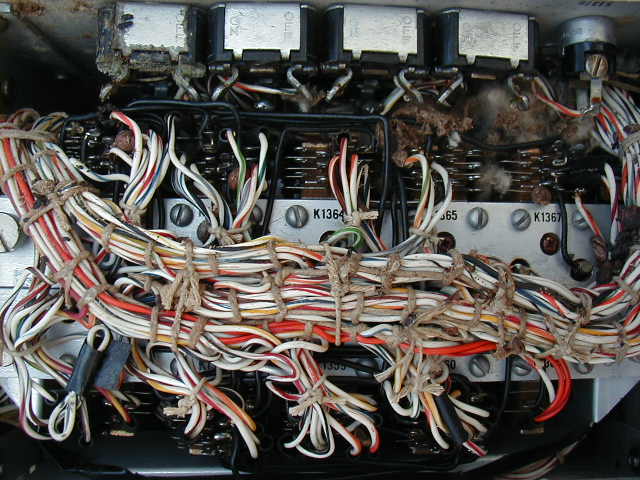

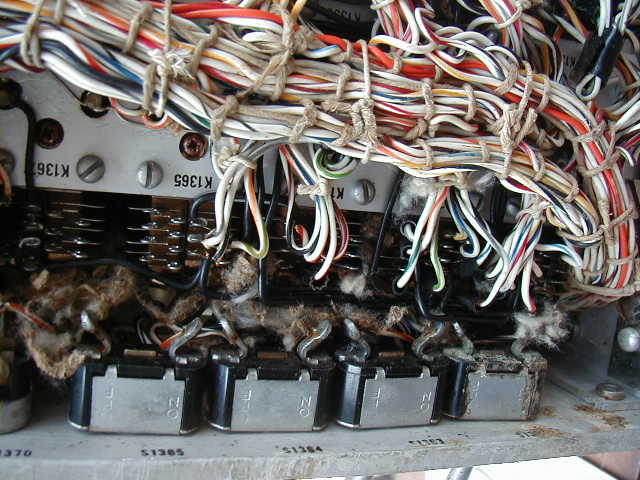

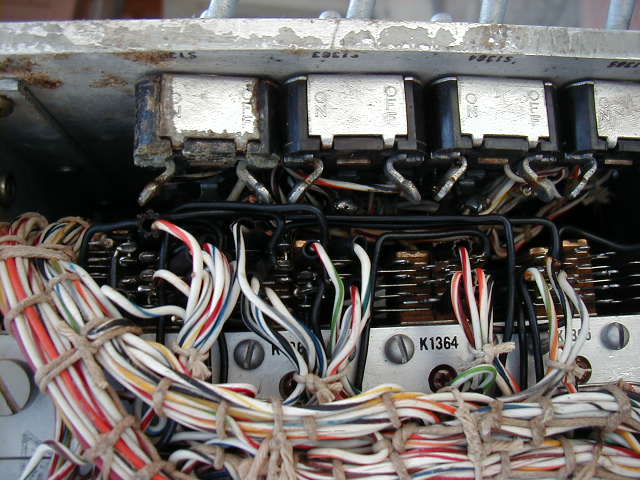

more mouse nest- this time stuffed into the autotune sequencer control relays and switches

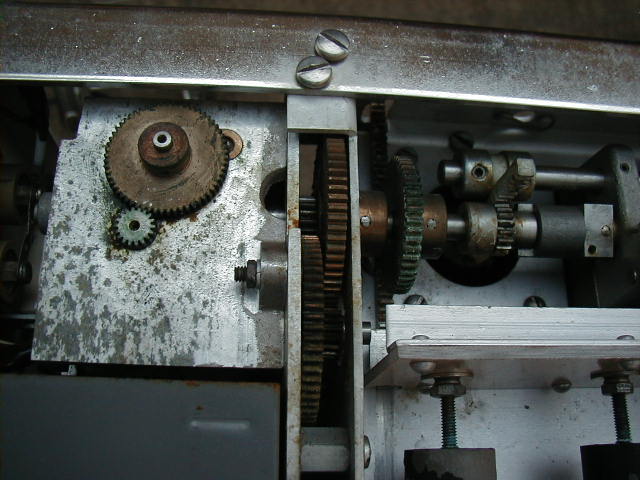

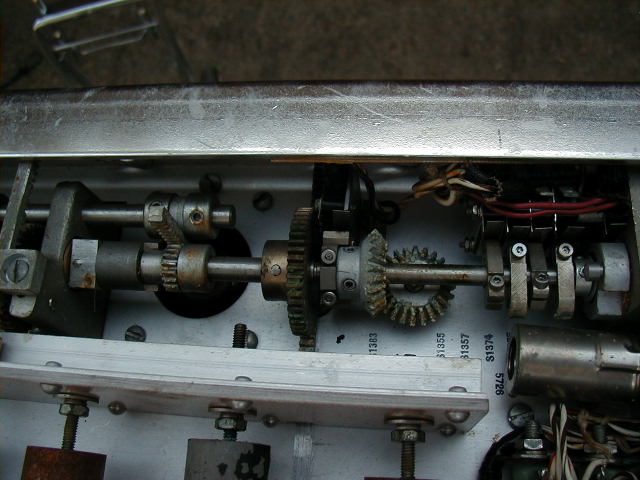

only a little corrosion on gears - not serious

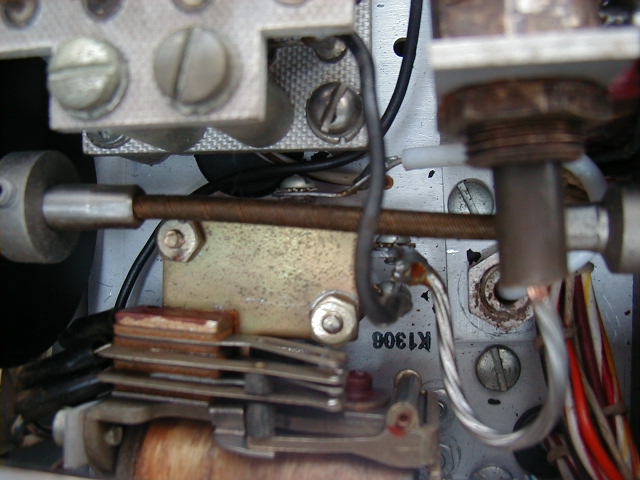

microswitch that steers output to internal dummy load or external antenna

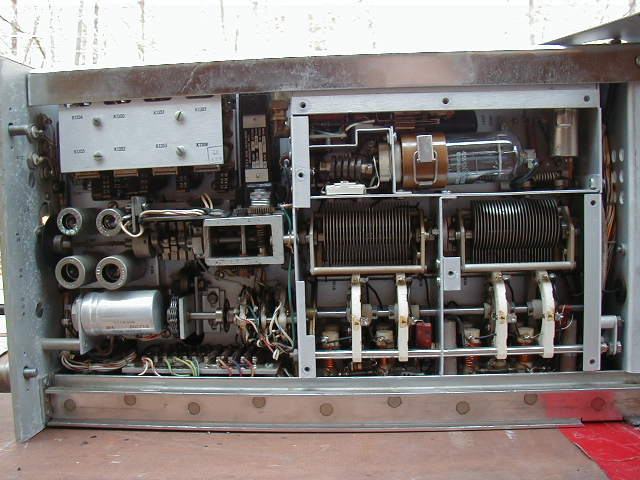

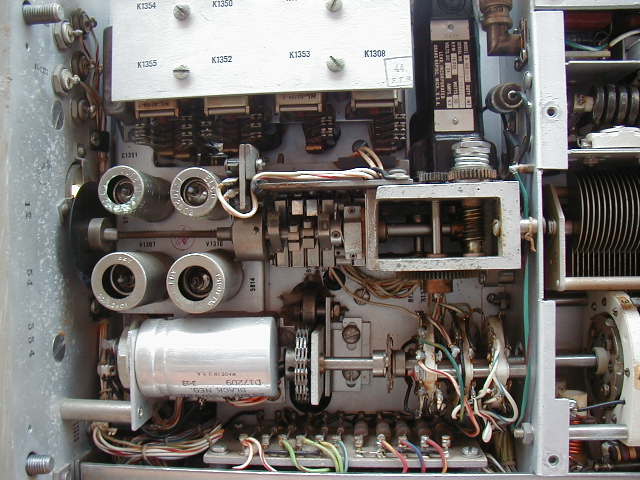

driver (IPA) side - motor tuned IPA input and output cap

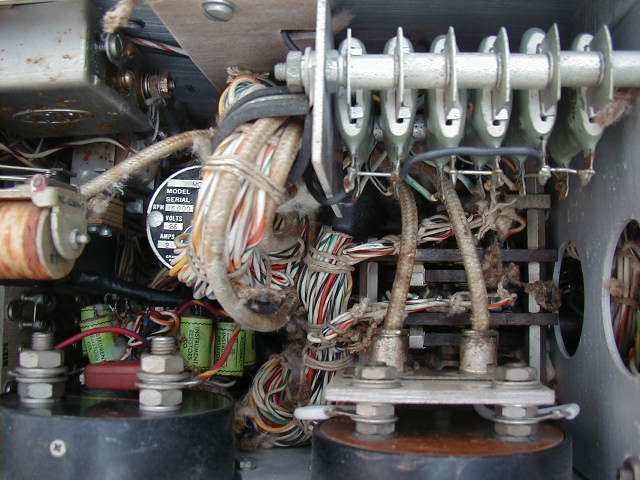

IPA RF sensor, autotune motor, and switch cams

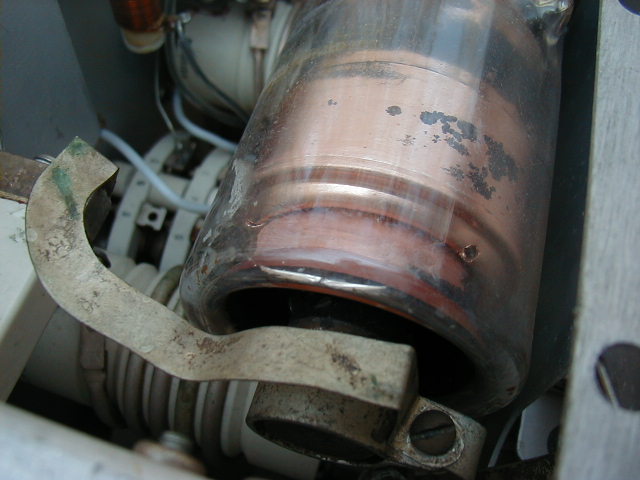

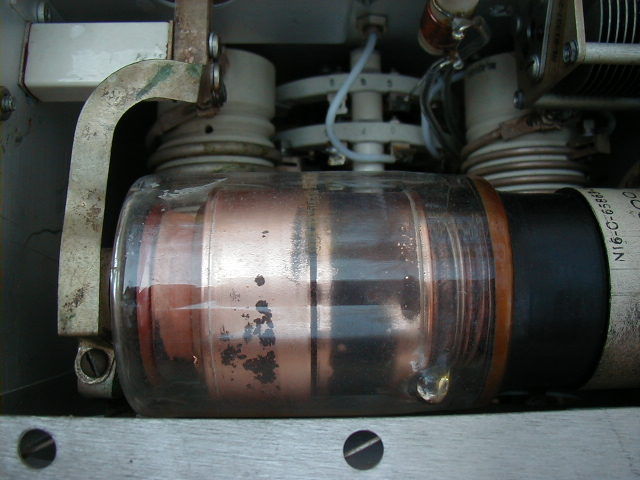

crack in vacuum variable?
after an hour of vacuuming and air hose work, there was still stuff coming out of the autotune sequencer
epoxy? pieces that fell out when cleaning
