US Navy Teletype Equipment - 1950's & 1960's

1956 - 3rd Naval District, NYC
Model 15 Teletypes
(WAVES with Teleman ratings)
Photo Info
1955 - Port Lyautey Comm Station
Model 15 and Model 28
"10/19/1955 "Communications Control Array"? "Admiral Ellis"?

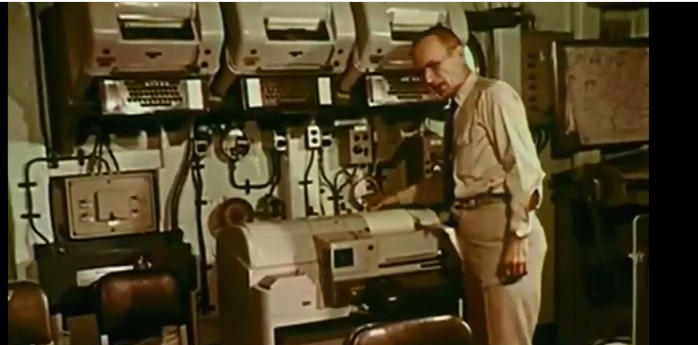

1966 - USS Mauna Kea
USS Mauna Kea AE-22, 1966

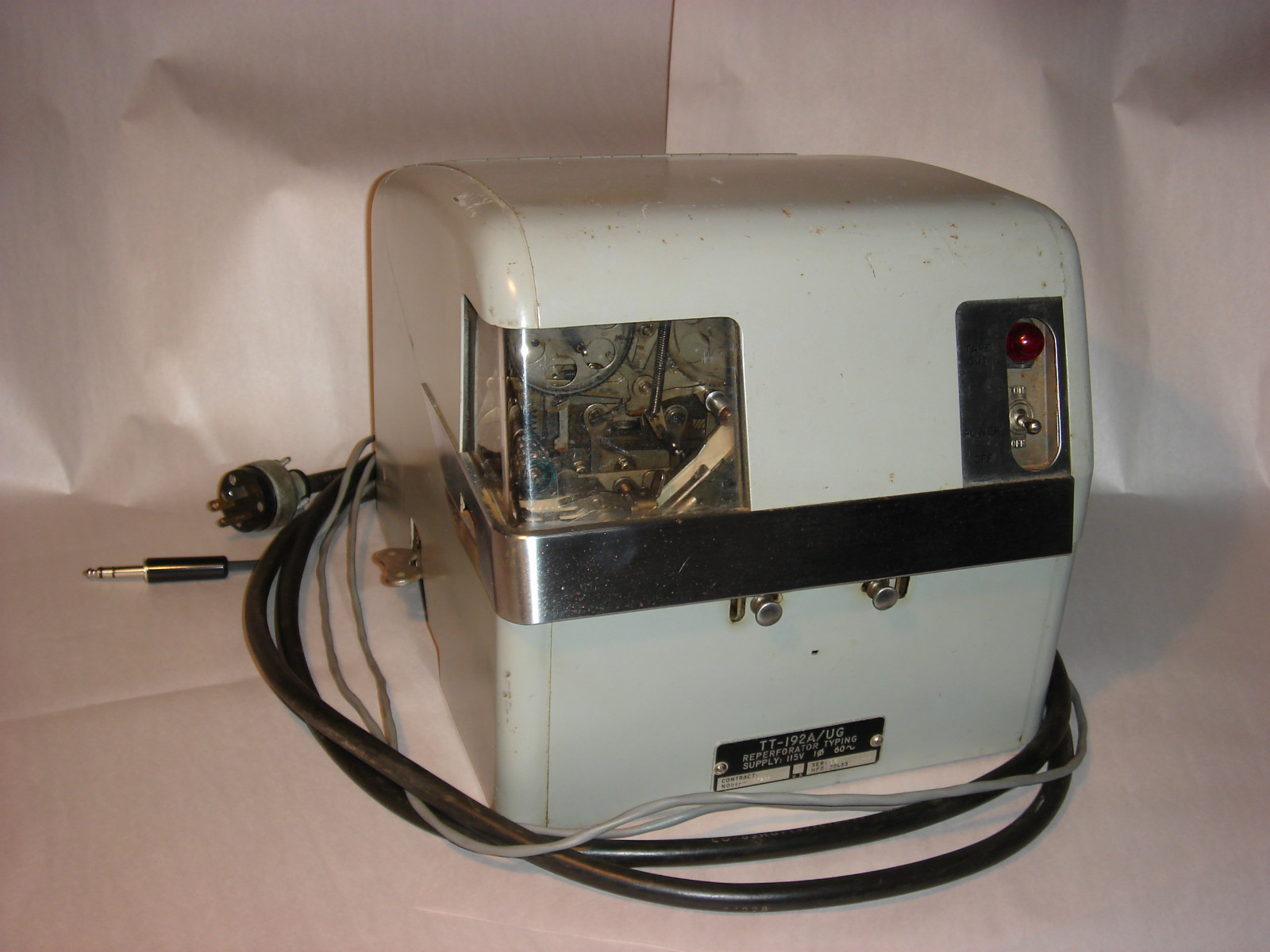

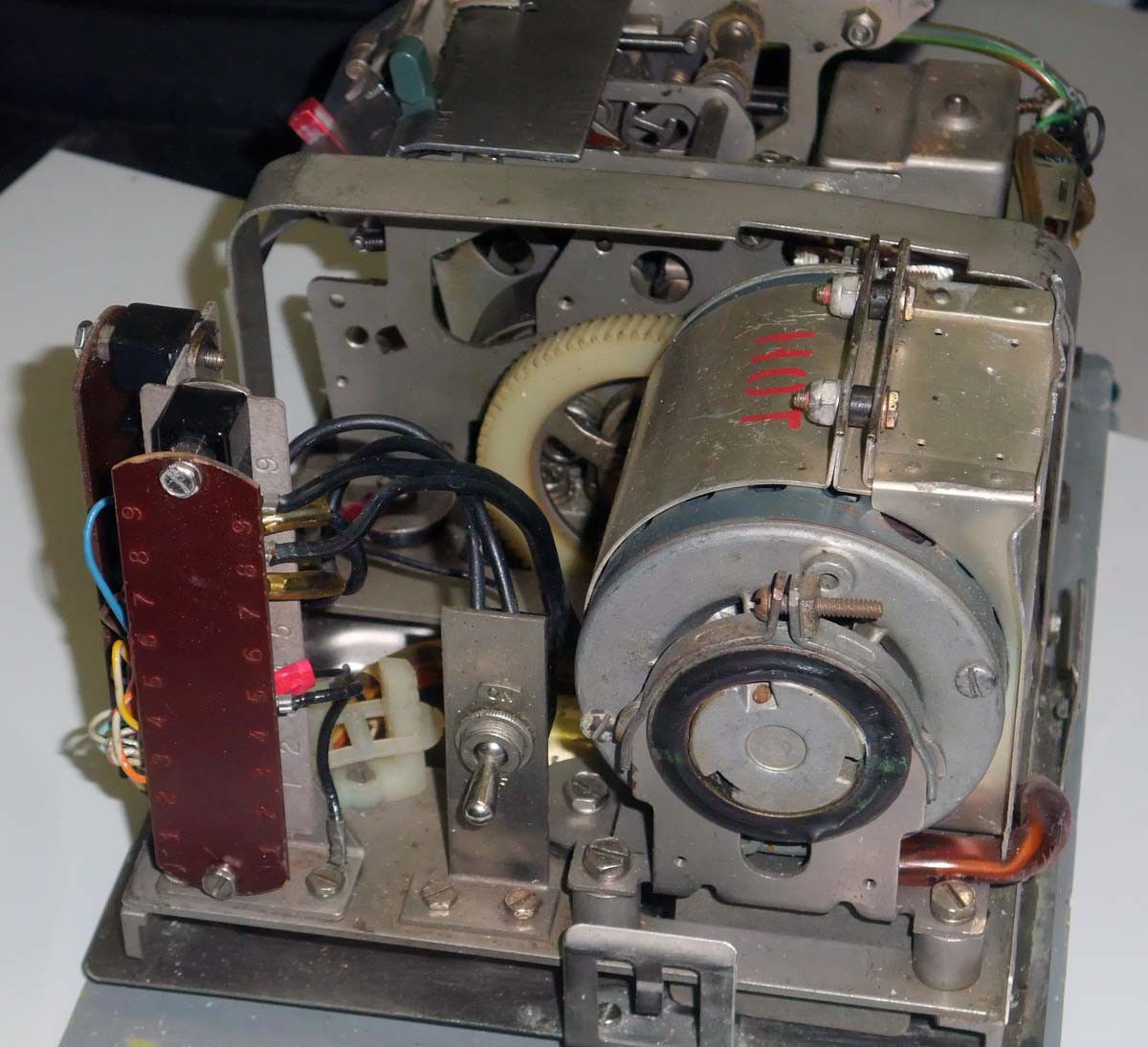

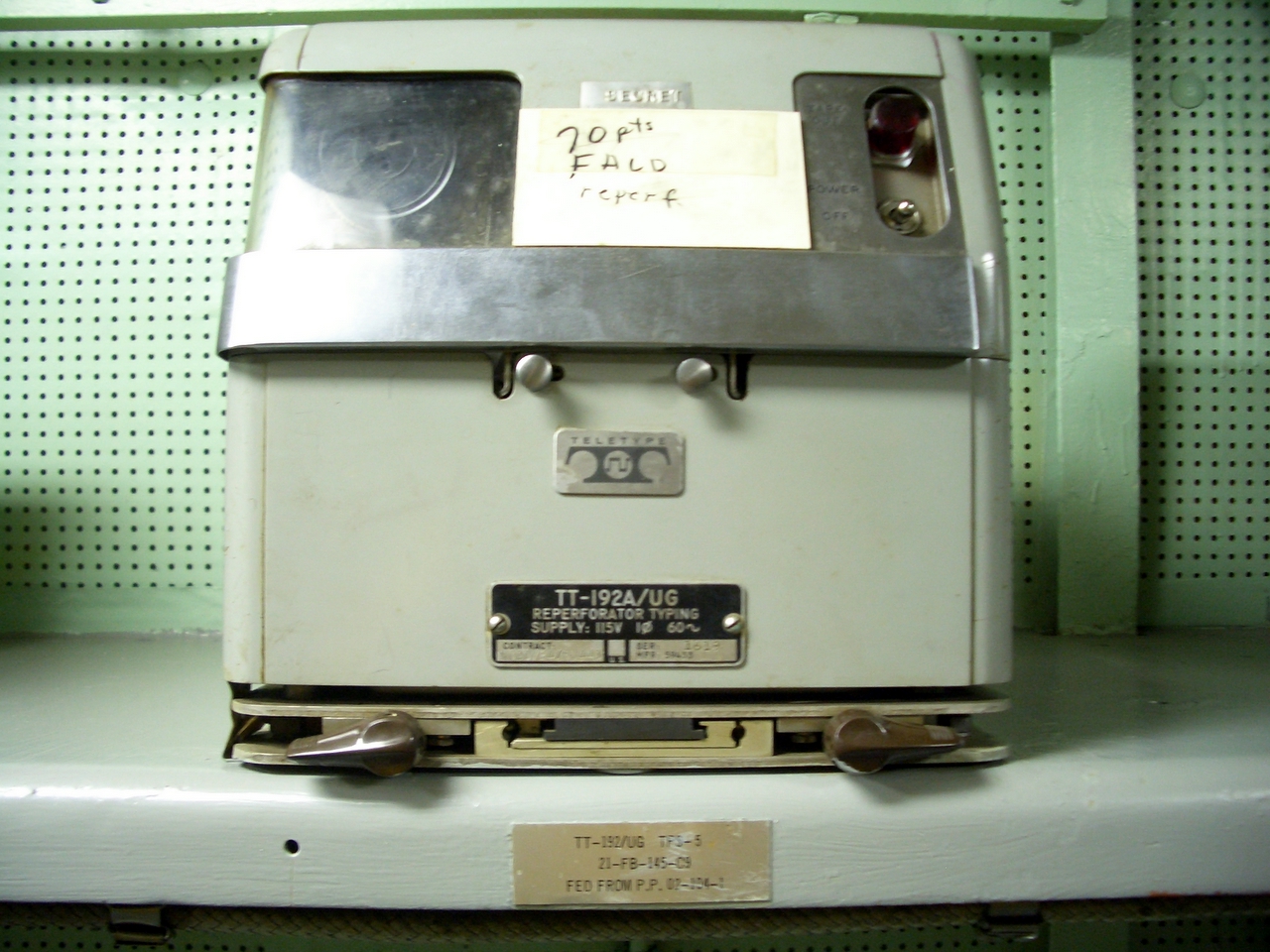

TT-192A reperforators

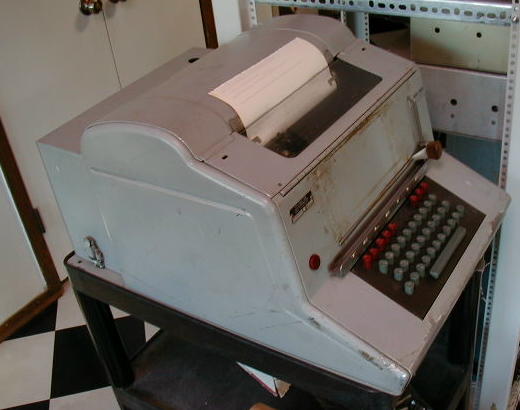

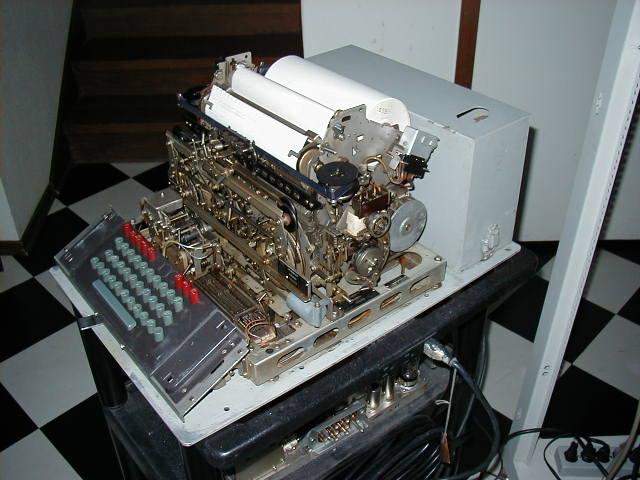

TT-176 KSR (keyboard/printer)
Late 1960's - NAVCOMMSTA Guam
Guam teletype operations (71591 bytes)
bottom row - AN/UGC-25 printer
middle row - TT-176/UG keyboard/printer

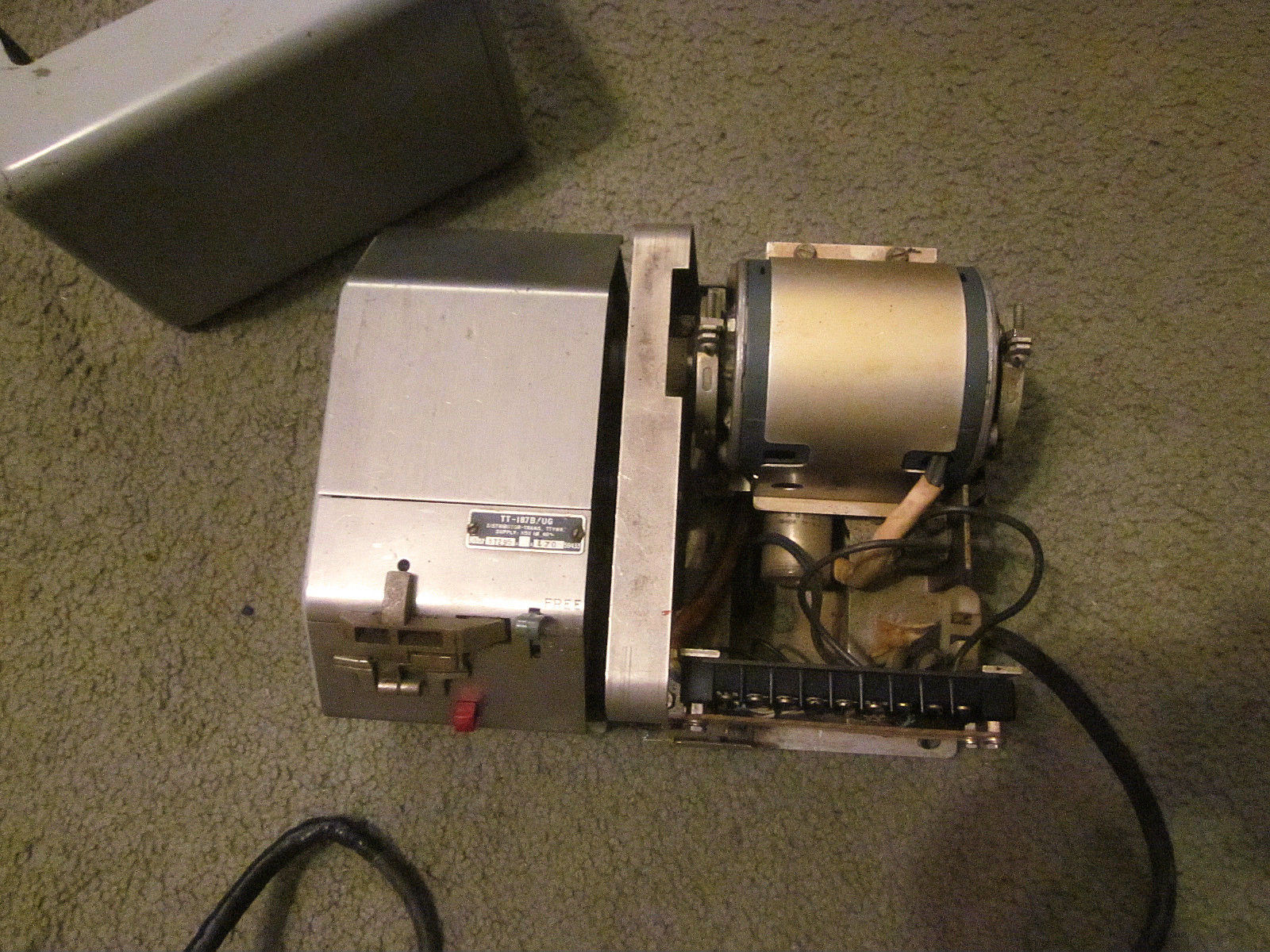

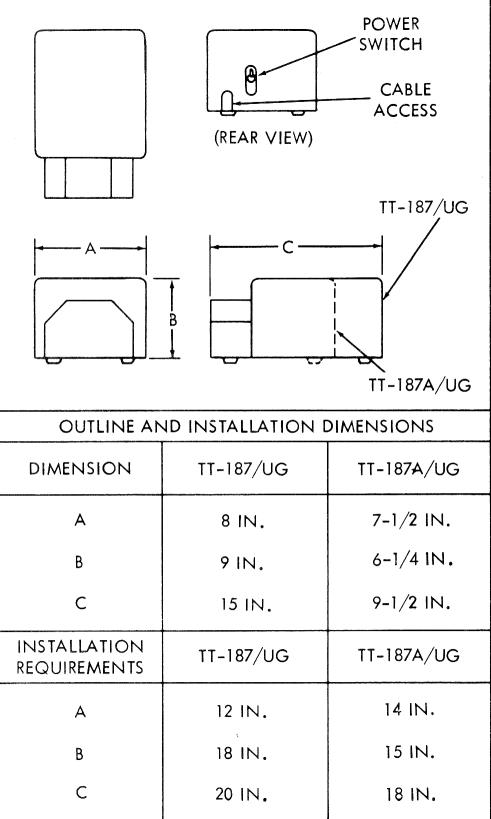

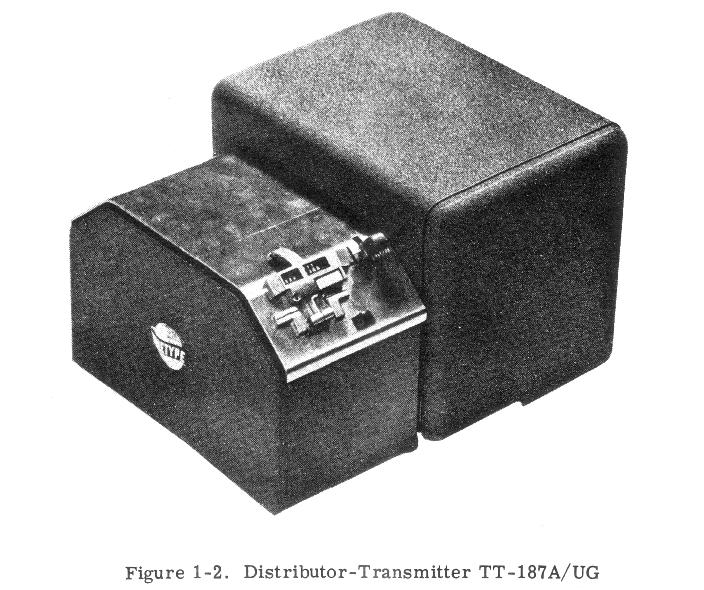

top row - TT-187A/UG tape reader plus TT-192A/UG tape punch
wall - KWX-7 sync switch for crypto gear

Click here and here for many more interesting photos of NAVCOMMSTA Guam - thanks to Rodney Rood



1953 Teleman Video showing teletype operations

"Teletype Is Here to Stay" - September 1945 Electron

Click here for 1972 video about Navy weather information that shows many shots of shipboard teletypes in operation.

Individual TTY Equipment

NOTE - This page mainly shows High-Level signaling (60ma current loop) equipment - In the 1960's, the Navy converted to TEMPEST MIL-STD-188B Low-Level signaling (+/- 6v) and there were equivalents to most all the High-Level equipment.
For a full listing of High-Level and Low-Level equipment see The 1977 Index
USN Teletype Installation Plans


Model

Type/Photo

Primary Use

Features & More Info

RO - Receive Only Printer

AN/UGC-25
AN/UGC-25A

Model 28 Receive-Only Page Printer Set (Compact). Consists of friction feed typing unit, cover, base unit, synchronous motor and gearshift for 45.5, 50 and 74.2 baud.

AN/UGC-25 aboard USS Midway

7.42 unit code, 60 Hz, 115VAC. Includes communication symbol arrangement.


Teletype 28RO "compact"

more photos

Videos of UGC-25A in operation
 - 60wpm
 - 100wpm

I need the ON-OFF switch and the LOC-LF lever - please send e-mail if you can help
ON-OFF Switch (made by Rockette)

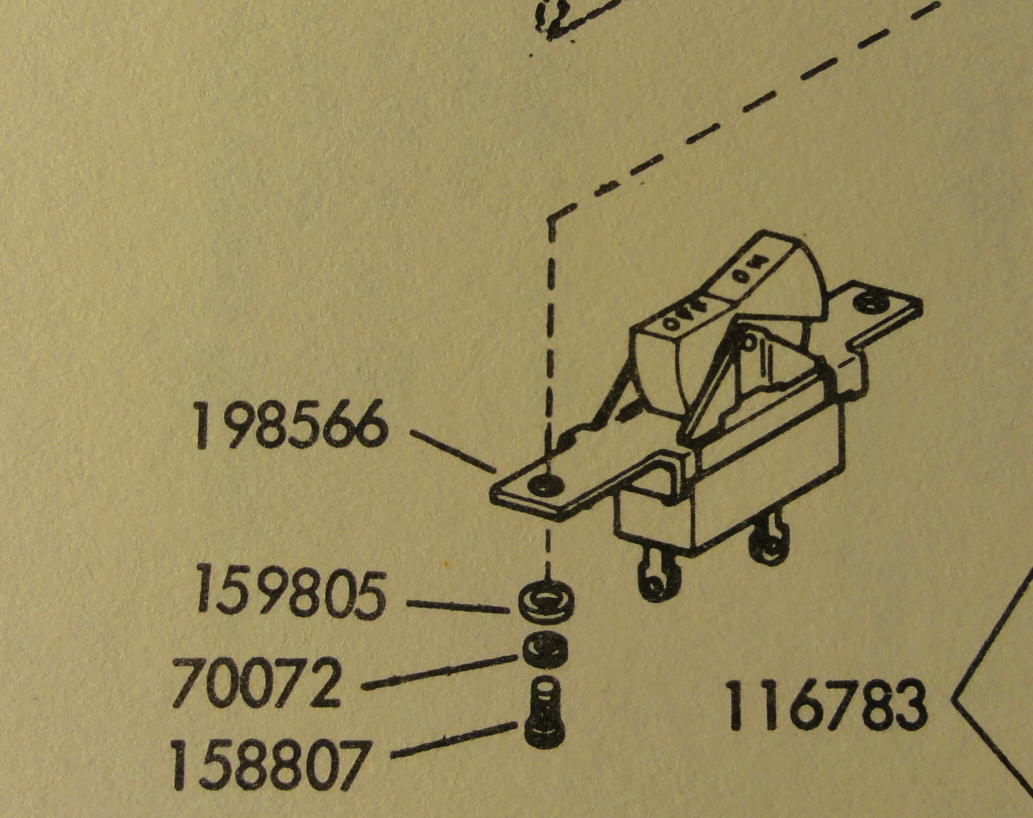

Teletype part 198566

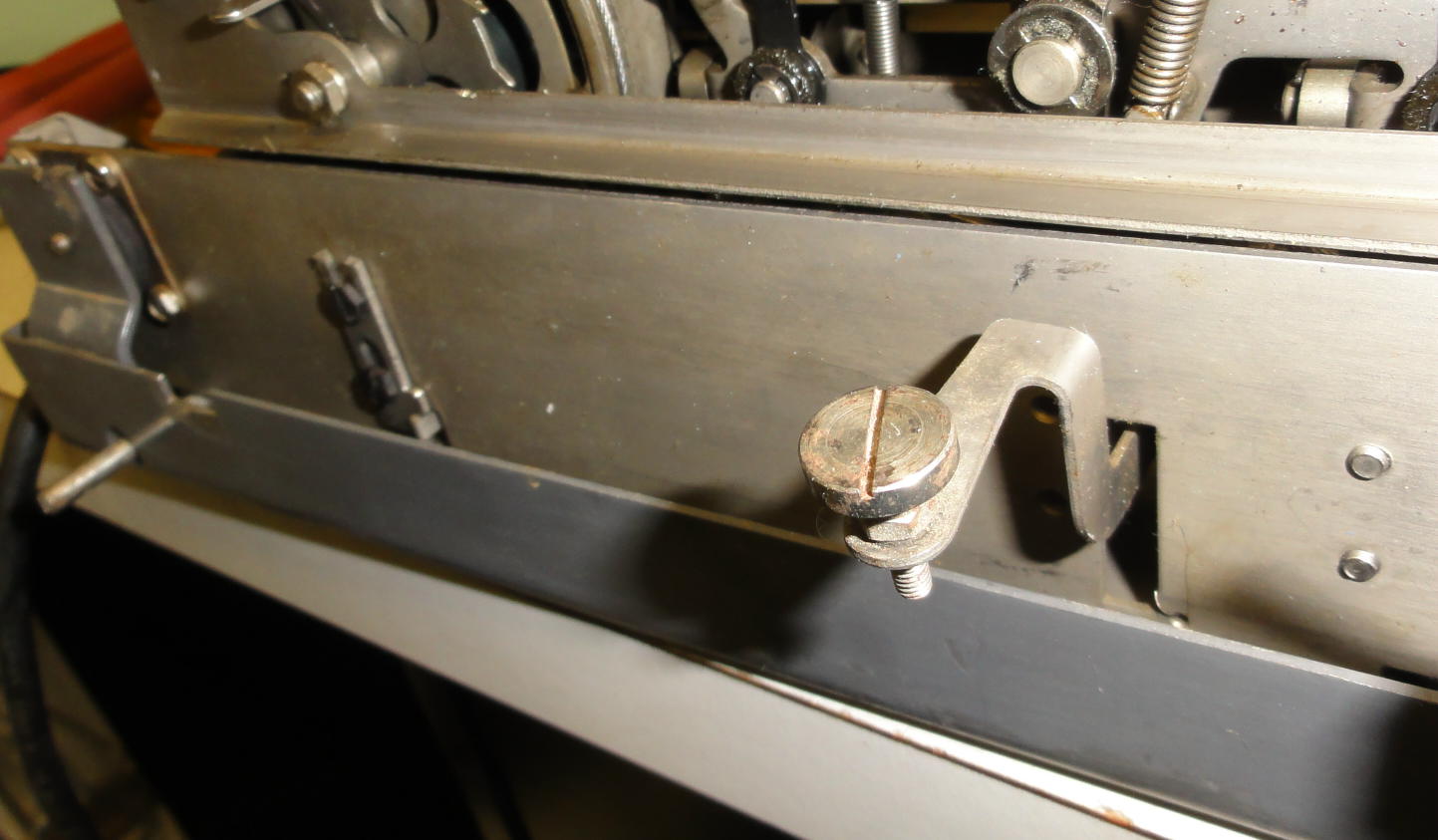

Broken off LOC-LF lever
Teletype part number 198571 or 326632
It should look similar to the CR lever on the right.


ON-OFF Switch
LOC-LF Lever
Other parts I need:

195349 Speed Control Knob (2 ea.)
 <=   <=    <=    <=





AN/UGC-38

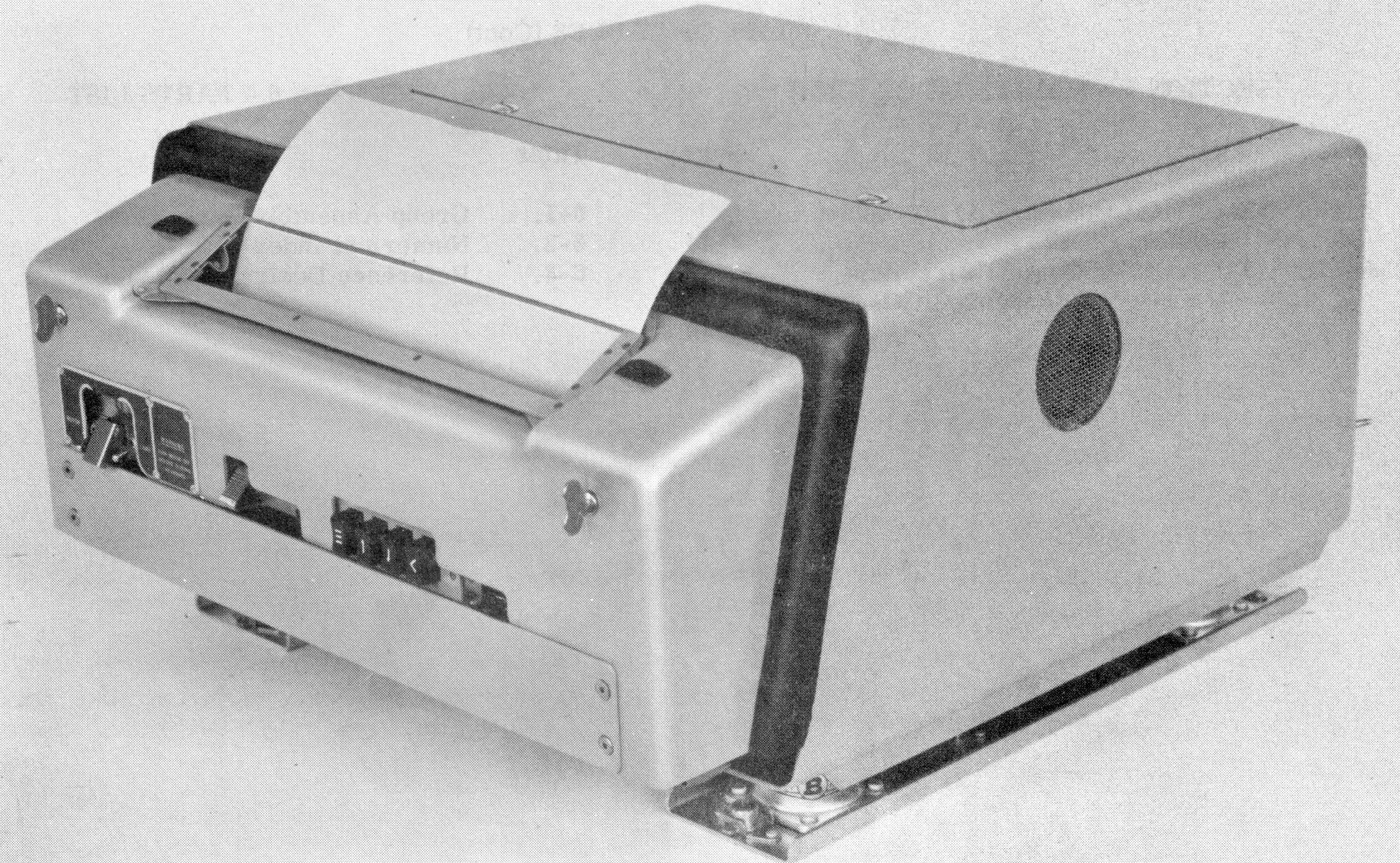

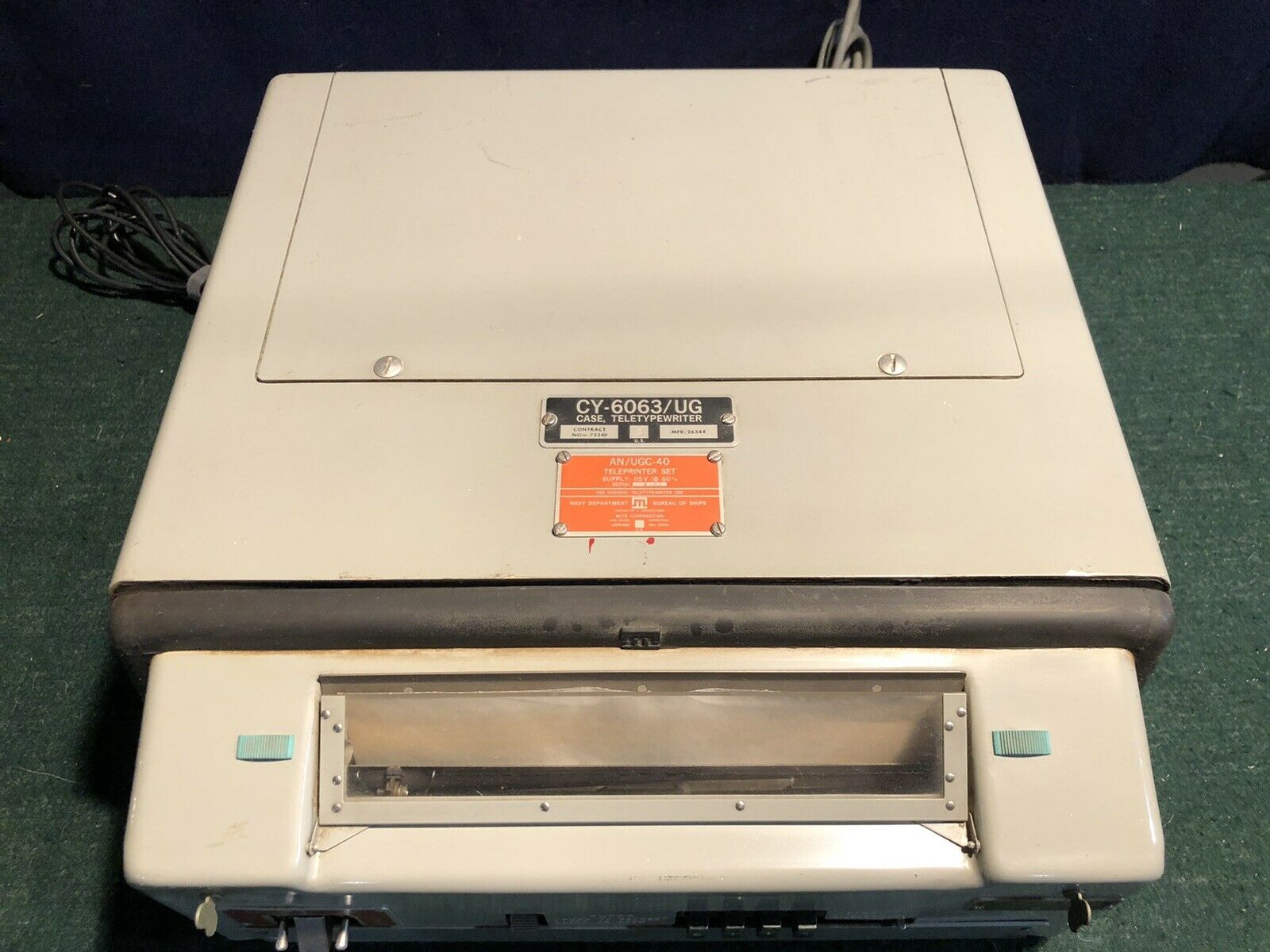

AN/UGC-40

MITE RO

UGC-38 is Weather symbol version



NAVSHIPS 0967-170-8010

More MITE photos and info

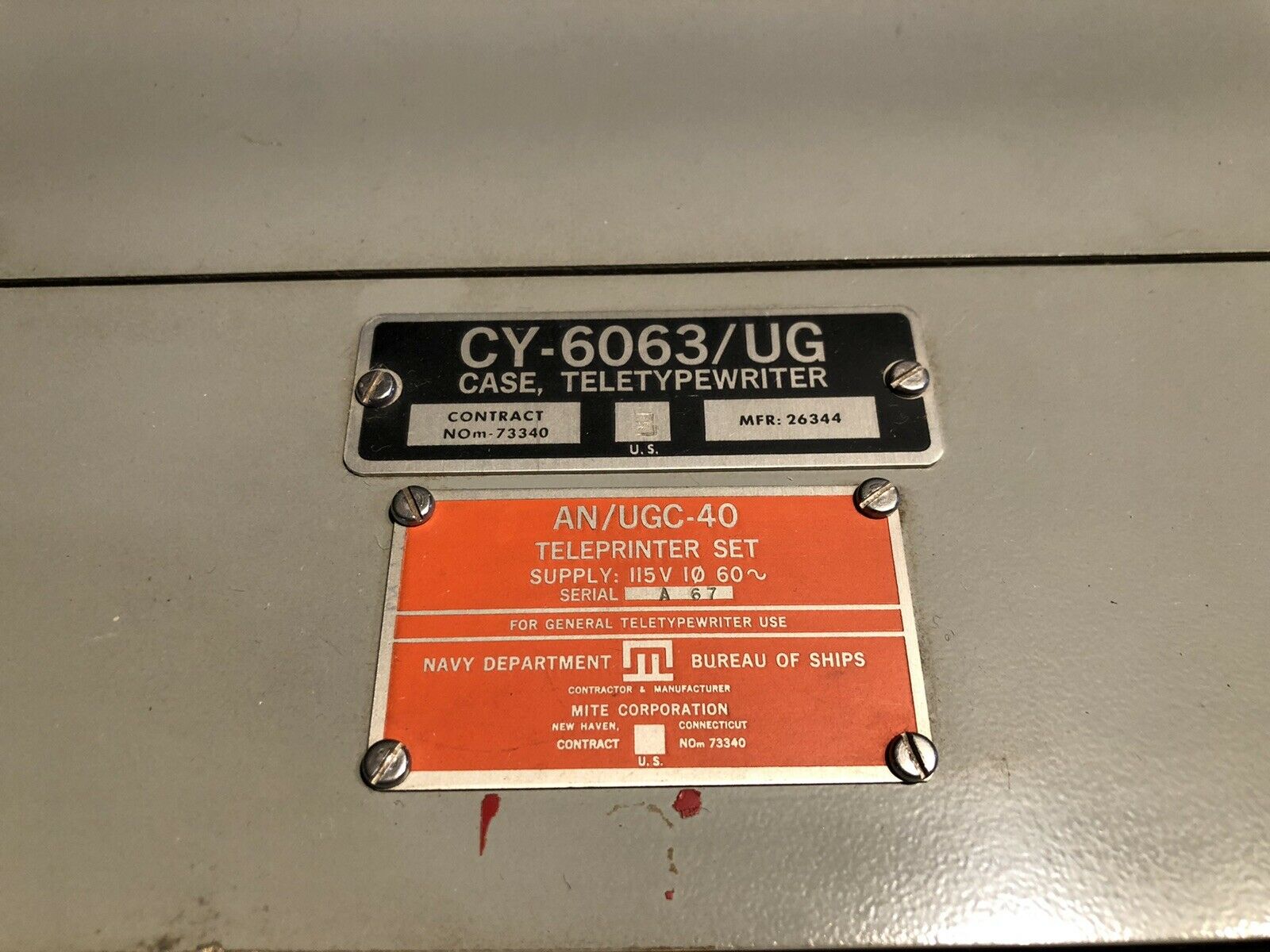

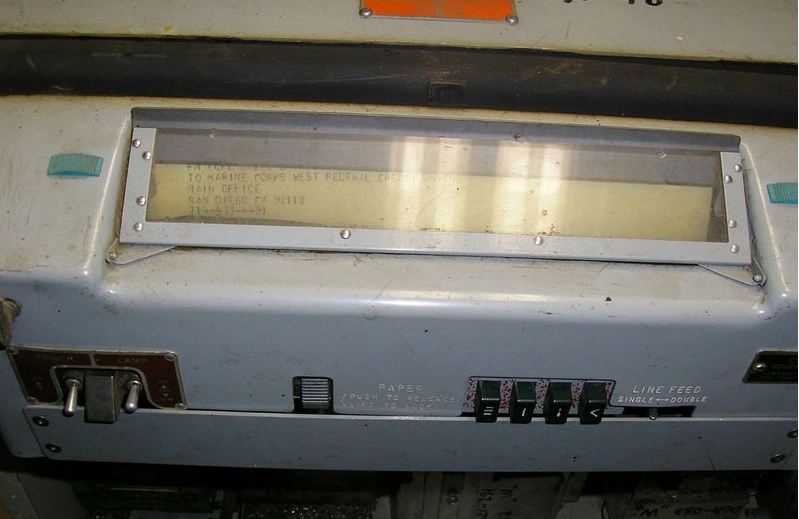

ugc40-1202-01.JPG (273431 bytes) ugc40-mite-2007-02.jpg (248991 bytes) ugc40-mite-2007-05.jpg (266461 bytes) ugc40-mite-2007-04.jpg (219183 bytes)

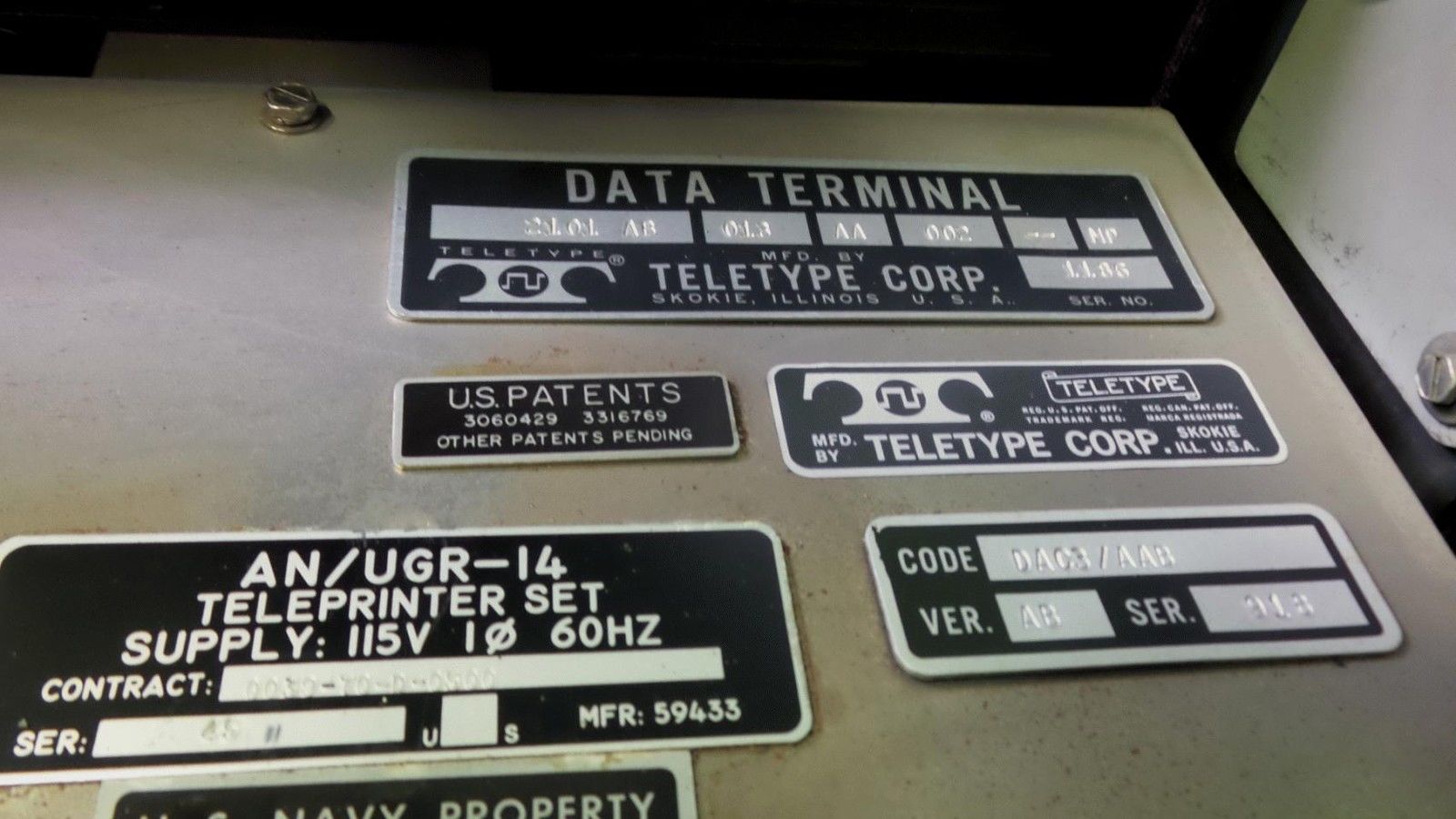

AN/UGR-14

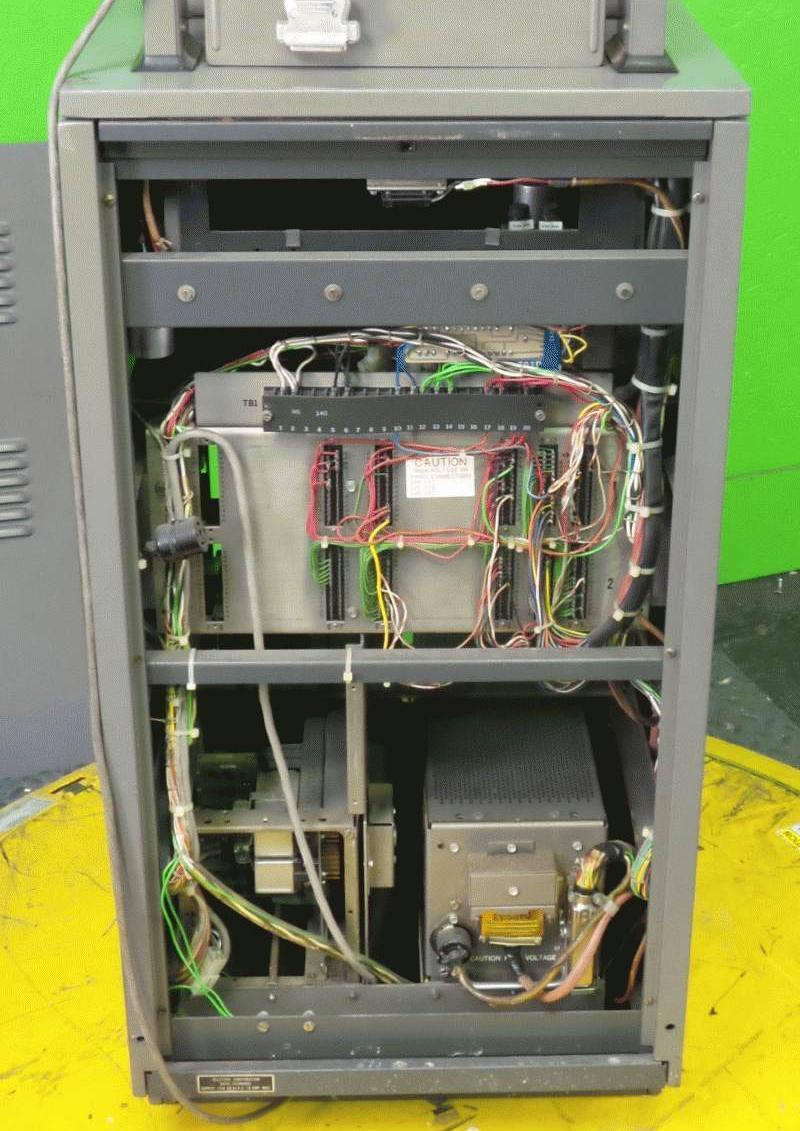

Inktronic Receive-Only Page Printer Set. Consists of floor cabinet, friction feed non-impact printer and control logic. 7.00 unit code, 600 baud.. Includes communication symbol arrangement.


More Inktronic info and photos

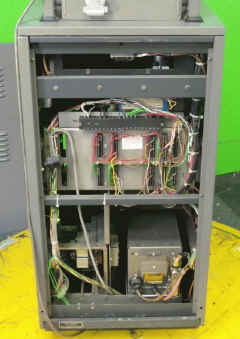

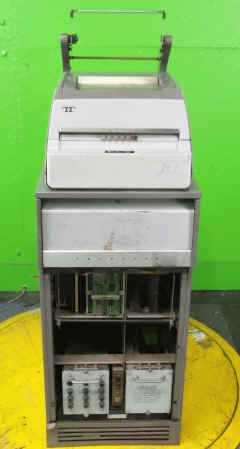

ugr14-1606-01.jpg (169377 bytes) ugr14-1606-03.jpg (155906 bytes) ugr14-1606-10.jpg (111222 bytes) ugr14-1606-09.jpg (75657 bytes)

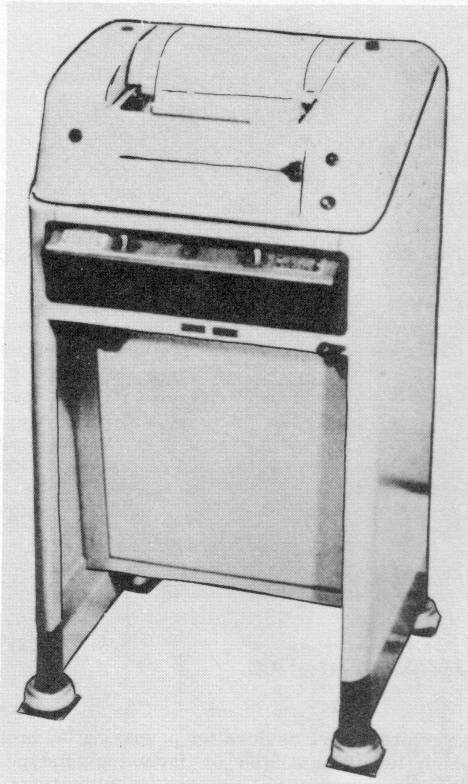

TT-171/UG


floor mount


Teletype 28RO

TT-171 - Model 28 Receive-Only Page Printer Set. Same as TT-47A/UG except uses base LB3/101 and is without a keyboard

TT-284/UG Lightweight

need photo

RO similar to TT-242 KSR - Teletype - prototype
(lost competition to MITE)

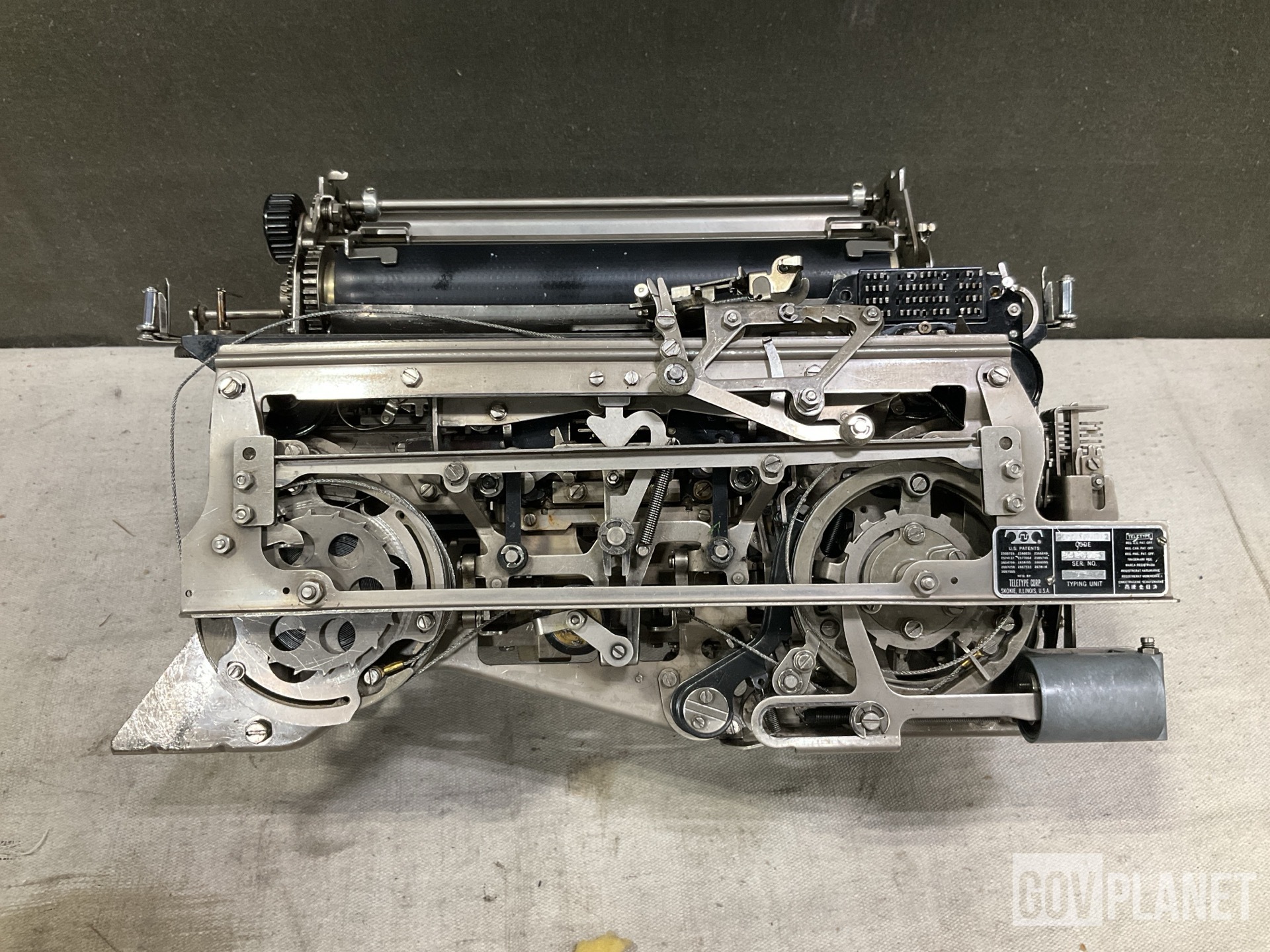

TT-306/UG

Rack-mounted 28RO in "skintight" case
100wpm, 7.00 unit code
MK-1114/UG kit converts TT-306 to low-level version (AN/UGC-50)

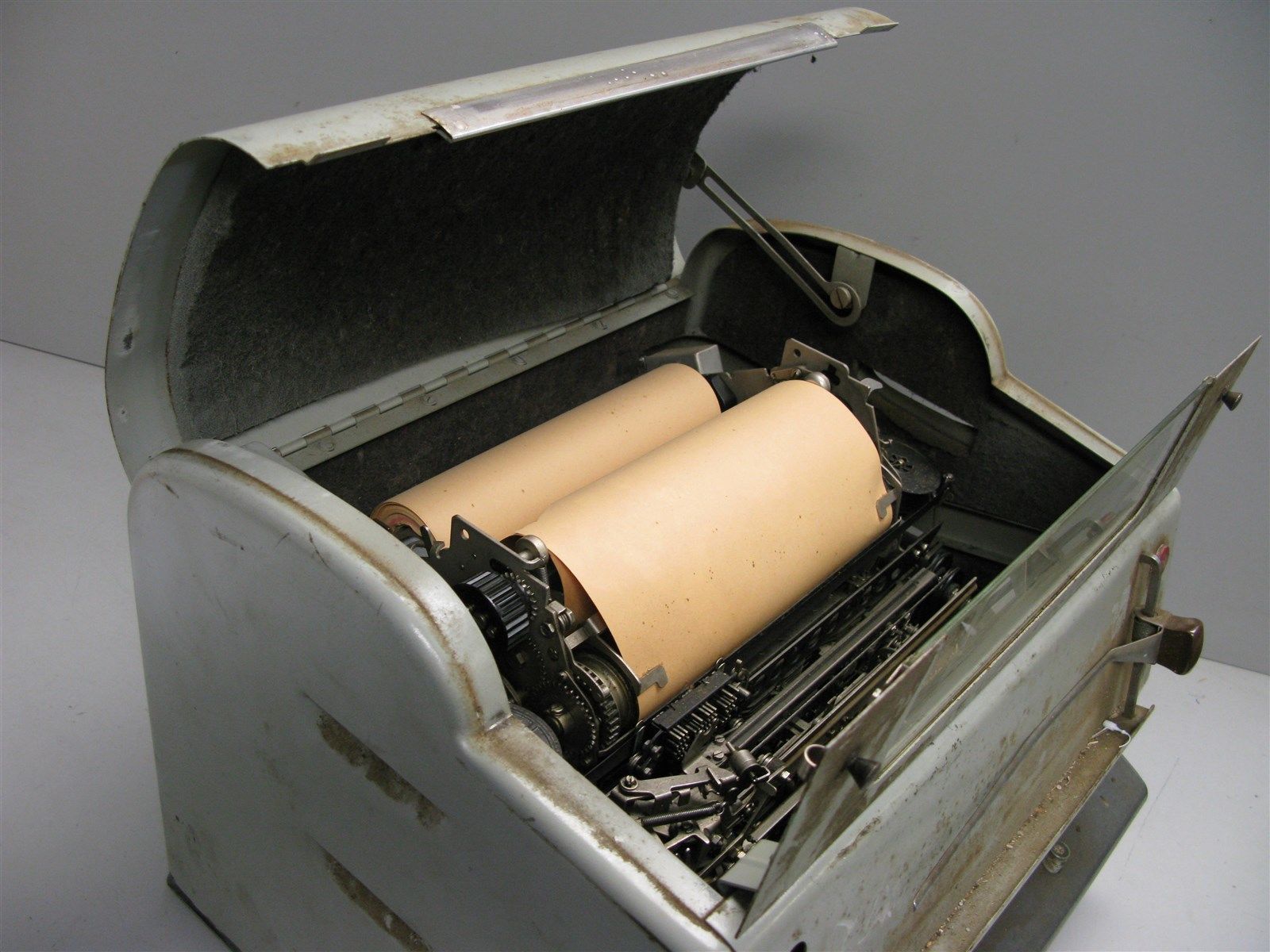

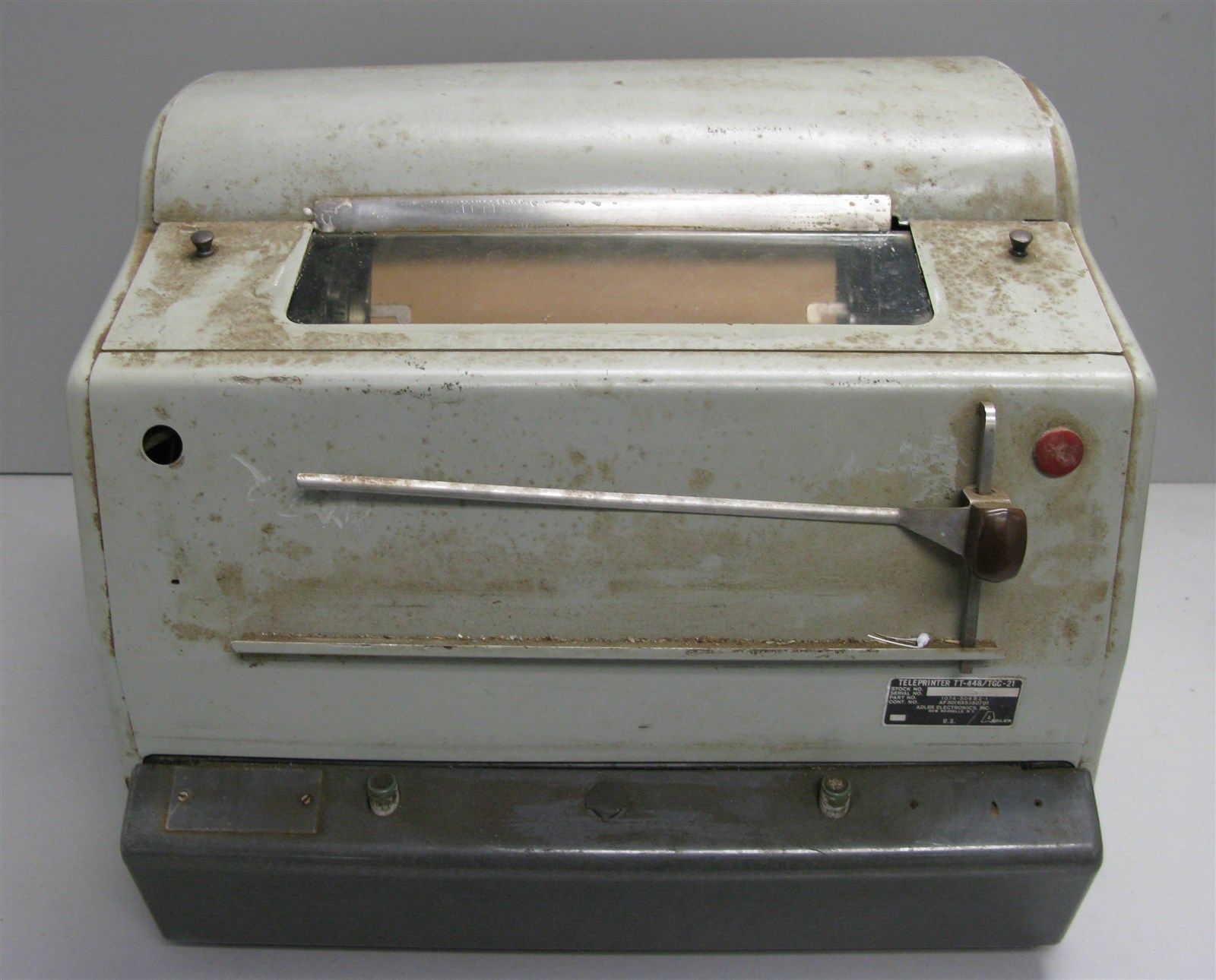

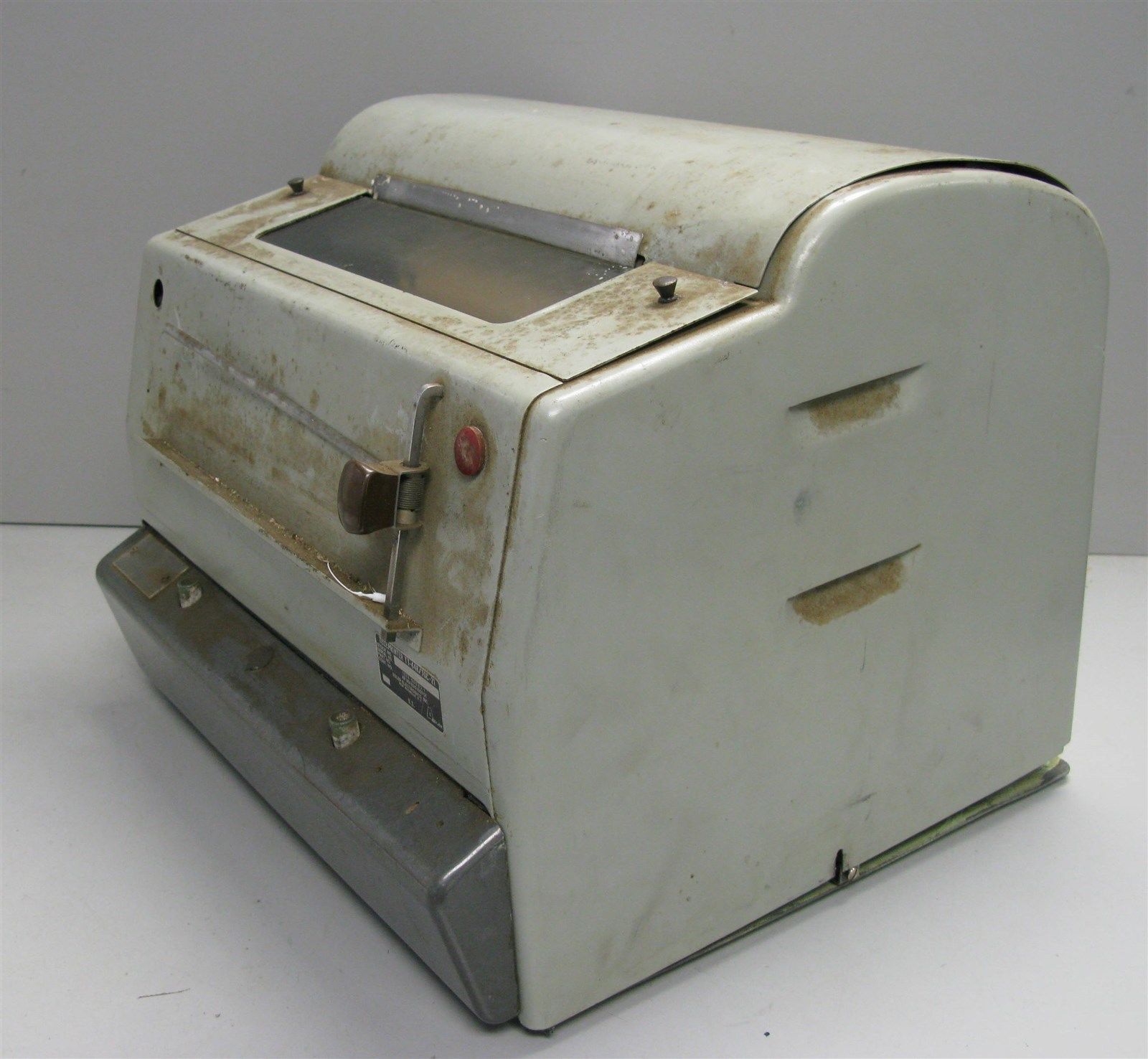

Note- photos are of closely related TT-448/TGC-21

TT-394/UG Mite

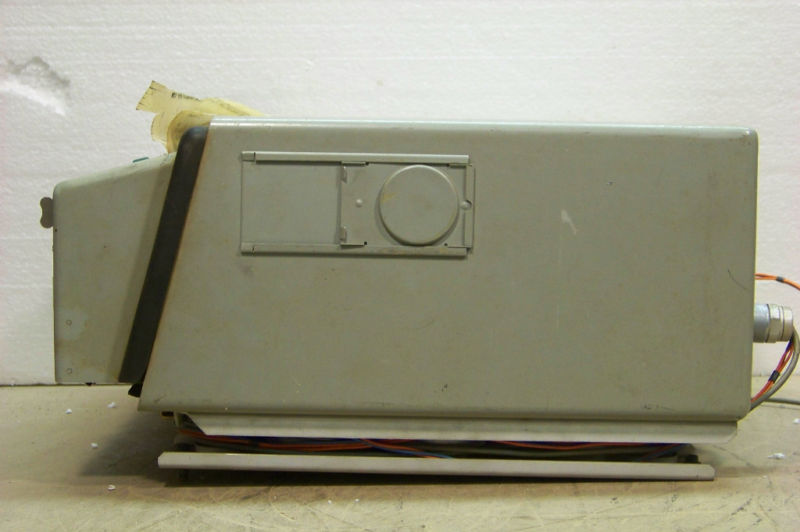

tt394-ug-110425-05.jpg (48356 bytes) tt394-ug-110425-06.jpg (67688 bytes) tt394-ug-110425-07.jpg (82555 bytes) More MITE photos and info

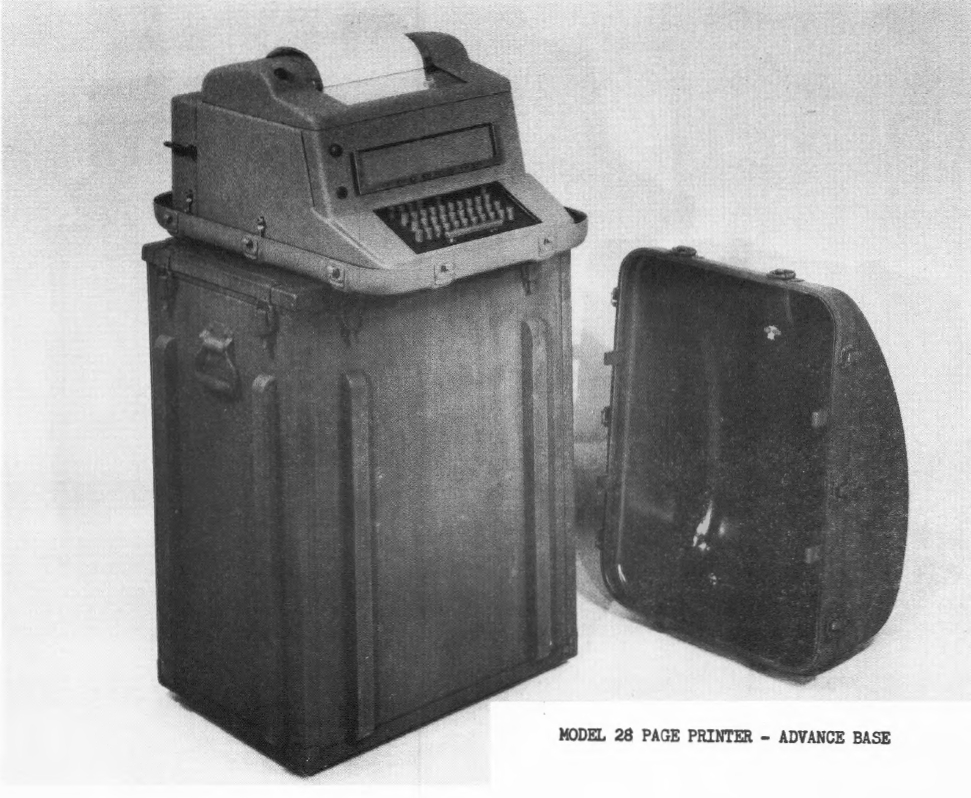

KSR - Keyboard Send/Receive - Typing Unit +Keyboard

AN/FGC-10

Model 15 and Model 19
 - training at Great Lakes
BP128/247 Typing Unit
BK22LD Keyboard
BB-44 Base
MU-4 Motor Unit
PP-424/U Power Supply
Teletype Model 15

Navships 91240

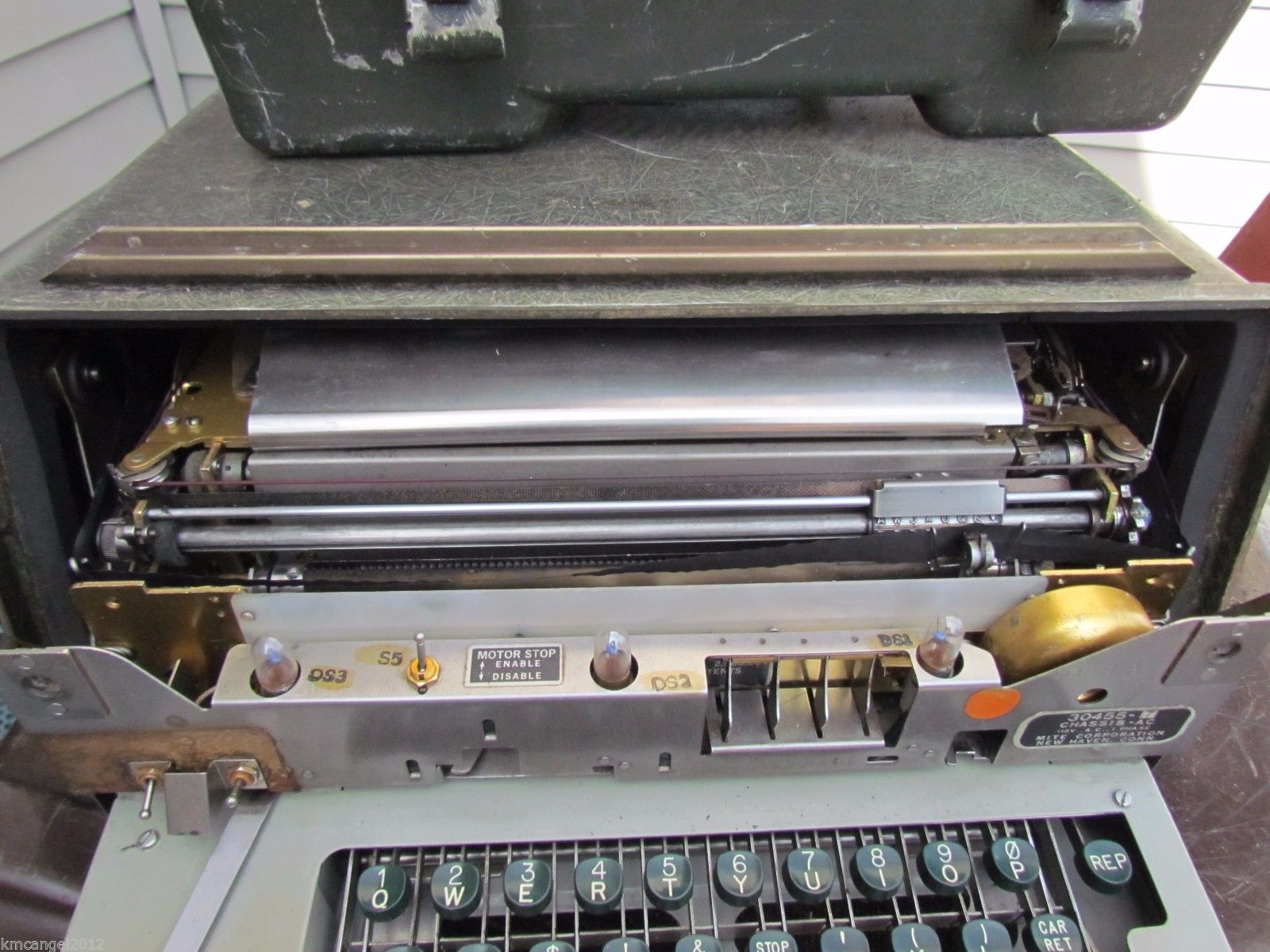

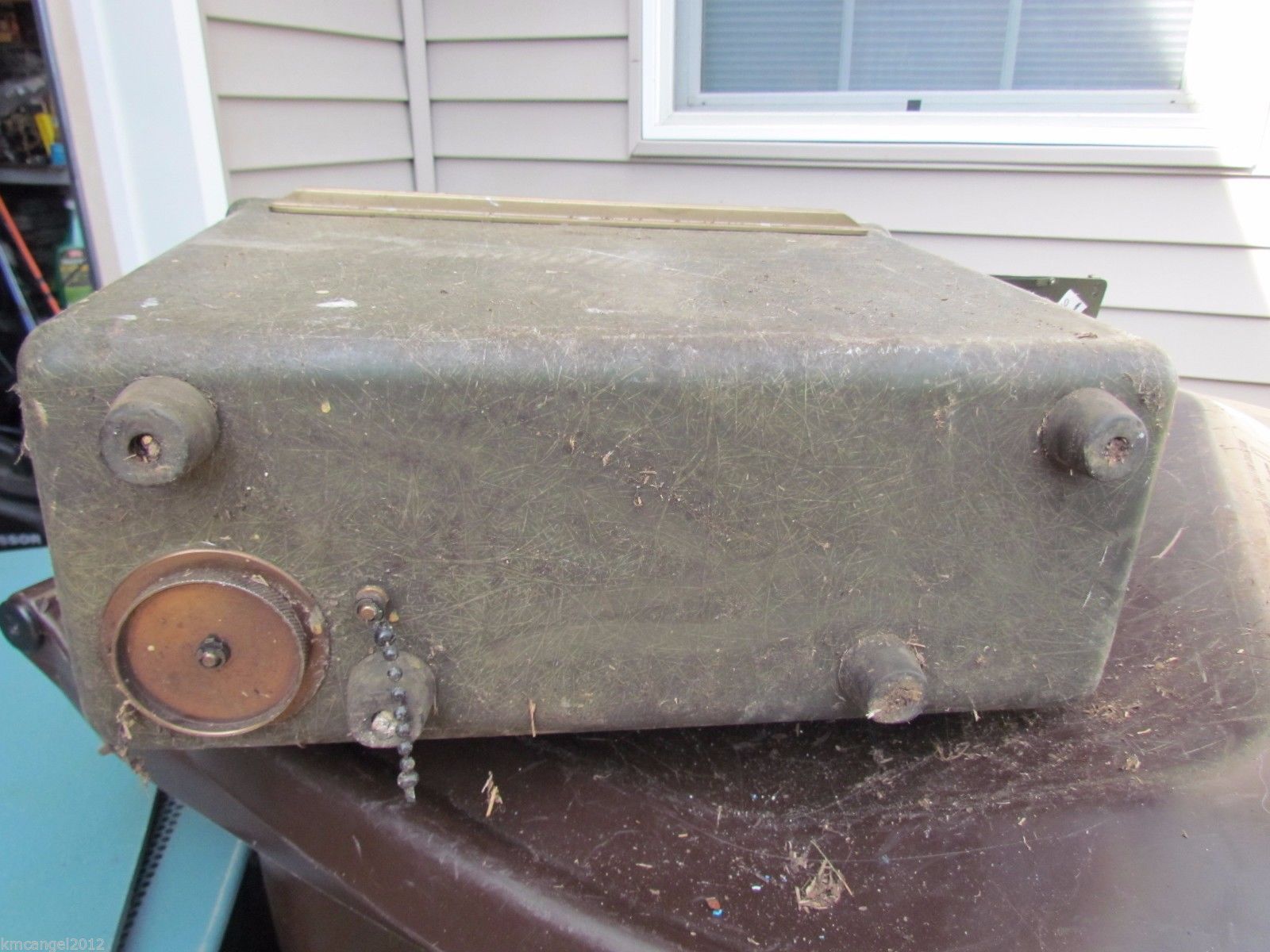

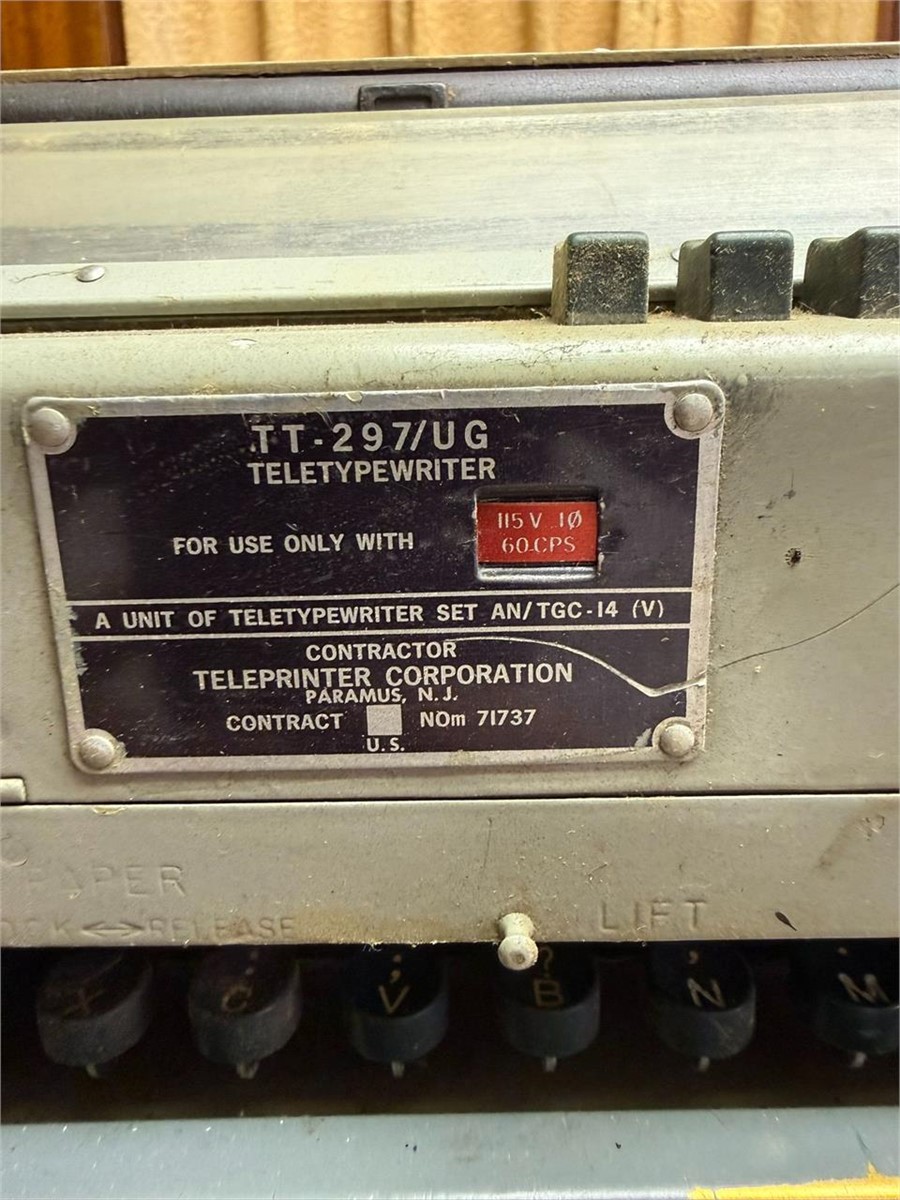

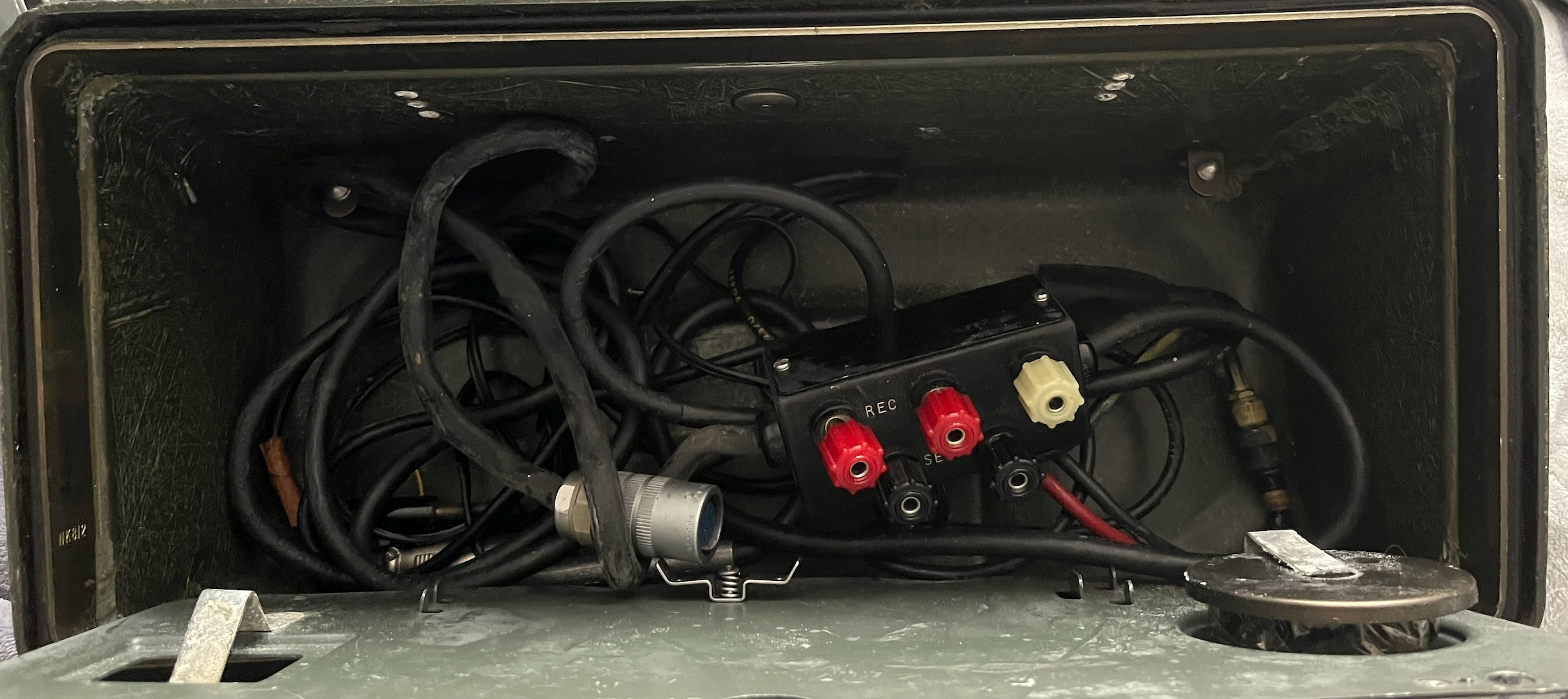

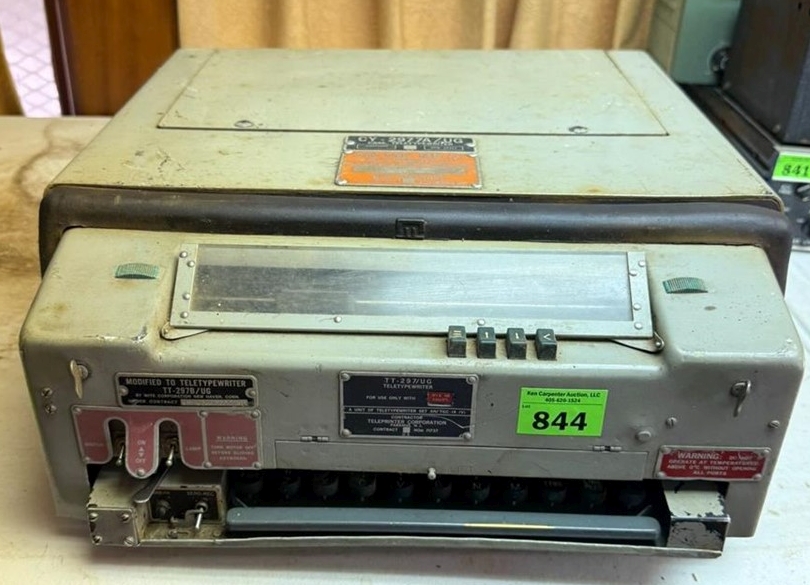

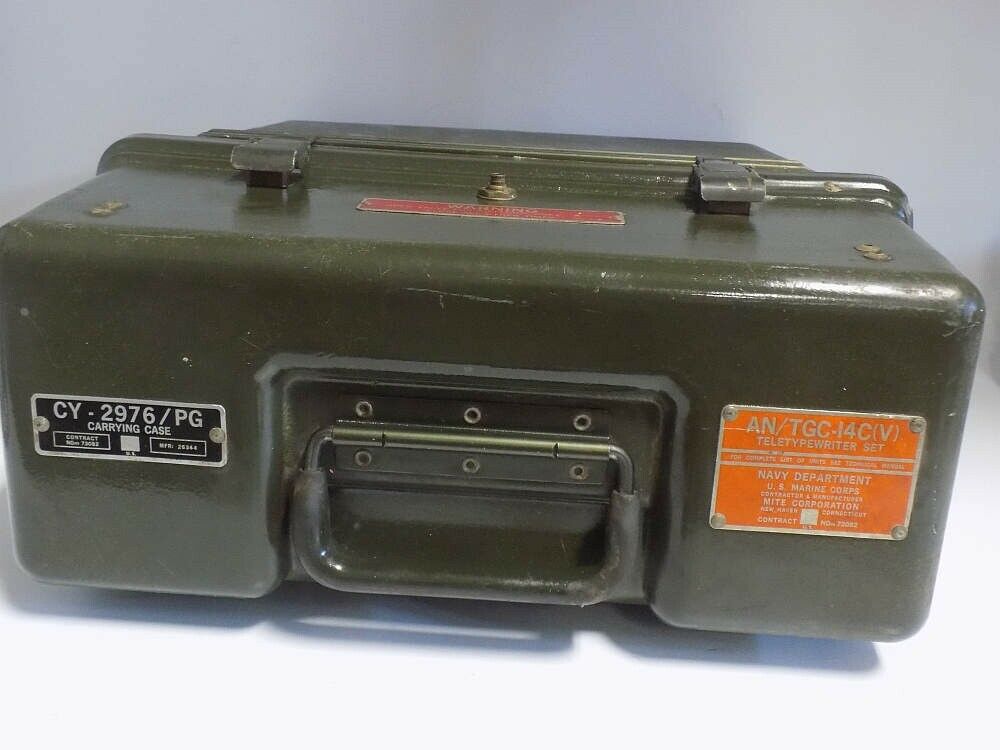

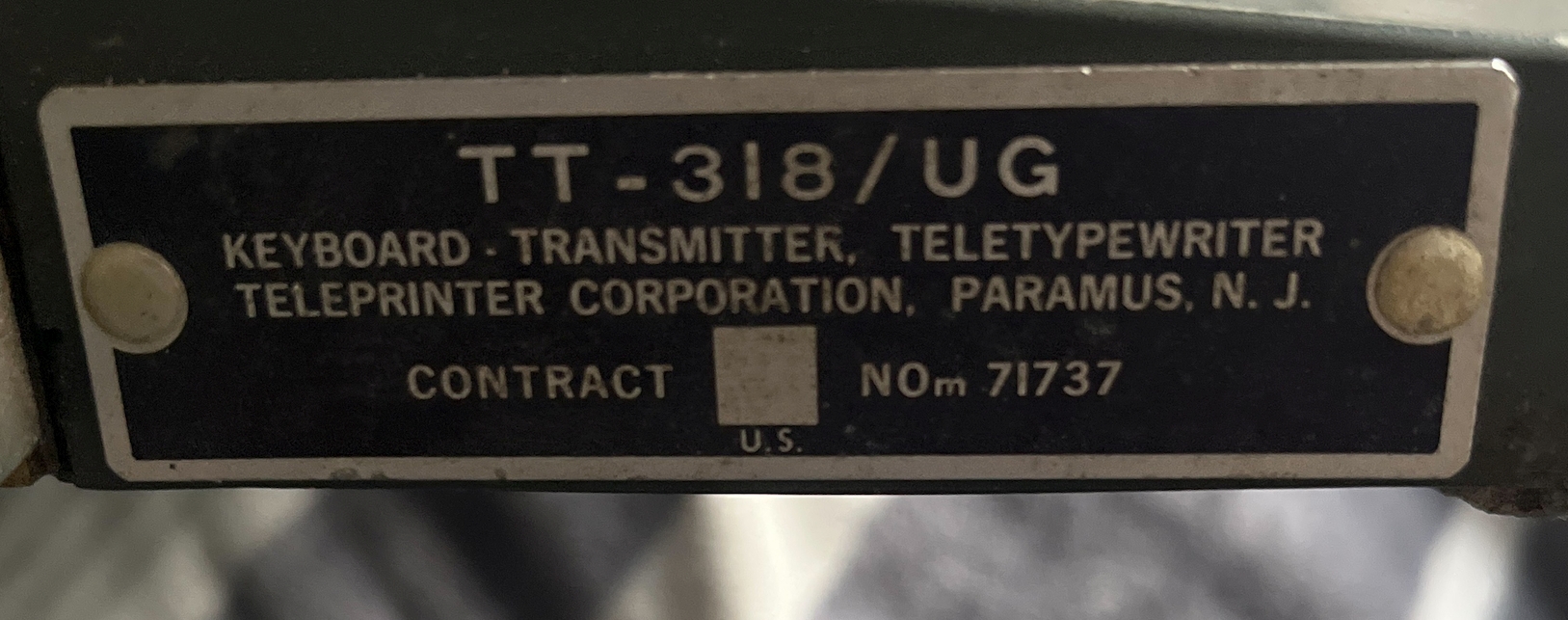

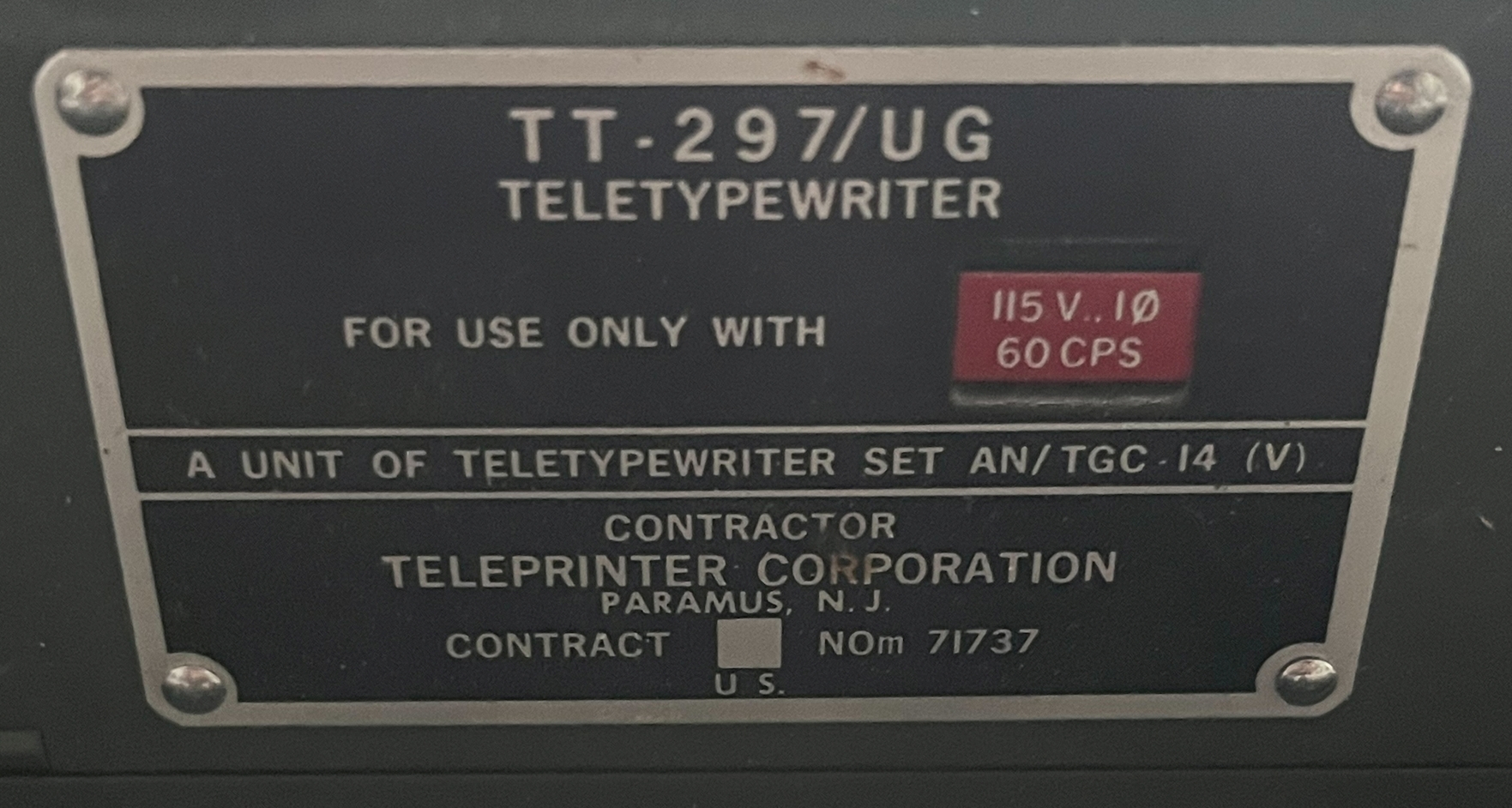

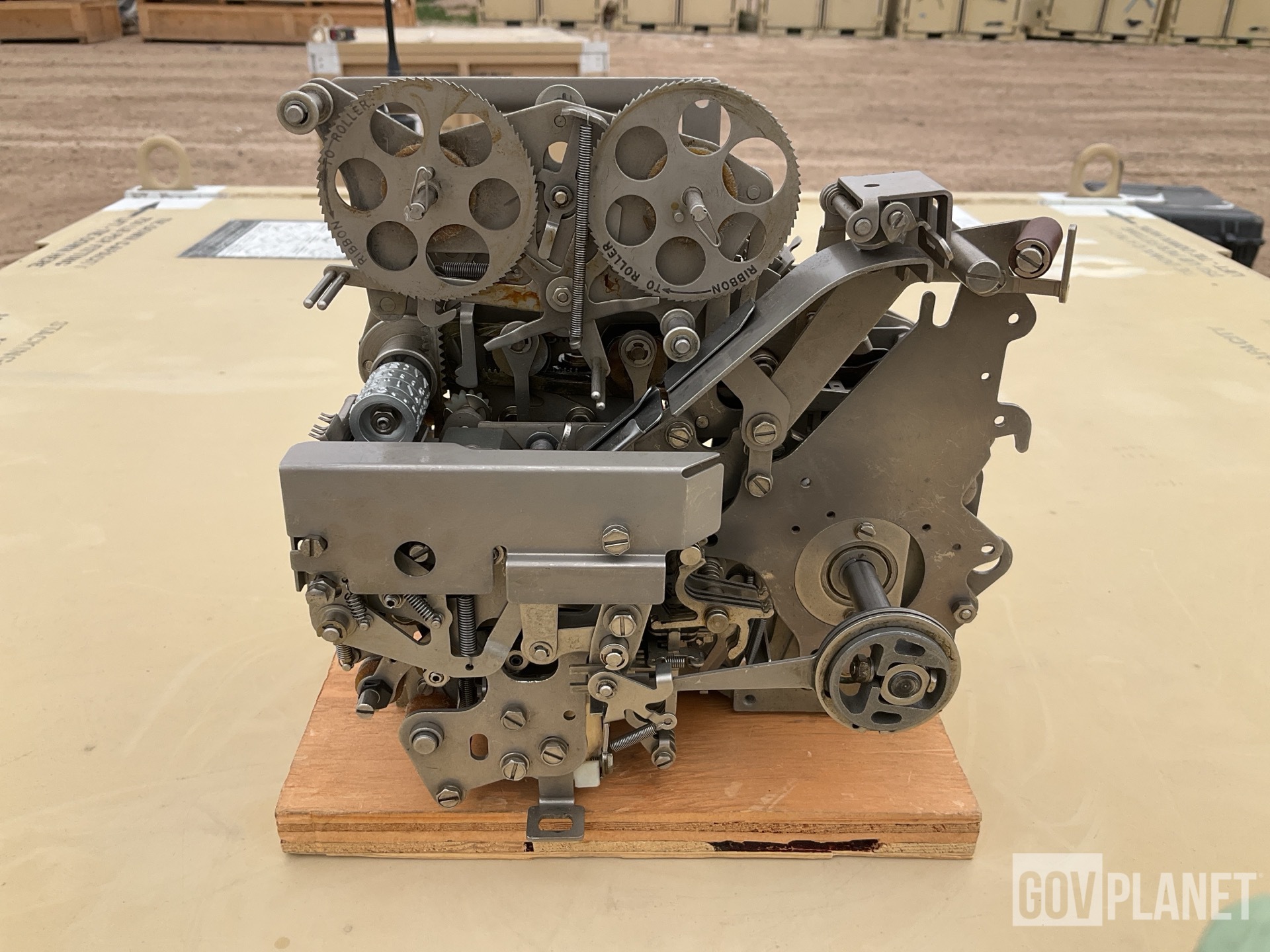

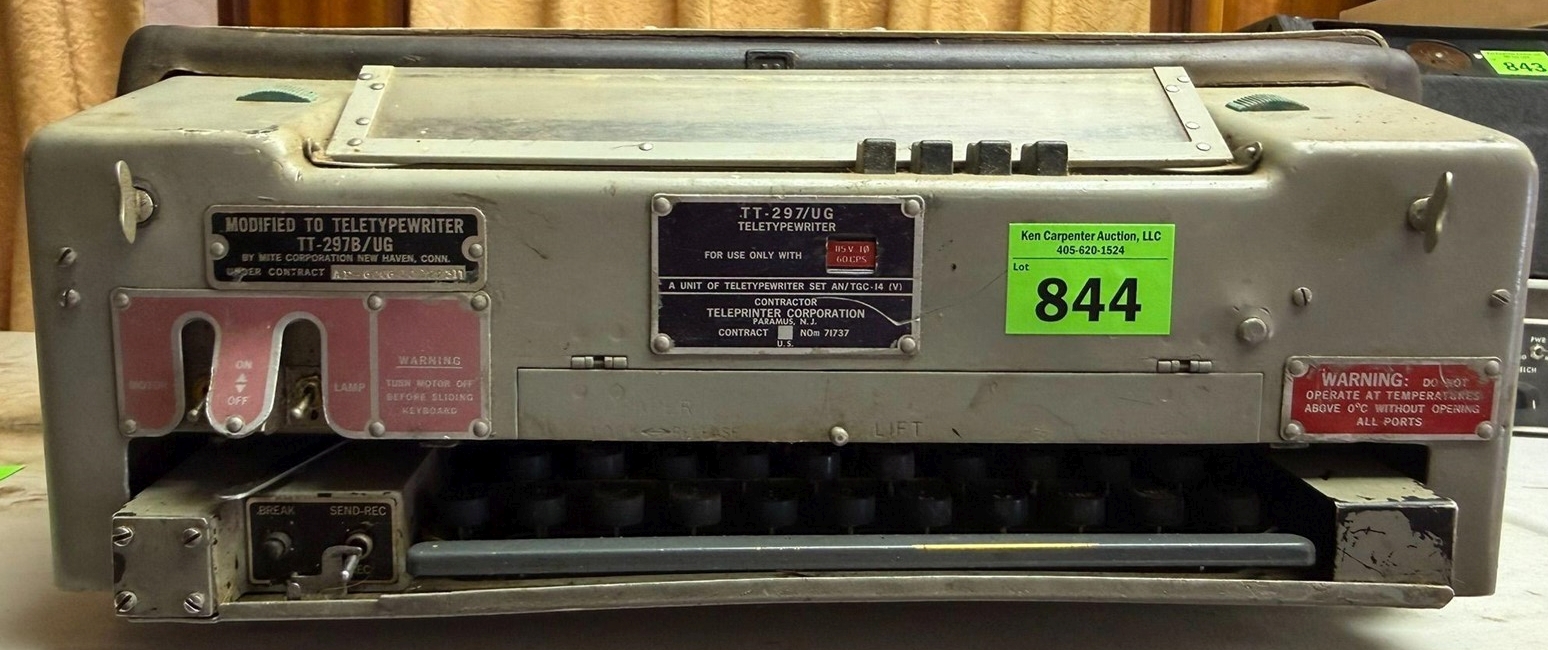

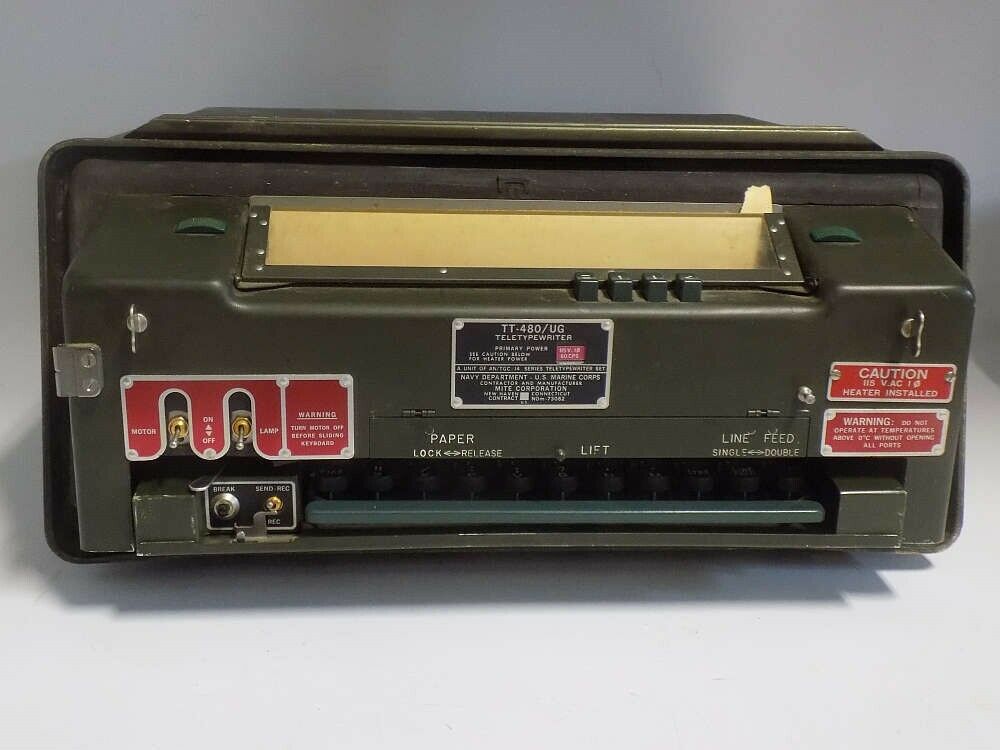

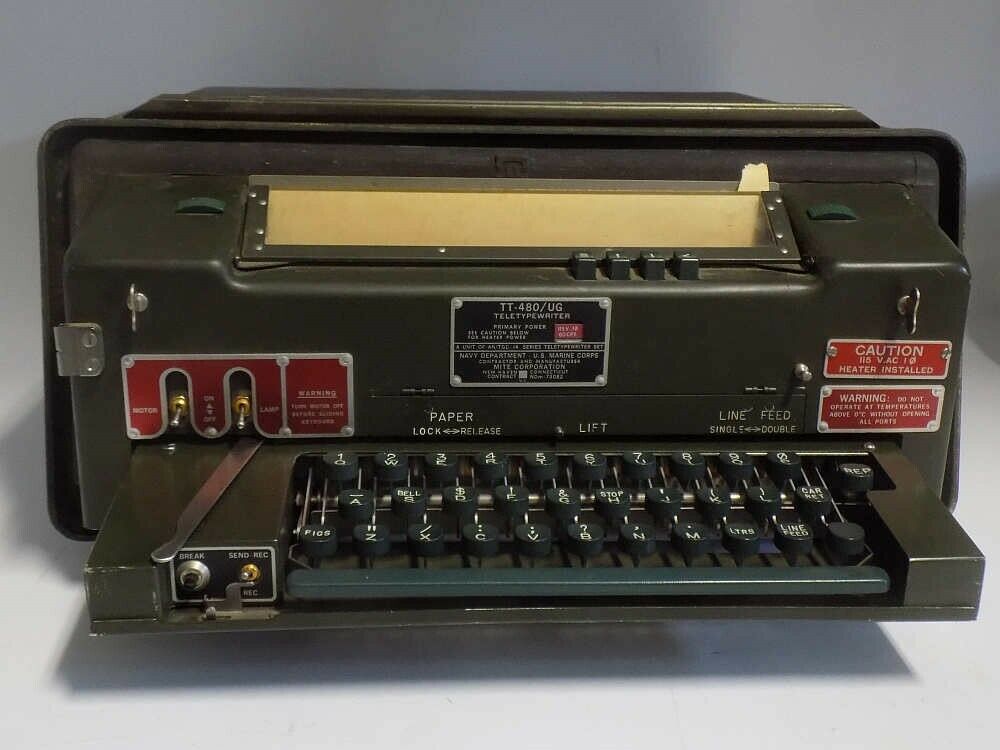

AN/TGC-14 MITE KSR
(USMC)

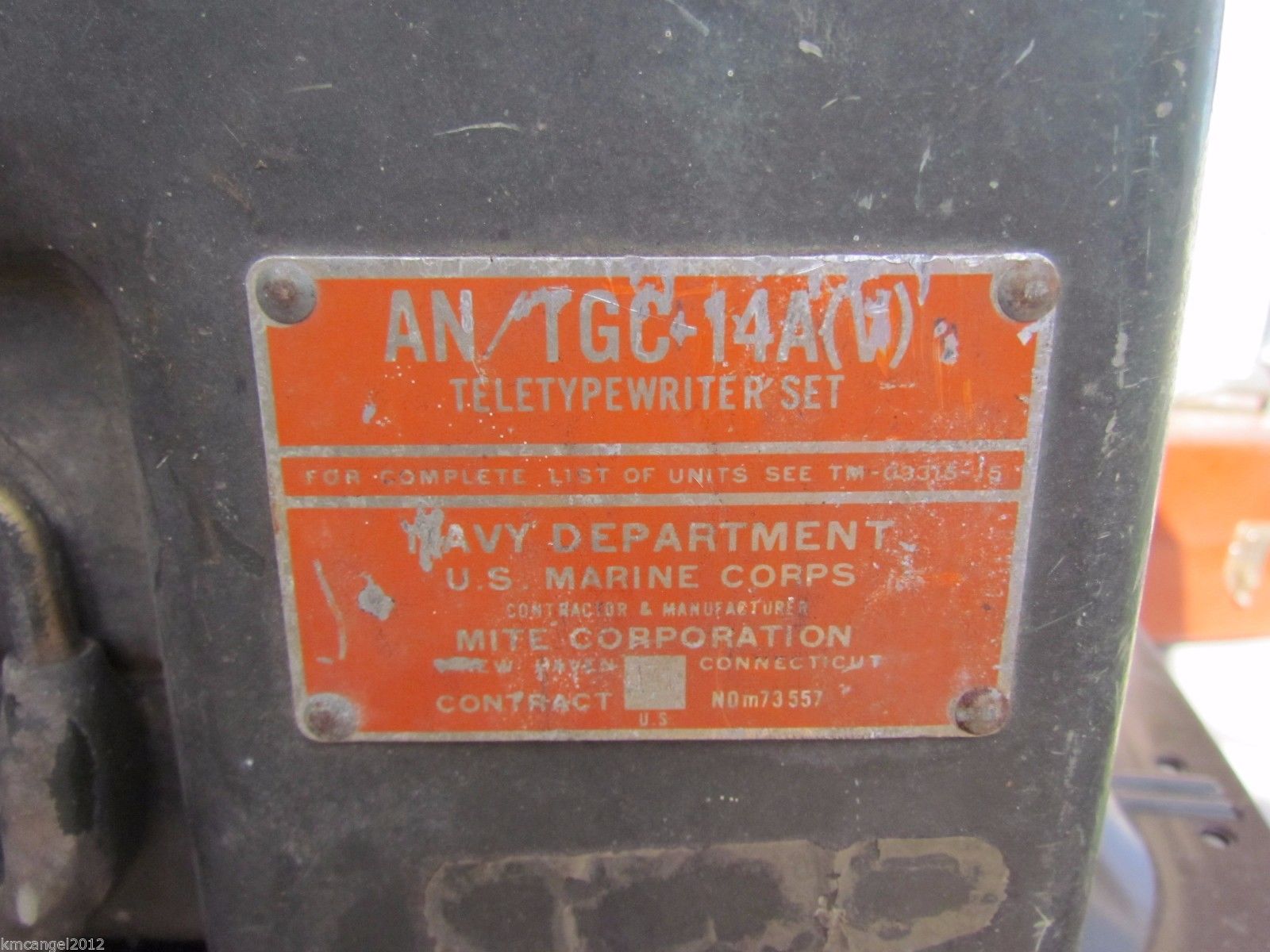

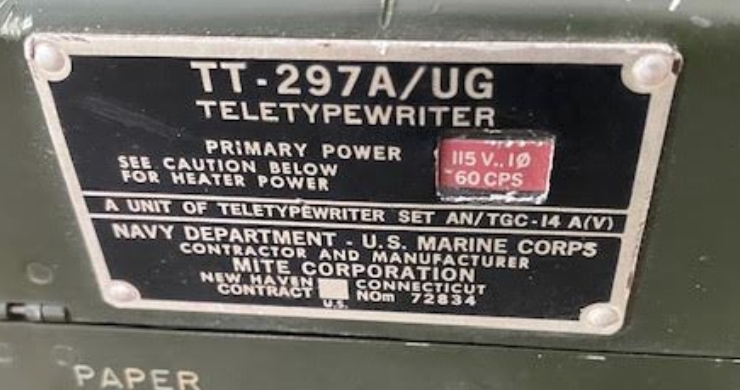

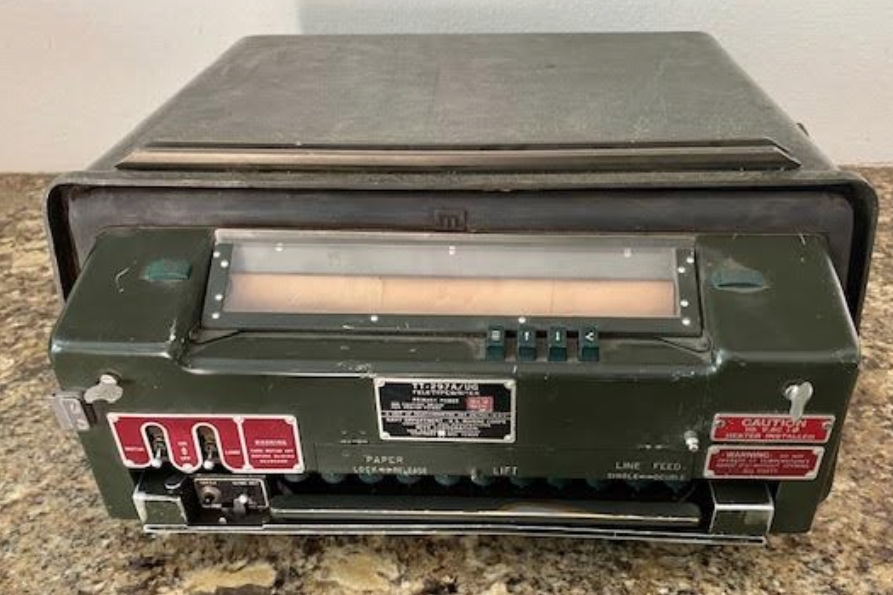

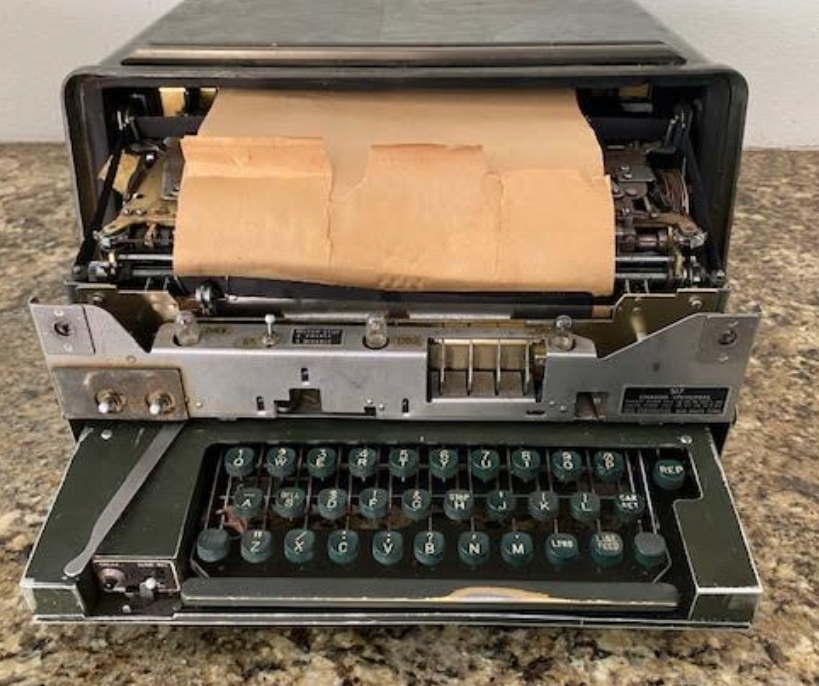

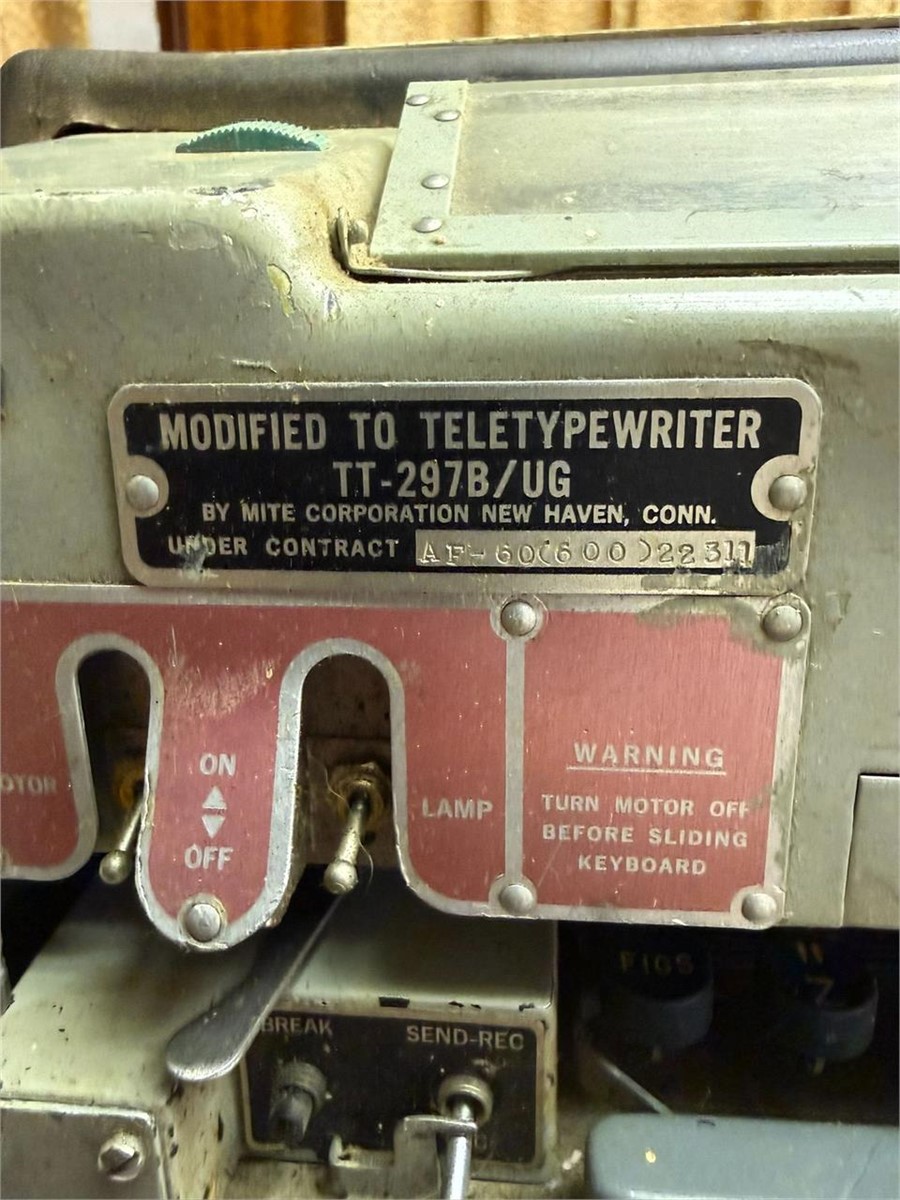

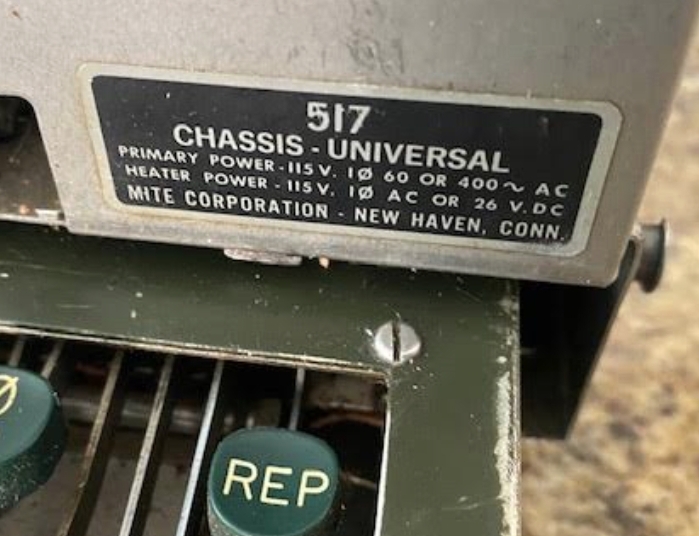

AN/TGC-14A MITE KSR
(USMC)

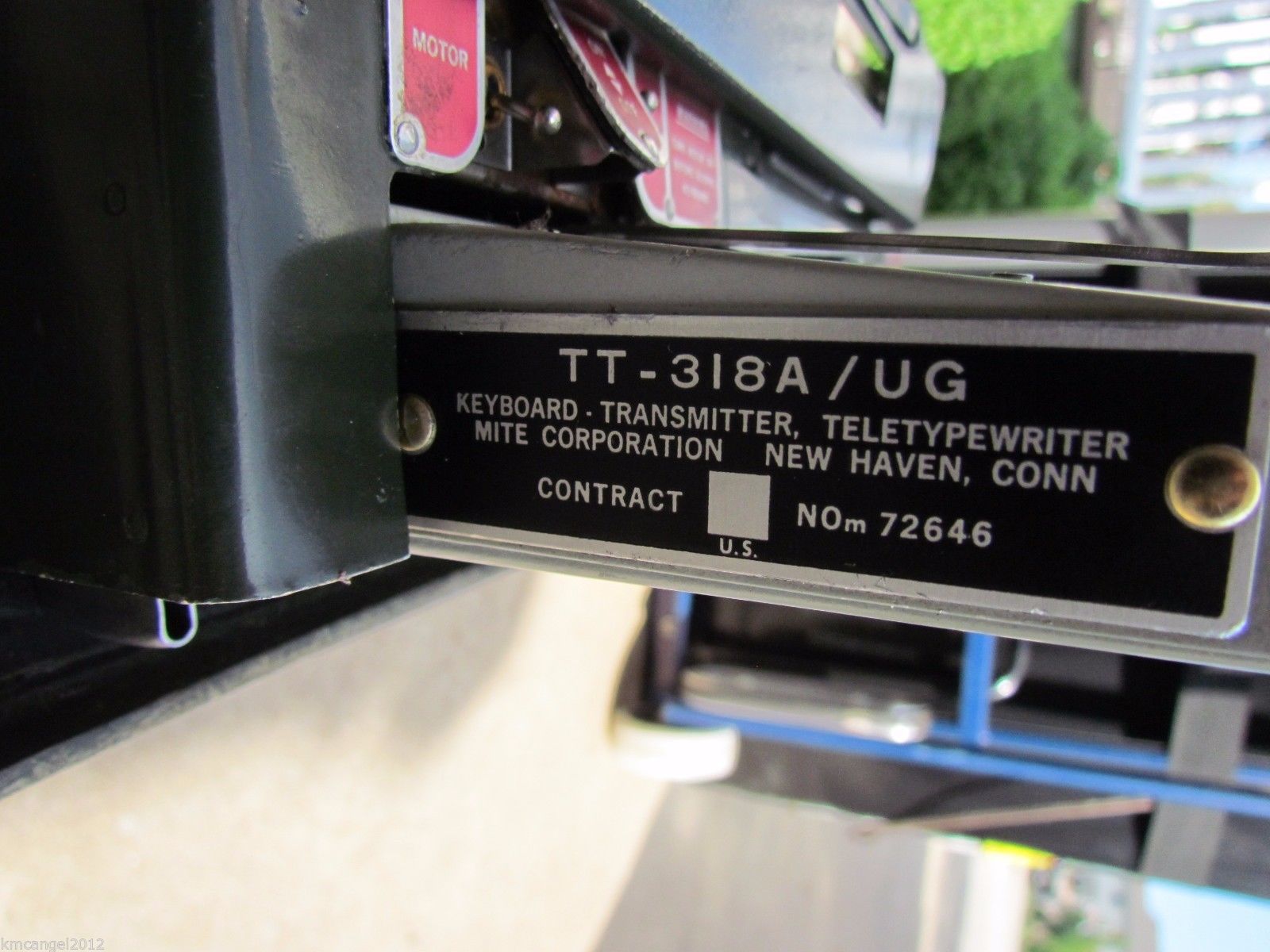

Mark's TGC-14A project

John's TGC-14A video







Manuals thanks to Chuck N7UVZ
     manual part 1
     appendix
      - appendix 11x17

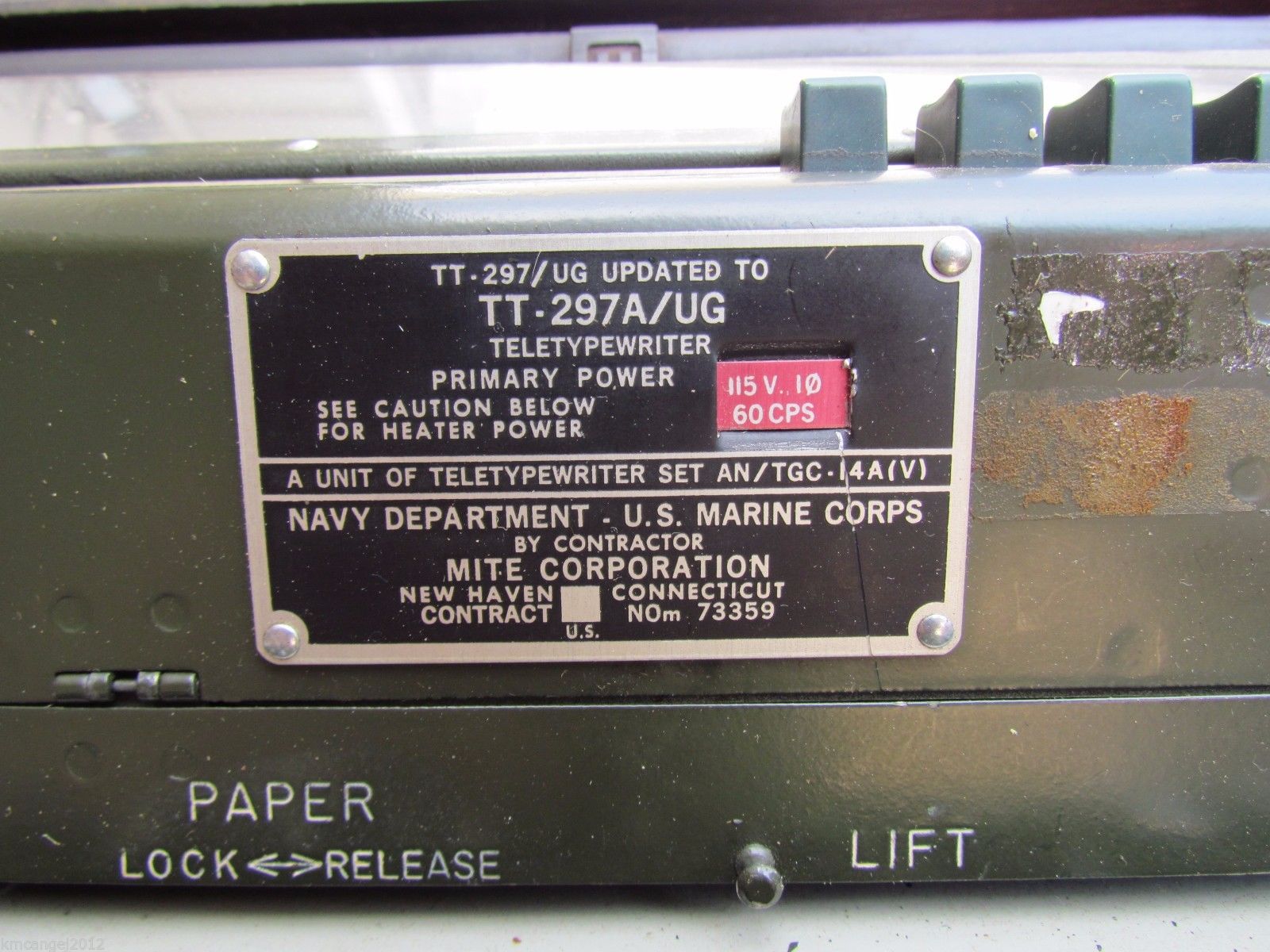

mite-tgc14a-1608-08.jpg (264172 bytes) mite-tgc14a-1608-07.jpg (230020 bytes) mite-tgc14a-1608-09.jpg (243972 bytes)    More MITE photos and info

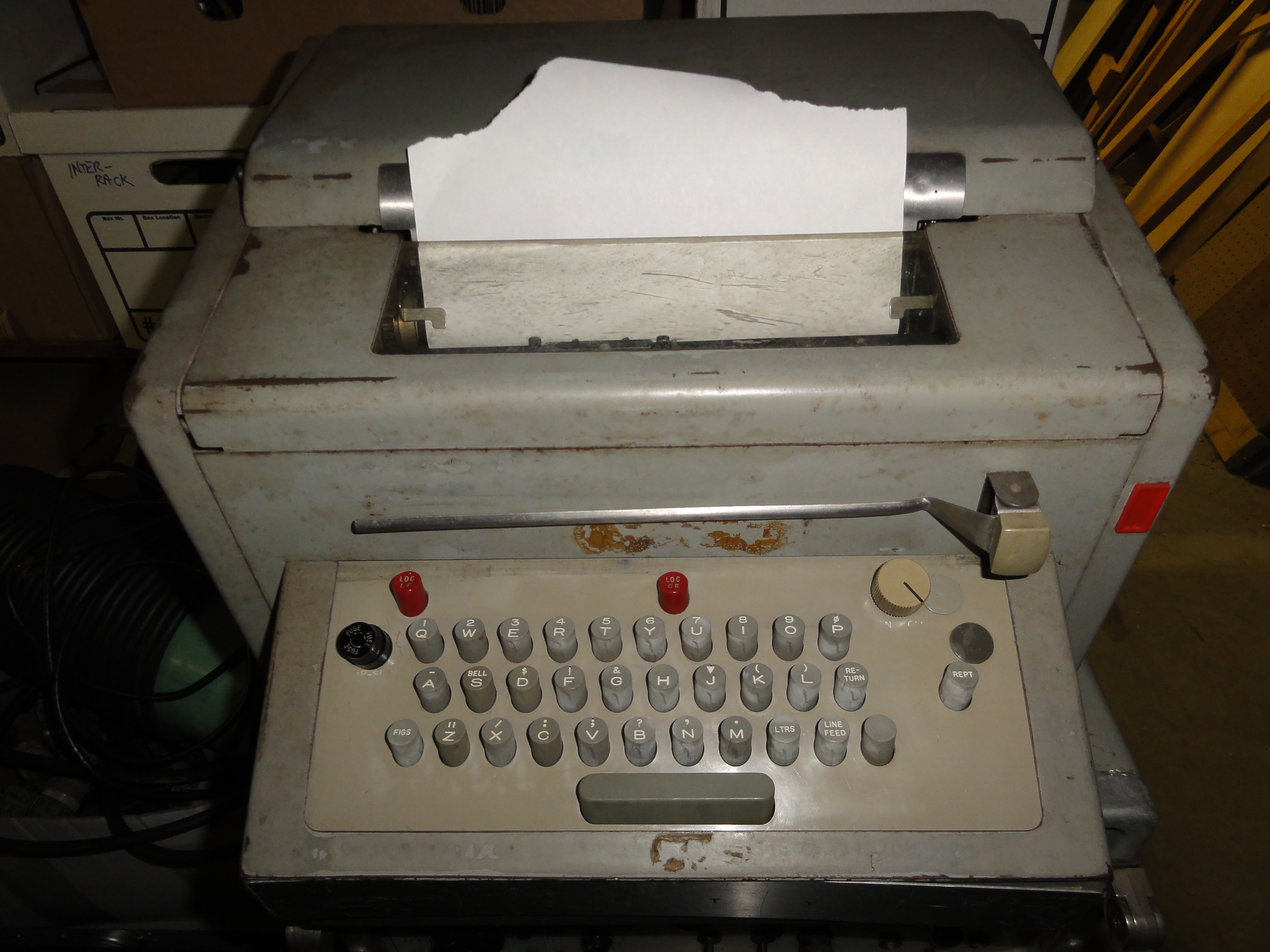

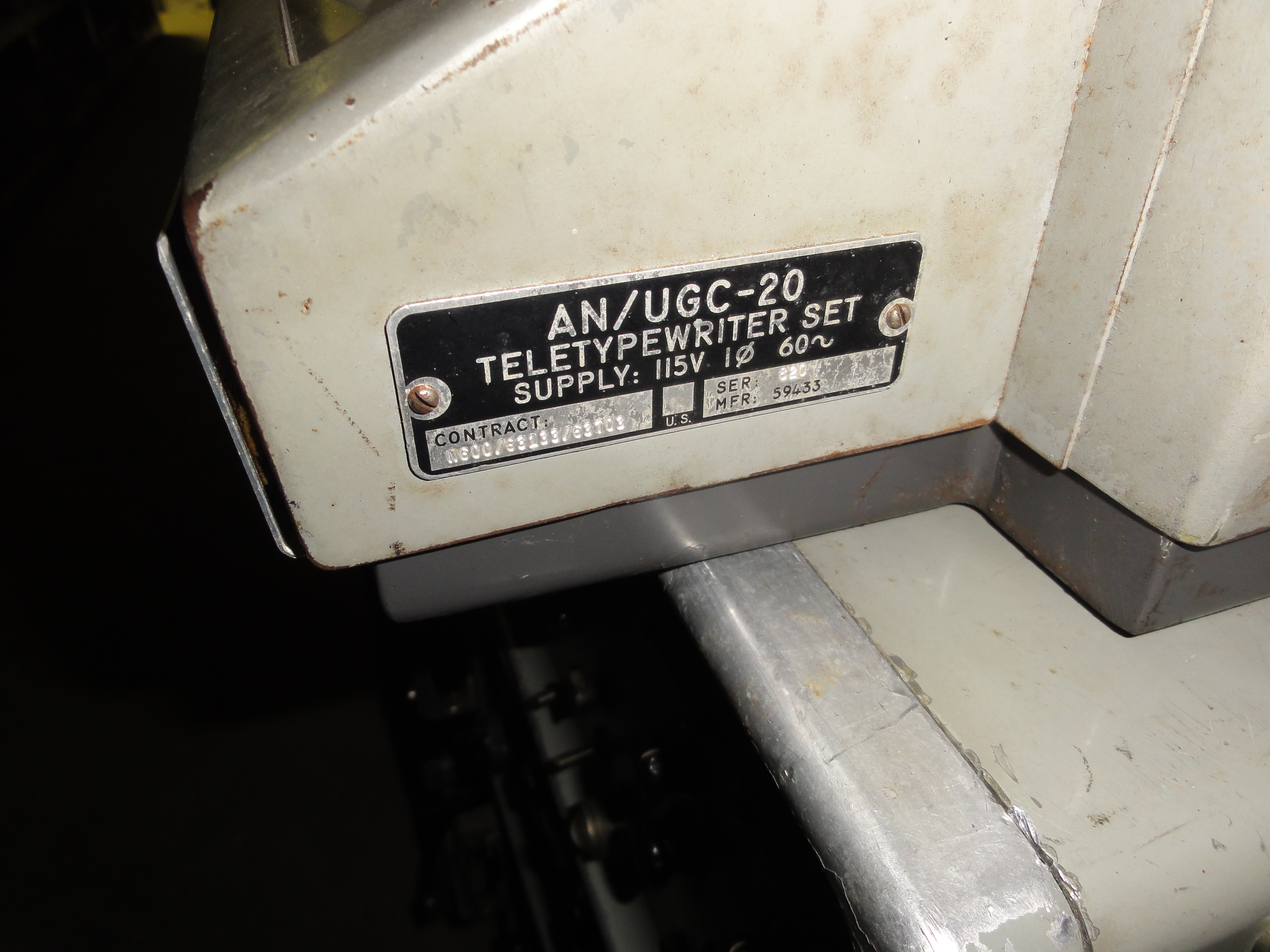

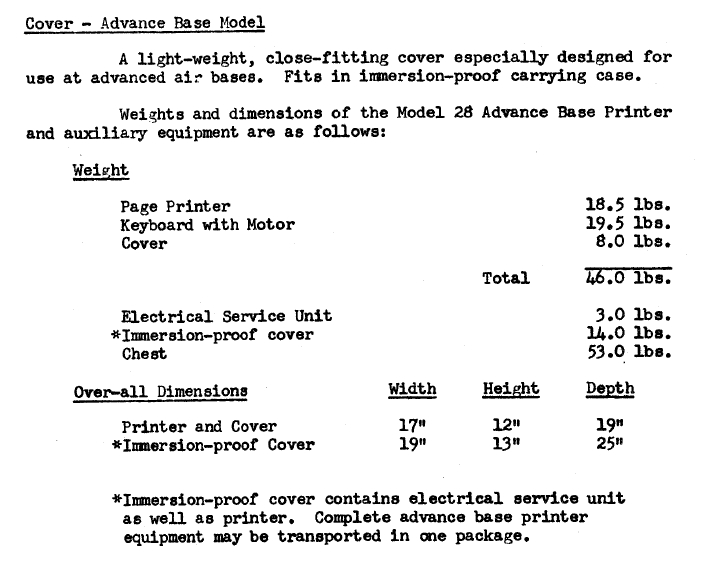

AN/UGC-20

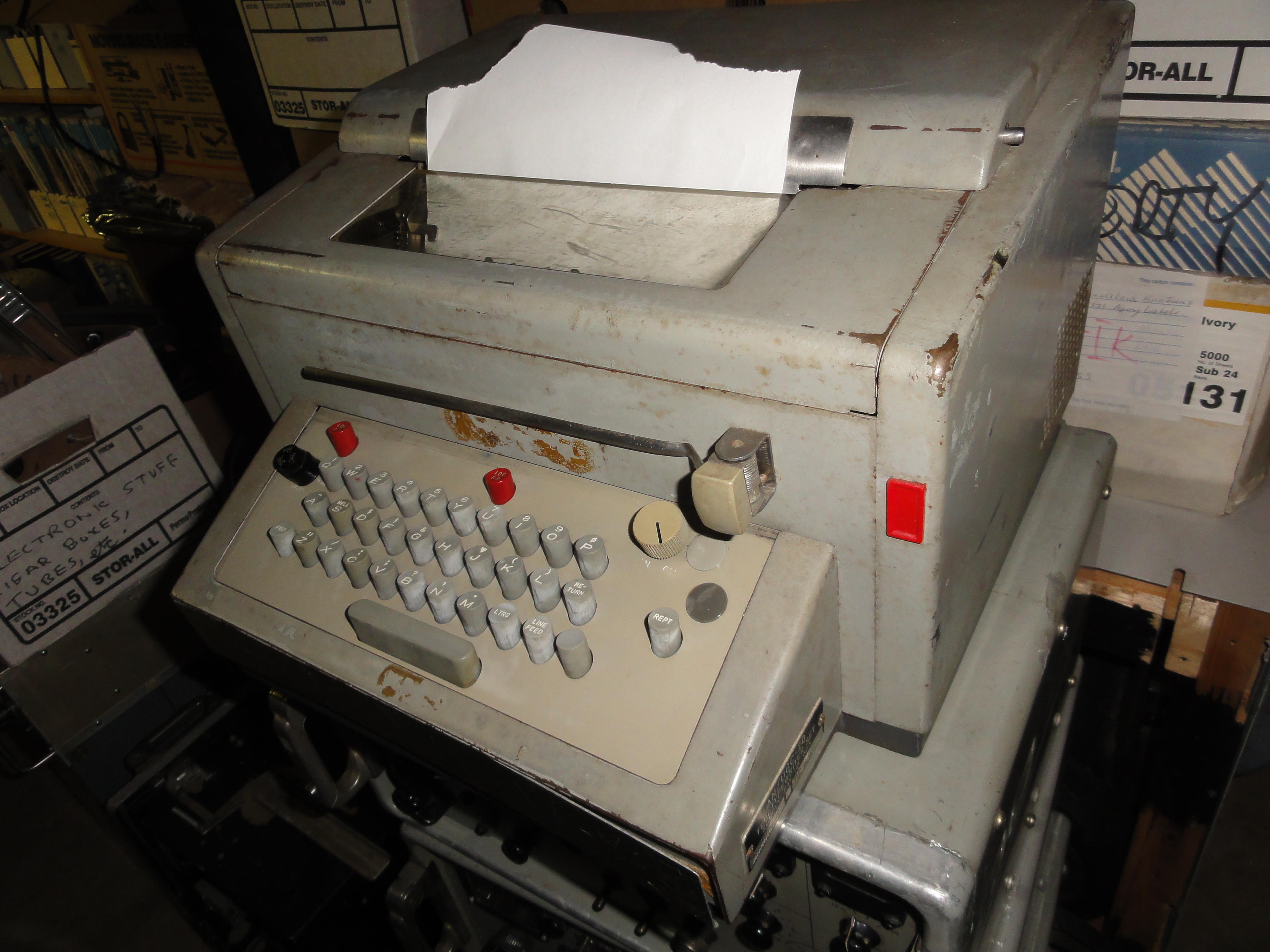

Model 28 Keyboard Send-Receive Page Printer Set (Compact). Consists of cover, friction feed typing unit, keyboard, distributor, and synchronous motor. Includes communication symbol arrangement and gearshift for 45.5, 50 and 74.2 baud.


7.42 unit code, 60 Hz, 115VAC.


Teletype 28KSR "compact" - the keyboard is a M32-style 5-line parallel electrical unit with a separate distributor on the same shaft as the typing unit.

more UGC-20 photos

AN/UGC-77 and UGC-91 (weather) are Low-Level (+/-6v) TEMPEST versions - Info Page

AN/UGC-20 disasssembled
keyboard
base, motor, & distributor (left rear)
typing unit

AN/UGC-20B

AN/UGC-20B is similar to AN/UGC-77 and has the same photoelectric keyboard and distributor.
Unlike the UGC-77, it has a built-in 60ma keyer (or can output 1.5v/70uA directly from the photocells). It does not have +/-6v output.

Manual

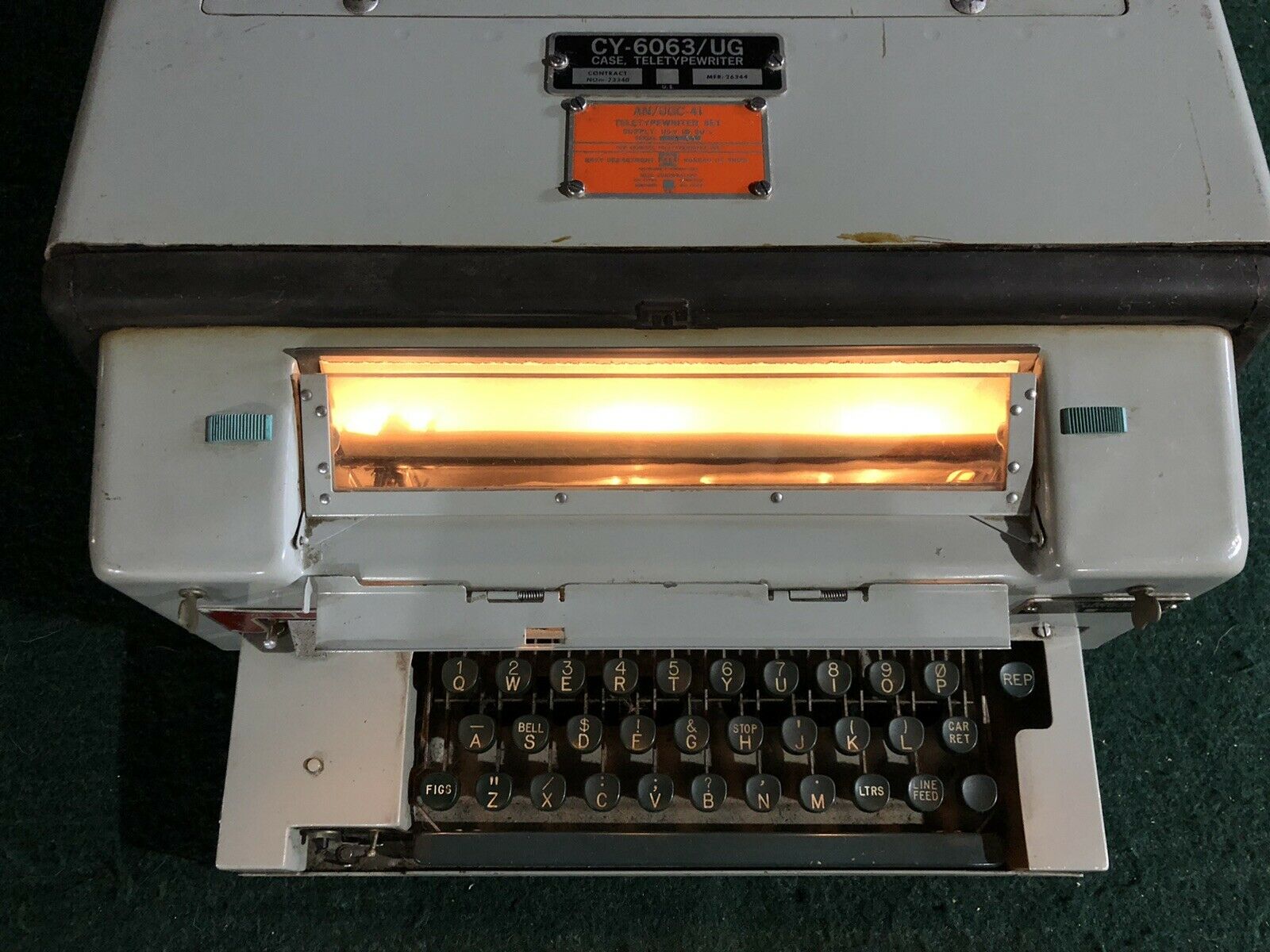

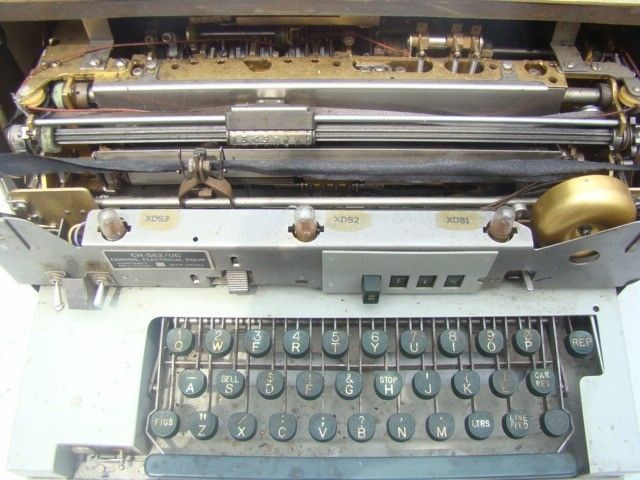

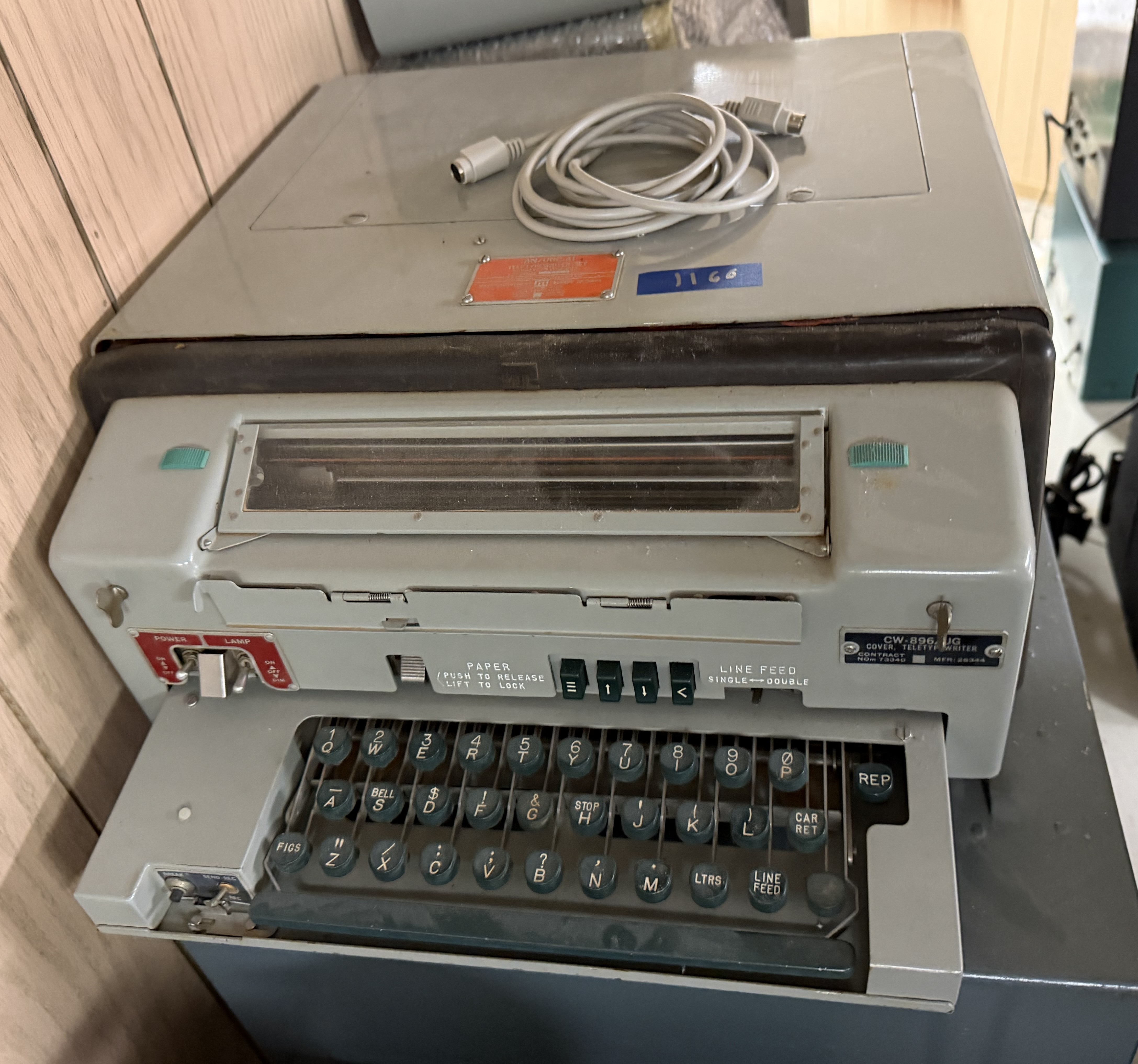

AN/UGC-41

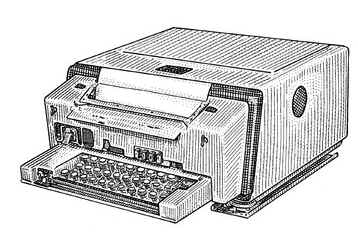

... from a Wall Street Journal article

 MITE KSR

MITE Corporation

More MITE photos and info

NAVSHIPS 0967-170-8010

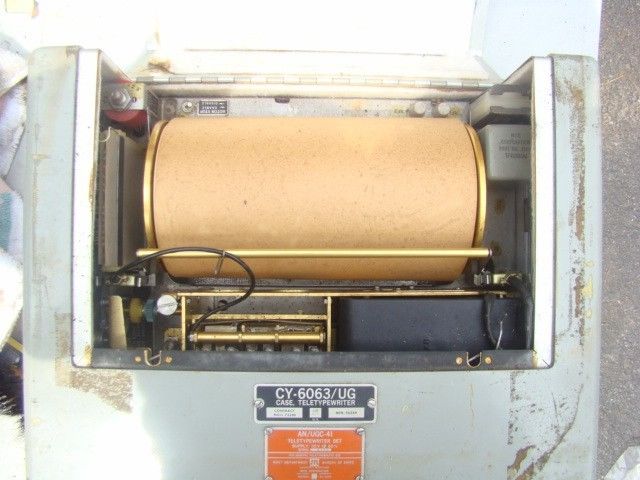

ugc41-1406-09.JPG (66149 bytes) ugc41-1406-02.JPG (51406 bytes) ugc41-1406-04.JPG (56749 bytes) ugc41-1406-03.JPG (56042 bytes)
ugc41-1406-05.JPG (60037 bytes) ugc41-1406-06.JPG (30407 bytes) ugc41-1406-07.JPG (37206 bytes) ugc41-1406-08.JPG (33264 bytes)



AN/UGC-77 (and UGC-91 weather version) - Info Page

low-level TEMPEST version of AN/UGC-20 above

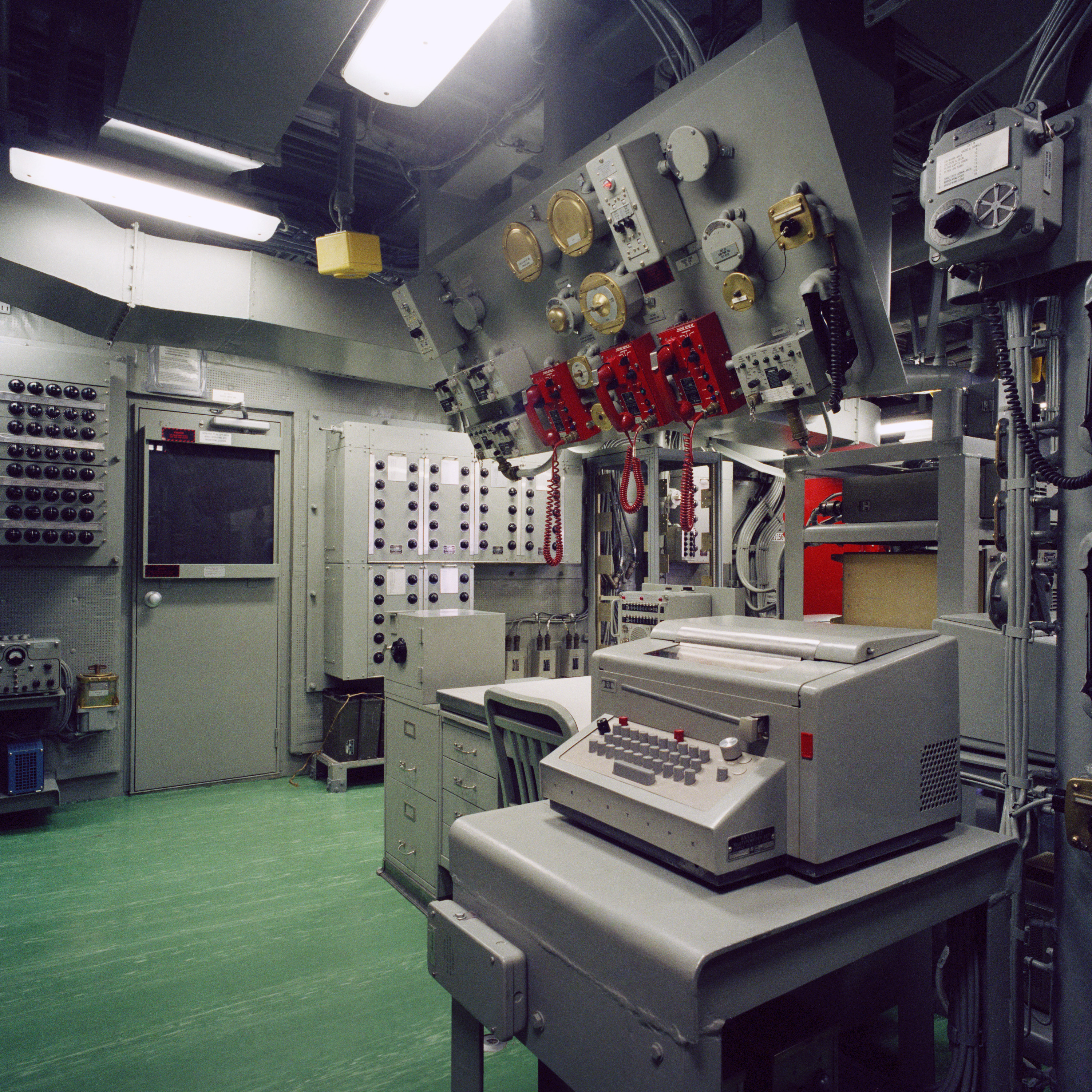

1987 - Newly installed aboard FFG-60

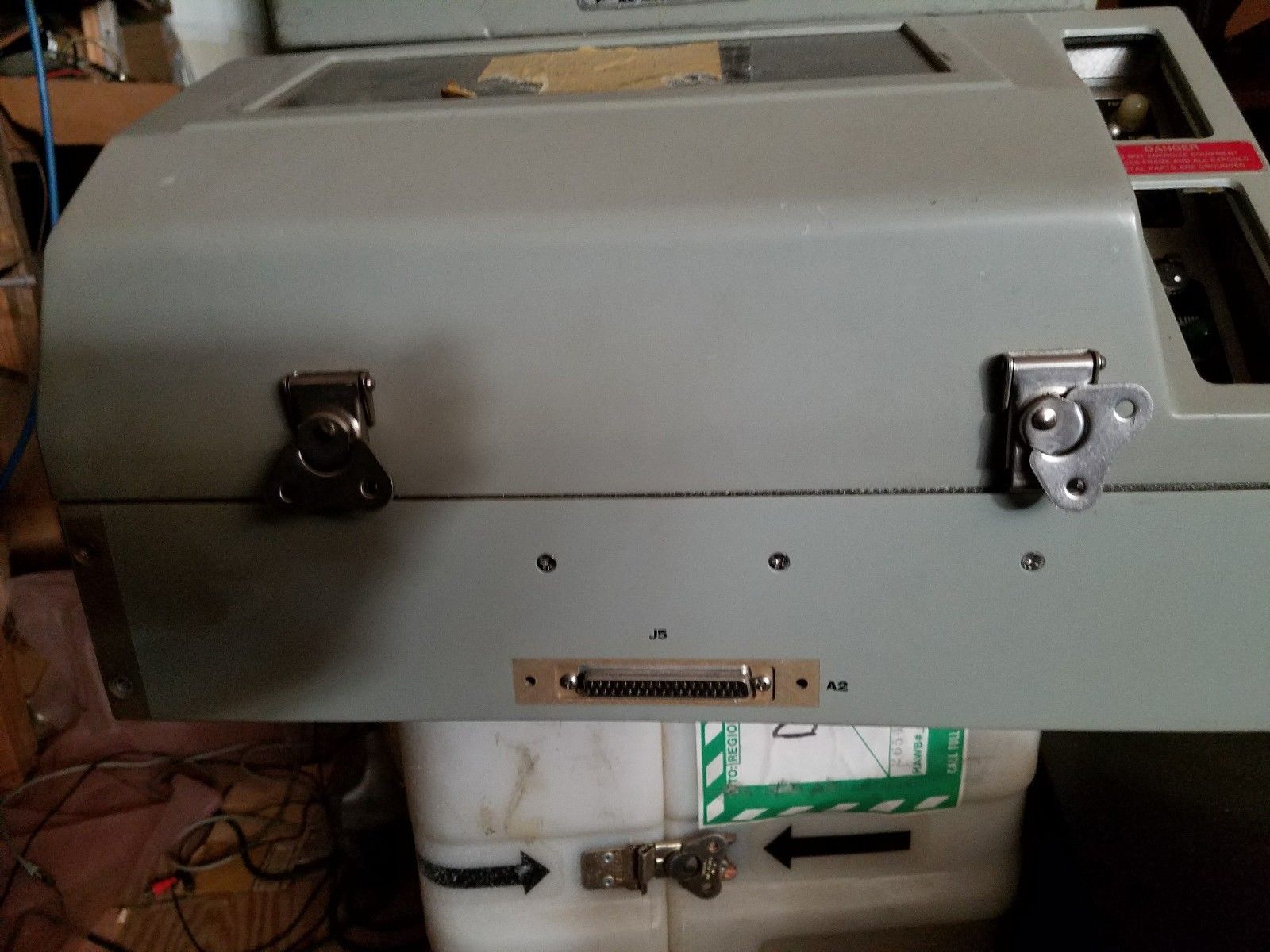

AN/UGC-136 - Info Page

   manual

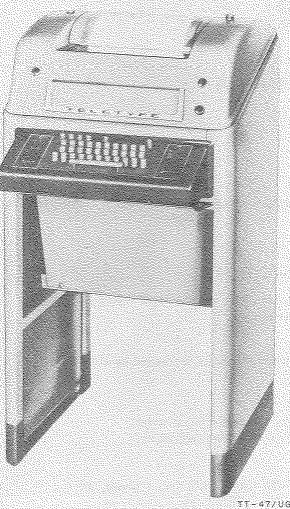

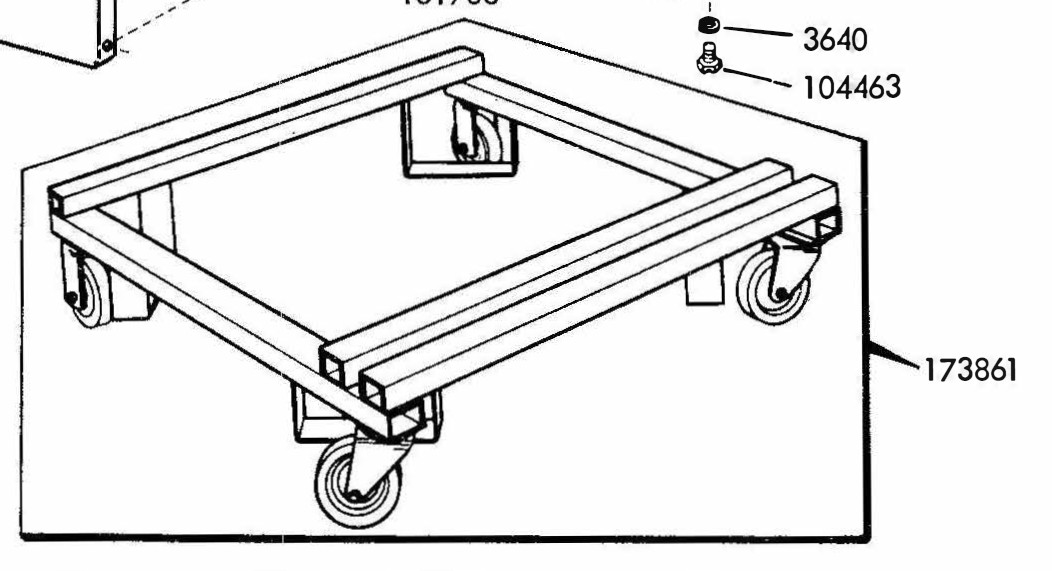

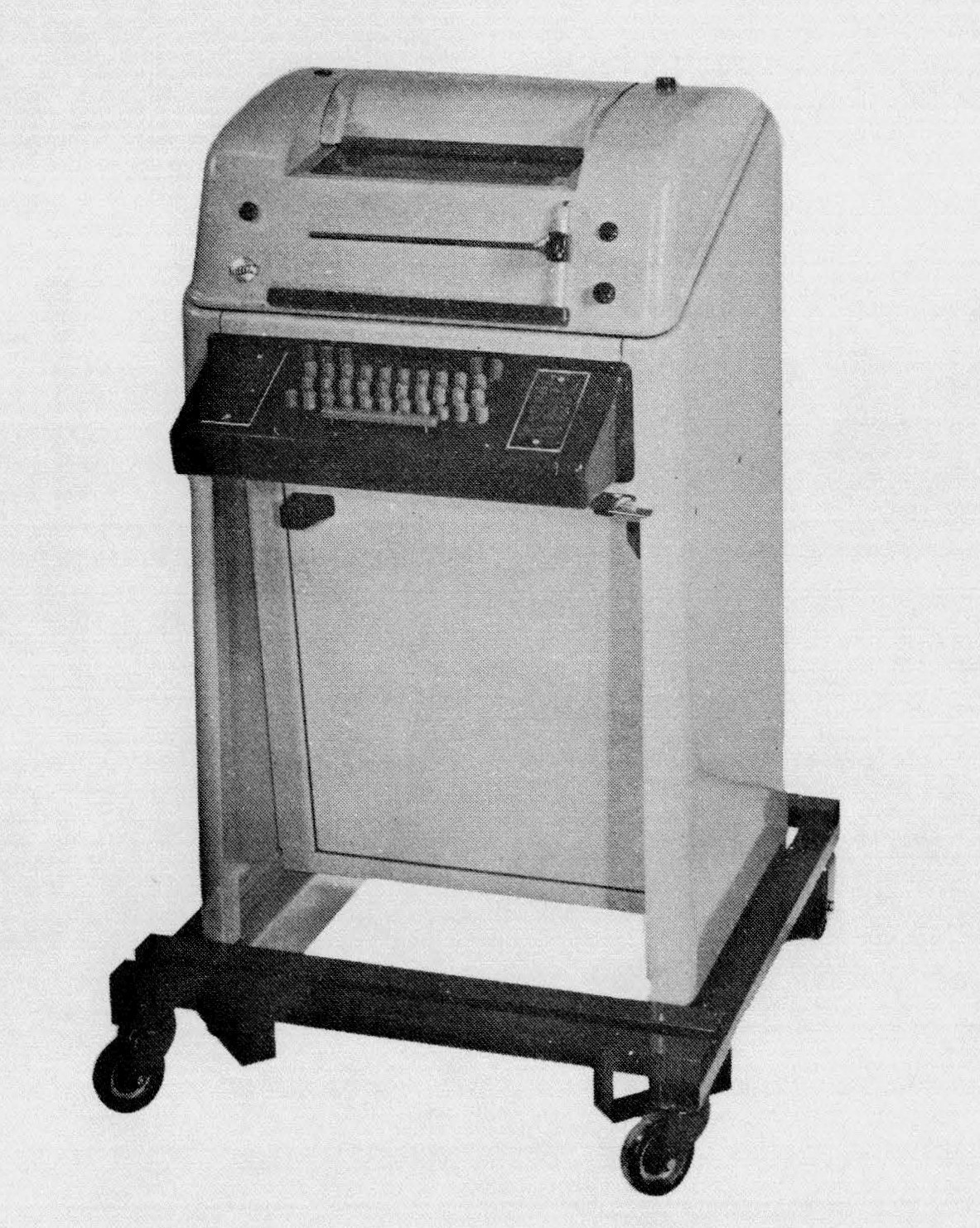

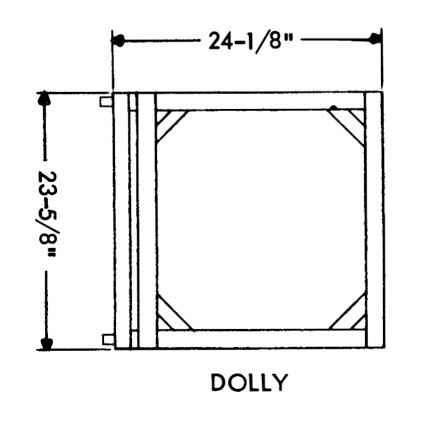

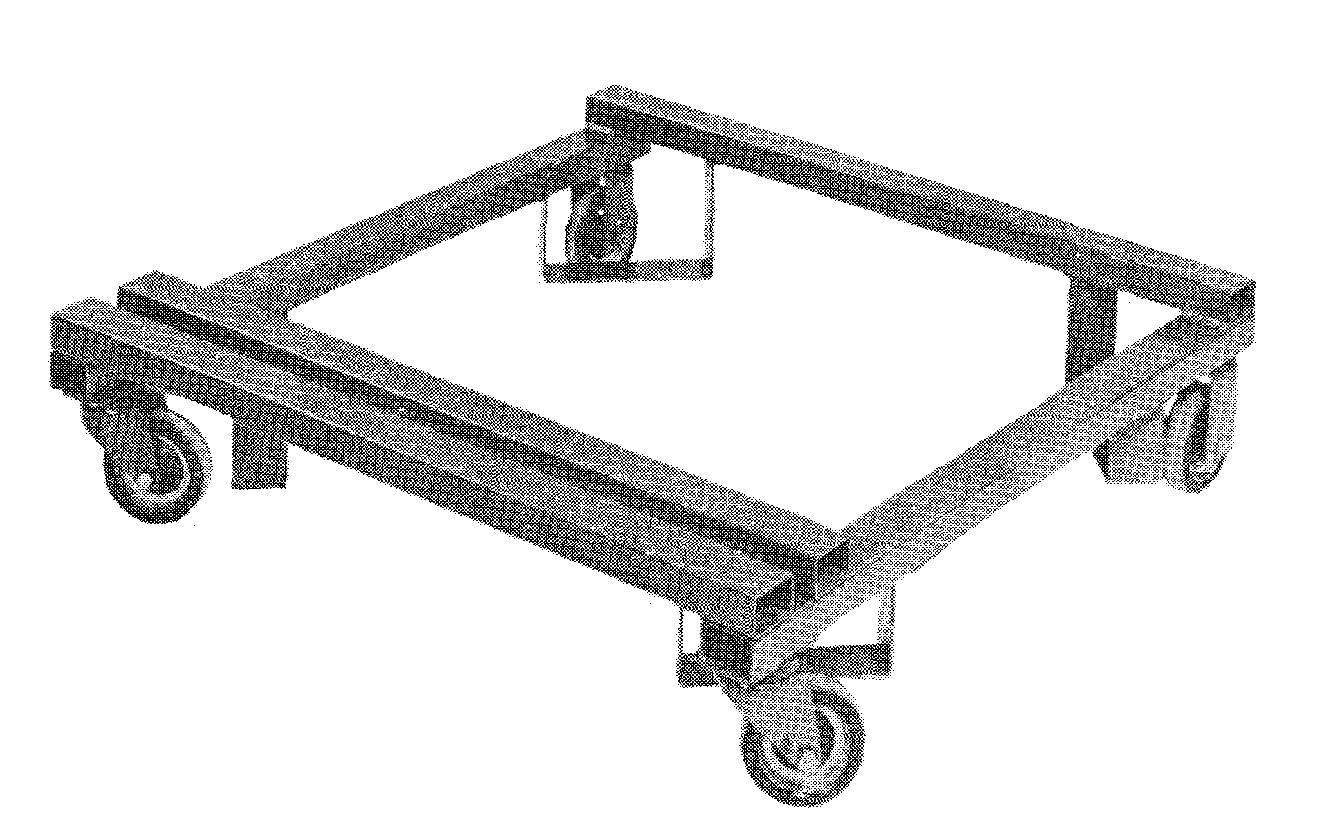

TT-47/UG & TT-48/UG

floor mount


TT-47 - PD-17/U synchronous motor

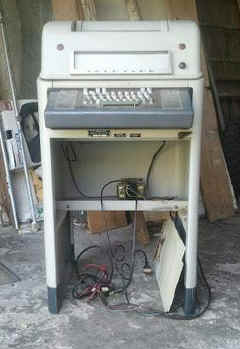

TT-48 - PD-18/U governor motor

CY-870/UG cabinet
CB-154/UG power panel
MX-1114/UG keyboard
MX-1115/UG typing unit

Teletype 28KSR

spec sheet

NAVSHIPS 94393

Model 28 Keyboard Send-Receive Page Printer Set. Consists of floor cabinet, friction feed typing unit,
electrical service unit, keyboard,
synchronous motor and gears for 45.5 baud. 7.42 unit code, 60 Hz, 115VAC.
Includes communication symbol arrangement and selective calling feature.

Keyboard sync magnet for crypto use

TT-47/UG
TU- LP1/291 (MX-1115/UG)
ESU- LESU1 (SB-154/UG)
KBD- LK1/MT (MX-1114/UG)
MU- LMU1 (PD-111/U)
CAB- LAC200BJ (CY-870/UG)
TT-47A/UG
TU- LP3RN/AC100 (MX-1115A/UG)
ESU- LESU5/103 (SB-154A/UG)
KBD- LK3RN101 (MX-1114A/UG)
MU- LMU3 (PD-17A/U)
CAB- LAC200BJ104 (CY-870/UG)
TT-47B/UG
TU- LP4RN/AC142 (MX-1115B/UG)
ESU- LESU5/103 (SB-154A/UG)
KBD- LK4RN126 (MX-1114B/UG)
MU- LMU3 (PD-17A/U)
CAB- LAC200BJ104 (CY-870/UG)
TT-47C/UG
TU- LP14RN/AY (MX-1115B/UG)
ESU- LESU7/147 (SB-964/UG)
KBD- LK4RN/126 (MX-1114B/UG)
MU- LMU3 (PD-17A/U)
CAB- LAC204BR237 (CY-2538/UG)

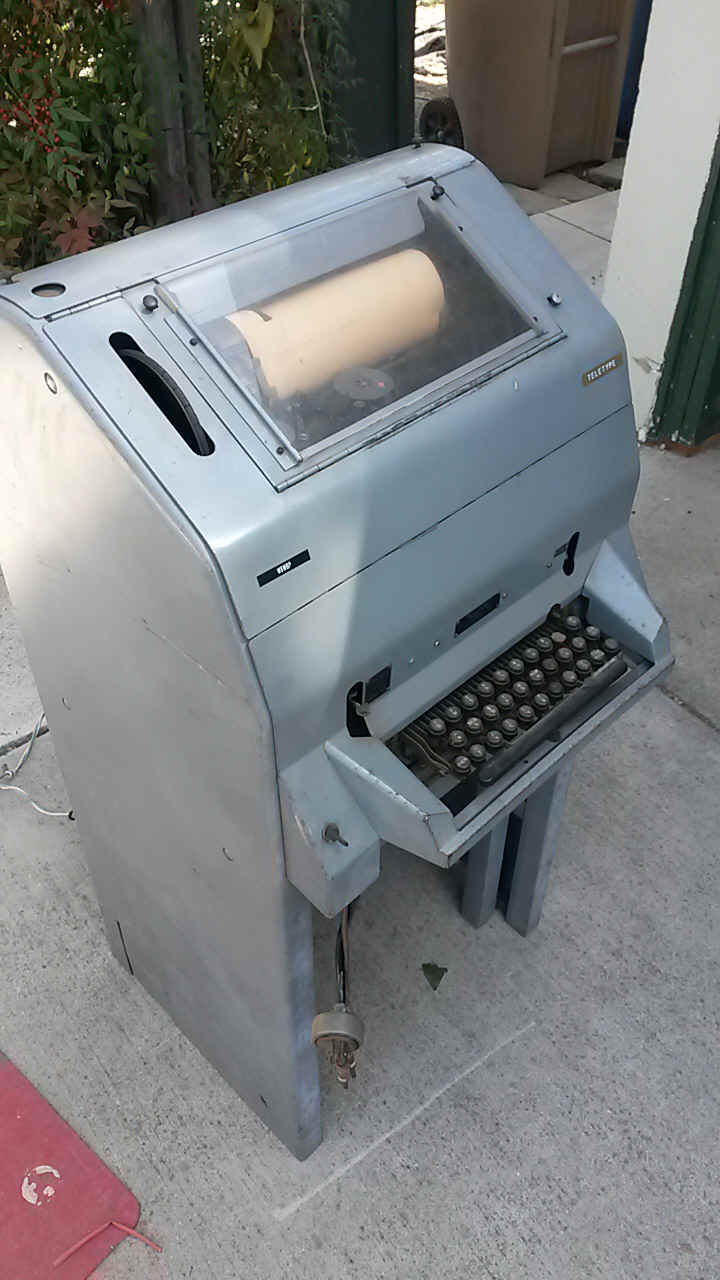

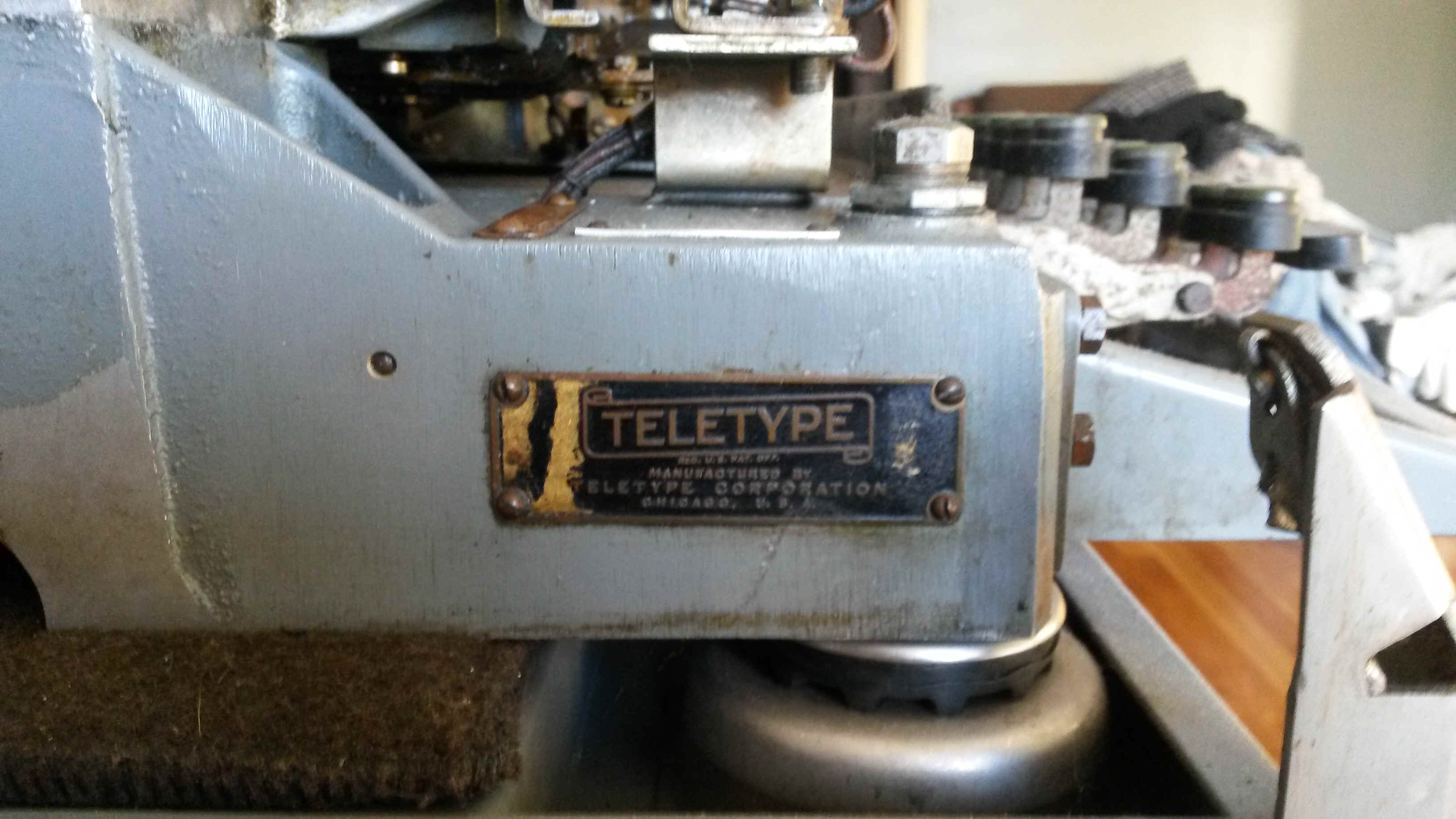

TT-49/UG & TT-50/UG

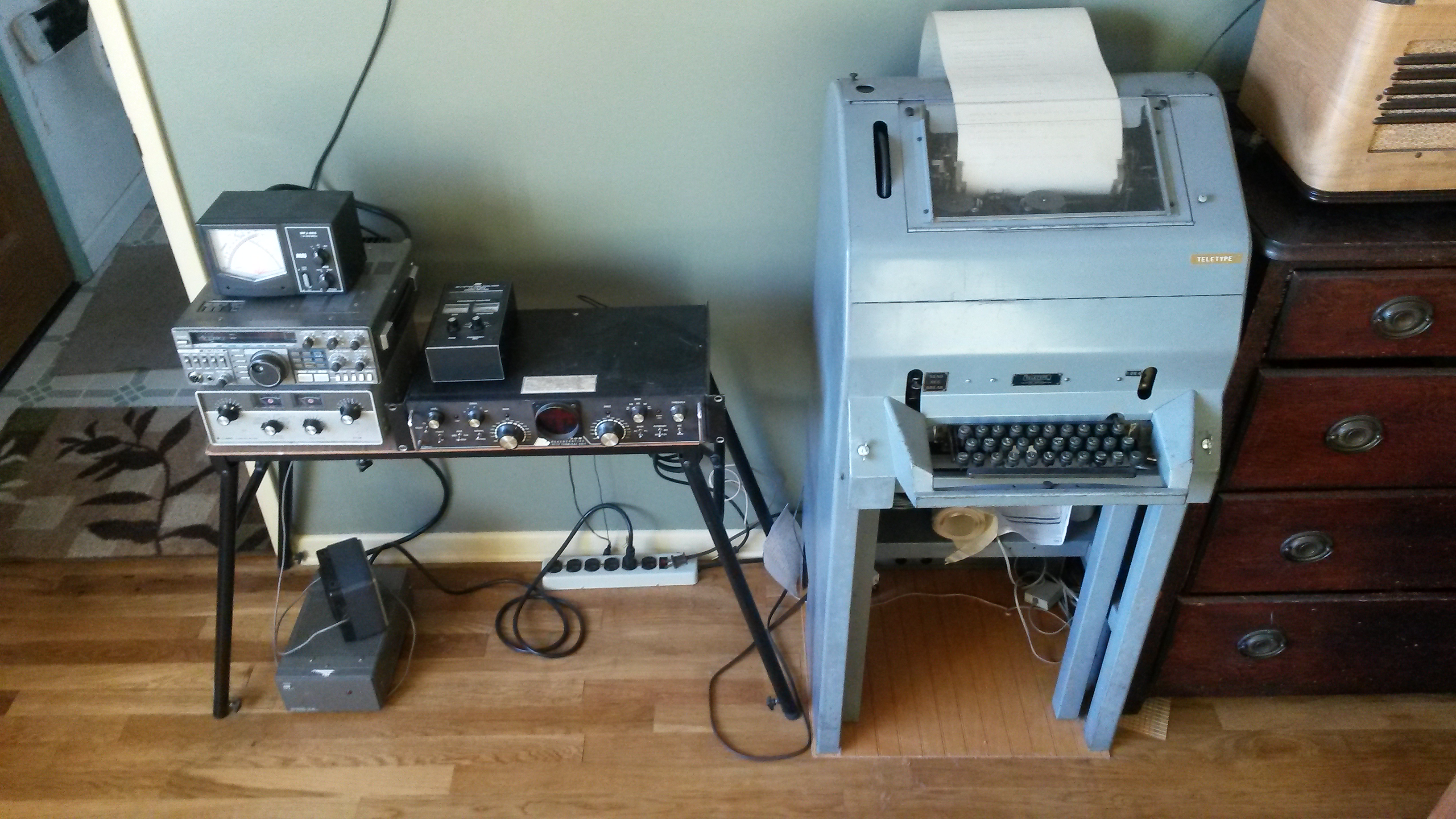

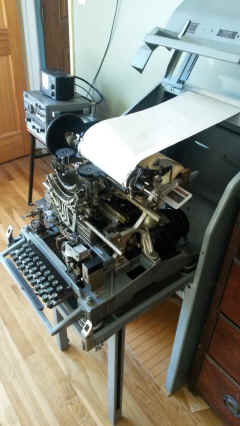

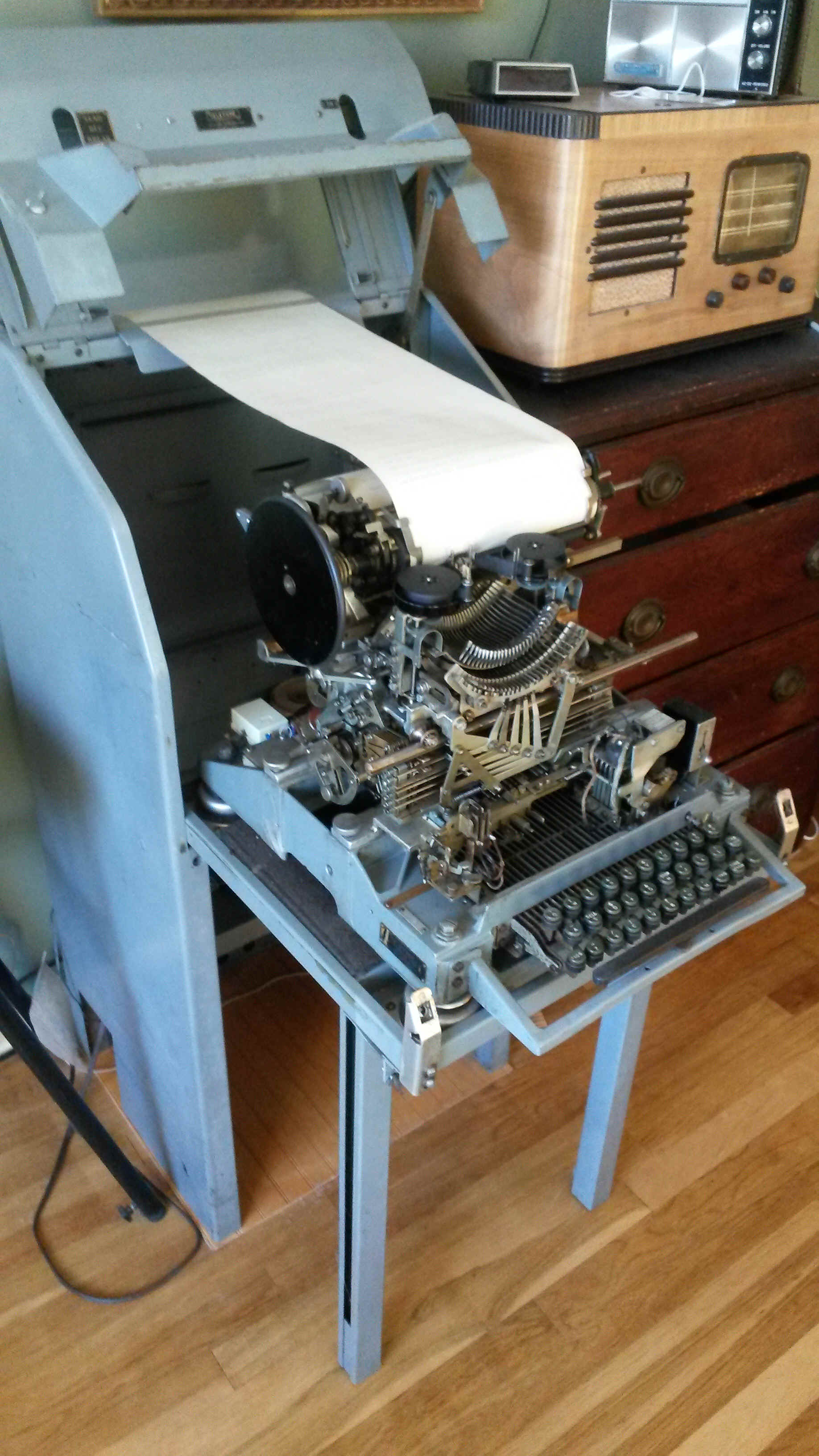

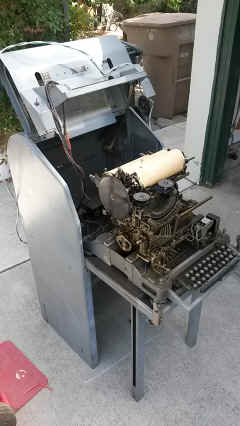

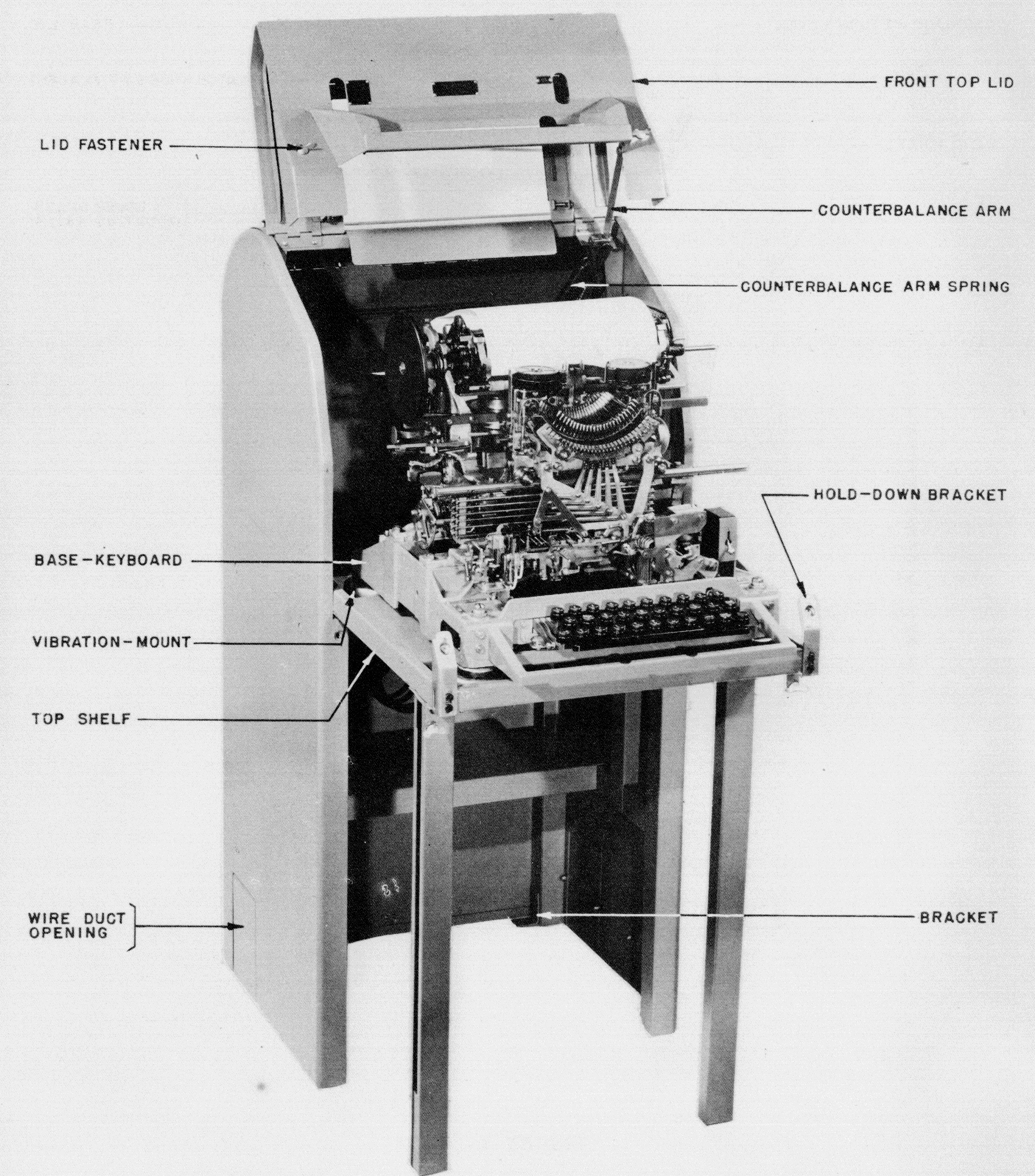

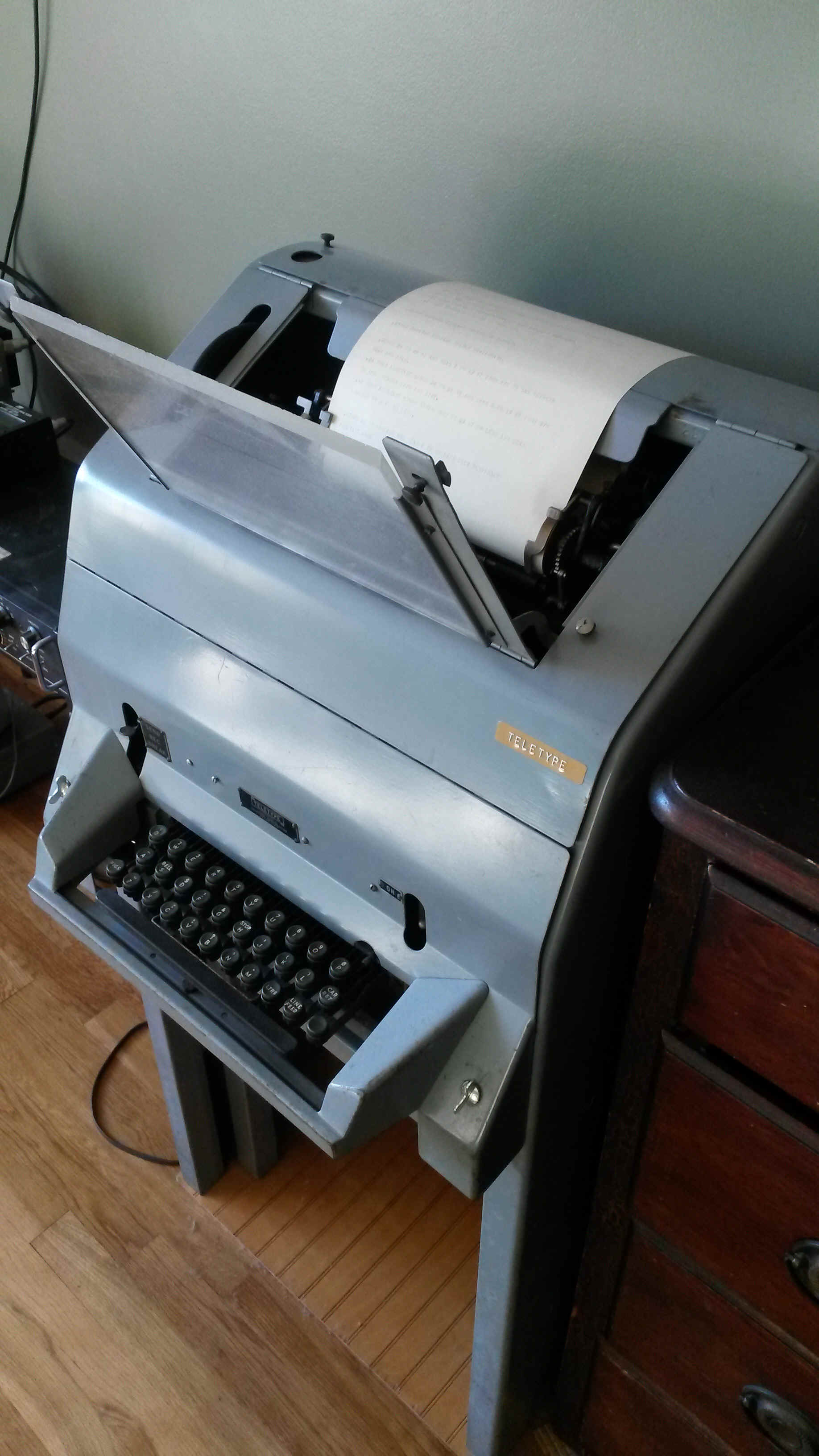

Teletype Model 15 modified for shipboard service "with aluminum side frames, a new carriage return
assembly, and lighter weight carriage parts. As a result of these modifications, they operate satisfactorily while tilted as much as 45 degrees."

ship/shore - floor mount
photos thanks to KD6UDA

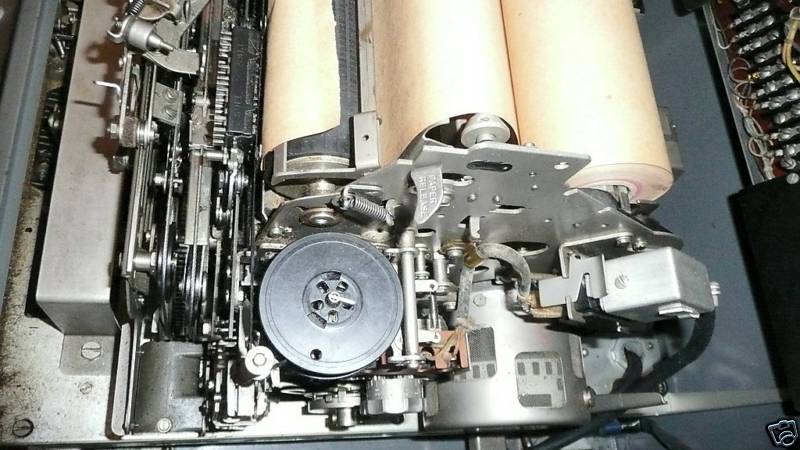

TT-49/UG synchronous motor
TT-50/UG governor motor
spec sheet

index to manual

BP149/247 typing unit
BBK200BJ/LD keyboard
MU40 motor unit
AC203BJ cabinet
80437 gear set
106965 set of spares


TT-49 (left) & Model 15 (right)
photo thanks to Larry Tighe
TT-49 (left) & Model 15 (right)
photo thanks to Larry Tighe
Showing different keyboard
photo thanks to Larry Tighe
Showing shock mount
photo thanks to Larry Tighe
These 8 photos from KD6UDA




--

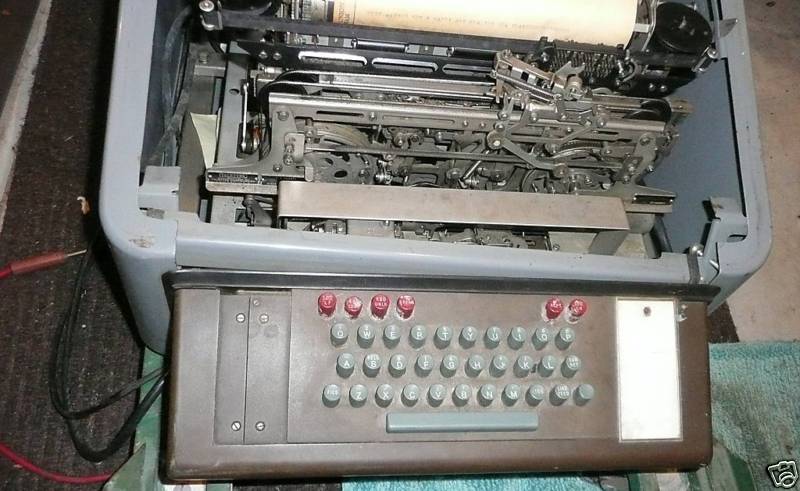

TT-69/UG & TT-70/UG

ship/shore - tabletop


TT-69 synchronous motor
TT-70 governor motor

Same as TT-47 & TT-48 but with CY-971/UG cabinet

Teletype 28KSR

spec sheet

NAVSHIPS 94393





-

TT-70F/UG

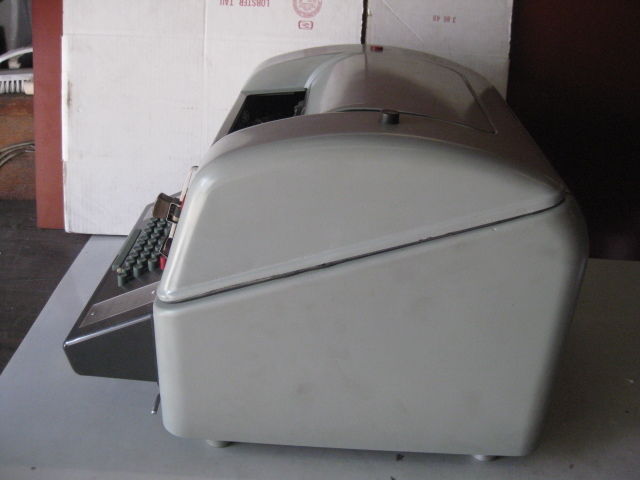

tt70f-1608-05.jpg (58957 bytes) tt70f-1608-06.jpg (25913 bytes) tt70f-1608-07.jpg (21908 bytes) tt70f-1608-08.jpg (26537 bytes)

TT-176/UG

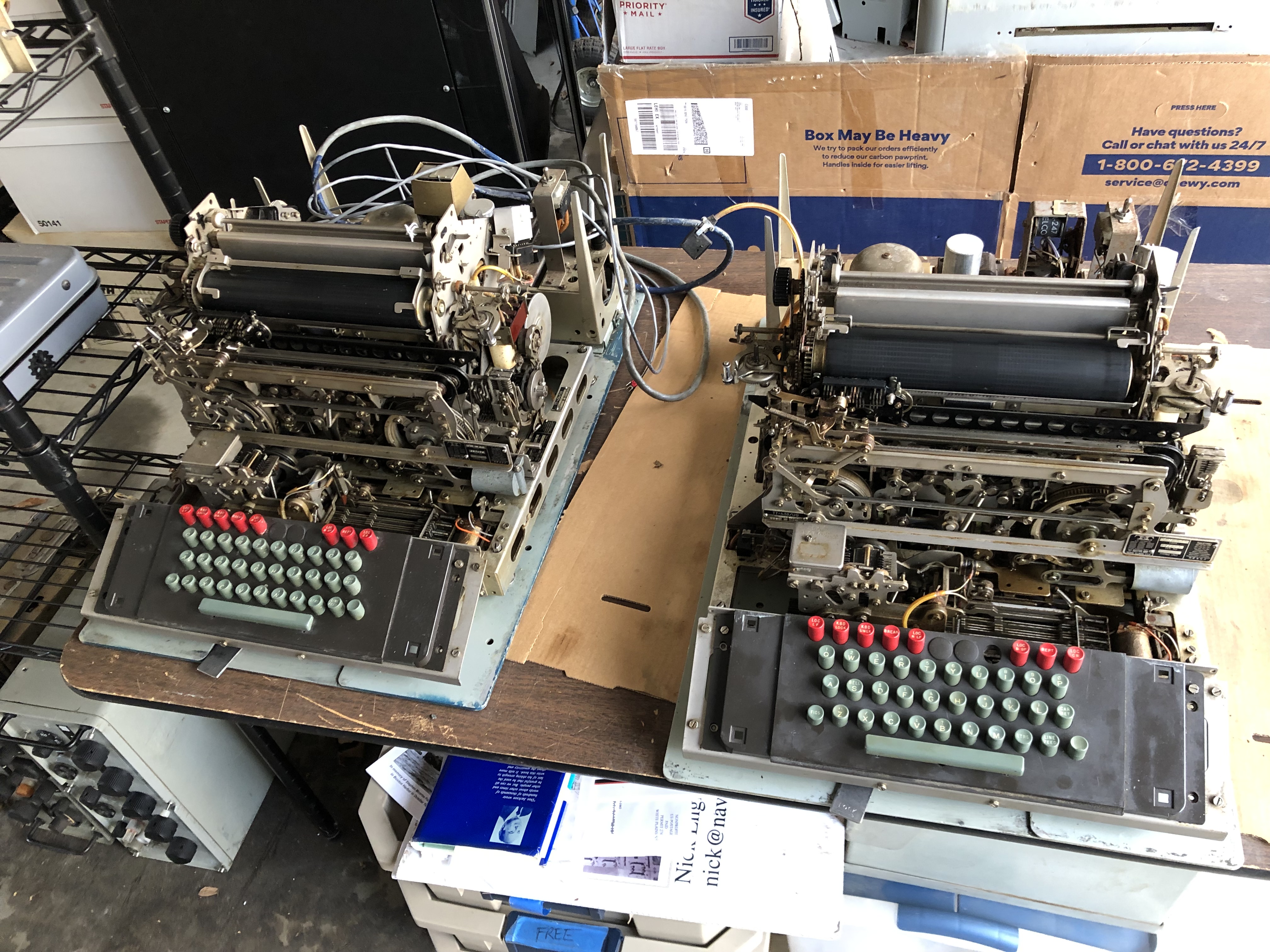

TT-176C/UG

tabletop or 19" rack-mount


TT-434/UG keyboard
TT-438/UG typing unit
SB-408/UG electrical unit


Teletype 28KSR "skintight"

Model 28 Keyboard Send-Receive Page Printer Set (Relay Rack Mounted). Consists of cover,
friction feed typing unit, keyboard,
electrical service assembly,
synchronous motor and gears for 45.5 baud. 7.42 unit code, 60 Hz, 115VAC.
Includes communication symbol arrangement, stepping magnets, automatic carriage return and line feed.

more photos

TT-176C from a carrier - used by VA-75 and VFA-11

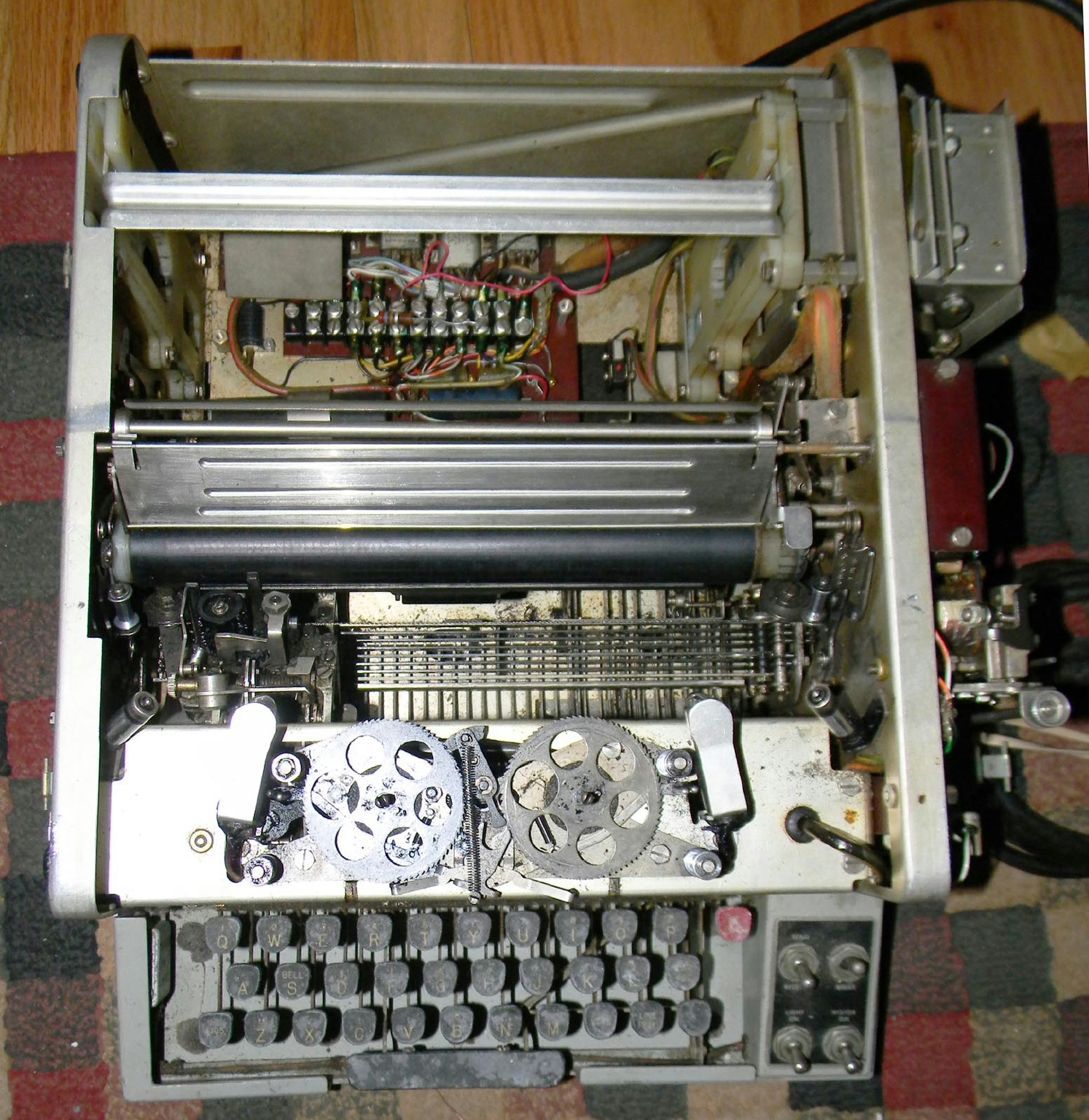

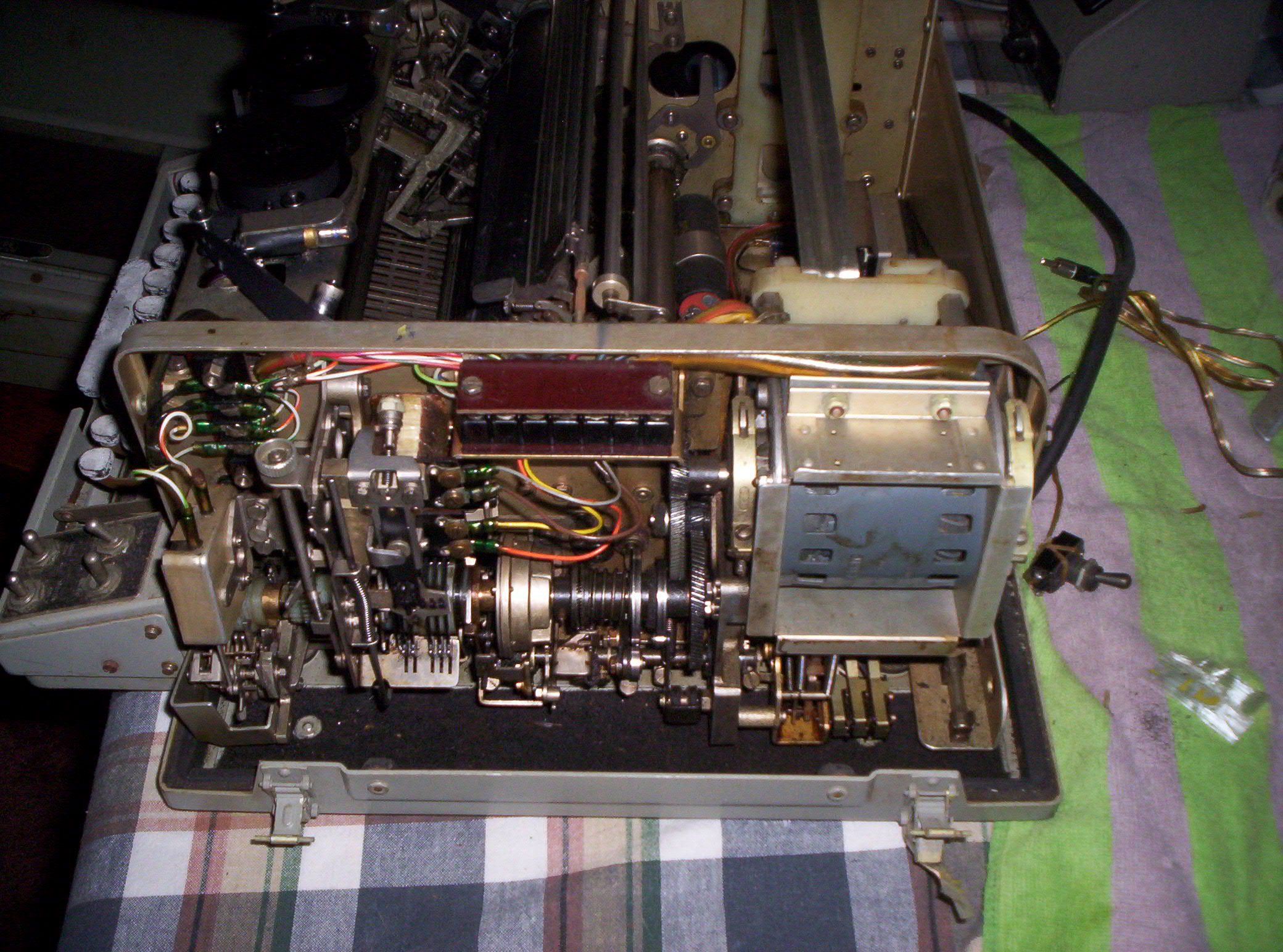

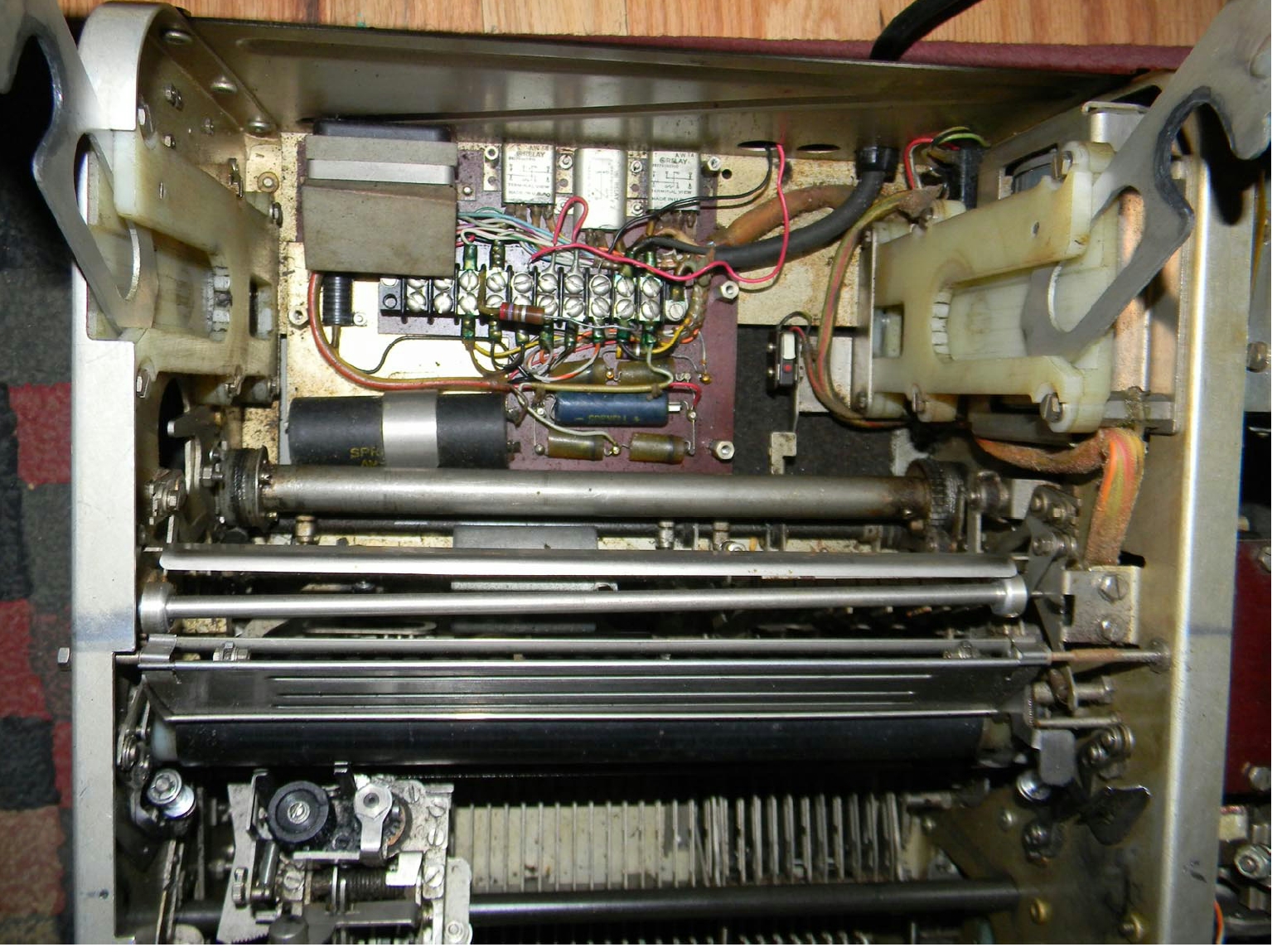

TT-242/UG Lightweight (20 lbs)

(lost competition to MITE)

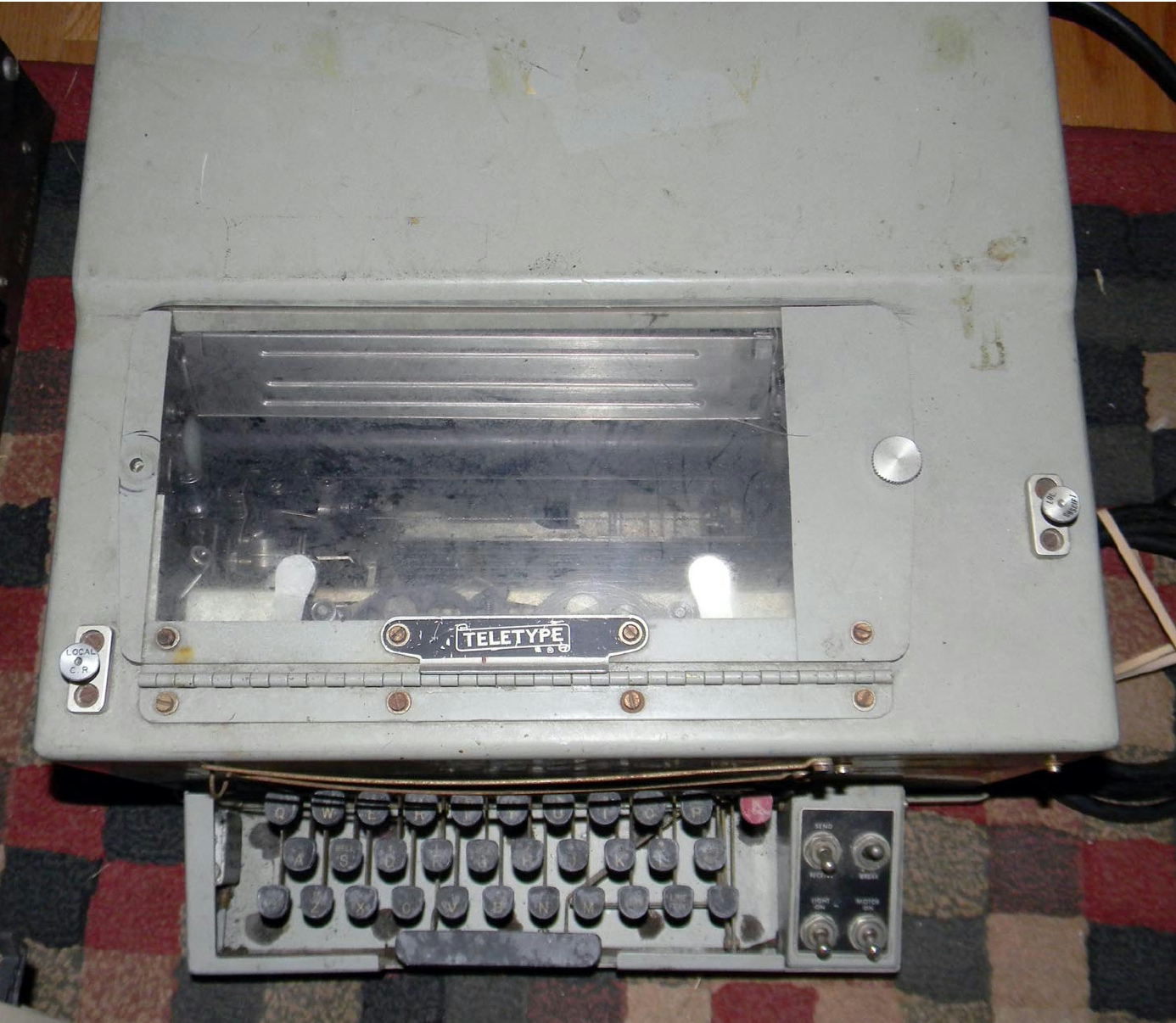

tt242-1412-10.JPG (635109 bytes) tt242-1412-11.JPG (871152 bytes) tt242-1412-12.JPG (1542959 bytes) tt242-1412-13.JPG (1163620 bytes)

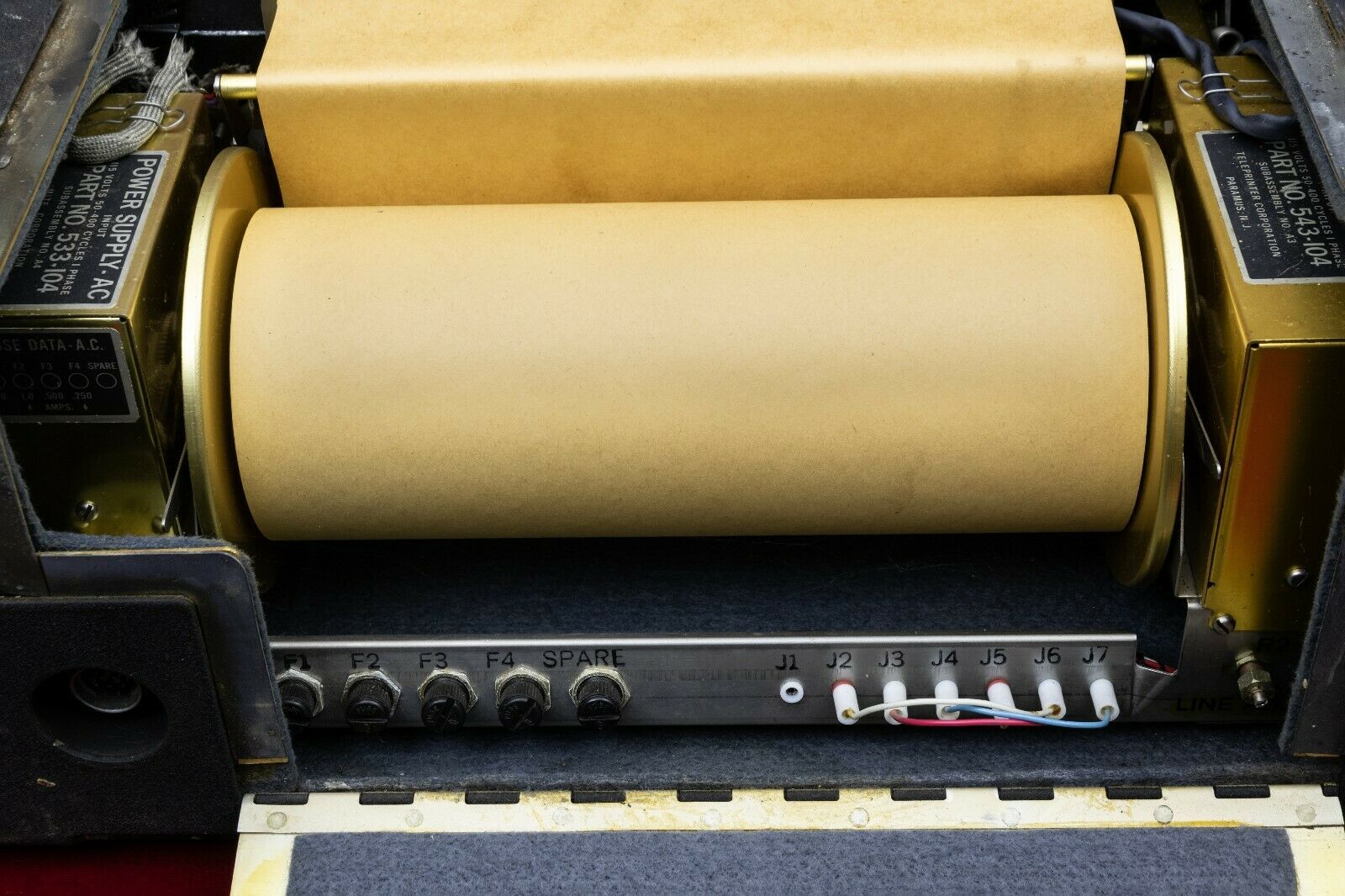

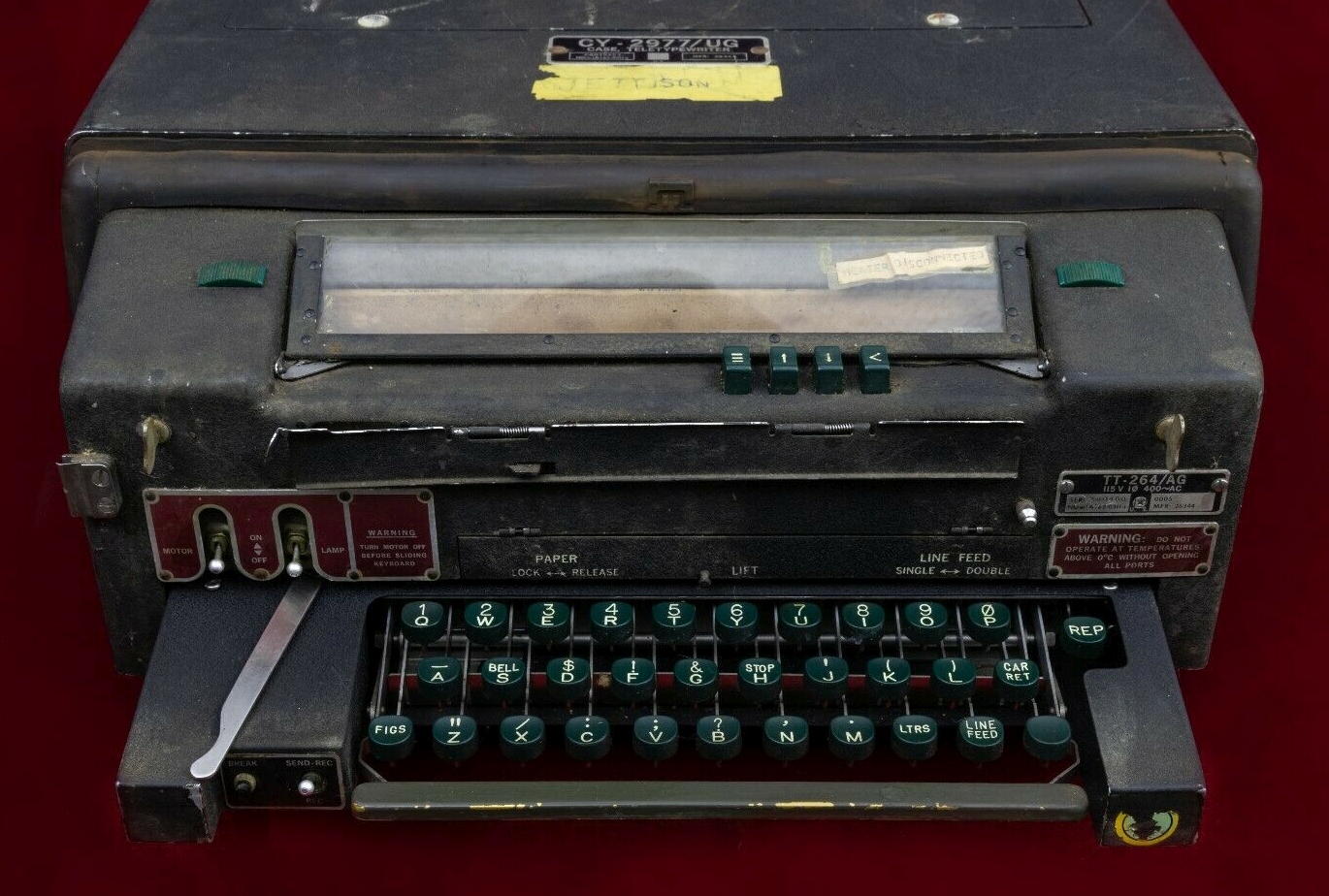

TT-264/AG Airborne MITE KSR


tt264ag-mite-2004-05.jpg (255105 bytes) tt264ag-mite-2004-06.jpg (266209 bytes) tt264ag-mite-2004-07.jpg (335303 bytes) tt264ag-mite-2004-08.jpg (392135 bytes)

TT-307/UG



CRITICOM - 100wpm, 7.00 unit code

photo thanks to Dan K6YIC

Skintight case, Same as TT-306/UG except includes keyboard and stepping magnet.

Has an external ESA with selector magnet keyer.

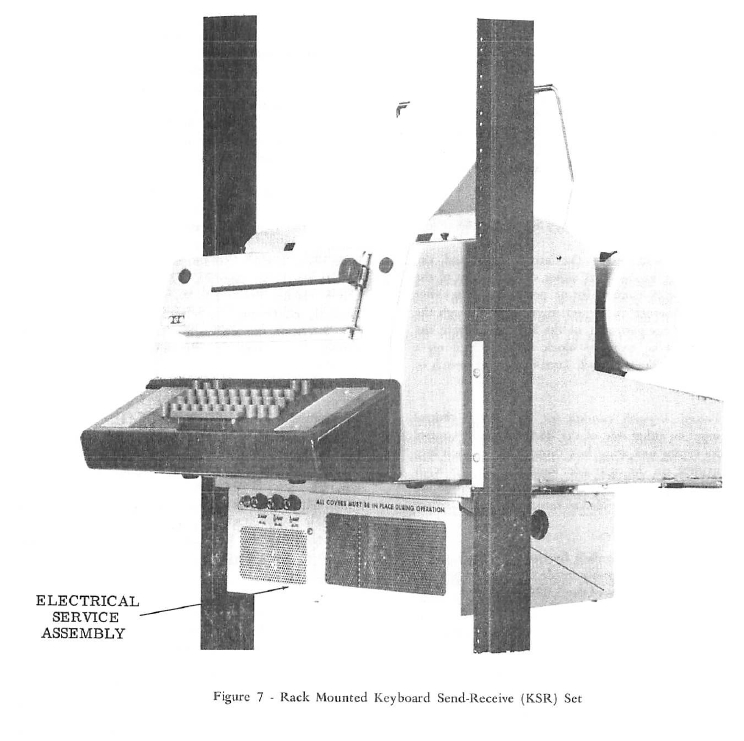

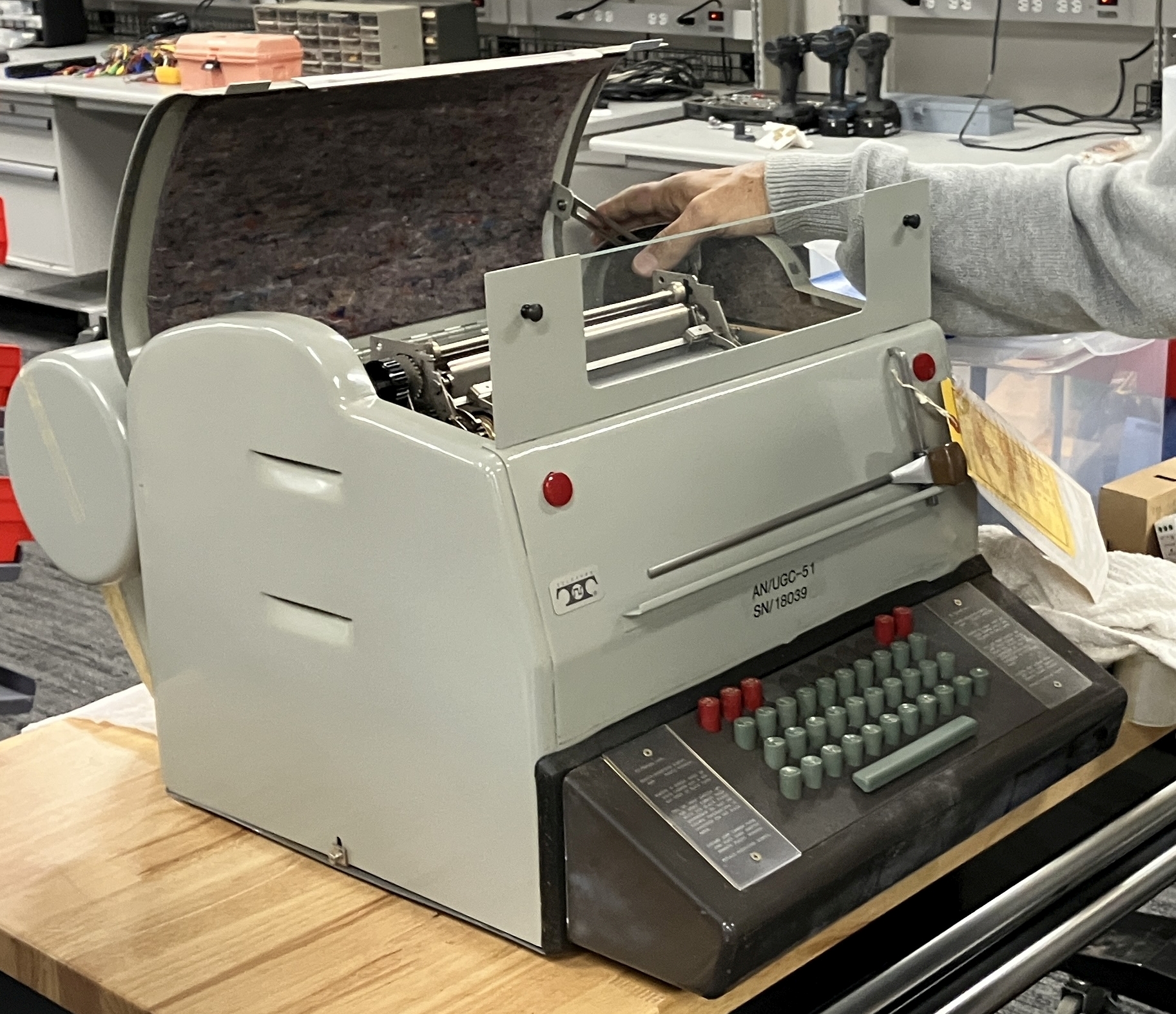

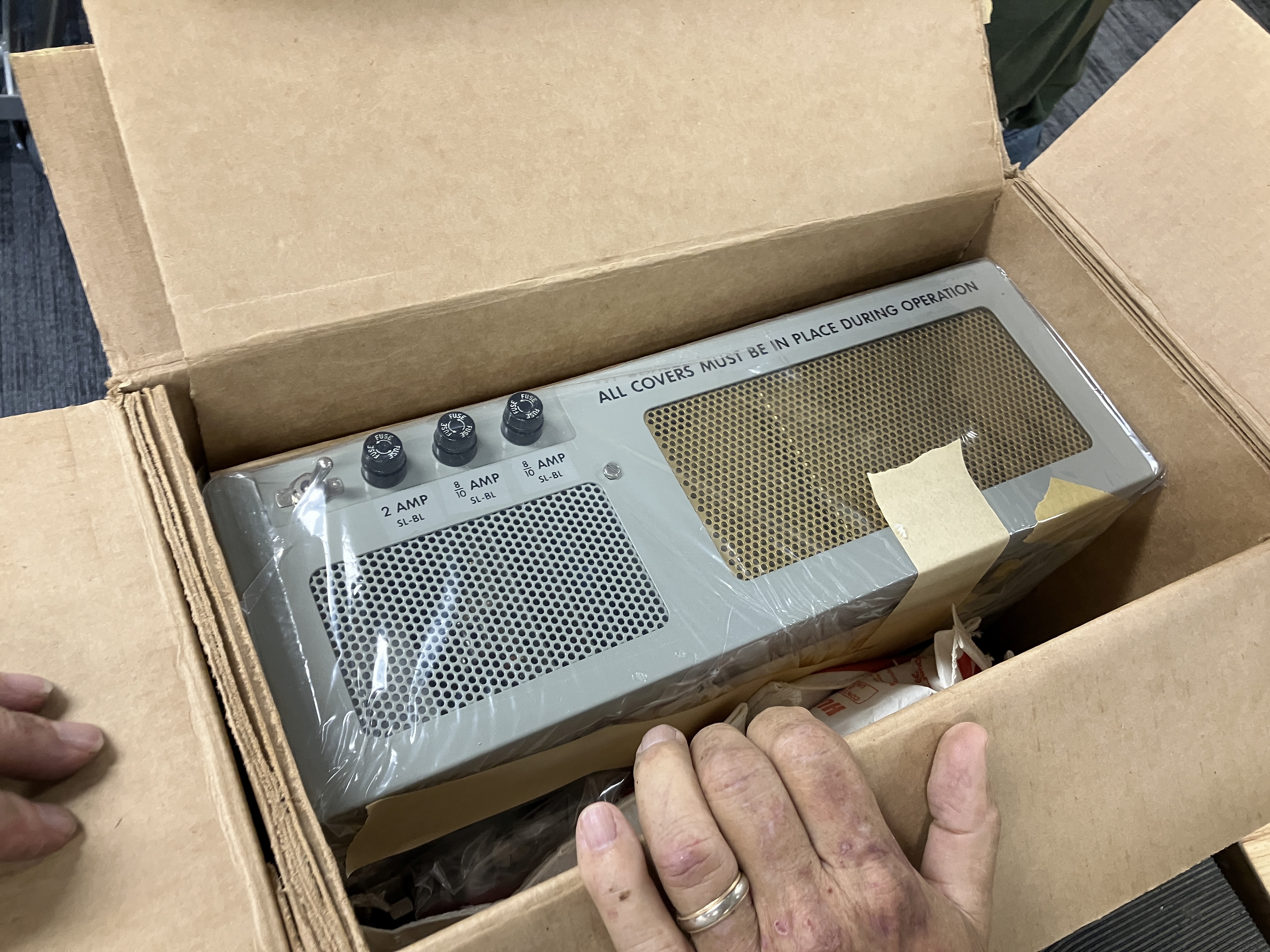

MK-1115/UG kit converts TT-307 to the low-level version (AN/UGC-51)



External ESA 173395

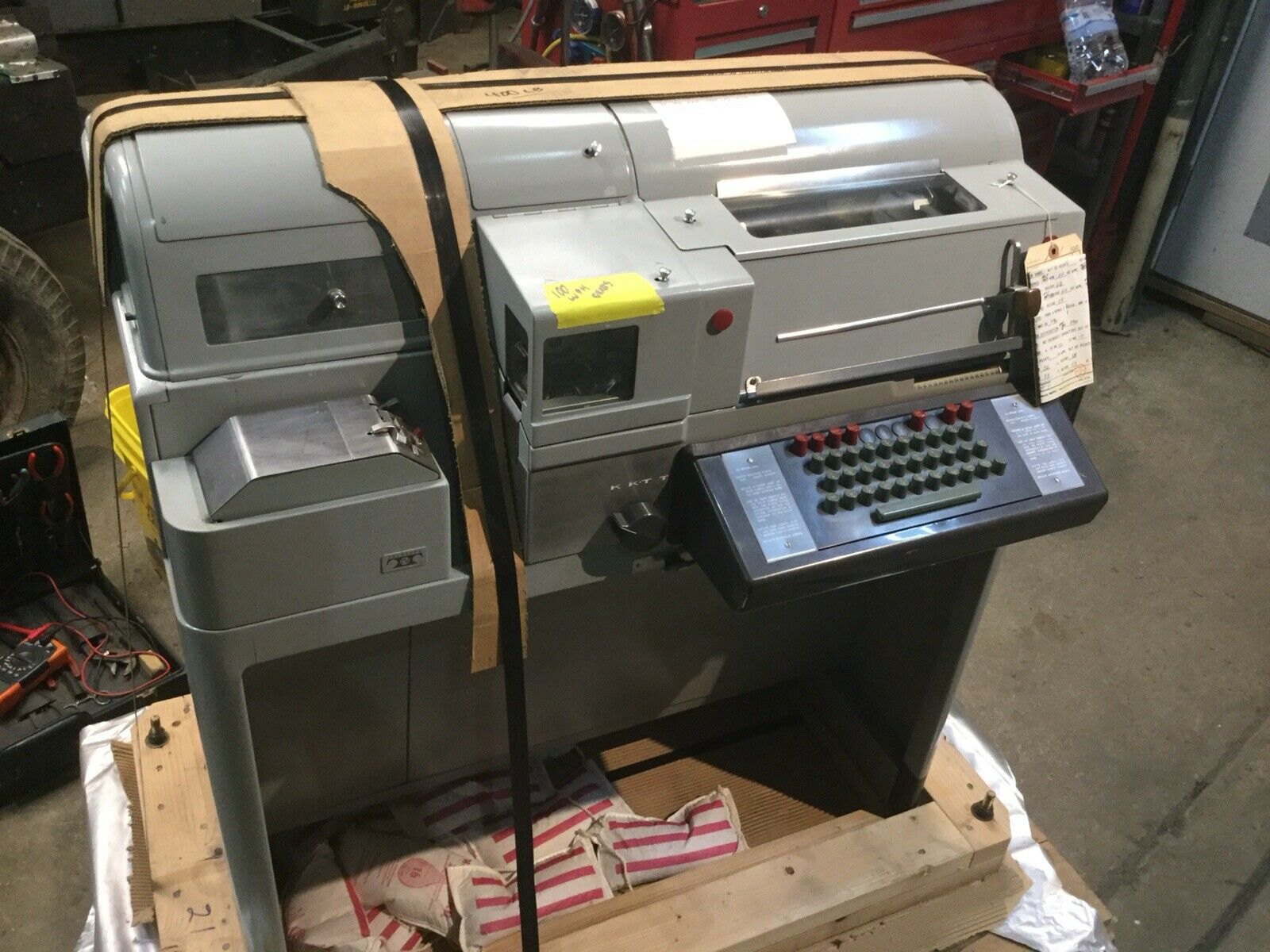

ASR - Automatic Send/Receive - Typing Unit +Keyboard +TD (tape reader) + Typing Reperf (tape punch)

AN/FGC-8

-- BP119/210 Typing Unit
PEX25JX Perforator Transmittter
TT-52/GG Transmitter-Distributor
PP-315/GGA-1 power supply
--

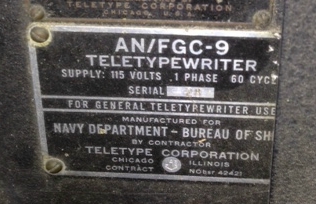

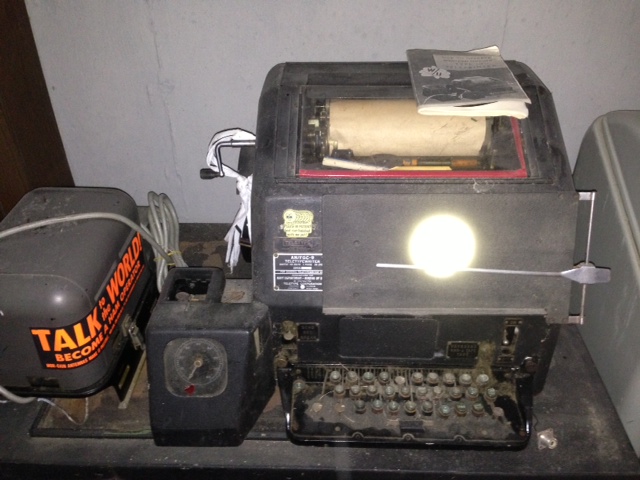

AN/FGC-9

Teletype Model 19
Ship or Shore use - 60 wpm

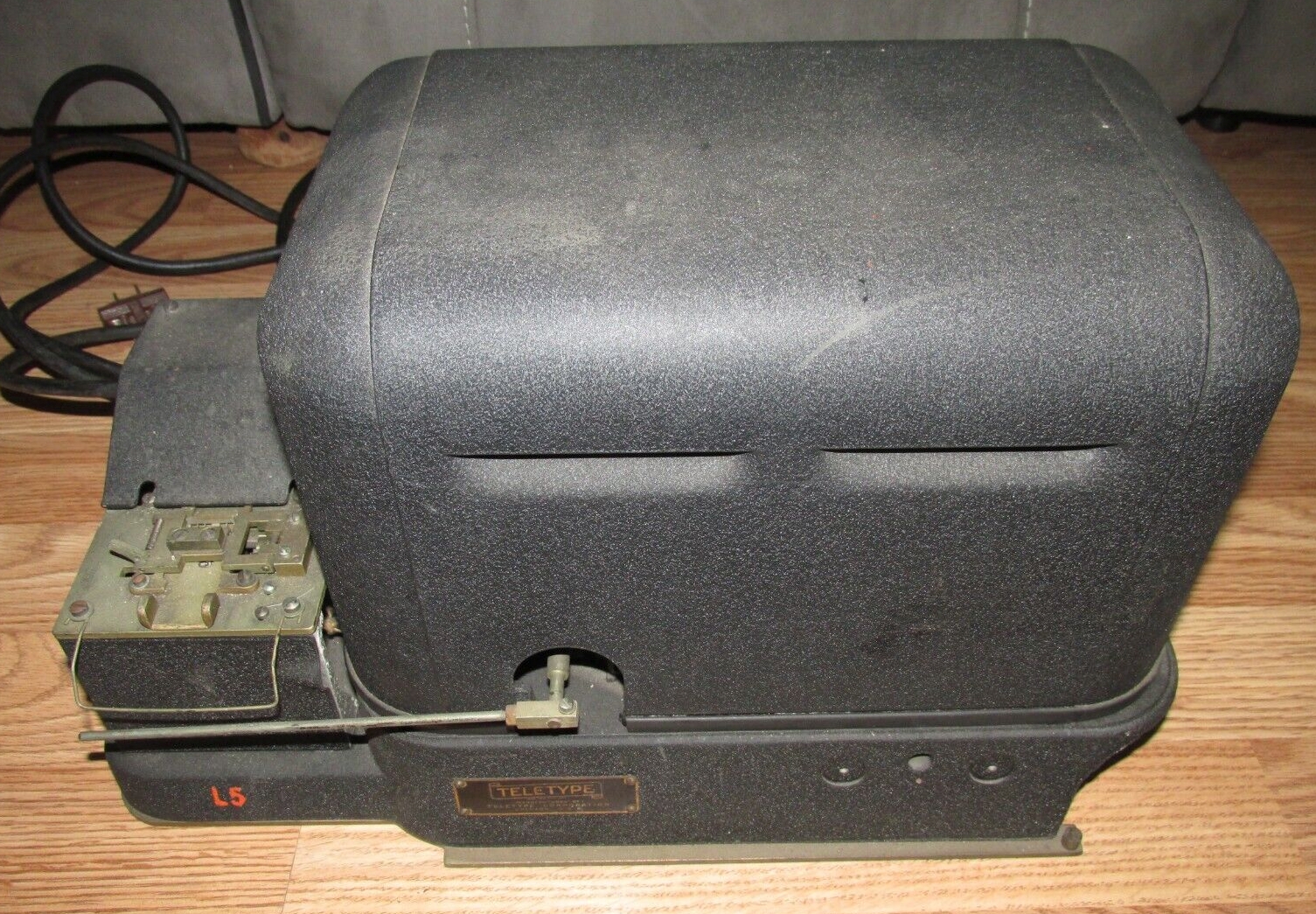

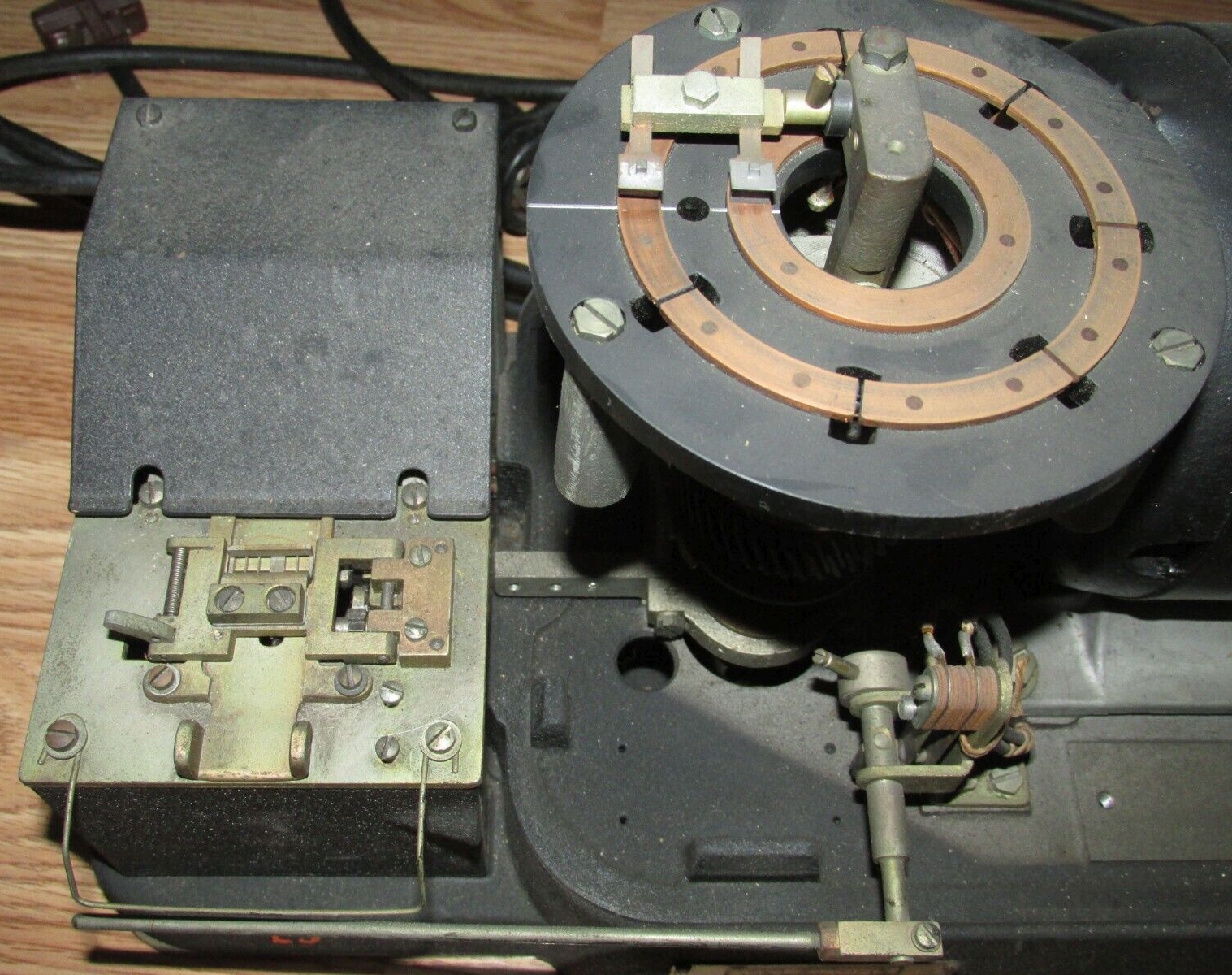

TT-57/FG Transmitter-Distributor
PP-315/GGA-1 power supply
BP119/210 Typing Unit
MU-4 Motor Unit
PEX25JX Perforator Transmittter

more info and photos

spec sheet

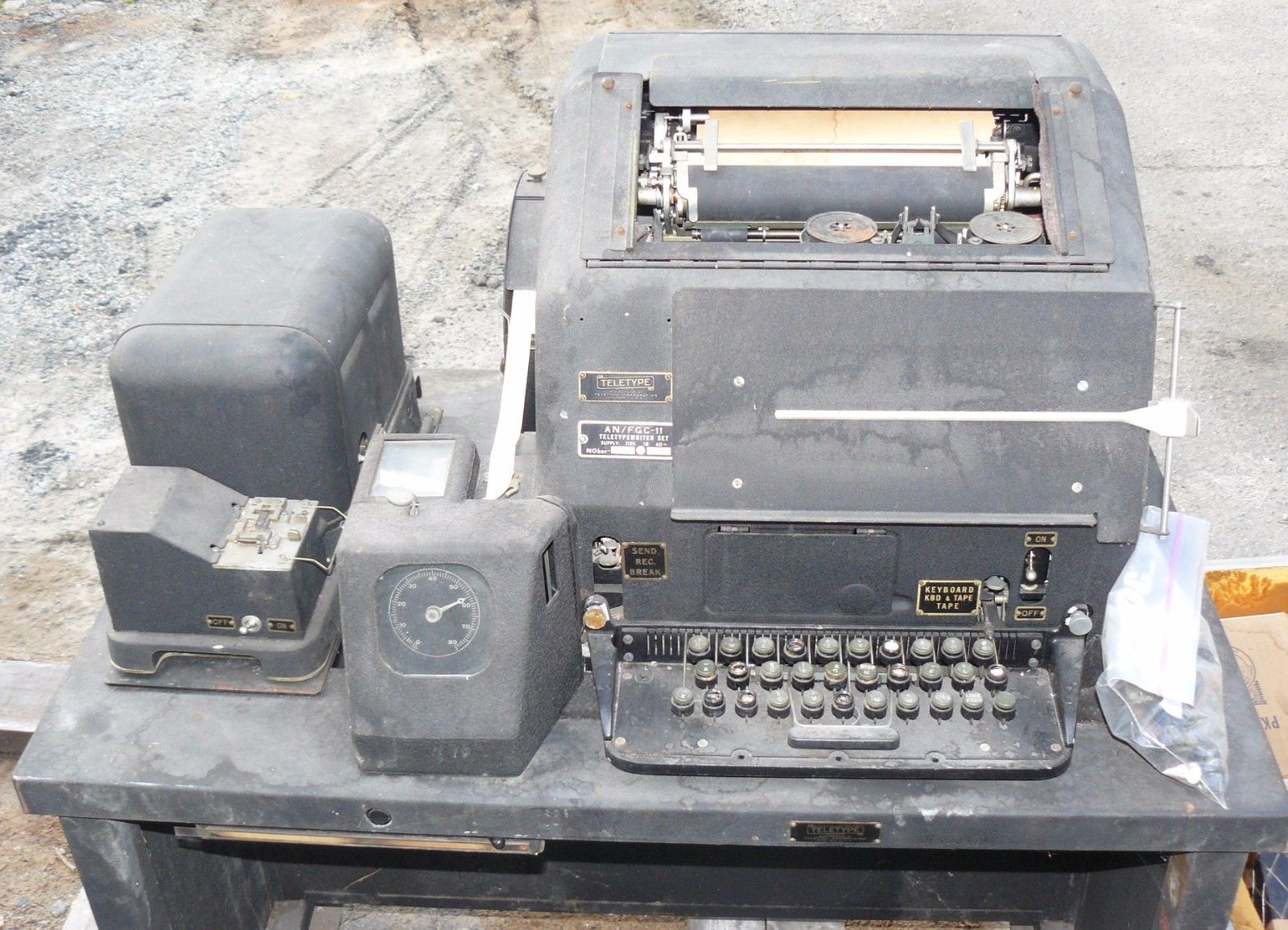

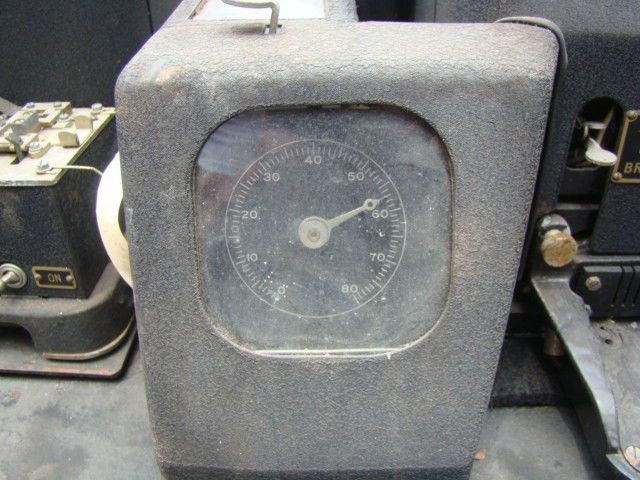

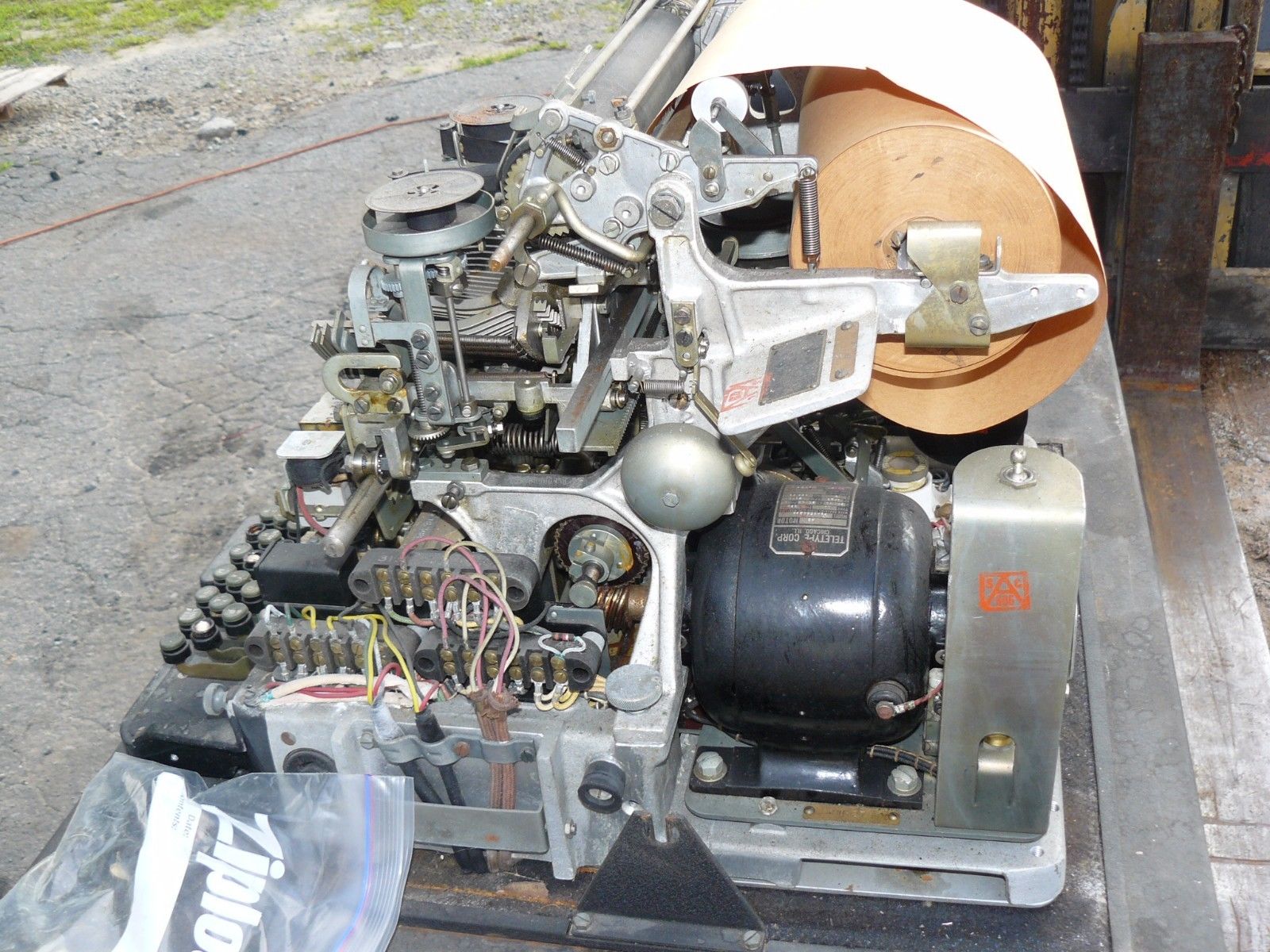

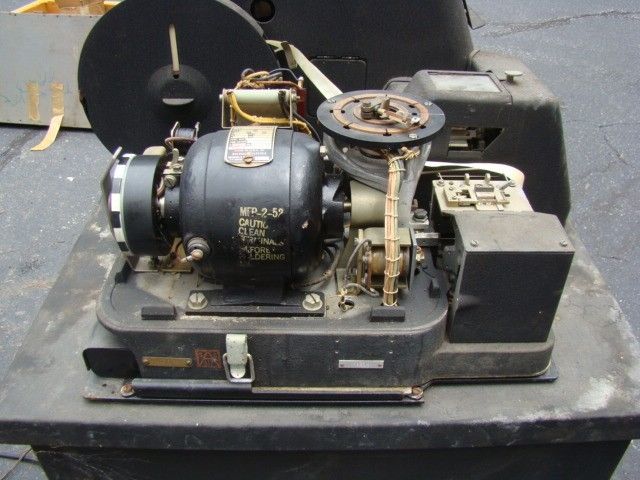

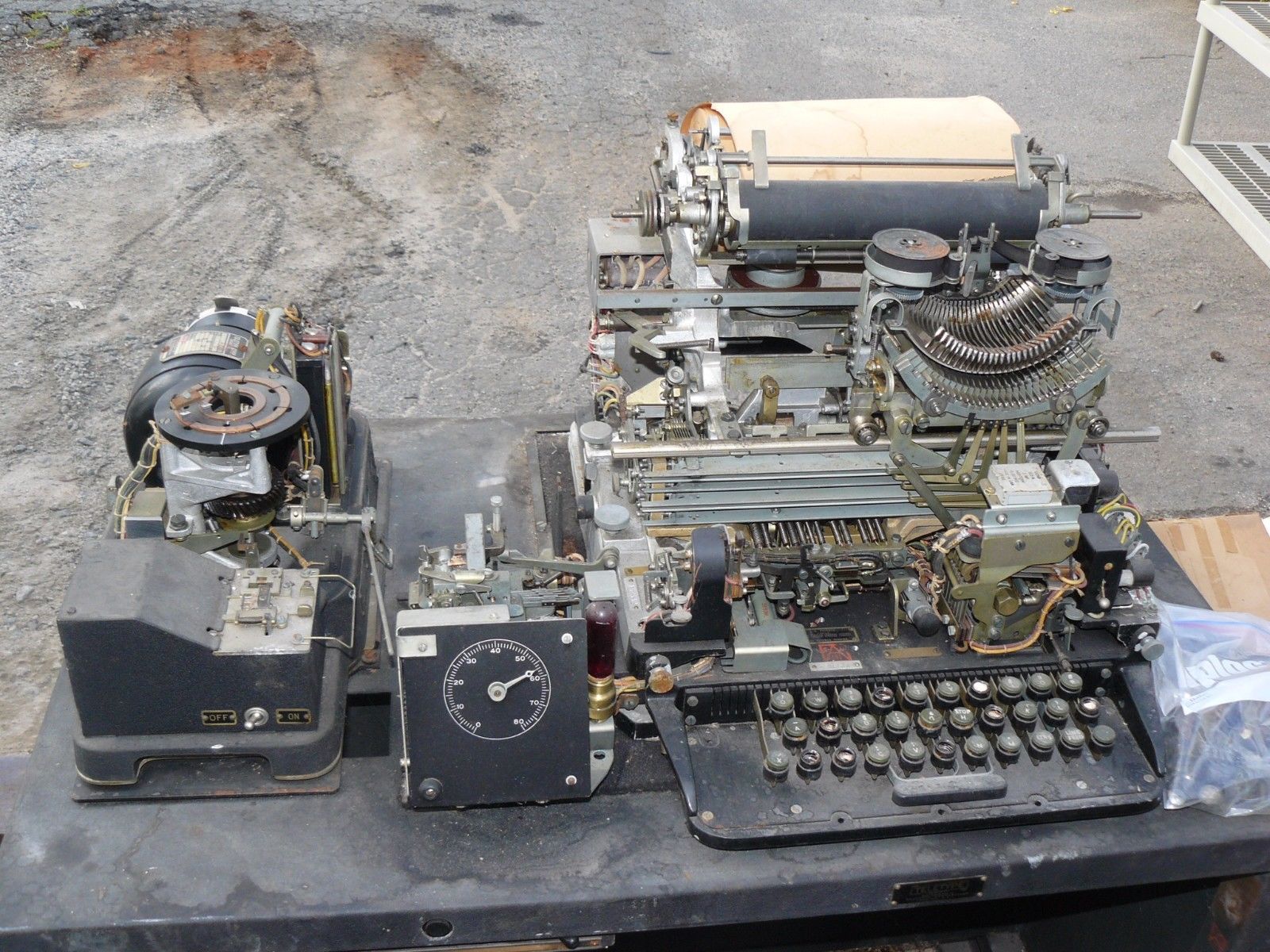

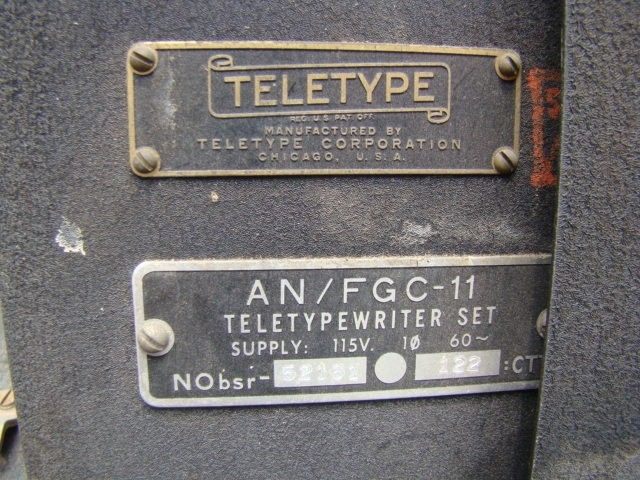

AN/FGC-11

Model 19 - governed motor


need more info
BP22/247 Typing Unit
PEX25LE Perforator Transmitter
XD76FR Transmitter Distributor
PU-109/GG Motor Unit

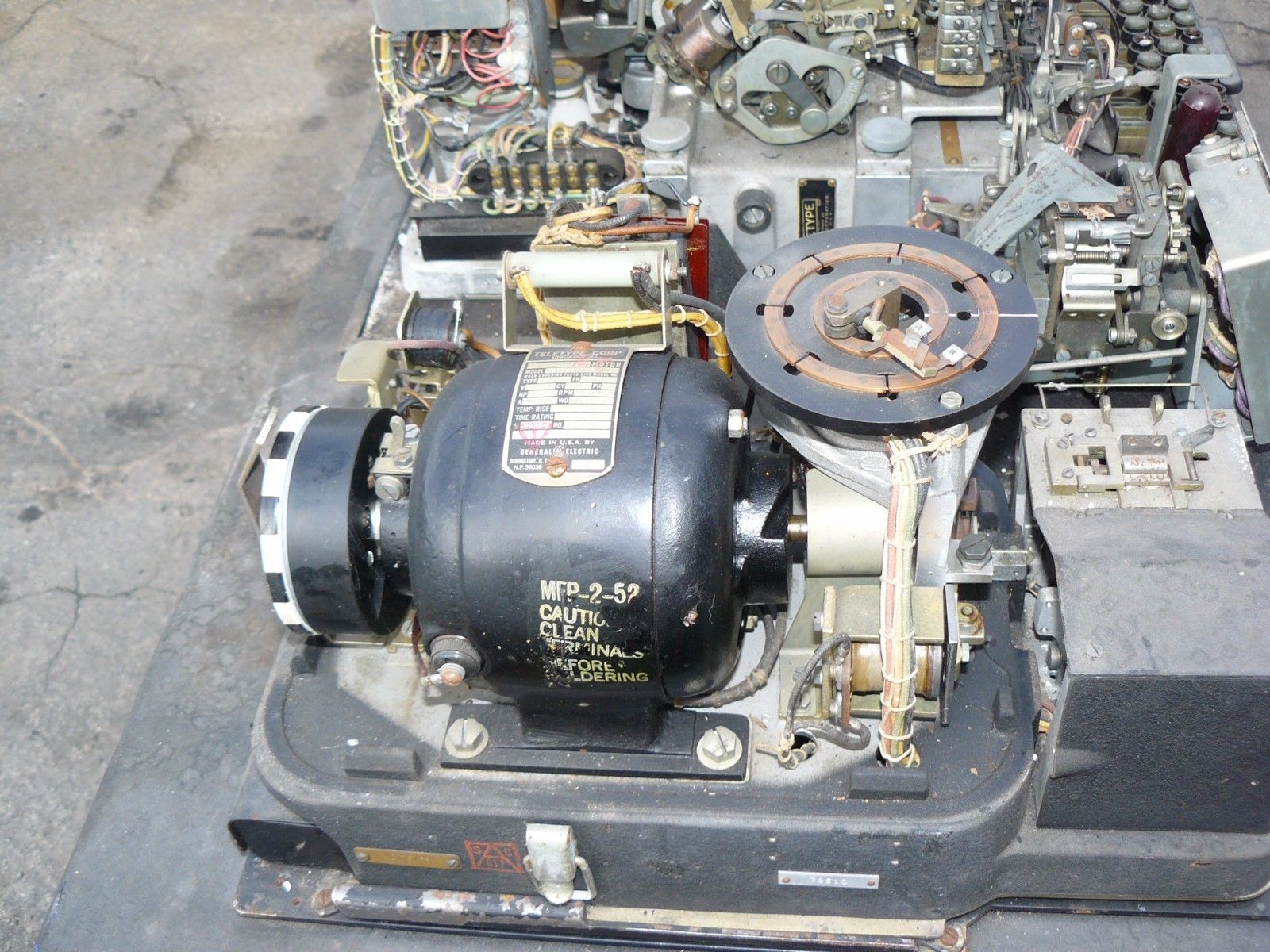

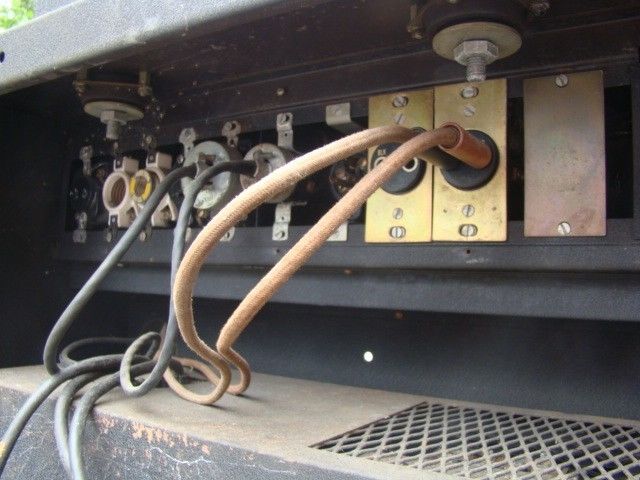

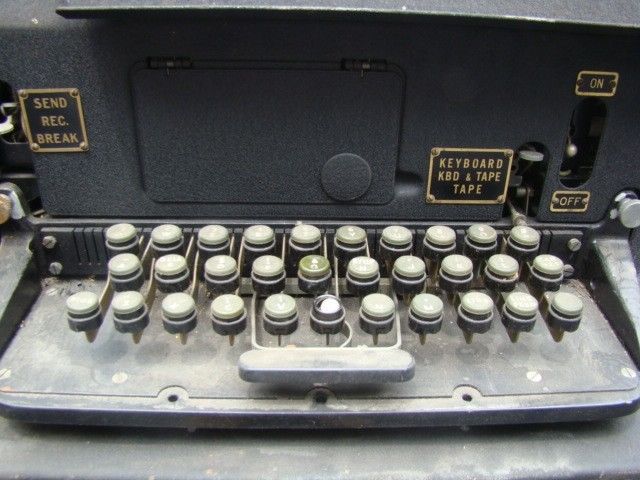

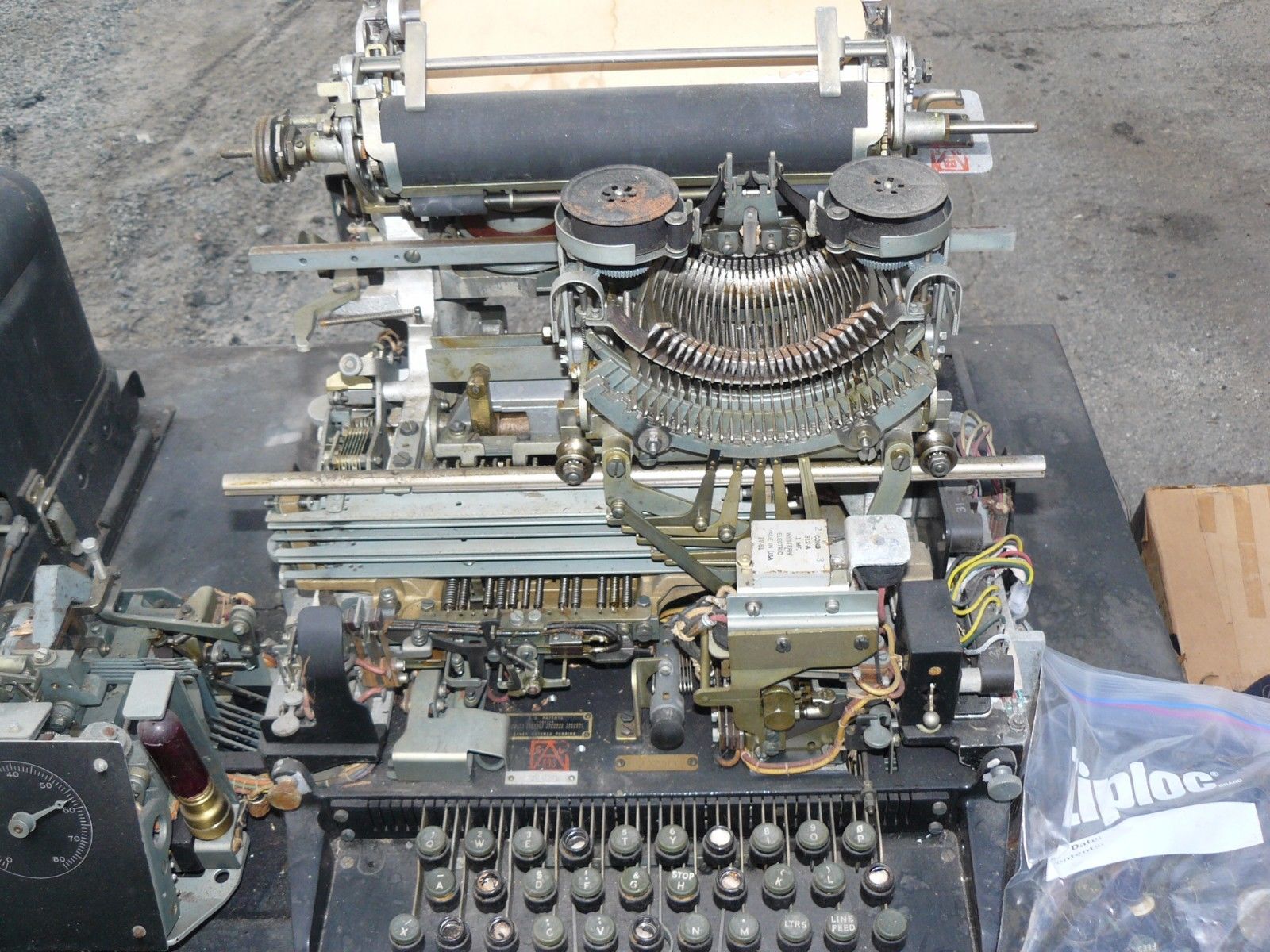

fgc11-1407-03.JPG (60881 bytes) fgc11-1407-04.JPG (63614 bytes) fgc11-1407-08.JPG (65214 bytes) fgc11-1407-06.JPG (59877 bytes)
fgc11-1706-01.jpg (329409 bytes) fgc11-1706-02.jpg (284770 bytes) fgc11-1706-03.jpg (368095 bytes) fgc11-1706-04.jpg (359684 bytes)
fgc11-1706-05.jpg (261830 bytes) fgc11-1706-06.jpg (354608 bytes) fgc11-1706-07.jpg (346880 bytes) fgc11-1706-08.jpg (390004 bytes)
AN/FGC-12
Model 19 variant

need better photo

need info

FPR23H247 Printing Unit
FK11OLD 15 keyboard
TT-57/FG Transmitter-Distributor
REC-10 Rectifier
Model 15 and Model 19
 - training at Great Lakes

AN/SGC-2

need photo

AN/FGC-11 with FC#2

Model 19 variant

need info

-- --

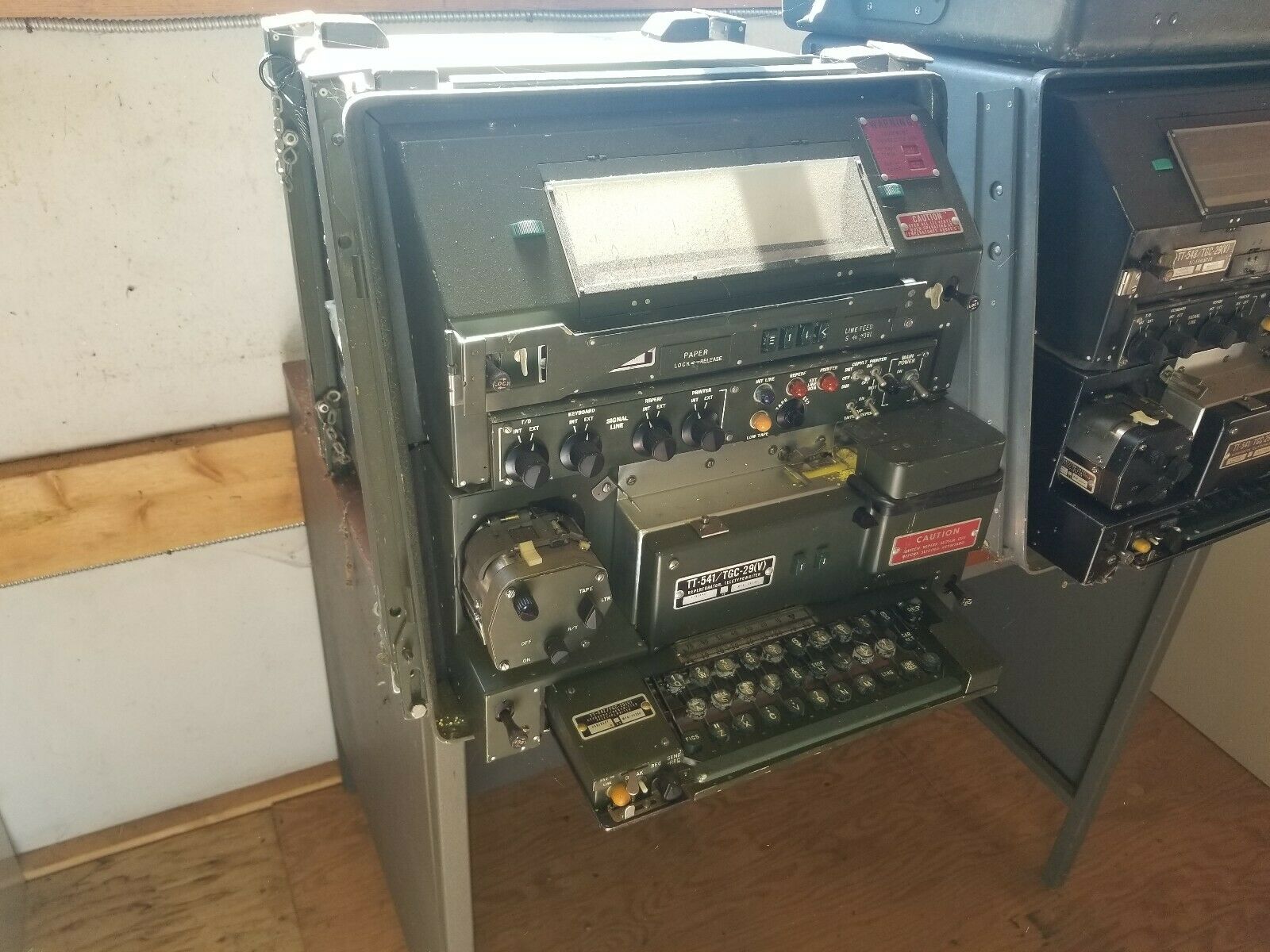

AN/TGC-29(V) MITE ASR
(USMC)

  • TT-541/TGC-29 reperf
  • TT-542/TGC-29 keyboard/transmitter
  • TT-548/TGC-29 printer
  • CY-6274/TGC-29 case
tgc29-mite-asr-2006-01.jpg (231715 bytes) tgc29-mite-asr-2006-02.jpg (284666 bytes) tgc29-mite-asr-2006-05.jpg (267579 bytes)
If you have a manual I could borrow to scan, please let me know. tgc29-mite-asr-2006-03.jpg (313054 bytes) tgc29-mite-asr-2006-04.jpg (317116 bytes) ==
AN/TGC-29(V) Photos and info from Duncan Brown

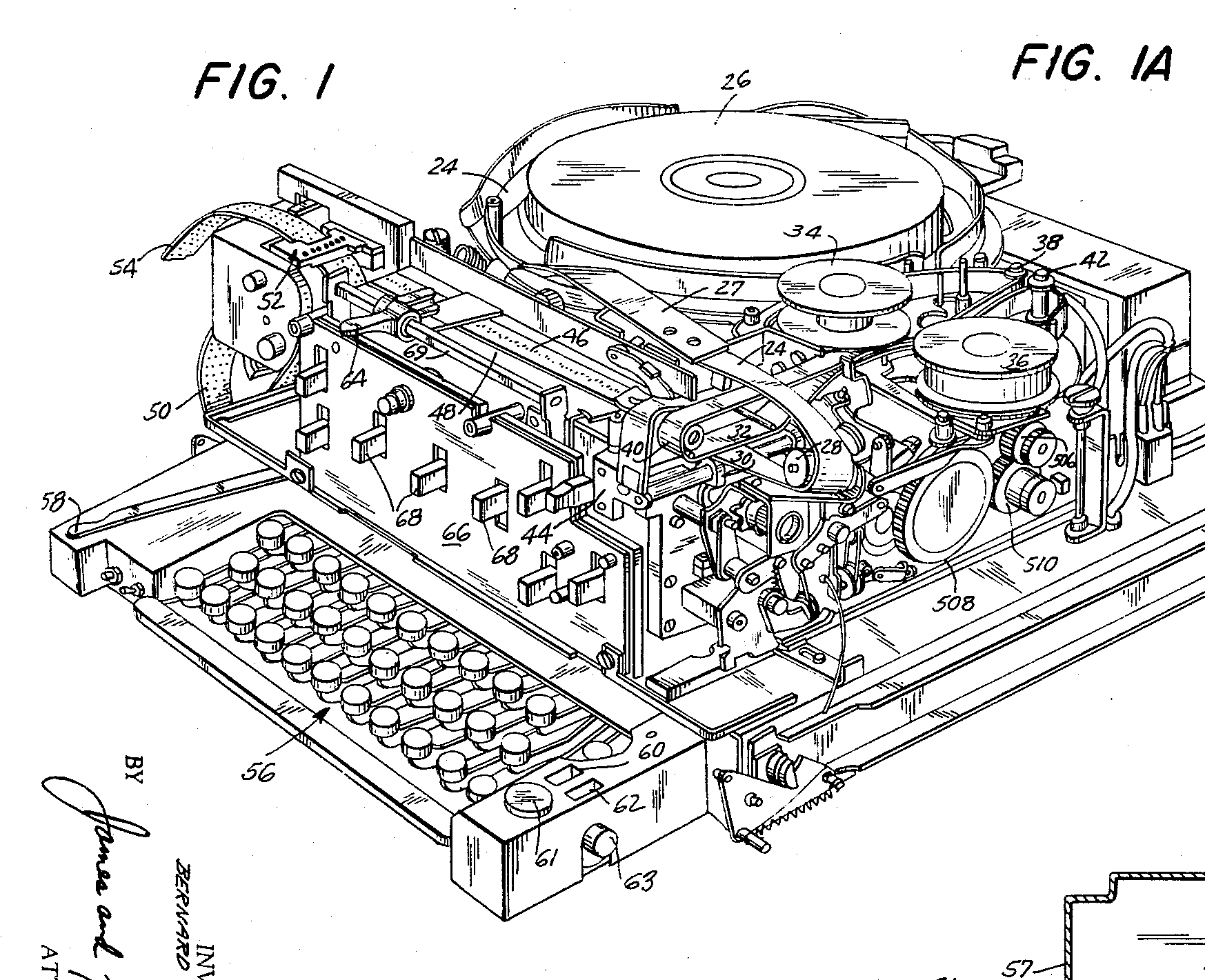

MITE ASR complete patent

Early AN/GRC-142 configuration

MITE ASR in Canadian Argus aircraft

     with TGC-15(XN-4) MITE ASR

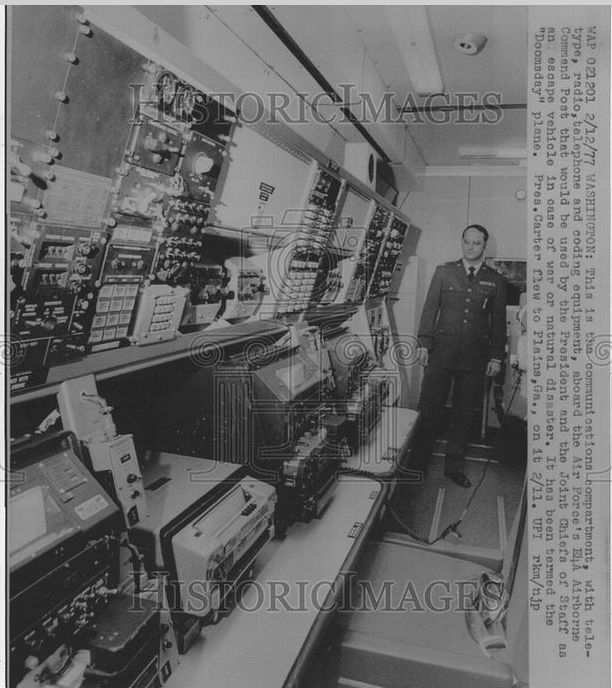

TGC29-USAF Doomsday equip-txt.jpg (43776 bytes)

TGC29-USAF Doomsday equip.jpg (263960 bytes)


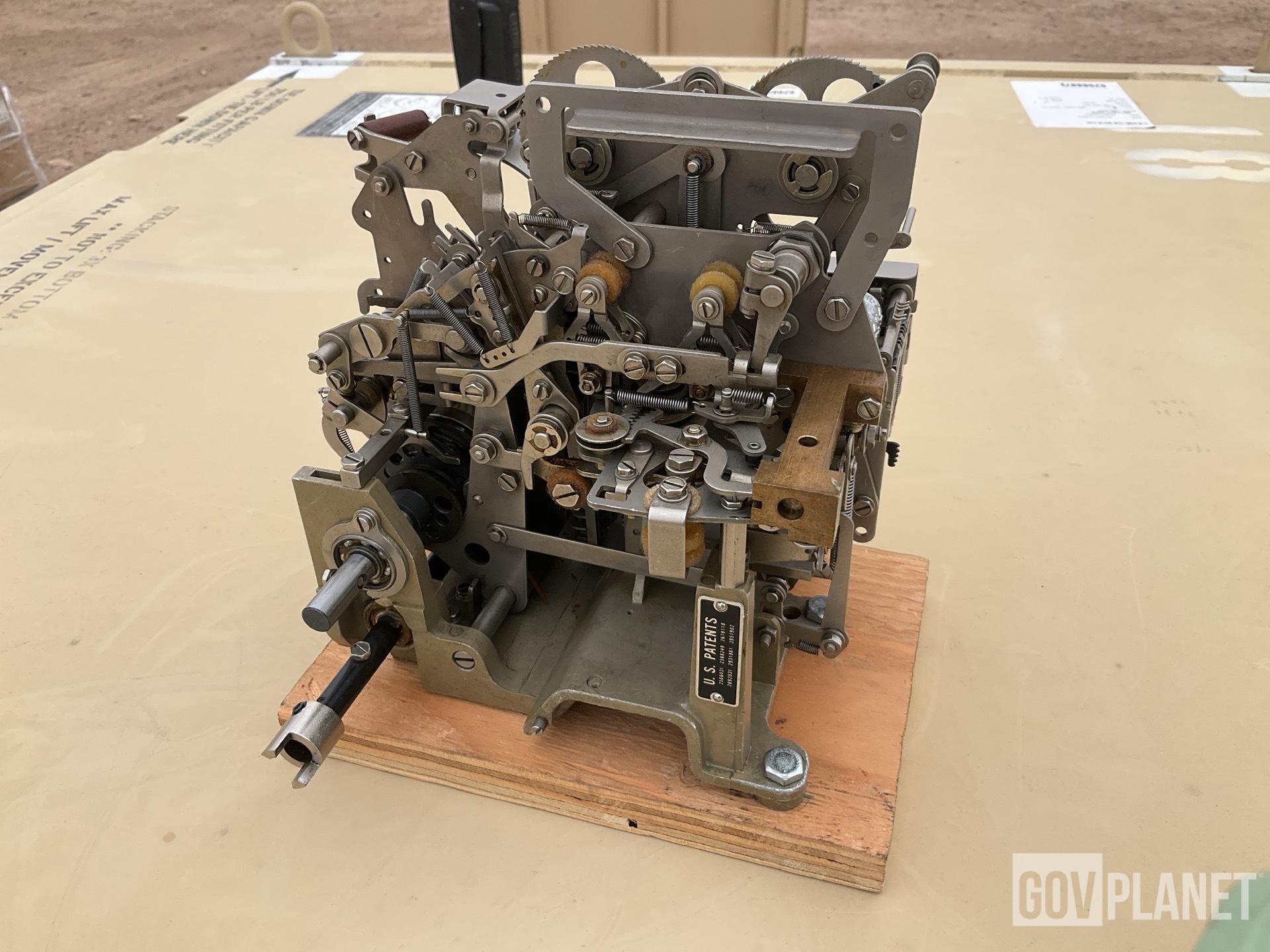

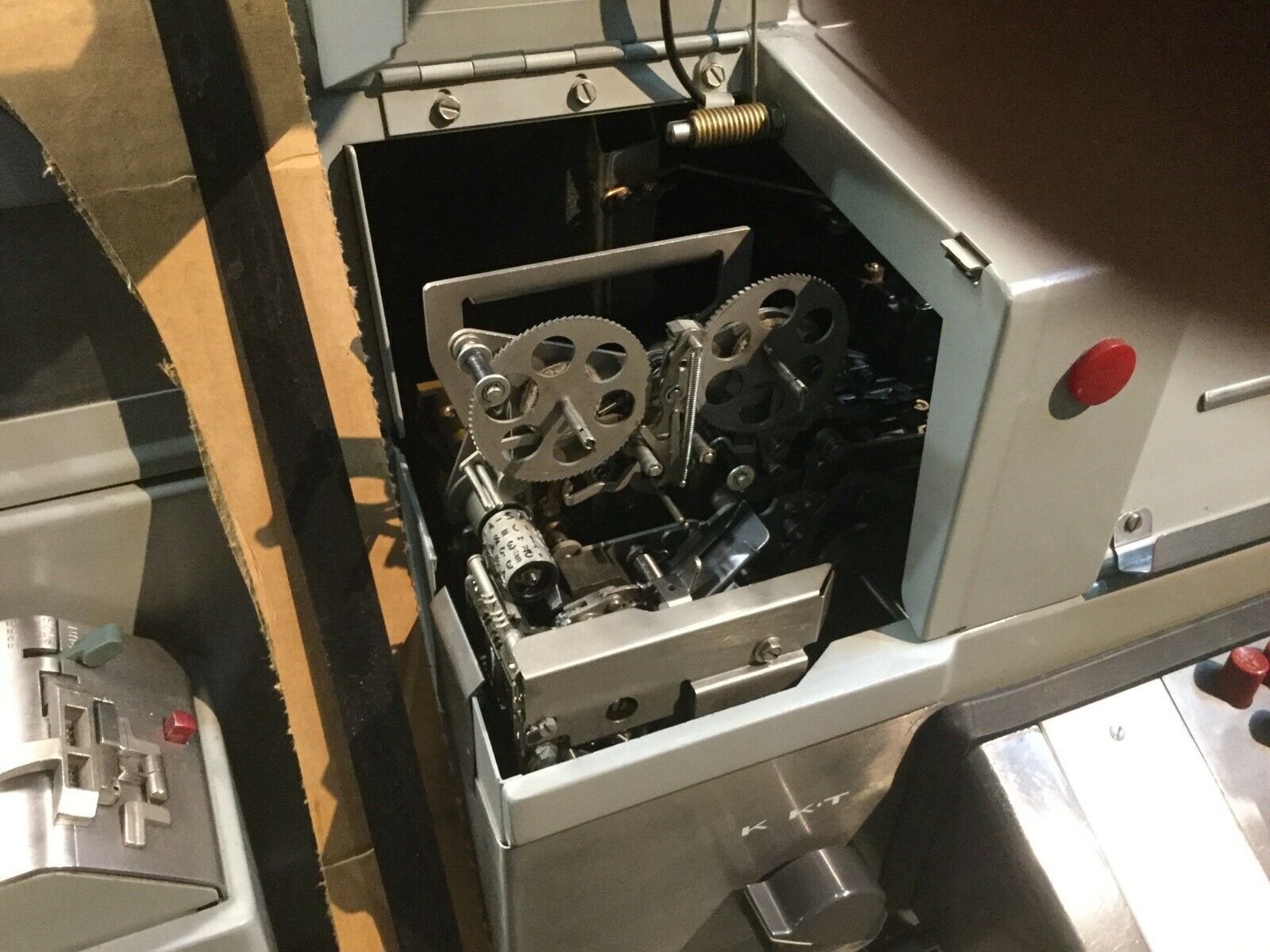

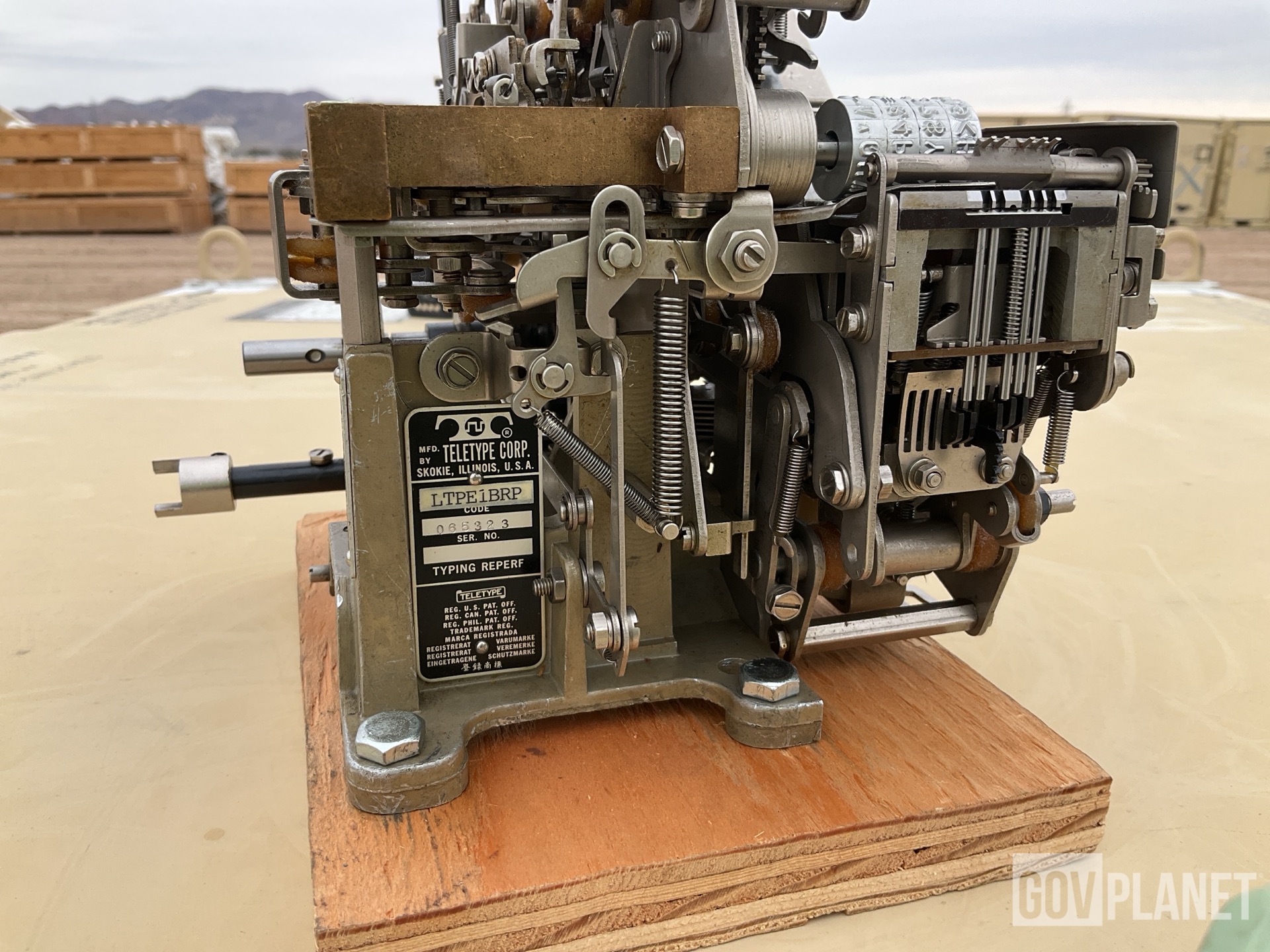

AN/UGC-5 & AN/UGC-6
(Teletype 28ASR)



Model 28 Automatic Send-Receive Page Printer Set.

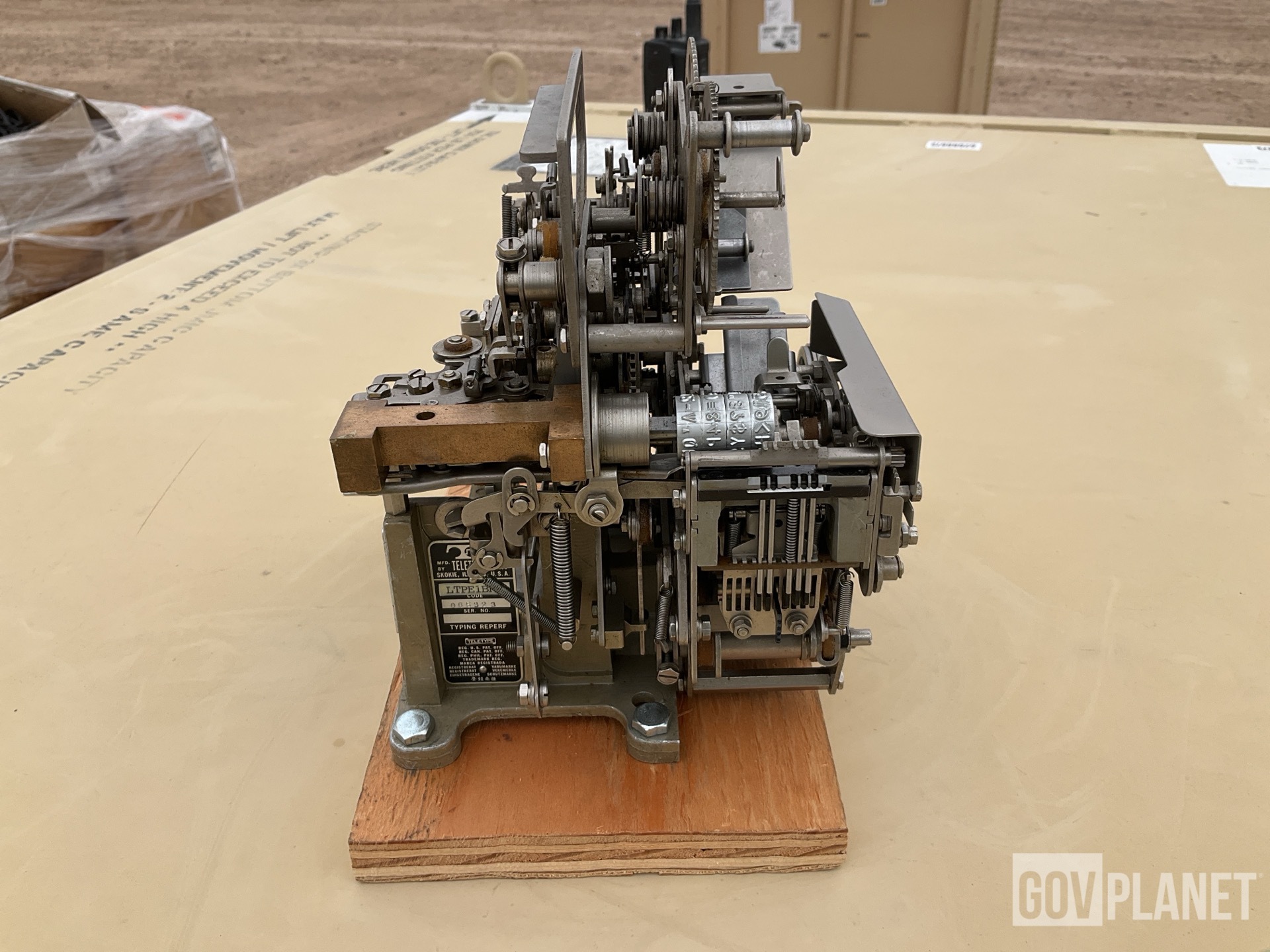

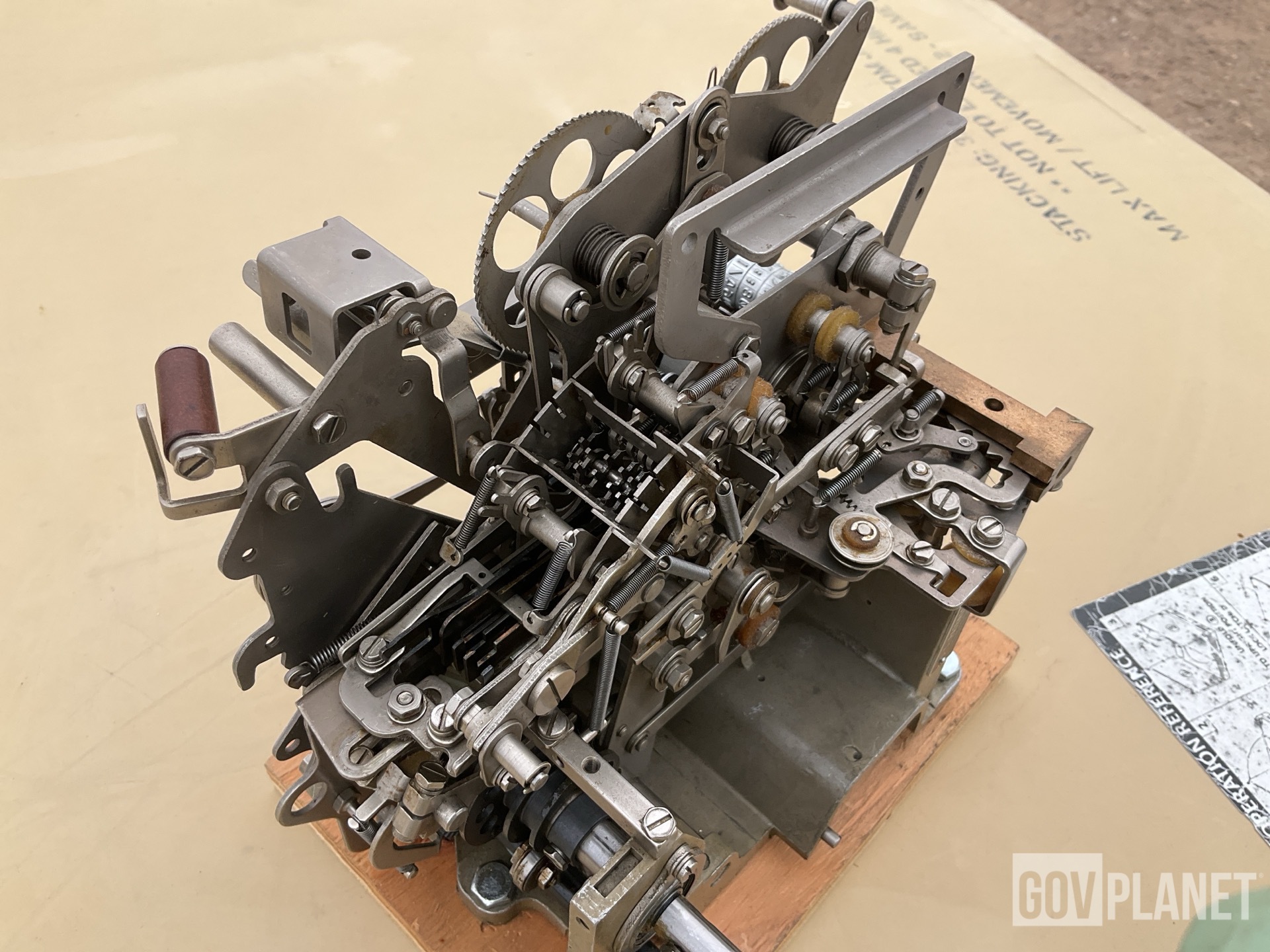

UGC-5 without auxiliary typing reperf consists of floor cabinet, friction feed typing unit, keyboard, chadless typing perforator, transmitter distributor, synchronous motor, electrical service unit, and gears for 45.5, 56.9 and 74.2 baud.

UGC-6 also includes auxiliary chadless typing reperforator, with motor and ESU - see below

7.42 unit code, 60 Hz, 115VAC. Includes communication symbol arrangement.

more photos

Photos of 28ASR restoration


AN/UGC-6K

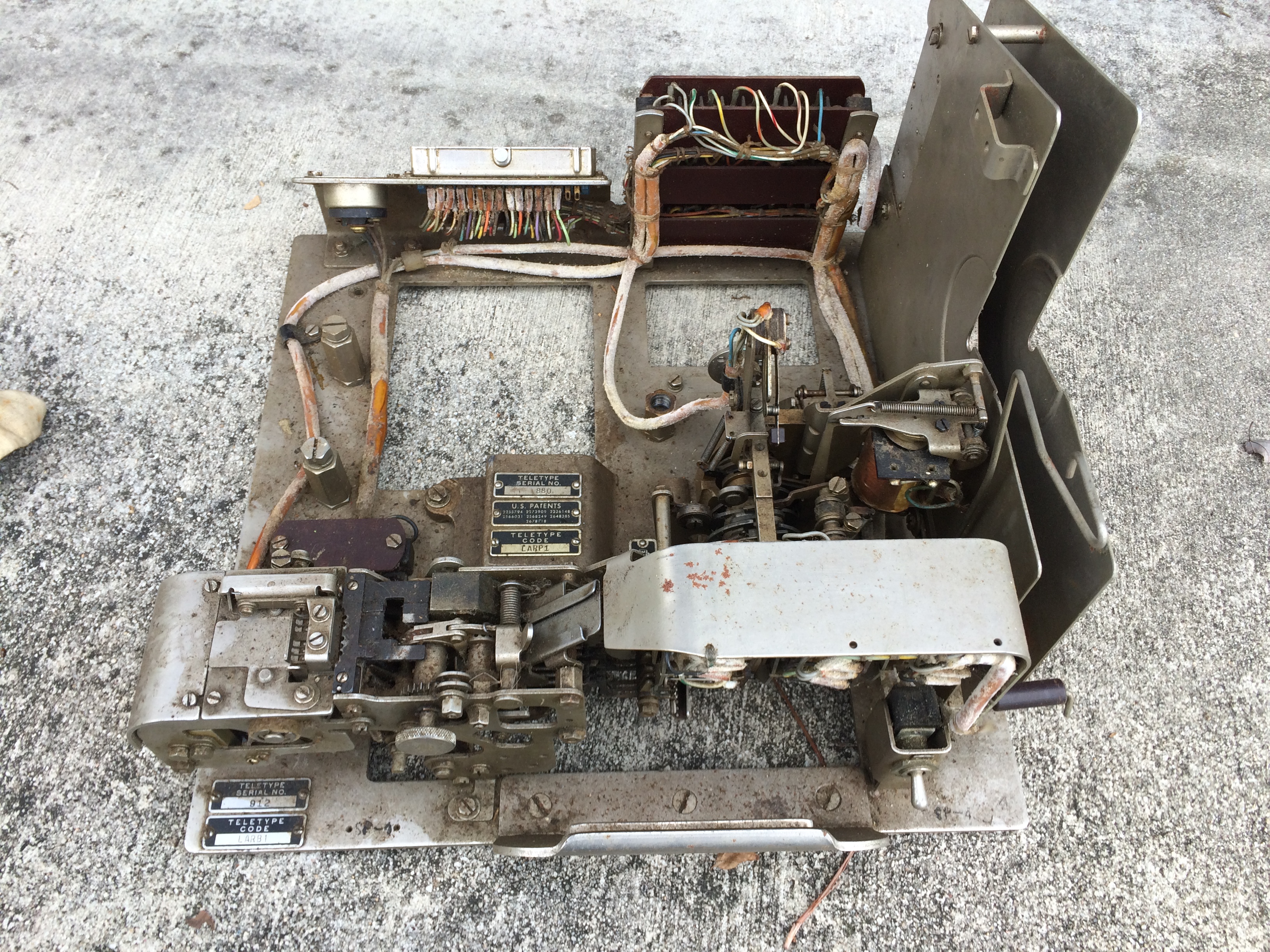

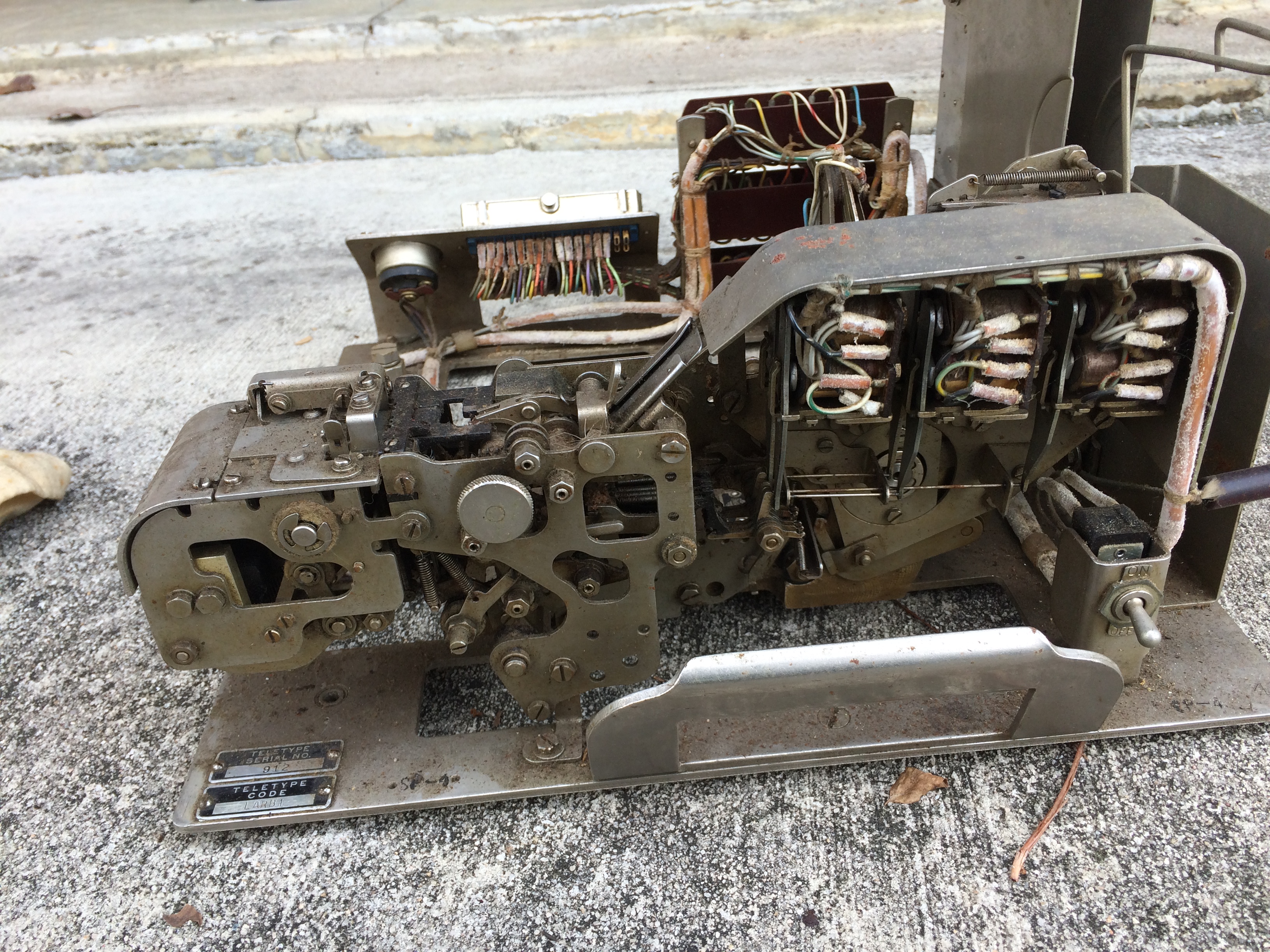

   28ASR Prototype Photos

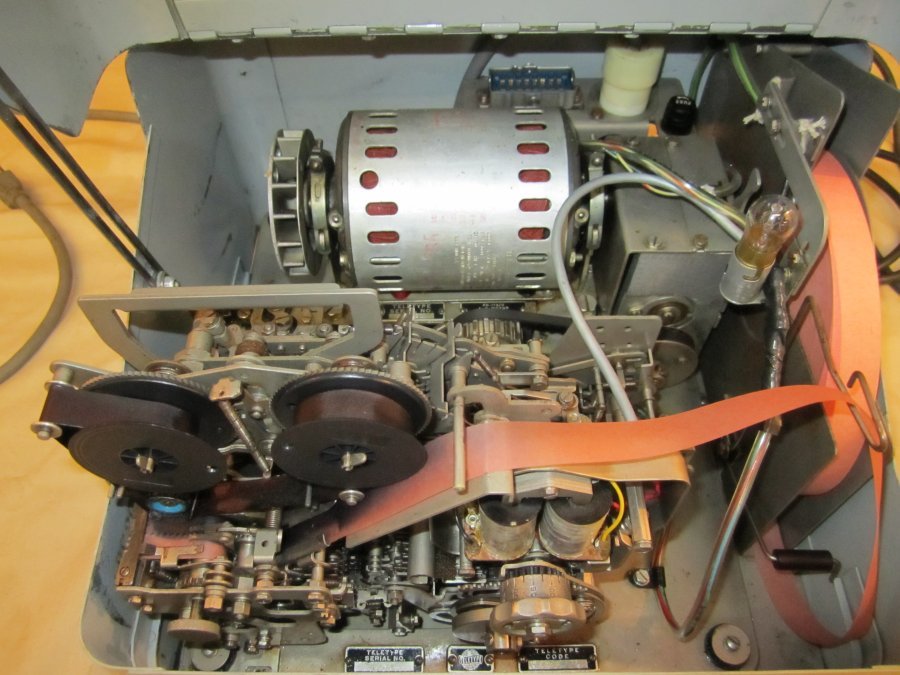

Auxiliary Reperf for AN/UGC-6

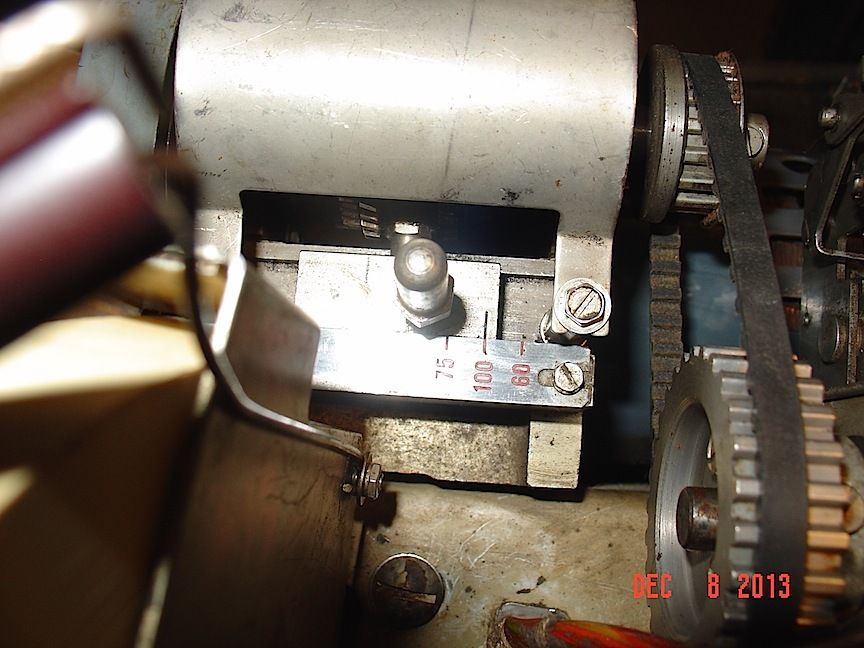

MT-2234/UG Auxiliary Reperf Base

AN/UGC-49

Model 28 Low Level Automatic Send-Receive Page Printer Set.

Consists of floor cabinet, friction feed typing unit, keyboard, fully perforated typing reperforator, transmitter distributor, 2 synchronous motors, electrical service unit, signal and clutch electrical service assemblies, auxiliary fully perforated typing reperforator and gears for 45.5 and 75 baud.




7.00 unit code, 60 Hz, 115VAC.

Includes communication symbol arrangement, MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature.CRITICOM type.

info from CTO manual

more photos



Teletype Model 42 ASR
4220 AAB + 4250 AAA

used for training simulator and other uses? Please send me email with any info.

More photos

IMG_2934.JPG (3686331 bytes) Note "Transmit"-"Receive"-"Transmit Simulator" switch

KTR - Keyboard Typing Reperforator - Keyboard + Tape Punch
also called SRTR - Send-Receive Typing Reperforator

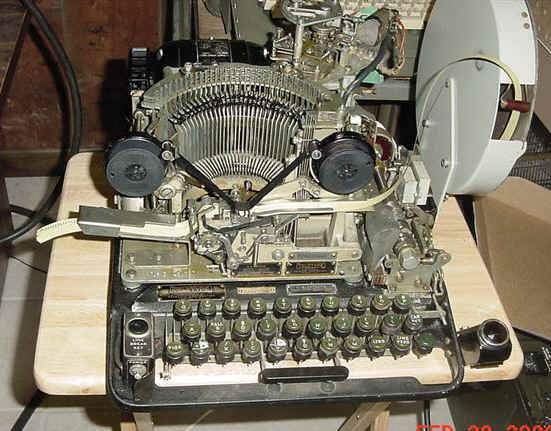

TT-103/FG
photos thanks to Larry Tighe

keyboard typing reperforator


uses FPR23H246 typing reperf


TT-253/UG

TT-253C/UG

keyboard typing reperforator



AN/UGC-78 was the Low-Level version

more photos

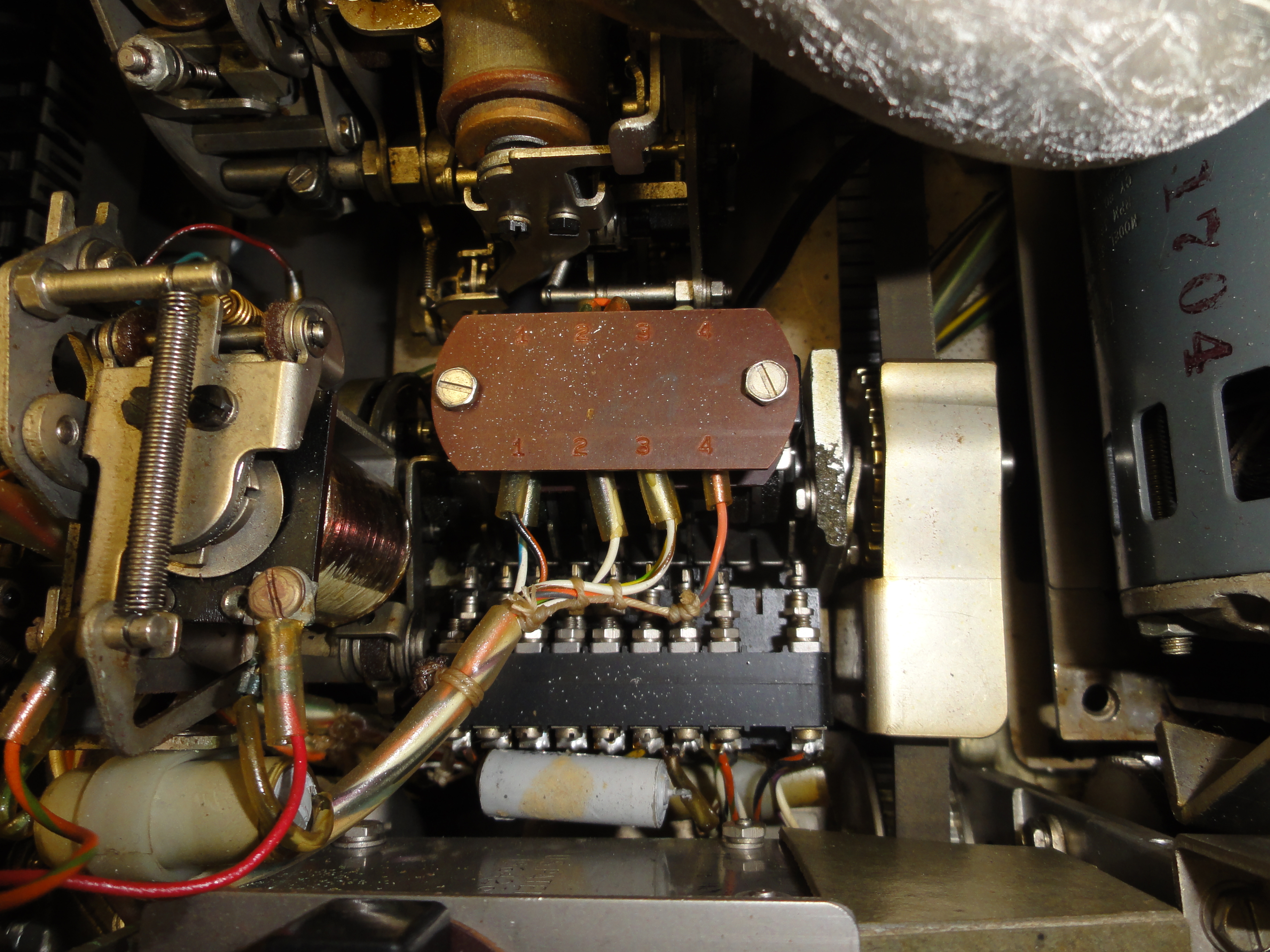

28KTR Compact
Need more info! - please send email if you have ANY info on this unit

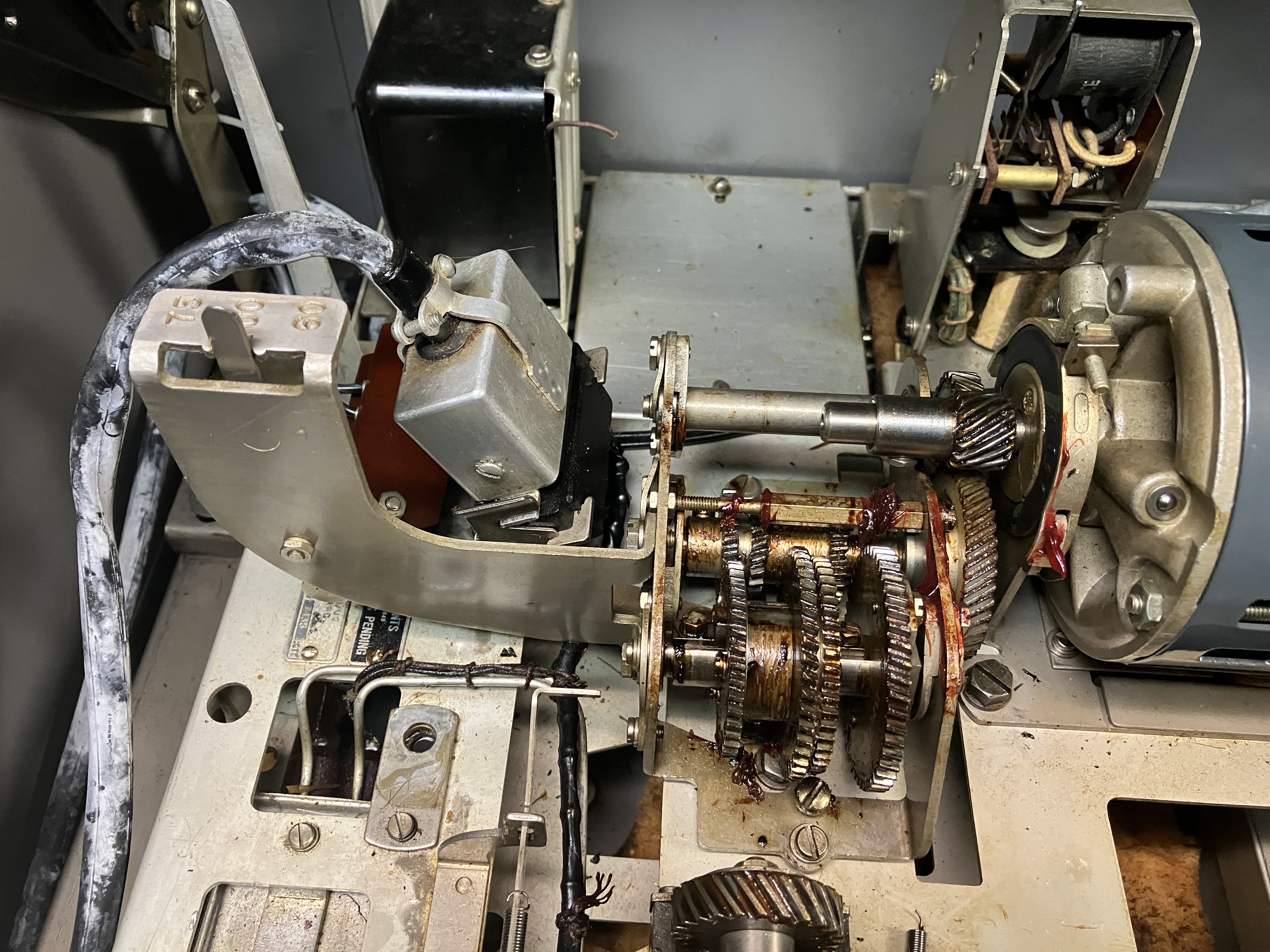

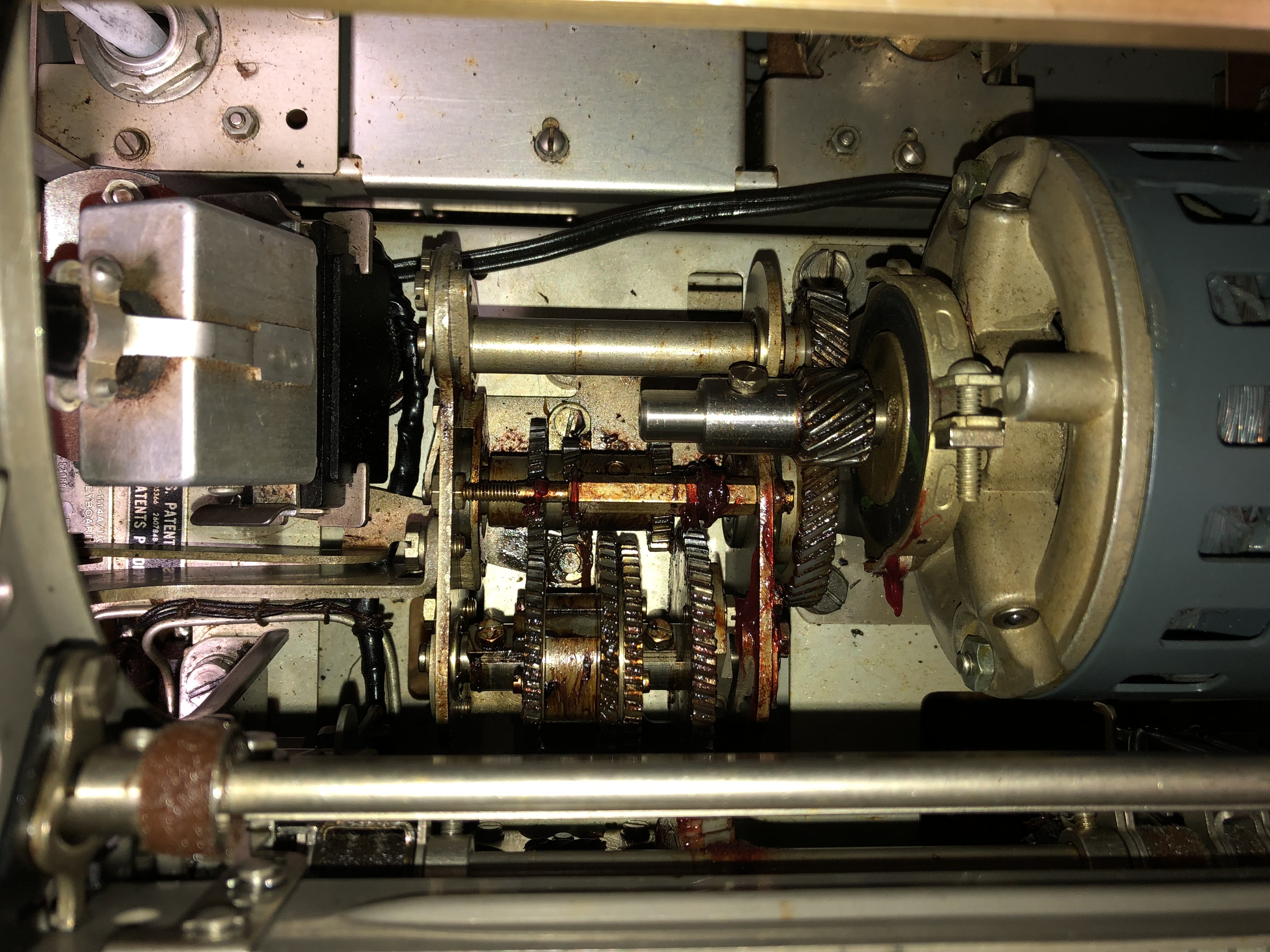

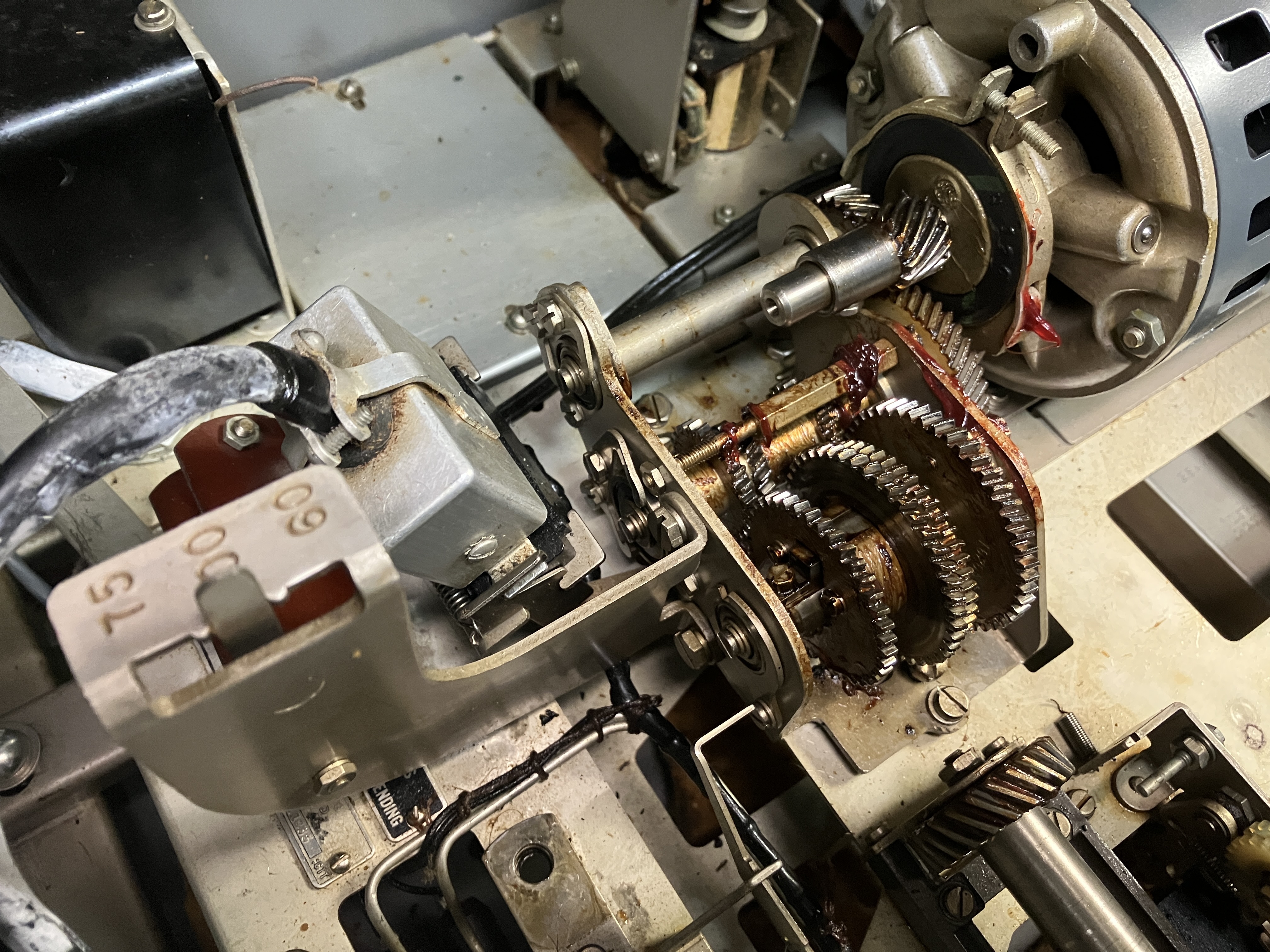

3-speed (45.5, 50, 74.2 baud) gearshift
motor time-out stop control at center
keyboard code bar contacts at left
3-speed gearshift at left
AC line filter and chad bag at left

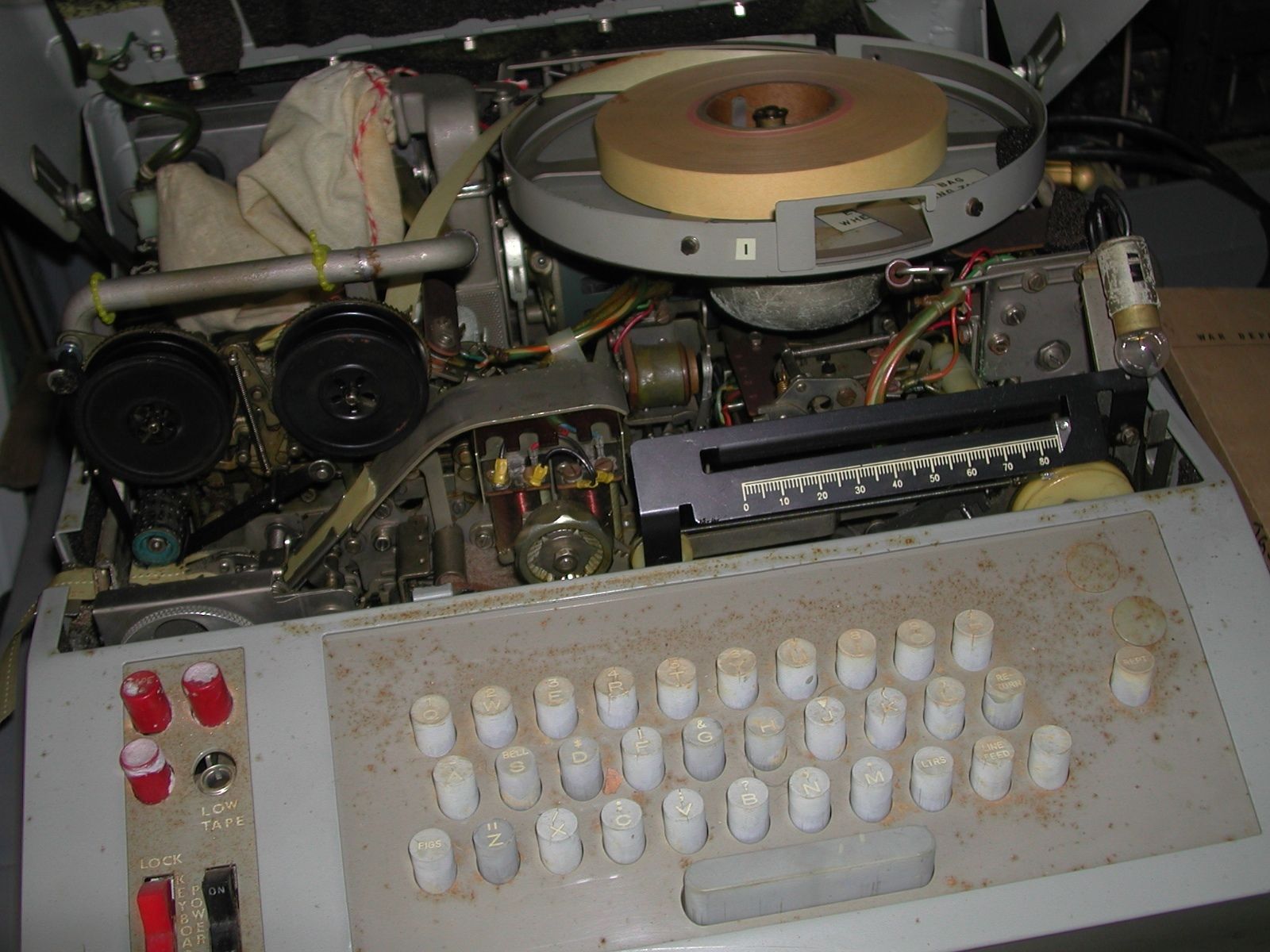

ktrc_5413.jpg (2309407 bytes) M32-style electrical keyboard with distributor for serial line output
bell w/distributor underneath.
motor control at bottom of photo
bell switch on reperf

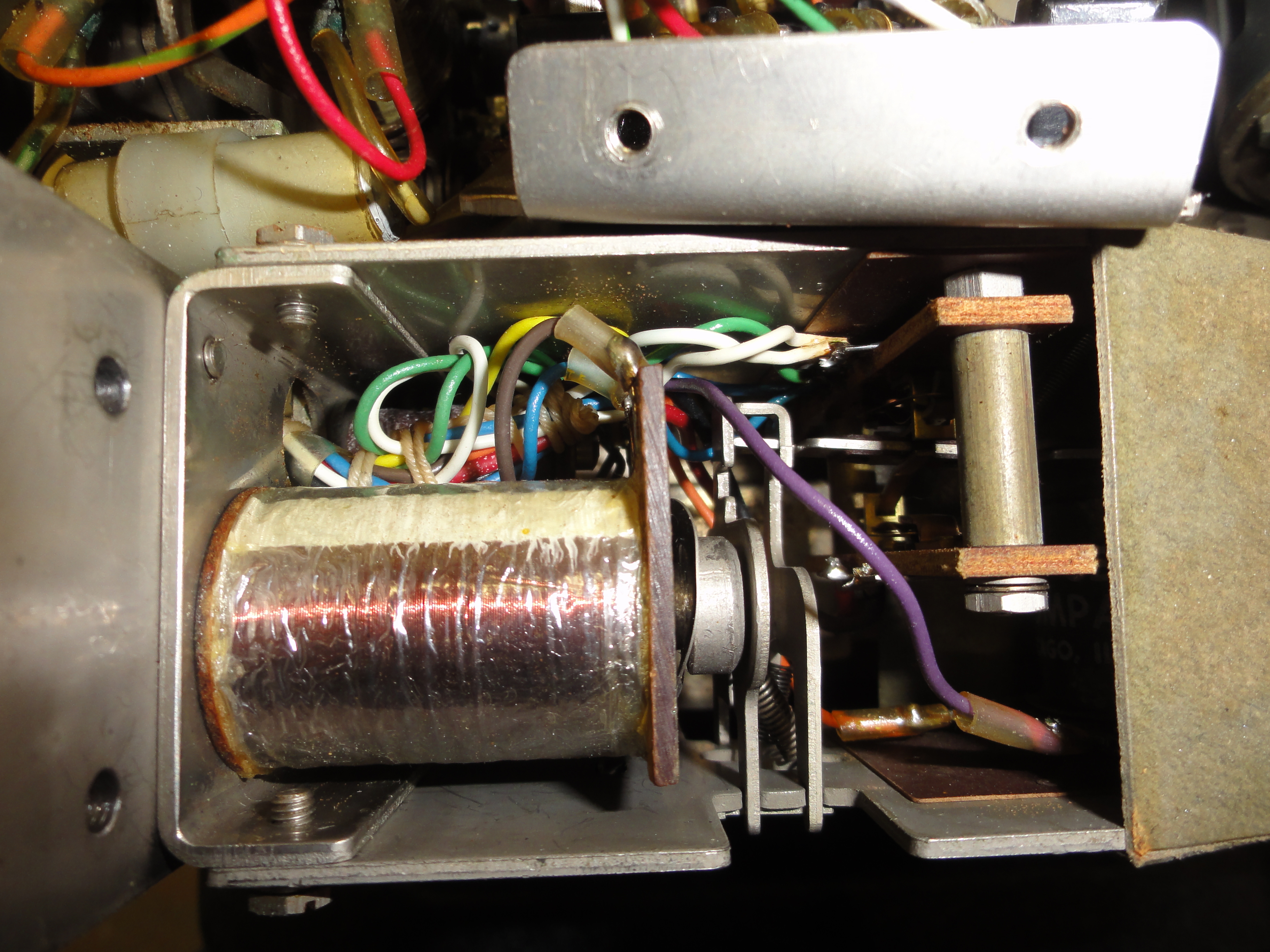

distributor w/ clutch solenoid at left
tape feed-out solenoid at top
distributor w/ clutch solenoid at left
motor time-out stop control
power train - motor & gearbox above
belt drive from gearbox to distributor and reperf
NOTE - the unit above is not the same as a Model 34 tape punch. The M34 has a mechanical keyboard, not an electrical keyboard plus distributor. 1967 Teletype Corp photo

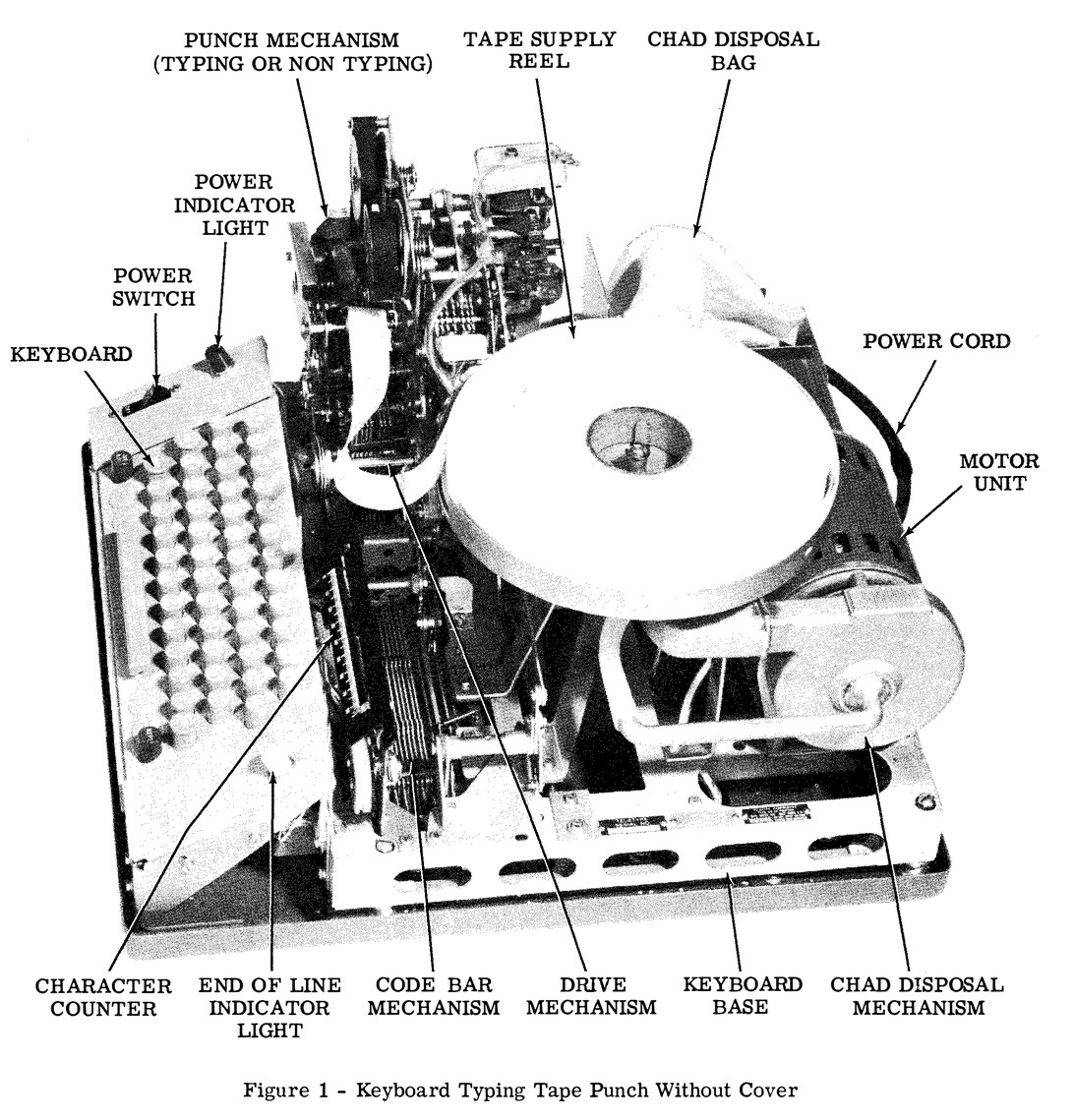

Model 34 keyboard perforator
Model 34 keyboard perforator
--

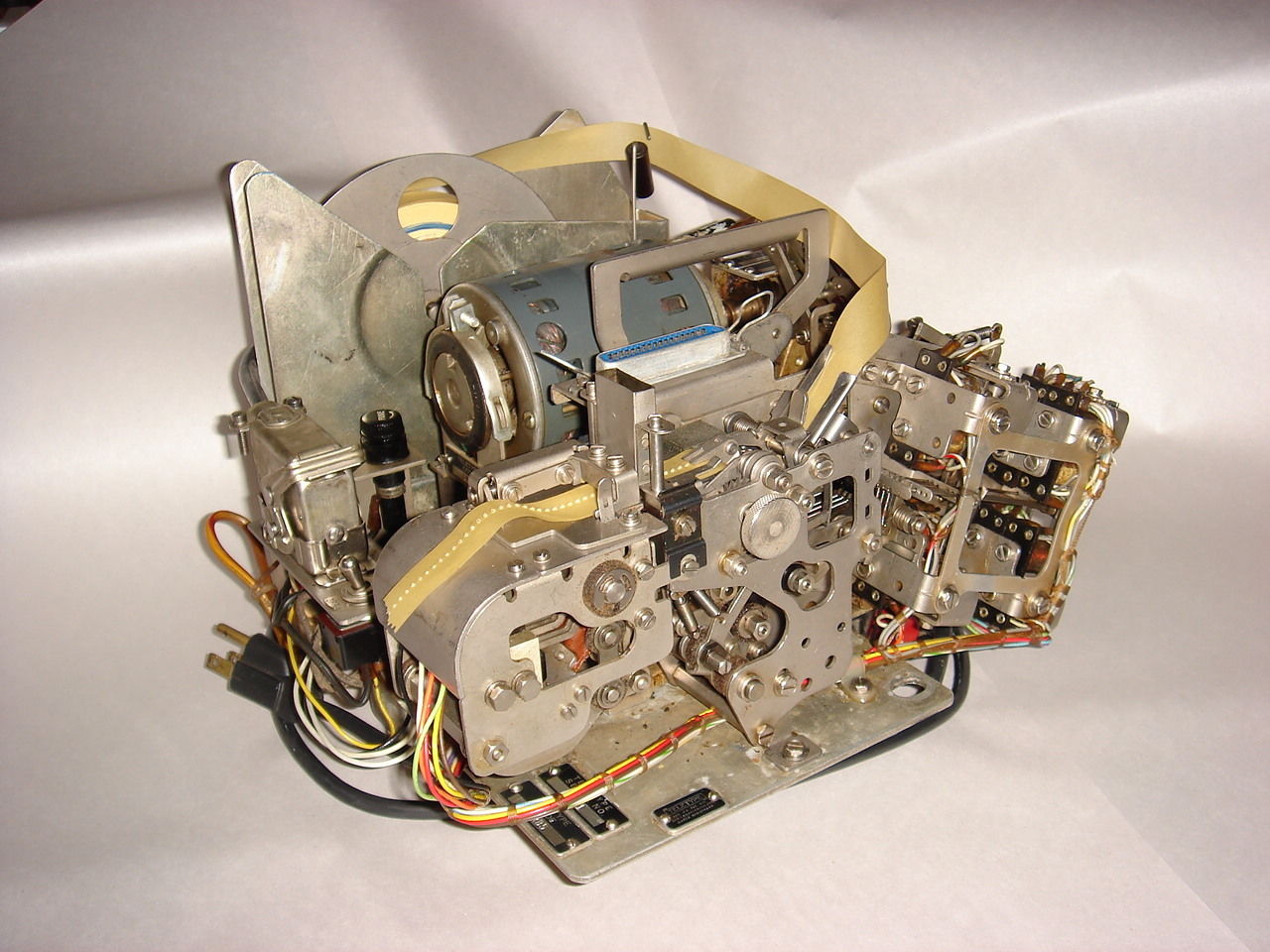

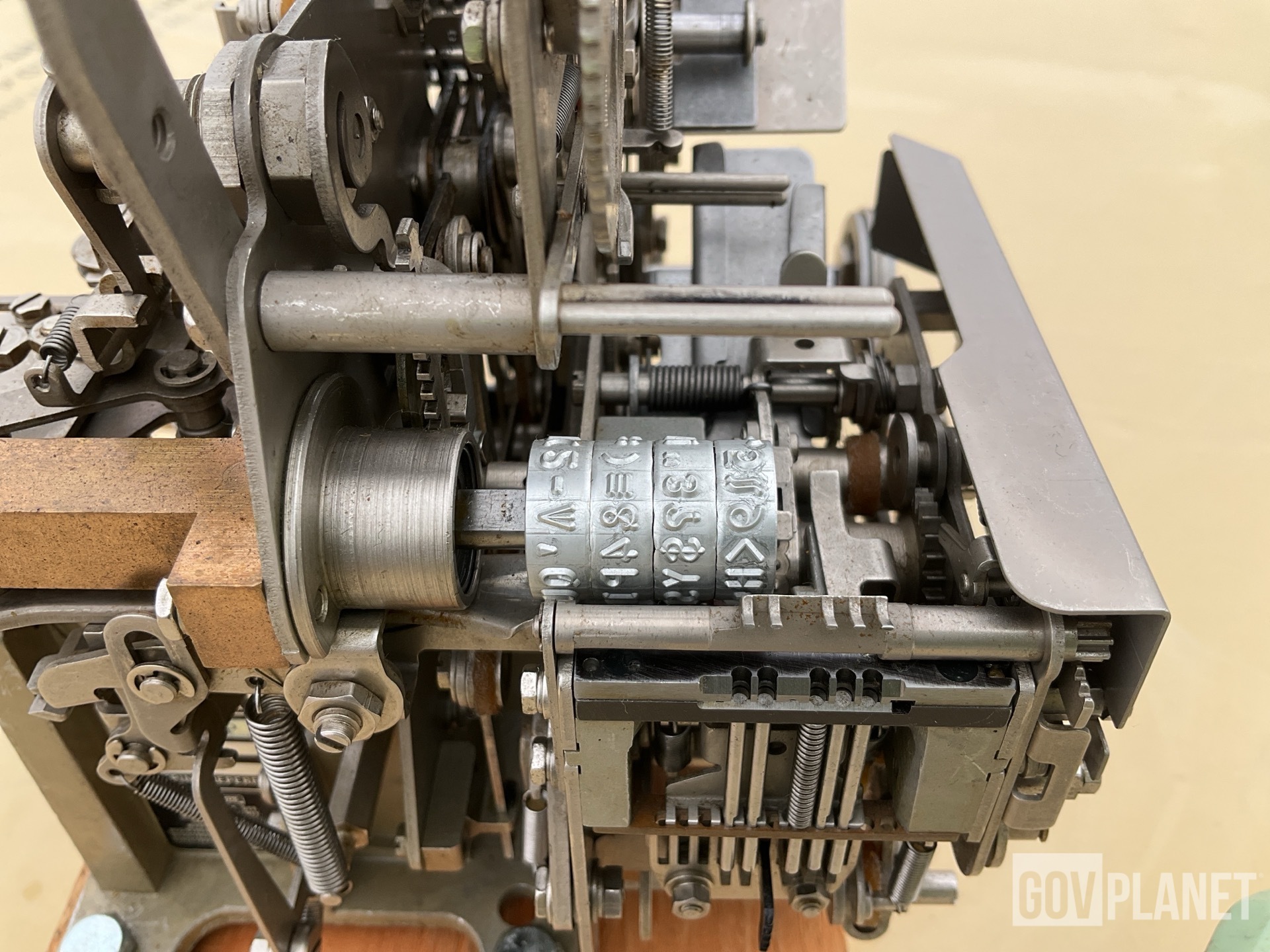

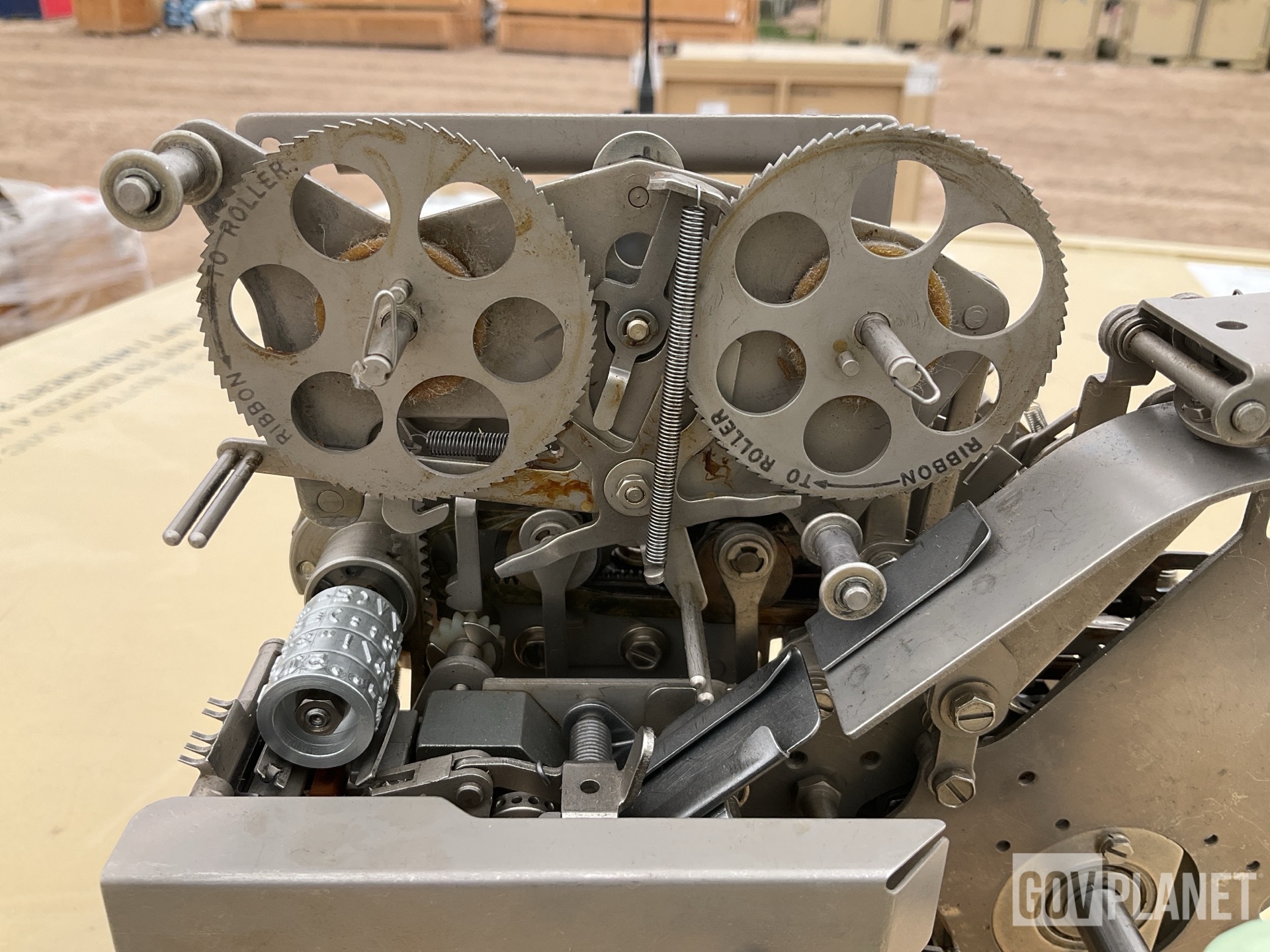

ROTR - Receive-Only Typing Reperforator - (paper tape punch)

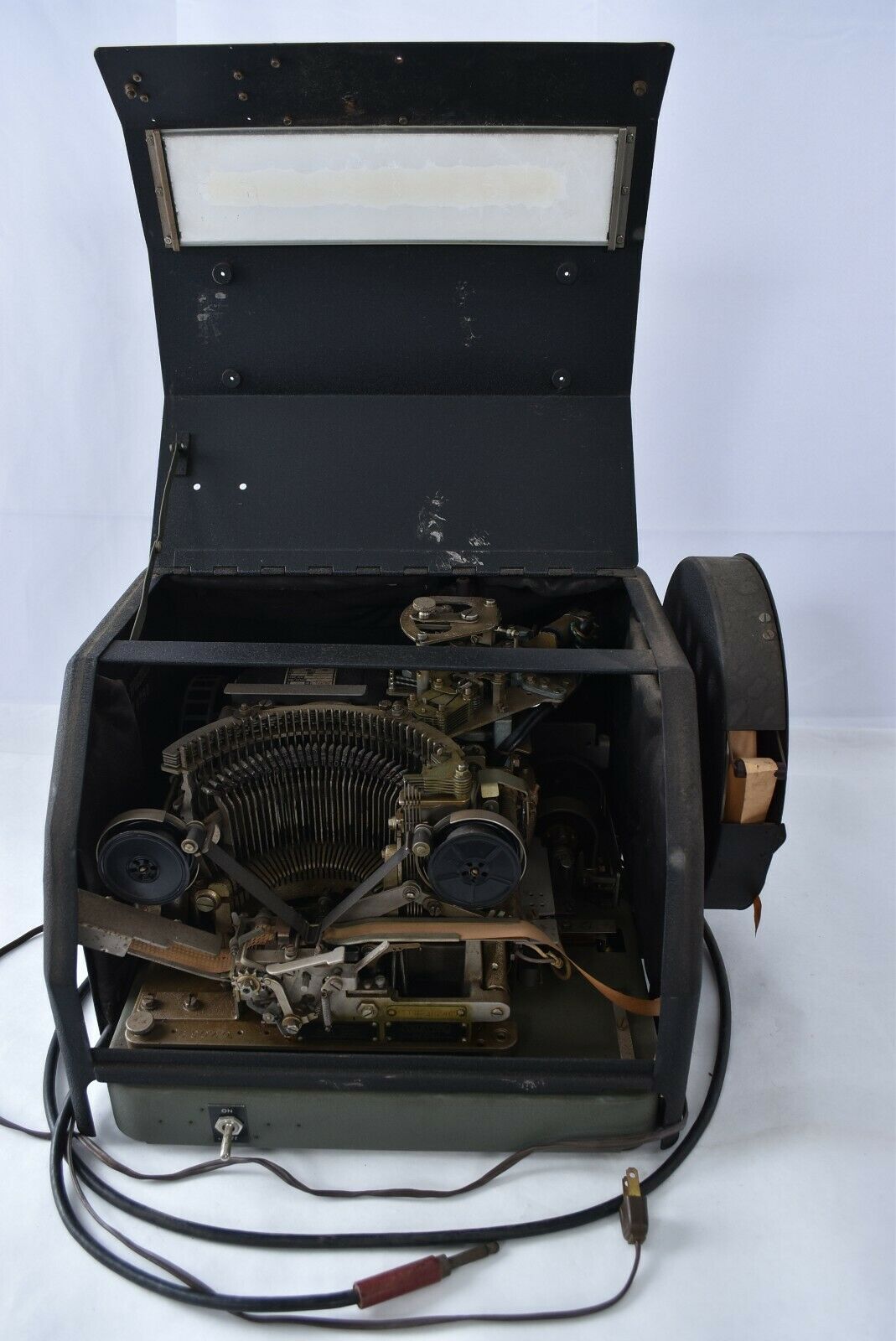

TT-45/FG

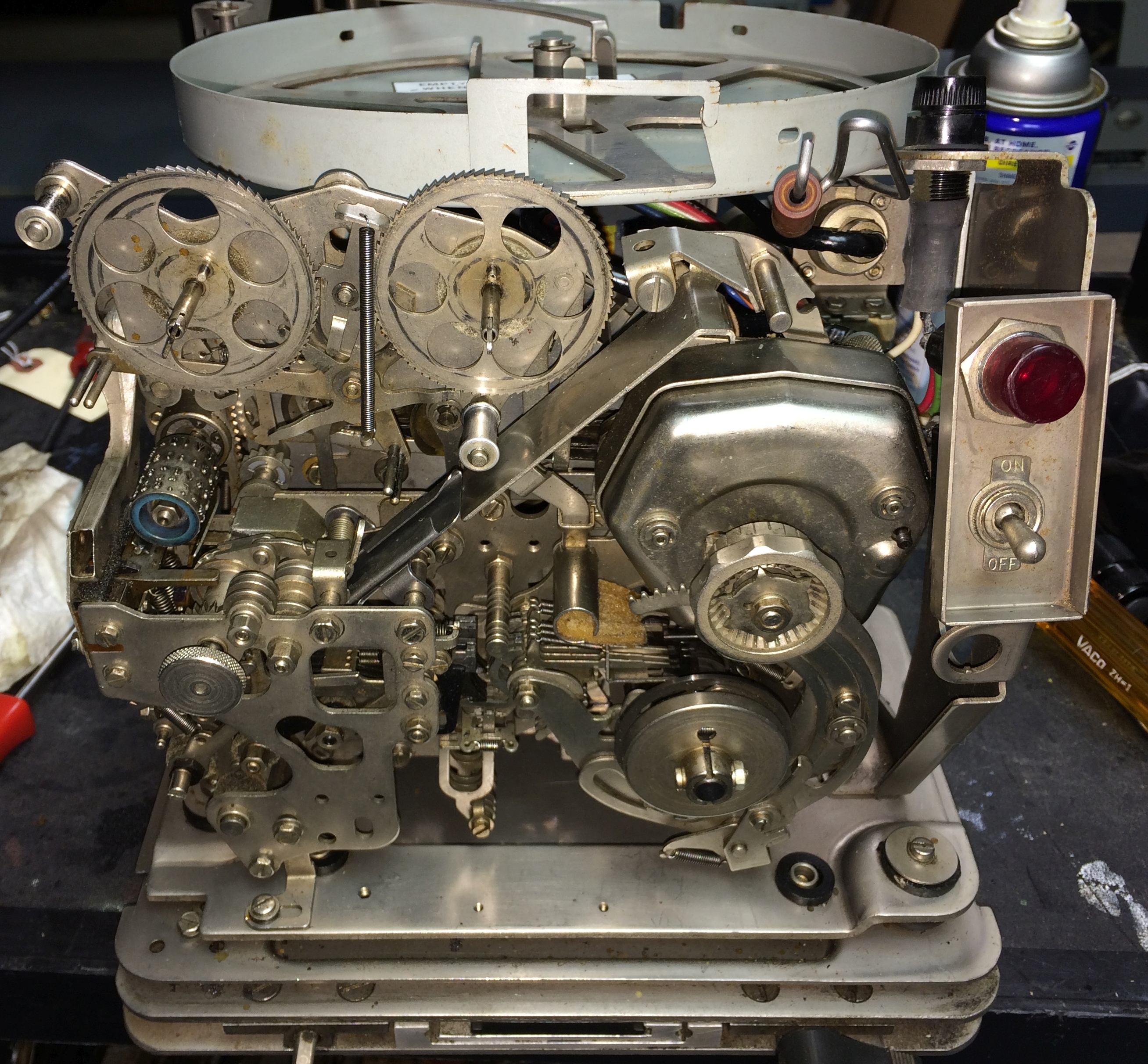

(FPR23H246 w/synchronous motor)

TT-46/FG has governed motor

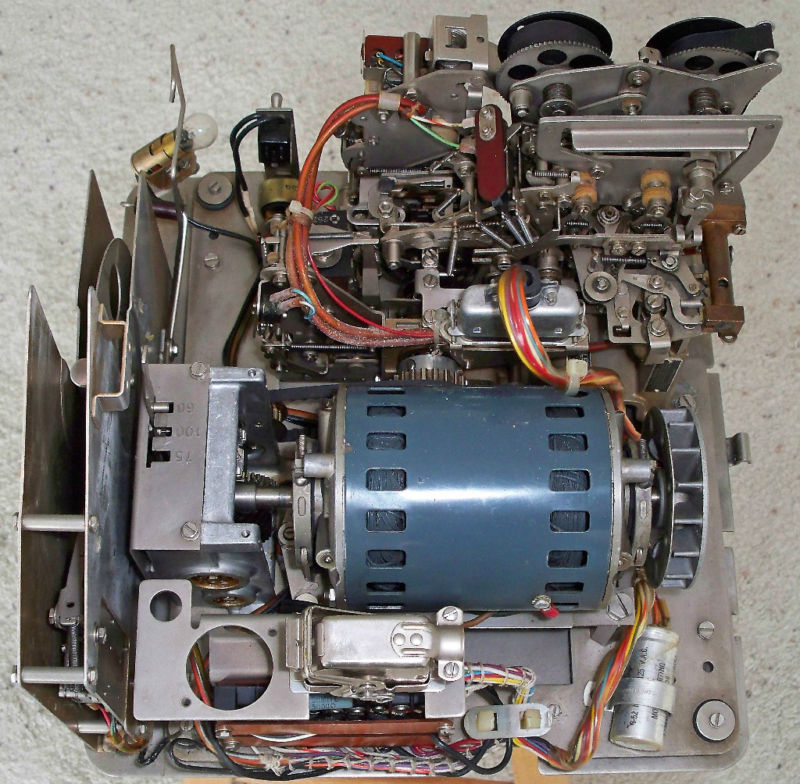

TT-192/UG (synchronous motor)
TT-274/UG (governor motor)



 tape reel is on side



base LRB8
reperf LPR9AWA
motor LMU3
cover LRC202



M28-rotr-1412.jpg (93255 bytes) reperf-110613-04.jpg (108197 bytes) reperf-110613-02.jpg (116611 bytes) reperf-110613-03.jpg (109081 bytes)
tt192-ug-1205-01.jpg (29149 bytes) tt192-ug-1205-02.jpg (45809 bytes) tt192-ug-1205-03.jpg (51980 bytes) tt192-ug-110603-01.jpg (820704 bytes)

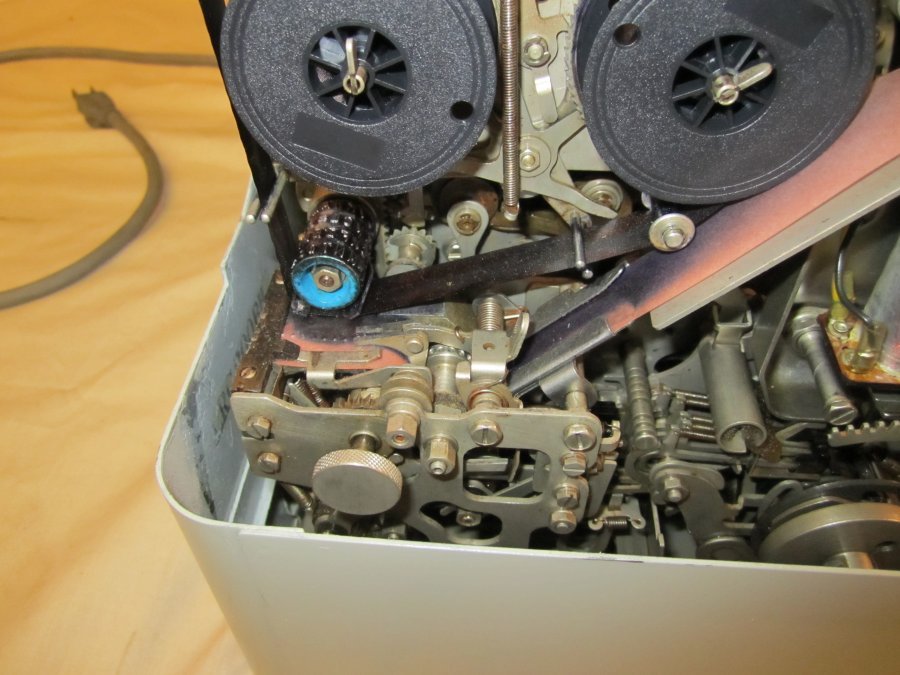

TT-192A/UG Miniature ROTR

USS Hornet - Photo Credit Info Here




tape reel is on top, not on side as in standard-sized TT-192 unit

Slow-motion movie


Teletype
base LRB31
reperf LPR40AWA
motor LMU24
cover LRC205

more photos


tt192a-1304-01.jpg (314117 bytes) tt192a-1304-02.jpg (419235 bytes) tt192a-ug-1302-04.jpg (30197 bytes) tt192a-ug-1302-03.jpg (42393 bytes)
tt192a-1910-01.jpg (370700 bytes) tt192a-1910-2.jpg (304504 bytes) tt192a-1910-03.jpg (325507 bytes) tt192a-1910-04.jpg (315661 bytes)

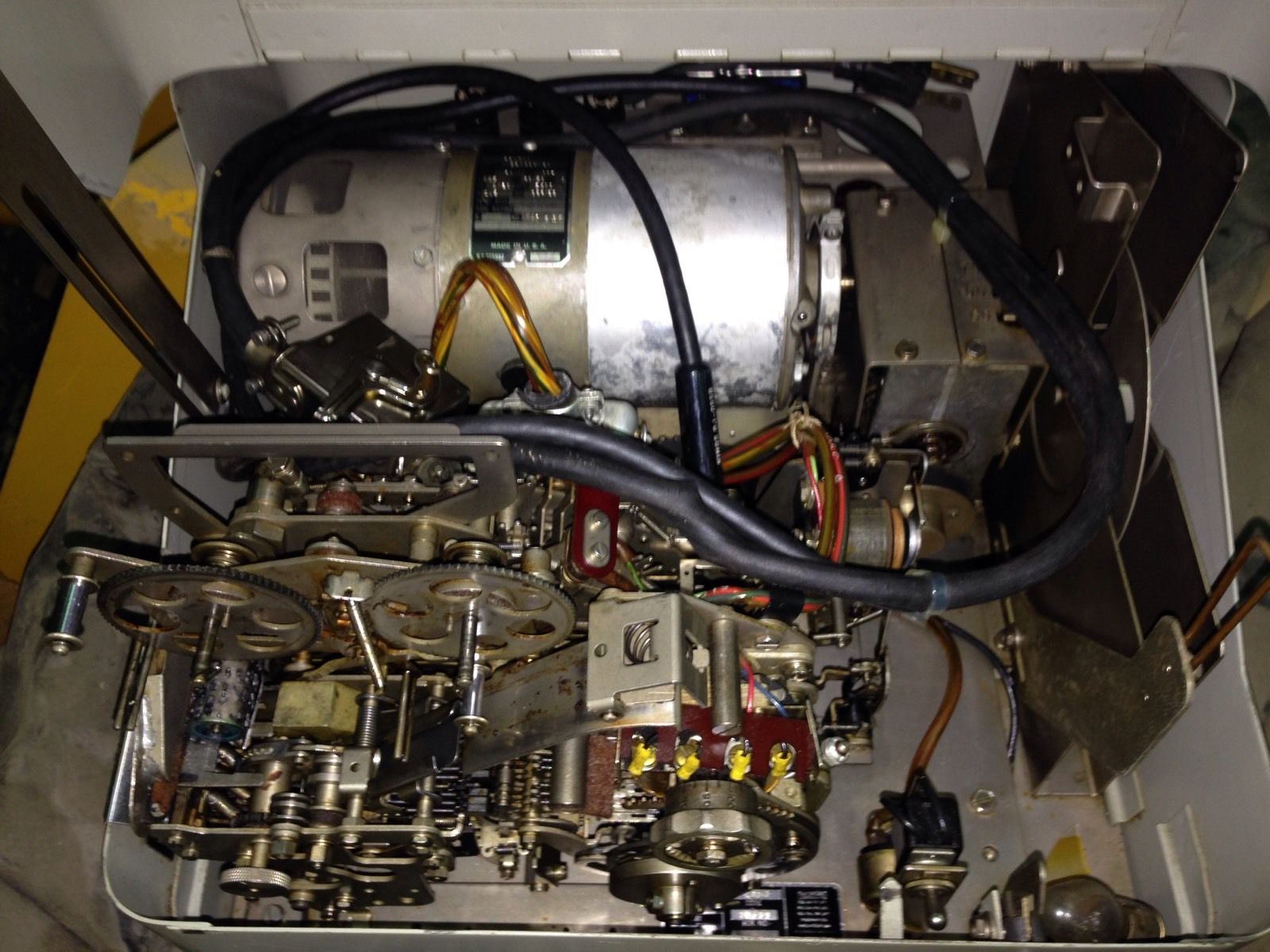

TT-549 ROTR


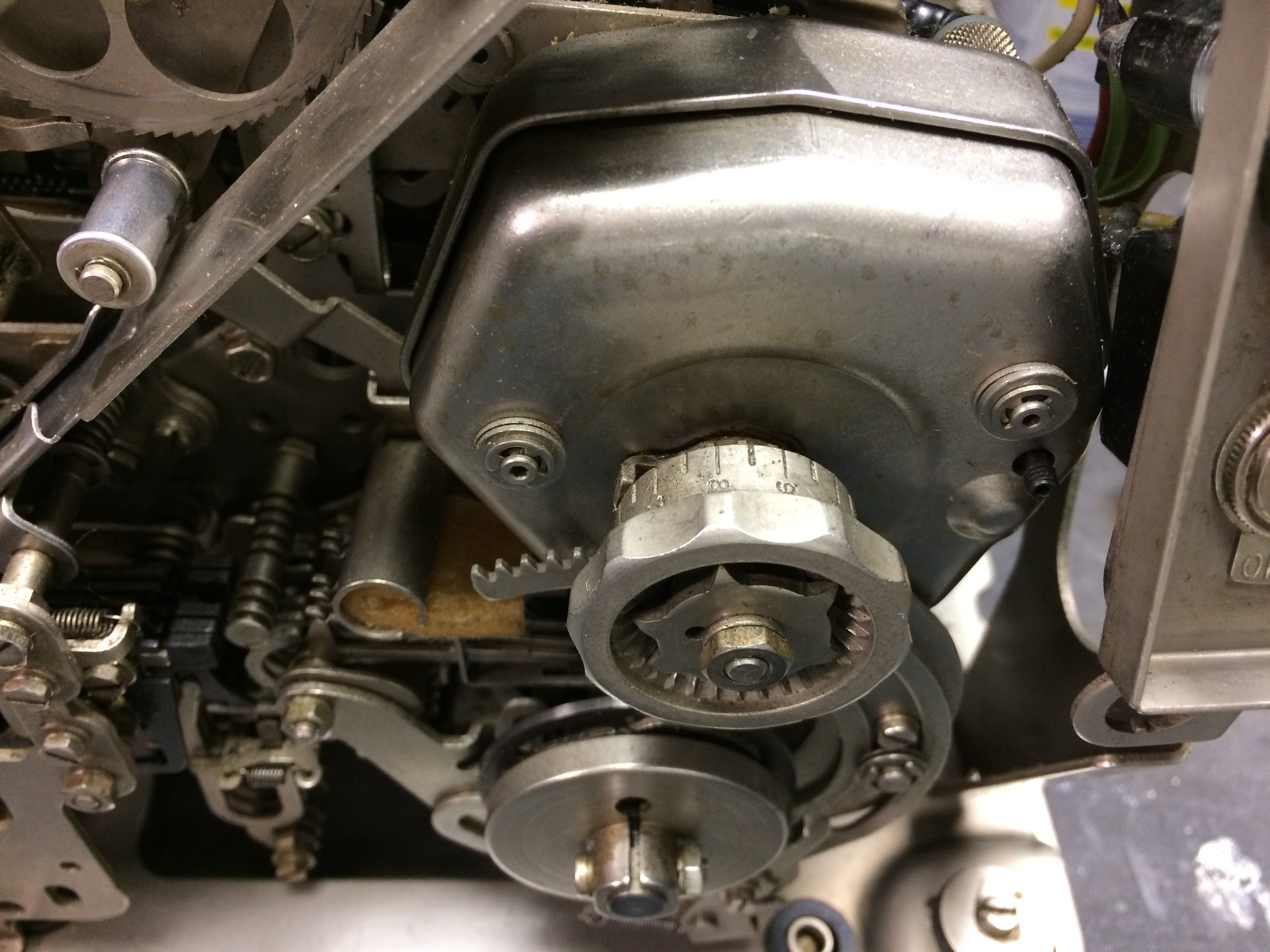

TT-605/UG

Like TT-192A but low-level signaling (+/- 6v) and RFI shielding

Miniature ROTR

Includes MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature. Interface is in a separate Electronic Service Assembly.

Photo to right shows double-shielded selector magnets.

tt605-1418.jpg (2596055 bytes) tt605-1419.JPG (2260235 bytes) tt605-1420.jpg (4754178 bytes) Chad vacuum system

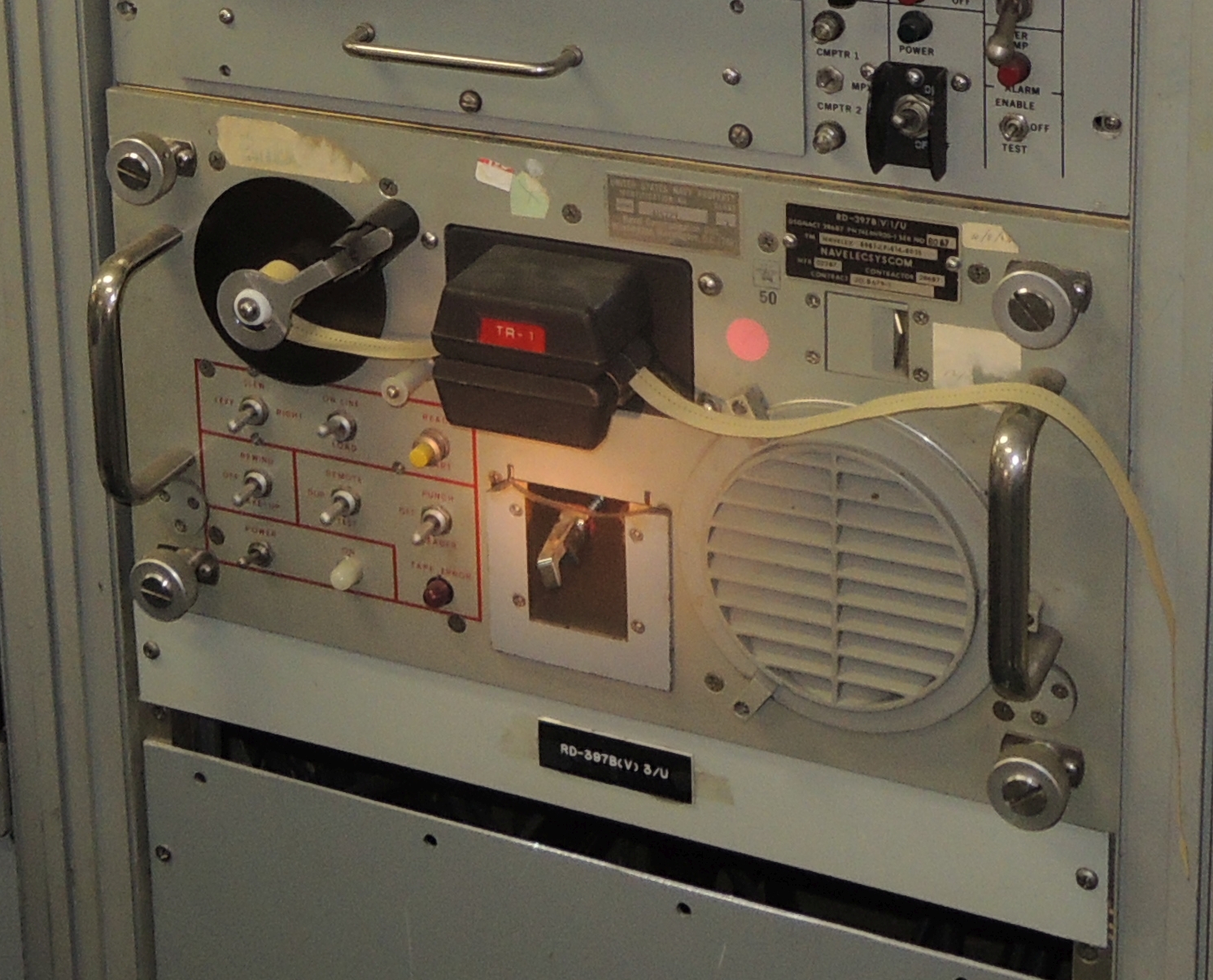

TD - Transmitter/Distributor (tape reader)  - guide to TD components

TT-57/FG (Model 14 TD)

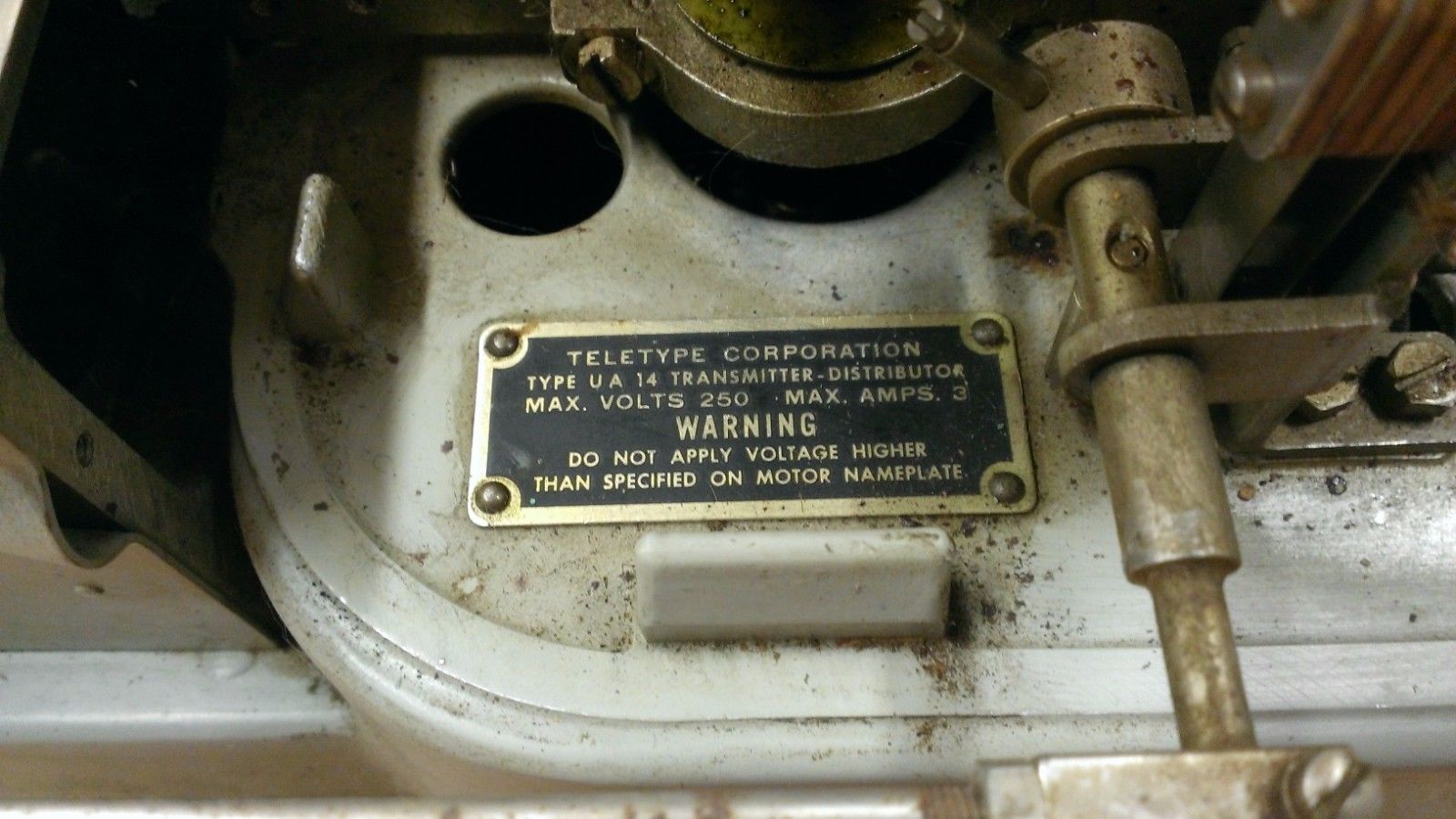

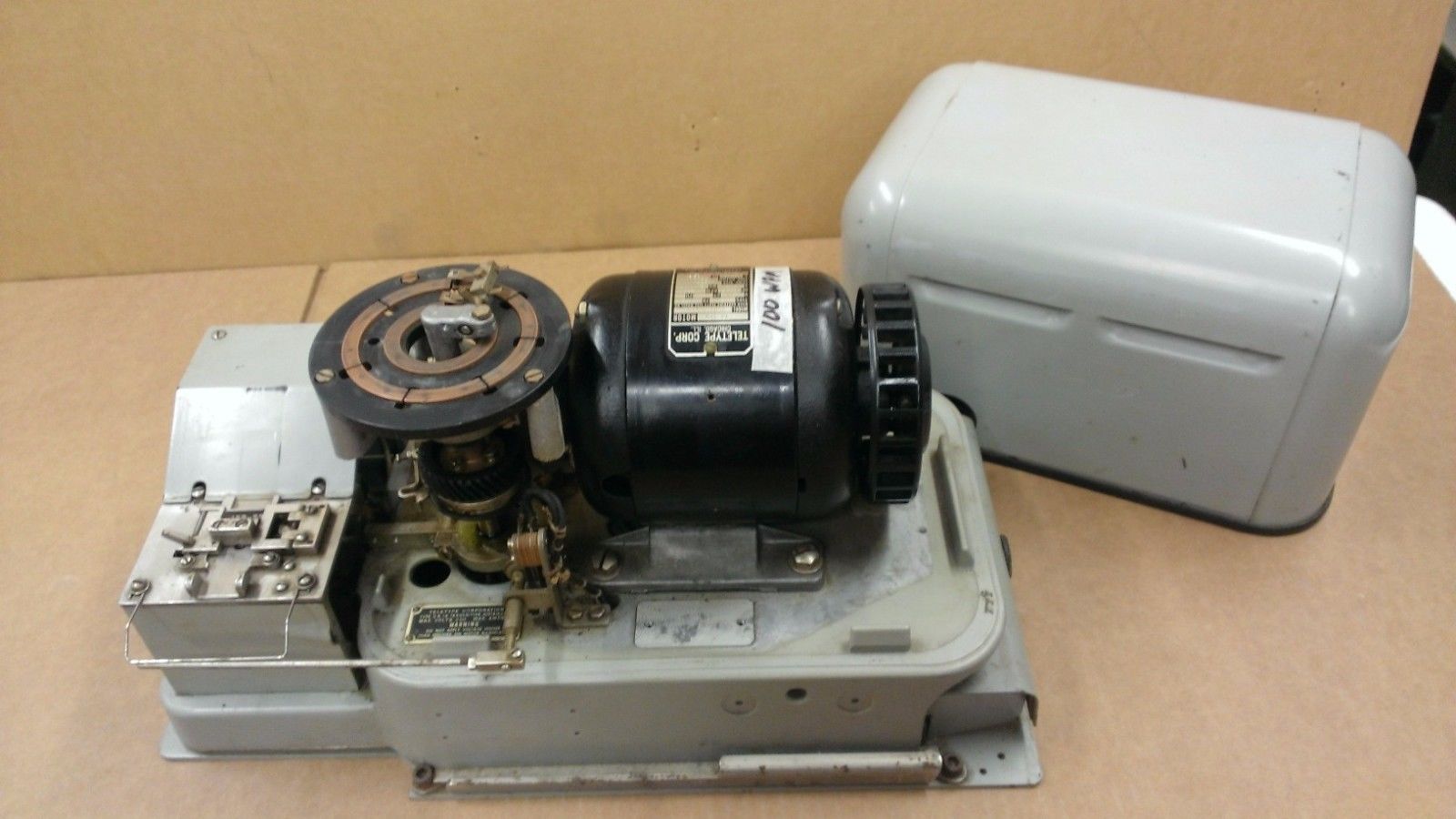

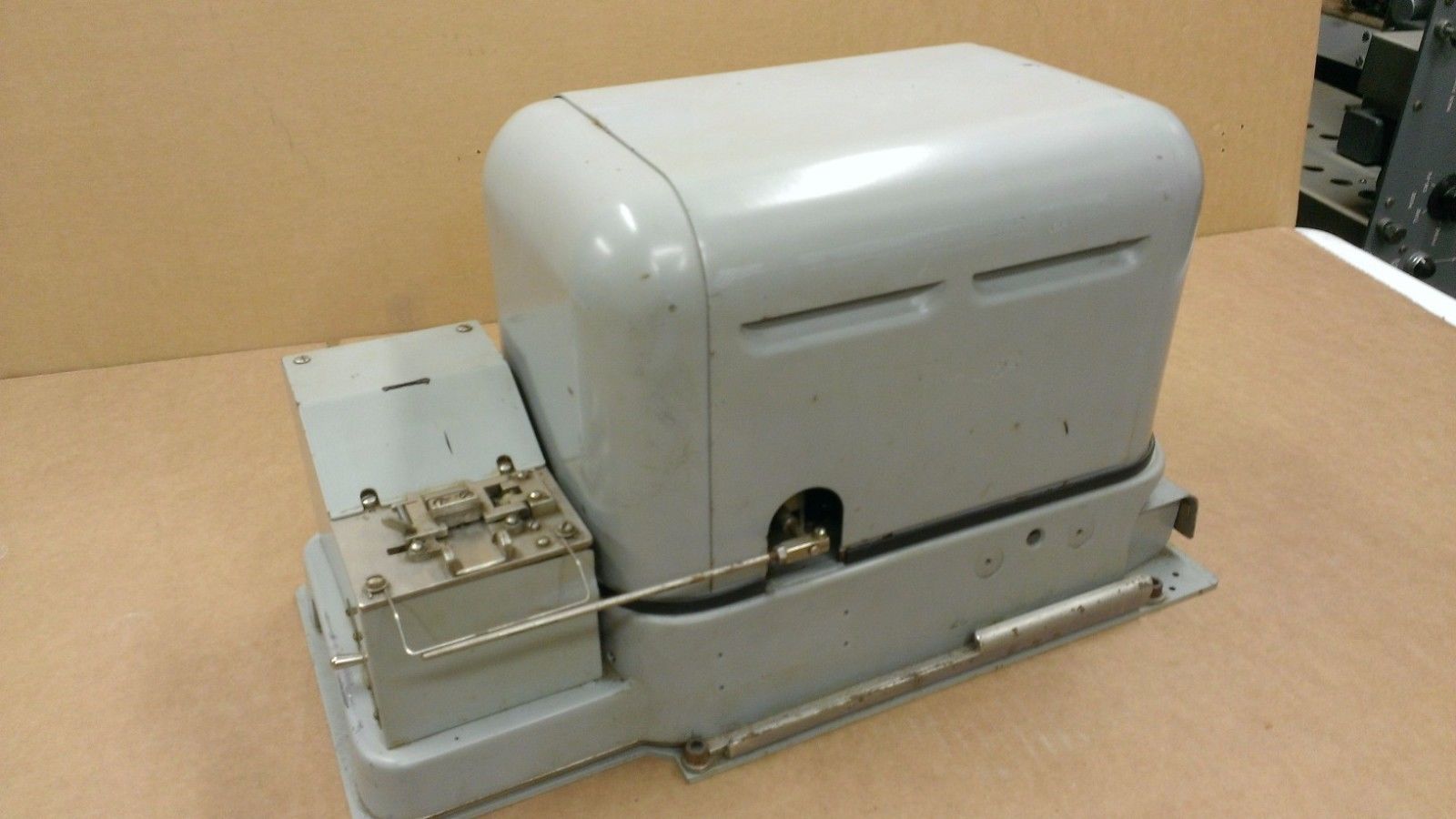

TT-143/UG

(Model 14 TD)

tt143-1701-04.jpg (135115 bytes) tt143-1701-05.jpg (123234 bytes) tt143-1701-06.jpg (189544 bytes) tt143-1701-07.jpg (186019 bytes)

TT-187/UG



Standard size M28 TD - transmitter-distributor (tape reader)

Model 28 Transmitter Distributor Set Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 56.9 and 74.2 baud.

7.42 unit code, 60Hz, 115VAC.

Components of TT-187 & TT-187A

TT-187 & TT-187A dimensions
Teletype 28LXD

more photos

TT-187A/UG




Miniature size TD - transmitter-distributor (tape reader)

Model 28 Transmitter Distributor Set Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 56.9 and 74.2 baud.

7.42 unit code, 60Hz, 115VAC.

TT-187 & TT-187A wiring
Teletype 28LXD

more photos


tt187a-1403-01.JPG (91810 bytes) tt187a-1403-02.JPG (91964 bytes) tt187a-1403-05.JPG (127836 bytes) tt187a-1403-04.JPG (117360 bytes)


TT-187B/UG
TT-187C/UG

TT-603/UG

photos

transmitter distributor (tape reader)
- low-level version of  TT-187

Model 28 Low Level Transmitter Distributor Set (Miniature Size).
Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 50 and 74.2 baud.

7.42 unit code, 60 Hz, 115VAC.

Includes MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature.


Teletype 28LXD

photos

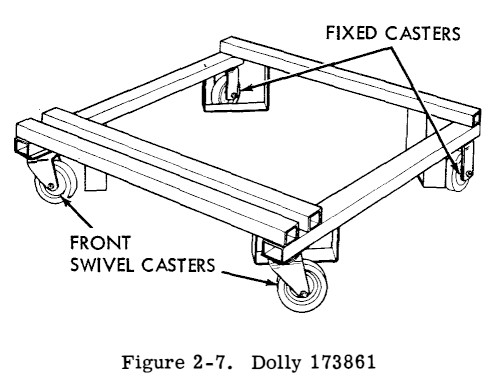

MISCELLANEOUS

TT-71/UG


printer-projector

Consists of a single unit which contains two TTY units and the optical projection system and illumination source. One of the TTY units is a M15 page-printing teletypewriter. This unit is supported within the cabinet by the projector frame which also holds the optical assembly. The other TTY unit is a M14 type-bar tape printer. The page-printer TTY produces typewritten messages, in successive lines, upon a transparent web, from which the message is projected upon a screen, 3' wide by 2' high. The tape-printer TTY typewrites the message upon a continuous strip of paper tape for reference purposes.

used for conferences and carrier briefing room - 1942 contract calls for installation aboard CV-31 through CV-40

Also used aboard Amphibious Assault Command Ships - TT-71 in use aboard USS Estes in WW2


Manual

In this video of the dedication of the Navy's Jim Creek transmitter site you can see the TT-71 screen/base briefly at 0:33 and a message printing on it starting at 0:40


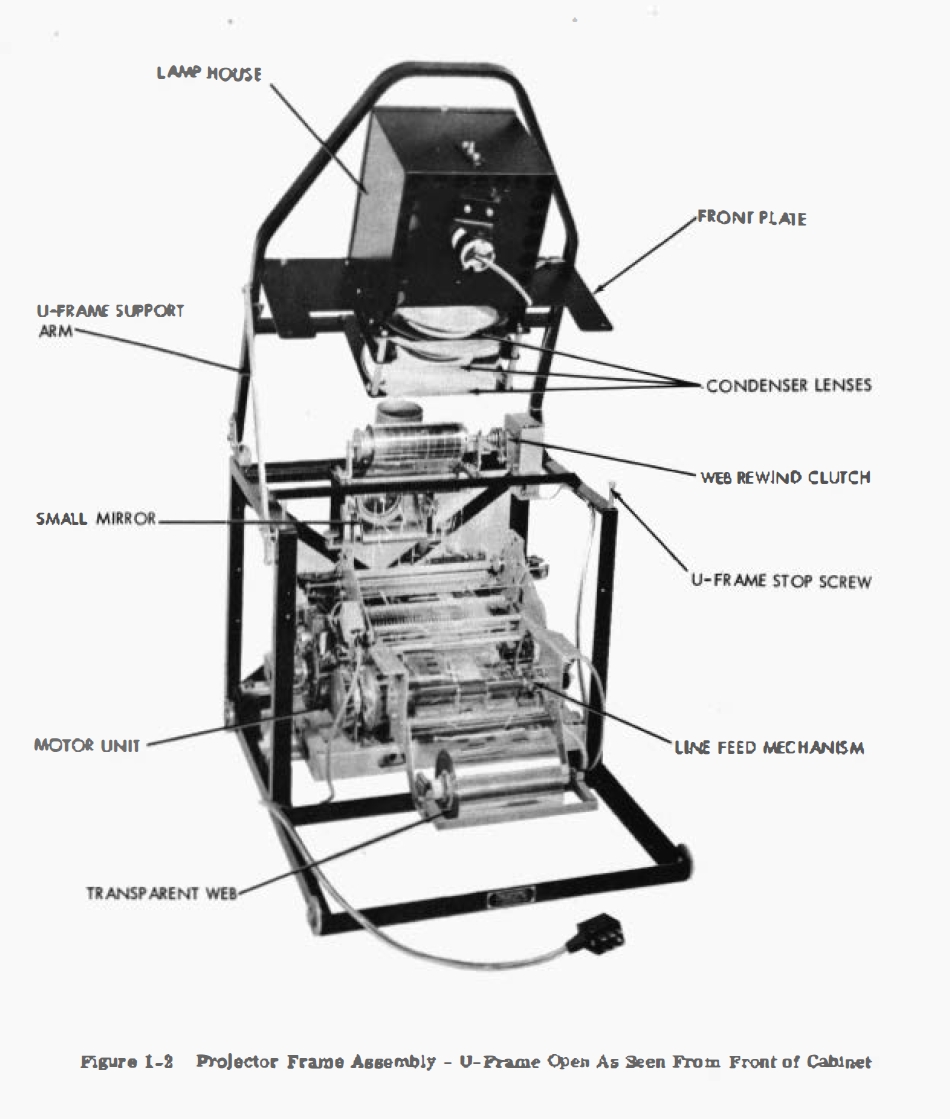

AN/UGR-1
AN/UGR-1A
TT-262/UG

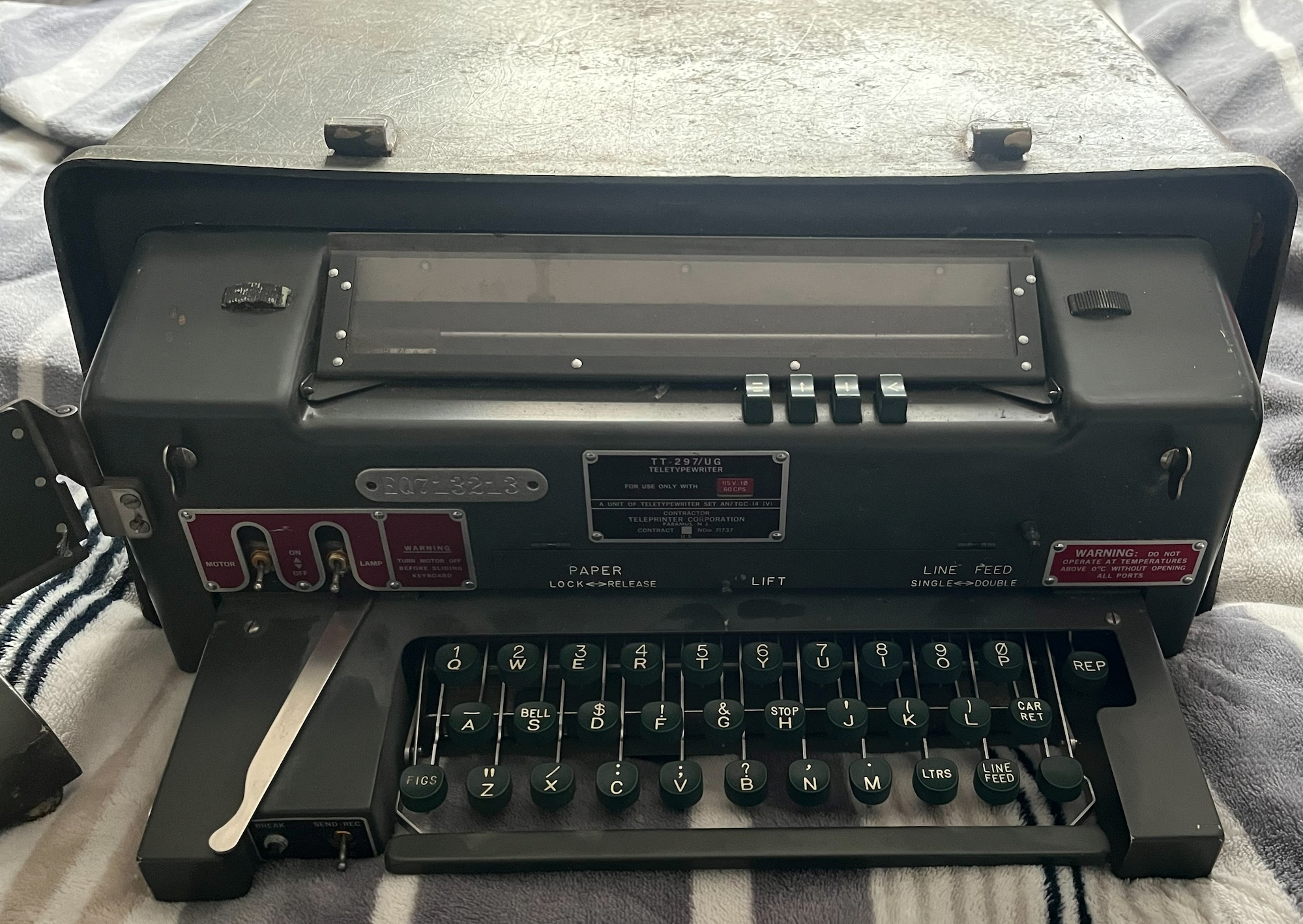

TT-287/GPA-73


Projector like TT-71 but with Model 28 typing mechanism

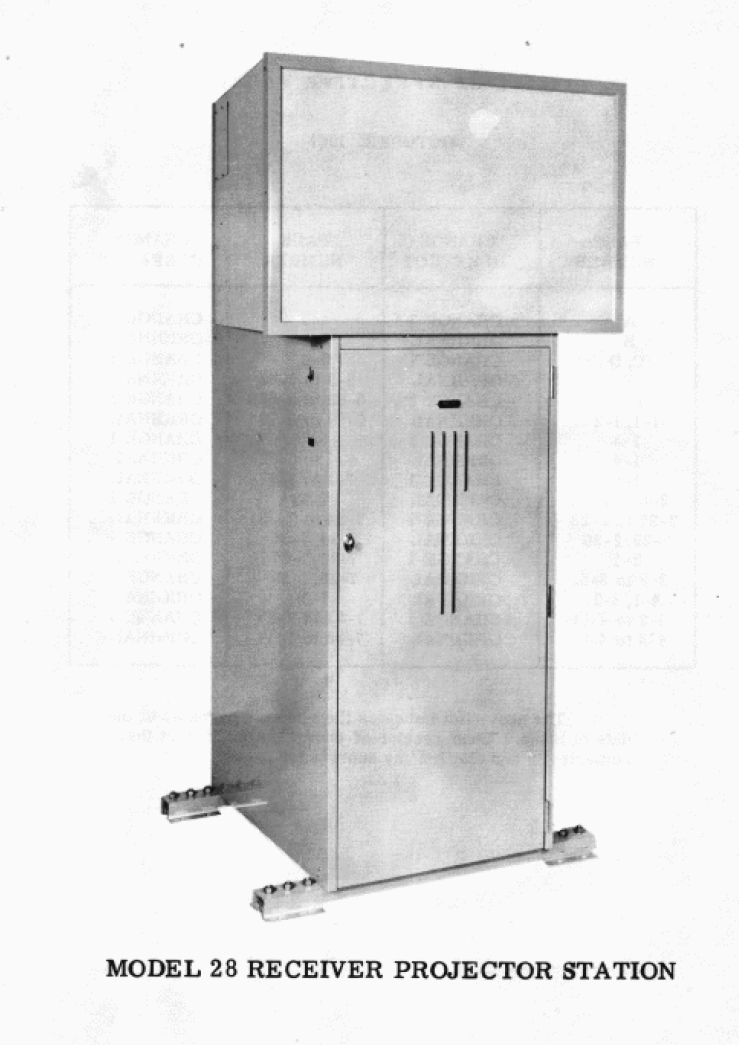

AN/UGR-1 - Model 28 Receive-Only Page Printer Projector Set. Consists of floor cabinet, friction feed typing unit, tape printer, 2 synchronous motors, screen, mirror, lamp, and gears for 45.5, 50 and 74.2 baud operation. 7.42 unit code, 60 Hz, 115VAC. Includes communication symbol arrangement.

AN/UGR-1A - Same as AN/UGR-1 except includes automatic carriage return and line feed, and automatic line feed with carriage return.


TT-262/UG - same as AN/UGR-1 except no tape printer.

TT-287/GPA-73 - same as TT-262/UG except  with series governed motor

TT-268/UG

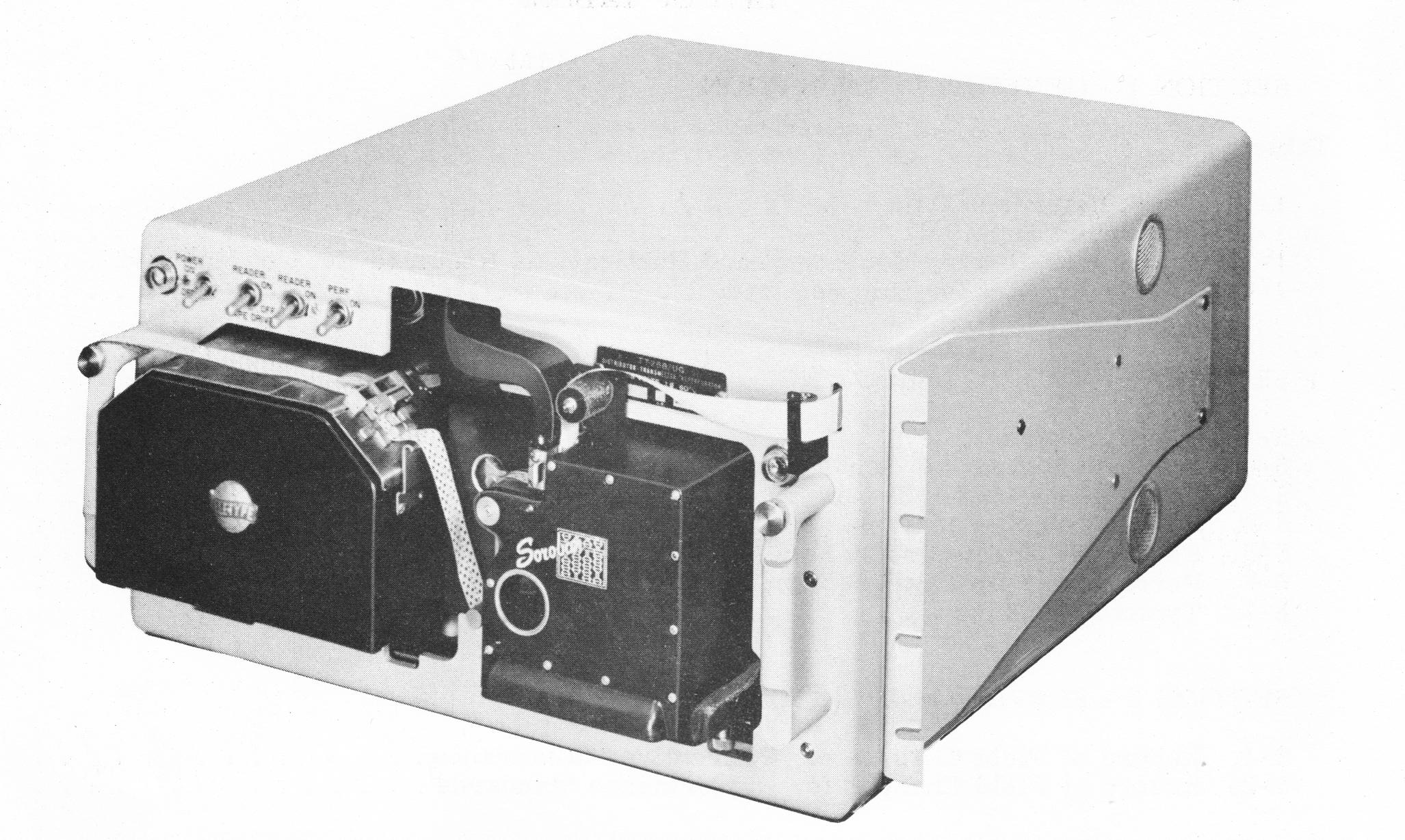

Super-speed reperf (2400 wpm)
+ TT-187/UG TD


manuf Sylvania
    Soroban (reperf)
    Teletype (TD)

Used for RATT intercept

NAVSHIPS 93454
download 9 MB pdf

MK-810/UG

Gearshift installed in 28ASR - Thanks to Ralph Irish for photos

gearshift mod kit for Model 28



instructions
thanks to Randy Guttery

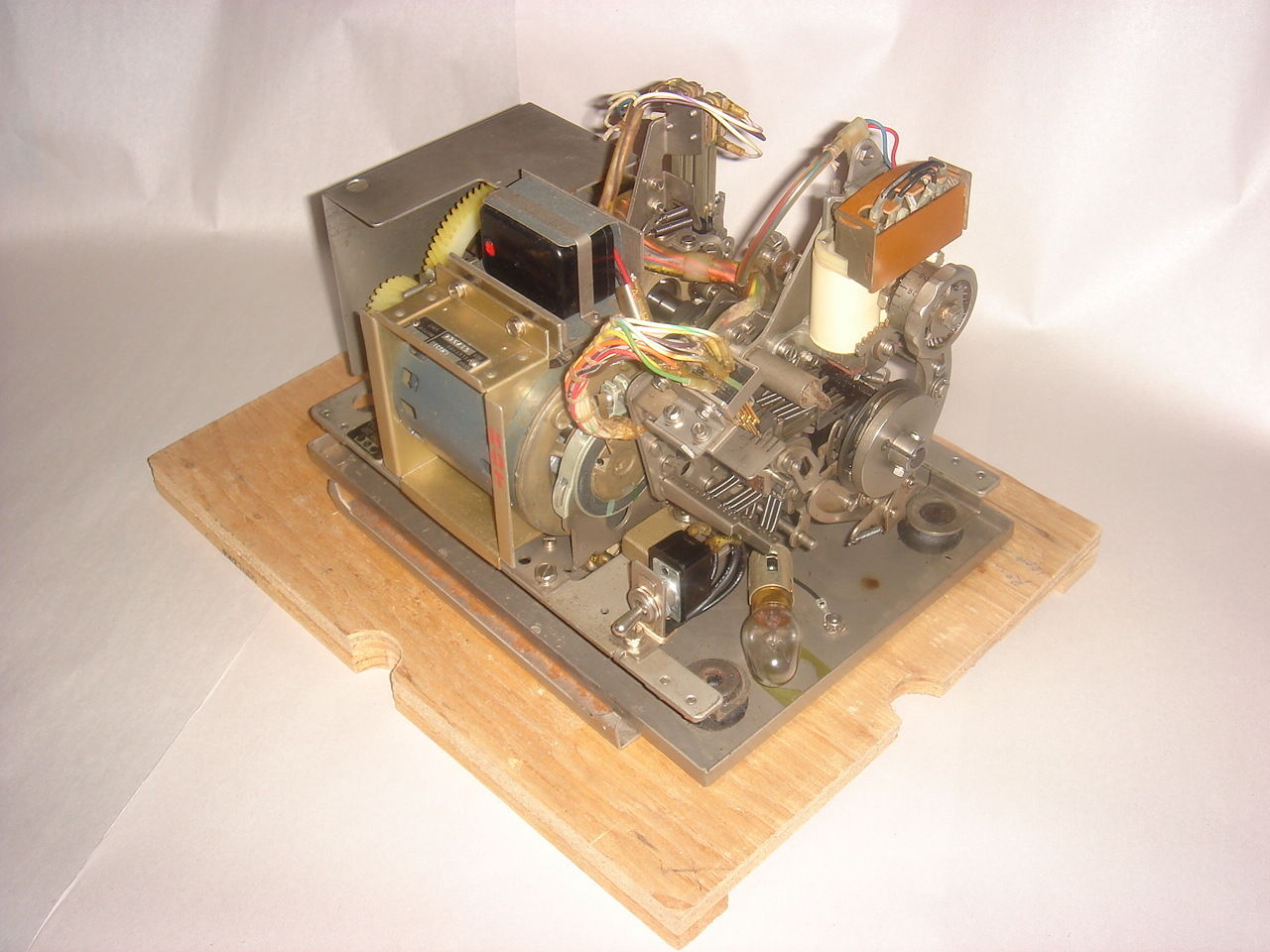

LRS Receiving Selector

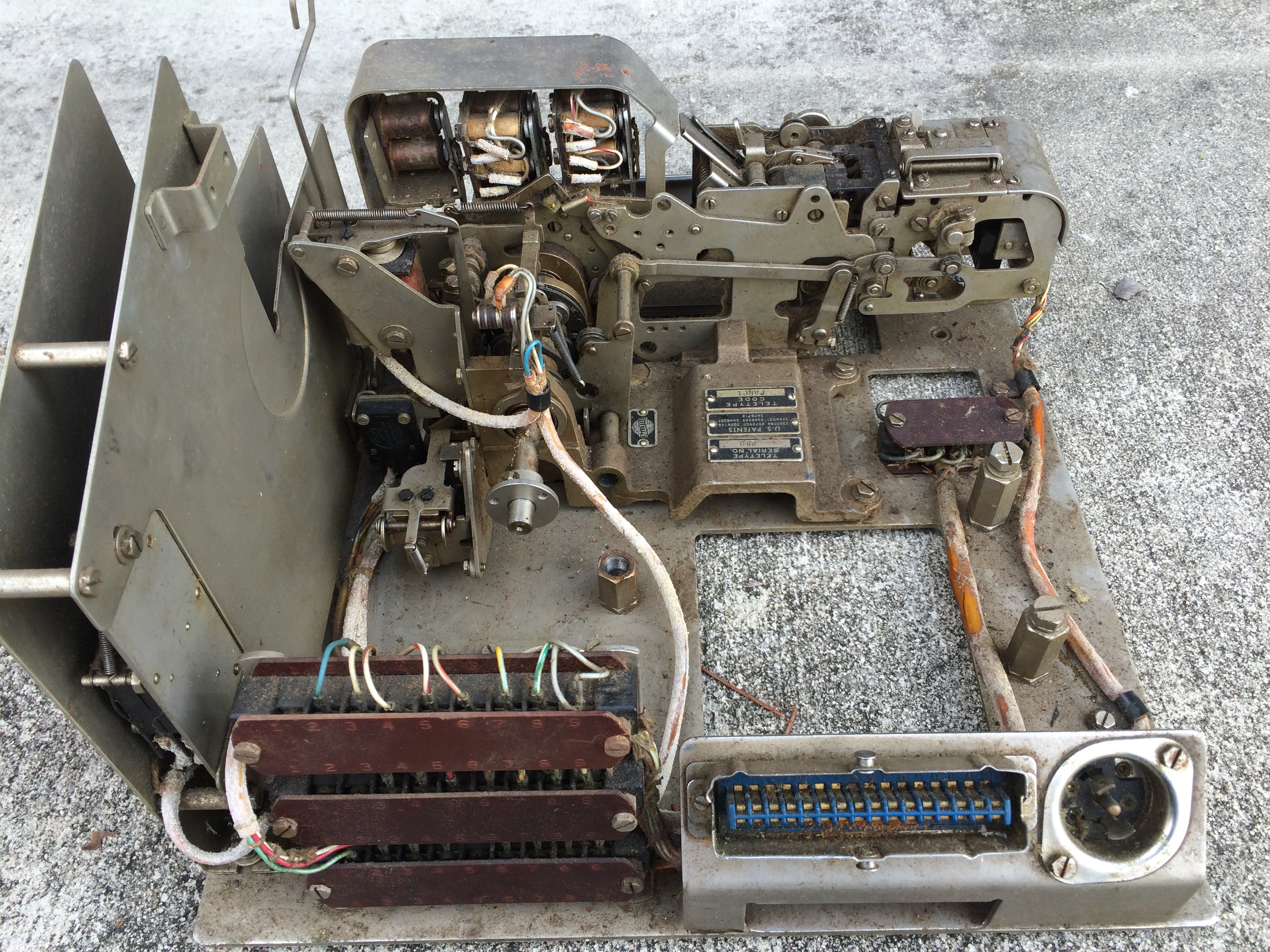

LARP Multi-magnet Reperforator
Sequential Selector - Info and Photos

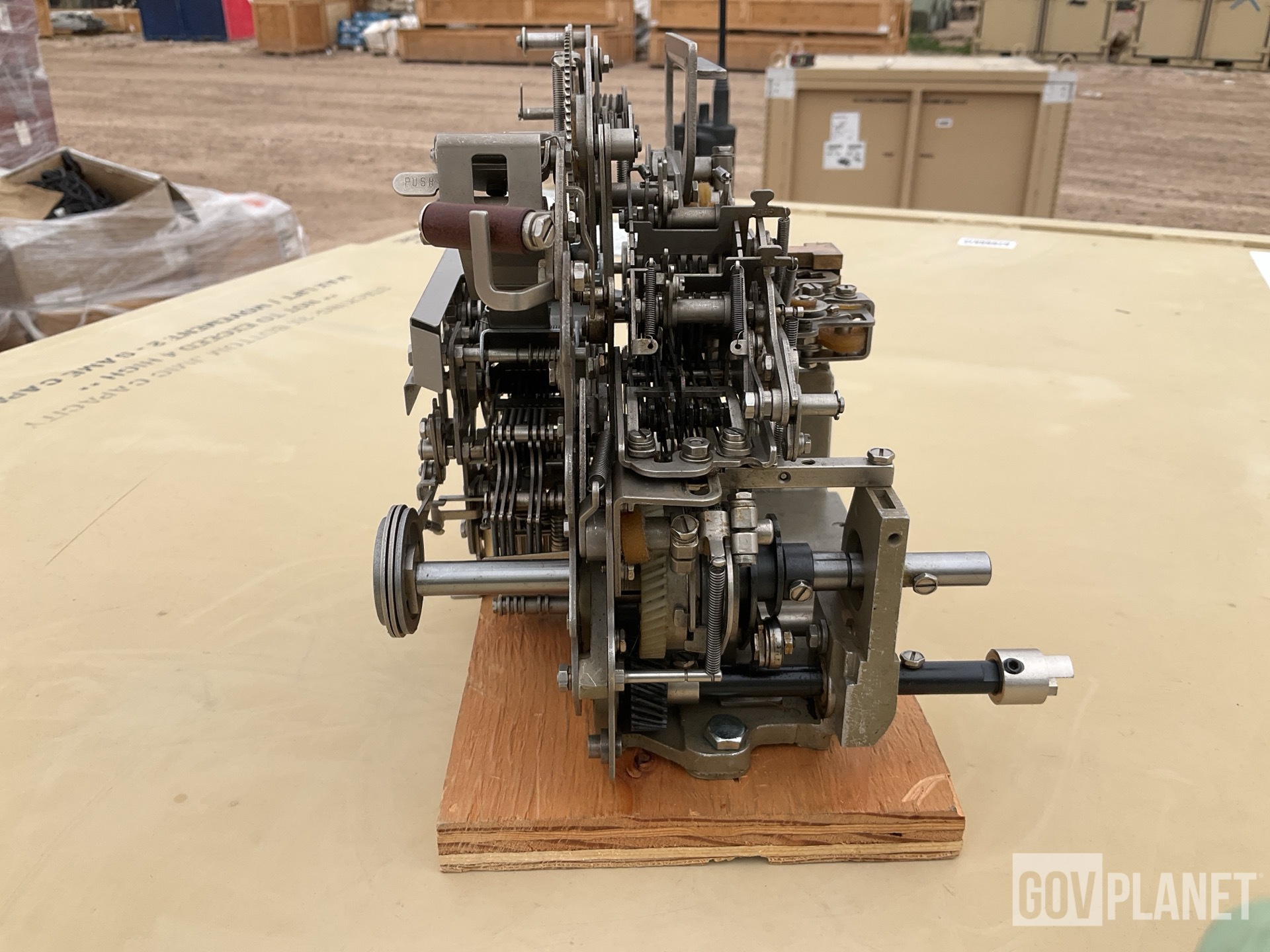

Model 28 Tape-to-Page Printer

For off-line printing

28-td-lp-01.jpg (4499671 bytes) Please send me e-mail if you have any info on this device ==

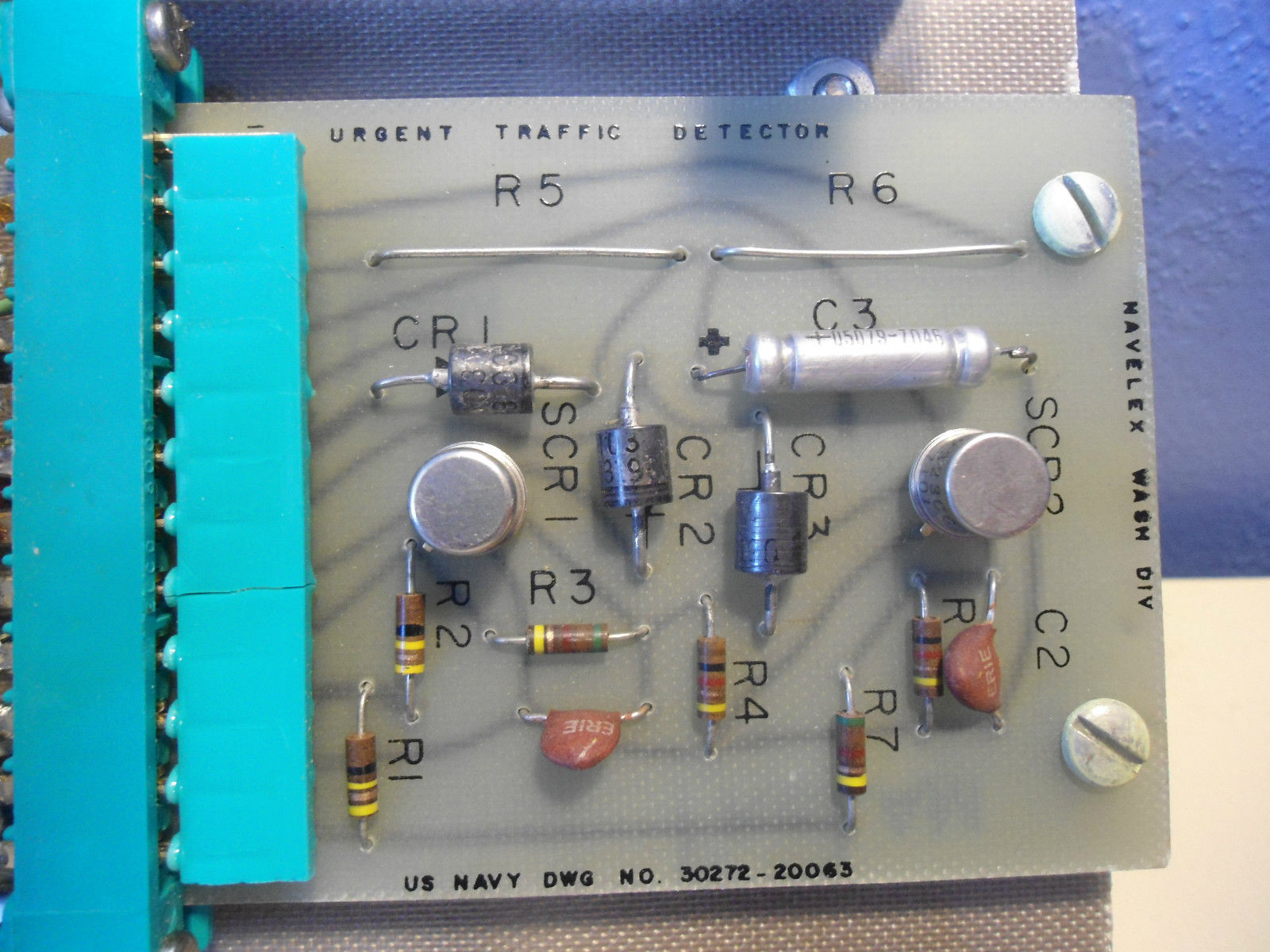

NAVELEX Urgent Traffic Detector
tty-bell-urgent-02.jpg (274766 bytes) tty-bell-urgent-03.jpg (301921 bytes) Please send me e-mail if you have any info on this device

LOW-LEVEL SIGNALING - Moved to the Teletype/TEMPEST page


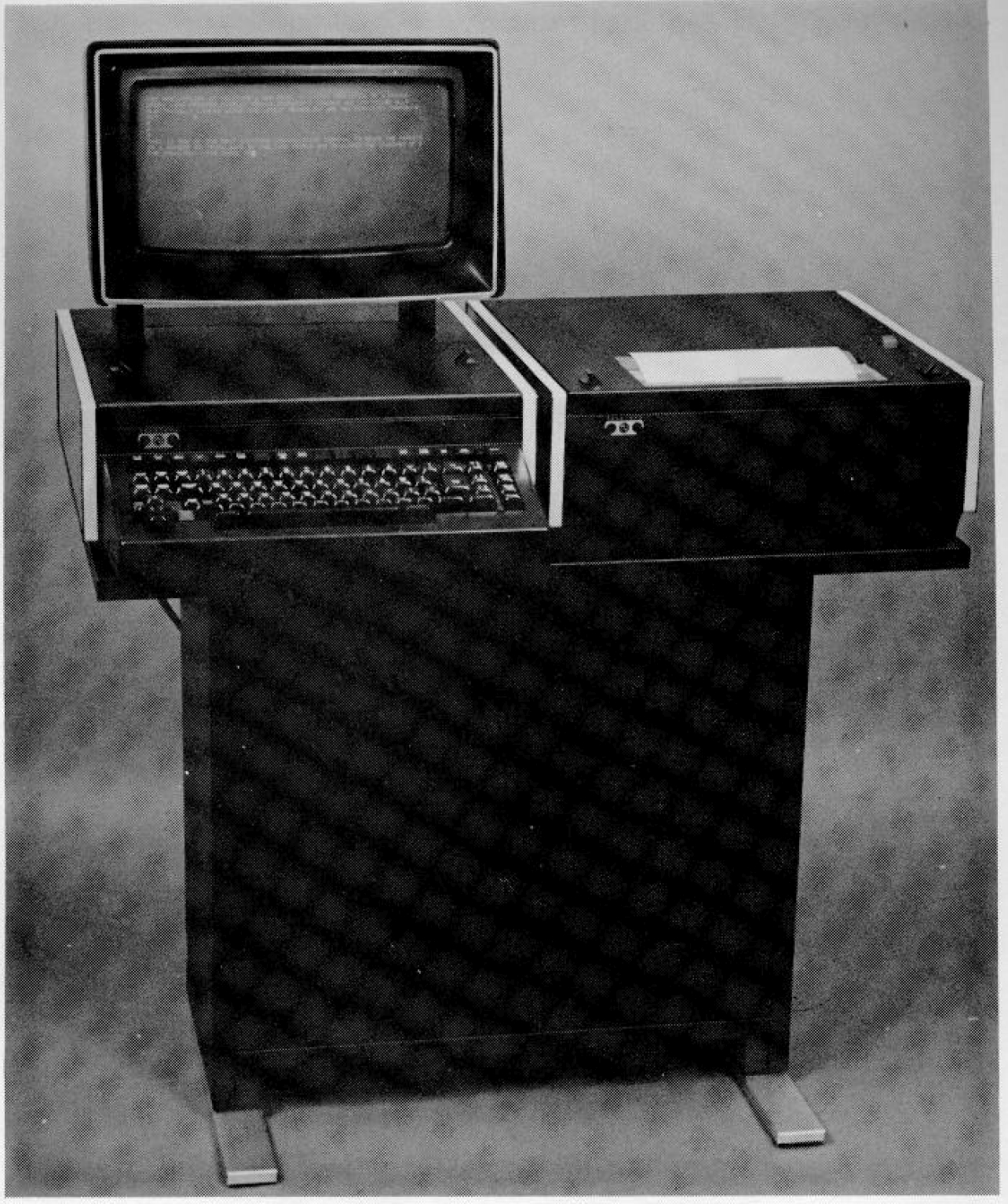

Brief Info on Typical 1980's Equipment - also see Teletype Model 40 page

AN/UGC-77 Teletypewriter. The AN/UGC-77 is a militarized U.S. Navy standard teletypewriter that can be portable or fixed. The unit has a standard communications keyboard, 72 characters per line, friction-feed, synchronous motor, and a 7.42-unit code. Message traffic and operator notes are transmitted and received serially by means of a five-level binary permutation code. The AN/UGC-77 operates at 100 words per minute, weighs 59 pounds, and is 10 inches high, 16.5 inches wide, and 16 inches deep. Line voltage requirements are 115 V ac, single phase, 60 Hz. AN/UGC-91 is the weather symbols version,
AN/UGC-136 Teletypewriter. The AN/UGC-136 teletypewriter is a militarized, low-level, automatic send and receive teleprinter. It has storage, editing, and self-test capabilities. The AN/UGC-136 is controlled by a microprocessor with an internal solid-state memory and has full message composition and editing capabilities. It prints data nominally at 120 characters per second (1200 bps), can transmit or receive at data rates of 50 to 2400 bps, and can operate in switch-selectable Baudot or ASCII codes. The message storage module has a capacity of 12,288 characters. The AN/UGC-136CX is installed onboard submarines and the AN/UGC-136BX is installed on surface platforms. The primary difference between the AN/UGC-136CX and the AN/UGC-136BX is the AN/UGC-136BX has an LED display incorporated on the front panel to allow viewing of text for editing purposes when typed. The keyboard printer weighs approximately 59 pounds, is 8.5 inches high, 15.75 inches wide, and 17.4 inches deep. The power requirements are 115 V ac, 60 Hz, and 100 watts.
     The AN/UGC-136CX is a ruggedized send-and-receive teleprinter, controlled by a microprocessor with an internal solid state memory, and full-message composition and editing capabilities; it prints data at a nominal 120 characters per second (1200 bps). It can transmit or receive at data rates from 50 to 9600 bps to or from the message storage memory, and can operate in switch-selectable Baudot or ASCII codes. The storage capacity of 64 messages or 256K random access memory (RAM), permits the short-term storage of received messages while the operator simultaneously composes and stores outgoing messages for transmission. Multiple communication ports also provide a bulk-storage device compatibility. -  Info Page

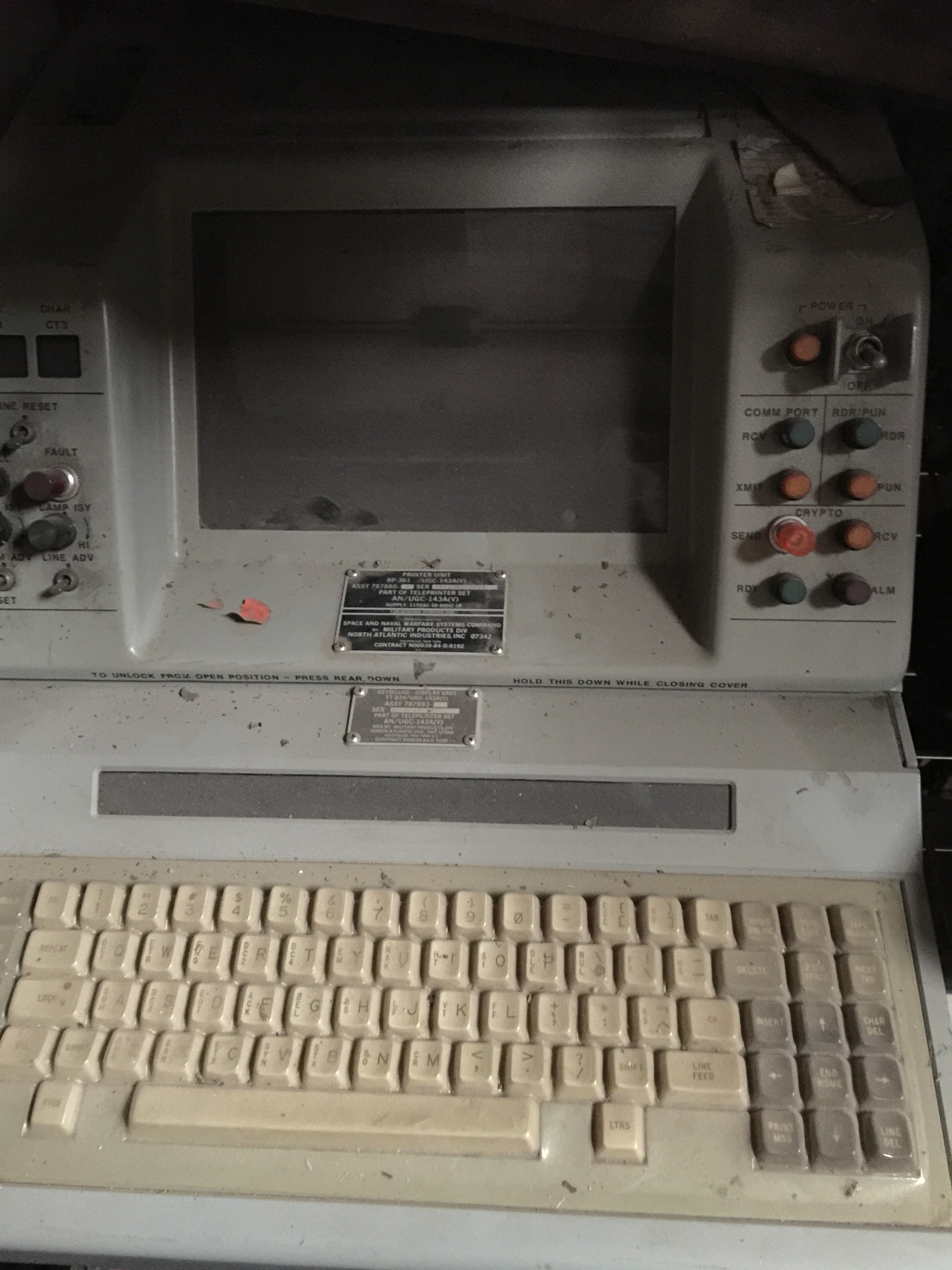

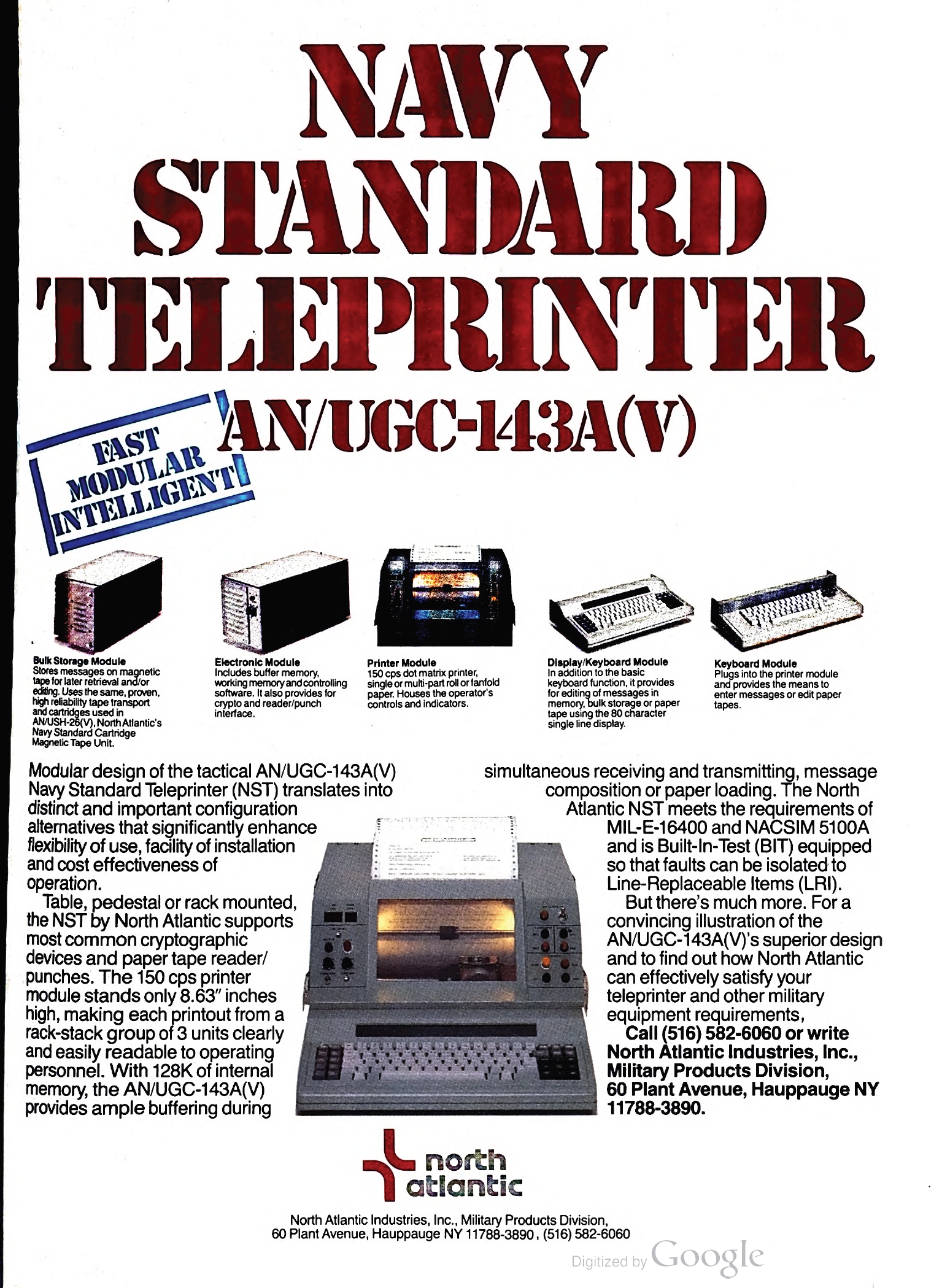

AN/UGC-143(V) Teletypewriter. The AN/UGC-143(V) U.S. Navy Standard Teletypewriter (NST) is a fully militarized unit. It features a modular design providing the compatibility for several different configurations: receive only with or without bulk storage; send/receive without bulk storage using the keyboard; or send/receive automatically with bulk storage. It prints 150 characters per second, ten characters per inch, six lines per inch and is capable of storing 500 kilobytes (250 messages, 2 kilobytes each). The power requirements are 115 V ac, 47-63 Hz, 440 watts, single phase. It weighs 180 pounds.
    The NST is a militarized unit, has an automatic send/receive (ASR) configuration, and is normally employed in shipboard applications. The NST consists of an electronic unit, printer unit, keyboard/display unit, and bulk storage unit. The NST’s modular design makes it useable in several different configurations, including receive only (with or without bulk storage), send and receive without bulk storage using the keyboard, or send and receive automatically with bulk storage. It is capable of operation in several different modes, including simplex, HDX, FDX, asynchronous, synchronous, Baudot, and ASCII. The NST throughput is 126 characters per second based on 80-character lines, including single-line advances. It line prints data at nominally 180 characters per second. It can transmit or receive data rates from 45.5 to 2400 bps Baudot and 45.5 to 9600 bps ASCII. The various configurations provide for information preparation, editing, printing, receiving serial data, buffering of information in volatile memory, and information storage (archiving).

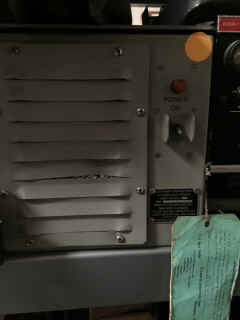

ugc143a-ad-1988.jpg (1639677 bytes) ugc143-1711-01.jpg (1446900 bytes) ugc143-1711-02.jpg (1392819 bytes) mug-ugc143-2212.jpg (134835 bytes)

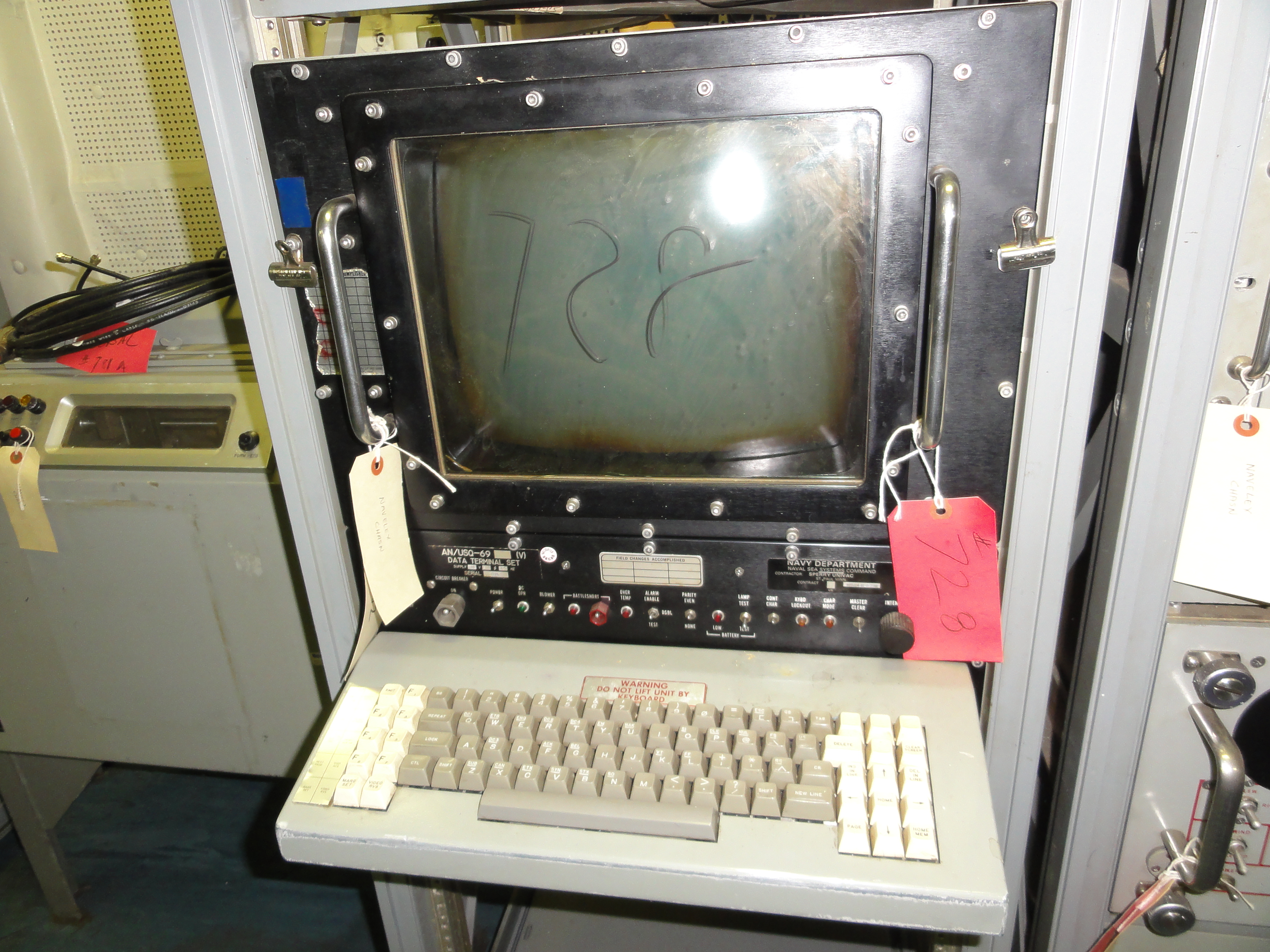

AN/USQ-69(V) Data Terminal Set (DTS) - technical description - a general-purpose alphanumeric computer keyboard and cathode ray tube (CRT) I/O display device used in the NAVMACS message processing system. It is a central component of the OL-267(V)/UYK Data Terminal Group (DTG). The CRT Display has a 15-inch diagonal screen with a 12-inch diagonal viewing area. Each page has a 2,000-character screen capacity with 25 lines of 80 characters. Its display memory has a one-minute data protection capability during a power loss and can store up to 2,000 words per memory page. The keyboard has eight special-function keys and 12 editing and cursor control keys. The DTS weighs about 150 pounds and measures 20 x 19 x 27 inches, including a seven-inch deep keyboard assembly. DSC02143.JPG (4279800 bytes) DSCN0119.JPG (5238632 bytes)

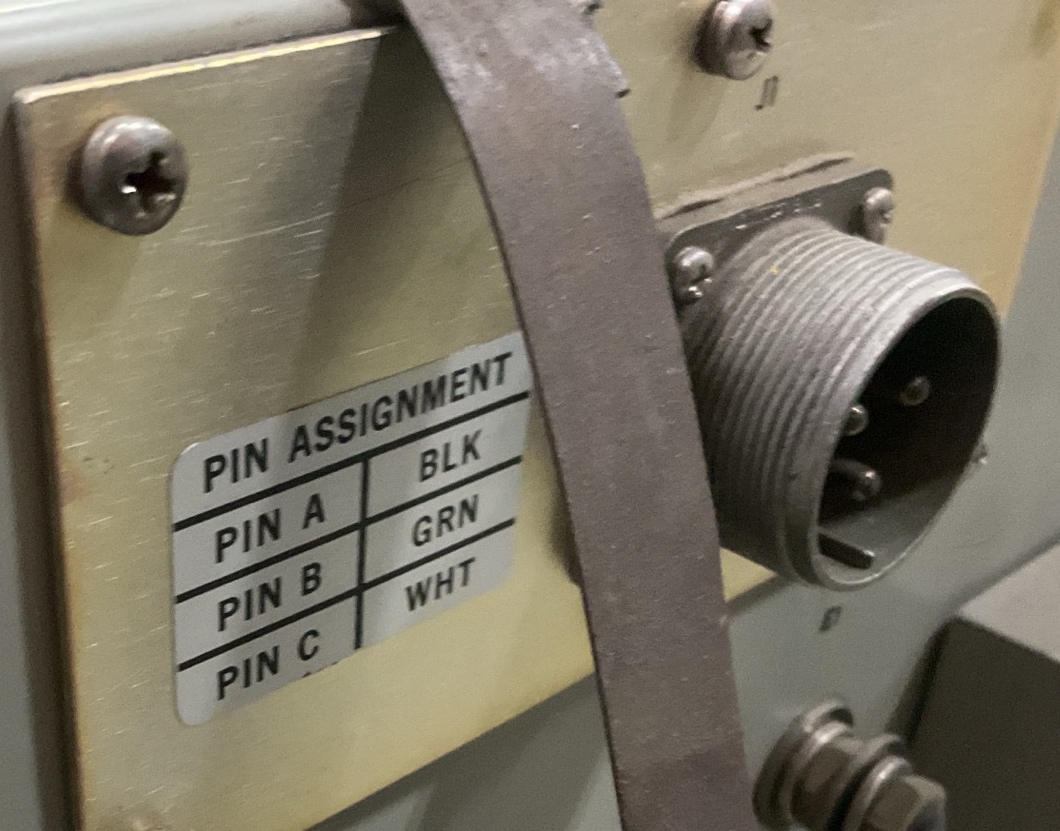

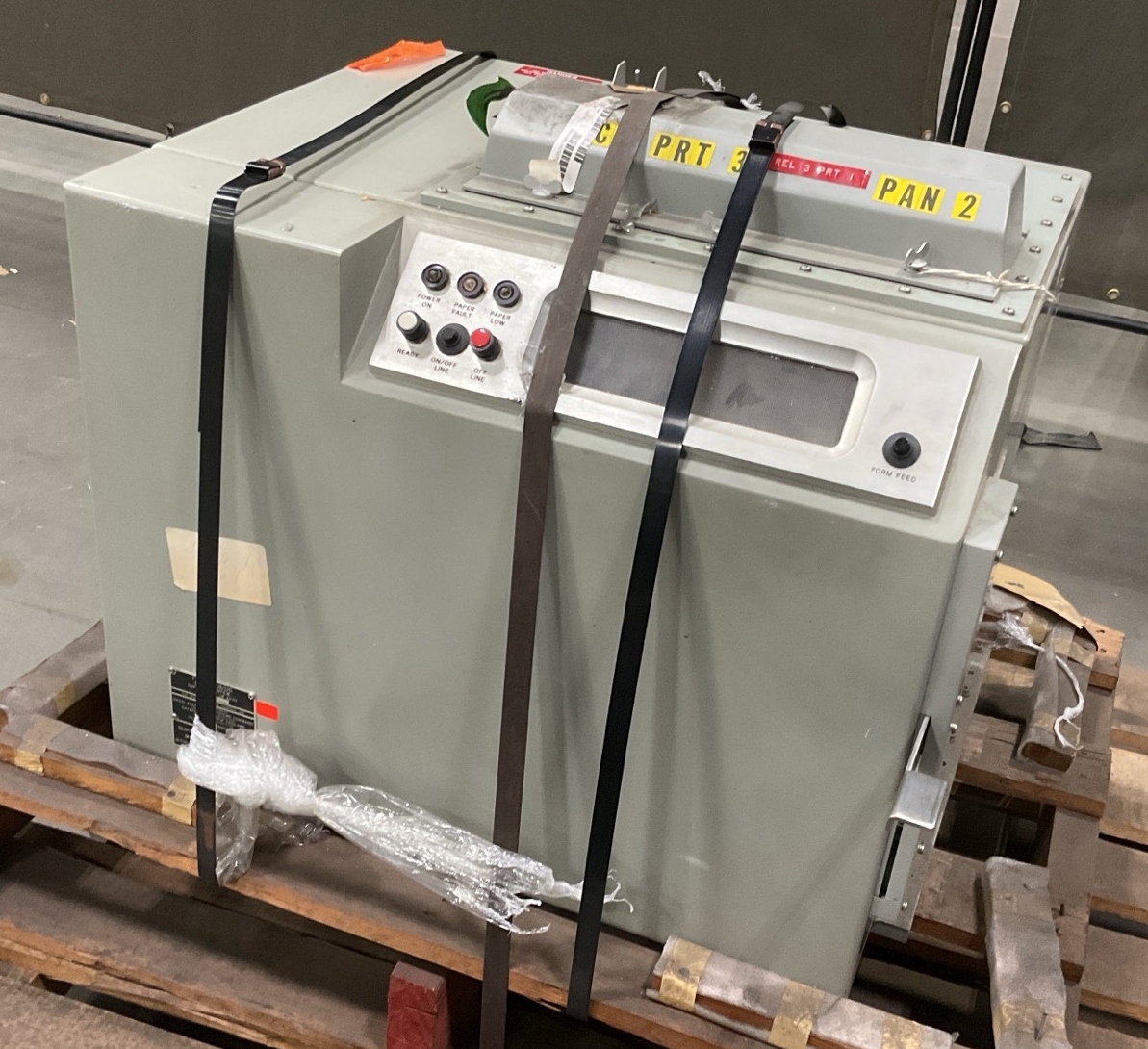

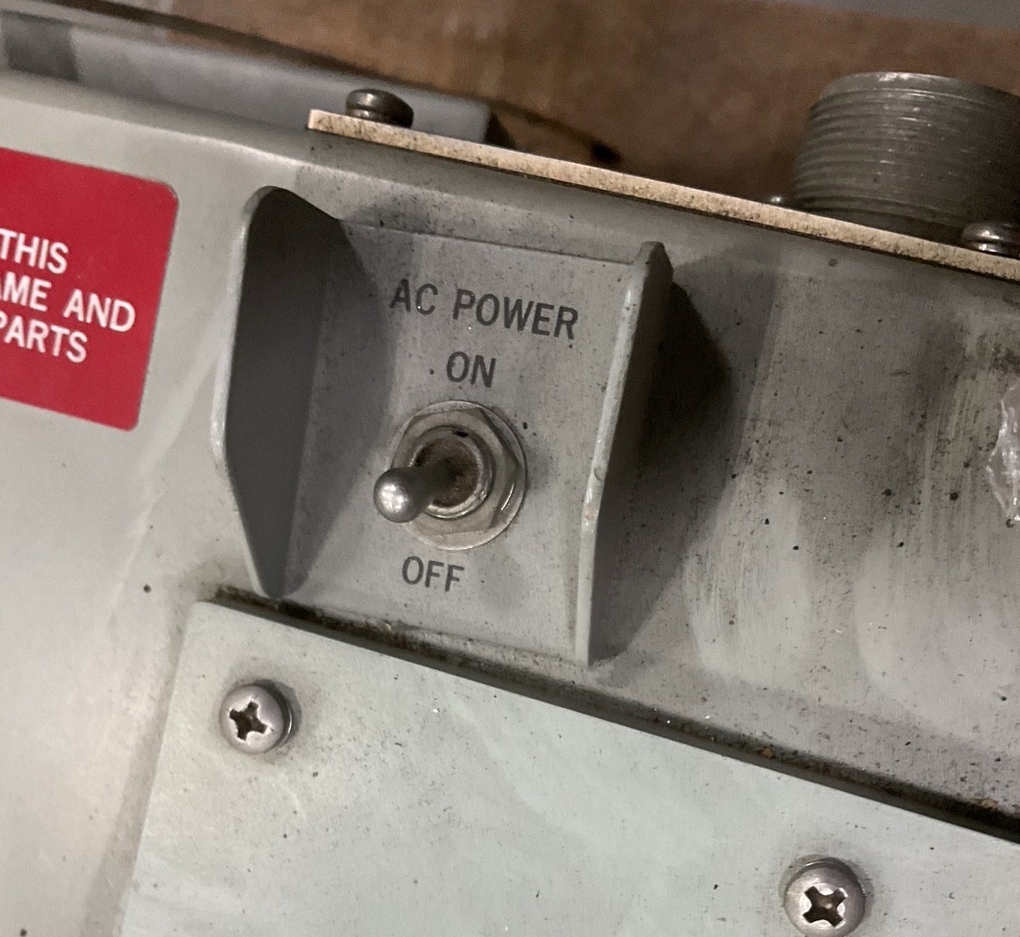

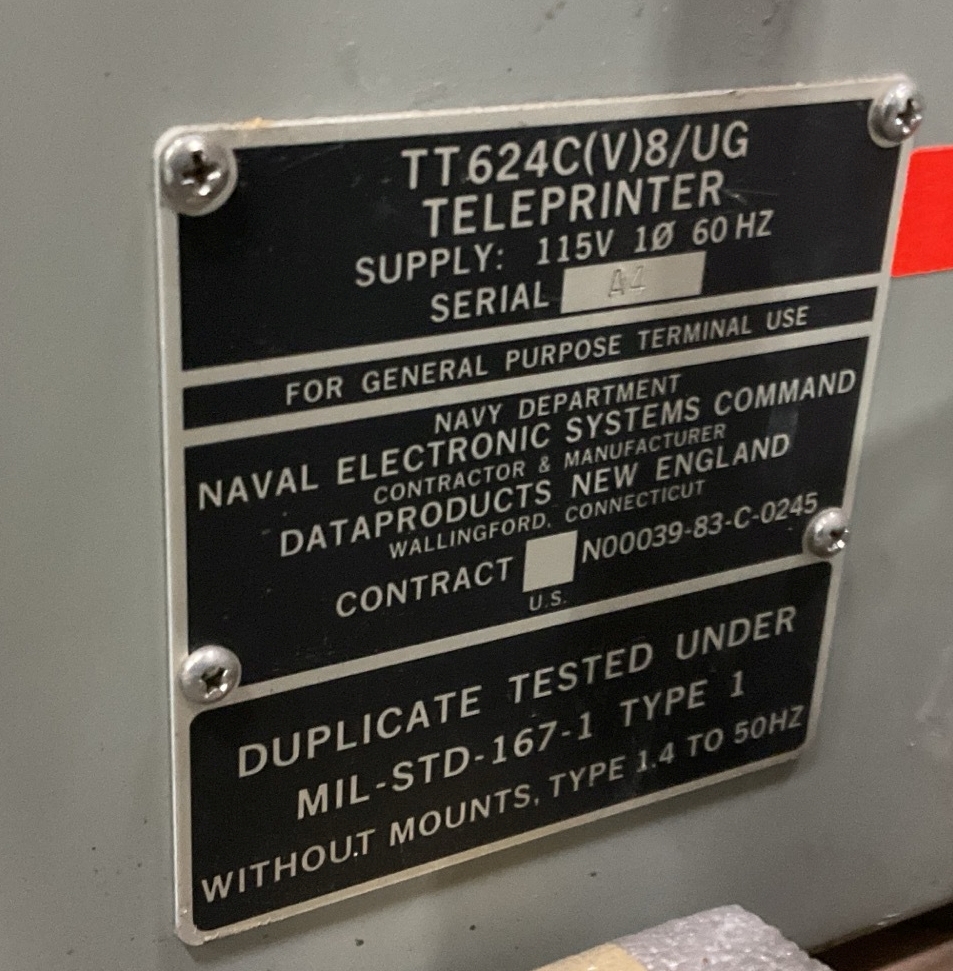

TT-624(V)5/UG or TT-624(V)6/UG Teleprinter. This teleprinter is used at CUDIXS, NAVMACS and TACINTEL installations. It may be used on-line with the AN/UYK-20 processor or off-line with tape readers, card equipment, and communications terminals. The device has a 64-character set capable of printing at speeds ranging from 365 lines per minute for 80 columns, to 1,100 lines per minute for 20 columns. It can print up to three additional copies using roll paper and five additional copies using fan-fold paper. The TT-624(V)5/UG is an ITA-2 Baudot printer with a serial MILSTD-188C interface; the TT-624(V)6/UG is an ASCII printer with an U.S. Navy Tactical Data System slow parallel interface. It weighs 270 pounds and requires 115 V ac, 60 Hz, single phase power.
TT-835/U System Console. The TT-835/U is a microprocessor-based teletypewriter communications terminal. It is used for system initialization, backup and recovery operations, and provides a record of SSIXS II shore system response and alerts. The keyboard provides man/machine interface for operator control of the SSIXS II shore operational program. The operator can enter parameters when conducting diagnostic or programmed maintenance testing.
RO-600/U Line Printer. The RO-600/U is a microprocessor-based receive-only printer. It is connected to the on-line AN/FYK-29 and is used to print incoming or outgoing messages and system reports. This device is employed in SSIXS II installations.

More TTY links

TTY manuals - Navy manuals and Teletype Corp. manuals


Be patient and check back often - this project is just getting started!
Last updated 09/05/2024
